COMP ACT VHS CAMCORDER

GR-AXM700

Compa ct VHS

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which is located on the bottom of cabinet. Retain this information for future reference.

Model No.

Serial No.

LYT0054-001B

2 EN

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new camcorder.

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents (墌 pg. 8, 9).

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to the Index (墌 pgs. 74 – 79) and

familiarize yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions and Safety

Instructions that follow. They contain extremely important information regarding the safe use of your new camcorder.

You are recommended to carefully read the cautions on pages 83 – 85 before use.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NO USER-SERVICEABLE PARTS INSIDE.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Warning on lithium battery

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace the battery with Maxell, Panasonic (Matsushita Electric), Sanyo or Sony CR2025; use of another battery may present a risk of fire or explosion.

䡲 Dispose of used battery promptly. 䡲 Keep away from children. 䡲 Do not disassemble and do not dispose of in fire.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

This Class B digital apparatus meets all requirements of the Canadian Interference – Causing Equipment Regulations.

“Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.”

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The AA-V15U AC Po wer Adapter/Charger should be used with: AC 120 V`, 60 Hz in the USA and Canada, AC 110 – 240 V`, 50/60 Hz in other countries.

CAUTION (applies to the AA-V15U)

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION (s’applique à l’AA-V15U)

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

This camcorder is designed to be used with NTSCtype color television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere. Use the BN-V11U/V12U/V22U/V25U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

ATTENTION:

The product that you have purchased is powered by a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this manual for future reference.

INSTALLATION

1. Grounding or Polarization

(A)Your product may be equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire

grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

EN 3

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

•Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

•Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

4 EN

USE

1. Accessories

To avoid personal injury:

•Do not place this product on an unstable cart, stand, tripod, bracket or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

•Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

•Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

•Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

PORTABLE CART WARNING (Symbol provided by RETAC)

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen

into the product.

c. If the product has been exposed to rain or water. d. If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in

any way.

f. When the product exhibits a distinct change in

performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

MAJOR FEA TURES

EN 5

REMEMBER

The Logical Choice

The only compact video

cassettes that can be

used with your VHS VCR*

Program AE with Special Effects (

䡲 Auto Mode Lock 䡲 Auto Mode Release 䡲 Electronic Fog Filter 䡲 ND Effect 䡲 Sepia 䡲 Twilight 䡲 Sports 䡲 Nega/Posi 䡲 1/2000 sec. High Speed Shutter

墌 pg. 28, 29)

Program Manager II (墌 pg. 28 – 41)

Program AE with Special Effects, Fade/Wipe, Wide, Super LoLux, Instant Title, Menu Adjustment (Focus, Exposure Control and so on.)

Digital Still Camera Built-in (PC communication capable) (

墌 pg. 48 – 63)

Integrated Auto Light (

墌 pg. 25)

Picture Stabilizer (墌 pg. 23)

LCD Color Monitor (墌 pg. 20)

180°

Cassettes marked can be used with this camcorder.

90°

Digital Hyper Zoom (

墌 pg. 22)

Zoom-in

Zoom-out

6 EN

QUICK OPERA TION GUIDE (VIDEO)

SUPPLY POWER

Hook on.

Push in.

BATT. RELEASE

Using the battery pack

Hook-on the battery pack’s top end to the

camcorder. (Charging procedure, 墌 pg. 10)

2 Push in the battery pack until it locks into

place.

To remove the battery pack

Slide BATT. RELEASE and pull out the battery pack.

PLAYBACK

STOP

REW

Set to “VIDEO”

PLAY/PAUSE

Set to “PLAY”

1 Set the System Select Switch to “VIDEO”. 2 Set the Power Switch to “PLAY”. 3 Press REW.

— The tape will automatically stop at the

beginning of the tape.

4 Press PLAY/PAUSE.

— Playback starts and the playback picture

appears.

•T o stop playback, press STOP. (For more details, 墌 pg. 42.)

•The viewfinder switches off automatically to save power when the LCD monitor is opened at an angle of over 45 degrees.

•The LCD monitor turns on/off when it is opened/closed at approx. 45 degrees.

Or simply play back the tape on a VHS VCR using the Cassette Adapter (VHS Playpak).

墌 pg. 45

INSERTING A VIDEO CASSETTE

PUSH

1 Open the LCD monitor to an angle of over

45 degrees.

2 Press EJECT to open the cassette holder. 3 Insert a video cassette. 4 Press PUSH to close the cassette holder.

(For more details, 墌 pg. 17)

EJECT

Open

SHOOTING

LENS COVER

Set to “VIDEO”

Set to “CAMERA”

1 Slide the LENS COVER Open/Close Switch

to open the lens cover.

2 Set the System Select Switch to “VIDEO”. 3 Set the Power Switch to “CAMERA”.

— The power indicator will light and an

image will appear.

4 Press the Recording Start/Stop Button.

— Recording starts.

•To stop recording temporarily, momentarily press the Recording Start/Stop Button once again. (For more details, 墌 pgs. 18 – 21)

•The viewfinder switches off automatically to save power when the LCD monitor is opened at an angle of over 45 degrees.

•The LCD monitor turns on/off when it is opened/closed at approx. 45 degrees.

Open/Close Switch

Recording Start/Stop Button

QUICK OPERA TION GUIDE (D .S.C.)

EN 7

SUPPLY POWER

Hook on.

Push in.

BATT. RELEASE

Using the battery pack

Hook-on the battery pack’s top end to the

camcorder. (Charging procedure, 墌 pg. 10)

2 Push in the battery pack until it locks into

place.

To remove the battery pack

Slide BATT. RELEASE and pull out the battery pack.

PLAYBACK

Page Button

Power Switch Set to “PLAY”

System Select Switch

Set to “D.S.C.”

SHOOTING

SNAPSHOT Button

LENS COVER Open/Close

Power Switch Set to “CAMERA”

System Select Switch Set to “D.S.C.”

1 Slide the LENS COVER Open/Close Switch

to open the lens cover.

2 Set the System Select Switch to “D.S.C.”. 3 Set the Power Switch to “CAMERA”.

— The power indicator will light and an

image will appear.

4 Press the SNAPSHOT Button.

— A still image is shot and is stored in the

camcorder’s memory.

(For more details, 墌 pg. 48)

•The viewfinder switches off automatically to save power when the LCD monitor is opened at an angle of over 45 degrees.

•The LCD monitor turns on/off when it is opened/closed at approx. 45 degrees.

Switch

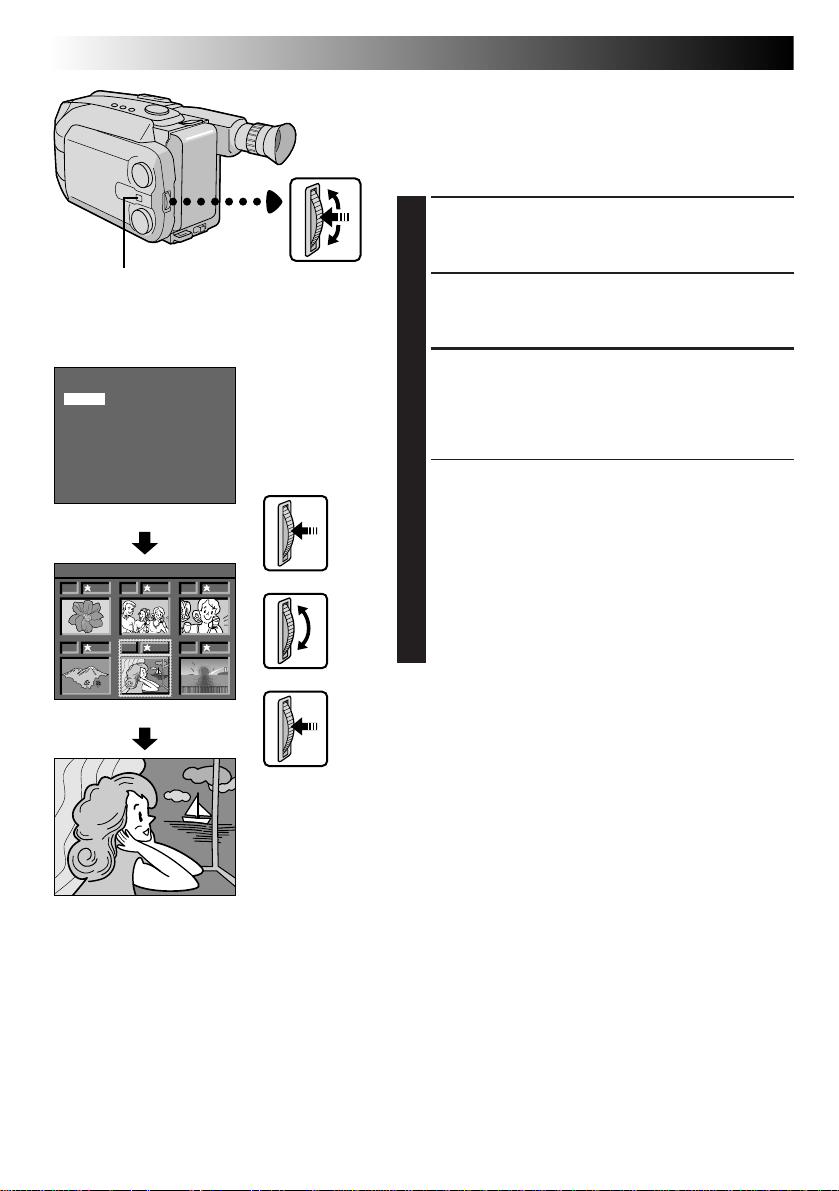

1 Set the System Select Switch to “D.S.C.”. 2 Set the Power Switch to “PLAY”.

— A still image stored in memory appears.

3 Press “W” or “T” of the Page Button to select

the still image you want to view.

(For more details, 墌 pg. 55.)

•The viewfinder switches off automatically to save power when the LCD monitor is opened at an angle of over 45 degrees.

•The LCD monitor turns on/off when it is opened/closed at approx. 45 degrees.

8 EN

CONTENTS

GETTING STARTED

Power ..................................................................................... 10

Clock (Lithium) Battery Insertion/Removal.......................................... 12

Date/Time Setting....................................................................... 13

Grip Adjustment ......................................................................... 14

Viewfinder Adjustment ................................................................. 14

Shoulder Strap Attachment............................................................. 15

Tripod Mounting.......................................................................... 15

Recording Mode Setting ................................................................ 16

Tape Length Setting ..................................................................... 16

Loading/Unloading A Cassette ........................................................ 17

VIDEO RECORDING

Basic Recording .......................................................................... 18

Basic Features............................................................................ 22

Advanced Features ...................................................................... 28

VIDEO PLAYBACK

Basic Playback ........................................................................... 42

Features................................................................................... 44

Using The Cassette Adapter............................................................ 45

BASIC CONNECTIONS TO VCR TAPE DUBBING DIGITAL STILL CAMERA (D.S.C.) SHOOTING

Basic Shooting............................................................................ 48

Advanced Features ...................................................................... 50

D.S.C. PLAYBACK

Basic Playback ........................................................................... 55

Advanced Features ...................................................................... 56

Connection ................................................................................ 63

USING REMOTE CONTROL UNIT

Random Assemble Editing .............................................................. 66

Insert Editing ............................................................................. 70

Audio Dubbing............................................................................ 72

46 47 48

USER MAINTENANCE

EN 9

INDEX

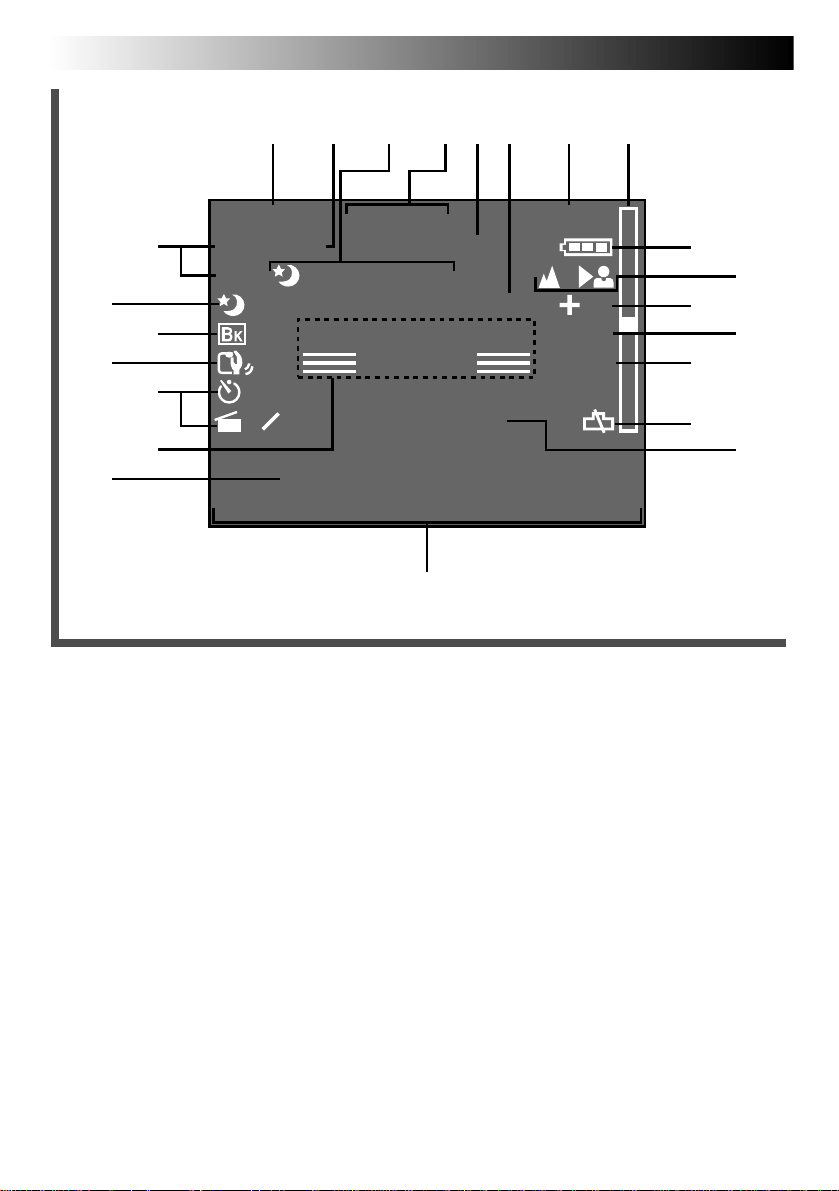

LCD monitor/Viewfinder Indications.................................................. 75

Controls ................................................................................... 76

Connectors ................................................................................ 76

Indicators ................................................................................. 76

Other Parts ............................................................................... 76

Terms ...................................................................................... 78

TROUBLESHOOTING CAUTIONS SPECIFICATIONS OPTIONAL ACCESSORIES ESPAÑOL FOR SERVICING (Only in U.S.A.) WARRANTY (Only in U.S.A.)

PROVIDED ACCESSORIES

80 83 86 86 87 90 91

•AC Power Adapter/ Charger AA-V15U

•Lithium Battery

•CD-ROM including two

•Cassette Adapter (VHS Playpak) C-P7U

CR2025 x 2 (for clock operation and remote control unit)

software programs

•Battery Pack BN-V11U

(for Macintosh®)

(for Windows®)

•PC Connection Cable x 2 •DC Cord

•Remote Control Unit RM-V705U

•Shoulder Strap

10 EN

CHG. (charge) indicator

REFRESH indicator

Marks

To AC outlet

REFRESH switch

GETTING ST AR TED

Power

This camcorder’s 3-way power supply system lets you choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

outlet.

REFRESH

The AC power adapter features a REFRESH function that allows you to fully discharge the battery pack before recharging. Perform the REFRESH function after no less than 5 chargings.

To discharge the battery . . .

.....attach the battery pack to the adapter

as shown in the above illustration. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete.

Hook on.

Push in.

BATT. RELEASE

ATTENTION:

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place.

•The CHG. indicator begins blinking to indicate charging has started.

DETACH BATTERY PACK

When the CHG. indicator stops blinking but stays lit,

charging is finished. Slide the battery pack opposite the direction of the arrow.

BATT. PACK

BN-V11U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs. BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

CHARGE DISCHARGE

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

Approximate recording time (unit: min.)

BATT. monitor on/ monitor off/ monitor on/ PACK Viewfinder off Viewfinder on Viewfinder on

BN-V11U 50 (35) 50 (35) 45 (30) BN-V12U 50 (35) 50 (35) 45 (30) BN-V22U 105 (75) 110 (75) 95 (70) BN-V25U 145 (100) 150 (105) 130 (95)

( ): when the video light is on.

LCD LCD LCD

EN 11

CHARGE MARKER

Charge marker

A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colors are provided (red and black)—you choose which one means charged and which means discharged.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record-Standby mode and the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 10 are for fully discharged battery pack, and discharging times are for fully charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger does not charge the battery. When disharging is complete, detach the battery from the AC Power Adapter/ Charger to store it.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG. indicator should blink during recharging. If not, contact your nearest JVC dealer.

DC OUT terminal

To DC IN jack

AC Power Adapter/Charger

DC cord

Car Battery Cord AP-V7U (optional)

Car Battery Charger/Adapter BH-V3U (optional)

AA-V15U

To AC outlet

To car’s cigarette lighter socket

USING A CAR BATTERY

Use the optional Car Battery Cord or Car Battery Charger/Adapter (connect as shown in the illustration to the left).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger (BH-V3U) can also be used to charge the battery pack.

●

When using the optional Car Battery Charger or Car Battery Cord (AP-V7U), refer to the respective instruction booklet.

USING AC POWER

Use the AC Power Adapter (connect as shown in the illustration to the left).

NOTE:

The supplied AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.

12 EN

GETTING ST ARTED

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

supply unit.

OPEN COVER

Open the clock battery compartment cover while

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

battery and the compartment (A) and pull the battery out.

INSERT BATTERY

Ensure that the plus (+) side is up and insert a

CR2025 lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

(cont.)

NOTE:

See “SAFETY PRECAUTIONS” (墌 pg. 2) for information on safe handling of lithium batteries.

Select Dial

MENU Jog Dial

LCD monitor or viewfinder

MENU END FOCUS EXPOSURE

DATE TIME

TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

Menu Screen

YEAR

MONTH DAY TIME

EXIT

DATE/TIME Setting Menu

MENU END

FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

DATE TIME

PM 12:00

AUTO AUTO JAN OFF T30 AUTO FAST

When the System Select Switch is set to “D.S.C.”, “PICTURE” is displayed.

1998

JAN

12-hour indication with AM or PM

AUTO AUTO DEC OFF T30 AUTO FAST

1. 98

25. 98

EN 13

Date/Time Setting

ACCESS MENU SCREEN

First set the Power Switch to “CAMERA”. Turn the

Select Dial to any position except AUTO LOCK, then press the MENU Jog Dial.

SELECT FUNCTION

Rotate the MENU Jog Dial to move the highlight bar

to “DATE/TIME”, then press it. The DATE/TIME Setting Menu appears.

•If you decide you want to return the date and time to the previous settings, rotate the MENU Jog Dial to move highlight bar to “EXIT” and press it, then go to step 6.

•If you want to set only the time without changing the date, go to step 4.

SET DATE

Rotate the MENU Jog Dial to move the highlight bar

to the item you want to set and then press it. When the setting begins blinking, rotate the MENU Jog Dial until the correct setting appears and then press it. The setting stops blinking.

•Repeat this procedure until you’re satisfied with the Date settings (“YEAR”, “MONTH” and “DAY”).

SET TIME

Rotate the MENU Jog Dial to move the highlight bar

to “TIME” and then press it. When the hour setting begins blinking, rotate the MENU Jog Dial until the correct setting appears and then press it. When the hour setting stops blinking and the minute setting begins blinking, rotate the MENU Jog Dial until the correct setting appears and then press it. The minute setting stops blinking.

START CLOCK OPERATION

When none of these settings (YEAR, MONTH, DAY,

TIME) blinks, rotate the MENU Jog Dial to move the highlight bar to “EXIT”, and press it. The Menu Screen appears and “MENU END” is highlighted.

CLOSE MENU

Press the MENU Jog Dial.

NOTE:

To display the date and time in the LCD monitor or the viewfinder and on a connected TV, see “Date/Time Insert” (墌 pg. 24).

14 EN

Recording Start/Stop Button

Power Zoom Button

GETTING ST ARTED

Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

INSERT HAND

Pass your right hand through the loop and grasp the

grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate

the Recording Start/Stop Button and Power Zoom Button. Refasten the Velcro strip.

Viewfinder Adjustment

(cont.)

Set POWER to “CAMERA”.

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability

(see illustration at left).

SELECT MODE

Set the Power Switch to CAMERA.

ADJUST DIOPTER

Turn the Diopter Adjustment Control until the

indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap

through the top of the eyelet 1, then fold it back and thread it through the buckle 2. Repeat the procedure to attach the other end of the strap to the other eyelet 3, making sure the strap isn’t twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left 1.

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud hole. Then tighten the screw.

EN 15

CAUTION:

When using a tripod, be sure to open and extend its legs fully to stabilize the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod.

16 EN

SP/EP Recording Mode Button

VIDEO GETTING ST ARTED

Recording Mode Setting

Set depending on your preference.

SET RECORDING MODE

First set the System Select Switch to “VIDEO”, then

set the Power Switch to “CAMERA”. Press SP/EP Button for more than 1 second. “SP” (Standard Play) provides higher picture and sound quality and is better for dubbing, while “EP” (Extended Play) is more economical, providing three times as the recording time.

Select Dial

System Select Switch

Viewfinder

Recording mode indicator

LCD monitor or viewfinder

MENU END FOCUS EXPOSURE DATE TIME TELE MACRO

TAPE LENGTH

M. W. B. ZOOM SPEED

Menu Screen

TAPE LENGTH

T20

T30 T40

EXIT

TAPE LENGTH Setting Menu

MENU END

FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

MENU Jog Dial

T40

Tape length indicator

AUTO AUTO

25.98

DEC OFF

T40

AUTO FAST

AUTO AUTO

25.98

DEC OFF T20 AUTO FAST

NOTE:

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

Tape Length Setting

Set the tape length according to the length of the tape used.

ACCESS MENU SCREEN

First set the System Select Switch to “VIDEO”, then

set the Power Switch to “CAMERA”. Turn the Select Dial to any position except AUTO LOCK, then press the MENU Jog Dial.

SELECT FUNCTION

Rotate the MENU Jog Dial to move the highlight bar

to “TAPE LENGTH”, then press it. The TAPE LENGTH Setting Menu appears.

SET TAPE LENGTH

Rotate the MENU Jog Dial to move the highlight bar

to the correct setting. T20=20 minutes of recording time, T30=30 minutes, and T40=40 minutes (in SP).

•If you decide you want to return the tape length to the previous setting, rotate the MENU Jog Dial to move the highlight bar to “EXIT”.

CLOSE MENU

Press the MENU Jog Dial. The Menu Screen

reappears and the highlight bar is on “MENU END”. Then press the MENU Jog Dial again to close the Menu Screen.

NOTES:

●

The tape remaining time (墌 pg. 19) displayed in the viewfinder is correct only if the correct tape length has been selected.

●

Once you have set the tape length, it remains unchanged even if the Select Dial is returned to AUTO LOCK.

●

When the System Select Switch is set to “D.S.C.”, it is not possible to set “REC TIME” and “TAPE LENGTH”.

Loading/Unloading A Cassette

EN 17

Erase Protection Gear

Turn to take up slack.

OPEN LCD MONITOR

Open the LCD monitor to an angle of over 45

degrees.

OPEN CASSETTE HOLDER

Press EJECT until the holder opens. Do not use force

to open.

INSERT/REMOVE CASSETTE

Make sure the label is facing outward.

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and

locked.

CLOSE LCD MONITOR

First make sure the holder is closed. Then close the

LCD monitor.

NOTES:

●

Closing the LCD monitor while the cassette holder is still open may cause damage to the LCD monitor.

●

A cassette holder can’t be opened unless a power supply is attached.

●

Make sure that the tape is not slack when loading the cassette. If there is any slack, turn the gear on the cassette in the direction of the arrow to take up the slack.

●

Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.

●

The cassette holder can’t be opened while the camcorder is in the record mode.

18 EN

LENS COVER Switch

VIDEO RECORDING

Basic Recording

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

●

Power (墌 pg. 10)

●

Recording Mode/Tape Length Setting (墌 pg. 16)

●

Grip Adjustment (墌 pg. 14)

Power Switch

Start/Stop Button

Tally lamp (lights while recording is in progress)

Power indicator

System Select Switch

LOAD A CASSETTE

First open the LCD monitor to an angle of over 45

degrees. Press EJECT to open the cassette holder, then insert the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

Shooting while watching the viewfinder

ENTER RECORD–STANDBY MODE

Make sure the LCD monitor is closed and locked.

Slide the LENS COVER Open/Close Switch to open the lens cover. Set the System Select Switch to “VIDEO”, then set the Power Switch to “CAMERA”.

•The power indicator lights and the camcorder enters the Record–Standby mode.

•The scene you’re aimed at appears on the viewfinder screen, with the word “PAUSE” superimposed upon it.

START SHOOTING

Press the Recording Start/Stop Button.

REC

•“

” appears in the viewfinder while recording is

in progress.

Tape remaining time indicator

25MIN

(Now calculating)

Start/Stop Button

MIN

120MIN

119MIN

3MIN

2MIN

(Blinking)

1MIN

(Blinking)

0MIN

(Blinking)

EN 19

STOP RECORDING

Press the Recording Start/Stop Button again to stop

recording.

•The camcorder re-enters the Record-Standby mode.

NOTES:

●

When the Power Switch is set to CAMERA and the LCD monitor is opened at an angle of 45 degrees or more, the LCD monitor switches on and the viewfinder switches off automatically to save power.

●

A cassette holder can’t be opened unless a power supply is attached.

●

There may be a delay after you press EJECT until the holder opens. Do not use force.

●

The tape remaining time is only displayed in the viewfinder as shown.

●

The remaining time indicated in the viewfinder is approximate.

●

The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.

●

The tape remaining time indicator is correct only if the correct tape length has been selected (墌 pg. 16).

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.

●

If the Record–Standby mode continues for 5 minutes without performing Zoom or any other operations, the camcorder’s power shuts off automatically. Set the Power Switch to “POWER OFF”, and then back to “CAMERA” to turn the camcorder on again.

●

If the Recording Start/Stop Button is pressed after the Record-Standby mode has continued for over 5 minutes, recording may not start immediately.

●

If you’re recording on a cassette from the middle (such as when a tape is removed and re-inserted during recording), use the Retake function (墌 pg. 23) to find the end of the last recording so you don’t erase any of it.

●

The LENS COVER warning blinks for about 5 seconds when the camcorder is turned on when the cover is closed.

●

While shooting, sound is not heard from the speaker.

20 EN

VIDEO RECORDING

Basic Recording (cont.)

90°

180°

LENS COVER Switch

Power Switch

Start/Stop Button

Tally lamp (lights while recording is in progress)

Power indicator

System Select Switch

Shooting while watching the LCD monitor

Before the following steps, perform step 1 (墌 pg. 18).

ENTER RECORD–STANDBY MODE

Make sure the LCD monitor is fully open. Slide the

LENS COVER Open/Close Switch to open the lens

cover. Set the System Select Switch to “VIDEO”, then set the Power Switch to “CAMERA”.

•The power indicator lights and the camcorder enters the Record–Standby mode.

•The scene you’re aimed at appears in the LCD monitor, with the word “PAUSE” superimposed upon it.

START SHOOTING

Tilt the LCD monitor upward/downward for best

viewability (墌 pg. 21) and press the Recording Start/Stop button.

REC

•“

” appears in the LCD monitor while recording

is in progress.

STOP RECORDING

Press the Recording Start/Stop Button again to stop

recording.

•The camcorder re-enters the Record-Standby mode.

NOTES:

●

When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may be difficult to see. If this happens, we recommend that you use the viewfinder (墌 pg. 18).

●

The tape remaining time is not displayed on the LCD monitor. However, when the tape is about to reach its end, the following indicators appear: “

2MIN

” ¥“

1MIN

” ¥“

0MIN

●

For other notes, refer to pg. 19.

”.

EN 21

Journalistic shooting

In some situations different angles of shooting may be required for more dramatic results.

OPEN LCD MONITOR

Make sure the LCD monitor is fully open.

TILT LCD MONITOR

Tilt the LCD monitor in the most convenient

direction.

•The LCD monitor can rotate almost full circle (270°: 90° downward, 180° upward).

Interface shooting

A person you shoot can view himself/herself in the LCD monitor, and you can even shoot yourself while viewing your own image in the LCD monitor.

TILT LCD MONITOR UPWARD

Open the LCD monitor and tilt it upward to 180

degrees so that it faces forward.

•When the LCD monitor is tilted upward to an angle of over approx. 105 degrees, the monitor image is inverted vertically, and the viewfinder also switches on.

BRIGHT Dial

Self-recording

START RECORDING

Point the lens toward the subject (yourself when

self-recording) and start recording.

•During Interface Shooting, the monitor image and indications do not appear inverted as they would when viewing a mirror.

NOTE:

During Interface Shooting, indications other than the Date/Time display and Title display do not appear in the viewfinder.

Brightness control

You can adjust the brightness of the LCD monitor by turning the BRIGHT Dial.

ADJUST BRIGHTNESS

If you want to brighten the image . . .

Turn the Dial toward “+”.

If you want to darken the image . . .

Turn the Dial toward “–”.

22 EN

Zoom-in

Power Zoom button

Select Dial

Zoom indicator bar

Zoom Level indicator

MENU Jog Dial

LCD monitor or viewfinder

MENU END FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B.

ZOOM SPEED

AUTO AUTO JAN OFF T30 AUTO

FAST

1.98

Menu Screen

ZOOM SPEED

FAST

SLOW

Zoom-out

VIDEO RECORDING

FEATURE: Zooming PURPOSE: To produce the zoom in/out effect, or

OPERATION:

NOTES: ●

an instantaneous change in image magnification.

Digital circuitly doubles the maximum 22x magnification offered by optical zoom. This system is called Digital Zoom.

Zoom In

Press the “T” of the Power Zoom Button.

Zoom Out

Press “W” of the Power Zoom Button. 䡲 Zooming speed is available. A total of

4 zoom speeds are available. 2 speeds can be selected depending on how hard the Power Zoom Button is pressed (press the button fully for regular-speed, press it lightly for slowspeed), while 2 speed levels (FAST/ SLOW) can be selected in the ZOOM SPEED Menu depending on the overall speed you prefer.

The combinations of zoom speeds are shown in the chart below.

Changing the ZOOM SPEED in the Menu

1) Set the Select Dial to any position

except AUTO LOCK and press the MENU Jog Dial. The Menu Screen appears.

2) Rotate the MENU Jog Dial to move the highlight bar to “ZOOM SPEED”, then press it. The ZOOM SPEED Setting Menu appears.

3) Rotate the MENU Jog Dial to move the highlight bar to the desired speed and press it twice. The Menu Screen disappears and setting is completed.

Focusing may become unstable during Zooming. In this case, set the zoom while in Record–Standby, lock the focus by using the manual focus (墌 pg. 37), then zoom in or out in Record mode.

●

The zoom level indicator (5) moves during zoom. Once the zoom level indicator reaches the top of the zoom indicator bar, all magnification from that point is through digital processing.

●

During Digital Zoom, the quality of image may suffer. To deactivate Digital Zoom, set “D.ZOOM” to “OFF” in the Menu Screen (墌 pg. 35).

Basic Features

EXIT

ZOOM SPEED Setting Menu

Zooming Speed ( 1 – 4 in order of speed)

“ZOOM SPEED” in the Menu Screen

FAST 1 (fastest) 3 SLOW 2 4 (slowest)

Pressing the Power Zoom Button

fully lightly

: when the Select Dial is set to AUTO LOCK.

P. STABILIZER

RETAKE (R/F)

EN 23

FEATURE: Quick Review PURPOSE: To check the end of the last record-

OPERATION: 1)Press “ ” and release quickly

NOTE:

FEATURE: Retake PURPOSE: To re-record certain segments. OPERATION: 1)Make sure the camcorder is in the

NOTE:

FEATURE: Picture Stabilizer PURPOSE: To compensate for unstable images

OPERATION: 1)Press P. STABILIZER. “ ”appears.

NOTES: ●

ing.

during the Record–Standby mode. 䡲 Tape is rewound for about 2

seconds and played back automatically, then pauses in Record–Standby mode for the next shot.

Distortion may occur at start of playback. This is normal.

Record–Standby mode.

2)Press either RETAKE button to reach the start point for new recording. Pressing “F” forwards the tape and pressing “R” reverses it.

3)Press Recording Start/Stop Button to start recording.

Noise may appear during Retake. This is normal.

caused by camera-shake, particularly at high magnification.

䡲 To switch off the Picture

Stabilizer, press P. STABILIZER. The indicator disappears.

Accurate stabilization may not be possible if hand shake is excessive, or under the following conditions:

•

When shooting subjects with vertical or horizontal stripes.

•

When shooting dark or dim subjects.

•

When shooting subjects with excessive backlighting.

•

When shooting scenes with movement in various directions.

•

When shooting scenes with lowcontrast backgrounds.

●

Switch off the Picture Stabilizer when recording with the camcorder on a tripod.

24 EN

DATE/TIME

Select Dial

Date display

Time display

Date/Time display

Auto Date Record mode

Date-off mode (No display)

Date display

DEC 25.98

Time display

PM10:50:00

Date/Time display

DEC 25.98

PM10:50:00

VIDEO RECORDING

Display

Auto Date Record mode

AUTO DATE

Auto date record mode

DEC 25.98

Auto date record executed

Basic Features (cont.)

FEATURE: Date/Time Insert PURPOSE: To display the date and time on the

OPERATION: 1)Turn the Select Dial to any

NOTES:

LCD monitor, in the viewfinder, or on a connected color monitor, as well as to record them manually or automatically.

position except AUTO LOCK.

2)Choose a display mode by pressing DATE/TIME repeatedly while in Record-Standby to cycle through the modes as shown in the illustration at left.

䡲 You should have already

performed the Date/Time Setting procedure (墌 pg. 13). If you haven’t, do so first.

DISPLAY

●

The selected display can be recorded.

●

If you don’t want to record the display, select the Date-off mode before shooting.

●

If you want to delete the display during shooting, press DATE/TIME.

●

To recall the display, engage the Record-Standby mode and press DATE/TIME repeatedly until the desired display appears.

●

Even if you shoot with the date/ time displayed during Digital Still Camera Shooting, they will not be recorded.

AUTO DATE RECORD

●

Your camcorder automatically records the date for about 5 seconds after recording is initiated in the following situations:

•

After changing the date.

•

After loading a cassette.

•

After Auto Date Record mode is

selected by pressing DATE/TIME. In this mode, the date is replaced after 5 seconds with “AUTO DATE” but this is not recorded.

●

Setting the Select Dial to AUTO LOCK always engages the Auto Date Record mode, and disables all other modes.

LIGHT OFF/AUTO/ON (Can be accessed when the LCD monitor is opened)

DANGER

䡲 The video light can become extremely

hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

䡲 Do not place the camcorder into the

carrying case immediately after using the video light, since it remains extremely hot for some time.

䡲 When operating, keep a distance of

about 30 cm. (1 ft.) between the video light and people or objects.

䡲 Do not use near flammable or explosive

materials.

䡲 It is recommended that you consult your

nearest JVC dealer for replacing the video light.

EN 25

FEATURE: Video Light PURPOSE: To brighten the scene when natural

OPERATION: 1)Set the LIGHT OFF/AUTO/ON

NOTES: ●

lighting is too dim.

Switch as required:

ON : Always keeps the light on as

AUTO : Automatically turns on the

OFF : Turns off the light.

䡲 The video light can only be used 䡲 It is recommended to set the white

䡲 When not using the video light,

long as the camcorder is turned on.

light when the camcorder senses insufficient lighting on the subject.

with the camcorder’s power on. balance (墌 pg. 39) to HALOGEN

mode ( ) when you use the video light.

turn it off to save battery power.

Even if the battery indicator ( ) does not blink if the battery pack’s charge is low, the camcorder may turn off automatically when you turn on the video light, or when you start recording with the video light turned on.

●

When the LIGHT OFF/AUTO/ON Switch is set to “AUTO”:

•

Depending on the lighting

conditions, the video light may

keep turning on and off. In this

case, manually switch the light

on or off using the LIGHT OFF/

AUTO/ON switch.

•

While the Sports or High-Speed

Shutter mode (墌 pg. 29) is

engaged, the light is likely to stay

on.

•

While the Twilight mode

(墌 pg. 29) is engaged, the light

will not activate.

26 EN

MODE

LCD monitor or viewfinder

SNAPSHOT

VIDEO RECORDING

Basic Features

Snapshot

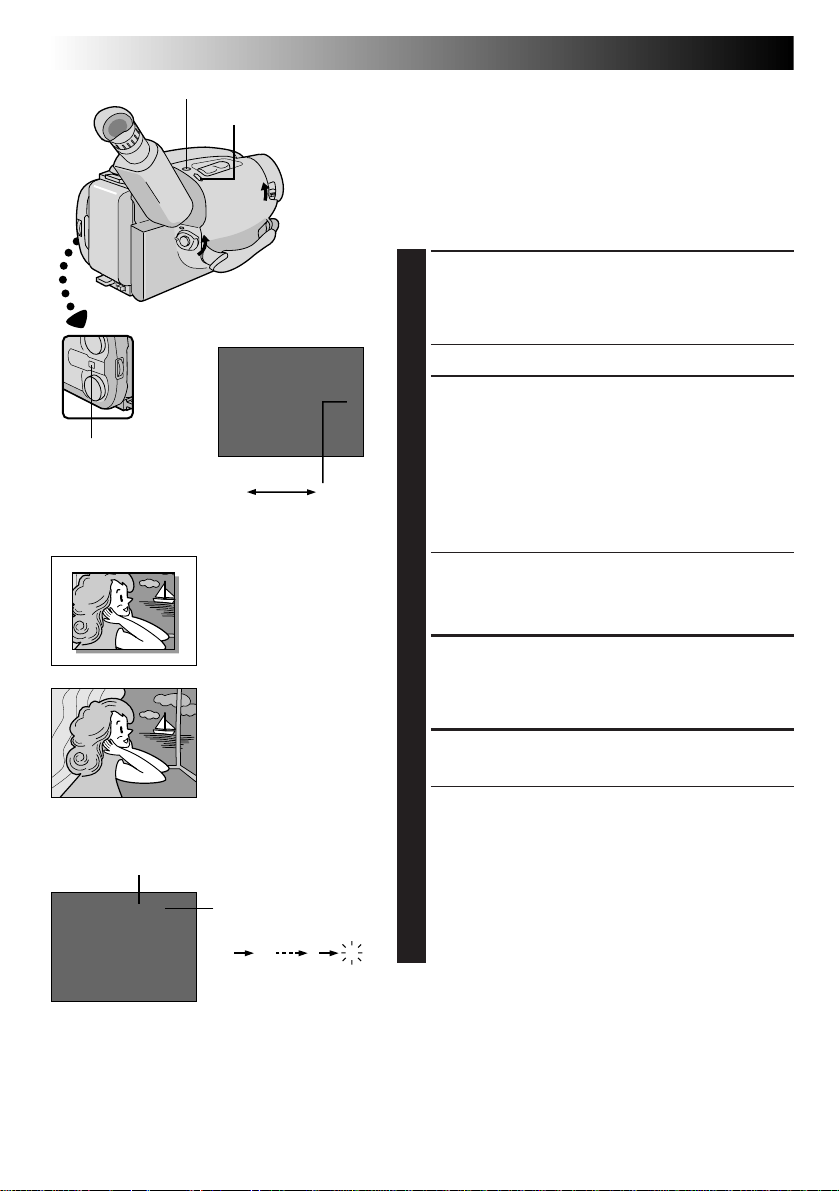

This interesting feature lets you record two types of digital still images that look like photographs onto a tape, as well as keeping them in the camcorder’s built-in memory. It is a great way to spice up footage of events such as parties, weddings and graduations.

SELECT SNAPSHOT MODE

Turn the Select Dial to any position except AUTO

LOCK, then press the MODE Button to switch from one mode to the other as shown in the illustration to the left.

•When the Select Dial is set to AUTO LOCK, it is not possible to select the Snapshot Mode. Only the Full image (no display) is available. Go to step 2.

SNAPSHOT

(Pin-Up)

No display

(Full)

LCD monitor or viewfinder (ex. Pin-Up)

TAKE SNAPSHOT

Press the SNAPSHOT Button.

•A still image is recorded onto the tape and into the camcorder’s built-in memory.

•There are two Picture Modes you can choose from when storing in the camcorder’s memory: FINE and STANDARD. The maximum number of shots you can take varies according to the selected setting. The selected Picture Mode and remaining number of shots are displayed on the screen. The factory-preset is FINE. If you want to change the setting, perform “Picture Mode Setting” (墌 pg. 49).

FINE

Allows you to shoot up to approx. 22 still images.

STD (Standard)

Allows you to shoot up to approx. 44 still images.

If you press during recording . . .

.... first there is a momentary camera shutter-type

blackout together with the sound effect of a shutter closing, then a still image appears. The next image starts in the center of a black screen and wipes in toward the corners. The screen changes as shown in the illustrations 1 to 5 to the left and the screens 1 to 5 are recorded onto the tape in the selected mode. Only the still image 3 is stored in the built-in memory in the selected mode, then the camcorder resumes normal recording.

If you press during Record-Standby mode . . .

.... first there is a momentary camera shutter-type

blackout together with the sound effect of a shutter closing, then a still image appears. The scene you are currently aimed at starts in the center of a black screen and wipes in toward the corners. The screen changes as shown in the illustrations 1 to 5 to the left. The screens 1 to 3 are recorded onto the tape in the selected mode. Only the still image 3 is stored in the built-in memory in the selected mode, then the camcorder re-enters the Record-Standby mode.

LCD monitor or viewfinder

FINE 12

Remaining number of shots

22 21 1

Pictrue mode display: FINE or STD (standard)

Pin-Up

A still image on a white background. A shadow effect is added to give it a three dimensional feel.

Full

A still image that occupies the entire image field is recorded.

(Blinking)

EN 27

NOTES:

●

Six sample images have been stored in the built-in memory at the factory. If you wish to delete them, first remove the “Protect” function (墌 pg. 59), then perform the “Delete” function (墌 pg. 60).

●

When the remaining number indicator displays “0” (blinking), the still image will be recorded onto the tape but not in the built-in memory. If you wish to store a still image in the built-in memory, perform the “DELETE” function in the Menu Screen to remove still images you do not need (墌 pg. 60).

●

The Picture Mode can be switched to either “FINE” or “STANDARD”. Since the remaining number of shots available depends on the selected Picture Mode, switching the Picture Mode will vary this number.

●

If the SNAPSHOT Button is pressed with the System Select Switch set to “D.S.C.”, the still image cannot be recorded onto the tape, but will be stored in the camcorder's built-in memory (墌 pg. 48).

●

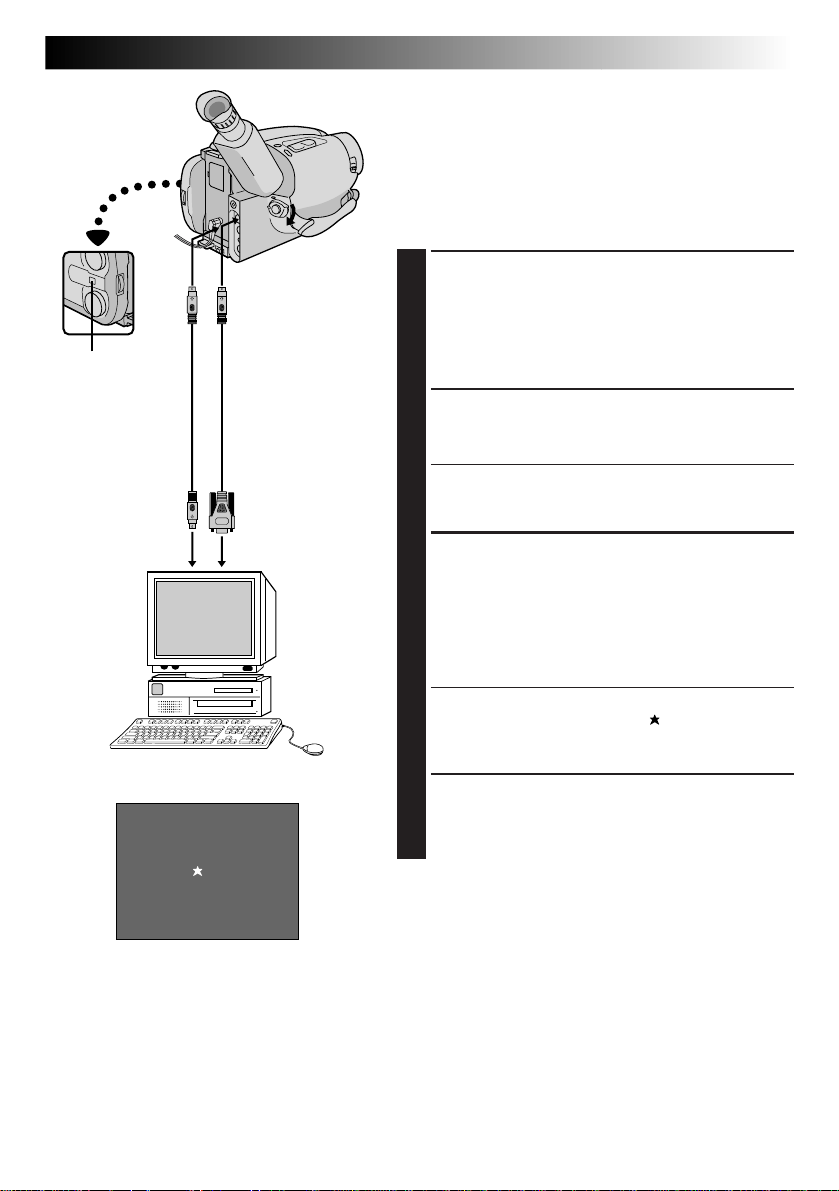

Image data stored in the camcorder’s built-in memory can be transferred to a Windows® PC or Macintosh and saved using the provided image transfer software (墌 pg. 63). The image data transferred to a personal computer can also be further processed using Paint Software.

●

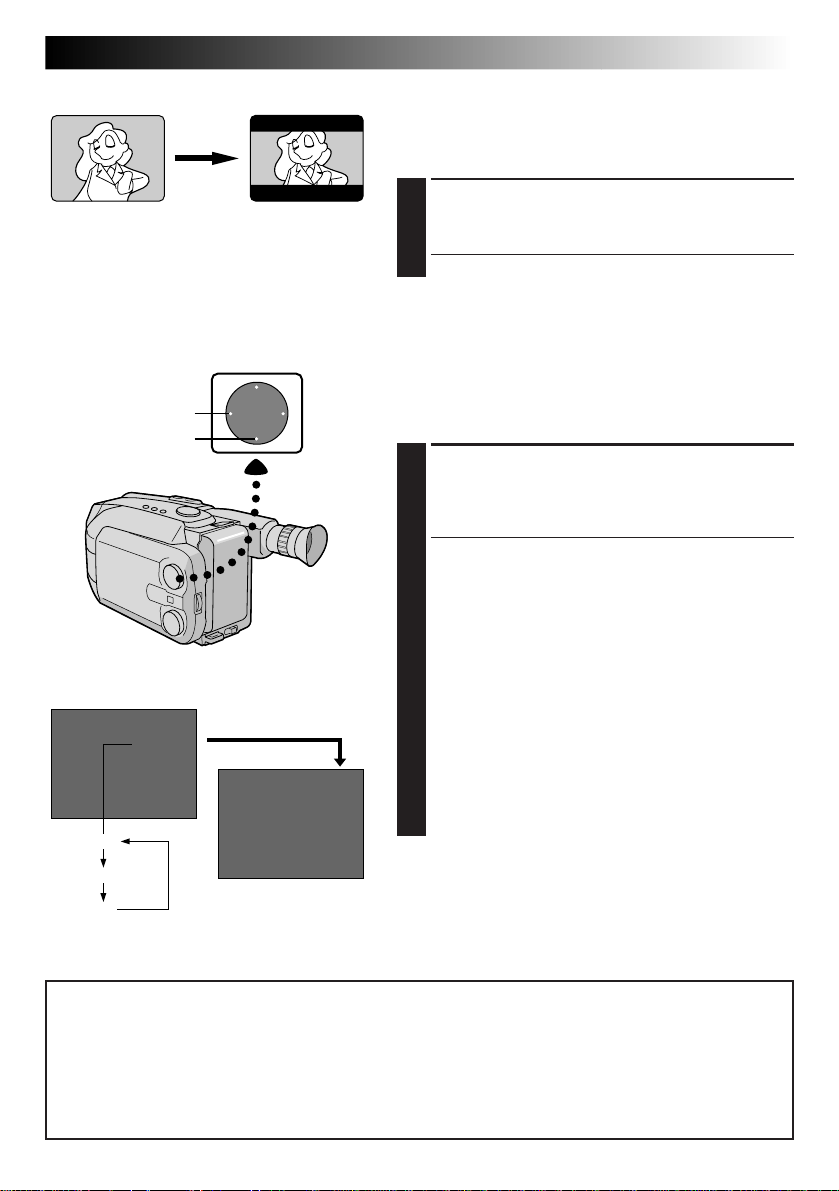

When a Pin-Up is taken with the Wide mode (墌 pg. 31) activated, the black bars at the top and bottom of the screen will disappear.

●

When a Snapshot is taken in a dark environment, the still image recorded onto the tape and stored in memory will become coarse and its true colors will be lost.

28 EN

1 second later, the mode is activated.

SEPIA

LCD monitor or viewfinder

After 1 sec.

VIDEO RECORDING

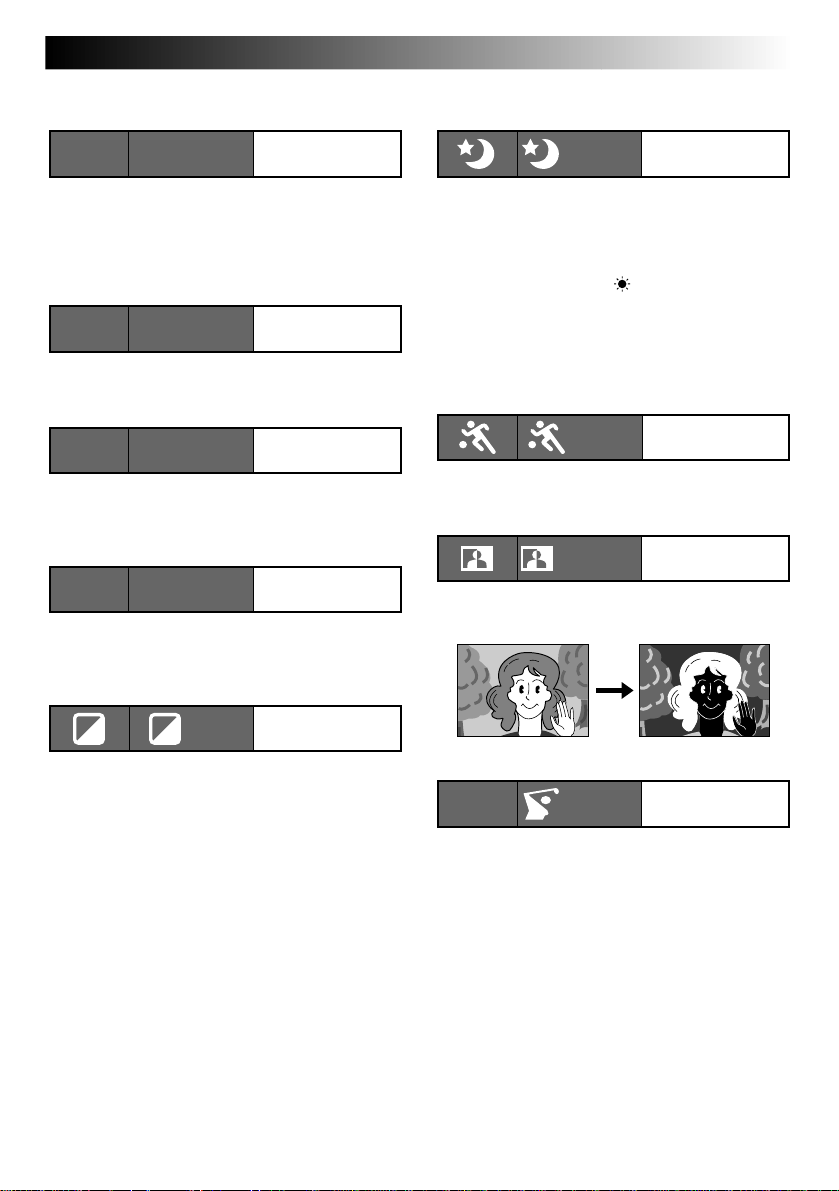

Program AE With Special Effects

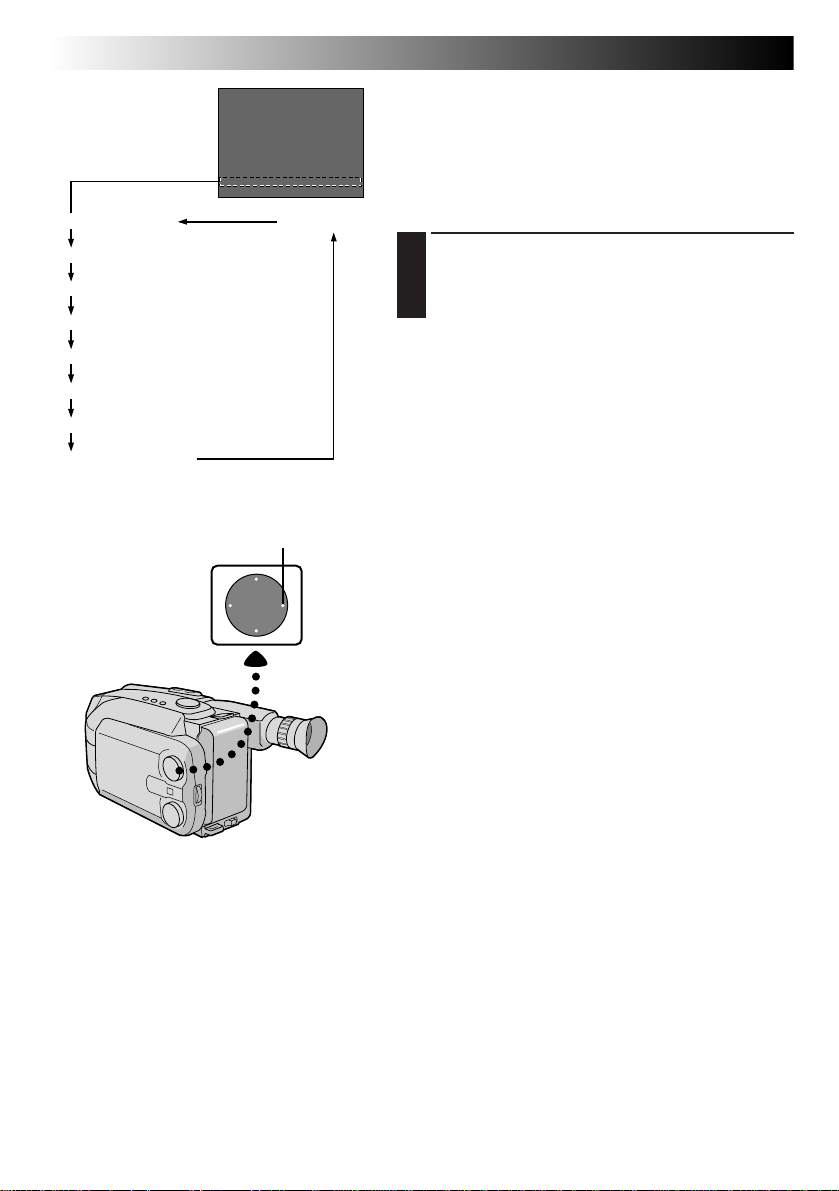

All you have to do to access any of the variety of shooting effects is to turn the Select Dial.

SELECT MODE

Turn the Select Dial until the symbol of the function

you want is aligned with the mark.

•The selected mode’s name and its indication are displayed for approx. 1 second. Then the name disappears, and only the indication remains. The mode is activated.

•When Auto Mode Lock or Auto Mode Release mode is selected, only the mode’s name is displayed. Then the name disappears and the mode is activated.

NOTES:

●

Only one effect can be engaged at a time.

●

The screen becomes slightly reddish when the Fade/

Mark

Wipe (墌 pg. 30) is used in the Sepia mode.

●

The screen becomes slightly dark in the High Speed Shutter mode. Use in well-lit situations.

●

In the High Speed Shutter or Sports modes, picture color may be adversely affected if subject is lit by alternating discharge-type light sources such as flourescent or mercury-vapor lights.

Advanced Features

Select Dial

+ 64 hidden pages
