JVC GR-AX210 User Manual

COMP ACT VHS CAMCORDER

GR-AX210

Compact VHS





INSTRUCTIONS

PAL

CONTENTS

GETTING STARTED

Power ................................... 6

Clock (Lithium) Battery

Removal/Insertion .................... 8

Date/Time Settings.................... 8

Viewfinder Adjustment................ 9

Tape Length/Recording Mode

Setting................................... 9

Loading/Unloading A Cassette....... 9

Grip Adjustment ...................... 10

Shoulder Strap Attachment ......... 10

Tripod Mounting ...................... 10

RM-V20U Remote Control Unit .... 11

RECORDING

Basic Recording....................... 12

Basic Features ........................ 13

Advanced Features................... 14

PLAYBACK

Using The Cassette Adapter ........ 26

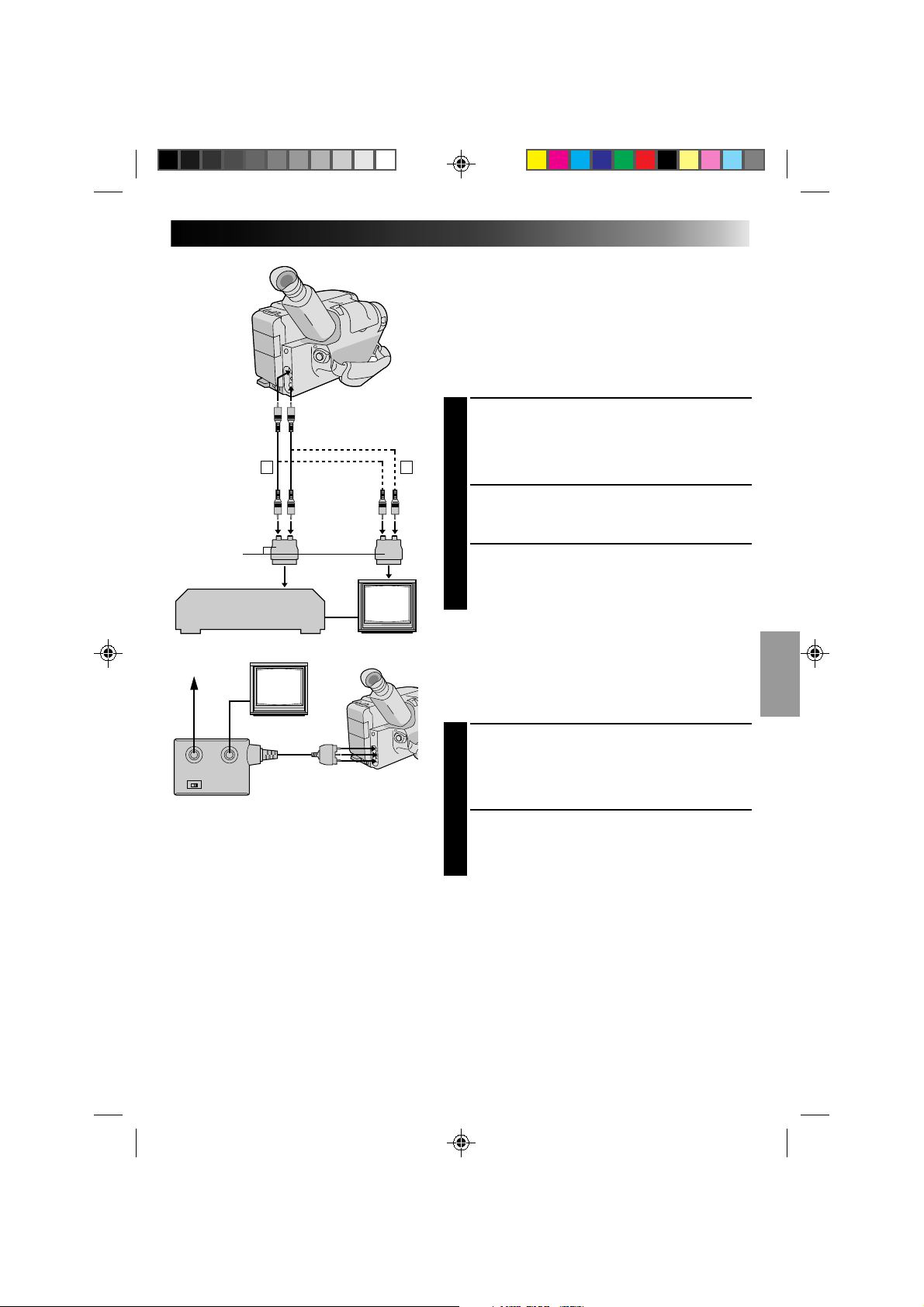

Basic Connections .................... 27

Basic Playback........................ 28

Features ............................... 29

EDITING

Tape Dubbing ......................... 30

Random Assemble Editing

(R.A.Edit) ............................. 30

Insert Editing ......................... 34

Audio Dubbing ........................ 35

USER MAINTENANCE
TROUBLESHOOTING

INDEX

Controls ............................... 38

Connectors ............................ 38

Indicators ............................. 38

Other Parts ........................... 38

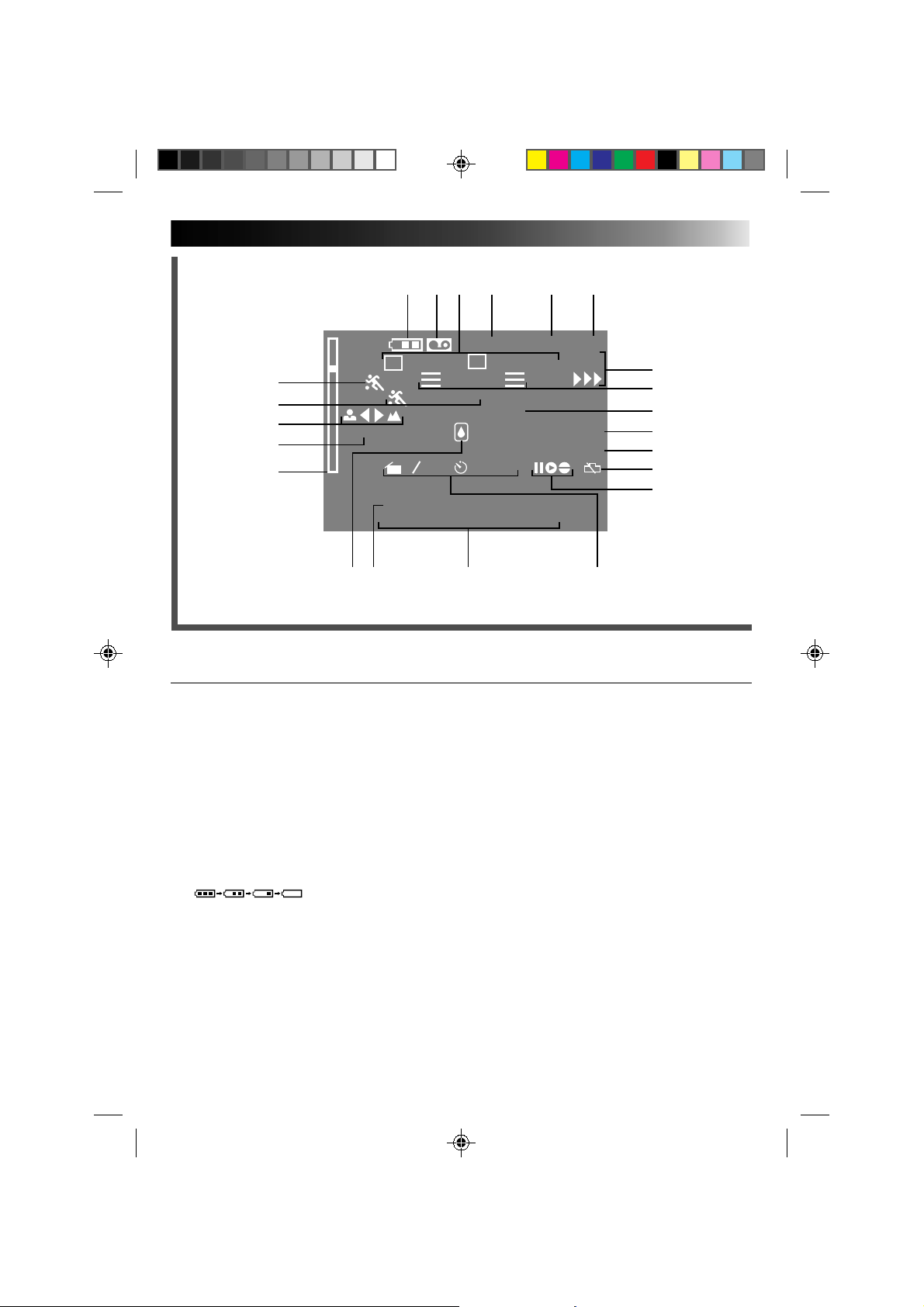

Viewfinder ............................ 39

Terms .................................. 40

CAUTIONS
SPECIFICATIONS

OPTIONAL ACCESSORIES

12

26

30

36
37
38

41
43
43

6

GR-AX210EK-2 96.10.8, 1:24 PM1

YU30052-503-2

2

Dear Customer,

Thank you for purchasing the JVC Compact VHS
camcorder. Before use, please read the safety
information and precautions contained in the following
pages to ensure safe use of your new camcorder.

Using This Instruction Manual

• All major sections and subsections are listed in the Table
Of Contents (

• Notes appear after most subsections. Be sure to read
these as well.

• Basic and advanced features/operation are separated for
easier reference.

It is recommended that you . . .

..... refer to the Index (

familiarize yourself with button locations, etc. before
use.

..... read thoroughly the Safety Precautions that follow and

cautions (
important information regarding the safe use of your
new camcorder.

Z cover page).

Z pgs. 38 – 40) and

Z pgs. 41, 42). They contain extremely

SAFETY
PRECAUTIONS

IMPORTANT

Connection to the mains supply in the United
Kingdom.

DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points in
your home or the cable is too short to reach a power
point, then obtain an appropriate safety approved
extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical
approved type, as originally fitted, and to replace the
fuse cover.

If nontheless the mains plug is cut off ensure to remove
the fuse and dispose of the plug immediately, to avoid
a possible shock hazard by inadvertent connection to
the mains supply.
If this product is not supplied fitted with a mains plug
then follow the instructions given below:
DO NOT make any connection to the Larger Terminal
coded E or Green.
The wires in the mains lead are coloured in accord­ance with the following code:

Blue to N (Neutral) or Black
Brown to L (Live) or Red

If these colours do not correspond with the terminal
identifications of your plug, connect as follows:
Blue wire to terminal coded N (Neutral) or coloured
black.
Brown wire to terminal coded L (Live) or coloured
Red.
If in doubt — consult a competent electrician.

WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.

Warning on lithium battery

The battery used in this device may present a fire or
chemical burn hazard if mistreated. Do not recharge,
disassemble, heat above 100°C or incinerate.
Replace battery with Panasonic (Matsushita Elec­tronic), Sanyo or Maxell CR2025; use of another
battery may present a risk of fire or explosion.

n Dispose of used battery promptly.
n Keep away from children.
n Do not disassemble and do not dispose of in fire.

CAUTIONS:

n To prevent shock, do not open the cabinet. No user

serviceable parts inside. Refer servicing to qualified
personnel.

n When you are not using the AC Power Adapter/

Battery charger for a long period of time, it is
recommended that you disconnect the power cord
from AC outlet.

NOTES:

●

The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of the
main unit.

●

The rating plate (serial number plate) of the AC
Power Adapter/Charger is on its bottom.

This unit is produced to comply with Standard IEC
Publ. 65.

Crossed Out Dust Bin Mark

n The Crossed Out Dust Bin Mark on

the battery pack indicates that the
product complies with Directives
91/157/EEC and 93/86/EEC.

n Nickel-Cadmium (Ni-Cd) battery

pack must be recycled or disposed
of properly.

GR-AX210EK-2 96.10.8, 1:24 PM2

This camcorder is designed to be used with PAL-type
colour television signals. It cannot be used for
playback with a television of a different standard.
However, live recording and viewfinder playback are
possible anywhere. Use the BN-V12U/BN-V22U/BN­V25U battery packs and, to recharge them, the
provided multi-voltage AC Power Adapter/Charger. (An
appropriate conversion adapter may be necessary to
accommodate different designs of AC outlets in
different countries.)

PAL

n This camcorder is designed exclusively for the VHS-C

video cassette. Only cassettes marked VHS-C can be
used with this unit.

n HQ VHS is compatible with existing VHS equipment.

3

SOME DO’S AND
DON’TS ON THE SAFE
USE OF EQUIPMENT

This equipment has been designed and manufactured to
meet international safety standards but, like any electrical
equipment, care must be taken if you are to obtain the
best results and safety is to be assured.

DO read the operating instructions before you attempt to

use the equipment.

DO ensure that all electrical connections (including the

mains plug, extension leads and interconnections
between pieces of equipment) are properly made and
in accordance with the manufacturer’s instructions.
Switch off and withdraw the mains plug when making
or changing connections.

DO consult your dealer if you are ever in doubt about the

installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in

any doubt about it working normally, or if it is
damanged in any way — switch off, withdraw the
mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose

dangerous voltages.

DON’T leave equipment switched on when it is unat-

tended unless it is specifically stated that it is
designed for unattended operation or has a standby
mode. Switch off using the switch on the
equipment and make sure that your family knows
how to do this. Special arrangements may need to
be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios

so that you are distracted from the requirements of
road safety. It is illegal to watch television whilst
driving.

DON’T listen to headphones at high volume, as such use

can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for

example with curtains or soft furnishings.
Overheating will cause damage and shorten the
life of the equipment.

DON’T use makeshift stands and NEVER fix legs with

wood screws — to ensure complete safety always
fit the manufacturer’s approved stand or legs with
the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or

moisture.

ABOVE ALL

— NEVER let anyone especially children push anything

into holes, slots or any other opening in the case
— this could result in a fatal electrical shock;

— NEVER guess or take chances with electrical equipment

of any kind — it is better to be safe than sorry!

GR-AX210EK-2 96.10.8, 1:24 PM3

4

SEL

F1

F2

MAJOR FEATURES

REMEMBER

The Logical Choice

The only compact video

cassettes that can be

used with your VHS VCR*

Programme AE with Special
Effects (

n Auto Mode Lock
n Auto Mode Release
n Electronic Fog Filter
n ND Effect
n Sepia
n Twilight
n Sports
n High Speed (1/2000 sec.) Shutter
n 15 sec. Self Timer

Z P. 14)

Intelligent Function Control

Z P. 16 – 23)

(

PAL

12x Variable-Speed Hyper
Zoom (

T

W

Z P. 13)

Zoom-in

T

W

Zoom-out

T

W

T

W

Random Assemble Editing

Z P. 30 – 33)

(

882

554411663

3

2

7

7

PROVIDED ACCESSORIES

•AC Power Adapter/
Charger AA-V11EK

•Lithium Battery •Cable adapter •Editing cable

GR-AX210EK-2 96.10.8, 1:24 PM4

•Battery Pack
BN-V12U

•Cassette Adapter C-P7U

•Shoulder Strap

QUICK OPERATION GUIDE

5

SUPPLY POWER

Hook on.

1

Push in.

2

BATT. RELEASE

Using the battery pack

1

Hook-on the battery pack’s top end to the
camcorder. (Charging procedure, Z P. 6)

2 Push in the battery pack until it locks into

place.

To remove the battery pack

Slide BATT. RELEASE and pull out the battery
pack.

PLAYBACK

PLAY/PAUSE

3

REW

2

STOP

INSERTING A VIDEO
CASSETTE

EJECT

1

3

PUSH

1 Slide EJECT.
2 Insert a video cassette.
3 Press PUSH.

(For more details, Z P. 9 )

SHOOTING

2

Insert.

LENS COVER
open/close knob

2

Set to “CAMERA”

Recording Start/Stop button

3

1

1

Set to “PLAY”

1 Set the power switch to “PLAY”.
2 Press REW.

— The tape will automatically stop at the

beginning of the tape.

3 Press PLAY/PAUSE.

— Playback starts and playback picture

appears in the viewfinder.

•To stop playback, press STOP.

(For more details, Z P. 30.)

Or simply play back the tape on a VHS

n

VCR using the Cassette Adapter.

Z

P. 26

GR-AX210EK-2 96.10.8, 1:24 PM5

1 Slide the LENS COVER open/close knob to

open the lens cover.

2 Set the power switch to “CAMERA”.

— The power indicator will light and image

will be seen in the viewfinder.

3 Press the Recording Start/Stop button.

— Recording starts.

•To stop recording temporarily, momentarily
press the Recording Start/Stop button once
again.
(For more details, Z P. 12)

6

CHG. (charge) indicator

Marks

POWER
indicator

To AC outlet

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you
choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other
equipment.

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

1

outlet. The power indicator lights.

END
indicator

REFRESH indicatorREFRESH switch

Hook on.

Push in.

BATT. RELEASE

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

2

direction of the arrow until it locks in place.
The CHG. indicator lights.

DETACH BATTERY PACK

When charging is completed, the END indicator

3

lights. Slide the battery pack opposite the direction
of the arrow.

BATT. PACK CHARGE DISCHARGE

BN-V12U approx. 1 hr. 10 min.

BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs.
BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

approx.
3 hrs. 30 min.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

1

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

2

BATT. PACK RECORDING TIME

BN-V12U approx. 1 hr. 5 min.
BN-V22U approx. 2 hrs. 15 min.
BN-V25U approx. 3 hrs.

GR-AX210EK-2 96.10.8, 1:24 PM6

**REFRESH

The AC power adapter features a REFRESH function that
allows you to fully discharge the battery pack before
recharging.

To discharge the battery . . .

.... attach the battery pack to the adapter as shown in the

illustration to the left. Then push REFRESH. The
REFRESH indicator lights when discharging starts,
and goes out when discharging is complete.

Charge marker

**CHARGE MARKER

A charge marker is provided on the battery pack to
help you remember whether it has been charged or
not. Two colours are provided (red and black)—you
choose which one means charged and which
means discharged.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record/Standby mode and
the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 4 are for fully discharged battery pack, and discharging times are for fully
charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery
pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from
your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t
allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging partway through, make sure to remove the battery pack before
unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to
continue.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored
for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.
indicator should light during recharging. If not, contact your nearest JVC dealer.

7

DC OUT terminal

AC Power

DC cord

Car Battery Cord
AP-V7E (optional)

Car Battery Charger/Adapter
BH-V3E (optional)

GR-AX210EK-2 96.10.8, 1:24 PM7

Adapter/Charger
AA-V11EK

To AC outlet

To car’s
cigarette
lighter
socket

USING A CAR BATTERY

Use the optional Car Battery Cord or Car Battery
Charger/Adapter (connect as shown in the illustra­tion to the left).

NOTES:

●

When using the car battery, leave the engine
idling.

●

The optional Car Battery Charger (BH-V3E) can
also be used to charge the battery pack.

●

When using the optional Car Battery Charger or
Car Battery Cord (AP-V7E), refer to the respective
instruction booklet.

USING AC POWER

Use the AC Power Adapter (connect as shown in
the illustration to the left).

NOTE:

The supplied AC Power Adapter/Charger features
automatic voltage selection in the AC range from
110 V to 240 V.

8

A

–/+ SET

GETTING STARTED (cont.)

Clock (Lithium) Battery Removal/Insertion

This battery is necessary to operate the clock and to
perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

1

supply unit.

OPEN COVER

Open the clock battery compartment cover while

2

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

3

battery and the compartment (
battery out.

INSERT BATTERY

Ensuring the plus (+) side is up, insert the supplied

4

lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

A

) and pull the

5

NOTE:

See “SAFETY PRECAUTIONS” (Z pg. 2) for information
on safe handling of lithium batteries.

Date

Day/Month/Year
DATE .. Date setting is performed

DATE 1.1.00

TIME 0:00

GR-AX210EK-2 96.10.8, 1:24 PM8





Time

24-hour indication

TIME .... Time setting is performed

POWER

Date/Time Settings

SELECT MODE

Set the power switch to CAMERA.

1

SET DATE/TIME

Press SET and the day blinks. Press + or – to choose

2

the correct day, then press SET to enter. Repeat to set
month, year, hour and minute.

START CLOCK

Press SET. The blinking stops. The date and time are

3

both displayed for confirmation, then the time
display disappears.

NOTE:

The clock does not keep time while the date and time are
blinking.

SP-LP recording mode and
T30•45 tape length select button

Viewfinder Adjustment

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability

1

(see illustration at left).

SELECT MODE

Set the power switch to CAMERA.

2

ADJUST DIOPTER

Turn the diopter adjustment control until the

3

indications in the viewfinder are clearly focused.

Tape Length/Recording Mode Setting

SET TAPE LENGTH

Set the tape length button according to the length of

1

the tape used. T30 = 30 minutes of recording time
and T45 = 45 minutes (in SP).

9

Set POWER to “CAMERA”.

Tape length and recording
mode indicator

T30 SP

T30 SP
T45 LP

Turn to take up
slack.

GearErase Protection

T30 LP

T45 SP

SET RECORDING MODE

Set depending on your preference. “SP” (Standard

2

Play) provides higher picture and sound quality and
is better for dubbing, while “LP” (Long Play) is
more economical, recording at 1/2 the speed of SP.

NOTE:

The tape remaining time indicator does not work with
tapes other than EC30 and EC45. (See Basic Recording
on pg. 12 for “tape remaining time indicator”.)

Loading/Unloading A Cassette

OPEN CASSETTE HOLDER

Slide EJECT until holder opens. Do not use force to

1

open.

INSERT/REMOVE CASSETTE

Make sure label is facing outward.

2

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and

3

locked.

NOTES:

●

A cassette holder can't be opened unless a power
supply is attached.

●

Make sure that the tape is not slack when loading the
cassette. If there is any slack, turn the gear on the
cassette in the direction of the arrow to take up the
slack.

●

Make sure the Erase Protection tab is present. If not,
cover the hole with adhesive tape. (Some cassettes
have sliding tabs – in this case, check the tab’s position.)

GR-AX210EK-2 96.10.8, 1:25 PM9

10

3

Recording Start/Stop button

1

2

1

2

GETTING STARTED (cont.)

Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

1

INSERT HAND

Pass your right hand through the loop and grasp the

2

grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate

3

the Recording Start/Stop button and Power Zoom
switch. Refasten the Velcro strip.

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap

1

through the top of the eyelet (1), then fold it back
and thread it through the keeper (2), and then
through the buckle (3). Repeat the procedure to
attach the other end of the strap to the other eyelet,
making sure the strap isn’t twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left (1), then

2

slide both keepers snug against the eyelets to
prevent slipping (2).

GR-AX210EK-2 96.10.8, 1:25 PM10

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the

1

tripod with the camera’s mounting socket and stud
hole. Then tighten the screw.

RM-V20U Remote Control Unit

The RM-V20U (optional) permits VCR functions to
be controlled from a distance. When using the
RM-V20U, connect its cable to the camcorder’s
REMOTE jack.

* Before use, refer to the RM-V20U instruction

booklet.

11

To REMOTE

1

2
3
4
5

6
7

0
!

@
#
$
%

^
&

8
9

Buttons

1 LED indicator Lights when a signal is transmitted.

2 KEY-LOCK switch

3 REC ——
4STOP — Stop (Z P. 28)
5 PAUSE/MONITOR — Pause (Z P. 29)
6 AUDIO DUB — Audio Dubbing (Z P. 35)
7 INSERT — Insert Editing (Z P. 34)
8 REC TIME Animation/Time-Lapse (Z P. 25) —
9 INTERVAL Self-Timer (Z P. 24)/Time-Lapse (Z P. 25) —
0 POWER OFF Power off
! POWER ON Power on
@ ZOOM (T/W) Slow-speed zoom (Z P. 13) —
# FF/RETAKE Retake (Forward) (Z P. 13) FF/FF Shuttle Search (Z P. 28)
$ PLAY — Playback start (Z P. 28)
% REW/RETAKE Retake (Rewind) (Z P. 13) Rew/Rew Shuttle Search (Z P. 28)
^ START/STOP Functins same as the Recording/Stop button of a camcorder.
& VISS Index Code Marking (Z P. 13) —

With the camcorder’s power switch With the camcorder’s power switch set
set to “CAMERA”. to “PLAY”.

Switching to “;” turns off the remote control unit’s power. Decreases battery power
consumption, and prevents accidental operation by young children, etc.

Functions

GR-AX210EK-2 96.10.8, 1:25 PM11

12

LENS COVER
SWITCH

RECORDING

Basic Recording

NOTE:

You should already have performed the procedures listed
below. If not, do so before continuing.

●

Power (Z pg. 6)

●

Recording Mode Setting (Z pg. 9)

●

Grip Adjustment (Z pg. 10)

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert

1

the cassette with the label facing out. Press PUSH to
ensure the holder is closed and locked.

POWER

Start/Stop
button

The power indicator

Tape remaining time
indicator

90MIN 89MIN

1MIN (Blinking)

0MIN (Blinking)

* MIN.....(Now calculating)

Tally lamp

3MIN

2MIN (Blinking)

ENTER RECORD–STANDBY MODE

Slide the LENS COVER open/close switch to open

2

the lens cover, then set the power switch to
CAMERA.

•The power indicator lights and the camcorder
enters the Record–Standby Mode.

•The scene you’re aimed at appears on the
viewfinder screen, with the word “PAUSE”
superimposed upon it.

START SHOOTING

Press the Recording Start/Stop button.

3

•The tally lamp lights while recording is in progress,

REC

and “

” appears in the viewfinder.

STOP RECORDING

Press the Recording Start/Stop button again.

4

•The comcorder re-enters the Record-Standby
mode.

NOTES:

●

A cassette holder can’t be opened unless a power
supply is attached.

●

There may be a delay after you slide EJECT until the
holder opens. Do not use force.

●

The tape‘s remaining time is displayed in the
viewfinder as shown.

●

”TAPE END“ appears when the tape recheas its end,
and the power goes off automatically if left in this
condition for 5 minutes.”TAPE END“ also appears
when a cassette whose tape is already at its end is
loaded.

●

If the Record–Standby mode continues for 5 minutes,
the camcorder’s power shuts off automatically. Set the
power switch to POWER OFF, and then back to
CAMERA to turn the camcorder on again.

●

If you’re recording on a cassette from the middle, use
the RETAKE function (Z pg. 13) to find the end of the
last recording so you don’t erase any of it.

●

The LENS COVER warning blinks for about 5 seconds
when the camcorder is turned on, whether the cover is
open or closed.

GR-AX210EK-2 96.10.8, 1:25 PM12

RECORDING

Basic Features

13

Zoom indicator

T

W

T

W

RETAKE

Power zoom switch

Zoom-in

T

W

Zoom-out

START/STOP

VISS

RM-V20U (optional)

FEATURE: Zooming
PURPOSE: To vary the length of the focal lens and

T

W

OPERATION:

NOTES: ●

FEATURE: Quick Review
PURPOSE: To check end of last recording for

OPERATION: 1) Press “

NOTE:

FEATURE: Retake
PURPOSE: To re-record certain segments.
OPERATION: 1) Make sure camcorder is in

NOTE:

FEATURE: Index Code Marking
PURPOSE: To give you automatic access to any selected

OPERATION:

NOTES: ●

produce zoom in/out effect.

Zoom In

1) Pull the power zoom switch down

toward “T”.

Zoom Out

2) Push the switch up toward “W”.

The further the power zoom switch is
pushed or pulled, the faster the zoom
speed becomes.

●

Focusing may become unstable during
zooming. In this case, set zoom while in
Record–Standby, set manual focus or
Focus Lock (
out in RECORD mode.

confirmation.

Record–Standby mode.

• Tape is rewound for about 2 seconds

Distortion may occur at start of playback.
This is normal.

Record–Standby mode.

2) Press either RETAKE button to reach start

point for new recording.

3) Press Recording Start/Stop to start

recording.

Noise may appear during Retake.
This is normal.

point on a recording. Auto Marking and
Manual Marking are available.

Auto Marking

An index code is always marked to start the
first recording on a new date after a cassette
is inserted.

Manual Marking

1) Press VISS once to place index code.

INDEX blinks in the viewfinder during
marking.

If VISS is pressed during
Record–Standby mode, the mark is
placed where START/STOP is pressed.

●

If the date changes during a recording, it
becomes the first recording of the new
date and an index mark is placed at that
point.

Z

pg. 18), then zoom in or

” for less than 2 seconds during

and played back automatically, then
pauses in Record–Standby mode for
next shot.

GR-AX210EK-2 96.10.8, 1:25 PM13

14

Programme AE With Special Effects

All you have to do to access any of the variety of
shooting effects is to turn the PROGRAM AE select
dial until the desired indication appears in the
viewfinder. The mode is activated about 1 second
later.

RECORDING

Advanced Features

PROGRAM AE
select dial

DIAL

SYMBOL

LOCK

Auto Mode Lock

Locks camcorder in Full Auto mode, preventing
accidental misoperation/button pressing during
shooting.

•CINEMA, FADER, FOCUS, EXPOSURE, DISPLAY,
TITLES and MWB (Manual White Balance)
controls are disabled in this mode.

RELEASE

Auto Mode Release

Re-enables controls that were disabled by Auto
Mode Lock.

Electronic Fog Filter

Makes picture look misty white, as when external
fog filter is attached to lens, softens image.

ND EFFECT

Black mist darkens picture, as when ND filter is
used. Helps to counter effects of glare on subject.

Sepia

Scene being shot is recorded in sepia-tinted
(reddish-brown) monochrome, giving effect of older
movie. Use together with Cinema (
authentic look of classic Hollywood movie.

Twilight

Disengages auto gain control and auto focus, locks
focus to infinity and white balance to “
(outdoor) mode. Dusk, twilight scenery, fireworks,
etc., look more natural and dramatic.

VIEWFINDER MODE

AUTO LOCK

A

AUTO RELEASE

M

FG:FOGFG

SEPIA

Auto Mode Lock

Auto Mode 
Release

Electronic Fog Filter

ND EffectND:ND EFFECTND

Sepia

Z pg. 17) for

TWILIGHT

Twilight

”

Tally lamp

DIAL

SYMBOL

Sports

High shutter speed clearly captures fast-moving
action.

1/2000

High-Speed Shutter (1/2000s.)

Captures faster action than Sports mode.

15sec. Self-Timer

Lets you delay recording start after Recording Start/
Stop is pressed. If camcorder is secured, operator
can enter scene before recording starts.

1) Set PROGRAM AE dial to “

in viewfinder.

2) Press Recording Start/Stop.

•Recording starts after 15 seconds.

•Tally lamp begins blinking; blinking speed
increases about 5 seconds before recording starts.
Blinking stops when recording begins but light
stays on.

VIEWFINDER MODE

SPORTS

S 1/2000

SELF TIMER

Sports

High Speed Shutter

15 sec. Self-Timer

”. “ 15S” appears

NOTES:

●

Only one effect can be engaged at a time.

●

When the PROGRAM AE select dial is switched
from one mode to another, the newly selected
mode's name and its indication is displayed in the
viewfinder for approx. 3 seconds. Then the name
disappears, and only the indication remains.

●

The screen becomes slightly reddish when the
fader (Z pg. 16) is used in the Sepia mode.

●

The screen becomes slightly dark in the High
Speed Shutter mode. Use in well-lighted
situations.

●

In the High Speed Shutter or Sports modes,
picture colour may be adversely affected if
subject is lit by alternating discharge-type light
sources such as flourescent or mercury-vapour
lights.

GR-AX210EK-2 96.10.8, 1:25 PM14

White balance mode indicator

No indication 
(Auto)

MWB

MWB

15

White Balance Adjustment

This camcorder’s Automatic Colour Temperature system
senses the colour temperature of the ambient lighting for
automatic white balance adjustment. However, precise
colour adjustment is not possible under the following
conditions:

•When an object is in various shades of the same colour.

•When a predominantly red or brown object is being
shot outdoors.

In these cases, use the camcorder’s built-in preset filters
for white balance adjustment.

SELECT MODE

Press MWB (Manual White Balance) until the

1

required indication appears in the viewfinder.

“ ” .............. Outdoors on cloudy day

“

” ............... Outdoors on sunny day

“ ” ................ Light source is halogen or tungsten

...................... lamp

“MWB” .......... With a memorized personal White

...................... Balance setting (see below)

MWB sets the colour temperature for the subject’s light
source so you can shoot with natural colours that are
unaffected by surroundings, even when there are
multiple subjects with different colour temperatures.

ADJUST FOCUS

Point the camcorder at a white, flat object such as a

1

sheet of white paper, and adjust focus manually
(Z pg. 19).

ADJUST WHITE BALANCE

Press MWB until ”MWB“ appears, then press and

2

hold MWB for more than 3 seconds.

•”MWB” blinks in the viewfinder during
adjustment, then stops blinking but stays lit when
adjustment is complete.

NOTES:

●

To switch to automatic white balance adjustment, press MWB until the indication disappears, or turn the
PROGRAM AE dial to LOCK.

●

Re-adjust the White Balance Mode when the lighting has changed, when the camcorder has been turned
on and off again, or when the PROGRAM AE dial’s position has been changed.

●

It is helpful to connect your camcorder to a colour monitor when adjusting the white balance
(“BASIC CONNECTIONS” Z pg. 27).

●

When adjusted by putting coloured paper in front of the subject in step 2 , this unit makes its colour
temperature standard for automatic white balance. So you can enjoy shooting with different colours. For
example, when adjusting with red, blue or yellow colours, the image becomes the colour which
aproximates to green, orange or purple respectively.

GR-AX210EK-2 96.10.8, 1:25 PM15

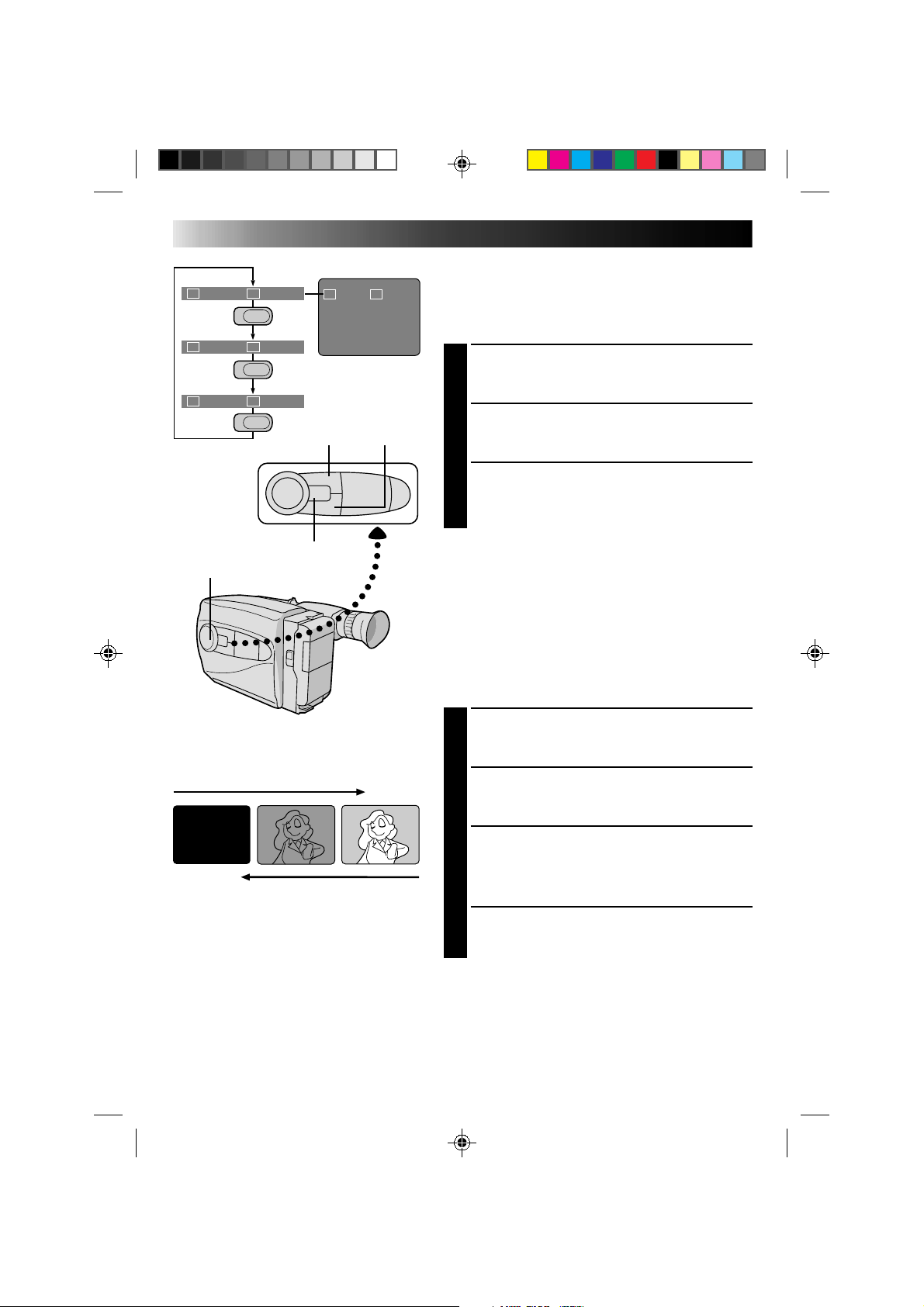

16

Group 1

F1

Group 2

F1

Group 3

F1

FADER CINEMA

FOCUS

TITLE

F2

SEL.

F2

SEL.

F2

SEL.

EXP.

DISP.

F1 F2

FADER CINEMA

Viewfinder

F2 buttonF1 button

RECORDING

Advanced Features

INTELLIGENT FUNCTION CONTROL

This feature makes it easier for you to make selections
during the following modes: Fader, Cinema, Manual

Focus Adjust, Exposure Control, Display, and Instant
Title.

PREPARATION

Set the PROGRAM AE dial to any position except

1

LOCK.

SELECT MODE

Press Function SEL. until the required function’s

2

indication appears in the viewfinder.

Function SEL. button

PROGRAM AE select dial

FADE OUT

SEL

F1

F2

ENTER SELECTION

Press either F1 or F2 (the one to the immediate left

3

of the desired function name).

NOTE:

If you set the PROGRAM AE dial to LOCK, F1 and F2
disappear from the viewfinder, indicating that IFC
(Intelligent Function Control) is unusable.

Fader

This feature allows smooth fade-in and fade-out to black
blank screen. Fade-in works at recording start, and
fade-out works at recording end or when you enter
Record–Standby mode.

SELECT MODE

Press Function SEL. until “FADER” appears to the

1

right of F1.

FADE IN

ENGAGE FADE–STANDBY MODE

Press F1 to engage the Fade–Standby mode.

2

“FADER”appears in the viewfinder.

START RECORDING

Press Recording Start/Stop to start recording and

3

activate fade-in.

OR . . .

END RECORDING

Press Recording Start/Stop to end recording and
engage fade-out.

GR-AX210EK-2 96.10.8, 1:25 PM16

NOTES:

●

Pressing and holding the Recording Start/Stop button
allows you to record a black blank screen.

●

The screen becomes slightly reddish when the Fader is
used with Sepia (Z pg. 14).

●

With the Electronic fog filter mode (Z pg. 14)
engaged, the image fades in/out to a white screen.

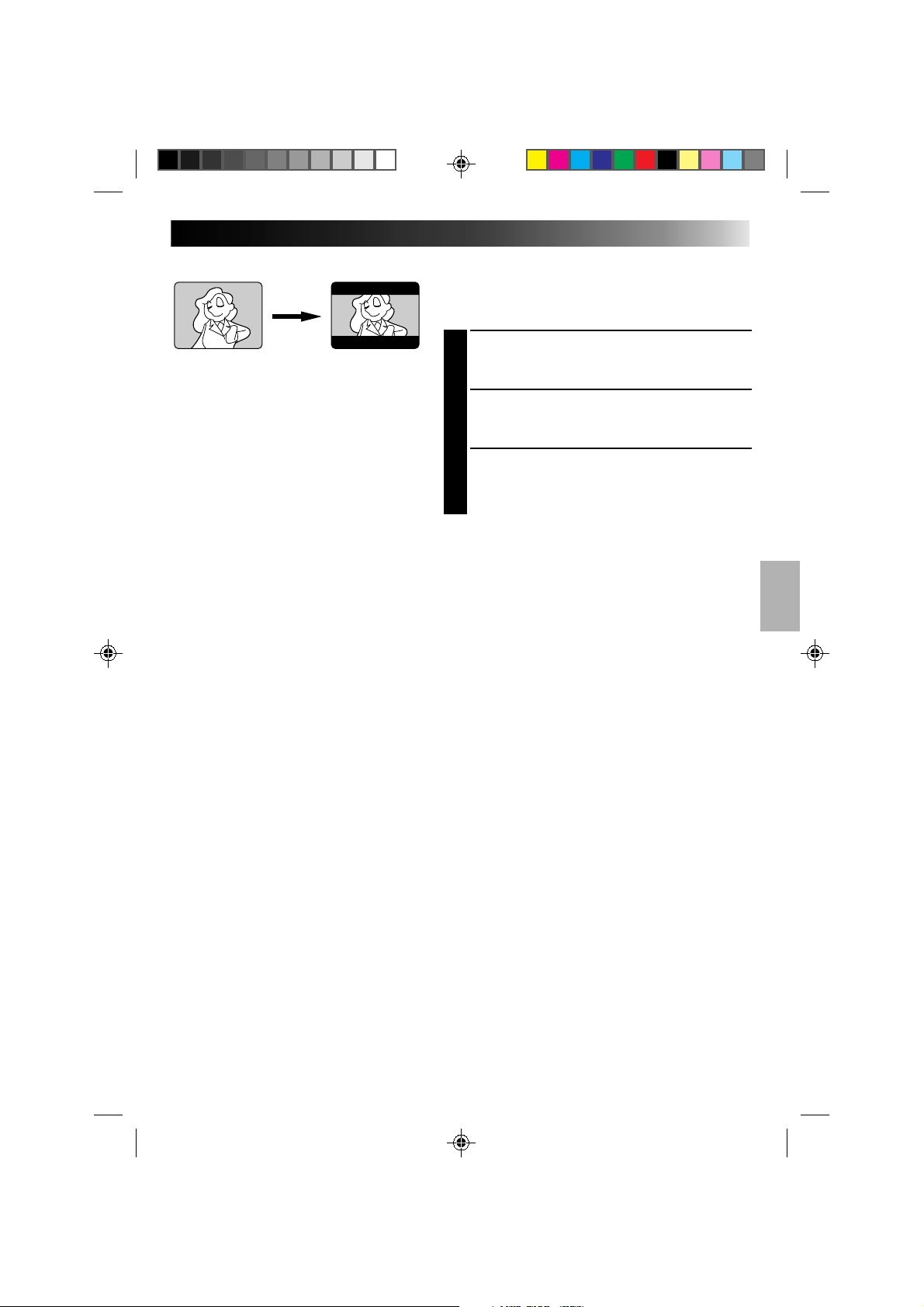

Cinema mode

17

Cinema

This feature allows you to record black bars at the top
and bottom of the screen to produce a cinema-like
“wide-screen” effect.

SELECT MODE

Press Function SEL. until “CINEMA” appears to the

1

right of F2.

ENGAGE CINEMA MODE

Press F2.

2

RESTORE NORMAL SCREEN

Press F2 again while “CINEMA” appears next to F2

3

in the viewfinder.

GR-AX210EK-2 96.10.8, 1:25 PM17

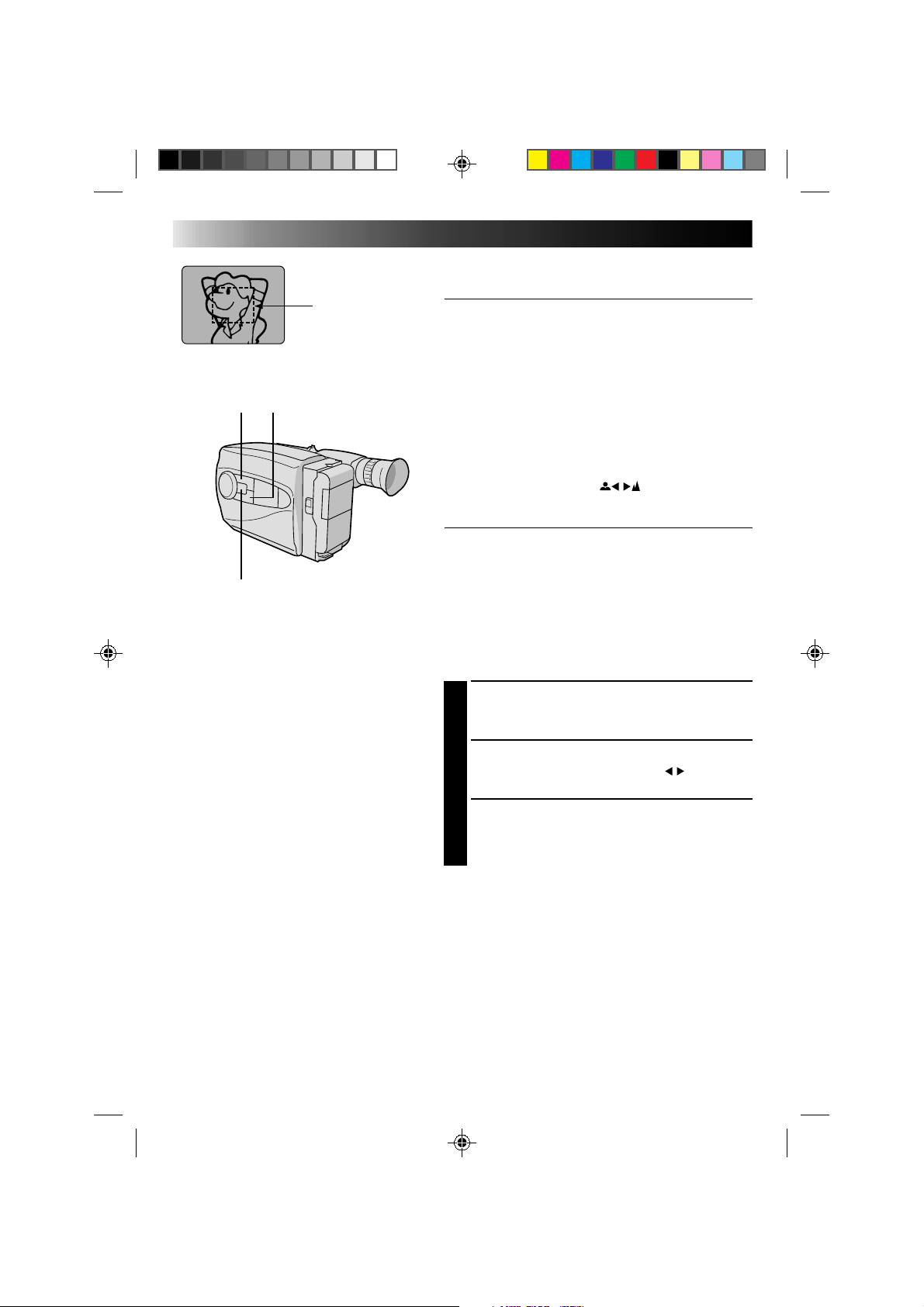

18

F1 F2

Function SEL.

Focus
detection zone

RECORDING

Advanced Features

Focusing

Auto Focus

The camcorder’s Full Range AF system offers continuous
shooting ability from close-up to infinity. However,
correct focus may not be obtainable in the situations
listed below (in these cases use manual focusing):

•When two subjects overlap in the same scene.

•When illumination is low.*

•When the subject has no contrast (difference in
brightness and darkness), such as a flat, one-colour
wall, or a clear, blue sky.*

•When a dark object is barely visible in the viewfinder.*

•When the scene contains minute patterns or identical
patterns that are regularly repeated.

* The low-contrast warning “

viewfinder.

Focus Lock

This feature locks the focus in place, which is especially
helpful in the following situations:

•When things pass between your subject and the
camcorder. Engage the focus lock function to lock your
subject in before recording.

•When you want your subject to be focused, and to
appear in a corner of the screen. First, centre on the
subject and focus using auto focus mode. Then engage
the focus lock function and move the camcorder until
the subject is where you want it.

” appears in the

GR-AX210EK-2 96.10.8, 1:25 PM18

SELECT MODE

Press Function SEL. until “FOCUS” appears to the

1

right of F1.

LOCK FOCUS

Press F1. The focus lock indication “ ” appears

2

in the viewfinder.

RELEASE FOCUS LOCK

Press F1. Focus lock is immediately released. The

3

focus lock indication disappears.

NOTES:

●

If the lens is smeared or blurred, accurate focusing is
not possible. Keep the lens clean, wiping with a piece
of soft cloth if it gets dirty. When condensation occurs,
wipe with a soft cloth or wait for it to dry naturally.

●

When shooting a subject close to the lens, zoom-out
first (Z pg. 13). If zoomed-in in the auto focus mode,
the camcorder could automatically zoom out
depending on the distance between the camcorder and
the subject.

A

F1 button F2 button

F1

SEL

F2

Function SEL.
button

Power zoom switch

F1

FOCUS EXP.

Viewfinder

19

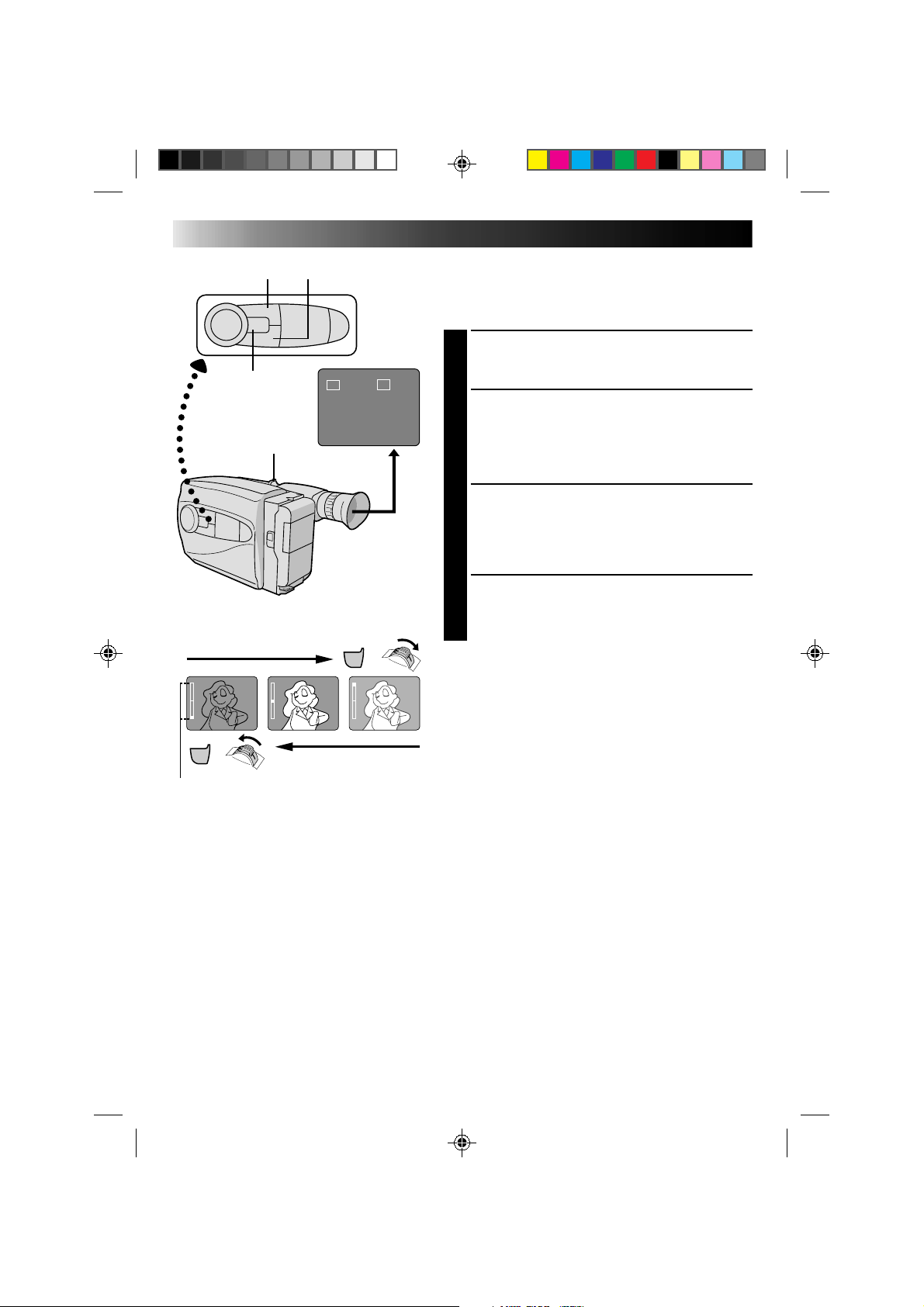

Manual Focus

NOTE:

You should already have made the necessary viewfinder
adjustments (Z pg. 9). If you haven’t, do so before
continuing.

SELECT MODE

F2

Press Function SEL. until “FOCUS” appears to the

1

right of F1.

ADJUST FOCUS

TO FARTHER SUBJECT

2

While holding down F1, slide the power zoom

2

switch to T. The Manual Focus indications “ ”
appear and “ ” blinks.

Go to step 3.

B

TO NEARER SUBJECT

While holding down F1, slide the power zoom
switch to W. The Manual Focus indications
“

” appear and “ ” blinks.

Go to step 3.

LOCK FOCUS

Release the power zoom switch. The focus

3

indication is replaced by the focus lock indication
“ ” and the adjusted focus is locked in.

F1

+

GR-AX210EK-2 96.10.8, 1:25 PM19

F1

+

Press F1. The Manual Focus mode is immediately

4

released and the focus lock indication disappears.

NOTES:

●

Be sure to focus the lens in the maximum telephoto
position when you use the Manual Focus mode. If you
focus in on a certain subject in the wide-angle position,
sharply focused images cannot be obtained when
zoomed up because the depth-of-field is reduced at
longer focal lengths.

●

Two manual focusing speeds are available. For
slow-speed, push the switch slightly and hold that
position. For fast-speed, push the switch fully.

●

When the focus level cannot be adjusted any farther or
closer, “ ” or “ ” will blink.

RELEASE MANUAL FOCUS MODE

20

Power zoom switch

F1 button F2 button

F1

SEL

F2

Function SEL.
button

F1

FOCUS EXP.

Viewfinder

RECORDING

Advanced Features

Exposure Control

This feature automatically adjusts the iris for the best
available picture quality, but you can override and make
the adjustment manually.

SELECT MODE

Press Function SEL. until “EXP.” appears to the right

1

F2

of F2.

BRIGHTEN IMAGE

While holding down F2, slide the power zoom

2

switch to T. The Exposure indicator bar appears in
the viewfinder.

OR . . .

DARKEN IMAGE

While holding down F2, slide the power zoom
switch to W. The Exposure indicator bar appears in
the viewfinder.

When you want to return to the factory setting . . .

RESTORE INITIAL SETTING

Press F2. The standard setting is immediately

3

restored and the Exposure indicator bar disappears.

To brighten the image

+

-

+

F2

Exposure indicator bar

+

-

+

F2

+

-

To darken the image

GR-AX210EK-2 96.10.8, 1:25 PM20

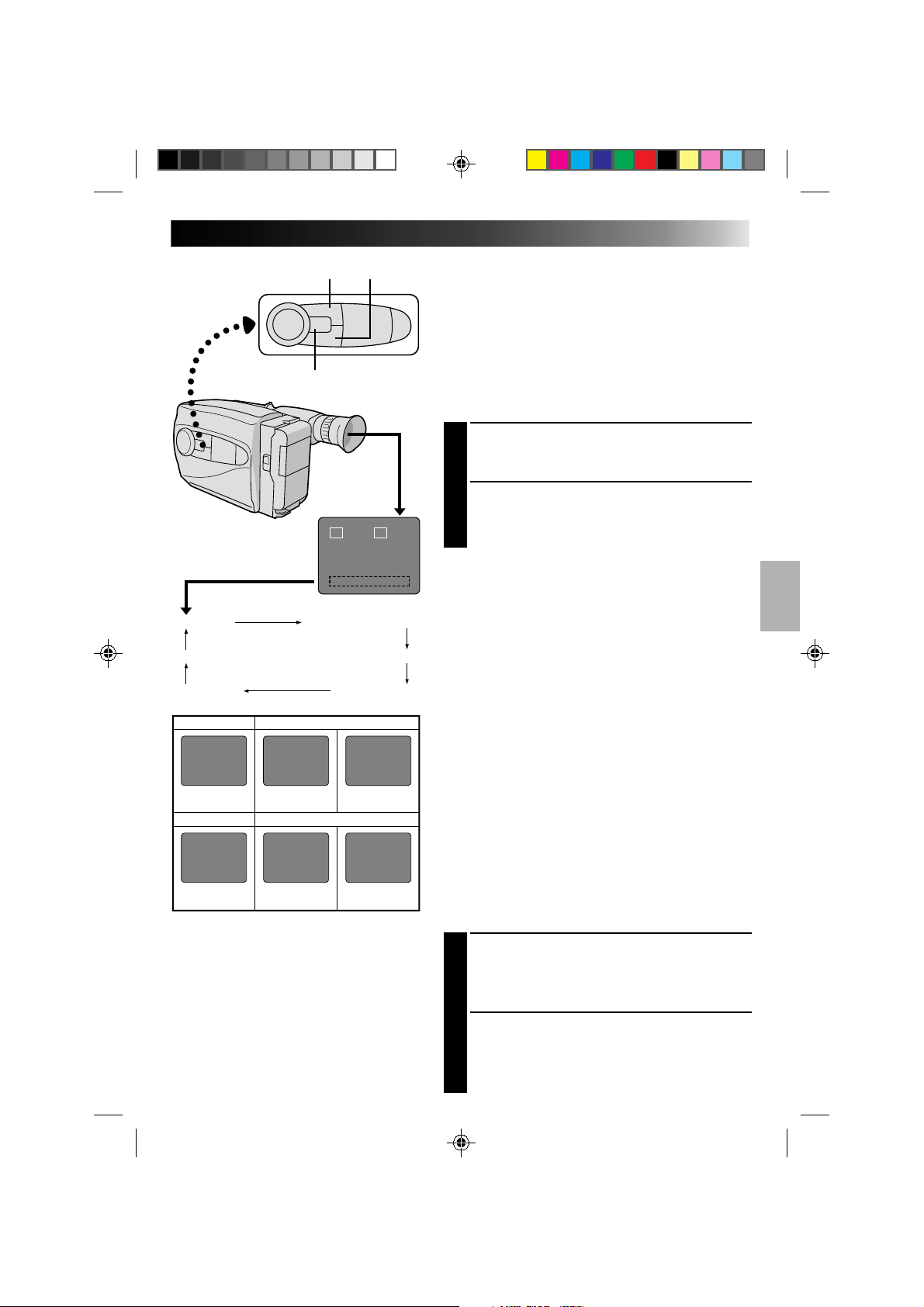

Date display

Character Generator

25.12.96


25.12.95 10:00

Date-off mode

Date display

Date/Time display

F1 button

F1

SEL

F2

Function SEL. button

F1 F2

Auto Date Record mode

Date/Time display

On-screen display

Auto Date Record mode

AUTO DATE

Auto date
record mode

Character Generator

SET CHAR

No Characters
stored


F2 button

TITLE DISP.

25.12.95


Auto date
record executed

IN PARIS, FRANCE

Example of
stored characters

Date/Time Character Insert

This feature allows you to display date, time and characters
in your viewfinder and on a connected colour monitor,
record them manually or automatically, and even make
your own titles.

NOTE:

You should already have performed the Date/Time Setting
procedure (

DISPLAY

1
2

NOTES:

●

●

●

●

AUTO DATE RECORD

Your camcorder automatically records the month, day
and year for about 5 seconds after recording is initiated
in the following situations:

•After changing the date.

•After loading a cassette.

•After Auto Date Record mode is selected by pressing

NOTES:

●

●

ON-SCREEN DISPLAY

Z

pg. 8). If you haven’t, do so before continuing.

SELECT DISPLAY

Press Function SEL. until “DISP.” appears to the right
of F2.

CHOOSE DISPLAY MODE

Press F2 while in Record–Standby to cycle through
the modes as shown in the illustration at left.

The selected display can be recorded.
If you don’t want to record the display, select Date-off mode
before shooting.
If you want to delete the display during shooting, press F2.
If you want to call back a deleted display, engage the Record–
Standby mode and then select the desired display mode using F2.

F2. In this mode, the month, day and year are replaced
after 5 seconds with “AUTO DATE”.

Setting PROGRAM AE to LOCK always engages this mode, and
disables all other modes.
In the Auto Date Record mode, if the date changes while you’re
shooting, the date indication is recorded for about 5 seconds
from that point. It is not recorded during any other recordings
made on that day.

21

NOTES:

●

In the On-Screen Display mode, the date is
displayed and recorded.

●

The on-screen display is not available during recording.

GR-AX210EK-2 96.10.8, 1:25 PM21

CONNECT CAMCORDER TO
MONITOR

Connect the camcorder to a monitor as instructed in

1

“BASIC CONNECTIONS” (Z pg. 27).

DISPLAY VIEWFINDER
INDICATIONS

Press F2 until the indications appear on the

2

connected monitor.

22

IN PARIS, FRANCE

SET CHAR

SET–/+

CHARACTER
SET MODE screen

CHARACTER SET MODE

A B C D E F G H I

J K L M N O P Q R S
T U V W X Y Z Ä Ö Ü
À È Ì Ò Ù Ñ Æ Ø Å &

: . , ' - / ! ? ¿ k
0 1 2 3 4 5 6 7 8 9

CHARACTER SET MODE

A B C D E F G H I

J K L M N O P Q R S
T U V W X Y Z Ä Ö Ü
À È Ì Ò Ù Ñ Æ Ø Å &

: . , ' - / ! ? ¿ k
0 1 2 3 4 5 6 7 8 9

I N PAR I S, FR

CHARACTER
SET MODE screen

RECORDING

Advanced Features

Character Generator

SELECT MODE

Press Function SEL. until “DISP.” appears to the right

1

of F2.

SET CHARACTER OR TITLE

Press F2 until “SET CHAR” or a previously stored

2

title appears in the viewfinder.

ACCESS CHARACTER MODE
SCREEN

Press SET. A character grid appears in the view

3

finder.

ENTER DESIRED CHARACTERS

Press + or – to move the cursor on the character grid

4

to the desired character, then press SET to enter. The
selected characters appears at the bottom of the
screen. When you’re done, press SET as many times
as necessary to exit the screen. The title you made
appears at the bottom of the screen.

NOTES:

●

You can store up to 18 characters.

●

You can only make and store one title at a time. To
replace it, repeat the procedure.

●

To create a space between two characters in a title you
make, choose “
screen.

” on the CHARACTER SET MODE

GR-AX210EK-2 96.10.8, 1:25 PM22

Example of Character Generator & Title

Viewfinder



HAPPY HOLIDAYS

IN PARIS, FRANCE

23

Instant Titles

The camcorder has eight preset titles in memory. You can
superimpose one of them above a previously stored title
as shown in the illustration to the left.
The preset titles appear in this order: HAPPY BIRTHDAY,
HAPPY HOLIDAYS, OUR FAMILY, MOVIE STAR,
PARTY TIME, MERRY CHRISTMAS, WEDDING DAY,
CONGRATULATIONS.

Character Generator:

IN PARIS, FRANCE

Title indication

Title: HAPPY HOLIDAYS

SELECT MODE

Press Function SEL. until “TITLE” appears to the right

1

of F1.

SELECT PRESET TITLE

Engage the Record–Standby mode, then press F1 to

2

cycle through the preset titles until the desired title is
displayed.

NOTES:

●

To delete the Instant Title during recording, press F1.

●

To recall a title, engage the Record–Standby mode and
then press F1 to select the desired title.

●

To display a title you made in the position usually
occupied by an Instant Title, cycle through in step 2
above until your title appears
(after “CONGRATULATIONS”). You can superimpose
two personal titles on the scene being shot.

GR-AX210EK-2 96.10.8, 1:25 PM23

24

Tally lamp PROGRAM AE

START/STOP

INTERVAL
REC TIME

RM-V20U (optional)

RECORDING

Advanced Features

Self-Timer

You can set the delay between pressing Recording Start/
Stop and the actual start of recording. If you secure the
camcorder, you (or whomever is operating the
camcorder) can enter the scene before recording starts.

NOTE:

You need the optional RM-V20U remote control unit to
perform this procedure.

ENGAGE RECORD–STANDBY
MODE

Make sure the lens cover is open, set the power

1

switch to CAMERA.

SET TIME DELAY

On the RM-V20U, press INTERVAL to set the delay

2

time. There are four choices, and they appear in the
viewfinder in the following order (each time
INTERVAL is pressed): 15S (15 seconds), 30S
(30 seconds), 1MIN (1 minute) and 5MIN
(5 minutes). Pressing again releases the Self-timer.

START DELAYED RECORDING

Press Recording Start/Stop. The tally lamp begins

3

blinking, and the blinking speed increases about
5 seconds before recording starts. When recording
begins, the lamp stops blinking but stays lit.

GR-AX210EK-2 96.10.8, 1:25 PM24

RELEASE SELF-TIMER MODE

To release when the tally lamp is not blinking, press

4

INTERVAL continuously until “ ” disappears. To

release when the tally lamp is blinking, press
Recording Start/Stop to stop the blinking, then press
INTERVAL continuously until “ ” disappears.

NOTE:

If the PROGRAM AE dial is set to “ ”, 15S is automati­cally selected.

Animation

Give stationary scenes or objects an illusion of
movement. This function allows you to shoot a
series of pictures, each slightly different, of the same
object for a brief period of time.

NOTE:

You need the optional RM-V20U remote control
unit to perform the following procedure.

ENGAGE RECORD–STANDBY
MODE

Make sure the lens cover is open, then set the

1

power switch to CAMERA.

SET RECORDING SPEED

Set SP/LP to SP (Z pg. 9).

2

SET RECORDING TIME

Press REC TIME on the remote control. Three

3

choices are available, and they appear in the
following order (each time REC TIME is
pressed): 1/4S (one-fourth of a second), 1/2S
(one-half of a second) and 1S (one full second).
Press again to release the Animation mode.

START RECORDING

Press Recording Start/Stop after focusing on the

4

subject. The recording stops automatically after
the selected period of time.

ASSEMBLE SERIES OF
PICTURES

Repeat steps 3 and 4 for the desired number of

5

pictures.

CHECK YOUR WORK

Play back the series of pictures to see if the

6

results were satisfactory.

RELEASE ANIMATION MODE

Press REC TIME until “ ” disappears from the

7

viewfinder.

NOTES:

●

For best results, make sure the camcorder is
secured when shooting.

●

If the PROGRAM AE dial is set to Self-Timer
mode, Animation is cancelled and Self-Timer
mode is engaged with 15S selected.

●

Fade-in/out cannot be performed during
Animation shooting.

25

Time-Lapse

You can record sequentially at preset time spans.
Leaving the camcorder aimed at a specific subject,
you can record subtle changes over an extended
period of time.

ENGAGE RECORD–STANDBY
MODE

Make sure the lens cover is open, then set the

1

power switch to CAMERA.

SET RECORDING SPEED

Set SP/LP to SP (Z pg. 9).

2

SET RECORDING TIME

Press REC TIME on the remote control. There

3

are three choices available, and they appear in
the following order (each time REC TIME is
pressed): 1/4S, 1/2S and 1S. Press again to
reset.

SET INTERVAL BETWEEN
RECORDINGS

Press INTERVAL on the remote control. There

4

are four choices available, and they appear in
the following order (each time INTERVAL is
pressed): 15S, 30S, 1MIN, and 5MIN. Press
again to reset.

START TIME-LAPSE
RECORDING

Press Recording Start/Stop. Recording and

5

intervals alternate automatically.

RELEASE TIME-LAPSE MODE

To release when the tally lamp is not blinking,

6

press INTERVAL and REC TIME repeatedly
until “ ” and “ ” disappear. To release
when the tally lamp is blinking, press
Recording Start/Stop to stop the blinking, then
press INTERVAL and REC TIME repeatedly
until “ ” and “ ” disappear.

NOTES:

●

Fade-in/out cannot be performed during
Time-Lapse shooting.

●

For best results, keep the camcorder secured
while shooting.

●

If, during steps 3 and 4, the PROGRAM AE dial is
set to the Self-Timer mode, the Self-Timer mode is
engaged with 15S selected.

GR-AX210EK-2 96.10.8, 1:25 PM25

26

+

Compact video cassette

VCR

Compartment door

Sliding latch

Reels

PLAYBACK

Using The Cassette Adapter

Cassette Adapter

Use this to play back a VHS-C video cassette recorded
with this camcorder. It is fully compatible with any VHS
video cassette recorder. The C-P7U adapter is battery
powered and automatically performs tape loading and
unloading.

INSERT BATTERY

Slide the battery cover up to remove it, and install

1

one “R6(AA)” size battery as shown in the
illustration at left. Then reattach the cover.

INSERT CASSETTE IN ADAPTER

Slide the latch to open the adapter compartment

2

door, then insert the cassette and close the
compartment door.

PLAY BACK ON CONNECTED VCR

Load the cassette adapter into the VCR and play the

3

tape back as you would any other.

REMOVE CASSETTE FROM
ADAPTER

Slide the latch and the compartment door opens

4

automatically. Then insert your finger in the hole on
the underside of the adapter as shown in the
illustration at left, push up and remove the cassette.

NOTES:

●

During tape loading and unloading, do not touch the
reels for safety and tape protection.

●

During special-effect playback (slow motion, still
frame, etc.), the picture may vibrate or noise bars may
appear on the screen.

●

To record on a VCR using a compact cassette and the
adapter, cover the adapter’s recording safety hole with
adhesive tape.

Recording safety hole

GR-AX210EK-2 96.10.8, 1:25 PM26

PLAYBACK

To AUDIO
and VIDEO
connectors

A

Basic Connections

Audio and Video
cables (optional)

B

27

There are three basic types of connections. When making
the connections, refer also to your VCR and TV
instruction manuals.

Connection To A VCR [A]
(Editing, Dubbing and Playback)

NOTE:

Use the optional Audio and Video cables.

CONNECT CAMCORDER TO VCR

As shown in the illustration at left, connect the

1

optional Audio and Video cables between the
AUDIO and VIDEO connectors on the camcorder
and those on the VCR.

If your TV/VCR
has the SCART
connector, use
the provided
cable adapter.

VCR

Aerial

RF unit RF-V5E
(optional)

To AUDIO
and
VIDEO IN
connectors

To AUDIO, VIDEO and
DC OUT connectors

NOTES:

●

It is recommended to use the AC Power
Adapter/Charger as the power supply instead
of the battery pack.

●

To monitor the picture and sound from the
camcorder without inserting a tape, set the
camcorder’s power switch to CAMERA, then
set your TV to the appropriate input mode.

●

If you have a TV or speakers that are not
specially shielded, do not place the speakers
adjacent to the TV as interference will occur
in the camcorder playback picture.

SUPPLY POWER

Turn on the camcorder, the VCR and the TV.

2

SELECT MODE

Set the VCR to its AUX input mode, and set the TV

3

to its VIDEO mode.

Connection To A TV With A/V Input
Connectors [B] (Playback ONLY)

NOTE:

Use the optional Audio and Video cables.

CONNECT CAMCORDER TO TV

As shown in the illustration at left, connect the

1

optional Audio and Video cables between the
AUDIO and VIDEO connectors on the camcorder
and those on the TV.

SELECT MODE

Set the TV to its VIDEO or AV mode (as specified in

2

its instructions).

Connection To A TV With NO A/V Input
Connectors (Playback ONLY)

NOTE:

Use the optional RF-V5E RF unit.

* Refer to the RF-V5E instruction manual for connection

procedure.

GR-AX210EK-2 96.10.8, 1:25 PM27

28

FF

REW

POWER

M 0:00:00

PLAY/PAUSE

STOP

Tape counter

PLAYBACK

NOTE:

Make sure you connect your camcorder as directed in
“BASIC CONNECTIONS” (Z pg. 27 ).

Basic Playback

LOAD A CASSETTE

Load as you did in the recording procedure.

1

SELECT MODE

Set the power switch to PLAY. The Power On

2

indicator lights.

PLAYBACK

Press PLAY/PAUSE. The playback picture appears in

3

the viewfinder and the connected TV.

STOP PLAYBACK

Press STOP.

4

Rewind or Fast-forward the Tape

Press REW to rewind, or FF to fast-forward the tape
during stop mode.

NOTE:

The camcorder shuts off automatically after about 5
minutes in STOP mode. To turn on again, set the power
switch to POWER OFF, then to PLAY.

GR-AX210EK-2 96.10.8, 1:25 PM28

PLAYBACK

Features

29

COUNTER R/M

REW

RM-V20U (optional)

FF

REW
FF

PLAY
PAUSE

PLAY/PAUSETRACKING

STOP

FEATURE: Manual Tracking
PURPOSE: To eliminate noise bars that appear

OPERATION: 1) Press either TRACKING button as

NOTES: ●

FEATURE: Still Playback
PURPOSE: To pause during playback.
OPERATION: 1) Press PLAY/PAUSE during

NOTE:

FEATURE: Shuttle Search
PURPOSE: To allow high-speed search in either

OPERATION:

NOTE:

FEATURE: Counter Memory Function
PURPOSE: To make it easier to locate a specific

OPERATION: 1) Press COUNTER R/M and hold for

NOTES: ●

on the screen.

many times as necessary for best
picture.

To reset TRACKING to the original
preset, press both TRACKING
buttons simultaneously.

●

Manual Tracking may not work with
tapes recorded on other VCRs or
camcorders.

playback.

2) To resume normal playback, press
PLAY/PAUSE again.

Noise bars appear and pictures may
become monochrome during Still
Playback. This is normal.

direction.

Forward Search

1) Press FF during playback. (Speed is
3 times normal in SP, and 7 times
normal in LP mode.)

Reverse Search

1) Press REW during playback.
(Speed is as noted above.)

Noise bars appear and pictures may
become monochrome in Shuttle
Search. This is normal.

tape segment.

more than 2 seconds. The counter
resets to “0:00:00”.

2) Press COUNTER R/M less than 1
second. “M” appears.

3) After recording or playback, press
STOP, then REW. The tape

automatically stops at or close to
0:00:00.

4) Press PLAY/PAUSE to start
playback.

The counter memory functions in
the FF and REW modes.

●

To disable Counter Memory
Function, press COUNTER R/M less

than 1 second so the “M” disappears.

GR-AX210EK-2 96.10.8, 1:25 PM29

30

PLAY/PAUSE

EDIT

To EDIT

Editing cable
(provided)

To Remote
PAUSE

VCR (Recording deck)

Power switch

To AUDIO out
To VIDEO out

Audio and Video
cable (optional)

If your TV/VCR
has the SCART
connector, use
the provided
cable adapter.

To AUDIO IN
To VIDEO IN

EDITING

Tape Dubbing

CONNECT EQUIPMENT

Following the illustration at left, connect the

1

camcorder and the VCR. If you have a Remote
PAUSE terminal, use the editing cable to connect it
to the camcorder and the VCR. (See “NOTES” below
for details.)

PREPARE FOR DUBBING

Set the camcorder’s power switch to PLAY, turn on

2

the VCR’s power, and insert the appropriate
cassettes in the camcorder and the VCR.

SELECT VCR MODE

Engage the VCR’s AUX and Record-Pause modes.

3

FIND EDIT-IN POINT

Engage the camcorder’s Play mode to find a spot

4

just before the edit-in point. Once it’s reached, press
PAUSE on the camcorder.

START EDITING

Press PLAY on the camcorder and engage the VCR’s

5

Record mode.

STOP EDITING TEMPORARILY

Engage the VCR’s Record-Pause mode and press

6

PAUSE on the camcorder.

EDIT MORE SEGMENTS

Repeat steps 4 through 6 for additional editing, then

7

stop the VCR and camcorder when finished.

NOTES:

●

When using a Remote PAUSE terminal, pressing EDIT on the
camcorder in step 5 automatically engages the VCR’s Record
mode.

●

When using a Remote PAUSE terminal, you can access a
function called Master Edit Control System. Before beginning,
reset the camcorder’s counter to “M0:00:00” at an edit-out
point. When the tape reaches this point (remember there’s a
small margin of error) during editing, the camcorder and VCR
pause automatically. However, some VCRs are not compatible

with the Master Edit Control System.

GR-AX210EK-2 96.10.8, 1:25 PM30

Random Assemble Editing [R.A.Edit]

Create edited videos easily using your camcorder as the
source player. You can select up to 8 “cuts” for automatic
editing, in any order you like. R.A.Edit is more easily
performed when the optional RM-V704U MBR (Multi­Brand Remote) is set to operate with your brand of VCR
(see chart at left), but can also be performed by operating
the VCR manually.

CONTINUED ON NEXT PAGE

31

A

SET REMOTE/VCR CODE

SET REMOTE TO OPERATE VCR

MBR SET

2 3

1

4

5 6

8

0

9

7

VCR. CTL.

RM-V704U (optional)

Turn off the power to the VCR and point the remote

1

toward the VCR’s infrared sensor. Then, referring to
the chart at left, press and hold MBR SET, and press
button (A) and then (B).

•The code is automatically set once you release the

MBR SET button, and the VCR’s power comes on.

VCR CODE LIST

VCR BRAND
NAME

AKAI 6 2

BLAUPUNKT 1 3
FERGUSON 9 7

GRUNDIG 1 4

HITACHI 6 6

JVC A
B
C

MITSUBISHI

NEC

PANASONIC 1 3

BUTTONS
(A) (B)

6 4
7 7

9 8
3 2

3 4

6 3

9 1
9 6
9 3

6 7
6 8

3 7
3 8

1 7
1 1
9 4
1 8

VCR BRAND
NAME

PHILIPS 1 9

SANYO 3 6

SELECO, REX 9 1

SHARP

SONY

THOMSON,
TELEFUNKEN,
SABA,
NORDMENDE


TOSHIBA 6 9

BUTTONS
(A) (B)

9 5
1 1
9 4
9 1
9 6
1 2
3 3

3 5

9 6

1 5
1 `

6 5
6 `
3 9


3 1

9 1
9 6
9 7
3 2

6 1

OPERATE THE VCR

Make sure the VCR’s power is on. Then, while

2

holding VCR CTL, press the button on the remote for
the desired function. The functions the remote can
control are PLAY, STOP, PAUSE, FF, REW and VCR
REC STBY (you don’t need to press VCR CTL for this
one).

You’re now ready to try Random Assemble Editing.

IMPORTANT

Although the MBR is compatible with JVC VCRs and
those of many other makers, it may not work with yours
or may offer limited functions.

NOTES:

●

If the VCR’s power doesn’t come on in step 1, try
another code from the chart.

●

Some brands of VCR don’t come on automatically. In
this case, turn the power on manually and try step 2.

●

If the RM-V704U is not able to control the VCR, use
the controls on the VCR.

●

The RM-V704U cannot be used to operate the
camcorder.

MAKE CONNECTIONS

CONNECT TO . . .

JVC VCR EQUIPPED WITH REMOTE

1

PAUSE TERMINAL

Connect the editing cable to the Remote PAUSE
terminal.

B

JVC VCR NOT EQUIPPED WITH REMOTE

2

PAUSE TERMINAL

Connect the editing cable to the R.A.EDIT
connector.

C

NON-JVC VCR WITH NEITHER

2

Connect the editing cable to the RM-V704U’s
Pause-In jack.

All other connections are as shown in the illustration
on page 32.

CONTINUED ON NEXT PAGE

GR-AX210EK-2 96.10.8, 1:25 PM31

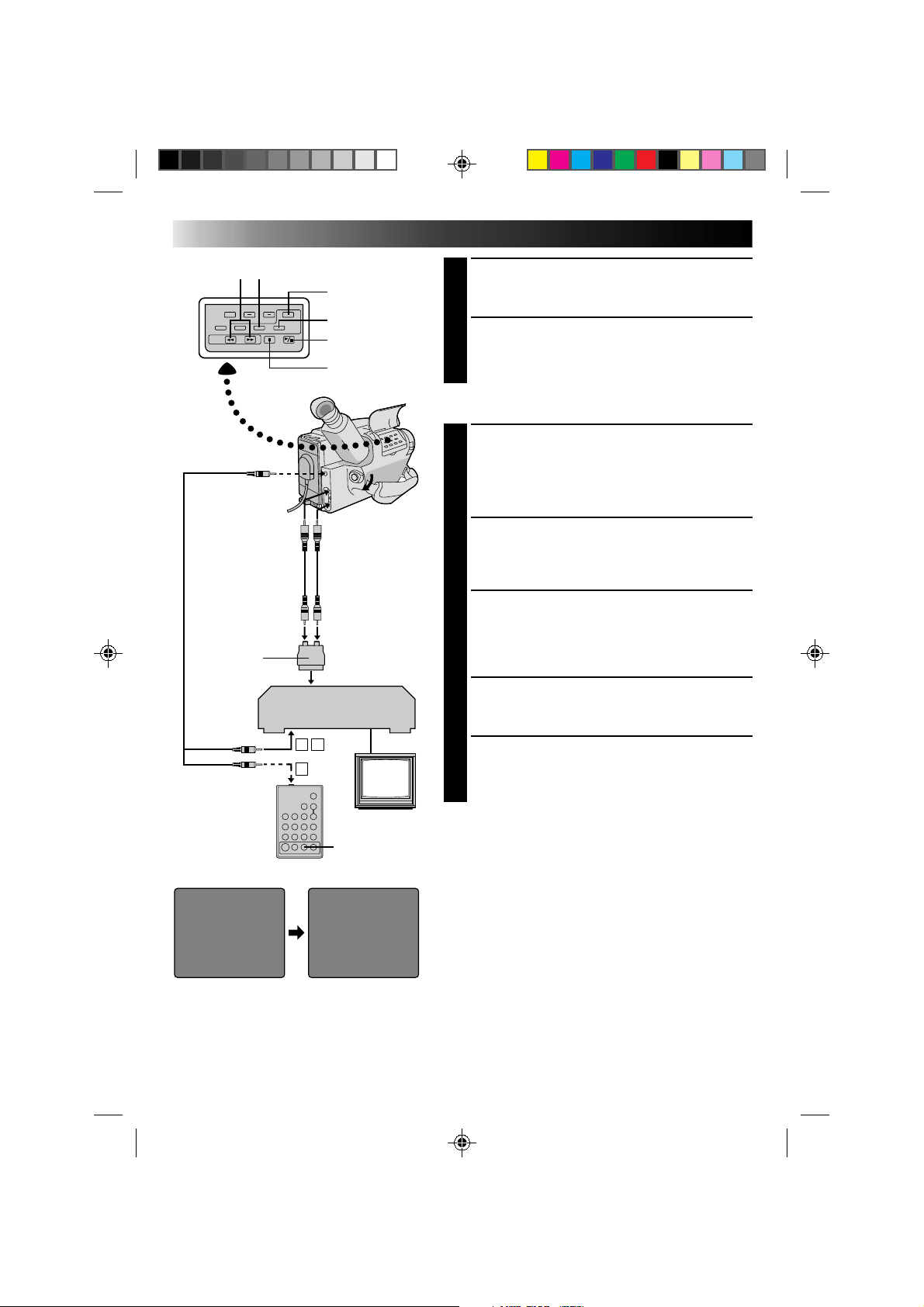

32

EDITING (cont.)

CANCELREW/FF

To EDIT

Editing cable
(provided)

Audio and Video
cable (optional)

If your TV/VCR has
the SCART connector,
use the provided
cable adapter.

To
Remote
PAUSE

To Pause-In

VCR (Recording deck)

IN/OUT

R.A. EDIT
PLAY/PAUSE

STOP

To AUDIO and
VIDEO out
connector

To AUDIO and
VIDEO IN
connectors

A

B

C

PREPARE CAMCORDER

Insert a recorded tape and set the power switch to

2

PLAY.

PREPARE VCR

Turn the power on, insert a recordable tape and

3

engage the AUX mode (refer to VCR’s instructions).

SELECT SCENES

ACCESS R.A. EDIT COUNTER
DISPLAY

Press PLAY/PAUSE, then press R.A. EDIT and the

1

counter display appears in the viewfinder and the
screen of the connected TV.

REGISTER BEGINNING OF SCENE

Press REW or FF to locate the beginning of a scene

2

you want, then press IN/OUT to register that point.
The data appears under IN on the display.

REGISTER END OF SCENE

Press REW or FF to locate the end of the scene and

3

press IN/OUT to register it. The data appears under
OUT on the display. The total time of the registered
scene(s) is displayed at the bottom of the screen.

REGISTER ADDITIONAL SCENES

Repeat steps 2 and 3 for each additional scene

4

(as many as 8).

MAKE CORRECTIONS

Press CANCEL during steps 2 and 3 to erase the

5

most recently registered point.

RM-V704U
(optional)

IN OUT 

ç© 1 0:00:25 
© 2
© 3
© 4
© 5
© 6
© 7
© 8
COUNTER 0:00:25 
TOTAL 0:00:00

GR-AX210EK-2 96.10.8, 1:25 PM32

VCR REC STBY

IN OUT 
ç© 1 0:00:25 0:01:05
© 2 0:03:18 0:03:31
© 3 0:02:33 0:02:53
© 4 0:04:11 
© 5 
© 6
© 7
© 8
COUNTER 0:04:11 
TOTAL 0:01:13

NOTES:

●

There must be at least one second between an in-point
and its corresponding out-point.

●

The camcorder prerolls during R.A. Edit, so there must
be at least 15 seconds of recording material prior to
any in-point.

●

Blank portions of tape cannot be registered as in-points
or out-points.

●

If it takes more than 5 minutes to search for an in-point,
the VCR’s Record-Pause mode is cancelled and editing
doesn’t take place.

●

Pressing R.A.EDIT clears all in- and out-points from
memory.

●

Leave a small margin for error around each in-point to
ensure the scene is recorded in its entirety.

ORIGINAL TAPE (camcorder)

1 3 2

IN OUT IN OUT IN OUT

AUTOMATIC EDITING TO VCR

ENGAGE VCR’S RECORD–PAUSE
MODE

Point the remote control toward the VCR’s infrared

1

sensor and press VCR REC STBY, or manually
engage the VCR’s Record-Pause mode.

33

EDITED TAPE (VCR)

SUPPLEMENTAL INFORMATION ON THE REMOTE CONTROL

Player (JVC VCR)

To
R.A.EDIT

To
PAUSE IN

Editing cable
(3.5 ø -3.5 ø,
provided)

EDIT STOP

AV OUT

AV IN

Recording deck

RM-V704U
(optional)

BEGIN AUTOMATIC EDITING

Press EDIT on the camcorder, and the previously

2

selected scenes are copied to the VCR in the
specified order.

END AUTOMATIC EDITING

When all selected scenes have been copied, the

3

camcorder and VCR enter the still or pause mode.
Press STOP on both units.

NOTES:

●

If you performed step 1C on page 33, keep the remote
control pointed at the VCR during editing.

●

The on-screen display only appears while the
camcorder searches for each scene.

●

To dub a copy of the camcorder’s (source) tape,
perform R.A.EDIT by specifying only one in-point
(and no out-point). The contents of the tape from the
specified in-point to the end of the tape are
automatically copied.

●

There may be noise at in- or out-points on the edited
tape with certain VCRs.

Using the RM-V704U remote control, it is also possible to
perform deck-to-deck Random Assemble Editing. The
playback deck must be an R.A. Edit-capable JVC VCR. The
recording deck can be...

n a VCR other than JVC, or
n a JVC VCR which has neither a Remote PAUSE nor an R.A. EDIT

connector

How to use:

— Connect the playback deck and RM-V704U as shown on the

left.

— Set the RM-V704U to correspond to the brand of the recording

— For Random Assemble Editing procedure, please refer to the

Notes:

n RM-V704U cannot be used to control the playback deck.
n RM-V704U is capable of controling basic operations of the

n To put the recording deck in the Record-Pause mode, use the

Z P. 31)

deck. (

instruction manual of the JVC VCR you are using as the
playback deck.

recording deck. While pressing VCR CTL, press PLAY, STOP,
PAUSE, FF or REW for these functions. (Not possible with some
brands and models). Other buttons cannot be used.

controls on the recording deck itself.

GR-AX210EK-2 96.10.8, 1:25 PM33

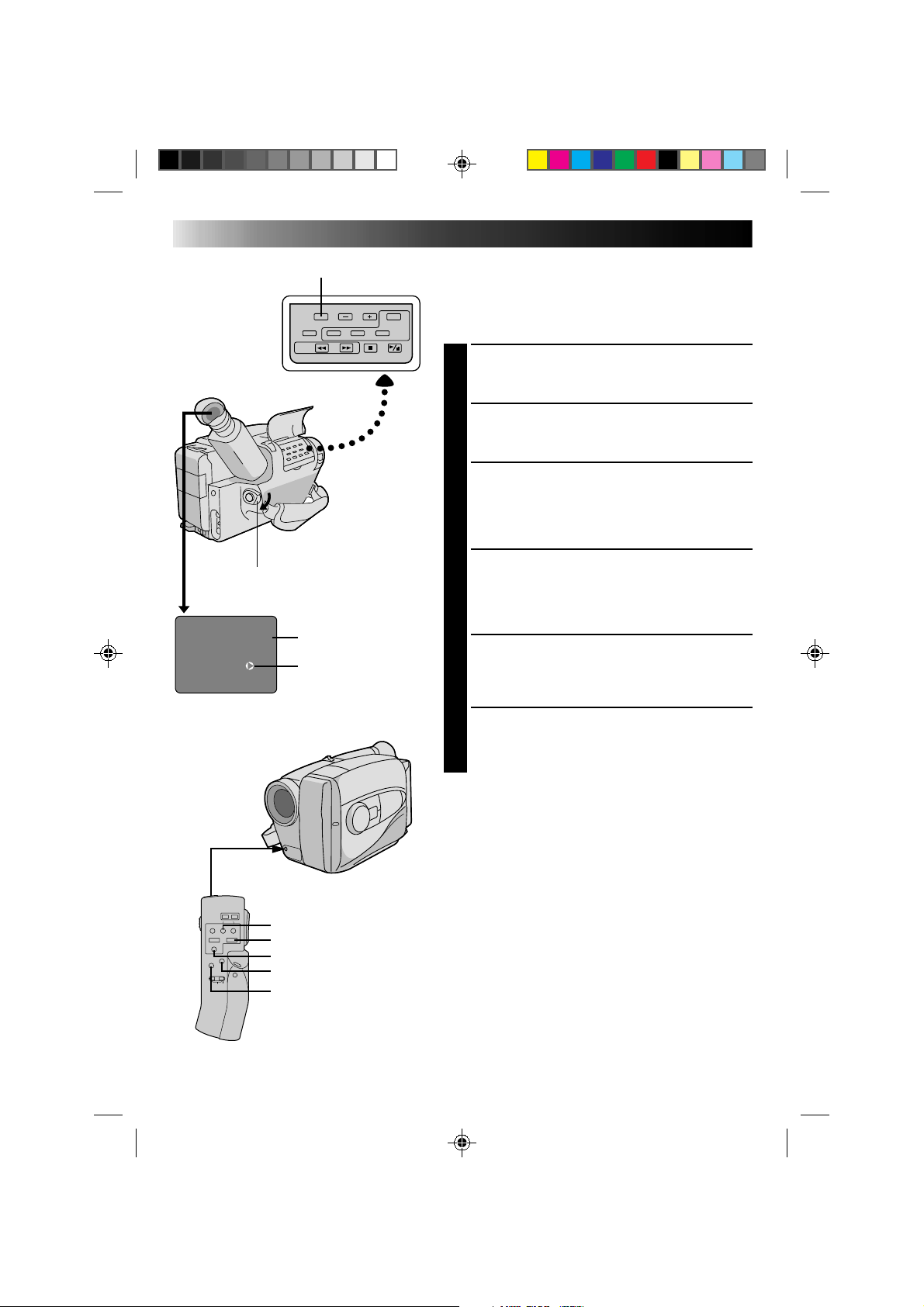

34

COUNTER R/M

EDITING (cont.)

Insert Editing

You can record a new scene into a previously recorded
tape, replacing a section of the original recording with
minimal picture distortion at the in- and out-points. The
original audio remains unchanged.

SELECT MODE

Set the power switch to PLAY.

1

FIND EDIT-OUT POINT

Locate the point and press PAUSE on the camcorder

2

or the remote control.

RESET COUNTER

Press and hold COUNTER R/M for more than 2

3

seconds to reset the tape counter, then press for less
than 1 second and make sure “M” appears in the
viewfinder.

POWER

M-0:12:34

Viewfinder

Tape Counter

Insert editing
indicator

REW
PLAY
PAUSE
AUDIO DUB

INSERT

FIND EDIT-IN POINT

Press REW to go a little beyond the beginning of the

4

scene you want to replace, press PLAY to view the
recorded tape, and press PAUSE at exactly at the
point where the new scene should start.

ENGAGE INSERT EDITING MODE

Press and hold INSERT, and press PAUSE. The Insert

5

mode is engaged, and the scene the camcorder is
aimed at appears on the screen.

BEGIN INSERT EDITING

Press Recording Start/Stop. When the counter

6

reaches “0:00:00”, editing stops automatically and
the camcorder enters the playback mode.

NOTES:

●

Insert Editing may not work correctly if a blank
segment exists in the recorded tape.

●

The tape may stop slightly before or after the
designated end point, and noise bars may appear.
Neither indicates a defect in the unit.

●

To edit onto a tape with the recording safety tab
removed, cover the hole with adhesive tape.

●

Only video signal is recorded in the Insert Editing
mode. When the sound is to be recorded, press
AUDIO DUB and PAUSE simultaneously after Step 5.
When INSERT and PAUSE are pressed simultaneously
again, the unit re-enters the Video-signal-only
Recording mode.

●

If the camcorder’s mike is too close to the TV, or if the
TV’s volume is too high, whistling or howling may
occur.

RM-V20U (optional)

GR-AX210EK-2 96.10.8, 1:26 PM34

Audio dubbing indicator

Viewfinder

Mic

35

Audio Dubbing

You can record a new soundtrack on a prerecorded tape
(normal audio only).

** Perform steps 1, 2 and 3 of the Insert Editing procedure

(Z pg. 34) before continuing.

FIND EDIT-IN POINT

Press REW to go a little beyond the beginning of the

1

scene onto which you want to dub new audio, press
PLAY to view the recorded tape, then press PAUSE
at exactly the point where dubbing should start.

ENGAGE AUDIO DUB STANDBY
MODE

Press and hold AUDIO DUB, and press PAUSE.

2

BEGIN AUDIO DUBBING

Press PLAY. When the counter reaches “0:00:00”,

3

Audio Dubbing stops automatically and the
camcorder enters the playback mode.

REW
PLAY

PAUSE
AUDIO DUB

RM-V20U (optional)

NOTES:

●

Audio Dubbing may not work correctly if the tape
contains blank segments, or if the recording speed was
changed during the original recording.

●

If the camcorder’s mike is too close to the TV, or if the
TV’s volume is too high, whistling or howling may
occur.

GR-AX210EK-2 96.10.8, 1:26 PM35

36

BATT. RELESE

PUSH

LENS COVER
open/close switch

Set to “POWER OFF”

EJECT

Remove

USER MAINTENANCE

After Use

Set the power switch to POWER OFF to turn off the

1

camcorder.

Slide EJECT to open the cassette holder, then remove

2

the cassette.

Close and lock the cassette holder by pressing

3

PUSH.

Press BATT. RELEASE to remove the battery pack.

4

Slide the LENS COVER open/close switch to close

5

the lens cover.

Cleaning The Camcorder

CLEAN EXTERIOR

Wipe gently with a soft cloth.

1

CLEAN LENS

Blow it with a blower brush, then wipe gently with

2

lens cleaning paper.

REMOVE EYEPIECE

Turn the eyepiece counterclockwise and pull it out.

3

Marks

GR-AX210EK-2 96.10.8, 1:26 PM36

CLEAN VIEWFINDER

Remove dust using a blower brush.

4

RE-ATTACH EYEPIECE

Align the marks, re-attach the eyepiece and turn it

5

clockwise.

NOTES:

●

Avoid using strong cleaning agents such as benzine or
alcohol.

●

Cleaning should be done only after the battery pack
has been removed or other power units have been
disconnected.

●

Mold may form if the lens is left dirty.

TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSE(S)

POWER

No power is supplied. ● The battery pack has not been attached correctly

RECORDING

Recording cannot be performed.

Recording does not start.

PLAYBACK

The tape is running, but there’s no
playback picture.

Noise bars appear in the playback
picture.

Playback picture is blurred or
interrupted.

The counter indication is blurred
during Still playback.

(Z pg. 6).

● The battery pack is not charged (Z pg. 6).

● The power supply has not been correctly connected

(Z pg. 7).

● The recording tape’s Erase Protection tab is missing.
Cover the hole with adhesive tape. (Some tapes have
sliding tabs. In this case, check the position of the tab.)

● The camcorder power switch has not been set to
CAMERA (Z pg. 12).

● The TV has not been set to its VIDEO mode.

● If A/V connection is used, the TV’s VIDEO/TV switch has

not been set to VIDEO.

● The RF unit has not been set to the correct channel.

● Manual Tracking has not been performed (Z pg. 29).

● The video heads are dirty or worn out. Consult your

nearest JVC dealer for head cleaning or replacement.

● This is normal.

37

TAPE TRANSPORT

The tape stops during fast-forward or
rewind.

Rewinding or fast-forwarding cannot
be performed.

● The Counter Memory Function has been activated.

● The tape is already fully wound on one reel or the other.

OTHER

The tape won’t eject.
Some functions are not available.
Vertical white lines appear when

shooting a very bright object.

Bright, crystal-shaped spots appear
in the viewfinder.

The picture is blurred in the Quick
Review or Retake mode.

An error number (E01, etc.) appears
in the viewfinder.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might
prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power
Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as usual from the beginning.

GR-AX210EK-2 96.10.8, 1:26 PM37

● The battery pack is running low.

● The PROGRAM AE dial is set to LOCK (Z pg. 14).

● This sometimes occurs when the contrast between the

background and the object is great. It is not a defect of
the camcorder.

● Sunlight is directly entering the lens.

● The recording speed (SP/LP) has not been properly set

(Z pg. 9).

● Consult your nearest JVC dealer.

38

Controls

1 PROGRAM AE Select Dial ................ (Z pg. 14)

2 F1 [Function 1] Button ...................... (Z pg. 16)

3 PUSH Button .......................................(Z pg. 9)

4 Function SEL. Button .........................(Z pg. 16)

5 F2 [Function 2] Button ...................... (Z pg. 16)

6 EJECT Switch .......................................(Z pg. 9)

7 Diopter Adjustment ............................. (Z pg. 9)

8 Power Zoom Switch ..........................(Z pg. 13)

9 BATT. [Battery] RELEASE Switch ..........(Z pg. 6)

0 MWB [Manual White Balance]

Button ...............................................(Z pg. 15)

! Recording Mode [SP/LP] Select

Button .................................................(

Tape Length [T30•T45]

Select Button .......................................(

COUNTER R [Reset]/M [Memory]

Button ...............................................(

@ EDIT Button ...................................... (Z pg. 30)

# DATE/TIME +/– Buttons ....................... (Z pg. 8)

CHAR. [Character] SET +/– Buttons ...(Z pg. 22)

TRACKING +/– Buttons .....................(Z pg. 29)

$ DATE/TIME SET Button........................(Z pg. 8)

CHAR. SET Button.............................(Z pg. 22)

R.A.EDIT IN/OUT Button .................. (Z pg. 32)

% R.A.EDIT Button ................................(Z pg. 32)

^ REW Button ...................................... (Z pg. 28)

RETAKE R [Quick Review] Button ..... (Z pg. 13)

& FF Button .......................................... (Z pg. 28)

RETAKE F Button ...............................(Z pg. 13)

* R.A.EDIT CANCEL Button ................. (Z pg. 32)

( STOP Button ..................................... (Z pg. 28)

) PLAY/PAUSE Button .......................... (Z pg. 28)

q POWER Switch ................................... (Z pg. 8)

w Recording Start/Stop Button .............. (Z pg. 10)

Connectors

e REMOTE Jack .................................... (Z pg. 11)

r Shoulder Strap Eyelets .......................(Z pg. 10)

t EDIT Jack .......................................... (Z pg. 30)

y VIDEO Out Jack ................................ (Z pg. 27)

u RF DC OUT Jack ...............................(Z pg. 27)

i AUDIO Out Jack ...............................(Z pg. 27)

Indicators

o Tally Lamp ........................................ (Z pg. 12)

p Power On Indicator...........................(Z pg. 12)

Z pg. 9)

Z pg. 9)

Z pg. 29)

ER T

r

INDEX

0!@# $

78

Controls

%

^&*()

Y

U

tyui

Q

W

e

o

qw9

12

45

p

3

I

6

Other Parts

Q Microphone
W Camera Sensor (Be careful not to cover this area;

built-in here is the sensor necessary for
shooting.)

E Clock Battery Compartment ................ (Z pg. 8)

R Battery Pack Mount ............................. (Z pg. 6)

T Electronic Viewfinder .......................... (Z pg. 9)

Y LENS COVER Switch......................... (Z pg. 12)

U Grip Strap ......................................... (Z pg. 10)

I Tripod Mounting Socket .................... (Z pg. 10)

GR-AX210EK-2 96.10.8, 1:26 PM38

INDEX

Viewfinder

T

F1

FADER

1

s

2
3

MWB

SPORTS
LENS COVER

4
5

W

1

4S

MERRY CHRISTMAS

25. 12

)(wq

Viewfinder Indications

1, 2 PROGRAM AE Indicator .............. (Z pg. 14)

Displayed at 2 for approx. 3 seconds when the
PROGRAM AE select dial is switched from one
position to another. Then only the indicator
remains at 1.

3 Focus Indicator ................................. (Z pg. 18)

4 White Balance Mode Indicator.......... (Z pg. 15)

5 Zoom Level Indicator ........................ (Z pg. 13)

Exposure Indicator Bar ...................... (Z pg. 22)

6 Battery Pack Remaining Power Indicator

Changes as follows according to the battery
pack’s remaining power level:
“ ”. When the power is
almost gone, the indicator blinks, then the unit
shuts off. Replace the battery pack with a fully

charged one ........................................(Z pg. 6)

7 Cassette Warning ................................ (Z pg. 9)

Blinks when no cassette or a cassette with the
Erase Protection tab removed is loaded.

8 Intelligent Function Control

Indicator ........................................... (Z pg. 16)

9 Remaining Tape Time

0 Tape Length Indicator ..........................(Z pg. 9)

86 7 9 0 !

30MIN

F2

C INEMA

PAUSE

T

REC

@
#

SP

30

$

INDEX

FADER

5 M I N

%
^
&
*

. 96

10 : 55

! Recording Mode (SP/LP) Indicator ....... (Z pg. 9)

@ Recording Indicator...........................(Z pg. 12)

# Record–Standby Indicator ................. (Z pg. 12)

$ Lens Cover Warning .......................... (Z pg. 12)

% Index Code Marking.......................... (Z pg. 13)

^ Fade–Standby Indicator..................... (Z pg. 16)

& Clock Battery Warning

Appears when the clock (lithium) battery is not
in place or exhausted.
For inserting or replacing

the clock battery ................................. (Z pg. 8)

* Insert Editing Indicator ...................... (Z pg. 34)

Audio Dubbing Indicator .................. (Z pg. 35)

( Condensation Warning

When this indicator appears, all functions are
disabled. Turn the unit off for a few hours, and
when you turn it on again the indicator should
disappear.

) Instant Title ....................................... (Z pg. 23)

q Date/Time/Character ...........................(Z pg. 8)

w Interval

Time/Recording Time Indicator ......... (Z pg. 24)

39

GR-AX210EK-2 96.10.8, 1:26 PM39

40

A

AC Power Adapter .................................. pg. 7

Animation Recording .............................. pg. 25

Audio Dubbing ....................................... pg. 35

Auto Date Record ................................... pg. 21

Auto Focus .............................................. pg. 18

Auto Mode Lock Mode ........................... pg. 14

Auto Mode Release Mode ....................... pg. 14

B

Battery Pack ............................................ pg. 6, 41

Brighten the Image .................................. pg. 20

C

Car Battery .............................................. pg. 7

Cassette Adapter ..................................... pg. 26

Character Generator ............................... pg. 22

Charge Marker ........................................ pg. 7

Charging the Battery Pack ....................... pg. 6

Cinama Mode ......................................... pg. 17

Clock (Lithium) Battery ........................... pg. 8

Connection to a VCR/TV ......................... pg. 27

Contents ................................................. cover

Counter Memory ..................................... pg. 29

D

Darken the Image ................................... pg. 20

Date/Time Insert...................................... pg. 21

Date/Time Setting.................................... pg. 8

Discharge the Battery pack...................... pg. 6

Diopter Adjust......................................... pg. 9

E

Electronic Fog Filter Mode ...................... pg. 14

Erase Protection ...................................... pg. 9

Exposure Control .................................... pg. 20

F

Fade-in/out ............................................. pg. 16

Fast-Forward Tape................................... pg. 28

Focus Lock .............................................. pg. 18

G

Grip Adjustment...................................... pg. 10

H

High Speed Shutter Mode ....................... pg. 14

I

Index Code Marking ............................... pg. 13

Insert Cassette ......................................... pg. 9

Insert Editing ........................................... pg. 34

Instant Titles ............................................ pg. 23

Intelligent Function Control .................... pg. 16–23

M

Manual Focus ......................................... pg. 19

Master Edit Control ................................. pg. 30

MBR code Setting ................................... pg. 31

INDEX

Terms

N

ND Effect Mode ...................................... pg. 14

O

On-Screen Display.................................. pg. 21

P

Playback ................................................. pg. 28

Programme AE with Special Effects ......... pg. 14

Provided Accessories .............................. pg. 4

Q

Quick Review ......................................... pg. 13

R

Random Assemble Editing ....................... pg. 30–33

Recording, Advanced Features ................ pg. 14–25

Recording ............................................... pg. 12

Recording, Start/Stop............................... pg. 12

Recording Mode Setting .......................... pg. 9

Recording-Standby.................................. pg. 12

Remote Control Unit ............................... pg. 11

Remove Cassette ..................................... pg. 9

Retake..................................................... pg. 13

Rewind Tape ........................................... pg. 28

S

Self-Timer ............................................... pg. 14, 24

Sepia Mode............................................. pg. 14

Shoulder Strap Attachment...................... pg. 10

Shuttle Search ......................................... pg. 29

Specifications.......................................... pg. 43

Sports Mode............................................ pg. 14

Still Playback .......................................... pg. 29

T

Tape Counter .......................................... pg. 28

Tape Dubbing ......................................... pg. 30

Tape Length Setting ................................. pg. 9

Time-Lapse Shooting............................... pg. 25

Tracking .................................................. pg. 29

Tripod Mounting ..................................... pg. 10

Twilight Mode ......................................... pg. 14

V

Video heads ............................................ pg. 42

Viewfinder Adjustment ............................ pg. 9

Viewfinder, Indications............................ pg. 39

W

White Balance Adjustment...................... pg. 15

Z

Zooming ................................................. pg. 13

GR-AX210EK-2 96.10.8, 1:26 PM40

CAUTIONS

General Battery Precautions

•When the RM-V20U (remote control), C-P6U or
C-P7U (cassette adapter) are not functioning even
when correctly operated, the batteries are
exhausted. Replace them with fresh ones.

•Use only the following batteries:

RM-V20U ................................. R03(AAA) size

C-P6U or C-P7U ....................... R6(AA) size

Please make note of the following rules for battery
use. When misused, batteries can leak or explode.

1. Refer to the RM-V20U and C-P6U/C-P7U

instructions when replacing batteries.

2. Do not use old and new batteries together.

3. Do not use two different kinds of batteries.

Although sizes may be the same, voltages may
differ.

4. Do not expose batteries to excessive heat as they

can leak or explode.

5. Do not dispose of batteries in a fire.

6. Remove batteries from the unit if it is to be stored

for an extended period to avoid battery leakage
which can cause malfunctions.

Battery Packs

The supplied battery pack is a
nickel-cadmium battery. Before
using the supplied battery pack or
an optional battery pack, be sure to
read the following cautions:

1. To avoid hazard . . .

.... do not burn.

.... do not short-circuit the terminals.

.... do not modify or disassemble.

.... use only specified chargers.

2. To prevent damage and prolong service

life . . .

.... do not subject to unnecessary shock.

.... avoid repeated charging without fully

discharging.

.... charge in an environment where

temperatures are within the tolerances shown
in the chart below. This is a chemical
reaction type battery—cooler temperatures
impede chemical reaction, while warmer
temperatures can prevent complete charging.

.... store in a cool, dry place. Extended exposure

to high temperatures will increase natural

discharge and shorten service life.

.... avoid prolonged uncharged storage.

.... remove from charger or powered unit when

not in use, as some machines use current

even when switched off.

Terminals

41

3. To prevent damage to the camcorder . . .

.... replace the battery pack when it begins to

deliver less recording time per charge.

NOTE:

It is normal for the battery pack toSPECIFICATIONS
be warm after charging, or after use.Temperature
Ranges

Charging ................................... 10°C to 35°C

Operation ................................. 0°C to 40°C

Storage...................................... –10°C to 30°C

NOTES:

●

Recharging time is based on room temperature of
20°C.

●

The lower the temperature, the longer recharging
takes.

Cassettes

To properly use and store your cassettes, be sure to
read the following cautions:

1. During use . . .

.... make sure the cassette bears the VHS-C

mark.

.... be aware that recording onto prerecorded

tapes automatically erases the previously
recorded video and audio signals.

.... make sure the cassette is positioned properly

when inserting.

.... do not load and unload the cassette

repeatedly without allowing the tape to run
at all. This slackens the tape and can result in
damage.

.... do not open the front tape cover. This

exposes the tape to fingerprints and dust.

2. Store cassettes . . .

.... away from heaters or other heat sources.

.... out of direct sunlight.

.... where they won’t be subject to unnecessary

shock or vibration.

.... where they won’t be exposed to strong

magnetic fields (such as those generated by
motors, transformers or magnets).

.... vertically, in their original cases.

Main Unit

1. For safety, DO NOT . . .

.... open the camcorder’s chassis.

.... disassemble or modify the unit.

.... short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in
use.

.... allow inflammables, water or metallic objects to

enter the unit.

.... remove the battery pack or disconnect the

power supply while the power is on.

.... leave the battery pack attached when the

camcorder is not in use.

GR-AX210EK-2 96.10.8, 1:26 PM41

42

2. Avoid using the unit . . .

.... in places subject to excessive humidity or dust.

.... in places subject to soot or steam such as near a

cooking stove.

.... in places subject to excessive shock or

vibration.

.... near a television set.

.... near appliances generating strong magnetic or

electric fields (speakers, broadcasting antennas,

etc.).

.... in places subject to extremely high (over 40°C)

or extremely low (under 0°C) temperatures.

3. DO NOT leave the unit . . .

.... in places of over 50°C.

.... in places where humidity is extremely low

(below 35%) or extremely high (above 80%).

.... in direct sunlight.

.... in a closed car in summer.

.... near a heater.

4. To protect the unit, DO NOT . . .

.... allow it to become wet.

.... drop the unit or strike it against hard objects.

.... subject it to shock or excessive vibration during

transportation.

.... keep the lens directed at extremely bright

objects for long periods.

.... direct the eyepiece of the viewfinder at the sun.

.... carry it by holding the viewfinder.

.... swing it excessively when using the shoulder

strap.

5. This camcorder features a built-in head
cleaner which automatically cleans the
heads and head drum when a cassette is
loaded or unloaded. If, however, the heads
become dirty and cause blurriness or
interruption in the playback picture,
consult your nearest JVC dealer.

About moisture condensation . . .

•You have observed that pouring a cold liquid into

a glass will cause drops of water to form on the
glass‘ outer surface. This same phenomenon
occurs on the head drum of a camcorder when it
is moved from a cool place to a warm place, after
heating a cold room, under extremely humid
conditions or in a place directly subjected to the
cool air from an air conditioner.

•Moisture on the head drum can cause severe

damage to the video tape, and can lead to internal
damage to the camcorder itself.

Serious malfunctioning

If malfunctioning occurs, stop using the unit
immediately and consult your local JVC dealer.

CAUTIONS (cont.)

SPECIAL NOTES ON VIDEO HEADS

Dust and dirt on video heads

1. Always allow enough time for your camcorder to

acclimatize to its environment before using it.

2. Do not use the unit in areas of high humidity.

(Typical areas of high humidity are given below.)

•From being used or stored in a very cold
outdoor situation, then immediately being used
in a warm indoor situation.

•From being used or stored in a cool air­conditioned situation, then being used in a
high-humidity outdoor situation.

•Other areas where rapid large temperature
changes can occur.

3. Taking care of your "C" format video cassette

tapes..

•Store the video cassette tapes in a vertical
position, complete in their cassette cases.

•During transportation, always store cassettes in
their cassette cases.

4. Check recorded information at regular intervals.

If the camcorder is equipped with a quick review
facility, use this facility to check whether the
picture is clear or not.
If the quick review or playback picture is not
clear, then the video heads may be dirty.

Note:

As a maladjusted tracking control can give similar
symptoms to dirty video heads, please check that
the tracking control of the unit is in the centre
position.

Cleaning the video heads

Accumulation of dirt and other particles on the
video heads may cause the playback picture to
become blurred or interrupted. Although this
camcorder is equipped with a built-in head cleaner
which automatically cleans the heads, reducing the
likelihood of dirty heads, if such troubles are
encountered, we recommend the use of the
cleaning cassette specifically designed for JVC
camcorders, model number TCC-2U. Please use the
cleaning cassette as indicated on the right:
1 After inserting the cleaning cassette, activate the

Play mode for a maximum of 15 seconds
(normally, 5 seconds is sufficient).

2 Remove the cleaning cassette and check the

playback picture with a previously good­recorded tape.

3 If the picture is clear, then recording on a new

tape can begin when desired.

4 If the picture is not clear, repeat steps 1 to 3 up

to two more times.

5 If the picture is still unclear, consult your local

JVC dealer.

Important Note:

If heads have become dirty, the associated tape will
also be damaged, please do not use the tape again.
* A built-in head cleaner automatically cleans the

video heads and head drum whenever a cassette
is loaded and unloaded to reduce head clogging.

* Cleaning cassette TCC-2U is available from your

JVC local dealer.

GR-AX210EK-2 96.10.8, 1:26 PM42

SPECIFICATIONS

GENERAL

Format : VHS PAL standard
Power source : DC 6V
Power consumption : 5.7 W
Signal system : PAL-type
Video recording system

Luminance : FM recording
Colour : Converted sub-carrier

direct recording
*Conforms to VHS

*standard

Cassette : VHS-C cassette
Tape speed

SP : 23.39 mm/sec
LP : 11.70 mm/sec

Recording time Max.

SP : 45 minutes

(with EC-45 cassette)

LP : 90 minutes

(with EC-45 cassette)
Operating temperature : 0°C to +40°C
Operating humidity : 35% to 80%
Storage temperature : –20°C to +50°C
Weight : Approx. 730 g
Dimensions
(Including viewfinder) : 109 (W) x 113 (H)

x 226 (D) mm

CAMERA

Pick up : 1/4" format CCD
Minimum required

illumination : 3 lx (F1.6)
Illumination range : 3 to 100,000 lx
Lens : F1.6, f = 4.2 to 50.4 mm,

12:1 power zoom lens
with auto iris and macro
control, filter diameter
46 mm

Viewfinder : Electronic viewfinder

with 0.5" black/white
CRT

White balance

adjustment : Auto/Manual adjustment

VIDEO

Output : 1 Vp-p, 75 ohms,

unbalanced (via VIDEO
out connector)

43

AC POWER ADAPTER/BATTERY CHARGER
(AA-V11EK) SPECIFICATIONS

Power requirement : AC 110 to 240 V`,

Power consumption : 23 W
Output

Charge : DC 8.5 V , 1.3 A
VTR : DC 6.3 V , 1.8 A

Charging system : Constant current, peak

Dimensions : 150 (W) x 42 (H)

Weight : Approx. 400 g

CASSETTE ADAPTER (C-P7U)
SPECIFICATIONS

Dimensions : 188 (W) x 25 (H)

Weight : Approx. 240 g
Accessory : “R6 (AA)”-size battery x 1

Provided Accessories ...................... Z pg. 4

Optional Accessories

•Battery Packs BN-V12U, BN-V22U, BN-V25U

•Car Battery Charger BH-V3E

•Car Battery Cord AP-V7E

•RF Unit RF-V5E

•Wireless Remote Control Unit RM-V704U

For R.A. Edit using a non-JVC VCR (
* The RM-V704U cannot be used to operate the

camcorder.

•Wired Remote Control Unit RM-V20U

•Compact VHS-C Cassettes EC-45/30

•Active Carrying Bag CB-V7U

* Some acccessories are not available in some

areas. Please consult your nearest JVC dealer for
details on accessories and their availability.

Specifications shown are for SP mode unless
otherwise indicated. E. & O. E. Design and
specifications subject to change without notice.

50/60 HZ

detection, timer
controlled

x 68 (D) mm

x 104 (D) mm

Z pg. 31)

AUDIO

Output : –8 dBs, 1 k-ohm (via

GR-AX210EK-2 96.10.8, 1:26 PM43

AUDIO out connector)

VICTOR COMPANY OF JAPAN, LIMITED

GR-AX210

COPYRIGHT© 1995 VICTOR COMPANY OF JAPAN, LTD.

GR-AX210EK-2 96.10.8, 1:26 PM44

Printed in Japan

EK

1195TOV*UN*VP
