JVC GR-AX1010 User Manual

COMP ACT VHS CAMCORDER

GR-AX1010

Compact VHS



INSTRUCTIONS

For Customer Use:

Enter below the Serial Nos. of the GR-AX1010U camcorder and the AA-V11U AC Power Adapter/Charger. The serial numbers are located on the bottom of the GR-AX1010U, and the AA-V11U.

Model No. GR-AX1010U

AA-V11U

Serial No.

YU30052-539-2

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new camcorder.

Using This Instruction Manual

• All major sections and subsections are listed in the Table Of Contents (

• Notes appear after most subsections. Be sure to read these as well.

• Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to the Index (

familiarize yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions and Safety

Instructions that follow. They contain extremely important information regarding the safe use of your new camcorder.

You are recommended to carefully read the cautions on pages 53 and 54 before use.

Z pg. 7).

Z pgs. 49 – 52) and

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 

NO USER-SERVICEABLE PARTS INSIDE.



The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. 

 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The AA-V11U AC Power Adapter/Charger should be used with: AC 120 V`, 60 Hz in the USA and Canada, AC 110 – 240 V`, 50/60 Hz in other countries.

CAUTION (applies to the AA-V11U)

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION (s'applique à l'AA-V11U)

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Warning on lithium battery

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo or Maxell CR2025; use of another battery may present a risk of fire or explosion.

n Dispose of used battery promptly. n Keep away from children. n Do not disassemble and do not dispose of in fire.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

This Class B digital apparatus meets all requirements of the Canadian Interference – Causing Equipment Regulations.

“Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.”

This camcorder is designed to be used with NTSC-type color television signals. It cannot be used for playback with a television of a different standard. However, live recording and viewfinder playback are possible anywhere. Use the BN-V11U/V12U/V22U/V25U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

ATTENTION:

The product that you have purchased is powered by a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this manual for future

reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire

grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

• Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided

or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line

surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

810-20)

GROUNDING  CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

USE

1. Accessories

To avoid personal injury:

• Do not place this product on an unstable cart, stand, tripod, bracket or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

• Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

PORTABLE CART WARNING (Symbol provided by RETAC)

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all

servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the

product.

c. If the product has been exposed to rain or water. d. If the product does not operate normally by following

the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way. f. When the product exhibits a distinct change in

performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

QUICK OPERATION GUIDE

SUPPLY POWER

Hook on.

Push in.

BATT. RELEASE

Using the battery pack

Hook-on the battery pack's top end to the camcorder. (Charging procedure, Z P. 8)

2 Push in the battery pack until it locks into

place.

To remove the battery pack

Slide BATT. RELEASE and pull out the battery pack.

PLAYBACK

PLAY/PAUSE

REW

STOP

INSERTING A VIDEO CASSETTE

EJECT

PUSH

1 Slide EJECT. 2 Insert a video cassette. 3 Press PUSH.

(For more details, Z P. 13)

SHOOTING

Insert.

LENS COVER open/close knob

Set to “CAMERA”

Recording Start/Stop button

Set to “PLAY”

1 Set the power switch to “PLAY”. 2 Press REW.

— The tape will automatically stop at the

beginning of the tape.

3 Press PLAY/PAUSE.

— Playback starts and the playback picture

appears in the viewfinder.

•To stop playback, press STOP.

(For more details, Z P. 38.)

Or simply play back the tape on a VHS

VCR using the Cassette Adapter (VHS Playpak). Z P. 36

1 Slide the LENS COVER open/close knob to

open the lens cover.

2 Set the power switch to “CAMERA”.

— The power indicator will light and an

image will appear in the viewfinder.

3 Press RECORDING START/STOP.

— Recording starts.

•To stop recording temporarily, momentarily press the Recording Start/Stop button once again. (For more details, Z P. 16)

MAJOR FEATURES

REMEMBER

The Logical Choice

The only compact video

cassettes that can be

used with your VHS VCR*

Program AE with Special Effects (

n Cinema n Sepia n Twilight n Sports n High Speed (1/2000 sec.) Shutter n Classic Film n Strobe n Slow Shutter

Z pg. 26)

Digital Wipes and Fades

Z pg. 28)

(

● Black Fader ● Blue Fader

● Mosaic Fader ● Shutter Wipe

● Slide Wipe ● Corner Wipe

● Dissolve ● Auto Select

with VHS Playpak

Multi Function Control

Z pg. 20 – 35)

(

Digital Hyper Zoom (

Zoom-in

Zoom-out

Z pg. 17)

Digital Image Stabilizer

Z pg. 22)

(

Random Assemble Editing

Z pg. 40 – 43)

(

882

554411663

Built-In Auto Light (Z pg.19)

PROVIDED ACCESSORIES

•AC Power Adapter/ Charger AA-V11U

•Remote Control Unit RM-V706U

•DC Cord •Lithium Battery

Cassettes marked can be used with this camcorder.

•Cassette Adapter (VHS PlayPak) C-P7U

CR2025

•Battery Pack BN-V11U

•Editing Cable

•Shoulder Strap

CONTENTS

GETTING STARTED

Power ................................................................................................ 8

Clock (Lithium) Battery Removal/Insertion................................................... 10

Viewfinder Adjustment .......................................................................... 10

Date/Time Setting ............................................................................... 11

Tape Length Setting .............................................................................. 12

Recording Mode Setting ......................................................................... 13

Loading/Unloading A Cassette ................................................................. 13

Grip Adjustment .................................................................................. 14

Shoulder Strap Attachment ...................................................................... 14

Tripod Mounting ..................................................................................14

Using The RM-V706U Remote Control Unit .................................................. 15

RECORDING

Basic Recording ...................................................................................16

Basic Features..................................................................................... 17

Video Light ........................................................................................ 19

Advanced Features ............................................................................... 20

PLAYBACK

Using The Cassette Adapter..................................................................... 36

Basic Connections .................................................................................37

Basic Playback .................................................................................... 38

Features ........................................................................................... 39

EDITING

Tape Dubbing ...................................................................................... 40

Random Assemble Editing [R.A.Edit]...........................................................40

Insert Editing ......................................................................................44

Audio Dubbing.....................................................................................45

USER MAINTENANCE TROUBLESHOOTING INDEX

Controls ............................................................................................49

Connectors......................................................................................... 50

Indicators .......................................................................................... 50

Other Parts ........................................................................................50

Viewfinder ........................................................................................ 51

Terms ............................................................................................... 52

CAUTIONS SPECIFICATIONS ESPAÑOL FOR SERVICING WARRANTY

Date/Time Insert ................................................................................... 20

Snapshot .............................................................................................. 21

Digital Image Stabilizer (D.I.S.) .............................................................. 22

Exposure Control .................................................................................. 22

White Balance Adjustment..................................................................... 23

Focusing ............................................................................................... 24

Program AE With Special Effects............................................................. 26

Fade/Wipe ............................................................................................ 28

Using Menu For Detailed Adjustment ..................................................... 30

Instant Titles ......................................................................................... 32

Self-Timer............................................................................................. 34

Animation ............................................................................................ 35

Time Lapse ........................................................................................... 35

46 47 49

53 55 56 58 59

GETTING STARTED

RECORDING

PLAYBACK

EDITING

END indicator

CHG. (charge) indicator

Marks

POWER indicator

REFRESH indicatorREFRESH switch

To AC outlet

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

outlet. The power indicator lights.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place. The CHG. indicator lights.

DETACH BATTERY PACK

When charging is completed, the END indicator

lights. Slide the battery pack opposite the direction of the arrow.

BATT. PACK CHARGE DISCHARGE

BN-V11U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs. BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

Hook on.

Push in.

BATT. RELEASE

ATTENTION:

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

BATT. PACK RECORDING TIME

BN-V11U approx. 1 hr. (35 min.) BN-V12U approx. 1 hr. (35 min.) BN-V22U approx. 2 hrs. 10 min. (1 hr. 20 min.) BN-V25U approx. 2 hrs. 50 min. (1 hr. 50 min.)

( ): When the Video Light is on

**REFRESH

The AC power adapter features a REFRESH function that allows you to fully discharge the battery pack before recharging.

To discharge the battery . . .

..... attach the battery pack to the adapter as shown in the

illustration to the left. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete.

**CHARGE MARKER

Charge marker

A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colors are provided (red and black)—you choose which one means charged and which means discharged.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record/Standby mode and the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 8 are for fully discharged battey pack, and discharging times are for fully charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to continue.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG. indicator should light during recharging. If not, contact your nearest JVC dealer.

To DC OUT

terminal

DC IN Jack

DC cord

Car Battery Cord AP-V7U (optional)

Car Battery Charger/Adapter BH-V3U (optional)

To AC outlet

AC Power Adapter/Charger AA-V11U (provided)

To car's cigarette lighter socket

USING A CAR BATTERY

Use the optional Car Battery Cord or Car Battery Charger/Adapter (connect as shown in the illustration to the left).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger (BH-V3U) can also be used to charge the battery pack.

●

When using the optional Car Battery Charger or Car Battery Cord (AP-V7U), refer to the respective instruction booklet.

USING AC POWER

Use the AC Power Adapter (connect as shown in the illustration to the left).

NOTE:

The supplied AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.

GETTING STARTED (cont.)

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

supply unit.

OPEN COVER

Open the clock battery compartment cover while

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

battery and the compartment ( battery out.

INSERT BATTERY

Ensuring the plus (+) side is up, insert a CR2025

lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

) and pull the

NOTE:

See “SAFETY PRECAUTIONS”(Z pg. 2) for information on safe handling of lithium batteries.

Set POWER to “CAMERA”.

Viewfinder Adjustment

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability

(see illustration at left).

SELECT MODE

Set the power switch to CAMERA.

ADJUST DIOPTER

Turn the diopter adjustment control until the

indications in the viewfinder are clearly focused.

Shooting mode selector

FAR

NEAR

–

Main Menu Screen

Set Time and Date Screen

Shift Zoom OFF Tele Macro OFF Gain Up AGC Color Filter NOR. Tape Length T30 Title

Date/Time

Sub Menu



JAN 1.00 AM 12:00

Set Cancel

Date/Time Setting

SELECT MODE

Set the Power switch to “CAMERA”, and the

Shooting Mode selector to “PRESET”.

ACCESS MAIN MENU SCREEN

Press MENU.

SELECT FUNCTION

Press – to move the highlight bar down to “Date/

Time”, then press NEAR. The Set Date And Time screen appears.

SET DATE/TIME

Press FAR or NEAR until the item you want to set

begins blinking, then press + or – to until the correct setting appears.

•If you decide you want to return the date and time

to the previous settings, press FAR or NEAR to move the highlight bar to “Cancel”, then press MENU.

•If you’re satisfied with the settings, go on to step 5.

START CLOCK OPERATION

Once you’ve set the month, day, year and time,

press FAR or NEAR until “Set” begins to blink, then press MENU. The Main Menu screen reappears.

CLOSE MAIN MENU

Press MENU.

NOTES:

●

To display the date and time in the viewfinder and on a connected TV, see “Date/Time Insert” (Z pg. 20).

●

If, in step 4, you input an invalid date (FEB 30, JUN 31, etc.) and perform step 5, “Input Error” appears blinking at the bottom of the screen. Press +, –, FAR or NEAR to make the day blink, and input the correct number.

Date

Month/Day/Year

Time

12-hour indication with AM or PM

Shooting mode selector

FAR

GETTING STARTED (cont.)

Tape Length Setting

SELECT MODE

Set the Power switch to “CAMERA”, and the

Shooting Mode selector to “PRESET”.

ACCESS MAIN MENU SCREEN

Press MENU.

NEAR

–

Main Menu Screen

Shift Zoom OFF Tele Macro OFF Gain Up AGC Color Filter NOR.

Tape Length T40

Title Date/Time Sub Menu

T20

SELECT FUNCTION

Press + or – to move the highlight bar to “Tape

Length”.

SET TAPE LENGTH

Press FAR or NEAR to cycle through until the correct

setting appears (depending on the tape used). T20 = 20 minutes of recording time, T30 = 30 min., and T40 = 40 min. (when recording in SP mode).

CLOSE MAIN MENU

Press MENU.

NOTE:

The tape remaining time (Z pg. 16) displayed in the viewfinder is correct only if the correct tape length has been selected.

T40

T30

SP/EP

Recording Mode Setting

Pressing SP/EP alternates the setting between SP

(standard play-provides higher picture and sound quality, better for dubbing) and EP (Extended Playmore economical, recording at 1/3 the speed of SP).

NOTE:

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

Loading/Unloading A Cassette

OPEN CASSETTE HOLDER

Slide EJECT until the holder opens. Do not use force

to open.

INSERT/REMOVE CASSETTE

Make sure the label is facing outward.

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and

locked.

NOTES:

●

A cassette holder can’t be opened unless a power supply is attached.

●

Make sure that the tape is not slack when loading the cassette. If there is any slack, turn the gear on the cassette in the direction of the arrow to take up the slack.

●

Make sure the Erase Protection tab is present. If not, cover the hole with adhesive tape. (Some cassettes have sliding tabs – in this case, check the tab's position.)

Turn to take up slack.

GearErase Protection

Recording Start/Stop button

GETTING STARTED (cont.)

Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

INSERT HAND

Pass your right hand through the loop and grasp the

grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate

the Recording Start/Stop button and Power Zoom lever. Refasten the Velcro strip.

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap

through the top of the eyelet 1, then fold it back and thread it through the keeper 2, and then through the buckle 3. Repeat the procedure to attach the other end of the strap to the other eyelet, making sure the strap isn’t twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left 1, then

slide both keepers snug against the eyelets to prevent slipping 2.

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud hole. Then tighten the screw.

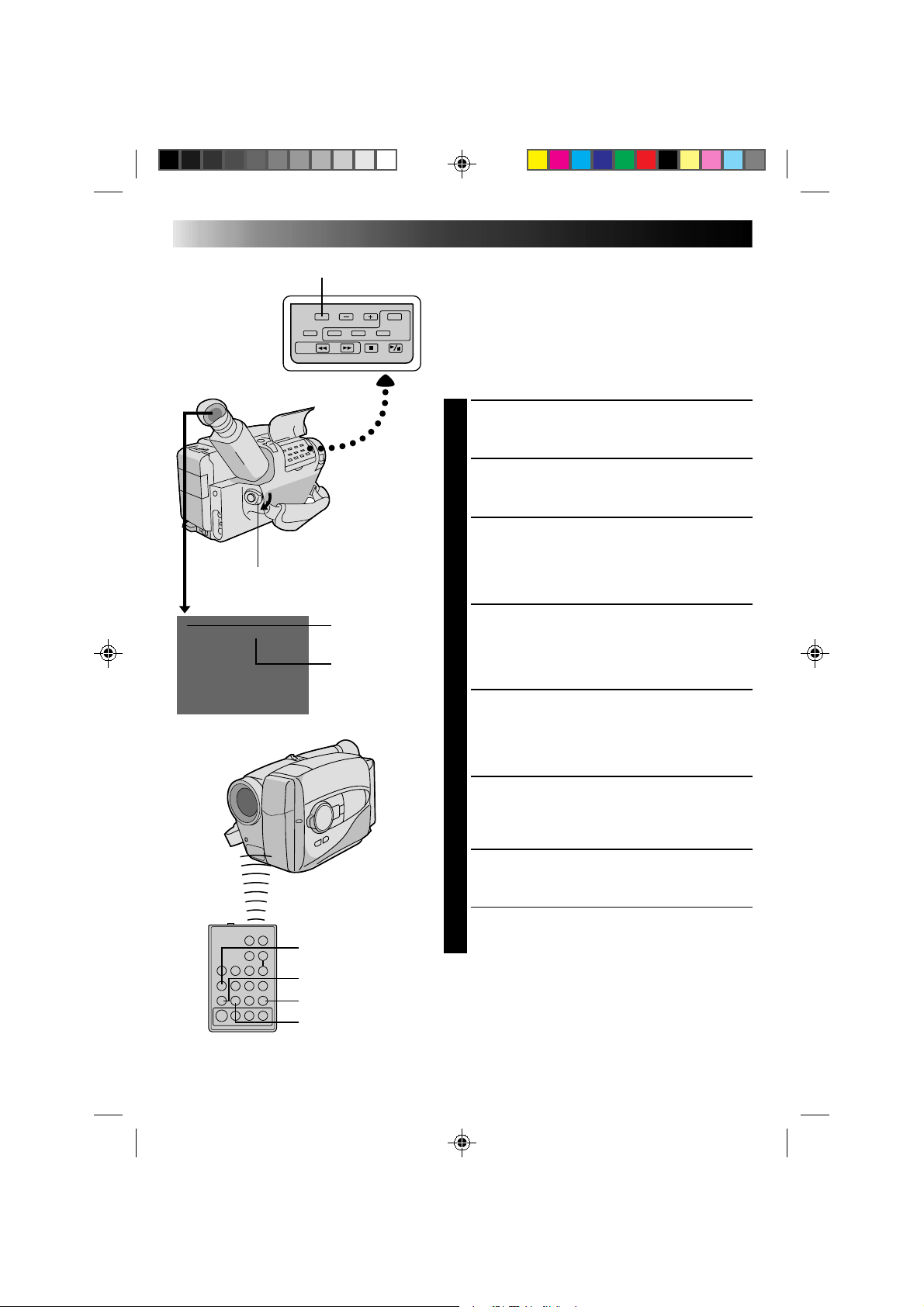

Using The RM-V706U Remote Control Unit

The RM-V706U full-function MBR (Multi-Brand Remote) can operate this camcorder from a distance as well as the basic operations (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote control unit is useful when dubbing from the camcorder to your VCR, and it makes additional recording functions possible.

Installing The Battery

Infrared beam effective area

10°

5m(16.4ft)

30°

10°

The transmitted beam may not be effective or may cause incorrect operation when the infrared beam sensor window is directly exposed to sunlight or powerful lighting.

3 4 5

6 7 8 9

BUTTONS

1 PAUSE IN Connector —(Z P. 42) 2 Infrared beam

transmitting window

3 MBR SET Button —(Z P. 41) 4 INT. TIME Button Self-Timer/Time-Lapse (Z pg. 34, 35) — 5 REC TIME Button Animation/Time-Lapse (Z pg. 35) — 6 FF Button Retake (forward) (Z pg. 18) FF/FF Shuttle Search (Z pg. 38) 7 REW Button Retake (rewind)/Quick Review (Z pg. 17) Rew/Rew Shuttle Search (Z pg. 38) 8 PAUSE Button — Pause/Play (Z pg. 38) 9 PLAY Button — Playback start (Z pg. 38)

0 SNAPSHOT Button

! START/STOP Button

@ VISS Button Index Code marking (Z pg. 18) — # ZOOM (T/W) Buttons Zoom in and out (Z pg. 17) $ VCR CTL Button —(Z P. 41) % A.DUB Button — Audio dubbing (Z pg. 45) ^ STOP Button — Stop (Z pg. 38) & INSERT Button — Insert Editing (Z pg. 44) * R.A.EDIT Buttons —(Z P. 42)

Infrared beam sensor window

0 !

$ % ^ &

With the camcorder’s power switch With the camcorder’s power switch set set to “CAMERA”. to “PLAY”.

Transmits the beam signal.

Functions same as the SNAPSHOT Button on the camcorder (Z pg. 21).

Functions same as the Recording Start/Stop Button on the camcorder.

PULL OUT BATTERY HOLDER

Pull out while sliding the lock hole.

INSERT BATTERY

Making sure the plus (+) side is up, insert the lithium battery (CR2025) into the battery holder.

REPLACE BATTERY HOLDER

Insert the battery holder into the remote control unit, and push the holder until it clicks into place.

NOTE:

Read the caution concerning lithium batteries (Z pg. 2).

Lock hole

FUNCTIONS

—

POWER

Start/Stop

The power indicator

LENS COVER SWITCH

RECORDING

Basic Recording

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

●

Power (Z pg. 8)

●

Tape Length (Z pg. 12)

●

Recording Mode Setting (Z pg. 13)

●

Grip Adjustment (Z pg. 14)

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert

the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

ENTER RECORD–STANDBY MODE

Slide the LENS COVER open/close switch to open

the lens cover, then set the power switch to “CAMERA”.

•The power indicator lights and the camcorder enters the Record–Standby Mode.

•The scene you’re aimed at appears on the viewfinder screen, with the word “PAUSE” superimposed upon it.

25min

Tape remaining time indicator

120min 119min

1min (Blinking)

0min (Blinking)

* min.....(Now calculating)

2min (Blinking)

Tally lamp

3min

START SHOOTING

Press the RECORDING START/STOP button.

•The tally lamp lights while recording is in progress,

REC

and “

•If you want to turn the tally lamp off, see page 31.

STOP RECORDING

Press the RECORDING START/STOP button again to

stop recording.

•The camcorder re-enters the Record-Standby mode.

” appears in the viewfinder.

NOTES:

●

A cassette holder can’t be opened unless a power supply is attached.

●

There may be a delay after you slide EJECT until the holder opens. Do not use force.

●

The tape’s remaining time is displayed in the viewfinder as shown.

●

The indicated remaining time is approximate.

●

The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.

●

The tape remaining time displayed in the viewfinder is correct only if the correct tape length has been selected (Z pg. 12).

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.

●

If the Record–Standby mode continues for 5 minutes without performing Zoom or any other operations, the camcorder’s power shuts off automatically. Set the Power switch to “POWER OFF”, and then back to “CAMERA” to turn the camcorder on again.

●

If you’re recording on a cassette from the middle, use the RETAKE function (Z pg. 18) to find the end of the last recording so you don’t erase any of it.

●

The LENS COVER warning blinks for about 8 seconds when the camcorder is turned on, when the cover is closed.

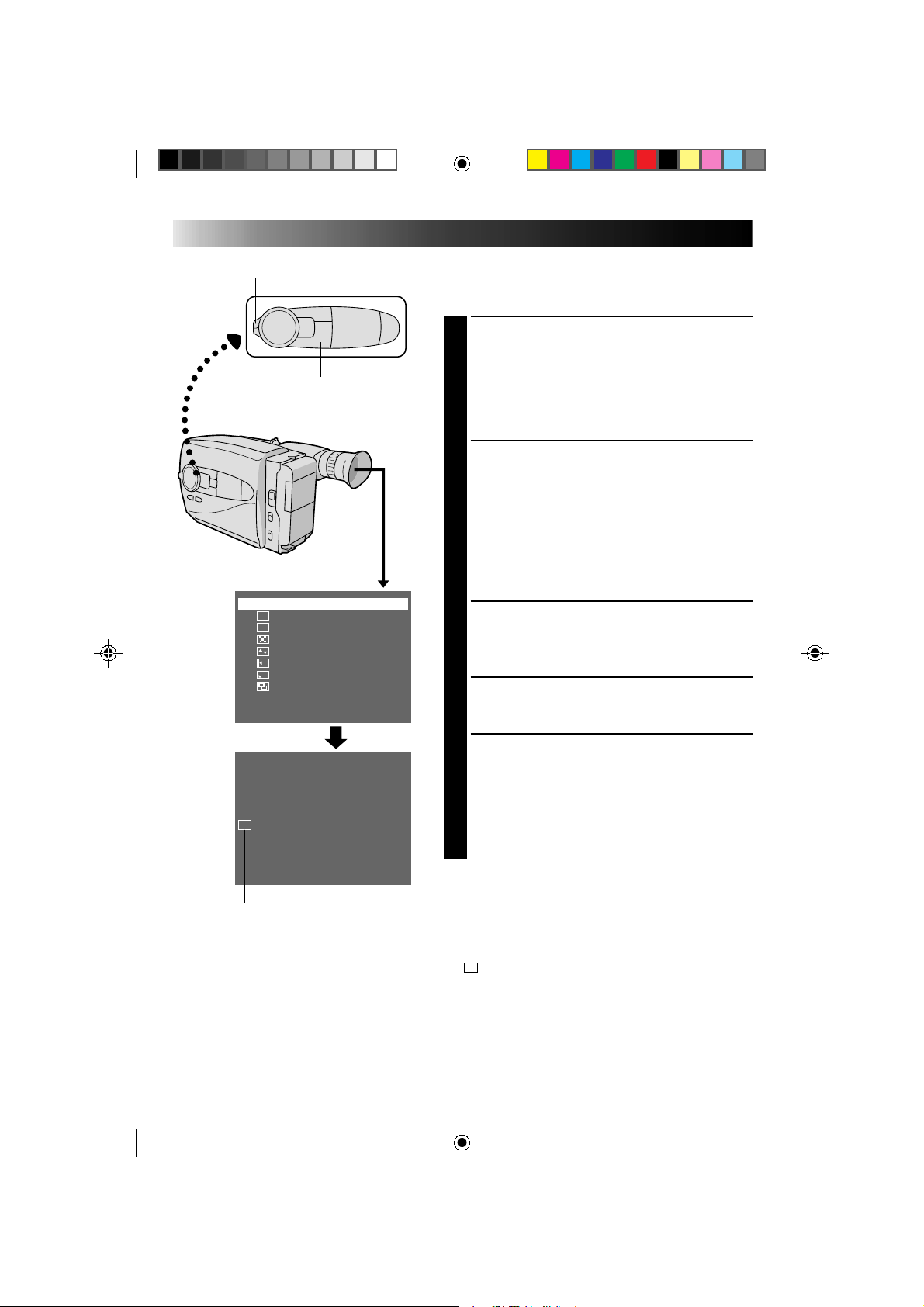

RECORDING

Zoom-in

Shooting mode selector

FAR

NEAR

–

Main Menu screen

Zoom indicator bar

Power zoom lever

Shift Zoom l50x

Tele Macro OFF Gain Up AGC Color Filter NOR. Tape Length T30 Title Date/Time Sub Menu

Zoom-out

Basic Features

Zoom level indicator

FEATURE: Zooming PURPOSE: To produce the zoom in/out effect, or

an instantaneous change in image magnification.

OPERATION: 28X Hyper zoom

Digital circuitry doubles the maximum 14x magnification offered by optical zoom.

1) To zoom in, slide the Zoom Lever

toward “T”.

2) To zoom out, slide toward “W”. Shift Zoom

By digitally processing and magnifying images, zooming is possible from 5 – 14 times the optical zoom limit, to a maximum of 140x magnification.

1) Set the Shooting Mode Selector to “PRESET” and press MENU to access the Main Menu screen.

2) Press + or – to move the highlight bar to “Shift Zoom.”

3) Press FAR or NEAR to set the magnification. “50x” magnifies wide-angle images to approximately 3.6 times the original size, and enables zooming in the 18x – 50x range. “140x” magnifies wide-angle images to approximately 10 times the original size, and allows zooming from 50x to 140x. To disable Shift Zoom, set it to “OFF”. “140x” is useful when you want to confirm letters or numbers from a distance.

4) Press MENU to close the Main Menu screen.

NOTES:

●

During Hyper Zoom, the speed increases the further you slide the Zoom Lever.

●

Focusing may be come unstable during Hyper Zoom. In this case, set the zoom while in Record – Standby, set manual focus or Focus Lock (Z pg. 24, 25), then zoom in or out in Record mode.

●

The Zoom Level Indicator (5) only moves during optical zoom. Once the indicator reaches “T”, all magnification from that point is through digital processing.

●

During digital image processing, the quality of the image may suffer.

FEATURE: Quick Review PURPOSE: To check the end of the last

recording.

OPERATION: 1) Press “

” and release quickly

during the Record–Standby mode.

• Tape is rewound for about 2 seconds

and played back automati-cally, then pauses in Record–Standby mode for

NOTE:

the next shot.

Distortion may occur at start of playback. This is normal.

START/STOP

VISS

RM-V706U (provided)

RETAKE

Record-Standby

Normal Upside down

Record

AUTO PAUSE

Record-Standby

RECORDING

FEATURE: Index Code Marking PURPOSE: To give you automatic access to any

OPERATION:

NOTE:

FEATURE: Retake PURPOSE: To re-record certain segments. OPERATION: 1) Make sure the camcorder is in the

NOTE:

FEATURE: Auto Pause System PURPOSE: To automatically stop recording

OPERATION: 1) Set AUTO PAUSE to “ON”. When

NOTES: ●

Basic Features (cont.)

selected point on a recording. Auto Marking and Manual Marking are available.

Auto Marking

An index code is marked to start the first recording after a cassette is inserted, as long as the Power switch is set to “CAMERA”.

Manual Marking

1) Press VISS once to place the index code. INDEX blinks in the viewfinder during marking.

If VISS is pressed during Record–Standby mode, the mark is placed where RECORDING START/STOP is pressed.

Record–Standby mode.

2) Press either RETAKE button to reach the start point for new recording.

3) Press RECORDING START/STOP to start recording.

Noise may appear during Retake. This is normal.

when the camcorder is pointed down, preventing accidental recordings of the ground, your feet, etc.

the camcorder is tilted down by a large degree from its horizontal position during recording, the Record-Standby mode is automatically engaged. “AUTO PAUSE” appears in the viewfinder.

The Auto Pause System is also effective when the camcorder is pointed up, or is positioned upside down.

●

Auto Pause also works when the camcorder is twisted by a large degree to the left or right.

●

When you want to shoot in any of the aforementioned positions, make sure you set AUTO PAUSE to “OFF”.

Record-Standby

Down

+ 42 hidden pages
