DVD PLAYER

XV-N412S

VIDEO

Before operation

Preparations 4

Basic playback 10

Various kinds of playback 13

MP3/WMA disc playback 22

Region code of DVD VIDEO

This player can play back DVD VIDEO discs whose region code numbers include “2.”

Examples of playable DVD VIDEO discs:

ALL

The player’s region code is printed on the rear of the player.

INSTRUCTIONS

JPEG disc playback 24

Changing the initial settings 26

Additional information 31

GNT0044-004A

[B]

Warnings, Cautions and Others

IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted. If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT. DO NOT make any connection to the terminal which is marked

with the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral

Brown : Live As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out).

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage, locate the apparatus as follows: Front: No obstructions and open spacing. Sides: No obstructions in 3 cm from the sides. Top: No obstructions in 5 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface.

pacing 15 cm or more

XV-N412S

Front

Wall or obstructions

Stand height 5 cm or more

Floor

Caution –– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (the STANDBY/ON lamp goes off). The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights red.

• When the unit is turned on, the STANDBY/ON lamp lights green.

The power can be remote controlled.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

G-1

Supplied accessories

Check that you have all the following accessories supplied to you. If anything is missing, consult your dealer immediately.

• Remote control unit (× 1)

• R6P(SUM-3)/AA(15F) battery (× 2)

About this manual

• The display window information and OSD (On Screen Display) menu items are put in brackets [ ] in the operation procedures.

• Usable disc(s) for each operation/function is (are) referred to by the icons;

Precautions

Notes on the power cord

• When you are away on travel or otherwise for an extended period of time, remove the plug from the wall outlet. A small amount of power (2.0 W) is always consumed while the power cord is connected to the wall outlet.

• When unplugging the unit from the wall outlet, always pull the plug, not the power cord.

• Do not handle the power cord with wet hands!

Avoid moisture, water and dust

• Do not place the unit in moist or dusty places.

• If water gets inside the unit, turn off the power and remove the plug from the wall outlet, then consult your dealer. Using the unit in this state may cause a fire or electrical shock.

Supplied accessories................................................................1

About this manual .....................................................................1

Precautions ................................................................................ 1

Before operation................................................... 2

About discs ..............................................................................2

Names of parts and controls....................................................3

Preparations ......................................................... 4

Connections............................................................................. 4

Using the remote control unit................................................... 9

Basic playback ................................................... 10

Turning the player on and off................................................. 10

Initial setup ............................................................................10

Starting playback ...................................................................11

Restarting playback after stopping (resuming playback) ....... 12

Various kinds of playback ................................. 13

Playback at various speeds................................................... 13

Locating the beginning of a scene or song ............................ 14

Playing from a specific position .............................................14

Changing the playback order.................................................15

Repeat playback.................................................................... 17

Changing the language, sound and scene angle ..................17

Special picture and sound effects.......................................... 18

Menu bar functions ................................................................20

Avoid high temperatures

• Do not expose the unit to direct sunlight or place it near a heating device.

Notes on installation

• Select a place which is level, dry and neither too hot nor too cold between 5°C and 35°C.

• Leave sufficient distance between the player and the TV.

• Do not install the player in a place subject to vibrations.

• Do not put heavy objects on the player.

To prevent malfunction of the unit

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the player.

• Do not block the vents. Blocking the vents may damage the player.

To clean the cabinet

• Use a soft cloth. Follow the relevant instructions on the use of chemically-coated cloths.

• Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring.

MP3/WMA disc playback ................................... 22

Operations .............................................................................22

JPEG disc playback ........................................... 24

About JPEG discs.................................................................. 24

Basic operations ....................................................................24

Viewing pictures continuously (slide show mode) .................25

Changing the initial settings ............................. 26

Selecting preferences............................................................ 26

Limiting playback by children................................................. 29

Additional information ....................................... 31

Troubleshooting..................................................................... 31

Specifications ........................................................................32

Appendix A: Country/Area code list for Parental Lock........... 33

Appendix B: Table of languages and their abbreviations ......33

Appendix C: Digital output signal chart.................................. 34

Appendix D: Glossary............................................................ 35

Before operation

About discs

Playable disc types

Discs with the following marks can be played back on the player.

DVD VIDEO SVCD Video CD

Audio CD

Digital audio formats

The player supports the following digital audio formats (see page 35 “Glossary” for descriptions of each audio format):

Linear PCM, Dolby Digital, MPEG Multichannel, DTS (Digital Theater Systems)

NOTE

Depending on the player’s [DIGITAL AUDIO OUTPUT] setting, digital audio signals may not be output as they are recorded on the disc. See “DIGITAL AUDIO OUTPUT” on page 28 for details.

Notes on discs

• With some DVD VIDEO discs, the player starts playback automatically after inserting the disc.

• The image may be sometimes poor or noisy due to defects in the disc itself.

• With some discs, operations described in this manual may not be possible.

VIDEO

The DVD Logo is a trademark. The player can also play back the following discs:

• DVD-R and DVD-RW discs written in the DVD VIDEO format and finalized

• CD-R and CD-RW discs written in the SVCD, Video CD or Audio CD format and finalized

• CD-R and CD-RW discs written in MP3 or WMA in accordance with the “ISO 9660” format (See page 22 for details.)

• CD-R and CD-RW discs written in JPEG in accordance with the “ISO 9660” format (See page 24 for details.)

NOTE

If a disc gets dirty, scratched or warped, or due to the disc characteristics or recording conditions, it may take considerable time for the unit to read the content, or the unit may not be able to play back such discs.

The player can play back audio signals recorded in MIX-MODE CD, CD-G, CD-EXTRA and CD TEXT.

Color system format

This player accommodates the PAL system, and also can play back discs recorded with NTSC system whose Region Code numbers include “2.” Note that the NTSC video signal on a disc is converted to a PAL signal and output.

Unplayable discs

The player does not play back discs listed below. If you try to play back these discs, noise may generate causing damage to speakers.

• DVD-RW discs written in the VR format

• DVD-ROM, DVD-RAM, DVD AUDIO, CD-ROM, PHOTO CD, SACD

Care and handling of discs

If a disc gets dirty, dusty, scratched or warped, playback sound and picture may be deteriorated. Take proper precautions when handling discs.

Handling

• Do not touch the surface of the disc.

• Do not damage, stick paper to, or use any adhesive on either the label side or playback side.

Storing discs

• Keep discs in their cases. If discs are piled on top of one another without their protective cases, they can be damaged.

• Do not put discs in a location where they may be exposed to direct sunlight, or where the humidity or temperature is high. Avoid leaving discs in a car!

Cleaning discs

• Wipe with a soft dry cloth, moving from the center outwards. If a disc is difficult to clean, wipe with a cloth moistened with water.

• Never use record cleaners, petrol, alcohol or any anti-static agents.

Notes on copyright

Check the copyright laws in your country before recording from DVD VIDEO, SVCD, Video CD, Audio CD, MP3, WMA and JPEG discs. Recording of copyrighted material may infringe copyright laws.

In addition, the player does not play:

• Unfinalized discs.

• Discs of irregular shape or discs with tape, seals or paste on either the label side or playback side. Playing back these discs may damage the player.

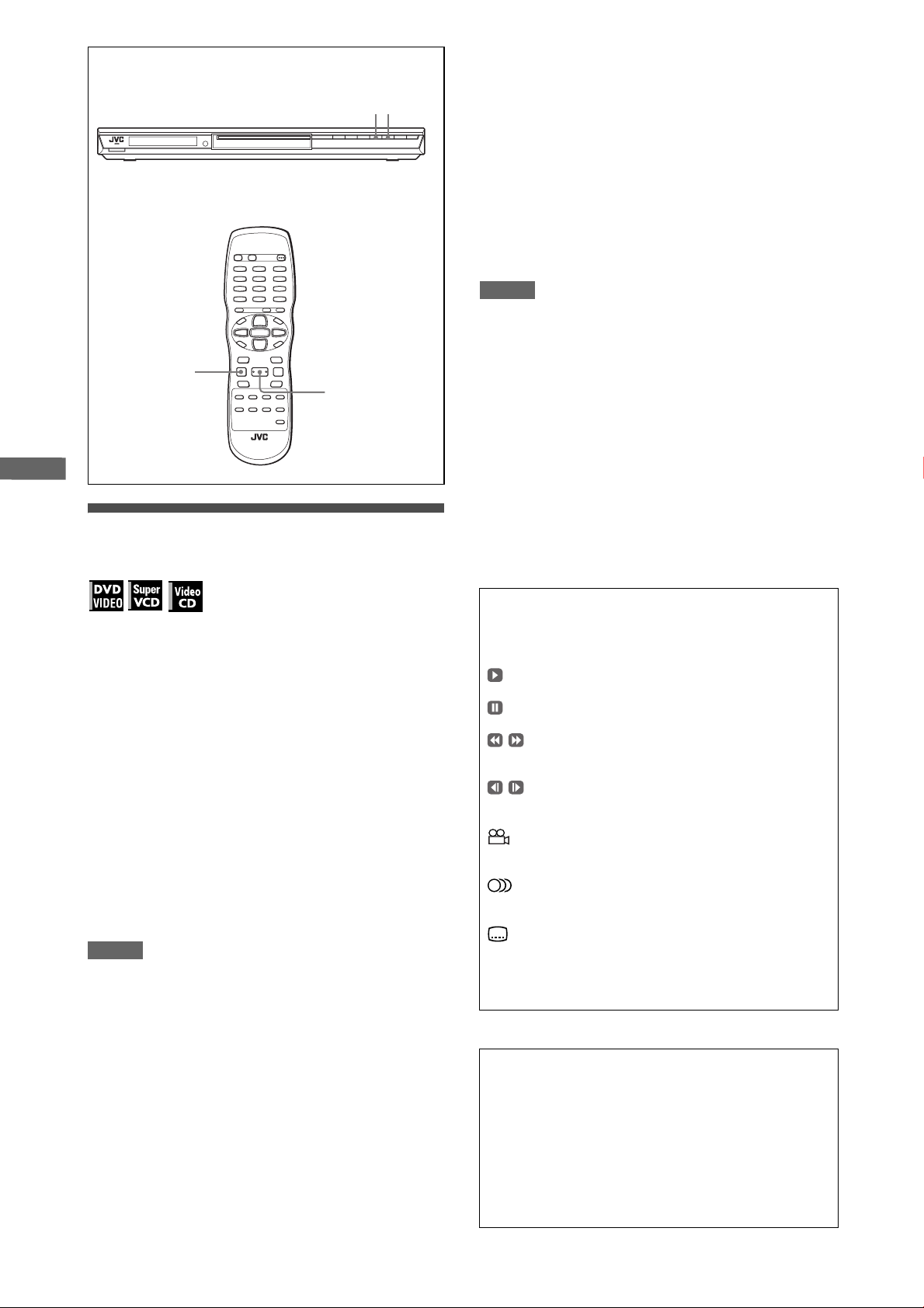

Names of parts and controls

0 -

5768

Remote control unit

Front panel

1 STANDBY/ON button (10) 2 STANDBY/ON indicator (10) 3 Disc tray (11) 4 0 button (11) 5 4 button (13, 14, 24) 6 ¢ button (13, 14, 24) 7 7 button (11,12) 8 3 button (11,12,13) 9 8 button (11, 13) 0 Display window (see the illustration below)

- Remote sensor (9)

3 45 6 7 8 9

Display window

2143

OPEN

/CLOSE

4 5

7 8

~ ! @

SLOW

ANGLE

STANDBY/ON

DISPLAY

213

546

879

010 +10

TITLE/GROUP CANCELRETURN

3D PHONIC

SUB TITLE

ENTER

NEXTPREVIOUS

SELECTCLEAR

SLOW+

VFP

REPEAT

PROGRESSIVE

SCAN

ZOOM

AUDIO

DIMMER

^ &

* (

)

£ ¢

1 Progressive mode indicators

[P] turns on in the progressive scanning mode. [DDP] turns on depending on the [PICTURE SOURCE] preference setting and the source type of the current DVD VIDEO disc (see page 6 for details).

2 Dolby Digital/DTS indicators

[Dolby D] turns on when playing back a Dolby Digital sound source. [DTS] turns on when playing back a DTS-encoded digital sound source.

3 Resume indicator

Turns on when playback is interrupted with the resume function activated.

4 Group/title/track/chapter indicators

Show what is indicated by the multi-information display during playback.

5 Repeat mode indicator

Turn on in the repeat playback mode and shows the currently selected repeat mode.

6 Program/random indicators

Turn on in the program playback mode/random playback mode respectively.

7 3 (play)/8 (pause) indicators

Turn on in the playback mode/pause mode respectively.

8 Multi-information window

Indicates various kinds of information by numbers and alphabets, such as the player’s current status (“READ,” “OPEN,” etc.) or currently played DVD’s title and chapter number.

1 DISPLAY button (11) 2 OPEN/CLOSE button (11) 3 Numeric buttons 4 RETURN button (14) 5 TOP MENU button (14) 6 Cursor selection (5 Up, ∞ Down) buttons 7 Cursor selection (2 Left, 3 Right) buttons 8 SET UP button (11, 26) 9 4/PREVIOUS button (13, 14, 24, 25) 0 7/CLEAR button (11, 16, 17, 23, 24, 25)

- 3/SELECT button (11, 12, 13, 16, 23, 25) = 1/SLOW– button (13)

~ button (13) ! 3D PHONIC button (19) @ ANGLE button (18) # SUBTITLE button (17) $ Infrared signal window (9)

% STANDBY/ON button (10) ^ CANCEL button (16) & TITLE/GROUP button (15, 23, 25) * MENU button (14, 24, 25) ( ENTER button ) ON SCREEN button (11, 15, 16, 17, 20, 23, 25) _ ¢/NEXT button (13, 14, 24, 25) + 8 button (11, 13, 22, 25) ¡ ¡/SLOW+ button (13)

REPEAT button (17, 23, 25)

£ VFP - PROGRESSIVE SCAN button (6, 19) ¢ AUDIO button (18)

ZOOM button (18, 25) DIMMER button

Press to change the brightness of the display window. You can select the display window brightness from three levels or off. If the brightness is set to off, nothing will be shown on the display. By pressing this button, the brightness of the blue illumination around the disc tray also changes.

Preparations

Connections

Before using the player, connect the player to a TV and/or amplifier.

Connecting to a TV

The following sections A to D describe TV connections where only a TV is connected to the player so that you will hear audio from the TV.

A Connecting to a TV with the SCART connector

You can enjoy using the player by simply connecting it to your television set with a 21-pin SCART cable.

Before making connections

• Do not connect the AC power cord until all other connections have been made.

• Connect VIDEO OUT of the player directly to the video input of your TV. Connecting VIDEO OUT of the player to a TV via a VCR may cause a monitor problem when playing back a copy-protected disc. You may also have a monitor problem when connecting the player to an integrated TV/ Video system.

• In the following description, “TV” may be substituted with

“monitor” or “projector.”

• Terminal names used for other components may be different

from those used in the following description.

NOTE

When you connect a SCART cable, do not connect any other cables to other video signal output jacks (VIDEO/S-VIDEO/ COMPONENT VIDEO OUT). If you do so, you will not be able to obtain correct signals from the SCART connector of the player.

S-VID

VIDEO

DIGITAL

LEFT

AUDIO

RIGHT

T/COMPOSIT

COMPONEN

SITE

S-VIDEO Y/C RGB/COM

COMPONENT

AUD

OUT

IO OUT

VIDEO OUT

-V

COMPU LINK

AV OUT

SCART cable (not supplied)

Setting the selector

When you connect the player to a TV with the SCART connector, set the COMPONENT/COMPOSITE S-VIDEO Y/C - RGB/COMPOSITE selector correctly according to your TV.

COMPONENT/COMPOSITE

S-VIDEO Y/C RGB/COMPOSITE

COMPONENT/COMPOSITE

S-VIDEO Y/C RGB/COMPOSITE

COMPONENT/COMPOSITE

S-VIDEO Y/C RGB/COMPOSITE

COMPONENT/COMPOSITE

S-VIDEO Y/C RGB/COMPOSITE

• If your TV only accommodates the composite video signal: Set the selector to “COMPONENT/COMPOSITE” or “RGB/COMPOSITE.”

• If your TV accommodates Y/C signals: Set the selector to “S-VIDEO Y/C.”

• If your TV accommodates RGB signals: Set the selector to “RGB/ COMPOSITE.”

B Connecting to a TV having composite video input jack

COMPONENT/COMPOSITE

S-VIDEO Y/C RGB/COMPOSITE

COMPONENT/COMPOSITE

S-VIDEO Y/C

RGB/COMPOSITE

Set the selector to “COMPONENT/COMPOSITE” or “RGB/COMPOSITE.”

NOTES

• When you connect cables to both the VIDEO jack and COMPONENT VIDEO OUT jacks, set the selector to “COMPONENT/COMPOSITE.”

• Do not connect cables to S-VIDEO jack and SCART connector. If you do so, you will not be able to obtain correct signals from the VIDEO (and COMPONENT VIDEO OUT) jacks.

• If your TV has a monaural audio input instead of stereo, you need to use an optional audio cable which converts stereo audio output to monaural.

Ye l l o w

VIDEO

LEFT

AUDIO

RIGHT

COMPONENT

AUDIO OUT

DIGITAL

OUT

VIDEO OUT

-V

White

Red

SIT

MPO

T/CO

NEN

COMPO

SITE

S-VIDEO Y/C

GB/CO

COMPU LINK

Ye l l o w

The player

AV OUT

Audio/video cable (not supplied)

Red

White

C Connecting to a TV with an S-video jack

If your TV has an S-VIDEO input, you can get better picture quality by connecting it with the S-VIDEO output of the player using an S-video cable instead of connecting the video input of the TV to the VIDEO jack of the unit.

COMPONENT/COMPOSITE

S-VIDEO Y/C RGB/COMPOSITE

Set the selector to “S-VIDEO Y/C.”

NOTE

To obtain correct signals from the S-VIDEO output, do not connect cables to the VIDEO jack, COMPONENT VIDEO OUT jacks, and SCART connector of the player.

IDEO

S-

VIDEO

LEFT

AUDIO

RIGHT

MPO

S-VIDEO

B/COMP

PONE

COM

DEO

AXIAL

STRE

AUDIO O U

OPTIC

IGITAL

OUT

VID

White

The player

Red

AV OUT

SIT

Y/C

OSITE

PU LIN

S-video cable (not supplied)

Audio cable (not supplied)

Red

D Connecting to a TV with component jacks

You can enjoy picture of high-fidelity color reproduction by connecting the COMPONENT VIDEO OUT jacks on the player to your TV.

NOTES

• Connect “Y” to “Y,” “PB” to “PB” (CB), “PR” to “PR” (CR) correctly.

• Do not connect cables to S-VIDEO jack and SCART connector. If you do so, you will not be able to obtain correct signals from the COMPONENT VIDEO OUT jacks.

• If your TV has component video input jacks of BNC type, use an adapter which converts a pin jack to a BNC jack (not supplied).

Progressive scan video playback available

In the Progressive scanning mode, you can enjoy high quality picture with less flickers when the COMPONENT VIDEO OUT jacks are connected to a TV or monitor that supports the progressive video input.

Hint

Depending on the source material format, DVD VIDEO discs can be classified into two types; film source and video source (note that some DVD VIDEO discs contain both film source and video source). When the player plays back a film source material, Progressive (uninterlaced) signals are created using the original information. When a video source material is played back, the unit interleaves lines between the interlaced lines on each to create the interpolated picture and outputs as the progressive signal.

Red

Green

Blue

The player

AV OU

S-VIDEO

VIDEO

LEFT

AUDIO

RIGHT

COMPONENT IN

White

COMPONENT/COMPOSITE

S-VIDEO Y/C RGB/COMPOSITE

Set the selector to “COMPONENT/ COMPOSITE.”

Activating the Progressive scanning mode using the remote control unit

While the player is turned on, press and hold down VFP PROGRESSIVE SCAN for a few seconds.

VFP PROGRESSIVE SCAN

Red

SIT

T EN

Y/C

MPO

SIT

S-VIDEO

MPO

/ RGB

PONE

COM

DEO

AXIAL

REA

AUDIO O U

IGITAL

OUT

O OUT

VIDE

White

Red

PU LINK

Blue

Green

The scanning mode switches between the Progressive scanning and Interlaced scanning modes. When the scanning mode is set to the Progressive mode, the [P] indicator lights up in the display window. [DD] also turns on when Progressive scanned signals on a DVD VIDEO disc are directly output as they are from the player. Depending on the [PICTURE SOURCE] preference display and whether the current DVD VIDEO disc is film-source or videosource, the indicator that lights up in the display window differs, as shown in the table below.

Setting of [PICTURE SOURCE]

AUTO [DD P] [P]

FILM [DDP] [DDP]

VIDEO (NORMAL)/ (ACTIVE)

Source type of DVD VIDEO

Film source Video source

[P] [P]

Component video cable (not supplied)

Audio cable (not supplied)

NOTES

• The Progressive scanning mode works only when you connect the player’s COMPONENT VIDEO OUT jacks to your TV.

• There are some progressive TV and High-Definition TV sets that are not fully compatible with the player, resulting in the unnatural picture when playing back a DVD VIDEO disc in the Progressive scanning mode. In such a case, use the Interlaced scanning mode. To check the compatibility of your TV set, contact your local JVC customer service center.

• All JVC progressive TV and High-Definition TV sets are fully compatible with the player (Example: AV-61S902).

Connecting to optional audio equipment

Connecting to a stereo audio amplifier/receiver

Connect the player’s AUDIO OUT (LEFT/RIGHT) jacks to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or receiver.

Amplifier or receiver

AUDIO

LEFT

RIGHT

White

AV OU

The player

Red

COMPONENT

I AX

AUDIO OU

IGITAL

OUT

O OUT

-V

SIT

MPO

SIT

S-VI

COMPO

RGB

LINK

V COM

Audio cable (not supplied)

White

Red

Connecting to a digital audio device

You can enjoy sound of enhanced quality by connecting the player’s DIGITAL OUT (either OPTICAL or COAXIAL) jack to a digital input of an amplifier, etc., using an optical or coaxial digital cable. The digital audio signal on a disc will be transferred directly from the player. If the connected digital audio equipment is a Dolby Digital or DTS decoder or an amplifier with a built-in decoder, you can enjoy high-quality surround sound.

NOTES

• Connect the player and the digital audio device by using either an optical digital cable or a coaxial digital cable.

• It is not recommended to use the digital jacks for dubbing. When recording the sounds (DVD VIDEO, SVCD, Video CD or Audio CD) played back on the player, record them through the analog jacks.

• Depending on the disc, no signal may be output from the DIGITAL OUT. Make an analog connection in this case.

• Set [DIGITAL AUDIO OUTPUT] in the [AUDIO] preference display correctly according to the connected digital audio equipment. If setting made for [DIGITAL AUDIO OUTPUT] is incorrect, loud noise may be generated causing damage to the speakers (see page 28).

Digital equipment

LEFT

RIGHT

The player

TRE

IGITAL

OUT

OPTICAL

DIG

COAXIAL

SIT

COMPO

S-VID

MPO

PONENT

COM

O OUT

E ID

-V

V COMPU LINK

AV O

Coaxial digital cable (not supplied)

Audio cable (not supplied)

Optical digital cable (not supplied)

Connecting the power cord

When all the audio/video connections have been made, connect the AC power plug to the wall outlet. Make sure that the plugs are inserted firmly. The STANDBY/ON indicator lights in red.

Warning

• Disconnect the power cord:

- if you are not going to use the player for a long time.

- before cleaning the player.

- before moving the player.

• Do not:

- connect or disconnect the power cord with wet hands.

- pull the power cord when disconnecting it, as this may damage the cord and cause fire, electric shock, or other accidents.

Caution

• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause fire, electric shock, or other accidents.

• If the cord is damaged, consult a dealer and have the power cord replaced with a new one.

Using the remote control unit

Remote sensor

Point the top of the remote control unit toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx. 5 m) may be shorter.

Remote sensor

To install batteries

Open the compartment cover, and place the two supplied R6P (SUM-3)/AA(15F) batteries in the remote control unit according to the polarity markings (“+” and “–”) inside the compartment. Then replace the cover.

The batteries will last about six months with normal use. If the functions of the remote control unit become erratic, replace the batteries.

Precautions of the safe use of batteries

Observe the following precautions for the safe use of batteries. If they are used improperly their lives will be shortened, they may burst or their contents may leak.

• Remove the batteries from the remote control unit if it is not going to be used for a long period of time.

• Remove dead batteries and dispose of them properly.

• Never leave dead batteries lying around, take them apart, mix them with other refuse, or throw them into an incinerator.

• Never touch liquid that has leaked out of a battery.

• Do not mix new and old batteries, or batteries of different types, when replacing them.

Basic playback

• NOW READING (The player is reading the disc information.)

• REGION CODE ERROR! (The region code of the DVD VIDEO disc does not match the player. The disc cannot be played back.)

• OPEN (The disc tray is opening.)

• CLOSE (The disc tray is closing.)

• NO DISC (No disc is loaded.)

NOTE

Even if you turn off the player, the player is not disconnected from the AC power source as long as it is connected to the wall outlet. This state is called standby mode. In this state, the player consumes a very small amount of power.

STANDBY/ON indicator

7380

STANDBY/ON

DISPLAY

OPEN/CLOSE

ENTER

SET UP

About invalid operation icon

When you press a button, and if the player does not accept its operation, appears on your TV screen. Operations are occasionally unacceptable even if is not displayed.

Note that some operations may not be accepted. For example, some discs may not allow rapid advance/reverse or slowmotion playback.

STANDBY/ON

5/∞/2/3

ON SCREEN

3 (SELECT) 8

Turning the player on and off

Press STANDBY/ON on the remote control unit or press STANDBY/ON on the front panel.

The STANDBY/ON indicator on the front panel, which lights in red during standby, lights in green. The blue illumination around the disc tray turns on.

The opening display appears on the TV screen, and the following messages may appear at the bottom of the opening display.

NOW READING

Message area

Initial setup

When you turn on the player for the first time after purchase, the following message appears on the TV screen.

EXECUTE DVD PLAYER SETUP? - BASIC PICTURE/AUDIO SETTING YES - PRESS ENTER NO - PRESS CANCEL

You can set the display language, TV monitor type and digital output before using the player, by following the procedure below.

Press ENTER.

The first page of the DVD PLAYER SET UP display appears. The pull-down menu of the [ON SCREEN LANGUAGE] is already open.

DVD PLAYER SET UP

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ON SCREEN LANGUAGE options

Press 5/∞ to select the desired language.

You can select the on-screen language for the preference displays, etc. from among ENGLISH, FRENCH and GERMAN.

Press ENTER.

The second page is shown, in which the pull-down menu of the [MONITOR TYPE] is already open.

DVD PLAYER SET UP

MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

MP3&WMA/JPEG

SELECT

ENTER

Press 5/∞ to select the desired monitor type.

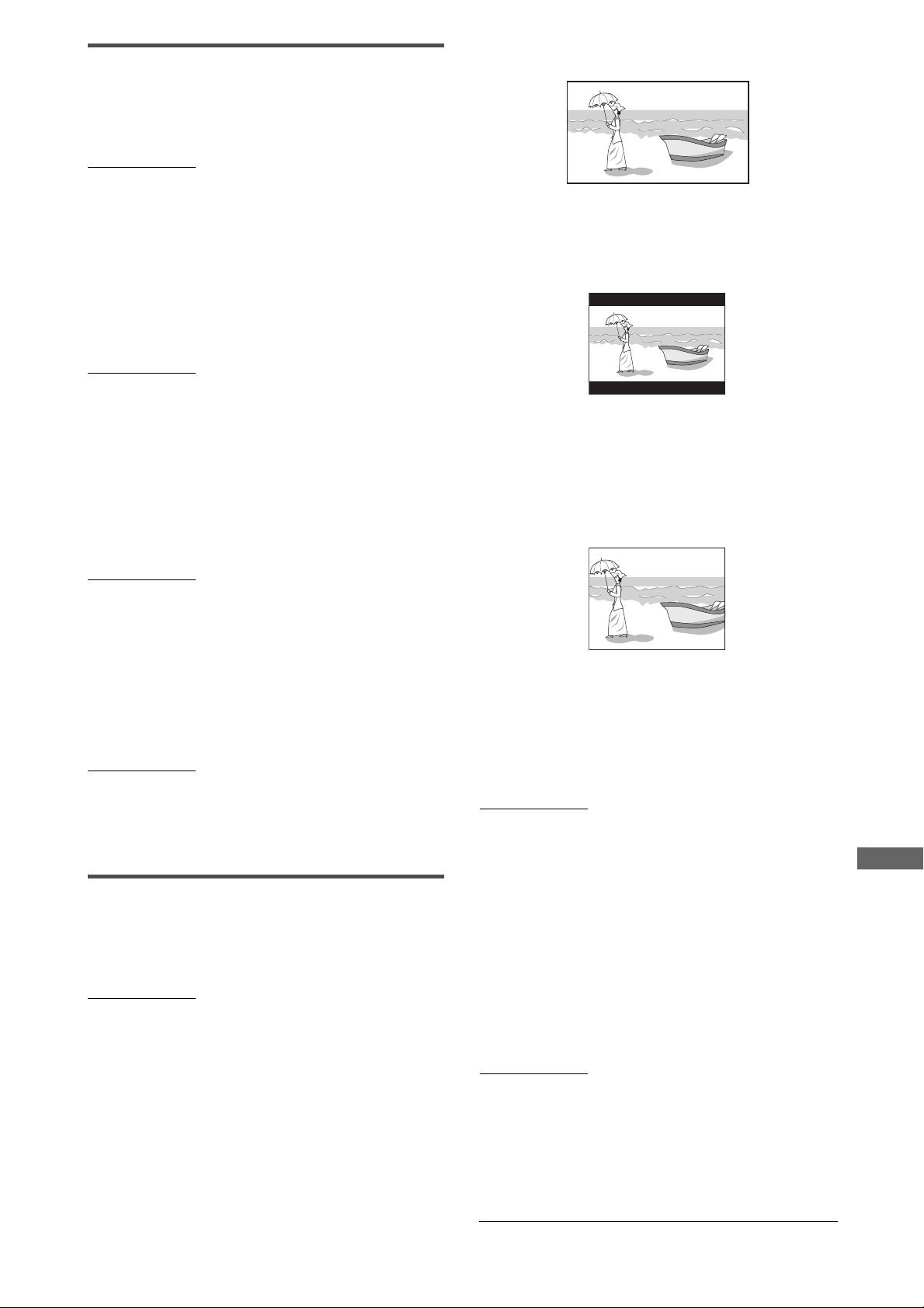

For a normal (conventional) TV, select [4:3 LB] or [4:3 PS]. For a wide-screen TV, select [16:9 NORMAL] or [16:9 AUTO]. (See page 27.)

ENGLISH

ENGLISH FRENCH GERMAN

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

4:3 L.B.

16:9 NORMAL

AUTO

16:9 AUTO 4:3 LB

4:3 PS

MP3&WMA

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

MONITOR TYPE options

Press ENTER.

The third page is shown, in which the pull-down menu of the [DIGITAL AUDIO OUTPUT] is already open.

DVD PLAYER SET UP

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D RANGE CONTROL

OUTPUT LEVEL

DOLBY DIGITAL/PCM

PCM ONLY

DOLBY PROLOGIC

DOLBY DIGITAL/PCM STREAM/PCM

STANDARD

If a menu is shown on the TV screen

When inserting a DVD VIDEO, SVCD or Video CD disc, a menu may be shown on the TV screen. From the menu, you can select a desired item to be played back.

For DVD VIDEO:

1Press 5/∞/2/3 to select a desired item. 2Press ENTER.

The player starts playback of the selected item.

SELECT

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

ENTER

DIGITAL AUDIO OUTPUT options

Press 5/∞ to select a desired digital output signal type.

Set this item correctly when you connect the player to an external surround decoder or D/A converter. (If you do not connect the player to such a device, you do not have to set this item.)

• When connecting to other digital device, select [PCM ONLY].

• When connecting to a Dolby Digital decoder, select [DOLBY DIGITAL/PCM].

• When connecting to a Dolby Digital decoder or a DTS decoder, select [STREAM/PCM].

Press ENTER.

The TV screen returns to the opening display.

To bring up the DVD PLAYER SET UP display later

Press SET UP for a few seconds until the DVD PLAYER SET UP display appears.

Starting playback

For SVCD/Video CD:

Press the numeric buttons to select a desired item. The player starts playback of the selected item.

NOTES

• Do not insert an unplayable disc. (See page 2.)

• When inserting a disc on the disc tray, be sure to position the disc inside the recess. Otherwise, the disc may be damaged when the disc tray is closed, or you may not be able to remove the disc from the player.

To check the playback status

You can see the current selection number (the title/chapter number for DVD VIDEO or track number for SVCD/Video CD/ Audio CD), time information (the track or chapter time while stopped, or elapsed track or chapter time during playback) and the transport status (stop, playback, pause, etc.) on the TV screen.

Press ON SCREEN.

Example: for DVD VIDEO

Transfer rate

8.5Mbps

Current chapter

number

TITLE 33 TOTAL 1:25:58CHAP 33

Current title number

Current transport

status

Disc elapsed

time

Note that pressing ON SCREEN again brings up the menu bar under the status bar, from which you can access various

Press 0 (or OPEN/CLOSE on the remote control unit) to open the disc tray.

Place a disc in the disc tray.

functions. See page 20 for details about the menu bar.

To turn off the status bar

Press ON SCREEN repeatedly until the status bar goes off.

To change the display window contents

With the label side up

• To insert an 8-cm disc, place it in the inner recess.

Press 0 (or OPEN/CLOSE on the remote control unit) to close the disc tray.

Press 3 on the player or 3 (SELECT) on the remote control unit.

The player starts playback from the beginning.

• Depending on the disc, playback starts when you close the disc tray.

Press DISPLAY.

Example: for DVD VIDEO Each time you press DISPLAY, the elapsed time display and the title/chapter number display appear alternately.

Elapsed time

Title number

Chapter number

To stop playback completely

Press 7.

Hint

If you press 0 during playback, the player stops playback and opens the disc tray.

To stop playback temporarily

Press 8.

To resume playback, press 3 (SELECT).

3 (SELECT)

Restarting playback after stopping (resuming playback)

Changing the resume mode

The player has three resume modes; ON, OFF and DISC RESUME.

• You can select the mode using the preference display (see page 28).

When the resume mode is “OFF”

Playback always starts from the beginning.

When the resume mode is “DISC RESUME”

The player memorizes interrupted positions for the last 30 discs played. Storing a new interrupted position will erase the interrupted position stored for the first disc. The memory of the interrupted positions are not cleared even if you open the disc tray or turn off the player.

NOTES

• If you change the [RESUME] setting from [DISC RESUME] to [OFF] or [ON], you cannot resume playback of a disc whose “resuming” position is stored. However, when you again set [RESUME] to [DISC RESUME], you will then be able to resume playback of the disc.

• If you interrupt the playback of a disc for which an interrupted position has already been stored, the memory will be updated with the new interrupted position.

• For a double-sided DVD VIDEO disc, the player regards each side as a different disc. Therefore, to resume playback of such a disc, the disc must be inserted with the same side down.

• When the player memorizes an iterrupted point for a disc, it also memorizes Audio, Subtitle and Angle settings.

• The player may not resume playback exactly from the interrupted point. In the case of an SVCD/Video CD disc with PBC function, the player may resume playback from a point slightly earlier or later than the point where playback was interrupted.

The player resumes playback from the position you interrupted playback, as long as the disc you interrupted playback is still on the disc tray. This is because the player’s resume mode is set to ON when you purchased the player. When the resume mode is set to ON, the player memorizes the position on a disc where you interrupted playback.

• When you press 7 to interrupt playback, the TV screen shows

[RESUME STOP] and the [RESUME] indicator lights up in the display window.

• When you re-start playback, the TV screen shows [RESUME PLAY].

Hint

The memory of the interrupted position is not cleared even if you turn off the player.

To play back from the beginning

Press 7 while the disc is stopped. The memory is cleared. Then press 3 (SELECT).

NOTES

• The player remembers the interrupted position even if you turn the power off.

• The memory is cleared if you open the disc tray.

About On-screen guide icons

You may see the following icons displayed over the picture. They have the following meanings.

: Appears at the beginning of playback mode.

: Appears at the beginning of pause mode.

: Appears at the beginning of fast forward/backward

playback with the current speed (see page 13).

: Appears at the beginning of slow-motion playback

with the current speed (see page 13).

: Appears at the beginning of a scene recorded from

multiple angles (see page 18).

: Appears at the beginning of a scene recorded with

multiple audio languages (see page 18).

: Appears at the beginning of a scene recorded with

multiple subtitle languages (see page 17).

You can change the setting so that the on-screen guide icons do not appear on the TV screen (see page 28).

About screen saver function

A television monitor may have an image burned into it if a static image is displayed for a long time. To prevent this, the player automatically activates the screen saver function if a static picture, such as an on-screen display or menu, is displayed while no button is pressed for over 5 minutes. When the screen saver function is activated, the TV screen gets darker. Pressing any buttons will release the screen saver function. You can set the screen saver function to ON or OFF (see page

27).

V

a

r

i

o

u

s

k

i

n

d

s

o

f

p

l

a

y

b

a

c

k

Various kinds of

x1.5 Quick Playback with sound

playback

4¢

¢ 3 (SELECT) 8

When you select 1.5 times normal speed playback, the disc is played back with sound.

• For DVD VIDEO discs, the subtitle does not go off.

• At the x1.5 Quick Playback mode, the digital sound is output in stereo linear PCM format.

• To switch from rapid reverse playback to x1.5 Quick Playback, first press 3 (SELECT), then press ¡ once.

To advance a still picture frame by frame

While paused, press 8.

Each time you press 8, the still picture advances to the next frame. Pressing 3 (SELECT) returns to normal playback.

To play back in slow motion

You can select from 1/32 times, 1/16 times, 1/4 times and 1/2 times normal speed.

During playback, press 8, then press ¡ (to play forward slow motion), or 1 (to play reverse slow motion, for DVD VIDEO disc only).

Pressing 3 (SELECT) returns to normal playback.

NOTES

• During slow motion playback, the sound will be muted.

• Reverse slow motion playback is not possible for an SVCD and

Playback at various speeds

Video CD.

To replay the previous scenes

To advance or reverse playback rapidly

(One touch replay function)

while monitoring

During playback, press ¡ or 1 on the remote control unit.

You can select from 1.5 times, 5 times, 20 times and 60 times normal speed. Pressing 3 (SELECT) returns the player to normal playback.

During playback, hold down ¢ or 4.

Playback is advanced or reversed at 5 times normal speed.

NOTE

During rapid playback, the sound will be muted except when playing an Audio CD, and when playing a DVD VIDEO or Video CD at 1.5 times normal speed. For Audio CD discs, the sound will be heard intermittently.

During DVD VIDEO playback, press .

The playback position moves back 10 seconds before the current position.

NOTES

• This function works only within the same title, though it works between chapters.

• This function may not work with some DVD VIDEO discs.

Numeric buttons

TITLE/GROUPRETURN

TOP MENU

5/∞/2/3

ENTER

ON SCREEN

¢ 3 (SELECT)

Locating the beginning of a scene or song

For DVD VIDEO: During playback, you can skip a chapter or title,

depending on the disc configuration.

For SVCD/Video CD: During playback without PBC function, you

can skip a track.

For Audio CD: During playback or while in stop mode, you can

skip a track.

To skip forward, press ¢.

Playing from a specific position

Locating a desired scene from the DVD menu

DVD VIDEO discs generally have their own menus which show the disc contents. These menus contain various items such as titles of movies, names of songs, or artist information, and display them on the TV screen. You can locate a desired scene using the DVD m e nu.

While a DVD VIDEO disc is inserted, press TOP MENU or MENU.

The menu appears on the TV screen.

Press 5/∞/2/3 to select a desired item, then press ENTER or 3 (SELECT).

The player starts playback of the selected item.

Hints

• Some DVD VIDEO discs may also have a different menu which appears when MENU is pressed.

• See the instructions of each DVD VIDEO disc for its particular menu.

• With some discs, you can select items by entering the corresponding number using the numeric buttons, which may cause the player to automatically start playback.

NOTE

The MENU button does not work while stopped.

To skip backward, press 4 twice.

Using the numeric buttons

For DVD VIDEO/Audio CD: During playback or while in stop

mode

For SVCD/Video CD: During playback without PBC function or

while in stop mode

Press the numeric buttons to specify the number.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The player starts playback from the beginning of the selection.

NOTES

• Depending on the disc type and the unit status, what is specified differs:

Player status Disc type What is specified

While stopped DVD VIDEO title

SVCD/Video CD/Audio CD track

During playback DVD VIDEO chapter

• During DVD VIDEO playback, if a menu is shown on the TV screen, the numeric buttons may be used for selecting an item in the menu.

SVCD/Video CD/Audio CD track

Locating a desired scene from the menu of a SVCD/Video CD with PBC

Some SVCD/Video CD discs support the PBC function. PBC is an abbreviation of “Playback Control.” Some SVCD/Video CD discs recorded with PBC have their own menus, such as a list of the songs of the disc. You can locate a specific scene by using the PBC menu.

In stop mode, press 3 (SELECT) or TOP MENU.

A disc menu appears on the TV screen.

Press the numeric buttons to select the desired item.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The player starts playback of the selected item. To return to the menu, press RETURN.

Hint

If something like [NEXT] or [PREVIOUS] appears on the TV screen, pressing ¢ advances to the next page, and pressing 4 returns to the previous page.

About PBC (Playback Control)

Some SVCD/Video CD discs support the PBC function. The PBC function allows you to enjoy menu-driven operation and high-resolution still images which have a resolution four times greater than moving pictures.

• To play a PBC-compatible SVCD/Video CD disc without activating the PBC function, press the numeric buttons instead of 3 (SELECT) to start playback.

• To activate the PBC function again,

1) press TOP MENU or MENU,

2) press 7 to stop playback, then press 3 (SELECT) .

Specifying a desired title/group

During playback, press TITLE/GROUP.

[--] is shown in the title display area of the display window.

Press the numeric buttons to specify a title or group to be played.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The player starts playback from the specified title or group.

NOTE

This function may not work with some DVD VIDEO discs.

Locating a desired position in the current title, group or track (Time search)

Press the numeric buttons (0 to 9) to enter the desired time.

The specified time is displayed in the pull-down menu.

Example (for DVD VIDEO)

To play back from 2(H):34(M):00(S) Press 2, 3, then 4.

TIME 2:34 __:

Example (for SVCD/Video CD/Audio CD)

To play back from 23(M):40(S) Press 2, 3, then 4.

TIME 23 4_:

You do not have to press “0” to enter the trailing zeros (for the last two digits in the example above).

To correct a mistake

Press 2 repeatedly to move back to the digit where you entered a wrong number, and reenter the correct one.

Press ENTER.

The player starts playback from the specified time.

To dismiss the menu bar

Press ON SCREEN.

Hint

“10” and “+10” buttons are not used with this function.

NOTES

• Some DVD VIDEO discs do not contain time information, and the time search function cannot be used.

• The time search function cannot be used during program and random playback modes.

Changing the playback order

You can play a disc from the desired position by specifying the time from the beginning of the current title (for DVD VIDEO) or the disc (for SVCD/Video CD/Audio CD).

For DVD VIDEO/Audio CD: During playback or while in stop

mode

For SVCD/Video CD: In any condition except SVCD/Video CD

playback with PBC

Press ON SCREEN twice.

The menu bar appears on the TV screen.

Press 2/3 to move to , then press ENTER.

The pull-down menu for entering time appears.

Screen example for DVD VIDEO

CHAP.

TITLE 33 TOTAL 1:25:58CHAP 33

1/3 1/3OFF 1/5

8.5Mbps

TIME _:__:__

To play back in a specific order (Program play)

By programming tracks, you can play up to 99 tracks in any order. You may program the same track more than once.

In stop mode, press ON SCREEN twice.

The menu bar appears on the TV screen.

Press 2/3 to move to .

Screen example for Audio CD

OFF PROG. RND.

Press ENTER.

The program table appears. The [PROG] indicator lights up in the display window.

PROG.

TIME 25:58TRACK 33

Numeric buttons

CANCEL

5/∞/2/3

ENTER

ON SCREEN

3 (SELECT)

REPEAT

SUBTITLE

Press the numeric buttons to specify tracks in the desired order.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The total program time

To check the program contents

During playback, press 7. Playback stops and the program table is shown. When the player is playing back an Audio CD and the program table is not shown, you can bring up the table by carrying out steps 1 to 3. During SVCD/Video CD playback, you can check the program contents via the menu bar.

To stop program playback

Press 7.

To clear the program

While stopped and the program table is shown, press 7.

To exit the program mode

After clearing the program, press ON SCREEN.

NOTE

When the disc tray is opened or the player is turned off, the program is cleared.

To play back in random order (Random play)

PROGRAM

No. TrackDisc 1 2 1 2 3 5 3 7 4 4 4 2 5 3 3 6 5 4 7 6 6 8 9 10

USE NUMERIC KEYS TO PROGRAM TRACKS. CANCEL DELETES THE LAST STEP.

To correct the program

Press 5/∞ to move press CANCEL. The track is erased and the subsequent

programmed tracks move up. Pressing 7 clears all the programmed tracks.

Press 3 (SELECT) to start program playback.

With an Audio CD disc, the program table remains on the TV screen during program playback. (Pressing ON SCREEN brings up the status bar.) When all of the programmed tracks have finished playback, the player stops and the program table appears again. Note that the program remains.

• During program playback, you cannot edit the program contents.

to the track to be corrected, then

Total Program Time 00:25:12

7 DELETES ALL.

Selected track number

In stop mode, press ON SCREEN twice.

The menu bar appears on the TV screen.

Press 2/3 to move to .

Screen example for Audio CD

OFF PROG. RND.

Press ENTER.

The player starts random playback. With a SVCD/Video CD disc, the menu bar is automatically dismissed. During random playback, the [RND] indicator lights up in the display window. After playing all tracks of the disc, the player stops the disc and exits the random playback mode.

RND.

TIME 25:58TRACK 33

To stop and quit random playback

Press 7. The player stops playback and exits the random playback mode.

Repeat playback

To repeat the current selection or all tracks

For DVD VIDEO: During playback For SVCD/Video CD/Audio CD: In any condition except SVCD/

Video CD playback with PBC

Press REPEAT.

If you press REPEAT in stop mode, press 3 (SELECT) to start playback. Each time you press REPEAT, the repeat mode cycles among All repeat, Repeat 1 and off. The indication on the display window shows the selected repeat mode.

: Repeats the current title for DVD VIDEO or all tracks

for SVCD/Video CD/Audio CD.

1: Repeats the current chapter for DVD VIDEO or the

current track for SVCD/Video CD/Audio CD.

No indication: The repeat mode is off.

A window which indicates the current repeat mode will be displayed on the TV screen. The mode indication on the window is same as the one on the menu bar. (Repeat mode example on the TV screen)

Press ENTER at the beginning of the part you want to repeat (point A).

The pull down menu disappears.

The repeat icon shows .

Press ENTER at the end of the part you want

A-

to repeat (point B).

The repeat icon shows . The player locates “A” and starts repeat playback between

“A” and “B.”

The [ ] indicator lights in the display window.

A-B

To quit A-B repeat playback

Press 2/3 to move to , and press ENTER twice. The A-B repeat mode turns off, then normal playback continues.

NOTE

The A and B points must be set in the same title/track.

A-B

Changing the language, sound and scene angle

To select the subtitle language (SUBTITLE)

CHAP

Some DVD VIDEO and SVCD discs contain more than one

To stop repeat playback

Press 7. When a DVD VIDEO disc is set, the player stops playback and quits the repeat mode. When an SVCD, Video CD or Audio CD disc is set, the player stops playback but does not quit the repeat mode.

To quit repeat playback

Press REPEAT until the repeat mode indicator goes off in the display window.

Hint

When the program playback mode is active with an SVCD, Video CD or Audio CD, the repeat mode changes in the same manner.

Note, however, that in the “ ” mode the player repeats all the programmed tracks instead of all tracks on the disc.

NOTE

The repeat playback may not work with some discs, even if you select one of the repeat modes.

To repeat a desired part (A-B repeat playback)

First make sure:

• The player is in playback mode except SVCD/Video CD playback with PBC.

Press ON SCREEN twice.

The menu bar appears on the TV screen.

Press 2/3 to move to , then press ENTER.

The pull-down menu for repeat mode selection appears.

Press 5/∞ to select [A-B].

subtitle language. You can choose a desired one from them.

Hint

At the beginning of a DVD VIDEO disc where subtitles are recorded, appears on the TV screen (except when the [ON SCREEN GUIDE] preference is set to [OFF]).

During playback, press SUBTITLE.

The subtitle selection window appears on the TV screen.

1/3

ENGLISH

Press 5/∞ or SUBTITLE to select the subtitle.

Each time you press 5/∞ or SUBTITLE, the subtitle language changes.

Press ENTER.

Subtitles are displayed in the selected language. The subtitle selection window is dismissed.

NOTES

• An SVCD disc can have up to four subtitles. Pressing 5/∞

cycles through those channels regardless of whether the subtitles are recorded or not.

• The subtitle selection window will automatically disappear if you do not change the subtitle for several seconds.

• For DVD VIDEO, the selected language may be abbreviated on the TV screen. See “Appendix B: Table of languages and their abbreviations” on page 33.

5/∞/2/3

ENTER

VFP -

3D PHONIC

ANGLE

PROGRESSIVE SCAN ZOOM

AUDIO

To change the audio language or sound (AUDIO)

The audio selection setting allows you to change the audio language of a movie, or to listen to karaoke with or without the vocal.

Hint

At the beginning of the part where multiple audio tracks are recorded, appears on the TV screen (except when the [ON

SCREEN GUIDE] preference is set to [OFF]).

During playback, press AUDIO.

The audio selection window appears on the TV screen.

1/3

ENGLISH

To select a scene angle of DVD VIDEO (ANGLE)

You can enjoy a variety of scene angles if the DVD VIDEO disc contains “multi-angle” parts, where multiple cameras were used to shoot the same scene from different angles.

Hint

At the beginning of a “multi-angle” part, appears on the TV screen (except when the [ON SCREEN GUIDE] preference is set

to [OFF]).

During playback, press ANGLE.

The angle selection window appears on the TV screen.

1/3

Press 5/∞ or ANGLE to select the desired angle.

Each time you press 5/∞ or ANGLE, the angle changes.

Press ENTER.

You can see the picture from the selected angle. The angle selection window is dismissed.

NOTE

The angle selection window will automatically disappear if you do not change the angle for several seconds.

Special picture and sound effects

To zoom in pictures

Press 5/∞ or AUDIO to select the desired audio.

Each time you press 5/∞ or AUDIO, the audio changes.

For DVD VIDEO (example)

1/3 ENGLISH 2/3 FRENCH 3/3 SPANISH

For SVCD

ST1 ST2 L- 1 R-1 L- 2 R-2

For Video CD

ST (Stereo) L R

Press ENTER.

You can hear the selected audio. The audio selection window is dismissed.

NOTES

• The audio selection window will automatically disappear if you do not change the audio for several seconds.

• For DVD VIDEO, the selected language may be abbreviated on the TV screen. See “Appendix B: Table of languages and their abbreviations” on page 33.

During playback or while paused, press ZOOM.

Pressing ZOOM causes the player to zoom in on the image. At the top left of the screen, the information for the current magnification appears for about 5 seconds. Each time you press ZOOM, the magnification is doubled (1.8, 4, 8, 16, 32 and 64 times).

ZOOM x 4

When a picture of a DVD VIDEO disc is viewed on a normal TV screen (4:3, Letter Box), black bars may appear at the top and bottom of the screen. In this case, if you select the “ZOOM x1.8” mode, the black bars become almost invisible. When a 1:2.35 or 1:1.85 DVD VIDEO source is played back, however, the black bars are visible on the screen.

Press 5/∞/2/3 to move the zoomed position.

To return to the normal playback

Press ENTER.

NOTE

While zoomed, the picture may look coarse.

To adjust the picture character (VFP)

4 Press ENTER.

A window for setting parameters appears.

SATURATION + 4

The VFP (Video Fine Processor) function allows you to adjust the picture character according to the type of programming, picture tone or personal preferences.

1 During playback, press VFP - PROGRESSIVE

SCAN.

The VFP mode selection window appears on the TV screen.

2 Press 2/3 to select the desired preset.

Each time you press the button, the VFP mode changes as follows. Set the video type most suitable to the current program or the room conditions.

NORMAL CINEMA USER 1 USER 2

Selected preset

USER 1

DNR

DIGIPURE

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

Parameter

[NORMAL]: for watching TV in a general room. [CINEMA]: for watching a movie software in a room with

suppressed light.

[USER 1] [USER 2]: you can adjust parameters that affect

the picture character and store the settings as a user preset. See the next step.

+ 0

+ 3

Selected parameter

5 Press 5/∞ to adjust the level of the

parameter.

The higher value enhances the effect.

6 Press ENTER.

Repeat steps 3 to 6 if you want to set other parameters.

To dismiss the VFP mode selection window

Press VFP - PROGRESSIVE SCAN.

NOTE

The window for VFP mode selection and parameter setting disappear if no operation is made for about 10 seconds.

To simulate surround sound (3D PHONIC)

Using the 3D PHONIC function, you can get a simulated surround effect from your stereo system.

1 During playback, press 3D PHONIC.

The 3D PHONIC window appears on the TV screen.

2 Press 2/3 to select the desired mode.

Each time you press the button, the 3D PHONIC mode changes as follows:

ACTION DRAMA THEATER NONE

+ 5ACTION 4

3 To define a user setting, press 5/∞ to select

a parameter to be edited from the following.

• DNR (Digital Noise Reduction) Adjust this if you notice “mosquito noise” (noise that randomly appears along the edges of digitally compressed pictures). Available range: 0 to +1.

• DIGIPURE Adjust this if you want to enhance clarity of pictures. Available range: 0 to +3.

• GAMMA

Adjust this if the neutral color is bright or dark. The brightness of dark and bright portion is maintained. Available range: –4 (darkest) to +4 (brightest).

• BRIGHTNESS

Adjust this if the picture is bright or dark on the whole. Available range: –16 (darkest) to +16 (brightest).

• CONTRAST

Adjust this if the far and near position is unnatural. Available range: –16 to +16.

• SATURATION

Adjust this if the picture is whitish or blackish. Available range: –16 (blackest) to +16 (whitest).

•TINT

Adjust this if the appearance of flesh tone is unnatural. Available range: –16 to +16.

• SHARPNESS

Adjust this if the picture is indistinct. Available range: 0 to +3.

Selected effect mode

•ACTION

Suitable for action movies and sports programs in which the sound source moves.

•DRAMA

Natural and warm sound. You can enjoy movies in a relaxed mood.

•THEATER

You can enjoy sound effects like in a theater.

3 Press 5/∞ to adjust the effect level.

You can set the effect level from [1] to [5]. The higher value enhances the effect.

To dismiss the 3D PHONIC window

Press 3D PHONIC.

NOTES

• The 3D PHONIC window disappears if no operation is made for about 10 seconds.

• The 3D PHONIC function works correctly only when playing back a DVD VIDEO disc recorded with Dolby Digital.

• When playing back a DVD VIDEO disc recorded with Dolby Digital that does not contain the rear signal, you can change the 3D PHONIC setting, but you will not be able to achieve a correct 3D effect.

• The 3D PHONIC function does not affect the Dolby Digital bitstream signal from the DIGITAL OUT jack.

• When the 3D PHONIC function is active, the [ANALOG DOWN MIX] setting in the [AUDIO] setting display is not available.

Numeric buttons

5/∞/2/3

ENTER

ON SCREEN

Menu bar functions

To bring up the menu bar

When a disc is inserted, press ON SCREEN.

A status bar for the type of disc inserted will appear on the TV screen. See page 11 for details about the status bar.

Press ON SCREEN again.

A menu bar for the type of disc inserted will appear under the status bar.

(for DVD VIDEO)

CHAP.

TITLE 33 TOTAL 1:25:58CHAP 33

1/3 1/3OFF 1/5

8.5Mbps

Basic operation procedure

Press 2/3 to select the icon you want to work with.

The selected icon is pointed by .

Press ENTER.

With many icons, an appropriate pull-down window appears, however, there are some exceptions.

NOTES

• A mark or text on the menu icon for the function or mode currently selected is shown in green.

• Some functions are not available during playback. (You cannot move to the associated icon when it is not available.)

(for SVCD)

OFF

(for Video CD)

OFF

(for Audio CD)

OFF PROG. RND.

PROG. RND.

To dismiss the menu bar and status bar

Press ON SCREEN.

ST1

STPROG. RND.

TIME 25:58TRACK 33

-/4

TIME 25:58TRACK 33

Menu bar functions for DVD VIDEO

Time mode selection

During playback, selects the time mode shown in the display window and in the status bar.

Press ENTER to select the time mode from the following.

• TOTAL: Current title elapsed time

• T.REM: Current title remaining time

• TIME: Current chapter elapsed time

• REM: Current chapter remaining time

Repeat mode (See also page 17)

Selects the repeat mode during playback.

1. Open the pull-down window.

2. Press 5/∞ to select the repeat mode from the following.

• CHAPTER: Current chapter repeat

• TITLE: Current title repeat

• A-B: A-B repeat

• OFF: Repeat mode deactivated

3. Press ENTER to make the selected repeat function active.

Time search (See also page 15)

Specifies a time from the beginning of the current title as the point from which to begin playback.

CHAP.

During playback, specifies a desired chapter to be played back from.

1. Open the pull-down window.

2. Press numeric buttons (0 to 9) to enter a desired chapter number. (For example, to specify “10,” press 1, then 0.)

3. Press ENTER to begin playback from the specified chapter.

Chapter search

Menu bar functions for SVCD/Video CD/ Audio CD

Time mode selection

Selects the time mode shown in the display window and in the status bar.

Press ENTER to select the time mode from the following.

• TIME: Current track elapsed time

• REM: Current track remaining time (while in stop mode,

• TOTAL: Disc elapsed time

• T.REM: Disc remaining time (while in stop mode, disc total time)

Selects the repeat mode.

1. Open the pull-down window.

2. Press 5/∞ to select the repeat mode from the following.

3. Press ENTER to make the selected repeat function active.

Specifies a time from the beginning of the disc as the point from which to begin playback.

PROG.

While stopped, specifies the playback order of tracks.

RND.

While stopped, activates random playback.

current track total time)

Repeat mode (See also page 17)

• TRACK: Current track repeat

• ALL: All track repeat

• A-B: A-B repeat

• OFF: Repeat mode deactivated

Time search (See also page 15)

Program playback (See also pages 15 and 16)

Random playback (See also page 16)

Audio selection (See also page 18)

During playback, selects the audio language or sound track.

1. Open the pull-down window.

2. Press 5/∞ to select a desired audio language or sound track.

3. Press ENTER to begin playback with the selected audio.

Subtitle selection (See also page 17)

During playback, selects the subtitle language.

1. Open the pull-down window.

2. Press 5/∞ to select a desired subtitle language.

3. Press ENTER to begin playback with the selected subtitle.

During SVCD/Video CD playback, selects the audio channel(s).

1. Open the pull-down window.

2. Press 5/∞ to select a desired audio channel(s).

3. Press ENTER to play back with the selected audio channel(s).

During SVCD playback, selects the subtitle.

1. Open the pull-down window.

2. Press 5/∞ to select a desired subtitle.

3. Press ENTER to begin playback with the selected subtitle.

Audio selection (See also page 18)

Subtitle selection (See also page 17)

Angle selection (See also page 18)

During playback, selects a desired scene angle in a multi-angle part.

1. Open the pull-down window.

2. Press 5/∞ to select a scene angle.

3. Press ENTER to begin playback with the selected scene angle.

MP3/WMA disc playback

Notes for making your own MP3/WMA disc using a CD-R/CD-RW disc

• Select “ISO 9660” as the disc format.

• As for MP3 files, we recommend you to record your material at a 44.1 kHz sampling rate, using the 128 kbps data transfer rate.

• As for WMA files, make sure that the copyright feature is set to off.

• As for WMA files, we recommend you to record your material at a bit rate of 64 kbps or higher.

Basic operations

Use the following buttons to control MP3/WMA disc playback.

Numeric buttons

TITLE/GROUP

5/∞/2/3

ENTER

3 (SELECT)

ON SCREEN

¢ 8

REPEAT

Operations

The player can play back MP3 files and WMA files on a home recorded CD-R/RW disc or commercially available CD. We refer to a disc that contains MP3 and/or WMA files as an “MP3/WMA disc” in this manual. Note that if a disc contains both of MP3/WMA files and JPEG files, you can only play back files of the type selected by the [MP3&WMA/JPEG] setting in the [PICTURE] preference display (see page 28).

About MP3/WMA discs

On an MP3/WMA disc, each song is recorded as a file (track). Files are sometimes grouped into folders by artists, album, etc.

• Each file is regarded as a track.

• A folder which has one or more files is regarded as a group.

• A folder which does not directly contain any tracks is ignored.

• Files which do not belong to any folder are grouped into “group

1.”

• The player recognizes up to 150 tracks per group, and up to 99 groups per disc. If there are files other than MP3/WMA files, they also count in the 150-file total.

Max. 99 groups per disc

Track 1.mp3 Track 2.mp3 Track 3.mp3

Group 2

Group 1

ENTER: Starts playback while stopped.

3 (SELECT): Starts playback while stopped or paused. 7: Stops playback. 8: Pauses playback. 4/¢: Skips back or forward a track during playback.

If you press 3 (SELECT) during playback, or press 7 to stop playback followed by 3 (SELECT), the player starts playback from the beginning of the current track.

NOTES

• The player does not support “packet writing (UDF file)” discs.

• The player does not support the ID3 tag and WMA tag.

• The player supports discs recorded with multiple sessions.

• Some discs may not play due to disc characteristics or recording conditions.

• Programmed and random playback functions do not work with MP3/WMA discs.

• As for MP3, the player only can play back tracks with the following file extensions; “.MP3,” “.Mp3,” “.mp3” and “.mP3.”

• As for WMA, the player only can play back tracks with the following file extensions; “.WMA,” “.wma,” and any other combination of upper case and lower case letters (such as “.Wma”).

• Time required for reading the disc contents may vary for different discs, depending on the numbers of groups (folders) and tracks (files) recorded, etc.

• You cannot advance or reverse playback by pressing ¡ or 1, or by holding down ¢ or 4 during MP3/WMA disc playback.

• The player supports WMA files recorded with a bit rate of 48 kbps or higher. The player cannot play back WMA files recorded with a bit rate under 48 kbps.

Selects the previous or next track while stopped.

Selecting the desired group and track

When inserting an MP3/WMA disc, after the disc contents are read, the MP3/WMA CONTROL display automatically appears on the TV screen. You can specify the desired group/track from the display using the following procedure.

Make sure that the black (cursor) bar is in the left (group) column.

If it is in the right column, press 2 to move it to the left column.

Press 5/∞ to move the bar to a desired group.

On the right column, tracks in the selected group are shown.

Group 4

Max.150 tracks per group

Tra c k 4 . mp 3 Tra c k 5 . mp 3 Tra c k 6 . mp 3

Group 3

Press 4/¢ to select a desired track, then press ENTER or 3 (SELECT).

Press the numeric buttons to directly specify a desired track number.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The player starts playback from the selected track.

Current track elapsed time

MP3/WMA CONTROL Group : 01 / 10 spring

summer fall winter sea mountain camp picnic skiing flower

Time : 00:03:08 Track : 01 / 06 (Total 28) begonia.mp3

german chamomile.mp3 kiwi fruit.mp3 orchard grass.mp3 petunia.mp3 north pole.mp3

Repeat playback

During playback or while stopped, press REPEAT.

Each time you press REPEAT, the repeat mode changes as follows. If you press REPEAT while stopped, you need to press ENTER or 3 (SELECT) to start repeat playback.

MP3/WMA CONTROL

Display

window

display

REPEAT TRACK

REPEAT GROUP Repeats all tracks in

REPEAT ALL Repeats all tracks on

No indication The repeat mode is off.

(CONTROL display)

Selected repeat mode

Function

Repeats the current track.

the current group.

the disc.

Group column

Track column of the

Selected track

current group

Hint

You can also select a desired track by pressing 3 to move the black bar to the right (track) column then using 5/∞.

NOTES

• If an MP3/WMA file name includes any 2-byte character, the player cannot show the file name correctly.

• Only MP3/WMA files are shown on the MP3/WMA CONTROL display.

• The order of groups/tracks shown in the MP3/WMA CONTROL display may differ from the order shown on your personal computer when you set the disc on your computer.

Direct selection

You can select a desired group directly by specifying the group number.

During playback or while stopped, press TITLE/GROUP.

[--] is shown in the group display area of the display window.

Press the numeric buttons to specify a desired group number.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

MP3/WMA CONTROL REPEAT TRACK Group : 01 / 10

spring

summer fall

Track : 01 / 06 (Total 28)

begonia.mp3

german chamomile.mp3 kiwi fruit.m

To stop repeat playback

Press 7. Note that the repeat mode remains active.

To quit repeat playback

During playback, press REPEAT until no repeat icon is shown on the display window. While stopped, press REPEAT until repeat mode indication on the MP3/WMA CONTROL display goes off.

NOTE

You can change the repeat mode using ON SCREEN on the remote control unit. Press ON SCREEN, and the repeat mode selection window appears on the TV screen. Press then 5/∞ to select the desired repeat mode, and finally press ENTER to make the selected repeat mode active.

Specify the group number within several seconds after pressing TITLE/GROUP (i.e. while the display window shows [--]). The player starts playback from track 1 of the selected group.

Press the numeric buttons to specify a desired track number.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10. The player starts playback from the specified track.

JPEG disc playback

Numeric buttons

ENTER

5/∞/2/3

3 (SELECT)

TITLE/GROUP MENU

ON SCREEN

¢4 87

REPEAT ZOOM

Notes for making your own JPEG disc using a CD-R/ CD-RW disc

• Select “ISO 9660” as the disc format.

• We recommend you to record your material at a 640 x 480 pixel resolution.

• This player supports the baseline JPEG format.

Basic operations

To see a desired picture

When inserting a JPEG disc, after the disc contents are read, the JPEG CONTROL display automatically appears on the TV screen.

JPEG CONTROL Group : 01 / 10 spring

summer fall winter sea mountain camp picnic skiing flower

File : 01 / 06 (Total 28) begonia.jpg

german chamomile.jpg kiwi fruit.jpg orchard grass.jpg petunia.jpg north pole.jpg

The player can play back JPEG files on a home recorded CD-R/ RW disc. We refer to a disc that contains JPEG files as a “JPEG disc” in this manual. Note that if a disc contains both of MP3/WMA files and JPEG files, you can only play back files of the type selected by the [MP3&WMA/JPEG] setting in the [PICTURE] preference display (see page 28).

About JPEG discs

On a JPEG disc, each picture is recorded as a file. Files are sometimes grouped into folders by category, etc.

• A folder which has one or more files is regarded as a group.

• A folder which does not directly contain any files is ignored.

• Files which do not belong to any folder are grouped into “group

1.”

• The player recognizes up to 150 files per group, and up to 99 groups per disc. If there are files other than JPEG files, they also count against the 150-file total.

Max. 99 groups per disc

File 1.jpg File 2.jpg File 3.jpg

Group 1

You can select a desired file for playback via this display.

Make sure that the black (cursor) bar is in the left (group) column.

If it is in the right column, press 2 to move it to the left column.

Press 5/∞ to move the bar to a desired group.

On the right column, files in the selected group are shown.

Press 4/¢ to select a desired file, then press ENTER.

The selected file (still picture) is shown on the TV.

Hint

You can also select a desired file by pressing 3 to move the black bar to the right (file) column then using 5/∞.

NOTE

If the selected file is unplayable, a black screen appears.

To display another picture

Press 4/¢ or 5/∞ to select the desired picture.

To dismiss the picture

Press 7 or MENU. The TV screen returns to the JPEG CONTROL display.

Group 2

File 4.jpg

Group 4

Max.150 files per group

File 5.jpg File 6.jpg

Group 3

NOTES

• The player supports the baseline JPEG format.

• The player does not support “packet writing (UDF file)” discs.

• The player supports discs recorded with multiple sessions.

• The player may not be able to read some discs, or may take a long time to display a picture on the disc, due to disc characteristics, recording conditions, or numbers of groups (folders), etc.

• Programmed and random playback functions do not work with JPEG discs.

• The screen saver function will be activated if the same picture is displayed for more than 5 minutes except during slide show playback.

• The player only can play back files with the following file extensions; “.jpg,” “.jpeg,” “.JPG,” “.JPEG” and any other combination of upper case and lower case letters (such as “.Jpg”).

• If a JPEG file name includes any 2-byte character, the player may not show the file name correctly.

• If a picture has been saved at greater than 640 x 480 pixel resolution, it may take some time to display the picture.

• The player does not support pictures of more than 2400 pixels in horizontal resolution. Make sure that the horizontal resolution of the picture is 2400 pixels or less.

To zoom in the picture

While in pause mode, press ZOOM.

Pressing ZOOM causes the player to zoom in on the image. Each time you press ZOOM, the manginication is doubled (1.8, 4, 8, 16, 32 and 64 times).

Press 5/∞/2/3 to move the zoomed position.

To select the start point of the slide show

From the JPEG CONTROL display

Make sure that the black (cursor) bar is in the left (group) column.

If it is in the right column, press 2 to move it to the left column.

Press 5/∞ to move the bar to a desired group.

Press 4/¢ to select a desired file.

Press 3 (SELECT).

The slide show starts from the specified file.

Direct selection

During playback or while stopped, press TITLE/GROUP.

Press the numeric buttons to specify a desired group number.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

Press the numeric buttons to specify a desired file number.

The player starts slide show playback from the specified file. If you do not specify a file, the player starts slide show playback from the first file in the group.

Viewing pictures continuously (slide show mode)

You can see files (still pictures) one after another automatically.

To start the slide show

Press 3 (SELECT).

The slide show starts from the beginning of the disc. Each file (still picture) is displayed for approximately 3 seconds.

To stop slide show playback in the middle

Press 7 or MENU. The TV screen returns to the JPEG CONTROL display. Pressing 3 (SELECT) resumes slide show playback from the last picture displayed.

To keep showing the current picture

Press 8 or ENTER. Pressing 3 (SELECT) resumes the slide show playback.

Repeat function

In the slide show mode, you can repeat playback of JPEG files in a group or on the disc.

While the JPEG CONTROL display is shown, press REPEAT.

Pressing REPEAT switches the repeat mode.

When the repeat mode is turned on, the [ ] indicator lights in the display window.

The selected repeat mode is shown on the JPEG CONTROL display. REPEAT ALL: All files on the disc are repeated. REPEAT GROUP: All files in the current group are repeated. No indication: The repeat mode is off.

Press 3 (SELECT) to start repeat playback.

To stop repeat playback

Press 7. The repeat mode remains active.

To quit repeat playback

Press 7 or MENU while the JPEG CONTROL display is shown, and press REPEAT until the repeat mode indication goes off.

NOTE

You can change the repeat mode using ON SCREEN on the remote control unit. Press ON SCREEN, and the repeat mode selection window

appears on the TV screen. Press then repeat mode, and finally press ENTER to make the selected repeat mode active.

5/∞ to select the desired

Changing the initial settings

5/∞/2/3

SET UP

ENTER

OTHERS

RESUME

ON SCREEN GUIDE

AUTO STANDBY

AV COMPULINK MODE

PARENTAL LOCK

SELECT

ENTER

OFF

DVD1

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

How to set preferences

Press SET UP.

One of the preference on-screen displays appears on the TV screen. You can see four icons at the top right of the on-screen display for the settings.

: LANGUAGE menu

: PICTURE menu

: AUDIO menu

: OTHERS menu

Press 2/3 to select the appropriate icon.

The appropriate display appears on the TV screen.

Press 5/∞ to move to select the item you want to edit.

The color of the selected item changes.

Press ENTER.

A pull-down menu appears over the selected item.

Selecting preferences

This section refers to the settings which are already made when you purchase the player. Read this section when you want to connect this player to a wide-vision TV set, or when you want to otherwise change the settings according to your preferences and viewing environment.

About the Preference display

The Preference display consists of the LANGUAGE, PICTURE, AUDIO, and OTHERS setting displays, each having setting items.

LANGUAGE


MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

MP3&WMA/JPEG

ENGLISH

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

4:3 LB

AUTO

MP3&WMA

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ENGLISH

ENGLISH FRENCH GERMAN

USE 5∞ TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

Selected item

Press 5/∞ to select from the options then press ENTER.

The selected option is set.

• For details about each setting, see the following.

To dismiss a preference display

Press SET UP.

NOTES

• While an MP3/WMA or JPEG disc is inserted, you cannot bring up any preference display.

• When a preference display is shown on a wide TV screen, the upper and lower parts of the preference display sometimes may be cut off. If this happens, adjust the picture size control of the TV.

AUDIO

SELECT

ENTER

AUDIO

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D RANGE CONTROL

OUTPUT LEVEL

SELECT

ENTER

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

STREAM/PCM

STEREO

NORMAL

STANDARD

USE

5∞23 TO SELECT, USE ENTER TO CONFIRM

TO EXIT, PRESS SETUP.

[16:9 AUTO] (Wide television screen): select when you

LANGUAGE menu

connect the player to a wide-screen (16:9) TV.

MENU LANGUAGE

You can select the default menu language to be displayed if it is contained on a DVD VIDEO disc.

Setting options

ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, language code from AA to ZU

• If the disc does not have a menu in the selected language, the disc’s default language will be used.

• For details about language codes, see “Appendix B: Table of languages and their abbreviations” on page 33.

• You cannot change the setting during playback.

[4:3 LB] (Letter Box conversion): select when you connect the

player to a normal (4:3) TV. When playing back a DVD VIDEO disc recorded in wide picture format, the picture is shown with black bars at the top and bottom.

AUDIO LANGUAGE

You can select the default audio language to be played if it is contained on a DVD VIDEO disc.

Setting options

ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, language code from AA to ZU

• If the disc does not have the selected language, the disc’s default language will be used.

• For details about language codes, see “Appendix B: Table of languages and their abbreviations” on page 33.

• You cannot change the setting during playback.

SUBTITLE

You can select the default subtitle language to be displayed if it is contained on a DVD VIDEO disc.

[4:3 PS] (Pan Scan conversion): select when you connect the

player to a normal (4:3) TV. When playing back a DVD VIDEO disc recorded in wide picture format, the picture is zoomed to fill the screen vertically, and the left and right sides of the image are chopped off. Note, however, that the picture will be shown in the 4:3 LB mode even if you select the 4:3 PS mode depending on the disc.

Setting options

OFF, ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, language code from AA to ZU

• If the disc does not have a subtitle in the selected language, the disc’s default language will be used.

• For details about language codes, see “Appendix B: Table of languages and their abbreviations” on page 33.

• You cannot change the setting during playback.

PICTURE SOURCE

ON SCREEN LANGUAGE

You can select the on-screen display language of the player.

Setting options

ENGLISH, FRENCH, GERMAN

• Some on-screen messages are shown in English regardless of the setting.

• You cannot change the on-screen language shown on the MP3/ WMA display.

PICTURE menu

MONITOR TYPE

You can select the monitor type to match your TV when you play back DVD VIDEO discs recorded for wide-screen televisions.

Setting options

16:9 NORMAL, 16:9 AUTO, 4:3 LB, 4:3 PS [16:9 NORMAL] (Wide television screen): select when you

connect the player to a wide-screen (16:9) TV whose aspect ratio is fixed to 16:9 (the player automatically adjusts the screen width of the output signal correctly when playing back a 4:3 source). If you play a 4:3 DVD VIDEO source using the [16:9 NORMAL] mode, the picture character changes slightly due to the process for converting the picture width.

This mode selects whether the content on the disc is processed by field (video source) or by frame (film source). You can obtain optimal picture quality according to the source type to be played back by selecting an appropriate option. This setting is available for both the interlaced mode and progressive scanning mode.

Setting options

VIDEO(NORMAL), VIDEO(ACTIVE), FILM, AUTO [VIDEO(NORMAL)]: select when playing back a video source

disc with relatively a few movements.

[VIDEO(ACTIVE)]: select when playing back a video source disc

with relatively a lot of movements.

[FILM]: select when playing back a film source disc. [AUTO]: select when playing back a disc containing both video

and film source materials. The player recognizes the picture type (film or video source) of the current disc according to the disc information. Normally, select this option.

SCREEN SAVER

You can set the screen saver function to ON or OFF. (See page

12.)

Setting options

ON, OFF

To change the setting, see “How to set preferences” on page 26.

MP3&WMA/JPEG

The player can play MP3/WMA and JPEG files recorded on a CD-R/CD-RW disc. However, if a disc contains both MP3/WMA and JPEG files, you can only play files of the type selected in this menu item.

Setting options

MP3&WMA, JPEG [MP3&WMA]: when selected, only MP3/WMA files can be played

back.

[JPEG]: when selected, only JPEG files can be played back.

NOTE

If you have made a change to the [MP3&WMA/JPEG] setting, open and close the disc tray, or turn off and on the player. Doing so will make the change effective.

AUDIO menu

DIGITAL AUDIO OUTPUT

To connect the player’s digital output to an external device equipped with a digital input, this item must be set correctly. See “Appendix C: Digital output signal chart” on page 34 for details about the relation between the setting and output signals.

Setting options

PCM ONLY, DOLBY DIGITAL/PCM, STREAM/PCM [PCM ONLY]: select when you connect the DIGITAL OUT jack of

the player to the linear PCM digital input of other audio equipment.

[DOLBY DIGITAL/PCM]: select when you connect the digital

input of a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder. When this option is selected, playing back a DTS-encoded disc or disc recorded by the MPEG Multichannel format outputs a linear PCM digital signal.

[STREAM/PCM]: select when you connect the digital input of an

amplifier with a built-in DTS, MPEG Multichannel or Dolby Digital decoder, or the stand-alone unit of such a decoder.

D. RANGE CONTROL

This setting provides optimal audio quality from the analog AUDIO OUT terminals for listening to DVD VIDEO discs recorded in Dolby Digital format, at low or middle volume.

Setting options

WIDE RANGE, NORMAL, TV MODE [WIDE RANGE]: when selected, audio is played back with the

widest dynamic range so that you can enjoy powerful playback sound.

[NORMAL]: normally, select this option. [TV MODE]: select if DVD VIDEO disc sound level is lower than

TV program sound level. Thus you can hear sound at a lower volume clearly.

OUTPUT LEVEL

This setting allows you to attenuate the level of the signal output from the player’s analog AUDIO OUT jacks.

Setting options

STANDARD, LOW

• If the sound output from the speaker is distorted, select [LOW].

OTHERS menu

RESUME

You can select the resume playback mode. See page 12 for details about the resume playback function.

Setting options

ON, OFF, DISC RESUME [ON]: when selected, the player can resume playback of the disc

from the position where playback was last interrupted, if the disc is still in the disc tray.

[OFF]: when selected, the resume function is deactivated. [DISC RESUME]: when selected, the player can resume

playback of the last 30 discs played. The player retains a memory of the interrupted positions of the last 30 discs played, even though they have been removed from the disc tray.

NOTE

When [STREAM/PCM] is selected, note the following points:

- With some DVD VIDEO discs that are not fully copy-protected,

a 20 or 24 bit digital signal may be output.

- A signal recorded with the 96 kHz or higher sampling

frequency is output from the DIGITAL OUT jack with the 48 kHz sampling frequency.

- When playing a DVD VIDEO or Audio CD disc with DTS, use

a DTS decoder to get correct signals from your speakers.

ANALOG DOWN MIX

To correctly play the audio on a DVD VIDEO disc recorded with surround multichannel audio, you must set this item properly according to your audio system configuration. (This function does not work when 3D PHONIC function is activated.)

Setting options

DOLBY SURROUND, STEREO [DOLBY SURROUND]: select when listening to multichannel

surround audio with the player’s analog AUDIO OUT terminals connected to a surround decoder.

[STEREO]: select when listening to conventional two-channel

stereo audio with the player’s AUDIO OUT terminals connected to a stereo amplifier/receiver or television set, or in case you want to record the audio from a DVD VIDEO disc to MiniDisc, cassette, etc.

ON SCREEN GUIDE

The player can display “on-screen guide” icons or characters on the picture, which show what is happening to the disc or the player.

Example of “on-screen guide” icons: , ,

Setting options

ON, OFF [ON]: when selected, the on-screen guide is activated.

AUTO STANDBY

When the player is stopped for more than 30 minutes or 60 minutes, the player enters standby mode automatically.

Setting options

60, 30, OFF

AV COMPULINK MODE

This item is provided for use in the future. Leave it as the default setting (“DVD 1”).

To change the setting, see “How to set preferences” on page 26.

PARENTAL LOCK

When this option is selected, pressing ENTER on the remote control unit brings up the PARENTAL LOCK display shown below. This allows you to restrict children from playing DVD VIDEO discs.

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

• See this page for details about the parental lock setting.

Numeric buttons

5/∞

NONE

_ _ _ _

USE 5∞ TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

ENTER

Press 5/∞ to select the country code.

Select the code of the country whose standards were used to rate the DVD VIDEO disc content. See “Appendix A: Country/Area code list for Parental Lock” on page 33.

PARENTAL LOCK

Press ENTER.

SELECT

ENTER

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

FX GA

NONE

_ _ _ _

GD GE GF GH

USE 5∞ TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

moves to [SET LEVEL].

Press ENTER to bring up the pull-down menu.

In the pull-down menu, [NONE] and levels [8] to [1] are available. [NONE] does not restrict playback. Level [1] is the strictest level. Discs rated higher than the selected level are restricted.

PARENTAL LOCK

SELECT

ENTER

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

NONE 8

NONE

_ _ _ _

6 5 4 3

USE 5∞ TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

Press 5/∞ to select a desired parental lock level, then press ENTER.

moves to [PASSWORD].

Limiting playback by children

This function restricts playback of DVD VIDEO discs which

Press the numeric buttons (0 to 9) to enter a 4-digit password.

contain violent (and other) scenes according to the level set by the user. For example, if a movie which includes violent scenes supports the parental lock feature, such scenes which you do not want to let children view can be cut or replaced with other scenes.

To set Parental Lock for the first time

Press ENTER.

In stop mode, bring up the OTHERS menu.

Press 5/∞ to move to select [PARENTAL LOCK] then press ENTER.

The Parental Lock on-screen display appears on the TV screen.

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

SELECT

ENTER

EXIT

While is pointing to [COUNTRY CODE], press ENTER to bring up the pull-down menu.

NONE

_ _ _ _

USE 5∞ TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

The parental lock feature is set.

moves to [EXIT]. Pressing ENTER again returns to the

[OTHERS] menu of the preference display.

Hint

If you want to change the password at step 8, do it before pressing ENTER.

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

NEW PASSWORD? TO EXIT, PRESS SETUP.

NONE

1234

...

PRESS 0 ~ 9 KEY

To temporarily release the Parental Lock

Numeric buttons

5/∞

ENTER

To change the settings

You can change the parental lock settings later.

In stop mode, bring up the OTHERS menu.

Press 5/∞ to move to select [PARENTAL LOCK] and press ENTER.

The parental lock on-screen display appears on the TV screen.

While is pointing to [PASSWORD], press the numeric buttons to enter your current 4digit password then press ENTER.

moves to [COUNTRY CODE] if you enter the correct password. If you enter a wrong password, [WRONG! RETRY...] appears on the TV screen, and you cannot go to the next step. If you forget your password, enter “8888.” The current password is deleted and you can set a new password.

To change the [COUNTRY CODE] or [SET LEVEL], press ENTER to bring up the associated pull-down menu when is pointing to the desired item.

If the parental level is set to a strict value, some discs may not play at all. When you insert such a disc and try to play it, the following parental lock on-screen display appears on the TV screen, asking you whether you want the parental lock to be temporarily released or not.

Press 5/∞ to move to [TEMPORARY RELEASE], then press ENTER.

PARENTAL LOCK

TEMPORARY RELEASE

NOT RELEASE

PASSWORD

SELECT

ENTER

Press the numeric buttons (0 to 9) to enter

_ _ _ _

USE 5∞ TO SELECT, USE ENTER TO CONFIRM

your 4-digit password.

The Parental Lock is released, and the player starts playback. If you enter a wrong password, [WRONG! RETRY...] appears on the TV screen. Enter the correct password.

NOTE

When you enter the wrong password 3 times at step 2 above, moves to [NOT RELEASE] automatically and 5/∞ do not work.

Press 5/∞ to select the desired option then press ENTER.

If you change the country code, you must reselect the parental lock level.

While is pointing to [PASSWORD], press the numeric buttons to enter a 4-digit password.

The password entered in this step becomes the new password. If you want to keep the same password as before, enter the same password.

Press ENTER.

moves to [EXIT]. Pressing ENTER again returns to the [OTHERS] menu of the preference display.

NOTE

If you enter the wrong password more than 3 times in step 3 above, moves to [EXIT] automatically and 5/∞ do not work.

Additional information

Troubleshooting

Power

Power does not come on.

\ Power plug is not inserted securely. Plug in securely.

Operation

“REGION CODE ERROR!” is shown on the TV screen.

\ Region code of the inserted disc does not match the player.

Check the region code of the disc printed on the disc jacket.

Operation is not possible.

\ Microcomputer malfunction due to lightning or static electricity.

Turn off the power and unplug the power cord, then connect the power cord again.

\ Moisture condensation caused by a sudden change of

temperature or humidity. Turn off the power, then turn it on a few hours later.

\ The disc does not allow the operation, or an unplayable disc is

inserted. Check and replace the disc (see page 2).


Picture is noisy.

\ The player is connected to a VCR directly and the copyguard

function is activated. Connect the player so that the picture signal flows directly to the TV.

\ With some discs, the picture may be blurred when [PICTURE

SOURCE] is set to [FILM] or [AUTO]. Set [PICTURE SOURCE] to [VIDEO (NORMAL)] or [VIDEO (ACTIVE)].

Correct picture cannot be obtained.

\ Connect only one type of cable to the connector/jack(s) you

want to use on this player, either the SCART connector, VIDEO jack, S-VIDEO jack or COMPONENT VIDEO OUT jacks. (Note that you can connect cables to the VIDEO jack and COMPONENT VIDEO OUT jacks at the same time.) If an S-VIDEO cable is connected to the S-VIDEO jack, the player is set to the S-VIDEO output mode automatically.

\ Check to see that the COMPONENT/COMPOSITE - S-VIDEO

Y/C - RGB/COMPOSITE selector on the rear of the player is correctly set.

No picture is displayed on the TV screen or the screen is blurred or divided into two parts.

\ The player is in the Progressive scanning mode though it is

connected to a TV via the VIDEO or S-VIDEO jack, or via the SCART connector. Make the Progressive scanning mode inactive by using the VFP - PROGRESSIVE SCAN button (see page 6).

Audio

DVD VIDEO disc playback sound level is lower than TV broadcast sound level.

\ Set the [D.RANGE CONTROL] preference to [TV MODE] (see

page 28).

Analog audio output is distorted.

\ Set the [OUTPUT LEVEL] preference to [LOW] (see page 28).

[LOCK] is displayed on the display window and the disc tray does not open.

\ When you press 0 while pressing down 7 on the player in

standby mode, the tray lock function is activated. The disc tray cannot be opened or closed in this status. To release this status, press 0 while pressing down 7 on the player in standby mode.

Setting cannot be changed in the [LANGUAGE] preference display.

\ Stop playback and change the setting in the [LANGUAGE]

preference display.

The audio language and subtitle cannot be changed.

\ Only one language is recorded on the disc currently being

played back.

\ The disc being played back does not accept the AUDIO button

and SUBTITLE button operation. Change the subtitle using [SUBTITLE] in the [LANGUAGE] preference display (see page

27).

No subtitle is diplayed.

\ No subtitle is recorded on the disc currently being played

back.

\ [OFF] is selected in [SUBTITLE] in the [LANGUAGE]

preference display. Select the desired language in [SUBTITLE] (see page 27).

\ Subtitle may not be displayed correctly during A-B repeat

playback.

MP3/WMA

No sound comes out.

\ MP3/WMA disc is recorded with the “packet writing (UDF file).”

It cannot be played.

Files (tracks) are not played in the recorded order.

\ This player plays the files in the alphabetic order. So, the

playback order can vary.

WMA files cannot be played back.

\ The file is copy protected. \ The file is recorded with a bit rate under 48 kbps. The player

does not support such WMA files.

JPEG

No picture is played back, or the screen turns black.

\ Format of the files is not the baseline JPEG. The player

supports only the baseline JPEG format.

The preference display cannot be turned on.

\ You cannot turn on the preference display when a JPEG disc

is inserted.

Specifications

Specifications and appearance are subject to change without prior notice.

General

Readable discs DVD VIDEO, DVD-R (Video format), DVD-

Video format PAL, Interlaced scan/Progressive scan

Other

Power requirements

Power consumption

Mass 1.9 kg Dimensions (W × H × D)

Video outputs

COMPONENT (pin jacks)

VIDEO OUT (pin jack)

S-VIDEO OUT (S jack)

RGB output 700mVp-p (75 Ω) Horizontal resolution

RW (Video format), SVCD, Video CD, Audio CD (CD-DA), CD-R/RW (CD-DA, SVCD, Video CD, MP3/WMA format, JPEG)

selectable

AC 230 V , 50 Hz

12 W (POWER ON), 2.0 W (STANDBY mode)

435 mm × 44 mm × 258.6 mm

Y Output: 1.0 Vp-p (75 Ω)

B/PR Output: 0.7 Vp-p (75 Ω)

1.0 Vp-p (75 Ω)

Y Output: 1.0 Vp-p (75 Ω) C Output: 286 mVp-p (75 Ω)

500 lines or more

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+Digital Out” are trademarks of Digital Theater Systems, Inc.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

Audio outputs

ANALOG OUT (pin jack)

DIGITAL OUT (COAXIAL)

DIGITAL OUT (OPTICAL)

2.0 Vrms (10 kΩ)

0.5 Vp-p (75 Ω termination)

–21 dBm to –15 dBm (peak)

Audio characteristics

Frequency response

Dynamic range 16 bit: More than 98 dB

Wow and flutter Unmeasurable (less than ± 0.002%) Total harmonic distortion

CD (sampling frequency 44.1 kHz):

2 Hz to 20 kHz

DVD (sampling frequency 48 kHz):

2 Hz to 22 kHz (4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

DVD (sampling frequency 96 kHz):

2 Hz to 44 kHz

20 bit/24 bit: More than 100 dB

16 bit: less than 0.008% 20 bit/24 bit: less than 0.008%

Appendix A: Country/Area code list for Parental Lock

AD Andorra AE United Arab Emirates AF Afghanistan AG Antigua and Barbuda

AI Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles AO Ango la AQ Antarctica AR Argentina AS American Samoa

AT Austria

AU Australia

AW Ar ub a

AZ Azerbaijan BA Bosnia and Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso BG Bulgaria BH Bahrain

BI Burundi BJ Benin

BM Bermuda

BN Brunei Darussalam BO Bolivia BR Brazil BS Bahamas BT Bhutan BV Bouvet Island

BW Botswana

BY Belarus BZ Belize CA Canada CC Cocos (Keeling) Islands CF Central African Republic

CG Congo

CH Switzerland

CI Côte d’Ivoire CK Cook Islands CL Chile

CM Cameroon

CN China

CO Colombia

CR Costa Rica CU Cuba CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Germany DJ Djibouti DK Denmark

DM Dominica DO Dominican Republic

DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara

ER Eritrea ES Spain

ET Ethiopia

FI Finland FJ Fiji FK Falkland Islands

FM Micronesia (Federated States

of) FO Faroe Islands FR France

FX France, Metropolitan GA Gabon GB United Kingdom GD Grenada GE Georgia GF French Guiana GH Ghana

GI Gibraltar GL Greenland GM Gambia GN Guinea GP Guadeloupe GQ Equatorial Guinea GR Greece GS South Georgia and the South

Sandwich GT Guatemala GU Guam

GW Guinea-Bissau

GY Guyana HK Hong Kong HM Heard Island and McDonald

Islands HN Honduras HR Croatia HT Haiti HU Hungary

ID Indonesia IE Ireland

IL Israel IN India IO British Indian Ocean Territory IQ Iraq IR Iran (Islamic Republic of) IS Iceland

IT Italy

JM Jamaica

JO Jordan JP Japan

KE Kenya KG Kyrgyzstan KH Cambodia

KI Kiribati

KM Comoros KN Saint Kitts and Nevis KP Korea, Democratic People's

Republic of KR Korea, Republic of KW Kuwait KY Cayman Islands

KZ Kazakhstan

LA Lao People’s Democratic

Republic

LB Lebanon

LC Saint Lucia

LI Liechtenstein LK Sri Lanka

LR Liberia

LS Lesotho LT Lithuania

LU Luxembourg

LV L a t v i a

LY Libyan Arab Jamahiriya MA Morocco MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands ML Mali

MM Myanmar

MN Mongolia MO Macau MP Nor thern Mariana Islands MQ Martinique MR Mauritania MS Montserrat MT Malta MU Mauritius MV Maldives

MW Malawi

MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia NE Niger NF Norfolk Island NG Nigeria

NI Nicaragua NL Netherlands NO Norway NP Nepal NR Nauru NU Niue NZ New Zealand OM Oman

PA Pa n a m a PE Peru PF French Polynesia PG Papua New Guinea PH Philippines PK Pakistan

PL Poland PM Saint Pierre and Miquelon PN Pitcairn PR Puerto Rico PT Portugal PW Palau PY Paraguay QA Qatar RE Réunion RO Roman ia RU Russian Federation

(for page 29)

RW Rwanda

SA Saudi Arabia SB Solomon Islands SC Seychelles SD Sudan SE Sweden

SG Singapore

SH Saint Helena

SI Slovenia SJ Svalbard and Jan Mayen SK Slovakia SL Sierra Leone

SM San Marino

SN Senegal

SO Somalia

SR Suriname ST Sao Tome and Principe SV El Salvador SY Syrian Arab Republic SZ Swaziland TC Turks and Caicos Islands TD Chad TF French Souther n Territories TG Togo TH Thailand TJ Tajikistan TK Tokelau

TM Turkmenistan

TN Tunisia TO Tonga TP East Timor TR Turkey TT Trinidad and Tobago TV Tuvalu

TW Taiwan

TZ Tanzania, United Republic of UA Ukraine

UG Uganda UM United States Minor Outlying

Islands US United States UY Uruguay UZ Uzbekistan VA Vatican City State (Holy See) VC Saint Vincent and the

Grenadines VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (U.S.) VN Vietnam VU Vanuatu

WF Wallis and Futuna Islands WS Samoa

YE Yemen YT Mayotte YU Yugoslavia ZA South Africa

ZM Zambia

ZR Zaire

ZW Zimbabwe

Appendix B: Table of languages and their abbreviations

AA Afar FA Persian KM Cambodian OM (Afan) Oromo SU Sundanese AB Abkhazian FI Finnish KN Kannada OR Oriya SV Swedish AF Afrikaans FJ Fiji KO Korean (KOR) PA Panjabi SW Swahili AM Ameharic FO Faroese KS Kashmiri PL Polish TA Tamil AR Arabic FY Frisian KU Kurdish PS Pashto, Pushto TE Telugu AS Assamese GA Irish KY Kirghiz PT Portuguese TG Tajik AY Aymara GD Scots Gaelic LA Latin QU Quechua TH Thai AZ Azerbaijani GL Galician LN Lingala RM Rhaeto-Romance TI Tigrinya BA Bashkir GN Guarani LO Laothian RN Kirundi TK Turkmen BE Byelorussian GU Gujarati LT Lithuanian RO Rumanian TL Tagalog BG Bulgarian HA Hausa LV Latvian, Lettish RU Russian TN Setswana BH Bihari HI Hindi MG Malagasy RW Kinyarwanda TO Tongan BI Bislama HR Croatian MI Maori SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MK Macedonian SD Sindhi TS Tsonga BO Tibetan HY Armenian ML Malayalam SG Sangho TT Tatar BR Breton IA Interlingua MN Mongolian SH Serbo-Croatian TW Twi CA Catalan IE Interlingue MO Moldavian SI Singhalese UK Ukrainian CO Corsican IK Inupiak MR Marathi SK Slovak UR Urdu CS Czech IN Indonesian MS Malay (MAY) SL Slovenian UZ Uzbek CY Welsh IS Icelandic MT Maltese SM Samoan VI Vietnamese DA Danish IW Hebrew MY Burmese SN Shona VO Volapuk DZ Bhutani JI Yiddish NA Nauru SO Somali WO Wolof EL Greek JW Javanese NE Nepali SQ Albanian XH Xhosa EO Esperanto KA Georgian NL Dutch SR Serbian YO Yoruba ET Estonian KK Kazakh NO Norwegian SS Siswati ZU Zulu EU Basque KL Greenlandic OC Occitan ST Sesotho

(for pages 17, 18 and 27 )

Appendix C: Digital output signal chart

Disc type

PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM

(for page 28)

Output

DVD with 48/44.1 kHz, 16/20/24 bit linear PCM

DVD with 96 kHz, 16/22/24 bit linear PCM

DVD with DTS 48 kHz, 16 bit, stereo linear PCM DTS bitstream

DVD with Dolby Digital 48 kHz, 16 bit, stereo linear PCM Dolby Digital bitstream

DVD with MPEG Multichannel 48kHz, 16 bit, stereo linear PCM MPEG bitstream

SVCD/Video CD/Audio CD 44.1 kHz, 16 bit, stereo linear PCM

Audio CD with DTS 44.1kHz, 16 bit, stereo linear PCM DTS bitstream

CD-R/RW with MP3/WMA Linear PCM

48/44.1 kHz, 16 bit, stereo linear PCM

48 kHz, 16 bit, stereo linear PCM (Down sampling)

Appendix D: Glossary

Aspect ratio

A ratio which defines the shape of the rectangular picture in a TV. It is the width of the picture relative to the height. A conventional TV picture is 4:3 in aspect ratio.

Bitstream

The digital form of multichannel audio data (e.g., 5.1-channel) before it is decoded into its various channels.

Chapter/title

Chapter is the smallest division and title is the largest division on DVD VIDEO. A chapter is a division of a title and similar to a track for Video CD or Audio CD.

Component video

Video signals with three channels of separate information that makes up the picture. There are some types of component video, such as R/G/B and Y/C

Composite video

A single video signal commonly used in most consumer video products that contains all luminance, color, and synchronization information.

Dolby Digital (AC3)

A six-channel system consisting of left, center, right, left rear, right rear and LFE (Low-Frequency Effect channel, for use with a sub-woofer) channels. All processing is done in the digital domain. Not all Dolby Digital discs contain six (5.1) channels of information.

Dolby Surround/Dolby Pro Logic

Dolby Surround records four channels of front and rear audio in two channels in a way that allows a decoder to recover the original four channels for playback. Because the audio is recorded in two channels, it can be played back naturally by a two-channel stereo system. Dolby Pro Logic introduces directional circuits in decoder-side processing (increasing the level of specific channels and lowering the level of silent channels) for greater spatial perspective, and adds a center speaker used primarily for dialog. The result is enhanced channel separation.

Down-mix

Internal stereo mix of multichannel surround audio by a DVD player. The down-mix signals are output from stereo output connectors.

DTS

A Digital Surround audio encoding format configured with six (5.1) channels, similar to Dolby Digital. It requires a decoder, either in the player or in an external receiver. DTS stands for Digital Theater Systems. Not all DTS discs contain six (5.1) channels of information.

Dynamic range

The difference between the loudest and softest sounds.

B(PB)/CR(PR).

Interlaced scanning

In a conventional video system, a picture is shown on the display monitor in between lines of two halves. The Interlaced scanning system places lines of the second half of the picture in-between lines of the first half of the picture.

JPEG

A popular file format for still image compression and storage. JPEG stands for Joint Photographic Experts Group. There are three sub-types of the JPEG format as follows.

• baseline JPEG: used for digital cameras, the web, etc.

• progressive JPEG: used for the web

• lossless JPEG: an old type, rarely used now

Linear PCM audio

PCM stands for “pulse code modulation.” Linear PCM is the usual method for digitally encoding audio without compression, and is used for the audio tracks on DVD VIDEO discs, Audio CDs, etc.

MP3

MP3 is an audio data compression format, which stands for MPEG-1 Audio Layer 3. Using MP3, you can achieve a data reduction of about 1:10.

MPEG Multichannel

This feature expands the 5.1 channel audio format recorded on the disc to a 7.1 channel format. The further expansion of the 5.1 channel audio makes it easy for you to reproduce the movie theater experience in your own home.

NTSC (National television system committee)

A black and white and color television system format used in the U.S.A., Canada, Mexico and Japan.

PAL (Phase Alternation by Line)

A color television system format used extensively in Western Europe.

PBC

PBC stands for “Playback control” and is a method of controlling disc play for Video CDs (VCD). You are able to interact with the disc through menus.

Progressive scanning

Progressive scanning displays all the horizontal lines of a picture at one time, as a single frame. A progressive scanning DVD player converts the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.

RGB

An abbreviation for Red, Green and Blue. Color monitors and color television sets display different hues by mixing these three colors.

S-video

A video signal which improves picture quality over standard composite connections. Used on Super VHS, DVD, high end TV monitors, etc.

Track

The smallest division on SVCD, Video CD and Audio CD discs.

WMA

WMA is an abbreviation of “Windows Media Audio,” and is an audio data compression format developed by Microsoft Corporation. Sound quality of data compressed using WMA is the same as that of MP3, though the WMA file size is smaller than that of MP3.

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and

but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the

interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing

manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way–switch off, withdraw the mains plug and consult your dealer.

if it is damaged in any way–switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode.

is designed for unattended operation or has a standby mode.

XV-N412S DVD PLAYER

Switch off using the switch on the equipment and make sure that your family know how to do

Switch off using the switch on the equipment and make sure that your family know how to do this.

this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving.

requirements of traffic safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete

DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according

safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

—NEVER let anyone, especially children, push anything into holes, slots or any other opening in

the case -this could result in a fatal electrical shock.;

—NEVER guess or take chances with electrical equipment of any kind -it is better to be safe than

sorry!

VICTOR COMPANY OF JAPAN, LIMITED

0204KTYBICJSC

JVC 0204KTYBICJSC, GNT0044-004A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Warnings, Cautions and Others

Table of contents

Before operation

Preparations

Basic playback

V

a

r

i

o

u

s

k

i

n

d

s

o

f

p

l

a

y

b

a

c

k

MP3/WMA disc playback

JPEG disc playback

Changing the initial settings

Additional information

Specifications

JVC 0204KTYBICJSC, GNT0044-004A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Warnings, Cautions and Others

Table of contents

Before operation

Preparations

Basic playback

V a r i o u s k i n d s o f p l a y b a c k

MP3/WMA disc playback

JPEG disc playback

Changing the initial settings

Additional information

Specifications

V

a

r

i

o

u

s

k

i

n

d

s

o

f

p

l

a

y

b

a

c

k
