LCD DISPLAY MONITOR

ENGLISH

GM-H40L2A

INSTRUCTIONS

Safety Precautions

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,

DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use, and service. Please read these “IMPORTANT SAFEGUARDS” carefully before use.

• All the safety and operating instructions should be read before the product is operated.

• The safety and operating instructions should be retained for future reference.

• All warnings on the product and in the operating instructions should be adhered to.

• All operating instructions should be followed.

POWER CONNECTION

The power supply voltage rating of this product is AC 120 V (For U.S.A. and Canada only) and AC 220 – 240 V (For European and Asian countries or United Kingdom). The power cord attached conforms to the following power supply voltage and countries. Use only the power cord designated to ensure safety and EMC regulations of each countries.

For U.S.A. and Canada: AC 120 V

This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.

• This product should be operated only with the type of power source indicated on the label. If you are not sure of the type of power supply of your home, consult your product dealer or local power company.

Warning:

• Do not use the same power cord for AC 120 V as for AC 220 – 240 V. Doing so may cause malfunction, electric shock or fire.

Note for United Kingdom power cord only

The plug on United Kingdom power cord has a built-in fuse. When replacing the fuse, be sure to use only a correctly rated approved type, re-fit the fuse cover. (Consult your dealer or qualified personnel.)

For European and Asian countries: AC 220 – 240 V

For United Kingdom: AC 220 – 240 V

How to replace the fuse

Open the fuse compartment with the blade screw driver, and replace the fuse.

Fuse

Under the following conditions,

1. Turn off the power.

2. Unplug this product from the wall outlet.

3. Refer service to qualified service personnel.

a) When the product emits smoke or unusual smell.

b) When the product exhibits a distinct change in

performance —for example, no picture or no sound.

c) If liquid has been spilled, or objects have fallen on

the product.

d) If the product has been exposed to rain or water.

e) If the product has been dropped or damaged in any

way.

f) When the power supply cord or plug is damaged.

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel.

• Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

• Never spill liquid of any kind on the product.

ENGLISH

• Do not use this product near water.

• Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in a fire, electric shock, or other hazards.

• For proper heat dissipation, keep enough space around the monitor (see page 10).

This product may become hot during use. To avoid

overheating, keep enough space around the product and take enough care when handling the product.

• Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from overheating. These openings must not be blocked or covered.

• The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer’s instructions have been adhered to.

• Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product.

The product should be mounted according to the

manufacturer’s instructions, and should use a mount recommended by the manufacturer.

• When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.

Safety Precautions (cont.)

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.

• When the product is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.

• Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.

• Use only the accessory cord designed for this product to prevent shock.

• Do not put heavy objects on the product.

• Do not get on or hang on the product.

Do not install this product in the following places:

• in a damp or dusty room

• where the product is exposed to soot or steam, such as near the cooking counter or a humidifier

• near heat sources

• where condensation easily occurs, such as near the window

• When connecting other products such as VCR’s and personal computers, you should turn off the power of this product for protection against electric shock.

• Do not use attachments not recommended by the product manufacturer as they may be hazardous.

This product is equipped with a cooling fan. Do not place combustibles behind the product. For example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated.

• When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

• Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

Maintenance

Unplug this product from the wall outlet before cleaning.

Screen

To avoid irreparable change in appearance of the screen such as uneven color, discoloration, scratches, be careful about the following:

• Do not paste or stick anything with any glues or adhesive tapes.

• Do not write anything on the screen.

• Do not strike the screen with a hard object.

• Avoid condensation on the screen.

• Do not wipe the screen with solvent such as alcohol, thinner, or benzine.

• Do not wipe the screen hard.

If the screen gets stained, wipe it with a soft dry cloth, a soft damp cloth, or a soft cloth soaked in water-diluted neutral detergent and wrung well.

Cabinet

To avoid the deterioration or damages of the cabinet such as its paint’s peeling away, be careful about the following:

• Do not wipe the cabinet using solvent such as alcohol, thinner, or benzine.

• Do not expose the cabinet to any volatile substance such as insecticides.

• Do not remain any rubber or plastic in contact for a long time.

• Do not wipe the cabinet hard.

Wipe stains off the cabinet with a soft cloth. If the cabinet gets heavily stained, wipe it with a soft cloth soaked in waterdiluted neutral detergent and wrung well, and then wipe with a soft dry cloth.

Ventilation openings

• Use a vacuum cleaner to get rid of the dust around the intakes (all the openings) on the rear. If a vacuum cleaner is not available, use a cloth and wipe it off. Leaving the dust around the intakes may prevent proper temperature control and cause damage to the product.

ENGLISH

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the

Attention:

This symbol is only valid in the European Union.

product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

Safety Precautions .............................................. 2

IMPORTANT SAFEGUARDS ........................................2

Maintenance ...................................................................5

Parts Identification ............................................. 7

Remote control ..............................................................7

Front panel ......................................................................8

Rear panel ........................................................................8

Installation ........................................................ 10

Connecting external speakers .............................. 11

Connections ...................................................... 12

Available signals ......................................................... 12

Daily Operations ............................................... 16

Turning on the main power ...................................16

Turning on the monitor ...........................................16

Selecting an input .....................................................16

Adjusting the volume ..............................................16

Changing the aspect ratio ...................................... 17

Displaying the current status ................................ 17

Selecting the picture mode ................................... 18

Viewing Inputs A and B (analog RGB input)

at the same time —Dual Display .................... 18

Menu Operations .............................................. 19

Menu Configuration—MAIN MENU ................ 20

Menu Configuration—SET-UP MENU .............. 26

Setting the Security Lock ........................................ 32

How to Use External Control ............................ 33

About the external control .....................................33

Using the serial communication .......................... 34

Using the MAKE/TRIG. system ............................... 36

Troubleshooting ............................................... 38

Self-diagnostic indication ....................................... 40

Specifications .................................................... 41

Checking the accessories

The following accessories are included with the monitor. Check for them. If any item is missing, please contact the dealer where you have purchased the monitor.

• Remote control (RM-C2006)

• Power cord x 1

• Batteries (AA/R6) x 2

• Ferrite cores x 2

NOTE

• Be sure to attach the supplied ferrite cores to the speaker cords when using external speakers to reduce interference from the monitor on external equipment (see page 11).

Inserting the batteries

Use two AA/R6 dry cell batteries. Insert the batteries from the · end, making sure the ª and · polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on how much you use the remote control.

• The batteries we supply are only for setting up and testing your monitor, please replace them as soon as you need to.

• If the remote control does not work properly, replace the batteries.

Parts Identification

Remote control

POWER OFF button

Turns off the monitor (see page 16).

SET-UP button

Displays the set-up menu (see page

19).

MENU/EXIT button

Displays the main menu (see page

19).

PICTURE MODE buttons

Changes the picture mode (see page 18).

DUAL DISPLAY buttons

Activates/deactivates the dual display mode (see page 18).

AUDIO MODE buttons

VOLUME +/– buttons

Adjusts the volume level (see page

16).

MUTING button

Turns off the volume immediately (see page 16).

POWER ON button

Turns on the monitor (see page 16).

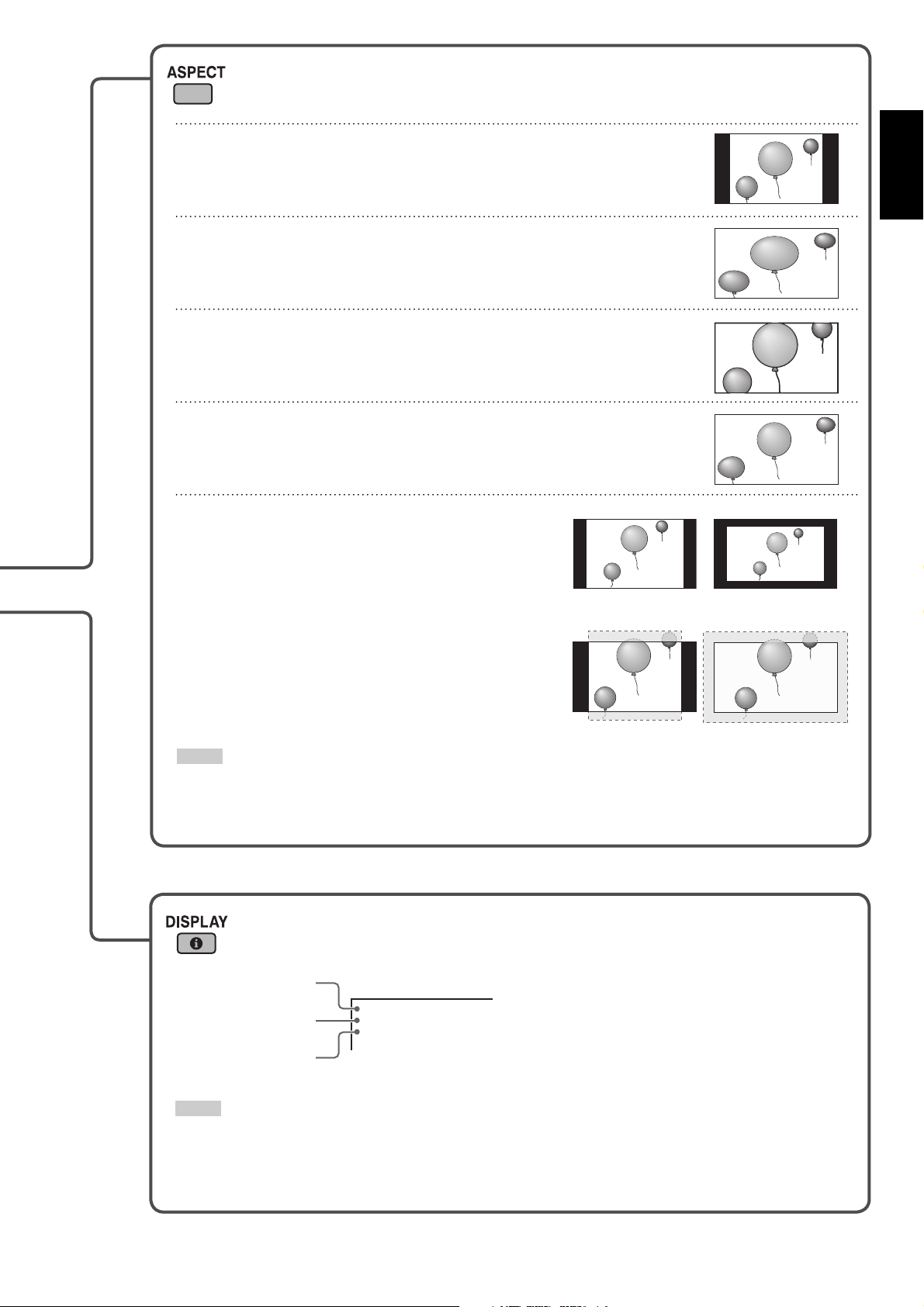

ASPECT button

Changes the aspect ratio (see page

17).

DISPLAY button

Displays the information of the current input (see page 17).

5∞2 3 buttons

Operates the menu (see page 19).

OK button

Enters the password for the Security Lock (see page 32).

INPUT SELECT buttons

Selects the input (see page 16).

A (VIDEO) button

Selects the input to the VIDEO IN

A terminal (Input A).

B (RGB/COMPO./DVI) button

Selects the input to the VIDEO IN

B terminal (Input B).

C, D (SLOT-1) buttons

Selects the input to the optional

input card inserted in the slot 1 (Input C/D).

E, F (SLOT-2) buttons

Selects the input to the optional

input card inserted in the slot 2 (Input E/F).

ENGLISH

Parts Identification (cont.)

Front panel

Remote sensor:

Point the front end of the remote control toward here.

Eco sensor:

Detects brightness of the room (see page 25).

Clear panel:

Before installation, peel the protective film off.

Rear panel

Self-diagnostic lamps:

These lamps light/flash if something abnormal occurs with the monitor (see page 40).

Power lamp:

When the monitor is turned off: Unlit. When the monitor is turned on: Lights in green. When the monitor is in sleep mode: Flashes in orange. When the monitor is in standby mode: Lights in orange.

Input card slots (SLOT-1, SLOT-2):

Optional input cards can be installed in these slots.

• For details about input cards, refer to the instructions of the input card.

REMOTE terminals

Connect external control equipment (see pages 14, 33 to 37).

RS-232C terminal: Connect to the RS-232C terminal of a

personal computer.

RS-485 terminals:

IN terminal: Connect external control equipment. OUT terminal: Connect another component to send out the

control signal coming into the IN terminal (cascade connection).

AUDIO OUT terminals

Connect external speakers or audio equipment.

EXT. SPEAKER terminal: Connect external speakers (commercially available) (see page 11).

• To use this terminal, set “SPEAKER SELECT” on the main menu to “EXT. (external)” (see page 23). MONITOR OUT terminals: Connect to the audio input terminals of audio equipment such as an amplifier (see

page 14).

1 (Power) button: Turns the monitor on/off (see page 16). 2 INPUT button: Changes inputs (see page 16). 3 MENU button: Displays the main menu (see page 19). 4 5/∞ buttons: Selects an item on the menu (see page 19). 5 +/– buttons: Adjusts the volume level (see page 16).

• When the menu is displayed, adjusts the value (see page 19).

6 SET-UP button: Displays the set-up menu (see page 19).

AC IN terminal:

Connect the supplied power cord (see page 15).

POWER switch:

I : Turns on the main power. (The power can be

controlled by POWER ON/OFF buttons on the remote control or button on the main unit.)

‡: Turns off the main power.

ENGLISH

AUDIO IN A/B terminals

Connect audio output terminals of equipment such as a VCR (see page 15).

AUDIO IN A terminal

R, L/MONO terminals (pin jack):

Connect to the audio output terminals of

the equipment connected to the VIDEO IN A terminal. (Connect only the L/MONO terminal for monaural sound.)

AUDIO IN B terminal

STEREO terminal (stereo mini jack):

Connect to the audio output terminals of

the equipment connected to the VIDEO IN B terminal.

VIDEO IN A/B terminals

Connect video output terminals of equipment such as a VCR (see page 15).

VIDEO IN A terminal

IN terminal (BNC): Connect to the video output terminals of playback equipment such as a

VCR.

OUT terminal (BNC): Connect to the video input terminal of another monitor, etc. Y/C IN terminal (Y/C): Connect to the S-video output terminal of playback equipment such as a

VCR.

• When both IN terminal and Y/C IN terminal are used, the input to the Y/C IN terminal has priority.

VIDEO IN B terminal

RGB/COMPO. terminal (D-sub 15-pin)*1: Connect to the video output terminal of a personal

computer or playback equipment such as a VCR*2.

DVI-D terminal (DVI-D)*1: Connect to the digital output terminal of a personal computer.

When connecting to a personal computer, use a cable with ferrite cores and no longer than of 3 m to avoid

electromagnetic disturbance.

You may need a conversion cable (commercially available).

150 150

200

Installation

Precautions

• Before installation, peel the protective film off from the clear panel attached to the front panel.

• When installing the monitor, be sure to use a dedicated stand unit or wall mounting unit, depending on your particular case. Ask your dealer to install.

• When installing the monitor in a special way (for example, installing it diagonally), consult your dealer.

• Route the power cord and connection cables along the wall or floor corners to avoid walking on them.

• For good heat dissipation, try to leave the following distance of space (minimum) around the monitor (see diagram below).

• The ambient temperature of the installation place should be within the range of 0°C to 40°C (slightly variable depending on ambient conditions for installation).

• When installing the monitor near the ceiling or similar location, the remote control may not work correctly because of possible effects, such as reflections, from the surroundings. If this happens, move the monitor where it is free from these effects.

• Do not install the monitor in such a way that the monitor and other AV equipment affect each other adversely. (For example, if a disturbed image or noise due to electromagnetic interference occurs, or if the infrared remote control malfunctions, change the installation place.)

When installing the monitor on a stand

Front view Side view

Unit: mm

When mounting the monitor on the wall

Front view Side view

200

100

Unit: mm

When installing the monitor vertically

• Make sure to install the monitor in the direction illustrated on the right.

• Set the speed of the internal cooling fan to “HIGH” (see “COOLING MODE” on page 31).

Connecting external speakers

You can connect commercial speakers of the following specifications to the EXT. SPEAKER terminal:

• Impedance: Between 6 Ω and 8 Ω

• Power handling capacity: More than 3 W

ENGLISH

Speakers

(commercially available)

Ferrite core (supplied)

To reduce interference from the monitor on external equipment, attach the supplied ferrite cores near to the EXT. SPEAKER terminals on the rear panel of the monitor.

CAUTION

• Do not short-circuit 9 and ( speaker cords to each other. (Refer also to the instructions supplied with the speakers.)

NOTE

• When using the external speakers, set “SPEAKER SELECT” on the main menu to “EXT. (external)” (see page 23).

Speakers

(commercially available)

Connections

Available signals

The following signals can be input to this monitor.

Video signals

Terminal Available signals VIDEO IN A terminals NTSC, PAL, SECAM, PAL60, NTSC4.43, PAL M, PAL N, BW (50 Hz/60 Hz) VIDEO IN B (RGB/

COMPO.) terminal

Select an appropriate setting for High-Definition signal (see “1080/1035“ on page 25).

Interlace signals only

Computer signals (Preset)

VIDEO IN B (RGB/COMPO., DVI-D) terminals

No. Signal name

1 PC98 640 400 24.8 56.4 Non-interlace √ — 2VGA400/70 640 400 31.5 70.1 Non-interlace √ — 3VGA60 640 480 31.5 59.9 Non-interlace √ √ 4WVGA60 852 480 31.5 59.9 Non-interlace √ √ 5VGA72 640 480 37.9 72.8 Non-interlace √ — 6SVGA60 800 600 37.9 60.3 Non-interlace √ √ 7XGA60 1024 768 48.4 60.0 Non-interlace √ √ 8WXGA60 1366 768 48.4 60.0 Non-interlace √ √

9WXGA (1280) 1280 768 47.8 60.0 Non-interlace √ √ 10 WXGA (1360) 1360 768 47.7 60.0 Non-interlace — √ 11 1280 * 720 1280 720 44.8 60.0 Non-interlace √ √ 12 XGA70 1024 768 56.5 70.1 Non-interlace √ — 13 XGA75 1024 768 60.0 75.0 Non-interlace √ — 14 XGA85 1024 768 68.7 85.0 Non-interlace √ — 15 XGA+75 16 SXGA60 17 SXGA75 18 SXGA+60 19 SXGA+60* 20 UXGA60 21 MAC13 640 480 35.0 66.7 Non-interlace √ — 22 MAC16 832 624 49.7 74.6 Non-interlace √ — 23 MAC19 1024 768 60.2 74.9 Non-interlace √ — 24 MAC21

Component signals 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i

(1035/60i)*1, 1080/50i, 1080/24psF

RGB signals 15 kHz/50 Hz*2, 15 kHz/60 Hz

Screen resolution Horizontal

Horizontal Vertical RGB/COMPO. DVI-D

1152 864 67.5 75.0 Non-interlace √ — 1280 1024 64.0 60.0 Non-interlace √ √ 1280 1024 80.0 75.0 Non-interlace √ — 1400 1050 64.0 60.0 Non-interlace √ √ 1400 1050 65.2 60.0 Non-interlace √ √ 1600 1200 75.0 60.0 Non-interlace √ —

1152 870 68.7 75.1 Non-interlace √ —

frequency

(kHz)

Ver tical

frequency

(Hz)

Input terminal

Scan system

√ : Acceptable —: Not acceptable

When No. 15 to No. 20 and No. 24 signals are input, thin lines may become obscured because their signal frequencies are higher than the screen

resolution.

Note for VIDEO IN A (IN, Y/C IN) terminals

When both IN terminal and Y/C IN terminal are used, the input to the Y/C IN terminal has priority.

Note for VIDEO IN B (RGB/COMPO., DVI-D) terminals

Select the correct input for Input B on the main menu (see “INPUT CONFIGURATION” on page 23).

• When RGB signals are input to the RGB/COMPO. terminal: Set “INPUT B” to “ANALOG RGB.”

• When component signals are input to the RGB/COMPO. terminal: Set “INPUT B” to “COMPONENT.”

• When using the DVI-D terminal: Set “INPUT B” to “DVI.”

Note for component signals

• The monitor is compatible only with Y on sync signals. The monitor is not compatible with composite sync (Cs) and separated sync (HD/VD) signals.

Note for computer signals

• When analog RGB signals are input, part of the picture may not be displayed or an unnecessary picture may appear in the following cases. Adjust size and position in the “SIZE SETTING” menu (see page 21). – When a signal other than those listed on page 12 is input – When the horizontal/vertical frequency of the signal is different though its resolution is the same as that of the signals

listed on page 12

– When the resolution of the signal output from the personal computer is different from that set for the personal

computer’s display.

• Any signal other than those listed on page 12 may not be displayed normally although it’s frequency is within the acceptable range.

• Depending on the connected equipment, the monitor may not be compatible with composite sync (Cs) or G on sync signals.

• When a preset mode signal is input, the signal format is displayed on the screen. For other signals, the horizontal/vertical frequency or resolution is displayed.

• The DVI-D terminal can accept only No. 3, 4, 6 – 11, 16, 18, and No. 19 signals.

•

When the No. 3 and No. 7 signals are input, set the video card of the personal computer to “640 x 480” (for No. 3 signal)/ “1024 x 768” (for No. 7 signal). For analog RGB input, also set “SAMPLING MODE” to “STD” on the set-up menu (see page 31).

• When the No. 4 and No. 8 signals are input, set the video card of the personal computer to “852 x 480” (for No. 4 signal)/“1366 x 768” (for No. 8 signal). page 31), and then change the aspect ratio to “FULL” (see pages 17 and 21).

• When No. 15 to No. 20 and No. 24 signals are input, thin lines may become obscured because their signal frequencies are higher than the screen resolution.

• When the No. 16 signal is input, set the video card of the personal computer to “1280 x 1024.” For analog RGB “SXGA/SXGA+” to “SXGA” on the set-up menu (see page 31).

• When the No. 18 and No. 19 signals are input, set the video card of the personal computer to “1400 x 1050.” For analog RGB input

, also set “SXGA/SXGA+” to “SXGA+” on the set-up menu (see page 31).

For analog RGB input, also

set “SAMPLING MODE” to “WIDE” on the set-up menu (see

input

, also set

ENGLISH

Connections (cont.)

CAUTION

• Before making any connections, turn off all the equipment.

• DO NOT connect the power cord until all connections are completed.

• Use a cord whose plugs correctly match the terminals on this monitor and the equipment.

• Plugs should be firmly inserted; poor connections could cause noise.

• When unplugging a cord, be sure to grasp it’s plug and pull it out.

• Refer also to the user manual of each piece of equipment.

To external speakers

(See page 11.)

Stereo audio

cable

To stereo audio input terminals

Amplifier, etc.

RS-232C cable

To RS-232C

terminal

External equipment used

to control the monitor

(See pages 33 to 37.)

RJ-45 cable

To RS-485

output terminal

RJ-45 cable

To RS-485

input terminal

External control input

terminal of other

equipment

(See page 33.)

Connect the VIDEO IN A OUT terminal to the video input terminal of another monitor, etc.

CAUTION

• Since the IN terminal and OUT terminal are loop-through terminals, the devices connected to the OUT terminal should be correctly terminated. Otherwise, pictures become abnormally bright or the display screen gets affected abnormally.

ENGLISH

Stereo audio

cable

To stereo audio

output terminals

Playback component such as a VCR

To video output

terminal (BNC)

BNC cable

S-video cable

To S-video

output terminal

terminal

D-sub 15 pin cable

output terminal

D-sub 15 pin – BNC

conversion cable

Stereo mini jack cable

To audio

output

terminal

For component video connection, connect only to the green, blue, and red

terminals.

Green

To component video or RGB

output terminal (BNC)

Playback component such as a PC or VCR

Blue

Red

Synchronized

signal (H)

Synchronized

signal (V)

To RGB output

DVI-D cable

To digital

When all the connections are completed

Power cord (supplied)

To wall outlet

Daily Operations

Turning on the main power

I : Main power on ‡: Main power off

On the rear panel

Turning on the monitor

From the remote control:

To turn off the monitor, press POWER OFF.

On the main unit:

Each time you press the button, the power turns on and off.

Selecting an input

From the remote control:

On the main unit:

Each time you press the button, the input changes.

NOTE

• When “QUICK SWITCH” is set to “INPUT A&B,” you can change Inputs A and B quickly (see “INPUT CONFIGURATION” on page 23).

Adjusting the volume

From the remote control:

On the main unit:

To turn off the volume immediately:

Pressing the button again resumes the previous volume level.

•

When using the buttons on the main unit, set “MUTING” to “ON” on the main menu (see “AUDIO SETTING” on page 23).

• When the Control Lock is set to “ON” (see page

29), you cannot use the buttons on the main unit.

• When the Security Lock is in set to “ON” (see page 32), you need to enter the password when turning on the monitor.

Changing the aspect ratio

Each time you press the button, the aspect ratio changes as follows:

REGULAR

Displays at conventional 4:3 aspect ratio.

FULL

Enlarges the picture of 4:3 aspect ratio horizontally.

• For the picture of 16:9 aspect ratio, the aspect ratio is not changed.

ZOOM

Enlarges the picture of 4:3 aspect ratio vertically and horizontally at the same ratio.

PANORAMIC

Enlarges the picture of 4:3 aspect ratio horizontally to the extent that the picture does not look abnormal.

ENGLISH

Ex.

REAL DOT

Displays center portion of the original picture input from the personal computer without changing the number of pixels. This item is available only when one of the following signals is input:

WXGA (1280)/

WXGA (1360)

• WXGA (1280), WXGA (1360), 1280 * 720, SXGA60*1, SXGA+60*1, SXGA+60**1, UXGA60

Analog RGB only

SXGA60 SXGA+60/SXGA+60*/

NOTE

• For some signals, the aspect ratio cannot be changed or some modes cannot be selected.

• While using multiple monitors (see page 25), the aspect ratio is fixed to “FULL.”

• When using the buttons on the main unit for changing the aspect ratio, use the main menu (see “SIZE SETTING” on page 21).

Displaying the current status

The information of the current input is displayed on the screen.

1280 * 720

UXGA60

Current input

Input type

Input signal format

INPUT A VIDEO NTSC

When Input C, D, E, or F is selected with an optional input

card inserted, the type of the card appears. When no card is inserted, “NO CARD” appears.

When no signal is being input, “NO SYNC” appears. When a

signal this monitor does not support is being input, “Out of range” appears.

NOTE

• When “STATUS DISPLAY” on the main menu is set to “ON” (see page 25), the status is also displayed in the following cases: – When you turn on the monitor, – When you change inputs, or – When you change signal types.

Daily Operations (cont.)

Selecting the picture mode

DYNAMIC: Suitable for displaying documents for

presentation.

NORMAL: Displays the original picture.

USER: You can adjust picture quality as you like

(see “PICTURE SETTING” on page 21).

NOTE

• You can adjust the picture quality, such as brightness, for each picture mode. The setting you have made is stored (see “PICTURE SETTING” on page 21).

Viewing Inputs A and B (analog RGB input) at the same time—Dual Display

You can view Inputs A and B (analog RGB input) at the same time.

• This monitor supports 2 dual display modes.

PIP mode PBP mode

Main window

Sub window

• Each time you press the button, the corresponding dual display mode turns on or off.

• When the dual display mode is activated, the current input is displayed on the main window, and the other is displayed on the sub window.

NOTE

• The dual display mode is available only when analog RGB signals are being input to Input B. For details, see page 25.

• You cannot change the input when the dual display mode is in use. To change the inputs for the main and sub windows, deactivate the dual display mode, change the input, and then activate the dual display mode.

• Use the main menu to adjust position and/or size of the sub window (see “DUAL DISPLAY” on page 25).

Sub window

Main window

NOTE

• When using the buttons on the main unit for operations described on this page, use the main menu (see page 21 or 25).

Menu Operations

COLOR SYSTEM MULTI DISPLAY DUAL DISPLAY STATUS DISPLAY 1080/1035

: NTSC

: OFF : 1080

FUNCTION SETTING

On the main menu and set-up menu, you can make various adjustments, such as picture quality, or initial settings of the monitor.

• For the configuration of the main menu and a detailed description of each item, see pages 20 to 25.

• For the configuration of the set-up menu and a detailed description of each item, see pages 26 to 32.

From the remote control

ENGLISH

SET-UP

5 ∞ 2 3

MENU/EXIT

1 Display the menu.

To display the main menu

To display the set-up menu

2 Press 5 ∞ to select an item, then press 3.

Ex.: When the main menu is displayed

MAIN MENU

:ENGLISH

SELECT:

EXIT:

Selected item

Operation

guide

PICTURE SETTING SIZE SETTING AUDIO SETTING INPUT CONFIGURATION FUNCTION SETTING LANGUAGE

ENTER:

3 Press 5 ∞ to select an item, then press

2 3 to make adjustments.

On the main unit

Works in the same way as MENU/ EXIT on the remote control.

5∞ +/–

SET-UP

Works in the same way as 2 3 on the remote control.

4 Press MENU/EXIT to return to the previous

menu.

• Pressing the button again exits the menu operation.

NOTE

• For some items, adjustments will be made by pressing 2 3 in

step 2 .

PICTURE SETTING SIZE SETTING AUDIO SETTING INPUT CONFIGURATION FUNCTION SETTING LANGUAGE

MAIN MENU

H SIZE H POSITION V SIZE V POSITION DOT CLOCK CLOCK PHASE ASPECT sub menu reset

SIZE SETTING

: +01 : 00 : –02 : 00 : 00 : 00

: FULL

CONTRAST BRIGHT CHROMA PHASE SHARPNESS BACK LIGHT COLOR TEMP. sub menu

PICTURE SETTING

PICTURE MODE

1/2 : NORMAL : +01 : 00 : –02 : 00 : 00 : +10 : HIGH

reset

PICTURE SETTING

CTI/LTI

2/2

: OFF

:+01

H SIZE

:+01

H POSITION

:+01

DOT CLOCK

:+01

CLOCK PHASE

:+01

V SIZE

:+01

V POSITION

:+01

CONTRAST

:NORMAL

PICTURE MODE

Are you sure? "YES" then "NO" then

reset

key.

:+01

BRIGHT

:+01

CHROMA

:+01

PHASE

:+01

BACK LIGHT

:HIGH

COLOR TEMP.

:+01

SHARPNESS

Are you sure? "YES" then "NO" then

reset

key.

:ENGLISH

MENUMENU

Menu Configuration—MAIN MENU

On the main menu, you can make various adjustments and settings for picture, screen, and audio.

Select the menu language:

English, German, French, Italian, Spanish, or Russian

NOTE

• Some items may not appear on the menu depending on the input (or the input card if it is attached) or the input signal. Those items are not available to use.

Configuration of the main menu screen

Cursor (selected item)

Operation guide Shows the buttons for each operation.

PICTURE SETTING SIZE SETTING AUDIO SETTING INPUT CONFIGURATION FUNCTION SETTING LANGUAGE

ENTER:

MAIN MENU

SELECT:

:ENGLISH

EXIT:

PICTURE SETTING

Item To do Setting value

PICTURE MODE Selects a picture mode you want (see “Selecting the picture mode”

on page 18).

CONTRAST Adjusts contrast of the picture. –20 += 00 += +20 BRIGHT Adjusts the brightness of the picture. –20 += 00 += +20

CHROMA Adjusts the color density of the picture (except for RGB and BW

(50 Hz/60 Hz) signals).

PHASE Adjusts the color phase. –20 += 00 += +20 SHARPNESS Adjusts the outlines of the picture. –20 += 00 += +20 BACK LIGHT Adjusts the brightness of the display. –20 += 00 += +20

COLOR TEMP. Selects the color temperature. HIGH, MID, LOW, OTHER

sub menu Displays the adjustment bar which enables you to adjust the items in “PICTURE SETTING”

(except for “CTI/LTI”) while viewing the actual picture.

CTI/LTI Adjusts the clearness of the picture. OFF, 1, 2

reset Restores the default setting for all the items in “PICTURE SETTING.”

NOTE

• You can adjust the items in “PICTURE SETTING” for each picture mode. Select a picture mode you want to adjust first. (The setting values are stored.)

• “PHASE” does not appear on the menu for the following input signals:

– RGB, PAL, SECAM, BW (50 Hz/60 Hz)

• You can make the detailed settings of the color temperature using the set-up menu (see “COLOR TEMP.” on page 27).

DYNAMIC, NORMAL, USER

–20 += 00 += +20

ENGLISH

SIZE SETTING

Item To do Setting value

H SIZE Adjusts the horizontal screen size.

H POSITION Adjusts the horizontal screen position.

V SIZE Adjusts the vertical screen size.

V POSITION Adjusts the vertical screen position.

DOT CLOCK Adjusts to eliminate stripes or flickering when analog RGB

signals are being input from a computer. Use with “CLOCK PHASE.” Normally, no adjustment is needed.

CLOCK PHASE Adjusts to eliminate stripes or flickering when analog RGB

signals are being input from a computer. Use with “DOT CLOCK.” Normally, no adjustment is needed.

ASPECT Selects the aspect ratio (see “Changing the aspect ratio” on

page 17).

sub menu Displays the adjustment bar which enables you to adjust H SIZE/POSITION, V SIZE/POSITION,

DOT CLOCK, and CLOCK PHASE while viewing the actual picture.

reset Restores the default setting for all the items in “SIZE SETTING.”

NOTE

• During the size and position adjustments, the picture may be distorted but this is not a malfunction.

• Size and position adjustments are related so that if one is set to a higher setting value, the other’s setting value will be reduced.

• For the computer signals input to the DVI-D terminal, the following items are automatically adjusted (and not displayed in the menu).

H SIZE, H POSITION, V SIZE, V POSITION, DOT CLOCK, CLOCK PHASE

Varies depending on other settings.

–32 += 00 += +32

REGULAR, FULL, ZOOM, PANORAMIC, REAL DOT

reset

AUDIO SETTING SPEAKER SELECT MUTING

AUDIO SETTING

: INT. : OFF

INPUT CONFIGURATION

QUICK SWITCH INPUT B

INPUT A INPUT C INPUT D INPUT E INPUT F

: INPUT A&B

: ANALOG RGB

: VIDEO(BNC) : NO CARD : NO CARD : NO CARD : NO CARD

reset

SPEAKER SELECT MUTING AUDIO L ch. AUDIO R ch. LEVEL METER SETTING

: INT. : OFF : 1ch : 1ch

reset

LEVEL METER SETTING

LEVEL METER ch BAR TYPE BAR BRIGHTNESS REFERENCE LEVEL OVER LEVEL

:OFF : 3COLORS :HIGH :–20dB :–8dB

Are you sure? "YES" then "NO" then

reset

key.

Are you sure? "YES" then "NO" then

reset

key.

PICTURE SETTING SIZE SETTING AUDIO SETTING INPUT CONFIGURATION FUNCTION SETTING LANGUAGE

MAIN MENU

:ENGLISH

MENUMENU

Menu Configuration—MAIN MENU (cont.)

Select the menu language:

English, German, French, Italian, Spanish, or Russian

When no HD/SD SDI or SDI input card (option) is inserted.

When an HD/SD SDI or SDI input card (option) is inserted.

AUDIO SETTING

Item To do Setting value

SPEAKER SELECT Selects the speakers you want to use. I

MUTING Turns the volume on or off. ON, OFF

AUDIO L ch. Selects the left audio channel when the EMBEDDED AUDIO signal

is being input.

AUDIO R ch. Selects the right audio channel when the EMBEDDED AUDIO

signal is being input.

LEVEL METER SETTING Adjusts the audio level meter display for the EMBEDDED AUDIO signal (see “Example of the level

meter display” below).

LEVEL METER ch Selects the audio channels used in the audio level meter

display. (The numbers indicate the audio channel. The input level for the channels indicated on the left side of “:” is displayed on the left side of the screen, and the input level for the channels indicated on the right side of “:” is displayed on the right side of the screen.)

BAR TYPE Selects the color of the audio level meter display. 3COLORS (3 colors to

BAR BRIGHTNESS Selects the brightness of the audio level meter display. HIGH, LOW

REFERENCE LEVEL Sets the standard input level. –20dB, –18dB

OVER LEVEL Sets the input level’s lower limit indicated in red for the

“3COLORS” display.

reset Restores the default setting for “LEVEL METER SETTING.”

reset Restores the default setting for all the items in “AUDIO SETTING.”

NT. (Internal speakers),

EXT. (External speakers)

1ch += 8ch

OFF, 1:2, 12:34, 31:24, 123:456, 1–8

indicate variations in input levels), W.100 (white), W.50 (half transparent)

–10dB, –8dB, –6dB, –4dB, –2dB

ENGLISH

NOTE

• The items for EMBEDDED AUDIO setting (“AUDIO L/R ch.” and “LEVEL METER SETTING”) are displayed on the menu only when the HD/SD SDI or SDI input card (option) is installed.

INPUT CONFIGURATION

Item To do Setting value

QUICK SWITCH Sets if you want to change Inputs A and B quickly. OFF, INPUT A&B

INPUT B Selects the terminal and signal type you want to use for Input B. ANALOG RGB, DVI,

COMPONENT

INPUT A Displays the terminal being used for Input A (“VIDEO (BNC)” or

“VIDEO (Y/C)”).

INPUT C/D/E/F Shows the status of the input card slots. When no input card is

inserted, “NO CARD” appears.

—

Example of the level meter display —Level indication and audio channels

Ex.: When “LEVEL METER ch” is set to “1–8” and ”BAR TYPE” is set to “3COLORS.”

NOTE

• When “BAR TYPE” is set to “W.100” or “W.50,” the standard input level set in the “REFERENCE LEVEL” is displayed with the line indication. Input level set in “OVER LEVEL” is not displayed.

• The audio channel bar with no signal input is displayed in white for the “3COLORS” setting, and in gray for other settings.

Red

Yellow

Green

OVER LEVEL

REFERENCE LEVEL

Audio channels

COLOR SYSTEM MULTI DISPLAY DUAL DISPLAY STATUS DISPLAY 1080/1035 SUB HOUR METER ECO SENSOR reset HOUR METER

FUNCTION SETTING

: NTSC

: OFF : 1080 : 00001H : ON

: 60000H

MULTI SIZE

MULTI DISPLAY

: OFF

MODE MAIN WINDOW SUB. WINDOW SIZE H.POSI. V.POSI. reset

DUAL DISPLAY

: PIP : INPUT-A : INPUT-B : 1 : 00 : 00

MODE MAIN WINDOW SUB. WINDOW SPLIT LINE reset

DUAL DISPLAY

: PBP : INPUT-A : INPUT-B : 1

MODE

DUAL DISPLAY

: OFF

Are you sure? "YES" then "NO" then

reset

key.

Are you sure? "YES" then "NO" then

reset

key.

MULTI SIZE MULTI POSI. reset

MULTI DISPLAY

: 2 2 : 1

PICTURE SETTING SIZE SETTING AUDIO SETTING INPUT CONFIGURATION FUNCTION SETTING LANGUAGE

MAIN MENU

:ENGLISH

MENUMENU

Menu Configuration—MAIN MENU (cont.)

Select the menu language:

English, German, French, Italian, Spanish, or Russian

When “MULTI SIZE” is “OFF.”

When “MULTI SIZE” is “2*2.”

When “MODE” is “OFF.”

When “MODE” is “PIP.”

When “MODE” is “PBP.”

FUNCTION SETTING

Item To do Setting value

COLOR SYSTEM Selects the color system. When you cannot view pictures correctly

with “AUTO,” select an appropriate option according to the current input.

MULTI DISPLAY Sets the multiple monitor usage (see “Example of the multiple monitor setting” below).

MULTI SIZE Activates/deactivates the multiple monitor usage (2 monitors

horizontally * 2 monitors vertically).

MULTI POSI. Sets the position of this monitor when “MULTI SIZE” is set to

“2*2.”

reset Restores the default setting for “MULTI DISPLAY.”

DUAL DISPLAY Sets the dual display mode (see “Viewing Inputs A and B (analog RGB input) at the same

time—Dual Display” on page 18).

MODE Selects the dual display mode. OFF, PIP, PBP

MAIN WINDOW Displays the input for the main window (“INPUT-A” or “INPUT-

B”).

SUB. WINDOW Displays the input for the sub window (“INPUT-A” or “INPUT-B”). —

SIZE Adjusts the size of the sub window (only for PIP mode). 1 += 4

H.POSI./V.POSI. Adjusts the horizontal and vertical position of the sub window

(only for PIP mode).

SPLIT LINE Adjusts the position of the border between the main window

and sub window (only for PBP mode).

reset Restores the default setting for “DUAL DISPLAY.”

STATUS DISPLAY Sets if you want the information of the current input to be

displayed on the screen (see “Displaying the current status” on page 17).

1080/1035 Selects a High-Definition signal type (1080/60i or 1035/60i) for the

component signal to view the picture correctly.

SUB HOUR METER Displays the hours of current use (unit: hour). You can reset only this item.

ECO SENSOR Sets the eco sensor which enables you to adjust the brightness of

the screen automatically according to the brightness of the room.

reset Restores the default setting for the items in “FUNCTION SETTING” except for “MULTI DISPLAY,”

“DUAL DISPLAY,” and “HOUR METER.”

HOUR METER Displays the total hours of use (unit: hour). This item is used for maintenance of the monitor.

This item cannot be reset.

AUTO, NTSC, PAL, SECAM, N4.43, PAL M, PAL N, PAL60

OFF, 2*2

1 += 4

—

–20 += 00 += +20

1 += 5

OFF, ON

1080, 1035

ON, OFF

ENGLISH

NOTE

• The dual display mode is available only when “MULTI SIZE” is set to “OFF.”

• “MULTI DISPLAY” is not displayed on the menu when the dual display mode is in use.

Available signals for the dual display mode

The dual display mode can be activated only when one of the following signals is being input to Input A and B.

• Input A: NTSC, PAL, SECAM, PAL M, PAL N, PAL60, NTSC4.43, BW (50 Hz/60 Hz)

• Input B (only analog RGB): VGA60, WVGA60, XGA60, WXGA60

Available signals for using multiple monitors

“MULTI DISPLAY” is available only when one of the following signals is being input:

• Composite signals: NTSC, PAL, SECAM, PAL M, PAL N, PAL60,

NTSC4.43, BW (50 Hz/60 Hz)

• Analog component signals: 480/60i, 576/50i, 1080/60i, 1080/50i

• Analog RGB signals: VGA60, XGA60

Example of the multiple monitor setting

Ex.: When “MULTI SIZE” is set to “2*2” and ”MULTI

POSI.” is set to “2.”

This monitor

COLOR TEMP. NO SYNC FUNCTION REMOTE SYSTEM SECURITY LOCK TIMER VCR ADJ.

R DRIVE G DRIVE B DRIVE R CUT OFF G CUT OFF B CUT OFF sub menu reset

SET-UP MENU

COLOR TEMP.:HIGH

1/2

: 000 : 000 : 000 : 000 : 000 : 000

NO SYNC FUNCTION NO SYNC DISPLAY DELAY TIME reset

: RED : 5s

SECURITY LOCK SECURITY LOCK PASS ID SETTING

SECURITY LOCK

: OFF

PASS ID SETTING ENTER PASS ID REENTER PASS ID

: :

Are you sure? "YES" then "NO" then

reset

key.

PAS S ID OK? "YES" then "NO" then

key.

REMOTE SYSTEM REMOTE IN SEL. CNT.RJ45 OUT CNT.RJ45 IN PORT F1 PORT F2 PORT F3 PORT F4 PORT F5 reset

: RJ-45 : IR OUT : MAKE : INP.A : INP.C : POWER : ASPECT : – – –

Are you sure? "YES" then "NO" then

reset

key.

Are you sure? "YES" then "NO" then

reset

key.

:000

B DRIVE

:000

G DRIVE

:000

R DRIVE

:000

B CUT OFF

:000

G CUT OFF

:000

R CUT OFF

: 00

MENUMENU

Menu Configuration—SET-UP MENU

On the set-up menu, you can change various settings such as color temperature and timer.

NOTE

• Some items may not appear on the menu depending on the input (or the input card if it is attached) or the input signal. Those items are not available to use.

Configuration of the set-up menu screen

Cursor (selected item)

COLOR TEMP. NO SYNC FUNCTION REMOTE SYSTEM SECURITY LOCK TIMER VCR ADJ.

SET-UP MENU 1/2

:00

Page

Operation guide

ADJUST:

Shows the buttons for each operation.

SELECT:

EXIT: MENU

COLOR TEMP.

Item To do Setting value

R DRIVE, G DRIVE, B DRIVE

R CUT OFF, G CUT OFF, B CUT OFF

sub menu Displays the adjustment bar which enables you to adjust the drive level and cut-off point while

reset Restores the default setting for all the items in “COLOR TEMP.”

NOTE

• Adjust the color temperature after selecting color temperature (HIGH, MID., LOW, or OTHER) on the main menu (see “PICTURE SETTING” on page

21).

Adjusts the drive level of each color (red, green, and blue). MIN += 000 += MAX (in

512 grades)

Adjusts the cut-off point of each color (red, green, and blue). MIN += 000 += MAX (in

512 grades)

viewing the actual picture.

NO SYNC FUNCTION

Item To do Setting value

NO SYNC DISPLAY Selects the screen color (or sleep mode) when no signal is being

input.

DELAY TIME Sets the time to change the screen color (or sleep mode) set in

“NO SYNC DISPLAY” above after signals stops being input.

reset Restores the default setting for all the items in “NO SYNC FUNCTION.”

OFF, SLEEP (sleep mode), RED, GREEN, BLUE, GRAY

5s, 1min., 30min.

ENGLISH

REMOTE SYSTEM

Item To do Setting value

REMOTE IN SEL. Selects the input terminal used for external control. D-sub9, RJ-45

CNT. RJ45 OUT Selects the external control method for RS-485 OUT terminal. RS485, IR OUT

CNT. RJ45 IN Selects the external control method for RS-485 IN terminal. RS485, MAKE, TRIG., SET

PORT F1 – PORT F5 Assigns the control function to the RS-485 IN terminal’s pins (1 to

5) when selecting “SET” in “CNT. RJ45 IN” above.

reset Restores the default setting for all the items in “REMOTE SYSTEM.”

NOTE

• For details about external control, see pages 33 to 37.

INP. A – INP. F, POWER, ASPECT, MUTING, PIP, PBP, – – – (no function)

SECURITY LOCK

Item To do Setting value

SECURITY LOCK Activates/deactivates the Security Lock. When this function is

activated, the monitor cannot be turned on without entering the password set in “PASS ID SETTING” below.

PASS ID SETTING Sets the password for the Security Lock. 4 characters

ON, OFF

NOTE

• For details about the Security Lock, see page 32.

Menu Configuration—SET-UP MENU

(cont.)

MENUMENU

SET-UP MENU COLOR TEMP. NO SYNC FUNCTION REMOTE SYSTEM SECURITY LOCK TIMER VCR ADJ.

SET-UP MENU CONTROL LOCK POWER ON DELAY SYNC TERM. SYNC SELECT COOLING MODE I/P SELECT SAMPLING MODE SXGA/SXGA reset all reset

: 00

: OFF : FAST : HIGH : INT. : HIGH : LEVEL1 : STD : SXGA

1/2

2/2

PRESENT TIME

TIMER

POWER-ON SET POWER-ON TIME POWER-OFF SET POWER-OFF TIME reset

: 14:25 : ON : 08:16 : ON : 21:20

PRESENT TIME HOURS MINUTES

POWER-ON TIME HOURS MINUTES

POWER-OFF TIME HOURS MINUTES

Are you sure? "YES" then "NO" then

TIMER

reset

: 14:25 : 14 : 25

: 08:16 : 08 : 16

: 21:20 : 21 : 20

key. key.

MODEL VER.

: GM-H40L2 : A

TIMER

Item To do Setting value

PRESENT TIME Sets the clock.

HOURS Sets the hour. 00 += 23 MINUTES Sets the minute. 00 += 59

POWER-ON SET Activates/deactivates the power-on timer. ON, OFF

POWER-ON TIME Sets the time to turn on the monitor.

HOURS Sets the hour. 00 += 23 MINUTES Sets the minute. 00 += 59

POWER-OFF SET Activates/deactivates the power-off timer. ON, OFF

POWER-OFF TIME Sets the time to turn off the monitor.

HOURS Sets the hour. 00 += 23 MINUTES Sets the minute. 00 += 59

reset Restores the default setting for all the items in “TIMER.”

VCR ADJ.

Adjusts when the picture played back on a VCR is distorted. (Depending on the condition of the connected VCR or the playback tape, the picture quality may not be improved.)

Setting value: –05 += 00 += +05

ENGLISH

CONTROL LOCK

Activates/deactivates the Control Lock. When this function is activated, you cannot operate the monitor with the buttons on the main unit.

Setting value: ON, OFF

NOTE

• You can use the remote control and external control while the control lock is set. To release the lock, use the remote control.

POWER ON DELAY

Sets the time when the power supply to the monitor’s circuits (excluding the micro computers) starts after the power button is pressed.

Setting value: OFF, FAST, SLOW

NOTE

• If you are going to turn several monitors on at the same time, it is recommended to apply “SLOW” to some of the monitors to control rush current.

SYNC TERM.

Sets the resistance of Horizontal sync/Composite sync signal and Vertical sync signal when the component/RGB input card (option) is inserted. Normally, select “HIGH” (1 kΩ). If you see pictures flickering or blurring on the screen because of a long connecting cord, set this to “LOW” (75 Ω).

Setting value: HIGH, LOW

SYNC SELECT

When a video input card (option) is inserted, set the sync signal to use.

Setting value: INT. (sync signal included in the video signal), EXT. (external sync signal)

Menu Configuration—SET-UP MENU

(cont.)

SET-UP MENU COLOR TEMP. NO SYNC FUNCTION REMOTE SYSTEM SECURITY LOCK TIMER VCR ADJ.

SET-UP MENU CONTROL LOCK POWER ON DELAY SYNC TERM. SYNC SELECT COOLING MODE I/P SELECT SAMPLING MODE SXGA/SXGA reset all reset

MODEL VER.

: GM-H40L2 : A

: 00

: OFF : FAST : HIGH : INT. : HIGH : LEVEL1 : STD : SXGA

1/2

2/2

Are you sure? "YES" then "NO" then

reset

all reset

key. key.

COOLING MODE

Sets the speed of the internal cooling fan. When installing the monitor vertically, select “HIGH.”

Setting value: HIGH, LOW

I/P SELECT

Select a level with which you can view the least noise on the screen.

Setting value: LEVEL1, LEVEL2, LEVEL3

SAMPLING MODE

Select “STD” when VGA60 or XGA60 signal is input through the RGB/COMPO. terminal, and “WIDE” when WVGA60 or WXGA60 signal is input through the RGB/COMPO. terminal. (This item does not affect other signals and is not displayed for other signals.)

Setting value: STD, WIDE

SXGA/SXGA+

Select “SXGA” when SXGA60 signal is input through the RGB/COMPO. terminal, and “SXGA+” when SXGA+60 or SXGA+60* signal is input through the RGB/COMPO. terminal. (This item does not affect other signals and is not displayed for other signals.)

Setting value: SXGA, SXGA+

reset

Restores the default setting for all the items in the set-up menu.

all reset

Restores the default setting for all the items in the main menu and set-up menu (except for “LANGUAGE,” “HOUR METER,” “SECURITY LOCK,” and “PASS ID SETTING”). The power is turned off, then turned on again automatically.

ENGLISH

MODEL, VER.

Displays the model name and version of the monitor. This item is used for maintenance of the monitor.

Menu Configuration—SET-UP MENU

ENTER PASS ID :

REENTER PASS ID :

PASS ID SETTING

(cont.)

Setting the Security Lock

When the Security Lock is set to “ON,” you need to enter the password when turning on the monitor. Without entering the correct password, you cannot perform any operations except for entering the password and turning off the monitor.

7 To change the password

When shipped from the factory, the password is set to “0000.” Change it to the 4 characters of your choice.

Available characters: 0 – 9, A – Z, a – z

Remote control ONLY

1 Select “PASS ID SETTING” on the SECURITY LOCK sub

menu of the set-up menu.

2 Press 3.

The password entering screen appears.

3 Enter the current password.

SECURITY LOCK

PLEASE ENTER

PASS ID :

See “How to enter a password” below. The password setting screen appears.

4 Enter a new password.

7 To activate the Security Lock

Select “SECURITY LOCK (: OFF)” on the SECURITY LOCK sub menu of the set-up menu.

2 Press 3.

The password entering screen appears.

3 Enter the password.

SECURITY LOCK

PLEASE ENTER

PASS ID :

See “How to enter a password” below. The Security Lock is set to “ON.”

• After activating the Security Lock function, the password is required to turn on the monitor. Enter the password (see “How to enter a password” below).

If the power-on timer (see “POWER-ON SET” on page 29) is

activated, the monitor turns on at the specified power-on time without the password.

7 To deactivate the Security Lock

Select “SECURITY LOCK (: ON)” on the SECURITY LOCK sub menu of the set-up menu.

See “How to enter a password” below.

5 Press OK.

The cursor moves to the second line.

6 Enter the new password again for confirmation, then

press OK.

• If the password is different from the one entered in step 4, “PASS ID NG!” appears and the SECURITY LOCK sub menu is displayed. In this case, repeat from step 1.

How to enter a password

To enter a password, follow the procedure below.

SECURITY LOCK

PLEASE ENTER

PASS ID :

• When shipped from the factory, the password is set to “0000.”

2 Press 3.

The password entering screen appears.

3 Enter the password.

SECURITY LOCK

PLEASE ENTER

PASS ID :

See “How to enter a password” below. The Security Lock is set to “OFF.”

Remote control ONLY

1 Press 5∞ to select a character.

• The digit currently selected flashes, and “*” is displayed for other digits.

2 Press 2 3 to edit the next digit.

3 Press OK after entering all digits.

• If the password is wrong, “PASS ID NG!” appears. Enter the correct password.

DO NOT forget the password!

If you forget the password, consult your dealer.

How to Use External Control

About the external control

This monitor has two external control terminals as follows:

• RS-232C terminal: Controls the monitor by external control equipment (a personal computer or a dedicated controller) (see “Using the serial communication” on pages 34 and 35).

• RS-485 terminals: The following external control systems are available.

(1) Serial communication: Controls the monitor by external control equipment (a personal computer or a dedicated

controller) (see pages 34 and 35). (2) IR OUT system: Controls other equipment by using the remote control supplied with this monitor. (3) MAKE (make contact system): Controls the function by short-circuiting the corresponding pin terminal to the GND pin

terminal, or disconnecting (opening) it (see pages 36 and 37). (4) TRIG. (trigger system): Controls the function by inputting the pulse signal instantaneously to the corresponding

pin terminal (see pages 36 and 37).

Set the following items in “REMOTE SYSTEM” according to the external control terminal and control system you use (see page

27).

Control system “REMOTE IN SEL.” setting “CNT. RJ45 OUT” setting “CNT. RJ45 IN” setting

Serial communication

IR OUT system Any IR OUT Any

MAKE system RJ-45 RS485 MAKE

TRIG. system RJ-45 RS485 TRIG.

For the monitor connected to the external control equipment, set “REMOTE IN SEL.” according to the actual connection. Set other monitors to

“RJ-45.”

RS-485 RJ-45

RS-232C D-sub9

RS485 RS485

ENGLISH

NOTE

• Control priority is as follows: MAKE or TRIG. (trigger) system > RS-485 system > Buttons on the remote control or the main unit

• While the Control Lock is in use, you can use external control.

Several monitors can be controlled by connecting their RS-485 IN and OUT terminals. See also pages 34 and 35.

External control equipment

RS-485 IN or RS-232C

Control signals from the remote control are sent to external equipment via the RS-485 OUT terminal.

RS-485 OUT

RS-485 IN RS-485

OUT

Karaoke component, etc.

RS-485 IN RS-485 OUT

Remote control (supplied)

You can control the monitor by external control equipment*2. See also pages 36 and 37.

External control equipment is not commercially available. Consult your dealer if you need a dedicated controller.

How to Use External Control (cont.)

Using the serial communication

You can control the monitor from external control equipment (a personal computer or a dedicated controller) via the RS-485 or RS-232C terminal.

Input terminal Cable Terminal specification Communication specifications

RS-485 A straight LAN cable

RS-232C A straight cable with a RS-232C

connector (male for the monitor, female for the external control equipment)

When the monitor is turned on, the external control is not ready.

• To start communication, send the connection command from the external control equipment.

• To terminate the communication, send the termination command from the external control equipment.

Example of communication procedures:

1 Starting the communication: connection command (!00BCN1Cr)

2 Monitor’s status (@00BOKCr)

External control equipment

3 Selecting the Input A (!00BINACr)

4 Monitor’s status (@00BOKCr)

5 Terminating the communication: termination command

(!00BCN0Cr)

See page 35.

Baud Rate: 4800 bps Data Bits: 8 bits Parity: No parity Stop Bits: 1 bit Flow Control: No control Communication Code: ASCII Code

Monitor

6 Monitor’s status (@00BOKCr)

• Commands starting with “!” are operation commands from the external control equipment. For details, see “Command list” on the next page.

• Commands starting with “@” are status returns from the monitor.

Type No. Commands Functions Data

3! 4! 5!

9! 10 ! 11 !

12 !

13 !

15 ! 16 ! 17 !

Basic commands

18 ! 19 ! 20 ! 21 ! 22 ! 23 ! 24 ! 25 ! 26 !

27 !

28 !

29 !

30 ! 31 !

These commands can be used while the monitor is on standby.

BCN1Cr Starts communication (connection) No data

BCN0Cr

BIDSETCr Assigns the control ID No data

BIDRETCr Initializes the control ID No data

BIDDSPxxCr Displays/hides the ID 00: Hide, 01: Display

BIDCHKxxCr

BMENUCr

BUPCrMoves the cursor upward (5) No data

BDOWNCrMoves the cursor downward (∞) No data

BADJRCrMakes setting/adjustment (3/+) No data

BADJLCrMakes setting/adjustment (2/–) No data

BENTERCr

BSETUPCr Displays the SET-UP MENU No data

BPW1Cr Turns on the monitor No data

BPW0Cr Turns off the monitor No data

BINACr Selects Input A No data

BINBCr Selects Input B No data

BINCCr Selects Input C No data

BINDCr Selects Input D No data

BINECr Selects Input E No data

BINFCr Selects Input F No data

BD ISPCr Displays the status No data

BVPLSCrTurns the volume up No data

BVMN SCrTurns the volume down No data

BVOL xxCr Adjusts the volume 0 – 30

BAMU TExxCr Turns muting on/off 00: Off, 01: On

BASPxCrSelects the aspect ratio

BASPTCr Changes the aspect ratio No data

BP ICMODExCrSelects the picture mode

BP IPxCrTurns on/off the PIP mode 0: Off, 1: On

BPBPxCr Turns on/off the PBP mode 0: Off, 1: On

Ter minates communication (termination)

Flashes/hides the selected ID No. of the monitor

Displays the MAIN MENU/Quits the menu operation

Enters the password for the Security Lock

No data

00: Hide, 01: Display

No data

0: REGULAR, 1: FULL, 2: ZOOM, 3: PANORAMIC, 4: REAL DOT

0: DYNAMIC, 1: NORMAL, 2: USER

ENGLISH

• “**” is monitor’s ID. Normally, set to “00.”

• Enter the appropriate data to “xx” or “x.”

• “Cr” is 0Dh.

Pin No. IN terminal signal OUT terminal signal

1 TXD + TXD +

2 TXD – TXD –

3 RXD + RXD +

4 NC NC

This is a female terminal.

5 NC IR. OUT

6 RXD – RXD –

7 5 V power NC

8 GND GND

• The 5V power supply of the 7th terminal is for the dedicated controller. Do not use it for other devices.

Pin No. Signal

1 — 2 RD (Receive Data) 3 TD (Transmit Data) 4 — 5 GND (Ground)

This is a female terminal.

6 — 7 RTS 8 CTS 9 —

• The 7th terminal and the 8th terminal are connected.

How to Use External Control (cont.)

Using the MAKE/TRIG. system

The RS-485 IN terminal is configured as follows. You can assign the functions to each pin terminal by setting “REMOTE SYSTEM” (see “PORT F1 – PORT F5” on page 27).

Pin No. Pin name

1 PORT F1 2 PORT F2 3 PORT F3 4 PORT F4

This is a female terminal.

To assign the functions to the pin terminals

For the operation procedure, see page 19.

1. Select “REMOTE SYSTEM” on the set-up menu.

2. Set “CNT. RJ45 IN” to “SET.”

3. Select a pin name (“PORT F1” – “PORT F5”) which you want to assign a function, and then select the function you want to assign.

• For functions which can be assigned, see the table below.

5 PORT F5 6 ENABLE 7 NC 8 GND

Functions controlled by MAKE/TRIG. system

Display Functions to be controlled Opening Short-circuiting

INP. A Changes the input to Input A. Invalid Valid

INP. B Changes the input to Input B. Invalid Valid

INP. C Changes the input to Input C. Invalid Valid

INP. D Changes the input to Input D. Invalid Valid

INP. E Changes the input to Input E. Invalid Valid

INP. F Changes the input to Input F. Invalid Valid

POWER Turns on/off the monitor. Power on Power off

ASPECT Changes the aspect ratio. REGULAR FULL

MUTING Turns off or resumes the volume. Muting off Muting on

PIP Turns on/off the PIP mode (see page 18). Invalid Valid

PBP Tu rns on/off the PBP mode (see page 18). Invalid Valid

– – – No function — —

NOTE

• You cannot assign the same function to different pin terminals.

• The TRIG. (trigger) system switches each function by short-circuiting for approx. 1 second.

Operation

1. Short-circuit the 6th pin terminal (External control) to the 8th pin terminal (GND) so that the monitor can be controlled by the external control.

2. Set “CNT. RJ45 IN” of “REMOTE SYSTEM” to “MAKE” or “TRIG.” on the set-up menu.

3. When selecting “MAKE” (make contact) system:

Operate each function by short-circuiting the corresponding pin terminal to the 8th pin terminal (GND) or opening it.

When selecting “TRIG.” (trigger) system:

Operate each function by Pulse control, that is short-circuiting the corresponding pin terminal to the 8th pin terminal (GND) for about 1 second.

NOTE

• When controlling INP. A/B/C/D/E/F, only one terminal must be short-circuited. (Other terminals must be opened.)

• When switching PIP and PBP modes, open the mode which has been shortcircuited before shortcircuiting the mode you want to make valid.

• When selecting the “TRIG.” (trigger) system, you can operate only one function at a time. Operate the functions one by one.

ENGLISH

Troubleshooting

Solutions to common problems related to the monitor are described here. If none of the solutions presented here solves the problem, unplug the monitor and consult an authorized dealer or service center.

Self-diagnostic lamp lights (flashes).

] See page 40 for details.

No sound.

] Is the volume set at minimum (see page

16)?

] Is the muting function activated (see page

16)?

Power is not supplied.

] Is the power cord connected (see page 15)? ] Is the main power switch (POWER) turned

on (see page 16)?

No picture.

] Is the correct input selected (see page 16)? ] Are the devices connected correctly (see

pages 14 and 15)?

] Are signals being input from the connected

devices?

] Is brightness adjusted correctly (see page

21)?

The remote control does not work.

] Are the batteries installed correctly (see

page 6)?

] Are the batteries exhausted? ] Is the front end of the remote control

pointing toward the remote sensor?

] Is there any object blocking the path

between the remote control and the remote sensor?

] Is the monitor too far away from you?

Symptom Probable cause and corrective action Page

Power is suddenly turned on or off. The power-on/off timer is activated. Deactivate the timer. 29

• For RGB input, adjust “DOT CLOCK” and “CLOCK PHASE” on the

The picture becomes blurred.

Color is abnormally bright or dark.

Color is poor or unstable. Select the correct color system. 25

The picture is cut or shifted toward one side.

Menu does not appear or disappears quickly.

Some items are not shown on the menu.

“PLEASE ENTER PASS ID” appears when trying to turn on the monitor.

main menu.

• If the connection cable used for RGB terminal is long, set “SYNC TERM.” to “LOW.”

• Adjust the picture quality on “PICTURE SETTING” of the main menu.

• If “TEMP. OVER” is displayed, follow the procedure described on page 40.

• Input signals (scanning frequency, etc.) are not appropriate.

• Adjust the size and position properly.

When “INPUT B” of “INPUT CONFIGURATION” is set to “COMPONENT” with a personal computer connected to the RGB/COMPO. terminal, the menu operation is not available. Select another input to operate the menu.

Items not available for the current input signal are not displayed. Change the input or signal format. Some items are displayed only when the corresponding optional input card is inserted.

The Security Lock is activated. Enter the password to turn on the monitor, and then deactivate the Security Lock.

—

27, 32

ENGLISH

•

Buttons on the main unit do not work. The Control Lock is activated. Deactivate it. 29

The following are not malfunctions:

Pixel defects

LCDs use collections of fine points (“pixels”) to display images. While there is no problem with more than 99.99% of these pixels, please understand that a very small number of pixels may not light, or may light all the time.

The following cases are only problems if an abnormality occurs on pictures or sounds as well:

• A slight electric shock occurs when you touch the monitor.

• The top and/or rear panel of the monitor becomes hot.

• The monitor emits a cracking sound.

• The monitor emits a strange sound.

Troubleshooting (cont.)

Self-diagnostic indication

When something abnormal occurs with the monitor, this function informs you of the condition of the monitor with the selfdiagnostic lamps, allowing for smooth service work.

Self-diagnostic

Power lamp

lamps

“TEMP. OVER” appears here.

If the monitor screen turns off and the self-diagnostic lamps light or flash

If the self-diagnostic lamps light or flash in red, check the following before consulting the dealer where you purchased the monitor.

• If the self-diagnostic lamp 1 (upper) flashes, lamp 2 (middle) lights, and lamp 3 (lower) flashes

This may be caused by the dusty intakes on the rear. If this

happens, switch off the main power using the POWER switch (set to “‡ (off)”), unplug the AC power cord, then clean the intakes by referring to the instruction on page 5.

After cleaning, switch on the monitor’s main power again. If

the self-diagnostic lamps do not go off, consult your dealer immediately.

If the monitor screen dims a little and “TEMP. OVER” appears (or flashes)

If “TEMP. OVER” appears or flashes at the right bottom of the screen, check the following before consulting the dealer where you purchased the monitor. “TEMP. OVER” appears to warn you of internal heat buildup, which is usually caused by accumulated dust around the intakes or by improper installation. If the cause of the internal heat buildup is eliminated, this indication disappears and the screen returns to normal brightness.

• If “TEMP. OVER” flashes in yellow

This may be caused by the dusty intakes on the rear. If this

happens, switch off the main power using the POWER switch (set to “‡ (off)”), unplug the AC power cord, then clean the intakes by referring to the instruction on page 5. – After cleaning, switch on the monitor’s main power again.

If “TEMP. OVER” still flashes, this problem may be caused by improper installation or improper location of the monitor. In this case, consult your dealer immediately to solve this improper installation and to improve the circumstances around the monitor.

• If “TEMP. OVER” appears in red

“TEMP. OVER” will be shown for about two minutes, the monitor

will shut off automatically, then the self-diagnostic lamps light in red. If this happens, switch off the main power using the POWER switch (set to “‡ (off)”), unplug the AC power cord, then consult your dealer immediately.

If the trouble still persists, follow the procedure below:

1 Check which lamps are lit or flashing.

On the Self-diagnostic Report Sheet (below), check the box next to “Lights” or “Flashes” of the corresponding lamp or lamps.

• Only one lamp may light or flash, or all three lamps may do so.

2 Switch off the POWER switch on the back of the

monitor.

3 Unplug the power cord.

4 Call your dealer and tell them which lamps are lit or

flashing. (Copy and fax the Self-diagnostic Report Sheet below.)

NOTE

• If you switch on the main power immediately after switching it off (or after recovering from a brief power interruption), the selfdiagnostic lamps may light (or flash), and no image may appear on the screen. In this case, switch off the main power again, wait for about 10 seconds, then switch it on again. If no self-diagnostic lamps light or flash, you can operate and use the monitor as usual.

Self-diagnostic Report Sheet

Store name where you purchased the monitor

Model name: LCD DISPLAY MONITOR GM-H40L2A

The self-diagnostic lamps light or flash as listed on the following table. Please give me immediate advice or service if necessary.

Self-diagnostic lamp

No. Lamp position Conditions

1 Upper

2Middle

3Lower

TEMP. OVER

Your Name

Telephone No.:

Address:

& Lights & Flashes & Lights & Flashes & Lights & Flashes

& Lights & Flashes

Specifications

General

Model name GM-H40L2A

Screen size Type 40 wide format

Aspect ratio 16:9 (Wide format)

LCD panel 40“ wide, active matrix TFT

Effective screen size (W x H, Diagonally) 885 mm x 498 mm, 1 015 mm

Number of pixels displayed 1 366 (H) x 768 (V)

Number of colors displayed 16.77 million (256 colors for each of RGB)

Viewing angle (TYP.) 170° (Horizontally), 170° (Vertically)

Brightness (TYP.) 400 cd/m

Contrast ratio (TYP.) 800:1

Response time less than 20 msec (Tr + Tf)

Weight 27.2 kg

External dimensions (W x H x D) 986 mm x 595 mm x 126 mm

Power requirements AC 120 V/AC 220 – 240 V, 50 Hz/60 Hz

Rated input current 2.4 A (AC 120 V)

1.5 A (AC 220 – 240 V)

Compatible signals See page 12.

Audio power output Internal: 1.7 W + 1.7 W (at impedance 8 Ω)

External: 6 Ω – 8 Ω, 2.2 W + 2.2 W (at impedance 6 Ω)

Speaker Ellipse (40 mm x 70 mm) x 2, impedance 8 Ω

Operating conditions Temperature: 0°C – 40°C

Relative humidity: 20% – 80% (non-condensation) (Slightly variable depending on ambient conditions for installation.)

ENGLISH

Input/output terminals

VIDEO IN A Video input BNC terminal x 1 1 V (p–p), 75 Ω

Y/C terminal x 1 Y: 1 V (p–p), 75 Ω

C (BURST): 0.286 V (p–p), 75 Ω (for NTSC)

0.3 V (p–p), 75 Ω (except for NTSC)

Video output BNC terminal x 1 1 V (p–p), 75 Ω

VIDEO IN B RGB/COMPONENT input D-sub 3-row 15-pin x 1 (RGB is compatible with DDC2B.)

Video signal G, Y: 1 V (p–p), 75 Ω (including sync)

B/CB, PR/CR: 0.7 V (p–p), 75 Ω

B, R, P

Horizontal sync (HD)/Composite sync (Cs) HD: 0.3 V (p–p) to 5 V (p–p), 1 kΩ (positive/negative

polarity)

Cs: 0.3 V (p–p) to 5 V (p–p), 1 kΩ (positive/negative

polarity)

Vertical sync (VD) VD: 1 V (p–p) to 5 V (p–p), 1 kΩ (positive/negative

polarity)

DVI input DVI-D terminal x 1 (Compatible with DDC2B)

AUDIO IN A Audio input Pin jack terminal x 2 (L/R) 500 mV (rms), high impedance

AUDIO IN B Audio input Stereo mini jack terminal x 1 500 mV (rms), high impedance

REMOTE RS-232C input D-sub 9-pin terminal x 1 (For RS-232C control)

RS-485 input RJ-45 pin terminal x 1 (For RS485, MAKE, and TRIGGER control)

RS-485 output RJ-45 pin terminal x 1 (For RS485 and IR OUT control)

AUDIO OUT MONITOR OUT Pin jack terminal x 2 (L/R) Output impedance 600 Ω

EXT. SPEAKER Speaker output terminal (L/R) Impedance 6 Ω to 8 Ω

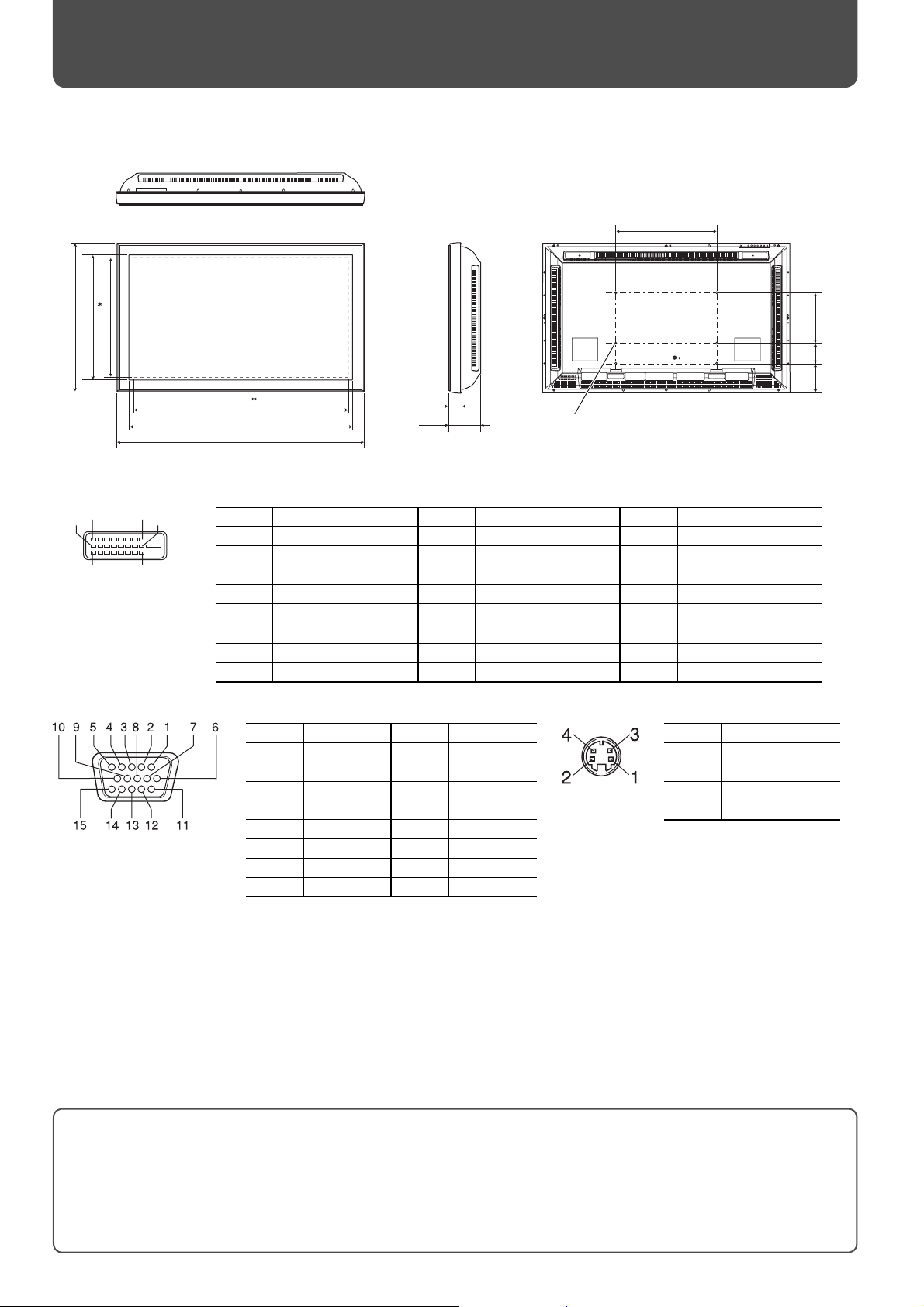

Specifications (cont.)

Dimensions

Unit: mm

Top view

Front view Side view Rear view

595

498

500.3

885

887.8 986

* Effective screen size

126

Screw hole for optional installation unit. Screw size: 6 – M6, depth: 20 mm

Specifications of the DVI-D terminal

916

17 24

Pin No. Signal name Pin No. Signal name Pin No. Signal name

1 T.M.D.S Data 2– 9 T.M.D.S Data 1– 17 T.M.D.S Data 0– 2 T.M.D.S Data 2+ 10 T.M.D.S Data 1+ 18 T.M.D.S Data 0+ 3 T.M.D.S Data 2/4 shield 11 T.M.D.S Data 1/3 shield 19 T.M.D.S Data 0/5 shield 4 NC 12 NC 20 NC 5 NC 13 NC 21 NC 6 DDC Clock 14 +5 V Power 22 T.M.D.S Clock shield 7 DDC Data 15 GND 23 T.M.D.S Clock+ 8 NC 16 Hot Plug Detect 24 T.M.D.S Clock–

400

200

117.5

Specifications of the RGB/COMPO. terminal Specifications of the Y/C IN terminal

Pin No. Signal name Pin No. Signal name

1 Red 9 +5V 2 Green 10 GND 3 Blue 11 GND 4 N/C 12 DDC Data 5 GND 13 HD/Cs 6 GND 14 VD 7 GND 15 DDC Clock 8 GND

External

GND

Options (not supplied)

Stand Unit TS-CL03SG Wall Mounting Unit TS-CV20WG

• Consult your dealer to see if other options are available.

Notice on transportation

This monitor is precision equipment and needs dedicated packing material for transportation. Never use any packing material supplied from sources other than JVC or JVC-authorized dealers.

• For easy understanding, pictures and illustrations are shown by being emphasized, omitted or composed, and may be more or less different from actual products.

• Design and specifications are subject to change without notice.

• IBM and IBM PC are registered trademarks of International Business Machines Corporation. Macintosh is registered trademarks of Apple Computer, Inc.

All other product names mentioned herein are used for identification purposes only, and may be the trademarks or

registered trademarks of their respective companies.

Pin No. Signal name

1 GND (Y) 2 GND (C) 3 Y 4 C

0406MKH-MW-VP

GM-H40L2A LCD DISPLAY MONITOR

JVC GM-H40L2A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Precautions

IMPORTANT SAFEGUARDS

Maintenance

Table of Contents

Parts Identification

Remote control

Front panel

Rear panel

Installation

Connecting external speakers

Connections

Available signals

Daily Operations

Turning on the main power

Turning on the monitor

Selecting an input

Adjusting the volume

Changing the aspect ratio

Displaying the current status

Selecting the picture mode

Viewing Inputs A and B (analog RGB input) at the same time—Dual Display

Menu Operations

Menu Configuration—MAIN MENU

Menu Configuration—SET-UP MENU

Setting the Security Lock

How to Use External Control

About the external control

Using the serial communication

Using the MAKE/TRIG. system

Troubleshooting

Self-diagnostic indication

Specifications
