JVC GM-H40L1G/E, GM-H40L1G/U, GM-H40L2GU - Professional Lcd Display Monitor, GM-H40L1G Instructions Manual

DEUTSCHFRANÇAISITALIANOESPAÑOL ENGLISH

INSTRUCTIONS

GM-H40L1G

LCD DISPLAY MONITOR

BEDIENUNGSANLEITUNG: LCD-DISPLAYMONITOR
MANUEL D’INSTRUCTIONS: MONITEUR LCD
ISTRUZIONI: SCHERMO A CRISTALLI LIQUIDI
MANUAL DE INSTRUCCIONES: MONITOR PANTALLA LCD

LCT1943-001A

2

Safety Precautions

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,

DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED
ON THE APPARATUS.

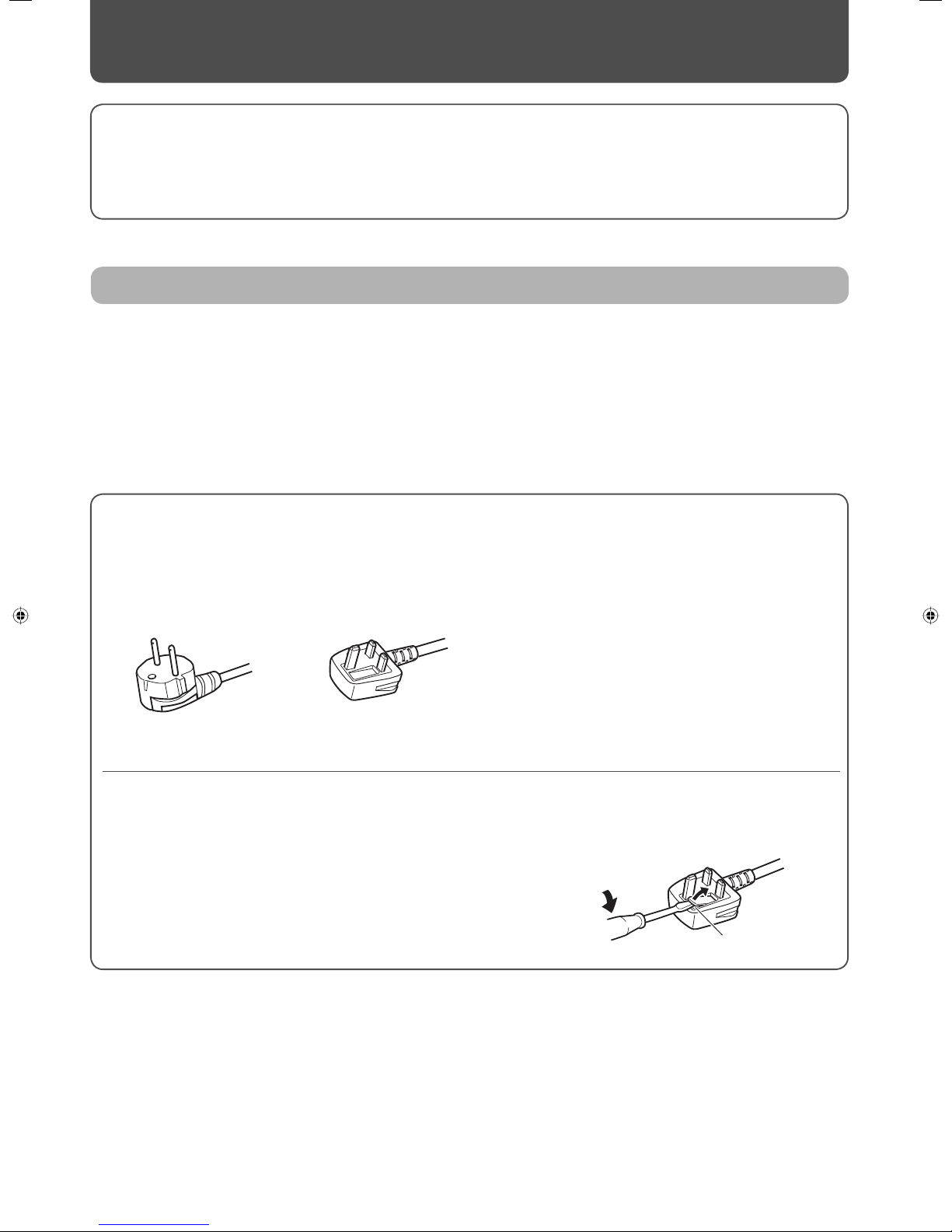

POWER CONNECTION

The power supply voltage rating of this product is AC 220 – 240 V.
The power cord attached conforms to the following power supply voltage and countries. Use only the power cord
designated to ensure safety and EMC regulations of each countries.

This plug will fi t only into a grounded power outlet. If you
are unable to insert the plug into the outlet, contact your
electrician to install the proper outlet. Do not defeat the
safety purpose of the grounded plug.

• This product should be operated only with the type of power source indicated on the label. If you are not sure of the
type of power supply of your home, consult your product dealer or local power company.

Note for United Kingdom power cord only

The plug on United Kingdom power cord has a built-in fuse. When replacing the fuse, be sure to use only a correctly rated
approved type, re-fi t the fuse cover. (Consult your dealer or qualifi ed personnel.)

How to replace the fuse

Open the fuse compartment with the blade screw driver, and replace the fuse.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your
personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to
defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use, and service.
Please read these “IMPORTANT SAFEGUARDS” carefully before use.

• All the safety and operating instructions should be read before the product is operated.

• The safety and operating instructions should be retained for future reference.

• All warnings on the product and in the operating instructions should be adhered to.

• All operating instructions should be followed.

Fuse

For United Kingdom:
AC 220 – 240 V

For European and Asian countries:
AC 220 – 240 V

3

ENGLISH

• Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short out parts that could result in a
fi re or electric shock.

• Never spill liquid of any kind on the product.

• Slots and openings in the cabinet are provided for
ventilation. These ensure reliable operation of the
product and protect it from overheating. These
openings must not be blocked or covered.

• The openings should never be blocked by placing
the product on bed, sofa, rug, or similar surface. It
should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided
and the manufacturer’s instructions have been
adhered to.

• For proper ventilation, separate the product from
other equipment, which may prevent ventilation and
keep distance more than 10 cm.

Unplug this product from the wall outlet and refer service to qualifi ed service personnel under the
following conditions:

a) When the power supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen on the product.
c) If the product has been exposed to rain or water.
d) If the product operated normally by following the operating instructions. Adjust only those controls that are covered by

the Operation Manual, as an improper adjustment of controls may result in damage and will often require extensive work

by a qualifi ed technician to restore the product to normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance —this indicates a need for service.

Do not attempt to service this product yourself, as
opening or removing covers may expose you to
dangerous voltages and other hazards. Refer all service
to qualifi ed service personnel.

• Do not place this product on an unstable cart, stand,
or table. The product may fall, causing serious injury
to a child or adult, and serious damage to the product.

The product should be mounted according to the

manufacturer’s instructions, and should use a mount
recommended by the manufacturer.

• When the product is used on
a cart, care should be taken to
avoid quick stops, excessive
force, and uneven surfaces
which may cause the product
and cart to overturn, damaging
equipment or causing possible
injury to the operator.

• Do not use this product near water.

• Do not use immediately after moving from a low
temperature to high temperature, as this causes
condensation, which may result in a fi re, electric
shock, or other hazards.

4

Do not place combustibles behind the cooling fan. For
example, cloth, paper, matches, aerosol cans or gas
lighters that present special hazards when over heated.

Safety Precautions (cont.)

• When replacement parts are required, be sure the service technician has used replacement parts specifi ed by the
manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fi re, electric
shock, or other hazards.

• Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.

• Power-supply cords should be routed so that they are
not likely to be walked on or pinched by items placed
upon or against them. Pay particular attention to cords
at doors, plugs, receptacles, and the point where they
exit from the product.

• For added protection of this product during a lightning
storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and
disconnect the cable system. This will prevent damage to
the product due to lightning and power line surges.

• Do not overload wall outlets, extension cords, or
convenience receptacles on other equipment as this can
result in a risk of fi re or electric shock.

• Use only the accessory cord designed for this product to
prevent shock.

• When connecting other products such as VCR’s and
personal computers, you should turn off the power of
this product for protection against electric shock.

• Do not use attachments not recommended by the
product manufacturer as they may be hazardous.

The product should be placed more than 30 cm away
from heat sources such as radiators, heat registers, stoves,
and other products (including amplifi ers) that produce
heat.

5

ENGLISH

Maintenance

• Unplug this product from the wall outlet before cleaning.

• Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

• Use a vacuum cleaner to get rid of the dust around the intakes (all the openings) on the rear. If a vacuum is not available,
use a cloth and wipe it off . Failure to do so will cause internal heat buildup and, therefore, cause damage to the product.

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household
waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the
recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with
your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential
negative eff ects on the environment and human health which could otherwise be caused by inappropriate
waste handling of this product. For more information about collection point and recycling of this product, please
contact your local municipal offi ce, your household waste disposal service or the shop where you purchased the
product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information
about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other
rules in your country for the treatment of old electrical and electronic equipment.

Attention:

This symbol is
only valid in the
European Union.

6

Table of Contents

Safety Precautions .............................................. 2

IMPORTANT SAFEGUARDS ........................................2

Maintenance ...................................................................5

Parts Identifi cation ............................................. 7

Remote control ..............................................................7

Front panel ......................................................................8

Rear panel ........................................................................8

Installation ........................................................ 10

Connecting external speakers .............................. 11

Connections ...................................................... 12

Available signals ......................................................... 12

Daily Operations ............................................... 16

Turning on the main power ...................................16

Turning on the monitor ...........................................16

Selecting an input .....................................................16

Adjusting the volume ..............................................16

Changing the aspect ratio ...................................... 17

Displaying the current status ................................ 17

Selecting the picture mode ...................................18

Selecting the audio mode ...................................... 18

Viewing Inputs A and B (analog RGB input)

at the same time —Dual Display .................... 18

Menu Operations .............................................. 19

Menu Confi guration—MAIN MENU ................ 20

Menu Confi guration—SET-UP MENU .............. 26

Setting the Power-on Lock .....................................32

How to Use External Control ............................ 33

Troubleshooting ............................................... 36

Self-diagnostic indication ....................................... 38

Specifi cations .................................................... 39

Checking the accessories

The following accessories are included with the monitor. Check for them. If any item is missing, please contact the dealer
where you have purchased the monitor.

• Remote control (RM-C2005)

• Power cord x 1

• D-sub 15 pin – BNC conversion cable x 1

• Batteries (AA/R6) x 2

• Ferrite cores x 2

NOTE

• Be sure to attach the supplied ferrite cores to the speaker cords when using external speakers to reduce interference from the monitor on
external equipment (see page 11).

Inserting the batteries

Use two AA/R6 dry cell batteries.
Insert the batteries from the · end, making sure the ª and · polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on how much you use
the remote control.

• The batteries we supply are only for setting up and testing your monitor,
please replace them as soon as you need to.

• If the remote control does not work properly, replace the batteries.

7

ENGLISH

Parts Identifi cation

Remote control

POWER OFF button

Turns off the monitor (see page 16).

SET-UP button

Displays the set-up menu (see page

19).

MENU/EXIT button

Displays the main menu (see page

19).

PICTURE MODE buttons

Changes the picture mode (see
page 18).

DUAL DISPLAY buttons

Activates/deactivates the dual
display mode (see page 18).

AUDIO MODE buttons

VOLUME +/– buttons

Adjusts the volume level (see page

16).

STEREO, MONO buttons

Changes the audio mode (see page

18).

MUTING button

Turns off the volume immediately
(see page 16).

POWER ON button

Turns on the monitor (see page 16).

ASPECT button

Changes the aspect ratio (see page

17).

DISPLAY button

Displays the information of the
current input (see page 17).

5∞ 2 3 buttons

Operates the menu (see page 19).

OK button

Enters the password for the Power­on Lock (see page 32).

INPUT SELECT buttons

Selects the input (see page 16).

A (VIDEO) button

Selects the input to the VIDEO IN
A terminal (Input A).

B (RGB/COMPO./DVI) button

Selects the input to the VIDEO IN
B terminal (Input B).

C, D (SLOT-1) buttons

Selects the input to the optional
input card inserted in the slot 1
(Input C/D).

E, F (SLOT-2) buttons

Selects the input to the optional
input card inserted in the slot 2
(Input E/F).

8

Front panel

Rear panel

Remote sensor:

Point the front end of the remote control toward here.

Eco sensor:

Detects brightness of the room (see page 25).

Self-diagnostic lamps:

These lamps light/fl ash if something abnormal occurs with
the monitor (see page 38).

Power lamp:

When the monitor is turned off : Unlit.
When the monitor is turned on: Lights in green.
When the monitor is in sleep mode: Flashes in orange.
When the monitor is in standby mode: Lights in orange.

Input card slots (SLOT-1, SLOT-2):

Optional input cards can be installed in these slots.

• For details about input cards, refer to the
instructions of the input card.

REMOTE terminals

Connect external control equipment (see pages 14, 33 to 35).

RS-232C terminal: Connect to the RS-232C terminal of a

personal computer. For the control method
using this terminal, consult an authorized JVC
dealer.

RS-485 terminals:

IN terminal: Connect external control equipment.
OUT terminal: Connect another component to send out the

control signal coming into the IN terminal
(cascade connection).

AUDIO OUT terminals

Connect external speakers or audio equipment.

EXT. SPEAKER terminal: Connect external speakers (commercially available) (see page 11).

• To use this terminal, set “SPEAKER SELECT” on the main menu to “EXT. (external)” (see page 23).
MONITOR OUT terminals: Connect to the audio input terminals of audio equipment such as an amplifi er (see

page 14).

Parts Identifi cation (cont.)

Clear panel:

Before installation, peel the protective fi lm off .

9

ENGLISH

1 (Power) button: Turns the monitor on/off (see page 16).
2 INPUT button: Changes inputs (see page 16).
3 MENU button: Displays the main menu (see page 19).
4 5/∞ buttons: Selects an item on the menu (see page 19).
5 +/– buttons: Adjusts the volume level (see page 16).

• When the menu is displayed, adjusts the value (see page 19).

6 SET-UP button: Displays the set-up menu (see page 19).

AC IN terminal:

Connect the supplied power cord (see page 15).

POWER switch:

I : Turns on the main power. (The power can be

controlled by POWER ON/OFF buttons on the
remote control or button on the main unit.)

‡: Turns off the main power.

AUDIO IN A/B terminals

Connect audio output terminals of equipment
such as a VCR (see page 15).

AUDIO IN A terminal

R, L/MONO terminals (pin jack):

Connect to the audio output terminals of
the equipment connected to the VIDEO
IN A terminal. (Connect only the L/MONO
terminal for monaural sound.)

AUDIO IN B terminal

STEREO terminal (stereo mini jack):

Connect to the audio output terminals of
the equipment connected to the VIDEO IN
B terminal.

VIDEO IN A/B terminals

Connect video output terminals of equipment such as a VCR (see page 15).

VIDEO IN A terminal

IN terminal (BNC): Connect to the video output terminals of playback equipment such as a

VCR.

OUT terminal (BNC): Connect to the video input terminal of another monitor, etc.
Y/C IN terminal (Y/C): Connect to the S-video output terminal of playback equipment such as a

VCR.

• When both IN terminal and Y/C IN terminal are used, the input to the Y/C IN terminal has priority.

VIDEO IN B terminal

RGB/COMPO. terminal (D-sub 15-pin)*: Connect to the video output terminal of a personal

computer or playback equipment such as a VCR.

DVI-D terminal (DVI-D)*: Connect to the digital output terminal of a personal computer.

* When connecting to a personal computer, use a cable with ferrite cores and no longer than of 3 m to avoid

electromagnetic disturbance.

150 150

50

50

200

10

Installation

Precautions

• Before installation, peel the protective fi lm off from the clear panel attached to the front panel.

• When installing the monitor, be sure to use a dedicated stand unit or wall mounting unit, depending on your particular
case. Ask your dealer to install.

• When installing the monitor in a special way (for example, installing it diagonally), consult your dealer.

• Route the power cord and connection cables along the wall or fl oor corners to avoid walking on them.

• For good heat dissipation, try to leave the following distance of space (minimum) around the monitor (see diagram below).

• The ambient temperature of the installation place should be within the range of 0°C to 40°C (slightly variable depending on
ambient conditions for installation).

• When installing the monitor near the ceiling or similar location, the remote control may not work correctly because of
possible eff ects, such as refl ections, from the surroundings. If this happens, move the monitor where it is free from these
eff ects.

• Do not install the monitor in such a way that the monitor and other AV equipment aff ect each other adversely. (For
example, if a disturbed image or noise due to electromagnetic interference occurs, or if the infrared remote control
malfunctions, change the installation place.)

When installing the monitor on a stand

Front view Side view

Unit: mm

When mounting the monitor on the wall

Front view Side view

Unit: mm

200

100

100

100

15

11

ENGLISH

Connecting external speakers

You can connect commercial speakers of the following specifi cations to the EXT. SPEAKER terminal:

• Impedance: Between 6 Ω and 8 Ω

• Power handling capacity: More than 3 W

Speakers

(commercially available)

Ferrite core (supplied)

To reduce interference from the monitor on external
equipment, attach the supplied ferrite cores near to the
EXT. SPEAKER terminals on the rear panel of the monitor.

CAUTION

• Do not short-circuit 9 and ( speaker cords to each other. (Refer also to the instructions supplied with the speakers.)

NOTE

• When using the external speakers, set “SPEAKER SELECT” on the main menu to “EXT. (external)” (see page 23).

When installing the monitor vertically

• Make sure to install the monitor in the direction illustrated on the right.

• Set the speed of the internal cooling fan to “HIGH” (see “FAN SPEED” on
page 31).

Speakers

(commercially available)

12

Available signals

The following signals can be input to this monitor.

Video signals

Terminal Available signals
VIDEO IN A terminals NTSC, PAL, SECAM, PAL60, NTSC4.43, PAL-M, PAL-N, BW (50 Hz/60 Hz)
VIDEO IN B (RGB/

COMPO.) terminal

Component signals 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i

(1035/60i)*1, 1080/50i, 1080/24psF

RGB signals 15 kHz/50 Hz, 15 kHz/60 Hz

*1 Select an appropriate setting for High-Defi nition signal (see “1080/1035“ on page 25).

Computer signals (Preset)

VIDEO IN B (RGB/COMPO., DVI-D) terminals

No. Signal name

Screen resolution Horizontal

frequency

(kHz)

Ver tical

frequency

(Hz)

Scan system

Input terminal

Horizontal Vertical RGB/COMPO. DVI-D

1 PC98 640 400 24.8 56.4 Non-interlace √ —
2VGA400-70 640 400 31.5 70.1 Non-interlace √ —
3VGA480-60 640 480 31.5 59.9 Non-interlace √ √
4WVGA-60 852 480 31.5 59.9 Non-interlace √ —
5VGA480-72 640 480 37.9 72.8 Non-interlace √ —
6SVGA-60 800 600 37.9 60.3 Non-interlace √ √
7XGA-60 1024 768 48.4 60.0 Non-interlace √ √
8WXGA-60 1366 768 48.4 60.0 Non-interlace √ √

9XGA-70 1024 768 56.5 70.1 Non-interlace √ —
10 XGA-75 1024 768 60.0 75.0 Non-interlace √ —
11 XGA-85 1024 768 68.7 85.0 Non-interlace √ —
12 XGA+-75*

2

1152 864 67.5 75.0 Non-interlace √ —

13 SXGA-60*

2

1280 1024 64.0 60.0 Non-interlace √ √

14 SXGA-75*

2

1280 1024 80.0 75.0 Non-interlace √ —

15 UXGA-60*

2

1600 1200 75.0 60.0 Non-interlace √ —
16 MAC13” 640 480 35.0 66.7 Non-interlace √ —
17 MAC16” 832 624 49.7 74.6 Non-interlace √ —
18 MAC19” 1024 768 60.2 74.9 Non-interlace √ —
19 MAC21” *

2

1152 870 68.7 75.1 Non-interlace √ —

√ : Acceptable
— : Not acceptable

*

2

When No. 12 to No. 15 and No. 19 signals are input, thin lines may become obscured because their signal frequencies are higher than the

screen resolution.

Connections

13

ENGLISH

Note for VIDEO IN A (IN, Y/C IN) terminals

When both IN terminal and Y/C IN terminal are used, the input to the Y/C IN terminal has priority.

Note for VIDEO IN B (RGB/COMPO., DVI-D) terminals

Select the correct input for Input B on the main menu (see “INPUT CONFIGURATION” on page 23).

• When RGB signals are input to the RGB/COMPO. terminal: Set “INPUT B” to “ANALOG RGB.”

• When component signals are input to the RGB/COMPO. terminal: Set “INPUT B” to “COMPONENT.”

• When using the DVI-D terminal: Set “INPUT B” to “DVI.”

Note for component signals

• The monitor is compatible only with Y on sync signals. The monitor is not compatible with composite sync (Cs) and
separated sync (HD/VD) signals.

Note for computer signals

• When a signal other than those listed on page 12 is input, part of the picture may not be displayed or an unnecessary
picture may appear.

• Any signal other than those listed on page 12 may not be displayed normally although it’s frequency is within the
acceptable range.

• Depending on the connected equipment, the monitor may not be compatible with composite sync (Cs) or G on sync
signals.

• When a preset mode signal is input, the signal format is displayed on the screen. For other signals, the horizontal frequency
and vertical frequency are displayed.

• The DVI-D terminal can accept only No. 3, 6, 7, 8, and No. 13 signals.

• When the No. 3 and No. 7 signals are input, set “SAMPLING MODE” to “STD” on the set-up menu (see page 31).

• When the No. 4 and No. 8 signals are input, make the following settings:
– Set “SAMPLING MODE” to “WIDE” on the set-up menu (see page 31).
– Change the aspect ratio to “FULL” (see pages 17 and 21).
– Set the video card of the personal computer to “852 x 480” (for No. 4 signal)/“1366 x 768” (for No. 8 signal).

• When No. 12 to No. 15 and No. 19 signals are input, thin lines may become obscured because their signal frequencies are
higher than the screen resolution.

• The adjustment of the screen size and position is the setting common to the No. 10 and No. 18 signals. If you use both
signals by switching them, the adjustment of either signal may not be proper.
