JVC EX-D11 User Manual

COMPACT COMPONENT SYSTEM
EX-D11
Consists of CA-EXD11 and SP-EXD11
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
Model No. Serial No.
GNT0066-001A
[J]
Warnings, cautions and others
Mises en garde, précautions et indications diverses
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
ATTENTION
Afin d’éviter tout risque d’électrocution, d’incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.
2. Ne pas exposer l’appareil à la pluie ni à l’humidité.
CAUTION — (Standby/on) button!
Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The disconnect the mains line.
• When the system is on standby, the STANDBY lamp
• When the system is turned on, the STANDBY lamp
The power can be remote controlled.
ATTENTION—Touche (attente/sous tension)
Déconnectez la fiche secteur pour mettre l’appareil complètement hors tension (le témoin STANDBY l s’éteint). Lors de l’installation de l’appareil, assurez-vous que la fiche soit facilement accessible. La touche quelle position ne déconnecte pas l’appareil du secteur.
• Quand l’appareil est en mode d’attente, le témoin
• Quand l’appareil est sous tension, le témoin STANDBY
L’alimentation ne peut pas être commandée à distance.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
Caution
Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.
Attention
Des changements ou modifications non approuvés par JVC pourront invalider l’autorité de l’utilisateur à opérer cet appareil.
(Standby/on) button in any position does not
lights red.
goes off.
(attente/sous tension) dans n’importe
STANDBY est allumé en rouge.
s’éteint.
[European Union only] [
Union européenne seulement]
G-1
For Canada/pour le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS”, ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.
Declaration of Conformity:
Trade Name: JVC Model Number: EX-D11 Responsible Party: JVC American Corp. Address: 1700 Valley Road, Wayne
Telephone Number: 973-317-5000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.
IMPORTANT POUR PRODUITS LASER
1. PRODUIT LASER CLASSE 1
2.
ATTENTION: N’ouvrez pas le couvercle supérieur. Il
n’y a aucune pièce réparable par l’utilisateur à l’intérieur de l’appareil; confiez toute réparation à un personnel qualifié.
3.
ATTENTION: (Pour les Etats-Unis) Radiation laser de classe II visibles et/ou invisible si l’appareil est ouvert. Ne regardez pas le rayon. (Pour le Canada) invisible de classe 1M une fois ouvert. Ne pas regarder directement avec des instruments optiques.
4. REPRODUCTION DE L’ÉTIQUETTE: ÉTIQUETTE DE PRÉCAUTION PLACÉE À L
New Jersey 07470
Rayonnement laser visible et/ou
INTERIEUR DE L’APPAREIL.
Table of contents
Introduction
Special cautions ..............................................2
Notes on handling............................................... 2
Supplied accessories.......................................... 2
About discs......................................................3
Playable disc types............................................. 3
Disc structure...................................................... 4
Description of parts .........................................5
Front panel.......................................................... 5
Display window................................................... 5
Rear panel .......................................................... 5
Getting started
Using the remote control .................................6
Putting the batteries in the remote control.......... 6
Operating the TV using the remote control......... 7
Connecting up .................................................8
Connecting antennas.......................................... 8
Connecting speakers.......................................... 9
Connecting other devices................................. 10
Connecting with TV........................................... 11
Connecting the power cord............................... 11
Basic operations
Playing discs .................................................12
Playback ........................................................... 12
To switch the display ........................................ 13
Select an item on the disc by using the number
buttons....................................................... 14
To stop playback............................................... 14
To pause playback............................................ 14
To advance picture frame-by-frame.................. 14
Fast reverse/Fast forward search..................... 14
Playing back from a position 10 seconds before
(One Touch Replay) .................................. 15
Slow Motion Playback....................................... 15
Skip to the beginning of the selection............... 15
To change the brightness of the display window
(DIMMER).................................................. 16
Adjusting the volume ........................................ 16
Adjusting sound quality..................................... 16
Turning off the sound temporarily (MUTING) ... 16
Playing audio/video files................................16
Playback ........................................................... 17
Repeat playback............................................... 17
Resume Playback .........................................18
Select the scene to be played .......................19
Select the scene from the menu....................... 19
Designate the time (Time search)..................... 20
Other convenient functions............................24
Selecting the subtitles........................................24
Selecting the audio language............................24
Selecting a view angle.......................................24
Enlarging the picture (ZOOM) ...........................25
Adjusting the picture quality (VFP) ....................25
Making dialogues clear (CLEAR VOICE)..........25
Creating realistic sound (3D PHONIC)..............26
Adjusting playback level (DVD LEVEL).............26
Enjoying better pictures (SCAN MODE)............26
Functions specific to DVD AUDIO.................27
Playing the Bonus Group...................................27
Browsable Still Pictures (B.S.P.) .......................27
Using the menu bar....................................... 28
Preferences................................................... 29
Basic operations................................................29
LANGUAGE.......................................................29
PICTURE...........................................................29
AUDIO ...............................................................30
OTHERS............................................................30
Listening to the radio
Listening to a radio broadcast .......................31
Selecting a station.............................................31
Presetting stations.............................................31
Tuning in to a preset station..............................31
Convenient functions
Playing Back from the PC .............................32
Listening to the sound of other audio device
Listening to the sound of external audio device .... 33
Listening to the sound of portable audio device
Adjusting the audio input level...........................34
....33
....33
Setting the Various Timer..............................34
Setting the built-in clock.....................................34
Setting the daily timer........................................35
Auto Standby.....................................................36
Sleep Timer .......................................................36
Tray Lock.......................................................36
Reference
Troubleshooting.............................................37
Language codes............................................38
Specifications ................................................39
Advanced operations
Program/Random Playback ..........................20
Play the disc in the desired order (Program
Playback)................................................... 20
Playing the disc in a random order (Random
Playback)................................................... 21
Repeat Playback ...........................................22
Playing the title/chapter/group/track/all tracks
repeatedly (REPEAT)................................ 22
Playing the designated part repeatedly (A-B
Repeat Playback) ...................................... 23
1
Special cautions
Notes on handling
7 Important cautions
Installation of the system
• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C (between 41°F and 95°F).
• Leave sufficient distance between the system and the TV.
• Do not use the system in a place subject to vibration.
Power cord
• Do not handle the power cord with wet hands.
• A small amount of power is always consumed while the power cord is connected to the wall outlet.
• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.
To prevent malfunctions of the system
• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.
• Do not insert any metallic object into the system.
• Do not use any non-standard shape disc (like a heart, flower or credit card, etc.) available on the market, because it may damage the system.
• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.
Label sticker
Sticker
Paste
If water gets inside the system
Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.
7 When condensation or water drops adhere to the
lens
In any of the following cases, condensation or water drops may adhere to the lens to prevent the system from working properly:
• Immediately after starting to heat the room
• When the system is installed in a steamy or damp space
• When the system is suddenly moved from a cold place to a warm space
In any of these cases, leave the system turned on for 1 or 2 hours before use.
Supplied accessories
Check to be sure you have all of the supplied accessories. The number in parentheses is the quantity of the pieces supplied. If anything is missing, contact your dealer immediately.
• Remote control (1)
• Batteries (2)
• FM antenna (1)
• AM loop antenna (1)
• Power cord (1)
• Composite video cord (1)
• Speaker cords (2)
Note about copyright laws
Check the copyright laws in your country before recording from DVDs, VCDs, SVCDs, and CDs. Recording of copyrighted material may infringe copyright laws.
Note about copy guard system
DVDs are protected by copy guard system. When you connect the system to your VCR directly, the copy guard system activates and the picture may not be played back correctly.
7 Safety precautions
Avoid moisture, water and dust
Do not place the system in moist or dusty places.
Avoid high temperatures
Do not expose the system to direct sunlight and do not place it near a heating device.
When you are away
When away on travel or for other reasons for an extended period of time, disconnect the power cord plug from the wall outlet.
Do not block the vents
Blocking the vents may damage the system.
Care of the cabinet
When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.
How to read this manual
• Operations are described by mainly using the
remote control buttons. If there are the same marks on the main unit, the buttons on the main unit can also be used.
• The following marks tell you for which type of the
discs the operation can be made.
• The illustrations and TV screens may be different
between the actual case and the description.
• “DVD VR” means a DVD recorded in DVD Video
Recording (DVD VR) format.
• “VCD” is an abbreviation of “Video CD”.
• “SVCD” is an abbreviation of “Super Video CD”.
2
About discs
Playable disc types
Discs you can play:
*3
*3
Video
Format
NTSC
– –
Playable
Playable
*1
*2
*3
*3
Disc Type Mark (Logo)
DVD
VIDEO
DVD
AUDIO
AUDIO
VCD NTSC
SVCD NTSC
CD
The “Playable” in the following list shows available disc types and recording formats.
Disc type
Recording
CD-R/-RW*1DVD-R*1DVD-RW
format
DVD Video DVD Audio
*2
DVD V R VCD/SVCD Playable Audio CD Playable MP3/WMA/
JPEG MPEG1/
MPEG2
• A DVD VR formatted DVD-ROM is also playable.
*1 This system can play finalized discs only. *2 Only when a DVD-R/-RW is compatible with CPRM
(Content Protection for Recordable Media), DVD VR format can be used.
*3 Recorded with UDF Bridge format. However, some discs may not be played back because of
their disc characteristics, recording conditions, or damage or stain on them. Only sounds can be played back from the following discs:
MIX-MODE CD CD-G CD-EXTRA CD TEXT
– – Playable Playable
Playable Playable
Playable Playable
Playable Playable
Playable*2Playable
– –
is a trademark of DVD Format/Logo
Licensing Corporation.
Introduction
Caution for DualDisc playback
The non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.
Note on Region Code
DVD VIDEO players and DVD VIDEO discs have their own Region Code numbers. This system can play back DVD VIDEO discs whose Region Code numbers include the system’s Region Code, which is indicated on the rear panel.
Examples:
If a DVD VIDEO with an improper Region Code number is loaded, “REGION CODE ERROR!” appears on the TV screen and playback cannot start.
• On some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.
Notes on CD-R and CD-RW
• This system supports “multi-session” discs (up to 20 sessions).
• This system cannot play “packet write” (UDF format) discs. Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them.
Discs that cannot be played back
• DVD-RAM, CD-ROM, CD-I (CD-I Ready), Photo CD, SACD, etc. Playing back these discs will generate noise and damage the speakers.
Damaged discs and discs in an extraordinary shape (other than a disc of 12 cm or 8 cm (5 inches or 3 inches) in diameter) cannot be played back.
Notes on all files
• The system can only recognize and play files with one of the following extensions, which can be in any combination of upper and lower case;
MP3: “.mp3”
WMA: “.wma”
JPEG: “.jpg”, “.jpeg”
MPEG1/MPEG2: “.mpg”, “.mpeg”
• If a character other than single byte English characters is used in the file name, the track/file name will not be displayed correctly.
• The system recognizes up to 150 tracks (files) per group, 99 groups per disc, and the total number of the tracks (files) that the system can play is 4 000.
• Since the unit ignores the tracks/files whose numbers are exceeding 150 and the groups whose numbers are exceeding 99, they cannot be played back.
• Some files may not be played back normally because of their disc characteristics or recording conditions.
• It is possible to playback finalized +R/+RW (DVD Video Format only) discs, “DVD” lights on the front display panel when a +R/+RW disc is loaded.
3
About discs (continued)
For MP3/WMA files
• An off-the-shelf MP3 disc may be played in an order different from that indicated on the label attached to the disc.
• The system supports MP3/WMA files recorded with a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz, 24 kHz (WMA only), 32 kHz, 44.1 kHz, or 48 kHz.
• If the tag information (album name, artist, and track title, etc.) is recorded on a disc, it appears in the file control display on the TV screen.
• We recommend to record each piece of material (song) at a sample rate of 44.1 kHz and at a data transfer rate of 128 (96 for WMA only) kbps.
• This system cannot play back files encoded with Multiple Bit Rate (MBR). (MBR is a format to encode a file content at several different bit rates.)
For JPEG files
• We recommend to record a file at 640 x 480 resolution.
• This system can play a baseline JPEG file, excluding monochromatic JPEG files.
• This system can play JPEG data taken with a digital camera conforming to the DCF (Design Rule for Camera File System) standard (when a function is applied such as the automatic rotation function of a digital camera, data goes beyond the DCF standard, so the image may not be displayed).
• If data has been processed, edited and restored with PC image editing software, the data may not be displayed.
• This system cannot play animations such as MOTION JPEG, or still images (TIFF etc.) other than JPEG, and image data with sound.
• An image with a resolution of more than 8 192 x 7 680 pixels cannot be displayed.
For MPEG-1/MPEG-2 files
• The stream format should conform to MPEG system/ program stream.
• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is recommended for the highest resolution.
• This system also supports the resolutions of 352 x 576/ 480 x 576/ 352 x 288 pixels (25 fps) and 352 x 480/ 480 x 480/ 352 x 240 pixels (30 fps).
• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple profile at Main Level)/ MP@LL (Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio layer­2 or MPEG2 Audio Layer-2.
Disc structure
DVD VIDEO/DVD VR
A DVD VIDEO consists of “titles” and each title may be divided into “chapters”.
A DVD VR consists of “original programs” or “playlists” and each original program/playlist may be divided into “chapters”.
Title 1/Original program 1/
Play list 1
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2
DVD AUDIO
A DVD AUDIO consists of “groups” and each group may be divided into “tracks”. Some discs include a “bonus group” that requires a password for playing (page 27).
Group 1 Group 2
Track 1 Track 2 Track 3 Track 1 Track 2
VCD/SVCD/CD
VCD, SVCD and CD consist of “tracks”. In general, each track has its own track number. (On some discs, each track may also be further divided by indexes.)
Track 1 Track 2 Track 3 Track 4 Track 5
MP3/WMA/JPEG/MPEG1/MPEG2 discs
On an MP3/WMA/JPEG/MPEG1/MPEG2 disc, each still picture (material) is recorded as a track/ file. Tracks/Files are usually grouped into a folder. Folders can also include other folders, creating hierarchical folder layers.
This unit simplifies the hierarchical construction of a disc and manages folders by “groups”.
Title 2/Original
program 2/ Play list 2
4
Group 1 Group 2
Track 1
[File 1]
• If there is any type of files other than JPEG/MPEG1/MPEG2
Track 2
[File 2]
Group 3 Group 4 Group 5
MP3/WMA/
files in a folder, those
files are also counted in the total file number.
Description of parts
The numbers represent the page numbers.
Front panel
Introduction
See “Display window” below.
STANDBY lamp
STANDBY
14
Top of the unit
14
15
15
16
In the door
11
32
12
PHONESAUX 1 USB AUDIO
DVD/CD
12
*
USB
FM/AM
31 32
12
* Connect headphones (not supplied) with a stereo mini plug. If the headphones are connected, the
speakers and subwoofer will not produce any sound.
Display window
13
18 26 27
27 13
AUX
33
12
PRGM. AL L SLEEP 3D PHONICA. STANDBYA-B 12 31RANDOM
Rear panel
RESUME
20 21 17, 22 35
8
AUX 2
AM
EXT
AM
LOOP
10
R
8
10 10
L
PCM/ STREAM
DVD OPTICAL
DIGITAL OUT
SUB-
WOOFER
OUT
FM75
COAXIAL
ANTENNA
COMPONENT
YPBP
11
BONUS B. S .P. ST AUT OPROGRESSIVESVCDVD-A
36 36 31
SPEAKERS
CAUTION:
SPEAKER IMPEDANCE
4-16
RL
VIDEO
R
S-VIDEO
VIDEO OUT
26
25
9 11
These holes discharge heat generated inside the unit.
Do not cover up these holes.
11 11
5
Using the remote control
The numbers represent the page numbers.
26
7
13, 16 12
Putting the batteries in the remote control
7
32
31
15, 17, 27
7 7
15, 31
14
14,18
19
19, 28
29 24 24
27
34, 35
33 35 36
36 20 16
16
USB FM/AM
12
33
16
15
16 16
Remote control mode selector
15, 31 12, 14, 17, 18, 21
14
14 19 20, 23, 28
24 25
25, 26
13
25, 26
7, 15
31 17, 22
31 23
10
Batteries
If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6 (SUM-3)/AA(15F) type dry-cell batteries.
6
CAUTION
•Do not use a used battery and a new battery together.
• Do not use different types of batteries at the same time.
• Take out the batteries if the remote control is not to be used for a long time. Otherwise it may cause a leakage.
Remote control operation
When operating the remote control, point it towards the front panel of the main unit. If the remote control is operated from a direction that is extremely oblique or when there is an obstacle in the way, signals may not be transmitted.
If the remote control sensor is exposed to a strong light such as direct sunlight, correct operation may not be carried out.
Getting started
This page is for when operating your TV using the remote control of this product.
Operating the TV using the remote control
Manufacturer Code Manufacturer Code
JVC 01 Samsung 12
Hitachi 10 Sanyo 13, 14
Magnavox 02 Sharp 06
Mitsubishi 03 Sony 07
Panasonic 04, 11 Toshiba 08
Philips 15 Zenith 09
RCA 05
NOTE
Manufacturer’s codes may be changed without notice. You may not be able to operate a TV produced by the manufacturer shown above.
5 Release TV.
For TV operation
Operate the remote control by pointing it towards the TV.
Turn ON/OFF the power.
Change channels.
Setting the manufacturer’s code
1 Slide the remote control mode
selector to the TV side.
2 Keep pressing down TV.
NOTE
Keep pressing down TV until Step 4 is complete.
3 Press ENTER. 4 Press number buttons (1-9, 0).
Ex.:
For a Hitachi TV: Press 1, then 0. For a Toshiba TV: Press 0, then 8.
If there are more than one manufacturer’s codes, try them in turn and select the one that causes the product to work properly.
Adjust volume.
9
100+
Alternates between the previously selected channel and the current channel.
Switch TV and video input.
*1 Make sure to slide the remote control mode
selector to the TV side in advance.
NOTE
When the batteries are replaced, perform the manufacturer’s code setting again.
Select channels.
*1
7
Connecting up
– Do not turn on the power until the connection is complete –
Connecting antennas
Connecting AM loop antenna (supplied)
1 Set up the AM loop antenna.
2 Connect antenna cords.
Main unit (rear panel)
AM
EXT
AM
LOOP
If the antenna cord is covered with vinyl on the tip, twist and pull the vinyl off and remove.
Connect the end of the antenna cord as shown above.
3 Turn the AM loop antenna to the direction of the
best radio reception. Locate the AM loop antenna as far away from the main unit as possible.
• Do not locate the AM loop antenna on a metallic table or close to a TV, personal computer, etc. Otherwise it may result in bad radio reception.
7 When good radio reception cannot be obtained
with the supplied AM loop antenna
Electric wire: 3 - 5 m (9 feet 10 inches - 16 feet 5 inches) (not supplied)
Electric wire
Twist
AM loop antenna
Extend an electric wire horizontally, preferably in a high place such as above a window or outdoors.
Connecting FM antenna (supplied)
Main unit
(rear panel)
FM antenna
FM75
COAXIAL
Put the antenna up straight in the direction where the best radio reception can be obtained, and fix by using tape.
7 When good radio reception cannot be obtained
with the supplied antenna or when using a communal antenna
Communal antenna terminal
Outdoor FM antenna (not supplied)
Coaxial cable (not supplied)
) can be
Main unit
(rear panel)
FM75
COAXIAL
Antenna cord (not supplied)
or
Converter (not supplied: compatible with 300
/75 Ω)
Depending on the radio reception conditions, an FM feeder antenna (not supplied: compatible with 300 used. In the case, a converter (not supplied) is required.
AM
EXT
AM
LOOP
Main unit
(rear panel)
Connect the AM loop antenna cords together with the electric wire.
When positioning the antenna, find the best position for reception while listen to an actual radio program (refer to “Listening to a radio broadcast” on page 31).
8
For details of connecting a separately sold antenna, refer to the user guide for the antenna or converter.
Getting started
Connecting speakers
There is no difference between the left and right speakers.
Speaker terminal
Speaker cord
Speaker cord
(supplied)
Without
black line
With
black line
Right speaker
(rear panel)
SPEAKERS
RL
Main unit
(rear panel)
Speaker cord (supplied)
Without black line
With black line
Left speaker
(rear panel)
CAUTION
• DO NOT connect more than one speaker to one speaker terminal.
• The speakers of this product are magnetically shielded, but color irregularities may occur on the TV depending on how the speakers are installed. Keep in mind the following.
1. Turn off the main power of your TV before
installing the speakers. Wait for about 30 minutes before turning on the TV again.
2. If color irregularity occurs in pictures, keep a
distance of more than 10 cm (3 between the TV and the speakers.
15
/16 inches)
The speakers employ natural wood for the diaphragm and the cabinet in order to reproduce the original sound faithfully. The appearance will therefore be different for each unit.
Speaker grille can be detached.
Speaker grille
NOTE
• Impedance of speaker that can be connected to the main unit is within a range of 4
• In order to have a sufficient cooling effect, leave a space of more than 1 cm ( main unit and the speakers or other objects.
to 16 Ω.
3
/8 inches) between the
9
Connecting up (continued)
– Do not turn on the power until the connection is complete –
Connecting other devices
This page is for when connecting the main unit with other devices.
Connecting subwoofer
With an amplifier-built-in subwoofer (not supplied), you can enjoy a more dynamic bass sound. Refer to the manual of the subwoofer for details.
Audio cord (not supplied) (If an audio cord comes with the amplifier-built-in subwoofer, you can use the cord.)
Connecting with other audio device
Output
Other audio device
Audio cord (not supplied)
WhiteRed
SUB-
WOOFER
OUT
Amplifier-built-in subwoofer (not supplied)
Main unit
When you want to hear sound from the subwoofer, press S.WFR OUT on the remote control to display “SUBWOOFER” on the display window on the main unit. Each time you press the button, the display toggles between “SUBWOOFER” and “OFF”.
NOTE
When “SUBWOOFER” is selected, bass sound from the left and right speakers will be automatically lowered and the bass sound will be emitted mainly from the subwoofer.
AUX 2
Input
L
Main unit
R
Connecting with a digital device
Input
Output
Main unit
Digital audio signals are output from this system only when DVD/CD is selected as the source.
CAUTION
• For details of signals to be output, refer to page
30.
• If connecting the main unit with equipment with the function of a Dolby Digital decoder, the setting in “D. RANGE COMPRESSION” of “AUDIO” (page 30) will be invalid regarding sound from the digital audio output of the main unit.
Digital device (MD recorder etc.)
To digital input terminal
Optical digital cord (not supplied)
PCM/ STREAM
DVD OPTICAL
DIGITAL OUT
10
Getting started
Connecting with a portable audio device
Stereo mini plug cord (not supplied)
In the door of the front panel
AUX 1
• By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device on this unit. See page 33 for details.
• If an external device is not equipped with a stereo mini plug audio output, use a plug adaptor to convert the stereo mini plug to the corresponding plug of the audio output.
Portable audio device
Connecting with TV
Supplied composite video cord
Main unit
COMPONENT
YPB PR
VIDEO
VIDEO OUT
S-VIDEO
CAUTION
Connect the main unit directly with a TV (or a monitor) without routing through a VCR. Otherwise it may cause picture distortion while playing.
TV
Connecting by using the component video cord
You can enjoy better quality pictures than when using the S-Video cord.
TV
Component video cord (not supplied)
Blue
Green
COMPONENT
YPB PR
VIDEO OUT
Main unit
CAUTION
Use either the S-Video cord or the component video cord. If both cords are used, pictures may not be played properly.
Red
VIDEO
S-VIDEO
Main unit
Connecting directly
TV (or monitor)
Also, when connecting the main unit to a TV with a VCR built in, there may be picture distortion while playing.
You can enjoy pictures of better quality using the following cord instead of the supplied video cord.
Connecting by using the S-Video cord
Main unit
COMPONENT
YPB PR
VIDEO
VIDEO OUT
S-Video cord (not supplied)
S-VIDEO
TV
NOTE
• In order to enjoy pictures with Progressive mode (page 26), the TV is required to have Progressive video input.
• If the component video input jacks of your TV are BNC type, use a plug adapter (not supplied) to convert the plugs.
Connecting the power cord
AC outlet
Supplied power cord
• Connect the power cord after all other connections are complete.
• The STANDBY lamp (on the front panel) will be lit.
Main unit
11
Playing discs
Playback
(Refer also page 17 for playing MP3/WMA/JPEG/MPEG1/
MPEG2.)
page 5
Press AUDIO.
1
• The power will be turned on and the STANDBY lamp will go off.
• Press AUDIO again to turn off the power.
Press 0OPEN/CLOSE to open the disc
2
Place a disc with the label side facing up.
Place an 8 cm (3 inches)
disc in to the hollow part in the center.
tray to load a disc.
Press DVD/CD 3.
3
The disc tray will close and playback will start.
• The power will be turned on when any of DVD/
CD 3, USB, FM/AM, AUX, or 0 on the main unit and DVD/CD 3, USB, FM/AM, AUX, or 0OPEN/CLOSE on the remote control is pressed while the power is off.
• If any button other than 0 or 0OPEN/CLOSE is
pressed, the source will also be changed (if there is a disc loaded, playback will start by pressing the DVD/CD 3 on the main unit or the remote control).
NOTE
• A menu screen may be displayed on the TV after starting playback of a DVD/VCD/SVCD. In this case, select a desired item to playback by using the following buttons on the remote control.
• Select a desired item using cursor
and press
• Select a desired item using the number buttons.
• Depending on the disc, actual operation may be different from the description.
ENTER.
5/K/2/3
Screens displayed on the TV when the power is turned ON.
The following messages appear depending on the status of the system. (When FM, AM, USB or AUX is selected as a source, the messages do not appear.)
NOW READING Appears when the system is reading the disc information. Wait for a while. REGION CODE
ERROR! NO DISC Appears when no disc is loaded. OPEN Appears when opening the disc tray. CLOSE Appears when closing the disc tray. CANNOT PLAY THIS
DISC
Appears when the Region Code of the DVD VIDEO does not match the code the system supports. (page 3)
Appears when trying to playback an unplayable disc.
12
Display window during disc playback
Ex.: When a DVD VIDEO is played
Basic operations
Ex.: When an MP3/WMA/MPEG1/MPEG2 file is
played
SVCDVD-A
Track number
Ex.: When an JPEG file is played
SVCDVD-A
Disc type
Chapter number
Elapsed playing time
When a DVD VR is played back, PG (original program) /PL (play list) number is displayed.
Ex.: When a DVD AUDIO is played
SVCDVD-A
Track number
If “BONUS” or “B.S.P.” is displayed during a DVD AUDIO playback, refer to page 27.
Ex.: When an SVCD or VCD is played
S VCDVD-A
Track number
• When playing an SVCD, the SVCD indicator lights instead of the VCD indicator.
• PBC (Play Back Control): A signal recorded in a VCD (version 2.0) for controlling playback. It is possible to enjoy interactive software or software with a search function using a menu screen recorded in a PBC compatible VCD. To play a disc with the PBC function OFF, carry out the following operations.
• Designate the track number using the number
buttons while the disc is stopped.
• Designate the track number using x while
the disc is stopped, and then press DVD/CD 3.
• Press RETURN to go back to the upper layer during the PBC playback of a VCD or SVCD.
Ex.: When a CD is played
SVCDVD-A
Track number
Group number
File number
To switch the display
Press DISPLAY. Each time you press the button, the display
indication changes temporarily as follows:
For DVD VIDEO
SVCDVD-A
Title number
• For DVD VR
SVCDVD-A
PG/PL number
For DVD AUDIO
SVCDVD-A
Group number
For MP3/WMA
EX.: When an MP3 is played
SVCDVD-A
Group number Track number
• When playing a WMA track, “WMA” appears instead of “MP3”.
• For MPEG1/MPEG2
Group number Track number
For SVCD/VCD/CD/JPEG The clock time indication appears on the display window.
• Before setting the clock (page 34), “AM 12:00”
appears.
• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption.
Chapter number
Chapter number
Track number
13
Playing discs (continued)
To stop playback
Press 7 during playback.
To pause playback
Press 8 during playback.
To start normal playback again, press DVD/CD 3.
• For JPEG slide-show, pressing DVD/CD 3 starts playback from the next file.
To advance picture frame-by-frame
Select an item on the disc by using the number buttons
NOTE
• Set the remote control mode selector to AUDIO before using the number buttons.
• For a VCD or SVCD, this operation can be carried out when the disc is stopped, or during playback without the PBC function.
• For a DVD AUDIO, CD, MP3/WMA or JPEG, this operation can also be carried out when the disc is stopped.
• For a DVD VIDEO, you can select the title before playing, and you can select chapter while playing.
• This operation may not be carried out for some discs.
Use number buttons to select the item you want to play.
• Refer to “How to use the number buttons” on page 15.
Press 8 during pause.
• Each time you press the button, picture will be advanced frame-by-frame.
Fast reverse/Fast forward search
Press 1 or y during playback.
• Each time you press the button, the speed increases (X2, X5, X10, X20, X60). To restore the normal speed, press DVD/CD 3.
NOTE
• For MP3 and WMA discs/files, the search speed shown on the TV is different from described above.
• While playing moving pictures, no sound comes out during Fast reverse/Fast forward search.
• For a CD or DVD AUDIO, sound is intermittent during Fast reverse/Fast forward search.
14
Basic operations
Playing back from a position 10 seconds before (One Touch Replay)
Press during playback.
NOTE
• This function may not be available for some discs.
• It is not possible to go back to the previous title.
Slow Motion Playback
Press SLOW or SLOW during pause.
• Each time you press the button, the playback speed increases ( ×1/32, ×1/16, ×1/8, ×1/4, ×1/2).
• Press DVD/CD 3 to start normal playback again.
NOTE
• No sound will be produced.
• The picture motion in the reverse direction may not be smooth.
• For a VCD, SVCD and DVD VR, Slow Motion Playback can be carried out in the forward direction only.
Skip to the beginning of the selection
Press 4 or x during playback*.
•Press x to skip the next chapter or track.
•Press 4 once to skip back to the beginning of the chapter or track currently being played (except for JPEG).
•Press GROUP/TITLE or group.
• During playback of a MP3/WMA/JPEG discs, press x or cursor K to play the next file, or press 4 or cursor 5 to play the previous file.
NOTE
* For a VCD or SVCD, this operation can be carried
out during playback without the PBC function.
• Except for a DVD VIDEO, this operation can also be carried out while the disc is stopped.
• This operation may not be carried out for some discs.
or to select the title
How to use the number buttons
Ex.:
5: 20:
Guide icons displayed on the TV screen (On-screen guide)
: Play
: Pause
: Fast reverse/Fast forward search
: Slow Motion Playback (reverse/
forward directions)
15: 25:
126:
: Containing multi-angle views (page 24)
: Containing multi-audio languages (page 24)
: Containing multi-subtitle languages (page 24)
: The disc cannot accept the operation you
have attempted.
15
Playing discs (continued)
To change the brightness of the display window (DIMMER)
Press DIMMER repeatedly.
• Each time you press the button, the dimmer mode changes as follows:
AUTO DIMMER:During the video source
playback, the display window dims and the illumination automatically turns off.
Playing audio/video files
DIMMER ON: The display window and the
DISPLAY OFF: The display window turns off
DISPLAY ON: Cancels the dimmer function.
• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption. At this time, QP Link will be canceled automatically.
The items above can be carried out for all sources.
illumination dim.
and the illumination dims.
Adjusting the volume
Press AUDIO VOL +/–.
NOTE
The volume can be also adjusted by turning the VOLUME control on the main unit.
Adjusting sound quality
NOTE
Set the remote control mode selector to
AUDIO before using the number buttons.
Bass: Press BASS +/–. Treble: Press TREBLE +/–.
• Adjustable range: –5 to +5
Turning off the sound temporarily (MUTING)
Press MUTING.
• No sound will come out from the speakers, headphones and the subwoofer.
• Press MUTING again to restore the sound. In this function, the sound will not be restored by following operations.
• Turn off the system directly.
•Press AUDIO VOL +/– directly.
16
Playback
Display of an MP3/WMA disc is described here as an example. For a JPEG disc, read “track” as “file”.
NOTE
When playing a disc containing both MP3/WMA/ MPEG1/MPEG2 and JPEG files, set one of them to be played, then turn on the system again (page 29).
Basic operations
5 Press DVD/CD 3 or ENTER.
NOTE
GROUP/TITLE can also be used in Step 2.
• The number buttons can also be used in Step this case, Step number buttons, refer to page 15.)
4 or
5 is not needed. (For how to use the
x can also be used in Step 4.
Repeat playback
4. In
1 Load a disc.
Current group/total group number
Tag information (for MP3/WMA)
Current group
Current track (file) / total track (file) number on current group
Playback mode (PROGRAM, RANDOM, REPEAT)
Elapsed playing time of current track (except for JPEG)
Current track
(file)
Total track (file) number on disc
Playback status
2 Press cursor 5/K to select a
group.
1 Press REPEAT.
• Each time you press the button, the Repeat mode and its indication change as follows:
Repeat items On the TV On the display
Current track (except for JPEG)
Current group REPEAT
Entire disc All tracks during Program/Random play (MP3/WMA only)
Current track during Program/ Random play (MP3/WMA only)
Cancel REPEAT
REPEAT TRACK
GROUP
REPEAT ALL
REPEAT STEP
OFF
window
2 Press DVD/CD 3.
NOTE
• The Repeat types can be changed during playback.
• The Repeat mode will be automatically canceled if there is a file that cannot be played (page 3).
3 Press cursor 3 to move to the
track list.
• Press cursor 2 to go back to the group list.
4 Press cursor 5/K to select a
track.
Slide-Show Playback
• In Step 5, for a JPEG disc, when DVD/CD 3 is pressed, files will be continuously played from the selected file (Slide-Show Playback), and when ENTER is pressed, only a selected file will be played.
• Display time for a file in Slide-Show Playback is about 3 seconds.
• When all files are played through, the playback will be automatically stopped.
17
Resume Playback
This system can store the stop point, and when you start playback again by pressing DVD/CD 3 (even while on standby), it starts from the position where you have stopped—Resume Play. The RESUME indicator lights on the display window when you stop playback.
To suspend playback
Perform any of the following operations during playback.
Press 7 once.*
Press AUDIO to turn off the power.
Change the source to USB, FM/AM or AUX.*
* Even if the power is turned off by pressing
AUDIO after this, the position where
playback has been stopped will be stored.
NOTE
Set the remote control mode selector to
AUDIO before using the number buttons.
To start playback from the stored position
Press DVD/CD 3.
NOTE
• This function does not work in Program Playback or Random Playback.
• The position where playback starts again may be a little different from the stopped position.
• When a disc menu is displayed, the Resume function may not work.
• The system also stores the settings of the audio language, the subtitle language, and the angle selected when playback is stopped.
• To stop completely while Resume is set to ON, press 7 twice. (To cancel Resume, see on page 30)
• At the time of purchase, Resume is set to ON. Resume can be set to OFF (page 30).
• If you open the tray, the stored position will be erased.
RESUME
18
Select the scene to be played
NOTE
Set the remote control mode selector to AUDIO before using the number buttons.
Basic operations
1 While the disc is stopped or
during playback, press TOP MENU/PG to display the original program or press MENU/PL to display the play list.
7 Original program
No Date Ch Time Title
1
03/04/06 12:15L 1 09/04/06
2
L 1 L 1
3 18/04/06 08:17
L 1
4 20/04/06 07:47
L 1
5 25/04/06 19:38 Mr. Lawrence
L 1
6 28/04/06 14:20
Channel information
La fleur
23:05
The last struggle free flyer BOOM!
Satisfy U
Title name
Recording time
Select the scene from the menu
1 Press MENU/PL or TOP MENU/
PG while the disc is stopped or during playback*1.
• The disc menu screen will be displayed.
• To display the disc menu while playing back a VCD or SVCD with PBC function, press RETURN repeatedly.
•Only TOP MENU/PG can be used for DVD AUDIOs.
2 Press cursor 5/K/2/3 (only
for a DVD VIDEO or DVD AUDIO) or the number buttons to select the scene to be played.
• Refer to “How to use the number buttons” (page 15).
• When the menu screen has a couple of pages, press 4 or page (only for a VCD and SVCD).
x to change the
3 Press ENTER.
NOTE
*1For a VCD and SVCD, this operation can be carried
out only when the PBC function is off.
• This operation cannot be carried out for a disc without a menu screen.
• Playback may start for some discs without pressing ENTER.
Recording date
7 Play list
No Date Chap Length Title
1 03/04/06 2 0:23:24 Nebula G. 2 15/04/06 4 1:04:39 3 24/04/06 13 0:41:26 4 27/04/06 17 0:09:08
Recording date
Number of chapters included in the title
• The play list will not appear when a play list has not been recorded to the disc.
CDJ Secret Garden S. Walker
Total playback time for the title
2 Press 5/K to select the
desired title.
3 Press ENTER.
• When you have selected the original program by pressing TOP MENU/PG in step 1, playback will start from the selected title to the following titles.
• When you have selected the play list by pressing MENU/PL in step 1, only the selected title will be played back.
19
Designate the time (Time search)
1 Press ON SCREEN twice during
playback*2.
The menu bar will be displayed (page 28).
2 Press cursor 2/3 to select
.
3 Press ENTER.
Program/Random Playback
4 Input the time
*3
using the
number buttons (1-9, 0).
Ex.: When you want to play a DVD VIDEO
from the position of (0 hour) 23 minutes 45 seconds, press the buttons in the order:
2
• If you input wrong numbers, press cursor 2 to delete the numbers and re-input.
4
3
5
5 Press ENTER.
To remove the menu bar, press ON SCREEN.
NOTE
• This function does not work for a DVD VIDEO with no time information recorded.
• This function does not work during Program or Random Playback.
2
*
For a VCD and an SVCD, the operation can be carried out when the disc is stopped or during playback without the PBC function.
3
*
Time search for a DVD VIDEO is from the beginning of the title, for a DVD AUDIO from the beginning of the track being played. Time search for a VCD, an SVCD and a CD is as follows:
• When the disc is stopped, time search is from the
beginning of the disc.
• When the disc is being played, time search is
within the track currently being played.
NOTE
Set the remote control mode selector to AUDIO before using the number buttons.
Play the disc in the desired order (Program Playback)
It is possible to program a maximum of 99 chapters or tracks. The same chapter or track can be programmed more than once.
1 While the disc is stopped, press
PLAY MODE repeatedly to display “PROGRAM” on the display window on the main unit.
TV screen
20
Program screen
2
Create a program following the description on the TV screen.
Refer to “How to use the number buttons” (page 15).
• The input content varies depending on the disc type.
• DVD VIDEO: Titles and chapters
• VCD, SVCD, CD: Tracks
• DVD AUDIO, MP3/WMA:
Groups and tracks
• To select a DVD AUDIO bonus group, carry out the operations of “Playing the Bonus Group” on page 27 in advance to erase the display “BONUS”.
• If the input number of chapters or tracks is greater than 99, “MEM FULL” will be displayed.
To program on the display window on the main unit, operate as follows:
(1) Select a title/group using the number buttons. (2) Designate a chapter/track number using the
number buttons.
• Refer to “How to use the number buttons”
(page 15).
• The program number will be displayed on
the display window (Ex.: “P2”).
(3) Repeat the above operations (1) and (2) to
complete the program. Then, advance to Step
3.
Advanced operations
Playing the disc in a random order (Random Playback)
1 Press PLAY MODE repeatedly
to display “RANDOM” on the display window on the main unit while the disc is stopped.
• “RANDOM” will also be displayed on the TV screen.
2 Press DVD/CD 3.
• The same chapter or track will not be played twice.
• To resume normal playback, press PLAY MODE repeatedly to show the playback indication on the display window on the main unit while the disc is stopped.
• Random Playback will also be canceled by carrying out the following operations:
• Open the disc tray
• Turn off the power
• The previous track will not be returned to even if 4 is pressed repeatedly during Random Playback (the beginning of the current chapter or track will be returned to).
NOTE
• The group/title number flashes on the display window after making each program step.
• Only for a DVD VIDEO, DVD AUDIO, or an MP3/ WMA: If you press ENTER instead of designating a track/chapter number, the tracks/chapters in the selected group/title are programmed.
ALL is displayed and all of
3 Press DVD/CD 3.
• To resume normal playback, press PLAY MODE repeatedly to show the playback
indication on the display window on the main unit while the disc is stopped. The program content will not be erased.
• The following operations erase the program content:
•Press CANCEL repeatedly (Programs
will be erased one by one)
•Press
• Open the disc tray
• Turn off the power
7 while the disc is stopped
21

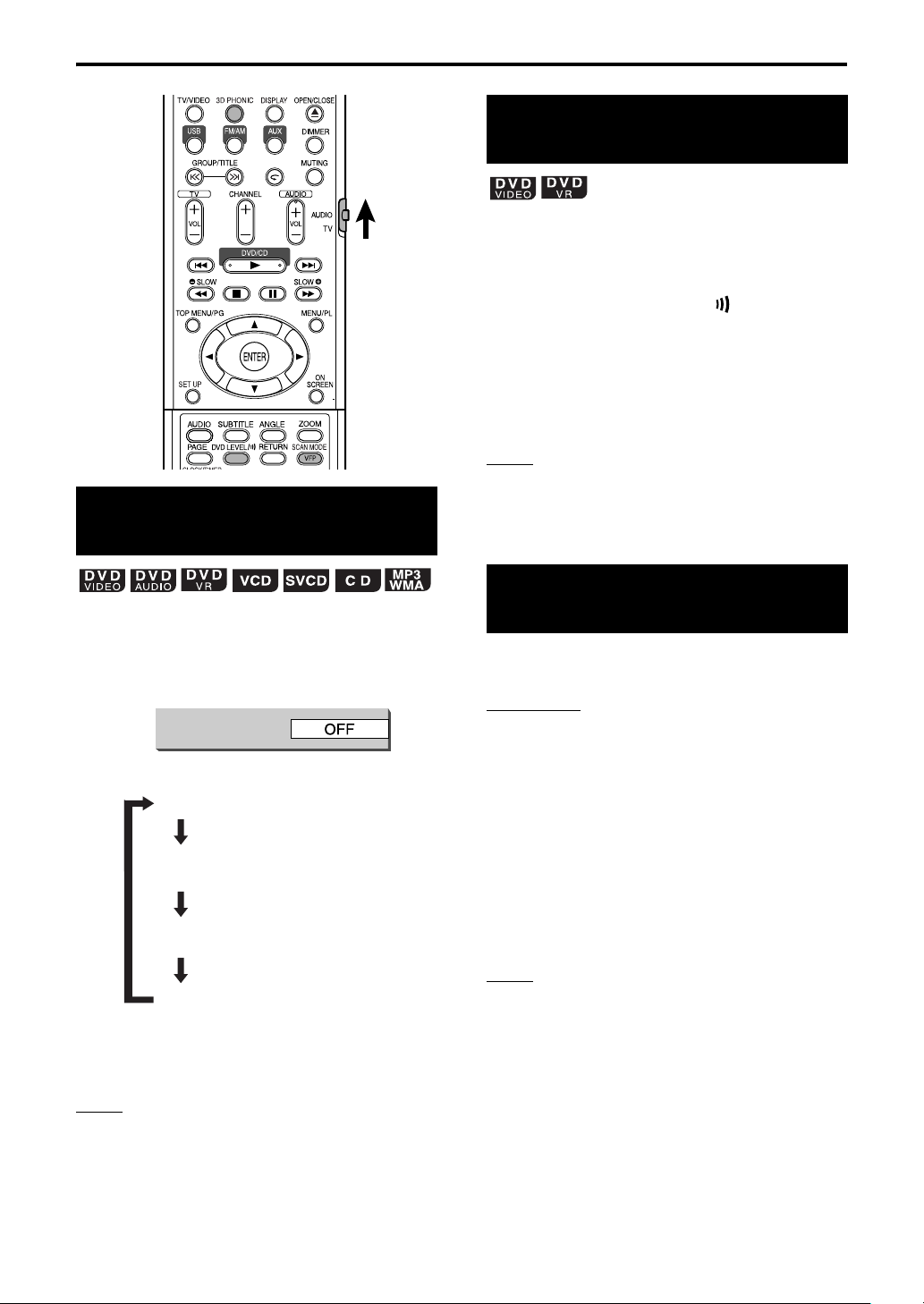

Repeat Playback
Refer to page 17 for Repeat Playback of MP3/ WMA/JPEG/MPEG1/MPEG2 files.
Playing the title/chapter/ group/track/all tracks repeatedly (REPEAT)
Press REPEAT during playback.
• Each time you press the button, the Repeat mode and its indication change as follows:
For DVD VIDEO
Repeat items On the TV On the display
Current chapter
CHAP
window
SET/QP LINK
Current title
Cancel
TITLE
OFF
For DVD VR
Repeat items On the TV On the display
Current chapter
Current original program
All original programs
Current play list
Cancel
CHAP
PG
ALL
PL
OFF
window
For DVD AUDIO
Repeat items On the TV On the display
Current track
Current group
TRACK
GROUP
window
22
Cancel
OFF
For CD/VCD/SVCD
Repeat items On the TV On the display
Current track
TRACK
window
Advanced operations
Playing the designated part repeatedly (A-B Repeat Playback)
All tracks
Cancel
NOTE
• For a VCD and SVCD, the operation can be carried out only when the disc is stopped or during playback without the PBC function.
• It is possible to set Repeat mode on the menu bar. For how to operate, refer to “Playing the designated part repeatedly (A-B Repeat Playback)” (See the right column).
• For a DVD VIDEO and DVD AUDIO, if the source is switched to FM, AM, USB or AUX, the Repeat mode will be canceled.
ALL
OFF
Repeat Playback during Program or Random Playback
Repeat items On the TV On the display
Current chapter/ track
All tracks during Program/Random play
Cancel
STEP
or REPEAT STEP
ALL
or REPEAT ALL
OFF
or no indication
window
1 Press ON SCREEN twice during
playback.
The menu bar (page 28) will be displayed.
2 Press cursor 2/3 to select
OFF
.
3 Press ENTER. 4 Press cursor 5/K to display
OFF
A B
.
Other Repeat modes can be selected here. For other Repeat modes, refer to “Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)”
(page 22).
5 Press ENTER at the start point
of the part to be repeated (designating A point).
• The icon on the menu bar will be .
A-
6 Press ENTER at the end point of
the part to be repeated (designating B point).
• The icon on the menu bar will be and the part between A and B points will be played repeatedly.
• A-B Repeat Playback will be canceled by carrying out the following operations:
•Press 7.
• Select and press ENTER twice.
• Change the current track/file.
A-B
A-B
NOTE
• A-B Repeat Playback is possible only within the same title or track. A-B Repeat Playback cannot be carried out during PBC playback, Program Playback, Random Playback and Repeat Playback.
• You can use the A-B Repeat Playback using the REPEAT A-B button on the remote control.
• For some DVD discs, A-B Repeat Playback does not work.
23
Other convenient functions
Selecting the audio language
1 Press AUDIO during playback of
a disc containing several audio languages.
Ex.:
TV screen
SET/QP LINK
Selecting the subtitles
(only for moving image)
1 Press SUBTITLE during
playback of a disc containing subtitles in several languages.
Ex.:
• Each time you press the button, the subtitle will be alternated between ON and OFF.
TV screen
2 Press cursor 5/K to select a
subtitle language.
• For a language code such as “AA”, refer to “Language codes” (page 38).
• The manner of displaying subtitle languages may be different depending on the disc.
3 Wait for a few seconds or press
ENTER to remove the window.
• Each time you press the button, the audio language will be alternated. Also, the audio language can be changed by pressing cursor 5/
• For a language code such as “AA”, refer to “Language codes” (page 38).
• “ST”, “L” and “R” displayed when playing a VCD, SVCD or DVD VR respectively represent “Stereo”, “Left sound” and “Right sound”.
K.
2 Wait for a few seconds or press
ENTER to remove the window.
NOTE
It is also possible to operate by using the menu bar (page 28).
Selecting a view angle
(only for moving image)
1 Press ANGLE during playback
of a scene containing multi-view angles.
Ex.:
TV screen
NOTE
• It is also possible to operate by using the menu bar (page 28).
• For an SVCD, each time you press SUBTITLE in Step
1, the subtitle type and OFF will be alternated.
24
• Each time you press the button, the angle will be alternated. Also, the angle can be changed by pressing cursor 5/
K.
2 Wait for a few seconds or press
ENTER to go off the window.
NOTE
It is also possible to operate by using the menu bar (page 28).
Enlarging the picture (ZOOM)
(only for moving image)
1
Press ZOOM during playback or while paused.
• Each time you press the button, the picture magnification will be changed.
• For JPEG, you cannot change the picture magnification during slide-show playback.
2
Select the portion you want to see by using cursor
• To resume normal playback, select “ZOOM OFF” in Step 1.
5/K/2/3
Adjusting the picture quality (VFP)
Advanced operations
3 Press cursor 5/K to select an
item to be adjusted.
4 Press ENTER.
Ex.:
GAMMA
TV screen
5 Press cursor 5/K to change
the value.
GAMMA: Adjust this if the neutral color is bright or dark. The brightness of dark and bright portion is maintained.
BRIGHTNESS: Adjust this if the picture is bright or dark on the whole.
.
CONTRAST: Adjust this if the far and near position is unnatural.
SATURATION: Adjust this if the picture is whitish or blackish.
TINT: Adjust this if the appearance of flesh tone is unnatural.
SHARPNESS: Adjust this if the picture is indistinct.
(only for moving image)
1 Press VFP during playback or
while paused.
The current setting will be displayed on the TV screen.
2 Press cursor 2/3 to select
VFP mode.
• It is recommended to select “NORMAL” usually, or “CINEMA” in a dark room. When either “NORMAL” or “CINEMA” is selected, go to Step
• When either “USER 1” or “USER 2” is selected, the adjustment can be carried out in detail in the operations after Step
7.
3.
6 Press ENTER.
To adjust other items, go back to Step 3.
7 Press VFP to go off the window.
NOTE
• If no operation is made for several seconds during the procedure, the settings made so far will be automatically stored.
• “VFP” is an abbreviation of “Video Fine Processor”.
Making dialogues clear (CLEAR VOICE)
Press and hold DVD LEVEL/ during playback.
The singer’s voices or dialogues of the movie will be heard clear.
• Each time you press and hold the button, the clear voice function turns on and off alternately.
NOTE
Clear voice function only works for center-channel encoded multi-channel disc.
25
Other convenient functions (continued)
Creating realistic sound (3D PHONIC)
Adjusting playback level (DVD LEVEL)
The audio of a DVD VIDEO may be recorded at a lower level (volume) than for other types of disc. If the difference is not to your liking, adjust the DVD Level.
1 Press DVD LEVEL/ during
playback.
• Each time you press the button, the level will be alternated among “NORMAL”, “MIDDLE” and “HIGH”.
• Select the level while listening to the sound played.
NOTE
• DVD Level is effective only for playback of a DVD VIDEO or DVD VR.
• Even if the DVD Level is changed, the output level from the digital audio output terminal will not be changed.
The two speakers produce an effect resembling surround-sound.
1
Press 3D PHONIC during playback.
Ex.:
3D PHONIC
• Each time you press the button, the 3D PHONIC will be alternated as follows:
ACTION : Suitable for action movies,
DRAMA : You can relax with a natural
THEATER : You can enjoy the sound effect
OFF : Cancels 3D PHONIC (initial
• While 3D PHONIC is activated, “3D PHONIC indicator lights on the display window.
NOTE
• 3D PHONIC is effective for the speakers and headphones.
• When noise is produced or sound is distorted, set 3D PHONIC to “OFF”.
• You cannot use this functions for some DVD AUDIO discs.
• For an MPEG1/MPEG2 disc, 3D Phonic does not work and creates no sound effect even when “ACTION”, “DRAMA”, “THEATER” is displayed.
sport programs or other lively programs.
atmosphere.
as if you were watching the movie in a theater.
setting).
appears and the 3D PHONIC
26
TV screen
Enjoying better pictures (SCAN MODE)
In the Progressive mode, better pictures can be enjoyed.
IMPORTANT
• In order to enjoy pictures in the Progressive mode, connect this system and your TV with component video cord.
• If your TV does not have component video input terminal, leave the setting Interlace mode.
Press and hold SCAN MODE for 4 seconds when there is no disc loaded or while the disc is stopped.
• Each time you press and hold the button, the scan mode alternates between the “PROGRESSIVE” mode and the “INTERLACE” mode.
NOTE
Progressive mode:
All scanning lines will be displayed at once. Pictures of higher resolution than those in the Interlace mode can be realized.
Interlace mode:
This is a conventional image method. Half of the scanning lines displayed in the Progressive mode will appear, alternating with the other half.
Functions specific to DVD AUDIO
There are some DVD AUDIO discs with a special group, called “Bonus Group”, recorded.
NOTE
This operation can be carried out when “BONUS” is lit on the display window on the main unit.
1 Press GROUP/TITLE
2 Press the number buttons to
Advanced operations
Playing the Bonus Group
repeatedly during playback to select a bonus group.
“KEY_ _ _ _” appears on the TV screen, and on the display window on the main unit.
• The bonus group is usually recorded as the last group.
enter a pin code (4 digits).
The method of getting a pin code may be different depending on the disc.
NOTE
Set the remote control mode selector to AUDIO before using the number buttons.
3 Press ENTER.
• When a correct pin code is entered, “BONUS” disappears and the playback of the bonus group starts.
• If an incorrect pin code is entered, try entering a correct pin code again.
Browsable Still Pictures (B.S.P.)
There are some DVD AUDIO discs with still pictures recorded. Among the still pictures, there are pictures called B.S.P. (Browsable Still Pictures). With these pictures, it is possible to switch a picture as if turning over pages.
NOTE
This operation can be carried out when “B.S.P.” is lit on the display window on the main unit.
1 Press PAGE during playback.
Each time you press the button, the still picture will be switched over. It is also possible to switch the picture using cursor
Ex.:
5/K
.
TV screen
2 Wait for a few seconds or press
ENTER to remove the window.
27
Using the menu bar
SET/QP LINK
NOTE
• Set the remote control mode selector to AUDIO before using the number buttons.
• This operation can be carried out when there is a disc loaded. There are some functions that may not work while the disc is stopped.
1 Press ON SCREEN twice.
The status bar and the menu bar will appear on the TV screen.
Status bar
Menu bar
The above is an example for a DVD VIDEO.
2 Press cursor 2/3 to select an
item to be operated.
3 Press ENTER.
• The selected function can be set. For the setting content, refer to the following “Functions list”.
• The function currently activated is shown in blue.
• To remove the menu bar, press ON SCREEN.
Functions list
For the functions with no special description for the operations, press cursor 5/ ENTER to determine.
K to select, and press
TIME
Time display selection
Repeat mode
Time search
TRACK
/
View angle
CHAP.
Chapter search (DVD VIDEO/DVD VR)/Track search (DVD AUDIO)
Audio language/Audio (DVD VIDEO/DVD AUDIO/VCD/SVCD)
Subtitle language (DVD VIDEO/DVD VR/SVCD)
(DVD VIDEO/DVD AUDIO)
PAGE
Page switch (DVD AUDIO)
Select this to change time information displayed on the display window on the main unit and the status bar. Each time display will be alternated.
DVD VIDEO/DVD AUDIO (operating during playback)
TOTAL : Elapsed playing time of current
T.REM : Remaining time of current title/
TIME : Elapsed playing time of current
REM : Remaining time of current chapter/
DVD VR (operating during playback)
TOTAL : Elapsed playing time of current
T.REM : Remaining time of current title/
CD (operating during playback)/
TIME : Elapsed playing time of current
REM : Remaining time of current track. TOTAL: Elapsed playing time of disc. T.REM : Remaining time of disc.
See page 22.
See page 20.
Select a chapter/track. Press the number buttons to input the chapter/track number and press ENTER.
Ex.:
See page 24.
See page 24.
See page 24.
Switch the still pictures (B.S.P.) recorded on a DVD AUDIO disc (page 27).
ENTER
title/group.
group.
chapter/track.
track.
title/group.
group.
VCD/SVCD
track.
5
5:
is pressed, the
2
24:
4
Information displayed on the status bar
DVD VIDEO/DVD AUDIO/DVD VR (the example below is for a DVD VIDEO)
Sound signal type DVD VIDEO:
Current title number
DVD AUDIO:
Current group number
DVD VR:
Current original program number (PG)/current play list number (PL)
VCD/SVCD/CD/MPEG1/MPEG2 (the example below is for a CD)
Playback mode
DVD VIDEO/DVD VR: Current chapter number DVD AUDIO: Current track number
VCD/SVCD/CD: Current track number MPEG1/MPEG2: Repeat mode status
Time Playback status
Time Playback status
(See page 15.)
28
Preferences
Advanced operations
NOTE
The playback status mark has the same meaning of the mark on the On-screen guide (page 15).
The initial settings of the system can be changed according to the environment the system is used in.
NOTE
• Set the remote control mode selector to AUDIO before using the number buttons.
• The top and bottom of the preference screen may not be displayed on a wide TV. Adjust the picture size on the TV.
Basic operations
Press SET UP while the disc is stopped or no disc is loaded (“NO DISC” is displayed).
• The following screen will be displayed on the TV.
OFF
• Proceed with operations by following the description on the TV screen.
LANGUAGE
NOTE
• If the selected language is not recorded on the disc, the optimum language set for the disc will be displayed.
• For a language code such as “AA”, refer to the Language codes(page 38).
Items Contents
MENU LANGUAGE
AUDI O LAN GUAGE
SUBTITLE
ON SCREEN LAN GUAGE
Select the language for the DVD VIDEO menu.
Select the audio language for the DVD VIDEO.
Select the subtitle language for the DVD VIDEO.
Select the language displayed on the preference screens.
Items Contents ( : initial setting)
MONITOR TYPE
PICTURE SOURCE
SCREEN SAVER
FILE TYPE Select an item suitable to the file type.
Select a display method suitable for your TV. 16 : 9: Select this for an ordinary wide TV.
4 : 3 LB (Letter Box)
Select this when the aspect ratio of your TV is conventional 4:3. While viewing a wide screen picture, the black bars appear on the top and bottom of the screen.
4 : 3 PS (Pan Scan):
Select this when the aspect ratio of your TV is conventional 4:3. While viewing a wide screen picture, the left and right edges of the picture will not be shown on the screen. (If the disc is not compatible with Pan Scan, the picture will be displayed at the Letter Box ratio.)
Select an item suitable to the video source.
AUTO :
The video source type (a video or film) is automatically selected.
FILM:
Select this item when you want to view a film or video recorded with the progressive scan method.
VIDEO:
Select this item when you want to view a normal video.
Select the Screen Saver mode between / OFF (Screen Saver activates when there is no operation made for about 5 minutes since a still picture was last displayed).
AUDIO
:
Select this item when you want to play back MP3/WMA files.
STILL PICTURE:
Select this item when you want to play back JPEG files.
VIDEO:
Select this item when you want to play back MPEG1/MPEG2 files.
:
ON
29
Preferences (continued)
AUDIO
Items Contents ( : initial setting)
DIGITAL AUDIO OUTPUT
DOWN MIX Switch signal from the digital output
D (Dynamic). RANGE COMPRESSION
Select an output signal type from the following in accordance with the device connected to the digital audio output terminal (AV amplifier, etc.). (See the table below for the preference items and output signal.)
PCM ONLY:
Device corresponding only to linear PCM.
DOLBY DIGITAL/PCM:
Dolby digital decoder or a device having the same function.
STREAM/PCM
DTS/Dolby digital decoder or a device having the same function.
terminal of the DVD VIDEO according to the connected device. Select this when “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY”.
DOLBY SURROUND:
A Dolby Pro Logic decoder-built-in device.
STEREO
An ordinary audio device.
• When 3D PHONIC is activated, Down Mix does not work.
To make adjustments for the difference between a high volume and a low volume when playing back with low volume (only for a DVD recorded with Dolby digital).
AUTO
D. Range Compression automatically works.
ON:
D. Range Compression always works.
:
:
:
OTHERS
Items Contents ( : initial setting)
RESUME Select /OFF. (page 18)
ON SCREEN GUIDE
ON
Select /OFF. (page 15)
ON
Table of relationships of DIGITAL AUDIO OUTPUT preference items and output signal
Playback disc
48 kHz, 16/20/24 bits Linear PCM DVD VIDEO 96 kHz linear PCM DVD VIDEO
48/96/192 kHz, 16/20/24 bits linear PCM DVD AUDIO
44.1/88.2/176.4 kHz, 16/20/24 bits linear PCM DVD AUDIO
DTS DVD VIDEO DOLBY DIGITAL DVD VIDEO/
DVD AUDIO CD/VCD/SVCD
DTS CD MP3/WMA/MPEG1/MPEG2 disc
STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY
DTS bit stream 48 kHz, 16 bits stereo linear PCM
DOLBY DIGITAL bit stream
44.1 kHz, 16 bits stereo linear PCM/48 kHz, 16 bits linear PCM
DTS bit stream 44.1 kHz, 16 bits linear PCM
32/44.1/48 kHz, 16 bits stereo linear PCM
NOTE
While playing some DVD, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the OPTICAL DIGITAL OUT terminal if the discs are not copy-protected.
DIGITAL AUDIO OUTPUT
48 kHz, 16 bits stereo linear PCM
44.1 kHz, 16 bits stereo linear PCM
48 kHz, 16 bits stereo
linear PCM
30
Listening to a radio broadcast
NOTE
Set the remote control mode selector to AUDIO before using the number buttons.
Selecting a station
Presetting stations
Presetting stations in the system allows you to easily tune in to a station.
The system stores up to 30 FM stations and up to 15 AM stations.
1 Select a station you want to
store (page 31 for how to select).
2 Press MEMORY.
“MEMORY” is flashing on the display window for a while.
3 Select the number you want to
store by pressing number buttons while “MEMORY” is flashing.
• Refer to “How to use the number buttons” (page 15).
• You can also select by pressing
1/y.
4 Press MEMORY while the
selected number is flashing.
“STORED” appears on the display window and the selected station is stored.
1 Press FM/AM.
Each time you press the button, FM and AM change alternately.
2 Press 4/x to select the
station (frequency).
Automatic tuning:
Hold down 4/x until the system starts searching, and then release the button. (The AUTO indicator lights while searching.) When a station of sufficient signal strength is tuned in to, the system stops searching automatically. To stop searching manually, press 4/x.
Manual tuning:
Each time you press changes.
• When an FM stereo program is received, the ST (Stereo) indicator lights.
NOTE
If the stereo FM program currently tuned in to is noisy, you can improve the reception by pressing to switch to the monaural mode. If you press again, or tune in to another station, the receiving mode returns automatically to the stereo mode.
4/x
, the frequency
FM MODE
FM MODE
NOTE
• Storing a new station to a used number erases the previously stored station.
• After storing new stations, do not unplug the AC power cord to turn off the system. If you do so, the new preset stations will be cleared.
Tuning in to a preset station
1 Press FM/AM to select either FM
or AM.
2 Press the number buttons to
select the memory number of a station you want to tune in to.
• Refer to “How to use the number buttons” (page 15).
• You can also select by pressing
1/y.
31
Playing Back from the PC
This system is equipped with a USB terminal in the door of the front panel. You can connect your PC to this terminal and enjoy the sound out of your PC.
When you connect your PC for the first time, follow the procedure below.
Remember you cannot send any signal or data to your PC from this system.
IMPORTANT
Always set volume to “VOL MIN” when connecting or disconnecting the other equipment.
How to install the USB drivers
The following procedure is described using the English version of Windows running on a different version of operation system or language, the screens shown on your monitor may differ from the ones used in the following procedure.
R
XP. If your PC is
1 Turn on your PC and start
running Windows® 98SE, Windows® Me, Windows® 2000 or Windows® XP.
• If the PC has been turned on, quit all the applications running.
2 Turn on the System and press
USB.
3 Connect the System to the PC
using a USB cable (not supplied).
(in the door of the front panel)
USB AUDIO
USB cable
PC
4 The USB drivers are installed
automatically.
• If the USB drivers are not installed automatically, install the USB drivers following the instructions on the PC’s monitor.
5 Check if the drivers are
correctly installed.
1 Open the Control Panel on your PC: Select
[Start] = [Control Panel]
2 Click [System] = [Hardware] = [Device
Manager] = [Sound, video and game controllers] and [Universal Serial Bus controllers].
3 Check whether the following items appear.
• USB Audio Device
• USB Composite Device
If the items cannot be shown, disconnect the USB cable and connect it again. If it does not work yet, turn off your PC and repeat from Step
To play back sounds on the PC
Refer to the manuals supplied with the music application software installed in the PC.
Start the application.
NOTE
• Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations:
- Disconnect and connect the USB cable again
- Restart the music software on your PC
- Turn off and on the system
• DO NOT turn off the system and disconnect the USB cable while installing drivers and playing back, and for several seconds after your PC is recognized the system.
• The installed drivers can be shown only when the system is connected to the PC.
1.
32
• Use “USB series A plug to B plug” cable (version 1.1 or later) less than 3 m (10.7 ft.).
* MicrosoftR, WindowsR 98SE, WindowsR Me, WindowsR 2000 and WindowsR XP are registered trademarks of Microsoft corporation.
Listening to the sound of other audio device
Listening to the sound of portable audio device
By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device connected to the AUX 1 jack.
• Make sure to set the volume of your portable audio device loud enough so that system can detect the sound signal.
• QP Link is available even if the system is on standby.
Press and hold SET/QP LINK.
• Each time you press and hold the button, the QP Link function turns on and off alternately.
• QPL ON appears when QP Link is activated.
When QP Link is activated, connecting the portable audio device to the AUX 1 jack and starting playback performs the following:
While listening to another source... Changes the source to AUX 1 automatically. (If you change from AUX 1 to another source, QP Link will be canceled.)
While the system is on standby... Turns on the system and activates the AUX 1 source automatically (except when the display is
Listening to the sound of external audio device
Connect the other audio device to this system in advance (page 10).
1 Press AUX.
The source changes to AUX. Each time you press the button, the source changes between AUX 1 (front) and AUX 2 (rear).
2 Play the other audio device.
For details, refer to the manual of the device connected.
3 Adjust the volume and the
sound quality of the system (page 16).
turned off.)
NOTE
Changing from AUX 1 to another source while
QP Link
In this case, the following reactivates QP Link:
– Pressing and holding SET/QP LINK on the
– Unplug the device from the AUX 1 jack, then plug
If you press AUDIO to turn the system off or
if
works, the system will deactivate QP Link temporarily. In such cases, the following reactivates QP Link:
– When the sound signal from the AUX 1 jack
– When you turn on the power again.
QP Link may start working when you just plug in
the device to the AUX 1 jack or unplug it. This is not
a malfunction.
works will deactivate QP Link temporarily.
remote control.
it in again.
preset Timer turns the system off while QP Link
stops or is too weak for about 30 seconds after the system is turned off.
Convenient functions
33
Adjusting the audio input level
If the sound from the audio device connected to the AUX 1 or AUX 2 jack is too loud or is too quiet when changing from another source to “AUX,” you can change the audio input level through the AUX 1 or AUX 2 jack (without changing the volume level).
Press and hold AUX for 2 seconds while the AUX is selected as the source.
Each time you press and hold the button, the audio input level alternates between AUX LEVEL 1 and AUX LEVEL 2.
AUX LEVEL 1:
Select this when the sound is too loud with “AUX LEVEL 2” selected. This setting is recommended when connecting an audio device other than a portable audio device to AUX 1 jack.
AUX LEVEL 2:
Select this when listening to a portable audio device.
Setting the Various Timer
Setting the built-in clock
Without setting the built-in clock, you cannot use any timers.
• To exit from the clock setting, press CLOCK/ TIMER as required.
• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.
1 Press CLOCK/TIMER.
SVCDVD-A
• If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.
2 Press cursor 2/3 to adjust the
hour, then press SET/QP LINK.
3 Press cursor 2/3 to adjust the
minute, then press SET/QP LINK.
Now the built-in clock starts to work.
34
Setting the daily timer
Using the daily timer, you can wake up with your favorite song.
• You can store the three daily timer settings; however, you can activate only one of the daily timer.
• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.
How the daily timer works:
Once the daily timer has been set, the timer indicator and timer number indicator (1/2/3) are lit on the display window. Daily timer turns on the system at the same time everyday until the timer setting is canceled manually or another daily timer is activated.
When the on-time comes:
The system turns on, tunes in to the specified station or starts playback the loaded disc with the specified chapter or track, and sets the volume level gradually to the preset level after about 30 seconds.
• The timer setting remains in memory until you change it.
• Without canceling the daily timer, you can change the source or adjust the volume after the daily timer starts playback.
1 Press CLOCK/TIMER repeatedly
to show “DAILY 1.”
• Each time you press the button, the clock setting changes as follows:
Source indication
DAILY 1
Convenient functions
5 Press cursor 2/3 to select the
playback source, then press SET/QP LINK.
• Each time you press the button, the clock setting changes as follows:
AUX 1
DISC
• When selecting the tuner, press cursor 2/3 to select a preset channel.
• When selecting “DISC”, you can specify the group and track. For the discs other than MP3/WMA, the group selection does not take effect.
AUX 2
TUNER AM
USB
TUNER FM
6 Press cursor 2/3 to adjust the
volume level, then press SET/ QP LINK.
7 Turn off the system.
To turn off the timer setting
1 Press CLOCK/TIMER repeatedly
to select the timer setting.
2 Press CANCEL to turn off the
selected setting.
• Pressing setting again.
SET
/QP LINK
activates the timer
Clock adjust
ON PM 6:00
DAILY 3
ON AM 6:00
DAILY 2
ON PM 12:00
2 Press cursor 2/3 to adjust the
hour of the timer-on time, then press SET/QP LINK.
3 Press cursor 2/3 to adjust the
minute of the timer-on time, then press SET/QP LINK.
4 Repeat Step 2 and 3 to set the
timer-off time.
35
Setting the Various Timer (continued)
Auto Standby Sleep Timer
If there is no operation for 3 minutes while the disc is stopped, the power will be automatically turned off.
Press A.STANDBY during playback or while the disc is stopped, or no disc is loaded (“NO DISC” appears).
The A.STANDBY indicator lights on the display window on the main unit.
When a stopped state is entered (after playback is finished, for example), the A.STANDBY indicator starts blinking. This means that the power will be turned off automatically if there is no operation for 3 minutes. And 10 seconds before the power is turned off, “
A.STANDBY
” starts flashing.
Releasing Auto Standby
Press A.STANDBY. “A.STANDBY” will be turned off on the display
window on the main unit.
NOTE
When the source is FM, AM, USB or AUX, Auto Standby does not work.
When the time you specify elapses, the system will be turned off by itself.
Press SLEEP.
Each time you press the button, the time indicated on the display window on the main unit changes (in minutes).
Changing the time
Reselect the time by pressing SLEEP repeatedly.
Confirming the time
Press SLEEP once while Sleep Timer is set.
Releasing
Press SLEEP repeatedly until “SLEEP OFF” appears.
NOTE
Sleep Timer will also be released when the power is turned off.
Tray Lock
You can lock the disc tray to prevent the disc from being ejected.
Setting
While the system is turned off, press 0 (Open/ Close) with 7 (Stop) on the main unit held. “LOCKED” appears on the display window on the
main unit.
Releasing
Carry out the same operations as those for setting. “UNLOCKED” appears on the display window on
the main unit.
36
Troubleshooting
Reference
When you encounter a problem that seems to be a fault, check the following points before contacting your JVC service center.
Power source
7 Power does not come on.
• The power cord is not connected to the main unit or an AC outlet.
Connect the power cord correctly
(page 11).
Operation
7 You cannot operate any button.
• Some specific operations may be inhibited for some discs.
7 The remote control does not work.
• The dry-cell batteries have run out.
Replace the batteries (page 6).
7 A disc cannot be played back.
• In the case of DVD VIDEO discs
Check the Region Code number of the
discs (page 3).
• “NO PLAY” is displayed on the display window. It is not a disc that can be played on this system.
Check the disc type (page 3).
7 MP3/WMA/JPEG/MPEG1/MPEG2 files cannot
be played back.
• The loaded disc may include files of different types (MP3, WMA, JPEG, MPEG1 or MPEG2). You can play back only the files whose types selected in “FILE TYPE”. (page
29).
About images
7 No picture appears.
• The video cord is not connected correctly.
Page 11
• Both of the component video jack and S­video jack are connected.
Connect either (page 11).
7 The picture is distorted.
• A VCR is connected between the main unit and the TV set.
Connect the main unit directly to the TV set
(page 11).
• Although this system is connected to a non­Progressive TV set, DVD’s scan mode is set to “PROGRESSIVE”.
Set the scan mode to “INTERLACE”
(page 26).
7 The screen size is abnormal.
• The screen size is set improperly.
Set “MONITOR TYPE” according to the TV
set you are using (page 29).
7 The TV screen darkens.
• “SCREEN SAVER” is set.
Press any button to deactivate the function
(page 29).
About sound
7 There is no sound.
• Speakers are not connected correctly.
Page 9
• The sound is muted.
Page 16
• “NO AUDIO” is displayed on the display window. The disc may have been produced through illegal copying.
Confirm at the store where you bought the
disc.
7 The sound is weak compared with TV or Video.
• “DVD LEVEL” is set to “NORMAL”.
Set to other than “NORMAL” (page 26).
7 The sound is distorted.
• The volume is turned up too high.
Turn down the volume (page 16).
7 No sound comes out of the subwoofer.
• “SUBWOOFER” is turned off.
Press S.WFR OUT to turn on (page 10).
7 The sound through the USB connection stops.
• Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations:
Disconnect and connect the USB cable
again
Restart the music software on your PCTurn off and on the system
37
Troubleshooting (continued)
Language codes
About radio
7 The sound is noisy while receiving/Receiving
is disabled.
• The antenna is not connected correctly.
Connect the antenna correctly (page 8).
Others
7 It is not possible to switch audio or subtitles
between languages.
• The disc does not contain 2 or more languages.
If only a single language is recorded on the
disc, switching to another language is impossible (page 24).
7 No subtitle is displayed.
• The disc does not contain any subtitles.
A DVD VIDEO without subtitles cannot
display any subtitles.
• The subtitle language is set to “OFF”.
Specify a language (page 29).
• Before or after A point or B point in A-B Repeat Playback, no subtitle may be displayed.
7 The disc cannot be ejected.
• Tray Lock is set.
page 36
7 “LR ONLY” is displayed on the display window
(for a DVD AUDIO).
• Because, for the track being played back, down mix is inhibited for multi-channel sound, the sound of L and R is output directly (a normal action).
7 The system automatically turns on even if the
Timer turn the system to standby or if you turn the system to standby while playback is going on the portable audio device.
• In this case, deactivate QP Link or stop playback on the device connected to the AUX 1 jack.
If the system does not work properly despite correction measures above
Many functions of this system are implemented by microcomputers. If pressing any button does not result in the normal action, disconnect the power plug from the outlet, wait for a while, and reconnect the system.
Code
Language
AA Afar MK Macedonian AB Abkhazian ML Malayalam AF Afrikaans MN Mongolian AM Ameharic MO Moldavian AR Arabic MR Marathi AS Assamese MS Malay (MAY) AY Aymara MT Maltese AZ Azerbaijani MY Burmese BA Bashkir NA Nauru BE Byelorussian NE Nepali BG Bulgarian NL Dutch BH Bihari NO Norwegian BI Bislama OC Occitan BN Bengali, Bangla OM (Afan) Oromo BO Tibetan OR Oriya BR Breton PA Panjabi CA Catalan PL Polish CO Corsican PS Pashto, Pushto CS Czech PT Portuguese CY Welsh QU Quechua DA Danish RM Rhaeto-Romance DZ Bhutani RN Kirundi EL Greek RO Rumanian EO Esperanto RW Kinyarwanda ET Estonian SA Sanskrit EU Basque SD Sindhi FA Pe rs ian SG Sangh o FI Finnish SH Serbo-Croatian FJ Fiji SI Singhalese FO Faroese SK Slovak FY Frisian SL Slovenian GA Irish SM Samoan GD Scots Gaelic SN Shona GL Galician SO Somali GN Guarani SQ Albanian GU Gujarati SR Serbian HA Hausa SS Siswati HI Hindi ST Sesotho HR Croatian SU Sundanese HU Hungarian SV Swedish HY Armenian SW Swahili IA Interlingua TA Tamil IE Interlingue TE Telugu IK Inupiak TG Tajik IN Indonesian TH Thai IS Icelandic TI Tigrinya IW Hebrew TK Turkmen JI Yiddish TL Tagalog JW Javanese TN Setswana KA Georgian TO Tonga KK Kazakh TR Turkish KL Greenlandic TS Tsonga KM Cambodian TT Tatar KN Kannada TW Twi KO Korean (KOR) UK Ukrainian KS Kashmiri UR Urdu KU Kurdish UZ Uzbek KY Kirghiz VI Vietnamese LA Latin VO Volapuk LN Lingala WO Wolof LO Laothian XH Xhosa LT Lithuanian YO Yoruba LV Latvian, Lettish ZU Zulu MG Malagasy MI Maori
Code
Language
38
Specifications
Reference
General
Power source: AC 120 V , 60 Hz Power consumption: 25 W (in operation)/
4.0 W(on standby/display on)
Weight: 2.6 kg (5.7 lbs) External dimensions 150 mm x 152.6 mm x 252.9 mm (WxHxD): (5
1.0 W (on standby/display off)
15
/16 in. x 6 1/16 in. x 10 in.)
DVD player
Playable discs: DVD VIDEO, DVD AUDIO, VCD,
SVCD, CD CD-R/RW (VCD/SVCD/CD/MP3/ WMA/JPEG/MPEG1/MPEG2 format) DVD-R/-RW (MP3/WMA/JPEG/DVD VIDEO/DVD VR [CPRM]/MPEG1/ MPEG2 format) DVD - ROM (
MPEG2/DVD VR [CPRM]
MP3/WMA/JPEG/MPEG1/
format)
Video output
Color system: NTSC Horizontal resolution: 500 lines Composite x1: 1.0 V (p-p)/75
synchronization negative
S-video x1: Y output: 1.0 V (p-p)/75
synchronization negative C output: 0.286 V (p-p)/75
Component x1: Y output: 1.0 V (p-p)/75
PB/PR output: 0.7 V (p-p)/75
Ω,
Ω,
Speaker
Type: Full range
Speaker: 8 cm (3
Frequency response: 55 Hz to 20 000 Hz Power handling capacity: 20 W Impedance: 4 Sound pressure level: 80 dB/W m Dimension (WxHxD): 120 mmx150.5 mmx243 mm
Weight: 1.8 kg (4.0 lbs) each
• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP lossless”, and the double-D symbol are trademarks of Dolby Laboratories.
• “DTS” and “DTS 2.0+ Digital Out” are trademarks of Digital Theater Systems, Inc.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
1-way bass-reflex type
Magnetically shielded type
3
/
16
x
1
inches) wood cone
3
(4
/4 in. x 6 in. x 95/8 in.)
Audio output
Analog sound output:
Speakers x2
Output power: 20 W per channel
min., RMS, at 4
at
1 kHz with no more than 10% total harmonic distortion
Fitting impedance: 4 to 16
Headphones x1: 11 mW/32
Fitting impedance: 16 to 1 k
Subwoofer x1: 500 mVrms/10 k
Digital sound output:
Optical x1: –21 dBm to –15 dBm
Audio input
Sound input: AUX 1: 400 mV/50 k
200 mV/50 k
AUX 2: 1.5 V/50 k
750 mV/50 k
USB: AUDIO x 1
Tuner
FM tuner:
Receiving frequency: 87.5 MHz to 108.0 MHz Antenna: 75
AM (MW) tuner:
Receiving frequency: 530 kHz to 1 710 kHz Antenna: External antenna jack (loop
Unbalanced type
antenna)
Designs and Specifications are subject to change without notice.
39
EX-D11 COMPACTT COMPONENT SYSTEM
EN
c
2006 Victor Company of Japan, Limited
0306ZZCMDWJSC
COMPACT COMPONENT SYSTEM
EX-D11
Consists of CA-EXD11 and SP-EXD11
INSTRUCTIONS
GNT0066-005B
[UW/UG/US/UB/A]
Warnings, cautions and others
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
CAUTION
• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted candles, on the apparatus.
• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.
• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION — (Standby/on) button!
Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The disconnect the mains line.
• When the system is on standby, the STANDBY lamp
• When the system is turned on, the STANDBY lamp
The power can be remote controlled.
(Standby/on) button in any position does not
lights red.
goes off.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT
[European Union only]
Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/Top/Back: No obstructions should be placed in the areas shown by
3. Bottom: Place on the level surface. Maintain an adequate air path
Front view Side view
Wall or obstructions Wall or obstructions
the dimensions below.
for ventilation by placing on a stand with a height of 10 cm or more.
15 cm
1 cm1 cm
CA-EXD11
15 cm
15 cm
CA-EXD11
G-1
10 cm
Table of contents
Introduction
Special cautions ..............................................2
Notes on handling............................................... 2
Supplied accessories.......................................... 2
About discs......................................................3
Playable disc types............................................. 3
Disc structure...................................................... 4
Description of parts .........................................5
Front panel.......................................................... 5
Display window................................................... 5
Rear panel .......................................................... 5
Getting started
Using the remote control .................................6
Putting the batteries in the remote control.......... 6
Operating the TV using the remote control ......... 7
Connecting up .................................................8
Connecting antennas.......................................... 8
Connecting speakers.......................................... 9
Connecting other devices ................................. 10
Connecting with TV........................................... 10
Connecting the power cord............................... 11
Selecting an AM interval spacing...................... 11
Changing the color system ............................... 11
Basic operations
Playing discs .................................................12
Playback ........................................................... 12
To switch the display ........................................ 13
Select an item on the disc by using the number
buttons....................................................... 14
To stop playback............................................... 14
To pause playback............................................ 14
To advance picture frame-by-frame.................. 14
Fast reverse/Fast forward search..................... 14
Playing back from a position 10 seconds before
(One Touch Replay) .................................. 15
Slow Motion Playback....................................... 15
Skip to the beginning of the selection ............... 15
Skipping at 5-minute intervals........................... 15
To change the brightness of the display window
(DIMMER).................................................. 16
Adjusting the volume ........................................ 16
Adjusting sound quality..................................... 16
Turning off the sound temporarily (MUTING) ... 16
Playing audio/video files................................16
Playback ........................................................... 17
Repeat playback............................................... 17
Resume Playback .........................................18
Select the scene to be played .......................19
Select the scene from the menu ....................... 19
Designate the time (Time search)..................... 20
Advanced operations
Program/Random Playback ..........................20
Play the disc in the desired order (Program
Playback)....................................................20
Playing the disc in a random order (Random
Playback)....................................................21
Repeat Playback ...........................................22
Playing the title/chapter/group/track/all tracks
repeatedly (REPEAT).................................22
Playing the designated part repeatedly (A-B
Repeat Playback).......................................23
Other convenient functions............................24
Selecting the subtitles........................................24
Selecting the audio language ............................24
Selecting a view angle.......................................24
Enlarging the picture (ZOOM) ...........................25
Adjusting the picture quality (VFP) ....................25
Making dialogues clear (CLEAR VOICE)..........25
Creating realistic sound (3D PHONIC)..............26
Adjusting playback level (DVD LEVEL) .............26
Enjoying better pictures (SCAN MODE)............26
Functions specific to DVD AUDIO.................27
Playing the Bonus Group...................................27
Browsable Still Pictures (B.S.P.) .......................27
Using the menu bar ....................................... 28
Preferences ................................................... 29
Basic operations................................................29
LANGUAGE.......................................................29
PICTURE...........................................................29
AUDIO ...............................................................30
OTHERS............................................................30
Listening to the radio
Listening to a radio broadcast .......................31
Selecting a station .............................................31
Presetting stations.............................................31
Tuning in to a preset station..............................31
Convenient functions
Playing Back from the PC .............................32
Listening to the sound of other audio device
Listening to the sound of external audio device .... 33
Listening to the sound of portable audio device
Adjusting the audio input level...........................34
....33
....33
Setting the Various Timer..............................34
Setting the built-in clock.....................................34
Setting the daily timer........................................35
Auto Standby.....................................................36
Sleep Timer .......................................................36
Tray Lock.......................................................36
Reference
Troubleshooting.............................................37
Language codes............................................38
Specifications ................................................39
1
Special cautions
Notes on handling
7 Important cautions
Installation of the system
• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C.
• Leave sufficient distance between the system and the TV.
• Do not use the system in a place subject to vibration.
Power cord
• Do not handle the power cord with wet hands.
• A small amount of power is always consumed while the power cord is connected to the wall outlet.
• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.
To prevent malfunctions of the system
• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.
• Do not insert any metallic object into the system.
• Do not use any non-standard shape disc (like a heart, flower or credit card, etc.) available on the market, because it may damage the system.
• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.
Label sticker
Sticker
Note about copyright laws
Check the copyright laws in your country before recording from DVDs, VCDs, SVCDs, and CDs. Recording of copyrighted material may infringe copyright laws.
Note about copy guard system
DVDs are protected by copy guard system. When you connect the system to your VCR directly, the copy guard system activates and the picture may not be played back correctly.
7 Safety precautions
Avoid moisture, water and dust
Do not place the system in moist or dusty places.
Avoid high temperatures
Do not expose the system to direct sunlight and do not place it near a heating device.
When you are away
When away on travel or for other reasons for an extended period of time, disconnect the power cord plug from the wall outlet.
Do not block the vents
Blocking the vents may damage the system.
Care of the cabinet
When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.
Paste
If water gets inside the system
Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.
7 When condensation or water drops adhere to the
lens
In any of the following cases, condensation or water drops may adhere to the lens to prevent the system from working properly:
• Immediately after starting to heat the room
• When the system is installed in a steamy or damp space
• When the system is suddenly moved from a cold place to a warm space
In any of these cases, leave the system turned on for 1 or 2 hours before use.
Supplied accessories
Check to be sure you have all of the supplied accessories. The number in parentheses is the quantity of the pieces supplied. If anything is missing, contact your dealer immediately.
• Remote control (1)
• Batteries (2)
• FM antenna (1)
• AM loop antenna (1)
• Power cord (1)
• Composite video cord (1)
• Speaker cords (2)
• AC plug adapter (1) (except for Hong Kong, Australia, Middle East and South Africa)
How to read this manual
• Operations are described by mainly using the
remote control buttons. If there are the same marks on the main unit, the buttons on the main unit can also be used.
• The following marks tell you for which type of the
discs the operation can be made.
• The illustrations and TV screens may be different
between the actual case and the description.
• “DVD VR” means a DVD recorded in DVD Video
Recording (DVD VR) format.
• “VCD” is an abbreviation of “Video CD”.
• “SVCD” is an abbreviation of “Super Video CD”.
• An “ASF” disc means a disc recorded in
“Advanced Systems Format”.
2
About discs
Playable disc types
Discs you can play:
*3
*3
Video
Format
PA L /
NTSC
PA L /
NTSC
PA L /
NTSC
PA L /
NTSC
Playable
Playable
*1
*2
*3
*3
*3
Disc Type Mark (Logo)
DVD
VIDEO
DVD
AUDIO
AUDIO
VCD
SVCD
CD
DivX
The “Playable” in the following list shows available disc types and recording formats.
Disc type
Recording
CD-R/-RW*1DVD-R*1DVD-RW
format
DVD Video
DVD Audio
*2
DVD V R
VCD/SVCD Playable
Audio CD Playable
MP3/WMA/ JPEG
ASF/MPEG1/ MPEG2
DivX Playable Playable*3Playable
• A DVD VR formatted DVD-ROM is also playable.
*1 This system can play finalized discs only. *2 Only when a DVD-R/-RW is compatible with CPRM
(Content Protection for Recordable Media), DVD VR format can be used.
*3 Recorded with UDF Bridge format. However, some discs may not be played back because of
their disc characteristics, recording conditions, or damage or stain on them. Only sounds can be played back from the following discs:
MIX-MODE CD CD-G CD-EXTRA CD TEXT
Playable Playable
Playable Playable
Playable Playable
Playable Playable
Playable*2Playable
Introduction
Caution for DualDisc playback
The non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.
Note on Region Code
DVD VIDEO players and DVD VIDEO discs have their own Region Code numbers. This system can play back DVD VIDEO discs whose Region Code numbers include the system’s Region Code, which is indicated on the rear panel.
Examples:
If a DVD VIDEO with an improper Region Code number is loaded, “REGION CODE ERROR!” appears on the TV screen and playback cannot start.
• On some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.
Notes on CD-R and CD-RW
• This system supports “multi-session” discs (up to 20 sessions).
• This system cannot play “packet write” (UDF format) discs. Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them.
Discs that cannot be played back
• DVD-RAM, CD-ROM, CD-I (CD-I Ready), Photo CD, SACD, etc. Playing back these discs will generate noise and damage the speakers.
Damaged discs and discs in an extraordinary shape (other than a disc of 12 cm or 8 cm in diameter) cannot be played back.
Notes on all files
• The system can only recognize and play files with one of the following extensions, which can be in any combination of upper and lower case;
MP3: “.mp3”
WMA: “.wma”
JPEG: “.jpg”, “.jpeg”
MPEG1/MPEG2: “.mpg”, “.mpeg”
ASF: “.asf”
DivX: “.divx”, “.div”, “.avi”
• If a character other than single byte English characters is used in the file name, the track/file name will not be displayed correctly.
• The system recognizes up to 150 tracks (files) per group, 99 groups per disc, and the total number of the tracks (files) that the system can play is 4 000.
• Since the unit ignores the tracks/files whose numbers are exceeding 150 and the groups whose numbers are exceeding 99, they cannot be played back.
• Some files may not be played back normally because of their disc characteristics or recording conditions.
is a trademark of DVD Format/Logo
Licensing Corporation.
• It is possible to playback finalized +R/+RW (DVD Video Format only) discs, “DVD” lights on the front display panel when a +R/+RW disc is loaded.
3
About discs (continued)
For MP3/WMA files
• An off-the-shelf MP3 disc may be played in an order different from that indicated on the label attached to the disc.
• The system supports MP3/WMA files recorded with a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz, 24 kHz (WMA only), 32 kHz, 44.1 kHz, or 48 kHz.
• If the tag information (album name, artist, and track title, etc.) is recorded on a disc, it appears in the file control display on the TV screen.
• We recommend to record each piece of material (song) at a sample rate of 44.1 kHz and at a data transfer rate of 128 (96 for WMA only) kbps.
• This system cannot play back files encoded with Multiple Bit Rate (MBR). (MBR is a format to encode a file content at several different bit rates.)
For JPEG files
• We recommend to record a file at 640 x 480 resolution.
• This system can play a baseline JPEG file, excluding monochromatic JPEG files.
• This system can play JPEG data taken with a digital camera conforming to the DCF (Design Rule for Camera File System) standard (when a function is applied such as the automatic rotation function of a digital camera, data goes beyond the DCF standard, so the image may not be displayed).
• If data has been processed, edited and restored with PC image editing software, the data may not be displayed.
• This system cannot play animations such as MOTION JPEG, or still images (TIFF etc.) other than JPEG, and image data with sound.
• An image with a resolution of more than 8 192 x 7 680 pixels cannot be displayed.
For MPEG-1/MPEG-2 files
• The stream format should conform to MPEG system/ program stream.
• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is recommended for the highest resolution.
• This system also supports the resolutions of 352 x 576/ 480 x 576/ 352 x 288 pixels (25 fps) and 352 x 480/ 480 x 480/ 352 x 240 pixels (30 fps).
• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple profile at Main Level)/ MP@LL (Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio layer­2 or MPEG2 Audio Layer-2.
For ASF files
• This system supports ASF files whose resolution is 352 x 288 pixels or less.
• The system supports ASF files recorded with the maximum bit rate of 384 kbps and an audio coder decoder of G.726.
• Some recorded files may not be able to playback depending on file characteristics, kind of digital camera/ video camera, or recording conditions.
For DivX files
• This system can play a DVD-R/-RW disc of UDF­Bridge format. “Multi-border” is not supported.
• The system supports DivX files whose resolution is 720 x 480 pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).
• Audio stream should conform to MPEG1 Audio Layer-2 or MPEG Audio Layer-3 (MP3).
• The system does not support GMC (Global Motion Compression).
• The file encoded in the interlaced scanning mode may not be played back correctly.
Disc structure
DVD VIDEO/DVD VR
A DVD VIDEO consists of “titles” and each title may be divided into “chapters”.
A DVD VR consists of “original programs” or “playlists” and each original program/playlist may be divided into “chapters”.
Title 1/Original program 1/
Play list 1
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2
DVD AUDIO
A DVD AUDIO consists of “groups” and each group may be divided into “tracks”. Some discs include a “bonus group” that requires a password for playing (page 27).
Group 1 Group 2
Track 1 Track 2 Track 3 Track 1 Track 2
VCD/SVCD/CD
VCD, SVCD and CD consist of “tracks”. In general, each track has its own track number. (On some discs, each track may also be further divided by indexes.)
Track 1 Track 2 Track 3 Track 4 Track 5
MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2 discs
On an MP3/WMA/JPEG/ASF/DivX/MPEG1/ MPEG2 disc, each still picture (material) is recorded as a track/file. Tracks/Files are usually grouped into a folder. Folders can also include other folders, creating hierarchical folder layers.
This unit simplifies the hierarchical construction of a disc and manages folders by “groups”.
Group 1 Group 2
Track 1
[File 1]
Track 2
[File 2]
Group 3 Group 4 Group 5
• If there is any type of files other than JPEG/ASF/DivX/MPEG1/MPEG2 folder, those files are also counted in the total file number.
Title 2/Original
program 2/ Play list 2
MP3/WMA/
files in a
4
Description of parts
The numbers represent the page numbers.
Front panel
Introduction
See “Display window” below.
STANDBY lamp
STANDBY
14
Top of the unit
14
15
15
16
In the door
10
32
12
PHONESAUX 1 USB AUDIO
DVD/CD
12
*
USB
FM/AM
31 32
12
* Connect headphones (not supplied) with a stereo mini plug. If the headphones are connected, the
speakers and subwoofer will not produce any sound.
Display window
13
18 26 27
27 13
AUX
33
12
PRGM. AL L SLEEP 3D PHONICA. STANDBYA-B 12 31RANDOM
Rear panel
RESUME
20 21 17, 22 35
8
AUX 2
AM
EXT
AM
LOOP
10
R
8
10 10
L
PCM/ STREAM
DVD OPTICAL
DIGITAL OUT
SUB-
WOOFER
OUT
FM75
COAXIAL
ANTENNA
COMPONENT
YPBP
11
BONUS B. S .P. ST AUT OPROGRESSIVESVCDVD-A
36 36 31
SPEAKERS
CAUTION:
SPEAKER IMPEDANCE
4-16
RL
VIDEO
R
S-VIDEO
VIDEO OUT
26
25
9 11
These holes discharge heat generated inside the unit.
Do not cover up these holes.
11 11
5
Using the remote control
The numbers represent the page numbers.
26
7
13, 16 12
Putting the batteries in the remote control
7
32
31
15, 17, 27
7
7
15, 31
14
14,18
19
19, 28
29 24 24
27
34, 35
33 35 36
36 20 16
16
USB FM/AM
12
33
16
15
16 16
Remote control mode selector
15, 31 12, 14, 17, 18, 21
14
14 19 20, 23, 28
24 25
25, 26
13
25, 26
7, 15
31 17, 22
31 23
10
Batteries
If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6 (SUM-3)/AA(15F) type dry-cell batteries.
6
CAUTION
• Do not use a used battery and a new battery together.
• Do not use different types of batteries at the same time.
• Take out the batteries if the remote control is not to be used for a long time. Otherwise it may cause a leakage.
Remote control operation
When operating the remote control, point it towards the front panel of the main unit. If the remote control is operated from a direction that is extremely oblique or when there is an obstacle in the way, signals may not be transmitted.
If the remote control sensor is exposed to a strong light such as direct sunlight, correct operation may not be carried out.
Getting started
This page is for when operating your TV using the remote control of this product.
Operating the TV using the remote control
Manufacturer Code Manufacturer Code
JVC 01 Samsung 12
Hitachi 10 Sanyo 13, 14
Magnavox 02 Sharp 06
Mitsubishi 03 Sony 07
Panasonic 04, 11 Toshiba 08
Philips 15 Zenith 09
RCA 05
NOTE
Manufacturer’s codes may be changed without notice. You may not be able to operate a TV produced by the manufacturer shown above.
5 Release TV.
For TV operation
Operate the remote control by pointing it towards the TV.
Turn ON/OFF the power.
Change channels.
Setting the manufacturer’s code
1 Slide the remote control mode
selector to the TV side.
2 Keep pressing down TV.
NOTE
Keep pressing down TV until Step 4 is complete.
3 Press ENTER. 4 Press number buttons (1-9, 0).
Ex.:
For a Hitachi TV: Press 1, then 0. For a Toshiba TV: Press 0, then 8.
If there are more than one manufacturer’s codes, try them in turn and select the one that causes the product to work properly.
Adjust volume.
9
100+
Alternates between the previously selected channel and the current channel.
Switch TV and video input.
*1 Make sure to slide the remote control mode
selector to the TV side in advance.
NOTE
When the batteries are replaced, perform the manufacturer’s code setting again.
Select channels.
*1
7
Connecting up
– Do not turn on the power until the connection is complete –
Connecting antennas
Connecting AM loop antenna (supplied)
1 Set up the AM loop antenna.
2 Connect antenna cords.
Main unit (rear panel)
AM
EXT
AM
LOOP
If the antenna cord is covered with vinyl on the tip, twist and pull the vinyl off and remove.
Connect the end of the antenna cord as shown above.
3 Turn the AM loop antenna to the direction of the
best radio reception. Locate the AM loop antenna as far away from the main unit as possible.
• Do not locate the AM loop antenna on a metallic table or close to a TV, personal computer, etc. Otherwise it may result in bad radio reception.
7 When good radio reception cannot be obtained
with the supplied AM loop antenna
Electric wire: 3 - 5 m (not supplied)
Electric wire
Twist
LOOP
AM loop antenna
AM
EXT
AM
Main unit
(rear panel)
Extend an electric wire horizontally, preferably in a high place such as above a window or outdoors.
Connect the AM loop antenna cords together with the electric wire.
Connecting FM antenna (supplied)
Main unit
(rear panel)
FM antenna
FM75
COAXIAL
Put the antenna up straight in the direction where the best radio reception can be obtained, and fix by using tape.
7 When good radio reception cannot be obtained
with the supplied antenna or when using a communal antenna
Antenna cord (not supplied)
Main unit
(rear panel)
FM75
COAXIAL
or
Converter (not supplied: compatible with 300
/75 Ω)
Depending on the radio reception conditions, an FM feeder antenna (not supplied: compatible with 300 used. In the case, a converter (not supplied) is required.
For details of connecting a separately sold antenna, refer to the user guide for the antenna or converter.
Communal antenna terminal
Outdoor FM antenna (not supplied)
Coaxial cable (not supplied)
) can be
When positioning the antenna, find the best position for reception while listen to an actual radio program (refer to “Listening to a radio broadcast” on page 31).
8
Getting started
Connecting speakers
There is no difference between the left and right speakers.
Speaker terminal
Speaker cord
Speaker cord
(supplied)
Without
black line
With
black line
Right speaker
(rear panel)
SPEAKERS
RL
Main unit
(rear panel)
Speaker cord (supplied)
Without black line
With black line
Left speaker
(rear panel)
CAUTION
• DO NOT connect more than one speaker to one speaker terminal.
• The speakers of this product are magnetically shielded, but color irregularities may occur on the TV depending on how the speakers are installed. Keep in mind the following.
1. Turn off the main power of your TV before
installing the speakers. Wait for about 30 minutes before turning on the TV again.
2. If color irregularity occurs in pictures, keep a
distance of more than 10 cm between the TV and the speakers.
The speakers employ natural wood for the diaphragm and the cabinet in order to reproduce the original sound faithfully. The appearance will therefore be different for each unit.
Speaker grille can be detached.
Speaker grille
NOTE
• Impedance of speaker that can be connected to the main unit is within a range of 4
• In order to have a sufficient cooling effect, leave a space of more than 1 cm between the main unit and the speakers or other objects.
to 16 Ω.
9
Connecting up (continued)
– Do not turn on the power until the connection is complete –
Connecting other devices
This page is for when connecting the main unit with other devices.
Connecting subwoofer
With an amplifier-built-in subwoofer (not supplied), you can enjoy a more dynamic bass sound. Refer to the manual of the subwoofer for details.
Audio cord (not supplied) (If an audio cord comes with the amplifier-built-in subwoofer, you can use the cord.)
SUB-
WOOFER
OUT
Amplifier-built-in subwoofer (not supplied)
Main unit
Connecting with a digital device
Input
Output
Main unit
Digital audio signals are output from this system only when DVD/CD is selected as the source.
CAUTION
• For details of signals to be output, refer to page 30.
• If connecting the main unit with equipment with the function of a Dolby Digital decoder, the setting in “D. RANGE COMPRESSION” of “AUDIO” (page 30) will be invalid regarding sound from the digital audio output of the main unit.
Digital device (MD recorder etc.)
To digital input terminal
Optical digital cord (not supplied)
PCM/ STREAM
DVD OPTICAL
DIGITAL OUT
When you want to hear sound from the subwoofer, press S.WFR OUT on the remote control to display “SUBWOOFER” on the display window on the main unit. Each time you press the button, the display toggles between “SUBWOOFER” and “OFF”.
NOTE
When “SUBWOOFER” is selected, bass sound from the left and right speakers will be automatically lowered and the bass sound will be emitted mainly from the subwoofer.
Connecting with other audio device
Output
Other audio device
Audio cord (not supplied)
WhiteRed
Connecting with a portable audio device
Stereo mini plug cord (not supplied)
In the door of the front panel
AUX 1
• By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device on this unit. See page 33 for details.
• If an external device is not equipped with a stereo mini plug audio output, use a plug adaptor to convert the stereo mini plug to the corresponding plug of the audio output.
Portable audio device
Connecting with TV
CAUTION
Connect the main unit directly with a TV (or a monitor) without routing through a VCR. Otherwise it may cause picture distortion while playing.
Main unit
TV (or monitor)
10
Input
AUX 2
R
L
Connecting directly
Also, when connecting the main unit to a TV with a VCR built in, there may be picture distortion while playing.
Main unit
Getting started
TV
Main unit
COMPONENT
YPB PR
Supplied composite video cord
VIDEO
S-VIDEO
VIDEO OUT
You can enjoy pictures of better quality using the following cord instead of the supplied video cord.
Connecting by using the S-Video cord
Main unit
COMPONENT
YPB PR
VIDEO
VIDEO OUT
S-Video cord (not supplied)
S-VIDEO
TV
Connecting by using the component video cord
You can enjoy better quality pictures than when using the S-Video cord.
TV
Connecting the power cord
AC outlet
Supplied power cord
Main unit
• Connect the power cord after all other connections are complete.
• The STANDBY lamp (on the front panel) will be lit.
Selecting an AM interval spacing
You can change the AM interval spacing.
Some countries space AM stations 9 kHz apart, and some countries use 10 kHz spacing.
• Before doing the following procedure, select AM as source, then turn off the unit.
• Use the buttons on the main unit.
Component video cord (not supplied)
Blue
Green
COMPONENT
YPB PR
VIDEO OUT
Main unit
Red
VIDEO
S-VIDEO
CAUTION
Use either the S-Video cord or the component video cord. If both cords are used, pictures may not be played properly.
NOTE
• In order to enjoy pictures with Progressive mode (page 26), the TV is required to have Progressive video input.
• If the component video input jacks of your TV are BNC type, use a plug adapter (not supplied) to convert the plugs.
To set the AM tuner to the 10 kHz spacing:
While holding ¢, press STANDBY/ON .
To set the AM tuner to the 9 kHz spacing:
While holding 4, press STANDBY/ON .
Changing the color system
You can select the video output to match it to the color system of your TV (PAL or NTSC).
1 Press and hold VFP for 4 seconds while the
system is turned off (on standby).
2 Press cursor 2/3 to select the video output.
Press ENTER to set the video output.
11
Playing discs
Playback
(Refer also page 17 for playing MP3/WMA/JPEG/ASF/DivX/
MPEG1/MPEG2.)
page 5
Press AUDIO.
1
• The power will be turned on and the STANDBY lamp will go off.
• Press AUDIO again to turn off the power.
Press 0OPEN/CLOSE to open the disc
2
Place a disc with the label side facing up.
Place an 8 cm disc in to the
hollow part in the center
tray to load a disc.
.
Press DVD/CD 3.
3
The disc tray will close and playback will start.
• The power will be turned on when any of DVD/ CD 3, USB, FM/AM, AUX, or 0 on the main unit and DVD/CD 3, USB, FM/AM, AUX, or 0OPEN/CLOSE on the remote control is pressed while the power is off.
• If any button other than 0 or 0OPEN/CLOSE is pressed, the source will also be changed (if there is a disc loaded, playback will start by pressing the DVD/CD 3 on the main unit or the remote control).
NOTE
• A menu screen may be displayed on the TV after starting playback of a DVD/VCD/SVCD. In this case, select a desired item to playback by using the following buttons on the remote control.
• Select a desired item using cursor
and press
• Select a desired item using the number buttons.
• Depending on the disc, actual operation may be different from the description.
ENTER.
5/K/2/3
Screens displayed on the TV when the power is turned ON.
The following messages appear depending on the status of the system. (When FM, AM, USB or AUX is selected as a source, the messages do not appear.)
NOW READING Appears when the system is reading the disc information. Wait for a while. REGION CODE
ERROR! NO DISC Appears when no disc is loaded. OPEN Appears when opening the disc tray. CLOSE Appears when closing the disc tray. CANNOT PLAY THIS
DISC READING INDEX... Appears when reading the index of a DivX file.
Appears when the Region Code of the DVD VIDEO does not match the code the system supports. (page 3)
Appears when trying to playback an unplayable disc.
12
Display window during disc playback
Ex.: When a DVD VIDEO is played
Basic operations
Ex.: When an MP3/WMA/ASF/DivX/MPEG1/
MPEG2 file is played
SVCDVD-A
Track number
Ex.: When an JPEG file is played
SVCDVD-A
Disc type
Chapter number
Elapsed playing time
When a DVD VR is played back, PG (original program) /PL (play list) number is displayed.
Ex.: When a DVD AUDIO is played
SVCDVD-A
Track number
If “BONUS” or “B.S.P.” is displayed during a DVD AUDIO playback, refer to page 27.
Ex.: When an SVCD or VCD is played
S VCDVD-A
Track number
• When playing an SVCD, the SVCD indicator lights instead of the VCD indicator.
• PBC (Play Back Control): A signal recorded in a VCD (version 2.0) for controlling playback. It is possible to enjoy interactive software or software with a search function using a menu screen recorded in a PBC compatible VCD. To play a disc with the PBC function OFF, carry out the following operations.
• Designate the track number using the number
buttons while the disc is stopped.
• Designate the track number using x while
the disc is stopped, and then press DVD/CD 3.
• Press RETURN to go back to the upper layer during the PBC playback of a VCD or SVCD.
Ex.: When a CD is played
SVCDVD-A
Track number
Group number
File number
To switch the display
Press DISPLAY. Each time you press the button, the display
indication changes temporarily as follows:
For DVD VIDEO
SVCDVD-A
Title number
• For DVD VR
SVCDVD-A
PG/PL number
For DVD AUDIO
SVCDVD-A
Group number
For MP3/WMA
SVCDVD-A
Group number Track number
• For ASF/DivX/MPEG1/MPEG2
EX.: When an ASF file is played
Group number Track number
• While playing a DivX or MPEG1/MPEG2 file, “DIV (for DivX)” or “MPG (for MPEG1/ MPEG2)” appears instead of “ASF.”
For SVCD/VCD/CD/JPEG The clock time indication appears on the display window.
• Before setting the clock (page 34), “0:00”
appears.
• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption.
Chapter number
Chapter number
Track number
13
Playing discs (continued)
To stop playback
Press 7 during playback.
To pause playback
Press 8 during playback.
To start normal playback again, press DVD/CD 3.
• For JPEG slide-show, pressing DVD/CD 3 starts playback from the next file.
To advance picture frame-by-frame
Select an item on the disc by using the number buttons
NOTE
• Set the remote control mode selector to AUDIO before using the number buttons.
• For a VCD or SVCD, this operation can be carried out when the disc is stopped, or during playback without the PBC function.
• For a DVD AUDIO, CD, MP3/WMA or JPEG, this operation can also be carried out when the disc is stopped.
• For a DVD VIDEO, you can select the title before playing, and you can select chapter while playing.
• This operation may not be carried out for some discs.
Use number buttons to select the item you want to play.
• Refer to “How to use the number buttons” on page 15.
Press 8 during pause.
• Each time you press the button, picture will be advanced frame-by-frame.
Fast reverse/Fast forward search
Press 1 or y during playback.
• Each time you press the button, the speed increases as follows.
DivX file/disc:
X1, X2, X3
Except for DivX file/disc:
X2, X5, X10, X20, X60
• To restore the normal speed, press DVD/CD 3.
NOTE
• For MP3, WMA, DivX discs/files, the search speed shown on the TV is different from described above.
• While playing moving pictures, no sound comes out during Fast reverse/Fast forward search.
• For a CD or DVD AUDIO, sound is intermittent during Fast reverse/Fast forward search.
14
Basic operations
Playing back from a position 10 seconds before (One Touch Replay)
Press during playback.
NOTE
• This function may not be available for some discs.
• It is not possible to go back to the previous title.
Slow Motion Playback
Press SLOW or SLOW during pause.
• Each time you press the button, the playback speed increases ( ×1/32, ×1/16, ×1/8, ×1/4, ×1/2).
• Press DVD/CD 3 to start normal playback again.
NOTE
• No sound will be produced.
• The picture motion in the reverse direction may not be smooth.
• For a VCD, SVCD and DVD VR, Slow Motion Playback can be carried out in the forward direction only.
Skip to the beginning of the selection
Press 4 or x during playback*.
•Press x to skip the next chapter or track.
•Press 4 once to skip back to the beginning of
the chapter or track currently being played (except for JPEG).
•Press GROUP/TITLE or group.
• During playback of a MP3/WMA/JPEG/ASF/ DivX discs, press x or cursor K to play the next file, or press 4 or cursor 5 to play the previous file.
NOTE
* For a VCD or SVCD, this operation can be carried
out during playback without the PBC function.
• Except for a DVD VIDEO, this operation can also be carried out while the disc is stopped.
• This operation may not be carried out for some discs.
or to select the title
Skipping at 5-minute intervals
Press cursor 2 or cursor 3 during playback.
• Each time you press the button, the playback position skips to the beginning of the previous or next interval. Each interval is about 5 minutes or 30 seconds depending on the disc.
How to use the number buttons
Ex.:
5: 20:
Guide icons displayed on the TV screen (On-screen guide)
: Play
: Pause
: Fast reverse/Fast forward search
: Slow Motion Playback (reverse/
forward directions)
15: 25:
NOTE
• Intervals are automatically assigned from the beginning of a file.
• This feature is available only within the same file.
• This feature may not work for some discs/files.
126:
: Containing multi-angle views (page 24)
: Containing multi-audio languages (page 24)
: Containing multi-subtitle languages (page 24)
: The disc cannot accept the operation you
have attempted.
15
Playing discs (continued)
To change the brightness of the display window (DIMMER)
Press DIMMER repeatedly.
• Each time you press the button, the dimmer mode changes as follows:
AUTO DIMMER:During the video source
playback, the display window dims and the illumination automatically turns off.
Playing audio/video files
DIMMER ON: The display window and the
DISPLAY OFF: The display window turns off
DISPLAY ON: Cancels the dimmer function.
• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption. At this time, QP Link will be canceled automatically.
The items above can be carried out for all sources.
illumination dim.
and the illumination dims.
Adjusting the volume
Press AUDIO VOL +/–.
NOTE
The volume can be also adjusted by turning the VOLUME control on the main unit.
Adjusting sound quality
NOTE
Set the remote control mode selector to
AUDIO before using the number buttons.
Bass: Press BASS +/–. Treble: Press TREBLE +/–.
• Adjustable range: –5 to +5
Turning off the sound temporarily (MUTING)
Press MUTING.
• No sound will come out from the speakers, headphones and the subwoofer.
• Press MUTING again to restore the sound. In this function, the sound will not be restored by following operations.
• Turn off the system directly.
•Press AUDIO VOL +/– directly.
16
Playback
Display of an MP3/WMA disc is described here as an example. For a JPEG disc, read “track” as “file”.
NOTE
When playing a disc containing both MP3/WMA/ASF/ DivX/MPEG1/MPEG2 and JPEG files, set one of them to be played, then turn on the system again (page 29).
Basic operations
5 Press DVD/CD 3 or ENTER.
NOTE
GROUP/TITLE can also be used in Step 2.
• The number buttons can also be used in Step this case, Step number buttons, refer to page 15.)
4 or
5 is not needed. (For how to use the
x can also be used in Step 4.
Repeat playback
4. In
1 Load a disc.
Current group/total group number
Tag information (for MP3/WMA)
Current group
Current track (file) / total track (file) number on current group
Playback mode (PROGRAM, RANDOM, REPEAT)
Elapsed playing time of current track (except for JPEG)
Current track
(file)
Total track (file) number on disc
Playback status
2 Press cursor 5/K to select a
group.
1 Press REPEAT.
• Each time you press the button, the Repeat mode and its indication change as follows:
Repeat items On the TV On the display
Current track (except for JPEG)
Current group REPEAT
Entire disc All tracks during Program/Random play (MP3/WMA only)
Current track during Program/ Random play (MP3/WMA only)
Cancel REPEAT
REPEAT TRACK
GROUP
REPEAT ALL
REPEAT STEP
OFF
window
2 Press DVD/CD 3.
NOTE
• The Repeat types can be changed during playback.
• The Repeat mode will be automatically canceled if there is a file that cannot be played (page 3).
3 Press cursor 3 to move to the
track list.
• Press cursor 2 to go back to the group list.
4 Press cursor 5/K to select a
track.
Slide-Show Playback
• In Step 5, for a JPEG disc, when DVD/CD 3 is pressed, files will be continuously played from the
selected file (Slide-Show Playback), and when ENTER is pressed, only a selected file will be played.
• Display time for a file in Slide-Show Playback is about 3 seconds.
• When all files are played through, the playback will be automatically stopped.
17
Resume Playback
This system can store the stop point, and when you start playback again by pressing DVD/CD 3 (even while on standby), it starts from the position where you have stopped—Resume Play. The RESUME indicator lights on the display window when you stop playback.
To suspend playback
Perform any of the following operations during playback.
Press 7 once.*
Press AUDIO to turn off the power.
Change the source to USB, FM/AM or AUX.*
* Even if the power is turned off by pressing
AUDIO after this, the position where
playback has been stopped will be stored.
NOTE
Set the remote control mode selector to
AUDIO before using the number buttons.
To start playback from the stored position
Press DVD/CD 3.
NOTE
• This function does not work in Program Playback or Random Playback.
• The position where playback starts again may be a little different from the stopped position.
• When a disc menu is displayed, the Resume function may not work.
• The system also stores the settings of the audio language, the subtitle language, and the angle selected when playback is stopped.
• To stop completely while Resume is set to ON, press 7 twice. (To cancel Resume, see on page 30)
• At the time of purchase, Resume is set to ON. Resume can be set to OFF (page 30).
• If you open the tray, the stored position will be erased.
RESUME
18
Select the scene to be played
NOTE
Set the remote control mode selector to AUDIO before using the number buttons.
Basic operations
1 While the disc is stopped or
during playback, press TOP MENU/PG to display the original program or press MENU/PL to display the play list.
7 Original program
No Date Ch Time Title
1
03/04/06 12:15L 1 09/04/06
2
L 1 L 1
3 18/04/06 08:17
L 1
4 20/04/06 07:47
L 1
5 25/04/06 19:38 Mr. Lawrence
L 1
6 28/04/06 14:20
Channel information
La fleur
23:05
The last struggle free flyer BOOM!
Satisfy U
Title name
Recording time
Select the scene from the menu
1 Press MENU/PL or TOP MENU/
PG while the disc is stopped or during playback*1.
• The disc menu screen will be displayed.
• To display the disc menu while playing back a VCD or SVCD with PBC function, press RETURN repeatedly.
•Only TOP MENU/PG can be used for DVD AUDIOs.
2 Press cursor 5/K/2/3 (only
for a DVD VIDEO or DVD AUDIO) or the number buttons to select the scene to be played.
• Refer to “How to use the number buttons” (page 15).
• When the menu screen has a couple of pages, press 4 or page (only for a VCD and SVCD).
x to change the
3 Press ENTER.
NOTE
*1For a VCD and SVCD, this operation can be carried
out only when the PBC function is off.
• This operation cannot be carried out for a disc without a menu screen.
• Playback may start for some discs without pressing ENTER.
Recording date
7 Play list
No Date Chap Length Title
1 03/04/06 2 0:23:24 Nebula G. 2 15/04/06 4 1:04:39 3 24/04/06 13 0:41:26 4 27/04/06 17 0:09:08
Recording date
Number of chapters included in the title
• The play list will not appear when a play list has not been recorded to the disc.
CDJ Secret Garden S. Walker
Total playback time for the title
2 Press 5/K to select the
desired title.
3 Press ENTER.
• When you have selected the original program by pressing TOP MENU/PG in step 1, playback will start from the selected title to the following titles.
• When you have selected the play list by pressing MENU/PL in step 1, only the selected title will be played back.
19
Designate the time (Time search)
1 Press ON SCREEN twice during
playback*2.
The menu bar will be displayed (page 28).
2 Press cursor 2/3 to select
.
3 Press ENTER.
Program/Random Playback
4 Input the time
*3
using the
number buttons (1-9, 0).
Ex.: When you want to play a DVD VIDEO
from the position of (0 hour) 23 minutes 45 seconds, press the buttons in the order:
2
• If you input wrong numbers, press cursor 2
to delete the numbers and re-input.
4
3
5
5 Press ENTER.
To remove the menu bar, press ON SCREEN.
NOTE
• This function does not work for a DVD VIDEO with no time information recorded.
• This function does not work during Program or Random Playback.
2
*
For a VCD and an SVCD, the operation can be carried out when the disc is stopped or during playback without the PBC function.
3
*
Time search for a DVD VIDEO is from the beginning of the title, for a DVD AUDIO from the beginning of the track being played. Time search for a VCD, an SVCD and a CD is as follows:
• When the disc is stopped, time search is from the
beginning of the disc.
• When the disc is being played, time search is
within the track currently being played.
NOTE
Set the remote control mode selector to AUDIO before using the number buttons.
Play the disc in the desired order (Program Playback)
It is possible to program a maximum of 99 chapters or tracks. The same chapter or track can be programmed more than once.
1 While the disc is stopped, press
PLAY MODE repeatedly to display “PROGRAM” on the display window on the main unit.
TV screen
20
Program screen
2
Create a program following the description on the TV screen.
Refer to “How to use the number buttons” (page 15).
• The input content varies depending on the disc type.
• DVD VIDEO: Titles and chapters
• VCD, SVCD, CD: Tracks
• DVD AUDIO, MP3/WMA:
Groups and tracks
• To select a DVD AUDIO bonus group, carry out the operations of “Playing the Bonus Group” on page 27 in advance to erase the display “BONUS”.
• If the input number of chapters or tracks is greater than 99, “MEM FULL” will be displayed.
To program on the display window on the main unit, operate as follows:
(1) Select a title/group using the number buttons.
(2) Designate a chapter/track number using the
number buttons.
• Refer to “How to use the number buttons”
(page 15).
• The program number will be displayed on
the display window (Ex.: “P2”).
(3) Repeat the above operations (1) and (2) to
complete the program. Then, advance to Step
3.
Advanced operations
Playing the disc in a random order (Random Playback)
1 Press PLAY MODE repeatedly
to display “RANDOM” on the display window on the main unit while the disc is stopped.
• “RANDOM” will also be displayed on the TV screen.
2 Press DVD/CD 3.
• The same chapter or track will not be played twice.
• To resume normal playback, press PLAY MODE repeatedly to show the playback indication on the display window on the main unit while the disc is stopped.
• Random Playback will also be canceled by carrying out the following operations:
• Open the disc tray
• Turn off the power
• The previous track will not be returned to even if 4 is pressed repeatedly during Random Playback (the beginning of the current chapter or track will be returned to).
NOTE
• The group/title number flashes on the display window after making each program step.
• Only for a DVD VIDEO, DVD AUDIO, or an MP3/ WMA: If you press ENTER instead of designating a track/chapter number, the tracks/chapters in the selected group/title are programmed.
ALL is displayed and all of
3 Press DVD/CD 3.
• To resume normal playback, press PLAY MODE repeatedly to show the playback
indication on the display window on the main unit while the disc is stopped. The program content will not be erased.
• The following operations erase the program content:
•Press CANCEL repeatedly (Programs
will be erased one by one)
•Press
• Open the disc tray
• Turn off the power
7 while the disc is stopped
21
Repeat Playback
Refer to page 17 for Repeat Playback of MP3/ WMA/JPEG/ASF/DivX/MPEG1/MPEG2 files.
Playing the title/chapter/ group/track/all tracks repeatedly (REPEAT)
Press REPEAT during playback.
• Each time you press the button, the Repeat mode and its indication change as follows:
For DVD VIDEO
Repeat items On the TV On the display
Current chapter
CHAP
window
SET/QP LINK
Current title
Cancel
TITLE
OFF
For DVD VR
Repeat items On the TV On the display
Current chapter
Current original program
All original programs
Current play list
Cancel
CHAP
PG
ALL
PL
OFF
window
For DVD AUDIO
Repeat items On the TV On the display
Current track
Current group
TRACK
GROUP
window
22
Cancel
OFF
For CD/VCD/SVCD
Repeat items On the TV On the display
Current track
TRACK
window
Advanced operations
Playing the designated part repeatedly (A-B Repeat Playback)
All tracks
Cancel
NOTE
• For a VCD and SVCD, the operation can be carried out only when the disc is stopped or during playback without the PBC function.
• It is possible to set Repeat mode on the menu bar. For how to operate, refer to “Playing the designated part repeatedly (A-B Repeat Playback)” (See the right column).
• For a DVD VIDEO and DVD AUDIO, if the source is switched to FM, AM, USB or AUX, the Repeat mode will be canceled.
ALL
OFF
Repeat Playback during Program or Random Playback
Repeat items On the TV On the display
Current chapter/ track
All tracks during Program/Random play
Cancel
STEP
or REPEAT STEP
ALL
or REPEAT ALL
OFF
or no indication
window
1 Press ON SCREEN twice during
playback.
The menu bar (page 28) will be displayed.
2 Press cursor 2/3 to select
OFF
.
3 Press ENTER. 4 Press cursor 5/K to display
OFF
A B
.
Other Repeat modes can be selected here. For other Repeat modes, refer to “Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)”
(page 22).
5 Press ENTER at the start point
of the part to be repeated (designating A point).
• The icon on the menu bar will be .
A-
6 Press ENTER at the end point of
the part to be repeated (designating B point).
• The icon on the menu bar will be and the part between A and B points will be played repeatedly.
• A-B Repeat Playback will be canceled by carrying out the following operations:
•Press 7.
• Select and press ENTER twice.
• Change the current track/file.
A-B
A-B
NOTE
• A-B Repeat Playback is possible only within the same title or track. A-B Repeat Playback cannot be carried out during PBC playback, Program Playback, Random Playback and Repeat Playback.
• You can use the A-B Repeat Playback using the REPEAT A-B button on the remote control.
• For some DVD discs, A-B Repeat Playback does not work.
23
Other convenient functions
Selecting the audio language
1 Press AUDIO during playback of
a disc containing several audio languages.
Ex.:
TV screen
SET/QP LINK
Selecting the subtitles
(only for moving image)
1 Press SUBTITLE during
playback of a disc containing subtitles in several languages.
Ex.:
• Each time you press the button, the subtitle will be alternated between ON and OFF.
TV screen
2 Press cursor 5/K to select a
subtitle language.
• For a language code such as “AA”, refer to “Language codes” (page 38).
• The manner of displaying subtitle languages may be different depending on the disc.
3 Wait for a few seconds or press
ENTER to remove the window.
• Each time you press the button, the audio language will be alternated. Also, the audio language can be changed by pressing cursor 5/
• For a language code such as “AA”, refer to “Language codes” (page 38).
• “ST”, “L” and “R” displayed when playing a VCD, SVCD or DVD VR respectively represent “Stereo”, “Left sound” and “Right sound”.
• For a DivX disc, only the number of the language is displayed on the TV screen.
K.
2 Wait for a few seconds or press
ENTER to remove the window.
NOTE
It is also possible to operate by using the menu bar (page 28).
Selecting a view angle
(only for moving image)
1 Press ANGLE during playback
of a scene containing multi-view angles.
Ex.:
TV screen
NOTE
• It is also possible to operate by using the menu bar (page 28).
• For an SVCD, each time you press SUBTITLE in Step
1, the subtitle type and OFF will be alternated.
24
• Each time you press the button, the angle will be alternated. Also, the angle can be changed by pressing cursor 5/
K.
2 Wait for a few seconds or press
ENTER to go off the window.
NOTE
It is also possible to operate by using the menu bar (page 28).
Enlarging the picture (ZOOM)
(only for moving image)
1
Press ZOOM during playback or while paused.
• Each time you press the button, the picture magnification will be changed.
• For JPEG, you cannot change the picture magnification during slide-show playback.
2
Select the portion you want to see by using cursor
• To resume normal playback, select “ZOOM OFF” in Step 1.
NOTE
During ASF playback, there may be a case where
5/K/2/3 does not work in step 2.
5/K/2/3
Adjusting the picture quality (VFP)
(only for moving image)
Advanced operations
3 Press cursor 5/K to select an
item to be adjusted.
4 Press ENTER.
Ex.:
GAMMA
TV screen
5 Press cursor 5/K to change
the value.
GAMMA: Adjust this if the neutral color is bright or dark. The brightness of dark and bright portion is maintained.
BRIGHTNESS: Adjust this if the picture is bright or dark on the whole.
CONTRAST: Adjust this if the far and near position is unnatural.
.
SATURATION: Adjust this if the picture is whitish or blackish.
TINT: Adjust this if the appearance of flesh tone is unnatural.
SHARPNESS: Adjust this if the picture is indistinct.
6 Press ENTER.
To adjust other items, go back to Step 3.
7 Press VFP to go off the window.
NOTE
• If no operation is made for several seconds during the procedure, the settings made so far will be automatically stored.
• “VFP” is an abbreviation of “Video Fine Processor”.
1 Press VFP during playback or
while paused.
The current setting will be displayed on the TV screen.
2 Press cursor 2/3 to select
VFP mode.
• It is recommended to select “NORMAL” usually, or “CINEMA” in a dark room. When either “NORMAL” or “CINEMA” is selected, go to Step
• When either “USER 1” or “USER 2” is selected, the adjustment can be carried out in detail in the operations after Step
7.
3.
Making dialogues clear (CLEAR VOICE)
Press and hold DVD LEVEL/ during playback.
The singer’s voices or dialogues of the movie will be heard clear.
• Each time you press and hold the button, the clear voice function turns on and off alternately.
NOTE
Clear voice function only works for center-channel encoded multi-channel disc.
25
Other convenient functions (continued)
Creating realistic sound (3D PHONIC)
Adjusting playback level (DVD LEVEL)
The audio of a DVD VIDEO may be recorded at a lower level (volume) than for other types of disc. If the difference is not to your liking, adjust the DVD Level.
1 Press DVD LEVEL/ during
playback.
• Each time you press the button, the level will be alternated among “NORMAL”, “MIDDLE” and “HIGH”.
• Select the level while listening to the sound played.
NOTE
• DVD Level is effective only for playback of a DVD VIDEO or DVD VR.
• Even if the DVD Level is changed, the output level from the digital audio output terminal will not be changed.
The two speakers produce an effect resembling surround-sound.
1
Press 3D PHONIC during playback.
Ex.:
3D PHONIC
• Each time you press the button, the 3D PHONIC will be alternated as follows:
ACTION : Suitable for action movies,
DRAMA : You can relax with a natural
THEATER : You can enjoy the sound effect
OFF : Cancels 3D PHONIC (initial
• While 3D PHONIC is activated, “3D PHONIC indicator lights on the display window.
NOTE
• 3D PHONIC is effective for the speakers and headphones.
• When noise is produced or sound is distorted, set 3D PHONIC to “OFF”.
• You cannot use this functions for some DVD AUDIO discs.
• For an ASF/DivX/MPEG1/MPEG2 disc, 3D Phonic does not work and creates no sound effect even when “ACTION”, “DRAMA”, “THEATER” is displayed.
sport programs or other lively programs.
atmosphere.
as if you were watching the movie in a theater.
setting).
appears and the 3D PHONIC
26
TV screen
Enjoying better pictures (SCAN MODE)
In the Progressive mode, better pictures can be enjoyed.
IMPORTANT
• In order to enjoy pictures in the Progressive mode, connect this system and your TV with component video cord.
• If your TV does not have component video input terminal, leave the setting Interlace mode.
Press and hold SCAN MODE for 4 seconds when there is no disc loaded or while the disc is stopped.
• Each time you press and hold the button, the scan mode alternates between the “PROGRESSIVE” mode and the “INTERLACE” mode.
NOTE
Progressive mode:
All scanning lines will be displayed at once. Pictures of higher resolution than those in the Interlace mode can be realized.
Interlace mode:
This is a conventional image method. Half of the scanning lines displayed in the Progressive mode will appear, alternating with the other half.
Functions specific to DVD AUDIO
There are some DVD AUDIO discs with a special group, called “Bonus Group”, recorded.
NOTE
This operation can be carried out when “BONUS” is lit on the display window on the main unit.
1 Press GROUP/TITLE
2 Press the number buttons to
Advanced operations
Playing the Bonus Group
repeatedly during playback to select a bonus group.
“KEY_ _ _ _” appears on the TV screen, and on the display window on the main unit.
• The bonus group is usually recorded as the last group.
enter a pin code (4 digits).
The method of getting a pin code may be different depending on the disc.
NOTE
Set the remote control mode selector to AUDIO before using the number buttons.
3 Press ENTER.
• When a correct pin code is entered, “BONUS” disappears and the playback of the bonus group starts.
• If an incorrect pin code is entered, try entering a correct pin code again.
Browsable Still Pictures (B.S.P.)
There are some DVD AUDIO discs with still pictures recorded. Among the still pictures, there are pictures called B.S.P. (Browsable Still Pictures). With these pictures, it is possible to switch a picture as if turning over pages.
NOTE
This operation can be carried out when “B.S.P.” is lit on the display window on the main unit.
1 Press PAGE during playback.
Each time you press the button, the still picture will be switched over. It is also possible to switch the picture using cursor
Ex.:
5/K
.
TV screen
2 Wait for a few seconds or press
ENTER to remove the window.
27
Using the menu bar
SET/QP LINK
NOTE
• Set the remote control mode selector to AUDIO before using the number buttons.
• This operation can be carried out when there is a disc loaded. There are some functions that may not work while the disc is stopped.
TIME
Time display selection
Repeat mode
Time search
CHAP.
Chapter search (DVD VIDEO/DVD VR)/Track search (DVD AUDIO)
TRACK
/
Select this to change time information displayed on the display window on the main unit and the status bar. Each time display will be alternated.
DVD VIDEO/DVD AUDIO (operating during playback)
TOTAL : Elapsed playing time of current
T.REM : Remaining time of current title/
TIME : Elapsed playing time of current
REM : Remaining time of current chapter/
DVD VR (operating during playback)
TOTAL : Elapsed playing time of current
T.REM : Remaining time of current title/
CD (operating during playback)/
TIME : Elapsed playing time of current
REM : Remaining time of current track. TOTAL: Elapsed playing time of disc. T.REM : Remaining time of disc.
See page 22.
See page 20.
Select a chapter/track. Press the number buttons to input the chapter/track number and press ENTER.
Ex.:
ENTER
title/group.
group.
chapter/track.
track.
title/group.
group.
VCD/SVCD
track.
5
5:
is pressed, the
2
24:
4
1 Press ON SCREEN twice.
The status bar and the menu bar will appear on the TV screen.
Status bar
Menu bar
The above is an example for a DVD VIDEO.
2 Press cursor 2/3 to select an
item to be operated.
3 Press ENTER.
• The selected function can be set. For the setting content, refer to the following “Functions list”.
• The function currently activated is shown in blue.
• To remove the menu bar, press ON SCREEN.
Functions list
See page 24.
Audio language/Audio (DVD VIDEO/DVD AUDIO/VCD/SVCD)
See page 24.
Subtitle language (DVD VIDEO/DVD VR/SVCD)
View angle
(DVD VIDEO/DVD AUDIO)
PAGE
Page switch (DVD AUDIO)
See page 24.
Switch the still pictures (B.S.P.) recorded on a DVD AUDIO disc (page 27).
Information displayed on the status bar
DVD VIDEO/DVD AUDIO/DVD VR (the example below is for a DVD VIDEO)
Sound signal type DVD VIDEO:
Current title number
DVD AUDIO:
Current group number
DVD VR:
Current original program number (PG)/current play list number (PL)
VCD/SVCD/CD/ASF/DivX/MPEG1/MPEG2 (the example below is for a CD)
DVD VIDEO/DVD VR: Current chapter number DVD AUDIO: Current track number
Time Playback status
For the functions with no special description for the operations, press cursor 5/
K to select, and press
ENTER to determine.
28
Playback mode
VCD/SVCD/CD: Current track number ASF/DivX/MPEG1/MPEG2: Repeat mode status
Time Playback status
(See page 15.)
Preferences
Advanced operations
NOTE
The playback status mark has the same meaning of the mark on the On-screen guide (page 15).
The initial settings of the system can be changed according to the environment the system is used in.
NOTE
• Set the remote control mode selector to AUDIO before using the number buttons.
• The top and bottom of the preference screen may not be displayed on a wide TV. Adjust the picture size on the TV.
Basic operations
Press SET UP while the disc is stopped or no disc is loaded (“NO DISC” is displayed).
• The following screen will be displayed on the TV.
ENGLISH
• Proceed with operations by following the description on the TV screen.
LANGUAGE
NOTE
• If the selected language is not recorded on the disc, the optimum language set for the disc will be displayed.
• For a language code such as “AA”, refer to the Language codes(page 38).
Items Contents
MENU LANGUAGE
AUDI O LAN GUAGE
SUBTITLE
ON SCREEN LAN GUAGE
Select the language for the DVD VIDEO menu.
Select the audio language for the DVD VIDEO.
Select the subtitle language for the DVD VIDEO.
Select the language displayed on the preference screens.
Items Contents ( : initial setting)
MONITOR TYPE
PICTURE SOURCE
SCREEN SAVER
FILE TYPE Select an item suitable to the file type.
Select a display method suitable for your TV. 16 : 9: Select this for an ordinary wide TV.
4 : 3 LB (Letter Box)
Select this when the aspect ratio of your TV is conventional 4:3. While viewing a wide screen picture, the black bars appear on the top and bottom of the screen.
4 : 3 PS (Pan Scan):
Select this when the aspect ratio of your TV is conventional 4:3. While viewing a wide screen picture, the left and right edges of the picture will not be shown on the screen. (If the disc is not compatible with Pan Scan, the picture will be displayed at the Letter Box ratio.)
Select an item suitable to the video source.
AUTO :
The video source type (a video or film) is automatically selected.
FILM:
Select this item when you want to view a film or video recorded with the progressive scan method.
VIDEO:
Select this item when you want to view a normal video.
Select the Screen Saver mode between / OFF (Screen Saver activates when there is no operation made for about 5 minutes since a still picture was last displayed).
AUDIO
:
Select this item when you want to play back MP3/WMA files.
STILL PICTURE:
Select this item when you want to play back JPEG files.
VIDEO:
Select this item when you want to play back ASF/DivX/MPEG1/MPEG2 files.
:
ON
29
Preferences (continued)
AUDIO
Items Contents ( : initial setting)
DIGITAL AUDIO OUTPUT
DOWN MIX Switch signal from the digital output
D (Dynamic). RANGE COMPRESSION
Select an output signal type from the following in accordance with the device connected to the digital audio output terminal (AV amplifier, etc.). (See the table below for the preference items and output signal.)
PCM ONLY:
Device corresponding only to linear PCM.
DOLBY DIGITAL/PCM:
Dolby digital decoder or a device having the same function.
STREAM/PCM
DTS/Dolby digital decoder or a device having the same function.
terminal of the DVD VIDEO according to the connected device. Select this when “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY”.
DOLBY SURROUND:
A Dolby Pro Logic decoder-built-in device.
STEREO
An ordinary audio device.
• When 3D PHONIC is activated, Down Mix does not work.
To make adjustments for the difference between a high volume and a low volume when playing back with low volume (only for a DVD recorded with Dolby digital).
AUTO
D. Range Compression automatically works.
ON:
D. Range Compression always works.
:
:
:
OTHERS
Items Contents ( : initial setting)
RESUME Select /OFF. (page 18)
ON SCREEN GUIDE
DivX REGISTRATION
ON
Select /OFF. (page 15)
ON
The system has its own registration code. You can confirm the registration code, when necessary. Once you have played back a disc in which the registration code of the system is overwritten for copyright protection.
Table of relationships of DIGITAL AUDIO OUTPUT preference items and output signal
Playback disc
48 kHz, 16/20/24 bits Linear PCM DVD VIDEO 96 kHz linear PCM DVD VIDEO
48/96/192 kHz, 16/20/24 bits linear PCM DVD AUDIO
44.1/88.2/176.4 kHz, 16/20/24 bits linear PCM DVD AUDIO
DTS DVD VIDEO
DOLBY DIGITAL DVD VIDEO/ DVD AUDIO
CD/VCD/SVCD
DTS CD
MP3/WMA/DivX/MPEG1/MPEG2 disc
STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY
DTS bit stream 48 kHz, 16 bits stereo linear PCM
DOLBY DIGITAL bit stream
44.1 kHz, 16 bits stereo linear PCM/48 kHz, 16 bits linear PCM
DTS bit stream 44.1 kHz, 16 bits linear PCM
32/44.1/48 kHz, 16 bits stereo linear PCM
NOTE
While playing some DVD, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the OPTICAL DIGITAL OUT terminal if the discs are not copy-protected.
DIGITAL AUDIO OUTPUT
48 kHz, 16 bits stereo linear PCM
44.1 kHz, 16 bits stereo linear PCM
48 kHz, 16 bits stereo
linear PCM
30
Listening to a radio broadcast
NOTE
Set the remote control mode selector to AUDIO before using the number buttons.
Selecting a station
Presetting stations
Presetting stations in the system allows you to easily tune in to a station.
The system stores up to 30 FM stations and up to 15 AM stations.
1 Select a station you want to
store (page 31 for how to select).
2 Press MEMORY.
“MEMORY” is flashing on the display window for a while.
3 Select the number you want to
store by pressing number buttons while “MEMORY” is flashing.
• Refer to “How to use the number buttons” (page 15).
• You can also select by pressing
1/y.
4 Press MEMORY while the
selected number is flashing.
“STORED” appears on the display window and the selected station is stored.
1 Press FM/AM.
Each time you press the button, FM and AM change alternately.
2 Press 4/x to select the
station (frequency).
Automatic tuning:
Hold down 4/x until the system starts searching, and then release the button. (The AUTO indicator lights while searching.) When a station of sufficient signal strength is tuned in to, the system stops searching automatically. To stop searching manually, press 4/x.
Manual tuning:
Each time you press changes.
• When an FM stereo program is received, the ST (Stereo) indicator lights.
NOTE
If the stereo FM program currently tuned in to is noisy, you can improve the reception by pressing to switch to the monaural mode. If you press again, or tune in to another station, the receiving mode returns automatically to the stereo mode.
4/x
, the frequency
FM MODE
FM MODE
NOTE
• Storing a new station to a used number erases the previously stored station.
• After storing new stations, do not unplug the AC power cord to turn off the system. If you do so, the new preset stations will be cleared.
Tuning in to a preset station
1 Press FM/AM to select either FM
or AM.
2 Press the number buttons to
select the memory number of a station you want to tune in to.
• Refer to “How to use the number buttons” (page 15).
• You can also select by pressing
1/y.
31
Playing Back from the PC
This system is equipped with a USB terminal in the door of the front panel. You can connect your PC to this terminal and enjoy the sound out of your PC.
When you connect your PC for the first time, follow the procedure below.
Remember you cannot send any signal or data to your PC from this system.
IMPORTANT
Always set volume to “VOL MIN” when connecting or disconnecting the other equipment.
How to install the USB drivers
The following procedure is described using the English version of Windows running on a different version of operation system or language, the screens shown on your monitor may differ from the ones used in the following procedure.
R
XP. If your PC is
1 Turn on your PC and start
running Windows® 98SE, Windows® Me, Windows® 2000 or Windows® XP.
• If the PC has been turned on, quit all the applications running.
2 Turn on the System and press
USB.
3 Connect the System to the PC
using a USB cable (not supplied).
(in the door of the front panel)
USB AUDIO
USB cable
PC
4 The USB drivers are installed
automatically.
• If the USB drivers are not installed automatically, install the USB drivers following the instructions on the PC’s monitor.
5 Check if the drivers are
correctly installed.
1 Open the Control Panel on your PC: Select
[Start] = [Control Panel]
2 Click [System] = [Hardware] = [Device
Manager] = [Sound, video and game controllers] and [Universal Serial Bus controllers].
3 Check whether the following items appear.
• USB Audio Device
• USB Composite Device
If the items cannot be shown, disconnect the USB cable and connect it again. If it does not work yet, turn off your PC and repeat from Step
To play back sounds on the PC
Refer to the manuals supplied with the music application software installed in the PC.
Start the application.
NOTE
• Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations:
- Disconnect and connect the USB cable again
- Restart the music software on your PC
- Turn off and on the system
• DO NOT turn off the system and disconnect the USB cable while installing drivers and playing back, and for several seconds after your PC is recognized the system.
• The installed drivers can be shown only when the system is connected to the PC.
1.
32
• Use “USB series A plug to B plug” cable (version 1.1 or later) less than 3 m.
* MicrosoftR, WindowsR 98SE, WindowsR Me, WindowsR 2000 and WindowsR XP are registered trademarks of Microsoft corporation.
Listening to the sound of other audio device
Listening to the sound of portable audio device
By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device connected to the AUX 1 jack.
• Make sure to set the volume of your portable audio device loud enough so that system can detect the sound signal.
• QP Link is available even if the system is on standby.
Press and hold SET/QP LINK.
• Each time you press and hold the button, the QP Link function turns on and off alternately.
• QPL ON appears when QP Link is activated.
When QP Link is activated, connecting the portable audio device to the AUX 1 jack and starting playback performs the following:
While listening to another source... Changes the source to AUX 1 automatically. (If you change from AUX 1 to another source, QP Link will be canceled.)
While the system is on standby... Turns on the system and activates the AUX 1 source automatically (except when the display is
Listening to the sound of external audio device
Connect the other audio device to this system in advance (page 10).
1 Press AUX.
The source changes to AUX. Each time you press the button, the source changes between AUX 1 (front) and AUX 2 (rear).
2 Play the other audio device.
For details, refer to the manual of the device connected.
3 Adjust the volume and the
sound quality of the system (page 16).
turned off.)
NOTE
Changing from AUX 1 to another source while
QP Link
In this case, the following reactivates QP Link:
– Pressing and holding SET/QP LINK on the
– Unplug the device from the AUX 1 jack, then plug
If you press AUDIO to turn the system off or
if
works, the system will deactivate QP Link temporarily. In such cases, the following reactivates QP Link:
– When the sound signal from the AUX 1 jack
– When you turn on the power again.
QP Link may start working when you just plug in
the device to the AUX 1 jack or unplug it. This is not
a malfunction.
works will deactivate QP Link temporarily.
remote control.
it in again.
preset Timer turns the system off while QP Link
stops or is too weak for about 30 seconds after the system is turned off.
Convenient functions
33
Adjusting the audio input level
If the sound from the audio device connected to the AUX 1 or AUX 2 jack is too loud or is too quiet when changing from another source to “AUX,” you can change the audio input level through the AUX 1 or AUX 2 jack (without changing the volume level).
Press and hold AUX for 2 seconds while the AUX is selected as the source.
Each time you press and hold the button, the audio input level alternates between AUX LEVEL 1 and AUX LEVEL 2.
AUX LEVEL 1:
Select this when the sound is too loud with “AUX LEVEL 2” selected. This setting is recommended when connecting an audio device other than a portable audio device to AUX 1 jack.
AUX LEVEL 2:
Select this when listening to a portable audio device.
Setting the Various Timer
Setting the built-in clock
Without setting the built-in clock, you cannot use any timers.
• To exit from the clock setting, press CLOCK/ TIMER as required.
• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.
1 Press CLOCK/TIMER.
SVCDVD-A
• If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.
2 Press cursor 2/3 to adjust the
hour, then press SET/QP LINK.
3 Press cursor 2/3 to adjust the
minute, then press SET/QP LINK.
Now the built-in clock starts to work.
34
Setting the daily timer
Using the daily timer, you can wake up with your favorite song.
• You can store the three daily timer settings; however, you can activate only one of the daily timer.
• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.
How the daily timer works:
Once the daily timer has been set, the timer indicator and timer number indicator (1/2/3) are lit on the display window. Daily timer turns on the system at the same time everyday until the timer setting is canceled manually or another daily timer is activated.
When the on-time comes:
The system turns on, tunes in to the specified station or starts playback the loaded disc with the specified chapter or track, and sets the volume level gradually to the preset level after about 30 seconds.
• The timer setting remains in memory until you change it.
• Without canceling the daily timer, you can change the source or adjust the volume after the daily timer starts playback.
1 Press CLOCK/TIMER repeatedly
to show “DAILY 1.”
• Each time you press the button, the clock setting changes as follows:
Source indication
DAILY 1
Convenient functions
5 Press cursor 2/3 to select the
playback source, then press SET/QP LINK.
• Each time you press the button, the clock setting changes as follows:
AUX 1
DISC
• When selecting the tuner, press cursor 2/3 to select a preset channel.
• When selecting “DISC”, you can specify the group and track. For the discs other than MP3/WMA, the group selection does not take effect.
AUX 2
TUNER AM
USB
TUNER FM
6 Press cursor 2/3 to adjust the
volume level, then press SET/ QP LINK.
7 Turn off the system.
To turn off the timer setting
1 Press CLOCK/TIMER repeatedly
to select the timer setting.
2 Press CANCEL to turn off the
selected setting.
• Pressing setting again.
SET
/QP LINK
activates the timer
Clock adjust
ON 18:00
DAILY 3
ON 6:00
DAILY 2
ON 12:00
2 Press cursor 2/3 to adjust the
hour of the timer-on time, then press SET/QP LINK.
3 Press cursor 2/3 to adjust the
minute of the timer-on time, then press SET/QP LINK.
4 Repeat Step 2 and 3 to set the
timer-off time.
35
Setting the Various Timer (continued)
Auto Standby Sleep Timer
If there is no operation for 3 minutes while the disc is stopped, the power will be automatically turned off.
Press A.STANDBY during playback or while the disc is stopped, or no disc is loaded (“NO DISC” appears).
The A.STANDBY indicator lights on the display window on the main unit.
When a stopped state is entered (after playback is finished, for example), the A.STANDBY indicator starts blinking. This means that the power will be turned off automatically if there is no operation for 3 minutes. And 10 seconds before the power is turned off, “
A.STANDBY
” starts flashing.
Releasing Auto Standby
Press A.STANDBY. “A.STANDBY” will be turned off on the display
window on the main unit.
NOTE
When the source is FM, AM, USB or AUX, Auto Standby does not work.
When the time you specify elapses, the system will be turned off by itself.
Press SLEEP.
Each time you press the button, the time indicated on the display window on the main unit changes (in minutes).
Changing the time
Reselect the time by pressing SLEEP repeatedly.
Confirming the time
Press SLEEP once while Sleep Timer is set.
Releasing
Press SLEEP repeatedly until “SLEEP OFF” appears.
NOTE
Sleep Timer will also be released when the power is turned off.
Tray Lock
You can lock the disc tray to prevent the disc from being ejected.
Setting
While the system is turned off, press 0 (Open/ Close) with 7 (Stop) on the main unit held. “LOCKED” appears on the display window on the
main unit.
Releasing
Carry out the same operations as those for setting. “UNLOCKED” appears on the display window on
the main unit.
36
Troubleshooting
Reference
When you encounter a problem that seems to be a fault, check the following points before contacting your JVC service center.
Power source
7 Power does not come on.
• The power cord is not connected to the main unit or an AC outlet.
Connect the power cord correctly
(page 11).
Operation
7 You cannot operate any button.
• Some specific operations may be inhibited for some discs.
7 The remote control does not work.
• The dry-cell batteries have run out.
Replace the batteries (page 6).
7 A disc cannot be played back.
• In the case of DVD VIDEO discs
Check the Region Code number of the
discs (page 3).
• “NO PLAY” is displayed on the display window. It is not a disc that can be played on this system.
Check the disc type (page 3).
7 MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2
files cannot be played back.
• The loaded disc may include files of different types (MP3, WMA, JPEG, ASF, DivX, MPEG1 or MPEG2). You can play back only the files whose types selected in “FILE TYPE”. (page 29).
About images
7 No picture appears.
• The video cord is not connected correctly.
Page 10
• Both of the component video jack and S­video jack are connected.
Connect either (page 10).
7 The picture is distorted.
• A VCR is connected between the main unit and the TV set.
Connect the main unit directly to the TV set
(page 10).
• Although this system is connected to a non­Progressive TV set, DVD’s scan mode is set to “PROGRESSIVE”.
Set the scan mode to “INTERLACE”
(page 26).
7 The screen size is abnormal.
• The screen size is set improperly.
Set “MONITOR TYPE” according to the TV
set you are using (page 29).
7 The TV screen darkens.
• “SCREEN SAVER” is set.
Press any button to deactivate the function
(page 29).
About sound
7 There is no sound.
• Speakers are not connected correctly.
Page 9
• The sound is muted.
Page 16
• “NO AUDIO” is displayed on the display window. The disc may have been produced through illegal copying.
Confirm at the store where you bought the
disc.
7 The sound is weak compared with TV or Video.
• “DVD LEVEL” is set to “NORMAL”.
Set to other than “NORMAL” (page 26).
7 The sound is distorted.
• The volume is turned up too high.
Turn down the volume (page 16).
7 No sound comes out of the subwoofer.
• “SUBWOOFER” is turned off.
Press S.WFR OUT to turn on (page 10).
7 The sound through the USB connection stops.
• Noise and static electricity may stop the sound through the USB connection. In this case, do the following operations:
Disconnect and connect the USB cable
again
Restart the music software on your PCTurn off and on the system
37
Troubleshooting (continued)
Language codes
About radio
7 The sound is noisy while receiving/Receiving
is disabled.
• The antenna is not connected correctly.
Connect the antenna correctly (page 8).
Others
7 It is not possible to switch audio or subtitles
between languages.
• The disc does not contain 2 or more languages.
If only a single language is recorded on the
disc, switching to another language is impossible (page 24).
7 No subtitle is displayed.
• The disc does not contain any subtitles.
A DVD VIDEO without subtitles cannot
display any subtitles.
• The subtitle language is set to “OFF”.
Specify a language (page 29).
• Before or after A point or B point in A-B Repeat Playback, no subtitle may be displayed.
7 The disc cannot be ejected.
• Tray Lock is set.
page 36
7 “LR ONLY” is displayed on the display window
(for a DVD AUDIO).
• Because, for the track being played back, down mix is inhibited for multi-channel sound, the sound of L and R is output directly (a normal action).
7 The system automatically turns on even if the
Timer turn the system to standby or if you turn the system to standby while playback is going on the portable audio device.
• In this case, deactivate QP Link or stop playback on the device connected to the AUX 1 jack.
If the system does not work properly despite correction measures above
Many functions of this system are implemented by microcomputers. If pressing any button does not result in the normal action, disconnect the power plug from the outlet, wait for a while, and reconnect the system.
Code
Language
AA Afar MK Macedonian AB Abkhazian ML Malayalam AF Afrikaans MN Mongolian AM Ameharic MO Moldavian AR Arabic MR Marathi AS Assamese MS Malay (MAY) AY Aymara MT Maltese AZ Azerbaijani MY Burmese BA Bashkir NA Nauru BE Byelorussian NE Nepali BG Bulgarian NL Dutch BH Bihari NO Norwegian BI Bislama OC Occitan BN Bengali, Bangla OM (Afan) Oromo BO Tibetan OR Oriya BR Breton PA Panjabi CA Catalan PL Polish CO Corsican PS Pashto, Pushto CS Czech PT Portuguese CY Welsh QU Quechua DA Danish RM Rhaeto-Romance DZ Bhutani RN Kirundi EL Greek RO Rumanian EO Esperanto RW Kinyarwanda ET Estonian SA Sanskrit EU Basque SD Sindhi FA Pe rs ian SG Sangh o FI Finnish SH Serbo-Croatian FJ Fiji SI Singhalese FO Faroese SK Slovak FY Frisian SL Slovenian GA Irish SM Samoan GD Scots Gaelic SN Shona GL Galician SO Somali GN Guarani SQ Albanian GU Gujarati SR Serbian HA Hausa SS Siswati HI Hindi ST Sesotho HR Croatian SU Sundanese HU Hungarian SV Swedish HY Armenian SW Swahili IA Interlingua TA Tamil IE Interlingue TE Telugu IK Inupiak TG Tajik IN Indonesian TH Thai IS Icelandic TI Tigrinya IW Hebrew TK Turkmen JI Yiddish TL Tagalog JW Javanese TN Setswana KA Georgian TO Tonga KK Kazakh TR Turkish KL Greenlandic TS Tsonga KM Cambodian TT Tatar KN Kannada TW Twi KO Korean (KOR) UK Ukrainian KS Kashmiri UR Urdu KU Kurdish UZ Uzbek KY Kirghiz VI Vietnamese LA Latin VO Volapuk LN Lingala WO Wolof LO Laothian XH Xhosa LT Lithuanian YO Yoruba LV Latvian, Lettish ZU Zulu MG Malagasy MI Maori
Code
Language
38
Specifications
Reference
General
Power source: AC 110-240 V , 50/60 Hz
Power consumption: 25 W (in operation)/
Weight: 2.6 kg External dimensions 150 mm x 152.6 mm x 252.9 mm (WxHxD):
AC 240 V, 50 Hz (for Australian model) AC 220 V, 50/60 Hz (for Hong Kong model)
4.0 W(on standby/display on)
1.0 W (on standby/display off)
DVD player
Playable discs: DVD VIDEO, DVD AUDIO, VCD,
SVCD, CD CD-R/RW (VCD/SVCD/CD/MP3/ WMA/JPEG/DivX/ASF/MPEG1/ MPEG2 format) DVD-R/-RW (MP3/WMA/JPEG/DVD VIDEO/DVD VR [CPRM]/DivX/ASF/ MPEG1/MPEG2 format) DVD - ROM (
DivX/MPEG1/MPEG2/DVD VR [CPRM]
MP3/WMA/JPEG/ASF/
format)
Video output
Color system: PAL/NTSC Horizontal resolution: 500 lines Composite x1: 1.0 V (p-p)/75
synchronization negative
S-video x1: Y output: 1.0 V (p-p)/75
synchronization negative C output: For PAL 0.3 V (p-p)/75 For NTSC 0.286 V (p-p)/75
Component x1: Y output: 1.0 V (p-p)/75
PB/PR output: 0.7 V (p-p)/75
Ω,
Ω,
Audio output
Analog sound output:
Speakers x2
Output power: 20 W per channel
min., RMS, at 4
at
1 kHz with no more than 10% total harmonic distortion
Fitting impedance: 4 to 16
Headphones x1: 11 mW/32
Fitting impedance: 16 to 1 k
Subwoofer x1: 500 mVrms/10 k
Digital sound output:
Optical x1: –21 dBm to –15 dBm
Tuner
FM tuner:
Receiving frequency: 87.50 MHz to 108.00 MHz Antenna: 75
AM (MW) tuner:
Receiving frequency:For Singapore/Hong Kong/
Antenna: External antenna jack (loop
Unbalanced type
South and Central America/ Australia: 531 kHz to 1 710 kHz (9 kHz) 530 kHz to 1 710 kHz (10 kHz) For Middle East and South Africa: 531 kHz to 1 602 kHz (9 kHz) 530 kHz to 1 600 kHz (10 kHz)
antenna)
Speaker
Type: Full range
Speaker: 8 cm wood cone Frequency response: 55 Hz to 20 000 Hz Power handling capacity: 20 W Impedance: 4 Sound pressure level: 80 dB/W m Dimension (WxHxD): 120 mmx150.5 mmx243 mm Weight: 1.8 kg each
• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP lossless”, and the double-D symbol are trademarks of Dolby Laboratories.
• “DTS” and “DTS 2.0+ Digital Out” are trademarks of Digital Theater Systems, Inc.
• “Official DivX of DivX playback of DivX and associated logos are trademarks of DivX, Inc. and are used under licence.”
• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
®
®
video (including DivX® 6) with standard
1-way bass-reflex type
Magnetically shielded type
x
1
Certified product” “Plays all versions
®
media files” “DivX, DivX certified,
Audio input
Sound input: AUX 1: 400 mV/50 k
200 mV/50 k
AUX 2: 1.5 V/50 k
750 mV/50 k
USB: AUDIO x 1
Designs and Specifications are subject to change without notice.
39
EX-D11 COMPACTT COMPONENT SYSTEM
EN
c
2006 Victor Company of Japan, Limited
0306ZZCMDWJSC
Loading...
