SCHEMATIC DIAGRAMS
COMPACT COMPONENT SYSTEM
EX-D1
CD-ROM No.SML200506
Area suffix
B ------------------------------ U.K.
E ---------- Continental Europe
EN ----------- Northern Europe
EV ------------- Eastern Europe
EE -------- Russian Federation
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Contents
Block diagram
Standard schematic diagrams

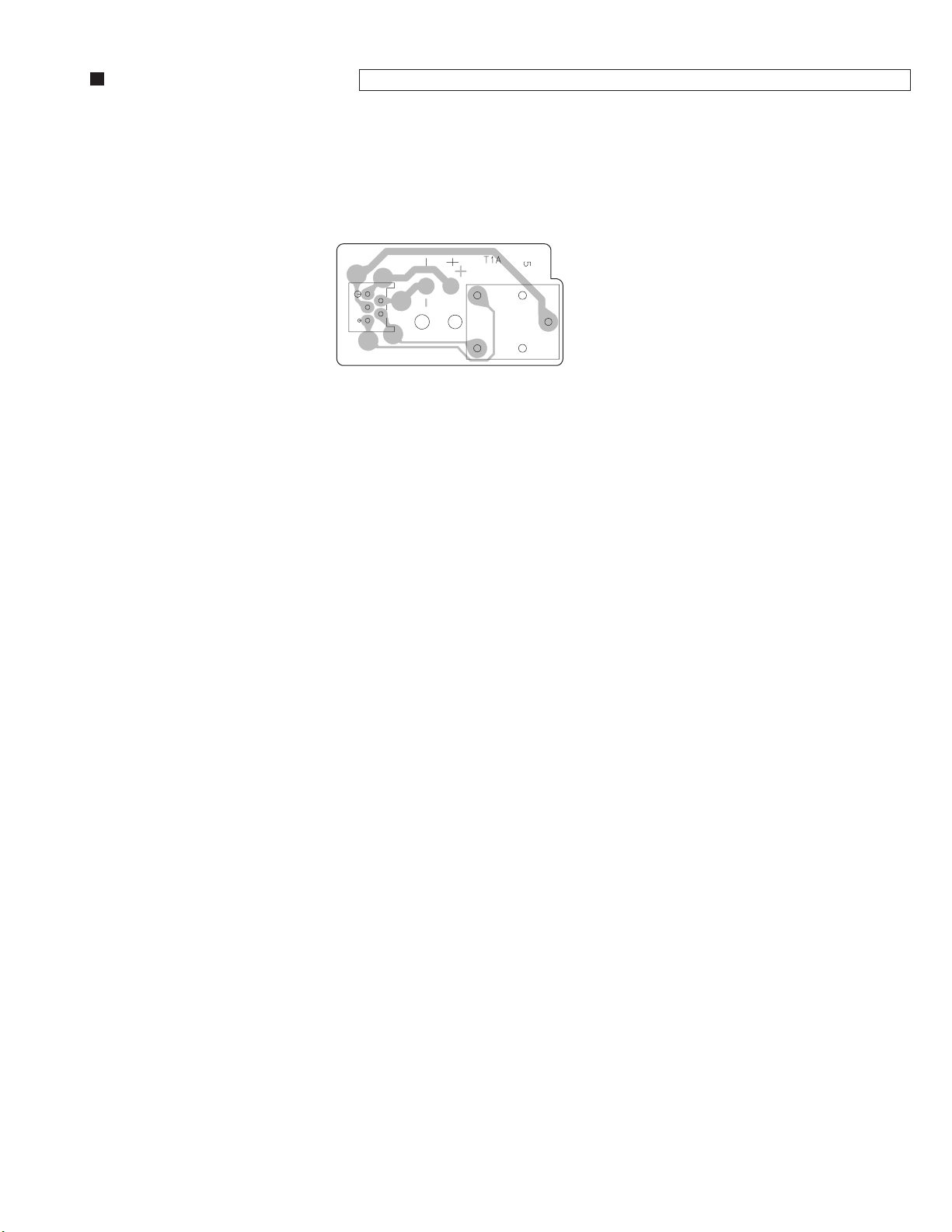

Printed circuit boards
COPYRIGHT 2005 Victor Company of Japan, Limited.
(CA-EXD1) (SP-EXD1)(SP-EXD1)
2-1
2-2
2-10 to 13
No.MB399SCH
2005/6
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
Block diagram
USB
CONNECTOR
FL display and
remocon circuit
section
FL615
FL TUBE
IC617
REMOCON
FLDATA
FLLATCH
FLCLK,FLBK
POUTFL
REMOCON
PHONES
USB circuit section
J623
IC621
D/A
CN615
CN605
User control keys section
S6000 to S6003
S6005 to S6009
Headphone section
HPL,HPR
J620
HPIN
JS612
ENCODER
STANDBY LED
D6113
BACK LED
S6100,S6101
STANBY & EJECT
S6011,S6012
KEY MATRIX
VOL+,VOL-
D6110
BKLED
SWITCH
FW621
USBL
USBR
AUX
TO
TUNER PACK
STBLED
KEY31
CN610
CN600
System control, volume, AHB circuit, HP. circuit
and subwoofer section
WOOFER
CN501
J5000
AUXL,AUXR
CN421
VOL+,VOLKEY1 to KEY3
KEY31
BACKLED
STBLED
FLDATA
FLLATCH
FLCLK,FLBK
POUTFL
CN426 CN427
REMOCON
KEY1 to KEY3
KEY31
TUL,TUR
TUDI
TUDO
TUCLK
TUCE
FMDET
IC420
RDS
DECODER
RDSDATA
RDSCLK
HPL,HPR
HPIN
HPMUTE
IC400
SYSTEM
MICOM
V-MUTE1
V-MUTE2
UCS,SCS,SCLK
U2SDT,S2UDT
CPURST
Q5813
Q5814
IC520
AMP.
Q5812
DVDL
DVDR
SMUTE
OLOAD
MODON
F-SHIFT
10VCTL
PRT
SDA
SCL
IC410
EEPROM
X4100
8MHz
OSC
OPEN,CLOSE,DVDOPSW
DVDCLSW,FLPOWER
DVD5VCTL
35V,FL+,FLS10V,US3.3V
USB3.3V
Q5810
Q5811
IC500
E.VOL
LOUT
ROUT
Q5750
USB3.3V
REG.
Q5912
Q5913
IC510
AHB
DVD5V
US7V
US3.3V
L,R
J5001
CN424CN423 CN425
W OUT
CN201
CN202 CN208
Digital amplifier circuit section
IC111 to IC113
L,R
IC121 to IC123
AHBCTL
IC301
IC302
FREQ.
CONT.
F-SHIFT
CN310
CN300
L,R
AHBCTL
US7V
OPEN,CLOSE
DVDOPSW
DVDCLSW
FLPOWER
DVD5VCTL
FL+,FL-
US3.3V
DVD5V,S5V
IC131
AMP.
Q1103
Q1203
Q3007
S.MUTE
FL1,FL2 REG.
US3.3V REG.
SMUTE
Q2040
IC202
OLOAD
PRT
MODON
CN311
CN301
SMUTE,OLOAD
MODON,F-SHIFT
PRT
US7V REG.
DVD5V REG.
Q2020
DVD5VCTL
IC250
IC132
HALF
BRIDGE
5V
IC303
REG.
Q3002
Q3003
CN312
CN302
L+,LR+,R-
15V
DVDOPSW
DVDCLSW
J3001
SPEAKER
TERMINAL
SPDIF
OPEN
CLOSE
IC235
OPEN/CLOSE
TRAY
TRAY+
TRAY-
IC295 CN210
OPTICAL OUT
DVD tray loading
control section
CN1
SWITCH
OPENDET
CLOSEDET
S1
LM+
LM-
LOADING
MOTOR
M
PICKUP
UNIT
TRAVERSE
MECHANISM
DVD servo and DVD system control section
A,B,C,D,E,F,VREFH
RF+,PD(CD),PD(DVD)
LPCO1,LPCO2
CDLDCUR,DVDLDCUR
SPDRV,TRSDRV
TRDRV,FODRV
FG,VHALF
IC201
DRIVER
/DRVMUTE,/SPMUTE
TRVSW
X351
OSC
MDQ0 to 15
MA0 to 11
BA0,BA1,DQM0,DQM1,MCK
NWE,NCSM,NRAS,NCAS
T+,TF+,F-
FM+,FM-,UOUT
VOUT,WOUT,COM
CN201CN101
LD(CD)
LD(DVD)
Q101,Q102
Q103,Q104
IC505
SDRAM
BCK,LRCLK
AOUT0
DACPDN
DAC0CS
DDATA,DCLK
SPDIF(TX)
EXADT0 to 15
EXDAT0 to 15
EXADR16 to 20
IC301
DV2.1
NEXCE
NEXWE
NEXOE
UCS,SCS,U2SDT,S2UDT,SCLK,NRST
DAC1OUT(Y2-G),DAC2OUT(CB-B)
DAC3OUT(CR-R),DAC4OUT(Y/COMP)
DAC5OUT(C)
IC701
DAC
DVDLOUT
DVDROUT
IC509
FLASH
ROM
M9V,D5V
S5V,S3.3V
D3.3V
IC453
RESET
CPURST
CN503CN501
D3.3V,S3.3V
Q2060
DVD3.3V REG.
DVDL
DVDR
SPDIF
S10V
D5V
M9V
Q2015
M5V REG.
DC regulator and audio output section
Video driver and video out component section
UCS,SCS,SCLK
U2SDT,S2UDT
CPURST
CN703CN702
Y/COMP,C
CR-R,CB-B
Y2-G
V-MUTE1
V-MUTE2
IC701
VIDEO
DRIVER
Y,Cb,Cr
Y,C,CV
10VCTL
IC200
S10V REG.
J701
COMPONENT
VIDEO OUT
J702
S-VIDEO OUT
COMPOSITE
VIDEO OUT
15V
35V
CN200
SWITCHING
POWER
SUPPLY
AC IN
2-1

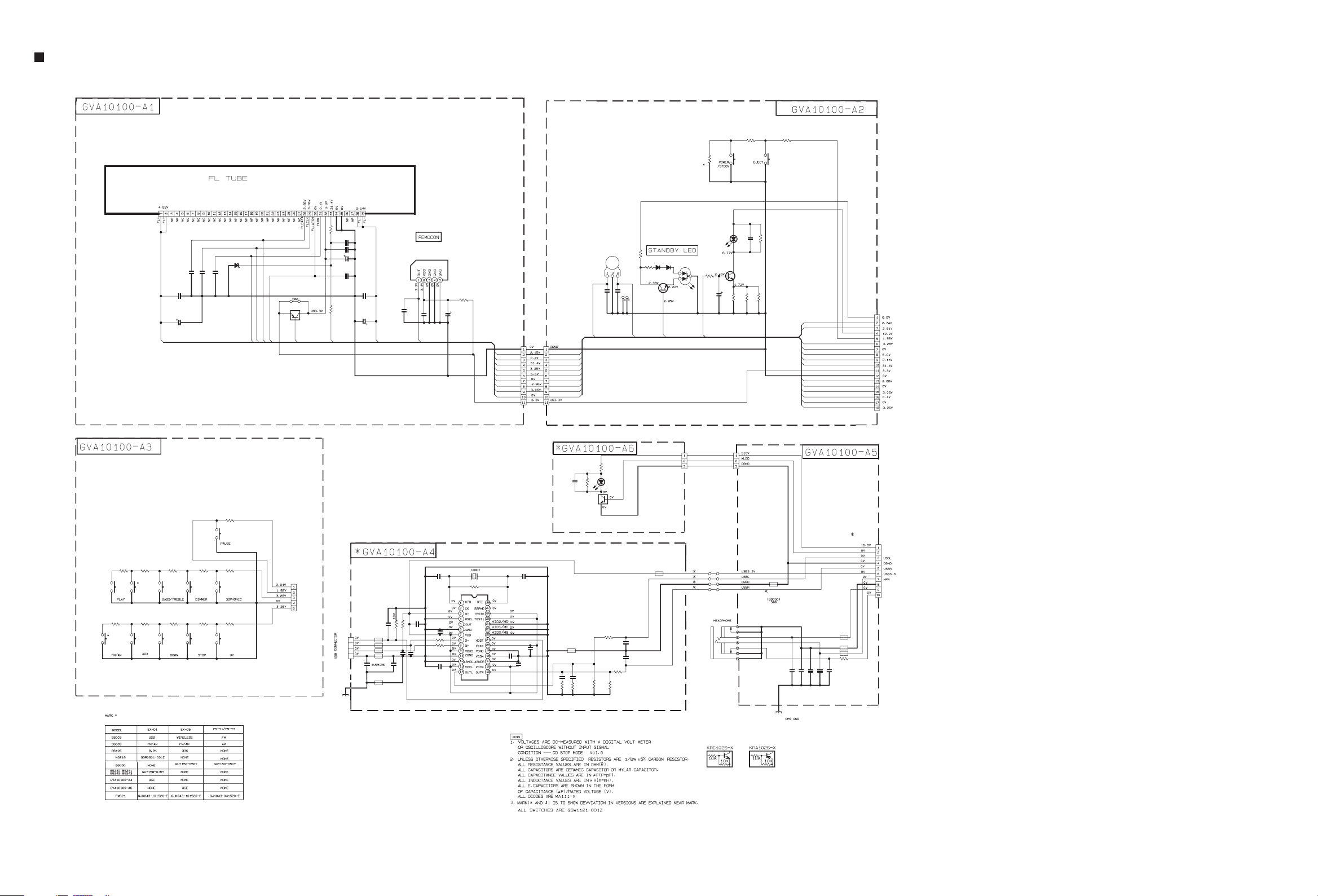

Standard schematic diagrams
DC regulator and audio output section
(SHEET 2)
CN302
QGB2024K1-04S
L2000
QQLZ003-1R0
47/25
CN200
QGA3901C1-04
35V
15V
GND
W201
W202
W203
C2000
C2003
C2004
NI
R2010
C2001
NI
C2002
0.022
R2009
390
Q2006
2SB709A/R/-X
MTZJ24B-T2
NI
D2007
36K3K
R2006R2007
D2006
Q2007
KTC3875/YG/-X
22/50
C2006
47/25
10K
R2008
IC200
KIA78R10API
IC250
PQ1CG21H2FZ
TO CN1 (SHEET 8)
TRAY+
TRAY-
CN210
QGF1036C1-05
IC235
LB1641
100K10K
R2040
0.01
C2036
2.2k
2.2k
D2038
1N4003S-T5
D2037
1N4003S-T5
D2036
1N4003S-T5
D2012
NI
0.1
47/25
MTZJ11C-T2
1SS133-T2
C2012
C2010
47/25
C2011
D2010
D2072
L2050
QQL31AK-221Z
10K
0.1
C2051
R2050
C2050
Q2050
100/25
KRC102S-X
D2050
11DF2-FD
R2015
1N4003S-T5
D2011
C2015
R2051
R2052
1K
100/16
3K
1K
R2036
C2035
100/16
Q2015
KTC1027/OY/-T
0.0047
C2016
D2015
CP250
R2037
MTZJ5.6A-T2
D2052
D2035
C2017
MTZJ6.2C-T2
MTZJ4.7C-T2
D2016
47/16
470/16
C2052
D2071
MTZJ5.6C-T2
1SS133-T2
0.1
C2037
Q2060
KTA1046/Y/
1.8K
Q2061
R2060R2061
5.6K
1SS133-T2
KTC3875/YG/-X
C2060
0.1
D2060
R2041
Q2042
R2042
10K
KRC102S-X
100/16
D2061
D2076
MTZJ3.9B-T2
C2061
1SS133-T2
Q2040
KTC3203/OY/-T
0.01
Q2041
C2040
2SB709A/R/-X
R2045
100
NI
D2042
NINI
R2043
0.01
R2044
C2041
MTZJ5.6B-T2
D2043
820
R2046
KTB772/Y/
Q2043
C2042
47/25
330
R2047
NI
C2043
47/25
D2045
(SHEET 2)
CN300
QGB2024K1-04S
(SHEET 2)
CN301
QGB2024K1-06S
CN203
QGB2510J1-10
CN201
QGB2024J1-20S
US7V
AHBCTL
L
AGND
R
DVDL
DVDR
PRT
F-SHIFT
MODON
OLOAD
SMUTE
10VCTL
USBSW
CN202
QGB2024J1-20S
WLEFT
WRIGHT
SYNC/ID
35V
FL+
FL-
CLOSE
OPEN
DVDCLSW
DVDOPSW
S10V
FLPOWER
SAFETYDVD
SAFETY0
US3.3V
DVD5VCTL
CN208
K2080
K2081
K2082
K2083
C2080
47/25
K2084
K2085
K2086
K2087
K2088
K2089
K2090
QGF1036C1-19
DVDLOUT
AGND
DVDROUT
S5V
C2018
0.1
MGND
M9V
D5V
S5V
SGND
S3.3V
DGND
SPDIF
(SHEET 3)
(SHEET 3)(SHEET 8)
47
R2095
L2095
QQL231K-4R7Y
K2095
SPDIF
VDD
IC295
GP1FAV30TK0F
GND
C2095
47/16
MTZJ7.5B-T2
PQ033ES3MX-T
R2025
C2025
IC202
4.7
47/16
100/16
0.01
C2027
C2026
D2025
D2026
MTZJ3.6B-T2
MTZJ3.6B-T2
12K
R2070
KRC102S-X
Q2070
NI
R2072
4.7K
R2071
12K
R2073
Q2071
NI
R2075
4.7K
R2074
KRC102S-X
KTC2026/Y/
Q2020
2.2K
2.2K
C2021
R2021
R2022
0.1/16
MTZJ7.5B-T2
100/16
D2022
C2022
C2020
D2020
100/25
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
SHEET 1
2-2

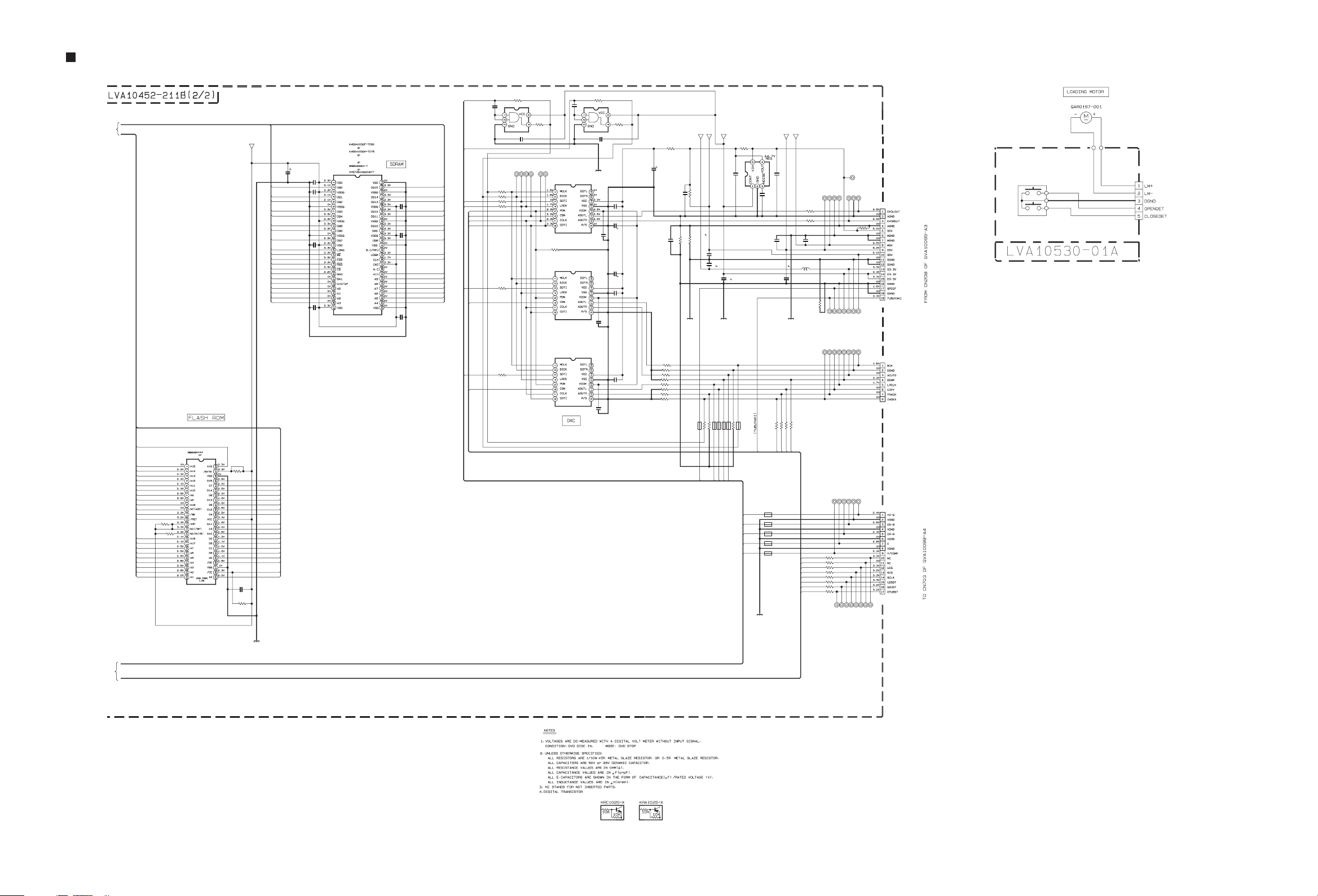

Digital amplifier circuit section
2SC3661-X
R1234
R1233
22K
R1134
R1133
22K
8.2K
8.2K
Q1203
A.GND
2SC3661-X
Q1103
A.GND
R1235
2.2K
R1135
SW15V
R3020
220
R1228
C3013
4.7K
D1203
UDZS6.8B-X
100/25
A.GND
2.2K
(SHEET 1)
AHBCTL
R1237
1.5K
C1238
10/35
R1238
22K
REFA2.5V
C1206
10/35
CN310
QGB2024J1-04S
L
R
C1138 C1144
R1137
10/35
1.5K
C1106
10/35
R1138
22K
REFA2.5V
A15V
C1222
33/16
R1201
R1101
C1203
R1204 C1202
2200P
16K 2200P
R1205
10K
R1206
A.GND
C1223
R1203
10/35
R1229
C1224
R1129
C1124
470
100P
C1123
470
100P
10/35
820
R1202
R1103
820
R1102
C1201
10/35
1.8K
C1101
10/35
1.8K
470K
C1205
4.7/50
IC121
NJM4580M-X
UMY1N-W
A.GND
R1104 C1102
16K 2200P
R1105
R1106
C1240
0.1
C1204 R1208
470P
C1103
2200P
10K
470K
IC111
NJM4580M-X
C1140
0.1
C1104 R1108
470P
R1207
R1107
10K
330
C1105
4.7/50
10K
330
11K
11K
A15V
Q1204
A15V
UMY1N-W
NJM4580M-X
5V
Q1104
5V
NJM4580M-X
C1232 R1236
180P 3.3K
R1211
R1210
820
8.2K
5V
A.GND
R1212
5.6K
IC121
R1213
R1309 R1310 R1311
2.7K 1.8K 2.7K
C1132 R1136
180P 3.3K
R1110
R1111
820
8.2K
A.GND
R1112
5.6K
IC111
R1113
5.6K
C1107
5.6K
1200P
C1207
1200P
R1215
22K
R1216
22K
A.GND
R1115
22K
R1116
22K
R1217
18K
C1208
330P
C1209
22P
C1210
22P
C1211
22P
P.GND
R1117
18K
C1108
330P
NJM2115V-W
C1109
22P
C1110
22P
C1111
22P
P.GND P.GND
5V
R1218
IC131
NJM2115V-W
REFA2.5V
R1219
2.2K
R1220
2.2K
R1118
IC131
REFA2.5V
R1119
2.2k
R1120
2.2k
1K
IC122
NJU7109F3-X
P.GND
1K
NJU7109F3-X
R1122
IC112
R1222
100K
SN74AHC1G00V-X
100K
SN74AHC1G00V-X
IC123
IC113
5V
IC132
STA506A-W
R3023
4.7K
C3015
10/50
1.2K
R3031
D3001
MA152WK-X
C3020
15V
C1307
C1308
22/25
470/25
R1242
QQLZ037-220QQLZ037-220QQLZ037-220QQLZ037-220
L1201
C1216
100
C1214
C1242
0.1
C1244
C1215
R1243
0.1
100
R1142
100
C1114
C1142
0.1
C1115
R1143
100
0.1
R3025
4.7K
R3027
4.7K
R3032
1.2K
0.47
C3021
C3017 C3018
10/50 10/50
1.2K
R3033
D3003
MA152WK-X
C3016
10/50
0.47
C1241
0.1/50 0.1/50
C1243
L1202
L1101
C1141
0.1/50 0.1/50
C1143
L1102
0.47
C3022
NI
C1226 C1227
C1228 C1229
0.1/50 0.1/50
C1217
NI
C1116
NI
C1126 C1127
C1128 C1129
0.1/50 0.1/50
C1117
NI
R3029
4.7K
1.2K
R3034
P.GND
R1225R1125
C1218C1118
4747
0.1/500.1/50
R1226R1126
4747
C1230C1130
0.1/500.1/50
C1225C1125
0.68/50
0.68/50
C1245
C1234
NI
470P
C1145
NI
C1134
470P
R1232 R1131 R1132
R1231
5.6K
5.6K 5.6K 5.6K
C1237 C1137
11
KRA109S-X
KRA109S-X
Q1202Q1201
KRA109S-X
KRA109S-X
D1104
MA152WK-X
Q1102Q1101
C1233
470P
A.GND
C1133
470P
P.GND
C1381
C1185
NI
100P
C1286
C1285
L1281
QQR0797-002
220P220P
C1281C1181
L1181
QQR0797-002
NININI
C1186
C1282
C1182
3300P
3300P
C1283
220P
C1184
NI
NI
C1183
C1284
220P
QNB0118-003
J3001
C1213
5V
C1113
1/6.3
R1223
1/6.3
100
R1224
100
5V
R1301R1302
REFA2.5V
C1301
1/6.3
C1309
0.033
A.GND
R1123
100
R1124
100
5V
R1308
1K
C1306
0.1/25
C1305
0.1/25
1K1K
C1310
0.1/16
C1304
0.1/16
C1303
0.1/16
R1303
10K
R1304
10K
C1302
0.1/16
C3019
0.47
A.GND
Q3007
KRA103S-X
C3034
1
QAX0734-001
IC301
SN74HCU04ANS-X
IC301
SN74HCU04ANS-X
R3003 R3005
1M 1M
R3004 R3006
5.6K 5.6K
X3001 X3002
C3002 C3003 C3004 C3005
470P 470P 470P 470P
5V
C3006
1/6.3
QAX0735-001
IC302
IC302
SN74LV00ANS-X
SN74LV00ANS-X
SN74LV00ANS-X
IC302
5V
IC302
SN74LV00ANS-X
C3007
1/6.3
5V
R1227
10K
IC301IC301IC301
SN74HCU04ANS-X
R3007
1.2K
IC301
SN74HCU04ANS-X SN74HCU04ANS-X
C3008 C3009
330P 330P
R3008 R3009
680 680
IC301 IC301
R1127
10K
SN74HCU04ANS-X
C3010
47P
A.GND
C3031
10/35
A.GND
5V
IC303
NJM78L05A-T
C3011
0.1
270
270
C3012
0.33
Q3002
KTA1267/YG/-T
R3010
R3022
SW15V
15V
R3011
4.7K
R3012
4.7K
Q3003
KTC3875/YG/-X
R3013
R3014
10K
4.7K
P.GND
P.GND P.GND
C3026
0.1
S.GND
C3027
0.1
S.GND
Q3004
KTC3875/YG/-X
R3037
15V
5V
NI
R3041R3042
Q3041
NI
NI
P.GND
5V
5V
R3035
10K
Q3005
KTC3875/YG/-X
R3036
10K
P.GND
C3025
220K
10/50
Q3042
Q3006
2SB709A/R/-X
NI
NQR0389-003XNQR0389-003X
NQR0389-003XNQR0389-003XNQR0389-003X
QGB2024J1-06S
CN311
R3015
K3001
K3002
K3003
K3004
K3005
P.GND
A.GND
15V
R3016
R3017
R3018
R3019
P.GND
QGB2024J1-04S
B3001
NRSA63J-0R0X
8.2K
1k
1k
1k
1k
CN312
SMUTE
OLOAD
MODON
F-SHIFT
PRT
(SHEET 1)(SHEET 1)
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
SHEET 2
2-3
System control and RDS decoder section
CN421
QGF1205F1-11
TO CN201
(SHEET 1)
CN423
QGB2024K1-20S
AHBCTL
L
R
DVDL
DVDR
PRT
F-SHIFT
MODON
OLOAD
SMUTE
10VCTL
WLSW
IDTRIG
TO CN202
(SHEET 1)
CN424
QGB2024K1-20S
WLEFT
WRIGHT
SYNC/ID
35V
FL+
FL-
CLOSE
OPEN
DVDCLSW
DVDOPSW
FLPOWER
SYNC/ID
SAFETYDVD
SAFETY0
DVD5VCTL
D4058
MTZJ2.4B-T2
VOL+
VOL-
KEY1
KEY2
KEY3
CN422
R4109
10K
10k
R4106
R4107
X4100
QAX0711-002Z
C4113
10K
R4105
20p
10K
R4104
C4112
20p
10K
R4103
R4003
R4004
R4005
R4006
R4007
C4110
C4111
R4018
R4019
R4020
0.01
C4109
R4002
C4702
39p
C4704
2.2/50
C4709
39p
C4701
C4703
NI
B4024
B4022
NI
C4719
10/16
NI
2.2K
2.2K
2.2K
2.2K
2.2K
2.2K
2.2K100/16
2.2k
2.2K
2.2K
1K
X4700
QAX0868-001Z
B4021
IC410
BR24L08F-W-X
10K
10K
10K
10K
10K
10K
R4172
R4175
SDA
SCL
SDA
STBLED
BACKLED
R4077
R4078
2.2K
SCL
HPIN
HPMUTE
R4075
R4073
R4072
R4074
2.2K
2.2K
2.2K
2.2K
2.2K
IC400
MN101C61GFM
POUTFL
R4079
2.2K
R4102
2.2K
2.2k
2.2k
2.2k
2.2k
0.01
2.2k
2.2k
2.2k
R4009
R4171
SAFETY0
DVD5VCTL
R4071
R4070
2.2K
2.2K
R4166
FLPOWER
SYNC/ID
SAFETYDVD
R4069
R4067
R4068
2.2K
2.2K
2.2K
R4165
R4169
DVDCLSW
DVDOPSW
R4066
R4065
2.2K
2.2K
OPEN
R4064
2.2K
CLOSE
R4063
2.2K
RDSCLK
USBSW
R4062
2.2K
IDTRIG
R4061
2.2K
C4705
560p
R4060
R4059
R4058
R4057
R4054
R4053
R4052
R4051
R4046
R4045
R4044
R4043
C4706
270p
B4020
IC420
BU1924F-X
C4707
0.1
STANDBY
10VCTL
SMUTE
OLOAD
P54
P53
MODON
F-SHIFT
PRT
AHB
AVIN
AVOUT
VOLCLK
VOLCE
VOLDATA
WOOFER
R4156
R4155
R4152
47K
R4148
C4708
0.1
RDSDATA
10K
2SA1037AK/RS/-X
47K
R4600
Q4601
FTU
Q4600
10K
R4601
C4600
KRC111S-X
47/16
TUCE
TUDO
TUDI
TUCLK
(SHEET 4)
TO CN702
(SHEET 6)
CN425
QGB1214J1-12S
V-MUTE1
V-MUTE2
UCS
SCS
SCLK
U2SDT
S2UDT
CPURST
P54
P53
L4001
QQL244K-100Z
FLCLK
FLLATCH
FLDATA
K4001
QQR0621-001Z
QGF1205C1-18
CN426
R4121
NI
R4122
2.2K
2.2K
2.2K
NI
NI
NI
C4207
R4123
R4127
100/6.3
2.2K
R4021
R4022
R4023
R4024
TUDO
TUDI
TUCLK
TUCE
Q4201
KRA102S-X
1K
R4201
D4201
MTZJ2.2A-T2
KEY31
STBLED
BACKLED
TO CN610 (SHEET 5)
2.2K
2.2K
R4026
R4027
FTU
RDSDATA
C4208
4.7/50
R4202
10K
FL+
VOL+
VOL-
2.2K
R4028
V-MUTE1
1SS133-T2
35V
FL-
2.2K
R4080
FLBK
D4202
2.2K
R4032
V-MUTE2
R4203
10K
Q4202
KRC107S-X
FLDATA
2.2K
2.2k
R4033
R4034
REMOCON
RDSCLK
0.01
FLCLK
FLLATCH
2.2k
R4035
UCS
C4210
FLBK
2.2k
R4036
S2UDT
POUTFL
2.2k
2.2k
R4037
R4038
SCLK
U2SDT
REMOCON
2.2k
2.2k
R4039
R4040
CPURST
SCS
QGF1205F1-05
R4136
R4137
R4138
CN427
AVOUT
NI
NI
NI
AVIN
R4402
220
R4400
220
KEY2
KEY3
KEY1
KEY31
CN428
QGF1210G1-05
TO CN600
(SHEET 5)
SHEET 3
2-4
Volume, AHB circuit, HP. circuit and subwoofer section
1k
Q5814
2SD2114K/VW/-X
R5831
2.2K
R5829
22
R5830R5832
1k
Q5813
2SD2114K/VW/-X
R5828
C5815
0.0022/50
R5821
C5819
R5827
22
220/10
2.2K
IC520
HA17558AF-X
C5820
R5826C5818
1k
220/10
C5817
0.0022/50
R5823
1k
150P/50
150P/50
C5816
R5822
3.3k
R5824
3.3k
R5825
180
C5814
10K 9.1K
R5820 R5819
180
47/25
C5813
100/16
4.7/50
C5830
C5810
0.01
R5814
R5815
C5811
4.7/50
R5817
100
1k
1k
Q5810
2SD2114K/VW/-X
Q5811
2SD2114K/VW/-X
R5811
27K
4.7/50
C5812
R5812
27K
R5810
3.3K
R5813
3.3K
Q5812
KRA101S-X
C5802
10/50
10/50
C5804
TO FW621 (SHEET 5)
CN501
QGA2001C1-10
100p
C5918
C5750
47/16
Q5750
KRA111S-X
R5750
47K
J5001
QNN0284-001
J5000
QNN0420-001
C5915
R5710
15K
220P220P
C5720C5721
R5711
C5730
0.01
1
15K
220P220P
C5710
C5711
2SD2114K/VW/-X
22K
R5914
Q5913
R5720R5721
120K120K
(SHEET 3)
Q5511
2SC2001/LK/-T
470
R5610
47/16
C5520
C5521
L
R5913
2.2K
AUXL
AUXR
C5912
R5911
1K
10/50
KTC3875/YG/-X
C5917
0.1
NI
C5913
C5530
100P
0.1
R5912
C5532
100P
R5916
2.2K
R5901
C5916
47K
10/50
470K
100P
NI
D5501
Q5912
KRA109S-X
1K
R5915
0.01
C5603
MTZJ10B-T2
R5902
C5602
100/16
47K
0.1
C5914
B5002
B5001
R5377
1K
R5378
C5604
22/16
R5507
3.9K
C5510
C5410
R5407
3.9K
R5171
1.8K
R5181
R5281
R5271
1.8K
NI
R5372
10K
NI
R5272
180K
R5279
R5179
R5172
180K
C5372
B5003
B5004
R5506
1.8K
0
NI
4.3K
10/35
10/35
C5504
C5404
R5501
4.7/50
C5503
IC500
LC75342M-X
C5403
10/35
4.7/50
0
R5402
10/35
R5502
NI
R5401
R5503
C5402
R5403
8.2K
4.7/50
4.3K
R5504
C5502
R5404
4.7/50
8.2K
R5408
C5401
4.7/50
R5409
NI
R5508
C5512
NI
R5509
C5501
4.7/50
C5412
NI
NI
R5505
471
C5505
0.047
C5506
0.1
C5508
0.1
10/35
0.0027
C5507
C5509
C5409
0.1
0.1
C5405
C5406
C5407
10/35
0.047
C5408
0.0027
R5405
471
R5406
1.8K
D5372
47/16
C5374
MTZJ5.1B-T2
R5275
IC510
RC4580ID-X
C5174
0.047
R5174
R5175
1.5K
27K
Q5371
C5274 R5274
R5176
0.047 1.5K
15K
27K
R5276
15K
3.3K
R5178
10/35
C5175
47K
R5177
R5373 R5374
10K 10K
R5277
47K
C5275
R5278
C5371
3.3K
10/35
100/16
Q5372
KTC3875/YG/-XKTC3875/YG/-X
R5371
C5380
100
NI
R5375
270
Q5373
KTC3875/YG/-X
R5376
100K
C5373
R5392
1.5K
1/50
R5398
47K
R5273
1.8K
C5272
0.47
C5273
0.047
1K
1K
C5173
0.047
0.47
C5172
1.8K
R5173
D5371
1SS133-T251K
10/50
R5917
Q5911
330
C5911
C5531
R5601
100
(SHEET 3)
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
SHEET 4
2-5
FL display, user control keys, USB circuit, remocon circuit and headphone section
R6010
S6009
R6012
22K
S6012
22K
100P
C6150
C6153
0.1
C6154
1/50
FL+
R6004 R6003
8.2K 4.3K
S6003 S6002 S6001
R6009
R6008
8.2K
4.3K
S6008
S6007 S6006
FL615
QLF0153-001
100P
100P
C6151
C6152
S6011
R6002 R6001
2.7K 1K
R6007
2.7K
R6011
S6000
R6006
1K
S6005
R6101
4.3K
R6105
S6101
10
C6155
R6151
0.1
C6156
0.1
C6157
KEY3
KEY31
KEY1
DGND
KEY2
Q6150
NI
TO CN427 (SHEET 3)
35V
100/16
R6150
10
VBUS
DGND
C6158
100P
J623
DD+
C6231
QUB220-14DMHP-E
C6159
0.1
C6160
1/50
QNZ0783-002
K6212
K6213
K6214
K6215
W622
FL-
5mm
K6216
NI
1/50
NQR0269-004X
NQR0269-004XNQR0269-004X
C6227
D6150
NI
B6000
POUTFL
FLDATA
FLLATCH
FLBK
FLCLK
1K
CN600
QGF1205F1-05
C6170
C6230
NI
R6223
IC617
GP1UE281YK0F
R6170
0
C6172
C6171
1/16
100/6.3
CN615
X6200
R6219
1M
QGF1205C1-11
QAX0724-001Z
C6221
10/6.3
DGND
FL-
FLBK
35V
REMOCON
FL+
FLLATCH
FLDATA
FLCLK
POUTFL
US3.3V
PCM2704DB-X
C6223
27P/50
IC621
C6220
1/50
REMOCON
C6224
27P/50
C6216
1.5K
R6222
C6229
NI
10P/50
10/6.3
C6228
10P/50
R6220
R6221
C6226
1/50
C6225
1/25
22
22
C6222
1/50
CN605
QGF1210G1-11
FLFLBK
35V
REMOCON
FL+
FLLATCH
FLDATA
FLCLK
POUTFL
0.0022
C6219
R6218
K6211
16
C6240
R6217
C6218
0.0022
16
JS612
QSW1130-001
C6120
0.01
VOL+
330
R6240
D6240
10K
0.01
R6242
SELU2E10C-P
KRC102M-T
R6213
220
NI
R6216
R6215
Q6240
R6214
220
NI
0.01
C6121
JS612
JS612
C6214
C6215
R6110
R6118
Q6110
KTC3199/GL/-T
VOL-
NI
NI
180
D6114
390
1SS133-T2
K6205
NQR0269-004X
D6115
1SS133-T2
STBLED
USB3.3V
D6110
SPR-325MVW/L/-T
FW620
QUM023-07Z4Z4-E
USBL
DGND
USBR
S10V
WLED
DGND
B6240
B6241
B6242
B6243
BKLED
R6116
5.6K
C6116
47/16
D6113
KTC3199/GL/-T
75
R6111
C6113
SELU1E54CM-S
Q6111
R6112
FW620
J620
0.01
10K
R6113
NI
NI
R6115
QUM023-07Z4Z4-E
K6218
QQR0601-001Z
QNS0170-001
R6100
2.7K
S6100
C6204
QUB220-15DMHP-E
0.1/16
W621
C6203
CN610
QGF1205F1-18
US7V
BKLED
STBLED
S10V
KEY31
VOL+
VOL-
FL+
FL35V
US3.3V
DGND
FLDATA
FLLATCH
FLCLK
FLBK
POUTFL
REMOCON
FW621
K6200
NQR007-002X
K6201
NQR007-002X
K6202
NQR007-002X
R6200
1K
C6200
0.1/16
C6201
C6202
0.1/16
1.5/6
1.5/6
S10V
WLED
AGND
HPL
HPIN
TO CN426 (SHEET 3)
TO CN501
(SHEET 4)
2-6
SHEET 5
Video driver and video out component section
CN702
QGB1214K1-12S
V-MUTE1
V-MUTE2
TO CN425 (SHEET 3)
UCS
SCS
SCLK
U2SDT
S2UDT
CPURST
C7032
100P
360
R7023
330
R7024
L7006
QQL25CK-221Z
V-MUTE1
C7006
470/10
C7005
0.1/16
C7031
0.01
IC701
BH7868FS-X
R7006
75
R7007
75
R7008
75
C7017
C7019 C7018
QNN0624-001
180P
180P 180P
J701
C7028
180P
(SHEET 8)
CN703
QGF1036C1-17
CPURST
S2UDT
U2SDT
SCLK
SCS
UCS
Y/COMP
C
CR-R
CB-B
Y2-G
390
R7021
390
R7025
470
R7027
91
R7030
270
R7022
270
R7026
91
R7028
470
R7029
V-MUTE2
C7010
1/6.3
C7007
22/25
1/6.3
C7012
1/6.3
C7013
1/6.3
C7011
C7014
470/6.3
C7015
470/6.3
C7016
470/6.3
C7008
0.1/16
C7020
470/6.3
C7021
0.1
C7024
470/6.3
R7009
75
R7010
75
C7023
R7011
75
180P
QNN0434-001
180P
C7022
180P
C7025
J702
SHEET 6
2-7
DVD servo and DVD system control section (1/2)
LPCO1
CDLDCUR
0
R110
C106
470
R108
47/6.3
27
2.2
R106
Q101
Q102
T-
C204
R220
R207
47K
C206
150P
TP331
TP326
R113
R112
30k
R107
100
KTA1001/Y/-X
24k
R111
470
R109
NI
C264
0.1/16
C205
270P
NI
R206
30K
K201
18K
R219
24K
NI
R201
27k
R205
C253
560p
20k
R254
FODRV
VHALF
/SPMUTE
/DRVMUTE
QGF0523F1-24W
QGF1016F2-08W
TP19
CN101
C107
C103
0.1/16
C104
0.1/16
TP5
TP4
TP3
TP2
TP1
TP23
TP24
TP25
TP26
TP27
TP28
CN201
TP99
C908
C907
NI
NI
DGND
SGND
TP98
C910
R909
0
NI
DGNDSGND
C101
0.1/16
VREFH
K101
C102
0.1/16
R101
100
0.1/16
R102
100
F+
F-
T+
T-
TP9
TP7
TP6
TP8
TP10
TP22
TP21
FM+
FM-
WOUT
VOUT
UOUT
COM
M9V
0
E
F
D
A
B
C
RF+
R122
LPC2
LPC1
C260
C261
C262
M5V
NI
C263
TP310
0.015/16
C255
R255
0
R119
SPDRV
NI
NI
NI
R121
R124
C109
C110
R123
0
C111
0.1/16
R126
R120
0
0
COM
0
R257
WOUT
VOUT
UOUT
0.022
0.022
0.022
C217
0.1/16
R252
2.2
R251
0.47
R256
NI
10K
6.8K
R221
R259
R213
10K
C256
C211
0.1/16
0.022
10k
10K
R214
0.01/16
C212
10k
R215
TRSDRV
UN2119-X
NI
K102
DVDLDCUR
S3.3V
Q105
180
TP311
R105
R104
30k
0
R128
KTA1001/Y/-X
0
2SC4617/R/-X
24k
R103
T+
F+
F-
FM-
FM+
IC201
LA6502-X
0.0082
0.015/16
0.015/16
0.47/10
C257
C258
C259
C251
FG
TP11
TP12
TP13
TP14
TP15
TP20
TP16
TP17
TP18
27
2SC4617/R/-X
R204
27K
(SHEET 8)
MDQ7
MDQ8
MDQ6
DQM1
P3.3V
C372
C306
0.1/16
EXADR20
NEXWE
EXADT0
EXADT4
EXADT8
EXADT12
EXADR16
EXADR18
EXADT14
EXADT10
EXADT6
EXADT2
NEXCE
EXADT1
EXADT5
EXADT9
EXADT13
EXADR17
EXADR19
EXADT15
EXADT11
EXADT7
EXADT3
NEXOE
DAC2CS
UCS
DCLK
DDATA
DAC1CS
DAC0CS
SWMUTE
DACPDN
MDQ11
MDQ3
MDQ12
MDQ2
MDQ13
MDQ1
MDQ14
MDQ0
MDQ15
MDQ9
MDQ5
MDQ10
MDQ4
0.1/16
C307
R321
NI
C377
NI
TP351
330
R325
330
R326
NI
C378
TP350
DGND
P3.3V
NI
R381
NI
R382
NI
R383
C308
0.1/16
DGND
10k
R323
NI
R320
S5V
LPCO2
1
0
R125
R118
AD4
C108
470
R116
47/6.3
2.2
R114
R115
100
Q103
Q104
C105
47/6.3
330
R117
SGND
/HFMON
TRVSW
TP330
R208
TRDRV
22k
C208
560p
1k
R384R385
1/16
1k
C371
NI NI NI NI NI
/TALK
100
100
K302
K303
C309
0.1/16
100k
C310
R309
0.1/16
SCLK
U2SDT
S2UDT
SCS
LRMUTE
MCK
NWE
NRAS
NCAS
DQM0
22
R303
HAGUP
TP327
22K
R308
C327
0.01
NININI
NI
1k
1k
NI
R371
R372
R373
R374
R375
R376
R377
FG
SPDRV
TRSDRV
/SPMUTE
/HFMON
/DRVMUTE
TRVSW
CPURST
MA8
MA9
BA0
NCSM
R324
0.01/16
BA1
MA11
C373 C374
TP329
TP328
NI
TP313
INDEX
0
1k
C455
R457
R458
IC453
S-80827CNNB-W
MA1
MA6
MA0
MA7
MA10
IC301
MN2DS0003AA-H
TP309
TP308
TP307
TP312
TP302
TP303
TRACK
COPY
DEMP
MA3
MA4
MA2
MA5
TP306
0.033/16
C331
C333
0.1/16
C334
C335
0.1/16
0
R314
EXDAT0
EXDAT15
EXDAT1
EXDAT13
EXDAT2
EXDAT14
TP340
TP341
TP314
TP315
0.1/16
0.1/16
C332
0.1/16
0.1/16
C338
0.1/16
C337
0.018/16
0.0056
C320
C321
C348
C350
0.1/16
C330
0.1/16
C358
NI
R313
0
R363
150
EXDAT12
EXDAT3
C375 C376
0.1/16
0.1/16
0.1/16
C322
C323
C314
C349
0
R312
EXDAT11
EXDAT5
EXDAT10
EXDAT6
EXDAT9
EXDAT4
0.1/16
0.1/16
C319
C347
0.1/16
EXDAT7
D3.3V
K301
0.1/16
C359
DGND
TP325
TP324
TP323
TP322
TP321
TP320
TP319
TP317
C315
0.1/16
C311
0.1/16
C379
NI
R395
0
1/6.3
C341
30k
R340
TP333
1/16
C356
0.1/16
C316
0
0
R393
R394
1/16
1/16
C324
C340
C346
NI
C345
NI
C344
NI
C343
NI
EXDAT8
C305
C302
DGND
R307
1K
R306
1K
R362
R361
R360
R359
R358
R357
R351
X351
680
1M
R352
0.1/16
C313
0.1/16
C339
R343
0
0.1/16
C318
R342
2.2K
R341
C312
0.1/16
R378
R379
TP332
R333
16k
R318
0.1/16
C317
R319
150
R334
150
R335
150
R336
150
R337
0
R338
0
R339
R391
NAD0025-103X
R390
4.7k
C391
0.1/16
TP305
P3.3V
NQR0354-001X
0.1/16
47/4
TP318
330
0
NI
NI
0
0
C325
NAX0550-001X
C326
R345
0
R315
0
R316
0
3.6k
R317
0
1k
1k
33k
0
R392
LM1117MP-ADJ-X
D1.2V
R301
C303
47/4
TP316
TX
AOUT0
AOUT1
AOUT2
BCK
LRCLK
18p
15p
PCMCLK
DAC5OUT
DAC4OUT
DAC3OUT
DAC2OUT
DAC1OUT
FODRV
TRDRV
DVDLDCUR
CDLDCUR
A
B
C
D
E
F
10K
D3.3V
IC302
R310
0.47
R311
NI
NI
C304
24
0.1/16
R302
CN301
NI
VGND
AD4
S3.3V
C301
220/4
SGND
(SHEET 8)
VREFH
VHALF
LPCO2
LPC2
LPCO1
RF+
LPC1
MGND
DGND
SHEET 7
2-8
DVD servo and DVD system control section (2/2) / DVD tray loading control section
(SHEET 7)
EXADR16
EXADT15
EXADT14
EXADT13
EXADT12
EXADT11
EXADT10
EXADT9
EXADT8
EXADR19
EXADR20
NEXWE
CPURST
EXADR18
EXADR17
EXADT7
EXADT6
EXADT5
EXADT4
EXADT3
EXADT2
EXADT1
R716
PCMCLK
P3.3V
K4S641632F-TC75
22/6.3
C553
0.1/16
MDQ0
0.1/16
MDQ1
MDQ2
MDQ3
MDQ4
MDQ5
MDQ6
MDQ7
C552
0.1/16
DQM0
NWE
NCAS
NRAS
NCSM
BA0
BA1
MA10
MA0
MA1
MA2
MA3
0.1/16
IC509
AT49LV1614T90TC
R510
NI
EXDAT15
EXDAT7
EXDAT14
EXDAT6
EXDAT13
EXDAT5
EXDAT12
R511
NI
R322
47k
EXDAT4
EXDAT11
EXDAT3
EXDAT10
EXDAT2
EXDAT9
EXDAT1
EXDAT8
EXDAT0
NEXOE
NEXCE
EXADT0
C554
0.1/16
R530
NI
IC505
C551
C558
C559
C557
C555
C556
MDQ15
MDQ14
MDQ13
0.1/16
MDQ12
MDQ11
MDQ10
MDQ9
1/10
MDQ8
DQM1
MA11
MA9
MA8
MA7
MA6
MA5
MA4
0.1/16
BCK
AOUT0
LRCLK
DACPDN
DAC0CS
DCLK
DDATA
MCK
AOUT1
DAC1CS
AOUT2
DAC2CS
0
NI
IC704
NI
C713
R710
R711
R713
R712
R714
R715
R717 R720
NI NI
C712
NI
TP701
TP702
TP703
TP704
TP705
TP706
10
220
220
220
R718
NI
NI
47k
IC701
AK4384VT-X
IC702
IC703
R719
0
NI
NI
IC705
C715
S5V
S3.3V
NI
R721
NI
R703
0.1/16
C903
C904
NQR0022-005X
NI0NQR0251-004X
NI
K555
R729
R730
TX
D3.3V
0.1/16
C902
NI
NQR0251-004X
NI
K724
K722
K725
AOUT1
LRCLK
AOUT2
R702
0
NI
C502
IC501
0.1/16
NQR0251-004X
K721
R728
K723
AOUT0
DAC1OUT
DAC2OUT
DAC3OUT
DAC5OUT
DAC4OUT
C714
NI
DGND
C701
0.1/16
10/16
C707
C706
0.1/16
NI
NI
C705
NI
C702
NI
NI
C709
C703
NI
NI
C711
R701
1
C704
220/6.3
C906
0.1/16
0.001
NI
R722
C721
SGND DGND
NI
R745
NI
R741
NI
R746
NI
R742
NI
R747
NI
R743
NI
R748
NI
R744
SWMUTE
VGND
K554
K553
K551
K552
K556
NI
C503
C912
NQR0129-002X
NQR0129-002X
NQR0129-002X
NQR0129-002X
NQR0129-002X
M5V
M9V
NI
C501
R501
470
R502
470
NI
NI
C905
L501
NQL044K-100X
NI
C901
0
R911
MGND
100NI100
100
100
R727
R725
R723
R724
DEMP
COPY
TRACK
INDEX
R551
LRMUTE
R552
SWMUTE
R553
UCS
R554
SCS
R555
SCLK
R556
U2SDT
R557
S2UDT
R558
CPURST
TP54
TP53
TP51
TP52
TP55
TP57
TP56
TP58
R704
NI
(SHEET 1)(SHEET 6)
CN501
QGF1016F2-19W
TP59
TP64
TP65
TP60
TP61
TP62
TP63
TP71
TP72
TP73
TP74
TP75
TP76
TP77
TP78
CN502
QGF1016F2-08W
TP86
TP85
TP84
TP82
TP81
TP83
1k
NI
0
0
0
0
0
1k
TP93
TP94
TP91
TP92
CN503
QGF1016F2-17W
TP87
TP88
TP89
TP90
S1
QSW1074-001
TO CN210
(SHEET 1)
CN1
QGF1016F3-05
(SHEET 7)
DGND
SHEET 8
2-9
Printed circuit boards
Main board (1/2)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
R5504
C5502
R5503
R5409
B5408
R5408
C5720
R5710
CN428
CN210
D2035
D2038
C5412
R5404
C5504
C2035
C5503
C5501
R5403
B5004
J5001
J5000
C5401
R5502
C5403
C5711
R5721
C5402
B5001
C5912
C5505
C5507
R5711
C5404
(Micom board)
C5506
C5508
C5603
D5501
R5601
C5509
C5530
C5173
C5172
C5410
C5409
C5405
C5406
C5916
D4058
C5407
CN425
R1233
R1238
C5510
C5408
Q1203
R1234
C3013
Q1103
CN310
CN423
R1201
R1133
R1101
R1134
R1237
C5273
C1223
C1201
C1123
C1101
C1238
C5604
R1228
D1203
R1203
R1129
C5602
R1213
R1202
C1222
R1103
R1102
C5272
R1229
R1113
C1206
CN300
C1138
C5520
IC111
C5174
C5374
C1204
IC121
R1212
R1216
R1104
R1112
R5172
R5181
C5274
D5372
Q5511
C5175
R5272
R1206
R1215
C1102
C1103
R1107
R5610
R1204
R1207
R1310
R1108
R5177
R5377
R5173
R5276
C1202
C1203
R1210
C1309
R1106
C1104
Q3002
R1138
R1208
R1137
R5277
IC302
C1205
C1105
R3020
C5372
C5275
R1309
R1110
Q1204
Q1104
R1111
C1132
C1232
R1211
C1106
CN301
C5804
C5371
IC131
C1208
CN421
C5802
R1136
R3022
C5811
R1236
C3031
R1218
C1107
R1118
C1108
C5812
C1207
Forward side
C4600
C5373
R5175
R5371
R5373
Q5371
D5371
C5814
R5275
C5819
R1122
C5813
R1224
C3011
R1123
C3012
IC301
IC303
C3034
R1227
R1223
R1124
R1308
IC113
Q3007
C5810
R3003
IC123
R1303
Q3042
L4001
R1127
R1217
R1117
R3008
R3024
R3009
IC112
R5817
IC122
R1222
R3010
CN422
R3005
C1305
R5832
R1304
Q5372
B4020
C1211
B4022
R5830
C1209
X4700
C4703
C1109
C1111
R3036
Q5814
X3001
X3002
IC132
CN311
B4021
C4704
D4201
C1242
C1144
C5820
C1307
C1143
C3025
C1241
C4207
R1242
R1143
L1102
D4202
C4719
L1201
C1244
C1142
Q3041
R5750
Q5750
C4208
C1243
R1243
R1142
C1141
C5750
K4001
C1308
R3042
R3041
CN302
CN427
R4027
R4032
R4034
R4037
R4036
R4040
R4038
R4039
R4044
R4046
R4148
R4045
R4043
R4051
R4053
R4052
R4155
R4057
R4059
CN424
C3018
C3026
L1202
C1225
R3027
Q1202
Q1201
D1104
Q1101
Q1102
R3025
L1101
C3016
R3023
C3015
CN312
(Digital amp. board)
C3017
R4023
R4028
R4035
R4156
R4058
C3022
C1237
R1231
R4060
R1132
C1137
R1131
R3031
R4024
R4026
R4054
R1232
C1125
R4021
R3032
Q3004
C3020
R4080
R4022
R3034
R3033
R3037
D3003
C3021
R4033
R4020
C3019
R4165
D3001
CN426
C4110
IC400
R4166
B1281
IC410
L1181
B1282
L1281
R4169
X4100
R4007
R4171
R4175
R4172
B1182
B1181
J3001
CN501
R4107
C5918
CN702
J701
IC235
CN203
CN200
C2000
C2004
D2037
D2036
L2000
W202
D2006
W201
C2043
D2043
Q2043
C2006
C2002
D2045
Q2040
C2003
D2042
HS200
IC200
R2045
C2010
C2042
D2012
D2011
D2072
D2010
C2011
HS250
IC250
C2015
C2016
Q2015
D2015
C2017
D2016
D2071
CN202
(Regulator board)
C2050
L2050
D2050
C2060
C2061
D2052
CP250
HS206
Q2060
D2060
C2052
D2061
D2076
C2020
C2025
D2026
D2025
HS202
Q2020
D2020
C2022
CN201
2-10
D2022
R2025
C2080
K2088
K2087
K2086
K2084
K2090
IC202
K2089
C2026
K2083
K2082
CN208
K2085
C2095
L2095
L7006
C7007
C7006
CN703
PP1
C7016
IC295
C7014
J702
C7020
C7015
C7024
(Video board)
Main board (2/2)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
C7032
C7012
R7027
R7028
R7029
C7013
C7007
CN703
C7008
C7016
C7014
C7015
C7024
(Video board)
IC701
C7010
C7011
C7025
R7011
CN702
R7021
C7006
C7021
C7023
R7030
C7020
R7025
C7005
R7022
R7026
L7006
R7010
C7022
R7009
R7023
C7018
R7008
R7006
C1183
C1284
R7024
C7031
C7019
J701
C7028
(Micom board)
R4109
CN422
C1228
C1127
R2074
Q2070
R4203
K4001
CN424
R1226
R2070
D4201
L1101
R1126
IC202
C5750
C5817
C1218
R3035
R5825
C1308
C1130
CN302
C4208
C5818
C1216
C1226
C1128
R2071
C2080
Q5813
R5824
C1307
C1117
R2025
R4202
D4202
R2075
R4009
R5827
R5820
Q3005
C2025
Q4201
R5828
C1227
C2027
Q2071
C4704
C4719
R5831
C1214
C1215
C1114
C1115
R2073
C4709
C4707
L1201
C1129
L1102
R2072
C5820
R4201
C4706
R5829
Q3006
C2021
D2022
R5826
C3004
R1219
R1220
R1120
R2021
C4207
C4702
C3002
C3025
K3005
CN311
D2020
C2022
CN426
CN501
R4078
C1184
R4102
C1182
C1283
R4075
R4073
R4079
C1282
J3001
R4106
L1181
L1281
C4113
R4002
R4077
C4112
R4074
C4111
X4100
C1281
R4071
R4072
C1185
C1286
R4006
R4018
R4105
R4104
R4103
R4069
C4110
C1285
R4067
C1181
R4152
R4065
C1186
C1381
C4109
R4005
R4004
R4003
R4019
R4063
R4061
C1134
C3022
C3021
C1133
C1233
C1145
R4070
R4068
C1245
CN427
R4066
C1234
R4064
C3017
R4062
C1225
C3018
C1125
L1202
R5823
R3029
C5815
C1230
C1229
Q4202
C5816
R1225
C1116
C4210
R5822
C1217
C1126
C3020
C1118
C3016
C3019
C3027
C3015
CN312
R1125
(Digital amp. board)
R7007
C2026
C7017
PP1
CN208
K2095
L2095
R2095
C2095
K2081
K2080
CN201
J702
IC295
K2090
D2026
D2025
K2089
K2088
K2087
K2085
K2084
K2083
K2082
K2086
R1119
C2020
C3003
C3005
X3002
IC132
C1306
B3001
C1310
C1304
C1303
X4700
C4708
HS202
R2022
D2076
R4600
IC420
X3001
C1210
R3019
Q2020
R4601
C4701
C4705
R3004
K3004
C1110
(Regulator board)
C5819
D2060
D2061
Q4601
Q4600
IC520
R3006
C1302
C2052
R5374
R3016
C2061
C5373
Q5810
C5814
C5810
R5819
R5810
C3007
R3018
CN301
Q2061
R2061
C2060
R5811
C5830
C3009
C3010
R3007
R3017
C4600
C1113
K3002
K3001
R3015
R2060
IC303
C3012
HS206
CP250
R5398
C1213
R5376
R5392
R5821
C5813
C3008
C3031
K3003
D2052
C2051
Q5373
R5375
D5371
R5372
R5817
C5811
R5814
R5815
R5812 R5813
L4001
R1301
R3013
R3012
R3014
R3011
Q2060
D2050
L2050
R2050
R2052
R2051
Q5812
Q5811
CN423
R3010
CN421
R5371
C5812
C5371
C5372
Q2050
R1302
C1301
R3022
Q3003
C5804
C3006
R3020
CN310
C5380
R5274
R5178
R5278
C5802
R5378
C1106
C2050
D2015
R5176
Q3002
HS250
IC250
C2015
Q5511
C1105
C2016
Q2015
R5610
C5175
R5279
R1115
C1205
R1311
R1116
C5275
C5374
R2015
D2016
IC510
C1138
R5179
C1240
C2012
C2017
R5174
D5372
R1205
R1105
D2010
C1124
C5602
C1224
C1140
C5174
R5271
C5274
C1222
R1235
IC200
C5272
CN300
C2011
C1223
C1123
C1206
C1238
D2072
D2071
C5521
C5520
R5273
C1201
C2010
C3013
C1101
R1135
D2012
R5171
D2011
C5510
C5273
Q2042
C2042
C5604
R5281
R2040
HS200
R2043
D5501
R5601
C5172
R2045
C5173
C5410
R2044
C5408
C2041
R2041
C5531
D2042
R2042
Q2041
R5407
R5507
C5917
C2003
C5508
Q5911
D2045
C5509
R5406
C5407
C5409
Q2040
C5506
C5507
IC500
R2008
C2002
C2040
R5405
C5532
C5406
R5901
R5902
C5914
R2007
Q2043
R5912
Q2007
C2006
R5505
W201
R5402
B5402
R5916
D2043
C5405
C5916
R5917
R5915
D4058
C2043
C5503
R4402
R2006
D2006
CN202
C5505
R4400
CN425
W202
R2046
B5508
J5000
C5403
C5404
R5506
R5508
C5912
R5401
C5402
C5501
R2047
R5501
R5914
C5911
Q2006
C2004
B5501
C5502
CN428
C2000
R5911
R2009
C5401
D2037
B5003
R5509
C5710
Q5912
D2038
CN200
J5001
C2035
L2000
C5913
D2035
D2036
C2001
C5504
C5730
C5915
Q5913
R5913
C5721
R5720
C5512
CN210
D2007
R2010
B5002
C2036
C2037
CN203
R2037
R2036
IC235
Reverse side
2-11
FL board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
DVD module board
D6110
C6156
R6105
IC617
C6155
R6151
R6150
C6158
S6101
C6157
C6152
C6151
C6150
C6160
C6171
D6150
R6101
D6115
R6170
C6159
R6118
D6114
C6172
(FL board)
Q6150
R6110
(Front board)
Q6110
C6116
C6120
D6113
C6113
CN605
S6012
R6008
R6012
S6007
R6113
JS612
S6006
C6121
R6007
R6111
Q6111
R6112
R6116
CN610
(Switch board)
S6011
B6033
R6011
S6005
R6006
S6100
R6100
CN501
TP53
TP52
TP55
TP51
TP54
TP56
TP57
TP701
TP702
TP59
TP58
TP704
C910
TP61
TP60
TP703
TP706
TP98
R909
R704
IC701
R254
R502
R501
TP331
C253
R205
R207
R206
C205
C206
C259
TP326
IC201
C208
TP330
R204
C265
R208
TP62
TP705
TP27
C266
CN201
R746
C258
C267
TP64
TP63
IC702
C257
TP28
R747
C251
K555
R748
R215
TP26
TP65
TP71
K721
IC703
R712
C212
C211
R745
K710
R213
R214
TP73
K723
R720
R711
TP311
K722
C714
R717
C550
TP24
C712
C256
R257
TP23
TP75
K252
TP22
TP77
R724
R729
IC705
TP21
R384
R256
R719
C715
IC704
TP310
R116
Q104
TP25
Forward side
CN502
CN503
TP74
TP76
TP72
TP78
K551
K554
K553
TP81
TP82
TP83
TP84
TP85
TP86
TP87
TP88
TP89
R716
C713
C325
R255
C255
C326
C328
R111
R113
R115
R385
R112
C371
Q105
C549
R128
TP1
TP2
TP3
C111
R117
R118
R126
TP4
X351
TP305
Q103
R378
C104
TP90
TP5
K552
TP91
TP6
R102
TP92
K556
TP93
TP94
TP332
TP333
TP7
C107
R552
C547
TP323
R345
R341
R317
TP9
CN101
C103
TP319
R357
R358
R316
R379
R101
TP8
TP317
TP321
R340
R315
C316
TP10
TP322
TP320
R342
C343
C344
C345
TP11
TP13
TP14
TP324
TP15
R558
K565
K501
C341
TP16
TP17
TP325
C556
R530
C313
C312
TP18
K567
C555
C553
C554
R344
C318
TP19
K566
IC505
C339
R510
C323
C322
C321
C320
TP20
TP12
R336
C101
R335
R334
K564
C552
C337
C332
TP314
R337
IC509
C338
TP315
R338
R339
C511
C334
TP306
C346
TP313
TP303
C333
C331
C548
R383
TP302
TP308
TP312
TP309
C508
C510
C509
C559
R382
TP329
R324
TP328
TP307
C558
R323
TP327
C907
TP99
K302
R325
R326
R307
R306
C908
C557
TP318
TP316
C551
R511
R321
R322
TP351
TP350
CN301
C6222
W622
B6040
R6223
C6221
C6227
C6220
FL615
X6200
K6216
K6215
C6153
IC621
C6224C6223
C6230
C6231
R6219
C6154
CN615
K6214
C6216
R6222
J623
C6226
C6229
C6225
K6212
C6228
K6213
K6211
R6220
R6004
S6003
R6003
S6002
(Support board)
C6219
R6214
R6218
R6217
R6221
C6218
K6205
C6214
R6213
D6240
R6242
C6240
R6215
R6216
C6215
R6240
R6010
S6009
R6002
S6001
FW620
Q6240
S6008
(Headphone and USB board)
J620
R6200
C6200
C6202
C6203
K6201
K6200
FW620
K6218
C6201
K6202
C6204
R6009
R6001
W621
FW621
S6000
CN600
R309
R381
IC301
C377
C310
K303
R320
C307
C378
C327
C306
R372
C372
R395
R303
R373
R371
R503
R374
K563
C373
C308
C505
C506
R308
R551
C309
R375
R376
R377
C335
R314
C507
C330
R458 C455
IC453
C375
C374
C350
R313
C358
R363
C376
C348
Reverse side
C392
R457
C359
C315
C391
C324
R122
R123
C109
C102
K101
C329
C311
R360
C317
R394
R393
C340
R124
C110
C379
R352
R343
R362
R361
R351
R318
C356
R333
R119
R121
R120
C314
C349
R312
R359
K102
C347
IC302
R319
R392
R391
R105
C319
C302
R723
Q101
R110
R109
R730
R390
Q102
K304
R302
R725
C301
R114
C304
R301
R744
K725
R107
R742
R743
R741
R727
C305
K724
R108
R728
R106
R201
C303
C721
C711
R722
K305
R104
C703
R125
C108
R103
C106
C262
R310
C704
C105
R259
C261
C260
K301
C706
R715
C902
K502
L501
R221
R251
R252
C217
C263 C264
K251
R911
C904
R220
K201
C901
C709
C705
C702
C204
C903
R703
R714
C501
R713
C707
R219
C906
C905
C912
R702
C701
R721
R718
C502
IC501
C503
R701
2-12
DVD loading switch board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
S1
CN1
2-13
Victor Company of Japan, Limited
AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MB399SCH)
Printed in Japan
VPT
Loading...
