JVC EXAD KD-AV7000 Instructions Manual

Download

DVD RECEIVER WITH MONITOR

RECEPTOR DVD CON MONITOR RECEPTEUR DVD ET MONITEUR

KD-AV7000

MAIN SUB

ATT

ZOOM

DUAL

AVOUT VOL

ASPECT

TOPMENU

GUI

RETURN

SET UP

TUNER

DISCOKAV

231

564

11/012

/+1

Detachable

VOLUME

ENGLISH

ESPAÑOL

FRANÇAIS

• This unit is equipped with the display demonstration. To cancel it, see page 14.

• Esta unidad está equipada con demostración en la pantalla. Para cancelarla, consulte la página 14.

• Cet appareil est équipé d’une fonction de démonstration des affichages. Pour l’annuler, référezvous à la page 14.

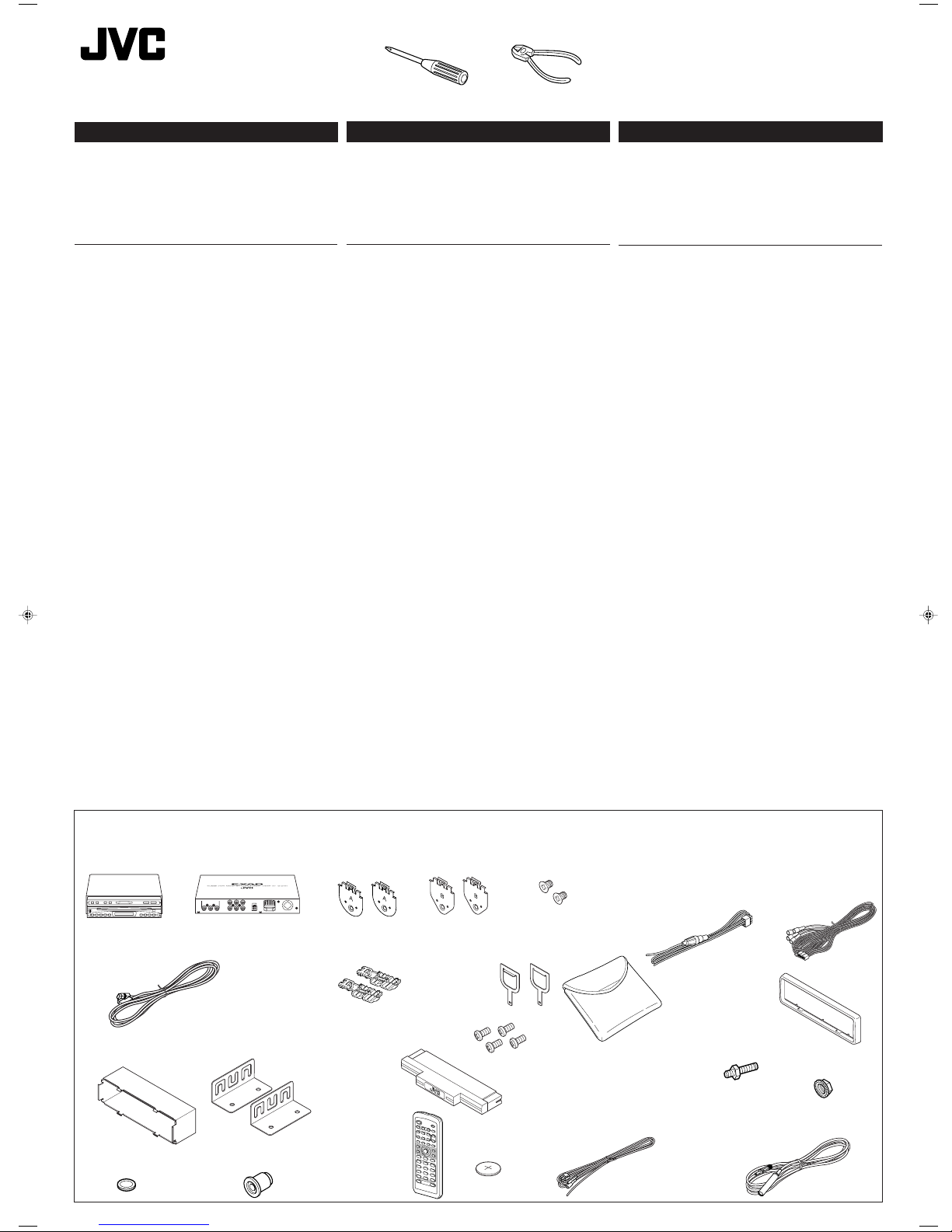

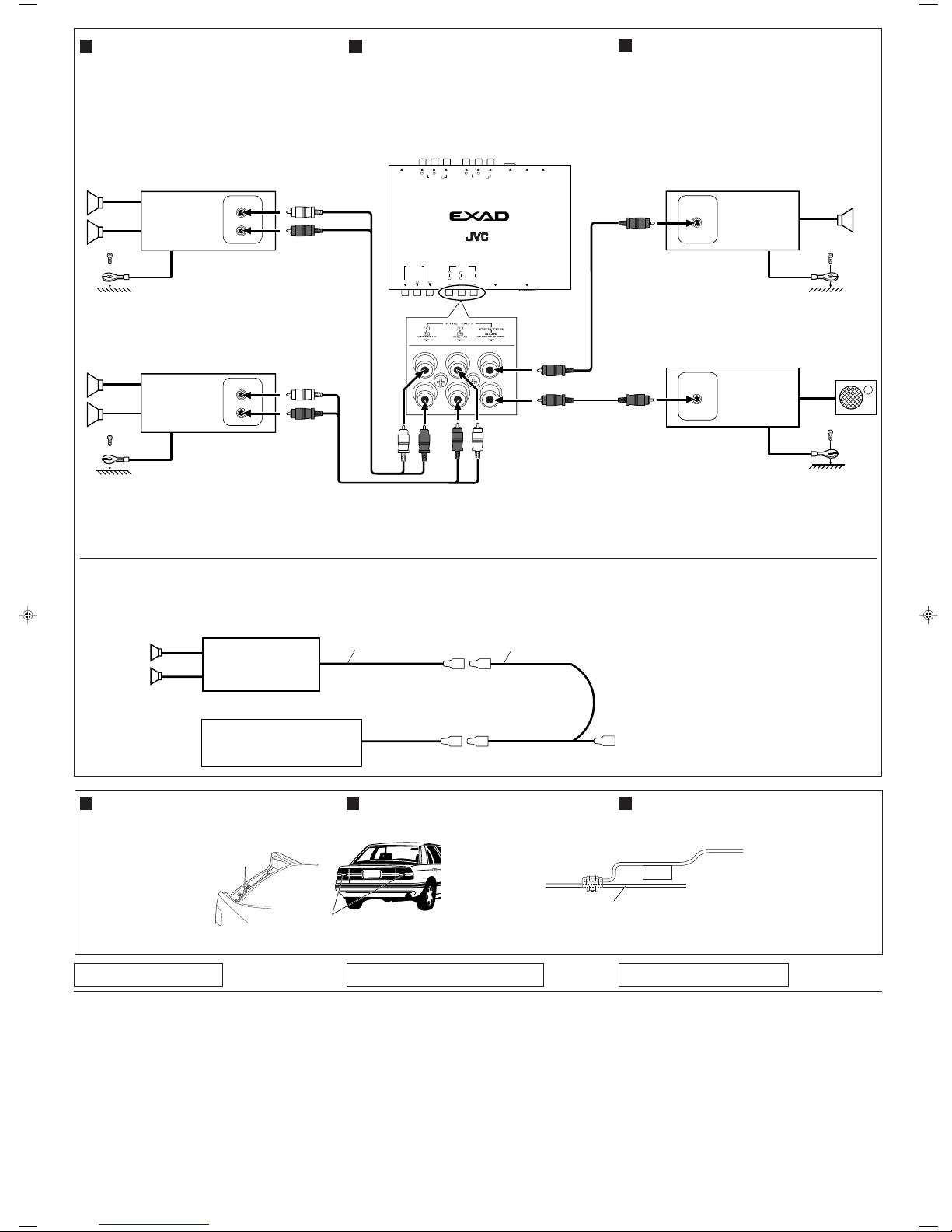

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT1171-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV technician for help.

After installing the unit, reset it before use following the procedure below:

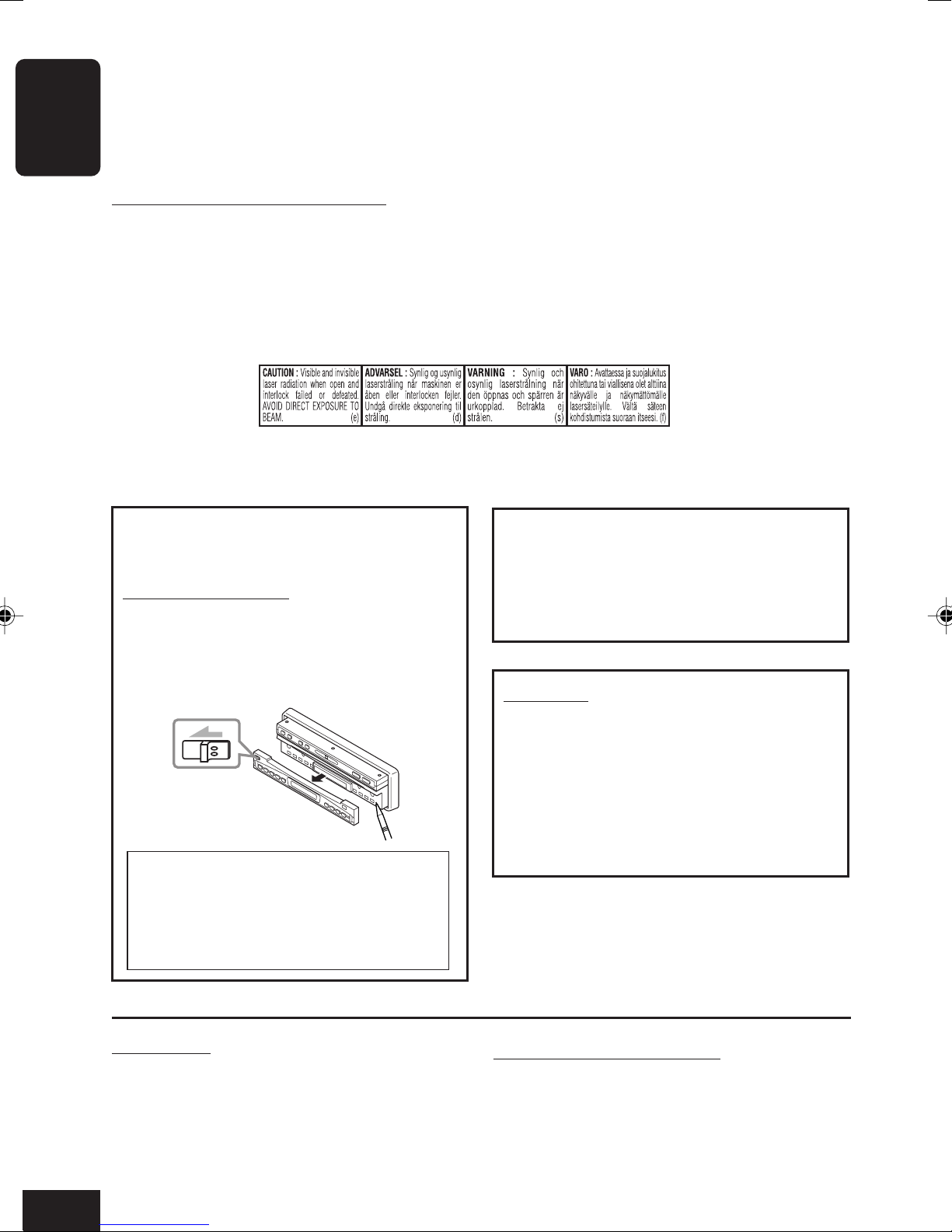

How to reset your unit

Detach the control panel (see page 77), then press the reset button on the main unit using a ball-point pen or a similar tool. This will reset the built-in microcomputer.

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

• The monitor will go into its place if opened.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

CAUTIONS:

• Do not insert any disc of unusual shape— like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

WARNINGS

CAUTIONS on the monitor

• DO NOT install any unit in locations where; – it may obstruct the steering wheel and

gearshift lever operations, as this may result in a traffic accident.

– it may obstruct the operation of safety

devices such as air bags, as this may result in a fatal accident.

– it may obstruct visibility.

• DO NOT operate any unit while manipulating the steering wheel, as this may result in a traffic accident.

• The driver must not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident.

• If you need to operate the main unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

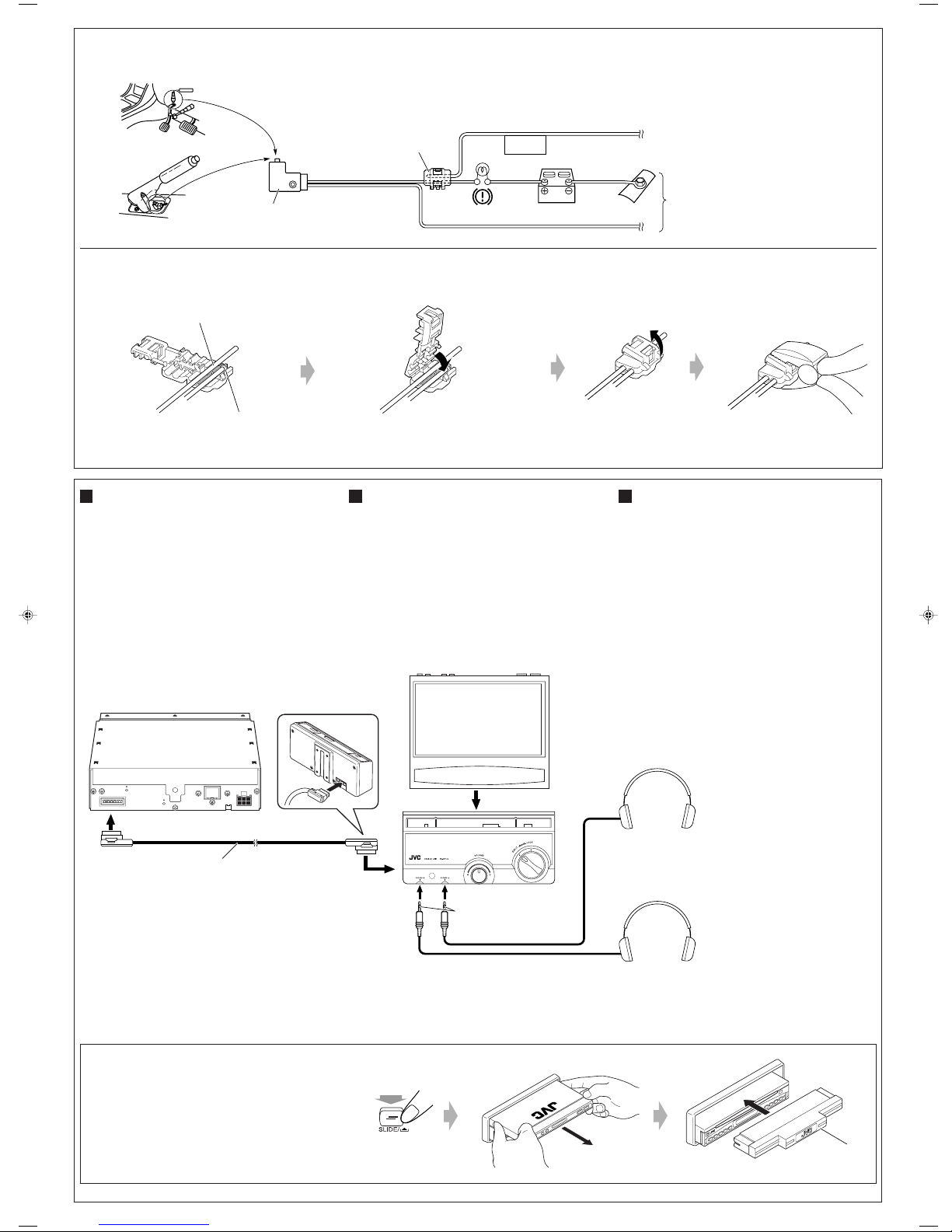

• If the parking brake is not engaged, “DRIVER MUST NOT WATCH THE MONITOR WHILE DRIVING.” appears on the monitor, and no playback picture will be shown. – This warning appears only when the

parking brake wire is connected to the parking brake system built in the car (refer to the Installation/Connection Manual).

• This product has a fluorescent lamp that contains a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org./

• The monitor built in this receiver has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• When the temperature is very cold or very hot... – Chemical changes occur inside, causing it

to malfunction.

– Pictures may not appear clearly or may

move slowly. Pictures may not be synchronized with the sound or the picture quality may decline in such environments.

ENGLISH

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

Important!

How to read this manual:

• Operations are explained only with the illustrations as follows:

To make the explanations as simple and easy-to-understand as possible, we have

Press briefly.

adapted the following methods:

• Some related tips and notes are

explained later in the sections “More

Press repeatedly.

about This Receiver” (see page 68), but not in the same section explaining the operations. If you want to know more

Press either one.

about the functions, or if you have a doubt about the function, go to the section and you will find the answers.

Hold

Press and hold until your desired response begins.

Contents

How to reset your unit ..................................... 2

ENGLISH

Important! (How to read this manual) ............. 3

Introduction—Playable Discs ....................... 5

Quick Guide—How to Use the Controls...... 6

Remote controller ............................................ 6

Main unit (front) .............................................. 8

Preparation

(Remote Controller—RM-RK220) .............. 9

Operation Methods ...................................... 10

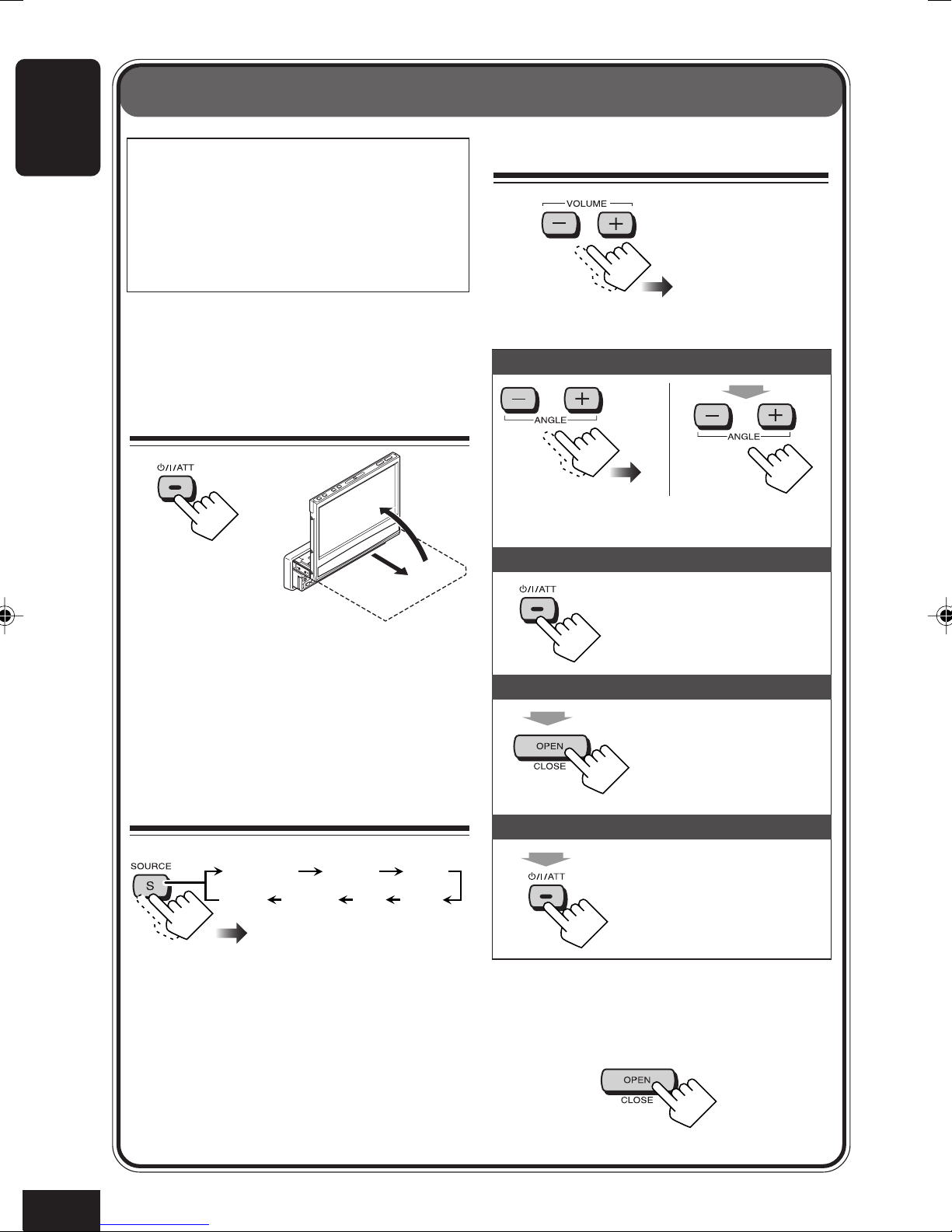

Basic Operations .......................................... 12

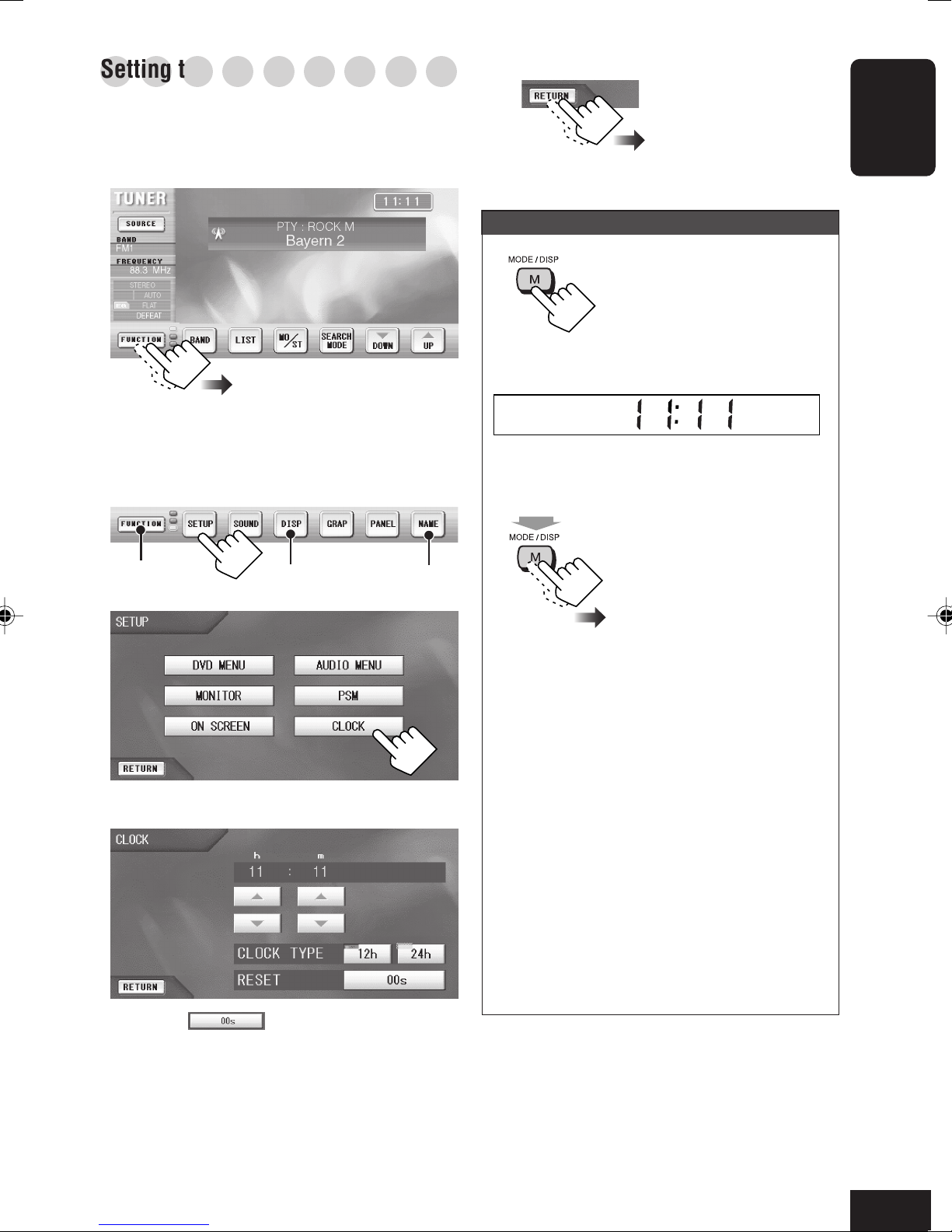

Setting the clock ............................................ 13

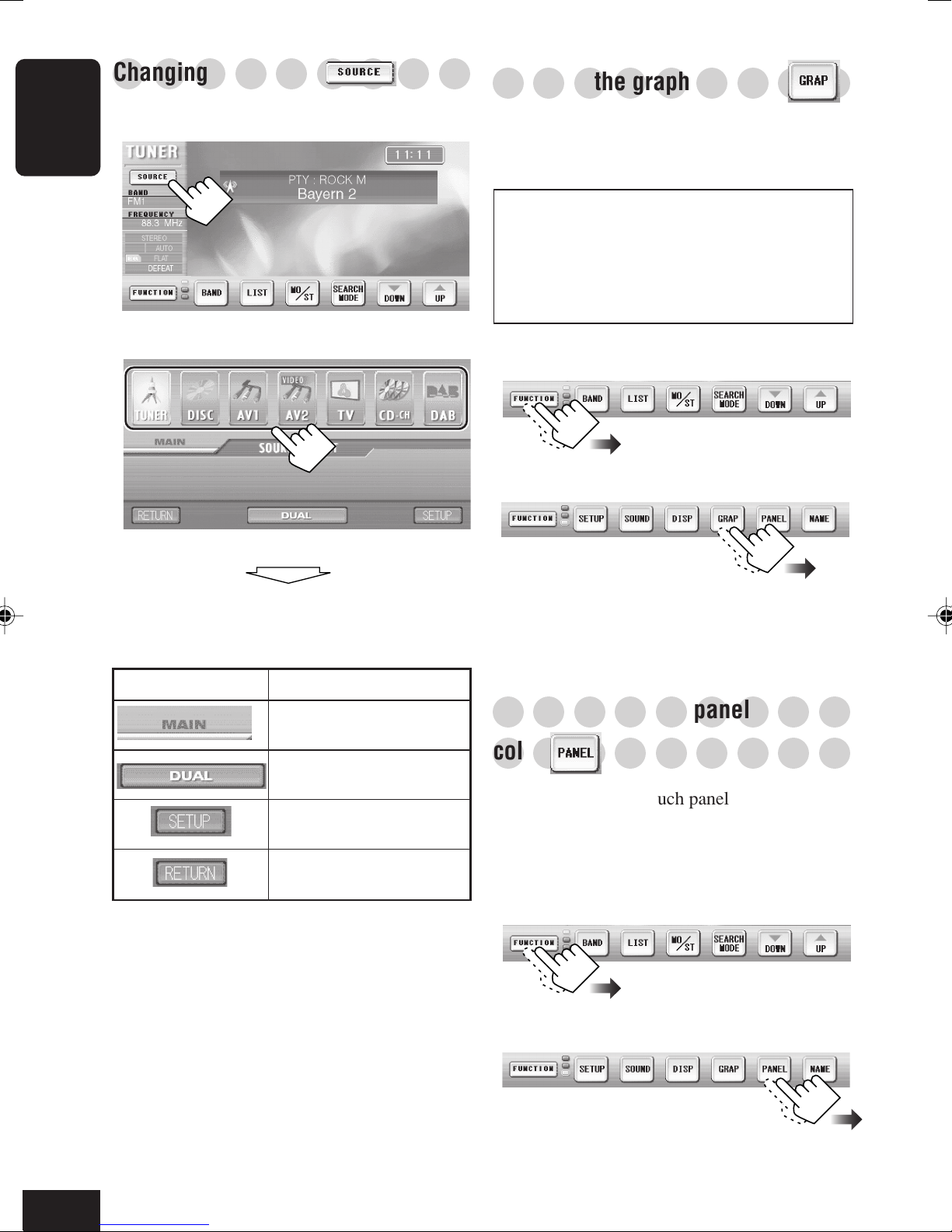

Changing the source ...................................... 14

Changing the graphic screen ......................... 14

Changing the touch panel color ..................... 14

Displaying the level meter ............................. 15

Radio Operations ......................................... 16

Listening to the Radio ................................. 17

Storing stations in memory ............................ 18

Displaying the preset list ............................... 19

DVD/VCD Operations ................................. 20

CD/MP3 Operations .................................... 21

Basic Disc Operations ................................. 22

Changing the aspect ratio .............................. 24

Prohibiting disc ejection ................................ 24

Selecting MP3 folders ................................... 24

Operating the disc menu ................................ 25

Replaying the previous scenes ....................... 26

Zooming in .................................................... 26

Selecting subtitles .......................................... 27

Selecting audio languages ............................. 27

Selecting multi-angle views .......................... 28

Locating a folder/track using the list ............. 29

Displaying the disc text information ............. 30

Displaying the time information .................... 30

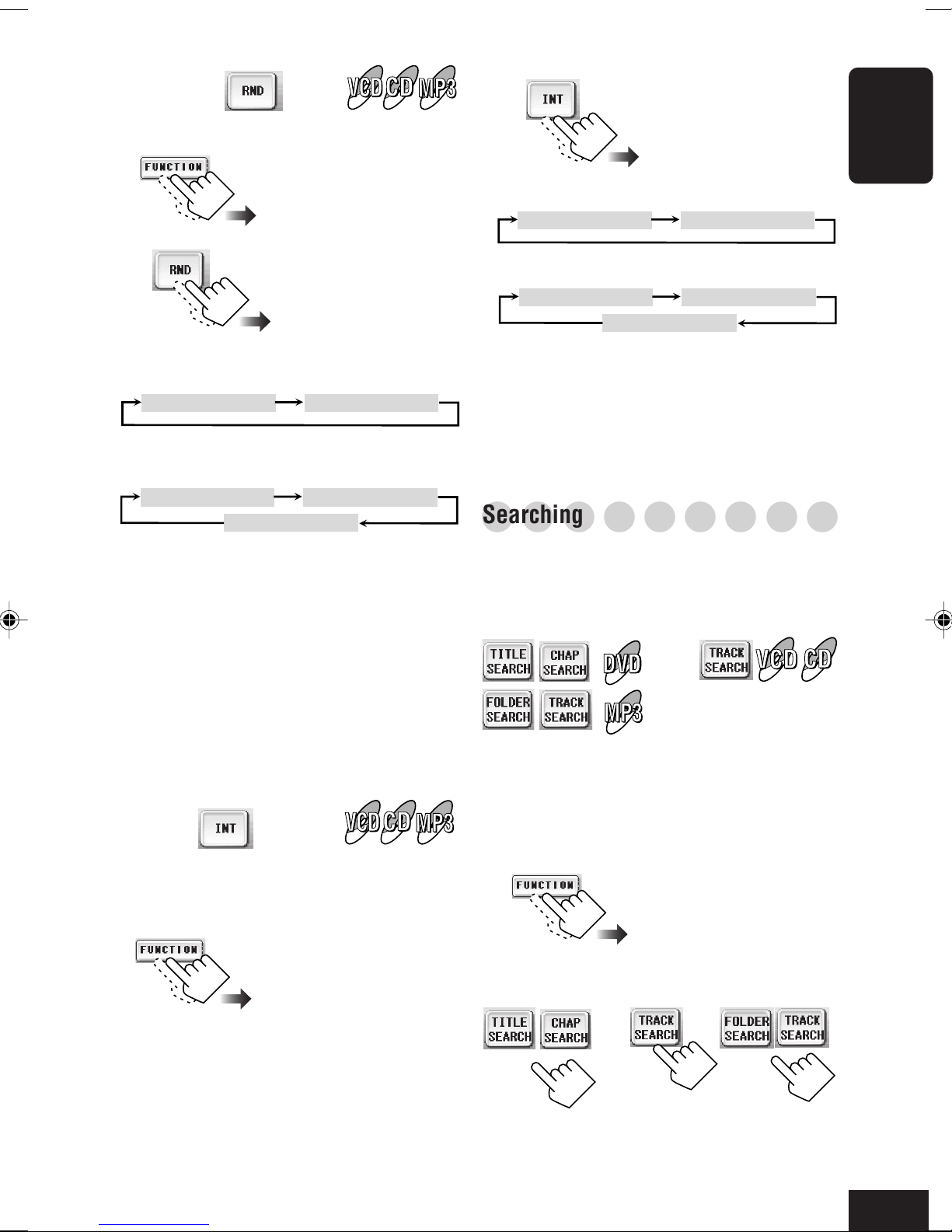

Selecting playback modes ............................. 30

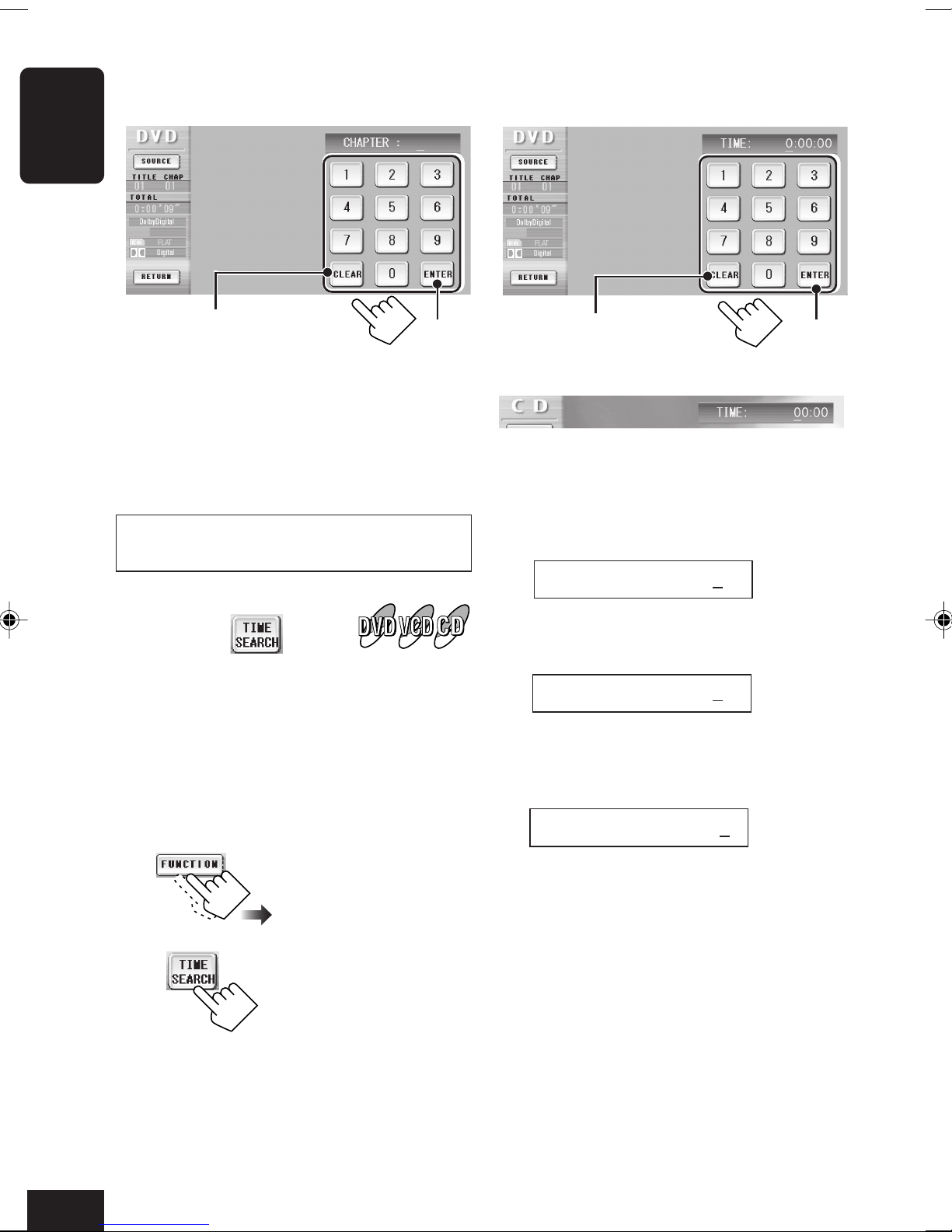

Searching for scenes or songs ........................ 31

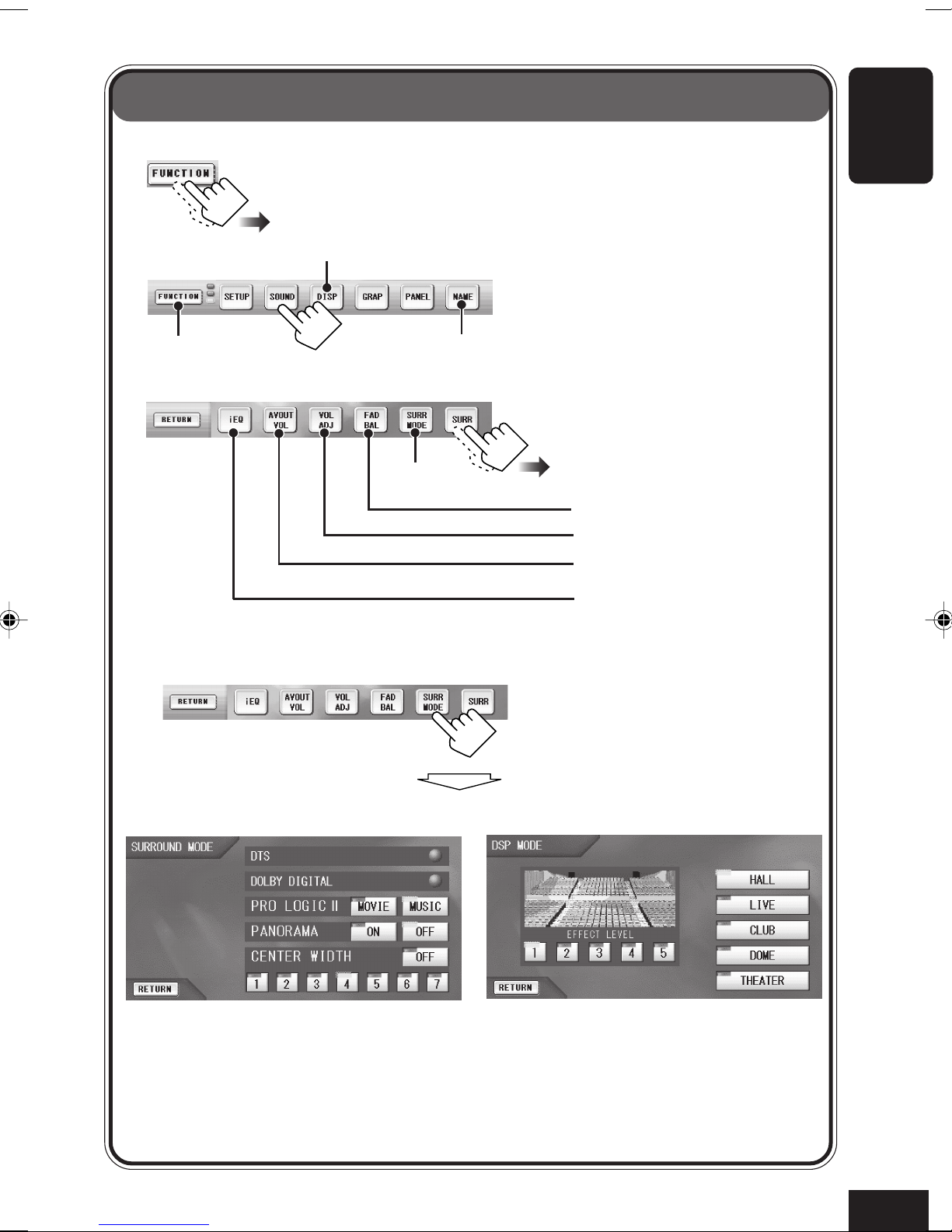

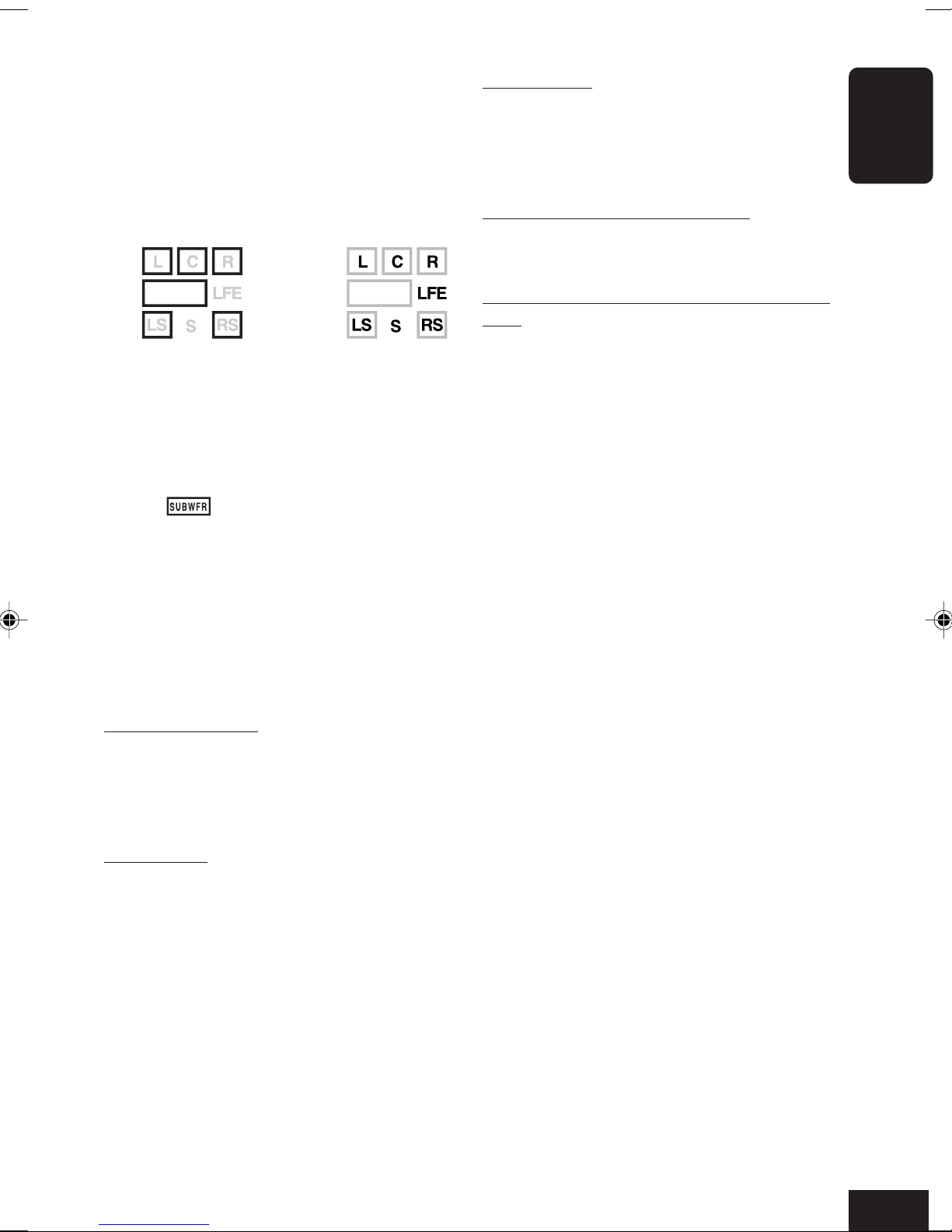

Surround Mode Operations........................ 35

Introducing surround/DSP mode ................... 36

Turning on and off the surround/DSP mode .... 37

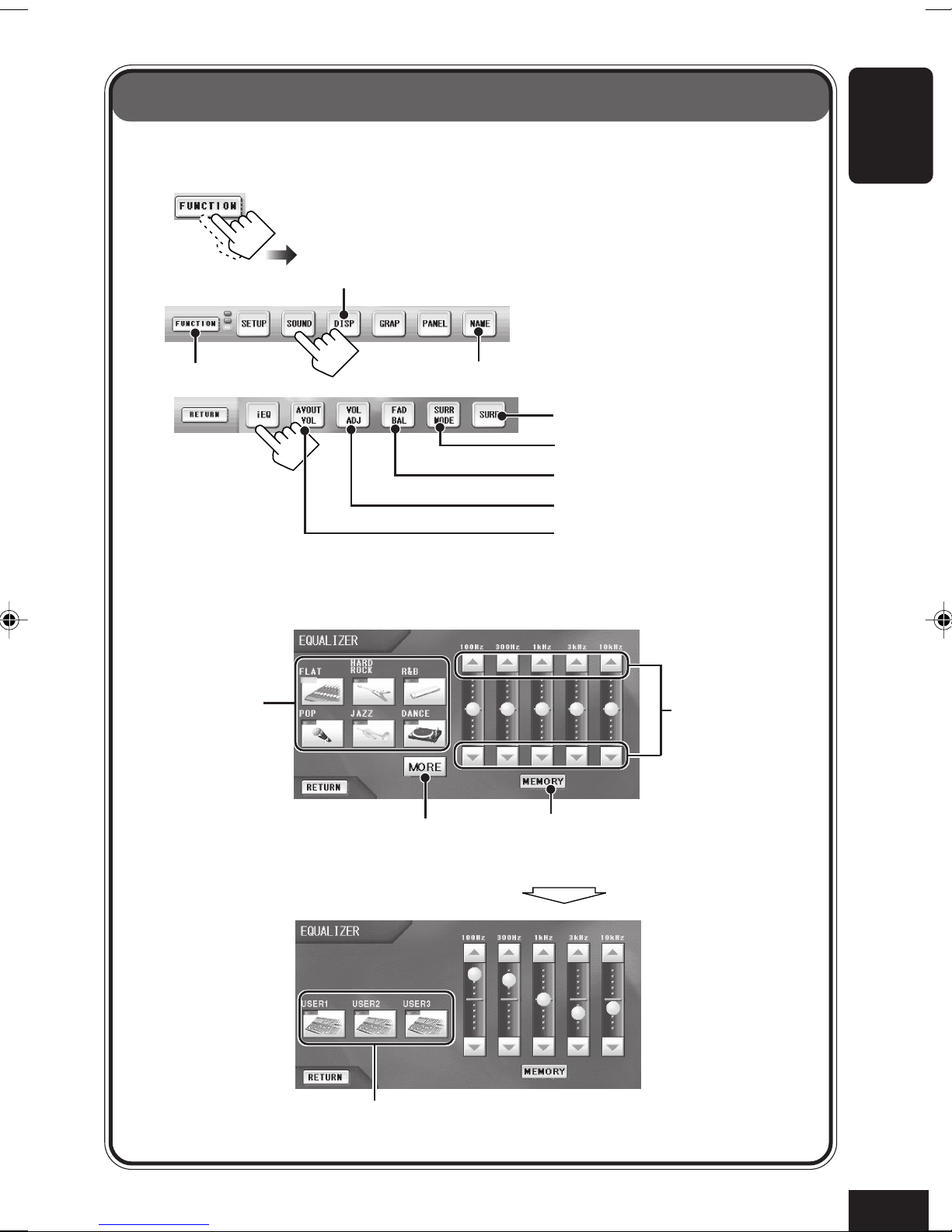

Sound Modes (iEQ) Operations ................. 39

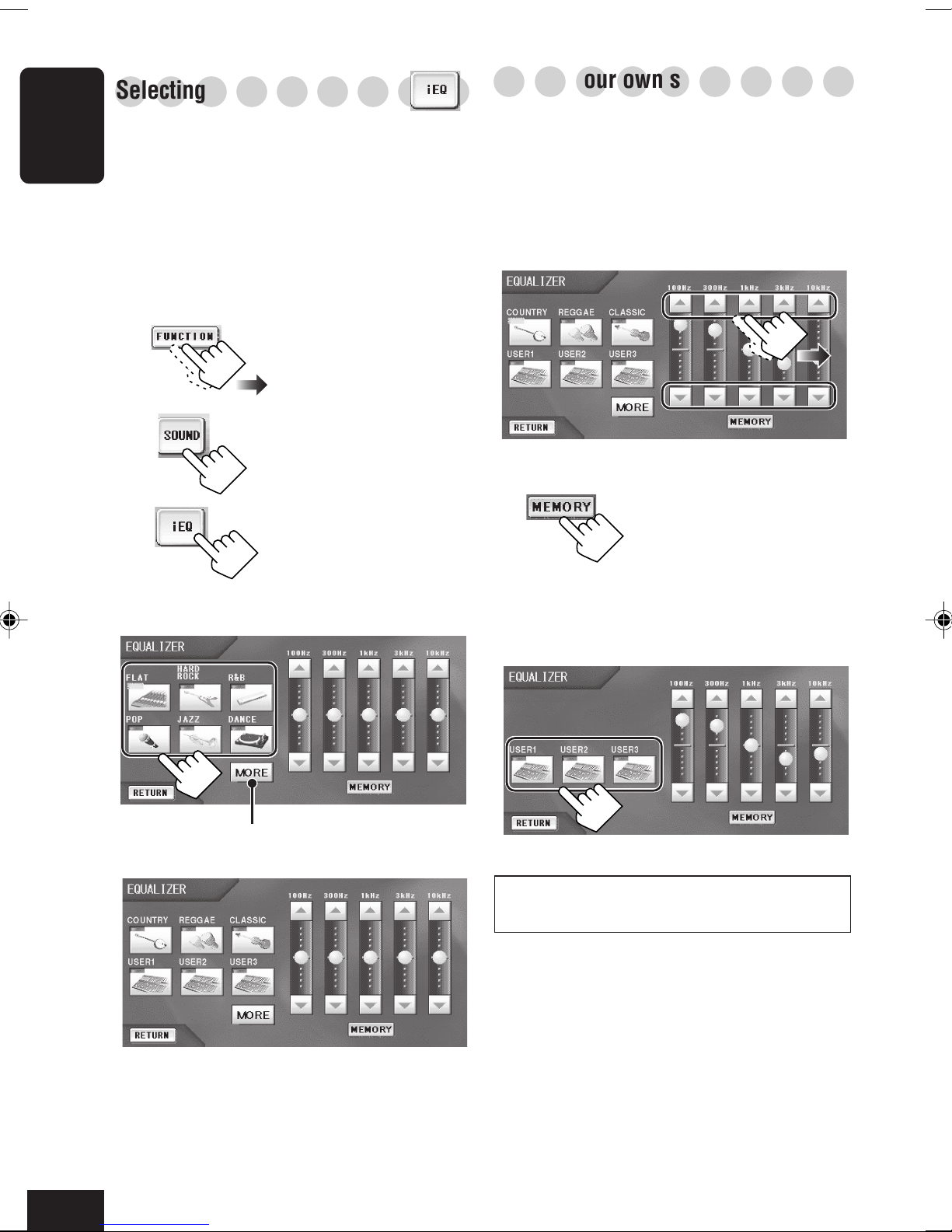

Selecting preset sound modes ........................ 40

Storing your own sound modes ..................... 40

Other Sound Adjustments .......................... 41

Monitor Adjustments .................................. 42

Initial Setup—DVD MENU ........................ 43

Initial Setup—MONITOR .......................... 45

Initial Setup—ON SCREEN ....................... 47

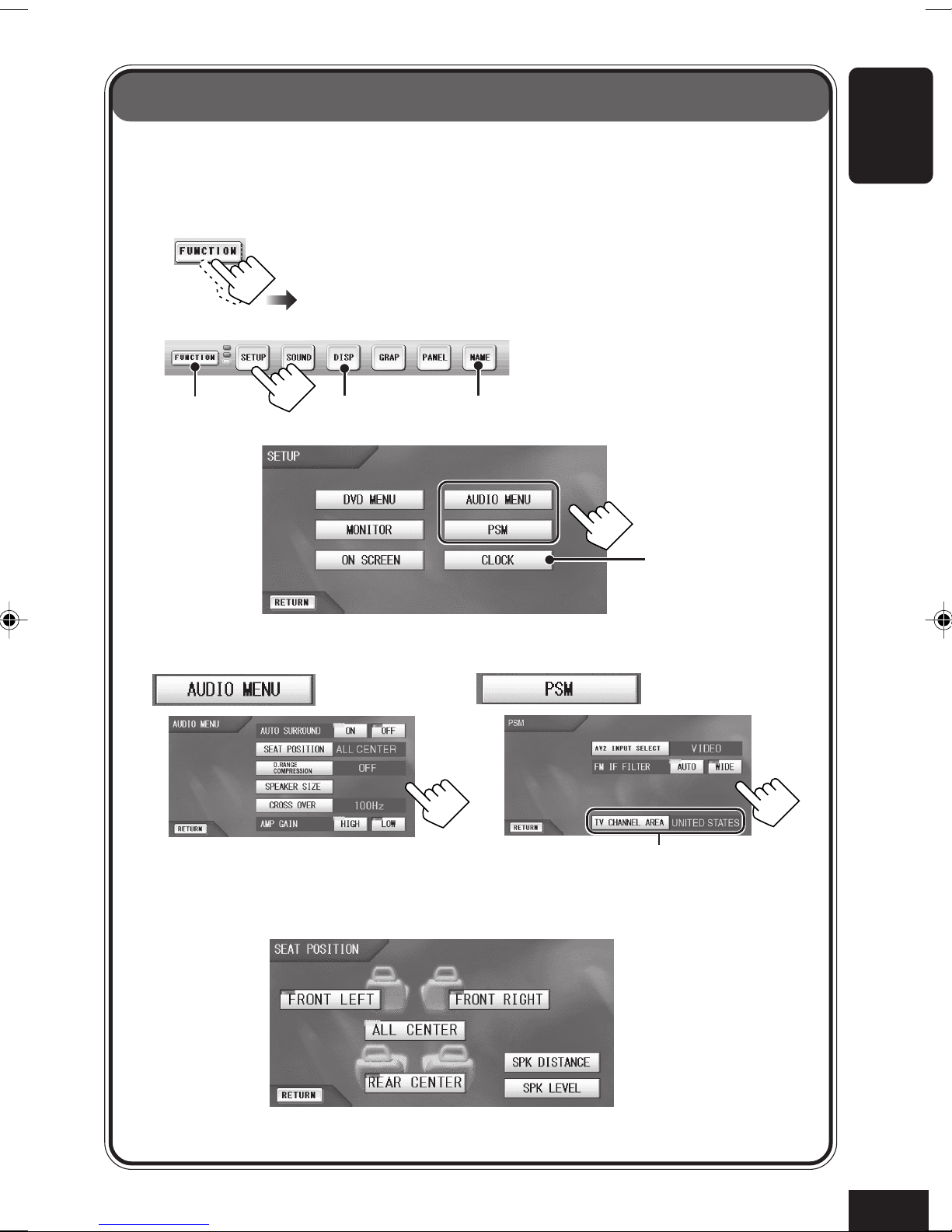

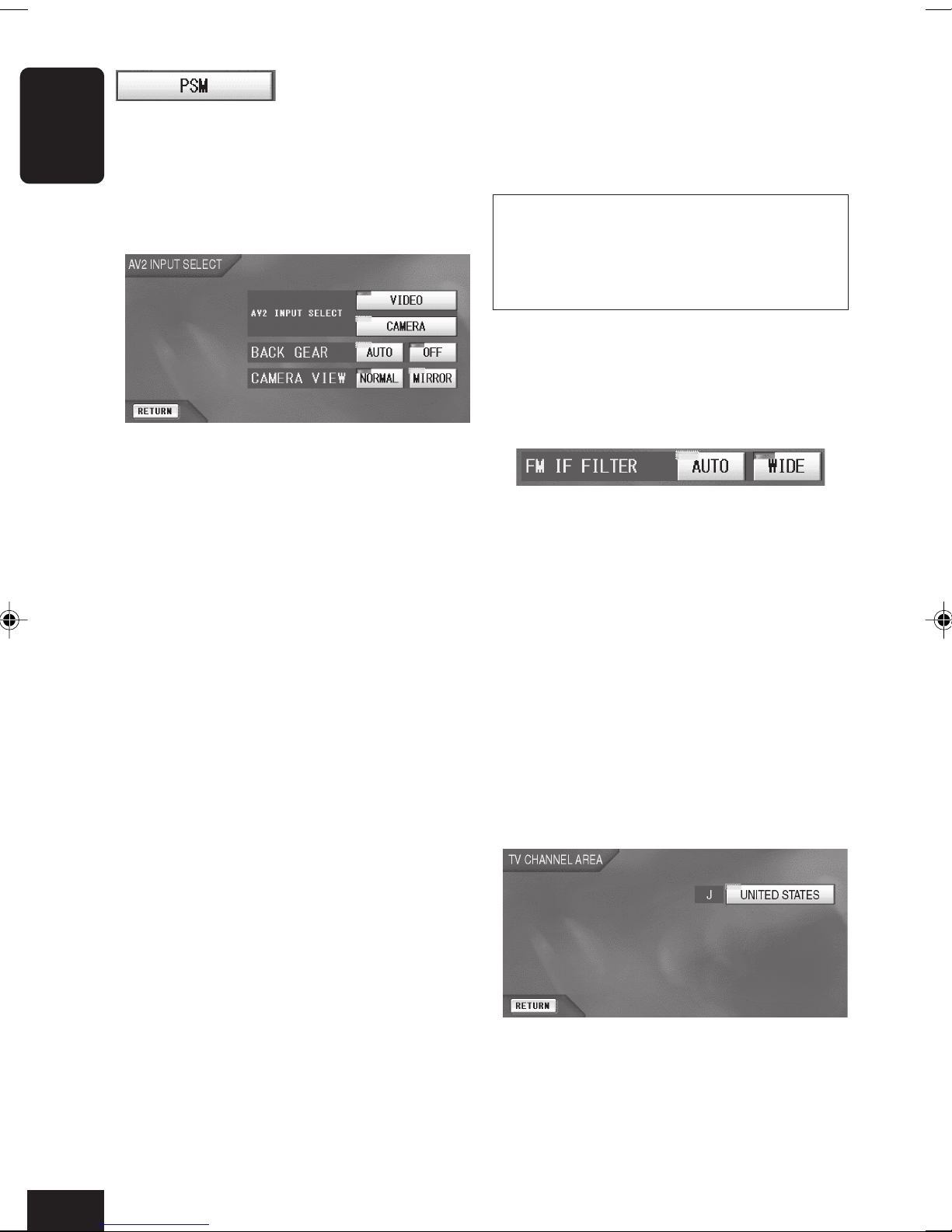

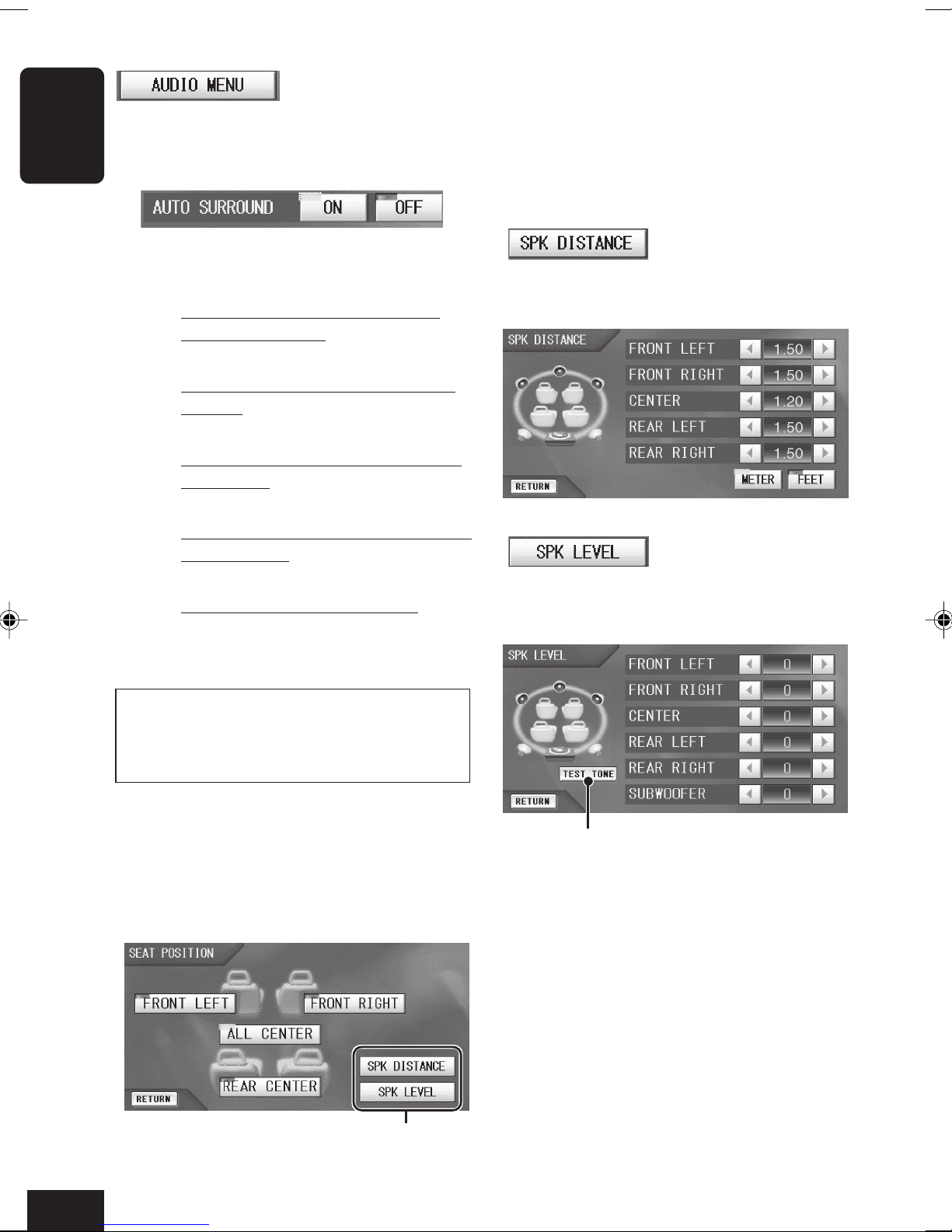

Initial Setup—AUDIO MENU/PSM .......... 49

Other Main Functions ................................. 53

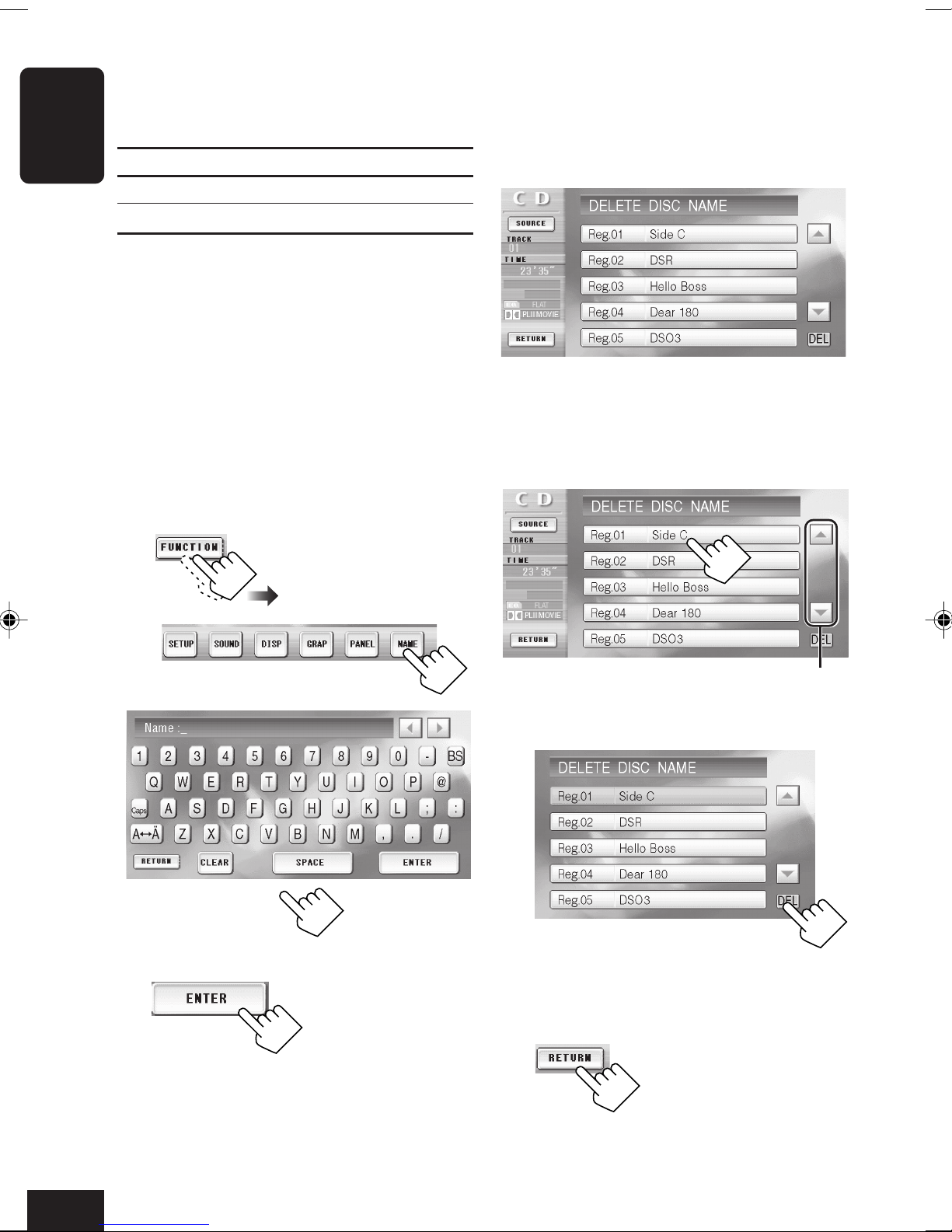

Assigning titles to the sources ....................... 53

Changing the monitor position/angle ............ 55

Removing the monitor ................................... 55

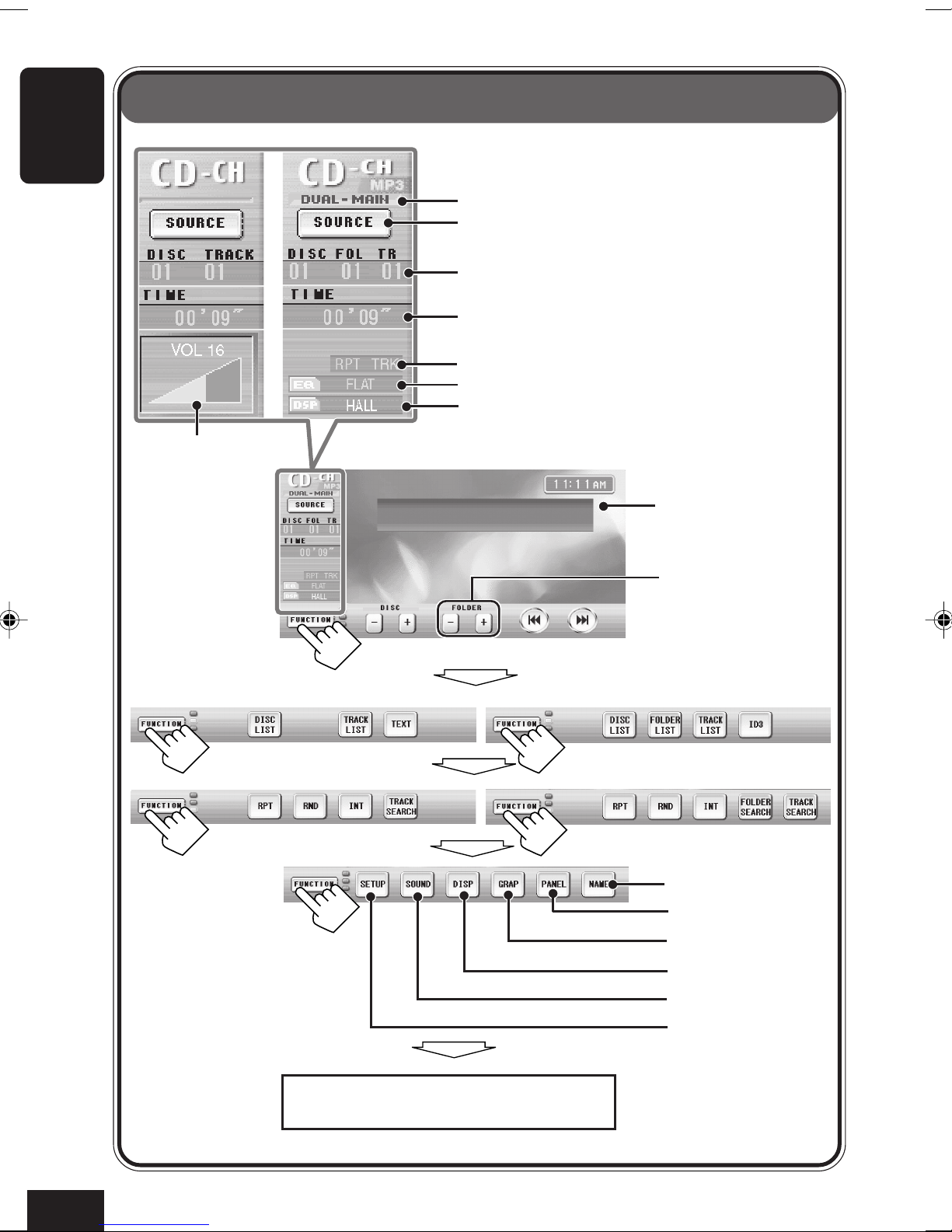

CD Changer Operations ............................. 56

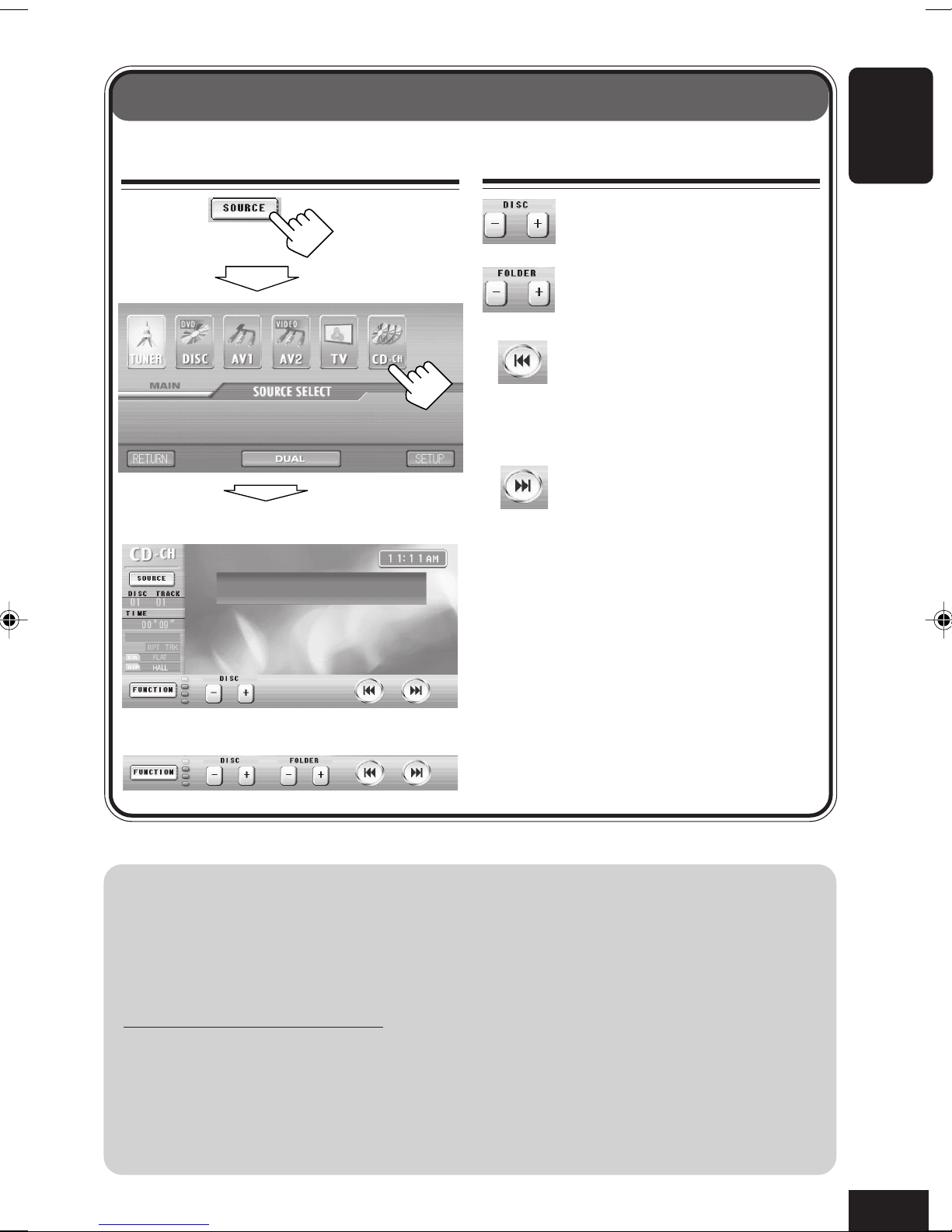

Basic CD Changer Operations ................... 57

Advanced CD Changer Operations ........... 58

Selecting disc/folders/tracks .......................... 58

Locating a disc/folder/track using the list ..... 58

Displaying the disc text information ............. 59

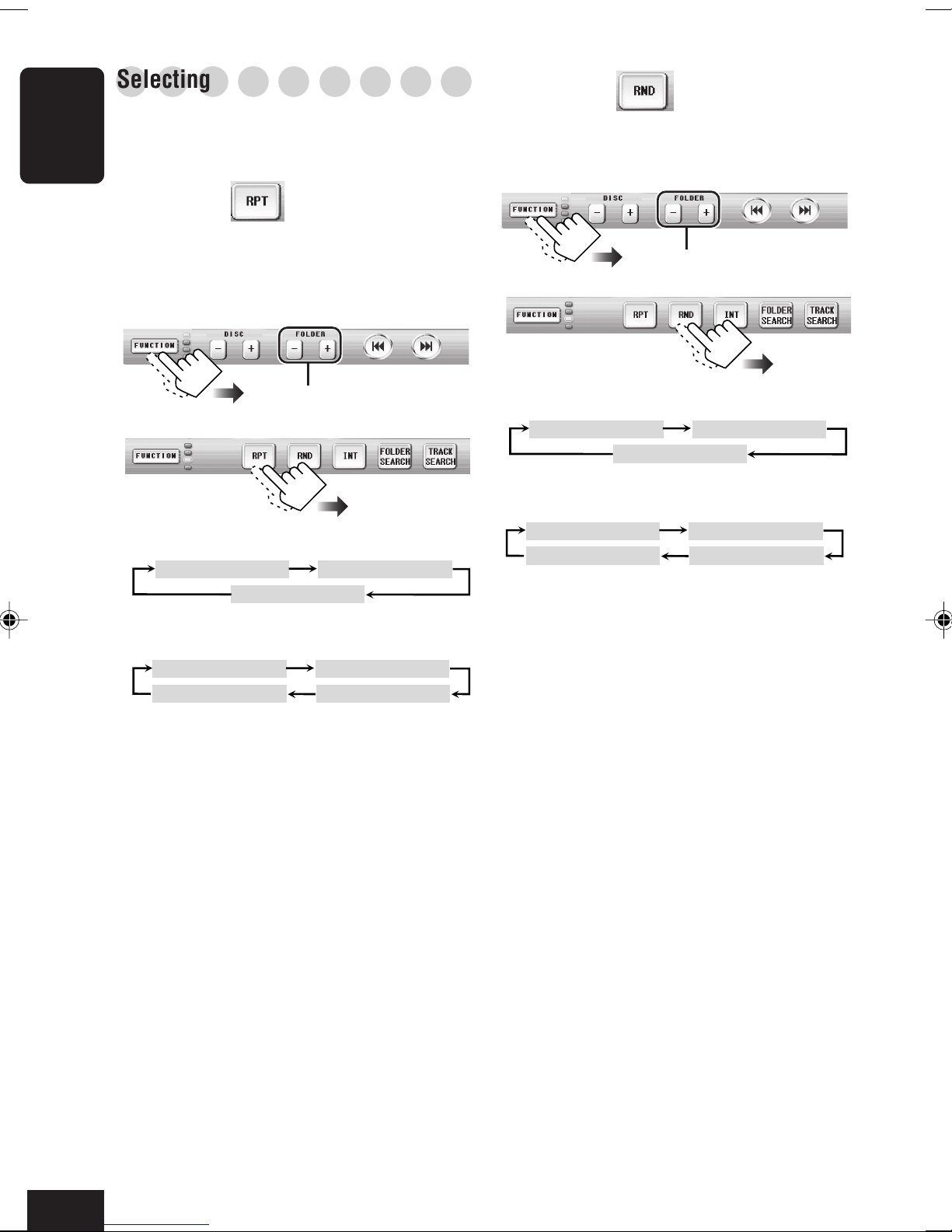

Selecting playback modes ............................. 60

Searching for songs ....................................... 61

External Component Operations ............... 62

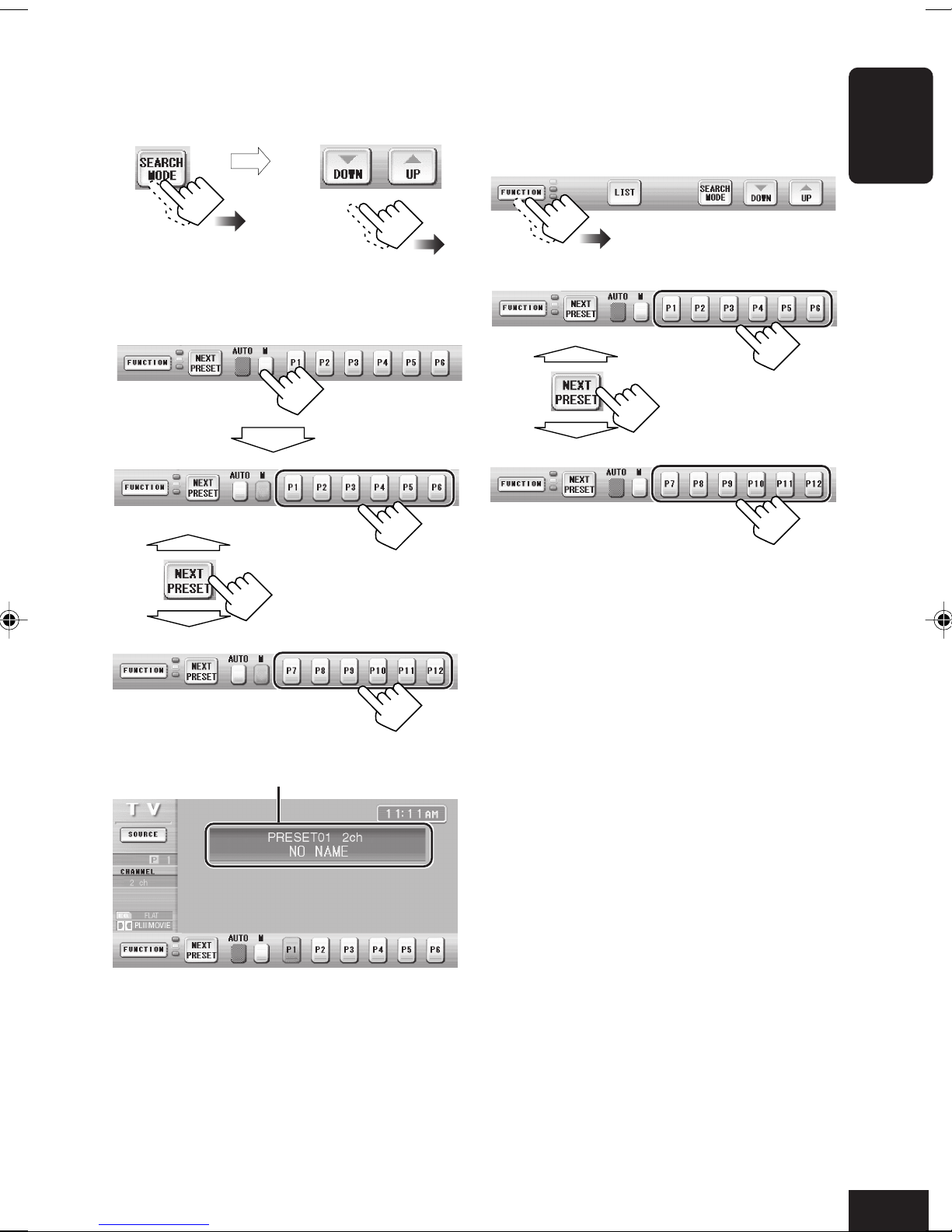

TV Tuner Operations .................................. 63

Watching TV programs ................................. 64

Storing stations in memory ............................ 64

Displaying the preset list ............................... 66

Maintenance ................................................. 67

More about This Receiver ........................... 68

Troubleshooting ........................................... 72

Additional Information ............................... 74

Specifications................................................ 76

Dual Mode Operations ................................ 33

Selecting the sources ..................................... 33

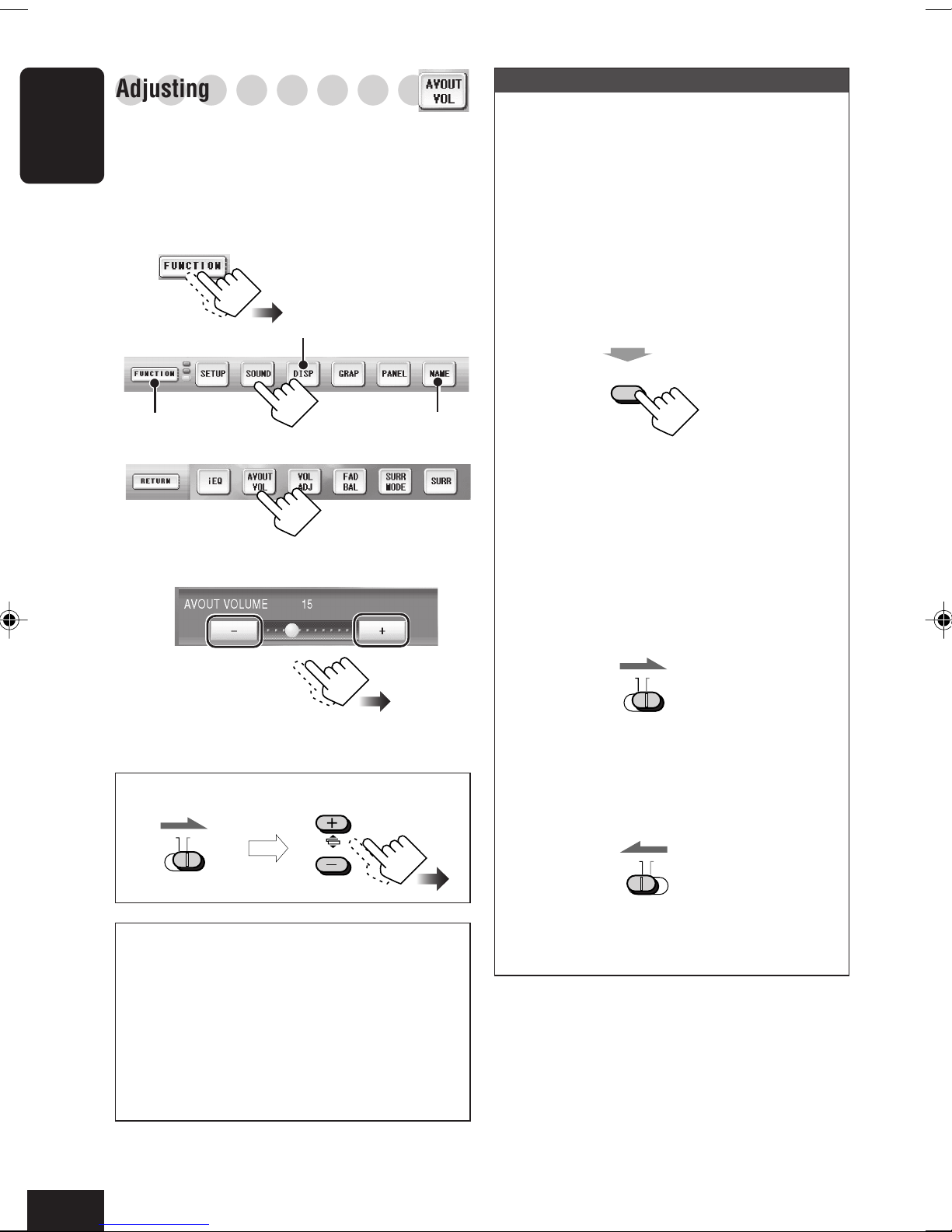

Adjusting AV OUTPUT volume.................... 34

Introduction—Playable Discs

Discs you can play

You can play back the following discs on this unit:

• DVD Video: whose video format is NTSC

and whose region code is “1.” –DVD-Rs and DVD-RWs recorded in

the DVD-Video format can also be played (see page 69).

• Video CD (VCD)/Audio CD

• MP3: CD-Rs or CD-RWs including MP3

files with the file extension code <mp3>. They must be recorded in the format compliant with ISO 9660 Level 1, ISO 9660 Level 2, Romeo, and Joliet.

On some discs, the actual operations may be different from what is explained in this manual.

The following discs cannot be played back

DVD Audio, DVD-ROM, DVD-RAM, DVD-RW recorded in the DVD-VR format, CD-ROM, CD-I (CD-I Ready), Photo CD, etc.

• Playing back these discs will generate noise and damage the speakers.

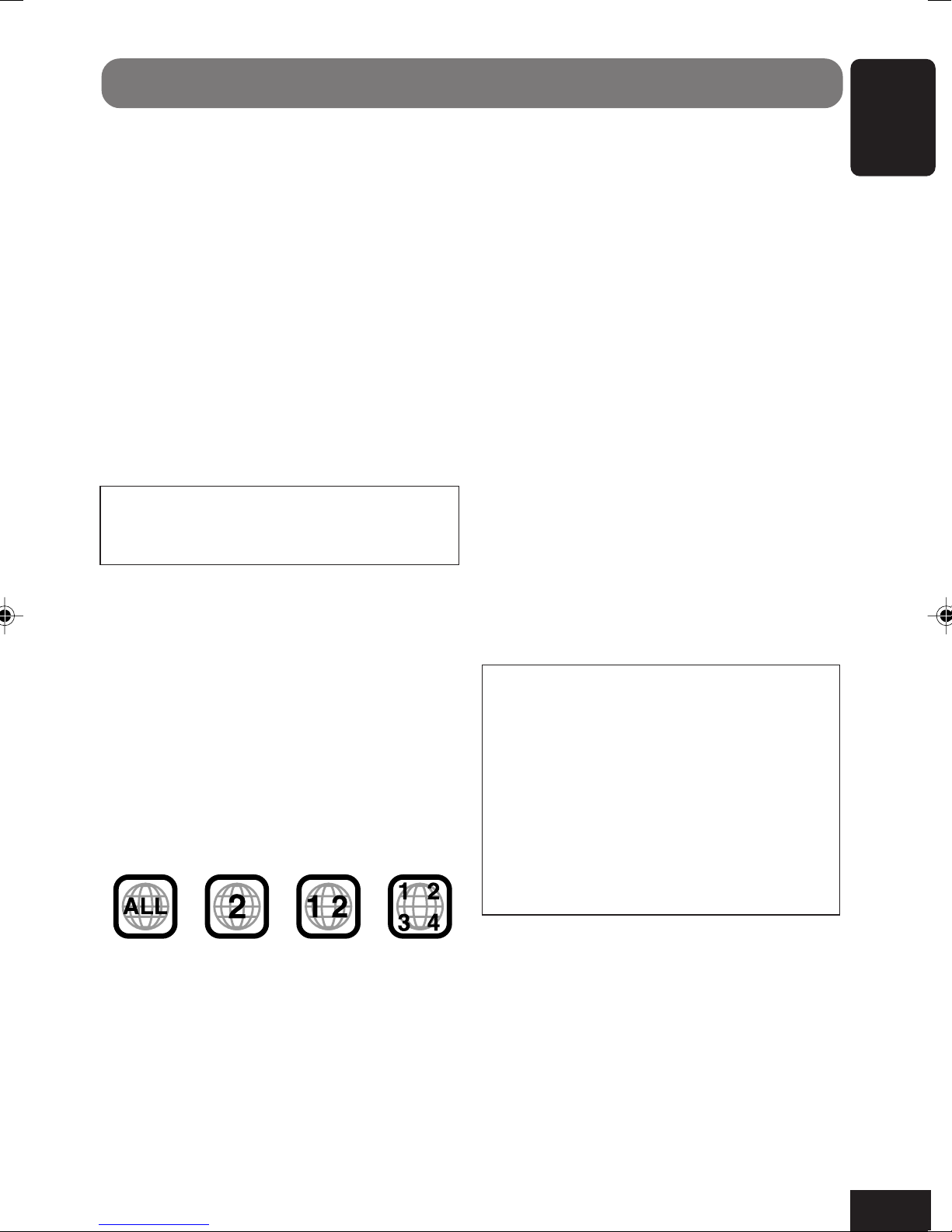

* Note on Region Code

DVD players and DVD Video discs have their own Region Code numbers. This unit can only play back DVD discs whose Region Code numbers include “1.”

DVD Video—digital audio formats

The System can play back the following digital audio formats.

Linear PCM: Uncompressed digital audio, the same format used for CDs and most studio masters.

Dolby Digital *: Compressed digital audio, developed by Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

DTS ** (Digital Theater Systems):

Compressed digital audio, developed by Digital Theater Systems, Inc., which enables multichannel like Dolby Digital. As the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

ENGLISH

Examples:

If you insert a DVD Video disc of an incorrect Region Code

“REGION CODE ERROR!” appears on the monitor.

• “DVD Logo” is a trademark of DVD Format/ Logo Licensing Corporation registered in the US, Japan and other countries.

* Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

** “DTS” and “DTS Digital Surround” are

registered trademarks of Digital Theater Systems, Inc.

Quick Guide—How to Use the Controls

○○○○○○○○○

Remote controller

ENGLISH

AT T

ASPECT

GUI

SET UP

TUNER

VOLUME

MAIN SUB

ZOOM

DUAL

AVOUT VOL

TOPMENU

DISC

RETURN

231

564

11/012

/+1

General operations

Buttons To do:

AT T

TUNER

DISC

VOLUME

MAIN SUB

ZOOM

DUAL

AVOUT VOL

ASPECT

GUI

SET UP

Turn on the main unit.

Turn off the main unit.

Attenuate sounds.

Select “TUNER.”

Select “DISC” and “CD-CH.”

Select external components: TV = AV1 = AV2 =

Adjust the volume.

Set the main or suboperation for Dual Mode. *

Turn on/off Dual Mode.

Adjust the monitor angle (with MAIN/SUB set MAIN).

Adjust the AV output level (with MAIN/SUB set SUB).

Change the aspect ratio.

Display the monitor adjustment screen.

Display and erase GUI screen.

Display Setup Menus.

Change menu items.

Confirm.

*1 When using Dual Mode, the remote

controller operates either main or sub source depending on the MAIN/SUB setting.

*2 Only for MP3 *3 While playing a DVD, chapter is

selected; on the other hands, title is selected before or after playback.

: functions if pressed and held.

Tuner operations

Disc operations—continued

Buttons To do:

TUNER

Select the band.

Start Auto Search.

Start Manual Search.

Change preset numbers.

231

564

Select preset numbers directly.

Disc operations

Buttons To do:

Play.

Pause.

Stop.

Select chapters/tracks.

Search.

Buttons To do:

RETURN

Return to the previous screen while operating the disc menu.

231

564

897

11/012

Select title/chapter/track number. *

/+1

CD changer operations

Buttons To do:

Select folders. *

Select tracks.

Search.

Change discs.

ENGLISH

then

ZOOM

DUAL

TOPMENU

Selects folders. *

Select tracks. *

Search.

Select audio language.

Select subtitle language.

Select view angle.

Zoom the picture.

Display disc menu.

Change menu items.

Confirm.

231

564

897

11/012

/+1

Select disc numbers.

TV tuner operations

Buttons To do:

Start Auto Search.

Start Manual Search.

Change preset channel numbers.

231

564

897

11/012

Select preset channel numbers.

/+1

○○○○○○○○○○○○○○○○○○

Main unit (front)

ENGLISH

Display

General operations

Buttons To do:

Turn on the main unit.

Turn off the main unit.

Attenuate sounds.

Change the sources.

Adjust the volume.

Change the display information.

Detach the control panel.

Tuner operations

Buttons To do:

Select the band.

CD changer operations

Buttons To do:

Select tracks.

Search.

then

(once): Display “DISC” = select discs.

(twice): Display “FOLDER” = select folders.*

TV tuner operations

Buttons To do:

Start Auto Search.

Start Manual Search.

Monitor operations

Buttons To do:

Start Auto Search.

Start Manual Search.

Change FM reception mode.

Disc operations

Buttons To do:

Eject the disc.

Select chapters/tracks.

Search.

then

Display “FOLDER” = select folders. *

Turn on the monitor.

Turn off the monitor.

Open the monitor. (See page 55.)

Close the monitor.

Slide in/out the monitor.

Remove the monitor.

Adjust the monitor angle. (See page 55.)

Change the aspect ratio.

Display the monitor adjustment screen.

: functions if pressed and held.

*1 Only for MP3

Preparation (Remote Controller—RM-RK220)

(back side)

With the + side facing upwards

Lithium coin battery (CR2025)

WARNINGS on the battery:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. These behaviors may cause the battery to be overheated, crack or fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may be overheated, crack or fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to be overheated, crack or fire.

ENGLISH

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

DO NOT expose the remote sensor on the control panel to strong light (direct sunlight or artificial lighting).

Operation Methods

You can operate this unit using three types of operation methods.

ENGLISH

• This instruction manual explains the operations mainly using the Touch Panel Icons shown on the monitor.

• Using the Touch Panel Icons directly (See “BLIND CONTROL” on page 46.)

Press the Touch Panel Icons with your finger directly (if you wear a glove, take it off).

Examples: The following is just an example. On the actual monitor screen, the playback picture is shown (while video source is played back).

Do not operate the Touch Panel using a ball-point pen or similar tool with the sharp tip (it may damage the Touch Panel).

Ex. DVD playback

Changes the source.

Source and play mode information

Changes the function modes (icons shown to the right change accordingly).

Ex. Fader/balance adjustment

To erase and display the Touch Panel icons and indications, press the center portion of the

monitor screen.

• You can erase them only while viewing the playback pictures.

Clock time indication

Picture view window

Icons shown on this column change each time you press .

Operation icon (FADER FRONT)

Operation icon

(BALANCE LEFT)

Returns to the previous screen.

Operation icon (BALANCE RIGHT)

Operation icon (FADER REAR)

• Using the Graphic User Interface (GUI) from the remote controller

You can use the Graphic User Interface in the same way as you touch the panel icons.

Examples:

ENGLISH

GUI

SET UP

Display GUI on the monitor (the cursor—yellow frame— appears around the currently selected icon).

• While one of the video sources is selected, the GUI function turns on and off at a press of the button.

To exit from GUI operation mode, press GUI again so that the yellow frame disappears.

Move the cursor to an icon you want.

Confirm.

• Using the buttons and controls directly

Some operations are only performed by pressing the buttons directly. You can also use the buttons and controls on the main unit and remote controller if they have the same or similar name or marks as shown on the touch panel.

Examples:

To eject a loaded disc.

To eject the monitor or store it in the compartment.

Basic Operations

Hold

ENGLISH

CAUTION on the monitor :

Do not open or close the monitor by hand. Do not apply any force to the monitor while it is moving. Such a behavior may damage the monitor loading mechanism.

For turning on the power, use the buttons on the main unit and the remote controller.

Turn on the power

“WAITING” scrolls on the display of the main unit (and the monitor comes out *).

• When the monitor comes out, power comes on to the monitor even if you have turned it off.

• For the space required for the monitor ejection, see page 77.

Adjust the volume

To change the monitor angle:

Hold

• See page 55 for details.

To drop the volume in a moment (ATT):

To restore the sound, press it again.

To store the monitor in place:

• When the unit is turned off, the power is temporarily turned on.

Select the source

TUNER DISC AV1

• DISC: If a disc is not in the loading slot,

you cannot select “DISC” as the source to play.

• CD-CH/TV: Without connecting the CD

changer or TV tuner unit, you cannot select “CD-CH (CD changer)” or “TV.”

To turn off the power:

Hold

AV2TVCD-CH

* This depends on the “AUTO OPEN/

CLOSE” setting (see page 46). If the monitor does not come out...

○○○○○○○○○

Setting the clock

You can also set the clock system to 24 hours or 12 hours.

While playing any source...

• If the touch panel icons are not shown on the monitor, touch the center portion of the monitor screen.

To display the clock time:

When the unit is turned off, the clock time is

displayed on the display of the main unit for a

On the main unit

while.

Exit

ENGLISH

Set the clock time.

When the unit is turned on...

Each time you press the button, the information shown on the display of the

main unit changes.

Information shown on the display differs according to the selected source.

TUNER: Frequency = Clock =

Band&Preset no. =

DISC: Play time = Clock =

Title/Chapter/Folder/Track no. =

AV1/AV2:

Source name = Clock =

TV: Channel = Clock =

TV&Preset no. =

CD-CH: Elapsed time = Clock = Disc no.

= Folder/Track no. =

• Press to start the clock time counting exactly from 00 second.

It does not appear for some sources.

It will be shaded when not available.

○○○○○○○○○

Changing the source

While playing any source...

ENGLISH

○○○○○○○○○

Changing the graphic screen

You can select one of eight graphics in the picture view window.

• See page 74 for each graphic screen.

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 30 seconds (except while playing a DVD/ VCD). To cancel it, select one of the graphic screen.

While playing any source...

Ex. While listening to FM

broadcast.

The current source is highlighted.

Newly selected source operation screen appears.

Other icons Reference pages

See page 33.

See pages 43 – 52.

Returns to the previous screen.

• To view the playback picture from any video source, select the screen where the actual playback pictures are shown.

○○○○○○○○○

Changing the touch panel

○○○○○○○○○

color

You can change the touch panel color (excluding the picture view window) by selecting from four preset color—blue, silver, red, and black.

While playing any source...

Ex. While listening to FM

broadcast.

○○○○○○○○○

Displaying the level meter

You can display the level meter on the graphic screen, by selecting from four preset patterns.

• While viewing the playback picture or display demonstration, you cannot show the level meter.

While playing any source...

Ex. While listening to FM

broadcast.

How to read the display of the main unit:

While listening to radio (FM/AM):

ENGLISH

2341

1 Lights up when Dolby Pro Logic II is

activated (see page 36).

2 Main information—Frequency/Band/

Preset no.

3 MO indicator lights when FM reception

mode is “MONO.”

4 ST indicator lights while receiving an

FM stereo broadcast.

The following level meters are displayed in sequence.

Level meter 1

Level meter 2

No level meter will appear when no sound comes in.

Level meter 3

Level meter 4

While playing a disc:

21 3

1 Lights up when Dolby Digital signal is

detected (see page 36).

2 Lights up when Dolby Pro Logic II is

activated (see page 36).

3 Lights up when DTS signal is detected

(see page 36).

4 Main information—Play time/Title no./

Chapter no./Folder no./Track no.

5 Lights up when the disc is detected. 6 Lights up when an MP3 CD is detected.

• You can dim the display and the buttons on the front panel. For details see page 46 and also the Installation/Connection Manual (separate volume).

Radio Operations

ENGLISH

Volume level appears when adjusted.

Dual Mode indicator (see page 33)

SOURCE icon (see pages 14 and 33)

Current band/Preset no.

Station frequency

FM reception mode Search mode

Sound mode (see page 39) Surround/DSP mode (see page 36)

Available only after pressing “M” (next to this icon).

Back to the beginning

Not available for AM.

See page 53.

See page 14.

See page 15.

See page 39.

See pages 43 – 52.

Listening to the Radio

• To tune in to a station using Preset Search, first store your favorite stations into memory (6 stations for each band: see page

18).

Select the Tuner

then

Select Search Mode

AUTO: To start Auto Search.

MANUAL: To start Manual Search.

PRESET: To select preset station

numbers (only possible after storing stations in memory).

Tune in to a station

ENGLISH

Select the band (FM/AM)

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

• For Auto Search, press either icon once.

“Auto Search” begins. When a station is received, searching stops.

• For Manual Search, press either icon

repeatedly (or hold) until a station you want is selected.

• For Preset Search, press either icon

repeatedly until a preset number you want is selected.

When an FM stereo broadcast is hard to receive:

FM reception mode changes to “MONO.” Each time you press the icon, monaural reception mode turns on and off.

• When FM reception mode is “MONO,” reception improves, but stereo effect will be lost.

○○○○○○○○○

Storing stations in memory

Tune in to a station.

You can preset 6 stations for each band.

FM station automatic presetting—SSM

ENGLISH

(Strong-station Sequential Memory)

• This functions only for FM bands.

Select the FM band (FM1 – FM3) you want to store FM stations into.

Start SSM.

then

Select “MANUAL” (or “AUTO”).

Store the station into a preset number.

then

Local FM stations with the strongest signals are searched and stored automatically in the selected FM band.

Manual presetting

Select the band (FM1 – FM3, and AM) you want to store a station into.

Preset station information will be displayed.

To tune in to a preset station

• See also “Listening to the Radio” on page 17.

○○○○○○○○○

Displaying the preset list

You can store and select the preset stations using the preset list on the monitor screen.

To store a station using the preset list

Select the band (FM1 – FM3, and AM) you want to store a station into.

Tune into a station.

then

Select “MANUAL” (or “AUTO”).

ENGLISH

To select a preset station using the preset list

• Preset numbers, station frequencies and assigned names (see page 53) are shown on the list.

Store the station into a preset number.

then

DVD/VCD Operations

ENGLISH

Dual Mode indicator (see page 33)

SOURCE icon (see pages 14 and 33) PBC indicator (for VCD; see page 25)

Current track no. (for VCD) Current title/chapter no. (for DVD)

Play time information (see page 30)

Audio signal format

Playback mode (see page 30) Sound mode (see page 39) Surround/DSP mode (see page 36)

Input signal channels are indicated a few second after detected. (See page 69.)

DVD

While playing

Before playing

Playback picture will be shown in the picture view window.

Playback buttons (see page 22)

VCD

See page 14.

*1Available only while playing. *2Not available while playing

with PBC activated.

*3Not available while playing

with PBC activated, but available while not playing.

See page 15.

See page 39.

See pages 43 – 52.

Back to the beginning

CD/MP3 Operations

Dual Mode indicator (see page 33)

SOURCE icon (see pages 14 and 33)

Current track no. (for CD) Current folder/track no. (for MP3)

Play time information (see page 30)

Audio signal format (only for DTS CD)

Playback mode (see page 30) Sound mode (see page 39) Surround/DSP mode (see page 36)

ENGLISH

Disc text/ID3 tag information area

Only for MP3 (see page 22)

CD/CD Text

Playback buttons (see page 22)

MP3

Only for CD: See page 53.

See page 14.

See page 15.

See page 39.

See pages 43 – 52.

Back to the beginning

* Available only while playing

Basic Disc Operations

Before performing any operations, observe

ENGLISH

the following...

• For DVD playback, change the Setup Menu setting (see page 43).

• If “

The unit turns on, then draws the disc, and starts playback automatically.

• The monitor does not come out from its

” appears on the monitor, the disc cannot accept the operation you have tried. – In some cases, “

operations will not be accepted.

” is not display, but

Insert a disc

compartment if “AUTO OPEN/CLOSE” is set to “OFF” (see page 46). If the monitor does not comes out...

Operate the disc

: Selects the folder (only for

MP3).

: Stops (see “Stopping play” on

page 69).

• VCD/CD/MP3 playback will continue endlessly until you stop it.

: Starts playback.

: Pauses. To resume playback,

press 3.

: Goes back to the beginning of

the current chapter/track, then skips to the previous chapters/ tracks if pressed repeatedly.

: Skips to the following chapters/

tracks if pressed repeatedly.

To stop play and eject the disc:

• It takes several seconds for the unit to detect a disc type.

• If a disc menu appears, see page 25.

Adjust the volume

Volume level appears.

Do not use the following discs:

Warped disc

Sticker

Disc

Sticker residue

Stick-on label

The following marks used in this manual indicate the playable discs.

To fast-forward or reverse the chapter or track, press ¡ or 1 on the remote controller while playing a disc.

DVD

VCD

with/without PBC

MP3

VCD with

PBC

All playable

discs

On-screen guide icons

During play, the following guide icons may appear for a while on the monitor.

• The following guide icons are displayed when “GUIDE” is set to “ON” (see page 48).

: Appears at the beginning of a

scene containing multi-subtitle languages (only for DVD).

: Appears at the beginning of a

scene containing multi-audio languages (only for DVD).

: Appears at the beginning of a

scene containing multi-angle views (only for DVD).

: Appears when you press 3.

Each time you press the button, the search speed changes as follows:

x2 \ x5 \ x10 \ x20 \ x60*

To resume normal speed, press 3.

If you hold ¢ or 4 while playing a disc, the search speed changes: x2 \ x10.

• If you release the button, normal speed playback resumes.

To play back the still picture

Press 8. A still picture appears.

Frame by Frame Playback—You can advance the still picture frame by frame by pressing 8 repeatedly.

To resume normal playback, press 3.

Slow Motion Playback—You can advance or

reverse* the still picture in slow motion by pressing ¡ or 1 on the remote controller. Each time you press the button, the search speed changes as follows:

1/32 \ 1/16 \ 1/8 \ 1/4 \ 1/2

To resume normal speed, press 3.

ENGLISH

: Appears when you press 8.

: Appears when you start

forward search (search speed also appears).

: Appears when you start reverse

search (search speed also appears).

: Appears when you start

forward slow motion. (Slow motion speed also appears.)

: Appears when you start reverse

slow motion (slow motion speed also appears) (only for DVD).

If you hold ¢ or 4 during pause, the slow motion speed changes: 1/32 \ 1/8.

• If you release the button, normal speed playback resumes.

* Only for DVD.

○○○○○○○○○

FOLDER TRACK

then

Changing the aspect ratio

○○○○○○○○○

Prohibiting disc ejection

You can change the aspect ratio of the playback

ENGLISH

pictures.

• This function is only possible using the buttons on the main unit or on the remote controller.

• Aspect ratio cannot be changed while the GUI operation mode is activated.

On the remote

On the main unit

controller

ASPECT

• When viewing 16:9 video signals:

FULL

• When viewing 4:3 video signals:

FULL

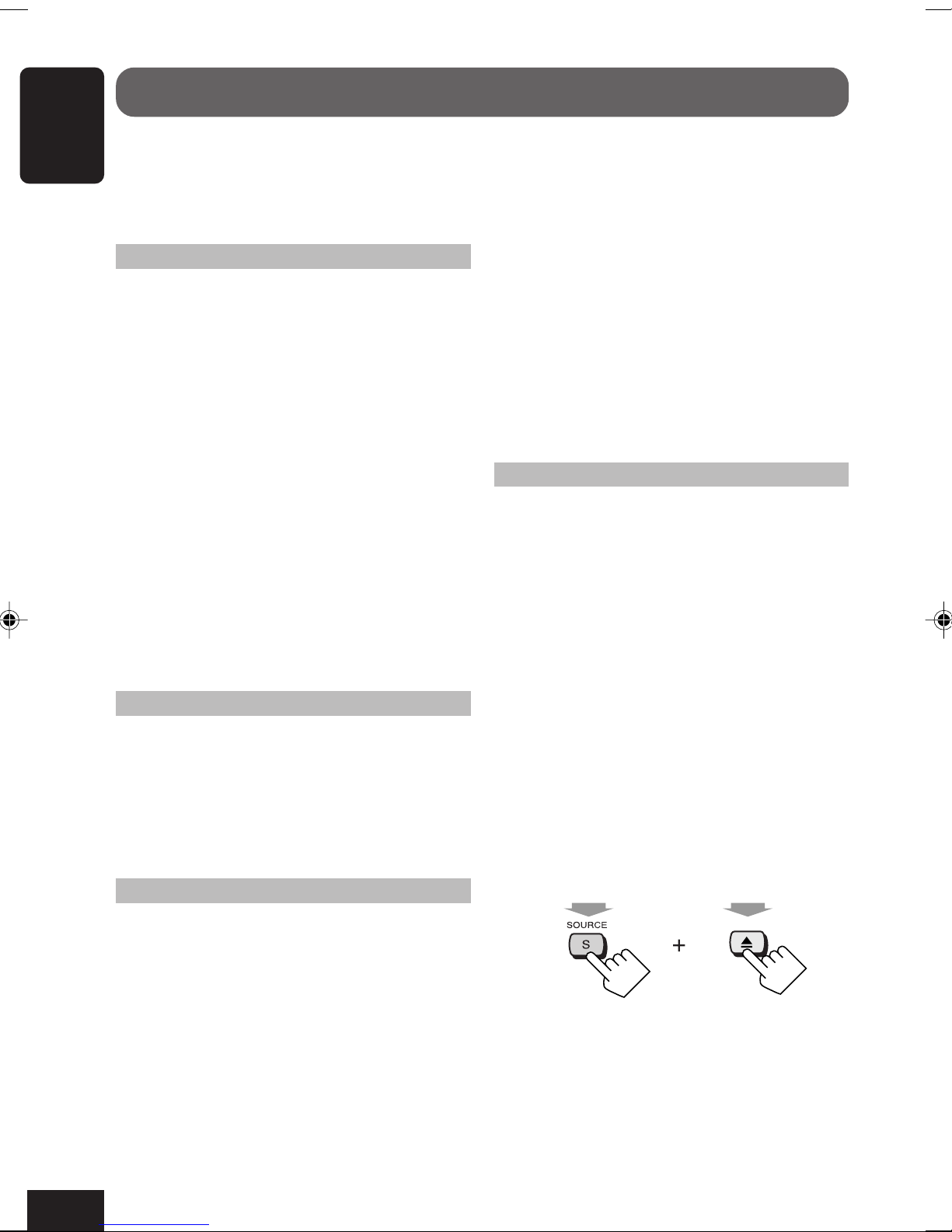

You can lock a disc in the loading slot.

While playing any source...

HoldHold

(at the same time)

“NO EJT” appears on the display of the main unit, and the disc cannot be ejected.

To cancel the prohibition, press the same buttons again. “EJT OK” appears.

○○○○○○○○○

Selecting MP3 folders

You can also select the MP3 folder using the buttons on the main unit and on the remote controller.

NORMAL

WIDE

ZOOM

CINEMA

• When you change the aspect ratio, either “RECEIVER” or “CRADLE” (see page 33) appears with the selected aspect ratio. It indicates where the monitor is now loaded. Aspect ratio cannot be set separately for “RECEIVER” or “CRADLE.”

NORMAL

WIDE

ZOOM

CINEMA

On the remote controller

then

On the main unit

While “FOLDER” is displayed on the display of the main unit:

○○○○○○○○○

Operating the disc menu

Menu-driven playback is possible while playing back a DVD with menu-driven features or a VCD with the PlayBack Control (PBC) function.

While playing a DVD:

DVD discs generally have their own menus or title lists. A title list (TOP MENU) usually contains titles of movies and songs recorded. On the other hand, a menu (MENU) usually contains various information about the disc and playback selections.

When using the remote controller

1 Press TOPMENU or MENU. 2

Push the cursor controller (OK) up/down/ left/right (5/∞/2/3) to select an item.

Press OK to confirm.

While playing a VCD:

The PBC function allows you to operate the VCD using menus. When you start playback, a menu will automatically appear on the monitor.

• A menu may be a list of items, divided screens, or some moving pictures.

• When a VCD with PBC is detected, the PBC indicator appears on the monitor.

• When “3” or “SELECT” is displayed on the monitor, press 3 (or OK on the remote controller if pressing 3 does not work) to start playback.

ENGLISH

If the disc menu appears automatically, press this.

Select an item, then confirm.

Return to the display in Step 2 above.

Erase the operation screen.

Confirm

Return to the previous page of the discs menu.

Select

Go back to the disc menu.

Enter a number.

Erase the operation screen.

Move the superimpose position to the left.

Return to the display in Step 2 above.

Return to the previous page of the PBC menu.

• To select number 5, press 5.

• To select number 10, press 10.

• To select number 20, press +10, then 10.

When using the number buttons on the remote

ZOOM

DUAL

controller

• To select number 5, press 5.

• To select number 10, press 10.

• To select number 23, press +10, +10, then 3.

ENGLISH

To cancel the PBC playback

○○○○○○○○○

Zooming in

You can zoom into a particular portion of the picture.

• This function is only possible using the remote controller.

You can cancel the menu-driven operations (PBC function) using the remote controller.

1 Press 7 to stop playback. 2

Press number buttons to select a track. Playback without PBC starts from the selected track.

• You can also use Track Search icon (see page 31) and Time Search icon (see page

32) on the Touch Panel to start playback without PBC.

To resume the PBC function again, press TOPMENU or MENU on the remote controller.

• You can also use PBC icon on the Touch Panel.

then

\ x2 \ x4 \ x8 \ x1 \ x2 \ x4 \ x8 \ • • • •

Move the zoomed-in portion on the monitor.

ZOOM x4

○○○○○○○○○

Replaying the previous scenes

You can replay about 10-second portion of the previous scene while playing a DVD—One Touch Replay.

To cancel Zoom, press OK or press ZOOM repeatedly until “ZOOM x1” appears.

○○○○○○○○○

Selecting subtitles

○○○○○○○○○

Selecting audio languages

While playing a chapter containing subtitles in different languages, you can select the subtitle language to display on the monitor.

• You can also select the subtitle language using SETUP menu (see page 44).

Select a subtitle language you want.

For DVD: While playing a chapter containing audio languages, you can select the language to listen to.

• You can also select the audio language using SETUP menu (see page 44).

For VCD: While playing a track, you can select the audio channel to play. This is convenient when playing a Karaoke VCD.

Select an audio language you want.

When playing DVD:

ENGLISH

Ex.

1/3 ENGLISH

2/3 FRENCH

3/3 SPANISH

Ex.

1/3 ENGLISH

2/3 FRENCH

3/3 SPANISH

To be continued...

When playing VCD:

ENGLISH

STEREO LEFT RIGHT

• STEREO: To listen to normal stereo (left/ right) playback.

• LEFT: To listen to the left audio channel.

• RIGHT: To listen to the right audio channel.

○○○○○○○○○

Selecting multi-angle views

While playing a disc containing multi-angle views, you can view the same scene at different angles.

Select a view angle you want.

Ex.

1/3 2/3 3/3

○○○○○○○○○

Locating a folder/track using

○○○○○○○○○

the list

To locate a track by displaying the track list

To locate a folder by displaying the folder list

• This functions only for MP3.

Select a folder you want.

Current track name or ID3 Tag

Select a track you want.

Current folder name or ID3 Tag (for MP3) Disc name (for CD) or CD Text

ENGLISH

To next/previous page of the list

Ex. when playing MP3

○○○○○○○○○

Displaying the disc text

○○○○○○○○○

Selecting playback modes

○○○○○○○○○

information

ENGLISH

With Auto Scroll or Scroll selected, you can display the text and scroll it on the monitor if it is long and cannot be displayed at a time.

(For CD)

Scroll

• Scroll: Text on the information area scrolls once.

• Auto Scroll: Text on the information area scrolls every 5 seconds.

• Off: The information area goes off (no text information will be shown).

○○○○○○○○○

Displaying the time information

(For MP3)

Auto Scroll

Off

You can use only one of the following playback modes at a time—Repeat Play, Random Play, and Intro Scan.

• For VCD: While PBC is not in use.

Repeat Play

You can repeat playback.

• Repeat Play can be deactivated only for DVD.

When playing DVD:

REPEAT PLAY CHAPTER REPEAT PLAY TITLE

REPEAT PLAY OFF

When playing VCD/CD:

REPEAT PLAY TRACK REPEAT PLAY OFF

○○○○○○○○○

• TIME: Elapsed playing time of the current

chapter/track

• REM: Remaining time of the current

chapter/track

• TOTAL: Elapsed title time (for DVD)

Elapsed disc time (for other discs)

• T.REM: Remaining title time (for DVD)

Remaining disc time (for other discs)

TIME

REM

TOTALT.REM

When playing MP3:

REPEAT PLAY TRACK REPEAT PLAY FOLDER

REPEAT PLAY OFF

REPEAT PLAY

• CHAPTER:Repeats the current chapter.

• TITLE: Repeats the current title.

• TRACK: Repeats the current track.

• FOLDER: Repeats the current folder.

• OFF: For DVD: Cancels Repeat Play. For VCD/CD/MP3:

Repeats the disc.

Random Play

You can play back tracks at random.

When playing VCD/CD:

RANDOM PLAY DISC RANDOM PLAY OFF

When playing MP3:

RANDOM PLAY FOLDER RANDOM PLAY DISC

RANDOM PLAY OFF

RANDOM PLAY

• DISC: Plays randomly all tracks on the disc.

• FOLDER: Plays randomly all tracks of the current folder, then moves to the next folder and so on.

• OFF: Cancels Random Play.

When playing VCD/CD:

INTRO SCAN TRACK INTRO SCAN OFF

When playing MP3:

INTRO SCAN TRACK INTRO SCAN FOLDER

INTRO SCAN OFF

INTRO SCAN

• TRACK: Plays the beginning of all tracks.

• FOLDER: Plays the first tracks of all folders.

• OFF: Cancels Intro Scan.

○○○○○○○○○

Searching for scenes or songs

You can use various search functions to find your favorite scenes or songs.

Title/Chapter/Folder/Track Search

ENGLISH

Intro Scan

You can play back the first 15 seconds of each track sequentially.

• For DVD: Title Search before playing, and

Chapter Search while playing.

• For VCD: During stop when PBC is in use.

(For DVD)

(For VCD/CD)

(For MP3)

To be continued...

Enter a number, then confirm.

Ex. when playing DVD:

ENGLISH

Enter a number, then confirm.

Ex. when playing DVD:

Clear the entry.

When using the number buttons on the remote controller

• To select number 5, press 5.

• To select number 10, press 10.

• To select number 23, press +10, +10, then 3.

You cannot select folder using the remote controller.

Time Search

You can start playing a particular point by specifying the elapsed playing time of the current title (for DVD) and of the disc (for VCD/CD).

• For DVD: During play or pause. (For some DVDs: any time)

• For VCD: While not playing with PBC activated.

Confirm

Clear the entry.

Ex. when playing CD:

Examples (for DVD)

To play back from 2(H):34(M):00(S) Press number buttons 2, 3, 4, then ENTER.

TIME 2 : 34 :

To play back from 58(M):00(S) Press number buttons 0, 5, 8, then ENTER.

TIME 0 : 58 :

Example (for VCD/CD)

To play back from 23(M):40(S) Press number buttons 2, 3, 4, then ENTER.

TIME 23 : 4

Confirm

• You do not have to press “0” to enter the trailing zeros.

Dual Mode Operations

You can play back two different sources as the main source (MAIN) and subsidiary source (SUB). You can listen to the main source through the speakers, while the subsidiary source through the monitor inserted into the cradle or the one connected to the AV OUTPUT jacks.

• For connections of the cradle and an optional monitor, refer to the Installation/ Connection Manual (separate volume).

○○○○○○○○

Selecting the sources

To activate Dual Mode and select the subsidiary source

To show the main/subsidiary source operation screen on the monitor

To show the main source operation screen (DUAL–MAIN)

To show the subsidiary source operation screen (DUAL–SUB)

ENGLISH

Select the subsidiary source (SUB) you

want.

• The current sources for MAIN and SUB are highlighted.

Dual Mode indicator (DUAL–MAIN or DUAL–SUB) appears.

Ex. When the subsidiary source operation screen (DUAL–SUB) is displayed.

To cancel the Dual Mode, press

. Each time you press the icon, Dual Mode is turned on and off alternately.

• When Dual Mode is turned off, the main

source screen appears.

○○○○○○○○○

Adjusting AV OUTPUT volume

Select an appropriate volume level for the component connected to the AV OUTPUT

ENGLISH

jacks on the hideaway unit.

• This functions without respect to the Dual Mode setting.

When using the remote controller:

• For Dual Mode operations... – When controlling the monitor connected

to the AV OUTPUT jacks, aim the remote controller at the remote sensor on the main unit.

– When controlling the monitor inserted

into the cradle, aim the remote controller at the remote sensor on the cradle.

Adjust the AV output volume.

It does not appear for some sources.

It will be shaded when not available.

On the remote controller

MAIN SUB

then

AVOUT VOL

To activate Dual Mode

Hold

ZOOM

DUAL

Each time you press and hold the button, Dual Mode turns on and off.

• When Dual Mode is turned on, the source

selection screen appears on the monitor (see page 33).

To operate the subsidiary source 1

MAIN SUB

2 Press the source buttons, then the

source operation buttons.

To operate the main source 1

MAIN SUB

While Dual Mode is in use...

• The playback source does not change to “DISC” though you insert a disc. “DUAL” flashes on the display of the main unit.

• You can only adjust the volume level for the subsidiary source (the other sound adjustments cannot be used for the subsidiary source).

2 Press the source buttons, then the

source operation buttons.

Surround Mode Operations

Activate and select the surround mode or DSP mode.

It does not appear for some sources.

It will be shaded when not available.

See page 41.

See page 34.

See page 39.

ENGLISH

Make adjustment if you want to.

• If neither surround mode nor DSP mode is activated, you cannot make adjustment.

When surround mode is activated:

When DSP mode is activated:

○○○○○○○○○

Introducing surround/DSP mode

Surround modes

Dolby Digital

ENGLISH

Dolby Digital is a digital signal compression method, developed by Dolby Laboratories, and enables multi-channel encoding and decoding (1ch up to 5.1ch).

Dolby Digital 5.1 CH

Dolby Digital 5.1 CH encoding method records and digitally compresses the left front channel, right front channel, center channel, left surround channel, right surround channel, and LFE channel signals (total 6 channels, but the LFE channel is counted as 0.1 channel. Therefore, called 5.1 channel). Dolby Digital enables stereo surround sounds, and sets the cutoff frequency of the surround treble at 20 kHz, compared to 7 kHz for Dolby Pro Logic. As such, the sound movement and “being there” feeling are enhanced much more than Dolby Pro Logic.

DTS

DTS is another digital signal compression method, developed by Digital Theater Systems, Inc., and enables multi-channel encoding and decoding (1ch up to 6.1ch).

DTS Digital Surround

DTS Digital Surround is another discrete

5.1-channel digital audio format available on CD, LD, and DVD software. Compared to Dolby Digital, the DTS Digital Surround format has a lower audio compression rate which enables it to add breadth and depth to the sounds reproduced. As such, DTS Digital Surround features natural, solid, and clear sound.

Dolby Pro Logic II

It is a multi-channel playback format to convert 2-channel software into 5-channel (plus subwoofer). The matrix-based conversion method used for Dolby Pro Logic II makes no limitation for the cutoff frequency of the surround treble and enables stereo surround sound.

• This unit provides two types of Dolby Pro

Logic II modes—Pro Logic II “MOVIE” and

Pro Logic II “MUSIC.”

MOVIE: Suitable for playing any Dolby

Surround encoded software.

MUSIC: Suitable for playing any 2-channel

stereo software.

No sound may come out of the subwoofer (though the subwoofer is activated) with Dolby Pro Logic II in use. (This depends on your speaker setting—see page 51).

Digital Signal Processor (DSP) mode— reproducing the sound field

The sound heard in a concert hall, club, etc. consists of direct sound and indirect sound— early reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. DSP modes can create these important elements, and give you a real “being there” feeling.

○○○○○○○○○

Turning on and off the surround/

○○○○○○○○○

DSP mode

You can use surround or Digital Signal Processor (DSP) mode while playing any source. However, when playing a multi-channel encoded disc, you cannot apply DSP mode to the playback sounds.

• When “AUTO SURROUND” is set to “ON” (initial setting when shipped from factory), an appropriate surround mode is automatically selected without any setting operation (see page 50).

• To obtain the best possible surround sounds, set the seat position and speaker size correctly (see pages 50 and 51). If only rear

speakers are activated (set to “LARGE” or “SMALL”), surround/DSP mode is defeated (set to “DEFEAT”) and cannot be changed.

ENGLISH

• While playing a multi-channel encoded disc:

Surround On (DSP Off) DEFEAT (Surround Off)

• While playing a 2-channel (stereo) disc:

Surround On (DSP Off) DSP On (Surround Off)

DEFEAT

(Surround/DSP Off)

• Surround On (DSP Off)

While playing a multi-channel Dolby Digital encoded disc, “Dolby Digital” is automatically selected. While playing a multi-channel DTS encoded disc, “DTS” is automatically selected. While playing any other disc, “Dolby Pro Logic II” is automatically selected.

• You can select either “Dolby Pro Logic

II Movie” or “Dolby Pro Logic II Music.”

Ex. When playing DVD.

• DSP On (Surround Off)

Currently selected DSP mode is activated.

• DEFEAT (Surround/DSP Off)

Both surround and DSP mode is canceled.

• You cannot go to the next step.

To be continued...

Adjust the selected surround or DSP mode.

ENGLISH

When surround mode is activated:

When DSP mode is activated:

Ex. When selecting “HALL.”

1 Select one of the DSP modes.

HALL: Reproduces the spatial

feeling of a large shoeboxshaped hall designed primarily for classical concerts.

: Selected automatically when multi-

channel DTS signal is detected (while playing a DVD or a DTS CD). No further adjustment is allowed.

: Selected automatically when multi-

channel Dolby Digital signal is detected (while playing a DVD). No further adjustment is allowed.

: Select either “MOVIE” or “MUSIC.” When you select “MUSIC,” you can adjust the following items.

•

“wraparound” sound effect with side-wall image. To cancel it, select “OFF.”

•

so it may be heard only from the center speaker, only from the left/right front speakers as a “phantom” center image, or various combinations of these speakers. As the number increases, the “phantom” effect becomes stronger. (Normally select “4.”) To cancel it, select “OFF.”

: Select “ON” to add

: Adjust the center image

LIVE: Reproduces the spatial

feeling of a live music club with a low ceiling.

CLUB: Reproduces the spatial

feeling of a rocking dance club.

DOME: Reproduces the spatial

feeling of a stadium with a high ceiling.

THEATER: Reproduces the spatial

feeling of a theater.

2 Adjust the effect level (from 1 to 5).

As the number increases, the effect becomes stronger.

Sound Modes (iEQ) Operations

The following operations are only possible for the main source when using Dual Mode.

Select one of the preset sound (iEQ) modes (then make adjustment if you want to

make your own sound mode).

It does not appear for some sources.

It will be shaded when not available.

See page 35.

See page 41.

See page 34.

ENGLISH

Select sound modes.

Display the other set of the sound modes.

Select memory no. to store.

Adjust the level of each frequency band.

Store your adjustment (display the screen below).

○○○○○○○○○

Selecting preset sound modes

You can select a sound mode suitable to the music genre.

ENGLISH

Available sound modes:

• HARD ROCK / R&B / POP / JAZZ / DANCE / COUNTRY / REGGAE / CLASSIC

• USER1 / USER2 / USER3

• FLAT (To cancel the sound mode)

○○○○○○○○○

Storing your own sound modes

You can adjust the sound modes and store your own adjustments in memory.

Repeat steps 1 to 4 on the left column to select a sound mode you want to adjust.

Make adjustments as you like.

After adjustment is finished...

Select one of the preset sound (iEQ)

modes.

Display the other set of the sound modes (see below).

Select one of the user sound modes (USER1, USER2, or USER3) you want to store into.

For details about the preset settings of each sound

mode, see page 74.

Other Sound Adjustments

Fader/Balance adjustments is only possible for the main source when using Dual Mode.

Make adjustment as you like.

It does not appear for some sources.

It will be shaded when not available.

See page 35.

See page 34.

See page 39.

ENGLISH

To adjust the input level

This setting is required for each source except FM. Once you have made an adjustment, the volume level will automatically changes by adjusted level whenever you change the source.

Adjust to match the input level to the FM sound level.

To adjust fader and balance

Adjust fader—speaker output balance between the front and rear speakers.

Adjust the balance—speaker output balance between the left and right speakers.

Monitor Adjustments

When no playback picture from the source is displayed, you can only adjust the brightness.

ENGLISH

Display SCREEN CONTROL screen.

Adjustable items

Hold

On the main unit

Select an item to adjust.

Adjust the item.

Hold

ASPECT

On the remote controller

: Indicates the current ambient light level.

As this level changes, the monitor adjusts the brightness automatically to match it to the current ambient light level.

: Adjust the brightness separately for day

time ( DARK).

• The monitor can memorize the difference between the ambient light level and adjusted level, and adjusts the brightness automatically, keeping the level difference memorized.

) and night time ( )—(LIGHT/

Ex. When adjusting “BRIGHT.”

*1When you adjust the monitor, either

“RECEIVER” or “CRADLE” (see page 33) appears. It indicates where the monitor is now loaded. You cannot store your adjustment separately for “RECEIVER” or “CRADLE.”

: Adjust the contrast (DOWN/UP).

: Adjust the tint if the human skin color is

unnatural (RED/GREEN).

: Adjust the color of the picture—thinner

(THIN) or thicker (THICK).

Initial Setup—DVD MENU

You can preset the initial disc playback conditions.

• While playing, no change can be made on the DVD Menu.

ENGLISH

It does not appear for some sources. It will be shaded when not available.

See page 13.

Select the item you want.

Change the setting.

• For details, see the following pages.

Ex. When setting “MONITOR TYPE.”

MENU LANGUAGE

Select the menu language.

ENGLISH

AUDIO LANGUAGE

Select the audio language.

SUBTITLE

Select the subtitle language. To erase the subtitle, select “OFF.”

If the language you want is not listed for the language menu list

See page 75 to find the language codes.

MONITOR TYPE

Select the monitor type of your TV (connected to the AV OUTPUT jacks) to play DVD Video recorded with aspect ratio of 16:9.

• For the removable monitor of this unit, set this to “16:9 AUTO.”

• 16:9 NORMAL:

Select when the aspect ratio of your TV is fixed to 16:9 (wide TV).

• 16:9 AUTO:

Select when the aspect ratio of your TV is 16:9 (wide TV), and it is equipped with aspect ratio adjustment function.

• 4:3 LB (Letter Box):

Select when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

• 4:3 PS (Pan Scan):

Select when the aspect ratio of your TV is 4:3. While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

Move the cursor position.

Confirm

Backspace

(Erase)

When the language you have selected is not recorded on a disc, the original language is automatically used as the initial language.

16:9

4:3 LB

4:3 PS

Initial Setup—MONITOR

You can preset the initial monitor conditions.

ENGLISH

It does not appear for some sources.

It will be shaded when not available.

See page 13.

Select the item you want.

Change the setting.

• For details, see the following pages.

Ex. When setting “BEEP TONE” to “OFF.”

AUTO OPEN/CLOSE

BEEP TONE

• AUTO: The monitor comes out* or goes in

ENGLISH

automatically when you turn on or off the power.

• OFF: Cancels this function.

* If you close the monitor before turning off the

power, the monitor will not come out next time you turn on the power.

BLIND CONTROL

• ON: The monitor works as Touch Panel

when playing back pictures on the monitor.

• ON: Sound beeps when you operate the

unit.

• OFF: Cancels this function.

WIRING CHECK

You can confirm the wiring connection is correctly done for particular functions.

Indicators

• When the listed wires have been connected

and electrical signals are detected through the wires, the corresponding indicators light up.

– The boundaries cannot be shown on

the monitor screen. This example is just to teach you where to touch on the Touch Panel when you operate on it.

1 Upper/lower portions:

Adjust the volume.

2 Left/right portions:

• Skips the chapters/tracks for DVD/VCD.

• Searches the chapters/tracks for DVD/VCD.

• Searches for TV channels for TV (see page 63).

3 Center portion:

Turns on and off the on-screen icons. (This also works even if “BLIND CONTROL” is set to “OFF.”)

Dimmer function To use the dimmer function, you need to connect the ILLUMINATION wire to...

• For Auto Dimmer: Connect it to the car

headlight switch. When you turn on the car lights, dimmer starts working—Auto Dimmer

• For Constant Dimmer: Connect it to the

car battery (constant 12V). Dimmer works whenever you turn on the power.

• For Dimmer Off: Connect it to nowhere.

• See also the Installation/Connection Manual (separate volume).

• OFF: Cancels this function.

Initial Setup—ON SCREEN

You can preset the initial on-screen conditions.

ENGLISH

It does not appear for some sources.

It will be shaded when not available.

See page 13.

Select the item you want.

Change the setting.

• For details, see the following pages.

Language selection screen appears.

Ex. When setting “CLOCK” to “OFF.”

ON SCREEN LANGUAGE

You can select the language for this Setup Menu and some of the messages displayed on the monitor.

ENGLISH

GUIDE

MESSAGE

• ON: Speaker/signal indicators (see page

69) and messages are displayed.

Messages are displayed on the viewing window of the monitor screen... – When selecting repeat mode,

random mode, intro scan, etc.

– When starting Time Search, Title

Search, Chapter Search, and Track Search.

Ex. One of the messages appears

when selecting repeat mode.

• ON: On-screen guide icons (see page 23)

are displayed on the monitor while operating the built-in disc player. – When the TV tuner unit

(KV-C1000) is connected, its onscreen display will be shown.

• OFF: Cancels this function.

CLOCK

• ON: Display the clock time on the

monitor.

• OFF: Cancels this function.

ANIMATION EFFECT

• ON: Source selection screen appears and

disappears as if you open or close the curtain.

• OFF: Cancels this function.

Initial Setup—AUDIO MENU/PSM

You can preset the initial audio-related conditions and Preferred Setting Modes (PSM).

• You cannot select “AUDIO MENU” when the subsidiary source operation screen is displayed on the monitor (with Dual Mode turned on; see page 33).

It does not appear for some sources.

It will be shaded when not available.

See page 13.

ENGLISH

Select the item you want.

Change the setting or enter the setting screen.

• For details, see the following pages.

Appears when TV tuner unit KV-C1000 is connected.

Ex. When entering “SEAT POSITION.”

AUTO SURROUND

You can activate an appropriate surround mode

ENGLISH

automatically when a loaded disc is detected.

• FRONT LEFT: For the front left seat.

•

FRONT RIGHT

: For the front right seat.

• ALL CENTER: For all front and rear seats. REAR CENTER:

•

For the rear seats.

• ON: An appropriate surround/DSP mode is

automatically selected.

While Dolby Digital multi-channel signals are detected, “Dolby Digital” is automatically selected.

While DTS multi-channel signals are detected, “DTS” is automatically selected.

While Dolby Surround (PL II) signals are detected, “Dolby Pro Logic II Movie” is automatically selected.

While Linear PCM signals are detected (for DVD/CD), “Dolby Pro Logic II Music” is automatically selected.

While other signals are detected, Surround mode is defeated.

• OFF: Cancels this function.

•

: Displays the SPK

DISTANCE screen. You can adjust the speaker distance from your listening position in meters or feet.

•

: Displays the SPK

LEVEL screen. You can adjust the speaker level referring to the test tone.

Auto Surround does not work for any sources other than “DISC.” When another source is selected, the currently selected Surround or DSP mode is resumed (see page 37).

SEAT POSITION

Select the listening seat position where you want to locate the sound image.

• Speaker distance and speaker level can be memorized for each position.

Display sub-setting screens.

Emits the test tone from each speaker in sequence. To stop, press again.

D (Dynamic). RANGE COMPRESSION

You can enjoy a powerful sound even at a low volume level by compressing dynamic range (difference between the lowest and the highest frequency sounds).

• This takes effect for all the playback sources.

• OFF: Select when you want to enjoy

playback with its full dynamic range (no effect applied).

• MID: Select when you want to reduce the

dynamic range a little.

• MAX: Select when you want to apply the

compress effect fully (useful at a low volume level).

• SUBWOOFER:

Select “YES” (connected) or “NO” (disconnected).

• SUBWOOFER PHASE:

Select either “NORMAL” or “REV. (reverse)” to obtain better subwoofer sounds.

• These settings are very related to one another; therefore, one setting is changed, some other settings will be changed automatically and appropriately (see page 73).

• Sound comes out of the subwoofer for Dolby Pro Logic II only when either the front speakers or the center speaker is set to “SMALL.”

CROSS OVER

You can select the crossover frequency for the small speakers used. The signals below the preset frequency level will be sent to the subwoofer (or to the “LARGE” speakers when “SUBWOOFER” is set to “NO”).

ENGLISH

SPEAKER SIZE

Set speaker information correctly.

• FRONT/CENTER/REAR:

Set the speaker size properly. – LARGE: If the cone speaker size is

more than 13 cm (5-

/4 in.)

– SMALL: If the cone speaker size is

less than 13 cm (5-

/4 in.)

– NONE: If not used.

AMP GAIN

You can change the maximum volume level of this unit. When the maximum power of the speakers is less than 50 W, select “LOW” to prevent them from being damaged.

• HIGH: You can adjust the volume level

from “0” to “50.”

• LOW: You can adjust the volume level

from “0” to “30.”

AV2 INPUT SELECT

You can determine the use of AV INPUT 2

ENGLISH

jacks on the hideaway unit—select either “VIDEO” or “CAMERA.”

• When the playback source is “AV2,” this setting cannot be changed.

• VIDEO: The source “AV2” works for

viewing the playback picture through the component connected to the AV INPUT 2 jacks.

• CAMERA: Select this when connecting the

rear view camera. – You can set the remaining two

items (BACK GEAR/ CAMERA VIEW).

CAMERA VIEW

• NORMAL: You can watch the rear view as

the camera takes.

• MIRROR: You can watch the rear view as

reflected on the mirror.

While watching the camera view, you can change it to the source playback screen by touching the center portion of the monitor screen. (In this case, you cannot change the aspect ratio and make monitor adjustments—see pages 24 and 42.)

FM IF FILTER

In some areas, adjacent stations may interfere with each other. If this interference occurs, noise may be heard.

• AUTO: When this type of interference occurs,

this unit automatically increases the tuner selectivity so that interference noise will be reduced. (But the stereo effect will also be lost.)

• WIDE: Subject to the interference from

adjacent stations, but sound quality will not be degraded and the stereo effect will not be lost.

BACK GEAR

• AUTO: The rear view through the rear view

camera is automatically displayed on the monitor when you change the gear to the back position.

• OFF: Cancels this function. To watch the

rear view, select “AV2” for the source.

TV CHANNEL AREA

This appears when TV tuner unit KV-C1000 is connected.

• No setting is required.

Other Main Functions

○○○○○○○○○○○○○○○○○○

Assigning titles to the sources

Roman alphabet list

Alternates between upper and lower cases.

Backspace

Moves the cursor position.

Upper cases Lower cases

Erase all entered character.

(Erase the last entry)

Confirm the entered name.

ENGLISH

Accented characters: Upper cases

Display the other page of the character list of the same type.

Entered name is displayed.

Alternates between Roman alphabet and accented letter lists.

Accented characters: Lower cases

You can assign titles to 30 FM/AM, 30 TV stations, and 40 CDs (both in this unit and in the CD changer).

Source Maximum character number

ENGLISH

Stations:10

CDs:32

• You cannot assign a title to CD Text and MP3 discs.

Prepare the source.

• For FM/AM stations: Change “FM” or

“AM,” then select a station.

• For a CD in this unit: Insert a CD.

• For CDs in the CD changer: Select

“CD-CH,” then select a disc number.

• For TV stations: Change “TV,” then

select a TV station.

If the “DELETE DISC NAME” or “DELETE STATION NAME” screen appears

The internal memory is full. Delete unwanted names before assignment.

Ex. When trying a name to a 41st disc.

Select an unwanted name.

Enter a name.

Confirm.

Ex. When selecting the

first registered name.

Delete.

Repeat the above steps if you want to delete more names.

To next/previous page of the list

Finish.

Hold

○○○○○○○○○

Changing the monitor position/

○○○○○○○○○

angle

You can change the monitor position and the monitor angle.

• Once you change them, they are stored. The monitor opens at the stored position and angle, next time you eject the monitor.

To change the monitor position

On the main unit

To operate the car switches behind the monitor, press OPEN once.

The monitor change its angle to the illustrated position for about 30 seconds.

To return to its previous angle within 30 seconds, press OPEN again.

○○○○○○○○○

Removing the monitor

When detaching and attaching the monitor, observe the following:

• Be careful not to drop the monitor.

• Be careful not to damage the connectors.

ENGLISH

To change the monitor angle

MAIN SUB

then

AVOUT VOL

On the remote controllerOn the main unit

Each time you press the button, the monitor changes its angle step by step.

• By holding the button (+/–), you can easily change the angle to its extreme (+/–).

To detach the monitor

The monitor goes back into its compartment if it has been used, then comes out halfway.

Insert the blind cover to protect the

internal mechanism from dust.

To attach the monitor

Insert the monitor into the compartment with the screen facing down.

CD Changer Operations

ENGLISH

Dual Mode indicator (see page 33)

SOURCE icon (see pages 14 and 33)

Current disc/folder/track no.

Elapsed playing time

Playback mode Sound mode (see page 39) Surround/DSP mode (see page 36)

Volume level appears when adjusted.

Disc text/ID3 tag information area

Only for MP3

Only for CD: See page 53.

See page 14.

See page 15.

See page 39.

See pages 43 – 52.

MP3CD/CD Text

Back to the beginning

Basic CD Changer Operations

Select “CD-CH”

Operate the disc

: Selects the disc.

ENGLISH

then

Ex. While playing CD/CD Text*

: Selects the folder (only for

MP3).

: Goes back to the beginning of

the current track, then skips to the previous tracks if pressed repeatedly.

: Skips to the following tracks if

pressed repeatedly.

Ex. While playing MP3

It is recommended to use the JVC MP3-compatible CD changer with your unit.

• You can also connect the CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.

• You cannot use the KD-MK series CD changers with this unit.

Before operating your CD changer:

• Refer also to the Instructions supplied with your CD changer.

• If no discs are in the magazine of the CD changer or the discs are inserted upside down, “NO DISC” will appear on the monitor. If this happens, remove the magazine and set the discs correctly.

• If no magazine is loaded in the CD changer, “NO MAGAZINE” will appear on the monitor. If this happens, insert the magazine in the CD changer.

* Disc text information recorded in the CD

Text can be displayed when a JVC CD Text compatible CD changer is connected.

Advanced CD Changer Operations

○○○○○○○○○

Selecting disc/folders/tracks

ENGLISH

You can select the disc, (folder: only for MP3,) and tracks using the buttons on the main unit.

DISC

TRACK

FOLDER

Select a disc you want.

When using the remote controller

You can directly select the disc number by pressing the corresponding number buttons (1 –

12).

○○○○○○○○○

Locating a disc/folder/track using

○○○○○○○○○

the list

To locate a disc by displaying the disc list

Example: while playing MP3.

To next/previous page of the list

Disc names will be shown once it is recognized.

To locate a folder by displaying the folder list

• This functions only for MP3.

• Though you play back the same disc on the CD changer, its folder list may look differently from the one you display while playing it on the main unit. This happens because CD changer can also list up the folder in which no MP3 tracks are recorded.

Off

Auto Scroll

Scroll

Select a folder you want.

Current track name or ID3 Tag

○○○○○○○○○

Displaying the disc text

○○○○○○○○○

information

To next/previous page of the list

Shaded when no MP3 files are included. You cannot select this folder.

To locate a track by displaying the track list

Example: while playing MP3.

With Auto Scroll or Scroll selected, you can display the text and scroll it on the monitor if it is long and cannot be displayed at a time.

(For CD)

• Scroll: Text on the information area scrolls once.

• Auto Scroll: Text on the information area scrolls every 5 seconds.

• Off: The information area goes off (no text information will be shown).

(For MP3)

ENGLISH

Select a track you want.

Current folder name or ID3 Tag (for MP3) Disc name (for CD) or CD Text

To next/previous page of the list

○○○○○○○○○

Selecting playback modes

You can use only one of the following playback modes at a time—Repeat Play, Random Play, and Intro Scan.

ENGLISH

Repeat Play

You can repeat playback.

• Repeat Play cannot be deactivated.

Random Play

You can play back tracks at random.

Only for MP3

When playing CD:

REPEAT PLAY TRACK REPEAT PLAY DISC

REPEAT PLAY OFF

When playing MP3:

REPEAT PLAY TRACK REPEAT PLAY FOLDER

REPEAT PLAY DISCREPEAT PLAY OFF

REPEAT PLAY

• TRACK: Repeats the current track.

• FOLDER: Repeats the current folder.

• DISC: Repeats the current disc.

• OFF: Repeats all loaded discs in the magazine.

When playing CD:

RANDOM PLAY DISC RANDOM PLAY ALL

RANDOM PLAY OFF

When playing MP3:

RANDOM PLAY FOLDER RANDOM PLAY DISC

RANDOM PLAY ALLRANDOM PLAY OFF

RANDOM PLAY

• FOLDER: Plays randomly all tracks of the current folder, then moves to the next folder and so on.

• DISC: Plays randomly all tracks on the current disc.

• ALL: Plays randomly all tracks of all discs in the magazine.

• OFF: Cancels Random Play.

Intro Scan

You can play back the first 15 seconds of each track sequentially.

Only for MP3

○○○○○○○○○

Searching for songs

You can use search functions to find your favorite tracks (for CD/MP3) and folders (for MP3).

Folder/Track Search

You can select a specific track (for CD/MP3) or folder (for MP3).

ENGLISH

When playing CD:

INTRO SCAN TRACK INTRO SCAN DISC

INTRO SCAN OFF

When playing MP3:

INTRO SCAN TRACK INTRO SCAN FOLDER

INTRO SCAN DISCINTRO SCAN OFF

INTRO SCAN

• TRACK: Plays the beginning of all tracks of the current disc.

• FOLDER: Plays the first tracks of all folders of the current disc (only for MP3).

• DISC: Plays the first tracks of all discs in the magazine.

• OFF: Cancels Intro Scan.

(For CD/MP3)

Enter a number, then confirm.

Ex. when playing MP3:

Clear the entry.

(For MP3)

Confirm

External Component Operations

You can connect two video components as

ENGLISH

the playback components and an optional TV tuner unit (KV-C1000).

• When you connect the video camera as a rear view camera to the AV INPUT 2 jacks to guide you to back the car, set the usage of the AV INPUT 2 jacks correctly (see page 52).

• For connections, see the Installation/ Connection Manual (separate volume).

Select the external source

TUNER DISC AV1

• TV: To watch TV programs through

the TV tuner unit (KV-C1000).

Playback picture will be shown in the picture view window.

To use the TV tuner unit (KV-C1000), see the following pages.

Adjust the volume

AV2TVCD-CH

• AV 1 : To watch the playback pictures

through the component connected to the AV INPUT 1 jacks.

• AV 2 : To watch the playback pictures

through the component connected to the AV INPUT 2 jacks.

Playback picture will be shown in the picture view window.

Not available while viewing the playback picture.

Ex. When “AV1” is selected.

To change the aspect ratio...

On the remote controller

ASPECT

• For details, see page 24. When you selected “CAMERA” for “AV2 INPUT” (see page 52), you cannot change the aspect ratio of AV2.

On the main unit

TV Tuner Operations

Dual Mode indicator (see page 33)

SOURCE icon (see pages 14 and 33)

Current preset no.

Channel no.

Search mode Sound mode (see page 39) Surround/DSP mode (see page 36)

Volume level appears when adjusted.

ENGLISH

Playback picture will be shown in the picture view window.

Available only after pressing “M” (next to this icon).

Back to the beginning

See page 53.

See page 14.

See page 15.

(Not available while viewing the

playback picture.)

See page 39.

See pages 43 – 52.

○○○○○○○○○

Watching TV programs

• To tune in to a station using Preset Search, first store your favorite TV stations into memory (12 stations).

ENGLISH

Select TV

then

Tune in to a TV station

• For Auto Search, press either icon once.

“Auto Search” begins. When a station is received, searching stops.

• For Manual Search, press either icon

repeatedly (or hold) until a station you want is selected.

• For Preset Search, press either icon

repeatedly until a preset number you want is selected.

○○○○○○○○○

Storing stations in memory

Select Search Mode

AUTO: To start Auto Search.

MANUAL: To start Manual Search.

PRESET: To select preset station numbers

(only possible after storing stations in memory).

You can preset 12 TV stations.

• To tune into a preset station, see “Watching TV programs.”

TV station automatic presetting—Auto Memory

Start Auto Memory.

then

Local TV stations with the strongest signals are searched and stored automatically.

Manual presetting

Tune into a TV station.

To tune in to a preset station

• See also “Watching TV programs” on page

64.

then

Select “MANUAL” (or “AUTO”).

Store the station into a preset number.

then

To select the rest of the preset stations

Select a preset number.

ENGLISH

To select the rest of the preset stations

Preset station information will be displayed.

○○○○○○○○○

Displaying the preset list

You can store and select the preset station using the preset list on the monitor screen.

ENGLISH

To select a preset station using the preset list

To store a station using the preset list

Tune into a TV station.

Select “MANUAL” (or “AUTO”).

then

To next/previous page of the list

• Preset numbers, channel numbers and assigned names (see page 53) of the preset TV stations are shown on the list.

Store the station into a preset number.

then

To next/previous page of the list

Maintenance

How to clean the monitor

When removing stains or dust on the surface, turn off the monitor, then wipe with dry soft cloth.

• Be careful not to scratch the surface when wiping it.

• Do not use the following materials to clean the monitor: – Wet cloth – Volatile substance such as benzine and

thinner

– Acid detergent, alkaline detergent, and

detergent composed of organic substance

• When using chemically processed duster, read its precautions carefully.

How to clean the connectors

Frequent detachment of the monitor will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

• Attach the blind cover to the main unit whenever the monitor is removed to protect the internal mechanism from dust.

Moisture condensation

Moisture may condense on the lens inside the disc player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the disc player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the center

holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Center holder

ENGLISH

More about This Receiver

○○○○○○○○○

Operation Methods

ENGLISH

• Touch Panel screen goes off if no operations are made on it for about 30 seconds while viewing the playback picture.

○○○○○○○○○

Basic Operations

Turning off the power

• If you turn off the power while listening to a disc, disc play will start automatically, next time you turn on the power.

Changing the graphic screen

• If you select one of the graphic screens while playing a video source, no playback picture can be viewed.

• When you change the playback source to one of the video sources, the currently selected graphic screen is temporarily canceled in order to show the playback picture on the picture view window.

○○○○○○○○○

Radio Operations

Storing stations in memory

• When SSM is carried out for a band... – All stations previously stored for the band

are erased and stations are stored newly.

– Received stations are preset in No.1 (lowest

frequency) to No.6 (highest frequency). When SSM is over, the station stored in No.1 will be automatically tuned in.

• When storing a station manually, a previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

○○○○○○○○○

Basic Disc Operations

General

• In this manual, words “track” and “file” are interchangeably used when referring to MP3 files and their file names.

• When a disc has been already loaded, selecting “DISC” for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, the disc automatically ejects.

Playing a disc

• After loading an MP3 disc, this unit will take a long readout time. This readout time varies among the disc depending on its recording conditions.

• When playing an MP3 disc, sound interruption or skipping may occur. This is caused by the disc played back—its recording condition (missing data, etc.)

• When playing a DVD/VCD, no sound comes out during x5, x10, x20, and x60* Search (* only for DVD).

• Reverse Search stops automatically when it reaches the beginning of the disc. Playback resumes at normal speed.

• For some DVD/VCDs, changing the subtitle language and audio language (or audio channel) without using the disc menu is prohibited.

• One Touch Replay works only within the same title. (For some DVDs, this function does not work.)

• While zoomed in, the picture may look coarse.

• This unit cannot play back the files which have the data such as WMA, WAVE, ATRAC3, MPEG 2.5, etc.

• The speaker/signal indicators appear in the following cases (only for DVD/CD): – When a different type of the digital signal is

detected, or

– When you start playback or resume

playback from pause.

Speaker indicators

Signal indicators

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to prevent it from dust. (Disc will not play this time.)

Displaying the disc text information

• For MP3: If no ID3 tag is recorded, folder and track names are displayed instead.

ENGLISH

SUBWFR SUBWFR

– The speaker indicators—frames of “L,”

“C,” “R,” “LS,” and “RS” light up, when the corresponding speakers are set to “LARGE” or “SMALL” (see page 51). Sounds come out of the speakers whose speaker indicators is lit on the display.

– The

indicator lights up when

“SUBWOOFER” is set to “YES” (see page

51).

– The signal indicators changes its color from

white to yellow to indicate the incoming signals—L (front left) / R (front right) / C (center) / LFE (low frequency effect) / LS (left surround) / RS (right surround) / S (monaural surround).

Changing the source

• If you change the source, playback also stops (without ejecting the disc). Next time you select “DISC” for the playback source, disc play will start automatically.

Stopping play

• Except for MP3 discs: This unit can remember the end point (until the disc is ejected), and when you start playback again, playback begins from where it has been stopped (Resume play).

• For MP3 discs: This unit can remember the last playing track (until the disc is ejected), and when you start playback again, playback begins from the beginning of the same track.

Notes on Recordable (R) and Rewritable (RW) discs

• Use only “finalized” discs.

• For DVD-R/DVD-RW: This unit can play back only discs recorded in the DVD-Video format. (Discs recorded in the DVD-VR format cannot be played.)

• For CD-R/CD-RW: This unit can play back only audio CD (CD-DA) files if a disc includes both audio CD (CD-DA) files and MP3 files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some discs may not play back on this unit because of their disc characteristics, and for the following causes: – Discs are dirty or scratched. – Discs are kept in a place where temperature

becomes extremely high.

– Moisture condensation on the lens inside

the unit. – The pickup lens inside the unit is dirty. – Discs on which the files are written with

“Packet Write” method. – There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.)

• Rewritable discs may require a longer readout time since the reflectance of rewritable discs is lower than that of regular DVD/CDs.

• Do not use following discs: – Discs with stickers, labels, or protective

seal stuck to the surface.

– Discs on which labels can be directly

printed by an ink jet printer. Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs.

Notes on MP3 files

• This unit can play back MP3 files only with the extension code <.mp3> (regardless of the letter case—upper/lower).

ENGLISH

• This unit cannot play back the files encoded in the following formats—MP3i, MP3 PRO, Layer 1, Layer 2 format.

• This unit can show the names of albums, artists (performer), and tracks of ID3 Tag (Version 1.0 and 1.1).

• This unit can show up to 64 characters on the monitor screen.

• This unit can handle only one-byte characters. Any other characters cannot be correctly displayed.

• This unit can play back MP3 files meeting the conditions below – Bit rate: 8 kbps – 320 kbps – Sampling frequency:

48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)

– Disc format:

ISO 9660 Level 1/ Level 2, Romeo, Joliet, Windows long file name

• The maximum number of characters for file/ folder names varies among the disc format used (includes 4 extension characters— <.mp3>). – ISO 9660 Level 1: 12 – ISO 9660 Level 2: 31 – Romeo/Windows long file name: 128 – Joliet: 64

• This unit can recognize 99 folders and 150 files in each folder, which recorded in 10 hierarchies.

• This unit can play back the files recorded in VBR (variable bit rate). The files recorded in VBR have a discrepancy in elapsed time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.

• Playlist is not available on this unit.

• The search function works but search speed is not constant during search.

• When an optional monitor is connected to the AV OUTPUT terminal, you can view the following MP3 CONTROL screen on the optional monitor.

MP3 CONTROL REPEAT TRACK Folder : 01 / 10 spring

sumer fall winter sea

Title :

Begonia Artist : Annie Lim Album : Flowers

1 Currently activated play mode 2 Elapsed playing time of the current track 3 Cursor (highlighted position): Indicates your

selection.

4 ID3 Tag information 5 Folder column—folder names

(Ex. The first folder is selected out of 10 folders)

• Only 5 folders can be listed at a time.

6 Track column—track names

(Ex. The first track is selected out of 30 tracks in the current folder. 128 tracks are included in the disc)

• Only 12 tracks can be listed at a time.

• Only the first 32 characters can be displayed on the monitor.

Time : 00:03:08 Track : 01 / 30 (Total 128) begonia.mp3

german chamomile.mp3 kiwi fruit.mp3 orchard grass.mp3 petunia.mp3 north pole.mp3 begonia2.mp3 german chamomile2.mp3 kiwi fruit2.mp3 orchard grass2.mp3 petunia2.mp3 north pole2.mp3

– While playing a CD, the current track and

playback mode information is displayed on the optional monitor.

○○○○○○○○○

Dual Mode Operations

Adjusting AV OUTPUT volume

• This adjustment does not affect the volume level of the monitor inserted into the optional cradle (KV-CR100).

○○○○○○○○○

Surround Mode Operations

• Dolby Digital disc is not always encoded as multi-channel source. If it is not multichannel encoded, “Dolby Digital” cannot be selected for surround mode.

○○○○○○○○○

Sound Mode (iEQ) Operations

• If you do not want to store your current adjustment, but only to apply the adjustment to the current playback source, press RETURN on the monitor screen to go back to the operation screen of the current source. Adjustment you made remains effective until you select a sound mode.

○○○○○○○○○

Other Sound Adjustments

• If fader or balance has been set close to its extreme, appropriate surround/DSP effect may not be obtained.

• If you are using a two-speaker system, set the fader level to “0.”

• You cannot adjust the input level—Volume Adjustment—of the FM stations. If the source is FM, Volume Adjustment will not be used.

○○○○○○○○○

Monitor Adjustments

MONITOR TYPE

• When you select “16:9 NORMAL” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if “4:3 PS” is selected, the screen size may become “4:3 LB” with some DVDs. This depends on how they are recorded.

○○○○○○○○○

Initial Setup—AUDIO MENU/PSM

• If you change the “AMP GAIN” setting from “HIGH” to “LOW” while the volume level is set higher than “30,” the unit automatically changes the volume level to “30.”

○○○○○○○○○

Other Main Functions

Assigning titles to the sources

• When the CD changer is connected, you can assign titles to CDs in the CD changer. These titles can also be shown on the display if you insert the CDs in this unit.

ENGLISH

• You may not able to adjust the brightness in the following case: – You cannot make it brighter when the

ambient light is very bright.

– You cannot make it darker when the

ambient light is very dark.

○○○○○○○○○

Initial Setup—DVD MENU

MENU/AUDIO/SUBTITLE LANGUAGE

• When the language you have selected is not recorded on a disc, the original language is automatically used as the initial language. In addition, for some discs, the initial languages settings will not work as you set due to their internal disc programming.

• Language setting change cannot be effective while playing (or pausing). After you change the language setting, eject the disc and insert it (or another disc) again so that your setting takes effect.

○○○○○○○○○

TV Tuner Operations

Storing stations in memory

• When Auto Memory is carried out... – All TV stations previously stored are erased

and TV stations are stored newly.

– Received TV stations are preset in No.1

(lowest frequency) to No.12 (highest frequency). When Auto Memory is over, the TV station stored in No.1 will be automatically tuned in.

• When storing a TV station manually, a previously preset TV station is erased when a new TV station is stored in the same preset number.

• Preset TV stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Troubleshooting

What appears to be trouble is not always

ENGLISH

serious. Check the following points before calling a service center.

General

• Sound is sometimes interrupted.

] You are driving on rough roads.

Stop playback while driving on rough roads.

] Disc is scratched.

• Sound cannot be heard from the speakers.

] Connections are incorrect.

• No sound comes out of the subwoofer (though it is activated—set to “YES”).

] If Pro Logic II is activated with the front/

center/rear speaker size all set to “LARGE,” no sound comes out.

• Surround/DSP mode is defeated and cannot be activated.

] It is fixed to “DEFEAT” if only rear

speakers are activated (set to “LARGE” or “SMALL”).

FM/AM broadcast

• SSM automatic presetting does not work.

] Signals are too weak. Store stations

manually.

• Static noise is generated while listening to the radio.

] The antenna is not connected firmly.

Disc playback—DVD/VCD

• You cannot watch the playback pictures on the additionally purchased monitor (KV-MAV7001) in the optional cradle (KV-CR100).

] If the original monitor is not removed

from the main unit, you cannot watch the playback picture while driving.

• You cannot change the aspect ratio.

] While the GUI operation is in use, you

cannot change the aspect ratio.

• The left and right edges of the picture are missing on the screen.

] “4:3 PS” is selected when viewing on a

conventional TV (aspect ratio 4:3). Select “4:3 LB.”

• Audio language or subtitle language cannot be changed.

] For some DVDs and VCDs, changing the

language without using the disc menu is prohibited.

Disc playback—CD/CD-R/CD-RW

• Sounds are skipped or playback stops suddenly.

] Disc is warped or sticker on the disc

comes off. Do not play such a disc.

• Disc cannot be played back.

] Disc is inserted upside down.

• Tracks on the CD-R/CD-RW cannot be skipped.

] CD-R/CD-RW is not finalized.

• Disc cannot be ejected.

• Disc is not recognized.

] Disc is locked. Unlock the disc (see page

24).

] The main unit may function incorrectly.

Press SOURCE and 0 at the same time for more than 2 seconds to eject the disc.

Hold Hold

Disc playback—MP3

• Disc cannot be played back.

] MP3 tracks do not have the extension

code—<.mp3>.

] MP3 tracks are not recorded in the format

compliant with ISO 9660 Level 1, ISO 9660 Level 2, Romeo, or Joliet.

• Noise is generated.

] The current track is not an MP3 file

(although it has the extension code— <.mp3>).

• Elapsed playing time is not correct.

] This sometimes occurs during play. This

is caused by how the tracks are recorded on the disc.

• Correct characters are not displayed.

] This unit can only display a limited

number of special characters (see the tables on page 53).

Initial setup—AUDIO MENU/PSM

• “SPEAKER SIZE” settings change.

] Speaker size settings are very much

related to one another. For example, if you set the FRONT speakers to “NONE,” you cannot select “NONE” for the REAR speakers.

• Rear view does not appear when you change the gear lever to the back position.

] “BACK GEAR” is to “OFF.” In this case,

you have to select “AV2” for the source to watch the rear view.

] “BACK GEAR” is to “AUTO,” but the

back gear wire is not connected to the back lamp. To check whether the wiring is correctly done or not, see page 46.

TV tuner operations

• TV tuner unit does not work at all.

] Press the reset button of the TV tuner unit.

• “TV IS NOT CONNECTED” appears on the monitor.

] TV tuner unit is disconnected. Connect it

again.

• Auto Memory does not work.

] Signals are too weak. Store TV stations

manually.

• The TV’s main power does not shut off automatically when you change the source from TV to another.

] TV is connected to the TV tuner unit.

Connect it to the hideaway unit. Remember that audio/video signals are always transmitted to the TV while it is on.

• “RESET 8” appears on the display of the main unit.

] This unit is not connected to a TV tuner

unit correctly. Connect this unit and the TV tuner unit correctly and press the reset button of the TV tuner unit.

CD changer operations

• “CD CHANGER IS NOT CONNECTED” appears on the monitor.

] CD changer is disconnected. Connect it

again.

• “NO MAGAZINE” appears on the monitor.

] Magazine is not loaded in the CD

changer.

• “NO FILES” appears on the monitor.

] Playable files are not recorded in the disc.

• “NO DISC” appears on the monitor.

] No discs are in the magazine or the discs

are inserted upside down.

• “RESET 1” — “RESET 7” appears on the display of the main unit.

] The built-in microcomputer in the CD

changer is malfunctioning. Press the reset button of the CD changer.

• “RESET 8” appears on the display of the main unit.

] This unit is not connected to a CD

changer correctly. Connect this unit and the CD changer correctly and press the reset button of the CD changer.

ENGLISH

Additional Information

Preset iEQ mode

ENGLISH

The table below shows the preset frequency level settings for each iEQ mode.

Sound Preset equalizing values

Mode 100 Hz 300 Hz 1 kHz 3 kHz 10 kHz

FLAT 0000000000

HARD ROCK +03 +02 00 +01 +01

R&B +03 +02 00 +01 +03

POP 00 +01 00 +01 +02

JAZZ +03 +02 +01 +02 +02

DANCE +04 +01 –02 00 +01

COUNTRY +02 +01 00 +01 +02

REGGAE +03 00 +01 +02 +03

CLASSIC +02 +02 00 +01 00

USER1 00 00 00 00 00

USER2 00 00 00 00 00

USER3 00 00 00 00 00

Graphic screens

You can select one of the following graphic screens. For details, see page 14.

You can activate the display demonstration. To cancel it, select any other graphic screen.

Playback picture will be shown in the picture view window.

While playing a video source (except DVD/VCD), select no graphic screen (in other words, select the actual playback screen); otherwise, you cannot view the playback pictures.

LANGUAGE CODES

Code Language

AA Afar AB Abkhazian AF Afrikaans AM Ameharic AR Arabic AS Assamese AY Aymara AZ Azerbaijani BA Bashkir BE Byelorussian BG Bulgarian BH Bihari BI Bislama BN Bengali, Bangla BO Tibetan BR Breton CA Catalan CO Corsican CS Czech CY Welsh DA Danish DZ Bhutani EL Greek EO Esperanto ET Estonian EU Basque FA Persian FI Finnish FJ Fiji FO Faroese FY Frisian GA Irish GD Scots Gaelic GL Galician GN Guarani GU Gujarati HA Hausa HI Hindi HR Croatian HU Hungarian HY Armenian IA Interlingua IE Interlingue IK Inupiak IN Indonesian IS Icelandic IW Hebrew JI Yiddish JW Javanese

Code Language

KA Georgian KK Kazakh KL Greenlandic KM Cambodian KN Kannada KO Korean (KOR) KS Kashmiri KU Kurdish KY Kirghiz LA Latin LN Lingala LO Laothian LT Lithuanian LV Latvian, Lettish MG Malagasy MI Maori MK Macedonian ML Malayalam MN Mongolian MO Moldavian MR Marathi MS Malay (MAY) MT Maltese MY Burmese NA Nauru NE Nepali NL Dutch NO Norwegian OC Occitan OM (Afan) Oromo OR Oriya PA Panjabi PL Polish PS Pashto, Pushto PT Portuguese QU Quechua RM Rhaeto-Romance RN Kirundi RO Rumanian RU Russian RW Kinyarwanda SA Sanskrit SD Sindhi SG Sangho SH Serbo-Croatian SI Singhalese SK Slovak SL Slovenian SM Samoan

Code Language

SN Shona SO Somali SQ Albanian SR Serbian SS Siswati ST Sesotho SU Sundanese SV Swedish SW Swahili TA Tamil TE Telugu TG Tajik TH Thai TI Tigrinya TK Turkmen TL Tagalog TN Setswana TO Tonga TR Turkish TS Tsonga TT Tatar TW Twi UK Ukrainian UR Urdu UZ Uzbek VI Vietnamese VO Volapuk WO Wolof XH Xhosa YO Yoruba ZU Zulu

ENGLISH

Specifications

○○○○○○○○○

Main unit

ENGLISH

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel Center: 35 W

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Center: 15 W into 4 Ω, 40 Hz to 20 000

Hz at no more than 0.8% total

harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range:

Frequencies: 100 Hz, 300 Hz, 1 kHz, 3 kHz,

10 kHz

Level: ±10 dB Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 107.9 MHz

AM: 530 kHz to 1 710 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity: 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB Capture Ratio: 1.5 dB

[AM Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

DVD/CD PLAYER SECTION

Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response:

DVD, fs=48 kHz: 16 Hz to 22 000 Hz DVD, fs=96 kHz: 16 Hz to 44 000 Hz

VCD, CD, MP3: 16 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio:98 dB Wow and Flutter: Less than measurable limit MP3 Recording Format:

MPEG 1/2 Audio Layer 3 Max. Bit rate: 320 kbps

REMOVABLE MONITOR

Screen Size: 7 inch wide liquid crystal display Number of Pixel: 336 960 pixels

(480 vertical × 234 horizontal × 3)

Drive Method:

TFT (Thin Film Transistor) active

matrix format Color System: NTSC Aspect Ratio: 16:9 (wide) Allowable Storage Temperature:

–10°C to +60°C (14°F to 140°F)

Allowable Operating Temperature:

0°C to +40°C (32°F to 104°F)

Dimensions (W × H × D):

170 mm × 141 mm × 15 mm

/4 in. × 5-5/8 in. × 5/8 in.)

(6-

Mass: 475 g (1.1 lbs)

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

(11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C (32°F to 104°F)

Dimensions (W × H × D):

Installation Size:

• With sleeve-mounting plate Type B (standard)

182 mm × 52 mm × 165 mm

/16 in. × 2-1/16 in. × 6-1/2 in.)

(7-

• With sleeve-mounting plate Type A

182 mm × 52 mm × 160 mm

/16 in. × 2-1/16 in. × 6-5/16 in.)

(7-

Panel Size: 188 mm × 58 mm × 14 mm

/16 in. × 2-5/16 in. × 5/8 in.)

(7-

Mass: 2.25 kg (5.1 lbs) (including monitor)

Required space for the monitor ejection

177(7)

143.3(5-11/16)

15(5/8)

/2)

12.2(

105˚

60˚

51.8(2-1/16)

mm (in.)

CAUTION: When ejecting the monitor, keep an open space for the monitor to come out. If not, the monitor may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

○○○○○○○○○

Hideaway unit

Input Terminals:

AV INPUT 1/2:

Audio: 0.5 Vrms (Left/Right) Video (composite): 1 Vp-p/75 Ω

Output Terminals (Level/Impedance):

AV OUTPUT:

Audio: 2.0 V/20 kΩ load (full scale) Video (composite): 1 Vp-p/75 Ω

PRE OUT:

Audio: 2.0 V/20 kΩ load (full scale)

Other Terminals:

System integration (TO MAIN UNIT) FM/AM antenna (FM/AM ANTENNA) AV bus (AV BUS) CD changer (TO CHANGER) Rear view camera/Center speaker (BACKCAMERA REMOTE/CENTER SPEAKER) Power cord (POWER)

Dimensions (W × H × D):

230 mm × 35 mm × 181 mm

/16 in. × 1-7/16 in. × 7-3/16 in.)

(9-

Mass: 1.3 kg (2.9 lbs)

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. It is recommended to stop disc play while driving on such rough roads.

ENGLISH

Removing the control panel

To detach the control panel

To attach the control panel

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to Reset

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

EN, SP, FR

0904MNMMDWJEIN

KD-AV7000

Installation/Connection Manual Manual de instalación/conexión Manuel d’installation/raccordement

ESPAÑOL

Esta unidad está diseñada para funcionar con 12 V de CC, con sistemas eléctricos de masa NEGATIVA solamente. Si su

vehículo no posee este sistema, será necesario un inversor de tensión, que puede ser adquirido en los concesionarios de JVC de equipos de audio para automóviles.

ADVERTENCIAS

• NO INSTALE la unidad en los siguientes sitios: – Donde pueda obstruir la maniobra del volante de dirección y

del cambio de engranajes, con el consiguiente riesgo de accidentes de tráfico.

– Donde pueda obstruir el funcionamiento de dispositivos de

seguridad tales como bolsas de aire, pues podría resultar en un accidente fatal.

– Donde pueda obstruir la visibilidad.

• NO OPERE la unidad mientras está maniobrando el volante de dirección, pues podría producirse un accidente de tráfico.

• El conductor no debe mirar el monitor mientras conduce. Si el conductor mira el monitor mientras conduce puede descuidarse y causar un accidente.

• Si necesita operar el receptor mientras conduce, asegúrese de mirar atentamente hacia adelante para no provocar un accidente de tráfico.

• Si no está aplicado el freno de estacionamiento, aparecerá en el monitor “EL CONDUCTOR NO DEBE MIRAR EL MONITOR MIENTRAS CONDUCE.”, y no se mostrará la imagen de reproducción. – Esta advertencia aparece únicamente cuando el cable del

freno de estacionamiento se encuentra conectado al sistema del freno de estacionamiento incorporado al automóvil.

Notas sobre la instalación de la unidad oculta

• Efectúe la instalación sobre una superficie firme, debajo del asiento delantero o en el portaequipajes.

• Debido a que se genera calor dentro de la unidad, no la instale cerca de objetos inflamables. Asimismo, el sitio de instalación no deberá obstaculizar la disipación de calor de la unidad.

• No instale la unidad en lugares sujetos al calor, como cerca de un radiador, en la guantera o en un sitio aislado, como debajo de la alfombra, por ejemplo, que impidan la disipación del calor.

Notas sobre las conexiones eléctricas

• Reemplace el fusible por otro del régimen especificado. Si el fusible se funde frecuentemente, consulte con su concesionario de JVC de equipos de audio para automóviles.

• La entrada máxima de los altavoces debe ser de más de 50 W en la parte trasera, 50 W en la parte delantera, y 35 W en el centro, con una impedancia de 4 Ω a 8 Ω.

• La conexión a tierra de esta unidad debe ser realizada al

chasis del automóvil.

• La unidad principal y la unidad oculta estarán muy calientes después del uso. Tenga la precaución de no quemarse al efectuar su desmontaje.

• Para evitar cortocircuitos, cubra los terminales de los cables NO UTILIZADOS con cinta aislante.

•Tome medidas de prevención necesarias para evitar una desconexión accidental de los cables y daños en los mismos. Esto podría suceder al mover o reclinar el asiento.

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de

12 V à masse NEGATIVE

seulement. Si votre véhicule n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC.

AVERTISSEMENTS

• N’INSTALLEZ aucun appareil dans les endroits suivants;

– où il peut gêner l’accès au volant ou au levier de vitesse car

cela peut entraîner un accident de la circulation.

– où il peut gêner la manipulation de dispositifs de sécurité tels que

les coussins de sécurité car cela peut entraîner un accident fatal.

– où il peut gêner la visibilité.

• NE COMMANDEZ PAS l’appareil lors de la manipulation du

volant car cela peut entraîner un accident de la circulation.

• Le conducteur ne doit pas regarder le moniteur lorsqu’il conduit.

Regarder le moniteur lorsqu’on est au volant réduit considérablement la vigilance du conducteur et multiplie les risques d’accident.

• Si vous avez besoin de commander l’appareil principal pendant

que vous conduisez, continuez de regarder droit devant vous ou vous risquez de causer un accident de la circulation.

• Si le frein de stationnement n’est pas mis, “LE CONDUCTEUR

NE DOIT PAS REGARDER LE MONITEUR EN CONDUISANT.” apparaît sur le moniteur et l’image de lecture n’apparaît pas. – Cet avertissement apparaît uniquement quand le fil du frein de

stationnement est connecté au système de frein de stationnement intégré à la voiture.

Remarque sur le montage de l’appareil satellite

•

Montez-le sur une surface solide, sous le siège avant ou dans le coffre.

•

Puisque de la chaleur est produite à l’intérieur de l’appareil, ne le montez pas à proximité d’objets inflammables. Par contre, montezle dans un endroit où la dissipation de la chaleur peut être réalisée sans problème.

•

Ne montez pas l’appareil dans un endroit sujet à la chaleur, comme près d’un radiateur, dans la boîte à gant ou dans un endroit isolé tel que sous le tapis de sol qui ne permettra pas à l’appareil de dissiper sa chaleur.

Remarques sur les connexions électriques

• Remplacez le fusible par un de la valeur précisée. Si le fusible

saute souvent, consulter votre revendeur d’autoradios JVC.

•

L’entrée maximum des enceintes doit être supérieure à 50 W à l’arrière et à 50 W l’avant et 35 W au centre, avec une impédance de

4 Ω à 8 Ω

• Assurez-vous de mettre à la masse chaque appareil au

châssis de la voiture.

•

L’appareil principal et l’appareil satellite deviennent très chauds après l’utilisation. Faites attention de ne pas vous brûler en les retirant.

•

Pour éviter les courts-circuits, recouvrez les bornes des fils qui ne sont PAS UTILISÉS avec de la bande isolante.

• Prenez des mesures préventives pour éviter que des

cordons se déconnectent accidentellement ou soient endommagés. Cela peut se produire lorsque vous déplacez ou inclinez le siège.

LVT1171-002A

[J]

ENGLISH

This unit is designed to operate only on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this

system, a voltage inverter is required, which can be purchased at JVC car audio dealers.

WARNINGS

• DO NOT install any unit in locations where; – it may obstruct the steering wheel and gearshift lever

operations, as this may result in a traffic accident.

–it may obstruct the operation of safety devices such as air bags,

as this may result in a fatal accident.

– it may obstruct visibility.

• DO NOT operate any unit while manipulating the steering wheel, as this may result in a traffic accident.

• The driver must not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident.

• If you need to operate the main unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

• If the parking brake is not engaged, “DRIVER MUST NOT WATCH THE MONITOR WHILE DRIVING.” appears on the monitor, and no playback picture will be shown. – This warning appears only when the parking brake wire is

connected to the parking brake system built in the car.

Notes on mounting the hideaway unit

• Mount on a fir m surface, under the front seat or in the trunk.

• Since heat is generated inside the unit, do not mount near inflammable objects. In addition, mount in an area that will not prevent the unit from dissipating heat.

• Do not mount the unit in the places which are subject to heat such as near a radiator, in a glove compartment or in insulated area such as under a car mat that will prevent the unit from dissipating heat.

Notes on electrical connections

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio dealer.

• Maximum input of the speakers should be more than 50 W at the rear, 50 W at the front, and 35 W at the center, with an impedance of 4 Ω to 8 Ω.

• Be sure to ground each unit to the car’s chassis.

• The main unit and the hideaway unit become very hot after use. Be careful not to get burned when removing them.

•To prevent shor t-circuit, cover the terminals of the UNUSED leads with insulating tape.

•Take preventative measures to avoid unexpected disconnection of the cords and damage to the cords. This trouble may happen while moving or reclining the seat.

0904MNMMDWJEIN EN, SP, FR

Parts list

Lista de piezas

Liste des pièces

k Tr im plate

Placa de guarnición

Plaque d’assemblage

a Main unit

Unidad principal

Appareil principal

r Washer—ø5

Arandela—ø5

Rondelle—ø5

C Sleeve-mounting plates

Placas de montaje de la manga

Plaques de montage du manchon

s Rubber cushion

Cojín de goma

Amortisseur en caoutchouc

q Lock nut—M5

Tuerca de seguridad—M5

Ecrou d’arrêt—M5

p Mounting bolt—M5 x 20 mm (M5 x 13/16 in.)

Perno de montaje—M5 x 20 mm (M5 x 13/16 pulgada)

Boulon de montage—M5 x 20 mm (M5 x 13/16 pouces)

e, f Power cords

Cordones de alimentación

Cordons d’alimentation

e For main unit:

Para la unidad principal:

Pour l’appareil principal:

Type A

Tipo A

Type A

Type B

Tipo B

Type B

b Hideaway unit

Unidad oculta

Appareil satellite

j Soft case

Estuche bland

Étui souple

d Fixing screws—M5 x 6 mm (M5 x 1/4 in.)

Tor nillos de fijación—M5 x 6 mm (M5 x 1/4 pulgada)

Vis de fixation—M5 x 6 mm (M5 x 1/4 pouces)

g AV bus cable—2.5 m (8.3 feet)

Cable AV bus—2,5 m (8,3 pies)

Câble de liaison AV—2,5 m (8,3 pieds)

l Sleeve

Cubierta

Manchon

f For hideaway unit:

Para la unidad oculta:

Pour l’appareil satellite:

h Crimp connectors

Conectores de sujeción

Raccord à sertir

i Handles

Manga

Poignées

n Fixing screws—M4 x 8 mm (M4 x 3/8 in.)

Tor nillos de fijación—M4 x 8 mm (M4 x 3/8 pulgada)

Vis de fixation—M4 x 8 mm (M4 x 3/8 pouces)

m Brackets

Ménsulas

Supports

o Blind cover

Cubierta ciega

Cache

t Remote controller

Control remoto

Télécommande

u Battery

Pila

Pile

CR2025

RM-RK220

v Center speaker/rear camera cord

Cable del altavoz central/cámara trasera

Cordon d’enceinte centrale/caméra de recul

w Extension antenna cord

Cable de extensión para antena

Cordon prolongateur d’antenne

REMOTE

SENSOR

RESET

3214

AV OUTPUT

VIDEO

POWER AV BUS

AUDIO

TV ANTENNA

MULTIMEDIA DVD/CD RECEIVER WITH REMOVABLE MONITOR HIDEAWAY UNIT KD-AV7000

AV INPUT 1

AUDIO

FM / AM ANTENNA

POWER

BACKCAMERA

REMOTE

CENTER

SPEAKER

CENTER

SUB

WOOFER

REAR

FRONT

VIDEO

AV INPUT 2

AUDIO

VIDEO TO CHANGER

TO CHANGER

VIDEO

AV BUS TO MAIN UNIT

PRE OUT

AUDIOVIDEO L R

AV OUTPUT

LR R

TV TUNER UNIT KV-C1000

CB E

A F~

CONNEXIONS DU SYSTÈMES

•Pour A , B , C , D , E , F plus d’informations sont données aux pages suivantes.

CONEXIONES DEL SISTEMA

• En las siguientes páginas encontrará más información sobre A , B , C , D , E , F .

SYSTEM CONNECTIONS

•For A , B , C , D , E , F , more information are given on the following pages.

Camcorder, rear view camera, etc.

Videocámara, cámara de retrovisión, etc.

Caméscope, caméra de recul, etc.

VCR (KV-V8 or KZ-V10)

Videograbadora (KV-V8 o KZ-V10)

Magnétoscope (KV-V8 ou KZ-V10)

Playback source Fuente de reproducción Source de lecture

CD changer Cambiador de CD Changeur CD

CD changer (CH-X1500, etc.)

Cambiador de CD (CH-X1500, etc.)

Changeur de CD (CH-X1500, etc.)

2nd monitor 2do. monitor 2e moniteur

Center speaker Altavoz central Enceinte centrale

(CS-CN100, etc.)

See “ C Electrical connections.”

Véase “ C Conexiones eléctricas”.

Référez-vous à “ C Connexions électriques”.

See “ E Connecting the external amplifiers.”

Véase “ E Conexión de los amplificadores externos”.

Référez-vous à “ E Connexion d’amplificateurs externes”.

TV tuner unit Unidad de sintonizador de TV Appareil de tuner de télévision

(KV-C1000)

Antenna cord from the car

Cable de antena procedente del automóvil

Cordon d’antenne de la voiture

Hideaway unit Unidad oculta Appareil satellite

Main unit Unidad principal Appareil principal

AV bus cable (supplied)*

Cable AV bus (suministrado)*

Câble de liaison AV (fourni)

See “ F Connecting the back camera lead.”

Véase “ F Conexión del conductor de la cámara trasera”.

Référez-vous à “ F Connexion du fil de la caméra de recul”.

See “ D Connecting the cradle.”

Véase “ D Conexión del cradle”.

Référez-vous à “ D Connexion du berceau”.

: These products are optionally available from JVC.

: Estos productos se encuentran disponibles

opcionalmente y pueden solicitarse a JVC.

: Ces produits sont disponibles en option chez

votre revendeur JVC.

Use the extension antenna cord (supplied) if necessary.

Si es necesario, utilice un cable de extensión para antena (suministrado).

Utilisez un cordon prolongateur d’antenne (fourni) si nécessaire.

*1Extension AV bus cable (KV-U1013: not supplied) can be used when the supplied AV bus cable is not long enough. *1Es posible usar el cable AV bus de extensión (KV-U1013: no suministrado) cuando el cable AV bus suministrado no sea lo suficientemente largo. *

Un câble prolongateur de liaison AV (KV-U1013: non fourni) peut être utilisé avec le câble de liaison AV fourni si ce dernier n’est pas suffisamment long.

Black

Negro

Noir

Black with white stripe

Negro con rayas blancas

Noir avec bande blanche

Purple with white stripe

Púrpura con rayas blancas

Violet avec bande blanche

53 mm

184 mm

(7-1/4")

(2-1/8")

⁄

Attach the sleeve-mounting plates—either type, corresponding to the depth of the mounting area (

A : see the next step).

Use Type B when

A is 165 mm (6-1/2 in.) while use Type A when

A is less than 165 mm (6-1/2 in.).

Fije las placas de montaje de la manga—del tipo correspondiente a la profundidad del área de montaje ( A : véase el siguiente paso). Utilice el Tipo B cuando

A sea de 165 mm (6-

/2 pulgada) y el

Tipo A cuando

A sea de menos de 165 mm (6-

/2 pulgada).

Fixez les plaques de montage du manchon—le type correspondant à la profondeur de la zone de montage (

: voir l’étape suivante).

Utilisez le type B si

est égal à 165 mm (6-1/2 pouces) et le type

A si

est inférieur à 165 mm (6-1/2 pouces).

INSTALLATION

The following illustration shows a typical installation. However, you should make adjustments corresponding to your specific car. If you have any questions or require infor mation regarding installation kits, consult your JVC car audio dealer or a company supplying kits.

ÅInstalling the main unit (in-dash mounting)

INSTALACIÓN

La siguiente ilustración muestra una instalación típica. Sin embargo usted deberá efectuar los ajustes correspondientes a su automóvil. Si tiene alguna pregunta o necesita información acerca de las herramientas para instalación, consulte con su concesionario de JVC de equipos de audio para automóviles o a una compañía que suministra tales herramientas.

ÅInstalación de la unidad principal (Montaje en

el tablero de instrumentos)

INSTALLATION

L’illustration suivante est un exemple d’installation typique. Cependant, vous devez faire les ajustements correspondant à votre voiture. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

ÅInstallation de l’appareil principal (montage

encastré)

Do the required electrical connections.

Realice las conexiones eléctricas requeridas.

Réalisez les connexions électriques requises.

Bend the appropriate tabs to hold the sleeve firmly in place.

Doble las lengüetas apropiadas para retener firmemente la manga en su lugar.

Tordez les languettes appropriées pour fixer le manchon en place.

Removing the main unit

Before removing the main unit, release the rear section.

Extracción de la unidad principal

Antes de extraer la unidad principal, libere la sección trasera.

Retrait de l’appareil principal

Avant de retirer l’appareil principal, libérer la section arrière.

Insert the two handles, then pull them as illustrated so that the unit can be removed.

Inserte las dos manijas y, a continuación, extráigalas de la manera indicada en la ilustración para poder desmontar la unidad.

Insérez les deux poignées, puis tirez de la façon illustrée de façon à pouvoir retirer l’appareil.

When installing the unit without using the sleeve / Instalación de la unidad sin utilizar la manga / Installation de l’appareil sans utiliser de manchon

In a Toyota for example, first remove the car radio and install the unit in its place.

En un Toyota por ejemplo, primero retire la radio del automóvil y luego instale la unidad en su lugar.

Par exemple dans une voiture Toyota, retirer d’abord l’autoradio et installer l’appareil à sa place.

Note : When installing the unit on the mounting bracket, make sure to use screws of proper length refering to the table above. If longer screws are used, they could damage the unit.

Nota : Cuando instale la unidad en la ménsula de montaje, asegúrese de utilizar los tornillos del largo apropiado refiriéndose a la tabla de arriba. Si se utilizan tornillos más largos, éstos podrían dañar la unidad.

Remarque :

Lors de l’utilisation de l’appareil sur le support de montage, assurez-vous d’utiliser des vis d’une longueur correcte en vous référant au tableau ci-dessus. Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

When using the optional stay / Cuando emplea un soporte opcional / Utilisation de l’entretoise en option

Flat type screws*

Tor nillos tipo plano*

Vis à tête plate*

Screw (option)

Tor nillo (opción)

Vis (en option)

Stay (option)

Soporte (opción)

Entretoise (en option)

Fire wall

Tabique a prueba de incendios

Cloison

Dashboard

Tablero de instrumentos

Tab leau de bord

Install the unit at an angle of less than 30˚, taking it into account that the monitor would eject when in use (see below).

Instale la unidad a un ángulo de menos de 30˚, teniendo en cuenta que el monitor debe extraerse para su uso (véase abajo).

Installez l’appareil avec un angle de moins de 30°, en tenant compte du fait que le moniteur doit être déployé lors de son utilisation (voir ci-dessous).

30˚

Tapping screws (not supplied)

Tor nillos autorroscantes (no suministrados)

Vis autotaraudeuses (non fournies)

Floor

Piso

Plancher

ıInstalling the hideaway unit (under the front

seat)

Bracket*

Ménsula*

Support

ıInstalación de la unidad oculta (debajo del

asiento delantero)

ıInstallation de l’appareil satellite (sous le

siège avant)

• Be sure to use the tapping screws (not supplied) of appropriate length so that they will not damage any parts of the car.

• Asegúrese de utilizar tornillos autorroscantes (no suministrados) del largo apropiado para que no produzcan.

• Assurez-vous d’utiliser des vis autotaraudeuses (non fournies) de la longueur appropriée de façon qu’elles n’endommagent aucune partie de la voiture.

*2 Not included with this unit. *

No suministrado con esta unidad.

Non fourni avec cet appareil.

Use the following screws

Utilice los siguientes tornillos

Utilisez les vis suivantes

For No.1 – 5 M5 x 8 mm (M5 x 3/

in.)*

For No.6 – 9 M4 x 3 mm (M4 x 1/8 in.)*

Para N˚ 1 – 5 M5 x 8 mm (M5 x 3/

pulgada)*

Para N˚ 6 – 9 M4 x 3 mm (M4 x 1/

pulgada)*

Pour No 1 à 5 M5 x 8 mm (M5 x 3/

pouces)*

Pour No 6 à 9 M4 x 3 mm (M4 x 1/

pouces)*

Required space for the monitor ejection Espacio requerido para la expulsión del monitor Espace requis pour le déploiement du moniteur

177(7)

60˚

105˚

51.8(2-1/16)

143.3(5-11/16)

15(5/8)

12.2(1/2)

mm (in.)

mm (pulgada)

mm (po.)

Pocke t

Compartimiento

Poche

123 45

678 9

(PARKING BRAKE)

(ILLUMINATION)

Fuse block

Bloque de fusibles

Port e-fusible

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

A un terminal activo del bloque de fusibles conectado a la batería del automóvil (desviando el interruptor de encendido) (12 V constantes)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage) (12 V constants)

To an accessor y terminal in the fuse block

A un terminal accesorio del bloque de fusibles

À la borne accessoire du porte-fusible

To metallic body or chassis of the car

A un cuerpo metálico o chasis del automóvil

À un corps métallique ou au châssis de la voiture

Ignition switch

Interruptor de encendido

Interrupteur d’allumage

*1Not supplied with this unit. *2Before checking the operation of this unit prior to installation, this lead

must be connected, otherwise power cannot be turned on.

Orange with white stripe

Naranja con rayas blancas

Orange avec bande blanche

Where-to-connect depends on your dimmer usage. For details, see page 46 of the Instructions.

El lugar de conexión depende del uso del atenuador de luminosidad. Para los detalles, consulte la página 46 del manual de instrucciones.

L’emplacement de la connexion dépend de votre utilisation du gradateur. Pour en savoir plus, référezvous à la page 46 du manuel d’instructions.

Red

Rojo

Rouge

Yellow*

Amarillo*

Jaune*

Black

Negro

Noir

Yellow*

Amarillo*

Jaune

Blue with white stripe

Azul con rayas blancas

Bleu avec bande blanche

Fuse block

Bloque de fusibles

Porte-fusible

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

A un terminal activo del bloque de fusibles conectado a la batería del automóvil (desviando el interruptor de encendido) (12 V constantes)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage) (12 V constants)

To metallic body or chassis of the car

A un cuerpo metálico o chasis del automóvil

À un corps métallique ou au châssis de la voiture

Black

Negro

Noir

Gray with black stripe

Gris con rayas negras

Gris avec bande noire

White

Blanco

Blanc

White with black stripe

Blanco con rayas negras

Blanc avec bande noire

Green with black stripe

Verde con rayas negras

Vert avec bande noire

Gray

Gris

Green

Verde

Ver t

Purple with black stripe

Púrpura con rayas negras

Violet avec bande noire

Purple

Púrpura

Violet

To the remote lead of other equipment—200 mA max.

Al conductor remoto de otro equipo—máx. 200 mA

Au fil de commande à distance de l’autre appareil—200 mA max.

Left speaker (rear)

Altavoz izquierdo (trasero)

Enceinte gauche (arrière)

Right speaker (front)

Altavoz derecho (frontal)

Enceinte droite (avant)

Left speaker (front)

Altavoz izquierdo (frontal)

Enceinte gauche (avant)

Right speaker (rear)

Altavoz derecho (trasero)

Enceinte droite (arrière)

Ignition switch

Interruptor de encendido

Interrupteur d’allumage

Light green

Verde claro

Vert clair

To automatic antenna if any —250 mA max.

Al de la antena automática, si hubiere —máx. 250 mA

À l’antenne automatique s’il y en a une —250 mA max.

Blue

Azul

Bleu

Main unit Unidad principal Appareil principal

Hideaway unit Unidad oculta Appareil satellite

*1No suministrado con esta unidad. *2Antes de comprobar el funcionamiento de esta unidad previa a la

instalación, es necesario conectar este cable, de lo contrario no se podrá conectar la alimentación.

*1Non fourni avec cet appareil. *2Pour vérifier le fonctionnement de cet appareil avant installation, ce fil

doit être connecté, sinon l’appareil ne peut pas être mis sous tension.

To parking brake of the car

Al freno de estacionamiento

del automóvil

Au frein de stationnement du véhicule

15 A fuse

Fusible de 15 A

Fusible 15 A

ESPAÑOL

ÇConexiones eléctricas

Antes de la conexión...

• Asegúrese de que el cordón de la antena procedente del automóvil esté conectado a la unidad oculta (véase página 2). Si el cordón de la antena no es de un largo suficiente, utilice un cable de extensión para antena (suministrado).

•Verifique atentamente el conexionado del vehículo. Una conexión incorrecta podría producir daños graves a las unidades. Los conductores del cable de alimentación y los del conector procedentes de la carrocería del automóvil pueden ser diferentes en color.

Conecte los conductores de color del cable de alimentación en el orden especificado en la ilustración de abajo.

Conecte el mazo de conductores a las unidades.

Conecte la unidad principal y la unidad oculta utilizando el cable AV bus (suministrado).

FRANÇAIS

ÇConnexions électriques

Avant de commencer...

• Assurez-vous que le cordon d’antenne de la voiture est connecté à l’appareil satellite (voir page 2). Si le cordon d’antenne n’est pas assez long, utilisez un cordon prolongateur d’antenne (fourni).

• Vérifiez attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent avoir des couleurs différentes.

Connectez les fils colorés du cordon d’alimentation dans l’ordre spécifié sur l’illustration ci-dessous.

Connectez le faisceau de fils aux appareils.

Connectez l’appareil principal et l’appareil satellite en utilisant le câble de liaison AV (fourni).

ENGLISH

ÇElectrical connections

Before connecting...

• Make sure that the antenna cord from the car is connected to the hideaway unit (see page 2). If the antenna cord is not long enough, use the extension antenna cord (supplied).

• Check the wiring in the car carefully. Incorrect connection may cause serious damage to the units. The leads of the power cord and those of the connector from the car body may be different in color.

Connect the colored leads of the power cord in the order specified in the illustration below.

Connect the wiring harness to the units.

Connect the main unit and the hideaway unit using AV bus cable (supplied).

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the units will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

PRECAUCIONES sobre las conexiones de la fuente de alimentación y de los altavoces:

• NO conecte los conductores de altavoz del cable de alimentación a la batería de automóvil, pues podrían producirse graves daños en las unidades.

• ANTES de conectar a los altavoces los conductores de altavoz del cable de alimentación, verifique el conexionado de altavoz de su automóvil.

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie; sinon, les appareils seront sérieusement endommagés.

•

AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

PARKING

BRAKE

Contact the metallic part of the crimp to the wires inside.

Conecte la parte metálica de la sujeción a los cables de dentro.

Mettez en contact la partie métallique du raccord à sertir et les fils intérieurs.

Attach the parking brake wire (light green) to this point.

Conecte el cable del freno de estacionamiento (verde claro) a este punto.

Attachez ici le fil du frein de stationnement (vert clair).

Wire connecting the battery and the parking brake switch.

Conecte la batería y el interruptor del freno de estacionamiento.

Fil connectant la batterie et l’interrupteur de frein de stationnement.

Pinch the crimp firmly.

Apriete la sujeción con firmeza.

Pincez le raccord à sertir fermement.

Connecting the parking brake wire

Connect the parking brake wire to the parking brake system built in the car.

Conexión del cable del freno de estacionamiento

Conecte el cable del freno de estacionamiento al sistema de freno de estacionamiento del automóvil.

Connexion du cordon de frein de stationnement

Connectez le fil de frein de stationnement au système de frein de stationnement.

To metallic body or chassis of the car

A un cuerpo metálico o chasis del automóvil

À un corps métallique ou au châssis de la voiture

Parking brake switch (inside the car)

Interruptor del freno de estacionamiento (dentro del automóvil)

Commutateur de frein de stationnement (à l’intérieur de la voiture)

Parking brake wire (light green)

Cable del freno de estacionamiento (verde claro)

Fil du frein de stationnement (vert clair)

Parking brake

Freno de estacionamiento

Frein de stationnement

How to connect the crimp connector

Cómo usar el conector de sujeción Comment utiliser le raccord à sertir

Headphones (not supplied)*

Auriculares (no suministrado)*

Casque d’écoute (non fourni)

*4To listen to source sound while in Dual Mode

operations. See page 33 of the INSTRUCTIONS (separate volume).

*4Para escuchar el sonido de reproducción

de disco mientras se está en operaciones Dual Mode. Véase la página 33 de las MANUAL DE INSTRUCCIONES (volumen separado).

Pour écouter le son de lecture des disques lors de l’utilisation du mode Dual Mode. Référez-vous à la page 33 du MANUEL D’INSTRUCTIONS (volume séparé).

D Connecting the cradle

By using the cradle (KV-CR100), you can remove the monitor from the main unit and insert it into the cradle so that the persons sitting on the rear seat can view the playback picture even while the driver are driving your car.

• The driver must not put on the headphones while driving. It is dangerous to shut off the outside sounds while driving.

• Additional monitor (KV-MAV7001) can also be purchased to used so that you do not need to remove the monitor from the main unit.

KV-CR100

Main unit Unidad principal Appareil principal

Removable monitor or additional monitor KV-MAV7001*

Monitor desmontable o monitor adicional KV-MAV7001*

Moniteur amovible ou moniteur additionnel KV-MAV7001

AV bus cable supplied for KV-CR100

Cable AV bus suministrado para KV-CR100

Câble de liaison AV pour le KV-CR100

After removing the monitor from the main unit, insert the blind cover into the main unit to prevent internal dust accumulation.

Después de desmontar el monitor de la unidad principal, inserte la cubierta ciega en la misma para evitar que se acumule polvo en su interior.

Après avoir séparé le moniteur de l’appareil principal, insérez cache sur l’appareil principal avant d’éviter toute accumulation de poussière à l’intérieur de l’appareil.

Hold

Sostener

Maintenez pressée

D Conexión del cradle

Utilizando el cradle (KV-CR100), podrá retirar el monitor de la unidad principal e insertarlo en el cradle para que las personas que viajan en los asientos traseros se entretenga viendo las imágenes de reproducción mientras el conductor maneja.

• El conductor no debe ponerse los auriculares mientras conduce. Es muy peligroso no escuchar los ruidos exteriores durante la conducción.

•También podrá adquirir un monitor adicional (KV-MAV7001) para no tener que retirar el monitor de la unidad principal.

D Connexion du berceau

En utilisant le berceau (KV-CR100), il est possible séparer le moniteur de l’appareil principal et de l’insérez dans le berceau de façon que les personnes assises sur les sièges arrière puissent voir l’image de lecture même lors que le conducteur conduit la voiture.

• Le conducteur ne doit pas mettre un casque d’écoute sur ses oreilles quand il conduit. Il est dangereux de bloquer les sons extérieurs quand on conduit.

•Vous pouvez aussi acheter un moniteur additionnel (KVMAV7001) de façon à ne pas avoir à séparer le moniteur de l’appareil principal.

Stereo mini plug (∅ 3.5 mm)

Miniclavija estéreo (∅ 3,5 mm)

Mini fiche stéréo (∅ 3,5 mm)

*3When not in use, store the monitor in the supplied soft case for its protection. *3Cuando no lo utilice, guarde el monitor en el estuche blando para fines de protección. *

Quand vous ne l’utilisez pas, conservez le moniteur dans l’étui souple fourni afin de le protéger.

MULTIMEDIA DVD/CD RECEIVER WITH REMOVABLE MONITOR HIDEAWAY UNIT KD-AV7000

AV INPUT 1

AUDIO

FM / AM ANTENNA

POWER

BACKCAMERA

REMOTE

CENTER

SPEAKER

CENTER

SUB

WOOFER

REAR

FRONT

VIDEO

AV INPUT 2

AUDIO

VIDEO TO CHANGER AV BUS TO MAIN UNIT

PRE OUT

AUDIO

VIDEO L R

AV OUTPUT

INPUT

E Connexion d’amplificateurs externes

Vous pouvez connecter des amplificateurs pour donner plus de puissance au système Surround dans la cabine de votre voiture.

• Connectez les pr ises PRE OUT de l’appareil satellite aux prises d’entrée de ligne des amplificateurs.

•

Déconnectez les enceintes de l’appareil satellite et connectez-les aux amplificateurs. Laissez les fils d’enceintes de l’appareil inutilisés.

E Conexión de los amplificadores externos

Podrá conectar amplificadores para mejorar el sistema de sonido envolvente del habitáculo de su automóvil.

• Conecte los terminales PRE OUT de la unidad oculta a los terminales de entrada de línea del amplificador.

• Desconecte los altavoces de la unidad oculta y conéctelos

al amplificador. Deje los conductores de los altavoces de la unidad sin usar.

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

Rear speakers

Altavoces traseros

Enceintes arrière

Front speakers

Altavoces delanteros

Enceintes avant

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

Subwoofer

Caisson de grave

Center speaker

Altavoz central

Enceinte centrale

E Connecting the external amplifiers

You can connect amplifiers to upgrade surround system in the car compartment.

• Connect the PRE OUT terminals of the hideaway unit to the amplifier’s line-in terminals.

• Disconnect the speakers from the hideaway unit, connect

them to the amplifier. Leave the speaker leads of the unit unused.

If you connect the remote lead (blue with white stripe) to the remote lead of the other equipment, they can be turned on and off automatically with this unit.

Si conecta el conductor remoto (azul con rayas blancas) al conductor remoto del otro equipo, podrán activarse y desactivarse automáticamente junto con esta unidad.

Si vous connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de l’autre appareil, ils peuvent être mis sous et hors tension automatiquement, en même temps que cet appareil.

*5Firmly attach the ground wire to the metallic body or to the

chassis of the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

Fije firmemente el cable de tierra a la carrocería metálica o al chasis—a un lugar no cubierto con pintura (si está cubierto con pintura, quítela antes de fijar el cable). De lo contrario, se podrían producir daños en la unidad.

Attachez solidement le fil de mise à la masse au châssis métallique de la voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

Remote lead

Conductor remoto

Fil de commande à distance

Y-connector (not supplied with this unit)

Conector en Y (no suministrado con esta unidad)

Connecteur Y (non fourni avec cet appareil)

Remote lead (Blue with white stripe)

Conductor remoto (Azul con rayas blancas)

Fil de commande à distance (Bleu avec bande blanche)

Hideaway unit

Unidad oculta

Appareil satellite

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

To the remote lead of other equipment

Al conductor remoto de otro equipo

Au fil de commande à distance de l’autre appareil

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis using

shorter and thicker cords?

• Unit becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

EN CAS DE DIFFICULTES

• Le fusible saute. *

Les fils rouge et noir sont-ils connectés correctement?

•L’appareil ne peut pas être mis sous tension. *

Le fil jaune est-il connecté?

•Pas de son des enceintes. *

Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé. *

Le fil de sortie d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche (L) et droite (R) sont-elles mises ensemble à la masse?

• Interférence avec les sons. *

La prise arrière de mise à la masse est-elle connectée au châssis de la voiture avec un cordon court et épais?

•L’appareil devient chaud. *

Le fil de sortie d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche (L) et droite (R) sont-elles mises ensemble à la masse?

LOCALIZACION DE AVERIAS

• El fusible se quema. * ¿Están los conductores rojo y negro correctamente conectados?

• No es posible conectar la alimentación. * ¿Está el cable amarillo conectado?

• No sale sonido de los altavoces. * ¿Está el cable de salida del altavoz cortocircuitado?

• El sonido presenta distorsión. * ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a

una masa común?

• Perturbación de ruido. * ¿El terminal de tierra trasero está conectado al chasis del

automóvil utilizando los cordones más corto y más grueso?

• La unidad se calienta. * ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a

una masa común?

F Connecting the back camera lead

Locate the back lamp lead in the trunk.

F Conexión del conductor de la cámara trasera

Localice el conductor de la luz trasera en el compartimiento de equipajes.

F Connexion du fil de la caméra de recul

Localisez le fil des feux de recul dans le coffre.

BACK

CAMERA

Back lamp lead

Conductor de la luz trasera

Fil des feux de recul

Back lamps

Luces traseras

Feux de recul

Back lamp lead

Conductor de la luz trasera

Fil des feux de recul

To car batter y

A la batería del automóvil

À la batterie de la voiture

To back lamp

A la luz trasera

Aux feux de recul

DVD RECEIVER WITH MONITOR

DVD-RECEIVER MiT MONITOR RECEPTEUR DVD ET MONITOR DVD-RECEIVER MET MONITOR

ENGLISH

KD-AV7001

MAIN SUB

ATT

ZOOM

DUAL

AVOUT VOL

ASPECT

TOPMENU

GUI

RETURN

SET UP

TUNER

DISCOKAV

231

564

11/012

/+1

Detachable

• This unit is equipped with the display demonstration. To cancel it, see page 14.

• Dieses Gerät ist mit einer Demonstrationsfunktion für das Display ausgestattet. Auf Seite 14 wird beschrieben, wie Sie diese Demonstrationsfunktion deaktivieren können.

• Cet appareil est équipé d’une démonstration des affichages. Pour l’annuler, référez-vous à la page 14.

• Dit toestel heeft een display-demonstratiefunctie. Zie bladzijde 14 voor het annuleren van deze functie.

VOLUME

DEUTSCH

FRANÇAIS

NEDERLANDS

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

LVT1172-001A

[E]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit;

leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

After installing the unit, reset it before use following the procedure below:

How to reset your unit

Detach the control panel (see page 91), then press the reset button on the main unit using a ball-point pen or a similar tool. This will reset the built-in microcomputer.

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

• The monitor will go into its place if opened.

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

CAUTIONS:

• Do not insert any disc of unusual shape— like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

WARNINGS

CAUTIONS on the monitor

• DO NOT install any unit in locations where; – it may obstruct the steering wheel and

gearshift lever operations, as this may result in a traffic accident.

– it may obstruct the operation of safety

devices such as air bags, as this may result in a fatal accident.

– it may obstruct visibility.

• DO NOT operate any unit while manipulating the steering wheel, as this may result in a traffic accident.

• The driver must not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident.

• If you need to operate the main unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

• If the parking brake is not engaged, “DRIVER MUST NOT WATCH THE MONITOR WHILE DRIVING.” appears on the monitor, and no playback picture will be shown. – This warning appears only when the

parking brake wire is connected to the parking brake system built in the car (refer to the Installation/Connection Manual).

• The monitor built in this receiver has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• When the temperature is very cold or very hot... – Chemical changes occur inside, causing it

to malfunction.

– Pictures may not appear clearly or may

move slowly. Pictures may not be synchronized with the sound or the picture quality may decline in such environments.

ENGLISH

CAUTION on Volume Setting:

Important!

How to read this manual:

• Operations are explained only with the illustrations as follows:

To make the explanations as simple and easy-to-understand as possible, we have

Press briefly.

adapted the following methods:

• Some related tips and notes are

explained later in the sections “More

Press repeatedly.

about This Receiver” (see page 81), but not in the same section explaining the operations. If you want to know more

Press either one.

about the functions, or if you have a doubt about the function, go to the section and you will find the answers.

Hold

Press and hold until your desired response begins.

Contents

How to reset your unit ..................................... 2

ENGLISH

Important! (How to read this manual) ............. 3

Introduction—Playable Discs ....................... 5

Quick Guide—How to Use the Controls...... 6

Remote controller ............................................ 6

Main unit (front) .............................................. 8

Preparation (Remote Controller—

RM-RK220) .................................................... 9

Operation Methods ...................................... 10

Basic Operations .......................................... 12

Setting the clock ............................................ 13

Changing the source ...................................... 14

Changing the graphic screen ......................... 14

Changing the touch panel color ..................... 14

Displaying the level meter ............................. 15

Radio Operations ......................................... 16

Listening to the Radio ................................. 17

Storing stations in memory ............................ 18

Displaying the preset list ............................... 19

Searching for your favorite programme—

PTY Search ............................................. 20

Using the Standby Reception ........................ 21

RDS Setup—RDS SET ................................ 23

DVD/VCD Operations ................................. 25

CD/MP3 Operations .................................... 26

Basic Disc Operations ................................. 27

Changing the aspect ratio .............................. 29

Prohibiting disc ejection ................................ 29

Selecting MP3 folders ................................... 29

Operating the disc menu ................................ 30

Replaying the previous scenes ....................... 31

Zooming in .................................................... 31

Selecting subtitles .......................................... 32

Selecting audio languages ............................. 32

Selecting multi-angle views .......................... 33

Locating a folder/track using the list ............. 34

Displaying the disc text information ............. 35

Displaying the time information .................... 35

Selecting playback modes ............................. 35

Searching for scenes or songs ........................ 36

Dual Mode Operations ................................ 38

Selecting the sources ..................................... 38

Adjusting AV OUTPUT volume.................... 39

Surround Mode Operations........................ 40

Introducing surround/DSP mode ................... 41

Turning on and off the surround/DSP mode .... 42

Sound Modes (iEQ) Operations ................. 44

Selecting preset sound modes ........................ 45

Storing your own sound modes ..................... 45

Other Sound Adjustments .......................... 46

Monitor Adjustments .................................. 47

Initial Setup—DVD MENU ........................ 48

Initial Setup—MONITOR .......................... 50

Initial Setup—ON SCREEN ....................... 52

Initial Setup—AUDIO MENU/PSM .......... 54

Other Main Functions ................................. 58

Assigning titles to the sources ....................... 58

Changing the monitor position/angle ............ 60

Removing the monitor ................................... 60

CD Changer Operations ............................. 61

Basic CD Changer Operations ................... 62

Advanced CD Changer Operations ........... 63

Selecting disc/folders/tracks .......................... 63

Locating a disc/folder/track using the list ..... 63

Displaying the disc text information ............. 64

Selecting playback modes ............................. 65

Searching for songs ....................................... 66

External Component Operations ............... 67

TV Tuner Operations .................................. 68

Watching TV programs ................................. 69

Storing stations in memory ............................ 69

Displaying the preset list ............................... 71

DAB Tuner Operations ............................... 72

Listening to the DAB Tuner ........................ 73

Selecting ensembles and services .................. 74

Storing services in memory ........................... 74

Displaying the preset list ............................... 75

Displaying the DAB text ............................... 76

Using the Standby Reception ........................ 76

Using Announcement Standby Reception ..... 77

DAB Setup—DAB SET ............................... 78

Maintenance ................................................. 80

More about This Receiver ........................... 81

Troubleshooting ........................................... 86

Additional Information ............................... 88

Specifications................................................ 90

Introduction—Playable Discs

Discs you can play

You can play back the following discs on this unit:

• DVD Video: whose video format is PAL or

NTSC and whose region code is “2.” –DVD-Rs and DVD-RWs recorded in

the DVD-Video format can also be played (see page 82).

• Video CD (VCD)/Audio CD

• MP3: CD-Rs or CD-RWs including MP3

files with the file extension code <mp3>. They must be recorded in the format compliant with ISO 9660 Level 1, ISO 9660 Level 2, Romeo, and Joliet.

On some discs, the actual operations may be different from what is explained in this manual.

The following discs cannot be played back

DVD Audio, DVD-ROM, DVD-RAM, DVD-RW recorded in the DVD-VR format, CD-ROM, CD-I (CD-I Ready), Photo CD, etc.

• Playing back these discs will generate noise and damage the speakers.

* Note on Region Code

DVD players and DVD Video discs have their own Region Code numbers. This unit can only play back DVD discs whose Region Code numbers include “2.”

DVD Video—digital audio formats

The System can play back the following digital audio formats.

Linear PCM: Uncompressed digital audio, the same format used for CDs and most studio masters.

Dolby Digital *: Compressed digital audio, developed by Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

DTS ** (Digital Theater Systems):

MPEG Multichannel: Another compressed digital audio which also enables multi-channel encode to create the realistic surround sound. However, this System downmix the multichannel singnals into 2 channels (decoded PCM) and play it back.

ENGLISH

Examples:

If you insert a DVD Video disc of an incorrect Region Code

“REGION CODE ERROR!” appears on the monitor.

• “DVD Logo” is a trademark of DVD Format/ Logo Licensing Corporation registered in the US, Japan and other countries.

* Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

** “DTS” and “DTS Digital Surround” are

registered trademarks of Digital Theater Systems, Inc.

Quick Guide—How to Use the Controls

○○○○○○○○○

Remote controller

ENGLISH

Remote controller

General operations

AT T

ASPECT

GUI

SET UP

TUNER

MAIN SUB

ZOOM

DUAL

AVOUT VOL

TOPMENU

RETURN

DISCOKAV

231

564

897

11/012

/+1

Buttons To do:

AT T

Turn on the main unit.

Turn off the main unit.

Attenuate sounds.

TUNER

DISC

Select “TUNER” and “DAB.”

Select “DISC” and “CD-CH.”

Select external components: TV = AV1 = AV2 =

VOLUME

MAIN SUB

Adjust the volume.

Set the main or suboperation for Dual Mode. *

ZOOM

Turn on/off Dual Mode.

DUAL

Adjust the monitor angle (with MAIN/SUB set MAIN).

AVOUT VOL

Adjust the AV output level (with MAIN/SUB set SUB).

VOLUME

ASPECT

Change the aspect ratio.

Display the monitor adjustment screen.

Main unit

GUI

Display and erase GUI screen.

SET UP

Display Setup Menus.

Change menu items.

Confirm.

Display

: functions if pressed and held.

*1 When using Dual Mode, the remote controller operates either main or sub source depending on

the MAIN/SUB setting.

*2 Only for MP3 *3 While playing a DVD, chapter is selected; on the other hands, title is selected before or after

playback.

Tuner operations

Disc operations—continued

Buttons To do:

TUNER

Select the band.

Start Auto Search.

Start Manual Search.

Change preset numbers.

231

564

Select preset numbers directly.

Disc operations

Buttons To do:

Play.

Pause.

Stop.

Select chapters/tracks.

Search.

Buttons To do:

231

564

897

11/012

Select title/chapter/track number. *

/+1

CD changer operations

Buttons To do:

Select folders. *

Select tracks.

Search.

231

564

897

11/012

/+1

Change discs.

Select disc numbers.

ENGLISH

then

ZOOM

DUAL

TOPMENU

Selects folders. *

Select tracks. *

Search.

Select audio language.

Select subtitle language.

Select view angle.

Zoom the picture.

Display disc menu.

Change menu items.

Confirm.

TV tuner operations

Buttons To do:

Start Auto Search.

Start Manual Search.

Change preset channel numbers.

231

564

897

11/012

Select preset channel numbers.

/+1

DAB Tuner operations

Buttons To do:

TUNER

Select the band.

Start Auto Search.

Start Manual Search.

Select services.

RETURN

Return to the previous screen while operating the disc menu.

Change preset numbers.

231

564

Select preset numbers directly.

○○○○○○○○○○○○○○○○○○

Main unit (front)

: functions if pressed and held.

ENGLISH

General operations

Buttons To do:

Tuner operations

Turn on the main unit.

Turn off the main unit.

Attenuate sounds.

Change the sources.

Adjust the volume.

Change the display information.

Detach the control panel.

CD changer operations

Buttons To do:

Select tracks.

Search.

then

(once): Display “DISC” = select discs.

(twice): Display “FOLDER” = select folders.*

TV tuner operations

Buttons To do:

Start Auto Search.

Start Manual Search.

DAB Tuner operations

Buttons To do:

Select the band.

Start Auto Search.

Start Manual Search.

Change FM reception mode.

Turn on/off TA Standby Reception.

Turn on/off PTY Standby Reception.

Disc operations

Buttons To do:

Eject the disc.

Select chapters/tracks.

Search.

Select the band.

Start Auto Search.

Start Manual Search.

Change Search Mode (Ensemble/Service).

Turn on/off TA Standby Reception.

Turn on/off PTY Standby Reception.

Monitor operations

Buttons To do:

Turn on the monitor.

Turn off the monitor.

Open the monitor. (See page 60.)

Close the monitor.

then

Display “FOLDER” = select folders. *

*1 Only for MP3

Slide in/out the monitor.

Remove the monitor.

Adjust the monitor angle. (See page 60.)

Change the aspect ratio.

Display the monitor adjustment screen.

Preparation (Remote Controller—RM-RK220)

(back side)

With the + side facing upwards

Lithium coin battery (CR2025)

WARNINGS on the battery:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. These behaviors may cause the battery to be overheated, crack or fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may be overheated, crack or fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to be overheated, crack or fire.

ENGLISH

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

This receiver is equipped with the steering wheel remote control function. If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller.

• See the Installation/Connection Manual (separate volume) for connection to utilize this function.

DO NOT expose the remote sensor on the control panel to strong light (direct sunlight or artificial lighting).

Operation Methods

You can operate this unit using three types of operation methods.

ENGLISH

• This instruction manual explains the operations mainly using the Touch Panel Icons shown on the monitor.

• Using the Touch Panel Icons directly (See “BLIND CONTROL” on page 51.)

Press the Touch Panel Icons with your finger directly (if you wear a glove, take it off).

Examples: The following is just an example. On the actual monitor screen, the playback picture is shown (while video source is played back).

Do not operate the Touch Panel using a ball-point pen or similar tool with the sharp tip (it may damage the Touch Panel).

Ex. DVD playback

Changes the source.

Source and play mode information

Changes the function modes (icons shown to the right change accordingly).

Ex. Fader/balance adjustment

To erase and display the Touch Panel icons and indications, press the center portion of the

monitor screen.

• You can erase them only while viewing the playback pictures.

Clock time indication

Picture view window

Icons shown on this column change each time you press .

Operation icon (FADER FRONT)

Operation icon

(BALANCE LEFT)

Returns to the previous screen.

Operation icon (BALANCE RIGHT)

Operation icon (FADER REAR)

• Using the Graphic User Interface (GUI) from the remote controller

You can use the Graphic User Interface in the same way as you touch the panel icons.

Examples:

ENGLISH

GUI

SET UP

Display GUI on the monitor (the cursor—yellow frame— appears around the currently selected icon).

• While one of the video sources is selected, the GUI function turns on and off at a press of the button.

To exit from GUI operation mode, press GUI again so that the yellow frame disappears.

Move the cursor to an icon you want.

Confirm.

• Using the buttons and controls directly

Examples:

To eject a loaded disc.

To eject the monitor or store it in the compartment.

Basic Operations

Hold

ENGLISH

CAUTION on the monitor :

Do not open or close the monitor by hand. Do not apply any force to the monitor while it is moving. Such a behavior may damage the monitor loading mechanism.

For turning on the power, use the buttons on the main unit and the remote controller.

Turn on the power

“WAITING” scrolls on the display of the main unit (and the monitor comes out *).

• When the monitor comes out, power comes on to the monitor even if you have turned it off.

• For the space required for the monitor ejection, see page 91.

Select the source

Adjust the volume

To change the monitor angle:

Hold

• See page 60 for details.

To drop the volume in a moment (ATT):

To restore the sound, press it again.

To store the monitor in place:

• When the unit is turned off, the power is temporarily turned on.

To turn off the power:

TUNER DISC AV1

CD-CH

• DISC: If a disc is not in the loading slot,

you cannot select “DISC” as the source to play.

• CD-CH/TV/DAB: Without connecting

each component, you cannot select it for the source.

Hold

AV2TVDAB

* This depends on the “AUTO OPEN/

CLOSE” setting (see page 51). If the monitor does not come out...

○○○○○○○○○

Setting the clock

You can also set the clock system to 24 hours or 12 hours.

While playing any source...

• If the touch panel icons are not shown on the monitor, touch the center portion of the monitor screen.

Exit

ENGLISH

To display the clock time:

When the unit is turned off, the clock time is

displayed on the display of the main unit for a while.

On the main unit

Set the clock time.

When the unit is turned on...

Hold

Information shown on the display differs according to the selected source.

TUNER: Frequency = Clock =

Band&Preset no. =

DISC: Play time = Clock =

Title/Chapter/Folder/Track no. =

AV1/AV2:Source name = Clock =

TV: Channel = Clock =

TV&Preset no. =

CD-CH: Elapsed time = Clock = Disc

no. = Folder/Track no. =

Each time you press and hold the button, the information shown on the display of the main unit changes.

• Press to start the clock time counting exactly from 00 second.

DAB: Channel no. = Clock =

Band&Preset no. =

It does not appear for some sources.

It will be shaded when not available.

○○○○○○○○○

Changing the source

While playing any source...

ENGLISH

○○○○○○○○○

Changing the graphic screen

You can select one of eight graphics in the picture view window.

• See page 88 for each graphic screen.

While playing any source...

Ex. While listening to FM

broadcast.

The current source is highlighted.

Newly selected source operation screen appears.

Other icons Reference pages

See page 38.

See pages 48 – 57.

Returns to the previous screen.

• To view the playback picture from any video source, select the screen where the actual playback pictures are shown.

○○○○○○○○○

Changing the touch panel

○○○○○○○○○

color

You can change the touch panel color (excluding the picture view window) by selecting from four preset color—blue, silver, red, and black.

While playing any source...

Ex. While listening to FM

broadcast.

○○○○○○○○○

Displaying the level meter

You can display the level meter on the graphic screen, by selecting from four preset patterns.

• While viewing the playback picture or display demonstration, you cannot show the level meter.

While playing any source...

Ex. While listening to FM

broadcast.

The following level meters are displayed in sequence.

Level meter 1

How to read the display of the main unit:

While listening to radio (FM/AM/DAB):

ENGLISH

4561 2 3

1 Lights up when Dolby Pro Logic II is

activated (see page 41).

2 Lights up or flashes when PTY Standby

Reception is in use (see pages 22 and

76).

3 Lights up or flashes when TA Standby

Reception is in use (see pages 21 and

76).

4 Main information—Frequency/Band/

Preset no.

5 MO indicator lights when FM reception

mode is “MONO.”

6 ST indicator lights while receiving an

FM stereo broadcast.

Level meter 2

No level meter will appear when no sound comes in.

Level meter 3

Level meter 4

While playing a disc:

21 3

1 Lights up when Dolby Digital signal is

detected (see page 41).

2 Lights up when Dolby Pro Logic II is

activated (see page 41).

3 Lights up when DTS signal is detected

(see page 41).

4 Main information—Play time/Title no./

Chapter no./Folder no./Track no.

5 Lights up when the disc is detected. 6 Lights up when an MP3 CD is detected.

• You can dim the display and the buttons on the front panel. For details see page 51 and also the Installation/Connection Manual (separate volume).

Radio Operations

ENGLISH

Volume level appears when adjusted.

Dual Mode indicator (see page 38)

SOURCE icon (see pages 14 and 38)

Current band/Preset no.

Station frequency

FM reception mode Search mode

Sound mode (see page 44) Surround/DSP mode (see page 41)

Not available for AM.

Available only after pressing “M” (next to this icon).

See page 14.

See page 15.

See page 44.

See pages 48 – 57.

Back to the beginning

JVC EXAD KD-AV7000 Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
