DVD & HDD VIDEO RECORDER

DR-MH30S/DR-MH30B DR-MH20S/DR-MH20B

CABLE/SAT

DVDTV

STANDBY/ON

OPEN/

DVD

TV/AV

TV/CAL/SAT

VIDEO

HDD DVD

AUX

CANCEL

MEMO/MARK

PROGRAMME

EDIT

DUBBING

LIVE

NAVIGATIONTOP MENU

ENTER

RETURN

NEXTPREVIOUS

SLOWSLOW PLAY/SELECT

CLEAR

PAUSEREC

STOP/

JUMP

REC MODE

DISPLAY

ON SCREEN

SAT SET UP

VPS/PDC

AUDIO

SUBTITLE

ANGLE

LIVE CHECK

PROGRESSIVE

HELP

STANDBY/ON

SCAN

VIDEO

S-VIDEO VIDEO

L(MONO)-AUDIO-R

HDD DVD

DV IN

PULL - OPEN

INSTRUCTIONS

LPT0925-001A

Filename [DR-MH30EU_02Safety.fm]

DR-MH30EU_00.book Page 2 Thursday, June 3, 2004 11:00 AM

Masterpage:Left0

2 EN

SAFETY FIRST

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

CAUTION:

A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT

REPRODUCTION OF LABELS WARNING LABEL INSIDE OF THE UNIT

EXPOSE THIS UNIT TO RAIN OR MOISTURE.

IMPORTANT:

8 Please read the various precautions on page 2

installing or operating the unit.

8 It should be noted that it may be unlawful to re-record pre-

recorded tapes, DVDs, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

CAUTION:

8 When you are not using the unit for a long period of time, it is

recommended that you disconnect the power cord from the mains outlet.

8 Dangerous voltage inside. Refer internal servicing to qualified

service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

● Manufactured under licence from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby Laboratories.

● “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

● VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.

● This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

– 4 before

Page 2 Thursday, 3 June 2004 10:29

Filename [DR-MH30EU_02Safety.fm]

DR-MH30EU_00.book Page 3 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

The STANDBY/ON 1 button does not completely shut off mains power from the unit, but switches operating current on and off. “`” shows electrical power standby and “

!” shows ON.

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the unit, remote control or disc.

1. DO NOT

place the unit —

— in an environment prone to extreme temperatures or humidity. — in direct sunlight. — in a dusty environment. — in an environment where strong magnetic fields are generated. — on a surface that is unstable or subject to vibration.

2. DO NOT

block the unit’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

3. DO NOT

4. DO NOT

place heavy objects on the unit or remote control. place anything which might spill on top of the unit

or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5. DO NOT

6. DO NOT

expose the apparatus to dripping or splashing. use this equipment in a bathroom or places with

water. Also DO NOT place any containers filled with water or

liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7. DO NOT

place any naked flame sources, such as lighted

candles, on the apparatus.

8. AVOID

violent shocks to the unit during transport.

SAFETY FIRST

EN 3

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. In conditions where condensation may occur, disconnect the unit’s power plug from the wall and keep it disconnected for a few hours to let the moisture dry, then turn on the unit.

TTENTION:

To mobile phone users:

Using a mobile phone in the vicinity of the unit may cause picture vibration on the TV screen or change the screen to a blue back display.

On placing the unit:

Some TVs or other appliances generate strong magnetic fields. Do not place such appliances on top of the unit as it may cause picture disturbance.

IMPORTANT

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain a proper safety approved extension lead/adapter or consult your dealer.

In the unlikely event of the plug fuse failing be sure to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If the fuse fails again consult your nearest JVC dealer.

If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black

Brown to L (Live) or Red

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

Page 3 Thursday, 3 June 2004 10:29

Filename [DR-MH30EU_02Safety.fm]

DR-MH30EU_00.book Page 4 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

4 EN

SAFETY FIRST

Some Do’s And Don’ts On The Safe Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment)

are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or

changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way — switch off,

DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to

DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and

DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL...

withdraw the mains plug and consult your dealer.

has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

watch television whilst driving.

shorten the life of the equipment.

stand or legs with the fixings provided according to the instructions.

— NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this could result

in a fatal electrical shock;

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

Page 4 Thursday, 3 June 2004 10:29

Filename [DR-MH30EU_02Safety.fm]

DR-MH30EU_00.book Page 5 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

DISC INFORMATION 6

About Discs ................................................................................... 6

INDEX 11

INSTALLING YOUR NEW UNIT 19

Basic Connections ......................................................................19

INITIAL SETTINGS 20

Auto Set Up .................................................................................20

Preset Download .........................................................................21

Language ....................................................................................23

Monitor Set ..................................................................................24

SAT CONTROL SET 25

Satellite Receiver Control Setting ...............................................25

BASIC OPERATIONS ON DVD DECK 27

Basic Playback ............................................................................27

Playback Features ......................................................................28

Using The On-screen Bar ...........................................................32

Parental Lock ..............................................................................36

Basic Recording .......................................................................... 37

Recording Features .....................................................................38

BASIC OPERATIONS ON HDD DECK 40

Basic Recording .......................................................................... 40

Recording Features .....................................................................41

Basic Playback ............................................................................42

Playback Features ......................................................................42

Live Memory Playback ................................................................ 43

TIMER RECORDING 46

VIDEO Plus+® Timer Programming .............................................46

Manual Timer Programming ........................................................48

Automatic Satellite Programme Recording .................................50

NAVIGATION 51

Library Database Navigation .......................................................51

Modify Original Information .........................................................52

Modify Play List Information ........................................................ 54

Modify Library Information ........................................................... 56

Playback With MP3/JPEG Navigation .........................................57

CONTENTS

EN 5

EDITING 58

High Speed Dubbing (From HDD To DVD) ................................ 58

Just Dubbing (From HDD To DVD) ............................................ 58

Manual Dubbing (From HDD To DVD) ....................................... 59

Original Dubbing (From DVD To HDD) ...................................... 59

DV Dubbing (HDD Deck Only) ................................................... 60

Edit From A Camcorder .............................................................. 61

Edit To Or From Another Recorder ............................................ 62

Output/Input Set ......................................................................... 63

Digital Audio Dubbing ................................................................. 64

REMOTE CONTROL 65

Remote Control Functions .......................................................... 65

SYSTEM CONNECTIONS 67

Connecting To A Satellite Receiver ............................................ 67

Connecting To A Dolby Digital Decoder Or An Amplifier With

Built-in DTS ........................................................................... 68

SUBSIDIARY SETTINGS 69

Mode Set .................................................................................... 69

Scan Mode Set ........................................................................... 71

VIDEO Plus+

Tuner Set .................................................................................... 72

Clock Set .................................................................................... 75

Format A Disc (DVD Deck Only) ................................................ 76

Finalise A Disc (DVD Deck Only) ............................................... 77

Help Function ............................................................................. 78

Tray Lock (DVD Deck Only) ....................................................... 78

System Setup ...................................................... 72

TROUBLESHOOTING 79

SPECIFICATIONS 83

APPENDIX 84

LIST OF TERMS 89

Page 5 Thursday, 3 June 2004 10:29

Filename [DR-MH30EU_03DiscInfo.fm]

DR-MH30EU_00.book Page 6 Thursday, June 3, 2004 11:00 AM

Masterpage:Left0

6 EN

DISC INFORMATION

About Discs

Recordable/playable Discs

You can use discs with the following logos for recording and playback.

DVD-RAM

12 cm: 4.7 GB/9.4 GB 8 cm: 1.4 GB/2.8 GB Ver. 2.0/2x speed Ver. 2.1/1x – 2x speed

DVD- R

12 cm: 4.7 GB 8 cm: 1.4 GB Ver. 2.0/1x – 4x speed (Video mode)

● The above table is based on the information as of February 2004.

● Recording and playback may not be performed depending on the

characteristics and condition of the disc used, leading to unsatisfactory results. Using discs manufactured by JVC is recommended since they have been tested to be compatible with this unit.

DVD-RAM Discs

It is only possible to use discs which conform with DVD-RAM standard Version 2.0 or 2.1.

● It is impossible to record on DVD-RAM discs which do not conform to

this standard. If you use a disc formatted under a different standard version, format it on this unit before use.

● It may not be possible to record, play back, edit or dub a DVD-RAM

disc even if it conforms to the standard if it was recorded or edited on the devices from other manufacturers or on a PC, or if it has far too many titles, or if there is very little available capacity remaining on the disc.

● DVD-RAM discs recorded on this unit cannot be played back on an

incompatible DVD player.

● It is possible to record copy-once programmes of digital broadcasts

only onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are not compatible).

DVD-RW

12 cm: 4.7 GB/9.4 GB Ver. 1.1/1x – 2x speed (Video mode/VR mode)

DVD-R/RW Discs

It is only possible to use DVD-R discs which conform with DVD-R standard Version 2.0. When a DVD-R/RW disc (Video mode) is finalised (墌 pg. 77), it can be played back on a standard DVD player as a DVD VIDEO disc. When a DVD-RW disc (VR mode) is finalised (墌 pg. 77), it can be played back on a standard DVD player compatible with the VR mode of DVD-RW discs.

Before finalising —

— it is possible to record on unrecorded areas of the disc, edit the disc title and programme titles, and delete programmes.

● It is impossible to record or edit DVD-R/RW discs recorded on other devices even if they have not been finalised.

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a recorded

programme is deleted from a DVD-R disc.

After finalising —

After a DVD-R/RW disc (Video mode) has been finalised, it is possible to play back the recorded programmes (video and/or audio) on a standard DVD video player as a DVD VIDEO disc.

● Edited titles are displayed as the “DVD menu” in video mode.

● It is impossible to record, edit or delete the data either in video mode or in VR mode.

● Either in video mode or in VR mode, although the disc can be played back on DVD players from other manufacturers, sometimes it may not be possible to play back depending on the disc and recording conditions.

● It is impossible to record on CD-R/RW or DVD-R discs used for authoring.

● It is impossible to record onto DVD-R/RW (Video mode) discs broadcasts that allow you to copy once. The copy once programmes can only be recorded onto DVD-RW discs formatted in VR mode.

NOTE:

The following may result if you play back a DVD-R disc recorded on another unit.

● The disc does not play.

● A mosaic pattern (block noise) appears on the screen.

● Video or audio may be dropped out.

● The unit stops during playback.

Page 6 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_03DiscInfo.fm]

DR-MH30EU_00.book Page 7 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Discs For Playback Only

You can use discs with the following logos for playback only.

DVD VIDEO Video CD/Super Video CD

(example of region code indications)

Audio CD

CD-DA files

CD-RW

CD-DA/JPEG/ MP3 files

● Playback may not be performed depending on the characteristics and condition of the disc used.

● DTS Audio CDs can also be played back (An optional DTS decoder is required).

● MP3 and JPEG discs can be played back on this unit only when they have been recorded in the ISO9660 or Joliet format and finalised.

● JPEG files that can be played back on this unit must conform to JFIF/ Baseline process, and the maximum resolution of a JPEG file is 3,840 x 2,160 pixels.

● CD-R/RW discs recorded in music CD format need to be finalised to play back on this unit.

● Operation and audio quality of this unit are not guaranteed for discs that do not conform to the Compact Disc specification (CD-DA). Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.

● Depending on the intentions of the author of the software, recording conditions of DVD discs and Video CD/SVCD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.

● When switching from the first layer to the second layer of doublelayered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.

● DVD-AUDIO discs compatible with DVD video players can be played.

● Super Audio CDs (SACD) compatible with conventional CD players

can be played.

CD-R

CD-DA/JPEG/ MP3 files

CD-ROM

JPEG/MP3 files

DISC INFORMATION

EN 7

Unplayable Discs

The following types of discs cannot be played using this unit. Do not attempt to play back any kind of disc that is damaged (cracked, warped, or repaired with adhesive tape) or discs in unusual shapes (heart-shaped, octagonal, or other forms). If such discs are accidentally played back, it may cause noise that can lead to speaker damage.

● CD-ROM discs (including PHOTO-CD and CD-G)

● Discs recorded in Packet Write (UDF) format

● 1.3-GB double density CDs (DDCD)

● High density CDs (HDCD)

The following discs also cannot be played back.

● Discs of a region number other than “2”

● DVD-RAM (2.6 GB/5.2 GB)

● DVD-RAM (TYPE1)

Region Number

The world is divided into 6 regions for DVD VIDEO discs. DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is “2”. Only discs whose region number includes “2” or “ALL” can be played back such as shown below.

Examples of DVD VIDEO labels which can be played back using this unit.

Marks of discs in this instruction manual

Allows operation with a DVD-RAM disc.

Allows operation with a DVD-R disc.

Allows operation with a DVD -RW dis c .

Allows operation with a DVD VIDEO disc.

Allows operation with a Video CD/Super Video CD (SVCD) disc.

Allows operation with an Audio CD disc.

Allows operation with a disc including MP3 files.

Allows operation with a disc including JPEG files.

Page 7 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_03DiscInfo.fm]

DR-MH30EU_00.book Page 8 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

8 EN

DISC INFORMATION

Recording Medium And Format

DVD-RAM

● Recording and erasing can be performed as many times as possible on a disc.

● Editing can be performed after recording, such as deleting unwanted parts.

● While recording, it is possible not only to start playback of a programme currently being recorded, but also to watch another programme previously recorded.

DVD-RW (VR mode)

● Recording and erasing can be performed as many times as possible on a disc.

● Editing can be performed after recording, such as deleting unwanted parts.

DVD-RW (Vid eo mode)

● Can be played back on other DVD players.

● New recording can be performed by erasing all the data on a disc

once played back.

DVD-R

● Can be played back on other DVD players.

● Suitable when keeping a recorded disc for a long time.

File Structure Of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called “titles”. Each title has a number (title number) that can be used to select desired titles. Titles are further divided into units called “chapters”. Each chapter has a number (chapter number) that can also be used to select desired chapters. Note that some discs are not divided into titles and chapters.

When you record a programme on a DVD-RAM/RW (VR mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes from monaural to stereo due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during playback. (墌 pg. 29)

When you record a programme on a DVD-R/RW (Video mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during either recording or playback. Once the disc has been finalised, these chapter marks are deleted and new chapter marks are assigned automatically approximately every 5 minutes.

DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc

Title 1 Title 2

Chapter 1 Chapter 2

● In Video mode, even before finalising, it is impossible to perform editing operations other than changing the disc name and/or title names and deleting programmes and/or titles.

● After finalising, it is impossible to perform editing operations.

Chapter 3

Chapter 1

Chapter 2

Chapter 3

Audio CD/Video CD/SVCD

Typically, Audio CD discs are divided into separate tracks each containing one song. Each track is assigned a number. For example, the third track is Track 3. The same is true for Video CD/ SVCD discs. However, some discs are not divided into tracks.

Track 1 Track 2 Track 3 Track 4

Audio CD or Video CD/SVCD

JPEG/MP3 Disc (CD-R/RW/ROM)

MP3/JPEG files put in directories nested in several levels on a disc will be organized as if they were put in single level directories (groups) by the MP3/JPEG Navigation of this unit. (墌 pg. 57)

File structure of a disc before starting the MP3/JPEG Navigation

Directory MP3 file JPEG file

File structure of the disc after starting the MP3/JPEG Navigation

Files are automatically grouped as follows and displayed on the MP3/JPEG Navigation screen. Data is displayed in the alphabetical order of file name. Files are grouped based on roots.

● This unit can recognise up to 9 hierarchies including directories and files. Also, it can recognise up to 250 files in each group, and up to 99 groups on a disc.

NOTES:

● Video CD/SVCD discs that support Playback Control (PBC)

The contents of a disc are recorded into several hierarchies, and played back according to the instructions on the screen while navigating through the hierarchies. It is also possible to playback recorded tracks consecutively without activating the PBC function even when playing a PBC-compatible disc. (

● Regarding the contents recorded on discs

Some files may not be played back depending on the file types and other factors.

墌 pg. 31)

Page 8 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_03DiscInfo.fm]

HDD DVD

CABLE/SAT

DVDTV

DVD

TV/CAL/SAT

STANDBY/ON

OPEN/

TV AV

VIDEO

DR-MH30EU_00.book Page 9 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of the disc. Check the marks indicating the contents and functions of the disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.

Marks related to video

Number of subtitles Number of angles

Recorded under the standard 4:3 aspect ratio

Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.

Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is cut-out).

Marks related to audio

Number of audio tracks

Dolby Digital mark It has been developed by Dolby Laboratories as a digital surround system.

DTS (Digital Theater Systems) You can enjoy DTS audio if you connect an amplifier with a built-in DTS decoder to the DIGITAL OUT connector of the unit.

Screen includes black bands at the top and the bottom of image which has a standard 4:3 aspect ratio (letter box)

DISC INFORMATION

EN 9

Placing A Disc

Opening the disc tray

Press x to open the disc tray.

L(MONO)-AUDIO-R

HDD DVD

DV IN

BY/O

ND TA S

PULL - OPEN

O E ID V

Disc tray

D V D

D D H

PULL - OPEN

VIDEO

S-VIDEO VIDEO

● Pressing the button again closes the disc tray.

● Use the buttons to open and close the disc tray.

● Do not block the disc tray with your hand while it is opening or closing

as this may result in hardware failure.

● Do not place unplayable discs or any object other than a disc on the disc tray.

● Do not press down strongly on the disc tray or place any heavy objects on it.

Discs without cartridges

Place the disc on the disc tray with the label side facing up. Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged. To insert an 8 cm disc, place it according to the inner groove.

DVD-RAM discs contained in cartridges

Double-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the side you wish to play back or record facing down. If you insert the disc with “Side A” facing down, programmes are recorded on the side A.

Single-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the label side facing up.

Page 9 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_03DiscInfo.fm]

DR-MH30EU_00.book Page 10 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

10 EN

DISC INFORMATION

Care And Handling Of Discs

How to handle discs

When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the unit to malfunction.

Label side

Do not damage the label side, stick paper to or use any adhesives on its surface.

Recording side

Make sure that discs are not scratched and dirty on the recording side before use. Scratches and dirt on the recording side of a disc may hinder proper playback and recording. Also be careful that a DVD-RAM disc may get scratched or dirt when removed from cartridge then put back in after use.

Storage

Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!

Maintenance of discs

If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the centre outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.

CAUTION:

Sometimes during playback, noise may appear or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.) These symptoms are caused by the discs, not by the malfunction of the unit.

Page 10 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 11 Thursday, June 3, 2004 11:00 AM

Front View

STANDBY ON

Masterpage:Right0

INDEX

EN 11

C D FE G H I JBA

HDD DVD

VIDEO

S-VIDEO VIDEO

L(MONO)-AUDIO-R

DV IN

A Infrared Beam Receiving Window B Front Display Panel C Disc Tray D Open/Close Button (x) E Stop Button (8) F Play Button (4) G Pause Button (9) H Record Button (7) I HDD Button J DVD Button

墌 pg. 27

墌 pg. 13

墌 pg. 9 墌 pg. 27, 42 墌 pg. 27, 42

墌 pg. 27, 42

墌 pg. 37, 40

墌 pg. 40

M POLLN

K Standby/On Button (1) L Video Lamp (VIDEO) M S-Video/Video/Audio Input Connectors (S-VIDEO/

VIDEO/AUDIO (L/R))

N DV Input connector (DV IN (i*)) (HDD deck only)

墌 pg. 60

* i (i.Link) refers to the IEEE1394-1995 industry specification and

extensions thereof. The i logo is used for products compliant with the i.Link standard.

O HDD Lamp 墌 pg. 40

HDD DVD

DV IN

PULL - OPEN

墌 pg. 27

P DVD Lam p

L(MONO)-AUDIO-R

墌 pg. 38, 41

墌 pg. 61

To access covered connectors, pull and open the connector cover.

Page 11 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 12 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

12 EN

INDEX

Rear View

AEFCDBGH

A Antenna Connectors (ANTENNA IN/OUT) 墌 pg. 19 B Component Video Output Connectors (COMPONENT

VIDEO OUT) 墌 pg. 19

C S-video Output Connector (S-VIDEO OUT) D Audio Output Connectors (AUDIO OUT (RIGHT/LEFT))

墌 pg. 62

E AV COMPU LINK Connector*

* Not function with this unit.

F Digital Audio Output Connectors

(DIGITAL OUT (COAXIAL/OPTICAL))

G Cooling Fan

● This prevents the temperature from rising inside the unit. Do not remove it.

● Install the unit so as not to block the area around the fan.

● The cooling fan on the rear of the unit may be activated even if

the unit is turned off in the following cases;

— In the Automatic Satellite Programme Recording standby

mode (墌 pg. 50), slightly before the starting time of PDC recording (墌 pg. 47)

— If you connect the decoder or the satellite receiver to L-2 IN/

DECODER and if “L-2 SELECT” is set to “DECODER” or “SAT VIDEO” or “SAT S-VIDEO”. (墌 pg. 63)

— when “JUST CLOCK” is set to “ON” (墌 pg. 75)

(Set “JUST CLOCK” to “OFF” if you mind the noise of the fan.)

墌 pg. 19, 62

墌 pg. 64, 68

JK LI

H Mains Power Cord 墌 pg. 19 I L-1 Input/Output Connector (L-1 IN/OUT)

63, 67

J L-2 Input/Decoder Connector

(L-2 IN/DECODER)

K Satellite Control Connector (SAT CONTROL) L Region Number Label

墌 pg. 25, 62, 67

墌 pg. 7

墌 pg. 19, 62,

墌 pg. 25

Page 12 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 13 Thursday, June 3, 2004 11:00 AM

Front Display Panel

ABDCGFEIHJ

A VPS/PDC Indicator* 墌 pg. 47

Appears when checking if the station being received transmits a VPS/PDC signal.

* VPS (Video Programme System) recording is not currently available in

the U.K. and not possible with this unit.

Disc Type Indicator

When a disc is loaded, the type of the disc is indicated.

Disc Status Indicator

When a disc is running, the disc marks rotate. During High-Speed Search: Rotate faster than normal playback. During Slow Motion: Rotate slower than normal playback. While recording: Inner red ring lights in the same way

While paused: Disc marks blink when either

While stopped: Disc marks all light. While resume stopped: Disc marks all blink. While the disc tray opened: Disc marks all light out. No disc on the disc tray: Disc marks all light out.

B VR Mode Indicator 墌 pg. 76

Lights when a DVD-RW disc is formatted in VR mode.

C Recording Mode Indicator (XP/SP/LP/EP/FR) 墌 pg. 37

Blinks when recording mode is being set. While “FR” is blinking, the left 3 digits of the Multi Display (L M) indicate setting values ranging from “60” to “480”. After the value has been set, only “FR” lights.

D VPS/PDC Recording Indicator 墌 pg. 47

Lights when the VPS/PDC recording function is activated.

E Group/Title Indicator (GRP/TITLE)

“GRP” or “TITLE” lights depending on a disc loaded while the left 2 digits of the Multi Display (L) indicate the numbers explained below. “GRP”: Total number of groups or group number being played

back are displayed on the Multi Display.

“TITLE”: Total number of titles or title number being played back

are displayed on the Multi Display.

F Track/Chapter Indicator (TRK/CHAP)

“TRK” or “CHAP” lights depending on a disc loaded while the 3rd and 4th digits from the left of the Multi Display (M) indicate the numbers explained below. “TRK”: Total number of tracks or track number being played

back are displayed on the Multi Display.

“CHAP”: Chapter number being played back are displayed on the

Multi Display.

as normal playback. During Instant Timer Recording (ITR), inner red ring slowly blinks.

recording or playing back.

Masterpage:Right+

INDEX

EN 13

NMLKOP

G Simulated Surround Effect Indicator (3D) 墌 pg. 34

Lights when a simulated surround effect is set to “3D-ON” on the on-screen bar.

H Linear PCM Indicator (LPCM)

Lights when “XP MODE REC AUDIO” is set to “LINEAR PCM” (

墌 pg. 70) for recording with HDD, DVD-RAM, DVD-R and

DVD-RW discs, and when Linear PCM audio is played.

I Random/Programme Playback Mode Indicator (RND/

PRGM)

“RND”: Lights when Random Playback mode is set. “PRGM”: Lights when Programme Playback mode is set.

J Repeat Mode Indicator ( /1/A–B) 墌 pg. 33

Select Repeat Playback mode on the on-screen bar. “ ”: Whole disc is played back repeatedly.

“ 1”: A single title/chapter/track is played back repeatedly. “ A–B”: The selected part (A–B) is played back repeatedly. No display: Repeat Playback mode is off.

K Video Output Indicator ( ) 墌 pg. 71

No display:Indicates that interlace mode is engaged.

(Example) lights when video output mode is in progressive mode.

L Group/Title Number Display M Track/Chapter Number Display N Remaining Time/Elapsed Time Indicator 墌 pg. 30, 38

Lights when remaining time of DVD-RAM, DVD-R and DVD-RW discs is displayed, and lights out when elapsed time is displayed. The right 6 digits of the Multi Display (O) indicate elapsed or remaining time of each track. No display: Indicates elapsed time of the disc. Displayed: Indicates remaining time of the disc.

O Remaining Time/Elapsed Time Display 墌 pg. 30, 38 P Multi Display

Displays clock, received channel, elapsed time, and remaining time. Also displays status of the unit (NO DISC/OPEN/CLOSE/ READING).

墌 pg. 35

: Indicates that progressive mode is engaged.

Page 13 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 14 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

14 EN

INDEX

Remote Control

A B

E F

G H I

K L

M N

O P

CABLE/SAT

TV AV

VIDEO

AUX

STOP/

TV/CBL/SAT

MEMO/MARK

ENTER

CLEAR

ON SCREEN

STANDBY ON

EDIT

OPEN/ CLOSE

HDD DVD

CANCEL

DUBBING

LIVE

JUMP

REC MODE

DISPLAY

DVDTV

DVD

PROGRAMME

NAVIGATIONTOP MENU

RETURN

NEXTPREVIOUS

SLOWSLOW PLAY/SELECT

PAUSEREC

HELP

V W X Y

a b c d e

f g

h i j k l m n o

S VPS/PDC Recording Button (VPS/PDC#) *

* VPS (Video Programme System) recording is not currently available in

the U.K. and not possible with this unit.

墌 pg. 47

T Audio Button (AUDIO) 墌 pg. 31 U Subtitle Button (SUBTITLE) V TV/CABLE/SAT/DVD switch

墌 pg. 30 墌 pg. 23

W DVD Standby/On Button (DVD 1) X TV/CBL/SAT Standby/On Button (TV/CBL/SAT 1)

墌 pg. 65

Y DVD Button Z TV Volume Buttons (TV%+/–) a Programme Buttons (PR +/–) b Memo Button (MEMO)

Mark Button (MARK)

c Programming Button (PROGRAMME) d Edit Button (EDIT) e Navigation Button (NAVIGATION) f Enter Button (ENTER) g Return Button (RETURN) h Forward Skip Button (6)

Next Button (NEXT)

i Forward Search Button (5)

Forward Slow Button (SLOW +)

j Play Button (4)

Select Button (SELECT)

k Pause Button (9) l Stop Button (8)

Clear Button (CLEAR)

m Skip Search Button ( ) n Help Button (?) o One Touch Replay Button ( ) p On-Screen Button (ON SCREEN) q Set Up Button (SET UP)

墌 pg. 27

墌 pg. 65

墌 pg. 37, 65

墌 pg. 52, 55, 57

墌 pg. 29

墌 pg. 46, 48, 49

墌 pg. 52

墌 pg. 51

墌 pg. 23

墌 pg. 31, 46

墌 pg. 28, 44, 45

墌 pg. 31

墌 pg. 28, 44

墌 pg. 29

墌 pg. 27, 42

墌 pg. 27, 52

墌 pg. 27, 42

墌 pg. 33, 46

墌 pg. 29, 44

墌 pg. 78

墌 pg. 44

墌 pg. 16, 32

墌 pg. 23

r Progressive Scan Button (PROGRESSIVE SCAN)

墌 pg. 71

s Angle Button (ANGLE) (DVD deck only)

Live Check Button (LIVE CHECK)

墌 pg. 30

墌 pg. 44

p q

r s

R S T

SAT SET UP

VPS/PDC

AUDIO

SUBTITLE

ANGLE

LIVE CHECK

PROGRESSIVE

SCAN

A Open/Close Button (x) 墌 pg. 9 B TV AV/VIDEO Button C HDD Button D Number Keys

墌 pg. 40

墌 pg. 25, 37, 40

E Auxiliary Button (AUX) F Cancel Button (& (CANCEL)) G Live Button (LIVE) H Dubbing Button (DUBBING)

TV Muting Button (TV )

I Top Menu Button (TOP MENU) J rt w e Buttons K Menu Button (MENU) L Reverse Skip Button (2)

Previous Button (PREVIOUS)

M Reverse Search Button (3)

Reverse Slow Button (SLOW –)

N Record Button (7) O Jump Button (JUMP +/–) P Recording Mode Button (REC MODE) Q Display Button (DISPLAY)

墌 pg. 38, 41

墌 pg. 48, 72

墌 pg. 46

墌 pg. 44

墌 pg. 58

墌 pg. 65

墌 pg. 28

墌 pg. 23

墌 pg. 28

墌 pg. 28, 44, 45

墌 pg. 31

墌 pg. 28, 44

墌 pg. 29

墌 pg. 37, 40

墌 pg. 45

墌 pg. 37, 40

墌 pg. 30, 38

R Automatic Satellite Programme Recording Button

(SAT#) 墌 pg. 50

How To Use

Before use, insert two R6 size batteries into the remote control with the polarity ( and ) matched correctly as indicated on the battery compartment or on the lid.

The remote control can operate most of your unit’s functions, as well as basic functions of TV sets and satellite receivers of JVC and other brands. (墌 pg. 65, 66)

● Point the remote control toward the receiving window.

● The maximum operating distance of the remote control is about

8m.

NOTE:

If the remote control doesn’t work properly, remove its batteries, wait a short time, replace the batteries and then try again.

Page 14 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 15 Thursday, June 3, 2004 11:00 AM

Check Contents

CHECK ALL THE CONTENTS SHOWN BELOW

DVD Video Recorder

Masterpage:Right+

INDEX

CABLE/SAT

OPEN/

TV/AV

VIDEO

HDD DVD

TV/CAL/SAT

STANDBY/ON

EN 15

DVDTV

DVD

STANDBY/ON

RF Cable

21-pin SCART Cable

VIDEO

S-VIDEO VIDEO

L(MONO)-AUDIO-R

“AA” Batteries (x 2)

Satellite Controller

HDD DVD

DV IN

PULL - OPEN

AUX

CANCEL

LIVE

JUMP

REC MODE

SAT SET UP

AUDIO

DUBBING

STOP/

DISPLAY

VPS/PDC

SUBTITLE

ENTER

MEMO/MARK

EDIT

CLEAR

ON SCREEN

ANGLE

LIVE CHECK

PROGRAMME

NAVIGATIONTOP MENU

RETURN

NEXTPREVIOUS

SLOWSLOW PLAY/SELECT

PAUSEREC

HELP

PROGRESSIVE

SCAN

Infrared Remote Control Unit

You are now ready to install your unit. (墌 pg. 19)

Page 15 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 16 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

16 EN

INDEX

On-Screen Display (DVD deck)

When “SUPERIMPOSE” is set to “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN twice.

When playing back a recorded title

TITLE99 CHAPTER999 T. REMAIN6:59:59

FISHING WORLD

A Playback title number B Playback chapter number C Disc remaining time D Current status (playback) E Audio mode F Current received (recording) channel position number

(On playback background)

G Bar meter H Name of title (or play list) currently being played back I Current playback point J Recorded mode K Live Memory mode (recording)

When recording

Digital

STEREO

When pressing REC MODE

(Appears for eight seconds.)

RAM

FR360

7: 00 XP 10: 00 SP 20: 00 LP 28: 00

36: 00

FR480

A Disc type B Current recording speed C Remaining disc time for each recording speed D Recording speed

When pressing 7 during recording

ITR 2 : 30

A Recording time for Instant Timer Recording (ITR) mode

TITLE99 CHAPTER999 T. REMAIN6:59:59

RAM

FR360

A Recording point B Current status (recording) C Current time D Recording channel number

11:35

STEREO

ON AIR

Page 16 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 17 Thursday, June 3, 2004 11:00 AM

On-Screen Display (HDD deck)

When playing back a recorded title

When recording

11:00 12:00 1:00

FR360

A Live Memory Recording point B Live Memory Recording mode

Masterpage:Right+

INDEX

EN 17

11:35

11:33

STEREO

0:00 1:00 2:00

004 FISHING WORLD

FR360

01:16:48

FR360

Digital

STEREO

A Title start B Current playback point C Title end D Elapsed playing time E Play mode F Current received (recording) channel position number

(On playback background)

G Recorded title (or play list) number currently being played back H Name of title currently being played back I Time scale (This title is an hour and a half long.) J Audio mode K Live Memory mode (recording)

When watching a programme on air

11:00 12:00 1:00

11:35

STEREO

ON AIR

A Possible start point from where Live Memory Playback can be

performed

B Possible start point from where Live Memory Recording can be

performed (Received channel has changed at this point.)

C Currently viewed point D Time scale E Current time F Current received channel position number

When pressing REC MODE

(Appears for eight seconds.)

FR360

7: 00 XP 10: 00 SP 20: 00 LP 28: 00

36: 00

FR480

A HDD capacity graph B Current recording speed C Remaining HDD time for each recording speed D Recording speed

When pressing 7 during recording

ITR 2 : 30

A Recording time for Instant Timer Recording (ITR) mode

When using Live Memory playback

11:00 12:00 1:00

A Time scale for Temporary Recording B Current Temporary Recording point C Current time D Current playback channel position number E Time scale for Live Memory Playback F Current playback point G Live Memory playback mode H Current playback time

11:35

STEREO

Page 17 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 18 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

18 EN

INDEX

On-Screen Display (DV Dubbing)

When capturing images from the external DV equipment

0:00 1:00 2:00

HDD

00: 00:00. 00

FR360

12bit

JVC

GR-DV3500DV

A Recording speed B HDD capacity graph C HDD time counter D Recording time scale E HDD mode F Remote control mode G Connected DV equipment mode H Connected DV equipment model information I Input channel J Sound mode K Sound input bit-rate*

* Indicates the sound bit-rate of the connected DV equipment

L Connected DV equipment information*

* Maker name and model name, etc. may not appear depending on the

connected equipment.

M Time counter for the connected DV equipment N Sound monitor mode

GR-DV3500

00: 00:00. 00

L - R

SOUND1

DV DV

O Remote control switch P Auto capture button Q Sound monitor switch

R Elapsed recording time

1 2

179 :59 :59

Page 18 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 19 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

Basic Connections

TV aerial cable

ANTENNA IN

COMPONENT VIDEO OUT

S-VIDEO OUT

ANTENNA

OUT

RF cable (provided)

Component video cable (not provided)

L-1 IN/OUT

21-pin SCART

cable

(provided)

AUDIO OUT

Audio cable

(not provided)

Mains outlet

Mains power cord

Back of unit

S-Video cable (not provided)

INSTALLING YOUR NEW UNIT

EN 19

8 Basic Connection To connect to a TV with 21-pin SCART input connector —

A Disconnect the TV aerial cable from the TV. B Connect the TV aerial cable to the ANTENNA IN connector on

the rear panel of the unit.

C Connect the ANTENNA OUT connector on the rear panel of the

unit and the TV’s aerial connector with the provided RF cable.

D Connect the L-1 IN/OUT connector on the rear panel of the unit

and the TV’s 21-pin SCART connector with a provided 21-pin SCART cable.

● The L-1 IN/OUT connector accepts and delivers either a composite signal (regular video signal), Y/C signal or RGB signal.

● Set your TV to the VIDEO (or AV), Y/C, or RGB mode according to the type of your TV’s SCART connector.

8 S-Video Connection To connect to TV’s S-VIDEO input and AUDIO input connectors —

A Per form A – C in “Basic Connection”. B Connect the unit’s S-VIDEO OUT connector to the TV’s

S-VIDEO input connector.

C Connect the unit’s AUDIO OUT connectors to the TV’s AUDIO

input connectors.

● You can obtain high-quality S-VHS pictures.

● With S-VIDEO connection, you cannot use the Preset Download

function. (

● If your TV is not stereo-capable, use the unit’s AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

墌 pg. 21)

8 Component Video Connection To connect to TV’s component video input connectors —

A Per form A – C in “Basic Connection”. B Connect the unit’s COMPONENT VIDEO OUT connectors to

the TV’s component video input connectors.

C Connect the unit’s AUDIO OUT connectors to the TV’s AUDIO

input connectors.

● You can obtain high-quality component video pictures.

● If your TV is not stereo-capable, use the unit’s AUDIO OUT

connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

● By using the component video connection, you can view the images in the progressive mode. For switching to the progressive mode, refer to “Scan Mode Set” (墌 pg. 71).

NOTE:

Select an appropriate option of “L-1 OUTPUT” as follows (墌 pg. 63):

It’s essential that your unit be properly connected.

TTENTION:

Your TV must have a 21-pin AV input connector (SCART) for the basic connection to the unit.

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

1 Place the unit on a stable, horizontal surface. 2 Connect the unit to a TV depending on the TV and cables you

use.

When your TV’s SCART connector accepts:

Set “L-1 OUTPUT” to:

Composite signals “SCART VIDEO”

Y/C signal (separated luminance (brightness) and

“SCART S-VIDEO”

chrominance (colour) signals)

RGB signal “SCART RGB”

Component video signal “COMPONENT”

3 Plug the end of the mains power cord into a mains outlet.

● “LOADING” blinks on the front display panel when the AC plug of the mains power cord is connected into a mains outlet and it takes approximately 50 seconds for the unit to be turned on. This is not a malfunction.

Page 19 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 20 Thursday, June 3, 2004 11:00 AM

Masterpage:Left0

20 EN

INITIAL SETTINGS

Auto Set Up

Auto Channel Set/Auto Clock Set/Auto Guide Program Number Set

After the 1 button on the unit (or DVD 1 on the remote control) is pressed for the first time to turn on the unit Set Up function sets the tuner channels, clock** and Guide Program numbers automatically.

DVD1

ENTER

rtwe

, the Auto

CABLE/DBS

DVDTV

TTENTION:

“AUTO” blinks on the front display panel; do NOT press any button on

INITIAL SET UP > AUTO SET

the unit or remote control until the front display panel shows “– –:– –” as illustrated on page 22.

AUTO SET

PLEASE WAIT...

● When you have connected the unit to a TV offering T-V Link via a fully-wired 21-pin SCART cable (墌 pg. 19) and the TV is turned

SET UP

EXIT

SELECT

ENTER

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

on, the unit automatically performs the Preset Download (墌 pg. 21) even if you select “AUTO SET” for Auto Set Up function.

TTENTION:

Once you have performed Auto Set Up, even if the unit’s memory backup has expired, all the stored stations and their Guide Program numbers remain in the unit’s memory and the unit will not perform Auto Set Up again. The unit only performs Auto Clock Set when the unit is turned on. If you have moved to a different area, perform each setting as required.

● Tuner setting (墌 pg. 72)

● Clock setting (墌 pg. 75)

If a new station starts broadcasting in your area, perform tuner setting. (墌 pg. 72)

NOTES:

● In areas where no TV station transmits a PDC (Programme Delivery Control) signal, the unit can perform neither Auto Clock Set nor Auto Guide Program Number Set.

● If there is a power cut, or if you press 1 or SET UP while Auto Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the unit power once and try again from step 1.

● Auto Clock Set may not function properly depending on the reception condition.

Before starting, make sure of the following:

● The TV aerial cable should be connected to the unit.

● The unit’s mains power cord should be connected to a mains

outlet.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

1 Press 1 on the unit or DVD 1 on the remote control to turn on

the unit. The Country Set display appears on the TV screen. The AUTO SET/T-V LINK display appears on the TV screen.

2 Press we to select “AUTO

SET”, then press ENTER. The AUTO SET screen will appear.

INITIAL SET UP > AUTO CH SET

ENTER

SET UP

EXIT

SELECT

AUTO SET T-V LINK

TEST MODE

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

After “Auto Set Up” is completed, perform “Monitor Set” on page 24.

Page 20 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 21 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Preset Download

Auto Channel Set by Downloading from TV/Auto Clock Set/Auto Guide Program Number Set

TTENTION:

You can use this function only with a TV offering T-V Link, etc.* Be sure to use a fully-wired 21-pin SCART cable.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link or DATA LOGIC via a fully-wired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

CABLE/DBS

DVDTV

DVD1

ENTER

SET UP

INITIAL SETTINGS

EN 21

If you have connected the unit to your TV via a 21-pin SCART cable (墌 pg. 19), the unit will automatically perform Preset Download instead of the Auto Set Up in step 2 on page 20. After downloading, the unit sets the clock and Guide Program numbers automatically.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

1 Press 1 on the unit or DVD 1 on the remote control to turn on

the unit. The Country Set display appears on the TV screen. The AUTO SET/T-V LINK display appears on the TV screen.

2 Press we to select “T-V LINK”

and press ENTER. The T-V LINK screen will appear.

TTENTION:

Preset positions on the front display panel increase from “PR 1”; do NOT press any button on the unit or remote control until the front display panel shows clock time, “PR 1” or “– –:– –” as illustrated on page 22.

● When Preset Download is completed, “COMPLETED” appears for about 5 seconds, then the normal screen appears.

● If you press any button on the unit or remote control while downloading is in progress, it will be interrupted.

NOTES:

● For details, refer to the instruction manual of your TV.

● In the area where no TV station transmits a PDC (Programme

Delivery Control) signal, the unit can perform neither Auto Clock Set nor Auto Guide Program Number Set.

● If there is a power cut, or if you press 1 or SET UP while downloading or set up is in progress, it will be interrupted; be sure to turn off the unit power once and try again from the beginning.

● Auto Clock Set may not function properly depending on the reception condition.

● On this unit, the characters available for station names (ID) are A–Z, 0–9, –, f, + and I (space). Some names of downloaded stations may differ from those of your TV. (墌 pg. 74)

INITIAL SET UP > AUTO CH SET

ENTER

SET UP

EXIT

SELECT

INITIAL SET UP > AUTO SET

ENTER

SET UP

EXIT

SELECT

AUTO SET T-V LINK

TEST MODE

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

AUTO SET

PLEASE WAIT...

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

After “Preset Download” is completed, perform “Monitor Set” on page 24.

Page 21 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_04Name.fm Page 22 Thursday, June 3, 2004 1:38 PM

Masterpage:Left+

22 EN

INITIAL SETTINGS

Results Of Auto Set Up/Preset Download Appearing On The Front Display Panel

If both Auto Channel Set and Auto Clock Set have been performed successfully, the correct current time is displayed.

Turn on the TV and select its AV mode, then make sure that all necessary stations have been stored in the unit’s memory by using the PR +/– button(s).

● If station names (ID – 墌 pg. 87) have also been stored in the unit’s memory, the station name will be displayed at the top right corner of the TV screen for about 5 seconds when the unit is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 73 – 74.

If Auto Channel Set has succeeded but Auto Clock Set has not, “PR 1” (channel position) is displayed. OR If both Auto Channel Set and Auto Clock Set have failed, “– –:– –” is displayed.

A Turn on the TV and select its AV mode, then make sure that all

necessary stations have been stored in the unit’s memory by using the PR +/– button(s).

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 73 – 74.

B Perform “Clock Set” on page 75.

TTENTION:

After making sure the cables are connected properly, turn off the unit’s power once, then turn the unit’s power back on again. Perform “Auto Set Up” on page 20 or “Preset Download” on page 21 again.

IMPORTANT:

● To check if the Guide Program numbers have been set correctly, perform the VIDEO Plus+ Timer Programming. (墌 pg. 46)

● In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work properly. If the Guide Program numbers are not set properly when you timer-record a TV programme using the VIDEO Plus+ system, the unit will record a TV programme of a different station. When programming the timer using the VIDEO Plus+ system, be sure to check the desired channel is selected correctly. (墌 pg. 46, “VIDEO Plus+® Timer Programming”)

● Your unit memorizes all detected stations even if reception of some of them is poor. You can delete those stations with an unacceptable picture. (墌 pg. 74, “Delete A Channel”)

INFORMATION

Just Clock

Your unit is equipped with the Just Clock function which provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. If you want to take advantage of this function, simply set it to “ON”. (墌 pg. 75)

If you have any difficulty with the above procedures call the JVC Customer Service Hot Line on 0870 330 5000

T-V Link Functions

When you connect the unit to your TV via a fully-wired 21-pin SCART cable (墌 pg. 19), the following functions are available. You can use these functions only with a TV offering T-V Link, etc.* For details, refer to the instruction manual of your TV.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link or DATA LOGIC via a fully-wired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

TV Auto Power On

The TV will turn on and be set to its AV mode automatically whenever you start playback. For details, refer to the instruction manual of your TV.

Unit Auto Standby

You can use your TV’s remote control to turn off the unit. For details, refer to the instruction manual of your TV.

Direct Rec

You can easily start recording the programme that you are watching on your TV. When you use this function, set “DIRECT REC” to “ON”. (墌 pg. 70)

Page 22 Thursday, 3 June 2004 13:38

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 23 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Language

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

ENTER

rtwe

SET UP

CABLE/DBS

INITIAL SETTINGS

EN 23

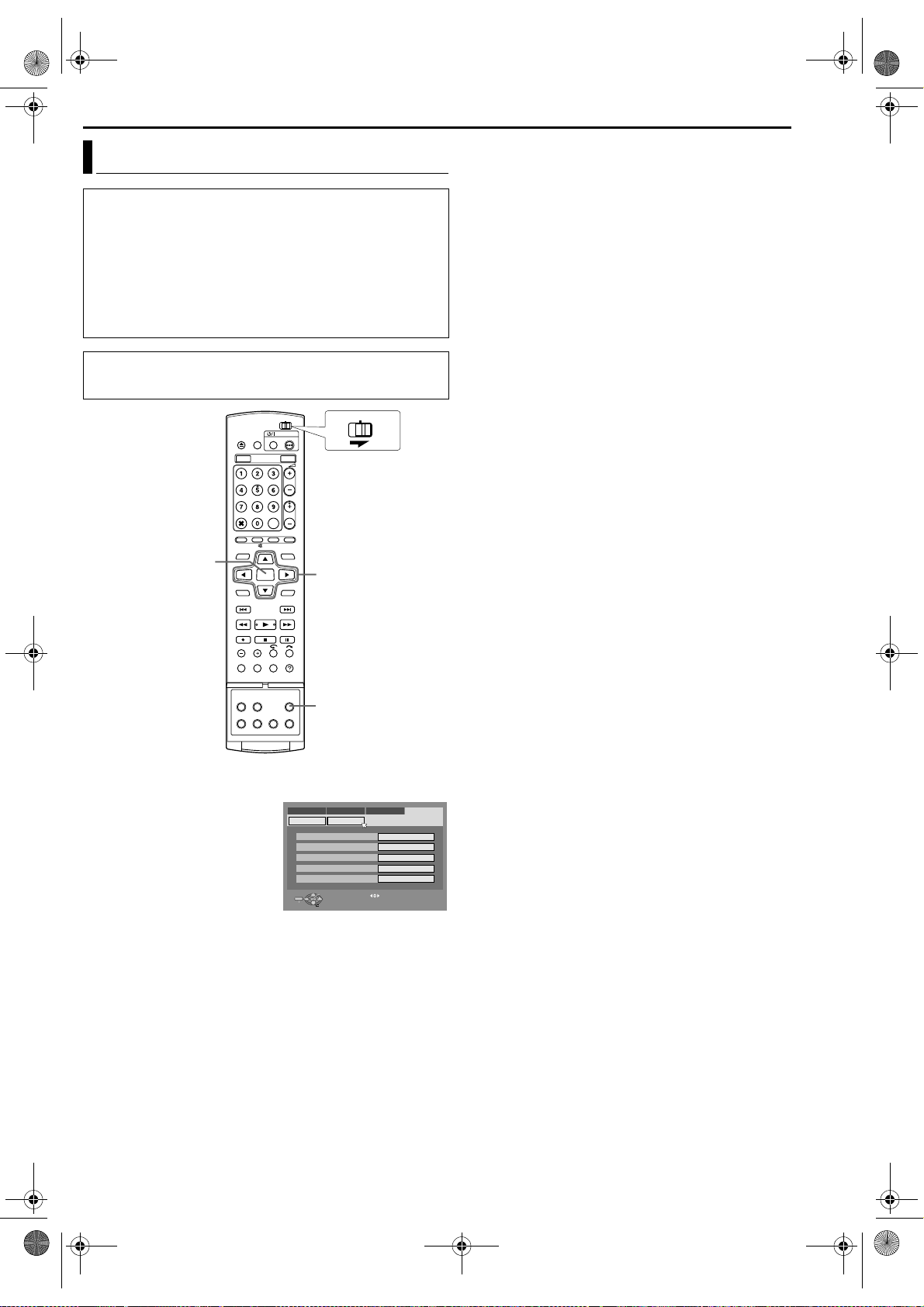

On-screen Language Set

This unit offers you the choice to view on-screen messages in 10 different languages.

1 Press SET UP to access the Main Menu screen. 2 Press we to select “FUNCTION SET UP”, then press ENTER. 3 Press we to select “DISPLAY

DVDTV

SET”, then press ENTER.

4 Press rt to select “ON

SCREEN LANGUAGE”, then press ENTER.

5 Press rt to select your

desired language, then press ENTER.

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

SUPERIMPOSE

BLUE BACK

DIMMER BRIGHT

POWER SAVE OFF

ON SCREEN LANGUAGE ENGLISH

SET UP

EXIT

SELECT

FUNCTION SET UP

DISPLAY SETREC/PLAY SET UP VIDEO IN/OUT

ENTER

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

AUTO

6 Press SET UP to complete the setting.

Menu/Audio/Subtitle Language Set (DVD deck only)

Some DVD discs contain the DVD menu display, audio and subtitles in multiple languages. With these discs, you can set the default language as you like.

● The procedure shows how to set “MENU LANGUAGE” as an example.

1 Press SET UP to access the Main Menu screen. 2 Press we to select “DVD VIDEO SET UP”, then press ENTER. 3 Press we to select

“LANGUAGE SET”, then press ENTER.

4 Press rt to select “MENU

LANGUAGE”, then press ENTER.

5 Press rt to select your

desired language, then press ENTER.

● See “Language Code List” (墌 pg. 84).

6 Press SET UP to complete the setting.

NOTE:

When the selected language is not available on the disc, the disc’s default menu language is played back.

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

LANGUAGE SET

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE ENGLISH

SET UP

EXIT

SELECT

FUNCTION SET UP

AUDIO OUTPUT

PARENTAL LOCK DISC SET UP

ENTER

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

ENGLISH

Page 23 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 24 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

24 EN

INITIAL SETTINGS

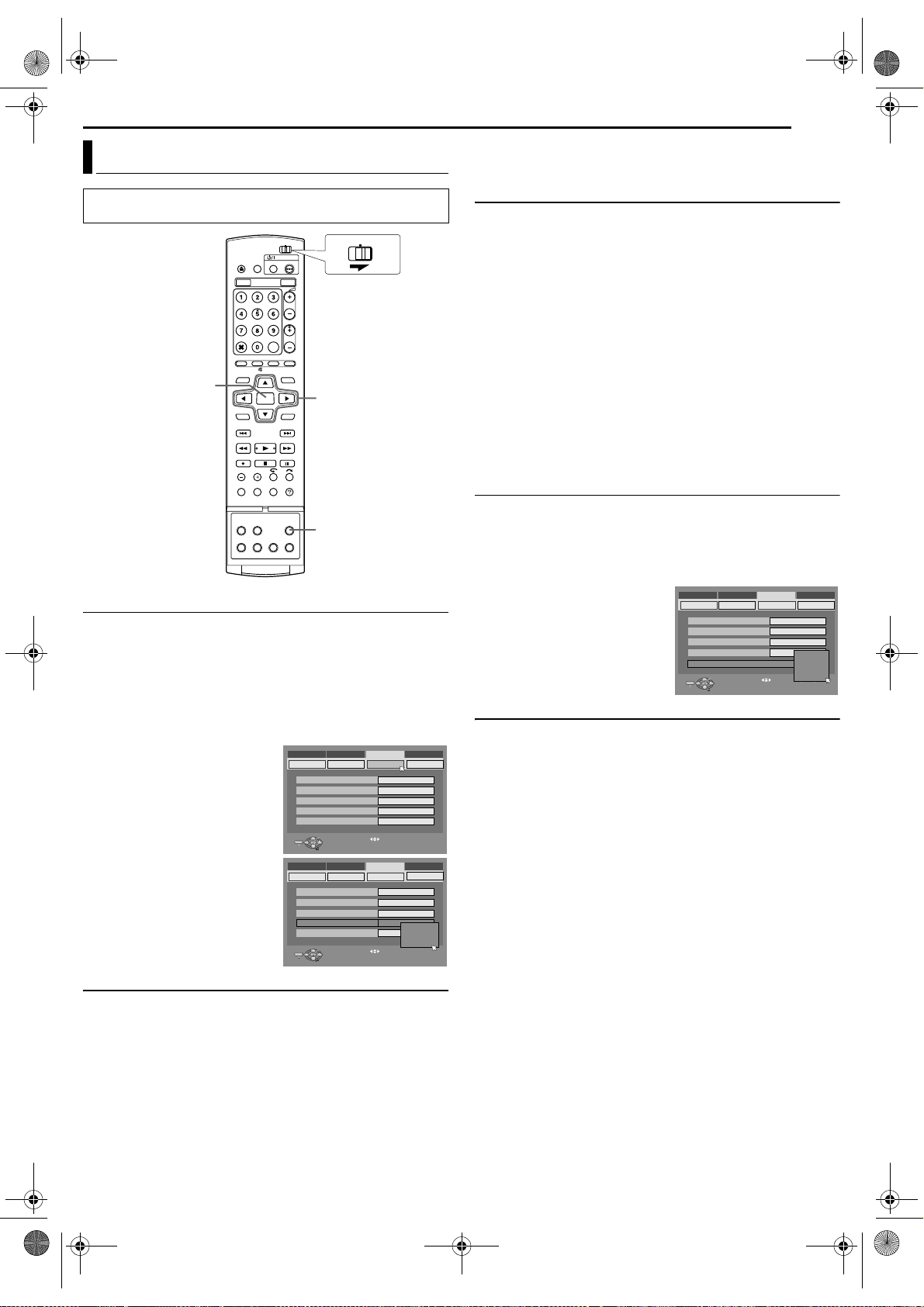

Monitor Set

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

ENTER

rtwe

SET UP

1 Press SET UP to access the Main Menu screen.

● You cannot set the monitor type during recording or playback.

2 Press we to select “FUNCTION SET UP”, then press ENTER. 3 Press we to select “VIDEO IN/

OUT”, then press ENTER.

4 Press rt to select “MONITOR

TYPE”, then press ENTER.

5 Press rt to select the desired

option, then press ENTER.

6 Press SET UP to complete the

setting.

*The boldface settings below indicate the settings at your

purchase.

8 MONITOR TYPE — 4:3LB / 4:3PS / 16:9 AUTO / 16:9 FIX

4:3LB (Letter Box conversion): Select this when the aspect ratio of

your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3PS (Pan&Scan): Select this when the aspect ratio of your TV is

4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

16:9 AUTO (Wide television conversion): Select this when the

aspect ratio of your TV is 16:9 (wide TV).

16:9 FIX (Wide television conversion): Select this when the aspect

ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

MONITOR TYPE

F-1 INPUT

L-1 OUTPUT SCART VIDEO

L-2 INPUT VIDEO

L-2 SELECT VIDEO

SET UP

EXIT

SELECT

FUNCTION SET UP

DISPLAY SETRECORD/PLAY VIDEO IN/OUT

ENTER

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

CONNECT

4:3LB

VIDEO

Pan&Scan/Letter Box

In general, DVD VIDEO disc are produced for a wide-screen TV with 16:9 aspect ratio. Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, “Pan&Scan” (PS) and “Letter Box” (LB).

Pan&Scan

The right and left side of the image are cut off. The image fills the screen.

● The picture will be shown in the “4:3LB” mode depending on the disc even if the “4:3PS” mode is selected.

Letter Box

Black bands appear at the top and bottom of the image. The image itself appears in 16:9 aspect ratio.

Page 24 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 25 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

Satellite Receiver Control Setting

Satellite receiver

Satellite Controller

Your unit

Tr an s m it t e r

Satellite receiver

(provided) (suggested locations)

Satellite Controller

(provided)

SAT CONTROL SET

EN 25

The following procedure is required if you receive satellite channels through a satellite receiver. Approximately 20 seconds before the VIDEO Plus+ timer programming (墌 pg. 46) or Manual Timer programming (墌 pg. 48) starts, the unit sets its input mode to “L-2” and automatically switches the satellite receiver’s channels using the provided Satellite Controller.

Installing Satellite Controller

1 Place the Satellite Controller so that the path between its

transmitter and the satellite receiver’s remote sensor is unobstructed.

2 Fix securely using the adhesive strip attached on the back of the

Satellite Controller.

3 Be sure to connect the unit’s L-2 IN/DECODER connector to the

satellite receiver’s 21-pin SCART connector.

NOTE:

When connecting your satellite receiver, refer to its instruction manual.

4 Connect the Satellite Controller to the SAT CONTROL

connector on the rear panel.

Setting Satellite Receiver’s Brand And Channel

After installation, set the satellite receiver’s brand and channel correctly; otherwise, the Satellite Controller cannot work correctly.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

Back of unit

21-pin SCART cable (provided)

ENTER

1 Turn on the satellite receiver’s power. 2 Press SET UP to access the Main Menu screen. 3 Press we to select “INITIAL SET UP”, then press ENTER. 4 Press we to select “TUNER

SET”, then press ENTER.

5 Press rt w e to select “SAT

CONTROL SET”, then press ENTER.

6 Press rt to select “BRAND”,

then press ENTER.

DVD VIDEO SET UP INITIAL SET UPFUNCTION SET UPHDD/DVD SET UP

SET UP

TUNER SET

EXIT

SELECT

CLOCK SET

AUTO CH SET

SAT CONTROL SET

ENTER

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

MANUAL CH SET

GUIDE PROG SET

7 Press rt to select the brand

code from the list on page 26, then press ENTER.

● If the unit is in playback or recording mode, you cannot set the brand code.

8 Press rt to select “PROGRAMME”, then press ENTER.

SAT CONTROLL-2 IN/DECODER

CABLE/DBS

DVDTV

rtwe

9 Press rt to select one of the channel positions on the satellite

receiver, then press ENTER.

● You can select the channel position between 1 to 999.

10 Press rt to select “TEST”,

then press ENTER. The unit enters the Test mode.

INITIAL SET UP > SAT CONTROL SET

BRAND

PROGRAMME

ENTER

SET UP

EXIT

SELECT

TEST

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

SET UP

Page 25 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_04Name.fm]

DR-MH30EU_00.book Page 26 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

26 EN

SAT CONTROL SET

11 Check the result of the test.

If the satellite receiver’s channel number has been changed to the same one as you set in step 9

Press we to select “YES”, then press ENTER to finish the Sat Control Set mode.

If the satellite receiver’s channel number has not been changed correctly

Press we to select “NO”, then press ENTER. Then perform the procedure again from step 6.

BRAND NAME CODE

JVC AMSTRAD ASTON CANAL SATELLITE CANAL + D-BOX ECHOSTAR (VIA DIGITAL) FINLUX FORCE GALAXIS GRUNDIG HIRSCHMANN HUMAX ITT NOKIA JERROLD KATHREIN LUXOR MASCOM MASPRO NOKIA PA CE PANASONIC PHILIPS RADIX RFT SABA SAGEM SALORA SAMSUNG SIEMENS SKY DIGI BOX SKYMASTER TECHNISAT THOMSON TPS TRIAX WISI

73 60, 61, 62, 63, 92 97 81 81 85 82 68 89 88 64, 65, 102 64, 78, 99 88 68 75 70, 71, 96 68 93 70 87, 94 65, 67, 74, 86, 92, 97 74, 92 66, 84, 101 78 69 97 83, 90 68 83 64 92 69, 98 66, 100 97 83 91 64

NOTES:

● The Satellite Controller may not work with all types of satellite receiver.

● For some satellite receivers, you need to set its channel input mode to 2-digit.

● If your satellite receiver has more than two channel modes, be sure to set to “All Channel Mode”. For details, refer to the instruction manual of the satellite receiver.

● When selecting the satellite receiver’s channel ( from the remote control may interfere with signals transmitted from the Satellite Controller. In this case, move the remote control as close to the unit’s infrared beam receiving window as possible.

Page 26 Thursday, 3 June 2004 10:46

墌 step 9), signals

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 27 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

Basic Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

ENTER

SELECT

DVD

CABLE/DBS

BASIC OPERATIONS ON DVD DECK

EN 27

To play back an MP3/JPEG disc, see “Playback With MP3/JPEG Navigation” (墌 pg. 57).

1 Load a disc.

● For details, refer to “Placing A Disc” (墌 pg. 9).

● Pressing 4 also closes the disc tray.

● Playback begins automatically if an auto-playback DVD disc is

loaded.

2 Press DVD so that the DVD lamp lights up on the unit. 3 Press 4 to start playback.

DVD

DVDTV

● If you load a DVD disc whose region code does not match the unit, “REGION CODE ERROR” appears on the TV screen. For details, refer to “Region Number” (墌 pg. 7).

● If “CAN NOT PLAY BACK DISC UNDER CURRENT SETTING” appears on the TV screen, refer to “Parental Lock” (墌 pg. 36).

● With Video CD/SVCD discs with PBC control or some DVD discs, the menu display may appear on the TV screen after star ting playback. In this case, select an item which you want to play back from the menu. Otherwise, the playback cannot go forward. Refer to “Playback Control (PBC) Function” (墌 pg. 31) or “Locating A Desired Scene Using The DVD Menu” (墌 pg. 28).

● The Library Database Navigation also enables you to search and select the desired titles. (墌 pg. 52)

4 Press 9 to pause playback.

● To resume normal playback, press 4.

5 Press 8 to stop playback.

● When a recordable disc is played, playback stops and a programme received with the unit’s tuner resumes on the TV screen.

● When a playback-only disc is played, playback stops and the still image at the time you press 8 remains on the TV screen. Pressing 8 again resumes a programme received with the unit’s tuner.

● If x is pressed during playback, playback stops, then the disc tray opens.

NOTE:

When the Library Database Navigation screen appears, choose a thumbnail image of the desired title on the TV screen, then press SELECT(4) or ENTER. (墌 pg. 52)

TTENTION:

● It takes approximately 30 seconds to read a disc depending on the type and condition of the disc since this unit is multi-disc compatible (DVD-RAM, DVD-RW, DVD-R). It may even take several minutes when a disc is dirty, scratched or warped.

● It may take a few seconds to start playback. This is not a malfunction.

● Forward/reverse high-speed search and other operations cannot be performed while playback is stopped.

Page 27 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 28 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

28 EN

BASIC OPERATIONS ON DVD DECK

Playback Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press DVD so that the DVD lamp lights up on the unit.

CABLE/DBS

0-9

TOP MENU

ENTER

DVD

MARK

rtwe

5/SLOW + 3/SLOW 9

Locating The Start Point Of The Item Or Skip The Item

Press 2 or 6 during playback.

● Pressing 6 locates the start point of the item or skips the item for

forward direction, then resumes playback.

● Pressing 2 locates the start point of the item or skips the item for

DVDTV

reverse direction, then resumes playback.

When a DVD-RAM/RW/R disc is played

Current programme

News

Reverse Forward

programme

●: marked points (墌 pg. 29)

Drama

programme

Movie

Example:

To locate the beginning of the next item, press 6 once. To locate the beginning of the current item, press 2 once. To locate the beginning of the previous item, press 2 three times.

When a DVD VIDEO, Audio CD or Video CD/SVCD disc is played

Playba ck point

Locating A Desired Scene Using The DVD Menu

DVD VIDEO discs may have top menu and disc menu.

Top m e nu

DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen. Press TOP MENU to access the top menu.

Disc menu

Disc menus include playback data (angle menu, subtitle menu, etc.) specific to each title. Press MENU to access the disc menu.

1 Press TOP MENU or MENU to

access the DVD menu.

2 Press rt w e to select a

desired title, then press ENTER. Playback starts.

● It may be possible to select the desired item using the number keys depending on the menu display.

NOTE:

When “X” appears on the TV screen in step 1, the disc does not have a top menu or disc menu.

Example:

Scene 2

(Chapter 2)

Tra ck 2

Reverse Forward

Scene 3

(Chapter 3)

Tra ck 3

Scene 4

(Chapter 4)

Track 4

Example:

To locate the beginning of the next item, press 6 once. To locate the beginning of the current item, press 2 once.

High-Speed Search

During playback, press 5 for forward high-speed search, or 3 for reverse high-speed search.

● Each press of the button increases the search speed for each direction.

● To resume normal playback, press 4.

Page 28 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 29 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Still Picture/Frame-By-Frame Playback

1 Press 9 to pause during playback. 2 Press SLOW – (3) or SLOW + (5) to activate frame-by-

frame playback.

● Each press of SLOW – (3) or SLOW + (5) advances/reverses

the still picture frame by frame.

● Frame-by-frame playback for reverse direction cannot be performed with Video CD/SVCD discs.

● To resume normal playback, press 4.

Slow Motion

1 Press 9 to pause during playback. 2 Press SLOW – (3) or SLOW + (5) for 2 or more seconds.

● Each press of SLOW – (3) or SLOW + (5) increases the slow motion speed for each direction (from 1/16 to 1/2 times the normal speed).

● Slow motion for reverse direction cannot be performed with Video CD/SVCD discs.

Skip Search

During playback, press .

● Each press initiates an approximately 30-second period of fastmotion playback. Normal playback resumes automatically.

Resume Function

It is possible to memorize the position where you stop playback and resume playback from that position.

● Be sure to set “RESUME” to “ON” or “DISC RESUME”. (墌 pg. 70)

1 Press 8 during playback to memorize a resume point.

● The unit enters Resume Stop mode and memorizes the position where you have stopped playback as a resume point. (The inside of the disc status indicator on the front display panel blinks while memorising.)

● The unit retains a memory of the resume points of the last 30 discs played back, even though they have been ejected if “RESUME” is set to “DISC RESUME”. (墌 pg. 70)

● To clear the resume points: (The inside of the disc status indicator stops blinking and lights.)

When “RESUME” is set to “ON”:

• Press 1 to turn off the unit.

• Press x to take out the disc.

• Press 8 in stop mode.

• Press TOP MEN U to display the top menu, then start playback by selecting an item, etc.

• Press MENU to display the disc menu, then start playback by selecting an item, etc.

When “RESUME” is set to “DISC RESUME”:

• Set “RESUME” to “OFF”. (墌 pg. 70)

• Press 8 in stop mode.

• Press TOP MEN U to display the top menu, then start playback by selecting an item, etc.

• Press MENU to display the disc menu, then start playback by selecting an item, etc.

2 Press 4 in stop mode to resume playback. The unit starts

playback from the resume point.

BASIC OPERATIONS ON DVD DECK

EN 29

NOTES:

● “DISC RESUME” setting works on DVD VIDEO, VCD, SVCD and already finalised DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under “ON” setting will be applied even if “RESUME” is set to “DISC RESUME”. (墌 pg. 70)

● If you stop the playback of a disc for which a resume point has already been memorized, the memory will be updated with the new resume point.

● After the unit has memorized the resume points for 30 discs, remembering a new resume point will cause the unit to delete the oldest memorized point. Stopping playback of a disc for which a resume point is already stored may change the order in which the points are stored. This may potentially change the order in which points are deleted.

● When the unit memorizes a resume point for a disc, it also remembers audio language, subtitle and angle settings.

● This function may not work for some Video CD/SVCDs.

● When “RESUME” is changed to “ON” or “OFF” (墌 pg. 70), resume

points of the discs memorized with “RESUME” set to “DISC RESUME” will be cleared.

● Resume points are memorized for each side of a double-sided disc.

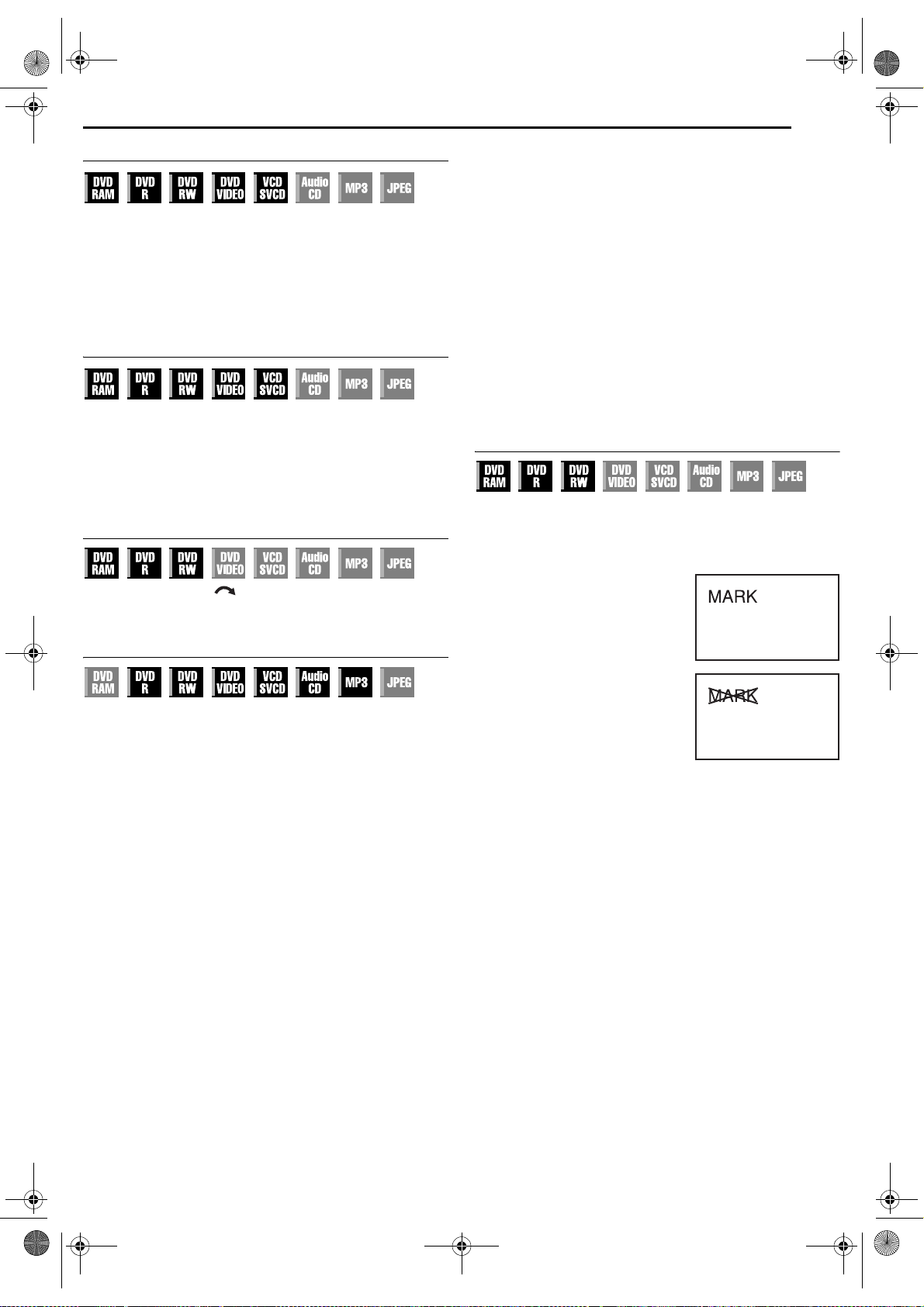

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto DVD-RAM/RW/R discs when recording is helpful to locate a start point when you play back the discs later.

To mark positions:

During playback, press MARK at positions you want to mark.

● “MARK” appears on the TV screen. You can easily locate the marked positions using 2 or 6 when you play back the disc.

To delete the marked positions:

While paused, press 2 or 6 to locate a marked position you want to delete, then press MARK.

● Crossed “MARK” appears on the TV screen, and the marked position is deleted.

NOTES:

● When a monaural programme changes to a stereo programme while recording, a mark signal is automatically recorded.

● When a DVD-R/RW (Video mode) disc is finalised, marked points marked before finalising will be deleted, and programmes will be divided automatically into “chapters” approximately every 5 minutes. (墌 pg. 77)

Page 29 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 30 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

30 EN

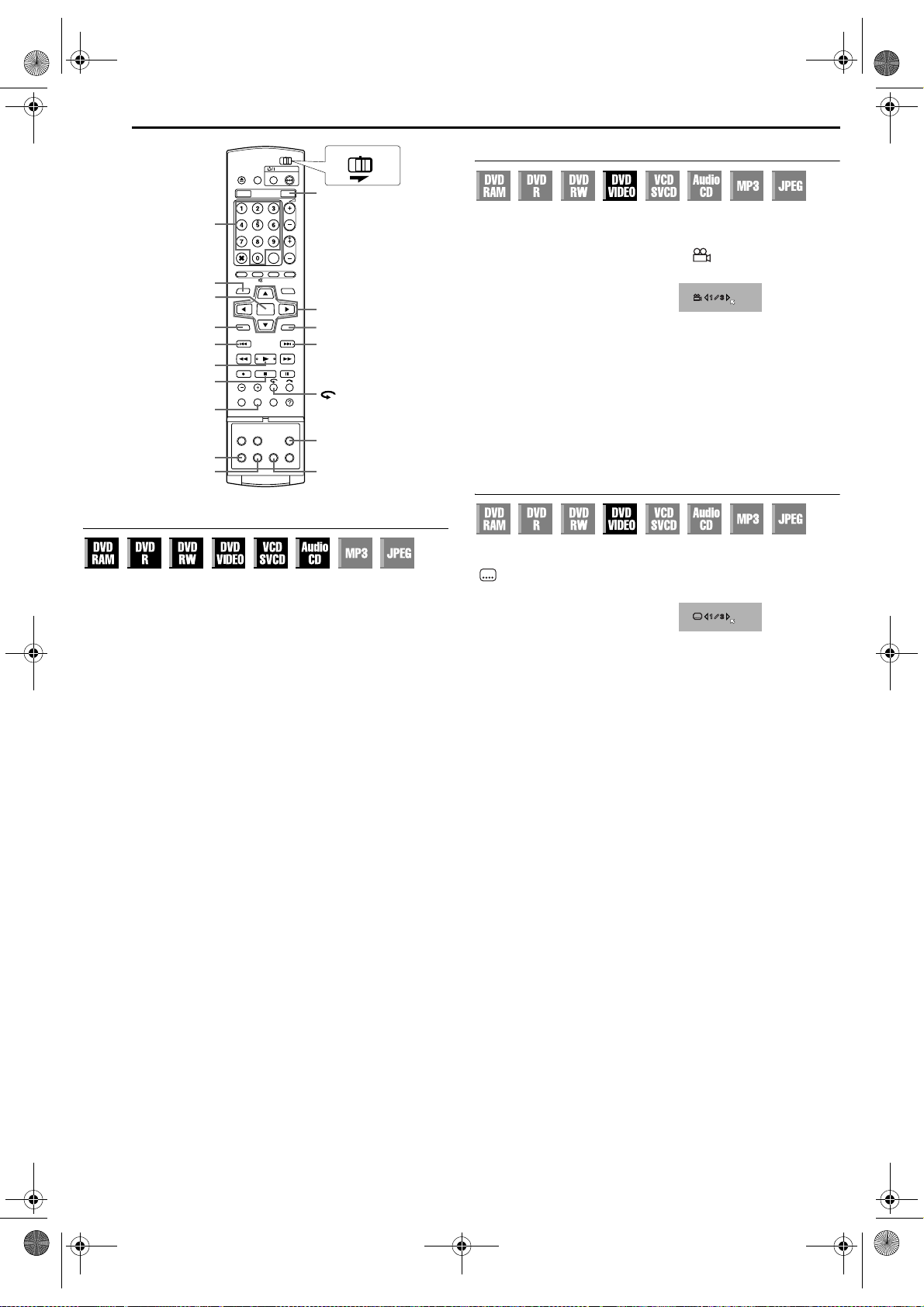

BASIC OPERATIONS ON DVD DECK

DVD

0-9

TOP MENU

ENTER

DISPLAY

AUDIO

rtwe

RETURN NEXT

SET UP

ANGLESUBTITLE

CABLE/DBS

DVDTV

Checking The Time Information

You can check time information of a disc on the front display panel and the TV screen. Each press of DISPLAY changes the display as follows:

8 DVD-RAM/DVD-R/DVD-RW During recording

Clock time (front display panel only) ] Current title elapsed time ] Disc remaining time* ] (back to the beginning)

* only discs before finalising

● Clock time is displayed only when a recordable disc is played back.

During playback

Each title elapsed time ] Current title elapsed time ] Disc remaining time* ] (back to the beginning)

* only discs before finalising

In stop mode or during playback

● In FR mode, it is possible to set recording time in detail using we.

(墌 pg. 39)

● It is not possible to switch the recording mode during playback or while recording.

8 DVD VIDEO/Video CD/SVCD/Audio CD During playback

Current track elapsed time ] Current track remaining time ] Tota l elapsed time ] Total remaining time ] (back to the beginning)

In stop mode

0:00 ] Playback time of track 1 ] 0:00 ] Total length of a disc ] (back to the beginning)

NOTE:

When a PBC-compatible Video CD/SVCD disc is loaded, deactivate the PBC function. (墌 pg. 31)

Angle Selection

You can enjoy a variety of scene angles if a DVD VIDEO disc contains “multi-angle” parts, where the same scene was shot from different angles. If the disc contains “multi-angle” parts, “ ” appears on the TV screen at the beginning of the “multi-angle” part.

1 Press ANGLE during playback.

The angle selection display appears on the TV screen.

2 Press ANGLE or we to select

your desired angle.

● Each time you press ANGLE or

we, the angle changes.

● When “X” appears on the TV screen, the current scene is not

recorded from multiple angles. In addition, some discs prohibit angle selection.

● To clear the angle selection display, press ENTER. In addition, the angle selection display disappears automatically if no operation is done for 10 seconds.

When 3 scene angles are contained.

Subtitle Selection

Some DVD VIDEO discs contain more than one subtitle language, from among which you can choose the desired subtitle language. “ ” appears on the TV screen at the beginning of the part where more than one subtitle language are recorded.

1 Press SUBTITLE during

playback. The subtitle selection display appears on the TV screen.

● Each time you press SUBTITLE, the subtitle display is switched on and off.

When 3 subtitle languages are contained.

2 Press we to select your desired language.

● To clear the subtitle selection display, press ENTER.

NOTES:

● When “X” appears on the TV screen, no subtitle language is recorded.

● When the subtitle language won’t be changed with the procedure above, change the subtitle on a disc menu displayed by pressing MENU.

ENGLISH

Page 30 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 31 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Audio Language/Sound Selection

Some DVD VIDEO discs contain the multiple audio language or sound. You can select the desired audio language or sound. For some Video CD/SVCD discs, you can switch the audio channel to choose Karaoke either with or without the vocal.

1 Press AUDIO during playback.

The Audio Language/Sound selection display appears.

2 Press AUDIO or we to select

your desired audio language/ sound.

● Each time you press AUDIO or we, the audio language/sound

changes.

● To clear the Audio Language/Sound selection display, press ENTER.

NOTES:

● When “X” appears on the TV screen, no audio language is recorded.

● When the audio language won’t be changed with the procedure

above, change the audio on a disc menu displayed by pressing MENU.

● It is only possible to select the audio language in stop mode. The audio language cannot be selected during playback.

When 3 audio languages are contained.

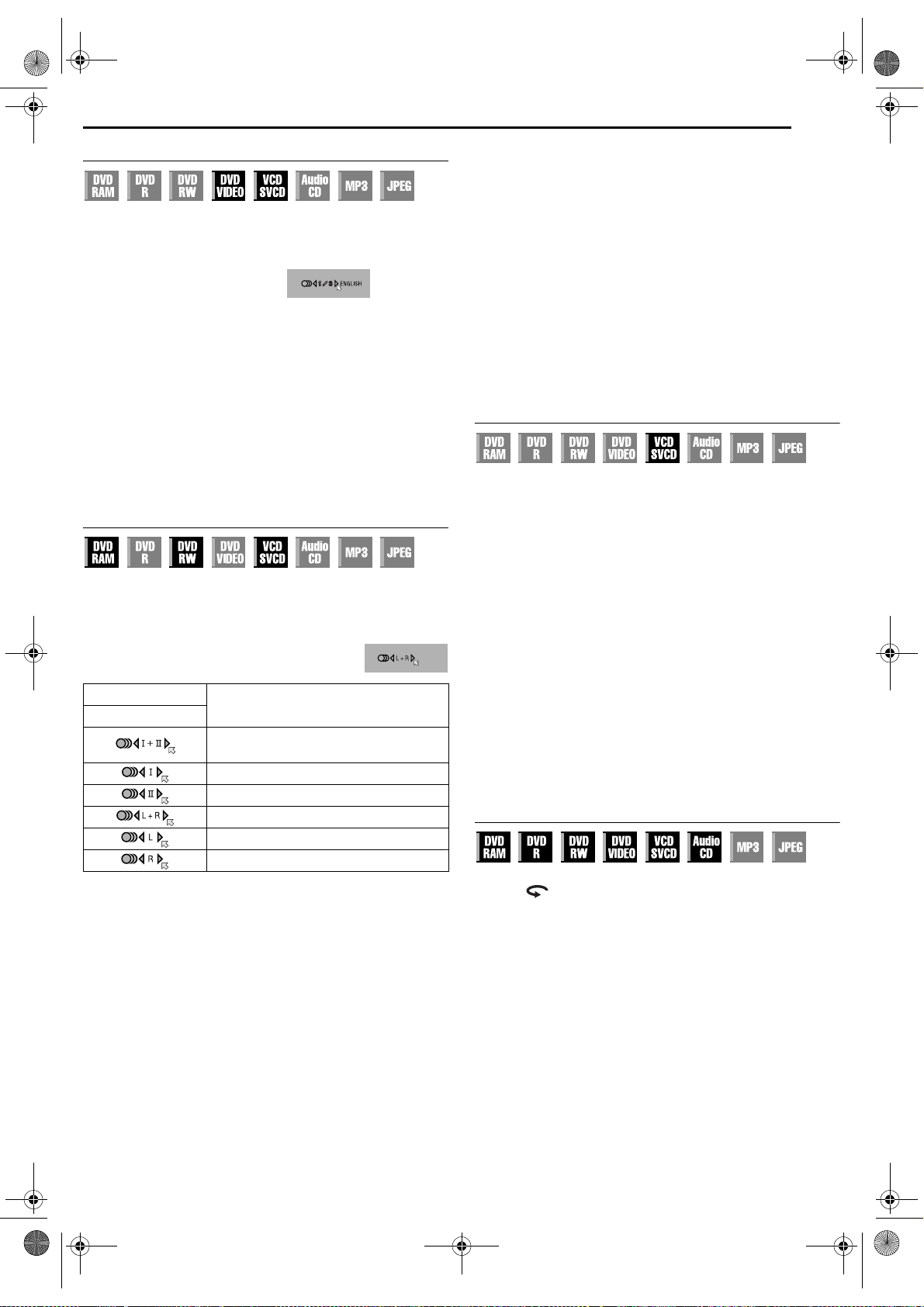

Audio Channel Selection

When watching bilingual programmes or playing discs on which you recorded bilingual or stereo programmes, you can choose the desired audio channel.

● When “SUPERIMPOSE” is set to “AUTO”, you can confirm on the TV screen the audio channel you have chosen. (墌 pg. 71)

● Each time you press AUDIO, the audio channel changes.

TRACK

On-Screen Display

For main and sub audio of bilingual programme

For main audio of bilingual programme

For sub audio of bilingual programme

For stereo discs

For audio of left channel

For audio of right channel

NOTE:

It is not possible for DVD-R/DVD-RW (Video mode) disc playback to switch the audio channel. The audio channel is played back as set in “VIDEO MODE RECORDING AUDIO” setting. (

USE

墌 pg. 70)

BASIC OPERATIONS ON DVD DECK

When you can’t switch the audio channel of a bilingual programme

When the unit is connected with a digital audio device using an optional optical cable and “DIGITAL AUDIO OUT” is set to “DOLBY DIGITAL/PCM”, it is not possible to switch the audio channel of a bilingual programme recorded on a DVD-RAM or DVD-RW (VR mode) disc. (墌 pg. 68) In this case, perform the following steps using the remote control to switch “DIGITAL AUDIO OUT” from “DOLBY DIGITAL/PCM” to “PCM ONLY”.

A Press SET UP to access the Main Menu screen. B Press we to select “DVD VIDEO SET UP”, then press ENTER. C Press we to select “AUDIO OUTPUT”, then press ENTER. D Press rt to select “DIGITAL AUDIO OUT”, then press

ENTER.

E Press rt to select “PCM ONLY”, then press ENTER. (墌 pg. 69)

F Press SET UP to complete the setting. G Press AUD IO to select the desired audio channel.

EN 31

Playback Control (PBC) Function

Some Video CD/SVCD discs support the PBC function. PBC is an abbreviation of “Play Back Control”. A Video CD/SVCD disc recorded with PBC has its own menus, such as a list of the songs on the disc. You can locate a specific scene by using the menu.

1 Press 4 in stop mode. The PBC menu appears. 2 Press the number keys to enter the number of the desired

scene. The unit starts playback of the selected item.

● “PBC” appears on the front display panel.

● When “NEXT” or “PREVIOUS” appears on the TV screen:

Pressing NEXT (6) advances to the next page. Pressing PREVIOUS (2) returns to the previous page.

● You can return to the menu by pressing RETURN.

● The method of the operation is different depending on the disc.

NOTES:

● If you want to playback a PBC-compatible Video CD/SVCD disc without activating the PBC function, start playback in stop mode by using the number keys, instead of the 4 button, to choose the track, then press ENTER.

● To activate the PBC function when a PBC-compatible Video CD/ SVCD disc is being played back without the PBC function, press TOP MENU, or press 8 then press 4.

To Move Back The Playback Position Slightly (One Touch Replay Function)

You can move back the playback position slightly.

1 Press .

● Each press skips back for approximately 7 seconds and resumes playback.

● Pressing while paused skips back for approximately 7 seconds and resumes pause.

Page 31 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 32 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

32 EN

BASIC OPERATIONS ON DVD DECK

Using The On-screen Bar

The on-screen bar allows you to control various playback functions. Some of the functions operated on Navigation Menu can be controlled on the On-screen bar.

TTENTION:

The on-screen bar can also be used for the HDD deck.

Be sure to clear Library Database Navigation screen by pressing NAVIGATION.

CABLE/DBS

DVDTV

CANCEL

ENTER

NAVIGATION

rtwe

A Disc type. B Select this for Repeat Playback. (墌 pg. 33)

C Select this for A-B Repeat Playback. (墌 pg. 33) D Select this for search function. (墌 pg. 33) E Select this for time search function. (墌 pg. 34) F Select this to switch Simulated Surround Effect function.

(墌 pg. 34)

G Select this for Picture Control function. (墌 pg. 34) H Select this to switch picture source type. (墌 pg. 35) I Current status area for the selected item. J Select this for Programme Playback. (墌 pg. 35) K Select this for Random Playback. (墌 pg. 35) L Select this to control the switching interval of the slide show.

(墌 pg. 35)

NOTE:

Although examples of the on-screen bar are provided here only for 3 types of discs, the on-screen bar will be displayed for whichever disc indicated in the left column.

Basic Operation On The On-screen Bar

Example: When selecting Picture Control function of DVD

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. The item

currently selected is highlighted and pointed by H.

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

DVD-

VIDEO

TITLE 99

CLEAR

ON SCREEN

How To Access The On-screen Bar

1 Press ON SCREEN twice whenever a disc is loaded.

Contents of the on-screen bar during playback

DVD VIDEO

TITLE 99

DVD-

VIDEO

Video CD/SVCD

VCD

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

TRACK 99 EACH 0:00

CINEMA

2 Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

DVD-

VIDEO

TITLE 99

3 Press rt to select the desired option, then press ENTER.

TITLE 99

DVD-

VIDEO

To clear the on-screen bar Press ON SCREEN.

NOTE:

See the corresponding pages for details on each menu item.

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

NORMAL CINEMA SHARP SOFT

JPEG disc

TRACK 99 EACH 179:59GROUP 99

5 SEC.

CINEMA

Page 32 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 33 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Repeat Playback

You can repeat playback as you like according to the type of disc.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

DVD-

VIDEO

TITLE 99

3 Press rt repeatedly to select the desired Repeat mode, then

press ENTER.

DVD-RAM/RW /R

OFF: Repeat playback is not performed. ALL REPEAT: The whole disc is played back repeatedly. TITLE REPEAT: The current title is played back repeatedly.

DVD VIDEO

OFF: Repeat playback is not performed. TITLE REPEAT: The current title is played back repeatedly. CHAPTER REPEAT: The current chapter is played back repeatedly.

Audio CD/Video CD/SVCD/JPEG/MP3

OFF: Repeat playback is not performed. ALL REPEAT: The whole disc is played back repeatedly. GROUP REPEAT*: The current group is played back repeatedly. TRACK REPEAT*: The current track is played back repeatedly.

* “GROUP REPEAT” cannot be selected for Audio CD and Video CD/SVCD

discs.

* “TRACK REPEAT” cannot be selected for JPEG discs.

To clear the on-screen bar Press ON SCREEN.

To cancel Repeat Playback

Repeat the above procedure from step 1, select “OFF” in step 3, then press ENTER.

NOTES:

● Repeat Playback is not possible for a Video CD/SVCD with PBC function.

● Repeat Playback may not work properly depending on the type of the disc being used.

A-B Repeat Playback

You can repeat the desired part.

During playback

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “ ”. 3 Press ENTER at the beginning of the desired part you want to

repeat (point A). The elapsed playing time of the point A appears.

TITLE 99

DVD-

VIDEO

AB1 : 25 : 58 : :

4 Press ENTER at the end of the desired part you want to repeat

(point B). The elapsed playing time of the point B appears.

● The selected part of the disc (between point A and B) is played repeatedly.

TITLE 99

DVD-

VIDEO

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

BASIC OPERATIONS ON DVD DECK

To clear the on-screen bar Press ON SCREEN.

To cancel A-B Repeat Playback Press we to select “ ”, then press ENTER.

NOTES:

● A-B Repeat Playback may not work properly depending on the type of disc being used.

● The subtitles recorded around the A-B point may not appear.

● When the end of the item is reached before the end point is set, the

on-screen bar disappears from the TV screen. In such a case, repeat the procedure from step 1.

● The point B must be set at least 3 seconds after the point A.

● When playing back a DVD, A-B Repeat Playback is possible only

within the same title.

● “ ” cannot be selected during Programme and Random Playback.

● “ ” cannot be selected while stopped.

EN 33

Locating The Beginning Of A Desired Selection

You can locate the beginning of a title, chapter, group or track.

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “ ”, then press ENTER. 3 Press rt to select the desired item, then press ENTER.

● Skip this step for Video CD/SVCD and Audio CD.

For DVD-RAM/RW/R, DVD VIDEO

“TITLE SEARCH” or “CHAPTER SEARCH” is selectable. (“TITLE SEARCH” only is selectable while stopped.)

For JPEG, MP3

“GROUP SEARCH” or “TRACK SEARCH” is selectable.

For Video CD/SVCD, Audio CD

“TRACK” is selectable.

TRACK 99 EACH 179:59GROUP 99

DVD-

VIDEO

TITLE SEARCH CHAPTER SEARCH

4 Press the number keys to enter the desired item number, then

press ENTER.

● Playback starts from the selected section.

Examples:

A To select track 5, press the number key “5”. B To select track 15, press the number key “1” and “5”. C To select track 25, press the number key “2”, then “5”.

If you have specified a wrong selection

Press CANCEL (&) or CLEAR (8) to clear the wrong number, then enter the correct one before you press ENTER in this step.

To clear the on-screen bar Press ON SCREEN.

NOTES:

● When “X” is displayed on the TV screen in step 4, the chapter you have selected is not contained in the disc, or chapter search does not work on the disc.

● Before you press ENTER, playback may start automatically when you enter the section’s number depending on the disc.

● This function is not possible for a Video CD/SVCD with PBC function.

CINEMA

AB1 : 25 : 58 1 : 40 : 00

Page 33 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 34 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

34 EN

BASIC OPERATIONS ON DVD DECK

0-9

CANCEL

ENTER

CLEAR

rtwe

ON SCREEN

CABLE/DBS

DVDTV

Time Search

You can play back a disc from the desired point by specifying the elapsed playing time from the beginning of a programme (DVDRAM, DVD-R, DVD-RW, DVD VIDEO and HDD) or a disc (Video CD/SVCD and Audio CD).

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

TITLE 99

DVD-

VIDEO

3 Press the number keys to enter the time, then press ENTER.

Playback starts from the specified time.

Example: To play back from a point 12 (minutes): 50 (seconds) elapsed.

TRACK 99 EACH 0:00

CINEMA AUTO 1

Press 1 Press 2

Press 0Press 5

Simulated Surround Effect

It is possible to get a simulated surround effect from your stereo system. You can enjoy the virtual surround sound with your 2-channel stereo system.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “ ”, then press ENTER.

● Above the selected item, “3D-ON” appears and Simulated Surround Effect is activated.

● Each time you press ENTER, “3D-ON” appears and disappears alternately.

TITLE 99

DVD-

VIDEO

To clear the on-screen bar Press ON SCREEN.

To cancel the simulated surround effect Press ENTER to clear “3D-ON” from the screen.

NOTES:

● Simulated Surround Effect works correctly only when playing back a title recorded in multichannels.

● Simulated Surround Effect does not affect the DVD VIDEO bitstream signal from the DIGITAL OUT connectors.

● When Simulated Surround Effect is activated, the settings of “ANALOG AUDIO OUT” and “D. RANGE CONTROL” are disabled. (墌 pg. 69)

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

Adjusting The Picture Quality

You can obtain optimal picture quality by selecting an appropriate picture mode.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

TITLE 99

DVD-

VIDEO

3 Press rt to select the desired option, then press ENTER.

NORMAL: Normally select this option. CINEMA: Suitable for a movie disc, etc. SHARP: Clearer, sharper-edged picture when viewing images with

lots of flat, same-coloured surfaces such as cartoons.

SOFT: Select this option when too much noise appears.

To clear the on-screen bar Press ON SCREEN.

TRACK 99 EACH 0:00

CINEMA AUTO 1

If you have specified a wrong selection,

Press CANCEL (&) (for the last entered number) or CLEAR (8) (for whole numbers) to clear the wrong number, then enter the correct one(s) before you press ENTER in this step.

To clear the on-screen bar Press ON SCREEN.

NOTES:

● When “X” is displayed on the TV screen in step 3, you have selected

a point that excesses the recording time of the disc.

● Some DVD VIDEO discs do not contain time information, and it is not

possible to use the Time Search function. In such cases, “X” is displayed on the TV screen as well.

● This function is not possible for a Video CD/SVCD with PBC function.

Page 34 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 35 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Setting The Progressive Mode

You can obtain optimal picture quality by selecting whether the content on the disc is processed by field (video source) or by frame (film source).

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

TRACK 99 EACH 0:00

3D-ON CINEMA AUTO 1

DVD-

VIDEO

TITLE 99

3 Press rt to select the desired option, then press ENTER.

AUTO 1: Used to play a disc containing both video and film source

materials. This system recognizes the source type (video or film) of the current disc according to the disc information. Normally select this option.

AUTO 2: Almost the same as the “AUTO 1”, but the processing of

the scenes with movement is different. Select “AUTO 1” or “AUTO 2” to your preference.

FILM: Suitable for playing back a progressive scanned film source

disc.

VIDEO: Suitable for playing back a video source disc. The outlines

on the played back pictures will be soft.

To clear the on-screen bar Press ON SCREEN.

NOTE:

When the progressive mode is set, be sure to set “L-1 OUTPUT” to “COMPONENT”. (墌 pg. 63) Progressive scan is output only from COMPONENT VIDEO OUT connector.

Programme Playback

BASIC OPERATIONS ON DVD DECK

EN 35

4 Press 4. Playback starts in the programmed order.

● When all of the programmed tracks have been played back, Programme Playback stops, but the programmed information remains.

● To add tracks to the end of the programme, perform steps 1 through

● During Programme Playback, pressing 6 skips to the next selection of the programme. Pressing 2 returns to the beginning of the current selection.

To clear the on-screen bar and the contents of the programme Press ON SCREEN.

To cancel Programme Playback Press we to select “PRGM”, then press ENTER.

NOTE:

Programme Playback is not possible depending on the type of disc.

Random Playback

You can play back all the tracks on the disc in random order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “RND”, then press ENTER. Playback starts

in random order.

TRACK 99 EACH 0:00

VCD

To clear the on-screen bar Press ON SCREEN.

To cancel Random Playback Perform steps 1 and 2.

NOTE:

The same track will not be played back more than once during Random Playback.

CINEMA

You can programme up to 8 tracks (DVD-RW (VR mode)) or 30 tracks (Video CD/SVCD or Audio CD) to play back in the desired order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “PRGM”, then press ENTER. The

programme table appears under on-screen bar.

TRACK 99 EACH 0:00

VCD

CINEMA

3 Press the number keys to

enter the track numbers in the desired order.

Examples: A To select track 5, press the number key “5” and ENTER. B To select track 15, press the number key “1” and “5”.

C To select track 25, press the number key “2” and “5”.

If you have specified a wrong selection

Press CANCEL (&). The last selection is erased. Or press CLEAR (8). The whole selection is erased.

Select The Switching Interval Of The Slide Show

You can control the switching interval of the slide show.

1 Press ON SCREEN twice to access the on-screen bar. 2 Press we to select “ ”, then press ENTER. The pop-up

window appears under the selected item.

TRACK 99 EACH 179:59GROUP 99

5 SEC.

3 Press rt to select the desired option, then press ENTER.

● Each time you press rt, the interval changes as follows: 5 SEC. { 10 SEC. { 15 SEC. { 20 SEC. { 25 SEC. { 30 SEC. { (Back to the beginning)

To clear the on-screen bar Press ON SCREEN.

CINEMA

Page 35 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 36 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

36 EN

BASIC OPERATIONS ON DVD DECK

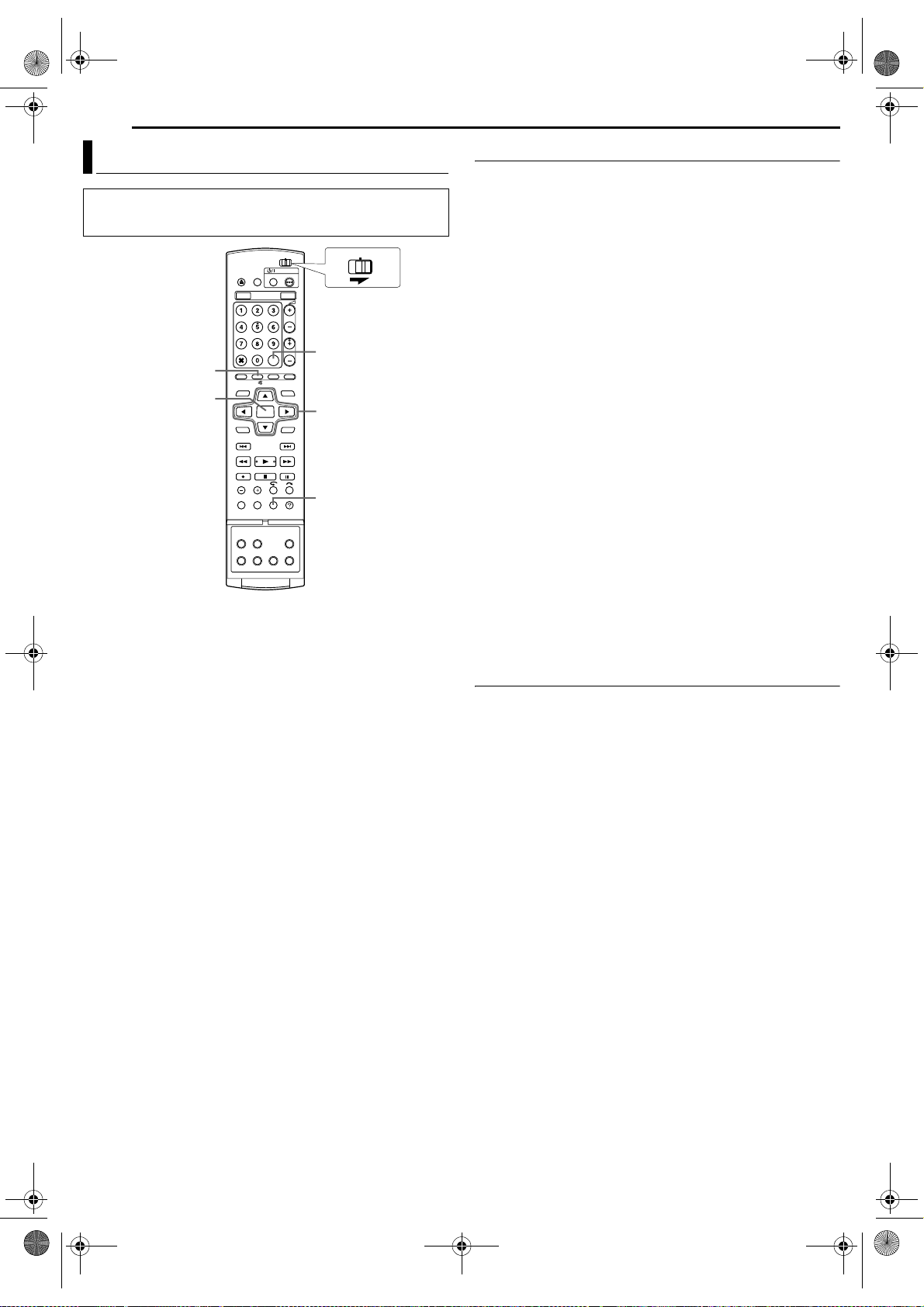

Parental Lock

This function restricts playback of DVD VIDEO discs which contain violent (and other) scenes according to the level set by the user. For example, if a movie which includes violent scenes supports the parental lock feature, such scenes which you do not want to let children view can be cut or replaced by other scenes.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press DVD so that the DVD lamp lights up on the unit.

CABLE/DBS

DVDTV

DVD

0-9

ENTER

To Set Parental Lock For The First Time

While stopped

1 Press SET UP to access the Main Menu screen. 2 Press we to select “DVD VIDEO SET UP”, then press ENTER. 3 Press we to select

“PARENTAL LOCK”, then press ENTER.

LANGUAGE SET

PARENTAL LEVEL

COUNTRY CODE

rtwe

SET UP

AUDIO OUTPUT

INITIAL SET UPHDD/DVD SET UP FUNCTION SET UPDVD VIDEO SET UP

PARENTAL LOCK DISC PLAY SET UP

NONE

9 Press the number keys to enter the same password as in

step 6 above, then press ENTER.

10 Press SET UP twice to complete the setting.

NOTE:

Remember your password, or make a note of it.

To Change The Settings

You can change the Parental Lock settings later.

1 Perform steps 1 to 3 of “To Set Parental Lock For The First

Time” to access the “PARENTAL LOCK” screen before continuing.

To change the level

2 Press rt to select “PARENTAL LEVEL”, then press ENTER. 3 Press rt to select the desired level, then press ENTER.

To change the country code

4 Press rt to select “COUNTRY CODE”, then press ENTER. 5 Press rt to select your country code, then press ENTER.

● See “Country/Area Code List for Parental Lock” (墌 pg. 85).

6 Press the number keys to enter the same password as in

step 6 of “To Set Parental Lock For The First Time”, then press ENTER.

7 Press SET UP twice to complete the setting.

NOTE:

If you forget your password, enter “8888” in step 6.

To Temporarily Release Parental Lock

When you set the Parental Lock level strictly, some discs may not be played back at all. When you insert such a disc and try to play it back, the confirmation screen appears on the TV screen, asking you whether you want Parental Lock to be temporarily released or not.

1 Load a disc.

● If the disc is rated higher than the selected level, the confirmation screen appears.

2 Press we to select “YES”, then press ENTER.

● If you select “NO”, you cannot play back that disc.

3 Press the number keys to enter the same password as in

step 6 of “To Set Parental Lock For The First Time”, then press ENTER.

● When you enter the correct password, the Parental Lock is released and the unit starts playback.

● If you enter a wrong password, “ENTRY ERROR” appears on the TV screen. Enter the correct password.

● If you have successively entered wrong password three times, “ENTRY ERROR CAN NOT CHANGE PASSWORD” appears on the TV screen. In such a case, press ENTER. The disc will stop. Then play back the disc again, and try the procedure again from step 1.

NOTE:

If you forget your password, enter “8888” in step 3.

ENTER

4 Press rt to select

“PARENTAL LEVEL”, then press ENTER.

5 Press rt to select the desired

SET UP

LANGUAGE SET

EXIT

PARENTAL LEVEL

COUNTRY CODE

SELECT

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

AUDIO OUTPUT

PARENTAL LOCK DISC PLAY SET UP

INITIAL SET UPHDD/DVD SET UP FUNCTION SET UPDVD VIDEO SET UP

NONE

level, then press ENTER.

● The smaller the value of level is, the more restrictive the Parental Lock level becomes.

SET UP

ENTER

EXIT

SELECT

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

● Select “NONE” to cancel the restriction.

6 Press the number keys to enter your desired four-digit number,

then press ENTER.

● If you made a mistake, enter a correct number again.

7 Press rt to select “COUNTRY CODE”, then press ENTER. 8 Press rt to select your country code, then press ENTER.

● If you do not need to change your country code, jump to 10.

● See “Country/Area Code List for Parental Lock” (墌 pg. 85)

Page 36 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 37 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

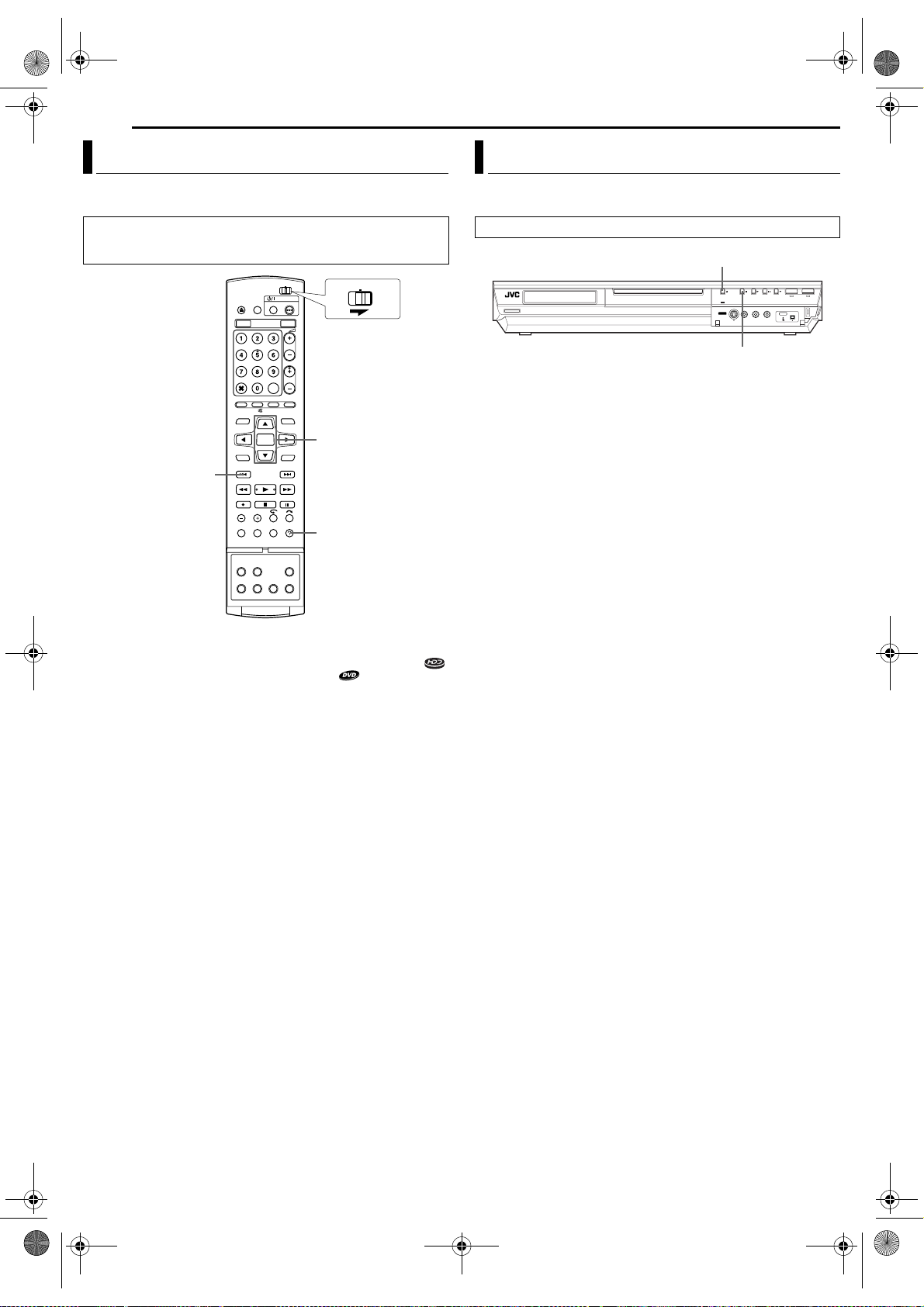

Basic Recording

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

TTENTION:

It is not possible to record programmes on a DVD-R disc which has already been finalised.

DVD

CABLE/DBS

DVDTV

DVD

0-9

PR+/

7 8

REC MODE

BASIC OPERATIONS ON DVD DECK

EN 37

NOTES:

● It is recommended to format a DVD-RAM disc before use if you use the disc on this unit for the first time.

● When using a brand-new DVD-RW disc, format the disc either in VR mode or in Video mode. (墌 pg. 76)

● Recordings made on DVD-R/RW disc must be finalised to play back on other DVD players. Perform “Finalise A Disc (DVD Deck Only)” (墌 pg. 77).

● You can record up to 99 programmes and 999 play lists on each disc.

● Some programmes can only be recorded one time.

● When recording is started, an index of the first part of recording is

automatically recorded. (墌 pg. 51) To record satellite programmes, refer to page 50. To delete the index, refer to page 53.

● Recording sometimes may stop or cannot be performed even if there is enough available capacity remaining on the disc.

Recording Mode

MPEG2 format is used as recording format. As a guide for picture quality, the “bps” unit is used to represent how much data can be recorded per second. The larger this value is, the better the picture quality becomes but more capacity is required for the recording. Select XP or SP for programmes where quick movement occurs, such as sports programmes, and LP or EP for talk shows, etc. with relatively less movement. The recording modes for a 4.7 GB disc are set as follows:

Recording

mode

Recording amount

(approx.)

Maximum recording

time (approx.)

XP 10 Mbps 1 hour

SP 5 Mbps 2 hours

LP 2 Mbps 4 hours

EP 1.6 Mbps 6 hours

FR60–FR360

(墌 pg. 39)

FR420 7 hours

The amount varies depending on the selected time.

1 – 6 hours

FR480 8 hours

● For details on FR mode, refer to “Free Rate Function” (墌 pg. 39)

Recording Resume Function

If there is a power outage during recording, Instant Timer Recording (ITR) (墌 pg. 38) or timer recording (墌 pg. 46, 48), the recording will resume automatically when power is restored to the unit unless the unit’s memory backup has expired.

1 Load a recordable disc.

● For details, refer to “Placing A Disc” (墌 pg. 9).

2 Press DVD so that the DVD lamp lights up on the unit. 3 Press PR +/– or the number keys to select the channel you

wish to record.

4 Press REC MODE repeatedly to set the recording mode.

● Each time you press REC MODE, the recording mode changes as follows: XP ] SP ] LP ] EP ] FR60–FR360* ] FR420, FR480] (Back to the beginning)

* The value is selectable from 1 to 6 hours in 5-min. increment by

● For details on the recording mode, see the right column.

pressing value in 30-min. increments, press and hold

repeatedly after selecting “FR60–FR360”. To change the

5 Press 7 on the unit to start recording. Or press and hold 7 and

press 4 on the remote control.

6 Press 7 and 9 to pause recording.

● To resume recording, press 4.

7 Press 8 twice to stop recording.

● It takes about 10 seconds to end the writing session when you stop recording.

Page 37 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

DR-MH30EU_00.book Page 38 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

38 EN

BASIC OPERATIONS ON DVD DECK

Recording Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press DVD so that the DVD lamp lights up on the unit.

CABLE/DBS

TV AV/ VIDEO

DVD

PR+/

7 DVD

DVDTV

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the unit off after recording is finished.

1 Press 7 on the unit to start recording. 2 Press 7 again to engage the ITR mode.

● On the front display panel, “0:30” appears.

3 If you want to record for more than 30 minutes, press 7 to

extend the time. Each press extends recording time by 30 minutes.

NOTES:

● You can only perform ITR using the 7 button on the unit.

● If “DIRECT REC” is set to “ON” in the menu, Instant Timer Recording

(ITR) function does not work. (墌 pg. 70)

● When the recording capacity becomes full during timer recording or Instant Timer Recording, the unit automatically performs “Relief Recording” (墌 pg. 48).

Watch Another Programme While Recording On The Unit

While recording is going on, you can watch another programme on the TV by using the TV’s tuner.

NOTE:

It is required that the remote control is set to be able to operate the TV in advance. (

1 During recording, press TV AV/VIDEO to select TV mode.

● Video mode is disengaged and the video lamp (VIDEO) on the unit is turned off.

● The programme received on the TV’s tuner is displayed on the TV screen.

2 Slide the TV/CABLE/SAT/DVD switch to TV. 3 Press PR +/– repeatedly to select the desired channel.

墌 pg. 65)

DISPLAY

Elapsed Recording Time And Disc Remaining Time Indication

During recording, press DISPLAY repeatedly until the desired indication appears on the front display panel.

● Each time you press DISPLAY, the time indication changes as follows: Elapsed recording time ] Disc remaining time ] Clock ] (Back to the beginning)

Page 38 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_05DVD Operation.fm]

A:1st

DR-MH30EU_00.book Page 39 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

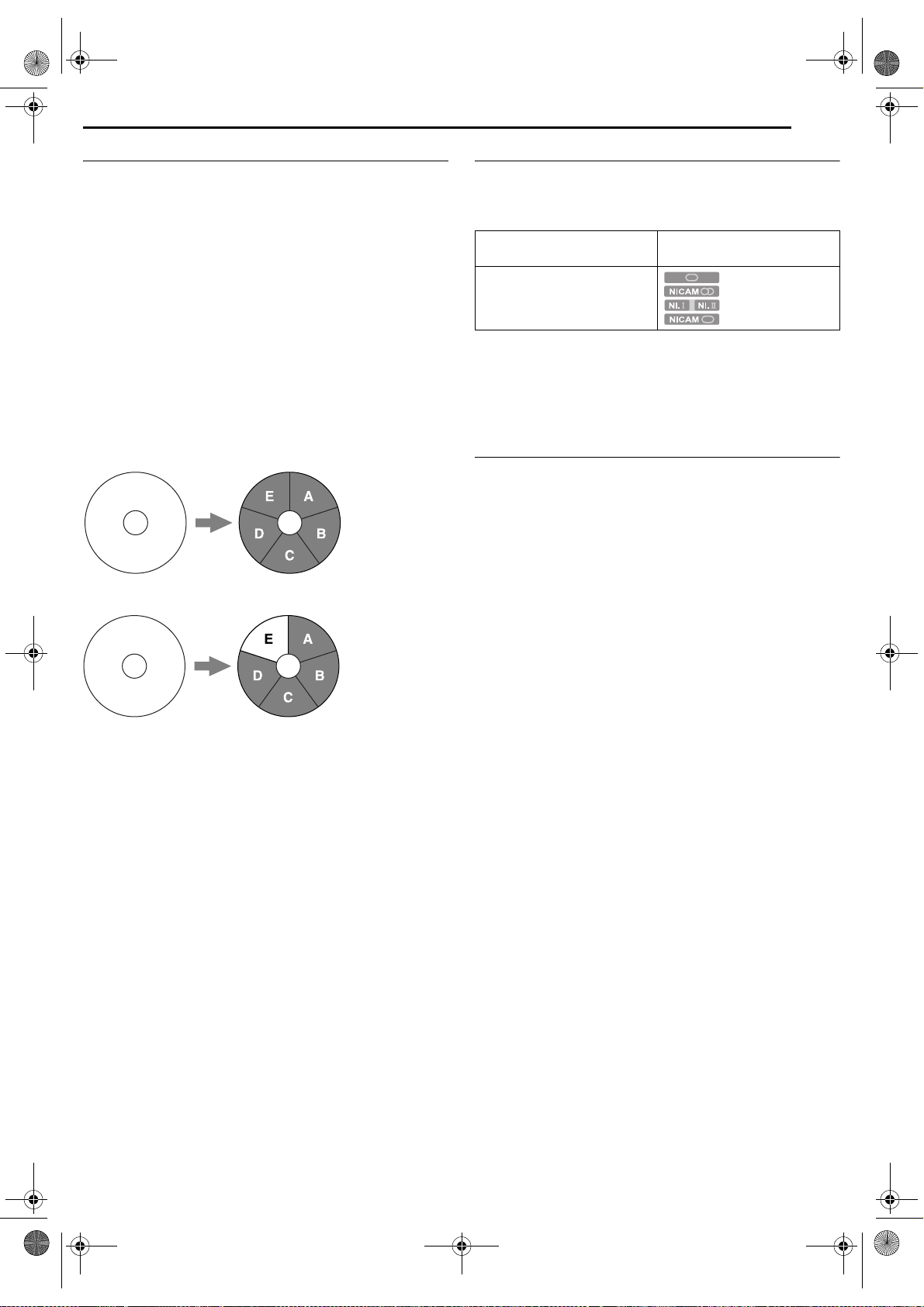

Free Rate Function

To record the entire programme, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the programme to be recorded and either the remaining disc space or the specified recording time (from 60 minutes to 480 minutes).

8 To record the entire programme within the actual remaining disc space (DVD deck only)

Select “FR (JUST)” in a recording mode selection procedure.

● Note that this function is available only for timer programming recording (墌 pg. 46, 48) and dubbing from HDD to DVD (墌 pg. 58).

8 To record the entire programme by specifying the desired recording time

Select “FR60–FR360”, “FR420” or “FR480” in a recording mode selection procedure. (墌 pg. 37, 40, 46, 48)

8 To record a 25-min. long daily programme five times just on the same DVD disc for example

Perform “VIDEO Plus+ procedure. Be sure to set the recording mode to “FR125” and set Weekly/Daily Rec Function to “MON–FRI” in step 8 to fit the total recording time to the whole disc space.

Blank

When the same programme is recorded in SP mode instead of in “FR125”, the 5th programme cannot be recorded.

Blank

Timer Programming” (墌 pg. 46)

B: 2nd C: 3rd D: 4th E: 5th

A: 1st B: 2nd C: 3rd D: 4th E: Blank (20 min.)

BASIC OPERATIONS ON DVD DECK

EN 39

Receiving Stereo And Bilingual Programmes

Your unit is equipped with a Digital stereo sound decoder (NICAM) making reception of stereo and bilingual broadcasts possible. When the channel is changed, the type of broadcast being received will be displayed on the TV screen for a few seconds.

Type of Broadcast Being Received

On-screen Display

Regular Monaural NICAM Stereo NICAM Bilingual NICAM Monaural

NOTES:

● “SUPERIMPOSE” must be set to “AUTO”. Otherwise the on-screen displays will not appear. (墌 pg. 71)

● If the quality of stereo sound being received is poor, the broadcast might be received in monaural with better quality.

Selection Of The Audio Channel To Be Recorded On A Disc

When a programme is recorded on a DVD-RAM or DVD-RW disc in VR mode, all audio channels of the receiving programme are recorded on the disc. When you record a programme on a DVD-R or DVD-RW disc in video mode, select the desired audio channel (“NICAM” or “MONO”) to be recorded on the disc. (墌 pg. 70)

NOTE:

Before playing back a programme recorded in stereo, or a bilingual programme, refer to “Audio Channel Selection” on page 31.

NOTES:

● You can programme this unit to timer-record, regardless of the disc remaining time. When the disc remaining time is not enough, the unit performs “Relief Recording” ( the disc remaining time before setting timer-programming. (Example) If you programmed to timer-record for 60 minutes in SP mode on a 120-minute disc, the disc remaining time would be 30 minutes in XP mode, 60 minutes in SP mode, 120 minutes in LP mode, 180 minutes in EP mode, and 240 minutes in FR480 mode. Timer-recording will not complete beyond these remaining times.

● The maximum recording time of FR (JUST) mode is the same as the recording time of FR480 mode. When timer-programming a long programme in FR (JUST) mode on a disc whose remaining time is short, it is recommended checking the disc remaining time in FR480 mode to see if the remaining time is enough for the programme.

● Even if more than one programme are timer-programmed in FR (JUST) mode, only the first one is recorded.

● In order to ensure that the recording fits on the disc, this feature may leave a slight non-recorded section at the end of the disc.

● There may be some noise and sound disturbance at the point on the disc where the unit switches the mode.

墌 pg. 48). To avoid this, make sure of

Page 39 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_06HDD Operation.fm]

DR-MH30EU_00.book Page 40 Thursday, June 3, 2004 11:00 AM

Masterpage:Left0

40 EN

BASIC OPERATIONS ON HDD DECK

Basic Recording

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

TTENTION:

The HDD on the unit requires approximately 20 seconds to start up after the unit has been turned on, during which no operation can be made.

HDD

8 7

CABLE/DBS

DVDTV

HDD

0-9

PR+/

Pause recording on HDD deck

It is not possible to pause recording. Pressing 9 initiates Live Memory Playback. However, it is still possible to pause recording only when recording the channels of external sources (“L-1”, “L-2”, “F-1”, and “DV”). Press and hold 7, then press 9 on the remote. To resume recording, press and hold 7, then press 4 on the remote. No operation can be made with the buttons on the unit.

Recording Mode

Recording

mode

Recording amount

(approx.)

Maximum recording

time (approx.)

XP 10 Mbps 1 hour

SP 5 Mbps 2 hours

LP 2 Mbps 4 hours

EP 1.6 Mbps 6 hours

FR60–FR360

(墌 pg. 39)

FR420 7 hours

The amount varies depending on the selected time.

1 – 6 hours

FR480 8 hours

● For details on FR mode, refer to “Free Rate Function” (墌 pg. 39)

8 7

REC MODE

1 Press HDD so that the HDD lamp lights up on the unit. 2 Press PR +/– or the number keys to select the channel you

wish to record.

3 Press REC MODE repeatedly to set the recording mode.

● Each time you press REC MODE, the recording mode changes as follows: XP ] SP ] LP ] EP ] FR60–FR360* ] FR420, FR480] (Back to the beginning)

* The value is selectable from 1 to 6 hours in 5-min. increment by

● For details on the recording mode, see the right column.

pressing value in 30-min. increments, press and hold

repeatedly after selecting “FR60–FR360”. To change the

4 Press 7 on the unit to start recording. Or press and hold 7 and

press 4 on the remote control.

5 Press 8 twice to stop recording.

● Pressing 8 once displays the confirmation message to stop recording. Press 8 again to terminate recording.

NOTE:

Continuous recording for over 48 hours is not possible.

Recording Resume Function

If there is a power outage during recording, Instant Timer Recording (ITR) (墌 pg. 41) or timer recording (墌 pg. 46, 48), the recording will resume automatically when power is restored to the unit unless the unit’s memory backup has expired.

Page 40 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_06HDD Operation.fm]

DR-MH30EU_00.book Page 41 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Recording Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press HDD so that the HDD lamp lights up on the unit.

CABLE/DBS

TV AV/ VIDEO

HDD

PR+/

BASIC OPERATIONS ON HDD DECK

EN 41

Watch Another Programme While Recording On The Unit

While recording is going on, you can watch another programme on the TV by using the TV’s tuner.

NOTE:

It is required that the remote control is set to be able to operate the TV

HDD

in advance. (墌 pg. 65)

1 During recording, press TV AV/VIDEO to select TV mode.

● Video mode is disengaged and the video lamp (VIDEO) on the unit is turned off.

● The programme received on the TV’s tuner is displayed on the TV screen.

2 Slide the TV/CABLE/SAT/DVD switch to TV.

DVDTV

3 Press PR +/– repeatedly to select the desired channel.

Elapsed Recording Time And Disc Remaining Time Indication

During recording, press DISPLAY repeatedly until the desired indication appears on the front display panel.

● Each time you press DISPLAY, the time indication changes as follows: Elapsed recording time ] Disc remaining time ] Clock ] (Back to the beginning)

Receiving Stereo And Bilingual Programmes

DISPLAY

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the unit off after recording is finished.

1 Press 7 on the unit to start recording. 2 Press 7 again to engage the ITR mode.

● On the front display panel, “0:30” appears.

3 If you want to record for more than 30 minutes, press 7 to

extend the time. Each press extends recording time by 30 minutes.

NOTES:

● You can only perform ITR using the 7 button on the unit.

● If “DIRECT REC” is set to “ON” in the menu, Instant Timer Recording

(ITR) function does not work. (

● When the recording capacity becomes full during timer recording or Instant Timer Recording, the unit is automatically shut off.

墌 pg. 70)

Type of Broadcast Being Received

Regular Monaural NICAM Stereo NICAM Bilingual NICAM Monaural

NOTES:

● “SUPERIMPOSE” must be set to “AUTO”. Otherwise the on-screen displays will not appear. (墌 pg. 71)

● If the quality of stereo sound being received is poor, the broadcast might be received in monaural with better quality.

On-screen Display

Selection Of The Audio Channel To Be Recorded On A Disc

NOTE:

Before playing back a programme recorded in stereo, or a bilingual programme, refer to “Audio Channel Selection” on page 31.

Page 41 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_06HDD Operation.fm]

DR-MH30EU_00.book Page 42 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

42 EN

BASIC OPERATIONS ON HDD DECK

Basic Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

HDD

ENTER

849

CABLE/DBS

Playback Features

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

HDD

DVDTV

● Press HDD so that the HDD lamp lights up on the unit.

CABLE/DBS

HDD

5/SLOW + 3/SLOW 9

DVDTV

SELECT

TTENTION:

● It may take a few seconds to start playback. This is not a malfunction.

● Forward/reverse high-speed search and other operations cannot be performed while playback is stopped.

1 Press HDD so that the HDD lamp lights up on the unit. 2 Press 4 to start playback.

● The Library Database Navigation also enables you to search and select the desired programmes. (

墌 pg. 52)

3 Press 9 to pause playback.

● To resume normal playback, press 4.

4 Press 8 to stop playback.

NOTE:

When the Library Database Navigation screen appears, choose a thumbnail image of the desired title on the TV screen, then press SELECT(4) or ENTER. (墌 pg. 52)

High-Speed Search

During playback, press 5 for forward high-speed search, or 3 for reverse high-speed search.

● Each press of the button increases the search speed for each direction.

● To resume normal playback, press 4.

Still Picture/Frame-By-Frame Playback

1 Press 9 to pause during playback. 2 Press SLOW – (3) or SLOW + (5) to activate frame-by-

frame playback.

● Each press of SLOW – (3) or SLOW + (5) advances/reverses the still picture frame by frame.

● To resume normal playback, press 4.

Slow Motion

1 Press 9 to pause during playback. 2 Press SLOW – (3) or SLOW + (5) for 2 or more seconds.

● Each press of SLOW – (3) or SLOW + (5) increases the slow motion speed for each direction (from 1/16 to 1/2 times the normal speed).

Skip Search

During playback, press .

● Each press initiates an approximately 30-second period of fastmotion playback. Normal playback resumes automatically.

Page 42 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_06HDD Operation.fm]

DR-MH30EU_00.book Page 43 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

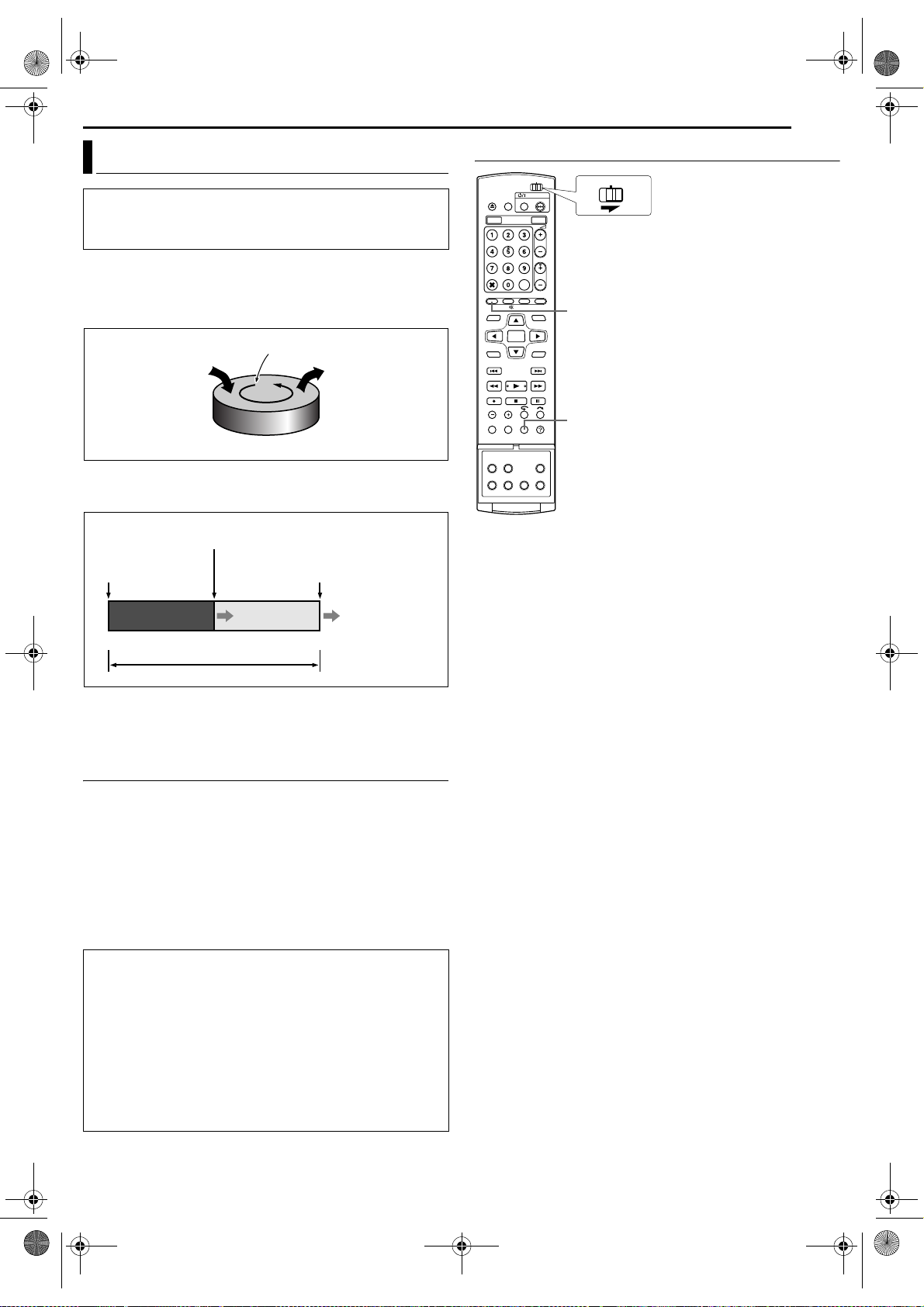

Live Memory Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press HDD so that the HDD lamp lights up on the unit.

This unit records pictures onto the hard disc, instead of video tapes, then plays back the pictures recorded on the disc. This makes it possible to achieve high-speed writing and read-out that has not been possible with conventional VCRs, enabling recording and playback simultaneously.

High-speed spin

(High-speed writing)

Recording

Image figure of the hard disc

It is called “Live Memory Playback” to start playback of the programme being recorded, with a time-lag between a recording point and a playback point, as shown in the figure below.

Current playback point

(Live Memory Playback)

Current recording position

Playback continues

(Recording point)

Recording start point

0 30 min. 1 hour

Currently elapsed recording time

Not only can this unit play back a programme previously recorded while recording or timer recording another programme, but the unit also allows you to play back from the beginning of a programme while continuing to record the same programme.

Temporary recording for Live Memory

This unit automatically records the channel being received, within the specified range of time, to the reserved space on the hard disc. The time range can be set for 30 minutes, 1 hour, and 3 hours. (墌 pg. 70)

NOTE:

Previous temporary recordings will be overwritten since the unit is always recording the channel being received. Thus, it is not possible to play back TV programmes recorded beyond the specified range of time since they are already overwritten. To avoid this in order to save titles, perform normal recording (墌 pg. 40), timer recording (墌 pg. 46, 48), or Live Memory Recording (墌 pg. 45).

Playback (High-speed read-out)

Recording continues

BASIC OPERATIONS ON HDD DECK

EN 43

Recording/playback Status Display

CABLE/DBS

DVDTV

LIVE

ON SCREEN

Live Memory Playback status can be checked by pressing ON SCREEN to display the bar meter on the superimpose display. The current status is superimposed on the TV screen. ( using Live Memory playback”)

NOTES:

● Live Memory Playback cannot be performed for approximately 30 seconds after recording has started.

● Although high-speed search up to approximately 30 seconds before the current recording point is possible during Live Memory Playback, once the current recording point is reached, the unit resumes normal playback and maintains a delay of approximately 30 seconds so that recording and playback can continue.

● When using Live Memory Playback during timer recording, playback continues even after the end of the recording.

● When using Live Memory Playback during timer recording, playback is automatically stopped just before recording starts, and then recording starts when the time arrives for the next timer-programme.

● It is impossible to perform ITR even if you press 7 during Live Memory Playback. (墌 pg. 41) Press 8 to display the programme being recorded, then perform ITR settings.

● Playback may be paused for a moment during Live Memory Playback, which does not interfere with recording.

● Live Memory Playback cannot be performed while recording the source from DV input. (

● When LIVE CHECK is pressed to display the picture currently being recorded, the picture size may not be correct.

● Press 7 or LIVE to stop Live Memory Playback.

墌 pg. 60, “DV Dubbing (HDD Deck Only)”)

墌 pg. 17, “When

About limitation on temporary recording

The temporary recording for Live Memory is cancelled in the following cases, and will start all over again when it is to resume.

● When the power is turned off

● When the system is powered again after a power failure was

occurred

● When normal recording, timer recording, Live Memory Recording, or Automatic Satellite Programme Recording ( performed

● When the “LIVE MEMORY” setting is changed (

● When tuner channel setting is performed (

● When dubbing is performed by pressing DUBBING (

● When “DV” is selected by pressing PR +/– (墌 pg. 60)

墌 pg. 50) is

墌 pg. 70)

墌 pg. 72)

墌 pg. 58)

Page 43 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_06HDD Operation.fm]

DR-MH30EU_00.book Page 44 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

44 EN

BASIC OPERATIONS ON HDD DECK

Buttons To Be Used During Live Memory Playback

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press HDD so that the HDD lamp lights up on the unit.

CABLE/DBS

DVDTV

HDD

C E

G H

D F I

A LIVE

Returns to on air programme screen. When a confirmation message appears by pressing this button during timer programming or title editing, etc., follow the instruction to return to the previous screen.

B NAVIGATION

Displays Library Database Navigation menu. You can choose a title to play back.

C 3

● Each press of the button during playback advances the playback speed in 5 steps for reverse direction.

Available only when paused

● Each press of the button reverses the still picture frame by frame.

● Pressing down for 2 or more seconds reverses playback at 1/16 times

the normal speed. Then, each press of the button reverses slowmotion at 1/16 times, 1/4 times and 1/2 times the normal playback.

D 5

● Each press of the button during playback advances the playback speed in 4 steps for forward direction.

Available only when paused

● Each press of the button advances the still picture frame by frame.

● Pressing down for 2 or more seconds advances playback at 1/16

times the normal speed. Then, each press of the button advances slow-motion at 1/16 times, 1/4 times and 1/2 times the normal playback.

E 8

● Pressing once during Live Memory Playback or Live Memory Recording returns to the screen on air.

● Pressing twice during recording stops recording and returns to the screen on air.

F 9

Pressing once pauses playback (still picture playback). Pressing repeatedly advances the still picture frame by frame.

G JUMP –

Each press of the button during playback or Live Memory Playback jumps back for the selected time interval and resumes playback. (墌 pg. 45, “Jump Search”)

H JUMP +

Each press of the button during playback or Live Memory Playback jumps forward for the selected time interval and resumes playback. (墌 pg. 45, “Jump Search”)

Pressing once skips forward for approximately 30 seconds and resumes playback. Pressing repeatedly skips forward continuously as many times as pressed. It is useful when skipping over unwanted sections.

Pressing once skips back for approximately 30 seconds and resumes playback. Pressing repeatedly skips back for approximately 7 seconds continuously as many times as pressed. It is useful when watching sports programmes, etc.

K LIVE CHECK

Pressing once displays the picture currently being recorded and the one being played back simultaneously. Pressing successively clears the Live Check window and displays only the picture currently being played back. You can check, for example, if the programme you are recording has already finished.

Page 44 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_06HDD Operation.fm]

DR-MH30EU_06HDD Operation.fm Page 45 Thursday, June 3, 2004 1:39 PM

Masterpage:Right+

To Play Back The Previous Part Of The Channel Currently Recording or Watching

You can play back the previous part of the channel you are recording or watching (temporarily recorded on the background) from the desired point. (墌 pg. 43, “Temporary recording for Live Memory”)

1 Press 2 or 3 to locate the point to start playback from.

● Each press of 3 increases the reverse search speed.

2 Press 4 to start Live Memory Playback. 3 Press 8 to stop Live Memory Playback.

● The on-air screen resumes.

NOTES:

● You can use various playback features during Live Memory Playback. (墌 pg. 42)

● If you have started actual recording by pressing 7, pressing 8 in step 3 only resumes the on-air screen. To stop actual recording, press 8 again.

To Record From The Previous Part Of The Channel Currently Watching (Live Memory Recording)

You can start recording from the previous part of the channel you are currently watching (temporarily recorded on the background). (墌 pg. 43, “Temporary recording for Live Memory”)

1 Press 2 or 3 to locate the point to start recording from.

● Each press of 3 increases the reverse search speed.

2 Press 7 on the unit to start Live Memory Recording. Or press

and hold 7 and press 4 on the remote control.

3 Press 8 to stop Live Memory Recording.

● The on-air screen resumes.

NOTES:

● You cannot use Live Memory Recording for channels other than the channel you are currently watching.

● Recording speed is automatically set to SP mode when Live Memory Recording is started.

● Temporarily recorded data prior to the beginning of Live Memory Recording is erased when Live Memory Recording started.

To Move Back The Playback Position Slightly While Recording (One Touch Replay Function)

You can move back the playback position while continuing to record or timer record.

Press .

● Each press skips back for approximately 7 seconds and resumes playback.

● Pressing while paused skips back for approximately 7 seconds and resumes pause.

BASIC OPERATIONS ON HDD DECK

EN 45

1.5x Speed Search

You can play back a title quickly without disrupting the soundtrack. (This feature can also be performed with normal playback.)

1 Press 3 to locate the point to start 1.5x speed search from. 2 Press 4 to resume playback. 3 Press 5 once.

● Pressing ON SCREEN displays “+X1.5” on the top right corner of the screen.

Jump Search

You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals (墌 pg. 70) during playback (or Live Memory Playback). This feature is also available during recording (or Live Memory Recording) or when watching a TV received programme. Press JUMP – or JUMP +.

● To advance forward or back, press JUMP – or JUMP + repeatedly within 5 seconds of each press to continue jump.

● When you cannot advance any farther (beginning or end of programme reached), the message “UNABLE TO GO BACK ANYMORE” appears on the screen and the on-air screen resumes. In such a case, press 2, 3 or 8.

Example 1:

Playback search when jump interval is set to 30 MIN jumps

Time counter 0 min

Beginning of programme

Example 2:

Recording search when jump interval is set to 15 MIN jumps

Clock time

9:00

Beginning of programme

9:15 9:30

40 min 1 h 15 min

30 min 1 h

Current scene

9:40

9:45 10:00

Current scene

End of programme

10:15

To Resume Playback Of A TV Broadcast From The Paused Point

You can resume playback of a TV broadcast you were recording or watching from the point you have paused.

1 Press 9 to pause a TV broadcast.

● Recording continues when recording.

2 Press 4 to start Live Memory Playback.

● Playback resumes from the paused position.

3 Press 8 to resume the on-air screen.

Page 45 Thursday, 3 June 2004 13:39

Filename [DR-MH30EU_07Timer Recording.fm]

DR-MH30EU_07Timer Recording.fm Page 46 Thursday, June 3, 2004 4:55 PM

Masterpage:Left0

46 EN

TIMER RECORDING

VIDEO Plus+® Timer Programming

You can programme this unit to timer-record as many as 32 programmes. With the VIDEO Plus+ system, timer programming is greatly simplified because each TV programme has a corresponding code number which your unit is able to recognize. You can use the remote control to enter the PlusCode number.

● Make sure that the unit’s built-in clock is set properly.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

0 – 9

CANCEL

PROGRAMME

ENTER

RETURN

CLEAR

DISPLAY

VPS/PDC#

7 The PlusCode number you entered and the matching timer-

recording information are displayed on the TV screen. Check the programme data.

● To cancel this setting, press RETURN.

IMPORTANT:

Make sure the channel position number you wish to record is displayed; if not, see “VIDEO Plus+® System Setup” (墌 pg. 72) and set the Guide Program number correctly.

8 Press rt to select the desired recording option as required.

Press rt to select the desired setting, then press ENTER.

● “INPUT TITLE” (墌 pg. 52, “Modify Title Name”)

● “CATEGORY” (墌 pg. 53, “Modify Category”)

● “VPS/PDC” (墌 pg. 47, “PDC Recording”)*

* VPS (Video Programme System) recording is not currently available in

the U.K. and not possible with this unit.

● “WEEKLY/DAILY” (墌 pg. 47, “Weekly/Daily Recording”)

● “REC MODE” (墌 pg. 37, “Recording Mode”)

9 Press rt to select “OK”, then press ENTER to access the

Programme Confirmation screen.

10 Press we to select “EXIT”, then press ENTER to complete

timer programming.

● To programme another timer, press we to select “CONTINUE”, then press ENTER.

● If “PROGRAMME OVERLAPPED” appears on the TV screen, see page 49.

NOTES:

● There may be cases that VIDEO Plus+ Timer Programming function prolongs the stop time of the programming.

● When two successive programmes are recorded on a DVD-RW disc with VIDEO Plus+ Timer Programming function, the beginning of the second one may be left off the recording.

● If the copy limited programme is received during timer-recording, the unit enters Record Pause mode. Recording starts again if it is switched to a recordable broadcast during the time you programmed.

1 Load a recordable disc if recording to DVD. 2 Press PROGRAMME to access the programme top screen. 3 Press rtw e to select “VIDEO Plus”, then press ENTER.

● When “PROGRAMME FULL DELETE UNWANTED TIMER PROGRAMMES” appears on the TV screen, you need to cancel some of the reserved programmes. (墌 pg. 49)

4 Press the number keys to

enter the PlusCode number of a programme you wish to record.

Press rtw e to select the desired number key on the screen, then press ENTER. Repeat to enter all needed

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [PROGRAM] TO EXIT

PROGRAM

PROGRAMME > VIDEO Plus+ (1/2)

PlusCode NO.

1234

12 456 789

DELETE

DELETE ALL

RECORD TO

ENTER

EXIT

SELECT

CONFIRM

DVD

numbers.

● If you have made a mistake, press CANCEL (&) and input the correct number before you press ENTER.

● To clear all entered numbers at a time, press CLEAR (8).

5 Press rt to select “RECORD TO”, then press ENTER. Press

rt to select the desired recording deck, then press ENTER.

6 Press rtw e to select “CONFIRM”, then press ENTER.

● If the number you entered is invalid, “PlusCode NO. ERROR CONFIRM PlusCode NO. THEN RETRY” appears on the TV screen. Input a valid PlusCode number.

● If “GUIDE PROGRAM IS NOT SET SET GUIDE PROGRAM THEN RETRY” appears on the TV screen, set Guide Program Numbers manually. (墌 pg. 72)

IMPORTANT:

If you have moved to a different area or if a broadcasting station’s channel number has been changed, the wrong programme number will be displayed on the VIDEO Plus+ programme screen in step 7. When this happens, set the correct Guide Program number for that station. (墌 pg. 72, “VIDEO Plus+® System Setup”)

Satellite Receiver Users

To timer-record a satellite broadcast using the VIDEO Plus+ system:

A Perform “Satellite Receiver Control Setting” (墌 pg. 25). B Perform “VIDEO Plus+

Timer Programming” (墌 pg. 46).

C Leave the satellite receiver’s power on.

Page 46 Thursday, 3 June 2004 16:51

Filename [DR-MH30EU_07Timer Recording.fm]

DR-MH30EU_00.book Page 47 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Weekly/Daily Recording

You can record programmes with one of the following weekly/daily timer settings.

For the HDD deck

When you select a mode other than ONCE, the space on the hard disk drive is saved for new recordings by overwriting previous recordings. To prevent loss of a needed recording, backup programmes you wish to save by dubbing them to DVD discs before overwriting previous recordings.

ONCE (One Time Recording)

In this mode a programme will not be automatically overwritten.

WEEKLY (OVERWRITE) (Weekly Recording/Weekly Overwrite)

When the set weekly programme is broadcast, the programme recorded last week is automatically deleted and overwritten by the new programme.

This week’s drama

Overwritten

MON–SUN (FOR A WEEK)/ MON–SAT (FOR A WEEK)/ MON–FRI (FOR A WEEK) (Daily Recording/Weekly Overwrite)

When the set weekly programme is broadcast, the programme recorded on the same day last week is automatically deleted and overwritten by the new programme.

This

Overwritten

week

Last

week

MON–SUN (OVERWRITE)/ MON–SAT (OVERWRITE)/ MON–FRI (OVERWRITE) (Daily Recording/Daily Overwrite)

When the set daily programme is broadcast, yesterday’s programme is automatically deleted and overwritten by the new programme.

Last week’s drama

MON TUE WED THU FRI

TIMER RECORDING

EN 47

PDC Recording

Now available from some TV stations, PDC (Programme Delivery Control) is a service designed to assure safe, accurate timer recording. With this system, special code signals are transmitted together with the audio/video signals. These code signals control your unit and have precedence over the advertised times which you may have preset into the timer. This means that your unit will start and stop recording when the preset TV programmes actually start and end — even if the broadcast time of a preset TV programme is changed from what has been advertised. PDC is currently available nationally on BBC1, BBC2, Ch.4 and Ch.5, except from a few small relay transmitters. Ch.3 operates a PDC service in some areas. All channels intend to offer this service in due course. Check your TV programme listing guide for latest information. If the channel you intend to record does not offer a PDC service your unit will not start recording if PDC has been selected. Be sure to set PDC to “OFF” if PDC is not available on your selected channel. (See step 8 on page 46.)

NOTES:

● Make sure to press VPS/PDC# after completing timer programming

procedure to activate the VPS/PDC recording function.

● When you use Manual Timer Programming, set the start time (PDC time) exactly as advertised in the TV listing. A different time than advertised will result in no recording.

● PDC recording is also possible when a satellite receiver or a cable system is connected to L-2 IN/DECODER connector on your unit.

● PDC recording is also possible via the L-1 IN/OUT connector.

Overwritten

Tuesday’s programme

Monday’s programme

For the DVD deck

ONCE (One Time Recording) WEEKLY (Weekly Recording) MON–SUN/ MON–SAT/ MON–FRI (Daily Recording)

Page 47 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_07Timer Recording.fm]

DR-MH30EU_00.book Page 48 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

48 EN

TIMER RECORDING

Manual Timer Programming

You can programme this unit to timer-record as many as 32 programmes. If you do not know the PlusCode number for the programme you wish to record, use the following procedure to set your unit to timer-record the programme.

● Make sure that the unit’s built-in clock is set properly.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

AUX

ENTER

PROGRAMME

rtwe

6 Press rt to select “START”, then press ENTER. Press rt to

set the desired start time, then press ENTER.

● Each press of rt advances/goes back the start time in 1-min. increments.

● To advance/go back the start time in 30-min. increments, press and hold rt.

7 Press rt to select “STOP”, then press ENTER. Press rt to

set the desired stop time, then press ENTER.

● Each press of rt advances/goes back the stop time in 1-min. increments.

● To advance/go back the stop time in 30-min. increments, press and hold rt.

8 Press rt to select “TV PROG”, then press ENTER. Press rt

to select the desired channel.

9 Press rt to select “CONFIRM”, then press ENTER. 10 Set the other recording options as required.

● Refer to step 8 in “VIDEO Plus+® Timer Programming” (墌 pg. 46).

11 Press rt to select “OK”,

then press ENTER to access the Programme Confirmation screen.

12 Press we to select “EXIT”,

then press ENTER to complete timer programming.

● To programme another timer, press we to select “CONTINUE”, then press ENTER.

● If “PROGRAMME OVERLAPPED” appears on the TV screen, see page 49.

NOTES:

● When two successive programmes are recorded on a DVD-RW disc with Manual Timer Programming function, the beginning of the second one may be left off the recording.

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [PROGRAM] TO EXIT

PROGRAM

ENTER

EXIT

SELECT

PROGRAMME > CALENDAR PROG. (3/3)

14/01/04 WED 22:30 - 23:00 BBC1

MON-FRI (FOR A WEEK)WEEKLY/DAILY

O K

[EDUCATION]GARDENING FR360

1:00 28:00

GARDENINGINPUT TITLE

EDUCATIONCATEGORY

OFFVPS/PDC

FR360REC MODE

1 Load a recordable disc if recording to DVD. 2 Press PROGRAMME to access the programme top screen. 3 Press rtw e to select “CALENDAR PR.”, then press ENTER.

● When “PROGRAMME FULL DELETE UNWANTED TIMER PROGRAMMES” appears on the TV screen, you need to cancel some of the reserved programmes. (墌 pg. 49)

4 Press rtw e to select the desired date, then press ENTER. 5 Press rt to select “RECORD

TO”, then press ENTER. Press rt to select the desired recording deck, then press ENTER.

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [PROGRAM] TO EXIT [0]: SAT

PROGRAM

EXIT

PROGRAMME > CALENDAR PROG. (2/3)

14/01/04 WED 22:30 - 23:00 BBC1

ENTER

SELECT

CONFIRM

HDDRECORD TO

22:30START

23:00STOP

BBC1TV PROG

[MISC. ] XP

Satellite Receiver Users

To timer-record a satellite broadcast using Manual Timer Programming:

A Perform “Satellite Receiver Control Setting” (墌 pg. 25). B Perform “Manual Timer Programming” (墌 pg. 48). In step 8,

press AUX to change “TV PROG” to “SAT”. Then press rt to enter the channel position for the satellite broadcast. C Leave the satellite receiver’s power on.

Relief Recording

When a programme that is set for the DVD deck cannot be recorded properly, the programme is recorded to the HDD deck instead in the same recording mode as set.

● If the remaining capacity of the hard disc is not sufficient, the programme is recorded to the DVD deck until the remaining capacity of the DVD disc lasts.

● If “JUST” is selected for the recording mode, the current recording mode for the DVD deck is applied.

Page 48 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_07Timer Recording.fm]

DR-MH30EU_00.book Page 49 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

CABLE/DBS

DVDTV

PROGRAMME

ENTER

rtwe

Check Programmes

To check the whole list of programmes

1 Press PROGRAMME to access the programme top screen. 2 Press rt to select “PROGRAM LIST”, then press ENTER.

● The details of a selected programme appear on the top of the screen.

● The daily programme of a title is listed as one programme.

To check the list of programmes by date

1 Press PROGRAMME to access the programme top screen. 2 Press rt to select “CALENDAR LIST”, then press ENTER. 3 Press rt to select the desired date, then press ENTER.

TIMER RECORDING

EN 49

When Programmes Overlap Each Other

If “PROGRAMME OVERLAPPED” appears, you have other programmes overlapping the programme you have just made. Confirm with the arrow on “MODIFY”, then press ENTER. Programme Overlap list appears.

Example: Five programmes overlap each other.

1 Confirm the overlapping

programmes. Overlapping programmes appear on the TV screen.

NOTE:

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [PROGRAM] TO EXIT

PROGRAM

If you do not mind this overlap, press PROGRAMME to finish the timer programme setting. The programme with the lower programme number will be recorded and the other one will not be recorded correctly. If no changes are made for approximately 1 minute, the unit will return to the normal screen.

2 Press rt to select the desired programme to be cancelled or

changed, then press ENTER.

3 Perform “Cancel And Change Programmes” (墌 pg. 49).

NOTE:

When any overlaps remain after deletion and modification of programmes, Programme Overlap list remains showing the conflicting programmes. In such a case, repeat the procedure above until the conflict is solved.

ENTER

EXIT

SELECT

PROGRAMME > CALENDAR PROG. (OVERLAP)

01/08/03 WED 22:30 - 24:00 DBS 100

[EDUCATION]GARDENING FR360

5 PROGRAM OVERLAPPED SELECT PROGRAM TO MODIFY

22:30- ADDS

21:00-

L-1

PR.

721:30-

PR.

1022:00-

BBC2

23:00-

Cancel And Change Programmes

● Repeat steps in “Check Programmes” to select a programme before proceeding.

To cancel the programme

1 Press rtw e to select “CANCEL”, then press ENTER.

To modify the programme settings

1 Press rtw e to select “MODIFY”, then press ENTER. 2 Change the settings of the desired recording options as

required.

● Refer to steps 4 – 12 in “Manual Timer Programming” (墌 pg. 48).

To skip the weekly/daily programmes to the next week/day

It is easy to temporarily cancel weekly/daily programmes of a week/day.

1 Press rtw e to select “PROGRAM SKIP”, then press ENTER. 2 Press we to select “SKIP”, then press ENTER twice.

To save the titles of weekly/daily programmes (HDD Deck Only)

Use this function to avoid overwriting titles of weekly/daily programmes of a previous week/day.

1 Press rtw e to select “TITLE SAVE”, then press ENTER. 2 Press we to select “SAVE”, then press ENTER twice.

NOTE:

This function is available only when the remaining capacity of the hard disc is sufficient.

Page 49 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_07Timer Recording.fm]

DR-MH30EU_00.book Page 50 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

50 EN

TIMER RECORDING

Automatic Satellite Programme Recording

This function allows you to automatically record a satellite programme which is timer-programmed on your external satellite receiver. Connect a satellite receiver to the unit’s L-2 IN/ DECODER connector and programme the timer on the satellite receiver. The unit starts or stops recording by the signals input from the satellite receiver. After recording, the unit’s power shuts off automatically.

TTENTION:

● When you record programmes by connecting to a digital terrestrial receiver (Freeview receiver or similar), perform the same steps as “Automatic Satellite Programme Recording” (墌 pg. 50). It is not possible to operate the digital terrestrial receiver (Freeview receiver or similar) by using the provided satellite controller.

● Be sure not to turn on the satellite receiver before the programme is executed; otherwise, the unit will start recording when the satellite receiver’s power is turned on.

● If you have connected another appliance other than a satellite receiver to the L-2 IN/DECODER connector, be sure not to engage the Automatic Satellite Programme Recording mode; otherwise, the unit will start recording when the connected appliance’s power is turned on.

● Automatic Satellite Programme Recording and timer-recording cannot be done at the same time.

HDD DVD

CABLE/DBS

DVDTV

HDD

DVD

● Make sure the satellite receiver is connected to the unit’s L-2 IN/ DECODER connector.

● Programme the timer on the satellite receiver.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

1 Press HDD or DVD to choose the recording deck. 2 Set “L-2 SELECT” to “SAT VIDEO” or “SAT S-VIDEO”.

(墌 pg. 63)

● Also refer to “IMPORTANT” on page 67.

3 Press REC MODE repeatedly to set the recording mode. 4 Press and hold SAT# for about 2 seconds to engage the

Automatic Satellite Programme Recording mode. “SAT#” appears on the front display panel.

NOTES:

● To disengage the Automatic Satellite Programme Recording mode,

press SAT#.

● If the unit’s power is off, it is not possible to engage the Automatic Satellite Programme Recording mode.

● In step 4, if “SAT#” blinks quickly on the front display panel even though your satellite receiver’s power is off, Automatic Satellite Programme Recording will not work properly with that satellite receiver*. If this is the case, perform “Manual Timer Programming” (墌 pg. 48) to timer-record a satellite programme.

* Some satellite receivers output signals even if the power is off.

Automatic Satellite Programme Recording is not possible with those satellite receivers.

● “SAT#” blinks on the front display panel while Automatic Satellite Programme Recording is in progress.

● For timer programming of the satellite receiver, refer to the instruction manual of the satellite receiver.

● Automatic Satellite Programme Recording is not possible if your satellite receiver does not have a timer.

● Pressing the unit’s 1 button while Automatic Satellite Programme Recording is in progress turns off the unit’s power and disengages the Automatic Satellite Programme Recording mode.

● If there are more than one satellite programmes you wish to record with Automatic Satellite Programme Recording, it is not possible to set different recording modes for each programme.

● Depending on the type of satellite receiver, the unit may not record a slight portion of the beginning of the programme or may record slightly longer than the actual length of the programme.

● If you engage the Automatic Satellite Programme Recording mode when the satellite receiver’s power is on, the unit will not start Automatic Satellite Programme Recording even though “SAT#” blinks on the front display panel. When the satellite receiver shuts off once and is turned back on again, the unit starts recording.

● You can also record a programme from your cable system in the same way if the system has a timer.

● Just Clock (墌 pg. 75) does not work when the Automatic Satellite Programme Recording mode is engaged.

REC MODE

SAT#

Page 50 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_08Navigation.fm]

DR-MH30EU_00.book Page 51 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

Library Database Navigation

The Library Database Navigation enables you to search and select the desired titles recorded on the HDD deck and the DVD deck very easily. You can record up to 99 titles on a disc. Each time a title is recorded, the information of the title is registered for the Library Database Navigation automatically. So, you can confirm the information of the titles recorded with the Library Database Navigation screen. And, you can also select one of the titles recorded using the Library Database Navigation.

The following screen appears as the Library Database Navigation screen when you press NAVIGATION. You can move the arrow to select the desired position on the screen by pressing rt w e on the remote control.

NAVIGATION > ORIGINAL

0026 143 MIN[FISH WORLD ]

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

25/12/03 THU 10:00 - 10:15 FROG WORLD

ENTER

EXIT

SELECT

A Playback screen

(Indicates currently received TV programme.)

B Guidance for operations C Scroll bar

(Appears when there are over nine registered titles (or play lists). The scroll bar only indicates that there are more titles (or play lists) hidden off the current screen display. To show hidden titles (or play lists), press rt w e repeatedly.)

D Recording information for the title indicated by the arrow E Index list

(Thumbnail still of each title)

F Index

: Indicates no index is registered. : Indicates title in standby for timer recording. : Indicates no title is registered.

G Icons

(Indicate the record condition of each title.)

[HOBBY] EP

3PR.

F G

NAVIGATION

EN 51

Using Library Database Navigation system, you can easily modify registered information, edit the title or play list, as well as search for the beginning of each title.

About registration of information

The following information is automatically registered for each title when ordinary recording or timer recording is performed, then stored in an area specified on the unit.

● index* (reduced pictures to show programme titles)

● programme title*

● category*

● date and time

● channel

● recording mode

● length of recording time

The items marked with an asterisk (*) can be easily modified and registered again after recording by using Library Database Navigation system.

The limitations of registration

You can register information up to 99 titles for the DVD deck and 200 titles for the HDD deck. When the amount of information is at the limits of registration, you cannot record new titles any more. In this case, you need to delete old titles to register new one. (墌 pg. 53)

NOTE:

Once a DVD-R/RW (Video mode) disc has been finalised, the displays for original and play list do not appear. Only display for library appears.

The Icons and their meanings

This title is write-protected.

This title has stereo sounds.

This title was recorded with timer recording.

NEW

This title is Weekly Recording/Weekly Overwrite.

This title is Daily Recording/Daily Overwrite.

This title is Daily Recording/Weekly Overwrite.

This title has not been played back.

This title is copy-protected.

Page 51 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_08Navigation.fm]

DR-MH30EU_00.book Page 52 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

52 EN

NAVIGATION

Scan For Beginning Of Title

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to scan.

CABLE/DBS

DVDTV

HDD DVD

MEMO

ENTER

CLEAR

You can scan the beginning of the title easily with the Library Database Navigation.

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press rt w e to select “ORIGINAL”, then press ENTER. 3 Press rt w e to select the

index (small pictures) of the desired title, then press ENTER.

● When you want the plural titles to be played back continuously, press MEMO after selecting the desired title. The numbers of the playback order appear on the index. You can select up to 8 titles.

● When you want to correct the order, move the arrow to the desired index and press MEMO. The number disappears and the unit re-numbers the other programmes automatically.

● When you want to cancel the order, press CLEAR (8).

4 Press we to select

“BEGINNING”, then press ENTER.

● To repeat playback of a selected title, press we to select “REPEAT”, then press ENTER.

● To resume playback from the point where playback was previously stopped, press we to select “RESUME”, then press ENTER.

5 Press 9 to pause playback.

● To resume normal playback, press 4.

6 Press 8 to stop playback.

NAVIGATION

rtwe

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

ENTER

SELECT

ENTER

SELECT

NAVIGATION > ORIGINAL

0026 143 MIN[FISH WORLD ]

25/12/03 THU 10:00 - 10:15 FROG WORLD

NAVIGATION > ORIGINAL

25/12/03 THU 10:00 - 10:15 FROG WORLD

SELECT HOW TO PLAY BACK

BEGINNING

RESUME REPEAT

[HOBBY] EP

PR.

[HOBBY]

3PR.

Modify Original Information

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to modify.

TTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

Modify Index

1 Press EDIT. The Editing screen appears. 2 Press rt w e to select “MODIFY” under “ORIGINAL”, then

press ENTER.

3 Press rt w e to select one title you want to modify, then press

ENTER.

4 Press we to select “INDEX”. 5 Search for the picture from the

title by pressing the appropriate buttons (3, 4, 5, or 9). The pictures of the title appear on the left window.

6 Confirm the arrow is on

“REPLACE”, then press ENTER to register new index. New index appears on the right window.

● When you press ENTER with the arrow on “RETURN” you can return to the previous screen.

7 Press EDIT to return to the normal screen.

Modify Title Name

1 Perform steps 1 – 3 of “Modify Index” (墌 pg. 52) before

continuing.

2 Press rt w e to select “NAME”, then press ENTER. 3 Press rt w e to select the

desired letter or command, then press ENTER. Repeat this process to complete the name.

● To correct a letter, press rt w e to select “DELETE”, then press ENTER.

● You can enter the letters up to 64.

4 Press rt w e to select

“SAVE”, then press ENTER.

5 Press EDIT to return to the normal screen.

EDITING > MODIFY INDEX

25/12/03 THU 10:00 - 10:15 FROG WORLD [OTHERS] SP

0:01:03PROG. 1

SELECT IMAGE TO REPLACE WITH ON REMOTE

EDITING > MODIFY NAME

0026 64 MIN[FISH WORLD ]

25/12/03 THU 10:00 - 10:15 FROG WORLD

ORLD

ENTER

EDIT

EXIT

SELECT

FROG

A B C D E F a b c d e f 1 2 3 G H I J K L g h i j k l 4 5 6 M N O P Q R m n o p q r 7 8 9 S T U V W X s t u v w x 0 + Y Z y z * / =

! " # $ % & ; < > ? @ [ | } ~ ' ( ) , . : \ ] ^ _ ` {

CANCEL DELETE SAVE

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [EDIT] TO EXIT

3PR

INDEX

RETURNREPLACE

3PR.

[HOBBY] XP

Page 52 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_08Navigation.fm]

DR-MH30EU_00.book Page 53 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Modify Category

1 Perform steps 1 – 3 of “Modify Index” (墌 pg. 52) before

continuing.

2 Press rt w e to select “CATEGORY”, then press ENTER. 3 Press rt w e to select the

desired category, then press ENTER.

4 Press EDIT to return to the

normal screen.

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [EDIT] TO EXIT

EDIT

EXIT

EDITING > MODIFY CATEGORY

0026 64 MIN[FISH WORLD ]

25/12/03 THU 10:00 - 10:15 FROG WORLD

MOVIE MUSIC DRAMA

ANIMATION SPORTS

NEWS WEATHER EDUCATION

ENTER

HOBBY

SELECT

ENTERTAINMENT

[HOBBY] XP

DOCUMENTARY

ART

3PR.

Protect Title (DVD deck only)

You can protect titles to prevent accidental erasure of the important titles.

1 Perform steps 1 – 2 of “Modify Index” (墌 pg. 52) before

continuing.

2 Press rt w e to select “PROTECT”, then press ENTER. 3 Press rt w e to select a title you want to protect, then press

ENTER.

4 Press we to select “PROTECT”, then press ENTER. “ ”

appears.

● To cancel the protection, repeat 3 – 4 again. In step 4, select “CANCEL PROTECT”, then press ENTER.

5 Press EDIT to return to the normal screen.

NOTE:

All the titles on a disc will be deleted once the disc is formatted even if they are protected titles. (墌 pg. 53)

Delete Title

You cannot record any more with Library Database Navigation once the registered titles on the disc reach 99 titles for the DVD deck and 200 titles for the HDD deck. Deleting unnecessary titles after dubbing or other operations can increase remaining time and available recording capacity. (For DVD-R discs, although it is possible to delete recorded titles, available recording capacity does not increase.) The deleted title is never resumed. Play lists and title information in the unit’s library are also deleted.

1 Press EDIT. The Editing screen appears. 2 Press rt w e to select “DELETE” under “ORIGINAL”, then

press ENTER.

3 Press rt w e to select one title you want to delete, then press

ENTER.

4 Press we to select “DELETE”, then press ENTER.

● When you cancel the deletion, select “CANCEL”, then press ENTER.

5 Press EDIT to return to the normal screen.

NAVIGATION

EN 53

Delete Unwanted Part Of The Title (DVD deck only)

You can delete unwanted part of the title.

1 Perform steps 1 – 2 of “Modify Index” (墌 pg. 52) before

continuing.

2 Press rt w e to select “DEL SCENE”, then press ENTER. 3 Press rt w e to select one title whose unwanted part you

want to delete, then press ENTER.

4 The playback pictures appear in the window on the screen. The

elapsed playing time starts counting with the arrow on “IN”.

5 Find the point where you want

the deletion to begin, then press ENTER with the arrow on “IN”. The edit-in time is fixed and the elapsed playing time starts counting again.

6 Find the point where you want

the deletion to end, then press ENTER with the arrow on “OUT”. The edit-out time is fixed.

● Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out

points.

7 Press rt w e to select “PREVIEW”, then press ENTER to

preview the edited title.

8 Press rt w e to select “OK”, then press ENTER.

● If you do not want to delete the scene, press EDIT or RETURN.

To modify the points

A Press EDIT or RETURN. B Repeat steps 4 – 8 as necessary.

9 Press we to select “DELETE”, then press ENTER. The

selected scene is deleted.

● To cancel the deletion, press we to select “CANCEL”, then press

ENTER.

10 Press EDIT to return to the normal screen.

NOTES:

● There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

● Available recording capacity may not match the deleted part after deletion.

EDITING > ORIGINAL/DELETE SCENE

21/12/03 SUN 18:30 - 20:00 RALLY CAR [OTHERS]INSP

PROG. 1

0:01:03

SELECT IMAGE TO REPLACE WITH ON REMOTE

IN OUT PREVIEW OK

PR. 12

0:05:15

OUT

0:06:15

Page 53 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_08Navigation.fm]

DR-MH30EU_00.book Page 54 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

54 EN

NAVIGATION

Divide Title

1 Press EDIT. The Editing screen appears. 2 Press rt w e to select “DIVIDE”, then press ENTER. 3 Press rt w e to select a title to divide, then press ENTER. 4 Locate a point to divide by pressing the appropriate buttons

(3, 4, 5, or 9).

5 Confirm the arrow is on “DIVIDE”, then press ENTER at the

dividing point.

● The first picture (start) of the newly created title appears in the bottom right window.

6 Press we to select “PREVIEW”, then press ENTER.

● The first several seconds of the newly created title is played back, then the playback pauses at the dividing point.

● To undo the division, press we to select “RETRY”, then press ENTER. Repeat the above procedure to locate another point to divide.

7 Press we to select “OK”, then press ENTER. 8 Press EDIT to return to the normal screen.

NOTE:

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

Modify Chapter

You can create and delete chapter marks in titles.

1 Perform steps 1 – 3 of “Modify Index” (墌 pg. 52) before

continuing.

2 Press rt w e to select “CHAPTER”, then press ENTER. 3 Confirm the arrow is on

“MARK”, then press ENTER at positions you want to mark.

● The newly created chapter is displayed.

● To undo the marking, press we to select “RETRY”, then press ENTER. Repeat the above procedure to locate another point to mark.

4 Press rt w e to select one chapter you want to delete, then

press ENTER.

5 Press we to select “DELETE”, then press ENTER.

● The selected chapter is deleted.

● To undo the deletion, press we to select “RETRY”, then press

ENTER. Repeat the above procedure to locate another point to delete.

6 Press we to select “OK”, then press ENTER. 7 Press EDIT to return to the normal screen.

NOTE:

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

EDITING > MODIFY CHAPTER

CHAPTER 03/10

0:07:01

01 00: 00: 00 02 00 :05 :30 03 00: 07: 00 04 00 :30 : 00

MARK ERASE RETRY RETURN

Modify Play List Information

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

● Load a DVD disc to modify.

TTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

CABLE/DBS

DVDTV

HDD DVD

MEMO EDIT

ENTER

CLEAR

Play List

It is a collection of the scenes. A play list can be freely edited and played back without ever changing any original recording data. Using the random access of a disc (which allows video data to be instantly read no matter where it is on the disc), a play list includes information such as the timer counter for the playback start point and end point, indexes for checking the contents of recorded data, category information, and more. Playback according to a play list you have created allows you to enjoy various combinations of video images from a single title.

NAVIGATION

rtwe

6 4

5 9

Page 54 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_08Navigation.fm]

DR-MH30EU_00.book Page 55 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Create Play List

1 Press EDIT. The Editing screen appears. 2 Press rt w e to select “CREATE”, then press ENTER. 3 Press rt w e to select a title that includes scenes to be

included in a play list, then press ENTER.

4 The playback pictures appear in the window on the screen. The

elapsed playing time starts counting with the arrow on “IN/OUT”.

5 Find the point where you want

the created play list to begin, then press ENTER with the arrow on “IN/OUT”. The edit-in time is fixed and the elapsed playing time starts counting again.

6 Find the point where you want

the created play list to end, then

EDITING > MODIFY SCENE TOTAL 00 :00 : 00

PRO. 1

IN TO

IN/OUT MODIFY MOVE PREVIEW

SELECT TITLE DELETE RETRY OK

0:00:15

SCENE PAGE 1 / 1

1 PRO. 1

press ENTER with the arrow on “IN/OUT”. The edit-out time is fixed.

● Press 3, 4, 5, 2, 6 or 9 to find the edit-in and edit-out points.

● The edit-out point must come after the edit-in point.

7 Press rt w e to select “PREVIEW”, then press ENTER to

preview the play list.

8 Press rt w e to select “OK”, then press ENTER. The play list

is created.

To modify the points

A Press we to select “MODIFY”, then press ENTER. B Repeat steps 4 – 8 as necessary.

9 Press we to select “EXIT”, then press ENTER to return to the

normal screen.

NOTES:

● There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

● The title, index and category of the play list can be modified in the same way as “ORIGINAL”. (墌 pg. 52)

● You can modify the play list that has just been created here by adding, moving, or deleting unwanted par ts to create a digest edition, etc.

Edit Scenes

1 Press EDIT. The Editing screen appears. 2 Press rt w e to select “MODIFY” under “PLAY LIST”, then

press ENTER.

3 Press rt w e to select a play list to modify, then press

ENTER.

4 Press rt w e to select “SCENE”, then press ENTER. 5 Press rt w e to select “MODIFY”, then press ENTER. 6 Press rt w e to select a scene to modify, then press ENTER. 7 Perform steps 4 – 9 in “Create Play List” (墌 pg. 55).

NAVIGATION

EN 55

Add scenes

1 Perform steps 1 – 3 in “Edit Scenes” (墌 pg. 55) before

continuing.

2 Press rt w e to select “SELECT TITLE”, then press ENTER. 3 Perform steps 3 – 9 in “Create Play List” (墌 pg. 55).

Move Scenes

1 Perform steps 1 – 3 of “Edit Scenes” (墌 pg. 55) before

continuing.

2 Press rt w e to select “MOVE”, then press ENTER. 3 Press rt to select a scene to move, then press ENTER. 4 Press rt to select another scene to which the scene is to be

moved, then press ENTER.

● To cancel the move, press rt w e to select “RETRY”, then press

ENTER.

5 Perform steps 7 – 9 in “Create Play List” (墌 pg. 55).

Delete Scenes

1 Perform steps 1 – 3 of “Create Play List” (墌 pg. 55) before

continuing.

2 Press rt w e to select “DELETE”, then press ENTER. 3 Press rt to select a scene to delete, then press ENTER. 4 Perform steps 7 – 9 in “Create Play List” (墌 pg. 55).

Play Back Play List

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press rt w e to select “PLAY LIST”, then press ENTER. 3 Press rt w e to select the

index (small pictures) of the desired play list, then press ENTER.

● When you want the plural play lists to be played back continuously, press MEMO after selecting the desired play lists. The numbers of the playback order appear on the index. You can select up to 30 play lists.

● When you want to correct the order, move the arrow to the desired index and press MEMO. The number disappears and the unit renumbers the other play lists automatically.

● When you want to cancel the order, press CLEAR (8).

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

4 Press we to select “BEGINNING”, then press ENTER. The

playback starts.

5 Press 9 to pause playback.

● To resume normal playback, press 4.

6 Press 8 to stop playback.

SELECT

ENTER

NAVIGATION > PLAY LIST

[FISH WORLD ]

0026

026 CREATED 26/12/03 FRI

TEDDY BEAR 25/12

001 002 003

004 005 006

007 008 009

143 MIN

[MOVIE]

Page 55 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_08Navigation.fm]

DR-MH30EU_00.book Page 56 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

56 EN

NAVIGATION

Delete Play List

1 Press EDIT. The Editing screen appears. 2 Press rt w e to select “DELETE” under “PLAY LIST”, then

press ENTER.

3 Press rt w e to select one play list you want to delete, then

press ENTER.

4 Press we to select “DELETE”, then press ENTER.

● When you cancel the deletion, select “CANCEL”, then press ENTER.

5 Press EDIT to return to the normal screen.

NOTE:

Even if a play list is deleted, the titles recorded and the library information are not affected at all.

Modify Index

A Perform steps 1 – 3 of “Edit Scenes” (墌 pg. 55) before continuing. B Perform steps 4 – 7 of “Modify Index” (墌 pg. 52).

Modify Play List Name

A Perform steps 1 – 3 of “Edit Scenes” (墌 pg. 55) before continuing. B Perform steps 2 – 5 of “Modify Title Name” (墌 pg. 52).

Modify Category

A Perform steps 1 – 3 of “Edit Scenes” (墌 pg. 55) before continuing. B Perform steps 2 – 4 of “Modify Category” (墌 pg. 53).

Modify Library Information

Title information can be registered in the unit’s memory for up to 600 DVD discs, 2,000 titles. It is helpful when finding a desired title (or play list) by sorting according to the sort options registered during (or after) recording.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Press HDD or DVD to choose the corresponding deck.

CABLE/DBS

DVDTV

HDD DVD

ENTER

NAVIGATION

rtwe

Scan For Title From Library

1 Press NAVIGATION. The Library Database Navigation screen

appears.

2 Press rt w e to select the

appropriate sort button to sort the information, then press ENTER. “DATE” : Sort by date “DISC No.” : Sort by disc number “CATEGORY” : Sort by category “NAME” : Sort by name

● “DATE” and “DISC No.” are available for the DVD deck only.

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [NAVIGATION] TO EXIT

NAVIGATION

EXIT

ENTER

SELECT

NAVIGATION

DVD NAVIGATION

ORIGINAL PLAY LIST.

DVD LIBRARY

DATE DISC No.

Register Disc

When a disc that is not registered in the library is loaded, a message appears confirming if the disc should be registered. If registering, perform the following procedure.

1 Press we to select “REGISTER”, then press ENTER to confirm

the registration.

2 Press NAVIGATION to return to the normal screen.

NOTES:

● It is not possible to register discs formatted on devices other than JVC’s DVD recorders.

● It is not possible to register discs recorded on devices other than JVC’s DVD recorders.

● It is not possible to register discs when “SAVE AS LIBRARY” is set to “OFF”. (

墌 pg. 70)

Page 56 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_08Navigation.fm]

DR-MH30EU_00.book Page 57 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Playback With MP3/JPEG Navigation

This unit can play back discs that MP3 sound files and JPEG image files taken with digital still cameras or other devices are recorded. The MP3/JPEG Navigation enables you to search and select the desired files recorded on CD-R/RW or CD-ROM discs very easily.

The following screen appears as the MP3/JPEG Navigation screen when you press NAVIGATION. You can move the arrow to select the desired position on the screen by pressing rt w e on the remote control.

NAVIGATION > ORIGINAL

GROUP : 001/100 TRACK : 001/100 IT’S SHOWTIME! !/ B’z

ROOT

CLASSIC

CLUB

DANCE

EUROPE

FOREIGN GROUP

FOREIGN ROCK

001.

IT’S SHOWTIME! !/ B’z

002.

ONLY FLOWER IN THE WORLD/SMAP

003.

SEXY GUY/GOMAKI

004.

HEY?/AYAYA

005.

DOOR TO TOMORROW/I WISH

REASON/ASAMI

006.

007.

DIE ANOTHER DAY/JAMES BOND

A Selected group number/total number of groups on the disc B Selected file number/total number of files in the group that

contains the selected file

C Elapsed time D Name of the selected file E Group name F Selected file

0:07:01

NAVIGATION

EN 57

Programme Playback

1 Perform steps 1 to 3 of “Locating The Desired Group And

Tracks” in the left column before continuing.

2 Press rt to select the desired item, then press MEMO in the

desired order.

● The order number appears on the left of the track name.

● Repeat this step as necessary.

● To cancel the track, press rt to select the track, then press

CANCEL (&).

● Pressing CLEAR (8) clears all the order numbers.

3 Press 4 to start playback.

● To quit the Programme Playback, press 8.

● Repeat playback can be performed if it is set as such on the on-

screen bar. (墌 pg. 33)

NOTES:

● It is not possible to select tracks and images simultaneously.

● It is not possible to select tracks or images in other groups.

On completion of the playback of all the items

A Perform steps 1 to 3 of “Locating The Desired Group And Tracks” in the left column. B Press CLEAR (8).

● The order numbers are reset and cleared.

C Press NAVIGATION to complete the procedure.

Locating The Desired Group And Tracks

1 Load a disc. 2 Press NAVIGATION. The Library Database Navigation screen

appears.

3 Press rt to select the desired

group, then press ENTER.

● A list of files in the selected group appears.

4 Press rt to select the desired

item, then press ENTER. The unit starts playback from the selected item.

● The unit stops when all items in the selected group are played back.

NOTES:

● If you press SELECT (4) instead of ENTER in step 3, the unit starts playback from the first file of the group.

● JPEG files are played back as a slide show at the set intervals. (墌 pg. 35)

● If a file name includes any 2-byte character, the unit may not show the file name correctly.

● The order of the groups and items shown in steps 3 and 4 may differ from the order shown on your PC.

NAVIGATION > ORIGINAL

GROUP : 001/100 TRACK : 001/100 IT’S SHOWTIME! !/ B’z

ROOT

CLASSIC

CLUB

DANCE

EUROPE

FOREIGN GROUP

FOREIGN ROCK

GROUP : 001/100 TRACK : 001/100 IT’S SHOWTIME! !/ B’z

ROOT

CLASSIC

CLUB

DANCE

EUROPE

FOREIGN GROUP

FOREIGN ROCK

NAVIGATION > ORIGINAL

001.

IT’S SHOWTIME! !/ B’z

002.

ONLY FLOWER IN THE WORLD/SMAP

003.

SEXY GUY/GOMAKI

004.

HEY?/AYAYA

005.

DOOR TO TOMORROW/I WISH

REASON/ASAMI

006.

007.

DIE ANOTHER DAY/JAMES BOND

IT’S SHOWTIME! !/ B’z

001.

ONLY FLOWER IN THE WORLD/SMAP

002.

003.

SEXY GUY/GOMAKI

004.

HEY?/AYAYA

005.

DOOR TO TOMORROW/I WISH

REASON/ASAMI

006.

007.

DIE ANOTHER DAY/JAMES BOND

0:07:01

Page 57 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_09Editing.fm Page 58 Thursday, June 3, 2004 1:34 PM

Masterpage:Left0

58 EN

EDITING

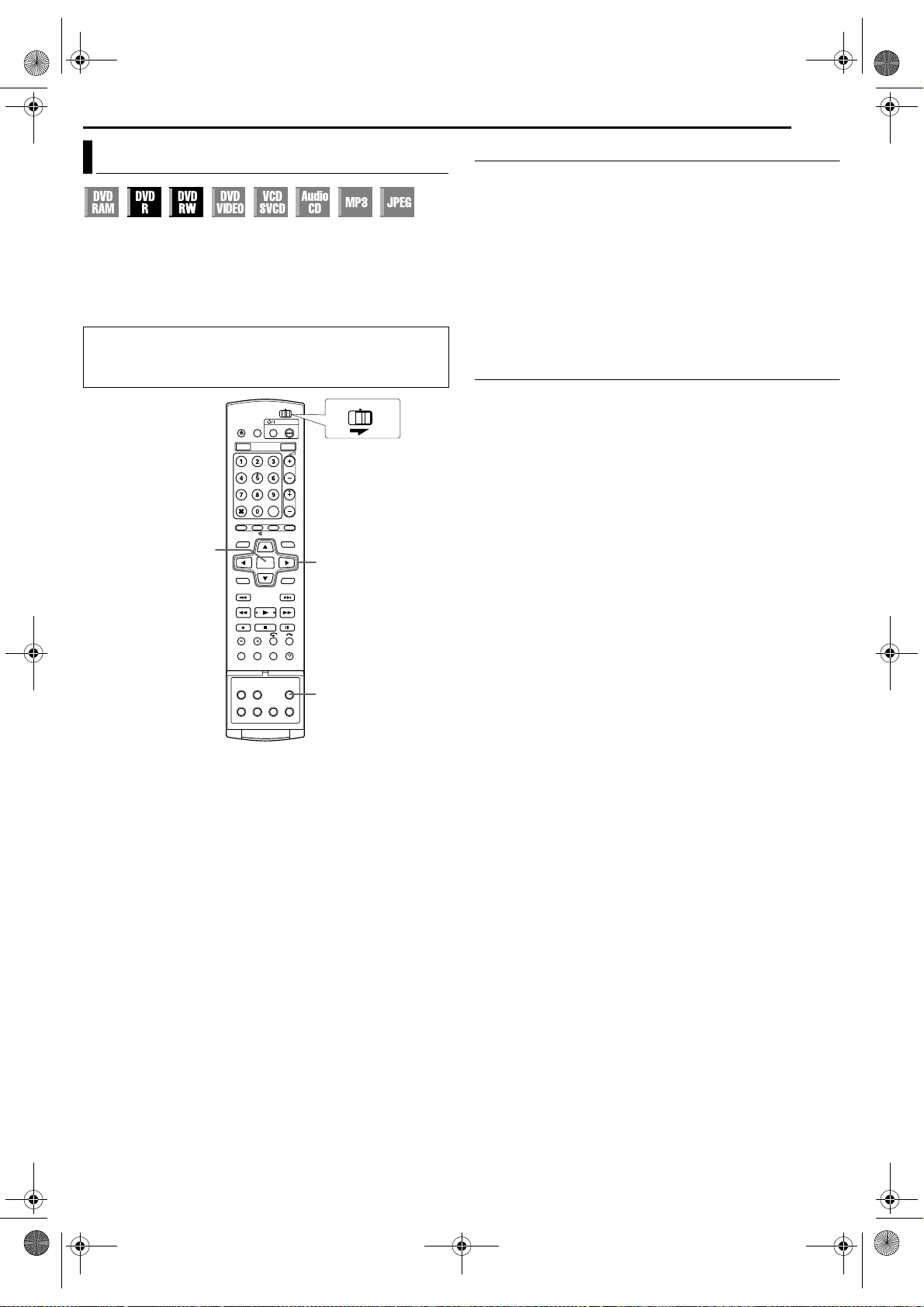

Dubbing

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

DUBBING

ENTER

CABLE/DBS

MARK

rtwe

ON SCREEN

High Speed Dubbing (From HDD To DVD)

It is possible to dub the original recordings and/or play lists on the HDD deck to DVD discs. The dubbing is performed in high speed, keeping the original transfer rate.

NOTES:

● After accessing the Dubbing Menu screen, it is not possible to take out a disc.

DVDTV

● It is not possible to dub copy-once titles in Video mode.

● When the dubbing is finished, the data will be moved from HDD to

DVD.

● When you cancel dubbing a copy-once title during dubbing, the original recording on the HDD deck remains and the title copied to a DVD disc is deleted.

● It is not possible to dub play lists which contain copy-once titles.

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press rtw e to select “HIGH SPEED”, then press ENTER. 4 Press rtw e to select indexes (small pictures) of desired

original recordings and/or play lists, then press MARK. After selecting all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings and/or play lists.

5 Press rt to select “EXECUTE” or “AUTO POWER OFF”, then

press ENTER. The dubbing screen appears for 5 seconds. To display the dubbing screen again, press ON SCREEN.

EXECUTE: Select this to continue the dubbing operations. AUTO POWER OFF: Select this to continue the dubbing operations

and turn off the unit after dubbing. While the dubbing screen is displayed, you can also select this mode by pressing DUBBING.

CANCEL: Select this to cancel dubbing operation.

NOTES:

● Play lists are dubbed as programmes.

● In Video mode, if the selected play list includes the scenes recorded

in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list.

Just Dubbing (From HDD To DVD)

By using Just Dubbing function, when dubbing all selected original recordings and/or play lists, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the selected recordings and/or play lists to be dubbed and the available disc space.

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press rtw e to select “JUST”, then press ENTER. 4 Perform steps 4 – 5 of “High Speed Dubbing (From HDD To

DVD)”.

NOTES:

● Play lists are dubbed as programmes.

● In Video mode, if the selected play list includes the scenes recorded

in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list. However, the lower transfer rate cannot be dubbed in the higher transfer rate.

Page 58 Thursday, 3 June 2004 13:33

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 59 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Manual Dubbing (From HDD To DVD)

It is possible to perform dubbing in the desired transfer rate.

1 Load a recordable disc. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press rtw e to select “MANUAL”, then press ENTER. 4 Perform step 4 of “High Speed Dubbing (From HDD To DVD)”.

The Manual Dubbing screen appears.

5 Press rt to select “REC MODE”, then press ENTER. Press

rt to select the desired option, then press ENTER. The

confirmation screen appears.

NOTE:

In Video mode, if the selected play list includes the scenes recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list. However, the lower transfer rate cannot be dubbed in the higher transfer rate.

Original Dubbing (From DVD To HDD)

It is possible to dub the original recordings on DVD discs to the HDD deck.

1 Load a disc you want to dub. 2 Press DUBBING to access the Dubbing Menu screen. 3 Press rtw e to select “ORIGINAL”, then press ENTER. 4 Press rtw e to select indexes (small pictures) of desired

original recordings and/or play lists, then press MARK. After selecting all indexes you want to dub, press ENTER.

● You can select up to 8 original recordings and/or play lists.

5 Press rt to select “EXECUTE” or “AUTO POWER OFF”, then

press ENTER to start dubbing.

EXECUTE: Select this to continue the dubbing operations. AUTO POWER OFF: Select this to continue the dubbing operations

and turn off the unit after dubbing.

CANCEL: Select this to cancel dubbing operation.

6 Press we to select “EXECUTE”, then press ENTER for

confirmation. The dubbing screen appears for 5 seconds.

NOTES:

● It is not possible to dub play lists on DVD discs.

● It is not possible to dub pre-recorded DVD VIDEO discs.

EDITING

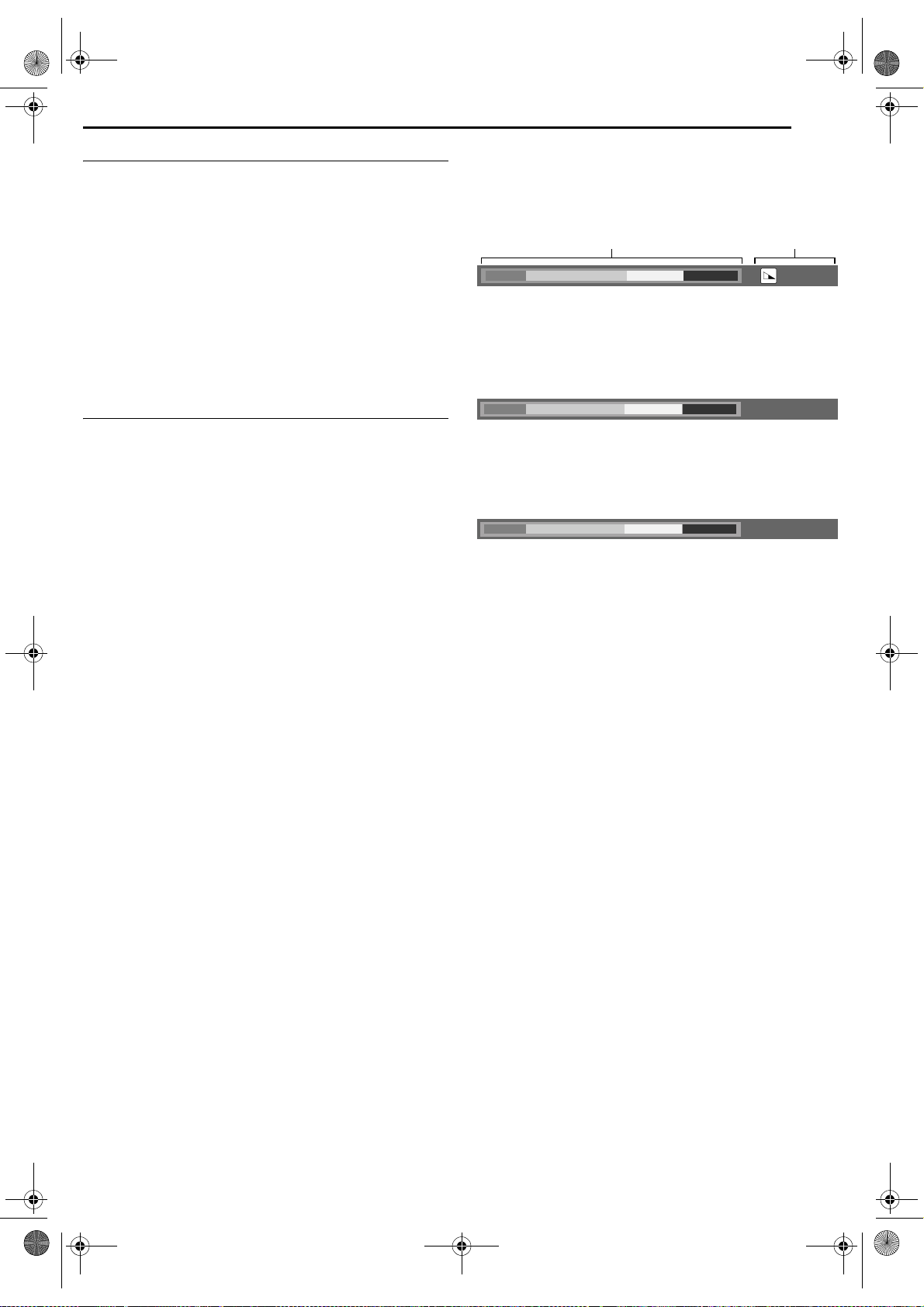

About Disc Remaining Display

The unit displays the time information for dubbing by bar meter. By comparing the disc remaining time and the necessary time for dubbing of the selected items, it is possible to check if the dubbing can be performed completely or not.

When performing the High Speed Dubbing

Capacity of a disc Remaining capacity

Dark green: Length of already recorded item Light green: Length of selected item Yellow: Length of the item now being selected by arrow Red: Excess over the capacity

When performing the Just Dubbing

TOTAL 105MIN

● The unit displays the status on the assumption that the selected items are dubbed in the lowest transfer rate.

● The total time of a loaded disc is displayed on the right of the bar meter.

When performing the Manual Dubbing

● The unit displays the status on the assumption that the selected items are dubbed in the lowest transfer rate.

● The available highest transfer rate is displayed on the right of the bar meter.

EN 59

21%

MAX FR240

Page 59 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 60 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

60 EN

EDITING

DV Dubbing (HDD Deck Only)

You can dub programmes from a camcorder or DV equipment connected to the unit with a DV cable. The unit’s remote control allows you the limited control of the connected camcorder or DV equipment functions during dubbing.

NOTES:

● Use the DV cable VC-VDV 204U for connection.

● When you connect a PC to the DV IN connector, we do not assure

the normal operation of this unit.

Your unit

DV IN connector

Camcorder

DV connector

DV equipment

DV cable

(VC-VDV 204U)

(not provided)

1 Connect a camcorder or DV equipment to the DV IN connector

on the unit’s front panel.

2 Press HDD. 3 Press PR +/– to set the channel to “DV”.

● The on-screen display for DV dubbing appears.

4 Press we to select , then press ENTER to display

the remote icon (facing to the right) for the DV equipment.

5 Press we to select

, then press ENTER

repeatedly until the desired sound

HDD

00:00: 00. 00

FR360

12bit

0:00 1:00 2:00

JVC

GR-DV3500DV

GR-DV3500

00:00: 00. 00

L – R

SOUND1

track appears on the TV screen.

AUDIO 1: Select this to record the

original stereo sound played back on the connected DV equipment.

DV DV

1 2

AUDIO 2: Select this to record the

dubbed stereo sound played back on the connected DV equipment.

MIX: Select this to record the sound of both “AUDIO 1” and

“AUDIO 2”.

● Note that this selection is not available when the source programme is recorded in 16BIT (48 kHz) mode.

6 Press REC MODE repeatedly to set the recording mode. 7 Locate the point from where you want to start dubbing, then

stop or pause playback by pressing the following buttons on the remote control: 4, 5, 3, 8, 9

● To play back in slow speed (1/10 of the normal speed), press 9 to pause playback, then press 3 or 5.

● To play back frame-by-frame, press 9 to pause playback, then press 9 repeatedly. Each press of 9 advances a frame.

● To change the playback direction, press 3 or 5.

8 Press we to select , then press ENTER. The

dubbing starts.

● Playback on the external DV equipment and recording on the unit should start simultaneously.

● To pause dubbing, press we to select , then press ENTER. Both the unit and the external DV equipment pause dubbing. Pressing 9 on the unit also works the same way.

9 Press 8 on the remote control to stop dubbing.

● Both the unit and the external DV equipment stop dubbing.

NOTES:

● Dubbing copyright guarded programmes is not possible.

● Original DV informations such as the recording date and time are not

recorded.

● The superimposed indication during the operation or dubbing is not recorded.

● If the dubbing is paused while the channel is set to “DV”, you cannot switch channels.

When you dub from DV equipment other than a camcorder

A Perform step 1 to 3. B Locate the point from where you want to start dubbing,

then stop on the DV equipment.

● If you pause the DV equipment in this step, a few second’s still picture will be recorded at the beginning of the recorded programme.

C Set the input mode to “DV INPUT” on the DV equipment.

● If you select an input mode other than “DV INPUT”, unwanted pictures may be recorded at the beginning of the recorded programme.

D Perform step 8 to 9.

To skip unwanted part of the source picture

Press ENTER to stop both equipment, then press we to select

Locate the point where you want to restart dubbing by pressing 4, 5, or 3, then press 8. Press we to select , then press ENTER to restart dubbing.

Page 60 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 61 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

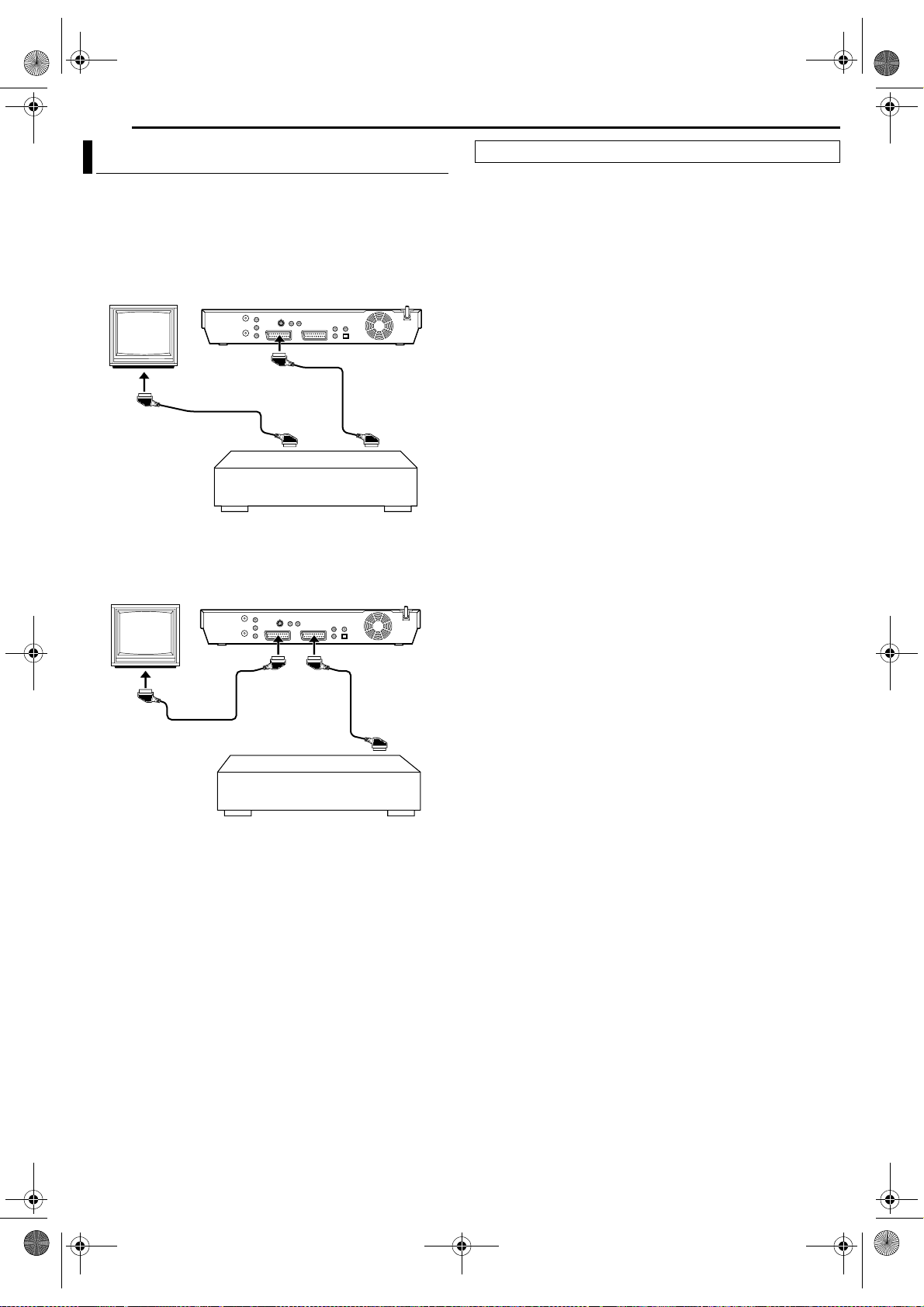

Edit From A Camcorder

You can use a camcorder as the source player and your unit as the recording deck.

A If the camcorder has no S-VIDEO output connector:

AUDIO/VIDEO input

Recorder

Audio/video cable

(not provided)

AUDIO/VIDEO OUT

Player

EDITING

● Slide the TV/CABLE/SAT/DVD switch to DVD.

EN 61

1 Make connections.

A If the camcorder has no S-VIDEO output connector: — connect the camcorder’s AUDIO/VIDEO OUT connectors to the unit’s AUDIO/VIDEO input connectors on the front panel.

● When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO L input connector on your unit.

B If the camcorder has an S-VIDEO output connector: — connect the camcorder’s AUDIO OUT and S-VIDEO OUT connectors to the unit’s AUDIO and S-VIDEO input connectors on the front panel.

2 Press HDD or DVD repeatedly to select the recording deck. 3 Press PR +/– to select “F-1”.

● Set “F-1 INPUT” to “VIDEO” for the VIDEO input connector, or “S-VIDEO” for the S-VIDEO input connector, depending on the connector being used. (墌 pg. 64)

4 Press REC MODE repeatedly to set the recording mode. 5 Start playback on the camcorder slightly before the actual point

from where you wish to start dubbing.

6 Press 7 on the unit to start recording. Or press and hold 7 and

press 4 on the remote control. The dubbing starts.

7 Press 8 on the unit, then stop playback on the camcorder.

NOTES:

● All necessary cables can be obtained from your dealer.

● Refer to the camcorder’s instruction manual for operating procedure.

● The quality of dubbed picture becomes poorer than that of the

original.

B If the camcorder has an S-VIDEO output connector:

Recorder

Player

S-VIDEO input

S-video cable

(not provided)

S-VIDEO OUT

AUDIO OUT

AUDIO input

Audio cable (not provided)

Page 61 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 62 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

62 EN

EDITING

Edit To Or From Another Recorder

You can use your unit as the source player or as the recording deck.

NOTE:

When using another recorder as the recording deck, refer to its instruction manual.

A When using your unit as the source player:

TV receiver

B When using your unit as the recording deck:

TV receiver

Player

21-pin SCART cable

(not provided)

Recorder

(provided)

Another recorder

21-pin SCART cable

(provided)

Your unit

Slide the TV/CABLE/SAT/DVD switch to DVD.

1 Connect another recorder’s 21-pin SCART connector to the

unit’s 21-pin SCART connector as illustrated. A When using your unit as the source player:

— connect its L-1 IN/OUT connector to the recording deck.

B When using your unit as the recording deck:

— connect its L-2 IN/DECODER connector to the source player.

● If another recorder is compatible with the Y/C signal: — when using your unit as the source player, set “L-1 OUTPUT” to “SCART S-VIDEO”. (墌 pg. 63) — when using your unit as the recording deck, set “L-2 SELECT” to “S-VIDEO”. (墌 pg. 63)

2 When using this unit as the recording deck, press HDD or DVD

to select the recording deck.

3 When using this unit as the recording deck, press PR +/– to

select “L-2”.

● Set “L-2 SELECT” to “VIDEO” or “S-VIDEO”. (墌 pg. 63)

4 When using this unit as the recording deck, press REC MODE

repeatedly to set the recording mode.

5 Engage the Play mode of the source player. 6 Engage the Record mode of the recording deck. 7 Stop recording on the recording deck, then stop playback on the

source player.

NOTES:

● All necessary cables can be obtained from your dealer.

● For Y/C signal input/output, be sure to use a 21-pin SCART cable

that is compatible with the Y/C signal.

● When you use this unit as the source player for editing, be sure to set “SUPERIMPOSE” to “OFF” before starting. (墌 pg. 71)

● If you are using another recorder with S-Video and Audio output connectors, connect its S-Video and Audio output connectors to this unit’s S-VIDEO and AUDIO input connectors on the front panel. Then, set the unit’s input mode to “F-1” in step 3, and set “F-1 INPUT” to “S-VIDEO”. (墌 pg. 64)

21-pin SCART cable

(not provided)

Player

Another recorder

Page 62 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 63 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Output/Input Set

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

ENTER

L-1 Output And L-1 Input Setting

The L-1 IN/OUT connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated). Set “L-1 OUTPUT” and “L-1 INPUT” to the appropriate mode depending on the type of appliance connected to the unit’s L-1 IN/OUT connector.

1 Press SET UP to access the Main Menu screen. 2 Press we to select “FUNCTION SET UP”, then press ENTER. 3 Press we to select “VIDEO IN/

OUT”, then press ENTER.

4 Press rt to select “L-1

OUTPUT” or “L-1 INPUT”, then press ENTER.

5 Press rt to select the

appropriate setting, then press ENTER.

6 Press SET UP to complete the

setting.

*The boldface settings below

indicate the settings at your purchase.

8 L-1 OUTPUT — SCART VIDEO / SCART S-VIDEO / SCART

RGB / COMPONENT

SCART VIDEO: If a connected appliance’s input is compatible only

with regular video signals, set to “SCART VIDEO”.

SCART S-VIDEO: If a connected appliance’s input is compatible

with Y/C signals, set to “SCART S-VIDEO”. You can obtain highquality picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

SCART RGB: If a connected appliance’s input is compatible with

RGB signals, set to “SCART RGB”. You can obtain a high-quality RGB picture.

rtwe

SET UP

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

MONITOR TYPE

F-1 INPUT

L-1 OUTPUT SCART VIDEO

L-1 INPUT

L-2 SELECT

ENTER

SET UP

EXIT

SELECT

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

MONITOR TYPE

F-1 INPUT

L-1 INPUT SCART VIDEO

L-1 OUTPUT

L-2 SELECT

ENTER

SET UP

EXIT

SELECT

FUNCTION SET UP

DISPLAY SETREC/PLAY SET UP

VIDEO IN/OUT

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

FUNCTION SET UP

DISPLAY SETREC/PLAY SET UP

VIDEO IN/OUT

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

4 : 3LB

VIDEO

4 : 3LB

VIDEO

SCART VIDEO

SCART S-VIDEO

VIDEO

SCART RGB

COMPONENT

CONECT

EDITING

EN 63

COMPONENT: If a connected appliance’s input is compatible with

Y/PB/PR signals, set to “COMPONENT”. You can obtain a highquality Y/PB/PR picture. Switch the TV to the input that you can watch component video pictures.

8 L-1 INPUT — VIDEO / S-VIDEO

VIDEO: If a connected appliance’s output is compatible only with

regular video signals, set to “VIDEO”.

S-VIDEO: If a connected appliance’s output is compatible with Y/C

signals, set to “S-VIDEO”. You can obtain a high-quality picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

NOTES:

● If “L-1 OUTPUT” is set to “SCART S-VIDEO”, “SCART RGB” or “COMPONENT”, it is not possible to set “L-1 INPUT” to “S-VIDEO”.

● If “L-2 SELECT” is set to “DECODER”, it is not possible to set “L-1 INPUT” to “S-VIDEO”.

● If “L-2 SELECT” is set to “DECODER”, it is only possible to set “L-1 OUTPUT” to “SCART VIDEO”.

● Component video signals are not output from the L-1 IN/OUT connector.

● When Progressive scan mode is engaged, it is not possible to select the setting of “L-1 OUTPUT”. (墌 pg. 71)

L-2 Select Setting

Set “L-2 SELECT” to the appropriate mode depending on the type of appliance connected to the unit’s L-2 IN/DECODER connector.

1 Perform steps 1 and 2 of “L-1 Output And L-1 Input Setting” on

the left column.

2 Press rt to select “L-2 SELECT”, then press ENTER. 3 Press rt to select the

appropriate setting, then press ENTER.

4 Press SET UP to complete the

setting.

*The boldface settings below

indicate the settings at your

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

MONITOR TYPE

F-1 INPUT

L-1 INPUT VIDEO

L-1 OUTPUT

L-2 SELECT

ENTER

SET UP

EXIT

SELECT

purchase.

8 L-2 SELECT — VIDEO / S-VIDEO / SAT VIDEO / SAT

S-VIDEO / DECODER

Select “VIDEO” or “S-VIDEO” to use this unit as the recording deck with the player connected to the L-2 IN/DECODER connector, or to use the satellite receiver connected to the L-2 IN/DECODER connector.

VIDEO: If a connected appliance’s output is compatible only with

regular video signals, set to “VIDEO”.

S-VIDEO: If a connected appliance’s output is compatible with Y/C

signals, set to “S-VIDEO”. You can obtain high-quality picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

Select “SAT VIDEO” or “SAT S-VIDEO” to view a satellite programme with the TV set while the unit is turned off. (墌 pg. 67)

SAT VIDEO: If a connected satellite receiver’s output is compatible

only with regular video signals, set to “SAT VIDEO”.

SAT S-VIDEO: If a connected satellite receiver’s output is

compatible with Y/C signals, set to “SAT S-VIDEO”. You can obtain a high-quality S-VHS picture. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

DECODER: To use a decoder connected to the L-2 IN/DECODER

connector.

FUNCTION SET UP

DISPLAY SETREC/PLAY SET UP

VIDEO IN/OUT

SCART VIDEO

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

4 : 3LB

VIDEO

CONECT

VIDEO

S-VIDEO

SAT VIDEO

SAT-S VIDEO

DECODER

Page 63 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 64 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

64 EN

EDITING

NOTES:

● If you have a satellite receiver or a decoder connected to the L-2 IN/ DECODER connector, be sure to set “L-2 SELECT” back to appropriate mode after editing.

● If you are not connecting a satellite receiver or a decoder to the L-2 IN/DECODER connector, leave “L-2 SELECT” set to “VIDEO”.

● When “L-2 SELECT” is set to “SAT VIDEO” and “SAT S-VIDEO”, “SAT” appears on the TV screen or front display panel instead of “L-2”.

● If “L-1 OUTPUT” is set to “SCART S-VIDEO”, it is not possible to set “L-2 SELECT” to “DECODER” or “SAT VIDEO”.

● If “L-1 OUTPUT” is set to “SCART RGB”, it is not possible to set “L-2 SELECT” to “DECODER” or “SAT S-VIDEO”.

● If “L-1 OUTPUT” is set to “COMPONENT” and “L-2 SELECT” to “SAT VIDEO”, “SAT S-VIDEO” or “DECODER”, be sure to connect the L-1 IN/OUT connector with a TV.

F-1 Input Setting

Set “F-1 INPUT” to the appropriate mode depending on the connector (VIDEO or S-VIDEO) being used on the front panel.

1 Perform steps 1 and 2 of “L-1 Output And L-1 Input Setting”

(墌 pg. 63).

2 Press rt to select “F-1 INPUT”, then press ENTER. 3 Press rt to select the

appropriate setting, then press ENTER.

4 Press SET UP to complete the

setting.

*The boldface settings below

indicate the settings at your purchase.

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

MONITOR TYPE

F-1 INPUT

L-1 INPUT VIDEO

L-1 OUTPUT

L-2 SELECT

ENTER

SET UP

EXIT

SELECT

FUNCTION SET UP

DISPLAY SETREC/PLAY SET UP

VIDEO IN/OUT

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

4 : 3LB

VIDEO

SCART VIDEO

VIDEO

S-VIDEO

CONECT

Digital Audio Dubbing

You can dub selected audio from a DVD or Audio CD disc to a digital audio device. However, it is not possible to dub copy-protected discs.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

Example: Dubbing to an MD

Recorder

Digital audio device (MD deck, etc.)

Coaxial cable (not provided)

DIGITAL OUT

(COAXIAL)

Player

Optical cable

(not provided)

8 F-1 INPUT — VIDEO / S-VIDEO

VIDEO: When connecting an appliance to the VIDEO input

connector, set to “VIDEO”.

S-VIDEO: When connecting an appliance to the S-VIDEO input

connector, set to “S-VIDEO”.

Rear of unit

DIGITAL OUT

(OPTICAL)

Note for connection:

Remove the protection cap from the cable.

1 Connect the unit and a digital audio device using either an

optional optical cable or an optional coaxial cable.

2 Place a disc on the unit and load an MD on the connected digital

audio device.

3 Select the audio to be dubbed. 4 Start playback slightly before the actual point from where you

wish to start dubbing.

5 Press 9 to pause playback. 6 Select the input mode on the connected digital audio device. 7 Press 4 to start playback on the unit. 8 Start recording on the digital audio device. 9 Stop recording on the digital audio device. Then press 8 to stop

playback on the unit.

NOTE:

There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts.

Page 64 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 65 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

Remote Control Functions

Remote Control 1/2/3/4 Code Switching

The remote control is capable of controlling four JVC video units independently. Each of the units can respond to one of four codes (1, 2, 3 or 4). The remote control is preset to send 3 code signals because your unit is initially set to respond to 3 code signals. You can easily modify your unit to respond to 1, 2 or 4 code signals.

Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

1 – 4

TV AV/VIDEO

0 – 9

REMOTE CONTROL

CABLE/DBS

TV% +/–

PR +/–

ENTER

SET UP

EN 65

DVDTV

TV Multi-Brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.

ENTER

SET UP

● Keep pressing SET UP down during step 1.

1 Press the number key “1” for 1, “2” for 2, “3” for 3 or “4” for 4

to change the remote control code, then press ENTER.

2 Press 1 on the unit to turn off the unit. 3 Press 4 on the unit for over 5 seconds while the unit is turned

off. The code currently set appears on the front display panel.

4 Press 8 on the remote control to change the unit’s code. The

code currently set on the remote control blinks on the front display panel for approximately 5 seconds, and is applied to the unit.

NOTE:

When “POWER SAVE” is set to “ON” (墌 pg. 71), it is not possible to change the remote code.

● Turn off the TV using its remote control.

● Slide the TV/CABLE/SAT/DVD switch to TV.

IMPORTANT:

Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

● Keep pressing SET UP down during step 1.

1 Enter your TV’s brand code using the number keys, then press

ENTER.

2 Press 1 on the unit’s remote control to turn on the TV and try

operations (墌 step 3).

● Once you have set the remote control to operate the TV, you do not

have to repeat this step until you replace your remote control’s batteries.

● Some brands of TVs have more than one code. If the TV does not function with one code, try entering another.

3 Press the corresponding buttons to operate the TV: 1, TV AV/

VIDEO, PR +/–, TV% +/–, TV , number keys.

● For some brands of TVs, you must press ENTER after having pressed the number keys.

BRAND NAME CODE

JVC HITACHI MAGNAVOX MITSUBISHI PA N AS O N I C RCA SHARP SONY SAMSUNG SANYO SEARS TOSHIBA ZENITH

01, 03 10 02 03 04, 11 05 06 07 12 13 13 08 09

Page 65 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 66 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

66 EN

REMOTE CONTROL

Satellite Receiver Multi-Brand Remote Control

Your remote control can operate the basic functions of your satellite receiver set. In addition to JVC satellite receivers, other manufacturer’s satellite receivers can also be controlled.

● Slide the TV/CABLE/SAT/DVD switch to CABLE/SAT.

IMPORTANT:

Although the provided remote control unit is compatible with JVC satellite receivers, as well as many other models, it may not work with your satellite receiver, or in some instances, may have limited function capability.

● Keep pressing SET UP down during step 1.

1 Enter your satellite receiver’s brand code using the number

keys, then press ENTER.

2 Press 1 on the unit’s remote control to turn on the satellite

receiver and try operations (墌 step 3).

● Once you have set the remote control to operate the satellite receiver,

you do not have to repeat this step until you replace your remote control’s batteries.

● Some brands of satellite receivers have more than one code. If the satellite receiver does not function with one code, try entering another.

3 Press the corresponding buttons to operate the satellite

receiver: 1, PR +/–, number keys.

● For some brands of satellite receivers, you must press ENTER after having pressed the number keys.

● The number keys may not function with some satellite receivers.

BRAND NAME CODE

JVC AMSTRAD CANAL SATELLITE CANAL + D-BOX ECHOSTAR (VIA DIGITAL) FINLUX FORCE GALAXIS GRUNDIG HIRSCHMANN HUMAX ITT NOKIA KATHREIN LUXOR MASCOM MASPRO NOKIA PA CE PA N AS O N I C PHILIPS RADIX RFT SABA SAGEM SALORA SAMSUNG SIEMENS SKY DIGI BOX SKYMASTER TECHNISAT THOMSON TPS TRIAX WISI

73 60, 61, 62, 63, 92 81 81 85 82 68 89 88 64, 65, 102 64, 78, 99 88 68 70, 71, 96 68 93 70 87, 94 65, 67, 74, 86, 92 74, 92 66, 84, 101 78 69 97 83, 90 68 83 64 92 69, 98 66, 100 97 83 91 64

Page 66 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 67 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

Connecting To A Satellite Receiver

Simple Connections

Connect the satellite receiver to the L-2 IN/DECODER connector, then connect the L-1 IN/OUT connector to the TV’s connector.

NOTES:

● Set “L-2 SELECT” to “VIDEO” or “S-VIDEO”. (墌 pg. 63)

● You can use the Automatic Satellite Programme Recording function

(墌 pg. 50) with this connection.

● To record a programme via the satellite receiver, select L-2 mode by pressing PR +/– so that “L-2” appears on the front display panel.

● For details, refer to the instruction manual of the satellite receiver.

Outdoor unit

Satellite cable

Satellite receiver

Aerial

TV aerial cable

ANTENNA IN

ANTENNA OUT

SYSTEM CONNECTIONS

EN 67

IMPORTANT

When you set “L-2 SELECT” to “SAT VIDEO” or “SAT S-VIDEO” (墌 pg. 63), it is possible to view a satellite broadcast with the TV set to its AV mode even if the unit is turned off. When the unit is in Stop mode or recording, press TV AV/VIDEO on the remote control to turn off the VIDEO lamp on the unit.

● If you turn on the unit when the satellite receiver’s power is off, nothing appears on the TV screen. In this case, turn on the satellite receiver, or set the TV to its TV mode, or press TV AV/VIDEO on the remote control to set the unit to the AV mode.

Page 67 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_09Editing.fm]

DR-MH30EU_00.book Page 68 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

68 EN

SYSTEM CONNECTIONS

Connecting To A Dolby Digital Decoder Or An Amplifier With Built-in DTS

These instructions enable you to connect your unit to a Dolby Digital decoder or an amplifier with built-in DTS.

Dolby Digital Decoder or

amplifier with built-in DTS

To DIGITAL AUDIO input

Optical cable

(not provided)

Coaxial cable (not provided)

DIGITAL OUT (COAXIAL)

When you can’t switch the audio channel of a bilingual programme

When the unit is connected with a digital audio device using an optional optical cable and “DIGITAL AUDIO OUT” is set to “DOLBY DIGITAL/PCM”, it is not possible to switch the audio channel of a bilingual programme recorded on a DVD-RAM or DVD-RW (VR mode) disc. In this case, perform the following steps using the remote control to switch “DIGITAL AUDIO OUT” from “DOLBY DIGITAL/PCM” to “PCM ONLY”. (墌 pg. 31)

ENTER.

E Press rt to select “PCM ONLY”, then press ENTER. (墌 pg. 69)

F Press SET UP to complete the setting. G Press AUD IO to select the desired audio channel.

DIGITAL OUT (OPTICAL)

Note for connection:

Remove the protection cap from the cable.

1 Connect the unit and a Dolby Digital decoder or an amplifier

with built-in DTS using either an optional optical cable or an optional coaxial cable.

NOTES:

● For Dolby Digital sound, set “DIGITAL AUDIO OUT” to “DOLBY DIGITAL/PCM”. (

● For DTS sound, set “DIGITAL AUDIO OUT” to “STREAM/PCM”.

墌 pg. 69)

(

CAUTIONS:

● This unit has a dynamic range of more than 110 dB with regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.

● Some speakers and televisions are specially shielded to prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the playback picture.

墌 pg. 69)

Page 68 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 69 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

Mode Set

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

ENTER

rtwe

SET UP

CABLE/DBS

SUBSIDIARY SETTINGS

*The boldface settings below indicate the settings at your purchase.

EN 69

AUDIO OUTPUT

8 DIGITAL AUDIO OUT — DOLBY DIGITAL/PCM / STREAM/

PCM / PCM ONLY

Set to the appropriate mode according to the type of the device connected to DIGITAL OUT connector.

DVDTV

DOLBY DIGITAL/PCM: Select this when you connect the digital

input connector of a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder.

STREAM/PCM: Select this when you connect the digital input

connector of an amplifier with a built-in DTS, Dolby Digital, or MPEG multichannel decoder.

PCM ONLY: Select this when you connect the linear PCM digital

input of other audio equipment (amplifier, MD or DAT deck, etc.).

8 ANALOG AUDIO OUT — STEREO / DOLBY SURROUND

Select the appropriate setting to accommodate the unit to the connected A/V equipment. This function takes effect when a DVD VIDEO disc is played back.

STEREO: Select this when listening to conventional two-channel

stereo audio with the unit’s AUDIO OUT connectors connected to a stereo amplifier/receiver or TV set, or in case you want to record the audio from a DVD VIDEO disc to a Mini Disc, etc.

DOLBY SURROUND: Select this when listening to multichannel

surround audio with the unit’s AUDIO OUT connectors connected to an amplifier/receiver with a built-in surround decoder or a surround decoder.

Various modes of this unit are categorized into menus nested in 2 levels shown in the following table. To change the settings of these modes, find the desired mode in the menu (for details on each menu, see pages 69 through 70), then follow the procedure below.

DVD VIDEO SET UP LANGUAGE SET (墌 pg. 23)

AUDIO OUTPUT (墌 pg. 69) PARENTAL LOCK (墌 pg. 36) DISC PLAY SET UP (墌 pg. 70)

HDD/DVD SET UP

HDD SET UP

(墌 pg. 70)

DVD SET UP (墌 pg. 70) DISC SET UP (墌 pg. 76, 77)

FUNCTION SET UP

REC/PLAY SET UP

(墌 pg. 70)

DISPLAY SET (墌 pg. 71) VIDEO IN/OUT (墌 pg. 24, 63)

INITIAL SET UP TUNER SET (墌 pg. 72)

CLOCK SET (墌 pg. 75)

● The procedure below shows how to set the desired option of the “AUDIO REC” mode as an example.

1 Press SET UP to access the Main Menu screen. 2 Press we to select “FUNCTION SET UP”, then press ENTER. 3 Press we to select “REC/PLAY

SET UP”, then press ENTER.

4 Press rt to select “AUDIO

REC”, then press ENTER.

5 Press rt to select the desired

option, then press ENTER.

6 Press SET UP to complete the

setting.

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

XP MODE REC AUDIO

AUDIO REC

DIRECT REC OFF

JUMP TIME

ENTER

SET UP

EXIT

SELECT

FUNCTION SET UP

DISPLAY SETREC/PLAY SETUP

VIDEO IN/OUT

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

DOLBY DIGITAL

NICAM

15 MIN

CONECT

8 D. RANGE CONTROL — NORMAL / WIDE RANGE /

TV MODE

The dynamic range (the difference between the loudest sound and the quietest one) can be compressed during playback of a programme encoded in Dolby Digital format. This function takes effect when a DVD VIDEO disc recorded in Dolby Digital format is played back at low or middle volume.

NORMAL: Normally select this setting to activate this function.

WIDE RANGE: Select this to deactivate this function when you

enjoy wide dynamic range programme.

TV MODE: Select this when you hear the sound through the TV’s

speaker(s).

NOTES:

● This function takes no effect on programmes other than that recorded in Dolby Digital format.

● This function dose not work when Simulated Surround Effect is activated. (墌 pg. 34)

● The effect of “NORMAL” and “WIDE RANGE” may not be different depending on discs.

8 OUTPUT LEVEL — STANDARD / LOW

You can lower the output level of analog audio to accommodate the unit to the connected A/V equipment.

STANDARD: Normally select this setting.

LOW: The output level of analog audio is lowered.

Page 69 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 70 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

70 EN

SUBSIDIARY SETTINGS

DISC PLAY SET UP

8 RESUME — OFF / ON / DISC RESUME

When this function is set to “ON” or “DISC RESUME”, you can use the resume function. (墌 pg. 29)

OFF: You cannot use the resume function.

ON: You can start playback from the resume point of the placed

disc.

DISC RESUME: The unit retains a memory of the resume points of

the last 30 discs played back, even though they have been ejected.

NOTE:

“DISC RESUME” setting works on DVD VIDEO, VCD, SVCD and already finalised DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under “ON” setting will be applied even if “RESUME” is set to “DISC RESUME”.

HDD SET UP

8 LIVE MEMORY — OFF / 30 MIN / 1 HR / 3 HR

When this function is set to “30 MIN”, “1 HR” or “3 HR”, you can apply the selected time length to “Temporary recording for Live Memory” (墌 pg. 43).

DVD SET UP

8 SAVE AS LIBRARY — OFF / ON

When this function is set to “ON”, the recording information is automatically stored in the library. For details, refer to “Modify Library Information” (墌 pg. 56).

8 CONTINUOUS PLAY — OFF / ON

When this function is set to “ON”, multiple titles on a disc are played back continuously one after another.

REC/PLAY SET UP

8 XP MODE REC AUDIO — DOLBY DIGITAL / LINEAR PCM

You can select the audio format when you record a title in XP mode. When this function is set to “LINEAR PCM”, you can obtain a high-quality audio sound.

DOLBY DIGITAL: To record in Dolby Digital format.

LINEAR PCM: To record in Linear PCM format.

8 AUDIO REC — NICAM / MONO

You can select the desired NICAM audio channel to be recorded on a DVD-R/RW (Video mode) disc.

NICAM: To record the main and sub language of NICAM audio.

MONO: To record the standard (monaural) sound of NICAM audio.

NOTE:

This function works only for the NICAM bilingual programme.

8 DIRECT REC — OFF / ON

When this function is set to “ON”, you can easily start recording the programme that you are watching on your TV. Press and hold 7 and press 4 on the remote control, or press 7 on the unit.

NOTES:

● When you use the Direct Rec function, be sure to use a TV offering T-V LINK, etc. and connect a fully-wired 21-pin SCART cable between the unit and the TV. (墌 pg. 19)

● If “DIRECT REC” is set to “OFF”, the 7 button functions as described in “Basic Recording” (墌 pg. 37, 40).

● During Direct Rec, “– –” appears on the front display panel.

● If a programme is recorded with the Direct Rec, the station name will

not be registered in the library. “––––” will be displayed for the station name.

● Even if there is no power supply for more than 60 minutes, the unit keeps the setting.

8 VIDEO MODE RECORDING ASPECT — PRIORITIZE 4:3 /

PRIORITIZE 16:9

This is the setting for the aspect ratio used when you dub titles to DVD discs in video mode. If the titles you want to dub are recorded in both 16:9 and 4:3, you must select one aspect ratio.

PRIORITIZE 4:3: If you select “PRIORITIZE 4:3”, even a title

recorded in 16:9 is dubbed in 4:3.

PRIORITIZE 16:9: If you select “PRIORITIZE 16:9”, even a title

recorded in 4:3 is dubbed in 16:9.

8 VIDEO MODE RECORDING AUDIO — MAIN / SUB

This is the setting for the audio channel to be selected when dubbing titles to DVD discs in video mode. Select either one of the two settings if the titles to be dubbed have two audio channels.

MAIN: Select this to dub the main channel.

SUB: Select this to dub the sub channel.

8 MP3/JPEG — MP3 / JPEG

You can select files to play back, when both MP3 files and JPEG files are recorded on a disc.

MP3: Select this to play back MP3 files.

JPEG: Select this to play back JPEG files.

NOTE:

Be sure to open and close the disc tray after changing the setting. The unit reads the disc again and the selected file type can be recognized.

8 JUMP TIME — 15 MIN / 30 MIN / 1 HR

You can locate a scene ahead of or behind the currently viewed one by jumping a selected time interval during playback (or Live Memory Playback) or recording (or Live Memory Recording). For details, refer to “Jump Search” (墌 pg. 45).

Page 70 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 71 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

DISPLAY SET

8 SUPERIMPOSE — OFF / AUTO

When this function is set to “AUTO”, various operational indicators appear on the TV screen. Messages appear in the selected language. (墌 pg. 23)

OFF: To turn off superimposed indications.

AUTO: To superimpose operational indications for approximately

five seconds just after the corresponding operation.

NOTES:

● Even when “SUPERIMPOSE” is set to “OFF”, you can display the various operational indicators by pressing ON SCREEN. To clear the operational indicators, press ON SCREEN again.

● When you use this unit as the source player for editing, be sure to set “SUPERIMPOSE” to “OFF” before starting. (墌 pg. 62)

● When you select “AUTO”, during playback, the operation mode indicators may be disturbed depending on the type of disc being used.

8 BLUE BACK — ON / OFF

When this function is set to “ON”, the TV screen becomes all blue when receiving a channel not in use.

NOTE:

When you want to receive an unstable channel with poor signals, set this function to “OFF”.

8 DIMMER — BRIGHT / DIMMED1 / DIMMED2 / OFF

You can change the brightness of the front display panel.

BRIGHT: Normally select this.

DIMMED1/DIMMED2: To change the brightness level. (Blue lamp

on the front display panel becomes dimmer.)

OFF: To dim the front display panel. (Blue lamp on the front display

panel is turned off.)

NOTE:

It is impossible to turn off the light of the front display completely. When “BRIGHT” or “DIMMED1” is selected, the brightness level will be the same as “DIMMED1” after the unit is turned off. When “DIMMED2” or “OFF” is selected, the brightness level will be the same as “DIMMED2” after the unit is turned off.

SUBSIDIARY SETTINGS

EN 71

Scan Mode Set

If you connect the unit and TV with Component Video Connection (墌 pg. 19), you can select the scan mode from two modes: Interlaced scan mode which is used in the conventional TV system, and Progressive scan mode which enables reproduction of higherquality images.

8 Interlaced scan

In the conventional video system, a picture is shown on the display monitor in two halves. The Interlaced scan system places lines of the second half of the picture in-between lines of the first half of the picture.

8 Progressive scan

Progressive scan displays all the horizontal lines of a picture at one time, as a single frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.

TTENTION:

Your TV needs to be compatible with PAL Progressive.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

8 POWER SAVE — OFF / ON

When this function is set to “ON”, you can reduce the power consumption while the unit is turned off.

NOTES:

● During Power Save mode —

— the front display panel will be turned off. — the Just Clock function (

● Power Save does not work when —

— the unit is in the Timer mode. — the unit’s power is turned off after timer-recording or Instant Timer Recording. — the Automatic Satellite Programme Recording mode is engaged. (

墌 pg. 50)

— “L-2 SELECT” is set to “DECODER”, “SAT VIDEO” or “SAT S-VIDEO”.

墌 pg. 63)

(

● It takes some time for the unit to complete initialisation after you turn on the unit power, with “WAKE UP” blinking on the front display panel.

墌 pg. 75) does not work.

PROGRESSIVE SCAN

1 Press PROGRESSIVE SCAN for 3 or more seconds.

● Video output indicator ( ) lights on the front display panel if Progressive scan mode has been established. (

● Each press of PROGRESSIVE SCAN for 3 or more seconds switches the scan mode.

NOTES:

● When the progressive mode is set, be sure to set “L-1 OUTPUT” to “COMPONENT”. (墌 pg. 63) Progressive scan is output only from COMPONENT VIDEO OUT connector.

● Interlaced scan mode is the setting at your purchase.

● Interlaced scan mode might be suitable depending on video material.

● Scan mode cannot be set while menu screen is displayed.

● When Progressive scan mode is engaged, no video signal is output

from S-VIDEO OUT connector and L-1 IN/OUT connector.

墌 pg. 13)

Page 71 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 72 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

72 EN

SUBSIDIARY SETTINGS

VIDEO Plus+® System Setup

IMPORTANT:

Normally, Auto Set Up (墌 pg. 20), Preset Download (墌 pg. 21) or Auto Channel Set (墌 pg. 72) sets the Guide Program numbers automatically. You need to set the Guide Program numbers manually only in the following cases.

● When timer-programming with the VIDEO Plus+ system, the channel position, where the station you wish to record is received on your unit, is not selected,

when you add a channel after Auto Set Up, Preset Download or Auto Channel Set has taken place, —Set the Guide Program number for that station manually.

● When you wish to timer-record a satellite programme with the VIDEO Plus+ system,

—Set the Guide Program numbers for all satellite broadcasts received on your satellite receiver.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

Guide Program Number Set

1 Press SET UP to access the Main Menu screen. 2 Press we to select “INITIAL SET UP”, then press ENTER. 3 Press we to select “TUNER

SET”, then press ENTER.

4 Press rt w e to select “GUIDE

PROG SET”, then press ENTER.

5 Press rt to select “GUIDE

PROG”, then press ENTER.

6 Press rt to select the Guide

Program number for the desired station as shown in the TV listings. Then press ENTER.

● To change the Guide Program number in 10 increments, press and hold rt.

7 Press rt to select “TV PROG”, then press ENTER. Press rt

to select the number of the unit’s channel position on which the Guide Program number’s broadcast is received by the unit or the satellite receiver. Then press ENTER.

● Pressing AUX changes “TV PROG” to “SAT”.

● To timer-record a satellite programme with the VIDEO Plus+ system,

you need to install the provided Satellite Controller and perform the procedure described in “Satellite Receiver Control Setting” (墌 pg. 25).

● Repeat steps 5 – 7 as necessary.

8 Press SET UP to complete the setting.

Guide Program Number

“Guide Program (GUIDE PROG) number” refers to the assigned TV station numbers, according to broadcast area, for the VIDEO Plus+ timer recording. The Guide Program Numbers can be found in most TV listings.

DVD VIDEO SET UP INITIAL SET UPFUNCTION SET UPHDD/DVD SET UP

CLOCK SET

TUNER SET

AUTO CH SET

SAT CONTROL SET

ENTER

SET UP

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

EXIT

SELECT

INITIAL SET UP > GUIDE PROG SET

GUIDE PROG

TV PROG

ENTER

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

EXIT

SELECT

MANUAL CH SET

GUIDE PROG SET

YLE2 1

RETURN

Tuner Set

Your unit needs to memorise all necessary stations in channel positions in order to record TV programmes. Auto Channel Set automatically assigns all receivable stations in your area to call them up by using the PR +/– buttons without going through any vacant channels.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

ENTER

IMPORTANT:

Perform the following steps only if —

— Auto Channel Set has not been set correctly by Auto Set Up or by Preset Download. (墌 pg. 20, 21) — you have moved to a different area or if a new station starts broadcasting in your area.

Auto Channel Set

1 Press SET UP to access the Main Menu screen. 2 Press we to select “INITIAL SET UP”, then press ENTER. 3 Press we to select “TUNER SET”, then press ENTER. 4 Press rt w e to select

“AUTO CH SET”, then press ENTER.

● When you have connected the unit to a TV offering T-V Link via a fully-wired 21-pin SCART cable (墌 pg. 19), the unit automatically performs the Preset Download and the T-V LINK screen will appear. (墌 pg. 21)

● The Auto Set screen appears, and remains on screen while the unit searches for receivable stations.

rtwe

SET UP

DVD VIDEO SET UP INITIAL SET UPFUNCTION SET UPHDD/DVD SET UP

TUNER SET

ENTER

SET UP

EXIT

SELECT

INITIAL SET UP > AUTO SET

ENTER

SET UP

EXIT

SELECT

CLOCK SET

AUTO CH SET

SAT CONTROL SET

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

AUTO SET

PLEASE WAIT...

MANUAL CH SET

GUIDE PROG SET

Page 72 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 73 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

5 View the Confirmation screen.

“SCAN COMPLETED” is displayed on the TV screen. Press “OK”, then the Confirmation screen appears. The confirmation screen lists the channel position number (PR), station channel number (CH), and station name (ID) (墌 pg. 87) of all stored broadcast stations. The programme currently received on the selected channel position appears behind the confirmation screen. To view the next page, press rt w e.

● The Guide Program numbers will also be set automatically during Auto Channel Set.

6 Press SET UP to complete the setting.

● Using the Confirmation screen, you can skip or add channel positions, enter station names and perform other operations. Refer to pages 73 – 74 for the procedures.

● Depending on reception conditions, the stations may not be stored in order, and the station names may not be stored correctly.

IMPORTANT:

● In certain reception conditions, station names may not be stored correctly, and Auto Guide Program Number Set may not work properly. When the Guide Program numbers are not set properly, the programme that you do not intended to record will be timerrecorded by the VIDEO Plus+ system of the unit. When programming the timer using the VIDEO Plus+ system, be sure to check the desired channel is selected correctly. (墌 pg. 46, “VIDEO Plus+® Timer Programming”)

● Your unit memorises all receivable stations even if reception of some of them is poor. You can delete those stations with an unacceptable picture from the list. (墌 pg. 74, “Delete A Channel”)

NOTES:

● Fine tuning is performed automatically during Auto Channel Set. If you want to perform tuning manually, refer to “Fine-Tuning Channels Already Stored” (墌 pg. 74).

● If you perform Auto Channel Set when the aerial cable is not connected properly, “SCAN COMPLETED –NO SIGNAL–” appears on the TV screen in step 5. In such a case, make sure of the aerial connection and press ENTER; Auto Channel Set will start again.

SUBSIDIARY SETTINGS

EN 73

Manual Channel Set

Store channels that were not stored during Auto Set Up (墌 pg. 20), Preset Download (墌 pg. 21) or Auto Channel Set (墌 pg. 72).

1 Press SET UP to access the Main Menu screen. 2 Press we to select “INITIAL SET UP”, then press ENTER. 3 Press we to select “TUNER SET”, then press ENTER. 4 Press rt w e to select “MANUAL CH SET”, then press

ENTER. The Confirmation screen appears.

5 Press rt w e to select a

blank position in which you want to store a channel, then press ENTER twice. The Manual Channel Set screen appears.

6 Press rt to select “BAND”,

then press ENTER.

7 Press rt to change the band

between CH (regular) and CC (cable), then press ENTER.

8 Press rt to select “CH”, then

press ENTER.

9 Press rt to input the channel

number you want to store.

● To enter the registered station

name (墌 pg. 87), press rt to select “ID”, then press ENTER. Press rt.

● For fine tuning adjustment, press rt to select “FINE”, then press ENTER. Press rt to perform fine-tuning.

● When “L-2 SELECT” is set to “VIDEO”, “S-VIDEO”, “SAT VIDEO” or “SAT S-VIDEO”, the “DECODER” setting cannot be changed. (墌 pg. 63)

10 Press ENTER to enter new channel information. The

Confirmation screen appears.

● Repeat steps 5 – 10 as necessary.

11 Press SET UP to close the Confirmation screen.

● To change positions, see “Change Station Channel Position” (

墌 pg. 74).

● If you wish to set station names other than the ones registered in your

unit, see “Set Stations (B)” (

(Example) To store in position 6.

INITIAL SET UP > MANUAL CH SET

CH ID CH CH ID

01 C01 ----

03 05 1000

04 C79 3SAT

05 01

The programme currently received on the selected channel position appears behind the confirmation screen.

INITIAL SET UP > MANUAL CH SET

BAND

ID ----

FINE

DECODER OFF

ENTER

SET UP

EXIT

SELECT

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

墌 pg. 74).

07 ----

CTEA

08 ----

09 ----

10 ----

9LIV

11 ----

AB3

12 ----

MOVE EDIT RETURN

RETURN

TTENTION:

Guide Program numbers are not set when channels are stored manually. (墌 pg. 72, “VIDEO Plus+

System Setup”)

Page 73 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 74 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

74 EN

SUBSIDIARY SETTINGS

Delete A Channel

1 Perform steps 1 – 4 of “Manual Channel Set” (墌 pg. 73) to

access the Confirmation screen before continuing.

2 Press rt w e to select the item you want to delete. 3 Press & to delete a channel. The item next to the cancelled one

moves up one line.

● Repeat steps 2 – 3 as necessary.

4 Press SET UP to close the Confirmation screen.

Change Station Channel Position

1 Perform steps 1 – 4 of “Manual Channel Set” (墌 pg. 73) to

access the Confirmation screen before continuing.

2 Press rt w e to select “MOVE”, then press ENTER. 3 Press rt w e to select the item you want to move, then press

ENTER.

4 Press rt w e to select the new channel position, then press

ENTER. Example: If you moved the station in position 4 to position 2, the

● Repeat steps 3 – 4 as necessary.

5 Press SET UP twice to close the Confirmation screen.

stations originally in positions 2 and 3 each move down one space.

INITIAL SET UP > MANUAL CH SET

CH ID CH CH ID

01 C01 ----

02 CTEA

03 05 1000

04 3SAT

C79

9LIV

05 01

AB3

07 ----

08 ----

09 ----

10 ----

11 ----

12 ----

MOVE EDIT RETURN

INITIAL SET UP > MANUAL CH SET

CH ID CH CH ID

01 C01 ----

C79

3SAT

03 02

CTEA

04 05

1000

9LIV

05 01

AB3

07 ----

08 ----

09 ----

10 ----

11 ----

12 ----

MOVE EDIT RETURN

Set Stations (A)

Set station names that are registered in your unit.

1 Perform steps 1 – 4 of “Manual Channel Set” (墌 pg. 73) to

access the Confirmation screen before continuing.

2 Press rt w e to select “EDIT”, then press ENTER. 3 Press rt w e to select the item you want to modify. 4 Press ENTER twice to access the Manual Channel Set screen. 5 Press rt to select “ID”, then press ENTER. 6 Press rt until the new station’s name (ID) you want to store

appears, then press ENTER. Registered station names (墌 pg. 87) appear as you press rt.

7 Press we to select “OK”, then press ENTER.

● Repeat steps 3 – 7 as necessary.

8 Press SET UP twice to close the Confirmation screen.

Set Stations (B)

Set station names other than the ones registered in your unit.

1 Perform steps 1 – 4 of “Manual Channel Set” (墌 pg. 73) to

access the Confirmation screen and then perform steps 2 – 4 of “Set Stations (A)” above before continuing.

2 Press rt to select “ID”, then press ENTER. 3 Press ENTER twice. 4 Press we to locate the character insertion point. 5 Press rt to cycle through the characters (A–Z, 0–9, –, f, +, I

(space)) and stop when the desired character is indicated, then press e to enter.

● Enter the remaining characters the same way (maximum of 4).

6 After entering all characters, press we to select “OK”, then

press ENTER.

7 Press SET UP twice to close the Confirmation screen.

NOTE:

The characters available for the station name (ID) are A–Z, 0–9, –, f, +, I (space) (maximum of 4).

Fine-Tuning Channels Already Stored

1 Perform steps 1 – 4 of “Manual Channel Set” (墌 pg. 73) to

access the Confirmation screen before continuing.

2 Press rt w e to select the channel you want to fine-tune, then

press ENTER.

3 Press ENTER twice. 4 Press ENTER to access the Manual Channel Set screen. The

Manual Channel Set screen appears.

5 Press rt to select “FINE”. 6 Press we until the picture appears in its best quality.

● Repeat steps 2 – 6 as necessary.

7 Press SET UP three times to close the Confirmation screen.

Page 74 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 75 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Clock Set

IMPORTANT:

If you performed Auto Set Up (墌 pg. 20) or Preset Download (墌 pg. 21), without ever having set the clock previously, the unit’s built-in clock is also set automatically. Perform the following steps only if — — Auto Clock Set has not been performed correctly by Auto Set Up or Preset Download.

— you want to change Just Clock setting. (墌 “Just Clock” in the right column)

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

ENTER

rtwe

SUBSIDIARY SETTINGS

EN 75

7 Press SET UP to start the clock operation.

NOTES:

● Just Clock (when set to “ON”) adjusts the unit’s built-in clock every hour, except for 23:00, 0:00, 1:00 and 2:00.

● Just Clock is not effective when:

— the unit’s power is on. — the unit is in the Timer mode. — a difference of more than 3 minutes exists between the built-in

clock’s time and the actual time.

— the unit is in the Automatic Satellite Programme Recording

mode. (墌 pg. 50) — the unit is in the Power Save mode. (墌 pg. 71) — “L-2 SELECT” is set to “SAT VIDEO” or “SAT S-VIDEO”.

(墌 pg. 63)

● If Just Clock is set to “ON”, the unit’s clock is automatically adjusted at the start/end of Summer Time.

● Just Clock may not function properly depending on the reception condition.

Just Clock

The Just Clock function provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. The Just Clock option can be set to “ON” or “OFF” at the Clock Set screen (the default setting is “OFF”).

IMPORTANT:

If you turn off Just Clock, the accuracy of your unit’s built-in clock may be reduced, which could adversely effect timer recording. We recommend you to keep Just Clock on. In cases where the clock setting data from a PDC signal is incorrect, however, you are advised to keep Just Clock set to “OFF”.

SET UP

1 Press SET UP to access the Main Menu screen. 2 Press we to select “INITIAL SET UP”, then press ENTER. 3 Press we to select “CLOCK

SET”, then press ENTER.

4 Press rt to select “YEAR”,

then press ENTER. Press rt to set the year, then press ENTER.

● Repeat the same procedure to set the date and time.

● When you set the date, press and hold rt to change the date by 15 days.

● When you set the time, press and hold rt to change the time by 30 minutes.

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

YEAR

DATE

TIME --:--

JUST CLOCK OFF

TV PROGRAMME

ENTER

SET UP

EXIT

SELECT

FUNCTION SET UP

CLOCK SETTUNER SET

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

2004

01. 01(THU)

5 Press rt to select “JUST CLOCK”, then press ENTER. Press

rt to set to the desired mode, then press ENTER.

● The default setting is “OFF”.

● For the Just clock function, refer to “Just Clock” on the right column.

● If you set to “OFF”, you can disregard the next step as you won’t be

able to receive regular clock adjustments.

6 Press rt to select “TV PROGRAMME”, then press ENTER.

Press rt to set the channel position to the number representing the station transmitting clock setting data, then press ENTER.

● The unit is preset to receive clock setting and adjustment data from channel position 1.

Page 75 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 76 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

76 EN

SUBSIDIARY SETTINGS

Format A Disc (DVD Deck Only)

Some DVD-RAM/RW discs are unformatted. Format the disc when you use an unformatted disc or you want to delete all recordings and data on the disc.

TTENTION:

● When a disc is formatted, all recordings and data are erased. It is impossible to restore them.

● Never turn off the unit or disconnect the mains power cord while “NOW FORMATTING...” is displayed on the TV screen.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Load a DVD-RAM/RW disc to format.

CABLE/DBS

DVDTV

ENTER

rtwe

Format A DVD-RAM Disc

1 Press SET UP to access the Main Menu screen. 2 Press we to select “HDD/DVD SET UP”, then press ENTER. 3 Press we to select “DISC SET

UP”, then press ENTER.

4 Press rt w e to select

“FORMAT”, then press ENTER. Press we to select “OK”, then press ENTER.

5 Press we to select “OK”, then

press ENTER.

DVD VIDEO SET UP INITIAL SET UPHDD/DVD SET UP

HDD SET UP

DVD SET UP

FINALIZE

Video

ENTER

SET UP

EXIT

SELECT

SELECT WITH [ ] THEN PRESS [ENTER] PRESS [SET UP] TO EXIT

FUNCTION SET UP

FORMAT

DISC SET UP

CANC. FINALIZ.

Video

Format A DVD-RW Disc

1 Perform steps 1 to 3 of “Format A DVD-RAM Disc” on the above

before continuing.

2 Press rt w e to select “FORMAT”, then press ENTER. Press

we to choose “VR MODE” or “VIDEO MODE”, then press ENTER

when “DISC WILL BE FORMATTED” appears on the TV screen. “VR MODE”: To be chosen when you want to record, erase, or

“VIDEO MODE”: To be chosen when you want to erase all the data

3 Press we to select “OK”, then press ENTER.

NOTES:

● It is impossible to format Version 1.0 DVD-RW discs in Video mode.

● It is impossible to format DVD-R discs.

● All the titles on a disc will be deleted once the disc is formatted even if

they are protected titles. (墌 pg. 53)

edit data on the disc repeatedly.

on the disc once played back to record new data, or play back the disc on other DVD players.

SET UP

Page 76 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 77 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

Finalise A Disc (DVD Deck Only)

Finalising DVD-R/RW discs recorded on this unit makes it possible for the discs to be played back on other DVD players. DVD-RW discs are finalised in the mode that the discs were formatted, enabling playback on compatible DVD players. Title names input in the Library Database Navigation are registered as title names in the DVD menu. (墌 pg. 52)

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

● Load a DVD-R/RW disc to finalise.

CABLE/DBS

DVDTV

ENTER

rtwe

SUBSIDIARY SETTINGS

EN 77

Finalise A DVD-R/RW Disc

1 Perform steps 1 to 3 of “Format A DVD-RAM Disc” (墌 pg. 76)

before continuing.

2 Press rt w e to select “FINALIZE”, then press ENTER.

Press we to select “OK”, then press ENTER.

3 Press we to select “OK”, then press ENTER. 4 Press SET UP to return to the normal screen.

● Menu screen is cleared.

● Once a DVD-R/RW (Video mode) disc has been finalised, the

displays for original and play list do not appear. Only display for library appears.

● Once a DVD-RW (VR mode) disc has been finalised, it can be played on DVD players compatible with VR mode.

Cancel The Finalisation Of A DVD-RW Disc

1 Load a DVD-RW disc to cancel the disc finalisation, and perform

steps 1 to 3 of “Format A DVD-RAM Disc” (墌 pg. 76) before continuing.

2 Press rt w e to select “CANC. FINALIZ.”, then press ENTER. 3 Press we to select “OK”, then press ENTER. 4 Press SET UP to return to the normal screen.

● When the disc finalisation is cancelled, the mode in which the disc was formatted is restored, making the disc recordable. (墌 pg. 8, 76)

SET UP

Before finalising

● It is possible to record on a blank space.

● It is possible to enter title names. (

● It is possible to delete titles. (墌 pg. 53)

● It is impossible to overwrite recorded areas of DVD-R discs.

● Available recording capacity does not increase even if a recorded title

is deleted from a DVD-R disc.

● It is impossible to record or edit DVD-R/RW discs recorded on other devices even if they have not been finalised.

After finalising (For DVD-R/RW (Video mode) discs)

● Video and audio that have been recorded by then are recorded in conformity to the DVD Video standard, enabling you to play back the discs as DVD VIDEO discs.

● Although DVD-R/RW discs finalised on this unit become playable on DVD players compatible with DVD-R/RW discs, some discs still may not play, for which JVC cannot take responsibility.

● Marked points marked before finalising will be deleted, and titles will be divided automatically into “chapters” approximately every 5 minutes. (

● Depending on the DVD players and DVD-R/RW discs used, and on the conditions of recording, it may not be possible to play back the discs. In this case, play back the discs on this unit.

● Additional recordings become impossible.

墌 pg. 29)

墌 pg. 52)

Page 77 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 78 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

78 EN

SUBSIDIARY SETTINGS

Help Function

Use this function if you encounter problems while operating this unit.

● Turn on the unit.

● Turn on the TV and select the AV mode.

● Slide the TV/CABLE/SAT/DVD switch to DVD.

CABLE/DBS

DVDTV

ENTER

Tray Lock (DVD Deck Only)

You can lock the disc tray to prohibit the unwanted disc ejection by children.

● Turn off the unit.

To lock tray

While the unit is turned off, press and hold 8, then press x on the unit. “LOCKED” appears on the front display panel and the disc tray is locked.

To unlock tray

While the unit is turned off, press and hold 8, then press x on the unit. “UNLOCK” appears on the front display panel.

1 Press ? to access the help screen.

● An INDEX screen that contains the most common needed topics (headings) relating to the current status appears. Topics with the icon refer to HDD deck operations and with the icon refer to those for the DVD deck.

2 Press rt to search for the item that describes the solution to

your problem, then press ENTER.

● The selected help page appears.

● You can also browse help pages by pressing rt.

● To return to a previous page, press PREVIOUS (2).

3 Press ? to return to the normal screen.

NOTE:

You cannot perform playback, recording, timer recording, or other normal operations while accessing the help screen.

Page 78 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 79 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

Before requesting service for a problem, use this chart and see if you can solve the trouble yourself. Small problems are often easily solved, and this can save you the trouble of sending your unit off for repair.

Initialising (DVD Deck Only)

Malfunction occurs on the unit.

]Press 1 to turn off the unit, press and hold 1, then press 8

for two seconds or more.

General

No power is supplied to the unit.

● The AC power plug is disconnected from the mains outlet.

]Connect the AC power plug to the mains outlet securely.

(墌 pg. 19)

The remote control does not work properly.

]Remove the batteries, wait for 5 minutes or more, then load the

butteries again.

● The setting of the remote control code is inappropriate.

]Set the same remote control code (1, 2, 3, or 4) on both the unit

and the remote control. (墌 pg. 65)

● The batteries are discharged.

]Replace the dead batteries with new ones.

Dubbing from the external equipment is not possible.

● The source (another video recorder, camcorder) has not been

properly connected.

]Confirm that the source is properly connected.

● All necessary power switches have not been turned on.

]Confirm that all units’ power switches are turned on.

● The setting of the input channel position is inappropriate.

]Select the input channel position (“F-1”, “L-1”, or “L-2”) that

corresponds to the input terminal connected to the external equipment. (墌 pg. 62)

The on-screen display superimposed on the programme played back/received on this unit is recorded when you dub the programme to an external recording equipment.

]Set “SUPERIMPOSE” to “OFF”. (墌 pg. 71)

The unit does not operate.

● There are cases when the operation is prohibited on the disc.

● Lightning or static electricity may cause malfunction of the unit.

]Press 1 to turn the power off, then press the button again to

turn the power on.

TROUBLESHOOTING

EN 79

Playback (DVD Deck)

The DVD deck cannot be operated.

● The DVD deck is not selected.

]Press DVD so that the DVD lamp lights up on the unit.

Images do not appear on the TV screen.

● The TV receiver’s channel selector is not set to the AV mode.

]Set the TV to its AV mode.

● When interlace scanned programme is played back, progressive scan mode is selected.

]Press and hold PROGRESSIVE SCAN until disappears from

the front display panel. (墌 pg. 71)

Playback dose not start or stop immediately after playback is started by pressing . On the front display panel, “NO DISC” appears.

● The disc is loaded upside down.

]Place the disc on the disc tray with the playback surface facing

down. (墌 pg. 9)

● A disc not being compatible with the unit is loaded.

]Load a playable disc on the unit. (墌 pg. 6)

● A dirty disc is loaded.

]Clean the disc. (墌 pg. 10)

● Defective disc is loaded.

]Replace the warped or scratched disc with a normal one.

Images are blurred or distorted when you start High-Speed Search.

]Images are blurred or distorted at the point where the playback

speed changes and this is not a malfunction of the unit.

Playback does not start.

]Playback does not start for approximately 30 seconds after

recording is stopped and this is not a malfunction of the unit.

Playback does not start when you select a title or a chapter.

● The Parental Lock is engaged and the disc is rated higher than the set level.

]Release the Parental Lock temporarily or change the set level.

(墌 pg. 36)

Playback (HDD Deck)

The HDD deck cannot be operated.

● The HDD deck is not selected.

]Press HDD so that the HDD lamp lights up on the unit.

Page 79 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 80 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

80 EN

TROUBLESHOOTING

Recording (DVD Deck)

The desired programme cannot be recorded.

● The channel position does not correspond to that in the receiving area.

]Set the correct channel position for the receiving broadcast.

(墌 pg. 72)

Recording cannot be made.

● No disc or a disc not being compatible with the unit is loaded.

]Load a recordable disc on the unit. (墌 pg. 6)

● The disc loaded is not formatted.

]Format the disc. (墌 pg. 76)

● A finalised DVD-R disc is loaded.

]Recording cannot be made on finalised discs. Load a recordable

disc on the unit.

● The disc is full or does not have enough space for the title to be recorded.

]Clear unnecessary titles on the disc or load a blank disc.

(墌 pg. 53)

● The DVD-RAM disc loaded has had its protect tab slid to the protect position.

]Release the protect tab. (墌 pg. 9)

Recording (HDD Deck)

TV broadcasts cannot be recorded.

● “L-1”, “L-2” or “F-1” has been selected as the input mode.

]Set to the desired channel.

Camcorder recording is not possible.

● The camcorder has not been properly connected.

]Confirm that the camcorder is properly connected.

● The input mode is not correct.

]Set the input mode to “F-1”. (墌 pg. 61)

Timer Recording

Timer programming cannot be made.

● Date and time is not correct. ]Set date and time correctly. (墌 pg. 75)

● Timer recording is in progress.

]Timer programming can’t be performed while a timer recording

is in progress. Wait until it finishes.

Timer programming recording does not start.

● Date and time is not correct. ]Set date and time correctly. (墌 pg. 75)

VIDEO Plus+ Timer Programming cannot be made.

● Date and time set on the unit is not correct. ]Set date and time correctly. (墌 pg. 75)

● The channel position does not correspond to that in the

receiving area.

]Set the correct channel position for the receiving broadcast.

(墌 pg. 72)

The VIDEO Plus+ system does not timer-record properly.

● The unit’s channel positions have been set incorrectly.

]Refer to “VIDEO Plus+

perform the procedure.

Automatic Satellite Programme Recording does not start.

● The satellite receiver is not connected properly to this unit.

]Connect the satellite receiver to the L-2 IN/DECODER

connector properly. (墌 pg. 50)

On the front display panel, “– –:– –” appears.

● Power failure occurred. ]Set date and time correctly. (墌 pg. 75)

“PROGRAMME FULL” appears on the TV screen during timer programming.

● 32 programmes have already been timer programmed.

]Clear unnecessary programmes on the unit, then try timer

programming again. (墌 pg. 49)

The disc space does not increase when recorded titles are cleared.

● The PC’s data recorded on a DVD-RAM drive cannot be cleared on this unit.

]Format the disc. (When the disc is soiled, wipe the disc with a

soft dry cloth before formatting.) (墌 pg. 10, 76)

System Setup” (墌 pg. 72) and re-

Page 80 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 81 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

SPECIFICATIONS

VIDEO/AUDIO (HDD Deck)

EN 83

Video recording compression system

MPEG2 (VBR)

Audio recording system

MPEG1 Layer2

Recording time

Maximum 204 hours (XP): Approx. 34 hours (SP): Approx. 68 hours (LP): Approx. 136 hours (EP): Approx. 204 hours (FR): Approx. 1 – 8 hours

TUNER/TIMER

Signal system

PAL-type colour signal and CCIR monochrome signal, 625 lines 50 fields

TV channel storage capacity

99 positions (+AUX position)

Tuning system

Frequency synthesized tuner

Channel coverage

VHF 44.5 MHz – 143 MHz/ 143 MHz – 470 MHz UHF 470 MHz – 862 MHz

Memory backup time

Approx. 60 seconds

ACCESSORIES

Provided accessories

RF cable, 21-pin SCART cable, Satellite Controller, Infrared remote control unit, “AA” battery x 2

E.& O.E. Design and specifications subject to change without notice.

VIDEO/AUDIO (DVD Deck)

Recording time

Maximum 8 hours (with 4.7 GB disc) (XP): Approx. 1 hour (SP): Approx. 2 hours (LP): Approx. 4 hours (EP): Approx. 6 hours (FR): Approx. 1 hour – 8 hours

Audio recording system

Dolby Digital (2 ch) Linear PCM (XP mode only)

Video recording compression system

MPEG2 (CBR/VBR)

TTENTION:

This unit contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the unit off and unplug the mains power cord. Then plug it in again and turn the unit on. Take out the disc. After checking the disc, operate the unit as usual.

Page 83 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 84 Thursday, June 3, 2004 11:00 AM

Masterpage:Left0

84 EN

APPENDIX

Language Code List

AA Afar IK Inupiak RN Kirundi

AB Abkhazian IN Indonesian RO Rumanian

AF Afrikaans IS Icelandic RU Russian

AM Ameharic IW Hebrew RW Kinyarwanda

AR Arabic JI Yiddish SA Sanskrit

AS Assamese JW Javanese SD Sindhi

AY Aymara KA Georgian SG Sangho

AZ Azerbaijani KK Kazakh SH Serbo-Croatian

BA Bashkir KL Greenlandic SI Singhalese

BE Byelorussian KM Cambodian SK Slovak

BG Bulgarian KN Kannada SL Slovenian

BH Bihari KO Korean (KOR) SM Samoan

BI Bislama KS Kashmiri SN Shona

BN Bengali, Bangla KU Kurdish SO Somali

BO Tibetan KY Kirghiz SQ Albanian

BR Breton LA Latin SR Serbian

CA Catalan LN Lingala SS Siswati

CO Corsican LO Laothian ST Sesotho

CS Czech LT Lithuanian SU Sundanese

CY Welsh LV Latvian, Lettish SW Swahili

DZ Bhutani MG Malagasy TA Tamil

EL Greek MI Maori TE Telugu

EO Esperanto MK Macedonian TG Tajik

ET Estonian ML Malayalam TH Thai

EU Basque MN Mongolian TI Tigrinya

FA Persian MO Moldavian TK Turkmen

FJ Fiji MR Marathi TL Tagalog

FO Faroese MS Malay (MAY) TN Setswana

FY Frisian MT Maltese TO Tonga

GA Irish MY Burmese TR Turkish

GD Scots Gaelic NA Nauru TS Tsonga

GL Galician NE Nepali TT Tatar

GN Guarani OC Occitan TW Twi

GU Gujarati OM (Afan) Oromo UK Ukrainian

HA Hausa OR Oriya UR Urdu

HI Hindi PA Panjabi UZ Uzbek

HR Croatian PL Polish VI Vietnamese

HU Hungarian PS Pashto, Pushto VO Volapuk

HY Armenian PT Portuguese WO Wolof

IA Interlingua QU Quechua XH Xhosa

IE Interlingue RM Rhaeto-Romance YO Yoruba

ZU Zulu

Page 84 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 85 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

APPENDIX

Country/Area Code List for Parental Lock

AD Andorra CK Cook Islands GN Guinea

AE United Arab Emirates CL Chile GP Guadeloupe

AF Afghanistan CM Cameroon GQ Equatorial Guinea

AG Antigua and Barbuda CN China GR Greece

AI Anguilla CO Colombia GS South Georgia and the South

AL Albania CR Costa Rica GT Guatemala

AM Armenia CU Cuba GU Guam

AN Netherlands Antilles CV Cape Verde GW Guinea-Bissau

AO Angola CX Christmas Island GY Guyana

AQ Antarctica CY Cyprus HK Hong Kong

AR Argentina CZ Czech Republic HM Heard Island and McDonald

AS American Samoa DE Germany HN Honduras

AT Austria DJ Djibouti HR Croatia

AU Australia DK Denmark HT Haiti

AW Aruba DM Dominica HU Hungary

AZ Azerbaijan DO Dominican Republic ID Indonesia

BA Bosnia and Herzegovina DZ Algeria IE Ireland

BB Barbados EC Ecuador IL Israel

BD Bangladesh EE Estonia IN India

BE Belgium EG Egypt IO British Indian Ocean Territory

BF Burkina Faso EH Western Sahara IQ Iraq

BG Bulgaria ER Eritrea IR Iran (Islamic Republic of)

BH Bahrain ES Spain IS Iceland

BI Burundi ET Ethiopia IT Italy

BJ Benin FI Finland JM Jamaica

BM Bermuda FJ Fiji JO Jordan

BN Brunei Darussalam FK Falkland Islands (Malvinas) JP Japan

BO Bolivia FM Micronesia

(Federated States of)

BR Brazil FO Faroe Islands KG Kyrgyzstan

BS Bahamas FR France KH Cambodia

BT Bhutan FX France, Metropolitan KI Kiribati

BV Bouvet Island GA Gabon KM Comoros

BW Botswana GB United Kingdom KN Saint Kitts and Nevis

BY Belarus GD Grenada KP Korea, Democratic People’s

BZ Belize GE Georgia KR Korea, Republic of

CA Canada GF French Guiana KW Kuwait

CC Cocos (Keeling) Islands GH Ghana KY Cayman Islands

CF Central African Republic GI Gibraltar KZ Kazakhstan

CG Congo GL Greenland LA Lao People’s Democratic

CH Switzerland GM Gambia LB Lebanon

CI Côte d’Ivoire

KE Kenya

Sandwich Islands

Islands

Republic of

Republic

EN 85

Page 85 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 86 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

86 EN

APPENDIX

LC Saint Lucia NU Niue SZ Swaziland

LI Liechtenstein NZ New Zealand TC Turks and Caicos Islands

LK Sri Lanka OM Oman TD Chad

LR Liberia PA Panama TF French Southern Territories

LS Lesotho PE Peru TG Togo

LT Lithuania PF French Polynesia TH Thailand

LU Luxembourg PG Papua New Guinea TJ Tajikistan

LV Latvia PH Philippines TK Tokelau

LY Libyan Arab Jamahiriya PK Pakistan TM Turkmenistan

MA Morocco PL Poland TN Tunisia

MC Monaco PM Saint Pierre and Miquelon TO Tonga

MD Moldova, Republic of PN Pitcairn TP East Timor

MG Madagascar PR Puer to Rico TR Turkey

MH Marshall Islands PT Portugal TT Trinidad and Tobago

ML Mali PW Palau TV Tuvalu

MM Myanmar PY Paraguay TW Taiwan, Province of China

MN Mongolia QA Qatar TZ Tanzania, United Republic of

MO Macau RE Réunion UA Ukraine

MP Northern Mariana Islands RO Romania UG Uganda

MQ Martinique RU Russian Federation UM United States Minor Outlying

Islands

MR Mauritania RW Rwanda US United States

MS Montserrat SA Saudi Arabia UY Uruguay

MT Malta SB Solomon Islands UZ Uzbekistan

MU Mauritius SC Seychelles VA Vatican City State (Holy See)

MV Maldives SD Sudan VC Saint Vincent and the

Grenadines

MW Malawi SE Sweden VE Venezuela

MX Mexico SG Singapore VG Virgin Islands (British)

MY Malaysia SH Saint Helena VI Virgin Islands (U.S.)

MZ Mozambique SI Slovenia VN Viet Nam

NA Namibia SJ Svalbard and Jan Mayen VU Vanuatu

NC New Caledonia SK Slovakia WF Wallis and Futuna Islands

NE Niger SL Sierra Leone WS Samoa

NF Norfolk Island SM San Marino YE Yemen

NG Nigeria SN Senegal YT Mayotte

NI Nicaragua SO Somalia YU Yugoslavia

NL Netherlands SR Suriname ZA South Africa

NO Norway ST Sao Tome and Principe ZM Zambia

NP Nepal SV El Salvador ZR Zaire

NR Nauru SY Syrian Arab Republic ZW Zimbabwe

Page 86 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 87 Thursday, June 3, 2004 11:00 AM

Masterpage:Right+

APPENDIX

EN 87

TV Station And ID List

The “ID” abbreviation is what is shown on-screen in lieu of the station name. The “ID” abbreviation is listed in the Confirmation screen and is displayed on the TV screen when the unit is tuned to a different station.

STATION NAME ID

Anglia TV ARD ARTE BBC Group BBC1 BBC2 BBCW Berlin 1 Berlin 2 Border TV Bayern1 Bayern3 BRT1 BRT2 Children Ch Canal + CNN Channel TV Central TV Channel 4 Channel 5 DISC DRS DR TV DSF Euronews Euronews Eurosports France1 France2 France3 Granada TV Grampian TV Hessen1 Hessen3 HRT HTV ITV Network Kabelkanal London MDR MTV Nord3 NDR1 NDR3 NED1 NED2 NED3 Network 2 NRK N-TV Offener Kanal ORF1 ORF2 ORF3 OWL 3 Premiere PR07 RAI1 RAI2 RAI3 RB1 RB3 Rikisutvarpid-S RTBF 1 RTBF 2 RTE 1 RTL RTL 2 RTP

ANGL ARD ARTE BBC BBC1 BBC2 BBCW BLN1 BLN2 BORD BR1 BR3 BRT1 BRT2 CHLD CH+ CNN CHNL CNTR CH 4 CH 5 DISC DRS DRTV DSF EURN EURO EURS FR1 FR2 FR3 GRNA GRMP HR1 HR3 HRT HTV ITV1 KABL LNDN MDR MTV N3 NDR1 NDR3 NED1 NED2 NED3 NET2 NRK N-TV OKAN ORF1 ORF2 ORF3 OWL3 PRMI PR07 RAI1 RAI2 RAI3 RB1 RB3 RKPS RTB1 RTB2 RTE1 RTL RTL2 RTP

STATION NAME ID

SAT SAT 1 Scottish TV SC4 SDR SDR1 SFB1 SFB3 SKY Sky One Sky Net Sport SR 1 Super RTL STV Test STV 1 STV 2 Suedwest3 SWF 1 Schweiz4 TYNE TEES Te xt TF1 TNT int TRT int TSI TSR TSW TVE TV Polonia TVP 1 TVP 2 TVS TV2 TV5 Te l e Z u r ic h Ulster TV Veronica VIVA VIVA2 VOX VTM VT4 West1 West3 YLE 1 YLE 2 Yorkshire TV ZDF Zurich 1 3SAT

SAT SAT1 SCOT SC4 SDR SDR1 SFB1 SFB3 SKY SKY1 SKYN SPRT SR1 SRTL STVT STV1 STV2 SWR SWF1 SWZ4 TEES TEXT TF1 TNT TRT TSI TSR TSW TVE TVPA TVP1 TVP2 TVS TV2 TV5 TZUR ULST VERN VIVA VIV2 VOX VTM VT4 WDR1 WDR3 YLE1 YLE2 YOR K ZDF ZUR1 3SAT

Page 87 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_10Subsidiary.fm]

DR-MH30EU_00.book Page 88 Thursday, June 3, 2004 11:00 AM

Masterpage:Left+

88 EN

APPENDIX

TV Station Channel Number Guide

Only the main stations are listed. There are in addition many relay stations, and full lists are available from the BBC and ITV.

London & South-East

BBC1 BBC2 ITV CH4 CH5

Bluebell Hill ......................... 40 46 43 65 —

Crystal Palace..................... 26 33 23 30 37

Dover .................................. 50 56 66 53 —

Heathfield............................ 49 52 64 67 —

Oxford ................................. 57 63 60 53 49

South-West

Beacon Hill.......................... 57 63 60 53 —

Caradon Hill ........................ 22 28 25 32 —

Huntshaw Cross ................. 55 62 59 65 67

Redruth ............................... 51 44 41 47 37

Stockland Hill ...................... 33 26 23 29 —

Channel Islands

Fremont Point ..................... 51 44 41 47 —

South

Hannington ......................... 39 45 42 66 35

Midhurst .............................. 61 55 58 68 —

Rowridge............................. 31 24 27 21 —

West

Mendip ................................ 58 64 61 54 37

East

Sandy Heath ....................... 31 27 24 21 39

Sudbury .............................. 51 44 41 47 35

Tacolneston......................... 62 55 59 65 52

Midlands

Ridge Hill ............................ 22 28 25 32 35

Sutton Coldfield .................. 46 40 43 50 37

The Wrekin ......................... 26 33 23 29 35

Waltham.............................. 58 64 61 54 35

North

Belmont............................... 22 28 25 32 56

Emley Moor......................... 44 51 47 41 37

BBC1 BBC2 ITV CH4 CH5

North-West

Caldbeck .............................30 34 28 32 56

Winter Hill............................ 55 62 59 65 48

North-East

Bilsdale West Moor .............33 26 29 23 35

Chatton................................ 39 45 49 42 —

Pontop Pike......................... 58 64 61 54 68

Scotland

Angus .................................. 57 63 60 53 —

Black Hill.............................. 40 46 43 50 37

Sandale ............................... 22 ————

Caldbeck ............................. — 34 28 32 56

Creigkelly............................. 31 27 24 21 48

Darvel.................................. 33 26 23 29 35

Durris................................... 22 28 25 32 67

Eitshal ................................. 33 26 23 29 —

Keelylang Hill....................... 40 46 43 50 —

Knock More ......................... 33 26 23 29 —

Rosemarkie ......................... 39 45 49 42 67

Rumster Forest.................... 31 27 24 21 —

Selkirk ................................. 55 62 59 65 52

Wales

Blaenplwyf........................... 31 27 24 21 56

Carmel................................. 57 63 60 53 —

Llanddona ........................... 57 63 60 53 —

Moel-y-Parc......................... 52 45 49 42 —

Presely ................................46 40 43 50 37

Wenvoe ...............................44 51 41 47 —

Northern Ireland

Brougher Mountain.............. 22 28 25 32 —

Divis .................................... 31 27 24 21 37

Limavady............................. 55 62 59 65 —

Page 88 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_11IX.fm]

DR-MH30EU_11IX.fm Page 89 Thursday, June 3, 2004 1:35 PM

Masterpage:Right0

A-B Repeat Playback ................................................ 33

Adjusting The Picture Quality ..................................... 34

Angle Selection ........................................................ 30

Audio Channel Selection ........................................... 31

Audio Language/Sound Selection ............................... 31

Auto Channel Set ..................................................... 72

Cancel And Change Programmes .............................. 49

Check Programmes .................................................. 49

Delete Title .............................................................. 53

Disc menu ............................................................... 28

Disc Remaining Time ...........................................38, 41

Disc Resume ........................................................... 70

Discs For Playback Only ............................................. 7

DVD menu ............................................................... 28

Elapsed Recording Time Indication .......................38, 41

File Structure Of Discs ................................................ 8

Free Rate Function ................................................... 39

Guide Program Number ............................................ 72

High-Speed Search .............................................28, 42

Instant Timer Recording (ITR) ...............................38, 41

Interlaced scan ......................................................... 71

Jump Search ............................................................ 45

Just Clock ................................................................ 75

Letter Box ................................................................ 24

Live Memory ............................................................ 43

Live Memory Recording ............................................ 45

Manual Channel Set ................................................. 73

Marking Positions To Play Back Again Later ................ 29

Menu/Audio/Subtitle Language Set ............................. 23

LIST OF TERMS

EN 89

One Touch Replay .............................................. 31, 45

On-screen Bar .......................................................... 32

On-screen Language Set ........................................... 23

Pan&Scan ................................................................ 24

Play List ................................................................... 54

Playback Control (PBC) ............................................. 31

Programme Playback ................................................ 35

Progressive scan ...................................................... 71

Random Playback ..................................................... 35

Recordable/playable Discs ........................................... 6

Recording Medium And Format .................................... 8

Recording Mode ................................................. 37, 40

Recording Resume Function ................................ 37, 40

Region Number .......................................................... 7

Relief Recording ....................................................... 48

Repeat Playback ...................................................... 33

Resume Function ..................................................... 29

Select The Switching Interval Of The Slide Show .........35

Setting The Progressive Mode ................................... 35

Simulated Surround Effect ......................................... 34

Skip Search ....................................................... 29, 42

Slow Motion ....................................................... 29, 42

Still Picture/Frame-By-Frame Playback ................. 29, 42

Subtitle Selection ...................................................... 30

Temporary Recording ................................................ 43

Time Search ............................................................ 34

Top menu ................................................................ 28

Unplayable Discs ........................................................ 7

PDC Recording ........................................................ 47

When Programs Overlap Each Other .......................... 49

Page 89 Thursday, 3 June 2004 13:35

Filename [DR-MH30EU_11IX.fm]

DR-MH30EU_00.book Page 90 Thursday, June 3, 2004 11:00 AM

Masterpage:Left0

90 EN

MEMO

Page 90 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_11IX.fm]

DR-MH30EU_00.book Page 91 Thursday, June 3, 2004 11:00 AM

Masterpage:Right0

MEMO

EN 91

Page 91 Thursday, 3 June 2004 10:46

Filename [DR-MH30EU_12Cov4.fm]

DR-MH30EU_00.book Page 94 Thursday, June 3, 2004 11:00 AM

DR-MH30S/DR-MH30B

DR-MH20S/DR-MH20B

CANCEL

TOP MENU

SLOW

REC MODE

SAT

AUDIO

OPEN/ CLOSE

HDD

DULIVE

REC

JUMP

VPS

Printed in Germany
