JVC VS2300ZG, DLA-VS2500ZG, DLA-VS2300G User Manual

.

For Customer use :

Enter below the serial No. which is
located on the back of the cabinet.
Retain this information for future
reference.

DLA-VS2500ZG
DLA-VS2500G
DLA-VS2300ZG
DLA-VS2300G

Model No.

Serial No.

D-ILA
PROJECTOR

DLA-VS2500ZG
DLA-VS2500G
DLA-VS2300ZG
DLA-VS2300G

Getting Started Set up Operate Adjust/Set Maintenance Troubleshooting Others

INSTRUCTIONS

.

.

B5A-0626-20

Safety Precautions

IMPORTANT INFORMATION

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

WARNING

This equipment is compliant with Class A of CISPR

32.
In residential environment this equipment may
cause radio interference.

NOISE EMISSION DECLARATION

The sound pressure level at the operator position is
equal or less than 50dB(A) according to ISO7779.

About the installation place

Do not install the projector in a place that cannot
support its weight securely.
If the installation place is not sturdy enough, the
projector could fall or overturn, possibly causing
personal injury.

WARNING:

THIS APPARATUS MUST BE EARTHED.

WARNING To DLA-VS2500ZG, VS2300ZG

REMOVE THE LENS COVER BEFORE TURNING
ON THE PROJECTOR

CAUTION:

To reduce the risk of electric shock, do not remove
cover. Refer servicing to qualified service personnel.

This projector is equipped with a 3-blade grounding
type plug to satisfy FCC rule. If you are unable to
insert the plug into the outlet, contact your electrician.

FCC INFORMATION (U.S.A. only)
CAUTION:

Changes or modification not approved by JVC could
void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instruction manual, may cause harmful interference
to radio communications. Operation of this
equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own
expense.

Getting Started

.

2

150 mm and above

150 mm
and above

300 mm
and above

200 mm
and above

300 mm
and above

PORTABLE CART WARNING
(symbol provided by RETAC)

S3126A

Front

-

-

-

-

-

-

-

-

-

-

-

-

-

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions.
This unit has been engineered and manufactured to
assure your personal safety. But IMPROPER USE
CAN RESULT IN POTENTIAL ELECTRICAL
SHOCK OR FIRE HAZARD. In order not to defeat
the safeguards incorporated into this product,
observe the following basic rules for its installation,
use and service. Please read these Important
Safeguards carefully before use.

All the safety and operating instructions should be read
before the product is operated.
The safety and operating instructions should be retained for
future reference.
All warnings on the product and in the operating
instructions should be adhered to.
All operating instructions should be followed.
Place the projector near a wall outlet where the plug can be
easily unplugged.
Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
Do not use attachments not recommended by the product
manufacturer as they may be hazardous.
Do not use this product near water. Do not use immediately
after moving from a low temperature to high temperature,
as this causes condensation, which may result in fire,
electric shock, or other hazards.
Do not place this product on an unstable cart, stand, or
table. The product may fall, causing serious injury to a child
or adult, and serious damage to the product. The product
should be mounted according to the manufacturer’s
instructions, and should use a mount recommended by the
manufacturer.
When the product is used on a cart,
care should be taken to avoid quick
stops, excessive force, and uneven
surfaces which may cause the product
and cart to overturn, damaging
equipment or causing possible injury to
the operator.
Slots and openings in the cabinet are provided for
ventilation. These ensure reliable operation of the product
and protect it from overheating. These openings must not
be blocked or covered. (The openings should never be
blocked by placing the product on bed, sofa, rug, or similar
surface. It should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided
and the manufacturer’s instructions have been adhered to.)
To allow better heat dissipation, keep a clearance between
this unit and its surrounding as shown below. When this unit
is enclosed in a space of dimensions as shown below, use
an air-conditioner so that the internal and external
temperatures are the same. Overheating can cause
damage.

-

-

-

-

-

-

-

-

-

-

-

-

a)
b)

c)
d)

e)

f)

When the power supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen on the
product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the
operating instructions. Adjust only those controls that
are covered by the Operation Manual, as an improper
adjustment of controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to normal operation.
If the product has been dropped or damaged in any
way.
When the product exhibits a distinct change in
performance, this indicates a need for service.

When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or with same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
The product should be placed more than one foot away
from heat sources such as radiators, heat registers, stoves,
and other products (including amplifiers) that produce heat.
When connecting other products such as VCR’s, and DVD
players, you should turn off the power of this product for
protection against electric shock.

Power source indicated on the label. If you are not sure of
the type of power supply to your home, consult your
product dealer or local power company.
This product is equipped with a three-wire plug. This plug
will fit only into a grounded power outlet. If you are unable
to insert the plug into the outlet, contact your electrician to
install the proper outlet. Do not defeat the safety purpose of
the grounded plug.
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them. Pay particular attention to cords at doors,
plugs, receptacles, and the point where they exit from the
product.
For added protection of this product during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the cable system. This will prevent damage to
the product due to lightning and power line surges.
Do not overload wall outlets, extension cords, or
convenience receptacles on other equipment as this can
result in a risk of fire or electric shock.
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
Do not attempt to service this product yourself as opening
or removing covers may expose you to dangerous voltages
and other hazards. Refer all service to qualified service
personnel.
Unplug this product from the wall outlet and refer service to
qualified service personnel under the following conditions:

Getting Started

.

3

-

-

-

-

-

-

Do not place combustibles behind the cooling fan. For
example, cloth, paper, matches, aerosol cans or gas
lighters that present special hazards when over heated.
Do not ceiling-mount the projector to a place which tends to
vibrate; otherwise, the attaching fixture of the projector
could be broken by the vibration, possibly causing it to fall
or overturn, which could lead to personal injury.
Use only the accessory cord designed for this product to
prevent shock.
Once every three years, please perform an internal test.
This unit is provided with replacement parts needed to
maintain its function (such as cooling fans). Estimated
replacement time of parts can vary greatly depending on
frequency of use and the respective environment. For
replacement, please consult your dealer, or the nearest
authorized JVC service center.
When fixing the unit to the ceiling, Please note that we do
not take any responsibility, even during the warranty period,
if the product is damaged due to use of metal fixtures used
for fixation to the ceiling other than our own or if the
installation environment of said metal fixtures is not
appropriate. If the unit is suspended from the ceiling during
use, please be careful in regard to the ambient temperature
of the unit. If you use a central heating, the temperature
close to the ceiling will be higher than normally expected.
Video images can burn into the electronic com ponent
parts. Please do not display screens with still images of
high brightness or high contrast, such as found in video
games and computer programs. Over a long period of time
it might stick to the picture element. There is no problem
with the playback of moving images, e.g. normal video
footage.

-

-

Video images can burn into the electronic com ponent
parts. Please do not display screens with still images of
high brightness or high contrast, such as found in video
games and computer programs. Over a long period of time
it might stick to the picture element. There is no problem
with the playback of moving images, e.g. normal video
footage.
Not using the unit for a long time can lead to malfunction.
Please power it on and let it run occasionally. Please avoid
using the unit in a room where cigarettes are smoked. It is
impos sible to clean optical component parts if they are
contaminated by nicotine or tar. This might lead to
performance degradation.

-

-

-

-

-

-

-

Do not use optical instruments (such as magnifying
glass or reflector) viewing the laser output. It may
pose an eye hazard.
When turning on the projector, ensure that no one is
looking into the projection lens.
Do not look into the lens and openings when the
light is on. Doing so would have serious effects on
the human body.
Do not detach or attach the projection lens with the
power connected.
Attempting to disassemble, repair or modify the
projector yourself may lead to serious safety issues.
Using a faulty product not only results in electrical
shock or fire hazard, it can cause visual impairment.
When abnormality occur, stop using the projector
immediately and send it to your authorized dealer for
repair.

* DO NOT allow any unqualified person to
install the unit.

Be sure to ask your dealer to install the unit
(e.g.attaching it to the ceiling) since special
technical knowledge and skills are required for
installation. If installation is performed by an
unqualified person, it may cause personal injury or
electrical shock.

Getting Started

.

4

CAUTION:

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
This Projector is classified as a CLASS 2 LASER
PRODUCT.
DO NOT STARE INTO BEAM .
This CLASS 2 LASER PRODUCT label and Caution
label are located on the TOP Side surface of the
projector.

Light source specifications

30 W Laser diodes ×2
Wavelength 450-460 nm
Maximum output is 64.12 W

Beam divergence angle from lens of this
unit

Wide: α＝62.7°
Tele :α＝33.5°

Location information of the labels

α

Laser emission port

Getting Started

.

5

Power cord

Power cord

For European continent countries

Green-and-yellow
Blue
Brown

: Earth
: Neutral
: Live

POWER CONNECTION

WARNING:

WARNING:

Do not cut off the main plug from this
equipment.

The power supply voltage rating of this product is
AC110V – AC240V. Use only the power cord
designated by our dealer to ensure Safety and EMC.
Ensure that the power cable used for the projector is
the correct type for the AC outlet in your country.
Consult your product dealer.

If the plug fitted is not suitable for the power points
in your home or the cable is too short to reach a
power point, then obtain an appropriate safety
approved extension lead or adapter or consult your
dealer. If nonetheless the mains plug is cut off,
dispose of the plug immediately, to avoid a possible
shock hazard by inadvertent connection to the main
supply. If a new main plug has to be fitted, then
follow the instruction given below.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding
electromagnetic compatibility and electrical safety.

European representative of JVC KENWOOD Corporation is:
JVCKENWOOD Deutschland GmbH
Konrad-Adenauer-Allee 1-11
61118 Bad Vilbel
GERMANY

THIS APPARATUS MUST BE EARTHED.

IMPORTANT (Europe only):

The wires in the mains lead on this product are
colored Vert et jaune in accordance with the
following cord:

As these colors may not correspond with the
colored making identifying the terminals in your
plug, proceed as follows:
The wire which is colored green-and-yellow must be
connected to the terminal which is marked M with
the letter E or the safety earth or colored green or
green-and-yellow. The wire which is colored blue
must be connected to the terminal which is marked
with the letter N or colored black.
The wire which is colored brown must be connected
to the terminal which is marked with the letter L or
colored red.

For USA and Canada only
Use only the following power cord.

Getting Started

.

6

ENGLISH

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for
countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as
household waste.
Old electrical and electronic equipment and batteries should be recycled at a facility capable
of handling these items and their waste byproducts.
Contact your local authority for details in locating a recycle facility nearest to you.
Proper recycling and waste disposal will help conserve resources whilst preventing detrimental
effects on our health and the environment.
Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

DEUTSCH

Entsorgung von gebrauchten elektrischen und elektronischen Geräten und Batterien (anzuwenden
in Ländern mit einem separaten Sammelsystem für solche Geräte)

Das Symbol (durchgestrichene Mülltonne) auf dem Produkt oder seiner Verpackung weist
darauf hin, dass dieses Produkt nicht als normaler Haushaltsabfall behandelt werden darf.
Die betreffenden Produkte müssen an einer Annahmestelle für das Recycling von elektrischen
und elektronischen Geräten und Batterien abgegeben werden.
Weitere Informationen über das Recycling dieses Produktes erhalten Sie von Ihrer Gemeinde
oder den kommunalen Entsorgungsbetrieben.
Unsachgemäße oder falsche Entsorgung gefährden Umwelt und Gesundheit.
Zur Beachtung: Das Zeichen „Pb“ unter dem Symbol für Batterien zeigt an, dass diese Batterie
Blei enthalt.

FRANÇAIS

Information sur l’élimination des anciens équipements électriques et électroniques et piles
électriques (applicable dans les pays de qui ont adopté des systèmes de collecte sélective)

Les produits et piles électriques sur lesquels le pictogramme (poubelle barrée) est apposé ne
peuvent pas être éliminés comme ordures ménagères.
Les anciens équipements électriques et électroniques et piles électriques doivent être recyclés
sur des sites capables de traiter ces équipements et leurs déchets par produit.
Contactez vos autorités locales pour connaître le site de recyclage le plus proche.
Un recyclage adapté et l’élimination des déchets aideront à conserver les ressources et à nous
préserver des leurs effets nocifs sur notre santé et sur l’environnement.
Avis: Le symbole “Pb” ci-dessous sur des piles électrique indique que cette pile contient du
plomb.

NEDERLANDS

Informatie over het weggooien van oude elektrische en elektronische apparaten en batterijen (voor
landen die gescheiden afvalverzamelsystemen gebruiken)

Producten en batterijen met het (afvalcontainer met x-teken) symbool mogen niet als normaal
huisvuil worden weggegooid.
Oude elektrische en elektronische apparaten en batterijen moeten worden gerecycled door
een faciliteit die geschikt is voor het verwerken van dergelijke voorwerpen.
Raadpleeg de betreffende lokale instantie voor details aangaande in de buurt zijnde
recylingfaciliteiten.
Het juist recyclen en weggooien van afval spaart natuurlijke bronnen en reduceert schadelijke
invloed op uw gezondheid en het milieu.
Opmerking: De ”Pb” aanduiding onder het batterijsymbool betekent dat deze batterij lood bevat.

Getting Started

.

7

ESPAÑOL / CASTELLANO

Información acerca de la eliminación de equipos eléctricos, electrónicos y baterías al final de la
vida útil (aplicable a los países de la que hayan adoptado sistemas independientes de recogida
de residuos)

Los productos y las baterías con el símbolo (contenedor con ruedas tachado) no podrán ser
desechados como residuos domésticos.
Los equipos eléctricos, electrónicos y baterías al final de la vida útil, deberán ser reciclados en
instalaciones que puedan dar el tratamiento adecuado a estos productos y a sus subproductos
residuales correspondientes.
Póngase en contacto con la autoridad local competente para obtener información sobre el
centro de reciclaje más cercano.
El reciclaje y la disposición adecuada de los desechos ayuda a conservar los recursos naturales
y a reducir los efectos perjudiciales en la salud y el medio ambiente.
Nota: El símbolo “Pb” debajo del símbolo en baterías indica que dicha batería contiene plomo.

ITALIANO

Informazioni sull’eliminazione dei prodotti elettrici ed elettronici e delle batterie (per i Paesi che
adottano la raccolta differenziata dei rifiuti)

I prodotti e le batterie recanti questa icona (bidone carrellato della spazzatura con il simbolo
della croce) non devono essere eliminati come rifiuti solidi urbani.
I prodotti elettrici ed elettronici e le batterie devono essere riciclati presso centri idonei alla loro
gestione e a quella dei rispettivi sottoprodotti.
Per informazioni sul centro di riciclaggio più vicino si suggerisce di rivolgersi alle autorità locali.
Se eseguiti adeguatamente, l’eliminazione e il riciclaggio dei rifiuti aiutano a conservare le
risorse e al contempo impedire gli effetti nocivi sulla salute e l’ambiente.
Avviso: Il contrassegno “Pb” che appare sotto il simbolo delle batterie significa che contengono
piombo.

Getting Started

.

8

Contents

Getting Started

Safety Precautions .................................................. 2

Accessories/Optional Accessories ........................

Check the Accessories ...................................... 10

Optional Accessories ......................................... 10

Controls and Features ........................................... 11

Main Unit - Front ................................................ 11

Main Unit - Bottom ............................................. 11

Main Unit - Rear ................................................. 12

Main Unit - Input Terminals ................................ 13

Remote control (sold separately, model no. RM-

MH13G) ............................................................. 14

Loading Batteries into the Remote Control (Sold

Separately) ........................................................ 15

Effective Range of Remote Control (Sold

Separately) ........................................................ 15

Set up

Installing the Projector ........................................... 16

Precautions during Installation ........................... 16

Precautions during Mounting ............................. 17

Adjusting the Position ........................................ 18

Connecting the Projector ....................................... 19

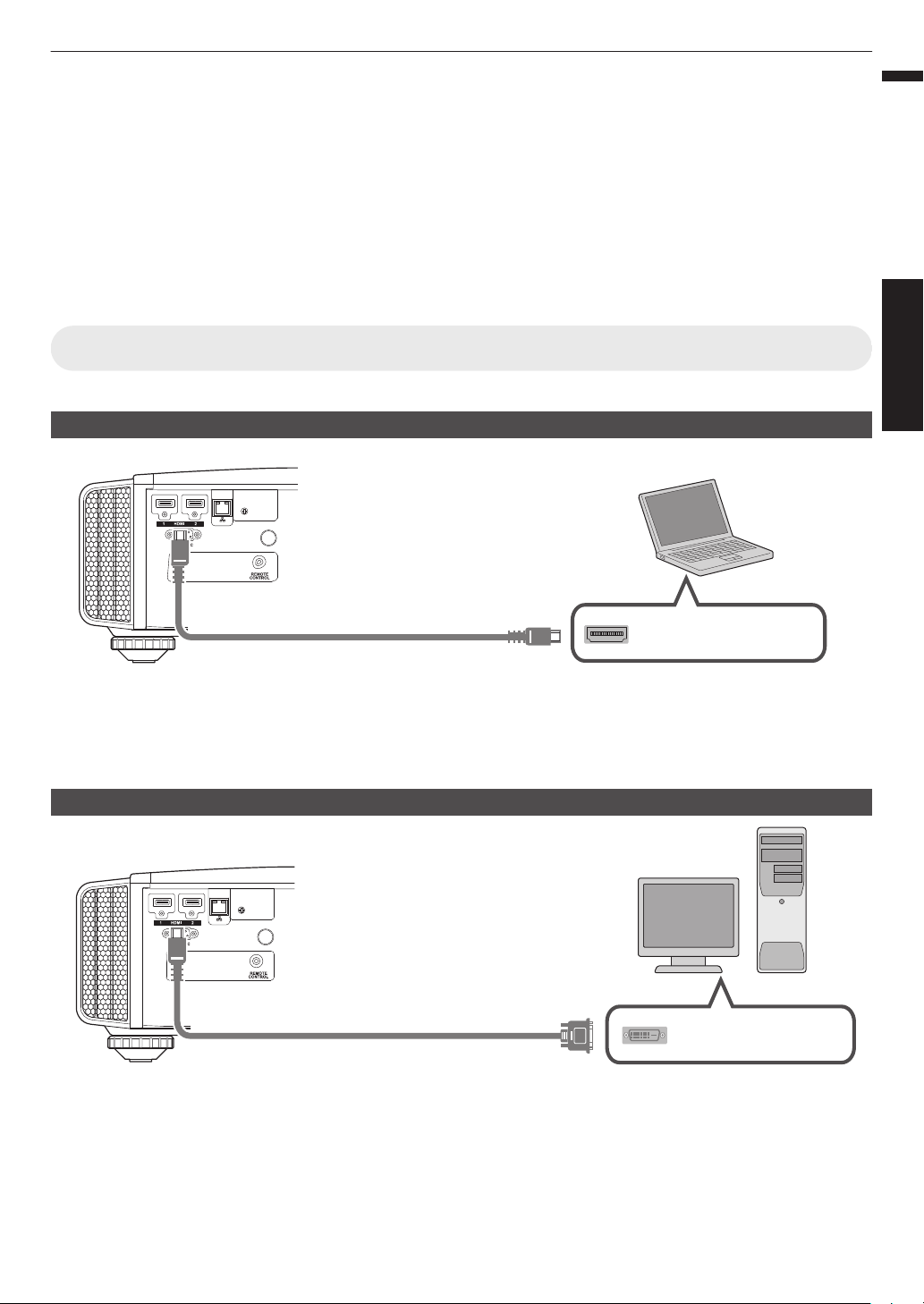

Connecting to the HDMI Input Terminal (Digital

Input) ................................................................. 19

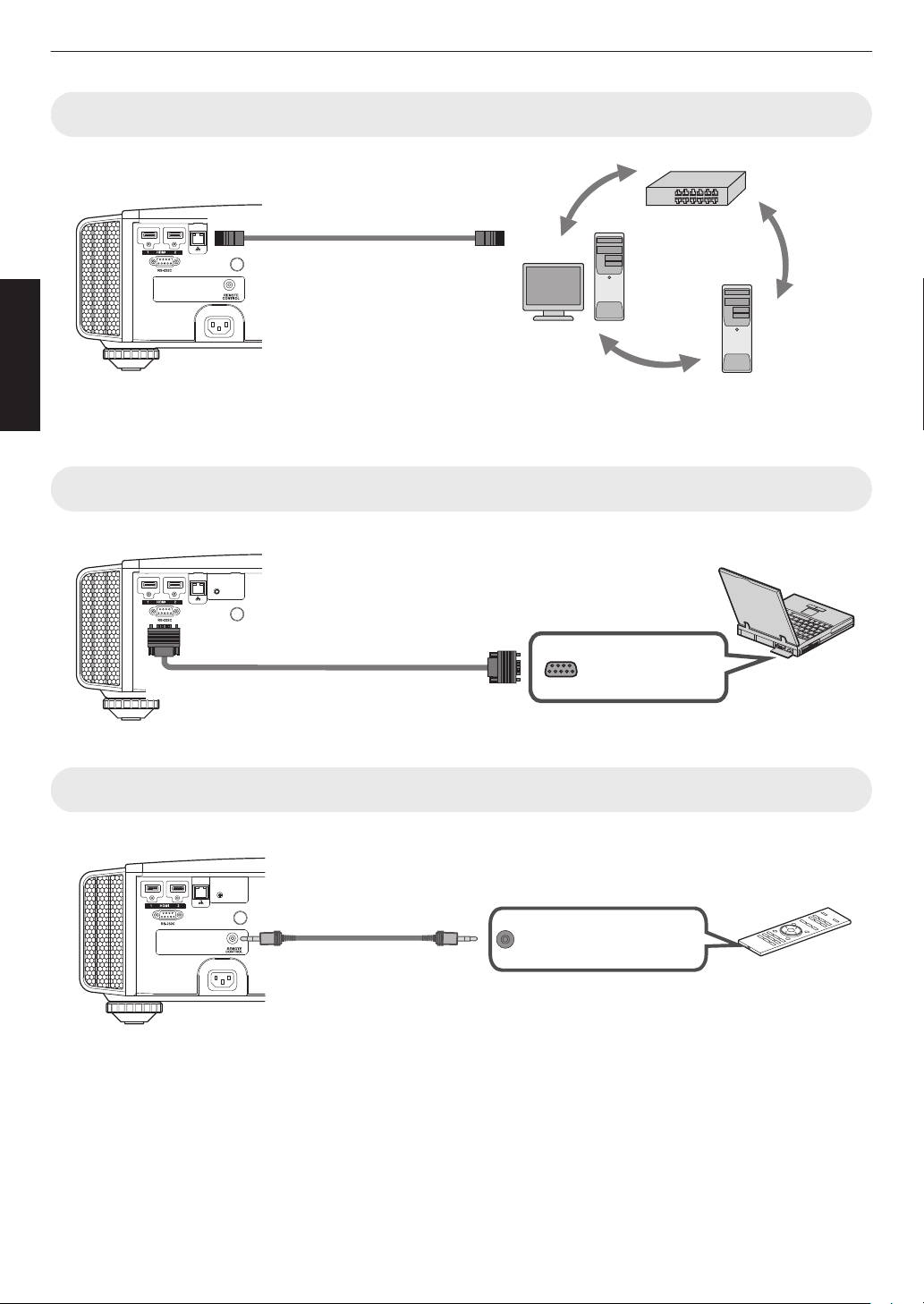

Connecting to the LAN Terminal ........................ 20

Connecting to the RS-232C Terminal ................ 20

Connecting to the REMOTE Terminal ............... 20

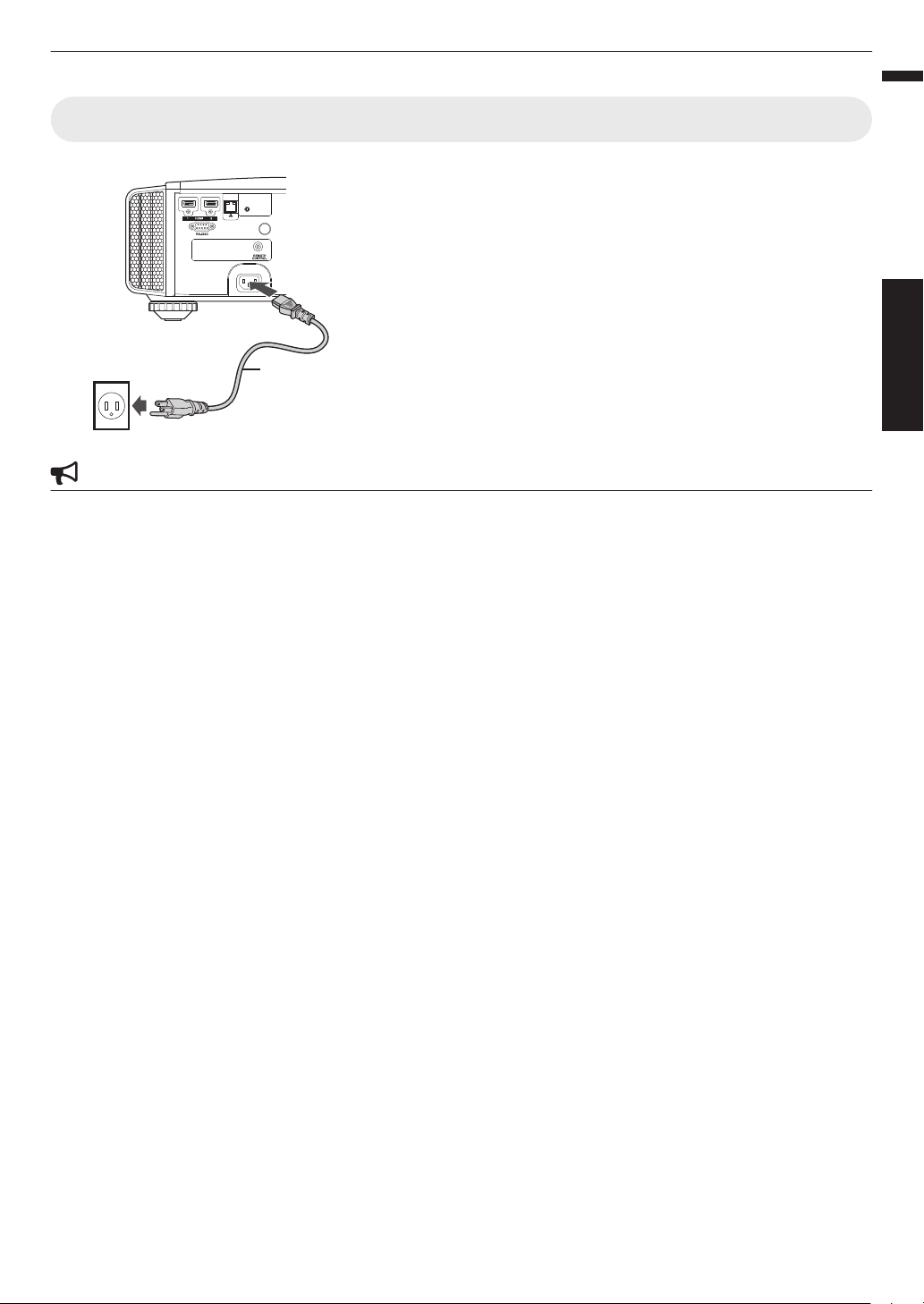

Connecting the Power Cord (Supplied Accessory)

........................................................................... 21

10

Maintenance

Maintaining the Cabinet and Remote Control (Sold
Separately)

Cleaning and Replacing the Filter ......................... 41

............................................................ 40

Troubleshooting

Troubleshooting .................................................... 42

When the following messages appear... ................ 44

Others

External Control .................................................... 45

RS-232C Specifications ..................................... 45

TCP/IP Connection ............................................ 45

Command Format .............................................. 46

Remote Control Code ........................................ 47

Communications Example ................................. 48

Specifications ........................................................ 49

Index ..................................................................... 55

Symbols used in this manual

P indicates a function that is supported by DLA­VS2500ZG and DLA-VS2300ZG.

O indicates a function that is supported by DLA­VS2500G and DLA-VS2300G.

2 indicates a function that is supported by DLA­VS2500ZG and DLA-VS2500G.

3 indicates a function that is supported by DLA­VS2300ZG and DLA-VS2300G.

Items not marked with any of the above symbols are
supported by all models.

Getting Started

Operate

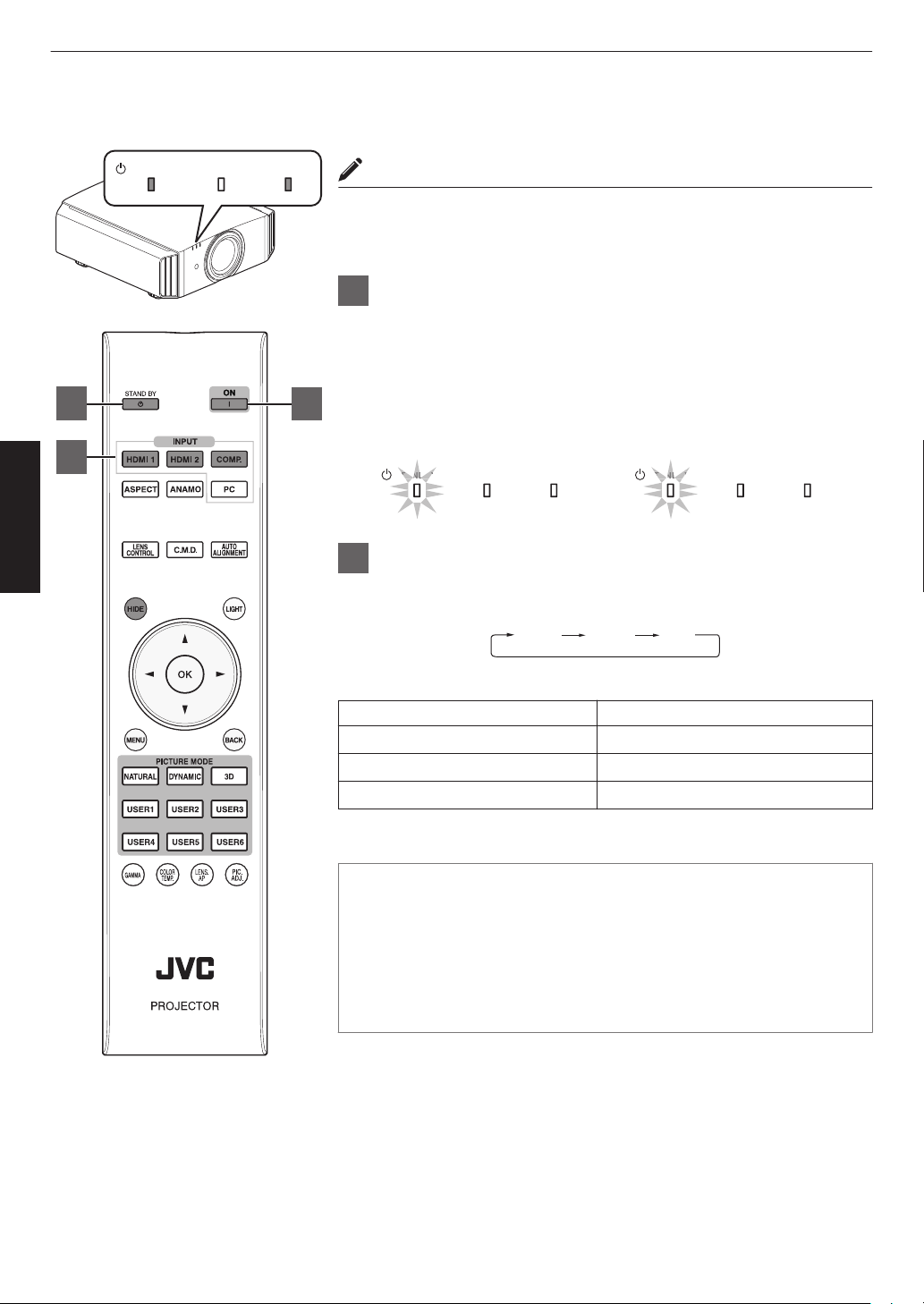

Viewing Videos ...................................................... 22

Adjust/Set

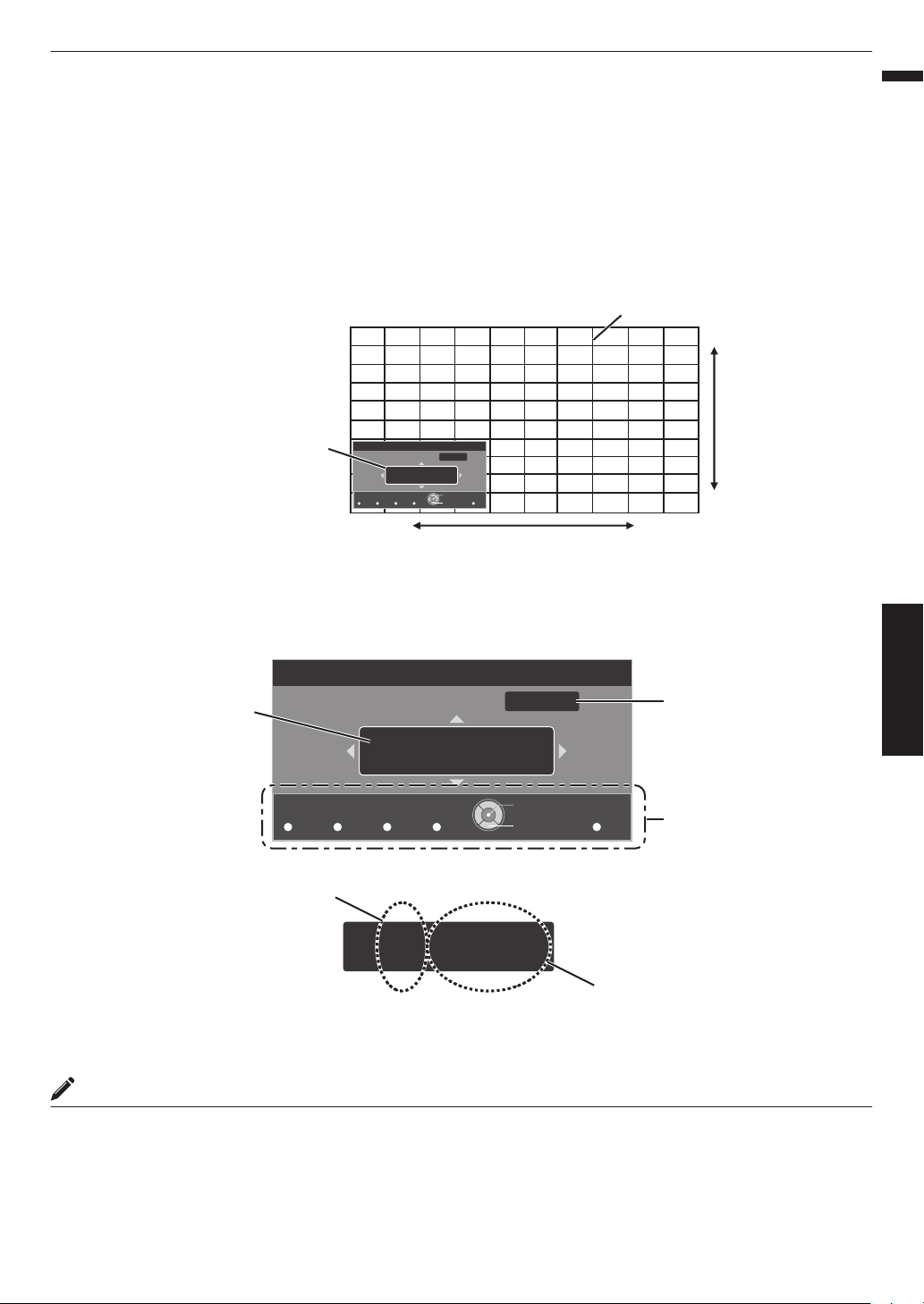

Adjustments and Settings in the Menu .................. 24

List of Menu Items ............................................. 24

Picture Adjust .................................................... 26

Input Signal ........................................................ 30

Installation ......................................................... 32

Display Setup .................................................... 37

Function ............................................................. 38

Information ......................................................... 39

9

Accessories/Optional Accessories

Getting Started

Check the Accessories

Power cord (for USA) (about. 2 m) ......................................... 1 piece

.

Power cord (for EU) (about. 2 m) ............................................ 1 piece

.

Optional Accessories

0

Remote control: Model no. RM-MH13G

.

0

AAA-size battery

.

10

Controls and Features

ABC

D

E

E

F

G

Main Unit - Front

.

Getting Started

A

Lens P

This is a projection lens. Do not look through the lens
while an image is projected.

0

For O, the lens is sold separately.

B

Lens sheet P

lens comes attached

The
you purchase this product.

C

Remote Sensor (front)

Please aim the remote control (sold separately) at this
area when using it.

* There is also a remote sensor at the rear.

with a protective sheet when

Main Unit - Bottom

D

Indicator

Refer to “Indicator Display on the Main Unit”p.

E

Exhaust vent

Warm air is discharged to cool down the internal
temperature.
Do not block the vents.

F

Inlets (at 3 points on the rear/bottom)

The inlets take in air to cool down the internal temperature.
Do not block or prevent the outflow of hot air. Doing so may cause
the unit to malfunction.

* There

G

are two inlets

Foot

The height and angle of the projector can be adjusted by turning the
foot. (0 to 5 mm) (p. 18)

When the foot is removed, it can be used as the mounting hole to
fix the unit on the base.

on the right and left sides at the rear of the unit.

52.

11

Main Unit - Rear

F

HIJK

F

[MENU]: Displays the menu

[BACK]: Returns to the previous menu

[JKH I] keys: Selects an item

[OK]: Confirms a selection

[INPUT]: Switches the input

A [STANDBY/ON]: Turns “on”/“off” the
power

Getting Started

.

H

Input terminals

For details on the
Terminals”p. 13.

I

Operation panel

For more details, please refer to the “Operation
panel” in the diagram below.

terminals. refer to “Main Unit - Input

Operation panel

.

J

Remote Sensor (rear)

aim the remote control (sold separately) at this

Please
area when using it.

* There is also a remote sensor at the front.

K

Power input terminal

Connect the supplied power cord to this terminal.

12

Main Unit - Input Terminals

A B C

D

E

Enlarged View of Rear Face

.

Getting Started

A

[HDMI 1] input terminal

B

[HDMI 2] input terminal

For connecting to devices that support HDMI output.
(p. 19

)

It is fitted to the M3 lock hole. The depth of the screw
hole is 3 mm.

C

[LAN] terminal (RJ-45)

The projector can be controlled by connecting it to a
PC through the computer network for control
commands to be sent to the projector.

D

[RS-232C] terminal (D-sub 9-pin

male)

can

projector

The
this terminal.

E

[REMOTE] terminal (stereo mini

controlled by connecting a PC to

be

jack)

This terminal is used to connect the remote control
directly to the projector with the cable.

13

Remote control (sold separately, model no. RM-MH13G)

A

D

E

G

H

F

B

I

J

L

P

K

M

N

C

O

Getting Started

A

B [STAND BY]

Turns off the power. (p.

B

C

[ON]

Turns on the power. (p. 22)

C

[INPUT]

Select an input from [HDMI 1],
[HDMI 2], and [Dual]. (p. 22)

* The Dual function is available

only on 2.

D

[LENS CONTROL]

23)

P

For adjusting focus, zoom, and
shift. (p. 32)

E

[HIDE]

Hides the image temporarily.
(p. 22)

F

[JKH I] keys

For selecting an item.

G

[MENU]

Displays the menu,
or hides the menu if it is
displayed.

H

[GAMMA]

For setting the gamma level.
(p. 28)

I

[COLOR TEMP]

For setting the color
temperature. (p. 28)

J

[C.M.D.]

For setting frame interpolation.
(p. 29)

K

[LIGHT]

Illuminates the buttons on the
remote control.

L

[OK]

Confirms a selected item.

M

[BACK]

Returns to the previous menu.

N

[PICTURE MODE]

Switches the Picture mode to
[NATURAL], [DYNAMIC],
[USER1] to [USER6]. (p. 26)

O

[PIC. ADJ.]

Switches the items for adjusting
the image quality, such as
contrast, brightness, etc.
(p. 29)

P

[LENS AP.]

For setting the lens aperture.

CAUTION

0

Buttons indicated with a mark are not usable on this unit.

However, the [LENS AP.]
adjustment.

and [PIC. ADJ.] buttons can be used during pixel

P

14

Loading Batteries into the Remote Control (Sold Separately)

30°

30°

20°

20°

Remote Control

This unit

A

B

30°

30°

20°

20°

20°

20°

20°

20°

Screen

Remote Control

This unit

.

0

If

the

remote

has to be brought closer to the projector to operate, it means that the batteries are wearing out.

control

Replace the batteries with new ones (AAA).

0

Insert the batteries according to the t s marks. Be sure to insert the s end first.

0

If an error occurs while using the remote control, remove the batteries and wait for five minutes. Load the batteries
again and operate the remote control.

Effective Range of Remote Control (Sold Separately)

Getting Started

When aiming the remote control toward the sensor on this
unit (front or rear),

ensure that the distance to the sensor
is within 7 m.
If the remote control fails to work properly, move closer
to this unit.

Control through reflection off a screen, etc.

Ensure that the total of distance A (between this unit and
the screen) and distance B (between the remote control
and the screen) is within 7 m.

* As the efficiency of signals reflected from the remote

control unit varies with the type of screen used, the
operable distance may decrease.

.

.

CAUTION

0

Do not put the remote control in a place with an exposure to direct sun light or high temperature.

15

Installing the Projector

Front

150 mm
and above

200 mm
and above

300 mm
and above

300 mm
and above

150 mm and above

Screen

Front

Screw

Light Guard

Caution Sticker

Precautions during Installation

Please read the following carefully before installing this
unit.

Do not install at the following locations

This unit is a precision device. Please refrain from
installing or using it

Set up

at the following locations. Otherwise,

it may cause fire or malfunction.

0

Dusty, wet and humid places

0

Places subject to oily smoke or cigarette smoke

0

On top of a carpet or bedding, or other soft surfaces

0

Places exposed to direct sunlight

0

Places with a high or low temperature

0

Do not install this unit in a room that is oily or subject

cigarette smoke. Even

to

a small quantity of smoke or

oiliness can have a long-term impact on this unit.

* This unit produces a great amount of heat, and is

designed to take in cool air to cool its optical
components. Using the unit at the above locations
may cause dirt to attach to the light path, thereby
resulting in dark images or dull colors.

* Dirt that sticks to the optical components cannot be

removed.

Maintain clearance from the wall, etc.

As the unit discharges a large amount of heat, install it
with adequate clearance from the surroundings as shown
below.

.

Using the projector

There is no particular limitation on the positioning of the
projector during installation.
You can install at your preferred angle.

Installing the screen

Install the unit and the screen such that they are
perpendicular to each other.

.

0

Please choose a screen material with non-uniform
patterns. Uniform patterns such

as checks may cause

interference patterns to occur.

0

In this case, you

can change the size of the screen to

make the interference patterns less noticeable.

Precautions during lens attachment O

When attaching the lens, remove the Light Guard before
attaching the lens.

Leave the front area of the unit unblocked.
If there is any obstructing object in front of the exhaust
vent, hot air will flow back to the unit and cause it to heat
up. Hot air flowing out of the unit may cast shadows on
the screen (heat haze phenomenon).

16

.

Precautions during Mounting

Air Inlets

4 Locations

Securing (mounting) the projector

.

0

Make sure to secure the main unit to prevent
accidents such as during an earthquake.

Securing with screws

Securing the projector (ceiling mount)

.

0

Be sure to ask your dealer to install the unit for you.
Installing the unit on your own may cause the unit to
fall resulting in injury.

0

Take the necessary actions to prevent the main unit
from falling off such as during an earthquake.

0

Regardless of the warranty period, JVC is not liable

any product damage

for
with non-JVC ceiling fittings or to an environment that
is not suited for ceiling mount.

0

When using the unit with it suspended from a ceiling,
pay attention to the surrounding temperature. When
a heater is in use, the temperature around the ceiling
may be higher than expected.

0

attach the unit

To
torque between the range of 1.5N m to 2.0N m.
Tightening with torque exceeding the above range
may cause damage to the unit, which may result the
unit to fall.

caused by mounting the unit

to the ceiling mount bracket, set the

Set up

.

Remove the foot (x4) at the bottom, and fasten using the
screws (M5 screws, 13 to 23 mm).

* Using screws other than those designated may cause

the unit to break down.

* Leave a clearance of at least 10 mm from the bottom

surface of the unit to allow it to take in cool air.

17

Adjusting the Position

Contract

Extend

Foot

90

80

70

60

50

40

30

20

10

0 10 3020 40

Horizontal lens shift (%)

Vertical lens shift (%)

Lens shift Range

Up to about 80% of the
projected image

Horizontal Position: 0 % (Center)

Vertical Position

Up to about 34% of the
projected image

Vertical Position: 0% (Center)

Horizontal Position

■

■

■

Lens shift range

Adjusting the elevation angle of the projector

The height and inclination of the unit (0 to 5 mm) can be
adjusted by turning the foot.
Lift the unit and adjust the foot (x4).

Set up

.

Adjusting the position of the image

By using the lens shift feature of this unit, you can shift
the image upward/downward or to the left/right. Set it to
your preferred position.

18

.

0

The maximum vertical shift varies with the amount of
horizontal shift. Similarly, the maximum horizontal
shift also changes with the amount of vertical shift.

0

The values on the

graph are intended as a guide. Use

them for reference during installation.

0

To adjust the screen position, it is recommended to
wait till the position becomes stable after projection
before adjusting. The position may changed after
projection depending on the attitude of the projector.

Connecting the Projector

HDMI Output Terminal

Laptop, etc.

HDMI Cable (Sold Separately)

This Unit

To [HDMI 1] or [HDMI 2] input terminal
Or both [HDMI1] and [HDMI2]



HDMI-DVI Conversion Cable (Sold Separately)

To [HDMI 1] or [HDMI 2] input terminal

This Unit

DVI Output Terminal

Desktop PC, etc.

Or both [HDMI1] and [HDMI2]

0

Do not turn on the power until connection is complete.

0

The connection procedures differ according to the device used. For details, please refer to the instruction manual
of the device to be connected.

0

This projector is used for projecting images. To output the audio of connected devices, please connect a separate
audio output device, such as an amplifier or speaker.

0

The images may not be displayed depending on the devices and cables to be connected.
Use only HDMI cables (sold separately) that are HDMI-certified.

0

Some cables cannot be connected to this unit due to the size of their connector cover.

Connecting to the HDMI Input Terminal (Digital Input)

Connecting via HDMI cable

Set up

.

0

If noise occurs, move the laptop away from this unit.

0

For a transmission bandwidth in compliance with the HDMI standard, a cable which supports 340 MHz bandwidth
is recommended.

0

If the video is not displayed, try to reduce the length of the cable.

Connecting via HDMI-DVI conversion cable

.

0

If noise occurs, move the desktop PC away from this unit.

0

If the video is not displayed, try to reduce the length of the cable.

19

Connecting to the LAN Terminal

Desktop PC, etc.

Server

Hub

Network

Connection Cable

(Sold Separately)

This Unit

To [LAN] Terminal

RS-232C Terminal

Laptop, etc.

RS-232C Connection Cable (Sold Separately)

To [RS-232C] Terminal

This Unit

Wired Remote Controller
(Sold Separately)

Connection Cable

(Sold Separately)

To [REMOTE] Terminal

This Unit

Set up

.

0

The network is used to control this unit. It is not used for sending or receiving video signals.

0

Please contact your network administrator for information concerning the network connection.

0

For more information on control, please refer to “External Control” (p. 45).

Connecting to the RS-232C Terminal

20

.

0

For more information on control, please refer to “External Control” (p. 45).

Connecting to the REMOTE Terminal

.

0

For more details on the wired remote controller and connection cable, please consult your dealer.

Connecting the Power Cord (Supplied Accessory)

A

B

Power Cord
(Supplied)

A

Connect the power cord
the main unit

B

Insert the supplied power plug into the wall outlet.

supplied to the power input terminal on

Precautions to prevent fire and electric shock

0

The power consumption of this unit is large. Please connect it directly to the wall outlet.

0

Pull out the power plug when the unit is not to be used for a prolonged period of time.

0

Connect it using only the power cord supplied.

0

Do not use a voltage other than the indicated power voltage.

0

Do not damage, break or modify the power cord. Do not place a heavy object on the power cord, or heat or pull it.
Doing so may damage the power cord.

0

Do not unplug the power cord with wet hands.

Set up

21

Viewing Videos

LIGHT WARNING

STANDBY/ON

LIGHT WARNING

STANDBY/ON

In standby state

“STANDBY/ON” lights up (red) “STANDBY/ON” lights up (green)

During laser light source startup

HDMI 1

HDMI 2 Dual

LIGHT WARNING

STANDBY/ON

1

2

3

Operate

MEMO

0

When you are using this unit, be sure to remove the lens sheet. P

0

Connect the power cord, and ensure that the “STANDBY/ON” indicator
lights up in red.

1

Turn on the power

Projector unit: press the A [STANDBY/ON] button
Remote control (sold separately): press the C [ON] button

0

The “STANDBY/ON” indicator light
goes off after the unit starts up).

.

2

Choose the image to project

Projector unit: press the [INPUT] button (pressing the button each time
switches the mode)

switches from red to green (light

.

Remote control (sold separately):

Button Terminal

[HDMI 1] HDMI1

[HDMI 2] HDMI2

[COMP.] Dual

0

Play back the selected device to project the image.

* The Dual function is available only on 2.

To hide the image temporarily

Press the [HIDE] button on the projector unit or remote control (sold
separately)

0

The “STANDBY/ON” indicator light starts to blink in green. When “LED
Indication” is set to “Off”, the indicator does not blink.

0

Press the [HIDE] button again to resume display of the image.

0

The power cannot be turned off when the image is temporarily hidden.

22

3

LIGHT WARNING

STANDBY/ON

LIGHT

WARNING

STANDBY/ON

In standby state

“STANDBY/ON” lights up (red)

In the Cool-down mode

“STANDBY/ON” blinking (red)

Turn off the power

Projector unit: press the A [STANDBY/ON] button
Remote control (sold separately): press the B [STAND BY] button

0

While the “Are you sure you want to turn off?” message is displayed, press the button again.

0

The

laser

light

source

turns off, and the “STANDBY/ON” indicator switches from a green light to a red blinking

light.

0

After the light goes off, the fan will run for about 5 seconds to cool down the laser light source (Cool-down
mode).
Do not disconnect the power cable while cooling is in progress.

0

After about 5 seconds, the “STANDBY/ON” indicator switches from a blinking red to a solid red light.

.

CAUTION

0

After the light goes off, the fan will run for about 5 seconds to cool down the laser light source (Cool-down mode).
Do not disconnect the power cable while cooling is in progress.

0

The power cannot be turned on again while cooling is in progress (5 seconds).

0

Pull out the power plug when the unit is not to be used for a prolonged period of time.

0

the Auto Intensity

If

function is On, the cool-down time increases depending on the usage condition of the projector.

Operate

23

Adjustments and Settings in the Menu

Pressing the [MENU] button displays the menu.
Press the [JKH I] keys to select an item, followed by pressing the [OK] button to confirm the selection.

List of Menu Items

Picture Adjust

IPicture Mode .................................................................................................................................................... p. 26

9 Sharpness ................................................................................................................................................... p. 26

9 Auto Intensity ............................................................................................................................................... p. 26

9

LD Current ................................................................................................................................................... p. 26

9 Aperture ....................................................................................................................................................... p. 26

9 User Name Edit ........................................................................................................................................... p. 26

IColor Management ........................................................................................................................................... p. 27

IColor Temp. ...................................................................................................................................................... p. 28

IGamma ............................................................................................................................................................. p. 28

I4K e-shift ........................................................................................................................................................... p. 28

IClear Motion Drive ............................................................................................................................................ p. 29

IContrast ............................................................................................................................................................ p. 29

IBrightness ......................................................................................................................................................... p. 29

IColor ................................................................................................................................................................. p. 29

ITint .................................................................................................................................................................... p. 29

IReset ................................................................................................................................................................ p. 29

Adjust/Set

Input Signal

IInput Level ........................................................................................................................................................ p. 30

IColor Space ...................................................................................................................................................... p. 30

IHide .................................................................................................................................................................. p. 30

IMask ................................................................................................................................................................. p. 31

IPicture Position ................................................................................................................................................. p. 31

Installation

ILens Control ..................................................................................................................................................... p. 32

9 Focus ........................................................................................................................................................... p. 32

Zoom ........................................................................................................................................................... p. 32

9

9 Shift ............................................................................................................................................................. p. 32

9 Image Pattern .............................................................................................................................................. p. 32

9 Lock ............................................................................................................................................................. p. 32

9 Lens Center ................................................................................................................................................. p. 32

IPixel Adjust ....................................................................................................................................................... p. 33

IInstallation Style ................................................................................................................................................ p. 37

ILED Indication .................................................................................................................................................. p. 37

24

Display Setup

IBack Color ........................................................................................................................................................ p. 37

IMenu Position ................................................................................................................................................... p. 37

Signal Display ................................................................................................................................................... p. 37

I

ILogo .................................................................................................................................................................. p. 37

Function

IOff Timer ........................................................................................................................................................... p. 38

INetwork ............................................................................................................................................................ p. 38

IRemote Code

IHIDE Mode ....................................................................................................................................................... p. 38

................................................................................................................................................... p. 38

Information

IInformation ........................................................................................................................................................ p. 39

Adjust/Set

25

Picture Adjust

MENU

BACK

User 1

}

?

.

y

l

Y

L

{

=

,

x

k

X

K

]

/

0

w

j

W

J

[

-

9

v

i

V

I

>

+

8

y

h

U

H

<

*

7

t

g

T

G

)

&

6

s

f

S

F

(

%

5

r

e

R

E

~

$

4

q

d

Q

D

|

#

3

p

c

P

C

;

"

2

o

b

O

B

\

^

z

M

Z

m

@

:

!

1

n

a

N

A

>>

SPACE

Name

After entry is complete, select
“OK” and press the [OK] button

Selection Cursor

Input Cursor

Back

Operate

Select

Exit

OKAll ClearClear

User Name Edit

Picture Adjust

Picture Mode

You can adjust the image quality according to the type of video image you are viewing.

Item Description

Natural Image quality that focuses on natural color and gradation reproduction. Suitable

for displaying video images in general.

Dynamic This is the picture setting best suited for viewing the picture in a room that cannot

be made completely dark.

User 1 to User 6 Enables user-defined image quality data to be saved and retrieved.

Sharpness

Emphasizes the outline of the video image.

0

Setting range: 0 (not adjusted) to +50 (sharp)

Auto Intensity

Setting Description

On Light intensity will be constant. Intensity is determined by the “LD Current” when

“Auto Intensity” turns on.

Off Light intensity is manually set using the “LD Current” gauge.

Adjust/Set

* Depending on the usage and settings, “Auto Intensity” may not function.

LD Current

If “Auto Intensity” is off, light intensity is manually set using the gauge.

“Auto Intensity” is

If

on, the “LD Current” gauge is grayed out. The gauge moves to indicate the “Auto Intensity” control.

Aperture P

For adjusting the amount of opening of the optical iris.

0

Stopping down the iris reduces the brightness, while opening it up increases the contrast.

0

Setting range: -15 (stops down) to 0 (opens up)

User Name Edit

You can edit the “User 1” to “User 6” names in the Picture mode.

0

Characters that are usable include alphabets (upper or lower case), numeric characters, and symbols.

0

Enter not more than 10 characters.

.

26

Color Management

>

MENU

BACK

0

0

0

0

On

A

B

MagentaBlue

Cyan

Green Yellow

Red

Clockwise rotation: -

Counterclockwise rotation: +

Axis Position (Image)

Adjustable range when Red
is selected: ± 30° with Red
as the center

Back

Operate

Select

Exit

Red

Before

Reset

Brightness

Saturation

Hue

Axis Position

Color Selection

Color Management

Picture Adjust

Color Management

Each of the colors is adjustable according to the user’s preference.

1

Select the “Picture Adjust” " “Color

2

Set “Color Management” to “On”, and adjust to the preferred color.

A

“Color Selection”, and

Select
select the color to adjust

0

For color adjustment, select
following: “Red”, “Orange”, “Yellow”, “Green”,
“Cyan”, “Blue”, “Magenta”.

B

Adjust the selected color

Item

Axis Position -30 to 30 Fine-tune the position

Hue -30 to 30 Adjusts the hue (color

Saturation -30 to 30 Adjusts the color

Brightness -30 to 30 Adjusts the

0

Selecting “Reset” resets all the adjustment
data.

0

Pressing the [HIDE] button enables you to
check the image before adjustment.

3

Press the [MENU] button to exit

press the H I keys to

the color from the

Setting

Range

Description

of the central axis of
the selected color.

tone).

saturation (vividness).

-30 (dull) to

brightness.

-30 (dark) to +30
(bright)

Management” menu, and

+30 (vivid)

press the [OK] button.

Adjust/Set

27

Color Temp.

For setting the color temperature of the video image.

Preset

Setting Description

5500K, 6500K, 9500K Increasing the value enhances the blue tone of the video image, while

decreasing the value enhances the red tone.

High Bright Color temperature that gives priority to brightness.

Custom 1 to Custom 3 The color temperature of video images can be adjusted manually and

saved as one of the three customized settings.

Custom

Setting Description

Gain Red, Gain Green, Gain Blue Adjusts each color in the bright parts of the video image.

0

Setting range: -255 (reduces the red/green/blue tone) to 0
(enhances the red/green/blue tone)

Offset Red, Offset Green, Offset Blue Adjusts each color in the dark areas of the video image.

0

Setting range: -50 (reduces the red/green/blue tone) to +50
(enhances the red/green/blue tone)

Gamma

You can adjust the gamma curve of the projected image with respect to the video signal input.

Adjust/Set

Setting Description

Normal Recommended setting for normal viewing.

Custom 1 to Custom 3 Adjustable to a preferred gamma setting.

4K e-shift 2

For setting the 4K e-shift mode.

Setting Description

On Activates the e-shift device.

On (Upscaling) Activates the e-shift device and 4K upscaling.

Off Deactivates the e-shift device.

28

Clear Motion Drive

For reducing the after-image, which occurs in a fast-moving scene.

0

Pressing the [C.M.D.] button each time switches the mode in the following sequence:
“Off”"“Mode1”"“Mode2”"“Mode3”"“Mode4”"“Off”...

Setting Description

Off No black insertion and no motion interpolation.

Mode1 Black insertion weak.

Mode2 Black insertion strong.

Mode3 Motion interpolation weak.

Mode4 Motion interpolation strong.

* C.M.D. is the abbreviation for Clear Motion Drive.

Contrast

For adjusting the difference in brightness to produce an image with contrast.

0

Setting range: -50 (little difference in brightness) to +50 (large difference in brightness)

Brightness

For adjusting the brightness of the video image.

0

Setting range: -50 (darker) to +50 (brighter)

Color

For adjusting the color density of the video image.

0

Setting range: -50 (lighter) to +50 (deeper)

Tint

For adjusting the hue of the video image.

0

Setting range: -50 (reddish) to +50 (greenish)

Reset

For restoring the image quality adjustment settings to the factory default.

Adjust/Set

29

Input Signal

Input Level

For setting the dynamic range (gradation) of the video input.

0

If the dynamic range is not appropriate, the bright areas become overexposed, and the dark areas become
underexposed.

Setting Description

0-255 (PC) Select this setting if you are inputting PC signals (dynamic range: 0 - 255).

16-235 (Video) Select this setting if you are inputting video signals (dynamic range: 16 - 235).

Color Space

For setting the color space of the input signal.

Setting Description

YCbCr(4:4:4) Select this setting when inputting YCbCr(4:4:4) video signals.

YCbCr(4:2:2) Select this setting when inputting YCbCr(4:2:2) video signals.

RGB Select this setting when inputting RGB video signals.

Hide 2

Adjust/Set

In the Dual mode, you can hide one of the images to check the operation of e-shift.

Setting Description

Hide1 Hides the input image of HDMI1.

Hide2 Hides the input image of HDMI2.

Off Does not hide the input images.

* This function is different from that of the Hide button on the remote control.

30

Mask

Mask: black strip around the periphery

On

Off

For hiding the peripheral area of the image with a mask (black strip).

Setting Description

Off Not masked.

2.5% Masks about 2.5% of the peripheral area of the image.

5% Masks about 5.0% of the peripheral area of the image.

Custom Masks about 0% to 5% of the four sides of the image.

Picture Position (Horiz./Vert.)

Adjust the position if the edges of the image are partially missing due to the timing of horizontal and vertical
synchronization signals.

Adjust/Set

31

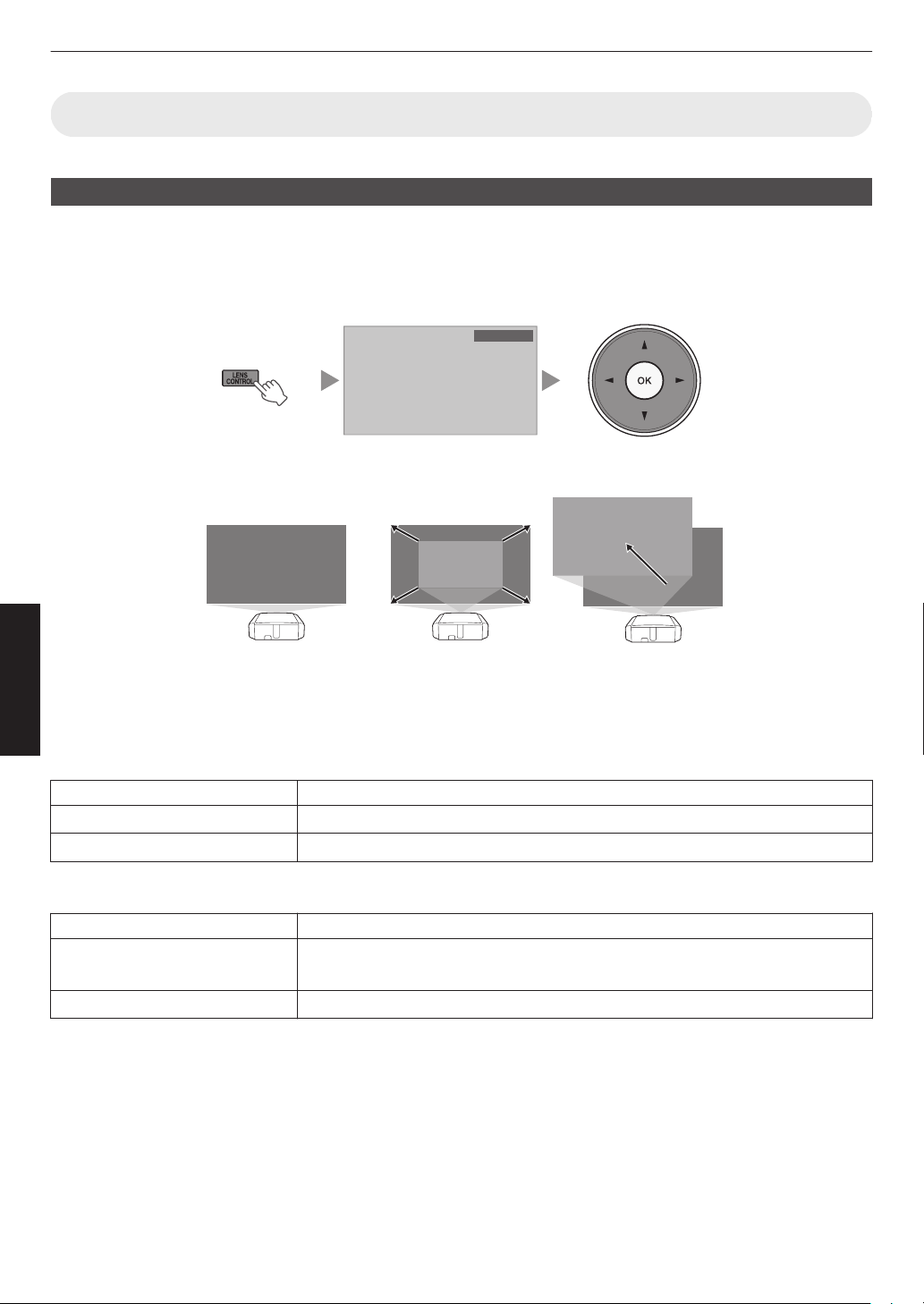

Installation

Focus

Shift (Screen Position)

Adjustment

Zoom (Screen Size)

Adjustment

ABCD

ABCD

ABCD

Focus Adjustment

Lens Control P

Focus / Zoom / Shift

For adjusting the lens according to the projection position

A

Press the [LENS CONTROL] button, and use the [JKH I] keys to adjust Focus, Zoom (screen size), and Shift
(screen position)

.

0

Pressing the [LENS CONTROL] or [OK] button each time switches the mode in the following sequence:
“Focus”"“Zoom”"“Shift”"“Focus”...

Adjust/Set

.

B

Press the [BACK] button once, or the [MENU] twice, to end adjustment.

Image Pattern

Setting Description

On Displays the lens adjustment pattern.

Off Displays external signals, and does not display the lens adjustment pattern.

Lock

Setting Description

On Locks the lens to prevent any erroneous operation on the adjustments.

0

Operation of the lens control feature is disabled when “On” is selected.

Off Does not lock the lens.

Lens Center

Returns the lens position to the center.

32

Pixel Adjust

Adjust

For setting the adjustment feature to “On” or “Off”.

Adjust Area

Setting Description

Whole Adjusts the entire image.

Zone Enables fine adjustment of each zone by dividing the screen into 11 vertical x 11

horizontal zones.

Adjust Color

For selecting the color to adjust (“Red” or “Blue”).

Adjust Pattern

Setting Description

On Displays the lens adjustment pattern.

Off Displays external signals, and does not display the lens adjustment pattern.

Adjust Pattern Color

For setting the adjustment pattern color to “White” or “Yellow / Cyan”.

Adjust(Pixel)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of one pixel on the screen of the color
selected in “Adjust Color”.

Æ “Operation procedure for Whole Adjust (Pixel)” （p. 34）

Adjustment cannot be made when “Adjust Area” is set to “Zone”.

*

Adjust/Set

Setting Description

H (Horizontal) Setting range: -2 (moves red/blue to the left) to +2 (moves red/blue to the right)

V (Vertical) Setting range: -2 (moves red/blue downward) to +2 (moves red/blue upward)

Adjust(Fine)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of 1/16 pixel on the screen of the
color selected in “Adjust Color”.

Æ “Operation procedure for Whole Adjust (Fine)” （p. 35）

“Adjust Area” is

When
each zone is possible.

Æ “Operation procedure for Zone Adjust” （p. 36）

Setting Description

H (Horizontal) Setting range: -31 (moves red/blue to the left) to +31 (moves red/blue to the right)

V (Vertical) Setting range: -31 (moves red/blue downward) to +31 (moves red/blue upward)

set to “Zone”, the screen is divided into 11 vertical x 11 horizontal zones, and fine adjustment of

Reset

Restores all pixel adjustment data to the factory default.

33

Operation procedure for Whole Adjust (Pixel)

Color A.

GAMMA

BACK

ADJUST.

COLOR.

Color P.

LENS.AP

A. Area

PIC.

TEMP ADJ.

H 0
V 0

Back

Operate

Select

Red

Whole Adjust (Pixel)

Pixel Adjust

V (Vertical)

H (Horizontal)

Adjustment (Pixel) Window

Adjustment Pattern

Color A.

GAMMA

BACK

ADJUST.

COLOR.

Color P. A. Area

PIC.

TEMP

LENS.AP

ADJ.

H 0

V 0

Red

Whole Adjust (Pixel)

Pixel Adjust

Back

Operate

Select

Remote Control Operation
Guide

Color for
Adjustment

Pixel Adjustment Setting

For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image.

A

Set “Adjust Area” to “Whole”

B

Select “Adjust Color” and “Adjust Pattern Color”

C

Select “Adjust(Pixel)”, and press the [OK] button

0

The selected adjustment pattern and Adjustment (Pixel) window are displayed.

.

D

Press the [OK] button to enter the Adjustment mode

E

Use

the [JKH

0

The adjustment setting appears at the center of the Adjustment (Pixel) window.

I] keys to move and adjust the pixels in the vertical and horizontal directions across the entire screen.

Adjust/Set

.

F

After adjustment is complete, press the [BACK] button to exit the Adjustment mode

Remote Control Operation Guide

Button Name Description of Operation

[GAMMA] Changes “Adjust Color”.

[COLOR TEMP.] Switches between “Adjust(Pixel)” and “Adjust(Fine)”.

0

Switches to “Adjust(Pixel)” when “Adjust Area” is set to “Zone”.

[LENS.AP] Changes “Adjust Pattern Color”.

[PIC ADJ.] Switches “Adjust Area”.

0

A zone cursor appears on the adjustment pattern when the “Zone” setting is selected.

34

Operation procedure for Whole Adjust (Fine)

Color A.

GAMMA

BACK

ADJUST.

COLOR.

Color P.

LENS.AP

A. Area

PIC.

TEMP ADJ.

H 0 ( 0 / 0 )
V 0 ( 0 / 0 )

Red

Pixel Adjust

Whole Adjust (Fine)

V (Vertical)

H (Horizontal)

Fine Window

Adjustment Pattern

Back

Operate

Select

H −20 （−20 / −20）
V 5 （ 5 / 5）

Color A.

GAMMA

BACK

ADJUST.

COLOR.

Color P.

LENS.AP

A. Area

PIC.

TEMP ADJ.

H 0 ( 0 / 0 )
V 0 ( 0 / 0 )

Red

Pixel Adjust

Whole Adjust (Fine)

Indicates the maximum and
minimum misalignment value of
the entire screen.(Max. / Min.)

Adjustment Setting

Remote Control Operation
Guide

Color for
Adjustment

Pixel Adjustment Setting

Back

Operate

Select

For making general adjustments
adjustments.

A

Set “Adjust Area” to “Whole”

B

Select “Adjust Color” and “Adjust Pattern Color”

C

Select Adjust(Fine), and press the [OK] button

0

The selected adjustment pattern and Fine window are displayed.

0

The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

.

D

Press the [OK] button to enter the Adjustment mode

E

Use the [JKH

0

The adjustment setting appears at the center of the Fine window.

I] keys to move and adjust the pixels in the vertical and horizontal directions across the entire screen.

on the misalignment of the entire screen using “Adjust(Pixel)”, followed by making fine

Adjust/Set

.

F

After adjustment is complete, press the [BACK] button to exit the Adjustment mode

MEMO

0

If both the maximum overall screen misalignment of H (horizontal direction) and V (vertical direction) are “31”, you
cannot select a value that is larger than the displayed setting even when the adjustment setting is lower than the
maximum value.

0

If the minimum overall screen misalignment is “-31”, you cannot select a value that is smaller than the displayed
setting even when the adjustment setting is higher than the minimum value.

35

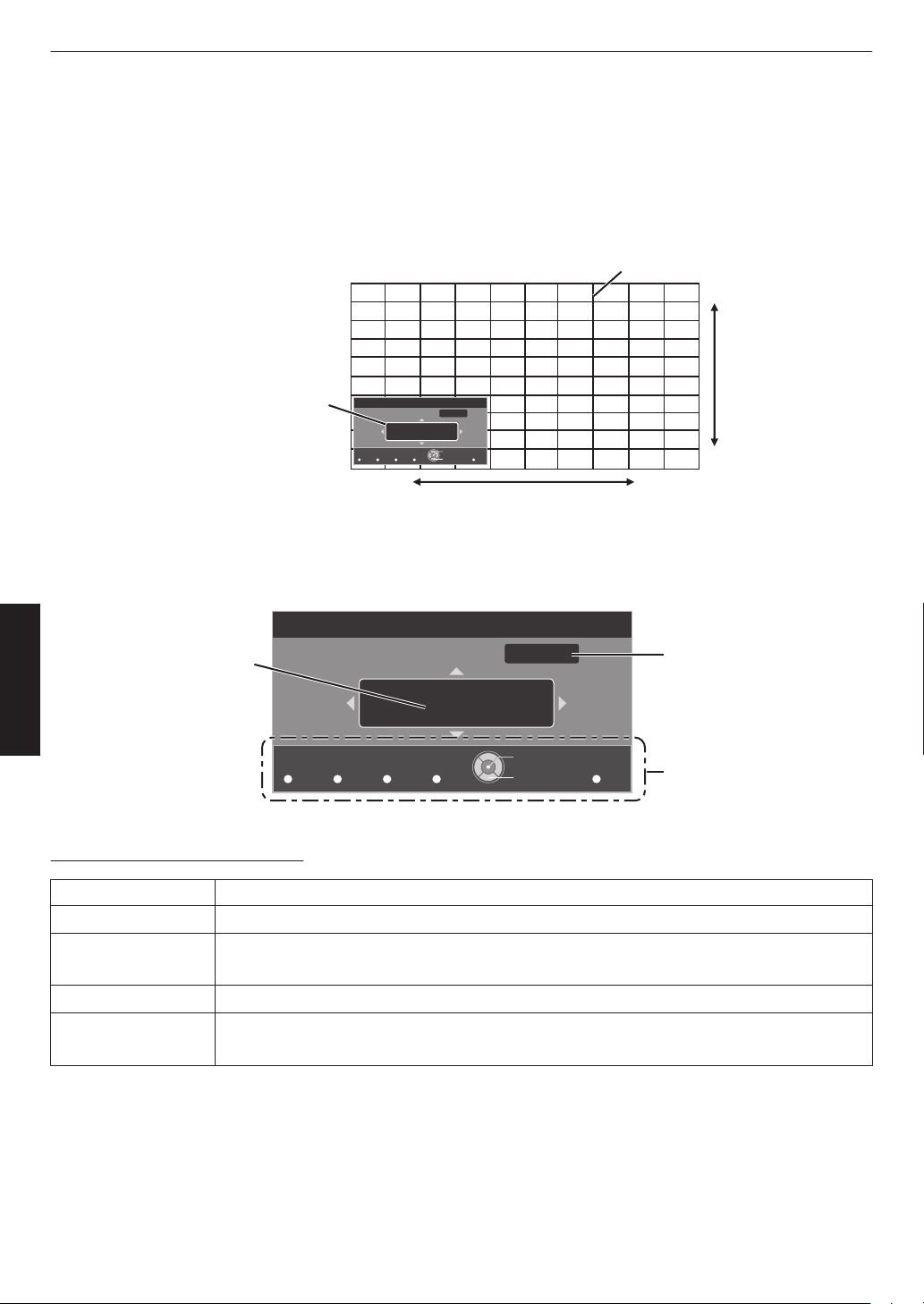

Operation procedure for Zone Adjust

Color A.

GAMMA

BACK

ADJUST.

COLOR.

Color P.

LENS.AP

A. Area

PIC.

TEMP ADJ.

Red

Pixel Adjust

H 0

0 / 0

V 0

Position

Zone Adjust

V (Vertical)

H (Horizontal)

Zone Adjustment Window

Zone Cursor

Adjustment Pattern

Back

Operate

Select

H −31
V   7

Color A.

GAMMA

BACK

ADJUST.

COLOR.

Color P.

LENS.AP

A. Area

PIC.

TEMP ADJ.

Red

Pixel Adjust

H 0

0 / 0

8 / 5

V 0

Position

Position

Zone Adjust

Adjustment Setting

Cursor Position

Remote Control Operation
Guide

Color for
Adjustment

Pixel Adjustment Setting

Back

Operate

Select

For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using
“Adjust(Pixel)” and “Adjust(Fine)”.

0

The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made.

A

Set “Adjust Area” to “Zone”

B

Select “Adjust Color” and “Adjust Pattern Color”

C

Select Adjust(Fine), and press the [OK] button

0

The selected adjustment pattern and Zone Adjustment window are displayed.

0

The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

.

D

Press the [JKH I] keys to move the cursor to the point to be adjusted

Adjust/Set

E

Press the [OK] button to enter the Adjustment mode

F

Use the [JKH

0

The adjustment setting appears at the center of the Zone Adjustment window.

I] keys to move and adjust the pixels in the vertical and horizontal directions across the entire screen.

.

G

After adjustment is complete, press the [BACK] button to exit the Adjustment mode

36

Installation Style

For setting to “Front”, “Ceiling Mount (F)”, “Rear”, or “Ceiling Mount (R)” according to the installation status of the
projector.

0

“Front” or “Ceiling Mount (F)” is set when projector is installed in the front with respect to the screen.

0

“Rear” or “Ceiling Mount (R)” is set when projector is installed in the rear with respect to the screen.

LED Indication

When LED Indication is set to “Off”, the LED indicator does not light up or blink under the following status.

0

When the time to replace the laser light source is near. (p. 53)

0

When HIDE is on. (p. 52)

0

When the projector receives a signal from a remote control which is set to a different code mode (A or B). (p. 38)

Display Setup

Back Color

For setting the color of the background to “Blue” or “Black” when there is no input signal.

Menu Position

For setting the display position of the menu.

Signal Display

Setting Description

On Displays the input terminal and input signal type when input is switched.

Off Not displayed.

Logo

Setting Description

On Displays the “D-ILA” logo for 5 seconds during startup.

Off Not displayed.

Adjust/Set

37

Function

Off Timer

For setting the timing to power off the unit automatically (“1 Hour”, “2 Hours”, “3 Hours”, or “4 Hours”) when it is not
operated for a period of time.

Network

Setting Description

DHCP Client On Obtains the IP address automatically from the DHCP server inside the connected

network.

Off For configuring the network settings manually.

IP Address For configuring the IP address.

Subnet Mask For configuring the subnet mask.

Default Gateway For configuring the default gateway.

MAC Address Displays the MAC address of the unit.

Set Applies the network settings.

Glossary of Network Terminology

DHCP : Abbreviation for

Adjust/Set

IP Address : Numeric characters for identifying the device that is connected to the network.

Subnet Mask : Numeric characters that define the bit count used for the network address that is a

Default Gateway : Server for communicating beyond the network that is divided by the subnet mask.

MAC Address : Abbreviation for Media Access Control address. This is a number that is unique to each

to assign an IP address automatically to the connected device.

segment of the IP address.

network adapter. Each of the network adapters is assigned with a unique MAC address.

Dynamic Host Configuration Protocol. This is a protocol for the network

Remote Code

For changing the remote control code.

0

You need to configure the remote control according to the settings of this unit.
On the remote control unit, press the [MENU] and [BACK] buttons at the same time for three seconds or longer to
switch the code.

0

The backlight of the remote control blinks 3 times: change the remote control code to “A”

0

The backlight of the remote control blinks 2 times: change the remote control code to “B”

Setting Description

A Change the remote control code from “B” to “A”.

B Change the remote control code from “A” to “B”.

* “STANDY/ON” indicator blinks 3 times when the projector receives a signal from a remote control which is set to a

different code mode (A or B).

HIDE Mode

Setting Description

Normal Hide the image, laser light source power doesn’t change.

ECO Hide the image, laser light source power decrease.

38

Information

During video signal input

Setting Description

Input Displays video input terminal.

Source Displays the input source.

Deep Color* Displays the color bit depth of the input video signal.

0

Displayed when Deep Color information is received from the source device.

Light source time Displays the laser light source time.

Soft Ver. Displays the firmware version.

PS Ver. Displays the version of image quality data.

Unit ID Adds an ID to the projector.

During PC signal input

Setting Description

Input Displays video input terminal.

Resolution* Displays the image resolution.

H Frequency* Displays the horizontal frequency.

V Frequency* Displays the vertical frequency.

Deep Color* Displays the color bit depth of the input video signal.

0

Displayed when Deep Color information is received from the source device.

Light source time Displays the laser light source time.

Soft Ver. Displays the firmware version.

PS Ver. Displays the version of image quality data.

Unit ID Adds an ID to the projector.

* During Dual input, Deep Color, Resolution, and H/V Frequency are not displayed.

Adjust/Set

39

Maintaining the Cabinet and Remote Control (Sold Separately)

0

Gently wipe off dirt on the cabinet with a soft cloth.

0

If it is extremely dirty, wet a cloth in water, wring dry and use it to wipe off the dirt, followed by wiping again with a
dry cloth.

0

Pay attention to the following as the cabinet may deteriorate in condition or the paint may come off.

0

Do not wipe with thinner or benzine

0

Do not allow prolonged contact with rubber or plastic products

0

Do not spray volatile chemicals such as insecticide

Maintenance

40

Cleaning and Replacing the Filter

Pull out while
pushing down the
tab

Check that the left
and right tabs are
locked onto the unit

Clean the filter regularly Otherwise, the air intake
efficiency may deteriorate, and malfunction may occur.

CAUTION

0

Make sure that you pull out the power plug from the
outlet before cleaning or replacing the filter.

0

turning this unit

Before
the floor or a table, make sure that you lay a soft rag
in advance to prevent the projector from being
scratched.

upside down and placing it on

3

Reinstall the inner filter

1

Remove the inner filter

.

2

Clean the filter

.

0

Wash the filter with water and dry it in a shaded
area.

0

If the filter is extremely dirty, clean it with a
neutral detergent. Put on rubber gloves when
using a neutral detergent.

0

After washing the filter with water, make sure
that it is completely dry before reinstalling.
Otherwise, electric shock or malfunction may
occur.

0

Do not clean the filter with a vacuum cleaner or
air duster. The filter is soft and may be easily
damaged.

.

If the filter is damaged or too dirty to be
cleaned

0

Replace with a new filter. A dirty filter will dirty the
internal
on the video image.

0

To purchase a new filter or when there is dirt in the
internal parts of the unit, consult your authorized
dealer or nearby service center.

0

Inner filter (exchangeable filter)
Product no.: PC010661199

parts of the

unit and cause shadows to appear

Maintenance

41

Troubleshooting

Before sending the unit to your authorized dealer for repair, please check the following points.

The following symptoms are not malfunctions.

You do not need to worry about the following symptoms if there is no abnormality on the screen.

0

A part of the top or front surface of the unit is hot.

0

A creaking sound is heard from the unit.

0

An operating sound is heard from the inside of the unit.

0

Color smear occurs on some screens.

This unit is a digital device. This unit may become unable to operate normally due to external static or noise.
Perform the following operations when such malfunctions occur.

A

If the unit is in the Standby mode, pull out the power plug, followed by inserting it again

B

Press the A [STANDBY/ON] button on the main unit to turn on the power again

Power is not supplied

Check Action Refer to

Is the power cord disconnected? Insert the power cord (plug) firmly. p. 21

Is the laser light source in the Cool-down
mode?

After exiting the Cool-down mode, turn on the power again. p. 23

Power shuts down automatically

Check Action Refer to

Has “Off Timer” been configured? Set “Off Timer” to “Off”. p. 38

Are the air inlets and exhaust vent
blocked?

Is the filter dirty? Clean the filter. p. 41

Leave proper clearance when installing the unit. p. 11, 12

Video image does not appear

Check Action Refer to

Is the correct external input selected? Select the correct external input terminal. p. 22

Is the power of the video source

Troubleshooting

equipment turned on?

Is the video source equipment properly
connected?

Are the correct signals being output from
the video source equipment?

Is the cable in use an HDMI-certified
cable?

Is the video image temporarily hidden? Press the [HIDE] button p. 22

Turn on the power of the video source equipment and play
the video.

Check to ensure that the video source equipment is
properly connected.

Configure the video source equipment correctly. p. 19

Use an HDMI-certified high-speed cable. Also, use as
short a cable as possible.

p. 16

p. 19

p. 19

p. 19

42

Cool-down time is long

Check Action Refer to

Is the Auto Intensity function On? Please wait until the Cool-down mode is completed. If the

Auto Intensity function is On, it will take up to 6 minutes to
process the brightness adjustment.

p. 23

Video image looks unnatural

Colors are unnatural

Check Action Refer to

Is the color space of the input signal
correctly set?

Is the image correctly adjusted? Adjust “Color” and “Tint” accordingly. p. 29, p. 29

Is the video source equipment properly
connected?

* The video image may appear slightly reddish immediately after starting up. This is not a malfunction.

The color may turn out unnatural when the input signal is
different from that in the projector setting.
Set the “Color Space” for “Input Signal” correctly.

Check to ensure that the video source equipment is
properly connected.

p. 30

p. 19

Video image is fuzzy

Check Action Refer to

Is the focus correctly adjusted? Adjust the focus. p. 32

Is the unit placed too near or too far away
from the screen?

Set the unit at a correct distance from the screen. p. 50

Projected image is dark

Check Action Refer to

Is the laser light source near exhaustion? Check the laser light source time in the “Information” menu.

If 40,000 hours have
brightness at shipment.

Is the aperture closed? Adjust the Aperture. p. 26

Is “LD Current” set to “Lower”? Set “LD Current” to “Higher” p. 26

elapsed, the brightness will be half the

p. 39

Video images are missing

Check Action Refer to

Has screen mask been configured? Set “Mask” to “Off”. p. 31

Is the display position misaligned? Alter the “Picture Position” value so that the entire image

appears on the screen.

p. 31

Troubleshooting

43

Remote control does not work

No Input

HDMI 1

HDMI 1

Check Action Refer to

Are the batteries correctly loaded? Match the polarities (t s) correctly when loading the

p. 15

batteries.

Are the batteries exhausted? Replace with new batteries. p. 15

Is there an obstructing object between

Remove any obstructing object. p. 15

the remote control and remote sensor?

Is the remote control held too far away

Hold the remote control closer to the sensor during use. p. 15

from the unit?

There are small black or colored dots on the screen

The D-ILA device is manufactured using high-precision technologies, but there may be some (less than 0.01%) missing
pixels or pixels that remain permanently lit. This is not a malfunction.

When the following messages appear...

Message Description Action

0

No device is connected to the input
terminal.

0

.

The input terminal is connected but
there is no signal.

A video signal that cannot be used with

.

this unit has been input (The names of
input terminals such as “HDMI-1” and
“HDMI-2” will be displayed in yellow).

Input the video signals.

0

Input video signals that can be used.
(p. 52)

0

In the Dual mode,

switch to HDMI1 or
HDMI2 and check whether the
signals can be input.

Troubleshooting

44

External Control

15

69

This Unit

D6 D7D4 D5D2 D3D0 D1

Stop bitStart bit

Projector Control

Connection Authentication Procedure

PJA CK

PJ RE Q

PJ _O K

Controlling PC

3-way Handshake

TCP Port No. 20554

Establishment of TCP Connection

Projector

Within 60 Seconds

You can control this unit by connecting it to a PC using an RS-232C null modem cable (D-sub 9-pin).
The projector can be controlled by connecting it to a PC through the computer network with a LAN cable for control
commands to be sent to the projector.

0

Please use it after you have gained proper understanding from professional books or consulting the system
administrator.

RS-232C Specifications

Pin No. Signal Function Signal Direction

2 RxD Receive data PC " This unit

3 TxD Transmission data This unit " PC

5 GND Signal ground

1, 4, 6 - 9 N/C

0

PC refers to the controller, such as a personal computer.

— —

Mode Non-synchronous

Character length 8 bit

Parity None

Start bit 1

Stop bit 1

Data rate 19200 bps

Data format Binary

—

TCP/IP Connection

Before controlling via LAN, it is necessary to establish connection of the TCP layer by a “3-way handshake”, followed

sending

by
authentication.
If you are unable to complete sending within 60 seconds, or when “PJ_NG” or “PJNAK” is received, check the operating
status of the projector, followed by performing the steps again starting from establishment of a TCP connection.

out

.

“PJREQ”

and receiving “PJACK” within 60 seconds after the projector sends out “PJ_OK” for connection

Others

45

Command Format

The command between this unit and the computer consists of “Header”, “Unit ID”, “Command”, “Data” and “End”.

0

Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte)

Header

This binary code indicates the start of communication.

Binary Code Type Description

21 Operating command PC " This unit

3F Reference command PC "

40 Response command This unit " PC

06 ACK This unit "

Unit ID

This is a code that specifies the unit. The binary code is fixed at “8901”.

Command and data

This unit

PC (returns to PC after the command is accepted without

error)

Operating command and data (binary code)

Command Type Description

0000 Connection

check

5057 Power

supply

4950 Input When power is on

5243 Remote

control

Check whether
communication is enabled
between this unit and the
PC during standby.

During standby
31: Turns on the power
When power is on
30: Turns off the power
(Standby mode)

36: HDMI 1
37: HDMI 2

Sends the same code as
the supplied remote
control.

0

“Remote Control
Code”p. 47

Operating command and data (binary code)

Command Type Description

5057 Power

supply

4950 Input When power is on

End

This code indicates the end of communication. The binary code is fixed at “0A”.

During standby or when
power is on
30: Standby mode
31: When power is on
32: In the Cool-down
33: Starting up
34: When error occurs on
this unit

32: Dual
36: HDMI 1
37: HDMI 2

mode

Others

46

Remote Control Code

Binary code is sent during communication.

0

following applies to

The
of the code.

the case when the remote control code is “A”. In the case of “B”, add “36” to the beginning

Remote Control Button Name Binary Code

STAND BY 37 33 30 36

ON 37 33 30 35

HDMI 1 37 33 37 30

HDMI 2 37 33 37 31

Dual 37 33 34 44

LENS CONTROL 37 33 33 30

Aperture 37 33 32 30

HIDE 37 33 31 44

J

K

I

H

OK 37 33 32 46

37 33 30 31

37 33 30 32

37 33 33 34

37 33 33 36

Remote Control Button Name Binary Code

MENU 37 33 32 45

BACK 37 33 30 33

NATURAL 37 33 36 41

DYNAMIC 37 33 36 42

USER 37 33 44 37

C.M.D. 37 33 38 41

INFO 37 33 37 34

GAMMA 37 33 37 35

C. TEMP 37 33 37 36

PIC. ADJ. 37 33 37 32

47

Others

Communications Example

This section shows the communication examples of RS-232C.

Operating command

Type Command Description

Connection check PC " This unit: 21 89 01 00 00 0A

This unit " PC: 06 89 01 00 00 0A

Power (On) PC "

Power (Off) PC "

Input (HDMI 1) PC " This unit: 21 89 01 49 50 36 0A

Remote control
(MENU)

Reference command

Type Command Description

Power (On) PC "

Input (HDMI 1) PC " This unit: 3F 89 01 49 50 0A

This unit: 21 89 01 50 57 31 0A

This unit " PC: 06 89 01 50 57 0A

This unit: 21 89 01 50 57 30 0A

This unit " PC: 06 89 01 50 57 0A

This unit " PC: 06 89 01 49 50 0A

" This unit: 21 89 01 52 43 37 33 32 45 0A

PC
This unit " PC: 06 89 01 52 43 0A

This unit: 3F 89 01 50 57 0A
This unit "
This unit "

This unit " PC: 06 89 01 49 50 0A
This unit " PC: 40 89 01 49 50 36 0A

PC: 06 89 01 50 57 0A
PC: 40 89 01 50 57 31 0A

Connection check

When power is turned on from the
Standby mode

When power
mode) from power-on mode

When video input is set to HDMI 1

When the same operation as
pressing
remote control is performed

When
state is acquired

When information on HDMI 1 input
is acquired

is turned off (Standby

the [MENU] button on the

information on the power-on

Others

48

Specifications

Product Name D-ILA Projector

Model Name DLA-VS2500ZG, DLA-VS2500G, DLA-VS2300ZG, DLA-VS2300G

Display Panel/Size D-ILA device *1, 2

0.7" (1920 x 1080 pixels) x 3 (total no. of pixels: approx. 6.22 million)

Projection Lens 2.0x power zoom lens (1.4:1 to 2.8:1), motorized zoom and focusP

Light source BLU-Escent Technology (Laser and Phosphor)

Screen Size Approx. 60" to 200" (Aspect ratio of 16:9) P

Projection Distance Refer to p. 50. P

Input Compatibility Signal Refer to p. 52.

Display Resolution 3840 x 2160 pixels (2)

1920 x 1080 pixels (3)

HDMI Input Terminal Dual, HDMI 19-pin x2

Control Terminal RS-232C Terminal D-sub 9-pin (male) (external control) x1

Remote Terminal Stereo mini jack (remote control) x1

LAN Terminal RJ-45 jack x1

Power Requirements AC 100 V to 240 V, 50 Hz/60 Hz

Power Consumption 290 W (during standby: 5 W)

Operation Environment Temperature: 5°C to 35°C; humidity: 20% to 80%; storage

temperature: -10°C to 60°C

Installation Height Below 6,561 ft (2,000 m)

Dimensions (Width x Height x Depth) Approx. 455

Mass 17.3 kg (P)

16.5 kg (O)

Accessories Refer to p. 10.

*1 D-ILA is the abbreviation for Direct drive Image Light Amplifier.

*2 D-ILA devices are manufactured

Only 0.01% or less of the pixels are either missing or would remain permanently lit.

0

Design and specifications are subject to change without prior notice.

0

note that some

Please
to aid comprehension. Images may differ from the actual product.

of the pictures and illustrations may have been abridged, enlarged or contextualized in order

using extremely high-precision technology with a pixel effectiveness of 99.99%.

mm x 179 mm x 472 mm (excluding foot and protrusions)

49

Others

About Trademarks and Copyrights

HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LCC.

Screen Size and Projection Distance

When a 16:9 screen is used P

Screen Size Projection Distance

Diagonal (inch) Width (mm) Height (mm) Wide-end (m) Tele-end (m)

60 1328 747 1.78 3.66

70 1549 872 2.09 4.28

80 1771 996 2.4 4.89

90 1992 1121 2.7 5.51

100 2214 1245 3.01 6.13

110 2435 1370 3.31 6.75

120 2656 1494 3.62 7.36

130 2878 1619 3.92 7.98

140 3099 1743 4.23 8.60

150 3320 1868 4.53 9.22

160 3542 1992 4.84 9.84

170 3763 2117 5.14 10.45

180 3984 2241 5.45 11.07

190 4206 2366 5.75 11.68

200 4427 2490 6.06 12.30

Others

50

When a 4:3 screen is used P

Screen Size Projection Distance

Diagonal (inch) Width (mm) Height (mm) Wide-end (m) Tele-end (m)

60 1219 914 2.22 4.49

70 1422 1067 2.60 5.24

80 1626 1219 2.98 6.00

90 1829 1372 3.36 6.75

100 2032 1524 3.74 7.51

110 2235 1676 4.11 8.26

120 2438 1829 4.49 9.02

130 2642 1981 4.87 9.77

140 2845 2134 5.25 10.53

150 3048 2286 5.63 11.28

160 3251 2438 6.00 12.04

* Projection to a 4:3 screen larger than 163" is equivalent to a size that is larger than 200" in the 16:9 format, and is

beyond our guarantee coverage.

51

Others

Types of Possible Input Signals

The indicator appears blinking.The indicator lights up.

LIGHT WARNING

STANDBY/ON

LIGHT WARNING

STANDBY/ON

LIGHT WARNING

STANDBY/ON

LIGHT

WARNING

STANDBY/ON

LIGHT WARNING

STANDBY/ON

* “STANDY/ON” indicator does not blink when “LED Indication” is set to “Off”.

During laser light source startup

When the video image is temporarily hidden (HIDE is on)

During projection

All lights off

In the Cool-down mode

“STANDBY/ON” blinking (red)

“STANDBY/ON” lights up (green)

In standby state

“STANDBY/ON” lights up (red)

“STANDBY/ON” blinking (green) *

Video (HDMI1, HDMI2)

Digital Video Signal 480p/60 Hz (4:3), 576p/50 Hz (4:3), 720p/50 Hz, 720p/60 Hz, 1080p/50 Hz, 1080p/

60 Hz

Video (Dual)

Digital Video Signal 1080p/50 Hz, 1080p/60 Hz

0

In the Dual mode, both HDMI1 and HDMI2 need to be synchronized at 1080p/60 Hz or at 1080p/50 Hz.

PC Signal (HDMI1, HDMI2)

No. of

Effective

Lines

[line]

No. Designation Resolution fh [kHz] fv [Hz]

dot CLK

[MHz]

Total No.

of Hsize

[dot]

Total No.

of Lines

[line]

No. of

Effective

Dots [dot]

1 VGA 60 640×480 31.500 60.000 25.200 800 525 640 480

2 VGA 59.94 640×480 31.469 59.940 25.175 800 525 640 480

Indicator Display on the Main Unit

Meaning of the lighting figures

.

Operation mode display

Displays using the different colors and solid/blinking light of the “STANDBY/ON” indicator.

.

Others

52

Estimated timing for laser light source replacement

LIGHT WARNING

STANDBY/ON

If 40,000 hours have elapsed, the
brightness will be half the brightness at
shipment.

“LIGHT” lights up (orange)

Lights up when the “LD Current” gauge
reaches 95 and above. (When the Auto
Intensity function is On.)

LIGHT WARNING

STANDBY/ON

(Red)(*)Mode

Display

LIGHT WARNING

STANDBY/ON

Blinking

Simultaneously

(Red)

(Orange)

Mode

Display

LIGHT WARNING

STANDBY/ON

(Red)

(Orange)

Mode

Display

Displays using the solid/blinking
mode of the unit, is also displayed simultaneously.

* “LIGHT” indicator does not light up when “LED Indication” is set to “Off” (p. 37).

.

light of the “LIGHT” indicator. The “STANDBY/ON” indicator, which shows the operating

Warning display

You can tell the details of a warning from the (repeated) displays of the “WARNING” and “LIGHT” indicators. The
“STANDBY/ON” indicator, which shows the operating mode of the unit, is also displayed simultaneously.

The projector enters into Warning mode once the “WARNING” indicator is displayed. The power cannot be turned on
again under this condition.
Allow the projector to cool down for a while, then check the following.

Indicator Status (Solid/Blinking)

Blinking

Frequency

Description Check and Countermeasure

x1 Abnormality in the power supply0Check that nothing is blocking

x2 Cooling fan stopped abnormally

x3 Internal temperature is

abnormally high

x4 External temperature is too high

.

x5 Abnormal circuit operation

the air inlets.

0

Check that the external
temperature is normal.

Countermeasure: Leave the unit
unoperated until it cools down.
After

that, turn on

the power again.

x1 Abnormal circuit operation

x2

x3

.

x1 LD Driver or LD light source

Error

x2 Wheel Error

Countermeasure: Leave the unit
unoperated until it cools down.
After

that,

turn

on

the power again.

x3 Color Sensor Error

x4 Inter Lock

.

If the Warning mode is activated again, wait for the cooling fan to stop, followed by pulling out the power plug from the
outlet.
Request for repair at your authorized dealer or a nearby service center.

(*) If the scheduled time for laser light source replacement is exceeded, the indicator may light up.

Others

53

Dimensions

5

472

455

Lens

Ø60

24

103.5

178.5

227.5

Lens Center

33759

91 290

Lens

92110

32 110

(Unit: mm)

Top Surface

.

Front

Bottom Surface

.

Rear Surface

Others

54

.

.

0

The dimensions are identical for all the models.

Index

Accessories ......................................................... 10

A

Projection Screen Adjustment ............................. 32

Adjustment and Setting by the Menu ................... 24

Adjustment of the Image Quality

Aperture ............................................................... 26

Back Color ........................................................... 37

B

Basic Setting for Image Quality ............................ 26

Brightness ............................................................ 29

C.M.D (Clear Motion Drive) .................................

C

Ceiling Mount ....................................................... 17

Cleaning and Replacing the Filter ........................

Clear Motion Drive ............................................... 29

Color Density ....................................................... 29

Color Management .............................................. 27

Color Shade ......................................................... 29

Color Space ......................................................... 30

Color Temperature ............................................... 28

Connection .......................................................... 19

Contrast ............................................................... 29

Controls and Features ......................................... 11

Dimensions .......................................................... 54

D

Display Position ................................................... 31

Dual ..................................................................... 22

External Control ................................................... 45

E

Filter Product no. ................................................. 41

F

Filter Replacement

Focus ................................................................... 32

Frame Interpolation .............................................. 29

GAMMA ............................................................... 28

G

Gamma Adjustment ............................................. 28

HDMI Input Terminal ............................................

H

Hide ..................................................................... 30

HIDE .................................................................... 22

Indicator Display .................................................. 52

I

Input Level

Input Resolution ............................................. 39, 52

Input Signal

Input terminals ..................................................... 13

........................................................... 30

............................................... 41

.................................................... 39, 52

.......................... 26

29

41

19

Installation Method .............................................. 16

LD Current ........................................................... 26

L

..................................................................... 11

Lens

Lens Control ........................................................ 32

Lens sheet

Lens Shift ............................................................. 32

Light source time ................................................. 39

Line Display ......................................................... 37

Logo Display ........................................................ 37

Menu Items .......................................................... 24

M

Menu Position ...................................................... 37

Network ............................................................... 38

N

Off Timer ..............................................................

O
