JVC DLA-SH4KNLG User Manual

PROJECTOR

DLA-SH4K

Getting Started Setup

INSTRUCTIONS

Operation and

Settings

Thank you for purchasing this JVC product.

Please study this instruction manual carefully before starting to operate the unit, in order to use the unit correctly. We take no responsibility for any problems resulting from misuse of this unit by operating this equipment other than instructed in this manual.

Others

For Customer use :

Enter below the serial No. which is located on the bottom side of the cabinet. Retain this information for future reference.

Model No. DLA-SH4K

Serial No.

LCT2370-001B

Getting Started

Safety Precautions

IMPORTANT INFORMATION

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING:

THIS APPARATUS MUST BE EARTHED.

CAUTION:

To reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel.

This projector is equipped with a 3-blade grounding type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.

FCC INFORMATION (U.S.A. only)

CAUTION:

Changes or modification not approved by JVC could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

MACHINE NOISE INFORMATION (Germany only)

Changes Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.

About the installation place

Do not install the projector in a place that cannot support its weight securely.

If the installation place is not sturdy enough, the projector could fall or overturn, possibly causing personal injury.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these Important Safeguards carefully before use.

- All the safety and operating instructions should be

read before the product is operated.

- The safety and operating instructions should be

retained for future reference.

- All warnings on the product and in the operating

instructions should be adhered to.

- All operating instructions should be followed.

- Place the projector near a wall outlet where the plug

can be easily unplugged.

- Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

- Do not use attachments not recommended by the

product manufacturer as they may be hazardous.

- Do not use this product near water. Do not use

immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards.

- Do not place this product on an unstable cart, stand,

or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. The product should be mounted according to the manufacturer’s instructions, and should use a mount recommended by the manufacturer.

- When the product is used on a cart,

care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.

- Slots and openings in the cabinet

are provided for ventilation. These ensure reliable operation of the product and protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer’s instructions have been adhered to.) For proper ventilation, separate the product from other equipment, which may prevent ventilation and keep a distance (See page 11).

- This product should be operated only with the type of

power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

- This product is equipped with a three-wire plug. This

plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.

- Power-supply cords should be routed so that they are

not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.

- For added protection of this product during a lightning

storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.

- Do not overload wall outlets, extension cords, or

convenience receptacles on other equipment as this can result in a risk of fire or electric shock.

- Never push objects of any kind into this product

through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

- Do not attempt to service this product yourself as

opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel.

Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

a) When the power supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen on the

product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the Operation Manual, as an improper

adjustment of controls may result in damage and will often

require extensive work by a qualified technician to restore

the product to normal operation. e) If the product has been dropped or damaged in any way. f) When the product exhibits a distinct change in

performance - this indicates a need for service.

- When replacement parts are required, be sure the

service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

- The product should be placed more than one foot

away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat.

- When connecting other products such as VCR’s, and

DVD players, you should turn off the power of this product for protection against electric shock.

- Do not place combustibles behind the cooling fan. For

example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated.

- Do not look into the projection lens while the

illumination lamp is turned on. Exposure of your eyes to the strong light can result in impaired eyesight.

- Do not look into the inside of this unit through vents

(ventilation holes), etc. Do not look at the illumination lamp directly by opening the cabinet while the illumination lamp is turned on. The illumination lamp also contains ultraviolet rays and the light is so powerful that your eyesight can be impaired.

- Do not drop, hit, or damage the light-source lamp

(lamp unit) in any way. It may cause the light-source lamp to break and lead to injuries. Do not use a damaged light source lamp. If the light-source lamp is broken, ask your dealer to repair it. Fragments from a broken light-source lamp may cause injuries.

- The light-source lamp used in this projector is a high

pressure lamp. Be careful when disposing of the lightsource lamp. If anything is unclear, please consult your dealer.

- Do not ceiling-mount the projector to a place which

tends to vibrate; otherwise, the attaching fixture of the projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal injury.

- Use only the accessory cord designed for this product

to prevent shock.

*DO NOT allow any unqualified person to

install the unit.

Be sure to ask your dealer to install the unit (e.g. attaching it to the ceiling) since special technical knowledge and skills are required for installation. If installation is performed by an unqualified person, it may cause personal injury or electrical shock.

Getting Started

Safety Precautions (Cont’d)

POWER CONNECTION

The power supply voltage rating of this product is AC110 V – 120 V, AC200 V – 240 V, the power cord attached conforms to the following power supply voltage. Use only the power cord designated by our dealer to ensure Safety and EMC.

When it is used by other power supply voltage, power cable must be changed.

Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult your product dealer.

Power cord

For European continent countries:

AC200 V – 240 V

(3.3 m)

IMPORTANT:

The wires in the mains lead on this product are colored in accordance with the following cord: Green-and-yellow : Earth Blue : Neutral Brown : Live As these colors may not correspond with the colored making identifying the terminals in your plug, proceed as follows: The wire which is colored green-and-yellow must be connected to the terminal which is marked M with the letter E or the safety earth or colored green or green-and-yellow. The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black. The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red.

Power cord

Power supply voltage:

AC110 V – 120 V

(3.3 m)

WARNING: Do not cut off the main plug from this

equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer. If nonetheless the mains plug is cut off, dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply. If a new main plug has to be fitted, then follow the instruction given below.

WARNING:

THIS APPARATUS MUST BE EARTHED.

EMC Supplement

This equipment is in conformity with the provisions and protection requirements of the corresponding European Directives. This equipment is designed for professional projector appliances and can be used in the following environments.

● Controlled EMC environment (for example purpose built broadcasting or recording studio), and the rural outdoors

environment (far away from railways, transmitters, overhead power lines, etc).

In order to keep the best performance and furthermore for electromagnetic compatibility we recommend to use the cables not exceeding the following length:

Cables Length Power cord Power supply cord 3.3 m DVI (X4) Cable Shielded cable 5.0 m USB Cable Shielded cable 2.0 m LAN Cable Shielded cable 2.0 m RS-232C Cable Shielded cable 1.6 m

● The inrush current of this apparatus is 9.705 amperes.

WARNING This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures. In case where the strong electromagnetic waves or magnetism are near the signal

cable, the picture will contain noise. In such cases, please keep the cable away from the sources of the disturbance.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is: JVC Technology Centre Europe GmbH Company name changed in: JVC Technical Services Europe GmbH Postfach 10 05 52 61145 Friedberg Germany

Getting Started

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Check the Accessories/Optional Accessories . . . . . . . 6

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . 6

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

How to Read this Manual . . . . . . . . . . . . . . . . . . . . . . 7

Precautions During Use . . . . . . . . . . . . . . . . . . . . . . . 8

Names and Functions of Parts . . . . . . . . . . . . . . . . . . 9

Setup

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

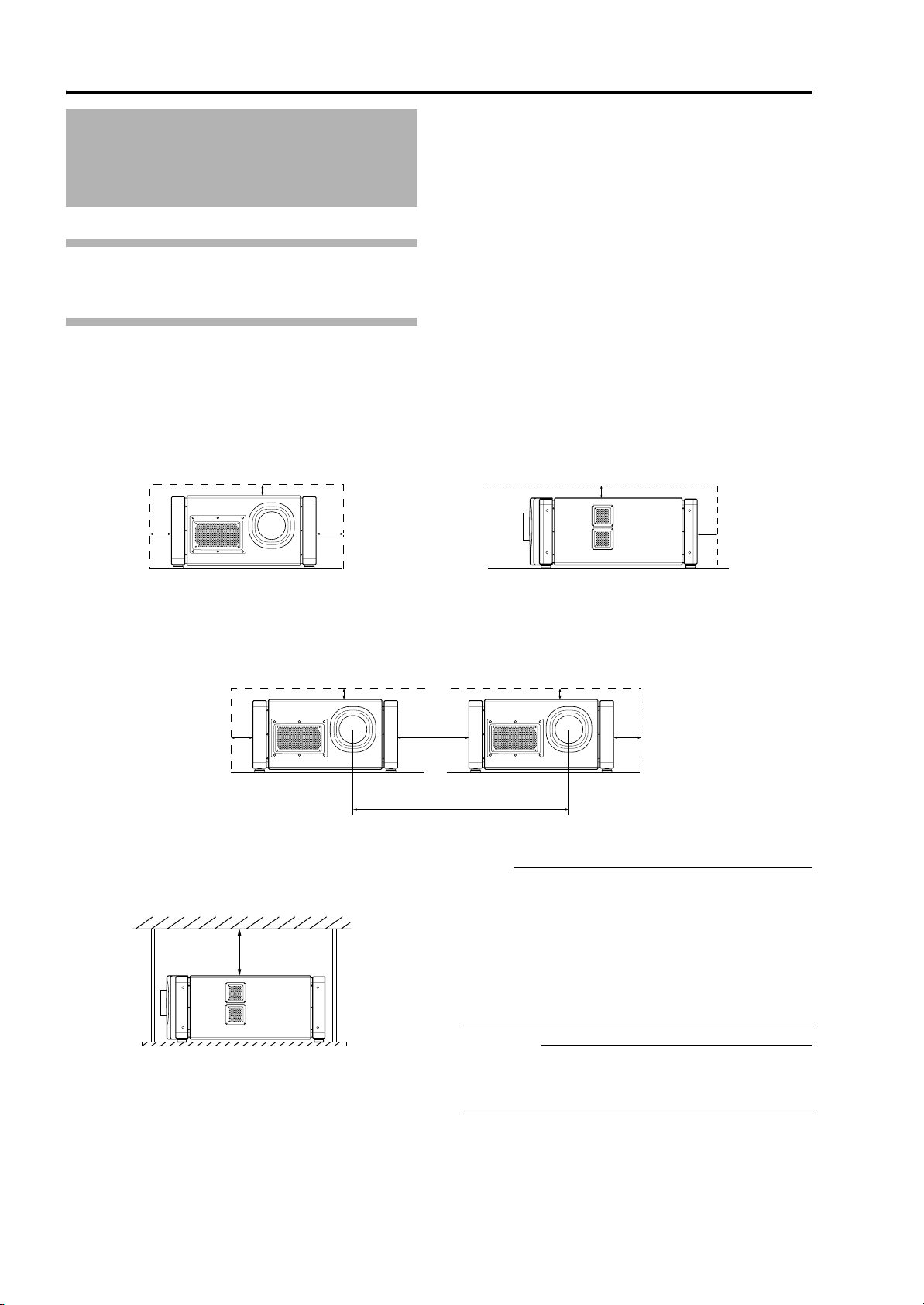

Minimum Space Required . . . . . . . . . . . . . . . . . . . 11

Projector Installation . . . . . . . . . . . . . . . . . . . . . . . 12

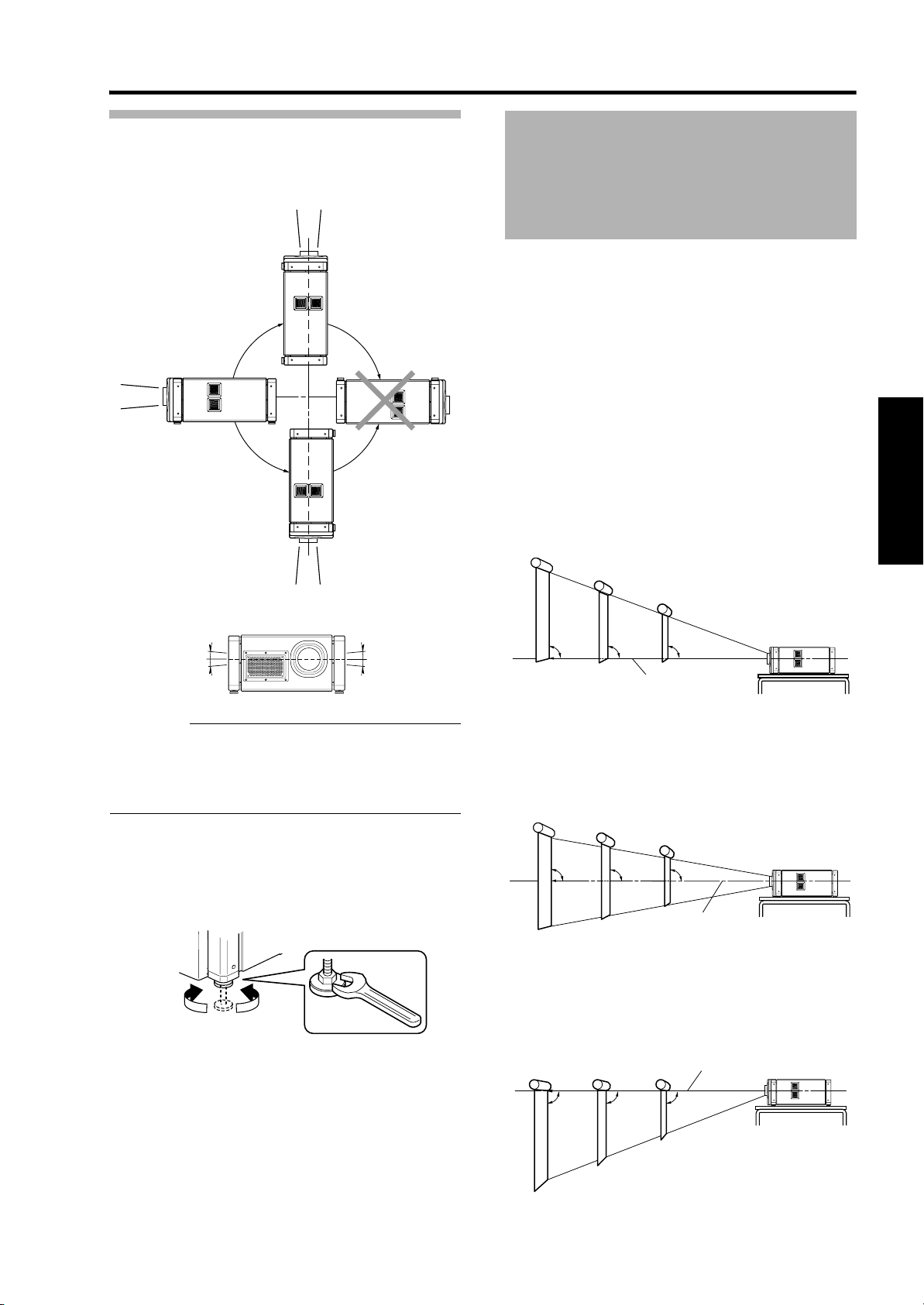

Installing the Projector and Screen . . . . . . . . . . . . 12

Screen Size and Projection Distance . . . . . . . . . . 15

Connecting Video Signals of the Computer . . . . . . . 16

Connection During Single-Screen Mode Display . . .16

Connection During Two-Screen/

Four-Screen Mode Display . . . . . . . . . . . . . . . . . . 18

Connection Using a LAN Cable . . . . . . . . . . . . . . . . . 20

Connection Example . . . . . . . . . . . . . . . . . . . . . . . 20

Specifications of PC for Controlling this Projector . . . 20

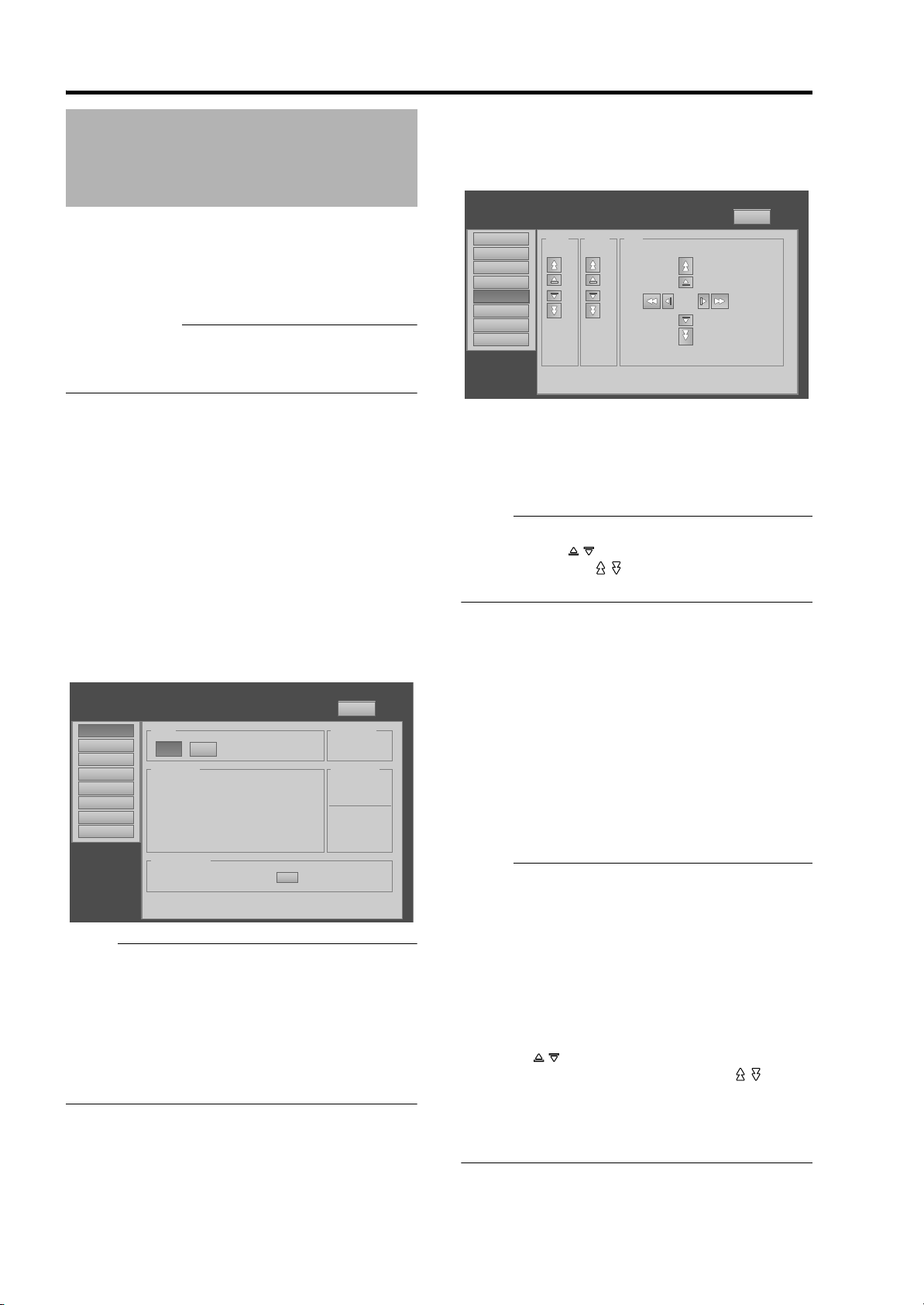

Configuring the Network Settings . . . . . . . . . . . . . . . 20

Using the Mail Delivery Feature . . . . . . . . . . . . . . . . 21

Connection Example . . . . . . . . . . . . . . . . . . . . . . . 21

Others

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Cleaning and Replacing the Filter . . . . . . . . . . . . . 36

Routine Servicing . . . . . . . . . . . . . . . . . . . . . . . . . 37

Replacement of Light Source Lamp . . . . . . . . . . . 37

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

What to do when these messages are displayed . . . 40

Warnings Using Indicators . . . . . . . . . . . . . . . . . . . . 41

Latest Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

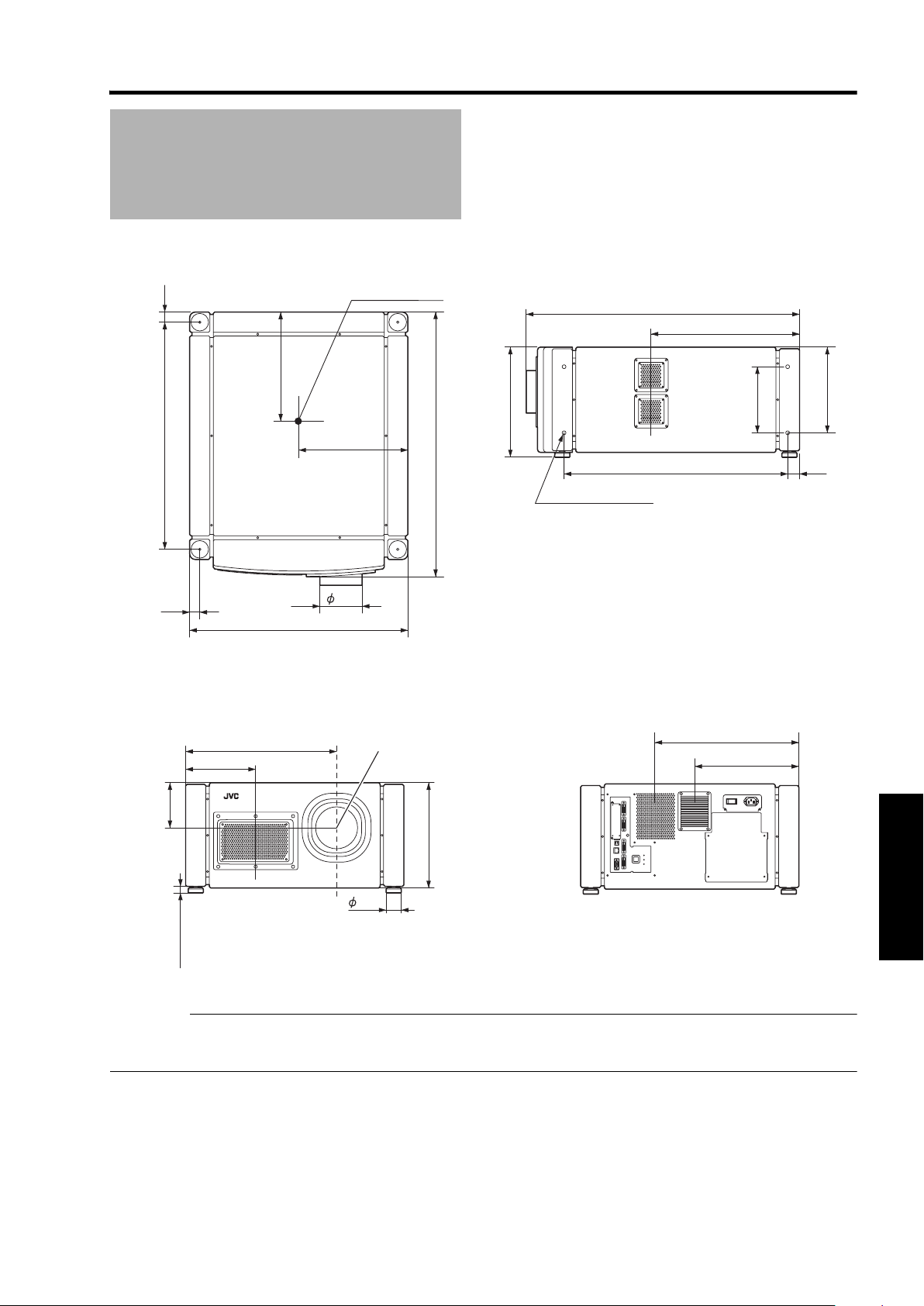

Dimensional Outline Drawing . . . . . . . . . . . . . . . . . . 45

Check the Accessories/ Optional Accessories

For the US market (x1)

Power Cord For USA (3.3 m)

For the EU market (x1)

Power Cord For European

continent countries (3.3 m)

Operation and Settings

Projecting Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Useful Features During Projection . . . . . . . . . . . . . 23

Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Setting Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Convergence Menu . . . . . . . . . . . . . . . . . . . . . . . . 28

Lens Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Option Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Network Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Mail Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

RS-232C Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Communication Specifications . . . . . . . . . . . . . . . . 34

Command Format . . . . . . . . . . . . . . . . . . . . . . . . . 34

● Other items include the instruction manual, and other

printed materials.

Optional Accessories

● Replacement filter/sponge (front)

LC43009-001A (Filter) LC43030-001A (Sponge)

● Replacement filter/sponge (right side)

LC43009-002A (Filter) LC43030-002A (Sponge)

Features

Ultra-high resolution, high contrast, and high quality projector

 Ultra-high resolution of 40962400

This projector comes with a newly developed 1.27" and 40962400 pixel D-ILA (Direct-drive Image Light Amplifier) device, and achieves an ultra-high resolution of

9.83 million pixels, which is four times that of full HD.

 High contract ratio of 10,000:1

A high contrast ratio of 10,000:1 (native) is achieved through combining the D-ILA device with WireGrid (inorganic reflective polarizing plate) that is employed in the new optical engine.

High flexible installation

● The Email feature enables you to send reports on the

lamp replacement timing or error messages to a remote location.



Comes with various built-in test patterns (six types including Cross Hatch, Color Bars, etc.)

Enables image adjustment without the need of external signal sources.

Features that enable flexible display and expression

 Supports multi screens (single screen, two-

screen, and four-screen modes)



Comes with three types of built-in gamma tables. Enables configuration of gradation expression settings according to the video image

How to Read this Manual

 Design is compact and light, and enables

stacking

● This product is about 65 % the size of existing JVC

projectors of the same class, and its weight is as light as 55 kg (excluding lens).

● Stackable design enhances installation for special

applications (e.g. 3D).

 Vertical/Horizontal lens shift

This projector enables not only vertical (±50 %), but also horizontal (±25 %) lens shift, which enables a larger degree of flexibility in the layout.

 Inclined installation

This product can be installed at a tilt angle of up to ±90°, which provides greater flexibility in the location of the projection screen.

 Low power consumption

This product helps to save power with a consumption of not more than 1.5 kW.

User-friendly interface and high operability

How to Read this Manual

 Symbols used in this manual

CAUTION : Describes precautions to note when

operating this product.

NOTE : Describes reference information, such

as functions and restrictions during use.

 Content of this manual

● Personal computers or computers are expressed as

computers or PCs in this manual.

● Contents of this manual are the copyright of JVC. All

rights reserved. Unauthorized reproduction and duplication of this manual, in whole or in part, without the permission of JVC is strictly prohibited.

● The names of other companies’ products that

appear in this manual are the trademark or registered trademark of the respective companies. Symbols such as ™, , and  are omitted in this manual.

● Designs, specifications, and other details described

in this manual may be modified for improvement without prior notice.

: Indicates the page or section to refer to.



Equipped with DVI (Dual-Link)4 input terminals

 Network-supported

● In addition to the conventional RS-232C, it also

provide support for connection using Ethernet. You can make adjustments or configure settings from the web browser on the PC without having to install any special software.

● Network connection enables you to make perform

adjustment or configure settings for multiple projectors using a single PC.

Getting Started

Precautions During Use

Burning-in of D-ILA Device

oDo not allow the same still picture to be

projected for a long time or an abnormally bright video image to be projected

Do not project still images with a high brightness or high contrast on the screen for a long time. This video image could be burnt into the D-ILA device.

Pay special attention when projecting video games and computer program images. Motion images such as normal video playback images do not pose the burning-in problem.

Viewing Conditions (Brightness of Room)

oBrightness of the room

Avoid direct exposure of screen to direct sunlight and lights such as by using a curtain. Images can be well projected by darkening the brightness of the room.

Maintenance Procedures

oClean dirt on the cabinet

with a soft cloth. In case of heavy soiling, soak a cloth in neutral detergent diluted with water, wring dry and wipe, followed by wiping again using a dry cloth.

oPay attention to the following to prevent the

cabinet from deteriorating in condition, getting damaged, or the paint from coming off.

● Do not wipe with a stiff cloth

● Do not wipe with force

● Do not wipe with thinner or benzene

● Do not spray volatile chemicals like insecticide

● Do not allow prolonged contact with rubber or plastic

products

oClean dirt on the lens

using commercial blowers or lens cleaning papers (for cleaning glasses and cameras).

Do not use fluid-type cleaning agents. This may lead to peeling of the surface coating film. Lens surface is fragile. Avoid rubbing it hard or knocking it.

oDo not view screen for prolonged hours

Looking at the screen continually for a prolonged time is tiring to the eyes. Allow your eyes to rest at intervals.

oDo not use this unit when image flickers

due to installation conditions and environment. This may cause your eyesight to deteriorate.

Environment of Use

oDo not use this projector in rooms with

cigarette smoke or oily smoke

Do not use this projector in rooms with cigarette smoke or oily smoke. This may cause the unit to malfunction.

oWhen mounting this projector to the ceiling

Check the temperature around the projector unit. When a heater is in use, the ceiling may reach a temperature higher than anticipated, hence leading to malfunction of the unit.

Gauging replacement time of components

This product comes with replacement components required for maintaining the functions of this product, such as optical components, cooling fan and filters. The timing for replacing components varies considerably according to the frequency and environment of use. For details on replacement of components (except filters), please consult any nearby JVC servicing center.

Names and Functions of Parts

B C D E

Front/Right Side

Intake air

A Air Inlet/Filter

The air inlets absorb air to cool the interior of the projector. A filter is mounted inside the projector to remove dirt in the air that enters through the inlets. Clean the filter regularly. (A Page 36)

CAUTION:

● Do not block the air inlets with papers, cloth, or soft

cushions. Doing so may cause heat to trap inside the projector and result in fire or malfunction.

B Lens Cap

Fit the cap on the lens when this projector is not in use to prevent the lens from becoming dirty.

CAUTION:

● Do not project images with the lens cap attached. The

lens cap may be deformed due to the heat, or the projector may malfunction.

C Lens

This projector makes use of a x1.22 power zoom lens. Remove the lens cap before projection.

D Adjustable Feet (x 4)

Adjust the feet until the projector is level. The adjustable range is 20 mm for each. (A Page 12)

E Air Inlet/Filter

Getting Started

FG H IJ

Names and Functions of Parts (Cont’d)

Rear

DVI 1

DVI 2

CONTROL

Q P

P O

USB

DVI 3

LAN

RS-232C

STANDBY/ON

OPERATE I/B

LAMP

DVI 4

WARNING

Exhaust air

F [DVI 1 to 4] Terminal

This is an input terminal for video signals. Connect it to the video output terminal of the computer. (A Page 17, 19)

Vent Hole

Warm air exits from the hole after cooling the projector.

CAUTION:

● Do not block the vent holes with papers, cloth, or soft

cushions. Doing so may cause heat to trap inside the projector and result in fire or malfunction.

H Vent Hole (For Lamp)

Warm air exits from the hole after cooling the lamp.

I Main Power Supply Switch

Use this to turn ON/OFF the main power supply of the projector unit.

J AC Power Input Terminal

Connect the supplied cord to this terminal.

K [STANDBY/ON] Indicator

Lit (Red) : When in the standby mode.

Lit (Green) : When power is supplied.

Blinking (Red) : When in the cooling (cool down)

Blinking (Green) : When the projected image is

mode. (A Page 23)

temporarily hidden. (A Page 23)

KLMN

L [LAMP] Indicator

This indicator lights up when the lamp time exceeds 1400 hours.

NOTE:

● For details on indicator displays during warnings, refer

to “Warnings Using Indicators”. (A Page 41)

● A lamp life message appears when the lamp time has

exceeded 1500 hours. (A Page 40)

M [WARNING] Indicator

This indicator lights up when abnormality occurs on this projector. For details, refer to “Warnings Using Indicators”. (A Page 41)

N [OPERATE I/B] Button

Pressing this button for one second or longer when in the standby mode (main power supply is ON) turns on the power of the projector unit. Pressing it for one second or longer when the power is ON switches the projector to the standby mode.

O [RS-232C] Terminal

This is the RS-232C interface-specific terminal. This projector can be controlled by connecting it to a computer using a RS-232C cable.

P [LAN] Terminal

Enables control of this projector using a computer that is connected to the network.

NOTE:

● For details on indicator displays during warnings, refer to “Warnings Using Indicators”. (A Page 41)

Q [USB] Terminal

Enables control of this projector by connecting it to a computer.

Setup

Installation

Please read the following carefully when installing this unit.

Minimum Space Required

Do not use a cover that may enclose this unit or block the air inlets/vent holes. Allow sufficient space around this unit. When this unit is enclosed in a space with dimensions as indicated below, ventilate accordingly so that the internal and external temperatures are the same.

 When using one set of projector

300 mm

600 mm600 mm

 When using two sets of projectors side by side

300 mm

600 mm

640 mm

 When the projector is suspended

300 mm and above

300 mm

600 mm

300 mm

600 mm

1,300 mm

NOTE:

● To prevent the projector from falling or toppling, it is

recommended that the holder be fastened to the unit using bolts.

● To mount the projector to the ceiling, mount a special

shelf to the ceiling, followed by installing the unit on the shelf. For safety and maintenance purposes, equipment that eases adjustment to a suitable height for maintenance is required.

CAUTION:

●

Special expertise and techniques are required for mounting this unit. Be sure to ask your dealer or a specialist to perform mounting.

Setup

Installation (Cont’d)

Projector Installation

You can install this projector between 90. Images will be properly displayed if the horizontal angle is between the range of 5.

90

Installing the Projector and Screen

It is recommended that this projector be installed at right angle to the screen. You can shift the projection screen position vertically between 0 % to ±50 %, and horizontally between 0 % to ±25 %. (Lens shift feature)

 When shift amount in the upward direction is

+50 %

Install the projector such that the lower end of the projection screen is at the same height as the center of the lens.

Screen

90 90 90

Center Line of Lens

55

CAUTION:

●

To ceiling-mount this unit, special expertise and skills are necessary. Make to sure request the authorized dealer or specialized work contractors for installation.

● The projector cannot be installed upside down.

 Adjusting the Inclination

Adjust the horizontal angle of the projector. Lift the projector and turn the nut of the adjustable foot with a spanner in the direction indicated by the arrow to extend or retract the foot. The adjustable range is 20 mm.

 When shift amount in the upward/downward

direction is 0 %

Install the projector such that the center of the projection screen is at the same height as the center of the lens.

Screen

90 90 90

Center Line of Lens



When shift amount in the downward direction is –50 %

Install the projector such that the upper end of the projection screen is at the same height as the center of the lens.

Extend Retract

Screen

Center Line of Lens

90 90 90

 When shift amount in the right direction is

+25 %

Install the projector such that the center of the lens is aligned with the 1/4 position from the left edge of the screen.

 Movable Range of Projected Image

50 %

 When shift amount in the left/right direction

is 0 %

Install the projector such that the center of the lens is aligned with the center of the screen.

25 %

50 %

25 %

NOTE:

● When using the lens shift feature, do not exceed the

range (shift amount) as shown above. If the shift amount exceeds the range as shown, shadows will appear on the projected image.

 When light passes through the glass of

projection booth



When shift amount in the left direction is –25 %

Install the projector such that the center of the lens is aligned with the 1/4 position from the right edge of the screen.

NOTE:

● When light passes through the glass, the quantity of

light decreases. Make sure that the glass of the projection booth is not more than one piece.

● Do not use glass if possible.

● When projecting light on an inclined glass surface,

adjust the glass angle as well as installation angle of this unit accordingly to prevent impact on the image due to diffuse reflection.

Setup

Installation (Cont’d)

Installing the Projector and Screen (Cont’d)

 Overlaying projected images

 Projecting images by stacking projectors

The lens shift feature enables you to use up to three stacked projectors at the same time. Stacking projectors enhances the brightness level, and helps to project images that are sufficiently bright even when the venue is relatively big or bright.

 Projecting images by arranging projectors

side by side

The lens shift feature enables you to use up to two projectors that are arranged side by side. Arranging two projectors side by side enhances the brightness level, and helps to project images that are sufficiently bright even when the venue is relatively big or bright. When projecting images by arranging the projectors side by side, adjust the shift amount of both projectors accordingly to superimpose the images.

CAUTION:

●

When the projectors are stacked together during use, ensure that the installation site is sufficiently strong and there is proper air cooling around the projectors.

Take the necessary measures to prevent the projectors from toppling or falling off so as to ensure safety during emergency situations, such as earthquakes, and to prevent accidents from occurring. For details, please consult your authorized dealer.

NOTE:

● When using the projectors by arranging them side by

side, ensure that the installation site is sufficiently strong and there is proper air cooling around the projectors. For details, please consult your authorized dealer. (A Page 11)

Screen Size and Projection Distance

Adjust the distance from the lens to the screen to achieve your desired screen size. This projector uses a 1.22x power zoom lens for projection.

Projection Screen Size

(Diagonal Length)

80" (Approx. 2.03 m) 1.75 m 3.19 m 2.58 m

90" (Approx. 2.29 m) 1.97 m 3.60 m 2.91 m

100" (Approx. 2.54 m) 2.19 m 4.01 m 3.25 m

110" (Approx. 2.79 m) 2.41 m 4.42 m 3.58 m

120" (Approx. 3.05 m) 2.63 m 4.83 m 3.91 m

130" (Approx. 3.30 m) 2.85 m 5.24 m 4.25 m

140" (Approx. 3.56 m) 3.07 m 5.65 m 4.58 m

150" (Approx.3.81 m) 3.29 m 6.06 m 4.91 m

160" (Approx. 4.06 m) 3.51 m 6.46 m 5.25 m

170" (Approx. 4.32 m) 3.73 m 6.87 m 5.58 m

180" (Approx. 4.57 m) 3.94 m 7.28 m 5.91 m

190" (Approx. 4.83 m) 4.16 m 7.69 m 6.24 m

200" (Approx. 5.08 m) 4.38 m 8.10 m 6.58 m

210" (Approx. 5.33 m) 4.60 m 8.51 m 6.91 m

220" (Approx. 5.59m) 4.82 m 8.92 m 7.24 m

230" (Approx. 5.84 m) 5.04 m 9.33 m 7.58 m

240" (Approx. 6.10 m) 5.26 m 9.74 m 7.91 m

250" (Approx. 6.35 m) 5.48 m 10.15 m 8.24 m

260" (Approx. 6.60 m) 5.70 m 10.55 m 8.58 m

270" (Approx. 6.86 m) 5.92 m 10.96 m 8.91 m

280" (Approx. 7.11 m) 6.14 m 11.37 m 9.24 m

290" (Approx. 7.37 m) 6.36 m 11.78 m 9.57 m

300" (Approx. 7.62 m) 6.57 m 12.19 m 9.91 m

Image Width

Tele End Wide End

Projection distance

NOTE:

● The distance indicated in the table is an estimated value when an image with a resolution of 40962400 is projected.

Please use them as reference during installation.

Setup

Connecting Video Signals of the Computer

Connection During Single-Screen Mode Display

The single-screen mode displays signals (up to four signals) from a computer as a single video image. To select to the single-screen mode, set “Display Mode” in the Setting menu to “Single”. (A Page 27)

 Possible Input Signals and Projected Image

Resolution

40962400

40962160

38402400

38402160

20481200



1080

2048



1200

1920



1080

1920



1200

1600



1024

1280



768

1024



600

800



480

640

Computer

Channel

2ch Dual

4ch Single

2ch Dual

4ch Single

2ch Dual

4ch Single

2ch Dual

4ch Single

1ch Single

Link Status

Projector Terminal for

Connection

DVI 1, DVI 3 2 Stripes

DVI 1 - DVI 4

DVI 1, DVI 3 2 Stripes

DVI 1 - DVI 4

DVI 1, DVI 3 2 Stripes

DVI 1 - DVI 4

DVI 1, DVI 3 2 Stripes

DVI 1 - DVI 4

DVI 1

Cross

4 Stripes

Cross

4 Stripes

Cross

4 Stripes

Cross

4 Stripes

Normal

Output Status

20482400

20481200

10242400

20482160

20401080

10242160

19202400

19201200

9602400

19202160

19201080

9602160

20481200

20481080

19201200

19201080

16001200

12801024

1024768

800600

640480

Displayed

Projector Image

40962400

40962160

38402400

38402160

40962400

40962160

38402400

38402160

32002400

25602048

20481536

16001200

1280960

NOTE:

● This projector converts the frame rate to 60 Hz regardless of the synchronizing signal frequency at the computer’s end.

● If the resolution of the PC is 20481200 or lower, images are displayed upon doubling the number of the vertical and

horizontal pixels.

Normal 2 Stripes

4 Stripes Cross

DVI 3DVI 1DVI 1

DVI 4DVI 3DVI 2DVI 1 DVI 1

DVI 2

DVI 4DVI 3

 Connection During Single-Screen Mode Display

Below is the connection example for four-channel signals from the computer. For two-channel signals from the computer, connect to the [DVI 1] and [DVI 3] terminals of this projector.

Desktop Computer

DVI-D Cable (Sold Separately)

DVI 1

To DVI Te rm i n al

DVI 2

CONTROL

USB

DVI 3

LAN

RS-232C

STANDBY/ON

OPERATE I/B

LAMP

DVI 4

WARNING

CAUTION:

● Depending on your DVI-D cable, the signal may attenuate and the image become unstable.

● Use of DVI-D cables compliant with the DDWG standard is recommended.

Setup

Connecting Video Signals of the Computer (Cont’d)

Connection During Two-Screen/FourScreen Mode Display

The two-screen/four-screen mode enables simultaneous display of signals from two or four computers. To select the two-screen mode, set “Display Mode” in the Setting menu to “Double”. To select the four-screen mode, set it to “Cross”. (A Page 27)

 Possible Input Signals and Projected Image

Resolution

20481200

20481080

19201200

19201080

16001200

12801024

1024768

800600

640480

Computer 1, Computer 2

Channel

1ch

Link Status

Single Normal

Output Status

20481200

20481080

19201200

19201080

16001200

12801024

1024768

800600

640480

NOTE:

● This projector converts the frame rate to 60 Hz regardless of the synchronizing signal frequency at the computer’s end.

● The respective signals are displayed at the center of the split screen.

● When in the two-screen mode, the screen appears blue (or black depending on the setting) when there is no input.

Two-Screen Mode (Example) DVI 1: 19201080,

DVI 3: 19201080

4096

Four-Screen Mode (Example) DVI 1: 20481200, DVI 2: 19201080,

DVI 3: 1024768, DVI 4: 16001200

4096

2400

DVI 1 DVI 3

2048

2400

DVI 1

DVI 3

2048

DVI 2

DVI 4

1200

 Connection During Two-Screen/Four-Screen Mode Display

 Connection Example During Two-Screen Mode

Desktop Computer

To DVI Terminal

DVI-D Cable (Sold Separately)

Laptop Computer

To DVI Terminal

 Connection Example During Four-Screen Mode

Desktop Computer

DVI 1

DVI 2

CONTROL

USB

DVI 3

LAN

RS-232C

STANDBY/ON

OPERATE I/B

LAMP

DVI 4

WARNING

Laptop Computer

To DVI Terminal

DVI -D Ca ble (Sold Separately)

To DVI Terminal

DVI 1

DVI 2

CONTROL

USB

DVI 3

LAN

RS-232C

STANDBY/ON

OPERATE I/B

LAMP

DVI 4

WARNING

CAUTION:

● Depending on your DVI-D cable, the signal may attenuate and the image become unstable.

● Use of DVI-D cables compliant with the DDWG standard is recommended.

Setup

Connection Using a LAN Cable

You can control this projector using a computer by connecting the projector and computer to the network (LAN).

Connection Example

Router

(DHCP Server)

LAN1

WAN

To Network Terminal

LAN2 LAN3 LAN4

To L A N

Terminal

LAN

DVI 1

DVI 2

CONTROL

USB

DVI 3

LAN

STANDBY/ON

OPERATE I/B

LAMP

DVI 4

WARNING

RS-232C

Configuring the Network Settings

This sections describes the procedures when the IP address is automatically assigned by the DHCP server.

1 Check to ensure that this projector is

connected to the DHCP server via a LAN cable

2 Connect the supplied power cord to the

power input terminal of this projector

Power Cord (Supplied)

NOTE:

● Use 100Base-TX (Category 5 and above) LAN cables.

Specifications of PC for Controlling this Projector

OS Windows XP Professional SP2

Windows XP Home Edition SP2

CPU Pentium3 1 GHz or higher

Memory 256 MB and above

NOTE:

● Make use of Internet Explorer Ver. 6.0.

● Windows is either registered trademark or trademark

of Microsoft Corporation in the United States and/or other countries.

CAUTION:

● The PC specifications above are reference values for

the application software to run smoothly, and are not intended to guarantee their operation. Note that the applications may not run smoothly depending on the condition of use of the respective users even when the system requirements are satisfied.

3 Insert plug into the power outlet on the wall 4 Remove the lens cap 5 Turn on the main power of the projector to

set to [I]

● The [STANDBY/ON], [LAMP], and [WARNING]

indicators light up for about 45 seconds, after which the [STANDBY/ON] indicator turns red.

6 Launch the web browser on the computer

7 Enter the IP address assigned by the DHCP

server in the address field of the web browser, and click AGoB

● A login screen for this projector appears.

Using the Mail Delivery Feature

This feature enables delivery of mail (error message) to

the preset e-mail address when error occurs inside this projector unit.

Connection Example

NOTE:

● Refer to the client settings for the DHCP server to

obtain information on the IP address for this unit.

● If connection is unsuccessful, this may be due to

the network environment. For details, consult your network administrator.

● If an error message appears, configure the IP

address manually. (A Page 21)

8 Enter ArootB in Login Name

Input Your Login Name & Password

Password

9 Click ALOGINB

NOTE:

● You can alter the user name and password in the

ANetworkB menu. Specify a user name and password of not more than eight single-byte alphanumeric characters. (A Page 31)

● If you have forgotten the password, please consult

your authorized dealer.

To Internet Connection

LAN1

WAN

LAN2 LAN3 LAN4

DHCP Server

To L A N Ter mi na l

ADSL Modem ,etc

LAN

DVI 1

DVI 2

CONTROL

USB

DVI 3

LAN

OPERATE I/B

DVI 4

RS-232C

ETHER

STANDBY/ON

LAMP

WARNING

 When configuring the IP address manually or

connecting this projector to the computer using a USB cable

● To configure the IP address of this projector manually,

connect this projector to the computer using a USB cable to invoke the menu screen of the projector, followed by configuring the IP address.

● You need to install a driver in order to connect the

projector and computer using a USB cable.

NOTE:

● For details on manual configuration of network

settings and installation of the USB driver, please consult your authorized dealer.

Operation and Settings

Projecting Image

If setting for this projector is not completed, refer to the “Setting Menu” (A Page 24) upon turning on the power and configure the settings accordingly. Once the basic settings are configured, this projector can be used by simply performing the following operation procedures.

PREPARATION:

● Remove the lens cap.

●

Connect this projector to the computer. (APage 17, 19)

● Connect the LAN cable. (A Page 20)

3 Adjust the zoom ratio (screen size)

You can adjust the focus using the AZoomB item of the Lens menu.

host PJ-1 user: root

Logout

Zoom

Focus

Main


Setting

Convergence

Lens

Option

Network

Mail

Shift

1 Set this projector to the standby mode, and

display the main menu

● Refer to “Configuring the Network Settings”.

(A Page 20)

● The [STANDBY/ON] indicator lights up in red.

2 Click the AONB button under the APowerB item

of the main menu to project the image

● The power of this projector turns on, and the

projected image appears.

● The [STANDBY/ON] indicator lights up in green.

host PJ-1 user: root

Logout

Main


Setting

Convergence

Lens

Option

Network

Mail

Power

ON OFF

Signal Status

DVI Rate(Hz) Pixel H Pixel V Link

1 60.00 2048 2400 Dual

3 60.00 2048 2400 Dual

Projector Usage

Lamp Time 1035h24m

STANDBY 00

Reset

NOTE:

● You can also turn on the power by pressing the

[OPERATE I/B] button on the projector unit for more than one second.

● The image may flicker for a few seconds immediately

after projection starts. This is not a malfunction.

● After the lamp lights up, it takes about 1 minute or

longer for the brightness of the video image on the screen to stabilize.

Latest Error

Temperature

Temp. 1

36.0 deg.C

Temp. 2

25.5 deg.C

 To enlarge the screen size:

Press the AWB (Wide) end of AZoomB

 To reduce the screen size:

Press the ATB (Tele) end of “Zoom”

NOTE:

● The screen size changes each time you click on the

inner buttons ( / ). (Fine control) The outer buttons ( / ) change the screen size when they are depressed. (Coarse control)

4 Adjust the position of the projection screen

You can adjust the focus using the AShiftB item of the Lens menu.

 To shift the image upward:

Press the AUB end of AShiftB

 To shift the image downward:

Press the ADB end of AShiftB

 To shift the image rightward:

Press the ARB end of AShiftB

 To shift the image leftward:

Press the ALB end of AShiftB

NOTE:

● The adjustment range for lens shift is between 0 %

and ±50 % in the vertical direction, and between 0 % and ±25 % in the horizontal direction (during singlescreen display).

● The position changes each time you click on the inner

buttons ( / ). (Fine control) The image shifts when the outer buttons ( / ) are depressed. (Coarse control)

5 Adjust the focus

You can adjust the focus using the AFocusB item of the Lens menu.

 To move the focus point closer:

Press the A+B (Near) end of AFocusB

 To move the focus point away:

Press the AB (Far) end of AFocusB

NOTE:

● The focus changes each time you click on the inner

buttons ( / ). (Fine control) The outer buttons ( / ) change the focus when they are depressed. (Coarse control)

8 Turn the main power at the rear of the

projector unit to off [O]

● The [STANDBY/ON] indicator on the projector unit

goes off.

CAUTION:

● Do not turn off the main power supply switch when in

the cool down mode. Doing so may shorten the lamp life and cause a malfunction.

● Upon using, attach the lens cap to prevent soiling of

the lens.

● When the projector is not to be used for a long time,

disconnect the power plug.

6 Select a screen mode for projection

You can specify the screen mode using ADisplay ModeB of the Setting menu. (A Page 27)

host PJ-1 user: root

Logout

Main


Setting

Convergence

Lens

Option

Network

Mail

Input Level

Standard

Display Mode

1133

Enhanced

NOTE:

● The projected image varies according to the mode of

connection. (A Page 17, 19)

7 Click the AOFFB button under the APowerB

item of the Main menu to end the projection

● The projector switches to the cool down mode, and

the [STANDBY/ON] indicator appears blinking in red.

● After exiting the cool down mode, the projector

switches automatically to the standby mode, and the [STANDBY/ON] indicator lights up in red.

● You can also turn off the power by pressing the

[OPERATE I/B] button on the projector unit for more than one second.

Useful Features During Projection

 Hiding the projected image temporarily

The projected image can be hidden by clicking the AONB button under the AHideB item of the Image menu.

● When the image is not displayed, pressing AOFFB

under the AHideB item to display the hidden image.

host PJ-1 user: root

Logout

Main


Setting

Convergence

Lens

Option

Network

Mail

NOTE:

● When the image is hidden, the [STANDBY/ON]

indicator appears blinking in green.

Brightness

Contrast

Gamma Hide

-30 +30

Red

-30 +30

Green

-30 +30

Blue

-30 +30

Red

-30 +30

Green

-30 +30

Blue

ONOFFB CA

Cool down mode

The cool down mode is a function that cools down the lamp for an interval of about 180 seconds after projection ends. This function is to prevent deformation and damage of the internal components of the projector due to heat from the overheated lamp. It also prevents lamp breakage and shortened lamp life.

● When the projector is in the cool down mode, the

[STANDBY/ON] indicator appears blinking in red.

● Do not shut down the main power supply or unplug

the power cord when in the cool down mode. Also, do not block the air inlets and vent holes. Doing so may shorten the lamp life and cause a malfunction.

Operation and Settings

Settings Menu

After installation and connection are complete, perform the necessary adjustment and setting. Operate the menus using the computer’s browser to make adjustments and configure settings.

Main Menu

This menu displays the ON/OFF status of the power supply and information on signals input to the projector.

host PJ-1 user: root

Logout

Main


Setting

Convergence

Lens

Option

Network

Mail

Power

ON OFF

Signal Status

DVI Rate(Hz) Pixel H Pixel V Link

1 60.00 2048 2400 Dual

3 60.00 2048 2400 Dual

Projector Usage

Lamp Time 1035h24m

NOTE:

● When the power of this unit is off (main power is on),

the AMainB, AImageB, ASettingB, AConvergenceB, ALensB and AOptionB menus will be grayed out and will not be selectable.

Latest Error

STANDBY 00

Temperature

Temp. 1

36.0 deg.C

Temp. 2

25.5 deg.C

Reset

Item Setting Value Description

Power ON

OFF

For turning the power ON/OFF.

ON : Turns on the power.

OFF : Turns off the power.

NOTE:

● The following operating modes of the projector are displayed to the

right of the OFF button.

STANDBY : Standby (OFF)

PROJECTION : Lamp Illuminated (ON)

FAN ENABLE : FAN Enable (OFFON)

LAMP ENABLE : LAMP Enable (OFFON)

DEVICE ENABLE : Elemental Device Enable (OFFON)

COOLING : Cooling (OFF)

EMERGENCY : Error Occurred (Cooling not performed)

EMERGENCY COOLING : Error Occurred (Cooling performed)

● When in the standby mode, clicking the ON button each time

switches the mode in the sequence of STANDBYDEVICE ENABLELAMP ENABLEFAN ENABLEPROJECTION.

● Clicking the OFF button when the power is on switches the projector

to the cooling mode. The power of the projector cannot be turned on during the cooling process (180 seconds).

Latest Error — Displays the latest error number. Refer to ALatest ErrorB for information

on the error number and details. (A Page 42)

Signal Status

DVI

Rate(Hz)

Pixel H

Pixel V

Link

Temperature

Tem p. 1

Tem p. 2

Projector Usage

Reset —

—

Displays information on the input signals.

DVI : Displays the input terminal number.

Rate(Hz) : Displays the vertical frequency.

Pixel H : Displays the horizontal resolution.

Pixel V : Displays the vertical resolution.

Link : Displays the link status of the DVI terminal.

Displays the interior temperature of the projector.

Temp. 1 : External Temperature

Temp. 2 : Internal Temperature

Displays the time interval during which the lamp is in use.

CAUTION:

● Do not click on AResetB unless the lamp is replaced.

Operation and Settings

Setting Menu (Cont’d)

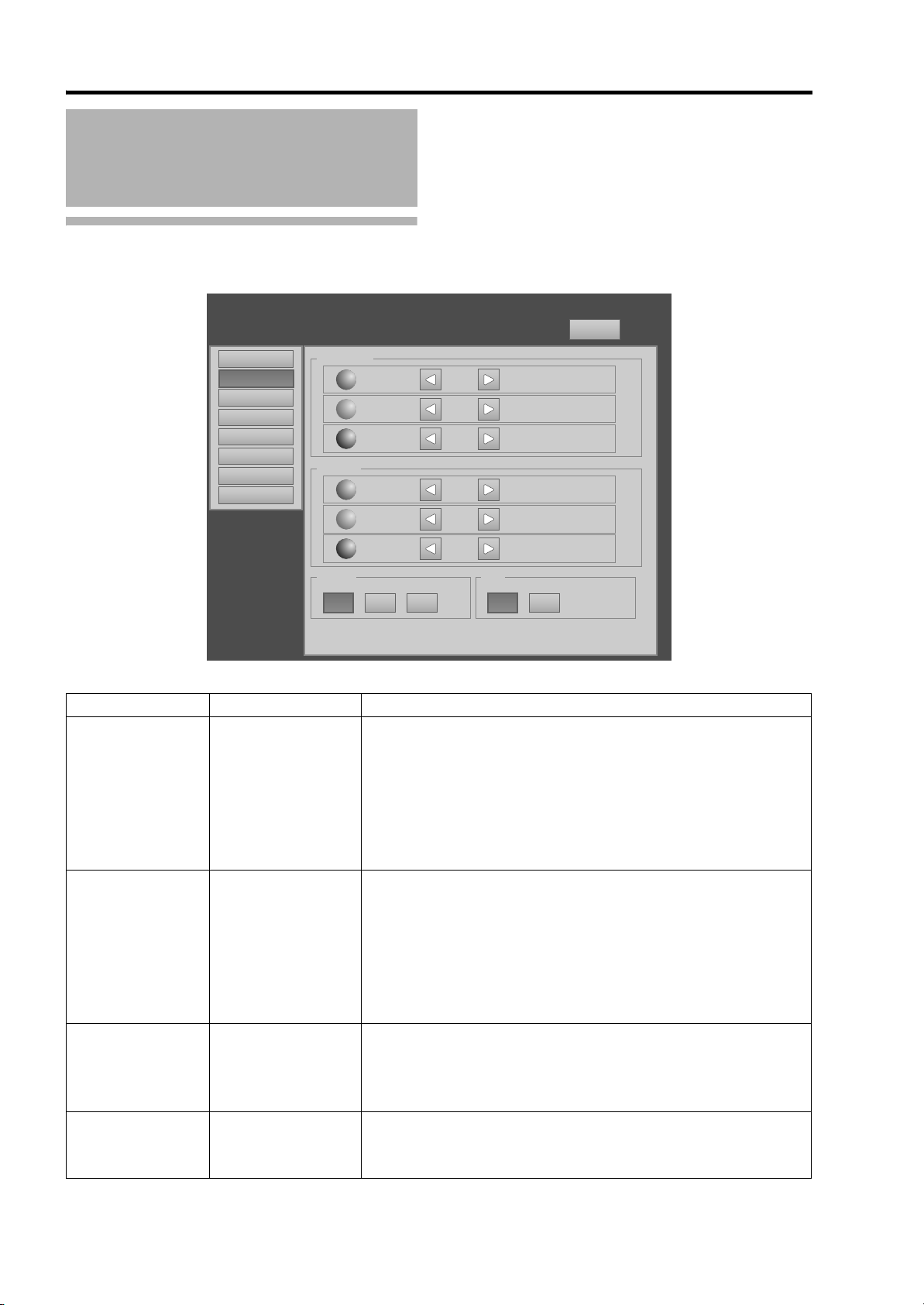

Image Menu

This menu is used for adjusting the picture quality.

host PJ-1 user: root

Logout

Main


Setting

Convergence

Lens

Option

Network

Mail

Q denotes the factory default.

Item Setting Value Description

Brightness

Red

–30 to +30 (Default Value: 0)

Green

–30 to +30 (Default Value: 0)

Blue

–30 to +30 (Default Value: 0)

Brightness

-30 +30

Red

-30 +30

Green

-30 +30

Blue

Contrast

-30 +30

Red

-30 +30

Green

-30 +30

Blue

Gamma Hide

For adjusting the brightness of the red, green, and blue colors.

ONOFFB CA

Contrast

Red

–30 to +30 (Default Value: 0)

Green

–30 to +30 (Default Value: 0)

Blue

–30 to +30 (Default Value: 0)

Gamma Q A

B C

Hide Q OFF

For adjusting the contrast of the red, green, and blue colors.

For specifying the tone characteristics of the image.

Sets gamma to AAB. Sets gamma to ABB. Sets gamma to ACB.

Enables temporary hiding of the image.

OFF : Do not hide image.

ON : Hides image.

Setting Menu

This menu is used for specifying the input level of the terminal and the display mode.

host PJ-1 user: root

Logout

Main


Setting

Convergence

Lens

Option

Network

Mail

Q denotes the factory default.

Item Setting Value Description

Input Level Q Standard

Enhanced

Display Mode Q Single

Double Cross

Input Level

Standard

Display Mode

Single Double Cross

Enhanced

For specifying the input level of the video signals.

Standard : Set to this value under normal circumstances.

Enhanced : For specifying when the signal level is between 16

For specifying the display mode of the projection screen.

Single : Displays input signals on a single screen.

Double : Displays two different input signals on two screens.

The left screen displays images of the DVI 1 terminal, and the right screen displays images of the DVI 3 terminal.

Cross Displays four different input signals on four screens.

The top left screen displays images of the DVI 1 terminal, the top right screen displays images of the DVI 2 terminal, the bottom left screen displays images of the DVI 3 terminal, while the bottom right screen displays images of the DVI 4 terminal.

NOTE:

● Please refer to AConnecting Video Signals of the ComputerB for

details. (A Page 16 - 19)

(Signal level 0 - 255)

and 235.

Operation and Settings

Setting Menu (Cont’d)

Convergence Menu

This menu is used for correcting color shifts in the optical system.

host PJ-1 user: root

Logout

Red Blue

Main


Setting

Convergence

Lens

Option

Network

Mail

Red

Blue

Item Setting Value Description

—

For adjusting the horizontal/vertical position of red and blue colors on the image.

NOTE:

● The green color value is fixed.

● The outer buttons are used for adjustment in units of 1/4 pixels, and

the inner buttons in units of 1/10 pixels.

● When the image is flipped horizontally or vertically, the horizontal

and vertical directions are reversed.

● Use images with a clear outline (such as color cross hatch patterns

available in this projector (A Page 30)) for adjustment.

CAUTION:

● When the movement exceeds the limit, the color of the button turns

red.

Lens Menu

This menu is used for adjusting the projection lens.

host PJ-1 user: root

Logout

Main


Setting

Convergence

Lens

Option

Network

Mail

Item Setting Value Description

Zoom — For adjusting the zoom ratio (screen size).

Zoom

Focus

Shift

NOTE:

● The zoom position changes each time the inner button is clicked.

The zoom position changes when the outer button is depressed.

Focus — For adjusting the focus position.

NOTE:

● The focus position changes each time the inner button is clicked.

The focus position changes when the outer button is depressed.

Shift — For adjusting the horizontal and vertical positions of the projection

screen.

NOTE:

● The shift position changes each time the inner button is clicked. The

shift position changes when the outer button is depressed.

CAUTION:

● When the movement exceeds the limit, the color of the button turns

red.

Operation and Settings

Setting Menu (Cont’d)

Option Menu

This menu is used for specifying settings for flipping images and screen displays.

host PJ-1 user: root

Logout

Main


Setting

Convergence

Lens

Option

Network

Mail

Q denotes the factory default.

Flip

Horz.

ON OFF

Lamp Power

100% 100%

Back Color

Blue Black

Test Pattern

OFF OFF

SET

Message Display

ON OFF

OFF

Color Bars Color Cross Hatch Cross Hatch Staircase Ramp Flat

Vert.

Item Setting Value Description

Flip

Horz.

Vert.

Q OFF

For specifying settings if images are vertically or horizontally flipped when they are projected from the opposite side of the screen, or when mirrors are used for projection.

ON : Flips image horizontally. OFF : Do not flip image horizontally. ON : Flips image vertically. OFF : Do not flip image vertically.

Lamp Power Q 100 %

80 %

For setting the brightness of the light source lamp.

NOTE:

● Brightness switches in about a step of 3 % between the 80 % to 100

% range.

Back Color Q Blue

Black

Message Display

Q ON

OFF

Test Pattern Q OFF

Color Bars Color Cross Hatch Cross Hatch Staircase Ramp Flat

For specifying the background color during message display or when projection fails, such as when there is no input signal.

Blue : Sets the screen to blue color. Black : Sets the screen to black color.

For specifying whether to display the message. ON : Displays message. OFF : Do not display the test pattern.

For projecting the test pattern. OFF : Do not display the test pattern. Color Bars : Displays the color bar. Color Cross Hatch : Displays the color cross hatch pattern. Cross Hatch : Displays the cross hatch pattern. Staircase : Displays the staircase. Ramp : Displays the ramp pattern. Flat : Displays the flat pattern.

ON OFF

SET

+ 70 hidden pages
