JVC CA-D501T, MX-D401T User Manual 2

For Customer Use:

Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.

Model No.
Serial No.

COMP ACT COMPONENT SYSTEM

SISTEMA DE COMPONENTES COMPACTO
SISTEMA DE COMPONENTE COMPACTO

CA-D501T/MX-D401T/MX-D301T

Consists of CA-D401T and SP-D401 Consists of CA-D301T and SP-D311
Consta del CA-D401T el SP-D401 Consta del CA-D301T el SP-D311
Consta do CA-D401T e SP-D401 Consta do CA-D301T e SP-D311

CA-D501T MX-D401T MX-D301T

DIGITAL AUDIO

VOLUME

COMPACT

FM
/AM

CD

AUX

TAPE

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

REPEAT

RANDOM

CONTINUE

SOUND
MODE

ACTIVE

BASS EX.

CLOCK TIMER

REC PAUSE

SOUND
MODE

1

456

– SELECT +

789

ECHO

10

DISC

DISC

DISC

A

REPEAT

TRIPLE TRAY

MULTI CONTROL

COMPACT

DIGITAL AUDIO

RANDOM

VOLUME

FM
/AM

CD

AUX

TAPE

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

CONTINUE

SOUND
MODE

ACTIVE

BASS EX.

POWER

23

1

CLOCK TIMER

SLEEP

456

– SELECT +

SHIFT

789

SET

ECHO

FM/AM

FM MODE

10

10

DISC

AUX

PLAY MODE

DISC

7

/CLEAR

£/8

C D

DISC

A

B

DECK

REC PAUSE

VOLUME

ACTIVE

SOUND

BASS EX.

MODE

RM-SED50TXU
REMOTE CONTROL

DISC

3

PLAY & EXCHANGE SYSTEM

MX-D501T

P. UPP. DOWN

CD REC STARTDUBBING

REC

START/STOP

DECK A/B REVERSE MODE

EJECT

EJECT

DISC

DISC

DISC

DISC

3

TRIPLE TRAY

PLAY & EXCHANGE SYSTEM

STANDBY

POWER

SENSOR

PHONES

MX-D401T

MULTI CONTROL

TUNINGUPTUNING

DOWN

MIC 1 MIC 2 MIC LEVEL

AB

PLAY REC/PLAY

P. UPP. DOWN

CD REC STARTDUBBING

REC

START/STOP

DECK A/B REVERSE MODE

MIN MAX

AUTO REVERSE AUTO REVERSE

EJECT

EJECT

DISC

DISC

DISC

STANDBY

POWER

SENSOR

TUNINGUPTUNING

DOWN

MIC 1 MIC 2 MIC LEVEL

POWER

23

SLEEP

SHIFT

SET

FM/AM

FM MODE

10

AUX

PLAY MODE

7

/CLEAR

£/8

C D

B

DECK

VOLUME

ACTIVE
BASS EX.

RM-SED50TXU
REMOTE CONTROL

PHONES

MIN MAX

AB

PLAY REC/PLAY

AUTO REVERSE AUTO REVERSE

DIGITAL AUDIO

VOLUME

COMPACT

FM
/AM

CD

AUX

TAPE

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

REPEAT

RANDOM

CONTINUE

SOUND
MODE

ACTIVE

BASS EX.

POWER

23

1

CLOCK TIMER

SLEEP

456

– SELECT +

SHIFT

789

SET

ECHO

FM/AM

FM MODE

10

10

DISC

AUX

PLAY MODE

DISC

7

/CLEAR

£/8

C D

DISC

A

B

DECK

REC PAUSE

VOLUME

ACTIVE

SOUND

BASS EX.

MODE

RM-SED50TXU
REMOTE CONTROL

DISC

DISC

DISC

DISC

3

TRIPLE TRAY

PLAY & EXCHANGE SYSTEM

STANDBY

POWER

SENSOR

PHONES

MX-D301T

MULTI CONTROL

TUNINGUPTUNING

DOWN

MIC 1 MIC 2 MIC LEVEL

AB

PLAY REC/PLAY

P. UPP. DOWN

CD REC STARTDUBBING

REC

START/STOP

DECK A/B REVERSE MODE

MIN MAX

AUTO REVERSE AUTO REVERSE

EJECT

EJECT

CA-D401T CA-D301T

SP-D401 SP-D311

COMPACT

DIGITAL AUDIO

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

INSTRUÇÕES

PART No. FMUN9002-181M

[ U, UT, US, UB ]

Warnings, Cautions and Others

Avisos, precauciones y otras notas

Advertências, precauções e outras notas

IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment. If the

plug fitted is not suitable for the power points in your home
or the cable is too short to reach a power point, then obtain
an appropriate safety approved extension lead or consult
your dealer.

BE SURE to replace the fuse only with an identical approved
type, as originally fitted.

If nontheless the mains plug is cut off ensure to remove the
fuse and dispose of the plug immediately, to avoid a possible
shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then
follow the instructions given below:

IMPORTANT.
DO NOT make any connection to the terminal which is

marked with the letter E or by the safety earth symbol or
coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in
accordance with the following code:

Blue : Neutral
Brown : Live

As these colours may not correspond with the coloured
markings identifying the terminals in your plug proceed as
follows:

The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

Caution –– POWER switch!

Disconnect the mains plug to shut the power off completely. The
POWER switch in any position does not disconnect the mains
line. The power can be remote controlled.

¡Atención –– Interruptor POWER!

Desconectar el cable de alimentación para desactivar la
alimentación totalmente. Cualquier que sea la posición de ajuste
del interruptor POWER, la alimentación no es cortada
completamente. La alimentación puede ser controlada
remotamente.

Atenção –– Interruptor POWER!

Desconecte o cabo de alimentação para interromper a alimenta­ção completamente. Qualquer que seja a posição de ajuste do
interruptor POWER, a alimentação não é completamente corta­da. A alimentação pode ser controlada remotamente.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

PRECAUCIÓN

Para reducir riesgos de choques eléctricos, incendio, etc.:

1. No extraiga los tornillos, los cubiertas ni la caja.

2. No exponga este aparato a la lluvia o a la humedad.

PRECAUÇÃO

Para reduzir riscos de choques elétricos, incêndio, etc.:

1. Não remova parafusos e tampas ou desmonte a
caixa.

2. Não exponha este aparelho à chuva nem à umidade.

G-1

IMPORTANT FOR LASER PRODUCTS / IMPORTANTE PARA PRODUCTOS LÁSER / IMPOTANTE
PARA PRODUTOS LASER /

REPRODUCTION OF LABELS / REPRODUCCIÓN DE ETIQUETAS / REPRODUÇÃO DE ETIQUETAS
/

/

1 CLASSIFICATION LABEL, PLACED ON REAR ENCLO-

SURE

1 ETIQUETA DE CLASIFICACIÓN, PEGADA EN LA PARTE

POSTERIOR DE LA CAJA

1 ETIQUETA DE CLASSIFICAÇÃO LOCALIZADA NA PARTE

POSTERIOR DA CAIXA DO APARELHO.

CLASS 1
LASER PRODUCT

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock
failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user
serviceable parts inside the Unit; leave all servicing to quali­fied service personnel.

2 WARNING LABEL, PLACED INSIDE THE UNIT

2 ETIQUETA DE ADVERTENCIA, PEGADA EN EL INTE-

RIOR DE LA UNIDAD

2 ETIQUETA DE ADVERTÊNCIA LOCALIZADA NA PARTE

INTERNA DA UNIDADE.

DANGER: Invisible laser
radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE
TO BEAM. (e)

VARNING: Osynlig laser­strålning när denna del är
öppnad och spärren är
urkopplad. Betrakta ej
strålen. (s)

ADVARSEL: Usynlig laser­stråling ved åbning, når
sikkerhedsafbrydere er ude
af funktion. Undgå udsæt­telse for stråling (d)

VARO: Avattaessa ja suo­jalukitus ohitettaessa olet
alttiina näkymättömälle
lasersäteilylle. Älä katso
säteeseen. (f)

1. PRODUCTO LÁSER CLASE 1

2. PELIGRO: En el interior hay radiación láser invisible. Evite el
contacto directo con el haz.

3. PRECAUCIÓN: No abra la tapa superior. En el interior de la
unidad no existen piezas reparables por el usuario; deje todo
servicio técnico en manos de personal calificado.

1. PRODUTO LASER CLASSE 1

2. PERIGO: O laser emite uma rediação invisível que é perigosa,
caso o aparelho esteja aberto e a trava inoperante ou
danificada. Evite exposição direta ao feixe dos raios.

3. CUIDADO: Não abra a caixa do aparelho. Não existem
peças reparáveis pelo usuário na parte interna da unidade.
Solicite assistência técnica somente a pessoal técnico
qualificado.

G-2

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1 Front: No obstructions and open spacing.
2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.
3 Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of

Precaución: el aparato debe estar bien ventilado

Para evitar posibles riesgos de descargas eléctricas e incendios y prevenir cualquier posible daño, coloque el aparato del modo
siguiente:
1 Parte delantera: No ponga nada delante, deje el espacio libre.
2 Laterales/ parte superior/ parte trasera: No se debería colocar nada en las áreas y las distancias que se detallan a

3 Parte inferior: Coloque el aparato sobre una superficie recta. Debe haber buena circulación de aire; para ello, coloque el

Precaução: Ventilação adequada

Para evitar riscos de choques elétricos e incêndios, e prevenir avarias, instale o aparelho como segue:
1 Parte frontal: Sem obstruções e espaços abertos.
2 Partes laterais/Tampa/Posterior: Nenhuma obstrução deverá ser colocada entre as áreas cujas dimensões são indicadas

3 Parte inferior: Instale-o sobre uma superfície plana. Deverá ser mantido espaço suficiente para a ventilação se este for

10 cm or more.

continuación.

aparato sobre una base a una altura mínima de 10 cm.

abaixo.

instalado numa posição que tenha uma altura de 10 cm ou mais.

G-3

15 cm

15 cm

15 cm 15 cm

1 cm

15 cm 15 cm

CA-D701T

CA-D501T/
CA-D401T/
CA-D301T

1 cm

1 cm1 cm

15 cm

10 cm

10 cm

15 cm

15 cm

15 cm

CA-D501T/

CA-D701T

CA-D3SCA-D3S

CA-D401T/
CA-D301T

Thank you for purchasing the JVC Compact Component System.
We hope it will be a valued addition to your home, giving you years of enjoyment.
Be sure to read this instruction manual carefully before operating your new stereo system.
Here you will find all the information you need to set up and use the system.
For questions that are not be answered in the manual, please contact your dealer.

Features

English

Easy operation

Great sound

Triple T ray

Sing Along

Here are some of the things that make your System powerful and easy to use.
o The controls and operations have been redesigned to make them very easy to use, so you can spend

your time listening to music.

• With the One Touch Operation feature of JVC’s COMPU PLAY you can turn on the System and

start the radio, the Cassette Deck, or the CD Player with a single touch.

o To get such great sound from such a compact package the System has:

• Programmed sound mode includes live surround effects D. CLUB, HALL, and STADIUM. It
also includes S.E.A (Sound Effect Amplifier) effects ROCK, CLASSIC, and POP.

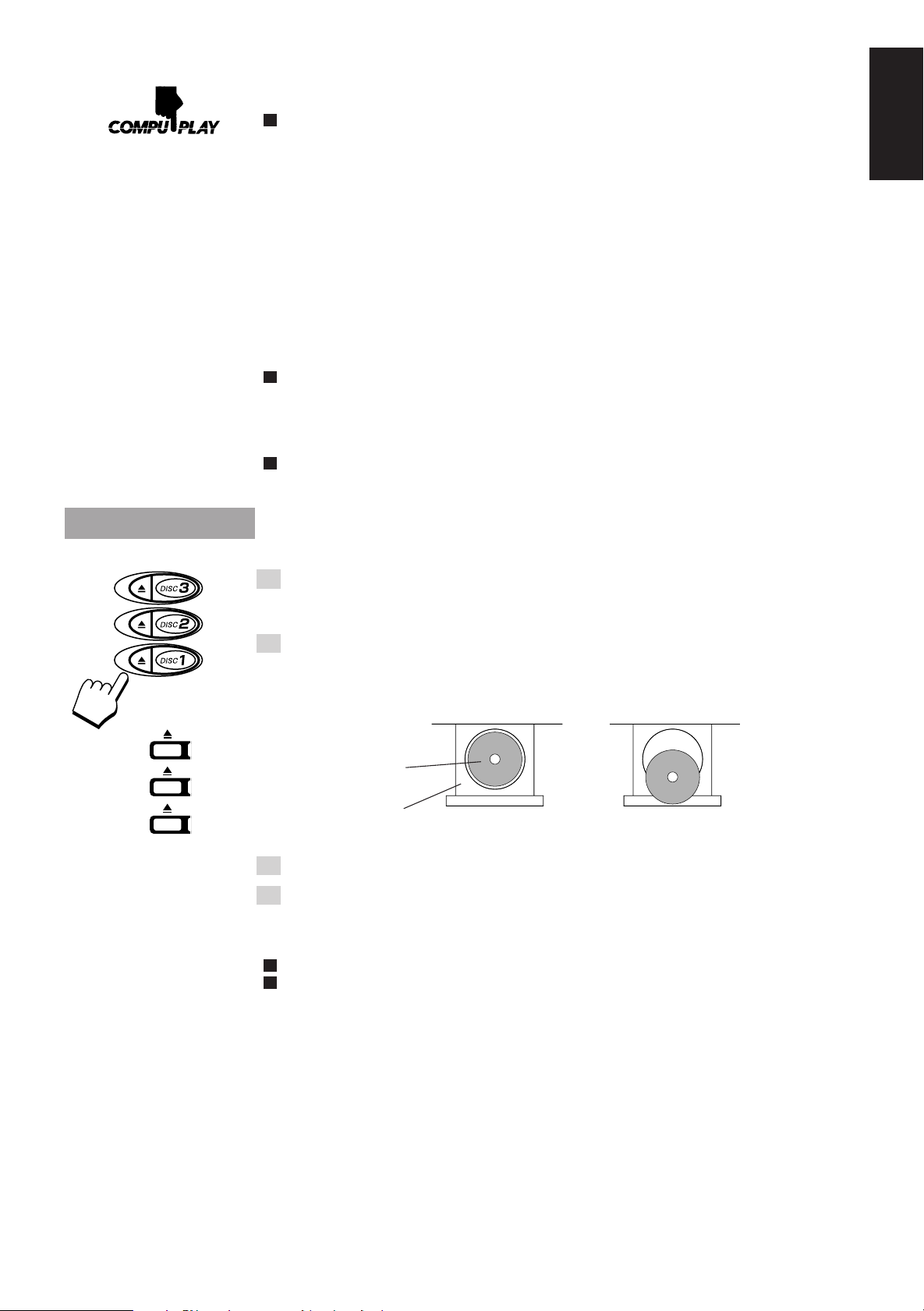

o CD changer function can operate 3 discs.

• Discs can be changed during play using the TRIPLE TRA Y.

• Continuous, random or program play of 3 discs.

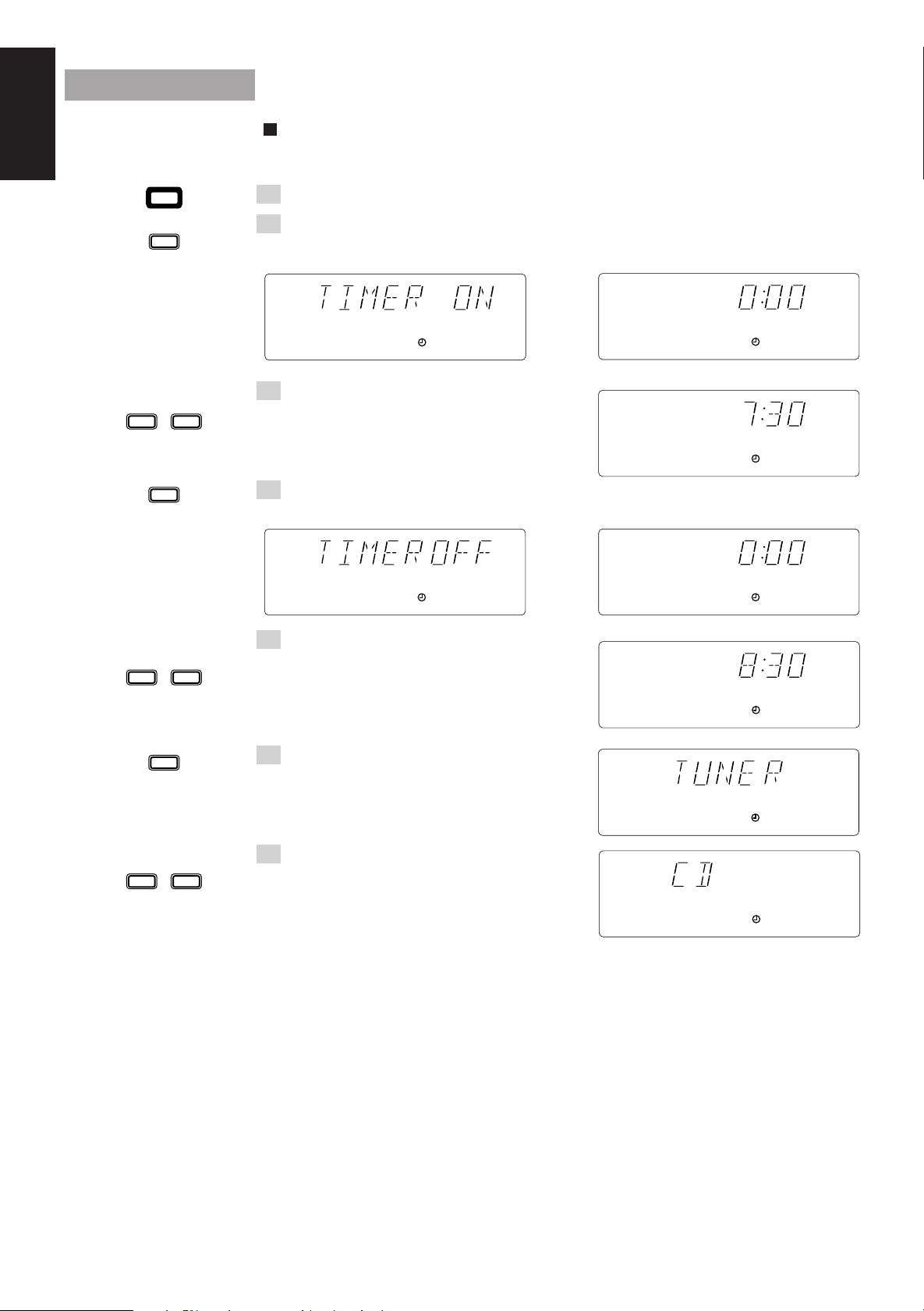

Includes a timer for recording broadcasts while you are out, and an easy-to-use Sleep timer.
You can use conventional tapes and CDs for Karaoke with the voice masking system. With an
optional microphone, you can replace the lead singer’s voice on your favorite songs with your own.

• Digital Echo applied to your voice through the microphone gives you a professional sound.

How This Manual Is Organized

In this manual we have incorporated some special features:

• Basic information that is the same for many different functions is grouped in one place, and not
repeated in each procedure. For instance, in the section on playing a CD, we do not repeat the
information about setting the volume and the sound conditions, which are discussed in the Common
Operations section.

• Name of buttons and controls are written in all capital letters like this: SOUND MODE.

• When we are talking about the Function, rather than the BUTTON or DISPLAY, only the first letter is
capitalized.

The manual has a table of contents to help you quickly look up what you want to know.
We’ve enjoyed making this manual for you, and hope you will use it to enjoy the sound and many
features built into your System.

IMPORTANT CAUTIONS

1. Installation of the Unit

• Select a place which is level, dry and neither too hot nor too cold. (Between 5°C and 35°C or

41°F and 95°F.)

• Leave sufficient distance between the Unit and a TV.

• Do not use the Unit in a place subject to vibrations.

2. Power cord

• Do not handle the power cord with wet hands!

• Some power (12 watts) is always consumed as long as the power cord is connected to the wall

outlet.

• When unplugging the Unit from the wall outlet, always pull the plug, not the power cord.

3. Malfunctions, etc.

• There are no user serviceable parts inside. If anything goes wrong, unplug the power cord and

consult your dealer.

• Do not insert any metallic object into the Unit.

1

Table of Contents

English

Features......................................................................1

How This Manual Is Organized................................. 1

IMPORTANT CAUTIONS ....................................... 1

Getting Started ................................................ 3

Accessories ................................................................3

Set the VOLTAGE SELECTOR Switch....................3

How To Put Batteries In the Remote Control ............3

Using the Remote Control .........................................3

Connecting the FM Antenna......................................4

Connecting the AM Antenna ..................................... 4

Connecting the Speakers
Connecting the Speakers

Connecting Auxiliary Equipment ..............................6

COMPU PLAY ..........................................................6

Common Operations....................................... 7

Turning the Power On and Off ..................................7

Turning the System On.........................................7

Turning the System Off ........................................ 7

Adjusting the Volume ................................................8

Reinforcing the Bass Sound ......................................8

Sound Modes .............................................................8

Listening to Auxiliary Equipment .............................9

Using the T uner ............................................. 10

Setting the AM Tuner Interval Spacing..............10

One Touch Radio................................................10

Tuning In a Station .................................................. 11

Switching between Frequency Bands................. 11

Three ways to select a station.............................11

Presetting Stations ...................................................11

To Change the FM Reception Mode........................11

Using the CD Player...................................... 12

The Quickest Way To Start a CD Is With the

One Touch Operation .....................................13

To Insert Discs .........................................................13

Basics of Using the CD Player — Normal Play......14

To Play a Disc.....................................................14

To Select a Disc, Track Or Passage

Within a Track ................................................ 14

Locating a Track With the Remote Control

Directly ...........................................................14

To Change Discs While Playing......................... 14

Continuous Play.......................................................15

Programming the Playing Order of the Tracks........15

Random Play ...........................................................16

(CA-D501T) .............................. 5

(MX-D401T/MX-D301T) ......... 5

Repeating a Selection or the Discs .......................... 17

Tray Lock Function ................................................. 17

Locking the Electronic Lock .............................. 17

Unlocking the Electronic Lock........................... 17

Using the Cassette Deck

(Listening to a T ape)................................. 18

One Touch Play ..................................................18

Regular Play ............................................................18

Fast Left and Fast Right .....................................19

Music Scan ..............................................................19

T o Find the Beginning of the Current Selection ....19

To Find the Beginning of the Next Selection .....19

Reverse Mode ..........................................................19

Using the Cassette Deck (Recording) ......... 20

Things To Know Before You Start Recording....20

Standard Recording .................................................21

To Record Any Sound Source To Tape............... 21

CD Direct Recording ...............................................22

Tape to Tape Recording (Dubbing) .........................22

How to Use the DUBBING Button ....................22

Using the Timer ............................................. 23

Setting the Clock .....................................................23

Setting the Timer .....................................................24

Setting the SLEEP Timer......................................... 25

Using the Microphone .................................. 26

Karaoke (Sing Along)..............................................26

Singing Along with Karaoke .............................. 26

Digital Echo........................................................ 27

To Record Your Singing .....................................27

Microphone Mixing.................................................28

To Record Microphone Mixing ..........................28

Playing the Microphone Sound through

the Speaker .........................................................28

Recording from the Microphone ........................

Care And Maintenance ................................. 29

Troubleshooting ............................................ 30

Specifications................................................ 31

28

2

Getting Started

Accessories

Check that you have all of the following items, which are supplied with the System.

AM Loop Antenna (1)
Remote Control (1)
Batteries (2)
FM Wire Antenna (1)
AC Plug Adaptor (except for Hong Kong) (1)

If any of these items is missing, contact your dealer immediately.

Set the VOLTAGE SELECTOR Switch

To avoid damaging the System, set the voltage before plugging in the Unit.
o Set the correct voltage for your area with the VOLTAGE SELECTOR switch on the back panel of the

System. Use a screwdriver to rotate the selector so the number the arrow is pointed at is the same as
the voltage.

How To Put Batteries In the Remote

English

Control

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

R6P (SUM-3)/AA (15F)

CAUTION: Handle batteries properly.

To avoid battery leakage or explosion:

• Remove batteries when the Remote Control will not be used for a long time.

• When you need to replace the batteries, replace both batteries at the same time with new ones.

• Don’t use an old battery with a new one.

• Don’t use different types of batteries together.

Using the Remote Control

The Remote Control makes it easy to use many of the functions of the System from a distance of up to 7m
(23 feet) away.
You need to point the Remote Control at the remote sensor on the System’s front panel.

Remote sensor

FM
/AM

CD

AUX

TAPE

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

REPEAT

RANDOM

CONTINUE

SOUND
MODE

ACTIVE

BASS EX.

DISC

MX-D401T

START/STOP

DECK A/B REVERSE MODE

EJECT

PLAY & EXCHANGE SYSTEM

P. UPP. DOWN

CD REC STARTDUBBING

REC

EJECT

COMPACT

DIGITAL AUDIO

VOLUME

DISC

DISC

DISC

3

TRIPLE TRAY

STANDBY

POWER

SENSOR

MULTI CONTROL

TUNINGUPTUNING

DOWN

MIC 1 MIC 2 MIC LEVEL

PHONES

MIN MAX

AB

PLAY REC/PLAY

AUTO REVERSE AUTO REVERSE

3

English

CAUTION: Make all connections before plugging the Unit into an AC power outlet.

Connecting the FM Antenna

Using the Supplied Wire Antenna

FM Wire Antenna

Extend the supplied FM Wire Antenna
horizontally.

Using an FM 75-Ohm Antenna Wire (Not Supplied)

If reception is poor, connect the outside antenna.

ANTENNA

Outside FM antenna wire

AM LOOP

FM

(75Ω)

GND

GND

FM

20 mm

13

2

10 mm

Before attaching a 75 ohm coaxial lead (the kind with a round wire going to an outside antenna),
disconnect the supplied FM Wire Antenna.

CAUTION: To avoid noise, keep antennas away from metallic parts of the System, connect­ing cord and the AC power cord.

Connecting the AM Antenna

AM antenna wire (Not supplied) If reception is poor, connect the outside antenna.

ANTENNA

AM EXT

AM LOOP

FM

(75Ω)

GND

Note: Even when connecting
an outside AM antenna,
keep the indoor AM loop
connected.

4

FM

AM Loop Antenna

123

GND

Turn the loop until you
have the best reception

Snap the tabs on the loop
into the slots of the base to
attach the AM Loop.

CAUTION: Make all connections before plugging the Unit into an AC power outlet.

RIGHT LEFT

SPEAKERS

Connecting the Speakers (CA-D501T)

Please refer to instructions for speakers as well when you connect speakers.

For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the
CA-D501T and the other end to the speaker.

1. Open each of the terminals and insert the speaker wires firmly (be sure to remove the insulation at the
end of each wire first), then close the terminals.

2. Connect the red (+) and black (–) terminals of the right side speaker to the red (+) and black (–)
terminals marked RIGHT on the CA-D501T.
Connect the red (+) and black (–) terminals of the left side speaker to the red (+) and black (–)
terminals marked LEFT on the CA-D501T.

SPEAKERS

RIGHT LEFT

English

Right speaker

Left speaker

IMPORTANT: Use speakers with the correct impedance only. The correct impedance is
indicated on the back panel.

CAUTION: If a TV is installed near speakers, the TV may display irregular colours. In this
case, set the speakers away from the TV.

Connecting the Speakers (MX-D401T/
MX-D301T)

Please refer to instructions for speakers as well when you connect speakers.

For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the System.

1. Open each of the terminals and insert the speaker wires firmly, then close the terminals.

2. Connect the red (+) and black (–) terminals of the right side speaker to the red (+) and black (–)
terminals marked RIGHT on the System.
Connect the red (+) and black (–) terminals of the left side speaker to the red (+) and black (–)
terminals marked LEFT on the System.

SP-D401/SP-D311 RIGHT

SP-D401/SP-D311 LEFT

IMPORTANT: Use speakers with the correct impedance only. The correct impedance is
indicated on the back panel.

CAUTION: If a TV is installed near speakers, the TV may display irregular colours. In this
case, set the speakers away from the TV.

5

Connecting Auxiliary Equipment

English

VCR or other equipment

To listen to this source, press the AUX
button.

AUX

RIGHT LEFT

Now you can plug the AC power cord into the wall outlet, and your System is

at your command!

COMPU PLAY

COMPU PLAY is JVC’s feature that lets you control the most frequently used functions of the System
with a single touch.
One Touch Operation starts playing a CD, turns on the radio, plays a tape, etc. with a single press of the
play button for that function. What One Touch Operation does for you is to turn the power on, then start
the function you have specified. If the Unit is not ready, such as no CD or tape in place, the Unit still
powers on so you can insert a CD or tape.
How One Touch Operation works in each case is explained in the section dealing with that function.
The COMPU PLAY buttons are:

On the Unit

CD ‹/8 button
CD Player DISC-1 to DISC-3 buttons
CD Player Open/Close (0) buttons
FM/AM button
¤ T APE ‹ button
AUX button

On the Remote Control

FM/AM button
AUX button
CD control £/8 button
CD control DISC 1 to DISC 3 buttons
CD control Open/Close (0) buttons
Deck control ™, £ buttons

6

Common Operations

English

ACTIVE

BASS EX.

SOUND

MODE

ST ANDBY indicator

POWER

PHONES

POWER

23

1

CLOCK TIMER

456

– SELECT +

789

ECHO

10

DISC

DISC

DISC

A

REC PAUSE

SOUND
MODE

SET

ACTIVE

BASS EX.

10

B

FM MODE

PLAY MODE

7

/CLEAR

DECK

VOLUME

RM-SED50TXU
REMOTE CONTROL

SLEEP

SHIFT

FM/AM

AUX

£/8

C D

POWER

POWER

AUX

VOLUME –, +

REPEAT

RANDOM

CONTINUE

CD

AUX

TAPE

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

BASS EX.

SOUND
MODE

ACTIVE

PLAY & EXCHANGE SYSTEM

P. UPP. DOWN

CD REC STARTDUBBING

REC

START/STOP

EJECT

COMPACT

DIGITAL AUDIO

VOLUME

FM

/AM

DISC

DISC

DISC

STANDBY

SENSOR

TUNING
DOWN

MIC 1 MIC 2 MIC LEVEL

PHONES

AB

PLAY REC/PLAY

DISC

3

TRIPLE TRAY

MULTI CONTROL

TUNING

UP

DECK A/B REVERSE MODE

MIN MAX

AUTO REVERSE AUTO REVERSE

EJECT

Display

Source, Sound Mode Volume Level etc.

RANDOM

CONT.

ALL PRGM

SOUND MODE
ACTIVE BASS EX.
VOLUME

AUX

kHz

MHz

A.BASS EX S.MODE

REC

SLEEP MONO

STCLOCK

POWER

or

POWER

ACTIVE BASS EX. indicator

SOUND MODE indicator

When the System is being used, the display shows other items as well.
However, we have only shown the items described in this section.

Turning the Power On and Off

Turning the System On ——————————————————

Press the POWER button.

The display comes on and the STANDBY indicator goes out.
The System comes on ready to continue in the mode it was in when the power was last turned off.
o If the last thing you were doing was listening to a tape in Deck B, you are now ready to listen to a

tape again in Deck B, or you can change to another source.

o If you were listening to the Tuner last, the Tuner comes on playing the station it was last set to.

Turning the System Off ——————————————————

Press the POWER button again.

The STANDBY indicator lights up and the display is blank, except for the clock display.
o Some power (12 watts) is always consumed even though power is turned off (called Standby Mode).
o To switch off the Unit completely, unplug the AC power cord from the AC outlet. When you unplug

the AC power cord, the clock will be reset to 0:00 immediately, and preset Tuner stations will be
erased after a few days.

7

Adjusting the Volume

SOUND

MODE

ACTIVE

BASS EX.

English

VOLUME

or

VOLUME

or

ACTIVE

BASS EX.

Turn the VOLUME control clockwise to increase the volume or anticlockwise to decrease it.
Turning the VOLUME control quickly also adjusts the volume level quickly.
When using the Remote Control, press the VOLUME + button to increase the volume or press the
VOLUME – button to decrease it.
You can adjust the volume level between 0 and 50.

CAUTION: The Volume cannot be adjusted while the Unit is in STANDBY
mode. DO NOT turn on the Unit and/or start playing any source without
setting the VOLUME control to 0; otherwise, the sudden blast of sound
can damage your hearing, speakers and/or headphones.

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers.
Be sure to turn down the volume before connecting or putting on headphones.

Reinforcing the Bass Sound

The richness and fullness of the bass sound is maintained regardless of how low you set the volume.
You can use this effect only for playback.

To get the effect, press the ACTIVE BASS EX. (Active Bass Extension) button.
The frame around the “A. BASS EX” indicator lights up.

A.BASS EX

SOUND

MODE

ACTIVE

BASS EX.

or

SOUND

MODE

To cancel the effect, press the button again.
The frame around the “A. BASS EX” indicator goes out.

A.BASS EX

Sound Modes

The System has some preset sound effects that give you control of the way your music sounds, so you can
tailor it for your room and for the quality of the source. We can give you some idea of how each one
affects the music, but the only way to really tell is to try them yourself.
o The preset sound modes include modes using surround effects and modes using S.E.A. effects.
o Sound Mode effects cannot be recorded.

Surround effect modes

D. CLUB (Dance Club) Increases resonance and bass.
HALL Adds depth and brilliance to the sound, like in a concert hall.
STADIUM Adds clarity and spreads the sound, like in an outdoor stadium.

S.E.A. effect modes

ROCK Boosts low and high frequencies.
CLASSIC Set for wide and dynamic sound stereo systems.
POP Good for vocal music.

KARAOKE mode

KARAOKE The vocal on tapes or CDs is masked for karaoke.

To get an effect, press the SOUND MODE button repeatedly until the Sound Mode you want appears

in the display. The frame around the “S.MODE” indicator lights up.
Each time you press the SOUND MODE button, the display changes
as shown below:

S.MODE

8

= D. CLUB = HALL = STADIUM = ROCK = CLASSIC = POP = KARAOKE = FLAT =
(back to the beginning)

To cancel an effect, press the SOUND MODE button until “FLAT” appears
on the display. The frame around the “S. MODE” indicator goes out.

S.MODE

To recall the previous Sound Mode, press the SOUND MODE button again.

Listening to Auxiliary Equipment

By playing the sound from auxiliary equipment through the System, you can gain control over how the
music or program sounds. Once the connected equipment is playing through the System, you can apply

English

the sound effects.

o First make sure that the optional equipment is properly connected to the System. (See page 5).

1. Set the VOLUME control to 0.

CD

FM

/AM

AUX

TAPE

or

AUX

2. Press the AUX button.

When System is in Standby mode, the Unit is automatically turned on and “AUX” appears on the
display.

3. Start playing the equipment.

4. Adjust the VOLUME control to the desired listening level.

5. Select a sound effect mode, if you wish.

To Cancel the Setting

Change the source by starting any one of the System’s built-in sound sources, such as the Tuner or CD
Player.

9

English

P. UPP. DOWN

POWER

Using the Tuner

TUNING UP

TUNING DOWN

Number keys

POWER

23

1

CLOCK TIMER

456

– SELECT +

789

ECHO

10

DISC

DISC

DISC

A

REC PAUSE

SOUND

MODE

SET

ACTIVE

BASS EX.

10

B

FM MODE

PLAY MODE

7

/CLEAR

C D

DECK

VOLUME

RM-SED40TEU
REMOTE CONTROL

SLEEP

FM/AM

REPEAT

RANDOM

CONTINUE

SOUND
MODE

ACTIVE

BASS EX.

4 P.DOWN
¢ P.UP

CD

AUX

TAPE

POWER

DISC

DISC

DISC

STANDBY

SENSOR

PHONES

TUNING

TUNING

UP

DOWN

MIC 1 MIC 2 MIC LEVEL

MIN MAX

3

TRIPLE TRAY

MULTI CONTROL

DISC

PLAY & EXCHANGE SYSTEM

REC

START/STOP

DECK A/B REVERSE MODE

COMPACT

DIGITAL AUDIO

VOLUME

P. UPP. DOWN

CD REC STARTDUBBING

FM
/AM

FM/AM

AB

PLAY REC/PLAY

AUTO REVERSE AUTO REVERSE

EJECT

EJECT

SHIFT

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

Display

AUX

£/8

FM/AM

FM MODE

Band display, Frequency display, Preset channel

MHz

CONT.

ALL PRGM

RANDOM

A.BASS EX

REC

S.MODE

SLEEP MONO

kHz

STCLOCK

10

When the System is being used, the display shows other items as well.
However, we have only shown the items described in this section.

You can listen to both FM and AM stations. Stations can be tuned in manually, automatically, or from
preset memory storage.
o Before listening to the radio:

• Check that both the FM and AM antennas are firmly connected. (See page 4).

Setting the AM Tuner Interval Spacing ——————————

Some countries space AM stations 9 kHz apart, and some countries use 10 kHz spacing. Europe, the U.K.,
Australia, and some other areas use 9 kHz spacing, while Canada, the United States, and some other
Western Hemisphere countries use 10 kHz spacing.
❏ When shipped, the System is set to 9 kHz spacing.

In case of Brazil, the System is set to 10 kHz spacing.

❏ To select the 10 kHz interval, be sure that the Unit is in STANDBY mode. Turn on by pressing the

POWER button while pressing the TUNING UP button on the Unit. “AM --10” appears on the
display.

❏ To change back to 9 kHz, be sure that the Unit is in STANDBY mode. Turn on by pressing the

POWER button while pressing the TUNING DOWN button on the Unit. “AM -- 9” appears on the
display.

One Touch Radio ——————————————————————

Just press the FM/AM button to turn on the Unit and start playing the most recent station tuned in.
o You can switch from any other sound source to the radio by pressing the FM/AM button.

Tuning In a Station

P. UPP. DOWN

Press the FM/AM button to turn on the radio.
The Frequency of the previously selected channel appears on the display.

English

CD

FM
/AM

AUX

TAPE

or

FM/AM

Switching between Frequency Bands———————————

Press the FM/AM button.

Each time you press the button, the band alternates between FM and AM.

Three ways to select a station ——————————————

o Press the TUNING DOWN or TUNING UP button repeatedly to move from frequency to frequency

DOWN

TUNING

UP

until you find the one you want. (Manual Tuning).

OR

TUNING

o Press and hold the TUNING DOWN or TUNING UP button for a few seconds, the frequency starts

changing on the display. When a station is tuned in, the frequency stops changing. (Auto Tuning).

OR

o Possible only after presetting stations.

Press once and release the 4 P. DOWN or ¢ P. UP button to go to the next preset station.

You can also use the Remote Control to tune in preset channels:

1. Press the FM/AM button so that you can receive the most recent station tuned in.

2. Select the station by entering the preset number in the number keys of the Remote Control.

• Example: for channel 5, press 5. For channel 15, press +10 then 5. For channel 20, press +10,
then 10. For channel 30, press +10 twice then 10.

• After you have selected the preset number and the number is displayed, the broadcast frequency
of the selected channel is displayed.

Presetting Stations

You can preset up to 30 FM stations and up to 15 AM stations for the preset numbers.

Note: In some cases, test frequencies have been already memorized for the tuner since the factory

1

CD

FM

/AM

AUX

TAPE

FM/AM

or

examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations
you want into memory by following the presetting method.

1. Select a band by pressing either the FM/AM button.

2. Press the TUNING DOWN or TUNING UP button to tune into a station.

2

1

3

CLOCK TIMER

456

– SELECT +

7

10

23

8

SETECHO

10

FM MODE

P. UPP. DOWN

9

3. Setting the preset number by pressing the number keys on the
Remote Control continuously.

For preset numbers 1 to 10:

Press the number key for the preset number you want to set.

For preset numbers 11 to 20:

Press the 1 to 10 buttons after pressing the +10 button.

For preset numbers 21 to 30:

Press the 1 to 10 buttons after pressing the +10 button twice.
The preset number appears in the display after you have pressed the number keys. If the key is

pressed continuously, the preset number display blinks. Release the button after the number starts to
blink. This completes the preset setting.

4. Repeat steps 1 - 3 for each station you want to store in memory
with a preset number.

CAUTION: If the Unit is unplugged or if a power failure occurs, the preset
stations will be erased after a few days. If this happens, preset the station
again.

To Change the FM Reception Mode

When an FM stereo broadcast is hard to receive or noisy , press the FM MODE b utton on the Remote Control
so that the “MONO” indicator lights up in the display. Reception improves, but there is no stereo effect.

To restore the stereo effect, press the FM MODE button on the Remote Control so that the “MONO”
indicator goes off. In this stereo mode, the “ST” indicator lights up and you can hear stereo effects, when
a program is broadcast in stereo.

11

English

Using the CD Player

Disc Trays

Number keys

DISC

23

1

CLOCK TIMER

456

– SELECT +

789

SET

ECHO

10

10

DISC

PLAY MODE

DISC

DISC

A

B

REC PAUSE

ACTIVE

SOUND

BASS EX.

MODE

RM-SED50TXU
REMOTE CONTROL

FM MODE

7

/CLEAR

DECK

VOLUME

C D

POWER

SLEEP

SHIFT

FM/AM

AUX

£/8

CD Player
control buttons

DISC

DISC

STANDBY

POWER

SENSOR

TUNING

MIC 1 MIC 2 MIC LEVEL

PHONES

AB

3

TRIPLE TRAY

MULTI CONTROL

TUNING

UP

DOWN

MIN MAX

PLAY REC/PLAY

AUTO REVERSE AUTO REVERSE

DISC

PLAY & EXCHANGE SYSTEM

REC

START/STOP

DECK A/B REVERSE MODE

0

DISC buttons

REPEAT

RANDOM

DIGITAL AUDIO

COMPACT

REPEAT

RANDOM

CONTINUE

CONTINUE

SOUND
MODE

ACTIVE

VOLUME

P. UPP. DOWN

CD REC STARTDUBBING

CD

FM
/AM

TAPE

BASS EX.

AUX

4 P.DOWN
7
¢ P.UP

CD ‹/8

Display

Disc display

Repeat indicator

When the System is being used, the display shows other items as well.
However, we have only shown the items described in this section.

Track number, Playing time, step number

CONT.

ALL PRGM

RANDOM

A.BASS EX S.MODE

REC

SLEEP MONO

Play mode indicator

kHz

MHz

STCLOCK

EJECT

Disc marker

EJECT

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

Disc display

A red marker lights on the disc
display for the disc number you have
selected. This disc display blinks
while a CD is being played.
The centre of the disc display is not lit
while CD Player is checking that
there is no disc in the disc tray for the
corresponding disc number.

12

The System’s CD Player has an Automatic Changer with 3 disc trays. You can use Continuous, Random,
Program or Repeat Play for the discs in DISC-1, DISC-2 and DISC-3. Repeat Play can repeat all the
tracks on all the CD’s, the tracks on one of the CD’s or one track on one CD. There is also the Tray Lock
function, which safely keeps discs in the trays.

Here are the basic things you need to know to play a CD and locate the different selections on it. Each
selection is called a track, so when we are talking about locating a track, we are also talking about how
you find a certain song or performance.

The Quickest Way To Start a CD Is With the One Touch
Operation —————————————————————————

Press the CD ‹/8 button (or the £/8 button on the Remote Control).

For Normal Play (Play mode indicator is not lit):

• If there is a CD in the disc tray for the selected disc number, the power is automatically turned on

and the CD is played from the first track.

• If there is no CD in the disc tray for the selected disc number, the power is automatically turned

on and “NO DISC” appears on the display. The CD Player is in stop mode.

For Continuous Play or Random Play in Display mode
(CONT. or RANDOM indicator is lit):

• If there is a CD in the disc tray for the selected disc number, the power is automatically turned on

and the CD is played continuously from the first track or the tracks are played in random order.

• If there is no CD in the disc tray for the selected disc number, the power is automatically turned

on and other tray containing a CD is selected and is played continuously from the first track or the
tracks are played in random order.

• If there are no CDs in CD player, the power is automatically turned on and “NO DISC” appears

on the display in Normal Play mode. The CD Player is in stop mode.

Press a DISC button (1 to 3).

• If there is a CD in the disc tray for the selected disc number, the power is automatically turned on

and playback starts from the selected CD.

• If there are no CDs in CD Player, the power is automatically turned on and “NO DISC” appears

on the display in Normal Play mode. The CD Player is set to stop mode.

o Press the 0 button.

• The power turns on, and the tray opens automatically.

To Insert Discs

English

or

1. Press the 0 button on the left of the Disc button you want to insert
the disc into.

The disc tray slides out automatically.

2. Place a CD, with its label side up, onto the tray.

ATTENTION:

To avoid malfunctions when you play a CD, please set the CD in the right

place at the centre of the tray.

CD

Tray

CORRECT INCORRECT

3. Press the 0 button to close the tray.

4. Repeat steps 1 to 3 to insert other discs into other trays.

• To continue putting discs into other trays, even if a tray is open, by pressing the 0 button of

another disc tray, the open tray will close automatically, and the new disc tray will slide out.

o To put an 8 cm CD into a tray, insert it so that it is aligned with the groove in the tray’s centre.

If a tray is open when the System switches to Standby mode, the tray is closed automatically.

13

English

P. UPP. DOWN

Basics of Using the CD Player —
Normal Play

To Play a Disc ———————————————————————

1. Prepare the discs.

CD

FM

/AM

AUX

TAPE

2. Press the CD ‹/8 or DISC button (1-3) of the disc you want to play.

When using the Remote Control, press the £/8 button or the DISC (1 to 3) buttons.
The first track of the selected disc will begin playing.
The CD Player automatically stops when the playback finishes the last track of the CD.

• If these buttons are pressed while the tray is open, the tray is automatically closed and playback

starts.

Note: If the CD cannot be read correctly (due to scratches etc.), “00 0000” appears on the display.

To stop playing the disc, press the 7 button (or the 7/CLEAR button on the Remote Control).
To stop playing and removing the disc, press the 0 button for the disc being played.
To pause, press the ‹/8 button (or the £/8 button on the Remote Control). The Disc display will

blink.
To cancel pause, press the ‹/8 button again (or press the £/8 button on the Remote Control). Play
continues from the point where it was paused.

To Select a Disc, Track Or Passage Within a Track ———

1. Press the DISC button (1-3) for the disc tray containing the track
you want to listen to.

• Example: for the third disc, press 3.

or

DISC

DISC

DISC

23

1

CLOCK TIMER

456

– SELECT +

8

7

10

9

SETECHO

10

2. Press the 4 P.DOWN or ¢ P.UP button to select the track.

The selected track starts playing.
Each time you briefly press and release the 4 P.DOWN or ¢ P.UP button, the track changes by
one.

• Press and release the ¢ P.UP button to go ahead one track at a time.

• Press and release the 4 P.DOWN button to go back one track at a time.
Holding down the 4 P.DOWN or ¢ P.UP button, during playback, will fast forward/backwards
the CD so you can quickly find a particular passage in the selection you are listening to.

When using the Remote Control, press the 4 or ¢ button.

Locating a Track With the Remote Control Directly ———

Using the number keys on the Remote Control allows you to go directly to the beginning of any track.

1. Press the DISC button (1-3) for the disc tray containing the track
you want to listen to.

• Example: for the third disc, press 3.

2. Enter the number of the track you want to listen to with the
number keys.

The selected track starts playing.

• Example: for track 5, press 5. For track 15, press +10 then 5. For track 20, press +10, then 10. For

track 32, press +10 three times, then 2.

To Change Discs While Playing ——————————————

You can replace a CD in a tray not being used, while another CD is playing.

14

1. Press the 0 button of the tray not being used.

The tray opens.

2. Replace the disc in the tray.

3. Press the 0 button to close the tray.

PRGM

A.BASS EX S.MODE

CONTINUE

CONT.

A.BASS EX S.MODE

Continuous Play

PRGM

A.BASS EX S.MODE

DISC

DISC

DISC

PLAY MODE

or

£/8

This function plays the disc in the Unit continuously.

English

1. Prepare the discs.

2. Select Continuous mode.

On the Unit
Press the CONTINUE button.

The playback automatically starts from the selected CD.

• “CONT.” on the Play mode indicator lights up.

You can press the CONTINUE button while a CD is playing to switch to Continuous mode.

On the Remote Control

1. Press the PLAY MODE button while

the CD Player is stopped, to select
“CONTINUE”.

• “CONT.” lights in the Play mode indicator.
The display changes with each press of the
PLAY MODE button as shown below.

= PROGRAM = RANDOM = CONTINUE = No display = (back to the beginning)

2. Press the DISC button (1 to 3) or £/8 button.

Playback starts from the selected CD.

Playing order of the CDs

The selected CDs are played continuously in the following order.
= DISC 1 = DISC 2 = DISC 3 = (back to the beginning)

PLAY MODE

DISC

DISC

To cancel Continuous play, press the CONTINUE button again. The “CONT.” indicator on the
display goes out and Normal Play is resumed. When using the Remote Control, press the PLAY MODE
button while the CD Player is stopped to select a different Play mode. The “CONT.” indicator goes out
and the next Play mode is selected.

Programming the Playing Order of the
Tracks

You can change the order in which the discs and tracks play, and select only the discs and tracks you want
from among those loaded in the CD Player.
o You can program up to 20 steps in any desired order from among the discs in the player.
o You can only make a program when the CD Player is stopped.

Use the Remote Control.

1. Press the PLAY MODE button to
select “PROGRAM”.

The display changes with each press of the PLAY
MODE button as shown below.

= PROGRAM = RANDOM = CONTINUE = No display = (back to the beginning)

• The “PRGM” play mode indicator light up.

• If a program is already in progress, the last step of the program is displayed.

2. Select a disc with the DISC
buttons (1-3).

The display changes to the Program Entry display.

Disc number

Track number

Step number

DISC

15

English

PRGM

A.BASS EX S.MODE

A.BASS EX S.MODE

RANDOM

23

1

CLOCK TIMER

456

– SELECT +

8

7

10

9

SETECHO

10

3. Press the number keys (1 to 10 and
+10) to select the track to program.

• Example: for track 5, press 5. For track 15,

press +10 then 5. For track 20, press +10 then 10.

4. Repeat steps 1 to 3 to select the other tracks for the program.

5. Press the £/8 button.

The Unit plays the tracks in the order you have programmed them.

o If you try to program a disc tray that is empty, or a track number that does not exist on a disc (for

example, selecting track 14 on a disc that only has 12 tracks), the selected disc or track are skipped
when the program is played.

o You can skip to a particular program step by pressing the 4 or ¢ button during program play.
o To play the programmed tracks over and over, press the REPEAT button . The Repeat mode indicators

light up in sequence with each press of the REPEAT button.

To stop playing, press the 7 button (or the 7/CLEAR button on the Remote Control) once.
To delete all the tracks in a program, press the 7 button on the Unit or the 7/CLEAR button on the

Remote Control while the CD Player is stopped. The program is deleted and the “PRGM” play mode
indicator goes out and Normal Play is resumed.
To cancel program play, press the PLAY MODE button on the Remote Control while the CD Player
is stopped to select a different Play mode. The “PRGM” indicator goes out and the next Play mode is
selected.

RANDOM

PLAY MODE

£/8

Note: If you press the CONTINUE or RANDOM button on the unit while a program is playing, the play
mode changes to that mode.

Random Play

The tracks will play in no special order when you use this mode.

On the Unit

Press the RANDOM button.

The playback automatically starts from the selected CD.

• “RANDOM” on the Play mode indicator lights up.

You can press the RANDOM button while a CD is playing to switch to Random play mode.

On the Remote Control

1. Press the PLAY MODE button while

the CD Player is stopped, to select
“RANDOM”.

• “RANDOM” lights in the Play mode
indicator.
The display changes with each press of the PLAY MODE button as shown below.

= PROGRAM = RANDOM = CONTINUE = No display = (back to the beginning)

2. Press the £/8 button.

Playback starts from the selected CD.

16

Note: Random Play cannot be activated with the DISC button (1 to 3).

To skip to the next track, press the ¢ button during playback. The next track is jumped to with each

press of the button. Press the 4 button to jump to the start of the track being played.

Press the REPEAT button before or during random play to instruct the System to continue with a
different random track selection after the last selection is played.

To cancel random play, press the RANDOM button again. The “RANDOM” play mode indicator
goes out and Normal Play is resumed. When using the Remote Control, press the PLAY MODE button
while the CD Player is stopped to select a different Play mode. The “RANDOM” indicator goes out and
the next Play mode is selected.

Repeating a Selection or the Discs

REPEAT

You can have all the discs, the program or the individual selection currently playing repeat as many times
as you like.

Press the REPEAT button.

The display changes with each press of the button, as shown below.

= = ALL = blank display = (back to the beginning)

: Repeats one track on a CD.

ALL: For Normal Play, repeats all the tracks on the current CD.

For Continuous Play or Random Play, repeats all the tracks on all the CDs in the CD
Player.
For Program Play, repeats all the tracks in the program.

To exit Repeat Mode, press the REPEAT button until the Repeat mode indicator on the display goes
out.

Tray Lock Function

In order to safely keep the discs in the CD Player, the three trays can be electronically locked in a single
operation.
When the electronic lock is on, the trays cannot be opened even if the 0 button is pressed.
This function can only be accessed by using the buttons on the Unit itself.

Locking the Electronic Lock ———————————————

English

1. Put the System’s power into STANDBY mode.

2. While pressing the 7 button, press the 0 button for DISC 1’s tray on

P. UPP. DOWN

the Unit.

“LOCK ON” appears on the display to let you know that the trays have been locked.

When the CD Player trays are locked, pressing the 0 buttons displays the message “LOCK ON” on
the display and the trays do not open. Also, the 0 button cannot be used to automatically turn on the
power.

Unlocking the Electronic Lock ——————————————

1. Put the System’s power into STANDBY mode.

2. While pressing the 7 button, press the 0 button for DISC 1’s tray on

the Unit.

When the unlock operation is done, “LOCK OFF” appears in the display to show that the lock has
been taken off.

The trays can now be opened by pressing the 0 buttons.
The 0 button can also be used to automatically turn on the power.

17

Using the Cassette Deck

English

(Listening to a Tape)

DISC

23

1

CLOCK TIMER

456

– SELECT +

789

SET

ECHO

10

10

DISC

PLAY MODE

DISC

DISC

A

B

REC PAUSE

ACTIVE

SOUND

BASS EX.

MODE

RM-SED50TXU
REMOTE CONTROL

FM MODE

7

/CLEAR

C D

DECK

VOLUME

POWER

SLEEP

SHIFT

FM/AM

AUX

£/8

Cassette Deck
control buttons

DISC

DISC

STANDBY

POWER

SENSOR

TUNING

TUNING

UP

DOWN

MIC 1 MIC 2 MIC LEVEL

PHONES

MIN MAX

AB

PLAY REC/PLAY

DIGITAL AUDIO

DISC

3

TRIPLE TRAY

MULTI CONTROL

AUTO REVERSE AUTO REVERSE

REC

START/STOP

DECK A/B REVERSE MODE

EJECT

PLAY & EXCHANGE SYSTEM

VOLUME

P. UPP. DOWN

CD REC STARTDUBBING

EJECT

COMPACT

FM
/AM

0 EJECT (Deck B)0 EJECT (Deck A)

REPEAT

RANDOM

CONTINUE

CD

AUX

TAPE

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

SOUND
MODE

ACTIVE

BASS EX.

4 P .DOWN
7
¢ P.UP

¤ T APE ‹

REVERSE MODE
DECK A/B

Display

CONT.

ALL PRGM

RANDOM

: Tape Direction indicator
: DECK A, B indicator

: Reverse Mode indicator

The Cassette Deck allows you to play, record and dub audio tapes.
o With Automatic Tape Detection, you can listen to type I or II tapes without changing any settings.

The use of tapes longer than 120 minutes is not recommended, since characteristic deterioration may
occur and these tapes easily jam in the pinch-rollers and the capstans.

One Touch Play ——————————————————————

By pressing the ¤ T APE ‹ button (or the 2 or 3 button on the Remote Control), the Unit will come
on, “TAPE” appears in the display, and if a tape is in the deck, it will start to play. If no tape is loaded, the
Unit will come on and wait for you to insert a tape, or select another function.

A.BASS EX

REC

SLEEP MONOSTCLOCK

S.MODE

Tape Direction Indicator on the Display

kHz

MHz

The Tape Direction indicator tells you which direction the selected
tape deck will use for playback.
During playback, the direction indicator blinks slowly.
During fast left or fast right, the indicator blinks quickly.
During Music Scan mode, the direction indicator alternates between
blinking slowly and quickly repeatedly.

When the System is being used, the display shows other items as well.
However, we have only shown the items described in this section.

18

EJECT EJECT

Regular Play

When the power is already on, you can use this basic procedure:

1. Press the 0 EJECT button for the deck you want to use.

2. When the cassette holder opens, put the cassette in, with the
exposed part of the tape down, toward the base of the System.

• If the cassette holder does not open, turn the Unit off, then back on and press the 0 EJECT button

again.

3. Close the holder gently.

P. UPP. DOWN

When both Deck A and Deck B contain a tape, the last deck to have a tape inserted is selected.
To change the selected deck, press the DECK A/B button. When using the Remote Control, press the

CD

FM
/AM

AUX

TAPE

A or B button.

4. Press the ¤ TAPE ‹ button (or ™ or £ button on the Remote
Control).

The tape is played in the direction of the button pressed for the selected deck.

• The Cassette Deck automatically stops when one side of a tape has finished playing.

English

DECK A/B REVERSE MODE

P. UPP. DOWN

To stop playing, press the 7 button.
To remove the tape, stop the tape, and press the 0 EJECT button.
To change deck while playing a tape, press the ¤ T APE ‹ button after pressing the DECK A/B

button on the Unit or press the ™ or £ button after pressing the A or B button on the Remote Control.

Fast Left And Fast Right——————————————————

o While the tape is stopped, press the 4 P.DOWN button (or 1 button on the Remote Control) and

the tape will wind rapidly onto the left side of the cassette without playing.

o While the tape is stopped, press the ¢ P.UP button (or ¡ button on the Remote Control) and the

tape will wind rapidly onto the right side of the cassette without playing.

Note: Deck A and Deck B cannot be used for playback at the same time.

Music Scan

To find the beginning of a music track during play, use the Music Scan function. Music Scan searches for
blank portions that usually separate selections, then plays the next selection.

To Find the Beginning of the Current Selection——————

Press the 4 P.DOWN or ¢ P.UP button (or the 1 or ¡ button on
the Remote Control) during play.

o Make sure that you press the 4 P.DOWN or ¢ P.UP button (or the 1 or ¡ button on the

Remote Control) in the opposite direction to that in which the tape is playing. Searching stops at the
beginning of the current selection, and the current selection starts automatically.

DECK A/B REVERSE MODE

To Find the Beginning of the Next Selection ———————

Press the 4 P.DOWN or ¢ P.UP button (or the 1 or ¡ button on
the Remote Control) during play.

o Make sure that you press the 4 P.DOWN or ¢ P.UP button (or the 1 or ¡ button on the

Remote Control) in the same direction as that in which the tape is playing. Searching stops at the
beginning of the next selection, and the next selection starts automatically.

Music Scan works by detecting a 4-second long blank at the beginning of each selection,
so it won’t work well if your tape has:

• No blank at the beginning of a selection .

• Noise (often caused by much use or poor quality dubbing) which fills the blank with noise.

• Long, very soft passages or pauses in a selection. The scan will detect these as 4-second long

blanks. If this happens, just scan again until you reach the selection you want.

Reverse Mode

You can play both sides of a cassette, or play both the tapes in the two Cassette Decks continuously.

Press the REVERSE MODE button to switch to Reverse Mode.

The indicator changes with each press of the button as shown.

= = = = (back to the beginning)

: The Cassette Deck automatically stops after playing one side of the tape.
: The Cassette Deck automatically stops after playing both sides of the tape being played (or

set to play).

: After playing both sides of the tape being played (or set to play), the Unit always checks to

see if a tape is in the other deck. If there is, it automatically starts playing that tape. This
Continuous Play function works regardless of which deck starts first. The tapes are played
continuously until the 7 button is pressed.

19

Using the Cassette Deck

A.BASS EX

kHz

MHz

CONT.

ALL PRGM

REC

S.MODE

SLEEP MONO

STCLOCK

RANDOM

English

REC P AUSE

(Recording)

POWER

23

1

CLOCK TIMER

456

– SELECT +

789

ECHO

10

DISC

DISC

DISC

A

REC PAUSE

SOUND

MODE

SET

ACTIVE

BASS EX.

10

B

FM MODE

PLAY MODE

7

/CLEAR

DECK

VOLUME

RM-SED50TXU
REMOTE CONTROL

SLEEP

SHIFT

FM/AM

AUX

£/8

C D

Display

RANDOM

CONTINUE

CD

AUX

TAPE

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

REPEAT

SOUND
MODE

ACTIVE
BASS EX.

PLAY & EXCHANGE SYSTEM

P. UPP. DOWN

CD REC STARTDUBBING

REC

START/STOP

EJECT

COMPACT

DIGITAL AUDIO

VOLUME

FM

/AM

DISC

DISC

DISC

STANDBY

POWER

SENSOR

TUNING
DOWN

MIC 1 MIC 2 MIC LEVEL

PHONES

AB

PLAY REC/PLAY

DISC

3

TRIPLE TRAY

MULTI CONTROL

TUNING

UP

DECK A/B REVERSE MODE

MIN MAX

AUTO REVERSE AUTO REVERSE

EJECT

CD REC START
REC ST ART/STOP
DUBBING

20

REC indicator

When the System is being used, the display shows other items as well.
However, we have only shown the items described in this section.

Recording onto a cassette from any of the sound sources is simple. Just place a tape in Deck B, have the
source ready, make one or two settings, and you’re ready to record. For each source the procedure is a
little bit different and now we’ll explain just what to do for each one. If you forget, just come back to the
section which has the specific procedures you need. But first, here are a few things to make your record­ings better.

Things To Know Before You Start Recording ———————

o It may be unlawful to record or play back copyrighted material without the consent of

the copyright owner.

o When you want to record onto both sides of a tape, you can set Reverse mode on to do so. However,

recording automatically stops after recording in the 2 direction in Reverse mode. Therefore, make
sure that the tape direction is 3 when recording with Reverse mode on.

o The recording level, which is the volume at which the new tape is being made, is automatically set

correctly, so it is not affected by the VOLUME control on the System. Thus, during recording you can
adjust the sound you are actually listening to without affecting the recording level.

o Two small tabs on the back of the cassette tape, one for side A and one for side B, can be removed to

prevent accidental erasure or re-recording. To record on a cassette with the tabs removed, you must
cover the holes with adhesive tape first.
However, when a type II tape is used, only cover part of the hole as shown, since the other part of the
hole is used to detect the tape type.

o When recording, you can hear Sound Mode effects through the speakers or headphones. However, the

sound is recorded without Sound Mode effects.

o Type I and Type II tapes can be used for recording.

Note: At the start and end of cassette tapes, there is leader tape which cannot be recorded onto. Depend-

START/STOP

REC

ing on the recording source, the first part of the recording may be missing because of the leader. When
recording CDs or radio broadcasts, to get the beginning of the recording on the tape, first wind on the
leader before beginning recording.

CAUTION: If recordings you have made have excessive noise or static,
the Unit may be too close to a TV which was on during the recording.
Either turn off the TV or increase the distance between the TV and the
System.

Standard Recording

This is the basic method for recording any source. The System also has special ways for recording CD to
tape, and tape to tape, which save you time and effort, as well as give you some special effects. However,
when you need to add a selection to a tape you have made, or are combining selections from several
sources on one tape, use the method described below; just substitute the source you want into this
procedure, such as a tape in Deck A, a CD, or the Tuner. You can also record from auxiliary source with
this procedure.

To Record Any Sound Source To Tape ——————————

Follow these steps to record from any sound source onto a tape in Deck B.

Using the Unit

1. Insert a blank or erasable tape into Deck B.

English

REC PAUSE

2. Press the REVERSE MODE button if you want to record on both
sides of the tape.

Press the button until the “ ” or “ ” indicator is lit.

• When using Reverse Mode, insert the tape so that it will be recorded in the forwards 3 direction.

3. Check the recording direction for the tape.

Check that the Tape Direction indicator is the same as that for the tape in the tape deck. If the
directions are different, press the 7 button after pressing the ¤ TAPE ‹ button to set the tape
direction.

• When using Reverse Mode to record both sides of a tape, check that the Tape Direction indicator

is in the forwards 3 direction. If the direction indicator is not in the forwards 3 direction, press
the ¤ TAPE ‹ button then press the 7 button.

4. Prepare the source, by, for example, tuning in a radio station,
loading CDs, or turning on connected equipment.

5. Press the REC START/STOP button.

The “REC” indicator light comes on and the System begins recording.

Using the Remote Control

1. Insert a blank or erasable tape into Deck B.

2. Press the REC PAUSE button.

The “REC” indicator blinks.

3. Press the REVERSE MODE button on the Unit if you want to record
on both sides of the tape.

Press the button until the “ ” or “ ” indicator is lit.

• When using Reverse Mode, insert the tape so that it will be recorded in the forwards 3 direction.

4. Prepare the source by, for example, tuning in a radio station, load­ing CDs, or turning on connected equipment.

5. Press the ™ or £ button.

Recording starts in the direction of the button pressed.

• When using Reverse Mode to record both sides of a tape, press the £ button.

Notes for using Reverse Mode for recording

When recording in Reverse Mode, the System automatically stops when it reaches the end of the reverse
2 direction. To record on both sides of a tape, make sure that the recording direction for the tape inserted
into Deck B is forwards 3, and that the Tape Direction indicator is also forwards 3, before you start
recording.

21

English

CONTINUE

To Pause at Any Time During the Recording Process

Press the REC PAUSE button on the Remote Control. Then press either the ™ or £ button on the
Remote Control or REC START/STOP button on the Unit to restart recording.

To Stop at Any Time During the Recording Process

Press the REC START/STOP button on the Unit again, or press the 7 button.

Recording AM station to tape

When recording an AM broadcast, beats may be produced which are not heard when listening to the
broadcast. In this case, press the CONTINUE button on the CD Player to eliminate the beats.

1. Set to AM station and start recording.

2. Press the CONTINUE button to eliminate the beats.

Each time you press the button, the display changes as shown below:
= CUT 2 = CUT 3 = CUT 1 = (back to the beginning)

CD Direct Recording

Everything on the CD goes onto the tape in the order it is on the CD, or according to the order you have
set in a program.

1. Prepare CDs. (See page 13.)

Check that the CD Player is not playing a CD.

2. Insert a cassette in Deck B to record on.

• When you want to record on both sides of a tape, press the REVERSE MODE to turn Reverse

Mode on. Check that the recording direction for the tape and the Tape Direction indicator is
correct. (See page 21 “Notes for using Reverse Mode for recording”.)

CD REC START

3. Press the CD REC START button.

The “REC” indicator light comes on and the System begins recording.

If you make a recording with Reverse Mode on, the Unit will record the last song at the end of the
first side at the beginning of the next side.

To stop at any time during the recording process, p ress the 7 button.

Note: When making SLEEP timer settings while doing CD Direct recording, set the time so that there is

enough leeway to finish the recording before the power goes off. If the time is set to about the length of
the CD, the power may go off before recording finishes.

For CD Direct Recording using more than one disc, use a blank tape, If you use a prerecorded tape,
prerecorded material may not be erased between newly-recorded tracks.

Tape to Tape Recording (Dubbing)

Recording from one tape to another is called dubbing.
You can dub tapes simply, with just a single button.
o When dubbing tapes, make sure that the playback direction of Deck A and Deck B are the same.
o When you want to record both sides of a tape, press the REVERSE MODE button to turn Reverse

mode on.

o It is preferable that the type of tape (Type I or Type II) you record from be the same as the type you

record onto.

How to Use the DUBBING Button —————————————

1. Insert the source cassette you want to copy from into Deck A for
playback.

Insert the cassette so that it will be played in the forwards 3 direction.

22

DUBBING

2. Insert the blank or erasable cassette you want to copy onto into
Deck B for recording.

Insert the cassette so that it will be recorded in the forwards 3 direction.

3. Press the DUBBING button.

Deck A and Deck B will start simultaneously.

To stop dubbing, press the 7 button or REC START/STOP button.
o When doing dubbing with the DUBBING button, you can hear Sound Mode effects through the

speakers or headphones. However, the sound is dubbed without Sound Mode effects.

Using the Timer

2 TIMER

1 CLOCK

English

4 – SELECT 5 +

8 SET

23

1

CLOCK TIMER

456

– SELECT +

789

SET

ECHO

10

10

DISC

PLAY MODE

DISC

DISC

A

B

REC PAUSE

ACTIVE

SOUND

BASS EX.

MODE

RM-SED50TXU
REMOTE CONTROL

FM MODE

7

/CLEAR

C D

DECK

VOLUME

POWER

SLEEP

SHIFT

FM/AM

AUX

£/8

SHIFT

Display

CONT.

ALL PRGM

Clock, timer-on time etc.

RANDOM

When the System is being used, the display shows other items as well.
However, we have only shown the items described in this section.

The timers lets you control listening and recording functions automatically.

Use the Remote Control to set the clock and timers.

A.BASS EX

REC

Timer indicator

S.MODE

SLEEP MONO

kHz

MHz

STCLOCK

SHIFT

1

CLOCK

45

– SELECT +

8

SET

Setting the Clock

The timers depend on the clock: the clock must be right for the timers to work as you expect.
You can set the clock whether the Unit is on or off.

Note that the clock must be set, otherwise the timers cannot be set.

1. Press the SHIFT button.

2. Press the 1 CLOCK button.

The “CLOCK” indicator on the display light up and the clock time blinks.

3. Press the SELECT 5 + or 4 – button to set the time.

Pressing the 5 + button increases the time and pressing 4 – decreases the time. Pressing the button
continuously advances or decreases the time in 10 minute intervals.

4. Press the 8 SET button.

The blinking time display changes from a blinking display to a steady display and the clock timer
starts from 0 seconds.

CAUTION: If there is a power failure, the clock loses its setting. The
display shows “0:00”, and the clock must be reset.

23

Setting the Timer

English

SHIFT

2

TIMER

45

– SELECT +

8

SET

o You can set the Timer whether the Unit is on or off.

Procedure For Setting the Timer

1. Press the SHIFT button.

2. Press the 2 TIMER button.

The Timer indicator on the display lights up and the blinking “TIMER ON” changes to the On Time
setting display.

\

3. Set the time you want the Unit to
come on.

Press the SELECT 5 + or 4 – button to set
the On Time.

4. Press the 8 SET button.

“TIMER OFF” blinks on the display, and the display changes to the Off Time setting display.

45

– SELECT +

8

SET

45

– SELECT +

\

5. Set the time you want the Unit to
be turned off.

Press the SELECT 5 + or 4 – button to set
the Off Time.

6. Press the 8 SET button.

The name of the source blinks in the display.

7. Press the SELECT 5 + or 4 – button
to select the source.

The display changes with each press of the button
as shown.

Ô TUNER Ô TUNER REC Ô CD Ô TAPE Ô

TUNER: Selects the last station you were listening to.
TUNER REC: Records the last station you were listening to.
CD: Plays the last CD you were listening to.
TAPE: Plays the last tape you were listening to.

24

• In the source “TUNER”, “CD”, or “TAPE”, the timer acts as a Daily timer. Once the Daily timer

has been set, it will be activated at the same time every day until the setting is turned off.
In the source “TUNER REC”, the timer acts as a Once timer. After the Once timer has been
performed, the details of the setting remain stored but the Timer status is set to off.

SET

A.BASS EX S.MODE

SLEEP

8

8. Press the 8 SET button.

The volume level blinks on the display.

English

45

– SELECT +

8

SET

SLEEP

9. Press the SELECT 5 + or 4 – button
to set the volume level.

10.

Press the 8 SET button.

The display returns to the display before you set the timer.

Before Turning the Unit Off

• Check that the selected source is ready.

• If you will be recording a source while you are out, set the volume to 0.

To turn the Timer off, press the 2 TIMER button while pressing the SHIFT button. The Timer indicator
on the display goes out.

Setting the SLEEP Timer

Use the Sleep Timer to turn the Unit off after a certain number of minutes when it is playing. By setting
this timer, you can fall asleep to music and know your Unit will turn off by itself rather than play all
night.
o You can only set the Sleep Timer when the Unit is on and a source is playing.

To set the SLEEP Timer, follow this procedure:

1. With the System on and a source
playing, press the SLEEP button
on the Remote Control.

2. Set the length of time you want the source to play before shutting
off.

• Each time you press this button, it changes the number of minutes shown on the display in this

sequence:

= 10 = 20 = 30 = 60 = 90 = 120 = Cancelled = (back to the beginning)

When the number of minutes you want shows on the display, just wait 5 seconds until the number of
minutes stops blinking, and is lighted steadily.
The Unit is now set to turn off after the number of minutes you set.

To Change the SLEEP Timer Setting

Press the SLEEP button until the number of minutes you want appears on the display.

To Cancel the SLEEP Timer Setting

Press the SLEEP button until the “SLEEP” indicator goes off on the display.
Turning off the Unit also cancels the SLEEP Timer.

25

English

Using the Microphone

SOUND

MODE

23

1

CLOCK TIMER

456

– SELECT +

789

SET

ECHO

10

10

DISC

DISC

DISC

A

B

REC PAUSE

ACTIVE

SOUND

BASS EX.

MODE

PHONES

MIC LEVEL

POWER

SLEEP

SHIFT

FM/AM

FM MODE

AUX

PLAY MODE

7

/CLEAR

£/8

C D

DECK

VOLUME

RM-SED50TXU
REMOTE CONTROL

MIC 1
MIC 2

SHIFTECHO

VOLUME –, +

RANDOM

CONTINUE

CD

AUX

TAPE

FULL-LOGIC CONTROL

AUTO TAPE SELECTOR

REPEAT

SOUND
MODE

ACTIVE

BASS EX.

PLAY & EXCHANGE SYSTEM

P. UPP. DOWN

CD REC STARTDUBBING

REC

START/STOP

COMPACT

DIGITAL AUDIO

VOLUME

FM

/AM

EJECT

DISC

DISC

DISC

STANDBY

POWER

SENSOR

TUNING
DOWN

MIC 1 MIC 2 MIC LEVEL

PHONES

AB

PLAY REC/PLAY

DISC

3

TRIPLE TRAY

MULTI CONTROL

TUNING

UP

DECK A/B REVERSE MODE

MIN MAX

AUTO REVERSE AUTO REVERSE

EJECT

Display

Source, Sound Mode Volume Level etc.

RANDOM

CONT.

ALL PRGM

SOUND MODE

VOLUME

A.BASS EX S.MODE

REC

SLEEP MONO

kHz

MHz

STCLOCK

MIC 1 MIC 2 MIC LEVEL

MIN MAX

: Karaoke indicator
: Echo indicator

When the System is being used, the display shows other items as well.
However, we have only shown the items described in this section.

The System includes two microphone terminals, MIC 1 and MIC 2. By attaching a microphone to one or
both of these terminals, you can use the System for Karaoke or microphone mixing. You can also add an
echo to the microphone’s sound.

The MIC LEVEL control adjusts the volume for both MIC 1 and MIC 2 at the same time.
When you will not be using the microphone, keep the MIC LEVEL control set to MIN, and discon­nect the microphone.

CAUTION: Always set the MIC LEVEL control to MIN when connecting or
disconnecting the microphone.

Karaoke (Sing Along)

The Vocal Masking function lets you use regular tapes, CDs, or records as sources for Karaoke.
When you select Karaoke mode, the lead vocal volume of the source is reduced, and you can replace it by
singing into the microphones as the music plays.

Singing Along with Karaoke ————————————————

26

1. Turn the MIC LEVEL control to MIN.

2. Connect the microphone (not supplied) by plugging it into the MIC
jack on the front panel.

SOUND

MODE

ACTIVE

BASS EX.

or

SOUND

MODE

3. Press the SOUND MODE button repeatedly until “KARAOKE” ap­pears in the display.

The “ ” indicator comes on.

4. Start the source CD, tape or other equipment.

5. Adjust the VOLUME control and the MIC LEVEL control, as you sing
into the microphone.

Important Information on Karaoke

❏ Because a radio signal is not as reliable as signals coming from a tape or CD, you may not always get

satisfactory results using the radio as a source for Karaoke.

❏ Some tapes and CDs are better sources for Karaoke than others.

• Mono sources are not suitable for Karaoke.

• The lead vocals may not be completely reduced for sources with duets, strong echo, a chorus, or

only a few instruments.

• Poorly dubbed tapes may not be suitable for Karaoke.

English

SHIFT

7

ECHO

Digital Echo ————————————————————————

You can get an echo effect to apply to your voice.

1. Press the SHIFT button on the Remote Control.

2. Press the 7 ECHO button on the Remote Control.

The Echo indicator comes on.

No echo is applied. An echo is applied.

➧

To prevent howling and squealing (feedback) when using the microphone, adjust the MIC LEVEL control
and the VOLUME control. Also, try to avoid pointing the microphone towards the speakers.
❏ When two microphones are connected, turn the microphone ON/OFF switch for the microphone that

is not being used to OFF.

❏ When recording sound from the microphone, the digital echo effect is also recorded.

To Record Your Singing ——————————————————

1. Follow the steps in “Singing Along with Karaoke” above.

2. Follow the steps in “Standard Recording” (See page 21) to record
your singing.

27

Microphone Mixing

English

MIC 1 MIC 2 MIC LEVEL

MIN MAX

MIC 1 MIC 2 MIC LEVEL

MIN MAX

When using special Karaoke sources for karaoke, use the following procedure.

1. Set the MIC LEVEL control to MIN.

2. Connect the microphone (not supplied) by plugging it into the MIC
jack on the front panel.

3. Start the source CD, tape, or other equipment.

4. Adjust the VOLUME control and the MIC LEVEL control, as you sing
into the microphone.

To apply echo to the microphone sound, follow the steps in “Digital Echo”. (See page 27.)

To Record Microphone Mixing ———————————————

1. Follow the steps in “Microphone Mixing”above.

2. To record, follow the steps in “Standard Recording”. (See page 21.)

Playing the Microphone Sound through
the Speakers

1. Set the MIC LEVEL control to MIN.

2. Connect the microphone (not supplied) by plugging it into the MIC
jack on the front panel.

3. Adjust the VOLUME control and the MIC LEVEL control as you sing
into the microphone.

To apply echo to the microphone sound, follow the steps in “Digital Echo”. (See page 27.)

Recording from the Microphone ——————————————

1. Follow the steps in “Playing the Microphone sound through the
Speakers” above.

2. To record, follow the steps in “Standard Recording”. (See page 21.)

28

Care And Maintenance

English

Compact Discs

Handle your compact discs, cassette tapes, and
Cassette Deck carefully, and they will last a
long time.

• Remove the CD from the case by holding
it at the edges while pressing the centre
hole lightly.

• Do not touch the shiny surface of the CD,
or bend the CD.

• Put the CD back in its case after use to
prevent warping.

• Be careful not to scratch the surface of the
CD when placing it back in the case.

• Avoid exposure to direct sunlight,
temperature extremes, and moisture.

• A dirty CD may not play correctly. If a CD
does become dirty, wipe it with a soft cloth
in a straight line from centre to edge.

CAUTION: Do not use any solvent (for exam­ple, conventional record cleaner, spray thin­ner, benzine, etc.) to clean a CD.

Moisture Condensation

Moisture may condense on the lens inside
the Unit in the following cases:

• After starting the heating in the room.

• In a damp room.

• If the unit is brought directly from a

cold to a warm place.
Should this occur, the Unit may malfunc­tion. In this case, leave the unit turned on
for a few hours until the moisture evapo­rates, unplug the AC power cord, and then
plug it in again.

Cassette Tapes

• If the tape is loose in its cassette, take
up the slack by inserting a pencil in
one of the reels and rotating.

• If the tape is loose, it may get
stretched, cut, or caught in the cassette.

• Do not touch the tape surface.

• Do not store the tape:

- In dusty places

- In direct sunlight or heat

- In moist areas

- On a TV or speaker

- Near a magnet

Cassette Deck

• If the heads, capstans, and pinch-rollers of the Cassette Deck
become dirty, the following will occur:

- Loss of sound quality

- Discontinuous sound

- Fading

- Incomplete erasure

- Difficulty recording

• Clean the heads, capstans, and pinch-rollers using a cotton
swab moistened with alcohol.

Pinch-rollers

Capstans

General Notes

In general, you will have the best performance by keeping your
tapes, CDs, and the mechanism clean.

• Store tapes and CDs in their cases, and keep them in cabinets
or on shelves.

• Keep the Cassette Deck’s tape doors and the CD trays closed
when not in use.

Heads

• If the heads become magnetized, the Unit will produce noise
or lose high frequencies.

• To demagnetize the heads, turn off the Unit, and use a head
demagnetizer (available at electronics and record shops).

29

Troubleshooting

English

• If you are having a problem with your System, check this list for a possible solution before calling for service.

• If you cannot solve the problem from the hints given here, or the Unit has been physically damaged, call a qualified person, such as your
dealer, for service.

Symptom

No sound is heard.

Unable to record.

Poor radio reception

The CD skips.
Unable to operate the Remote Control.

The CD tray cannot be opened.
The CD does not play.
Operations are disabled.

The cassette door cannot be opened.

Possible Cause

Connections are incorrect, or loose.

Cassette record protect tabs are removed.

• The antenna is disconnected.

• The AM Loop Antenna is too close to
the Unit.

• The FM Wire Antenna is not properly
extended and positioned.

The CD is dirty or scratched.

• The path between the Remote Control
and the sensor on the Unit is blocked.

• The batteries have lost their charge.

The main AC power cord is not plugged in.
The CD is upside down.
The built-in microprocessor has malfunc-

tioned due to external electrical interfer­ence.

During tape playing, the power cord was
unplugged.

Action

Check all connections and make correc­tions. (See pages 4 - 5.)

Cover holes on back edge of cassette with
tape.

• Reconnect the antenna securely.

• Change the position and direction of the
AM Loop Antenna.

• Extend FM Wire Antenna to the best
reception position.

Clean or replace the CD.

• Remove the obstruction.

• Replace the batteries.

Plug in the AC power plug.
Put the CD in with the label side up.
Unplug the Unit then plug it back in.

Plug in the power cord, press the POWER
button, and then press the 0 EJECT button.

30

Specifications

Amplifier

CA-D501T/MX-D401T

Output Power (IEC 268-3/DIN) 27 watts per channel, min. RMS, both channels driven into 6 ohms at 1 kHz with no more

than 0.9% total harmonic distortion.

MX-D301T

Output Power (IEC 268-3/DIN) 12 watts per channel, min. RMS, both channels driven into 4 ohms at 1 kHz with no more

than 0.9% total harmonic distortion.
Input Sensitivity/Impedance (1 kHz)
AUX 300 mV/50 kohms
MIC 1 3 mV/2 kohms
MIC 2 3 mV/2 kohms

CA-D501T/MX-D401T

Speaker terminals 6 - 16 ohms

MX-D301T

Speaker terminals Minimum 4 ohms

Cassette Deck

Frequency Response
Type II (CrO2) : 50 - 14,000 Hz
Type I (NORMAL) : 50 - 14,000 Hz
W ow And Flutter 0.15% (WRMS)

CD Automatic Changer

CD Capacity 3 discs
Dynamic Range 85 dB
Signal-To-Noise Ratio 90 dB
W ow And Flutter Unmeasurable

English

Tuner

FM Tuner
Tuning Range 87.5 - 108.0 MHz
AM Tuner
Tuning Range 531 - 1,602 kHz (at 9 kHz channel space)

530 - 1,710 kHz (at 10 kHz channel space)

CA-D501T/MX-D401T

Dimensions (W/H/D) 265 × 295 × 339 mm

(10-7/16 × 11-5/8 × 13-3/8 inches)

Mass 7.1 kg (15.7 lbs)

MX-D301T

Dimensions (W/H/D) 265 × 295 × 339 mm

(10-7/16 × 11-5/8 × 13-3/8 inches)

Mass 6.7 kg (14.8 lbs)

Speaker Specifications

SP-D401

Type 3- way, 3-speaker bass-reflex type
Speakers

Woofer 16 cm (6-5/16 inches) cone × 1
Mid Range 5 cm (2 inches) cone × 1
Tweeter 2 cm (13/16 inches) dome × 1
Power Hardling Capacity 80 watts
Impedance 6 ohms
Frequecy Range 45 Hz - 20,000 Hz
Sound Pressure Level 90 dB/w • m
Dimensions (W/H/D) 215 × 295 × 275 mm

(8-1/2 × 11-5/8 × 10-7/8 inches)

Mass 3.2 kg (7.1 lbs) each

31

SP-D311

Type 3- way, 3-speaker bass-reflex type
Speakers

English

Woofer 16 cm (6−5/16 inches) cone × 1
Mid Range 5 cm (2 inches) cone × 1
Tweeter 2 cm (13/16 inches) dome × 1
Power Hardling Capacity 80 watts
Impedance 4 ohms
Frequecy Range 45 Hz - 20,000 Hz
Sound Pressure Level 90 dB/w • m
Dimensions (W/H/D) 215 × 295 × 275 mm

Mass 3.2 kg (7.1 lbs) each

Accessories

Power Specifications

CA-D501T/MX-D401T

Power Requirements AC 110/127/220/230 - 240 V , 50/60 Hz adjustable with the voltage selector
Power Consumption 85 watts

Max. Power Consumption 185 watts (Taiwan only)

MX-D301T

Power Requirements AC 110/127/220/230 - 240 V , 50/60 Hz adjustable with the voltage selector
Power Consumption 55 watts

Max. Power Consumption 120 watts (Taiwan only)

(8-1/2 × 11-5/8 × 10-7/8 inches)

AM Loop Antenna (1)
Remote Control (1)
Batteries R6P (SUM-3)/AA (15F) (2)
FM Wire Antenna (1)
AC Plug Ada ptor (except for Hong Kong) (1)

12 watts (in standby mode)

12 watts (in standby mode)

Design and specifications are subject to change without notice.

32
