JVC BlackCrystal JLE32BC3001, BlackCrystal JLE37BC3001, BlackCrystal JLE42BC3001, BlackCrystal JLE47BC3001 User Manual
User Manual
BlackCrystal™ 3001 Series LED TV
JLE32BC3001
JLE37BC3001
JLE42BC3001
JLE47BC3001
32” Class
37” Class
42” Class
47” Class
Before operating your LED TV, please read this manual thoroughly.
®
SRS StudioSound HD is a trademark of SRS Labs, Inc.
StudioSurround HD technology is incorporated under
license from SRS Labs, Inc.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI Logo, and High-De nition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United
States and other countries.
This product quali es for ENERGY STAR in the
“factory default” setting and this is the setting in which
power savings will be achieved. Changing the factory
default picture setting or enabling other features will
increase power consumption that could exceed the
limits necessary to qualify for Energy Star rating.
Congratulations on purchasing your new JVC TV. To get the most out of your JVC LED TV, read these
instructions before making any adjustments, and retain them for future reference.
For assistance, call the JVC Customer Support and Service Center 1-855-868-1928 or visit our website
http://go.jvc.com/HDTVSupport/
We recommend that you register your JVC LED TV either at our wesite http://go.jvc.com/HDTVSupport/
or ll out and mail the Product Registration Card on the back of the manual.
Retain your purchase receipt and write down the model and serial number located at the back of your
LED TV for easy reference when obtaining service support.
Serial Number:
Model Number:
HE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS;
IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. JVC, THE JVC LOGO, AND OTHER
JVC TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF JVC KENWOOD Corporation.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Copyrights © 2011 AmTRAN Video Corporation. ALL RIGHTS RESERVED.
Contents
HIGH-DEFINITION MULTIMEDIA INTERFACE
2
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES
AWAY FROM THIS PRODUCT AT TIMES.
CAUTION: TO PREVENT ELECTRIC SHOCK. DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
The lightning ash with arrowhead symbol, within
an equilateral triangle is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
su cient magnitude to constitute a risk of electric
shock.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Location of the required Marking
The rating sheet and the safety caution are on the rear of the unit.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit di erent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modi cations not expressly approved by the party responsible for compliance with the FCC Rules
could void the user’s authority to operate this equipment.
CAUTION: To Reduce The Risk Of Electric Shock, Do Not Remove Cover (Or Back). No User-Serviceable Parts
Inside. Refer Servicing To Quali ed Service Personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3
ENGLISH
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampli ers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding-type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories speci ed by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table speci ed by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to quali ed service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15) Apparatus should not be exposed to dripping or splashing, and objects lled with liquids, such
as vases, should not be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken to keep from touching
such power lines or circuits, as contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of re or electric
shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage
points or short out parts that could result in re or electric shock. Never spill or spray any type
of liquid into the unit.
19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable
system is grounded to provide some protection against voltage surges and built-up static
charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information
with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and requirements for the grounding
electrode.
20) When replacement parts are required, be sure the service technician uses replacement parts
speci ed by the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in re, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform
safety checks to determine that the unit is in proper operating condition.
Important Safety Instructions
4
Important Safety Instructions
22) When you connect the product to other equipment, turn o the power and unplug all of the
equipment from the wall outlet. Failure to do so may cause an electric shock and serious
personal injury. Read the owner’s manual of the other equipment carefully and follow the
instructions when making any connections.
23) Sudden high volume sound may cause hearing or speaker damage. When you use
headphones, (if the unit is equipped with a headphone jack) keep the volume at a moderate
level. If you use headphones continuously with high volume sound, it may cause hearing
damage.
24) Do not allow the product to output distorted sound for an extended period of time. It may
cause speaker overheating and re.
25) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, speci es that the
cable ground shall be connected to the grounding system of the building, as close to the point
of cable entry as practical.
26) The socket-outlet must be installed near the unit and easily accessible.
CHILD SAFETY:
It Makes A Difference How and Where You Use TV
Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:
THE ISSUE
The home theater entertainment experience is a growing trend and larger TVs are popular purchases. However, TVs are not
always supported on the proper stands or installed according to the manufacturer’s recommendations.
TVs that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and
cause injury.
THIS MANUFACTURER CARES !
The consumer electronics industry is committed to making home entertainment enjoyable and safe.
TUNE INTO SAFETY
One size does NOT t all. Follow the manufacturer’s recommendations for the safe installation and use of your TV.
Carefully read and understand all enclosed instructions for proper use of this product.
Don’t allow children to climb on or play with furniture and television sets.
Don’t place TVs on furniture that can easily be used as steps, such as a chest of drawers.
Remember that children can become excited while watching a program, especially on a “larger than life” TV. Care should be
taken to place or install the display where it cannot be pushed, pulled over, or knocked down.
Care should be taken to route all cords and cables connected to the TV so that they cannot be pulled or grabbed by curious
children.
5
ENGLISH
Important Safety Instructions
CONDENSATION
Moisture will form in the operating section of the unit if the unit is brought from cool surroundings
into a warm room or if the temperature of the room rises suddenly. When this happens, unit’s
performance will be impaired. To prevent this, let the unit stand in its new surroundings for
about an hour before switching it on, or make sure that the room temperature rises gradually.
Condensation may also form during the summer if the unit is exposed to the breeze from an air
conditioner. In such cases, change the location of the unit.
HOW TO HANDLE THE LED PANEL
• Do not press hard or jolt the LED panel. It may cause the LED panel glass to break and injury may
occur.
• If the LED panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may
cause skin in ammation.
• If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the
liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15
minutes or longer in clean water.
Possible Adverse Effects on LED Panel:
If a xed (non-moving) pattern remains on the LED Panel for long periods of time, the image can become
permanently engrained in the LED Panel and cause subtle but permanent ghost images. This type of
damage is NOT COVERED BY YOUR WARRANTY. Never leave your TV on for long periods of time while it is
displaying the following formats or images:
• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9)
media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal
style (4:3) media on a widescreen (16:9) display (black bars on left and right sides of screen).
The following symptoms are not signs of malfunction but technical limitation.
• LED Panels are manufactured using an extremely high level of precision technology, however
sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a
sign of a malfunction.
• Do not install the TV near electronic equipment that produces electromagnetic waves. Some
equipment placed too near this unit may cause interference.
• E ect on infrared devices – There may be interference while using infrared devices such as
infrared cordless headphones.
6
Important Safety Instructions
Television Antenna Connection Protection
External Television Antenna Grounding
If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that
the antenna or cable system is electrically grounded to provide some protection against voltage
surges and static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to
proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of the grounding conductors, location of antenna discharge unit, connection to
grounding electrodes, and requirements of the grounding electrode.
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
Lightning Protection
For added protection of the TV during a lightning storm or when it is left unattended or unused
for long periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable
system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or where it could fall into such
power lines or circuits.
7
ENGLISH
Important Safety Instructions
DTV Transition Advisory
As of June 12, 2009, all U.S. television stations have switched to digital broadcasting. As a result,
owners of analog television sets must connect a digital-to-analog converter box to the television
set or subscribe to cable or satellite TV to receive over-the-air TV. Analog-only TVs continue to
work as before to receive low power, Class A or translator television stations and with cable and
satellite TV services, gaming consoles, VCRs, DVD players, and similar products.
For more information about the DTV transition, visit www.dtv.gov.
FCC’s Consumer Center
Email: dtvinfo@fcc.gov
Phone: 1-888-CALL-FCC (1-888-225-5322)
Fax: 1-866-418-0232; or writing to:
Mail: Federal Communications Commission
Consumer and Governmental A airs Bureau
Consumer Inquiries and Complaints Division
445 12th Street, SW
Washington, DC 20554
8
Contents
Important Safety Instructions ....................3
Television Antenna Connection Protection ... 6
DTV Transition Advisory ........................................7
Attaching the Stand ..................................10
Unpacking the TV ..................................................10
JLE32BC3001 & JLE37BC3001 ......................10
JLE42BC3001 & JLE47BC3001 ......................11
Removing the Stand .............................................11
Package Contents ....................................12
Remote Control Batteries ........................12
Parts and Functions ................................. 13
Front Views ...............................................................13
Rear View ..................................................................13
Remote Control ......................................................14
Making Connections ................................15
Connecting Antenna / Cable .............................15
Connecting HD Devices ......................................15
HDMI .....................................................................15
Component ........................................................16
Composite ..........................................................16
Connecting External Speakers /
Soundbar / AV Receivers .....................................17
Digital Connection ..........................................17
Analog Connection .........................................17
Connecting Computers and Laptops .............18
Connecting Music Port ........................................18
Basic Operations ...................................... 19
Setup Wizard ...........................................................19
Exit Retail Mode ................................................20
Basic TV Operation ................................................20
Changing Channel ...........................................20
Mute Volume .....................................................21
Set Sleep Timer .................................................21
Display Info.........................................................21
Set Aspect Ratio ...............................................21
Selecting Input Source ........................................22
Multimedia Mode ..................................................22
Playing Multimedia Files ...............................22

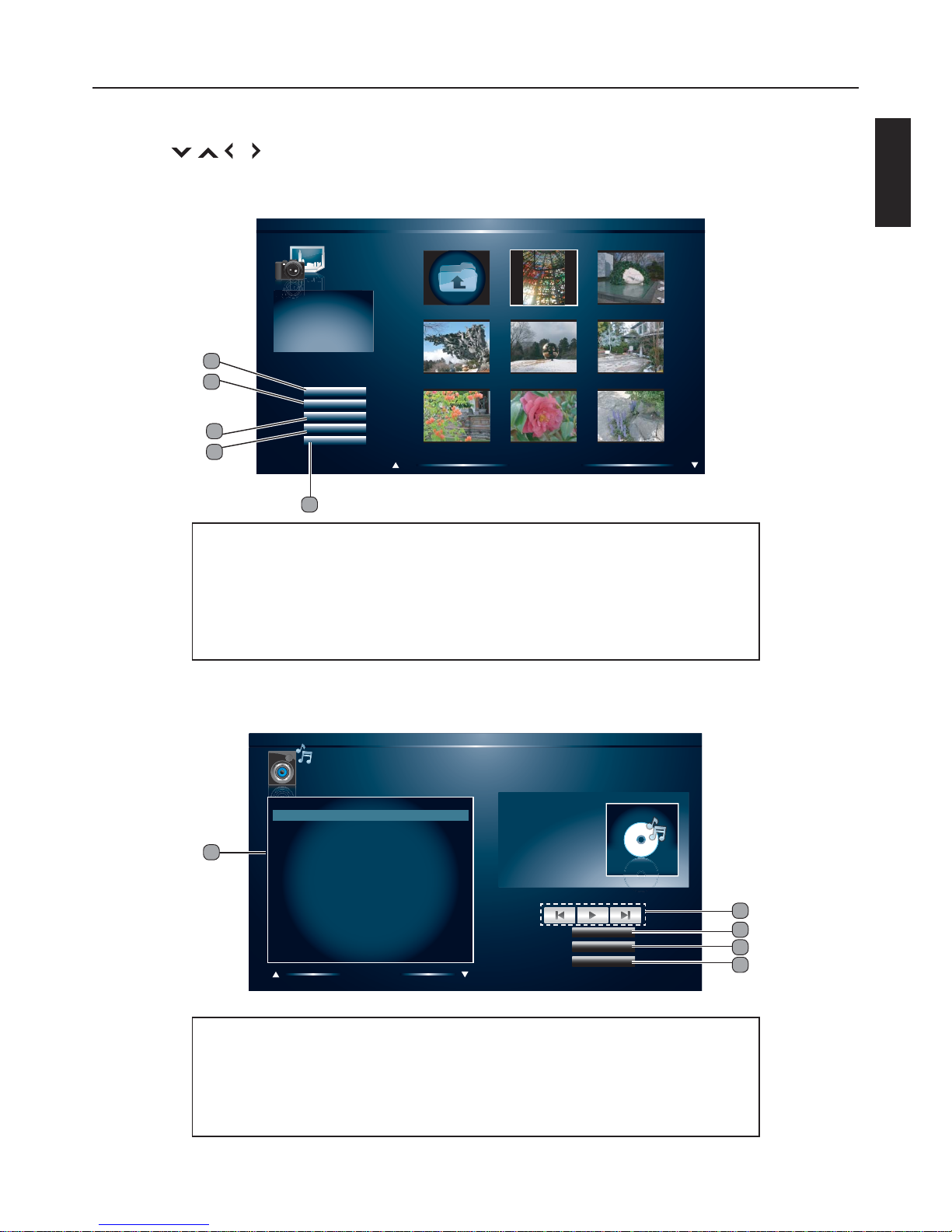

Multimedia: Photo ...........................................23
Multimedia: Music ...........................................23
Multimedia: Video ............................................24
Audio Only Mode ...................................................24
Kensington Lock ....................................................25
Wall Mount ...............................................................26

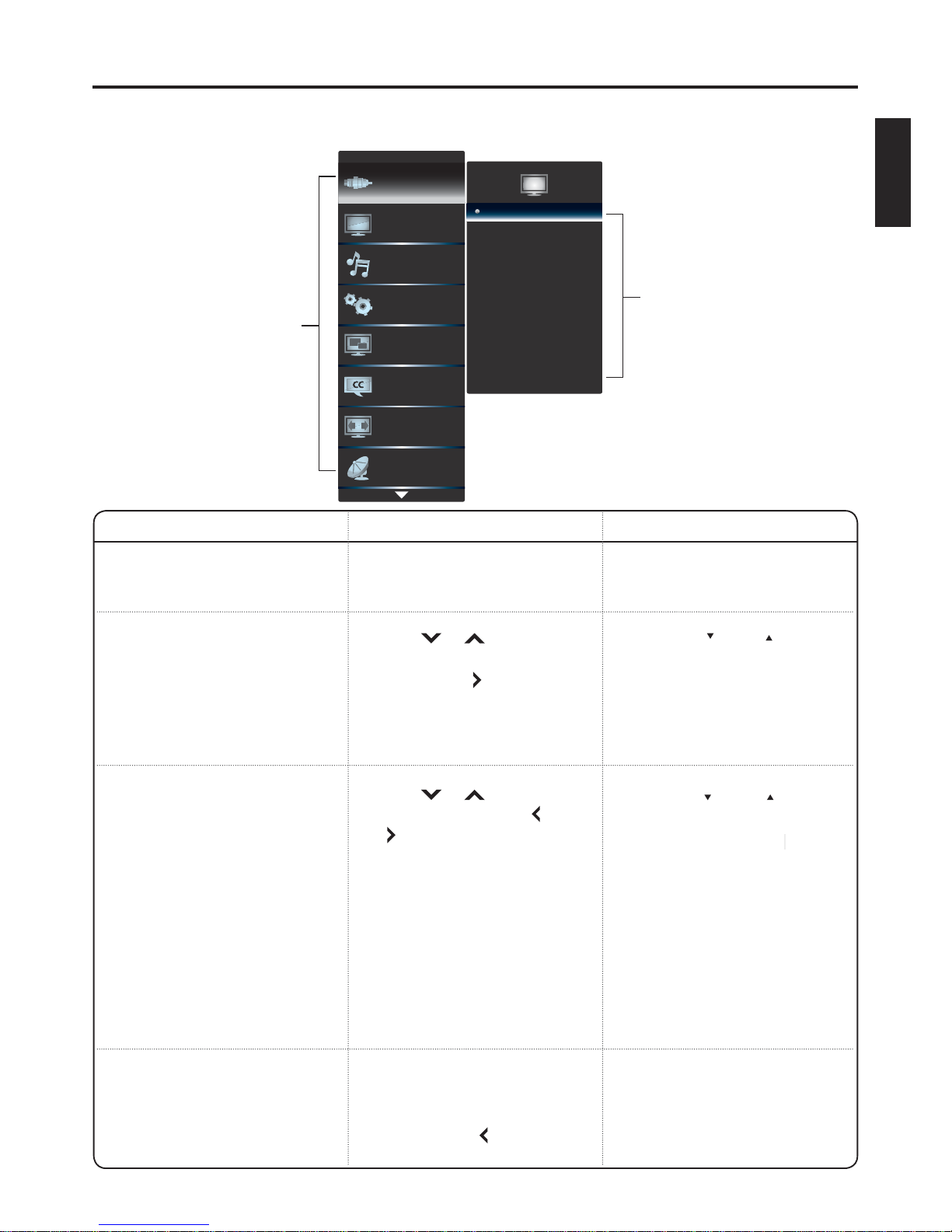

Adjusting the Menu Settings ................... 27
Quick Menu Operation ........................................27
Input Menu ..............................................................28
Picture Menu ...........................................................28
Picture Mode .....................................................28
Backlight .............................................................28
Contrast ...............................................................28
Brightness ...........................................................28
Color .....................................................................28
Tint ........................................................................29
Sharpness ...........................................................29
Size & Position ...................................................29
Color Temperature ...........................................29
Ambient Light Sensor.....................................29
Advanced Picture .............................................29
Reset Picture Mode .........................................29
Audio Menu .............................................................30
SRS StudioSound .............................................30
SRS TruVolume ..................................................30
Bass .......................................................................30
Treble ....................................................................30
Balance ................................................................30
Lip Sync ...............................................................30
TV Speakers ........................................................30
Audio Only ..........................................................30
Digital Audio Out .............................................30
Analog Audio Out ............................................30
Equalizer Settings ............................................30
Reset Audio Mode ...........................................30
Setup Menu .............................................................31
Name Input ........................................................31
Game Mode .......................................................31
CEC Settings .......................................................31
Menu Languange .............................................31
Time & Local Settings .....................................32
Parental Control ................................................32
Setup Wizard ......................................................33
System Information .........................................33
Reset All Settings .............................................33
Picture-in-Picture (PIP) .........................................33
PIP (Picture-In-Picture) ...................................33
POP (Picture-Over-Picture) ...........................34
Closed Caption .......................................................35
Channel Menu ........................................................35
9
ENGLISH
Select Antenna / Cable ..................................35
Scan Channels ...................................................35
Add Channel ......................................................36
Delete Channel .................................................36
Sleep Timer ..............................................................36
Appendix ...................................................37
Supported Input Source for PIP/POP .............37
Supported Resolution ..........................................37
Troubleshooting .......................................38
Specifi cations ........................................... 39
Limited Warranty ......................................41
Product Registration ................................ 43
Contents
10
Attaching the Stand
The stand installation varies depending on
model. Perform the installation according to the
instructions of your TV model.
Unpacking the TV
1 Remove the remote control, power cord,
and other accessories from the foam and
caps.
2 Remove the top foam caps.
3 Remove the stand.
4 Remove the TV from the box.
5 Place the TV face down on a at and clean
surface.
6 Attach the stand according to the
instructions of your TV model.
JLE32BC3001(32”) & JLE37BC3001(37”)
1 Connect the TV’s neck to the stand.
2 Secure the base with the provided
thumbscrew.
11
ENGLISH
JLE42BC3001(42”) & JLE47BC3001(47”)
1 Align the metal neck of the stand to the slot
at the back of the TV and insert the neck into
the slot.
2 Align the bottom four screw holes with the
neck and stand, and secure with the provided
four screws and screwdriver.
3 Insert the neck cover into the slot and attach
it rmly until it locks into place.
Attaching the Stand
Removing the Stand
When the TV needs to be transported, remove
the stand and pack the TV back in the carton.
To remove the stand, perform the assemble
steps in reverse order according to your TV
model.
12
Package Contents
Check if the following items are included in your package.
LED TV
Quick Start
Guide
Remote Control
I
N
P
U
T
I
N
F
O
M
E
N
U
VOL CH
MUTE
SLEEP
OK
W
I
D
E
A
U
D
I
O
R
E
T
U
R
N
MEDIA
1 2 3
4 5 6
7 8 9
_
0
ENT
HDMI PC TV
VIDEO COMP MUSIC
Quick Start Guide
Batteries
User's Manual
User Manual
Remote Control Batteries
1 Push the tab, then lift to open the cover.
2 Insert the batteries, making sure the [+] and
[-] polarities are correct.
3 Close the battery cover.
Battery Precautions:
Be sure to follow the correct polarity. Incorrect installation
may cause battery leakage or damage the remote control.
Always replace batteries in pair. Do not combine a used
battery with a new one.
Do not use di erent battery types together
(e.g. “Alk aline” and “Carbon-zinc”).
If the remote control is not to be used for a long period of
time, remove the batteries to prevent battery leakage.
Power Cord
13
ENGLISH
Parts and Functions
Front Views
POWER button
MENU button
Channel Up / Down button
INPUT button
Volume Up / Down button
Power indicator
• Power ON: White
Remote control sensor
Rear View
AC INPUT
VESA mounting holes
PC IN (See page 18)
PC Audio / Music IN
(See page 18)
USB port
HDMI port
Component IN / Composite IN
(See page 16)
DTV / TV / Antenna
(See page 15)
Stereo Audio OUT
(See page 17)
Optical Audio OUT
(See page 17)
14
Remote Control
1 IR Transmitter: Sends remote control signal to
the TV.
2 SLEEP button: Select a sleep mode timer (O ,
30 minutes, 60 minutes, 90 minutes, 120 minutes,
180 minutes).
3 Playback controls: The buttons are used for
Photo, Music, Video, and HDMI CEC function.
4 INPUT button: Change the input source.
5 WIDE button: Change the display mode
(Normal, Wide, Zoom Panoramic).
6 MUTE button: Turn the TV audio o or on.
7 VOL (Volume) buttons: Press VOL
to
increase volume or VOL to decrease volume.
8 Number pad (0~9, –): Use the number keys to
directly change channel.
9 HDMI button: Press to directly set HDMI as the
input source signal.
10 VIDEO button: Press to directly set Composite
VIDEO as the input source signal.
11 COMP button: Press to directly set Component
as the input source signal.
12 Remote Control LED: Lights red when a
button is pressed.
13 POWER button: Turn the TV on or o .
14 MEDIA button: Enter USB media mode.
15 MENU button: Display the MENU screen.
16 INFO button: Display program information (if
available).
17 Direction buttons
/ / / :
Navigate the menu, select options, or adjust
settings value.
18 OK button: Enter a menu or con rm an option.
19 RETURN button: Return to a previous menu or
screen.
20 AUDIO button: Enter Audio Only mode and
turn the screen o . See page 24.
21 CH (Channel) buttons: Use CH
to increase
the channel number or CH to decrease the
channel number.
22 ENT (Enter) button: Access the entered
channel number or display the Channel list screen.
23 TV button: Directly set TV as the input source
signal.
24 PC button: Directly set PC as the input source
signal.
25 MUSIC button: Directly set Music as the input
source signal.
I
N
P
U
T
I
N
F
O
M
E
N
U
VOL CH
MUTE
SLEEP
OK
W
I
D
E
A
U
D
I
O
R
E
T
U
R
N
MEDIA
1 2 3
4 5 6
7 8 9
_
0
ENT
HDMI PC TV
VIDEO COMP MUSIC
1
2
3
4
5
6
7
8
9
10
11
21
22
23
25
24
20
19
18
16
15
14
13
12
17
Notes:
To obtain best results, use the remote control with a proper
distance from the TV and ensure that there are no obstacles
between them.
Aim the remote control transmitter to the remote control
sensor on the TV.
Do not expose the remote control to direct sunlight. This
may a ect the performance of the remote control.
Parts and Functions
15
ENGLISH
Making Connections
Connecting Antenna / Cable
Connect the 75 ohm coaxial cable directly to the DTV/TV Cable/Antenna jack of the TV.
DTV / TV
CABLE / ANTENNA
75 ohm coaxial cable
Connecting HD Devices
You can connect di erent devices to the TV using HDMI, DVI, Composite, or Component
connections. Check the type of connection available on your device.
HDMI
HDMI connection transmits both digital video and audio signals from an HDMI device to the TV.
HDMI
HDMI
TM
TV
Game Console / Blu-ray Player / Cable Box / Satellite
HDMI cable
Video / Audio IN
Video / Audio OUT
Note: The HDMI cable is not included with the TV.
16
TV
VIDEO
VIDEOAUDIO
L R
VIDEO
AUDIO
L
R
Y/V
Video cable
VCR / Camcorder / Game Console
Video IN
Audio IN
Audio OUT
Video OUT
Note:
• The video and audio cable are not included with the TV.
• When connecting to devices, the Video IN color may not match with the video cable.
Making Connections
Composite
Component
COMPONENT
AUDIO
L
Pr/CrPb/Cb
R
Y
Pb/Cb
Pr/Cr
AUDIO
L
R
Y/N
TV
DVD Player / Cable Box / Satellite
Component cable
Video IN
Video OUT
Audio OUTAudio IN
Audio cable
Note: The component and audio cable are not included with the TV.
17
ENGLISH
AUDIO OUT
OPTICAL
OPTICAL
Digital Audio System
Audio IN
Optical audio cable
Audio OUT
Note:
• The optical audio cable is not included with the TV.
Making Connections
Connecting External Speakers / Soundbar / AV Receivers
Digital Connection
Connect the SPDIF/Optical audio cable to the Audio OUT optical port of the TV and the optical
port of the soundbar, AV receiver, or audio system.
TV
Analog Connection
Connect the audio cable to the Audio OUT L/R port of the TV and the port of the soundbar, AV receiver, or
audio system.
Note:
• The audio cable is not included with the TV.
Analog connection (42”&47” only)
Analog connection (32”&37” only)
Connect to External Speakers/Ampliers
AUDIO
L
R
AUDIO OUT
RL
AUDIO
L
R
AUDIO OUT
18
PC / MUSIC
PC AUDIO / MUSIC
VGA
Audio out
TV
Computer / Laptop
VGA cable
Video IN
Video OUT
Audio OUTAudio IN
PC audio cable
Note:
• The VGA and audio cable are not included with the TV.
• The TV will automatically go into power saving mode and turn o when no signal is detected for a period of time.
• The TV is best viewed at native resolution (1920 x 1080 @ 60Hz).
• If the screen is abnormal, press the MENU button to enter the TV’s menu screen and go to Picture->Size & Position->Auto
Adjust to adjust the picture automatically.
Connecting Music Port
The TV supports music playback from portable music players, such as an MP3 player or iPodTM.
1 Connect one end of an audio cable to the Music/PC Audio IN port of the TV, then connect the other
end to the Audio OUT port of the music player.
PC / MUSIC
PC AUDIO / MUSIC
Earphone
Audio IN
TV Rear
Audio OUT
Music player
3.5mm audio cable
2 Press MUSIC on the remote control to change to the music port. The Music screen is displayed.
Music playback from the music player is heard through the TV speakers.
Making Connections
Connecting Computers and Laptops
1 Connect one end of a VGA cable to the PC port of the TV.
2 Connect the other end of the VGA cable to the RGB port of the computer or laptop.
3 For audio, connect a 3.5mm audio cable to the PC audio port of the TV and audio out port of the
computer or laptop.
19
ENGLISH
Basic Operations
Setup Wizard
The Setup Wizard will assist you with setting up
your TV for the rst time. Please follow the
instruction carefully.
Note: If you would like to setup over-the-air or cable
programming, make sure the antenna or cable TV system is
connected. See page 15 for setup.
1 When you turn on the TV for the rst time, the
Setup Wizard screen will appear.
2 Press or to select the menu language, then
press OK.
Menu Language
Language Selection
Language:
English
ChangeSelect
OK
Exit
INFO
3 Press or to select the TV Mode, then press
OK.
TV Mode options :
• Home Mode: Select this mode for in
home use.
• Retail Mode: Select this mode for in
store demo.
Note:
• Retail mode is for retailers only.
• To exit Retail mode, see page 20.
TV Mode
Mode Selection
Mode:
Home Mode
ChangeSelect
OK
Exit
INFO
Previous Setup
RETURN
4 Press or to select the Time Zone, then press
OK.
Time Zone
Select the Time Zone
Time Zone:
Alaska
ChangeSelect
OK
Exit
INFO
Previous Setup
RETURN
5 Press or to set Daylight Saving Time “ON” or
“OFF”, then press OK.
Daylight Saving
Daylight Saving Selection.
Daylight Saving:
Off
ChangeSelect
OK
Exit
INFO
Previous Setup
RETURN
6 Press or to select the TV service, then press
OK.
Auto Scan
Select the Signal Type of your TV input
and start auto scan.
Signal Type:
Cable
Start Scan
ChangeMoveSelect
OK
Exit
INFO
Previous Setup
RETURN
20
7 Press OK to start channel scan.
Scanning
Channel scan in process, if you want to stop
scanning, please press "Stop Scan".
Scan Status:
0%
Analog Channel:
Digital Channel:
0
0
Stop Scan
Select
OK
Note:
• Scanning may take some time to complete.
• Select Stop Scan to cancel the auto scan at anytime.
8 When auto scan is complete, press OK to
continue.
Scan Finish
Channel scan completed.
Analog Channels:
Digital Channels:
12
26
OK
Select
OK
Exit
INFO
Previous Setup
RETURN
9 Press OK to complete setup.
Finish
Initial Setup has finished, please press "OK" to
exit Setup Wizard.
OK
Select
OK
Exit
INFO
Previous Setup
RETURN
Exit Retail Mode
1 Press RETURN.
2 Press or to select “OK”, then press OK to
con rm.
Do you wish to exit Retail Mode?
CancelOK
Basic TV Operation
Changing Channel
Press the number buttons to directly select
channels.
Note: After pressing the number buttons, there will be
a few seconds delay before the TV changes channel. To
change to the channel right away, press ENT after pressing
the number buttons.
To Browse Channel
Press the Channel up/down buttons on the
remote control or
CH
,
CH
on the TV to
increase or decrease the channel.
CH
Press to scroll through the
channels manually.
To Select Analog Channels
1~9 Press 1~9 as needed. Example,
to select channel 2, press 2, then
press ENT.
10~99 Press the 2 digits in order.
Example, to select channel 15,
press 1, 5, then ENT.
100~135: Press the 3 digits in order,
Example, to select channel 130,
press 1, 3, 0, then press ENT.
Basic Operations
21
ENGLISH
Set Aspect Ratio
1 Press WIDE to display the Wide menu.
2 Press WIDE repeatedly or press or to
scroll through the options, then press OK.
To Select Digital Channels
Press the rst 3 digits, then press
_
, followed by
the remaining number. Example, to select channel
15-1, press 1, 5,
_
, 1, then press ENT.
To Select by Channel List
All channels found from channel scan are listed on
the Channel List screen. You can select channels
from this screen.
1 Press ENT to display the Channel List screen.
2 Press or to select a channel number,
then press ENT.
3 Press RETURN to close the Channel List
screen.
Mute Volume
Press MUTE to turn the sound o . To turn the
sound back on, press MUTE again or any of the
VOL buttons.
Set Sleep Timer
Sleep timer sets the TV to automatically turn o
after a preset amount of time. After setting a preset
amount of time, the TV will automatically turn o
after the timer has expired.
1 Press SLEEP to display the Sleep screen.
2 Press SLEEP repeatedly or press or to
scroll through the options, then press OK.
To cancel sleep, set the timer to O .
Display Info
Press INFO to display the channel or input
information on the screen.
Press INFO again to hide the Info screen.
Basic Operations
Normal
When watching a 4:3 content,
the TV displays a standard
picture with black side bars.
When viewing a 16:9 content,
it displays a full picture.
Wide
When displaying a 4:3
content, the picture is
stretched horizontally to ll
the width of the screen. When
watching a 16:9 content, the
image is slightly overscan.
Zoom
The entire picture is uniformly
enlarged to retain its original
proportion. However, some
parts of the picture may be
hidden.
Panoramic
The picture is stretched
horizontally on the left and
right sides to ll the width of
the screen. The center of the
picture is not stretched.
Stretch
The picture is stretched
horizontally on the left and
right sides.
Note:
• Panoramic mode is only available on 4:3 contents.
• Stretch is only available on 16:9 contents.
22
Aspect Ratio options in PC mode.
Multimedia Mode
Depending on your TV model, the TV allows you
to play slide shows, videos, and music from a USB
memory stick.
Note:
• Only supported multimedia les can be played back.
• Music and video playback are not supported in
JLE32BC3001(32”) and JLE37BC3001(37”). Both models
play slide show of image les only.
Playing Multimedia Files
1 Insert the USB memory stick into the USB slot
of the TV.
USB
TV
(side panel)
Take note of the correct direction.
Do not force the device into the slot.
2 A message box will appear on the screen.
Press or to select OK.
USB media detected. Enter multimedia
menu?
CancelOK
3 Press OK to select your option.
4 Press or to select the USB source, then
press OK.
5 If prompted, press or to select Audio,
Video, or Photo player, then press OK.
Basic Operations
Normal
When watching a 4:3
content, the TV displays a
standard picture with black
side bars. When viewing a
16:9 content, it displays the
full picture, pixel to pixel.
Stretch
When watching a 4:3
content, the picture is
stretched hozontally to ll
the width of the screen.
When watching a 16:9
content, the picture is
stretched horizontally on the
left and right sides.
Selecting Input Source
The TV provides various ways to select the
input source:
On the TV Panel
• Press
INPUT
repeatedly to scroll through the
input source options. The highlighted input
source is selected after a few seconds.
On the Remote Control
• Press INPUT repeatedly to scroll through the
input source options, then press OK to select
the input.
• To directly select an input source, press the
direct input button located at the bottom of the
remote control.
HDMI PC TV
VIDEO COMP MUSIC
23
ENGLISH
6 The displayed screen varies depending on the media type you selected.
Press
, , or to select a le or function, then press OK.
Multimedia: Photo
Page 1 of 7
Start Slideshow
Newest First
Thumbnails
Setting
Browse Music
Sort:
PATH:/MMP/Photo/
File Name: P1130130
Resolution:
Size:
768x1024
113KB
View:
.. P1130130 P1130131
P1130132 P1130133 P1130134
P1130135 P1130136 P1130137
1
2
3
4
5
1 Start Slideshow button: Play slide show.
2 Sort button: Change sorting order. The label on this button varies depending on the
current sorting order. (Name A-Z, Name Z-A, Newest First, Oldest First)
3 View button: Change view mode. The button label varies depending on the current view.
(Folders, Thumbnails)
4 Setting button: Change slide show settings.
5 Browse Music: Switch to Multimedia: Music
.
Multimedia: Music
Audio
PATH:/MMP/Audio/
#Track Duration
1. The Blue Bird 00:03:15
2. The Bronze Ring 00:03:15
3. Brother and Sister 00:03:15
4. The Canary Prince 00:03:15
5. Cannetella 00:03:15
6. The Cat on the Dovrefell 00:03:15
7. Dapplegrim 00:03:15
8. Der Mond 00:03:15
9. The Donkey 00:03:15
10. The Hurds 00:03:15
11. Lord Peter 00:03:15
12. The Nightingle 00:03:15
Browser Photos
Track A-Z
All
File Name:The Blue Bird
Artist:
Album:
Judy
Fairy Tale
Page 1 of 1
Sort:
View:
1
2
3
4
5
1 File directory: Displays the music les.
2 Playback controls: Use to go to the previous track, play/pause, or go to next track.
3 Browser Photos button: Switch to Multimedia: Photo.
4 Sort button: Change sorting order. The label on this button varies depending on the
current sorting order. (Track A-Z, Track Z-A, Newest First, Oldest First)
5 View button: Change view mode. The button label varies depending on the current view.
Basic Operations
24
Multimedia: Video
Video
PATH:/MMP/Video/
#File Duration
1. Mother Goose 01:03:15
2. Fish story 02:03:15
3. Rain 02:03:15
4. Runner 01:20:15
5. Point 01:25:15
6. Suffler 01:25:15
7. Fairy Tale 01:20:15
8. Der Mond 01:30:15
9. The Donkey 01:40:15
10. The Hurds 01:44:15
11. Lord Peter 01:23:15
12. The Nightingle 01:24:15
Date New-Old
All
Page 1 of 1
Sort:
View:
00:00:00 00:00:00
1
2
3
4
1 File Directory: Displays the video les.
2 Preview screen: Displays video information such as video length.
3 Sort button: Change sorting order. The label on this button varies depending on the
current sorting order.
4 View button: Change view mode. The button label varies depending on the current view.
7 During media playback, press the playback controls on the remote control to perform its
function.
SLEEP
MEDIA
Rewind
Stop
Play Pause
Forward
8 To exit USB mode, press
MEDIA
. Or, to go back to a previous screen, press
RETURN.
Note: To playback les in Multimedia mode at a later time, press MEDIA.
Basic Operations
Audio Only Mode
While watching TV or playing music, you can set the TV to Audio Only mode to turn o the TV display
and save power.
1 Press AUDIO to activate Audio Only mode. A message appears on the screen, then after a few
seconds, the TV display turns o .
2 Press any button to turn on the display again and exit Audio Only mode.
25
ENGLISH
Kensington Lock
Security Deterrent Kensington Lock
The JVC 3001 Series provides you with security deterrent slot hole that are compatible to Kensington
Locks. This helps securely a x the TV physically to other objects. The appearance and locking method
di ers depending on the manufacturer. Refer to the manual provided with the Kensington Lock for information on installation.
The location of the security deterrent slot di ers depending on the TV model. Please refer to your TV
model and security deterrent slot location below:
Basic Operations
JLE32BC3001(32”) & JLE37BC3001(37”)
JLE42BC3001(42”) & JLE47BC3001(47”)
Note: The Kensington Lock is not included with the product.
26
Wall Mount
Installing Wall Mount
The wall mount kit allows you to mount the TV on the wall. For detailed information on installing the wall
mount, see the instructions provided with the wall mount kit.
1 Disconnect all cables connected to your TV.
2 Carefully place the TV face down on a fl at and clean surface. It is recommended
to place the TV cover or protection sheet between the TV and at surface.
3 Using a philips-head screwdriver, remove the screws on the neck of the TV.
4 Remove the neck and stand from the TV.
5 Attach your wall mount and TV to the wall, carefully following the instructions provided with
the wall mount.
Note: The wall mount kit is not included with the product.
Do not install your wall mount while your TV is turned on. It can result in personal injury
due to electric shock
For product protection and safety reasons, JVC strongly recommends contacting a technician or professional for assistance installing the wall mount and setting up the TV. If you
decide to install the wall mount and TV without the assistance of a technician or professional, JVC will not be responsible for any damage to the product or injury to yourself or
others.
Wall Mount Specifi cations (VESA)
Product Model # VESA hole pattern (mm) Standard Screw Screw Length (mm)
JLE32BC3001 (32”)
200 x 100 M4 10mm
JLE37BC3001 (37”)
200 x 200 M4 10mm
JLE42BC3001 (42”)
400 x 200 M6 16mm
JLE47BC3001 (47”)
400 x 400 M6 16mm
Basic Operations
27
ENGLISH
Quick Menu Operation
Adjusting the Menu Settings
Main Menu
Options or submenu
1 Display the menu.
Press MENU.
Press
MENU
.
2 Select a menu option.
1. Press
or to select a
menu or option.
2. Press OK or
to enter a
menu or con rm an option.
1. Press or to
select a menu or option.
2. Press to enter
a menu or con rm an
option.
CH
CH
INPUT
3 Adjust or select the
setting.
1. Press
or to select
an option. Or, press or
to adjust a setting, such
as Brightness.
2. Press OK to apply the
settings.
Remote Control TV Panel
4 Exit the menu.
To exit the menu, press
RETURN. Or, to return to a
previous screen one at a time,
press MENU or .
Press
MENU
.
1. Press
CH
or
CH
to
select an option. Or,
press
VOL
_
or
V
OL +
to
adjust a setting, such as
Brightness.
2. Press
INPUT
to apply the
settings.
TV
TV
Video
Component
HDMI-1
HDMI-2
HDMI-3
HDMI-4
PC
Music
Input
Audio
Setup
PIP
Closed Caption
Wide
Channel
28
Adjusting the Menu Settings
Input Menu
Select the input source signal.
• TV: To watch analog or digital TV channels.
• Video: To use VCRs, camcorders, or game consoles connected via
composite connection.
• Component: To use VCRs, camcorders, or game consoles connected via
component connection.
• HDMI 1(ARC) / 2 / 3: To use devices connected via HDMI connection.
• HDMI 4 (For JLE4BC3001(42”) & JLE47BC3001(47”) only): To use devices
connected via HDMI connection.
• PC: To use the TV as a monitor when a computer or laptop is connected via the
PC IN jack. See page 36 for supported resolution & timing.
• Music: To play music from a music player connected via music port.
Picture Menu
Adjust picture options such as birghtness, contrast, and advanced picture settings.
Picture Mode
Select the picture mode.
Custom For custom picture settings.
Standard For standard picture settings.
Movie For moving pictures such as movies.
Game
For fast and dynamic pictures suitable with playing
games.
Vivid For bright and vivid picture settings.
Sport Suggested settings for sporting events.
Backlight
Adjust the backlight that a ects the overall brilliance of the picture. (0 ~100)
Contrast
Adjust the white level in the picture. Low contrast makes pictures look dark, high contrast makes
pictures washed out. (0 ~100)
Brightness
Adjust the brightness setting. (0 ~100)
Color
Adjust the amount of color level in the picture. (0 ~100)
Picture Mode
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Size & Position
Color Temperature
Ambient Light Sensor
Advanced Picture
Reset Picture Mode
Standard
85
50
80
60
0
8
Medium
TV
TV
Video
Component
HDMI-1
HDMI-2
HDMI-3
HDMI-4
PC
Music
29
ENGLISH
Adjusting the Menu Settings
Tint
Adjust the picture hue. (-50 ~ 50)
Sharpness
Adjust the sharpness of the edges of elements in the picture.
Size & Position
Auto Adjust Automatically adjust the picture size and position.
Horiz. Position / Vertical Positon Adjust the horizontal / vertical position of the picture.
Horizontal Size / Vertical Size Adjust the horizontal / vertical size of the picture.
Color Temperature
Color Temperature
Apply a preset color temperature setting.
(Custom / Cool / Natural / Warm)
Red / Green / Blue Gain
Adjust the red / green / blue gain settings according to your
preference.
Red / Green / Blue O set
Adjust the red / green / blue o set settings according to your
preference.
Reset Color Temperature Reset the color temperature to default settings.
Ambient Light Sensor
Select the sensitivity of the ambient light sensor to automatically adjust to light changes in the
room. (O / Low / Medium / High)
Advanced Picture
CrystalColor™
CrystalColor™ produces more vivid and crisp color
pictures. (Off / Normal / Rich)
Dynamic Contrast
Dynamic contrast automatically enhances the
image for greater picture details.
Adaptive Backlight Enable or disable adaptive backlight. (O / On)
Noise Reduction
Reduce the noise level.
(O / Low / Medium / High)
Digital NR
Reduce noise level of digital signals.
(O / Low / Medium / High)
CrystalMotion™
(Only JLE42BC3001/47BC3001)
CrystalMotion™ produces sharper motion pictures.
(Off / Clear / Standard / Smooth)
CrystalMotion™
Demo
(Only JLE42/47BC3001)
Show a demo of the CrystalMotion™ feature.
Film Mode
Produce smoother motion picture when viewing
movies .
Reset Picture Mode
Reset the picture mode setings to default.
Crystal Color
TM
Dynamic Contrast
Adaptive Backlight
Noise Reduction
Digital NR
Crystal Motion
TM
Crystal MotionTM Demo
Film Mode
Off
Off
Off
Off
Off
Off
Off
30
Audio Menu
SRS StudioSound
When SRS StudioSound is set to “On”, the TV speakers produce
impressive surround sound with rich bass, clear dialog, and high
frequency detail.
Note: When SRS StudioSound is on, Equalizer Settings menu is not available.
SRS TruVolume
When SRS TruVolume is set to “On”, volume level is controlled to
produce a consistent level.
Bass
Adjust the bass level to your preference. (-12 ~ 12)
SRS StudioSound HD
SRS TruVolume
Bass
Treble
Balance
Lip Sync
TV Speakers
Audio Only
Digital Audio Out
Analog Audio Out
Equalizer Settings
Reset Audio Mode
On
On
0
0
0
0
On
PCM
Fixed
Treble
Adjust the treble level to your preference. (-12 ~ 12)
Balance
Adjust the audio level of the L/R channels of the speakers to your preference. (-10 ~ 10)
Lip Sync
Adjust to match the movements and the lips of the person talking on the screen. (0 ~ 5)
TV Speakers
Turn the internal speakers on or o .
Audio Only
Output audio from the TV speakers but turn o the TV display. See page 24.
Digital Audio Out
Select the type of digital audio output. (O / Dolby Digital / PCM)
Analog Audio Out
Select the type of analog audio output. (Fixed / Variable)
Equalizer Settings
Adjust the equalizer settings. (120Hz / 500Hz / 1.5KHz / 5KHz / 10KHz)
Reset Audio Mode
Reset the audio mode setings to default settings.
Adjusting the Menu Settings
31
ENGLISH
Setup Menu
Name Input
The Name Input feature of the TV allows you to add a label name on
an input source.
To label an input source , perform the following steps:
1 Press MENU.
2 Press or to select “Setup”, then press or OK.
3 Press or to select “Name Input”, then press or OK.
4 Press or to select “Input Source”, then press or OK.
5 Press or to select the input source that you want to add
a label name to, then press OK.
Name Input
Game Mode
CEC Settings
Menu Language
Time & Local Settings
Parental Control
Power Indicator
Setup Wizard
System Information
Reset All Settings
Off
English
On
Game Mode
(For JLE42BC3001(42”) and JLE47BC3001(47”) only)
Turn Game Mode to “On” for fast interactive experience when playing video games on game
consoles.
CEC Settings
CEC allows you to control devices using your TV remote control when the CEC devices are
connected via HDMI.
CEC Function
Enable or disable CEC function.
Device Search If CEC Function is enabled, select to search for CEC devices.
System Audio Control Connect to your device though Audio Return Channel-enabled HDMI Port
(HDMI 1)
Menu Language
Select the on-screen menu language.
6 To select a custom label:
1. Press
or to select “Input Labels”,
then press or OK.
2. Press
or to select “Custom” and press OK.
To enter desired label:
1. Press
or to select the text box, then press OK.
2. Press
, , or to select a character, then press OK.
3. Press
, , or to select “OK”, then press OK.
Press RETURN to close the menu screen.
Adjusting the Menu Settings
Input Source
Input Labels
Component
Custom
My Input
32
Adjusting the Menu Settings
Time & Local Settings
Time Zone Select a location to apply the time zone.
Daylight Saving Enable or disable daylight saving time.
Parental Control
The Parental Control feature allows you to control and restrict TV programs by Channel Lock , TV
Rating, or Movie Rating.
Access Parental Control Menu
The Parental Control menu requires you to enter the password to access its submenu.
1 Press MENU.
2 Press or to select “Setup”, then press or OK.
3 Press or to select “Parental Control”, then press or OK.
4 Enter the 4-digit password. Press , or to select “OK”, then press OK to access the submenu
options.
Please enter password.
CancelOK
Note: The default password is “0000”.
5 Press or to select the submenu options, then press or OK to enter the submenu.
Restrict By Channel
Use the Channel Lock feature to restrict viewing a speci ed channel. Once locked channel is selected, the
TV displays a blank screen.
1 In the “Parental Control” menu, press or to select “Channel Lock”, then press or OK.
2 Press or to highlight a channel that you want to lock.
3 Press OK to mark and lock the channel.
4 Press to return to the previous screen or press RETURN to close the
menu screen.
Restrict By TV/Movie Rating
You can select which TV/Movie rating to lock for viewing.
1 In the “Parental Control” menu, press or to select a rating
submenu, then press or OK.
• “Enable Rating”: Select “On” to enable rating.
• “USA-TV”: Set the rating by age level and genre.
Enable Rating
Channel Lock
USA-TV
USA-Movie
CAN-English
CAN-French
Alt. Region Rating
Block Unrated Shows
Change Password
Reset Parental Setting
Off
Off
33
ENGLISH
• “USA-Movie”: Set by USA movie rating standards.
• “CAN-English”: Set by Canadian English movie rating standards.
• “CAN-French”: Set by Canadian French movie rating standards.
• “Block Unrated Shows”: Select “On” to block unrated shows.
2 Press or , then press OK to select the rating.
3 Press to return to the previous screen or press RETURN to close the menu screen.
Change Password
1 In the “Parental Control” menu, press or to select “Change Password”, then press or OK.
2 Enter a new password, then press OK.
3 Re-enter the new password, then press OK to complete.
Setup Wizard
Run the guided setup.
System Information
Display the system information of the TV.
Reset All Settings
Reset all TV settings to default settings.
Adjusting the Menu Settings
Picture-in-Picture (PIP)
(For JLE42BC3001(42”) and JLE47BC3001(47”) only)
The PIP feature allows you to view 2 input sources simultaneously. This feature is available only when the
selected input source is HDMI.
PIP (Picture-In-Picture)
PIP Mode
Source
Position
Size
Audio
PIP
HDMI-1
Top Right
Small
Main
With PIP, a smaller screen displays the picture from a second input
source within the main input source picture.
1 Press MENU.
2 Press or to select “PIP”, then press or OK.
3 Press or to select “PIP Mode”, then press or OK.
4 Press or to select “PIP”, then press or OK.
5 Press or to select “Source”, then press or OK to enter the
submenu.
6 Press or to select the second input source, then press or OK.
Note: Some input sources do not support this feature. See the PIP/POP Table on page 37.
34
7 Press or to select “Position”, then press or OK.
8 Press or to select where you want to display the second screen, then press OK.
9 Press or to select “Size”, then press or OK.
10 Press or to select the screen size, then press OK.
11 Press or to select “Audio”, then press or OK.
12 Press or to select an option, then press OK. Options are:
• “Main”: The output audio is from the main input source.
• “PIP/POP”: The output audio is from the secondary input source.
13 Press OK.
14 Press to return to the previous screen or press RETURN to close the menu screen.
POP (Picture-Over-Picture)
With POP, you can select a second input source and display its output over the main input source
picture. The picture size and position are the same with the main input source.
1 Press MENU.
2 Press or to select “PIP”, then press or OK.
3 Press or to select “PIP Mode”, then press or OK.
4 Press or to select “POP”, then press or OK.
5 Press or to select “Source”, then press or OK to enter the submenu.
6 Press or to select the second input source, then press or OK.
Note: Some input sources do not support this feature. See the PIP/POP Table on page 37.
7 Press or to select “Audio”, then press or OK.
8 Press or to select an option, then press OK. Options are:
• “Main”: The output audio is from the main input source.
• “PIP/POP”: The output audio is from the secondary input source.
9 Press OK.
10 Press to return to the previous screen or press RETURN to close the menu screen.
Adjusting the Menu Settings
35
ENGLISH
Closed Caption
Closed Caption decodes and displays closed caption data of television programs as subtitle. This feature
displays text on the screen or it translates and displays text in another language.
1 Press MENU.
2 Press or to select “Closed Caption”, then press or OK.
3 Press or to select “Analog Closed Caption” or
“Digital Closed Caption, then press or OK.
Note: Either “Analog Closed Caption” or “Digital Closed Caption” is available depending on your TV service.
4 Press or to select a closed caption type or select “O ” to disable this feature, then press OK.
For digital closed caption, you can select closed caption options, such as text size and text color.
Press
or to select “Digital CC Options”, then press OK. Select desired options.
5 Press RETURN to close the menu screen.
Analog Closed Caption
Digital Closed Caption
Digital CC Options
Off
Off
