AV-20NX3
PARTS LIST
CAUTION
q The parts identified by the symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the
safety .
q The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied .
q P. W. Board Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied .
ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES
RESISTORS CAPACITORS
C R Carbon Resistor
F R Fusible Resistor
P R Plate Resistor
V R Variable Resistor
HV R High Voltage Resistor
MF R Metal Film Resistor
MG R Metal Glazed Resistor
MP R Metal Plate Resistor
OM R Metal Oxide Film Resistor
CMF R Coating Metal Film Resistor
UNF R Non-Flammable Resistor
CH V R Chip Variable Resistor
CH MG R Chip Metal Glazed Resistor
COMP. R Composition Resistor
LPTC R Linear Positive Temperature Coefficient Resistor
C CAP. Ceramic Capacitor
E CAP. Electrolytic Capacitor
M CAP. Mylar Capacitor
CH CAP. Chip Capacitor
HV CAP. High Voltage Capacitor
MF CAP. Metalized Film Capacitor
MM CAP. Metalized Mylar Capacitor
MP CAP. Metalized Polystyrol Capacitor
PP CAP. Polypropylene Capacitor
PS CAP. Polystyrol Capacitor
TF CAP. Thin Film Capacitor
MPP CAP. Metalized Polypropylene Capacitor
TAN. CAP. Tantalum Capacitor
CH C CAP. Chip Ceramic Capacitor
BP E CAP. Bi-Polar Electrolytic Capacitor
CH AL E CAP. Chip Aluminum Electrolytic Capacitor
CH AL BP CAP. Chip Aluminum Bi-Polar Capacitor
CH TAN. E CAP. Chip Tantalum Electrolytic Capacitor
CH AL BP E CAP. Chip Tantalum Bi-Polar Electrolytic Capacitor
RESISTORS
FGJKMNRHZP
±1% ±2% ±5% ±10% ±20% ±30%
No. 52079 39
+30% +50% +80% +100%
-10% -10% -20% 0%
AV-20NX3
CONTENTS
USING P.W. BOARD & REMOTE CONTROL UNIT ................................................................................. 41
EXPLODED VIEW PARTS LIST-1 ............................................................................................................. 41
EXPLODED VIEW-1 .................................................................................................................................. 41
EXPLODED VIEW PARTS LIST-2 ............................................................................................................ 42
EXPLODED VIEW-2 ................................................................................................................................. 43
PRINTED WIRING BOARD PARTS LIST
MAIN PW BOARD ASS'Y .....................................................................................................................................44
REMOTE CONTROL UNIT PARTS LIST ............................................................................................................49
PACKING / PACKING PARTS LIST..................................................................................................................... 50
40 No. 52079
USING P.W. BOARD & REMOTE CONTROL UNIT
AV-20NX3
P. W.B ASS’Y
MAIN PWB (include CRT SOCKET PWB) SCH-1123A-H2
REMOTE CONTROL UNIT RM-C1014-1H
Model
AV-20NX3
EXPLODED VIEW PARTS LIST-1
!
Ref.No. Part No. Part Name Description Local
15 LC10438-035A-H FRONT CABI
16 LC30665-001A-H LED LENS
17 LC30663-003A-H POWER KNOB
18 LC20318-003A-H CONTROL KNOB
19 LC30664-001B-H E.E. WINDOW
20 CM48006-007-C JVC MARK
21 CM35235-003-H SPRING

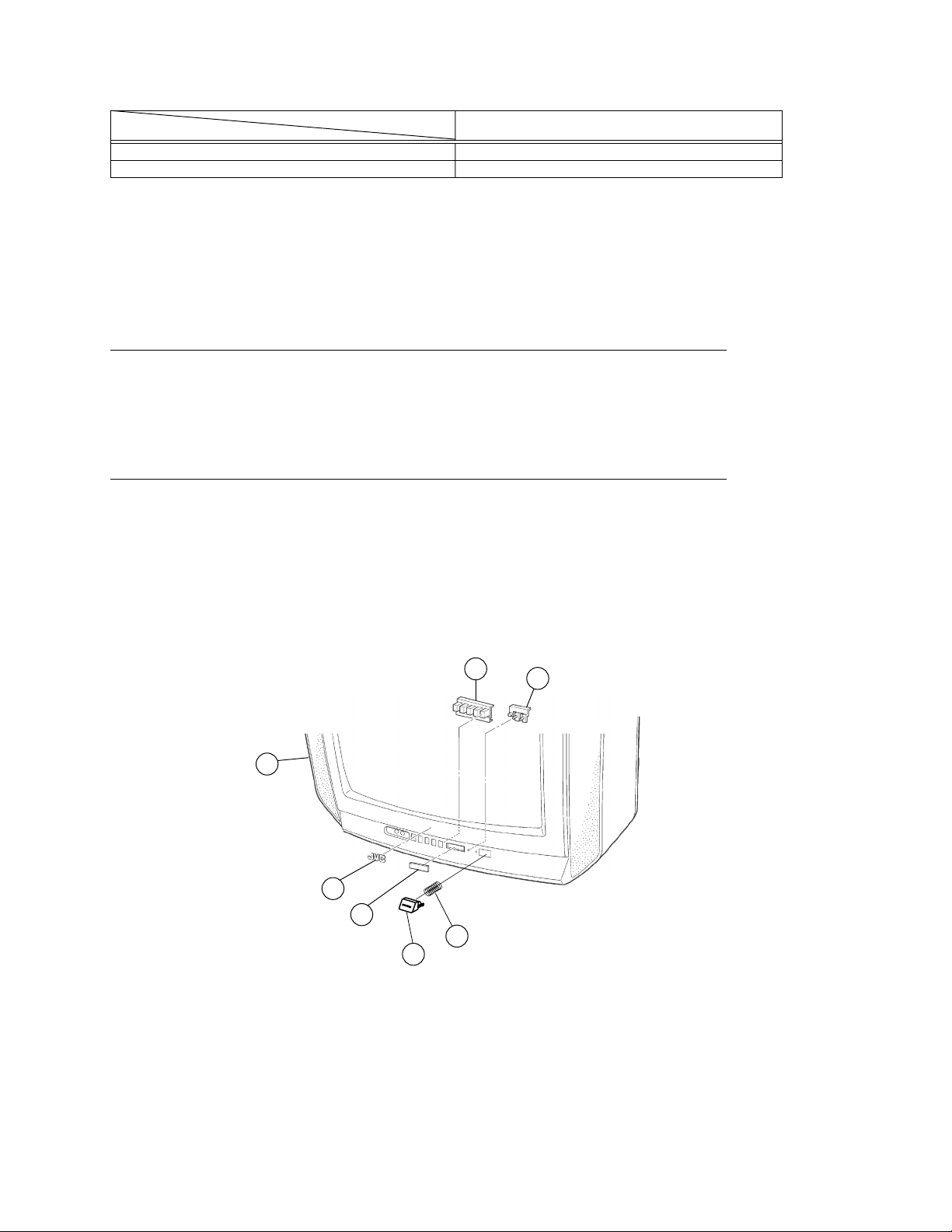

EXPLODED VIEW-1
15
20
19
17
21
18
16
No. 52079 41
AV-20NX3
EXPLODED VIEW PARTS LIST-
!
Ref.No. Part No. Part Name Description Local
! V01 A48LMX10X PICTURE TUBE
! L01 QQW0156-001 DEG COIL
DY01 QQD0081-001 DEFLECTION YOKE
! T1551 QQH0143-001 FBT
! 1 QMPR340-165-K2 POWER CORD
! 2 CM47005-A01-H CORD CLAMP
3 CM36623-B01-H CHASSIS RAIL (X2)
4WJY0008-002A BRAIDED ASS’Y
5 A48457-3-H SPRING
6 A75034-B PC MAGNET
7 CE40764-00A WEDGE ASS’Y (X3)
8 QAS0101-001 SPEAKER (X2) SP01, SP02
9 QYSBSF4012Z TAPPING SCREW (X8)
! 10 LC10448-005A-H REAR COVER
11 QYSBSFG4016Z TAPPING SCREW (X6)
12 QYSBSF3010Z TAPPING SCREW (X4)
! 13 GG20024-001B-H RATING LABEL
14 CM48144-002-H PB STOPPER
2
