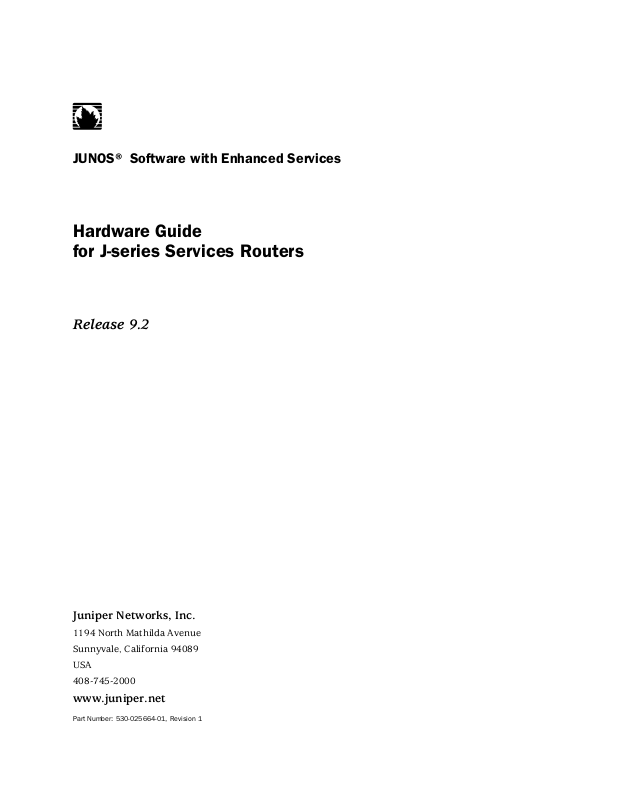

JUNOS® Software with Enhanced Services

Hardware Guide for J-series Services Routers

Release 9.2

Juniper Networks, Inc.

1194 North Mathilda Avenue

Sunnyvale, California 94089

USA

408-745-2000

www.juniper.net

Part Number: 530-025664-01, Revision 1

This product includes the Envoy SNMP Engine, developed by Epilogue Technology, an Integrated Systems Company. Copyright © 1986-1997, Epilogue Technology Corporation. All rights reserved. This program and its documentation were developed at private expense, and no part of them is in the public domain.

This product includes FreeBSD software developed by the University of California, Berkeley, and its contributors. All of the documentation and software included in the 4.4BSD and 4.4BSD-Lite Releases is copyrighted by the Regents of the University of California. Copyright © 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994. The Regents of the University of California. All rights reserved.

GateD software copyright © 1995, the Regents of the University. All rights reserved. Gate Daemon was originated and developed through release 3.0 by Cornell University and its collaborators. Gated is based on Kirton’s EGP, UC Berkeley’s routing daemon (routed), and DCN’s HELLO routing protocol. Development of Gated has been supported in part by the National Science Foundation. Portions of the GateD software copyright © 1988, Regents of the University of California. All rights reserved. Portions of the GateD software copyright © 1991, D. L. S. Associates.

Juniper Networks, the Juniper Networks logo, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. JUNOS and JUNOSe are trademarks of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.

Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice.

Products made or sold by Juniper Networks or components thereof might be covered by one or more of the following patents that are owned by or licensed to Juniper Networks: U.S. Patent Nos. 5,473,599, 5,905,725, 5,909,440, 6,192,051, 6,333,650, 6,359,479, 6,406,312, 6,429,706, 6,459,579, 6,493,347, 6,538,518, 6,538,899, 6,552,918, 6,567,902, 6,578,186, and 6,590,785.

JUNOS Software with Enhanced Services Hardware Guide

Revision History August 2008—Revision 1

The information in this document is current as of the date listed in the revision history.

YEAR 2000 NOTICE

Juniper Networks hardware and software products are Year 2000 compliant. The JUNOS software has no known time-related limitations through the year

2038. However, the NTP application is known to have some difficulty in the year 2036.

SOFTWARE LICENSE

The terms and conditions for using this software are described in the software license contained in the acknowledgment to your purchase order or, to the extent applicable, to any reseller agreement or end-user purchase agreement executed between you and Juniper Networks. By using this software, you indicate that you understand and agree to be bound by those terms and conditions. Generally speaking, the software license restricts the manner in which you are permitted to use the software and may contain prohibitions against certain uses. The software license may state conditions under which the license is automatically terminated. You should consult the license for further details. For complete product documentation, please see the Juniper Networks Web site at www.juniper.net/techpubs.

ii ■

End User License Agreement

READ THIS END USER LICENSE AGREEMENT (“AGREEMENT”) BEFORE DOWNLOADING, INSTALLING, OR USING THE SOFTWARE. BY DOWNLOADING, INSTALLING, OR USING THE SOFTWARE OR OTHERWISE EXPRESSING YOUR AGREEMENT TO THE TERMS CONTAINED HEREIN, YOU (AS CUSTOMER OR IF YOU ARE NOT THE CUSTOMER, AS A REPRESENTATIVE/AGENT AUTHORIZED TO BIND THE CUSTOMER) CONSENT TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT OR CANNOT AGREE TO THE TERMS CONTAINED HEREIN, THEN (A) DO NOT DOWNLOAD, INSTALL, OR USE THE SOFTWARE, AND (B) YOU MAY CONTACT JUNIPER NETWORKS REGARDING LICENSE TERMS.

1. The Parties. The parties to this Agreement are Juniper Networks, Inc. and its subsidiaries (collectively “Juniper”), and the person or organization that originally purchased from Juniper or an authorized Juniper reseller the applicable license(s) for use of the Software (“Customer”) (collectively, the “Parties”).

2. The Software. In this Agreement, “Software” means the program modules and features of the Juniper or Juniper-supplied software, and updates and releases of such software, for which Customer has paid the applicable license or support fees to Juniper or an authorized Juniper reseller. “Embedded Software” means Software which Juniper has embedded in the Juniper equipment.

3. License Grant. Subject to payment of the applicable fees and the limitations and restrictions set forth herein, Juniper grants to Customer a non-exclusive and non-transferable license, without right to sublicense, to use the Software, in executable form only, subject to the following use restrictions:

a. Customer shall use the Embedded Software solely as embedded in, and for execution on, Juniper equipment originally purchased by Customer from Juniper or an authorized Juniper reseller.

b. Customer shall use the Software on a single hardware chassis having a single processing unit, or as many chassis or processing units for which Customer has paid the applicable license fees; provided, however, with respect to the Steel-Belted Radius or Odyssey Access Client software only, Customer shall use such Software on a single computer containing a single physical random access memory space and containing any number of processors. Use of the Steel-Belted Radius software on multiple computers requires multiple licenses, regardless of whether such computers are physically contained on a single chassis.

c. Product purchase documents, paper or electronic user documentation, and/or the particular licenses purchased by Customer may specify limits to Customer’s use of the Software. Such limits may restrict use to a maximum number of seats, registered endpoints, concurrent users, sessions, calls, connections, subscribers, clusters, nodes, realms, devices, links, ports or transactions, or require the purchase of separate licenses to use particular features, functionalities, services, applications, operations, or capabilities, or provide throughput, performance, configuration, bandwidth, interface, processing, temporal, or geographical limits. In addition, such limits may restrict the use of the Software to managing certain kinds of networks or require the Software to be used only in conjunction with other specific Software. Customer’s use of the Software shall be subject to all such limitations and purchase of all applicable licenses.

d. For any trial copy of the Software, Customer’s right to use the Software expires 30 days after download, installation or use of the Software. Customer may operate the Software after the 30-day trial period only if Customer pays for a license to do so. Customer may not extend or create an additional trial period by re-installing the Software after the 30-day trial period.

e. The Global Enterprise Edition of the Steel-Belted Radius software may be used by Customer only to manage access to Customer’s enterprise network. Specifically, service provider customers are expressly prohibited from using the Global Enterprise Edition of the Steel-Belted Radius software to support any commercial network access services.

The foregoing license is not transferable or assignable by Customer. No license is granted herein to any user who did not originally purchase the applicable license(s) for the Software from Juniper or an authorized Juniper reseller.

4. Use Prohibitions. Notwithstanding the foregoing, the license provided herein does not permit the Customer to, and Customer agrees not to and shall not: (a) modify, unbundle, reverse engineer, or create derivative works based on the Software; (b) make unauthorized copies of the Software (except as necessary for backup purposes); (c) rent, sell, transfer, or grant any rights in and to any copy of the Software, in any form, to any third party; (d) remove any proprietary notices, labels, or marks on or in any copy of the Software or any product in which the Software is embedded; (e) distribute any copy of the Software to any third party, including as may be embedded in Juniper equipment sold in the secondhand market; (f) use any ‘locked’ or key-restricted feature, function, service, application, operation, or capability without first purchasing the applicable license(s) and obtaining a valid key from Juniper, even if such feature, function, service, application, operation, or capability is enabled without a key; (g) distribute any key for the Software provided by Juniper to any third party; (h) use the Software in any manner that extends or is broader than the uses purchased by Customer from Juniper or an authorized Juniper reseller; (i) use the Embedded Software on non-Juniper equipment; (j) use the Software (or make it available for use) on Juniper equipment that the Customer did not originally purchase from Juniper or an authorized Juniper reseller; (k) disclose the results of testing or benchmarking of the Software to any third party without the prior written consent of Juniper; or (l) use the Software in any manner other than as expressly provided herein.

5. Audit. Customer shall maintain accurate records as necessary to verify compliance with this Agreement. Upon request by Juniper, Customer shall furnish such records to Juniper and certify its compliance with this Agreement.

6. Confidentiality. The Parties agree that aspects of the Software and associated documentation are the confidential property of Juniper. As such, Customer shall exercise all reasonable commercial efforts to maintain the Software and associated documentation in confidence, which at a minimum includes restricting access to the Software to Customer employees and contractors having a need to use the Software for Customer’s internal business purposes.

■ iii

7. Ownership. Juniper and Juniper's licensors, respectively, retain ownership of all right, title, and interest (including copyright) in and to the Software, associated documentation, and all copies of the Software. Nothing in this Agreement constitutes a transfer or conveyance of any right, title, or interest in the Software or associated documentation, or a sale of the Software, associated documentation, or copies of the Software.

8. Warranty, Limitation of Liability, Disclaimer of Warranty. The warranty applicable to the Software shall be as set forth in the warranty statement that accompanies the Software (the “Warranty Statement”). Nothing in this Agreement shall give rise to any obligation to support the Software. Support services may be purchased separately. Any such support shall be governed by a separate, written support services agreement. TO THE MAXIMUM EXTENT PERMITTED BY LAW, JUNIPER SHALL NOT BE LIABLE FOR ANY LOST PROFITS, LOSS OF DATA, OR COSTS OR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, OR FOR ANY SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THIS AGREEMENT, THE SOFTWARE, OR ANY JUNIPER OR JUNIPER-SUPPLIED SOFTWARE. IN NO EVENT SHALL JUNIPER BE LIABLE FOR DAMAGES ARISING FROM UNAUTHORIZED OR IMPROPER USE OF ANY JUNIPER OR JUNIPER-SUPPLIED SOFTWARE. EXCEPT AS EXPRESSLY PROVIDED IN THE WARRANTY STATEMENT TO THE EXTENT PERMITTED BY LAW, JUNIPER DISCLAIMS ANY AND ALL WARRANTIES IN AND TO THE SOFTWARE (WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE), INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. IN NO EVENT DOES JUNIPER WARRANT THAT THE SOFTWARE, OR ANY EQUIPMENT OR NETWORK RUNNING THE SOFTWARE, WILL OPERATE WITHOUT ERROR OR INTERRUPTION, OR WILL BE FREE OF VULNERABILITY TO INTRUSION OR ATTACK. In no event shall Juniper’s or its suppliers’ or licensors’ liability to Customer, whether in contract, tort (including negligence), breach of warranty, or otherwise, exceed the price paid by Customer for the Software that gave rise to the claim, or if the Software is embedded in another Juniper product, the price paid by Customer for such other product. Customer acknowledges and agrees that Juniper has set its prices and entered into this Agreement in reliance upon the disclaimers of warranty and the limitations of liability set forth herein, that the same reflect an allocation of risk between the Parties (including the risk that a contract remedy may fail of its essential purpose and cause consequential loss), and that the same form an essential basis of the bargain between the Parties.

9. Termination. Any breach of this Agreement or failure by Customer to pay any applicable fees due shall result in automatic termination of the license granted herein. Upon such termination, Customer shall destroy or return to Juniper all copies of the Software and related documentation in Customer’s possession or control.

10. Taxes. All license fees for the Software are exclusive of taxes, withholdings, duties, or levies (collectively “Taxes”). Customer shall be responsible for paying Taxes arising from the purchase of the license, or importation or use of the Software.

11. Export. Customer agrees to comply with all applicable export laws and restrictions and regulations of any United States and any applicable foreign agency or authority, and not to export or re-export the Software or any direct product thereof in violation of any such restrictions, laws or regulations, or without all necessary approvals. Customer shall be liable for any such violations. The version of the Software supplied to Customer may contain encryption or other capabilities restricting Customer’s ability to export the Software without an export license.

12. Commercial Computer Software. The Software is “commercial computer software” and is provided with restricted rights. Use, duplication, or disclosure by the United States government is subject to restrictions set forth in this Agreement and as provided in DFARS 227.7201 through 227.7202-4, FAR 12.212, FAR 27.405(b)(2), FAR 52.227-19, or FAR 52.227-14(ALT III) as applicable.

13. Interface Information. To the extent required by applicable law, and at Customer's written request, Juniper shall provide Customer with the interface information needed to achieve interoperability between the Software and another independently created program, on payment of applicable fee, if any. Customer shall observe strict obligations of confidentiality with respect to such information and shall use such information in compliance with any applicable terms and conditions upon which Juniper makes such information available.

14. Third Party Software. Any licensor of Juniper whose software is embedded in the Software and any supplier of Juniper whose products or technology are embedded in (or services are accessed by) the Software shall be a third party beneficiary with respect to this Agreement, and such licensor or vendor shall have the right to enforce this Agreement in its own name as if it were Juniper. In addition, certain third party software may be provided with the Software and is subject to the accompanying license(s), if any, of its respective owner(s). To the extent portions of the Software are distributed under and subject to open source licenses obligating Juniper to make the source code for such portions publicly available (such as the GNU General Public License (“GPL”) or the GNU Library General Public License (“LGPL”)), Juniper will make such source code portions (including Juniper modifications, as appropriate) available upon request for a period of up to three years from the date of distribution. Such request can be made in writing to Juniper Networks, Inc., 1194 N. Mathilda Ave., Sunnyvale, CA 94089, ATTN: General Counsel. You may obtain a copy of the GPL at http://www.gnu.org/licenses/gpl.html, and a copy of the LGPL at http://www.gnu.org/licenses/lgpl.html.

15. Miscellaneous. This Agreement shall be governed by the laws of the State of California without reference to its conflicts of laws principles. The provisions of the U.N. Convention for the International Sale of Goods shall not apply to this Agreement. For any disputes arising under this Agreement, the Parties hereby consent to the personal and exclusive jurisdiction of, and venue in, the state and federal courts within Santa Clara County, California. This Agreement constitutes the entire and sole agreement between Juniper and the Customer with respect to the Software, and supersedes all prior and contemporaneous agreements relating to the Software, whether oral or written (including any inconsistent terms contained in a purchase order), except that the terms of a separate written agreement executed by an authorized Juniper representative and Customer shall govern to the extent such terms are inconsistent or conflict with terms contained herein. No modification to this Agreement nor any waiver of any rights hereunder shall be effective unless expressly assented to in writing by the party to be charged. If any portion of this Agreement is held invalid, the Parties agree that such invalidity shall not affect the validity of the remainder of this Agreement. This Agreement and associated documentation has been written in the English language, and the Parties agree that the English version will govern. (For Canada: Les parties aux présentés confirment leur volonté que cette convention de même que tous les documents y compris tout avis qui s'y rattaché, soient redigés en langue anglaise. (Translation: The parties confirm that this Agreement and all related documentation is and will be in the English language)).

iv ■

Abbreviated Table of Contents

About This Guide xv

Part 1 Services Router Overview

Chapter 1 Overview of Services Routers 3

Chapter 2 J-series Services Router Hardware Features 7

Chapter 3 PIM Overview 35

Part 2 Installing a Services Router

Chapter 4 Preparing for Router Installation 63

Chapter 5 Installing and Connecting a Services Router 77

Chapter 6 Establishing Basic Connectivity 91

Chapter 7 Installing JUNOS Software with Enhanced Services 115

Part 3 Maintaining Services Router Hardware

Chapter 8 Replacing Hardware Components 119

Chapter 9 Troubleshooting a Services Router 157

Chapter 10 Contacting Customer Support and Returning Hardware 169

Part 4 J-series Requirements and Specifications

Chapter 11 Network Cable Specifications and Connector Pinouts 179

Chapter 12 Safety and Regulatory Compliance Information 197

Part 5 Index

Index 241

Abbreviated Table of Contents ■ v

JUNOS Software with Enhanced Services Hardware Guide

vi ■

About This Guide xv

Objectives ......................................................................................................xv

Audience .......................................................................................................xv

Supported Routing Platforms ........................................................................xvi

How to Use This Manual ...............................................................................xvi

Document Conventions ..............................................................................xviii

JUNOS Software Documentation for J-series Services Routers and SRX-series

Services Gateways ...................................................................................xx

Documentation Feedback .............................................................................xxi

Requesting Technical Support ......................................................................xxii

Part 1 Services Router Overview

Chapter 1 Overview of Services Routers 3

J2320 Services Router Overview .....................................................................3

J2350 Services Router Overview .....................................................................4

J4350 Services Router Overview .....................................................................5

J6350 Services Router Overview .....................................................................6

Chapter 2 J-series Services Router Hardware Features 7

J2320 and J2350 Services Router Hardware Features ......................................7

J2320 and J2350 Chassis ...........................................................................8

J2320 and J2350 Midplane ......................................................................12

J2320 and J2350 Routing Engine Hardware ............................................12

J2320 and J2350 Boot Devices ................................................................12

J2320 and J2350 Front Panel ..................................................................13

Physical Interface Modules (PIMs) ....................................................14

Power Button and POWER LED ........................................................14

STATUS LED .....................................................................................15

ALARM LED ......................................................................................15

HA LED ............................................................................................16

RESET CONFIG Button .....................................................................16

Built-In Gigabit Ethernet Ports ..........................................................17

Console Port .....................................................................................17

AUX Port ..........................................................................................17

USB Port ...........................................................................................17

Table of Contents ■ vii

JUNOS Software with Enhanced Services Hardware Guide

J2320 and J2350 External Compact Flashes ............................................18

J2320 Power System ...............................................................................18

J2350 Power System ...............................................................................18

J2320 and J2350 Cooling System ............................................................19

J4350 and J6350 Services Router Hardware Features ....................................20

J4350 and J6350 Chassis .........................................................................21

J4350 and J6350 Midplane ......................................................................25

J4350 and J6350 Routing Engine Hardware ............................................25

J4350 and J6350 Boot Devices ................................................................25

J4350 and J6350 Front Panel ..................................................................26

Physical Interface Modules (PIMs) ....................................................26

Power Button and POWER LED ........................................................27

STATUS LED .....................................................................................27

ALARM LED ......................................................................................28

HA LED ............................................................................................29

RESET CONFIG Button .....................................................................29

Built-In Gigabit Ethernet Ports ..........................................................29

Console Port .....................................................................................30

AUX Port ..........................................................................................30

USB Port ...........................................................................................30

J4350 Power System ...............................................................................30

J6350 Power System ...............................................................................31

J4350 and J6350 Cooling System ............................................................32

Chapter 3 PIM Overview 35

PIM Terms .....................................................................................................35

Field-Replaceable PIMs ..................................................................................38

J2320 and J2350 Field-Replaceable PIM and Module Summary ..............38

J4350 and J6350 Field-Replaceable PIM Summary ..................................39

1-Port, 6-Port, 8-Port, and 16-Port Gigabit Ethernet uPIMs ......................41

1-Port Gigabit Ethernet ePIMs .................................................................44

Dual-Port Serial PIM ................................................................................47

Dual-Port T1 or E1 PIM ...........................................................................48

Dual-Port Channelized T1/E1/ISDN PRI PIM ............................................49

T3 or E3 PIM ...........................................................................................51

Dual-Port Fast Ethernet PIM ....................................................................53

4-Port Fast Ethernet ePIM .......................................................................54

4-Port ISDN BRI PIMs ..............................................................................55

ADSL PIM ................................................................................................56

G.SHDSL PIM ..........................................................................................58

viii ■ Table of Contents

Table of Contents

Part 2 Installing a Services Router

Chapter 4 Preparing for Router Installation 63

General Site Guidelines ..................................................................................63

Rack Requirements .......................................................................................64

Rack Size and Strength for J2320 and J2350 Routers ..............................64

Rack Size and Strength for J4350 and J6350 Routers ..............................65

Connection to Building Structure ............................................................65

Router Environmental Tolerances .................................................................66

Fire Safety Requirements ..............................................................................66

Fire Suppression .....................................................................................66

Fire Suppression Equipment ...................................................................67

Power Guidelines, Requirements, and Specifications .....................................67

Site Electrical Wiring Guidelines ..............................................................68

Signaling Limitations ........................................................................68

Radio Frequency Interference ..........................................................68

Electromagnetic Compatibility .........................................................68

Router Power Requirements ...................................................................69

AC Power, Connection, and Power Cord Specifications ..........................69

DC Power, Connection, and Power Cable Specifications .........................71

Planning for Power Management ............................................................72

Network Cable Specifications ........................................................................74

ISDN Provisioning .........................................................................................74

Site Preparation Checklist ..............................................................................75

Chapter 5 Installing and Connecting a Services Router 77

Before You Begin ...........................................................................................77

Unpacking a J-series Services Router .............................................................78

Installing J2320 and J2350 Routers ...............................................................79

Installing J4350 and J6350 Routers ...............................................................80

Connecting Interface Cables to Services Routers ...........................................83

Chassis Grounding .........................................................................................83

Connecting Power .........................................................................................84

Connecting AC Power .............................................................................84

Connecting DC Power .............................................................................86

Powering a Services Router On and Off ........................................................89

Chapter 6 Establishing Basic Connectivity 91

Basic Connectivity Terms ..............................................................................91

Basic Connectivity Overview .........................................................................92

Router Identification ...............................................................................92

Root Password ........................................................................................92

Time Zone and System Time ..................................................................93

Network Settings .....................................................................................93

Default Gateway .....................................................................................93

Backup Router ........................................................................................94

Table of Contents ■ ix

JUNOS Software with Enhanced Services Hardware Guide

Loopback Address ...................................................................................94

Built-In Ethernet Interface Address .........................................................94

Management Access ...............................................................................95

Before You Begin ...........................................................................................95

Connecting to a Services Router ....................................................................96

Connecting to the J-Web Interface ..........................................................97

Connecting to the CLI Locally ..................................................................98

Connecting to the CLI Remotely ...........................................................100

Configuring the Modem at the Router End .....................................101

Connecting the Modem to the Console Port ...................................102

Connecting to the CLI at the User End ............................................102

Configuring Basic Settings with J-Web Quick Configuration .........................103

Configuring Basic Settings Using the CLI Configuration Wizard ...................106

About the CLI Configuration Wizard .....................................................106

Using the JUNOS Software with Enhanced Services Configuration

Wizard ...........................................................................................107

Configuring Basic Settings with a Configuration Editor ................................110

Verifying Basic Connectivity and the Configuration .....................................113

Displaying Basic Connectivity Configurations .......................................114

Chapter 7 Installing JUNOS Software with Enhanced Services 115

Part 3 Maintaining Services Router Hardware

Chapter 8 Replacing Hardware Components 119

Tools and Parts Required ............................................................................119

Replacing the Console Port Cable ................................................................120

Replacing a PIM ..........................................................................................120

Removing a PIM ...................................................................................120

Installing a PIM .....................................................................................122

Replacing PIM Cables ..................................................................................123

Removing PIM Cables ...........................................................................123

Installing PIM Cables .............................................................................123

Removing and Replacing the Chassis Cover on J2320 and J2350 Routers ....124

Replacing Internal Compact Flashes on J2320 and J2350 Routers ...............126

Replacing Internal Compact Flashes on J4350 and J6350 Routers ...............129

Replacing External Compact Flashes ...........................................................132

Replacing USB Storage Devices ...................................................................134

Removing the USB Storage Device ........................................................134

Installing the USB Storage Device .........................................................135

Replacing DRAM Modules ...........................................................................136

Removing a DRAM Module ...................................................................137

Installing a DRAM Module .....................................................................138

Replacing Power System Components ........................................................139

Replacing AC Power Supply Cords ........................................................139

Removing an AC Power Supply from J6350 Routers .............................140

Installing an AC Power Supply in J6350 Routers ...................................141

x ■ Table of Contents

Table of Contents

Replacing DC Power Supply Cables .......................................................142

Removing a DC Power Supply ..............................................................143

Installing a DC Power Supply ................................................................144

Replacing Crypto Accelerator Modules on J2320 and J2350 Routers ...........146

Removing a J2320 or J2350 Crypto Accelerator Module ........................147

Installing a J2320 or J2350 Crypto Accelerator Module .........................148

Replacing Crypto Accelerator Modules on J4350 and J6350 Routers ...........149

Removing a J4350 or J6350 Crypto Accelerator Module ........................150

Installing a J4350 or J6350 Crypto Accelerator Module .........................152

Replacing Air Filters on J2350 Routers ........................................................153

Replacing Air Filters on J4350 and J6350 Routers .......................................154

Chapter 9 Troubleshooting a Services Router 157

Troubleshooting Hardware Components .....................................................157

Monitoring and Correcting Chassis Alarm Conditions ...........................157

Troubleshooting Power Management ....................................................159

Resetting the Configuration File When the Router Is Inaccessible ................160

Using the RESET CONFIG Button ..........................................................160

Changing the RESET CONFIG Button Behavior ......................................161

Recovering the Root Password ....................................................................161

Recovering Primary Boot Devices ...............................................................164

Why Compact Flash Recovery Might Be Necessary ...............................164

Recommended Recovery Hardware and Software ................................164

Configuring Internal Compact Flash Recovery ......................................165

Contacting the Juniper Networks Technical Assistance Center .....................167

Chapter 10 Contacting Customer Support and Returning Hardware 169

Locating Component Serial Numbers ..........................................................169

J2320 and J2350 Chassis Serial Number and Agency Labels .................170

J4350 and J6350 Chassis Serial Number and Agency Labels .................171

PIM Serial Number Label ......................................................................172

Power Supply Serial Number Labels ......................................................172

Contacting Customer Support ......................................................................172

Information You Might Need to Supply to JTAC ....................................172

Return Procedure ........................................................................................172

Packing a Router or Component for Shipment ............................................173

Tools and Parts Required ......................................................................173

Packing the Services Router for Shipment ............................................174

Packing Components for Shipment .......................................................174

Table of Contents ■ xi

JUNOS Software with Enhanced Services Hardware Guide

Part 4 J-series Requirements and Specifications

Chapter 11 Network Cable Specifications and Connector Pinouts 179

Serial PIM Cable Specifications ....................................................................179

RS-232 DTE Cable Pinout ......................................................................180

RS-232 DCE Cable Pinout .....................................................................181

RS-422/449 (EIA-449) DTE Cable Pinout ...............................................181

RS-422/449 (EIA-449) DCE Cable Pinout ...............................................183

EIA-530A DTE Cable Pinout ..................................................................184

EIA-530A DCE Cable Pinout ..................................................................185

V.35 DTE Cable Pinout ..........................................................................186

V.35 DCE Cable Pinout .........................................................................187

X.21 DTE Cable Pinout .........................................................................187

X.21 DCE Cable Pinout .........................................................................188

Fast Ethernet RJ-45 Connector Pinout .........................................................189

Gigabit Ethernet uPIM RJ-45 Connector Pinout ............................................189

Gigabit Ethernet ePIM RJ-45 Connector Pinout ............................................190

Chassis Console Port Pinouts .......................................................................190

E1 and T1 RJ-48 Cable Pinouts ....................................................................191

E3 and T3 BNC Connector Pinout ................................................................194

ADSL and G.SHDSL RJ-11 Connector Pinout ................................................194

ISDN RJ-45 Connector Pinout ......................................................................195

Chapter 12 Safety and Regulatory Compliance Information 197

Definition of Safety Warning Levels ............................................................197

Safety Guidelines and Warnings ..................................................................199

General Safety Guidelines and Warnings ...............................................199

Qualified Personnel Warning ..........................................................200

Preventing Electrostatic Discharge Damage ...................................201

Electrical Safety Guidelines and Warnings ............................................201

General Electrical Safety Guidelines ................................................202

AC Power Electrical Safety Guidelines ............................................203

DC Power Electrical Safety Guidelines ............................................204

Power Sources for Redundant Power Supplies ...............................205

DC Power Disconnection Warning .................................................205

DC Power Grounding Requirements and Warning ..........................206

DC Power Wiring Sequence Warning .............................................207

DC Power Wiring Terminations Warning .......................................209

Grounded Equipment Warning .......................................................210

Warning Statement for Norway and Sweden ..................................211

In Case of Electrical Accident .........................................................211

Multiple Power Supplies Disconnection Warning ............................211

Power Disconnection Warning .......................................................213

TN Power Warning .........................................................................214

Telecommunication Line Cord Warning .........................................215

xii ■ Table of Contents

Table of Contents

Installation Safety Guidelines and Warnings .........................................216

Chassis Lifting Guidelines ...............................................................216

Installation Instructions Warning ....................................................216

Rack-Mounting Requirements and Warnings ..................................217

Ramp Warning ...............................................................................221

Laser and LED Safety Guidelines and Warnings ....................................221

General Laser Safety Guidelines ......................................................222

Class 1 Laser Product Warning .......................................................222

Class 1 LED Product Warning .........................................................222

Laser Beam Warning ......................................................................223

Radiation from Open Port Apertures Warning ................................224

Maintenance and Operational Safety Guidelines and Warnings ............225

Battery Handling Warning ..............................................................226

Jewelry Removal Warning ..............................................................227

Lightning Activity Warning .............................................................228

Operating Temperature Warning ....................................................229

Product Disposal Warning ..............................................................231

Agency Approvals ........................................................................................232

Compliance Statements for Environmental Requirements ..........................233

Lithium Battery .....................................................................................233

Compliance Statements for EMC Requirements ..........................................233

Canada .................................................................................................233

European Community ...........................................................................235

Japan ....................................................................................................236

United States ........................................................................................237

FCC Part 15 Statement ...................................................................237

FCC Part 68 Statement ...................................................................237

Part 5 Index

Index ...........................................................................................................241

Table of Contents ■ xiii

JUNOS Software with Enhanced Services Hardware Guide

xiv ■ Table of Contents

About This Guide

This preface provides the following guidelines for using the JUNOS Software with Enhanced Services Hardware Guide:

■ Objectives on page xv

■ Audience on page xv

■ Supported Routing Platforms on page xvi

■ How to Use This Manual on page xvi

■ Document Conventions on page xviii

■ JUNOS Software Documentation for J-series Services Routers and SRX-series

Services Gateways on page xx

■ Documentation Feedback on page xxi

■ Requesting Technical Support on page xxii

Objectives

This guide contains an overview, basic instructions, and specifications for J2320, J2350, J4350, and J6350 Services Routers running JUNOS software with enhanced services. It explains how to prepare your site for installation, unpack and install J-series Services Router and its components, power on the router, and establish basic connectivity.

Audience

NOTE: This manual documents Release 9.2 of JUNOS software. For additional information—either corrections to or information that might have been omitted from this manual—see the JUNOS Software with Enhanced Services Release Notes or JUNOS Software for SRX-series Services Gateways Release Notes at http://www.juniper.net.

This manual is designed for anyone who installs, sets up, configures, monitors, or administers a J-series Services Router running JUNOS software with enhanced services or an SRX-series services gateway running JUNOS software. The manual is intended for the following audiences:

■ Customers with technical knowledge of and experience with networks and

network security, the Internet, and Internet routing protocols

■ Network administrators who install, configure, and manage Internet routers

Objectives ■ xv

JUNOS Software with Enhanced Services Hardware Guide

Personnel operating the equipment must be trained and competent; must not conduct themselves in a careless, willfully negligent, or hostile manner; and must abide by the instructions provided by the documentation.

Supported Routing Platforms

This manual describes features supported on J-series Services Routers running JUNOS software with enhanced services and SRX-series services gateways running JUNOS software.

How to Use This Manual

This manual and the other manuals in this set explain how to install, configure, and manage:

■ JUNOS software with enhanced services for J-series Services Routers

■ JUNOS software for SRX-series services gateways

Table 1 on page xvi identifies the tasks required to configure and manage these devices and shows where to find task information and instructions.

For an annotated list of the documentation referred to in Table 1 on page xvi, see “JUNOS Software Documentation for J-series Services Routers and SRX-series Services Gateways” on page xx. All documents are available at http://www.juniper.net/techpubs/.

Table 1: Tasks and Related Documentation

Document Conventions

Table 2 on page xviii defines the notice icons used in this guide.

Table 2: Notice Icons

JUNOS Software Administration Guide

JUNOS Software with Enhanced Services Quick Start

■

(J-series Services Routers only)

JUNOS Software Administration Guide

■

DescriptionMeaningIcon

Table 3 on page xviii defines the text and syntax conventions used in this guide.

Table 3: Text and Syntax Conventions

Bold text like this

Indicates important features or instructions.Informational note

Indicates a situation that might result in loss of data or hardware damage.Caution

Alerts you to the risk of personal injury or death.Warning

Alerts you to the risk of personal injury from a laser.Laser warning

Represents text that you type.

ExamplesDescriptionConvention

To enter configuration mode, type the

configure command:

user@host> configure

xviii ■ Document Conventions

Table 3: Text and Syntax Conventions (continued)

About This Guide

ExamplesDescriptionConvention

Fixed-width text like this

Italic text like this

Plain text like this

| (pipe symbol)

Represents output that appears on the terminal screen.

Introduces important new terms.

■

Identifies book names.

■

Identifies RFC and Internet draft

■

titles.

Represents variables (options for which you substitute a value) in commands or configuration statements.

Represents names of configuration statements, commands, files, and directories; IP addresses; configuration hierarchy levels; or labels on routing platform components.

Enclose optional keywords or variables.< > (angle brackets)

Indicates a choice between the mutually exclusive keywords or variables on either side of the symbol. The set of choices is often enclosed in parentheses for clarity.

user@host> show chassis alarms No alarms currently active

A policy term is a named structure

■

that defines match conditions and actions.

JUNOS System Basics Configuration

■

Guide RFC 1997, BGP Communities

■

Attribute

Configure the machine’s domain name:

[edit] root@# set system domain-name

domain-name

To configure a stub area, include

■

the stub statement at the [edit

protocols ospf area area-id]

hierarchy level. The console port is labeled

■

CONSOLE.

stub <default-metric metric>;

broadcast | multicast

(string1 | string2 | string3)

# (pound sign)

[ ] (square brackets)

Indention and braces ( { } )

; (semicolon)

J-Web GUI Conventions

Bold text like this

Indicates a comment specified on the same line as the configuration statement to which it applies.

Enclose a variable for which you can substitute one or more values.

Identify a level in the configuration hierarchy.

Identifies a leaf statement at a configuration hierarchy level.

Represents J-Web graphical user interface (GUI) items you click or select.

rsvp { # Required for dynamic MPLS only

community name members [ community-ids ]

[edit] routing-options {

static {

route default {

nexthop address; retain;

}

In the Logical Interfaces box, select

■

All Interfaces. To cancel the configuration, click

■

Cancel.

Document Conventions ■ xix

JUNOS Software with Enhanced Services Hardware Guide

Table 3: Text and Syntax Conventions (continued)

ExamplesDescriptionConvention

> (bold right angle bracket)

Separates levels in a hierarchy of J-Web selections.

In the configuration editor hierarchy, select Protocols>Ospf.

JUNOS Software Documentation for J-series Services Routers and SRX-series Services Gateways

Table 4 on page xx lists the software manuals and release notes for J-series Services Routers running JUNOS software with enhanced services and SRX-series services gateways running JUNOS software.

All documents are available at http://www.juniper.net/techpubs/.

Table 4: JUNOS Software Documentation for J-series Services Routers and SRX-series Services Gateways

DescriptionBook

All Platforms

JUNOS Software Interfaces and Routing Configuration Guide

JUNOS Software Security Configuration Guide

Explains how to configure J-series and SRX-series interfaces for basic IP routing with standard routing protocols, ISDN service, firewall filters (access control lists), and class-of-service (CoS) traffic classification.

Explains how to configure and manage J-series and SRX-series security services such as stateful firewall policies, IPsec VPNs, firewall screens, Network Address Translation (NAT), Public Key Cryptography, chassis clusters, Application Layer Gateways (ALGs), and Intrusion Detection and Prevention (IDP).

JUNOS Software Administration Guide

JUNOS Software CLI Reference

JUNOS Network Management Configuration Guide

JUNOS System Log Messages Reference

Shows how to monitor J-series and SRX-series devices and routing operations, firewall and security services, system alarms and events, and network performance. This guide also shows how to administer user authentication and access, upgrade software, and diagnose common problems.

Provides the complete configuration hierarchy available on J-series and SRX-series devices. This guide also describes the configuration statements and operational mode commands unique to these devices.

Describes enterprise-specific MIBs for JUNOS software. The information in this guide is applicable to M-series, T-series, EX-series, J-series, and SRX-series devices.

Describes how to access and interpret system log messages generated by JUNOS software modules and provides a reference page for each message. The information in this guide is applicable to M-series, T-series, EX-series, J-series, and SRX-series devices.

xx ■ JUNOS Software Documentation for J-series Services Routers and SRX-series Services Gateways

About This Guide

Table 4: JUNOS Software Documentation for J-series Services Routers and SRX-series Services Gateways (continued)

DescriptionBook

J-series Services Routers Only

JUNOS Software with Enhanced Services Design and Implementation Guide

Provides guidelines and examples for designing and implementing IPsec VPNs, firewalls, and routing on J-series Services Routers running JUNOS software with enhanced services.

JUNOS Software with Enhanced Services Quick Start

JUNOS Software with Enhanced Services Hardware Guide

JUNOS Software with Enhanced Services Migration Guide

WXC Integrated Services Module Installation and Configuration Guide

JUNOS Software with Enhanced Services Release Notes

SRX-series Services Gateways Only

JUNOS Software for SRX-series Services Gateway Release Notes

Explains how to quickly set up a J-series Services Router. This document contains router declarations of conformity.

Provides an overview, basic instructions, and specifications for J-series Services Routers. This guide explains how to prepare a site, unpack and install the router, replace router hardware, and establish basic router connectivity. This guide contains hardware descriptions and specifications.

Provides instructions for migrating an SSG device running ScreenOS software or a J-series Services Router running the JUNOS software to JUNOS software with enhanced services.

Explains how to install and initially configure a WXC Integrated Services Module in a J-series Services Router for application acceleration.

Summarizes new features and known problems for a particular release of JUNOS software with enhanced services on J-series Services Routers, including J-Web interface features and problems. The release notes also contain corrections and updates to the manuals and software upgrade and downgrade instructions for JUNOS software with enhanced services.

Summarizes new features and known problems for a particular release of JUNOS software on SRX-series services gateways, including J-Web interface features and problems. The release notes also contain corrections and updates to the manuals and software upgrade and downgrade.

Documentation Feedback

We encourage you to provide feedback, comments, and suggestions so that we can improve the documentation. You can send your comments to

techpubs-comments@juniper.net, or fill out the documentation feedback form at http://www.juniper.net/techpubs/docbug/docbugreport.html. If you are using e-mail, be sure

to include the following information with your comments:

■ Document name

■ Document part number

Documentation Feedback ■ xxi

JUNOS Software with Enhanced Services Hardware Guide

■ Page number

■ Software release version (not required for Network Operations Guides [NOGs])

Requesting Technical Support

Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active J-Care or JNASC support contract, or are covered under warranty, and need postsales technical support, you can access our tools and resources online or open a case with JTAC.

■ JTAC policies—For a complete understanding of our JTAC procedures and policies,

review the JTAC User Guide located at

http://www.juniper.net/customers/support/downloads/710059.pdf.

■ Product warranties—For product warranty information, visit

http://www.juniper.net/support/warranty/.

■ JTAC Hours of Operation —The JTAC centers have resources available 24 hours

a day, 7 days a week, 365 days a year.

Self-Help Online Tools and Resources

For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features:

■

Find CSC offerings: http://www.juniper.net/customers/support/

■

Search for known bugs: http://www2.juniper.net/kb/

■

Find product documentation: http://www.juniper.net/techpubs/

■ Find solutions and answer questions using our Knowledge Base:

http://kb.juniper.net/

■ Download the latest versions of software and review release notes:

http://www.juniper.net/customers/csc/software/

■ Search technical bulletins for relevant hardware and software notifications:

https://www.juniper.net/alerts/

■ Join and participate in the Juniper Networks Community Forum:

http://www.juniper.net/company/communities/

■

Open a case online in the CSC Case Manager: http://www.juniper.net/cm/

To verify service entitlement by product serial number, use our Serial Number Entitlement (SNE) Tool located at https://tools.juniper.net/SerialNumberEntitlementSearch/.

Opening a Case with JTAC

You can open a case with JTAC on the Web or by telephone.

■

Use the Case Manager tool in the CSC at http://www.juniper.net/cm/ .

■ Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico).

xxii ■ Requesting Technical Support

About This Guide

For international or direct-dial options in countries without toll-free numbers, visit us at http://www.juniper.net/support/requesting-support.html.

Requesting Technical Support ■ xxiii

JUNOS Software with Enhanced Services Hardware Guide

xxiv ■ Requesting Technical Support

Part 1

Services Router Overview

■ Overview of Services Routers on page 3

■ J-series Services Router Hardware Features on page 7

■ PIM Overview on page 35

Services Router Overview ■ 1

JUNOS Software with Enhanced Services Hardware Guide

2 ■ Services Router Overview

Chapter 1

Overview of Services Routers

J-series Services Routers running JUNOS software with enhanced services provide stable, reliable, and efficient IP routing, WAN and LAN connectivity, and management services for small to medium-sized enterprise networks. These routers also provide network security features, including a stateful firewall with access control policies and screens to protect against attacks and intrusions, and IPSec VPNs. J-series Services Routers securely connect small, branch, and regional offices to a central site router across Internet service provider (ISP) networks.

J-series Services Routers run JUNOS software with enhanced services, which offers many advanced routing and security services.

You can use two user interfaces to monitor, configure, troubleshoot, and manage a Services Router:

■ J-Web interface—A Web-based graphical interface that allows you to operate a

router without commands. The J-Web interface provides access to all JUNOS functionality and features. Quick Configuration wizards simplify basic configuration and minimize the risk of operator error.

■ JUNOS command-line interface—A Juniper Networks command shell that runs

on top of a UNIX-based operating system kernel. The CLI is a straightforward command interface. On a single line, you type commands that are executed when you press the Enter key. The CLI provides command Help and command completion.

For an introduction to the J-Web and CLI interfaces, see the JUNOS Software Administration Guide. For more information, see the J-Web Interface User Guide and the JUNOS CLI User Guide

This chapter contains the following topics:

■ J2320 Services Router Overview on page 3

■ J2350 Services Router Overview on page 4

■ J4350 Services Router Overview on page 5

■ J6350 Services Router Overview on page 6

J2320 Services Router Overview

The J2320 Services Router is primarily designed for remote and branch offices. It has a small chassis that is 1 U (rack unit) in size with a nonredundant AC power

J2320 Services Router Overview ■ 3

JUNOS Software with Enhanced Services Hardware Guide

supply, an external compact flash and two universal serial bus (USB) ports for external storage, and an optional Crypto Accelerator Module.

J2320 routers ordered with the optional Crypto Accelerator Module come standard with 1 GB of memory, while those ordered without the Crypto Accelerator Module come standard with 256 MB of memory. The memory on J2320 routers can be upgraded to 1 GB. For instructions on upgrading memory, see “Replacing DRAM Modules” on page 136.

Each J2320 chassis contains four built-in Gigabit Ethernet ports with link speeds of 10/100/1000 Mbps over a copper interface. The chassis also contains three slots for field-replaceable Physical Interface Modules.

The J2320 Services Router supports the following field-replaceable PIMs:

■ Gigabit Ethernet uPIM (1-port, 6-port, 8-port, and 16-port)

■ Dual-Port Serial PIM

■ Dual-Port E1 PIM

■ Dual-Port T1 PIM

■ Dual-Port Channelized T1/E1/ISDN PRI PIM

■ 4-port ISDN BRI S/T or U PIM

■ ADSL 2/2+ Annex A PIM (1 port)

■ ADSL 2/2+ Annex B PIM (1 port)

■ G.SHDSL PIM (2 ports)

J2350 Services Router Overview

The J2350 Services Router is primarily designed for branch offices. It has a chassis that is 1.5 U (rack unit) in size with a nonredundant AC or DC power supply, an external compact flash and two universal serial bus (USB) ports for external storage, and an optional Crypto Accelerator Module.

J2350 routers ordered with the optional Crypto Accelerator Module come standard with 1 GB of memory, while those ordered without the Crypto Accelerator Module come standard with 256 MB of memory. The memory on J2350 routers can be upgraded to 1 GB. For instructions on upgrading memory, see “Replacing DRAM Modules” on page 136.

Each J2350 chassis contains four built-in Gigabit Ethernet ports with link speeds of 10/100/1000 Mbps over a copper interface. The chassis also contains five slots for field-replaceable Physical Interface Modules (PIMs).

The J2350 Services Router supports the following field-replaceable PIMs and modules:

■ Gigabit Ethernet uPIM (1–port, 6-port, 8-port, and 16-port)

■ Dual-Port Serial PIM

■ Dual-Port E1 PIM

4 ■ J2350 Services Router Overview

■ Dual-Port T1 PIM

■ Dual-Port Channelized T1/E1/ISDN PRI PIM

■ 4-port ISDN BRI S/T or U PIM

■ ADSL 2/2+ Annex A PIM (1 port)

■ ADSL 2/2+ Annex B PIM (1 port)

■ G.SHDSL PIM (2 ports)

■ WXC Integrated Services Module

J4350 Services Router Overview

The J4350 Services Router is designed primarily for regional and branch offices. It has a chassis that is 2 U (rack units) in size with a nonredundant AC or DC power supply, and a universal serial bus (USB) port for external storage.

Chapter 1: Overview of Services Routers

J4350 routers ordered with the optional Crypto Accelerator Module come standard with 1 GB of memory, while those ordered without the Crypto Accelerator Module come standard with 256 MB of memory. J4350 routers can contain between 256 MB and 2 GB of memory. For instructions on adding memory, see “Replacing DRAM Modules” on page 136.

Each J4350 chassis contains four built-in Gigabit Ethernet ports with link speeds of 10/100/1000 Mbps over a copper interface, and six slots for field-replaceable Physical Interface Modules (PIMs). Two of the six slots (slots 3 and 6) support high-speed interfaces (ePIMs).

The J4350 Services Router supports the following field-replaceable PIMs and modules:

■ Gigabit Ethernet uPIM (1-port, 6-port, 8-port, and 16-port)

■ SFP Gigabit Ethernet ePIM (1 port)

■ Copper Gigabit Ethernet ePIM (1 port)

■ Dual-Port Serial PIM

■ Dual-Port E1 PIM

■ Dual-Port T1 PIM

■ Dual-Port Channelized T1/E1/ISDN PRI PIM

■ E3 PIM (1 port)

■ DS3 (T3) PIM (1 port)

■ Dual-Port Fast Ethernet PIM

■ 4-port Fast Ethernet ePIM

■ 4-port ISDN BRI S/T or U PIM

■ ADSL 2/2+ Annex A PIM (1 port)

■ ADSL 2/2+ Annex B PIM (1 port)

J4350 Services Router Overview ■ 5

JUNOS Software with Enhanced Services Hardware Guide

■ G.SHDSL PIM (2 ports)

■ WXC Integrated Services Module

J6350 Services Router Overview

The J6350 Services Router is designed primarily for regional and central offices. It has a chassis that is 2 U (rack units) in size with an optional redundant AC or DC power supply, up to 2 GB of memory, and two universal serial bus (USB) ports for external storage. The J6350 Services Router is a higher-performance system than the J4350 Services Router.

J6350 routers come standard with 1 GB of memory and can be upgraded to 2 GB of memory. For instructions on adding memory, see “Replacing DRAM Modules” on page 136.

Each J6350 chassis contains four built-in Gigabit Ethernet ports with link speeds of 10/100/1000 Mbps over a copper interface, and six slots for field-replaceable Physical Interface Modules (PIMs). Four of the six slots (slots 2, 3, 5, and 6) support high-speed interfaces (ePIMs).

The J6350 Services Router supports the following field-replaceable PIMs and modules:

■ Gigabit Ethernet uPIM (1–port, 6-port, 8-port, and 16-port)

■ SFP Gigabit Ethernet ePIM (1 port)

■ Copper Gigabit Ethernet ePIM (1 port)

■ Dual-Port E1 PIM

■ Dual-Port T1 PIM

■ E3 PIM (1 port)

■ DS3 (T3) PIM (1 port)

■ Dual-Port Fast Ethernet PIM

■ Dual-Port Channelized T1/E1/ISDN PRI PIM

■ 4-port Fast Ethernet ePIM

■ 4-port ISDN BRI S/T or U PIM

■ Dual-Port Serial PIM

■ ADSL 2/2+ Annex A PIM (1 port)

■ ADSL 2/2+ Annex B PIM (1 port)

■ G.SHDSL PIM (2 ports)

■ WXC Integrated Services Module

6 ■ J6350 Services Router Overview

Chapter 2

J-series Services Router Hardware Features

J-series Services Routers running JUNOS software with enhanced services have chassis that are similar but with important differences. J2320, J2350, and J4350 routers have a single nonredundant power supply and an optional Crypto Accelerator Module. J6350 routers have redundant power supplies and a standard Crypto Accelerator Module.

For field-replaceable PIMs, the J2320 has three slots, the J2350 has five slots, and the J4350 and J6350 have six slots. Of the six slots, two on the J4350 and four on the J6350 are enhanced (high-speed) slots.

All J-series routers run JUNOS software with enhanced services, which offers advanced routing and security features.

This chapter contains the following topics:

■ J2320 and J2350 Services Router Hardware Features on page 7

■ J4350 and J6350 Services Router Hardware Features on page 20

J2320 and J2350 Services Router Hardware Features

This section contains the following topics:

■ J2320 and J2350 Chassis on page 8

■ J2320 and J2350 Midplane on page 12

■ J2320 and J2350 Routing Engine Hardware on page 12

■ J2320 and J2350 Boot Devices on page 12

■ J2320 and J2350 Front Panel on page 13

■ J2320 and J2350 External Compact Flashes on page 18

■ J2320 Power System on page 18

■ J2350 Power System on page 18

■ J2320 and J2350 Cooling System on page 19

J2320 and J2350 Services Router Hardware Features ■ 7

JUNOS Software with Enhanced Services Hardware Guide

J2320 and J2350 Chassis

The J2320 and J2350 chassis is a rigid sheet metal structure that houses all the other router components (see Figure 1 on page 8 through Figure 7 on page 11). The chassis can be installed in many types of racks or cabinets. For information about acceptable rack types, see “Rack Requirements” on page 64.

In addition to the components described in subsequent sections, the chassis includes the following components:

■ Mounting brackets—One pair of metal brackets can be mounted at the front or

center of the chassis for mounting the chassis in a rack or cabinet.

■ Earthing terminal—A protective earthing terminal and a PEM nut at the rear of

the chassis ensure safe dissipation of static electricity in all situations.

■ ESD point—One electrostatic discharge (ESD) point, a banana plug receptacle at

the front of the chassis, minimizes the risk of electrical discharge in potentially hazardous environments.

CAUTION: Before removing or installing components of a functioning router, attach an ESD strap to an ESD point and place the other end of the strap around your bare wrist. Failure to use an ESD strap could result in damage to the router.

The router must be connected to earth ground during normal operation. The protective earthing terminal on the rear of the chassis is provided to connect the router to ground (see Figure 3 on page 9). Additional grounding is provided to an AC-powered router when you plug its power supply into a grounded AC power receptacle.

For additional safety information, see “Safety and Regulatory Compliance Information” on page 197.

Figure 1: Front of J2320 Chassis

8 ■ J2320 and J2350 Services Router Hardware Features

Figure 2: Front of J2350 Chassis

Figure 3: Rear of J2320 Chassis

Chapter 2: J-series Services Router Hardware Features

Figure 4: Rear of J2350 AC-Powered Chassis

J2320 and J2350 Services Router Hardware Features ■ 9

JUNOS Software with Enhanced Services Hardware Guide

Figure 5: Rear of J2350 DC-Powered Chassis

Figure 6: J2320 Hardware Components

10 ■ J2320 and J2350 Services Router Hardware Features

Figure 7: J2350 Hardware Components

Chapter 2: J-series Services Router Hardware Features

Table 5 on page 11 summarizes the physical specifications for the router chassis.

Table 5: J2320 and J2350 Physical Specifications

ValueDescription

Chassis dimensions

Router weight

J2320 Services Router

■

1.75 in. (4.45 cm) high

■

17.51 in. (44.48 cm) wide—18.9 in. (48.01 cm) wide with mounting brackets attached

■

15.1 in. (38.35 cm) deep—plus 0.78 in. (1.98 cm) of hardware that protrudes from the

■

chassis front

J2350 Services Router

■

2.61 in. (6.63 cm) high

■

17.51 in. (44.48 cm) wide—18.9 in. (48.01 cm) wide with mounting brackets attached

■

15.1 in. (38.35 cm) deep—plus 0.78 in. (1.98 cm) of hardware that protrudes from the

■

chassis front

J2320 Services Router

■

Minimum (no PIMs): 14.8 lbs (6.7 kg)

■

Maximum (three PIMs): 15.9 lbs (7.2 kg)

■

J2350 Services Router

■

Minimum (no PIMs): 16.3 lbs (7.4 kg)

■

Maximum (five PIMs): 18.2 lbs (8.3 kg)

■

J2320 and J2350 Services Router Hardware Features ■ 11

JUNOS Software with Enhanced Services Hardware Guide

J2320 and J2350 Midplane

The J2320 and J2350 midplane is located in the center of the chassis and forms the rear of the PIM card cage (see Figure 6 on page 10 and Figure 7 on page 11). You install the PIMs into the midplane from the front of the chassis. Data packets are transferred across the midplane from the PIM to the Routing Engine, and from the Routing Engine across the midplane to the destination PIM.

J2320 and J2350 Routing Engine Hardware

The Routing Engine consists of the following components:

■ Processor—Creates the packet forwarding switch fabric for the router and runs

JUNOS software to maintain the router's routing tables and routing protocols.

■ DRAM—Buffers incoming packets and provides storage for the routing and

forwarding tables and for other Routing Engine processes.

To view the amount of DRAM installed on your router, issue the show chassis

routing-engine command.

■ EPROM—Stores the serial number of the Routing Engine.

To view the serial number of the Routing Engine, issue either the show chassis

routing-engine command or the show chassis hardware command.

■ Crypto Accelerator Module—Processor card that enhances performance of

cryptographic algorithms used in IP security (IPSec) services. The cryptographic algorithms supported include Advanced Encryption Standard (AES), Data Encryption Standard (DES), triple DES (3DES), Hashed Message Authentication Code-Message Digest 5 (HMAC-MD5), and HMAC-Secure Hash Algorithm 1 (SHA-1). The Crypto Module is an optional feature of J2320 and J2350 Services Routers.

To determine whether there is a Crypto Accelerator Module installed on your router, issue the show chassis hardware command.

■ Compact flash—Provides primary storage for software images, configuration

files, and microcode. J-series routers have a primary or internal compact flash located on the system board. For information about replacing the internal compact flash, see “Replacing Internal Compact Flashes on J2320 and J2350 Routers” on page 126.

J2320 and J2350 Services Routers also provide a slot in the rear of the chassis into which you can insert an additional external compact flash. For information about external compact flashes, see “J2320 and J2350 External Compact Flashes” on page 18.

J2320 and J2350 Boot Devices

J2320 and J2350 Services Routers can boot from three devices:

■ Internal compact flash

■ External compact flash (also known as the removable compact flash)

12 ■ J2320 and J2350 Services Router Hardware Features

■ USB storage device

Normally, a J2320 or J2350 Services Router boots from the internal compact flash. If the internal compact flash fails, the router attempts to boot from the external compact flash if it is installed. If the external compact flash is not present or fails, the router attempts to boot from the USB storage device.

J2320 and J2350 Front Panel

The front panel of a J2320 or J2350 Services Router (see Figure 8 on page 13 and Figure 9 on page 13) allows you to install or remove PIMs, view router status LEDs, access the console port, and perform simple control functions.

Figure 8: Front of J2320 Chassis

Chapter 2: J-series Services Router Hardware Features

Figure 9: Front of J2350 Chassis

The components of the front panel, are described in the following sections:

■ Physical Interface Modules (PIMs) on page 14

■ Power Button and POWER LED on page 14

■ STATUS LED on page 15

■ ALARM LED on page 15

■ HA LED on page 16

■ RESET CONFIG Button on page 16

■ Built-In Gigabit Ethernet Ports on page 17

J2320 and J2350 Services Router Hardware Features ■ 13

JUNOS Software with Enhanced Services Hardware Guide

■ Console Port on page 17

■ AUX Port on page 17

■ USB Port on page 17

Physical Interface Modules (PIMs)

Physical Interface Modules (PIMs) provide the physical connection to various network media types. For information about individual PIMs, see “Field-Replaceable PIMs” on page 38.

For pinouts of PIM cable connectors, see “Network Cable Specifications and Connector Pinouts” on page 179. For PIM replacement instructions, see “Replacing a PIM” on page 120.

The J2320 front panel has three slots and the J2350 front panel has five slots for field-replaceable PIMs. These slots are numbered from top to bottom and from left to right as shown in Figure 10 on page 14.

Slot 0 is a fixed interface module that contains four built-in Gigabit Ethernet ports. For more information, see “Built-In Gigabit Ethernet Ports” on page 17.

Figure 10: Slot Number Diagram on J2320 and J2350

Power Button and POWER LED

The power button is located on the left side of the front panel (see Figure 1 on page 8). You can use the power button to power the Services Router on and off. When you power on the router, the Routing Engine boots as the power supply completes its startup sequence.

The POWER LED is located to the upper left of the LED dashboard. Table 6 on page 14 describes the POWER LED.

Table 6: J2320 and J2350 POWER LED

DescriptionStateColor

Power is functioning correctly.On steadilyGreen

Blinking

14 ■ J2320 and J2350 Services Router Hardware Features

Power button has been pressed and quickly released, and the router is gracefully shutting down.

Router is not receiving power.OffUnlit

Chapter 2: J-series Services Router Hardware Features

After the router is powered on, status indicators—such as LEDs on the front panel and show chassis command output—can take up to 60 seconds to indicate that the power supply is functioning normally. Ignore error indicators that appear during the first 60 seconds.

If you need to power off the router after the Routing Engine finishes booting, use the J-Web interface or the CLI to halt the Services Router first. For instructions, see the JUNOS Software Administration Guide. Alternatively, you can press and release the power button to gracefully shut down the router. For more information, see “Powering a Services Router On and Off” on page 89.

STATUS LED

When the system is powered on, the STATUS LED changes from off to blinking green. Startup takes approximately 90 seconds to complete. If you want to turn the system off and on again, we recommend waiting a few seconds between shutting it down and powering it back up. Table 7 on page 15 describes the STATUS LED.

Table 7: J2320 and J2350 STATUS LED

ALARM LED

The ALARM LED lights amber to indicate a minor condition that requires monitoring or maintenance and lights red to indicate a major condition that can result in a system shutdown. When the condition is corrected, the light turns off. Table 8 on page 15 describes the ALARM LED.

Table 8: J2320 and J2350 ALARM LED

On steadilyRed

DescriptionStateColor

Router is starting up or performing diagnostics.BlinkingGreen

Router is operating normally.On steadily

Error has been detected.BlinkingRed

DescriptionStateColor

Major alarm indicates a critical situation on the router that has resulted from one of the following conditions. A red alarm condition requires immediate action:

One or more hardware components have failed.

■

One or more hardware components have exceeded

■

temperature thresholds. An alarm condition configured on an interface has

■

triggered a critical warning.

J2320 and J2350 Services Router Hardware Features ■ 15

JUNOS Software with Enhanced Services Hardware Guide

Table 8: J2320 and J2350 ALARM LED (continued)

On steadilyYellow

For information about alarm conditions and corrective actions, see “Monitoring and Correcting Chassis Alarm Conditions” on page 157. For additional information, see the JUNOS Software Administration Guide.

DescriptionStateColor

Minor alarm condition requires monitoring or maintenance:

Indicates a noncritical condition on the router that, if

■

left unchecked, might cause an interruption in service or degradation in performance.

A missing rescue configuration or software license

■

generates an amber system alarm.

No alarms.OffUnlit

HA LED

The HA (high availability) LED is located in the front panel near the power status LED of the LED dashboard. The LED lights when the router starts, but otherwise remains unlit.Table 9 on page 16 describes the HA LED.

Table 9: J2320 and J2350 HA LED

On steadilyRed

OffUnlit

RESET CONFIG Button

DescriptionStateColor

All cluster members and monitored links are available.On steadilyGreen

A cluster member is missing or unreachable, or the other node is no longer part of

a cluster because it has been disabled by the dual membership and detection

recovery process in reaction to a control link or fabric link failure.

All cluster members are present, but one or more monitored links are down.On steadilyAmber

The node is not configured for clustering or it has been disabled by the dual

membership and detection recovery process in reaction to a control link or fabric

link failure.

Use the RESET CONFIG button to return the router to a previous valid configuration or to the factory default configuration, or a rescue configuration. The button is recessed to prevent it from being pressed accidentally. For details about the RESET

CONFIG button, see “Resetting the Configuration File When the Router Is

Inaccessible” on page 160.

16 ■ J2320 and J2350 Services Router Hardware Features

Built-In Gigabit Ethernet Ports

Four built-in Gigabit Ethernet ports provide LAN connections over copper interfaces to hubs, switches, local servers, and workstations. You can also designate an Ethernet port for management traffic. When configuring one of these ports, you use the interface name that corresponds to the port’s location. From left to right on the front panel, the interface names for the ports are ge-0/0/0, ge-0/0/1, ge-0/0/2, and

ge-0/0/3.

For Gigabit Ethernet port pinout information, see “Gigabit Ethernet uPIM RJ-45 Connector Pinout” on page 189.

Each port has two LEDs, a TX/RX LED on the left side and a LINK LED on the right side. Table 10 on page 17 describes the built-in Ethernet port LEDs.

Table 10: Gigabit Ethernet Port LEDs

LINK

Chapter 2: J-series Services Router Hardware Features

DescriptionStateColorFunction

Port is online.On steadilyGreen

TX/RX

Port is offline.OffUnlit

Port is transmitting or receiving data.BlinkingGreen

Port might be online, but it is not receiving data.OffUnlit

Console Port

You can use the console port on the chassis front panel to connect to the Routing Engine through an RJ-45 serial cable. From the chassis console port, you can use the CLI to configure the router. The console port is configured as data terminal equipment (DTE) and supports the RS-232 (EIA-232) standard.

For information about securing the chassis console port, see the JUNOS Software Administration Guide.

For pinout information, see “Chassis Console Port Pinouts” on page 190.

AUX Port

The port labeled AUX on the front panel of the J-series Services Router is for future use and is not activated.

USB Port

The USB ports on the front panel of the router (see Figure 8 on page 13 and Figure 9 on page 13) accept a USB storage device or USB storage device adapter with a compact flash installed, as defined in the CompactFlash Specification published by the CompactFlash Association. When a USB storage device is installed and configured, it automatically acts as a secondary boot device if the internal compact flash fails on startup. Depending on the size of the USB storage device, you can also configure it

J2320 and J2350 Services Router Hardware Features ■ 17

JUNOS Software with Enhanced Services Hardware Guide

to receive any core files generated during a failure. For information about configuring a USB storage device, see the JUNOS Software Administration Guide.

NOTE: For a list of supported USB storage devices, see the JUNOS Software with Enhanced Services Release Notes at http://www.juniper.net.

J2320 and J2350 External Compact Flashes

On J2320 and J2350 routers, an external compact flash, also known as removable compact flash, accepts a type I or II compact flash, as defined in the CompactFlash Specification published by the CompactFlash Association. The J2320 and J2350 chassis has a slot on the rear for external compact flashes (see Figure 3 on page 9). When the external compact flash is installed and configured, it automatically acts as the secondary boot device if the internal compact flash fails on startup.

Depending on the capacity of the external compact flash, you can also configure it to receive any core files generated during a failure. For information about configuring an external compact flash, see the JUNOS Software Administration Guide.

J2320 Power System

J2350 Power System

The J2320 Services Router uses AC power (see Figure 3 on page 9). The autosensing power supply distributes the different output voltages to the router components according to their voltage requirements. The power supply is fixed in the chassis, and is not field-replaceable.

The AC power supply has a single AC appliance inlet that requires a dedicated AC power feed.

The J2320 AC-powered chassis has a power switch and does not include a power LED.

For information about site power preparations, see “Power Guidelines, Requirements, and Specifications” on page 67. For information about connecting the router to power and ground, see “Connecting Power” on page 84.

The J2350 Services Router uses either AC or DC power. The autosensing power supply (see Figure 4 on page 9 or Figure 5 on page 10) distributes the different output voltages to the router components according to their voltage requirements. The power supply is fixed in the chassis, and is not field-replaceable.

The AC power supply has a single AC appliance inlet that requires a dedicated AC power feed. The DC power supply has a terminal block that provides a single DC input (–48 VDC and return) and requires a dedicated 15 A (–48 VDC) circuit breaker.

The J2350 AC-powered or DC-powered chassis has a power switch and does not include a power LED.

18 ■ J2320 and J2350 Services Router Hardware Features

NOTE: You cannot mix DC and AC power supplies in the same chassis.

WARNING: DC-powered Services Routers are intended for installation only in a

restricted access location.

J2320 and J2350 Cooling System

The cooling system in J2320 and J2350 routers is from side to side. The J2320 router has five cooling fans and the J2350 router has four cooling fans. The fans draw air through vents along the left side of the chassis and exhaust it through vents on the right side of the chassis. The airflow produced by these fans keeps router components within the acceptable temperature range (see Figure 11 on page 20 and Figure 12 on page 20). The speed of the fans is adjusted automatically according to the current temperature.

Chapter 2: J-series Services Router Hardware Features

On J2350 routers that comply with Network Equipment Building System (NEBS) criteria, an air filter protects the air intake opening at the front of the chassis and must be replaced periodically. To verify that the system is a NEBS-compliant system, run the show chassis hardware command. A NEBS-compliant system displays the term NEBS in the output. For instructions on how to replace air filters, see “Replacing Air Filters on J2350 Routers” on page 153.

The Routing Engine monitors the temperature of the router components. If the maximum temperature specification, as measured at the CPU junction, is exceeded and the router cannot be adequately cooled, the Routing Engine shuts down the hardware components.

J2320 and J2350 routers shut down when the CPU temperature reaches 80°C (176°F). There is no alarm for temperature. You can view the CPU junction temperature using the show chassis routing-engine command. The CPU temperature runs a few degrees higher than the routing engine temperature displayed on the Monitor>Chassis page of the J-Web interface.

An additional fan is part of each power supply. This fan is not regulated by the operating system.

J2320 and J2350 Services Router Hardware Features ■ 19

JUNOS Software with Enhanced Services Hardware Guide

Figure 11: Airflow Through the J2320 Chassis

Figure 12: Airflow Through the J2350 Chassis

J4350 and J6350 Services Router Hardware Features

This section contains the following topics:

■ J4350 and J6350 Chassis on page 21

■ J4350 and J6350 Midplane on page 25

■ J4350 and J6350 Routing Engine Hardware on page 25

■ J4350 and J6350 Boot Devices on page 25

■ J4350 and J6350 Front Panel on page 26

■ J4350 Power System on page 30

20 ■ J4350 and J6350 Services Router Hardware Features

■ J6350 Power System on page 31

■ J4350 and J6350 Cooling System on page 32

J4350 and J6350 Chassis

The J4350 and J6350 chassis is a rigid sheet metal structure that houses all the other router components (see Figure 13 on page 22 through Figure 18 on page 24). The chassis can be installed in many types of racks or cabinets. For information about acceptable rack types, see “Rack Requirements” on page 64.

In addition to the features described in subsequent sections, the chassis includes the following features:

■ Mounting brackets—One pair of metal brackets can be mounted at the front or

center of the chassis. Use the brackets for mounting the chassis in a rack or cabinet.

■ Earthing terminals—Two protective earthing terminals, PEM nuts at the rear of

the chassis ensure safe dissipation of static electricity in all situations.

Chapter 2: J-series Services Router Hardware Features

■ ESD point—One electrostatic discharge (ESD) point, a banana plug receptacle at

the front of the chassis, minimizes the risk of electrical discharge in potentially hazardous environments.

The router must be connected to earth ground during normal operation. The protective earthing terminals on the rear of the chassis are provided to connect the router to ground (see Figure 14 on page 22). Additional grounding is provided to an AC-powered router when you plug its power supply into a grounded AC power receptacle.

For additional safety information, see “Safety and Regulatory Compliance Information” on page 197.

J4350 and J6350 Services Router Hardware Features ■ 21

JUNOS Software with Enhanced Services Hardware Guide

Figure 13: Front of J4350 and J6350 Chassis

Figure 14: Rear of J4350 AC-Powered Chassis

NOTE: The J4350 AC-powered chassis has a power switch and does not include a power supply LED (unlike the J6350 AC-powered chassis).

Figure 15: Rear of J6350 AC-Powered Chassis

22 ■ J4350 and J6350 Services Router Hardware Features

Chapter 2: J-series Services Router Hardware Features

Figure 16: Rear of J4350 DC-Powered Chassis

Figure 17: Rear of DC-Powered J6350 Chassis

J4350 and J6350 Services Router Hardware Features ■ 23

JUNOS Software with Enhanced Services Hardware Guide

Figure 18: J4350 and J6350 Hardware Components

Table 11 on page 24 summarizes the physical specifications for the router chassis.

Table 11: J4350 and J6350 Physical Specifications

ValueDescription

Chassis dimensions

Router weight

3.44 in. (8.74 cm) high

■

17.44 in. (44.3 cm) wide—19.44 in. (48.38 cm) wide with mounting brackets attached

■

21.13 in. (53.67 cm) deep—plus 0.5 in. (1.27 cm) of hardware that protrudes from the chassis

■

front

J4350 Services Router:

■

Minimum (no PIMs): 23 lb (10.4 kg)

■

Maximum (six PIMs): 25.3 lb (11.5 kg)

■

J6350 Services Router

■

Minimum (no PIMs and one power supply): 25.5 lb (11.6 kg)

■

Maximum (six PIMs and two power supplies): 30.7 lb (13.9 kg)

■

24 ■ J4350 and J6350 Services Router Hardware Features

J4350 and J6350 Midplane

The midplane is located in the center of the chassis and forms the rear of the PIM card cage (see Figure 18 on page 24). You install the PIMs into the midplane from the front of the chassis. Data packets are transferred across the midplane from the PIM to the Routing Engine, and from the Routing Engine across the midplane to the destination PIM.

J4350 and J6350 Routing Engine Hardware

The Routing Engine consists of the following components.

■ Processor—Creates the packet forwarding switch fabric for the router and runs

JUNOS Internet software to maintain the router's routing tables and routing protocols.

■ DRAM—Buffers incoming packets and provides storage for the routing and

forwarding tables and for other Routing Engine processes.

Chapter 2: J-series Services Router Hardware Features

To view the amount of DRAM installed on your router, issue the show chassis

routing-engine command.

■ EPROM—Stores the serial number of the Routing Engine.

To view the serial number of the Routing Engine, issue either the show chassis

routing-engine command or the show chassis hardware command.

■ Crypto Accelerator Module—Processor card that enhances performance of

To determine whether there is a Crypto Accelerator Module installed on your router, issue the show chassis hardware command.

■ Compact flash—Provides primary storage for software images, configuration

files, and microcode. J4350 and J6350 routers have a slot on the motherboard for an internal compact flash. For information about replacing the compact flash, see “Replacing Internal Compact Flashes on J4350 and J6350 Routers” on page 129.

J4350 and J6350 Boot Devices

The J4350 and J6350 Services Routers can boot from two devices:

■ Internal compact flash

■ USB storage device

Normally, the J4350 or J6350 Services Router boots from the internal compact flash. If the compact flash fails, the router attempts to boot from the USB storage device.

J4350 and J6350 Services Router Hardware Features ■ 25

JUNOS Software with Enhanced Services Hardware Guide

J4350 and J6350 Front Panel

The front panel of the Services Router (see Figure 19 on page 26) allows you to install or remove PIMs, view router status LEDs, access the console port, and perform simple control functions.

Figure 19: Front of J4350 and J6350 Chassis

The components of the front panel, from left to right, are described in the following sections:

■ Physical Interface Modules (PIMs) on page 26

■ Power Button and POWER LED on page 27

■ STATUS LED on page 27

■ ALARM LED on page 28

■ HA LED on page 29

■ RESET CONFIG Button on page 29

■ Built-In Gigabit Ethernet Ports on page 29

■ Console Port on page 30

■ AUX Port on page 30

■ USB Port on page 30

Physical Interface Modules (PIMs)

Physical Interface Modules (PIMs) provide the physical connection to various network media types. For information about individual PIMs, see “Field-Replaceable PIMs” on page 38.

For pinouts of PIM cable connectors, see “Network Cable Specifications and Connector Pinouts” on page 179. For PIM replacement instructions, see “Replacing a PIM” on page 120.

Each J4350 and J6350 Services Router has six front panel slots for field-replaceable PIMs. These slots are numbered from top to bottom and from left to right as shown in the slot number diagram on the front panel, shown in Figure 20 on page 27.

26 ■ J4350 and J6350 Services Router Hardware Features

Chapter 2: J-series Services Router Hardware Features

Figure 20: Slot Number Diagram on Front Panel

Gigabit Ethernet and 4-port Fast Ethernet ePIMs can be installed in high-speed slots only. High-speed slots are indicated by a black triangle containing an E in the front panel slot number diagram. On J4350 Services Routers, the high-speed slots are slot 3 and slot 6. On J6350 Services Routers, the high-speed slots are slots 2, 3, 5, and 6.

Slot 0 is the fixed interface module that contains the built-in Ethernet ports.

Power Button and POWER LED

The power button is located on the left side of the front panel (see Figure 19 on page 26). You can use the power button to power the Services Router on and off. When you power on the router, the Routing Engine boots as the power supply completes its startup sequence.

Table 12: POWER LED

The POWER LED is located to the upper left of the LED dashboard. Table 12 on page 27 describes the POWER LED.

DescriptionStateColor

Power is functioning correctly.On steadilyGreen

Blinking

Power button has been pressed and quickly released, and the router is gracefully shutting down.

Router is not receiving power.OffUnlit

STATUS LED

When the system is powered on, the STATUS LED changes from off to blinking green. Startup takes approximately 90 seconds to complete. If you want to turn the system

J4350 and J6350 Services Router Hardware Features ■ 27

JUNOS Software with Enhanced Services Hardware Guide

off and on again, we recommend waiting a few seconds between shutting it down and powering it back up. Table 13 on page 28 describes the STATUS LED.

Table 13: STATUS LED

ALARM LED

The ALARM LED lights yellow to indicate a minor condition that requires monitoring or maintenance and lights red to indicate a major condition that can result in a system shutdown. When the condition is corrected, the light turns off. Table 14 on page 28 describes the ALARM LED.

DescriptionStateColor

Router is starting up or performing diagnostics.BlinkingGreen

Router is operating normally.On steadily

Error has been detected.BlinkingRed

Table 14: ALARM LED

DescriptionStateColor

On steadilyRed

On steadilyYellow

Major alarm indicates a critical situation on the router that has resulted from one of the following conditions. A red alarm condition requires immediate action:

One or more hardware components have failed.

■

One or more hardware components have exceeded

■

temperature thresholds. An alarm condition configured on an interface has

■

triggered a critical warning.

Minor alarm condition requires monitoring or maintenance:

Indicates a noncritical condition on the router that, if

■

left unchecked, might cause an interruption in service or degradation in performance.

A missing rescue configuration or software license

■

generates a yellow system alarm.

No alarms.OffUnlit

28 ■ J4350 and J6350 Services Router Hardware Features

Table 15: HA LED

Chapter 2: J-series Services Router Hardware Features

HA LED

DescriptionStateColor

All cluster members and monitored links are available.On steadilyGreen

On steadilyRed

OffUnlit

A cluster member is missing or unreachable, or the other node is no longer part of

a cluster because it has been disabled by the dual membership and detection

recovery process in reaction to a control link or fabric link failure.

All cluster members are present, but one or more monitored links are down.On steadilyAmber

The node is not configured for clustering or it has been disabled by the dual

membership and detection recovery process in reaction to a control link or fabric

link failure.

RESET CONFIG Button

CONFIG button, see “Resetting the Configuration File When the Router Is

Inaccessible” on page 160.

Built-In Gigabit Ethernet Ports

ge-0/0/3.

For Gigabit Ethernet port pinout information, see “Gigabit Ethernet ePIM RJ-45 Connector Pinout” on page 190.

Each port has two LEDs, a TX/RX LED on the left side and a LINK LED on the right side. Table 16 on page 29 describes the built-in Ethernet port LEDs.

Table 16: Gigabit Ethernet Port LEDs

LINK

DescriptionStateColorFunction

Port is online.On steadilyGreen

Port is offline.OffUnlit

J4350 and J6350 Services Router Hardware Features ■ 29

JUNOS Software with Enhanced Services Hardware Guide

Table 16: Gigabit Ethernet Port LEDs (continued)

TX/RX

Console Port

For information about securing the chassis console port, see the J-series Services Router Administration Guide.

DescriptionStateColorFunction

Port is transmitting or receiving data.BlinkingGreen

Port might be online, but it is not receiving data.OffUnlit

J4350 Power System

For pinout information, see “Chassis Console Port Pinouts” on page 190.

AUX Port

The port labeled AUX on the front panel of the J4350 or J6350 Services Router is for future use and is not activated.

USB Port

The USB ports on the front panel of the router (see Figure 19 on page 26) accept a USB storage device or USB storage device adapter with a compact flash installed, as defined in the CompactFlash Specification published by the CompactFlash Association. When a USB storage device is installed and configured, it automatically acts as a secondary boot device if the internal compact flash fails on startup. Depending on the size of the USB storage device, you can also configure it to receive any core files generated during a failure. For information about configuring a USB storage device, see the JUNOS Software Administration Guide.

NOTE: For a list of supported USB storage devices, see the JUNOS Software with Enhanced Services Release Notes at http://www.juniper.net.

The J4350 Services Router uses either AC or DC power. The autosensing power supply (see Figure 14 on page 22 or Figure 16 on page 23) distributes the different output voltages to the router components according to their voltage requirements. The power supply is fixed in the chassis and is not field-replaceable.

30 ■ J4350 and J6350 Services Router Hardware Features

The J4350 AC-powered chassis has a power switch and does not include a power LED.

The J4350 DC-powered chassis includes a power supply LED located to the upper right of the power supply connector. Table 17 on page 31 describes the power supply LED.

Table 17: Power Supply LED

DescriptionState

No power is flowing to the power supply.Off

Power supply is connected and power is flowing.Green

Power supply is connected, but the router is not powered on.Yellow

Chapter 2: J-series Services Router Hardware Features

J6350 Power System

NOTE: You cannot mix DC and AC power supplies in the same chassis.

WARNING: DC-powered Services Routers are intended for installation only in a

restricted access location.

The J6350 Services Router uses either AC or DC power. You can install one or two autosensing, load-sharing power supplies on the system board at the bottom of the chassis, as shown in Figure 15 on page 22 or Figure 17 on page 23. The power supplies distribute the different output voltages to the router components, depending on their voltage requirements. When two power supplies are installed and operational, they automatically share the electrical load.

For full redundancy, two power supplies are required. If a power supply stops functioning for any reason, the second power supply instantly begins providing all the power the router needs for normal functioning. It can provide full power indefinitely.

Each power supply has an LED located to the upper right of the power supply connector. Table 17 on page 31 describes the power supply LED.

J4350 and J6350 Services Router Hardware Features ■ 31

JUNOS Software with Enhanced Services Hardware Guide

Power supplies on J6350 Services Routers are hot-removable and hot-insertable. You can remove and replace a redundant power supply without powering down the router or disrupting the routing functions. To avoid electrical injury, carefully follow the instructions in “Replacing Power System Components” on page 139.

NOTE: You cannot mix DC and AC power supplies in the same chassis.

WARNING: DC-powered Services Routers are intended for installation only in a

restricted access location.

J4350 and J6350 Cooling System

The cooling system includes three fans at the rear of the chassis. The airflow produced by these fans keeps router components within the acceptable temperature range (see Figure 21 on page 33). The speed of the fans is adjusted automatically according to the current temperature.

An air filter protects the air intake opening at the front of the chassis and must be replaced periodically. For instructions, see “Replacing Air Filters on J4350 and J6350 Routers” on page 154.

When the CPU temperature reaches 80°C (176°F), a yellow alarm is triggered. When the CPU temperature reaches 105°C (221°F), the system shuts down. There is no red alarm for temperature. You can view the CPU junction temperature using the

show chassis routing-engine command. The CPU temperature runs a few degrees

higher than the routing engine temperature displayed on the Monitor>Chassis page of the J-Web interface.

NOTE: On J4350 and J6350 routers that are not designed to comply with Network Equipment Building System (NEBS) criteria, the temperature at which the system shuts down is 90°C (194°F) rather than 105°C (221°F). To verify that the system is a NEBS-compliant system, run the show chassis hardware command. A NEBS-compliant system displays the term NEBS in the output.

An additional fan is part of each power supply. This fan is not regulated by the operating system.

32 ■ J4350 and J6350 Services Router Hardware Features

Chapter 2: J-series Services Router Hardware Features

Figure 21: Airflow Through the J4350 and J6350 Chassis

J4350 and J6350 Services Router Hardware Features ■ 33

JUNOS Software with Enhanced Services Hardware Guide

34 ■ J4350 and J6350 Services Router Hardware Features

Chapter 3

PIM Overview

J-series Services Routers accept Physical Interface Modules (PIMs) in the slots on the front of the chassis.

CAUTION: PIMs are not hot-swappable. You must power off the Services Router before removing or inserting a PIM module. Ensure that the PIMs are installed in the router chassis before booting up the system.

A Physical Interface Module (PIM) is a network interface card that is installed on a J-series Services Router to provide physical connections to a LAN or a WAN. The PIM receives incoming packets from the network and transmits outgoing packets to the network. Each PIM is equipped with a dedicated network processor that forwards incoming data packets to the Routing Engine and receives outgoing data packets from the Routing Engine. During this process, the PIM performs framing and line-speed signaling for its medium type.

For a complete list of supported PIMs, see “Field-Replaceable PIMs” on page 38.

PIM Terms

A single WXC Integrated Services Module (also called an ISM 200) can be installed like a PIM in J2350, J4350, and J6350 routers to provide WAN acceleration. For more information, see the WXC Integrated Services Module Installation and Configuration Guide.

For J-series Services Router PIM compatibility matrix and datasheets, go to

http://www.juniper.net/products/jseries/.

For information about network interfaces, and for configuration instructions, see the JUNOS Software Interfaces and Routing Configuration Guide.

This chapter contains the following topics:

■ PIM Terms on page 35

■ Field-Replaceable PIMs on page 38

To understand PIM, become familiar with the terms defined in Table 18 on page 36.

PIM Terms ■ 35

JUNOS Software with Enhanced Services Hardware Guide

Table 18: PIM Terms

DefinitionTerm

ADSL 2/2+ Annex A

ADSL 2/2+ Annex B

bandwidth on demand

Basic Rate Interface (BRI)

callback

caller ID

data service unit (DSU)

ITU-T Standard G.992.1 that defines how ADSL works over plain old telephone service (POTS) lines.

ITU-T Standard G.992.1 that defines how ADSL works over Integrated Services Digital Network (ISDN) lines.

ISDN cost-control feature defining the bandwidth threshold that must be reached on all links before a Services Router initiates additional ISDN data connections to provide more bandwidth.

ISDN interface intended for home and small enterprise applications. BRI consists of two 64-Kbps B-channels and one 16-Kbps D-channel.

Alternative feature to dial-in that enables a J-series Services Router to call back the caller from the remote end of a backup ISDN connection. Instead of accepting a call from the remote end of the connection, the router rejects the call, waits a configured period of time, and calls a number configured on the router's dialer interface. See also dial-in.

Telephone number of the caller on the remote end of a backup ISDN connection, used to dial in and also to identify the caller. Multiple caller IDs can be configured on an ISDN dialer interface. During dial-in, the router matches the incoming call's caller ID against the caller IDs configured on its dialer interfaces. Each dialer interface accepts calls from only callers whose caller IDs are configured on it.

Unit that connects a digital telephone line to a multiplexer or other signal service.channel service unit (CSU)

Unit that connects a data terminal equipment (DTE) device—in this case, a Services Router—to a digital telephone line.

data terminal equipment–to–data communication equipment (DTE–DCE) interface

demand circuit

dial backup

dial-in

Interface that a Services Router (the DTE) uses to exchange information with a serial device such as a modem (the DCE).

A DTE cable uses a male 9-pin or 25-pin connector, and a DCE cable uses a female 9-pin or 25-pin connector.

Interface configured for dial-on-demand routing backup. In OSPF, the demand circuit reduces the amount of OSPF traffic by removing all OSPF protocols when the routing domain is in a steady state.

Feature that reestablishes network connectivity through one or more backup ISDN dialer interfaces after a primary interface fails. When the primary interface is reestablished, the ISDN interface is disconnected.

Feature that enables J-series Services Routers to receive calls from the remote end of a backup ISDN connection. The remote end of the ISDN call might be a service provider, a corporate central location, or a customer premises equipment (CPE) branch office. All incoming calls can be verified against caller IDs configured on the router's dialer interface. See also callback.

36 ■ PIM Terms

Table 18: PIM Terms (continued)

DefinitionTerm

Chapter 3: PIM Overview

dialer filter

dial-on-demand-routing (DDR) backup

dialer watch

“dying gasp” notification

ePIM

Stateless firewall filter that enables dial-on-demand routing backup when applied to a physical ISDN interface and its dialer interface configured as a passive static route. The passive static route has a lower priority than dynamic routes. If all dynamic routes to an address are lost from the routing table and the router receives a packet for that address, the dialer interface initiates an ISDN backup connection and sends the packet over it. See also dial-on-demand routing backup; floating static route.

Feature that provides a J-series Services Router with full-time connectivity across an ISDN line. When routes on a primary serial T1, E1, T3, E3, Fast Ethernet, or PPPoE interface are lost, an ISDN dialer interface establishes a backup connection. To save connection time costs, the Services Router drops the ISDN connection after a configured period of inactivity. Services Router with ISDN interfaces support two types of dial-on-demand routing backup: on-demand routing with a dialer filter and dialer watch. See also dialer filter; dialer watch.

Dial-on-demand routing (DDR) backup feature that provides reliable connectivity without relying on a dialer filter to activate the ISDN interface. The ISDN dialer interface monitors the existence of each route on a watch list. If all routes on the watch list are lost from the routing table, dialer watch initiates the ISDN interface for failover connectivity. See also dial-on-demand routing backup.

Ability of a Services Router with a digital subscriber line (DSL) connection that has lost power to send a message informing the attached DSL access multiplexer (DSLAM) that it is about to go offline.

Enhanced PIM. A particular type of high-speed PIM, such as the Gigabit Ethernet ePIM or 4-port Fast Ethernet ePIM, which can be inserted only in high-speed slots (slots 3 and 6 on a J4350 Services Router, or slots 2, 3, 5, and 6 on a J6350 Services Router).

floating static route

ISDN S/T interface

ISDN U interface

plain old telephone service (POTS)

Primary Rate Interface (PRI)

uPIM

Route with an administrative distance greater than the administrative distance of the dynamically learned versions of the same route. The static route is used only when the dynamic routes are no longer available. When a floating static route is configured on an interface with a dialer filter, the interface can be used for backup.

Interface between an ISDN network and a network termination device consisting of two twisted pairs, one each for transmitting and receiving. The S/T interface usually resides in the customer premises and operates at 192 Kbps, of which ISDN traffic accounts for 144 Kbps.

Single twisted–pair interface line connecting the customer premises unit in an ISDN network to the central office. A U interface runs at 144 Kbps (128 Kbps for two B channels and 16 Kbps for the D channel).

Standard telephone service that allows limited speed and bandwidth of 52 Kbps, which is also know as public switched telephone network (PSTN).

ISDN service intended for higher-bandwidth applications than ISDN BRI. ISDN PRI consists of a single D-channel for control and signaling, plus a number of 64-Kbps B-channels—either 23 B-channels on a T1 line or 30 B-channels on an E1 line—to carry network traffic.

Universal switching PIM. A particular type of PIM, such as the Gigabit Ethernet uPIM, which can be universally inserted in any slot on a J2320, J2350, J4350, or J6350 Services Router.

PIM Terms ■ 37

JUNOS Software with Enhanced Services Hardware Guide

Field-Replaceable PIMs

PIMs are removable and insertable only when the Services Router is powered off. You install PIMs into slots in the router chassis. If a slot is not occupied by a PIM, a PIM blank panel must be installed to shield the empty slot and to allow cooling air to circulate properly through the router.

This section contains the following topics:

■ J2320 and J2350 Field-Replaceable PIM and Module Summary on page 38

■ J4350 and J6350 Field-Replaceable PIM Summary on page 39

■ 1-Port, 6-Port, 8-Port, and 16-Port Gigabit Ethernet uPIMs on page 41

■ 1-Port Gigabit Ethernet ePIMs on page 44

■ Dual-Port Serial PIM on page 47

■ Dual-Port T1 or E1 PIM on page 48

■ Dual-Port Channelized T1/E1/ISDN PRI PIM on page 49

■ T3 or E3 PIM on page 51

■ Dual-Port Fast Ethernet PIM on page 53

■ 4-Port Fast Ethernet ePIM on page 54

■ 4-Port ISDN BRI PIMs on page 55

■ ADSL PIM on page 56

■ G.SHDSL PIM on page 58

J2320 and J2350 Field-Replaceable PIM and Module Summary

Table 19 on page 39 provides software release information, port numbers, and sample interface names for the field-replaceable PIMs and modules supported on J2320 and J2350 Services Routers. For interface naming conventions, see the JUNOS Software Interfaces and Routing Configuration Guide. The supported PIMs can be installed in any slot available on the J2320 and J2350 routers. The WXC Integrated Services Module supported on the J2350 model occupies two slots. You can install only one of these modules in a router chassis.

CAUTION: Do not install a combination of modules in a single chassis that exceeds the maximum power and heat capacity of the chassis. If J-series power management is enabled, PIMs and modules (PIMs or PIMs plus a WXC Integrated Services Module) that exceed the maximum power and heat capacity remain offline when the chassis is powered on.

To verify that the combination of modules to be installed in a chassis does not exceed the power and heat capacities for the router, see “Planning for Power Management” on page 72.

38 ■ Field-Replaceable PIMs

Table 19: J2320 and J2350 Field-Replaceable PIM and Module Summary

Supported Software Releases for This PIMPIM

Chapter 3: PIM Overview

Sample Interface Name

(type-pim/0/port)Port Numbering

1-Port SFP, 6-Port SFP, 8-Port, and 16-Port Gigabit Ethernet uPIMs

Dual-Port Serial PIM

Dual-Port T1 or E1 PIM

Dual-Port Channelized T1/E1/ISDN PRI PIM

4-Port ISDN BRI PIM

ADSL PIM

Release 8.5 and later of JUNOS software with enhanced services

software with enhanced services

Ports:

■

0 through 5

■

0 through 7

■

0 through 15

■

Ports—0 and 1Release 8.5 and later of JUNOS

Ports—0, 1, 2, and 3Release 8.5 and later of JUNOS

Port—0Release 8.5 and later of JUNOS

ge-2/0/0

se-3/0/1

t1-0/0/1

e1-0/0/1

ct1-0/0/0

ce1-0/0/0

br-1/0/2

at-2/0/0

G.SHDSL PIM

Ports—0 and 1Release 8.5 and later of JUNOS software with enhanced services

WXC Integrated Services Module (ISM 200)

software with enhanced

Ports—0Release 8.5 and later of JUNOS

services

NOTE: This module is not supported on J2320 routers.

J4350 and J6350 Field-Replaceable PIM Summary

Table 20 on page 40 provides software release information, slot and port numbers, and sample interface names for the field-replaceable PIMs supported on J4350 and J6350 Services Routers.

at-1/0/0

wx-1/0/0

Field-Replaceable PIMs ■ 39

JUNOS Software with Enhanced Services Hardware Guide

To verify that the combination of PIMs to be installed in a chassis does not exceed the power and heat capacities for the J4350 or J6350 router, see “Planning for Power Management” on page 72.

Table 20: J4350 and J6350 Field-Replaceable PIM and Module Summary

Supported Software Releases for This PIMPIM

Sample Interface Name

(type-pim/0/port)Slot and Port Numbering

1-Port SFP Gigabit Ethernet uPIM

6-Port SFP Gigabit Ethernet uPIM

8-Port Gigabit Ethernet uPIM

16-Port Gigabit Ethernet uPIM

1-Port SFP Gigabit Ethernet ePIM

Dual-Port Serial PIM

Release 8.5 and later of JUNOS software with enhanced services

Slots—1 through 6

Port—0

Slots—1 through 6

Ports—0 through 5

Slots—1 through 6

Ports—0 through 7

Slots—1 through 6

Ports—0 through 15

Can be installed in any

high-speed slot, as follows:

J4350: Slots 3 and 6

■

Port—0 J6350: Slots 2, 3, 5,

■

and 6 Port—0

Slots—1 through 6

Ports—0 and 1

ge-2/0/0

ge-2/0/5

ge-2/0/7

ge-2/0/15

ge-3/0/0

se-3/0/1

Dual-Port T1 or E1 PIM

Dual-Port Channelized T1/E1/ISDN PRI PIM

Release 8.5 and later of JUNOS software with enhanced services

40 ■ Field-Replaceable PIMs

Slots—1 through 6

Ports—0 and 1

Slots—1 through 6

Port—0 and 1

t1-0/0/1

e1-0/0/1

ct1-0/0/0

ce1-0/0/0

Table 20: J4350 and J6350 Field-Replaceable PIM and Module Summary (continued)

Sample Interface Name

Supported Software Releases for This PIMPIM

(type-pim/0/port)Slot and Port Numbering

Chapter 3: PIM Overview

T3 or E3 PIM

Dual-Port Fast Ethernet PIM

4-port Fast Ethernet ePIM PIM

4-Port ISDN BRI PIM

ADSL PIM

G.SHDSL PIM

Release 8.5 and later of JUNOS software with enhanced services

Slots—1 through 6

Port—0

Slots—1 through 6

Ports—0 and 1

Can be installed in any

high-speed slot, as follows:

J4350: Slots 3 and 6

■

Ports—0 through 3 J6350: Slots 2, 3, 5,

■

and 6 Ports—0 through 3

Slots—1 through 6

Ports—0, 1, 2, and 3

Slots—1 through 6

Port—0

Slots—1 through 6

Ports—0 and 1

t3-0/0/0

e3-2/0/0

fe-1/0/0

fe-3/0/0

br-1/0/2

at-2/0/0

at-1/0/0

WXC Integrated Services Module (ISM 200)

software with enhanced services

Ports—0Release 8.5 and later of JUNOS

1-Port, 6-Port, 8-Port, and 16-Port Gigabit Ethernet uPIMs

Gigabit Ethernet uPIMs are supported on J2320, J2350, J4350, and J6350 Services Routers. Gigabit Ethernet uPIMs are available in four versions.

The 1-port and 6-port SFP Gigabit Ethernet uPIM, shown in Figure 22 on page 42 and Figure 23 on page 42, have small form-factor pluggable (SFP) transceivers to allow you to use different connectors. The optical SFP transceivers supported by these uPIMs are described in Table 22 on page 44.

wx-1/0/0

Field-Replaceable PIMs ■ 41

JUNOS Software with Enhanced Services Hardware Guide

Figure 22: 1-Port Gigabit Ethernet uPIM

Figure 23: 6-Port Gigabit Ethernet uPIM

The 8-port and 16-port Gigabit Ethernet uPIMs, shown in Figure 24 on page 42 and Figure 25 on page 42, have RJ-45 connectors.

Figure 24: 8-Port Gigabit Ethernet uPIM

Figure 25: 16-Port Gigabit Ethernet uPIM

42 ■ Field-Replaceable PIMs

Chapter 3: PIM Overview

Features. Gigabit Ethernet uPIMs provide the following key features:

■ The multiport uPIMs can be used as switches in the access layer (for connections

to workstations and desktops). For more information, see the JUNOS Software Interfaces and Routing Configuration Guide.

■ Link speed for 8-port and 16-port Gigabit Ethernet uPIMs is configurable to 10,

100, or 1000 Mbps, and transmission mode is configurable to half or full duplex. The 1-port and 6-port SFP Gigabit Ethernet uPIMs cannot be manually configured—they are set at 1000 Mbps and full duplex.

■ Autonegotiation.

■ 1-port and 6-port Gigabit Ethernet uPIMs use SFP transceivers to allow different

connectors to be used on uPIM ports. These SFP Gigabit Ethernet uPIMs support 1000Base-SX, 1000Base-LX, and 1000Base-T SFPs. They do not support 1000Base-LH SFPs.

1000Base-SX and 1000Base-LX SFP transceivers have the following characteristics:

■ Duplex LC/PC connector (Rx and Tx).

■ Optical interface support—See the JUNOS Software Administration Guide.

■ 8-port and 16-port Gigabit Ethernet uPIMs—and SFPs on the 1-port and 6-port

uPIMs—support 1000Base-T RJ-45 connectors.

For pinouts of cable connectors for Gigabit Ethernet uPIMs, see “Gigabit Ethernet uPIM RJ-45 Connector Pinout” on page 189.

Limitations. Gigabit Ethernet uPIMs have the following limitations:

■ Gigabit Ethernet uPIMs do not support SNMP.

■ Gigabit Ethernet uPIM interfaces can be configured up to a maximum MTU size

of 9014 bytes.

Installation. Gigabit Ethernet uPIMs can be inserted in any slot on J2320, J2350, J4350, or J6350 Services Routers.

Throughput for a uPIM is higher when it is inserted in a high-speed slot. High-speed slots are slots 3 and 6 on the J4350 router, and slots 2, 3, 5, and 6 on the J6350 router.

16-port Gigabit Ethernet uPIMs are two slots high. Because the connector on the PIM is on the lower half, the PIM occupies the slot that it is plugged into and the slot above it. Thus you cannot install a 16-port uPIM in the top slots of a router. For example, on a J4350 router you cannot install a 16-port uPIM in slots 1 and 4. If you install the PIM in slot 2, it occupies both slots 2 and 1.

To install or remove a PIM, see “Replacing a PIM” on page 120.

Interface LEDs. For 8-port and 16-port Gigabit Ethernet uPIMs, the activity LED is located on the left side of each port, and the link LED is located on the right side of each port. For the 6-port Gigabit Ethernet uPIM, the LEDs are located to the right of each port, with the link LED above the activity LED. LEDs on the 1-port uPIM are clearly labeled.Table 21 on page 44 describes the meaning of the LEDs.

Field-Replaceable PIMs ■ 43

JUNOS Software with Enhanced Services Hardware Guide

Table 21: Gigabit Ethernet Port LEDs

DescriptionStateColorFunction

Port is online.On steadilyGreenLink

Port is offline.OffUnlit

(TX/RX)

OffUnlit

Port is transmitting or receiving traffic.BlinkingGreenActivity

Port might be online, but it is not receiving traffic.

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

Optical Interface Support. Table 22 on page 44 describes the optical interface support on the 1-port and 6-port Gigabit Ethernet uPIMs over single-mode fiber-optic (SMF) and multimode fiber-optic (MMF) cables.

Table 22: Optical Interface Support for SFP Gigabit Ethernet uPIMs

1000Base-LX Transceiver1000Base-SX TransceiverParameter

JX-SFP-1GE-LXJX-SFP-1GE-SXModel number

Maximum distance

wavelength

500 m (1640 ft) on 50/125-µm MMF cable

200 m (656 ft) on 62.5/125-µm MMF cable

10 km (6.2 mi) on 9/125-µm SMF cable

550 m (1894 ft) on MMF cable

1270 nm through 1355 nm830 nm through 860 nmTransmitter

Copper Interface Support. The 1-port and 6-port Gigabit Ethernet uPIMs also support 1000Base-T SFPs (model number JX-SFP-1GE-T).

1-Port Gigabit Ethernet ePIMs

The 1-port Gigabit Ethernet ePIM is supported on J4350 and J6350 Services Routers and is available in two versions, one with copper connector (see Figure 26 on page 45), the other with small form-factor pluggable (SFP) transceivers (see Figure 27 on page 45).

44 ■ Field-Replaceable PIMs

–9.5 dBm through –4 dBmAverage launch power

For SMF cable: –9.5 dBm through –3 dBm

For MMF cable: –11.5 dBm through

–3 dBm

–25 dBm through –20.5 dBm–21 dBm through –18 dBmReceiver sensitivity

Figure 26: Copper Gigabit Ethernet ePIM

Figure 27: SFP Gigabit Ethernet ePIM

Chapter 3: PIM Overview

Features. The Gigabit Ethernet ePIM provides the following key features:

■ Autonegotiation through medium-dependent interface (MDI) and MDI crossover

(MDI-X) support.

■ Link speeds for the Copper Gigabit Ethernet ePIM are configurable to 10, 100,

or 1000 Mbps, and transmission mode is configurable to half or full duplex. The SFP Gigabit Ethernet ePIM cannot be manually configured—it is set at 1000 Mbps and full duplex.

■ The SFP Gigabit Ethernet ePIM uses SFPs to allow different connectors to be

used on the ePIM ports. The ePIM supports 1000Base-SX, 1000Base-LX, and 1000Base-T copper SFPs. It does not support 1000Base-LH SFPs.

1000Base-SX and 1000Base-LX SFP transceivers have the following characteristics:

■ Duplex LC/PC connector (Rx and Tx).

■ Optical interface support—See Table 24 on page 46.

■ Copper Gigabit Ethernet ePIM and 1000Base-T SFP transceivers have the following

characteristics:

■ Connector: Four-pair, category 5 unshielded twisted-pair cable through an

RJ-45 connector

■ Pinout: MDI crossover

■ Maximum distance: 100 m (328 ft)

For pinouts of cable connectors for Copper Gigabit Ethernet ePIMs, see “Gigabit Ethernet ePIM RJ-45 Connector Pinout” on page 190.

Field-Replaceable PIMs ■ 45

JUNOS Software with Enhanced Services Hardware Guide

Limitations. The Gigabit Ethernet ePIM has the following limitations:

■ Gigabit Ethernet ePIMs do not support SNMP.

■ Configure Gigabit Ethernet ePIM interfaces up to a maximum MTU size of

9018 bytes.

Installation. You can install Gigabit Ethernet ePIMs in any high-speed slot as follows:

■ J4350—Install up to two Gigabit Ethernet ePIMs in slots 3 and 6.

■ J6350—Install up to four Gigabit Ethernet ePIMs in slots 2, 3, 5, and 6.

NOTE: High-speed slots are labeled with an E on the front-panel slot number diagram.

To install or remove a PIM, see “Replacing a PIM” on page 120.

Interface LEDs. The LINK and TX/RX LEDs indicate link status and activity. Table 23 on page 46 describes the meaning of the LEDs.

Table 23: Gigabit Ethernet Port LEDs

DescriptionStateColorFunction

LINK

TX/RX

OffUnlit

Port is online.On steadilyGreen

Port is offline.OffUnlit

Port is transmitting or receiving traffic.BlinkingGreen

Port might be online, but it is not receiving traffic.

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

Optical Interface Support. Table 24 on page 46 describes the optical interface support on the SFP Gigabit Ethernet ePIM over single-mode fiber-optic (SMF) and multimode fiber-optic (MMF) cables.

Table 24: Optical Interface Support for SFP Gigabit Ethernet ePIM

46 ■ Field-Replaceable PIMs

Maximum distance

500 m (1640 ft) on 50/125-µm MMF cable

200 m (656 ft) on 62.5/125-µm MMF cable

1000Base-LX Transceiver1000Base-SX TransceiverParameter

10 km (6.2 mi) on 9/125-µm SMF cable

550 m (1894 ft) on MMF cable

1270 nm through 1355 nm830 nm through 860 nmTransmitter wavelength

Dual-Port Serial PIM

Chapter 3: PIM Overview

Table 24: Optical Interface Support for SFP Gigabit Ethernet ePIM (continued)

1000Base-LX Transceiver1000Base-SX TransceiverParameter

–9.5 dBm through –4 dBmAverage launch power

For SMF cable: –9.5 dBm through –3 dBm

For MMF cable: –11.5 dBm through

–3 dBm

–3 dBm–3 dBmReceiver saturation

–20.5 dBm–18 dBmReceiver sensitivity

The Dual-Port Serial PIM (Figure 28 on page 47) provides a physical connection to serial network media types through two serial interface ports.

Figure 28: Dual-Port Serial PIM

The Dual-Port Serial PIM provides the following key features:

■ Onboard network processor

■ Autoselection of operation modes based on data terminal equipment (DTE) or

data communication equipment (DCE) cables

■ Local and remote loopback diagnostics

■ Configurable clock rate for the transmit (Tx) clock and receive (Rx) clock

For pinouts of cable connectors for serial PIMs, see “Serial PIM Cable Specifications” on page 179.

To install or remove a PIM, see “Replacing a PIM” on page 120.

Status LEDs indicate port status. Table 25 on page 48 describes the meaning of the LED states.

Field-Replaceable PIMs ■ 47

JUNOS Software with Enhanced Services Hardware Guide

Table 25: Status LEDs for Serial Ports

DescriptionStateColor

Online with no alarms or failures.On steadilyGreen

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

Dual-Port T1 or E1 PIM

The Dual-Port T1 PIM (Figure 29 on page 48) and Dual-Port E1 PIM (Figure 30 on page 48) provide a physical connection to T1 or E1 network media types. Each PIM has two physical T1 or E1 ports with an integrated channel service unit (CSU) or data service unit (DSU).

Figure 29: Dual-Port T1 PIM

On steadilyRed

Active with a local alarm. The router has detected a failure.

Offline.OffUnlit

Figure 30: Dual-Port E1 PIM

The Dual-Port T1 and E1 PIMs provides the following key features:

■ Onboard network processor

■ Integrated CSU/DSU—Eliminates the need for a separate external device

■ 56-Kbps and 64-Kbps modes

■ ANSI T1.102, T1.107, and T1.403 standards compliance

48 ■ Field-Replaceable PIMs

Chapter 3: PIM Overview

■ G.703, G.704, and G.706 E1 standards compliance

■ Independent internal and external clocking system

■ Loopback, bit error rate test (BERT), T1 facilities data link (FDL), and long buildout

diagnostics

For pinouts of cable connectors for T1 and E1 PIMs, see “E1 and T1 RJ-48 Cable Pinouts” on page 191.

To install or remove a PIM, see “Replacing a PIM” on page 120.

Status LEDs indicate port status. Table 26 on page 49 describes the meaning of the LED states.

Table 26: Status LEDs for T1 and E1 Ports

DescriptionStateColor

On steadilyRed

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

Dual-Port Channelized T1/E1/ISDN PRI PIM

The Dual-Port Channelized T1/E1/ISDN PRI PIM (Figure 31 on page 50) is a multiflex interface card that allows you to configure a single interface as a channelized T1 interface or a channelized E1 interface. You can also configure ISDN PRI services on a channelized T1 or E1 interface. The channelized T1/E1/ISDN PRI interface supports up to 24 DS0 channels on a T1 interface and up to 31 DS0 channels on an E1 interface, in addition to supporting the features of regular (unchannelized) T1 and E1 PIMs. Each interface can be configured as a single clear-channel, fractionalized, or channelized interface.

NOTE: You cannot configure a channelized T1/E1/ISDN PRI interface through a J-Web Quick Configuration page.

Online with no alarms or failures.On steadilyGreen

Active with a local alarm. The router has detected a failure.

Offline.OffUnlit

Field-Replaceable PIMs ■ 49

JUNOS Software with Enhanced Services Hardware Guide

Figure 31: Channelized T1/E1/ISDN PRI PIM

The Dual-Port Channelized T1/E1/ISDN PRI PIM provides the following key features:

■ Onboard network processor

■ Two-port channelization

■ Interfaces that are software configurable as T1 or E1 channels or ISDN PRI

B-channels

■ Clear-channel, fractional, and channelized operation

■ Lower latency due to the addition of a Freescale processor

■ Maximum MTU value of 4500 bytes (for channelized T1 or E1 interface) and

4098 bytes (for ISDN PRI services)

NOTE: For a clear-channel T1 or E1 interface, the maximum MTU is 9150 bytes.

■ 56-Kbps and 64-Kbps modes

■ ANSI T1.102, T1.107, and T1.403 standards compliance

■ G.703, G.704, and G.706 E1 standards compliance

■ Independent internal and external clocking system

■ Loopback, bit error rate test (BERT), T1 facilities data link (FDL), and long buildout

diagnostics

For pinouts of cable connectors for channelized T1/E1/ISDN PRI PIMs, see “ISDN RJ-45 Connector Pinout” on page 195.

To install or remove a PIM, see “Replacing a PIM” on page 120.

Channelized T1/E1/ISDN PRI LEDs indicate PIM and port status. Table 27 on page 51 describes the meaning of the LED states.

NOTE: The STATUS LED displays channelized T1 or E1 port activity and alarms only. It does not display ISDN PRI B-channel or D-channel status.

50 ■ Field-Replaceable PIMs

Table 27: LEDs for Channelized T1/E1/ISDN PRI PIMs

Chapter 3: PIM Overview

DescriptionStateColorLabel

On steadilyGreenONLINE

On steadilyGreenSTATUS

OnlineRed

OnlineYellow

PIM is online and operational.

PIM is not online.OffUnlit

Port is online with no alarms or failures, and the physical layer is active.

Port is active with a local alarm. The router has detected a failure and the physical layer is inactive.

Port is online with alarms for remote failures.

Port is disabled.OfflineUnlit

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

T3 or E3 PIM

The T3 (also known as DS3) PIM (Figure 32 on page 51) and E3 PIM (Figure 33 on page 52) provide a physical connection to T3 or E3 network media types. The T3 and E3 PIMs include one physical T3 or E3 port with an integrated data service unit (DSU).

Figure 32: T3 PIM

Field-Replaceable PIMs ■ 51

JUNOS Software with Enhanced Services Hardware Guide

Figure 33: E3 PIM

The T3 and E3 PIMs provide the following key features:

■ Onboard network processor

■ Integrated DSU—Eliminates the need for a separate external device

■ Subrate and scrambling options with support for major DSU vendors

■ Independent internal and external clocking system

■ Loopback (payload–supported only on T3 PIM, local, and remote), bit error rate

test (BERT), and T3 far-end alarm and control (FEAC) diagnostics

For pinouts of cable connectors for T3 and E3 PIMs, see “E3 and T3 BNC Connector Pinout” on page 194.

To install or remove a PIM, see “Replacing a PIM” on page 120.

Status LEDs indicate port status. Table 28 on page 52 describes the meaning of the LED states.

Table 28: Status LEDs for T3 and E3 Ports

DescriptionStateColor

Online with no alarms or failures.On steadilyGreen

On steadilyRed

On steadilyYellow

Active with a local alarm. The router has detected a failure.

Loopback mode.

■

T3 (DS3)—Remote endpoint is in red

■

alarm failure. E3—Remote defect indication (RDI).

■

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

52 ■ Field-Replaceable PIMs

Offline.OffUnlit

Dual-Port Fast Ethernet PIM

The Dual-Port 10/100-Mbps Fast Ethernet PIM (Figure 34 on page 53) has two physical Fast Ethernet ports.

Figure 34: Fast Ethernet PIM

The Dual-Port Fast Ethernet PIM provides the following key features:

Chapter 3: PIM Overview

■ Onboard network processor

■ Full-duplex and half-duplex modes

■ Media access control (MAC) address filtering

■ Autonegotiation through medium-dependent interface (MDI) and MDI crossover

(MDI–X) support

For pinouts of cable connectors for Fast Ethernet PIMs, see “Fast Ethernet RJ-45 Connector Pinout” on page 189.

To install or remove a PIM, see “Replacing a PIM” on page 120.

Fast Ethernet LEDs indicate link status, port speed, and activity. Table 29 on page 53 describes the meaning of the LEDs.

Table 29: LEDs for Dual-Port Fast Ethernet PIM

LINK/SPEED

Yellow (10 Mbps)

DescriptionStateColorLabel

Online and link is active.On steadilyGreen (100 Mbps)

Link is unavailable.DisconnectedRed

ACTIVITY

Online with network traffic.BlinkingGreen

Online without traffic.On steadilyGreen

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

Field-Replaceable PIMs ■ 53

JUNOS Software with Enhanced Services Hardware Guide

4-Port Fast Ethernet ePIM

You can install 4-Port Fast Ethernet ePIMs in any of the high-speed slots, as follows:

■ J4350—Install up to two 4-Port Fast Ethernet ePIMs in slots 3 and 6.

■ J6350—Install up to four 4-Port Fast Ethernet ePIMs in slots 2, 3, 5, and 6.

NOTE: For 4-port Fast Ethernet ePIMs, if you apply a CoS scheduler map on outgoing (egress) traffic, the router does not divide the bandwidth appropriately among the CoS queues. As a workaround, configure enforced CoS shaping on the ports.

The 4-Port 10/100-Mbps Fast Ethernet ePIM, shown in Figure 35 on page 54, has four physical Fast Ethernet ports.

Figure 35: 4-Port Fast Ethernet ePIM

The 4-Port Fast Ethernet ePIM provides the following key features:

■ Full-duplex and half-duplex modes.

■ Autonegotiation through medium-dependent interface (MDI) and MDI crossover

(MDI–X) support.

For pinouts of cable connectors for Fast Ethernet ePIMs, see “Fast Ethernet RJ-45 Connector Pinout” on page 189.

NOTE: 4-port Fast Ethernet ePIMs support a maximum frame size of 1514 bytes. Jumbo frames are not supported.

For information about installing and removing a PIM, see “Replacing a PIM” on page 120.

Fast Ethernet LEDs indicate link status and activity. Table 30 on page 55 describes the meaning of the LEDs.

54 ■ Field-Replaceable PIMs

Table 30: LEDs for 4-Port Fast Ethernet ePIM

Chapter 3: PIM Overview

DescriptionStateColorLabel

left)

right)

4-Port ISDN BRI PIMs

Port is online.On steadilyGreenLink status (upper

Port is offline.OffUnlit

BlinkingGreenLink activity (upper

OffUnlit

Port is transmitting or receiving data.

Port might be online, but it is not transmitting or receiving data.

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

The 4-port ISDN BRI PIMs have four physical ports that support the ISDN BRI S/T (Figure 36 on page 55) or ISDN BRI U (Figure 37 on page 55) interface type.

Figure 36: ISDN BRI S/T PIM

Figure 37: ISDN BRI U PIM

ISDN BRI PIMs provide the following key features:

■ Onboard network processor

■ Bandwidth on demand

Field-Replaceable PIMs ■ 55

JUNOS Software with Enhanced Services Hardware Guide

■ Dial backup

■ Dial-on-demand routing backup (floating static and dialer watch)

For pinouts of cable connectors for ISDN PIMs, see “ISDN RJ-45 Connector Pinout” on page 195.

To install or remove a PIM, see “Replacing a PIM” on page 120.

ISDN LEDs indicate PIM and port status. Table 31 on page 56 describes the meaning of the LED states.

Table 31: LEDs for ISDN BRI S/T and U PIMs

DescriptionStateColorLabel

ONLINE

STATUS

ADSL PIM

BlinkingGreen

On steadilyAmber

DisconnectedRed

Call setup is successful on either the B1 or B2 channel.

ISDN Layer 2 is active.On steadilyGreen

ISDN Layer 1 is active.

■

ISDN Layer 2 is unavailable.

■

BRI interface port is not connected.

■

ISDN Layer 1 is unavailable.

■

BRI interface is offline.OffUnlit

PIM is online and operational.On steadilyGreen

PIM is not operational and needs replacement.DisconnectedRed

PIM is offline.OffUnlit

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

The ADSL PIM provides a single physical interface to asymmetric digital subscriber line (ADSL) network media types. The ADSL PIM, one supporting Annex A (Figure 38 on page 57) over plain old telephone service (POTS) and the other Annex B (Figure 39 on page 57) over ISDN, includes one physical ADSL port for an ATM-over-ADSL connection.

56 ■ Field-Replaceable PIMs

Figure 38: ADSL 2/2+ Annex A PIM

Figure 39: ADSL 2/2+ Annex B PIM

Chapter 3: PIM Overview

The ADSL PIM provides the following key features:

■ Onboard network processor

■ ADSL, ADSL2, and ADSL2+ protocols on the same PIM

■ “Dying gasp” notification

■ Asynchronous Transfer Mode (ATM) Adaptation Layer 5 (AAL5) encapsulation

For pinouts of cable connectors for ADSL PIMs, see “ADSL and G.SHDSL RJ-11 Connector Pinout” on page 194.

To install or remove a PIM, see “Replacing a PIM” on page 120.

The ADSL PIMs have two LEDs to indicate the status of the PIM and its port. Table 32 on page 57 describes the meaning of the LED states.

Table 32: LEDs for ADSL PIMs

ONLINE

DescriptionStateColorLabel

On steadilyGreen

PIM passed the self-test and is online and operational.

PIM is offline.OffUnlit

STATUS

Online with no alarms or failures.On steadilyGreen

On steadilyRed

Active with local or remote alarms. The router has detected a failure.

Field-Replaceable PIMs ■ 57

JUNOS Software with Enhanced Services Hardware Guide

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

G.SHDSL PIM

The G.SHDSL PIM (Figure 40 on page 58) provides symmetric high-speed digital subscriber line (SHDSL) physical interfaces to ATM network media types. The G.SHDSL PIM has two ports for ATM-over-SHDSL connections.

Figure 40: G.SHDSL PIM

The G.SHDSL PIM supports the following key features:

■ Onboard network processor

■ 2-port two-wire mode and 1-port four-wire mode

■ Programmable line rates in both modes:

■ 2-port two-wire mode supports autodetection of line rate and fixed line rates

from 192 Kbps to 2.304 Mbps in 64-Kbps increments.

■ 1-port four-wire mode supports fixed line rates from 384 Kbps to 4.608 Mbps

in 128-Kbps increments.

■ 32 virtual channels per PIM

■ ATM-over-G.SHDSL framing

■ “Dying gasp” notification

■ Local and remote loopback diagnostics

■ ITU-T G.991.2, ITU-T G.994.1, and ITU-T G.997.1 standards compliance

NOTE: Payload loopback functionality is not supported on ATM-over-SHDSL interfaces.

For pinouts of cable connectors for G.SHDSL PIMs, see “ADSL and G.SHDSL RJ-11 Connector Pinout” on page 194.

To install or remove a PIM, see “Replacing a PIM” on page 120.

The G.SHDSL PIM has two LEDs to indicate the status of the PIM and its ports. Table 33 on page 59 describes the meaning of the LED states.

58 ■ Field-Replaceable PIMs

Table 33: LEDs for G.SHDSL PIMs

Chapter 3: PIM Overview

DescriptionStateColorLabel

ONLINE

STATUS

Online with no alarms or failures.On steadilyGreen

Initialization of the PIM has failed.DisconnectedRed

PIM is booting.OffUnlit

Online with no alarms or failures.On steadilyGreen

On steadilyRed

Active with a local alarm. The router has detected a failure.

For alarms, see the configuring and monitoring alarms information in the JUNOS Software Administration Guide.

Field-Replaceable PIMs ■ 59

JUNOS Software with Enhanced Services Hardware Guide

60 ■ Field-Replaceable PIMs

Part 2

Installing a Services Router

■ Preparing for Router Installation on page 63

■ Installing and Connecting a Services Router on page 77

■ Establishing Basic Connectivity on page 91

■ Installing JUNOS Software with Enhanced Services on page 115

Installing a Services Router ■ 61

JUNOS Software with Enhanced Services Hardware Guide

62 ■ Installing a Services Router

Chapter 4

Preparing for Router Installation

Before installing a J-series Services Router, make sure that your site has the proper operating environment and equipment. Use the checklist at the end of the chapter to help you prepare your site.

This chapter discusses the following topics:

■ General Site Guidelines on page 63

■ Rack Requirements on page 64

■ Router Environmental Tolerances on page 66

■ Fire Safety Requirements on page 66

■ Power Guidelines, Requirements, and Specifications on page 67

■ Network Cable Specifications on page 74

■ ISDN Provisioning on page 74

■ Site Preparation Checklist on page 75

General Site Guidelines

The following precautions help you plan an acceptable operating environment for your Services Router and avoid environmentally caused equipment failures:

■ For the cooling system to function properly, the airflow around the chassis must

be unrestricted. Ensure that there is adequate circulation in the installation location. In J2320 and J2350 routers, allow at least 6 in. (15.2 cm) of clearance between the left and right sides of the chassis and adjacent equipment. In J4350 and J6350 routers, allow at least 6 in. (15.2 cm) of clearance between the front and back of the chassis and adjacent equipment.

■ Follow ESD procedures described in “Preventing Electrostatic Discharge

Damage” on page 201, to avoid damaging equipment. Static discharge can cause components to fail completely or intermittently over time.

■ Install blank PIM panels in empty slots, to prevent any interruption or reduction

in the flow of air across internal components.

General Site Guidelines ■ 63

JUNOS Software with Enhanced Services Hardware Guide

Rack Requirements

J-series Services Routers must be installed in a rack. Many types of racks are acceptable, including front-mount racks, four-post (telco) racks, and center-mount racks.

The following sections describe rack requirements:

■ Rack Size and Strength for J2320 and J2350 Routers on page 64

■ Rack Size and Strength for J4350 and J6350 Routers on page 65

■ Connection to Building Structure on page 65

Rack Size and Strength for J2320 and J2350 Routers

The J2320 and J2350 Services Routers are designed for installation in a rack that complies with either of the following standards:

■ A 19-in. rack as defined in Cabinets, Racks, Panels, and Associated Equipment

(document number EIA-310-D) published by the Electronics Industry Association (http://www.eia.org)

■ A 600-mm rack as defined in the four-part Equipment Engineering (EE); European

telecommunications standard for equipment practice (document numbers ETS 300

119-1 through 119-4) published by the European Telecommunications Standards Institute (http://www.etsi.org)

The horizontal spacing between the rails in a rack that complies with this standard is usually wider than the router's mounting ears, which measure 19 in. (48.2 cm) from outer edge to outer edge. Use approved wing devices to narrow the opening between the rails as required.

The rack rails must be spaced widely enough to accommodate the router chassis's external dimensions:

■ J2320 chassis—1.75 in. (4.45 cm) high, 17.51 in. (44.48 cm) wide, and 15.1 in.

(38.35 cm) deep.

■ J2350 chassis—2.61 in. (6.63 cm) high, 17.51 in. (44.48 cm) wide, and 15.1 in.

(38.35 cm) deep.

The outer edges of the mounting ears extend the width of either chassis to 19 in. (48.2 cm), and the front of the chassis extends approximately 0.78 in. (1.98 cm) beyond the mounting ears. The spacing of rails and adjacent racks must also allow for the clearances around the router and rack. (See “General Site Guidelines” on page 63.)

64 ■ Rack Requirements

CAUTION: If you are mounting the router in a cabinet, be sure that ventilation is

sufficient to prevent overheating.

If a front-mount rack is used, we recommend supporting the back of the router with a shelf or other structure.

The J2320 chassis height of 1.75 in. (4.45 cm) equals 1 U. The J2350 chassis height of 2.61 in. (6.63 cm) equals 1.5 U. Each U is a standard rack unit defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) published by the Electronics Industry Association.

Rack Size and Strength for J4350 and J6350 Routers

The Services Router is designed for installation in a rack that complies with either of the following standards:

■ A 19-in. rack as defined in Cabinets, Racks, Panels, and Associated Equipment

(document number EIA-310-D) published by the Electronics Industry Association (http://www.eia.org)

■ A 600-mm rack as defined in the four-part Equipment Engineering (EE); European

telecommunications standard for equipment practice (document numbers ETS 300

119-1 through 119-4) published by the European Telecommunications Standards Institute (http://www.etsi.org)

Chapter 4: Preparing for Router Installation

The rack rails must be spaced widely enough to accommodate the router chassis's external dimensions: 3.44 in. (8.74 cm) high, 17.44 in. (44.3 cm) wide, and 21.13 in. (53.67 cm) deep.

The outer edges of the mounting ears extend the width of either chassis to 19.44 in. (48.38 cm), and the front of the chassis extends approximately 0.5 in. (1.27 cm) beyond the mounting ears. The spacing of rails and adjacent racks must also allow for the clearances around the router and rack. (See “General Site Guidelines” on page 63.)

CAUTION: If you are mounting the router in a cabinet, be sure that ventilation is sufficient to prevent overheating.

If a front-mount rack is used, we recommend supporting the back of the router with a shelf or other structure.

The J4350 and J6350 chassis height of 3.44 in. (8.74 cm) equals 2 U. Each U is a standard rack unit defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) published by the Electronics Industry Association.

Connection to Building Structure

Always secure the rack to the structure of the building. If your geographical area is subject to earthquakes, bolt the rack to the floor. For maximum stability, also secure the rack to ceiling brackets. For more information, see “Rack-Mounting Requirements and Warnings” on page 217.

Rack Requirements ■ 65

JUNOS Software with Enhanced Services Hardware Guide

Router Environmental Tolerances

Table 34 on page 66 specifies the environmental conditions required for normal Services Router operation. In addition, the site must be as dust-free as possible. Dust can clog air intake vents, reducing cooling system efficiency. Check vents frequently, cleaning them as necessary.

Table 34: Router Environmental Tolerances

ValueDescription

No performance degradation to 10,000 ft (3048 m)Altitude

Relative humidity

Temperature

Seismic

Maximum thermal output

Fire Safety Requirements

In the event of a fire emergency involving Services Routers and other network equipment, the safety of people is the primary concern. Establish procedures for protecting people in the event of a fire emergency, provide safety training, and properly provision fire-control equipment and fire extinguishers.

In addition, establish procedures to protect your equipment in the event of a fire emergency. Juniper Networks products must be installed in an environment suitable for electronic equipment. We recommend that fire suppression equipment be available in the event of a fire in the vicinity of the equipment, and that all local fire, safety, and electrical codes and ordinances be observed when you are installing and operating your equipment.

Normal operation ensured in relative humidity range of 5% to 90%, noncondensing

Normal operation ensured in temperature range of 0°C (32°F) to 40°C (104°F)

Non-operating storage temperature in shipping carton: –40°C (–40°F) to 70°C (158°F)

Designed to meet Telcordia Technologies Zone 4 earthquake requirements

J2320 chassis: 1091 BTU/hour (320 W)

■

J2350 chassis: 1195 BTU/hour (350 W)

■

J4350 chassis: 1092 BTU/hour (320 W)

■

J6350 chassis: 1126 BTU/hour (330 W)

■

Fire Suppression

In the event of an electrical hazard or an electrical fire, first unplug the power cord. (For shutdown instructions, see “Powering a Services Router On and Off” on page 89.)

66 ■ Router Environmental Tolerances

Then, use a Type C fire extinguisher, which uses noncorrosive fire retardants, to extinguish the fire. For more information about fire extinguishers, see “Fire Suppression Equipment” on page 67.

Fire Suppression Equipment

Type C fire extinguishers, which use noncorrosive fire retardants such as carbon dioxide (CO2) and Halotron, are most effective for suppressing electrical fires. Type C fire extinguishers displace the oxygen from the point of combustion to eliminate the fire. For extinguishing fire on or around equipment that draws air from the environment for cooling, use this type of inert oxygen displacement extinguisher instead of an extinguisher that leave residues on equipment.

Do not use multipurpose Type ABC chemical fire extinguishers (dry chemical fire extinguishers) near Juniper Networks equipment. The primary ingredient in these fire extinguishers is monoammonium phosphate, which is very sticky and difficult to clean. In addition, in minute amounts of moisture, monoammonium phosphate can become highly corrosive and corrodes most metals.

Chapter 4: Preparing for Router Installation

NOTE: To keep warranties effective, do not use a dry chemical fire extinguisher to control a fire at or near a Juniper Networks router. If a dry chemical fire extinguisher is used, the unit is no longer eligible for coverage under a service agreement.

Any equipment in a room in which a chemical fire extinguisher has been discharged is subject to premature failure and unreliable operation. The equipment is considered to be irreparably damaged.

We recommend that you dispose of any irreparably damaged equipment in an environmentally responsible manner.

Power Guidelines, Requirements, and Specifications

All Services Routers are available with AC power. J2350, J4350, and J6350 routers are also available with DC power. For information about each router's power system, see “J4350 Power System” on page 30 and “J6350 Power System” on page 31.

For site wiring and power system guidelines, requirements, and specifications, see the following sections:

■ Site Electrical Wiring Guidelines on page 68

■ Router Power Requirements on page 69

■ AC Power, Connection, and Power Cord Specifications on page 69

■ DC Power, Connection, and Power Cable Specifications on page 71

■ Planning for Power Management on page 72

Power Guidelines, Requirements, and Specifications ■ 67

JUNOS Software with Enhanced Services Hardware Guide

Site Electrical Wiring Guidelines

WARNING: Certain ports on the router are designed for use as intrabuilding (within-the-building) interfaces only (Type 2 or Type 4 ports as described in

GR-1089-CORE, Issue 4) and require isolation from the exposed outside plant (OSP)

cabling. To comply with NEBS requirements and protect against lightening surges and commercial power disturbances, the intrabuilding ports must not be metallically connected to interfaces that connect to the OSP or its wiring. The intrabuilding ports on the router are suitable for connection to intrabuilding or unexposed wiring or cabling only. The addition of primary protectors is not sufficient protection for connecting these interfaces metallically to OSP wiring.

WARNING: DC-powered J2350, J4350 and J6350 Services Routers are intended for installation only in a restricted access location.

When planning the electrical wiring at your site, consider the factors discussed in the following sections.

Signaling Limitations

Improperly installed wires can emit radio interference. In addition, the potential for damage from lightning strikes increases if wires exceed recommended distances, or if wires pass between buildings. The electromagnetic pulse (EMP) caused by lightning can damage unshielded conductors and destroy electronic devices. If your site has previously experienced such problems, you might want to consult experts in electrical surge suppression and shielding.

Radio Frequency Interference

You can reduce or eliminate the emission of radio frequency interference (RFI) from your site wiring by using twisted-pair cable with a good distribution of grounding conductors. If you must exceed the recommended distances, use a high-quality twisted-pair cable with one ground conductor for each data signal when applicable.

Electromagnetic Compatibility

If your site is susceptible to problems with electromagnetic compatibility (EMC), particularly from lightning or radio transmitters, you might want to seek expert advice. Strong sources of electromagnetic interference (EMI) can destroy the signal drivers and receivers in the router and conduct power surges over the lines into the equipment, resulting in an electrical hazard. It is particularly important to provide a properly grounded and shielded environment and to use electrical surge-suppression devices.

68 ■ Power Guidelines, Requirements, and Specifications

Chapter 4: Preparing for Router Installation

CAUTION: To comply with intrabuilding lightning/surge requirements, intrabuilding wiring must be shielded, and the shield for the wiring must be grounded at both ends.

Router Power Requirements

Table 35 on page 69 and Table 36 on page 69 list the AC and DC power system electrical specifications for Services Routers.

Table 35: AC and DC Power System Electrical Specifications for J2320 and J2350 Routers

SpecificationItem

100 to 240 VAC nominalAC input voltage

50 to 60 HzAC input line frequency

AC system current rating

Table 36: AC and DC Power System Electrical Specifications for J4350 and J6350 Routers

AC system current rating

J2320 Services Routers: 3.2 A to 1.3 A

J2350 Services Routers: 3.5 A to 1.5 A

–48 to –60 VDC operating rangeDC input voltage

7.2 ADC system current rating

SpecificationItem

100 to 240 VAC nominalAC input voltage

50 to 60 HzAC input line frequency

J4350 Services Routers: 6 A

J6350 Services Routers: 8 A

–48 to –60 VDC operating rangeDC input voltage

20 ADC system current rating

AC Power, Connection, and Power Cord Specifications

NOTE: The AC power cord for the Services Router is intended for use with the router only and not for any other use.

Power Guidelines, Requirements, and Specifications ■ 69

JUNOS Software with Enhanced Services Hardware Guide

Detachable AC power cords, each 2.5 m (approximately 8 ft) long, are supplied with the Services Router. The appliance coupler at the female end of the cord inserts into the appliance inlet on the faceplate of the AC power supply. The coupler is type C19 as described by International Electrotechnical Commission (IEC) standard 60320. The plug at the male end of the power cord fits into the power source receptacle that is standard for your geographical location.

NOTE: In North America, AC power cords must not exceed 4.5 m (approximately

14.75 ft) in. length, to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52, and Canadian Electrical Code (CEC) Section 4-010(3). The cords supplied with the router are in compliance.

Table 37 on page 70 lists AC power cord specifications provided for each country or region.

Table 37: AC Power Cord Specifications

United Kingdom)

Plug StandardsElectrical SpecificationsCountry

AS/NZ 3112–1993250 VAC, 10 A, 50 HzAustralia

GB2099.1 1996 and GB1002 1996 (CH1-10P)250 VAC, 10 A, 50 HzChina

CEE (7) VII250 VAC, 10 A, 50 HzEurope (except Italy and

CEI 23–16/VII250 VAC, 10 A, 50 HzItaly

JIS 8303125 VAC, 12 A, 50 Hz or 60 HzJapan

NEMA 5-15125 VAC, 10 A, 60 HzNorth America

BS 1363A250 VAC, 10 A, 50 HzUnited Kingdom

Figure 41 on page 70 illustrates the plug on the power cord for each country or region listed in Table 37 on page 70.

Figure 41: AC Plug Types

NOTE: Power cords and cables must not block access to router components or drape where people might trip on them.

70 ■ Power Guidelines, Requirements, and Specifications

For information about the AC power supply, see “J2320 Power System” on page 18, “J2350 Power System” on page 18, “J4350 Power System” on page 30 or “J6350

Power System” on page 31.

To connect the power cord during initial installation, see “Connecting Power” on page 84.

To replace the AC power cord, see “Replacing AC Power Supply Cords” on page 139.

DC Power, Connection, and Power Cable Specifications

Each DC power supply has a single DC input (–48 VDC and return) that requires a dedicated circuit breaker:

■ J2350 routers—minimum 15 A (–48 VDC)

■ J4350 and J6350 routers—minimum 25 A (–48 VDC)

If the J6350 router contains redundant DC power supplies, one power supply must be powered by a dedicated power feed derived from feed A, and the other power supply must be powered by a dedicated power feed derived from feed B. This configuration provides the commonly deployed A/B feed redundancy for the system.

Chapter 4: Preparing for Router Installation

Most sites distribute DC power through a main conduit that leads to frame-mounted DC power distribution panels, one of which might be located at the top of the rack that houses the router. A pair of cables (one input and one return) connects each set of terminal studs to the power distribution panel.

CAUTION: You must ensure that power connections maintain the proper polarity. The power source cables might be labeled (+) and (–) to indicate their polarity. There is no standard color coding for DC power cables. The color coding used by the external DC power source at your site determines the color coding for the leads on the power cables that attach to the terminal studs on each power supply.

WARNING: Power plant ground and chassis ground must be connected to the same building ground.

CAUTION: Before router installation begins, a licensed electrician must attach a cable lug to the grounding and power cables that you supply. A cable with an incorrectly attached lug can damage the router.

Each DC power cable (–48 VDC and return) must be 14 AWG single-strand wire cable, or as permitted by the local code. Each lug attached to the power cables must be a ring-type, vinyl-insulated TV14-6R lug, or equivalent.

Power Guidelines, Requirements, and Specifications ■ 71

JUNOS Software with Enhanced Services Hardware Guide

NOTE: Power cords and cables must not block access to router components or drape where people might trip on them.

For information about the DC power supply, see “J2350 Power System” on page 18, “J4350 Power System” on page 30 or “J6350 Power System” on page 31.

To connect the DC power cable during initial installation, see “Connecting DC Power” on page 86.

To replace a DC power cable, see “Replacing DC Power Supply Cables” on page 142.

Planning for Power Management

Before you install a chassis or add a new PIM to an existing chassis, verify that the combination of PIMs and modules (PIMs or PIMs plus a WXC Integrated Services Module) to be installed does not exceed the power and heat capacities for that model. Add the low-power tokens, high-power tokens, and heat tokens required by each PIM, and compare them to the capacity of the chassis.

NOTE: The low power and high power correspond to a specific voltage for that PIM.

CAUTION: Do not install a combination of modules in a single chassis that exceeds

the maximum power and heat capacity of the chassis. If J-series power management is enabled, PIMs and modules (PIMs or PIMs plus a WXC Integrated Services Module) that exceed the maximum power and heat capacity remain offline when the chassis is powered on.

To verify that the combination of PIMs to be installed in a chassis does not exceed the power and heat capacities for that model:

1. Check Table 38 on page 73 to determine the token values for low-power,

high-power, and heat for each PIM that you plan to install in the chassis.

2. For all PIMs to be installed in the chassis:

a. Add the low-power tokens for all PIMs to be installed in the chassis.

b. Add the high-power tokens for all PIMs to be installed in the chassis.

c. Add the heat dissipation tokens for all PIMs to be installed in the chassis.

3. Verify that the total number of low-power tokens, total number of high-power

tokens, and the total number of heat dissipation tokens do not exceed the maximums permitted for your J-series chassis as specified in Table 39 on page 74.

Table 38 on page 73 shows the low-power consumption, high-power consumption, and heat dissipation, represented in non-dimensional tokens, assigned to each J-series PIM.

72 ■ Power Guidelines, Requirements, and Specifications

Table 38: J-series PIM Power Consumption and Heat Dissipation

Chapter 4: Preparing for Router Installation

Ethernet uPIM

Gigabit Ethernet ePIM

Ethernet ePIM

PIM

Model NumberName

in JUNOS CLI

JXU-SFP-S1-Port Gigabit

JXU-6GE-SFP-S6-Port Gigabit

JXU-8GE-TX-S8-Port Gigabit

JXU-16GE-TX-S16-Port Gigabit

JXE-1GE-TX-S1-Port Copper

JXE-1GE-SFP-S1-Port SFP Gigabit

JX-2Serial-SDual-Port Serial

JX-2E1-RJ48-SDual-Port E1 PIM

JX-2T1-RJ48-SDual-Port T1 PIM

1xSFP uPIM

6xSFP uPIM

8xGE uPIM

16xGE uPIM

1xGE Copper

1xGE SFP

2xSerial

2xE1

2xT1

TokensPIM Abbreviation

HeatHigh PowerLow Power

8–8

13–13

27–21

36–38

7–6

4–4

6–5

6–6

5–6

Channelized T1/E1/ISDN PRI PIM

known as DS3)

Ethernet PIM

Ethernet ePIM

S/T PIM

PIM

Annex A PIM (1 port, for POTS)

JX-2CT1E1-RJ45-SDual-Port

JX-1E3-SE3 PIM (1 port)

JX-1DS3-ST3 PIM (also

JX-2FE-TX-SDual-Port Fast

JXE-4FE-TX-S4-Port Fast

JX-4BRI-S-S4-Port ISDN BRI

JX-4BRI-U-S4-Port ISDN BRI U

JX-1ADSL-A-SADSL 2/2+

2xCT1E1 / PRI

1xE3

1xT3

2xFE

4xFE ePIM

4x BRI S/T

4x BRI U

1x ADSL Annex A

5–5

7–7

616

9–9

4–4

6–4

16216

Power Guidelines, Requirements, and Specifications ■ 73

JUNOS Software with Enhanced Services Hardware Guide

Table 38: J-series PIM Power Consumption and Heat Dissipation (continued)

Model NumberName

in JUNOS CLI

Annex B PIM

JX-1ADSL-B-SADSL 2/2+

(1 port, for ISDN)

JX-2SHDSL-SG.SHDSL PIM (2-port two-wire mode or 1-port four-wire mode)

ISM-200–WXCWXC Integrated Services Module

1x ADSL Annex B

2x SHDSL (ATM)

wan-acceleration

Table 39 on page 74 lists the maximum power tokens and maximum heat tokens available for each model.

Table 39: Maximum Power and Heat Capacities of J-series Models

Model

Low- Power Capacity (tokens)

High- Power Capacity (tokens)

TokensPIM Abbreviation

HeatHigh PowerLow Power

16216

10–9

49377

Heat Capacity (tokens)

685050J2320

848484J2350

Network Cable Specifications

The Services Router supports interfaces that use various kinds of network cable. For information about the type of cable used by each interface, see “Network Cable Specifications and Connector Pinouts” on page 179.

ISDN Provisioning

You might need a network termination type 1 (NT1) device to connect your ISDN interface to the ISDN service. Contact your service provider for details on the following information:

■ External NT1 device and ISDN cable

■ If the two items are required, where to obtain the items

■ List of NT1 vendors

100100100J4350

100100100J6350

74 ■ Network Cable Specifications

Site Preparation Checklist

The checklist in Table 40 on page 75 summarizes the tasks you need to perform when preparing a site for Services Router installation.

Table 40: Site Preparation Checklist

Verify that environmental factors such as temperature and humidity do not exceed router tolerances.

Measure the distances between external power sources and the router installation site.

Select the type of rack.

Plan the rack location, including required space clearances.

Chapter 4: Preparing for Router Installation

NotesDatePerformed ByItem or Task

Secure the rack to the floor and the building structure.

Acquire appropriate cables and connectors.
