Julabo F500 Data Sheet

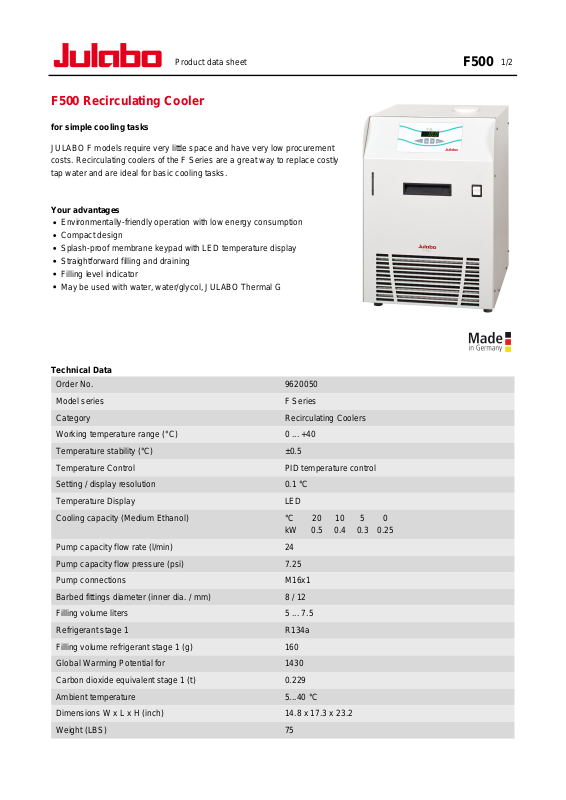

Product data sheet 1/2

F500 Recirculating Cooler

for simple cooling tasks

JULABO F models require very little space and have very low procurement
costs. Recirculating coolers of the F Series are a great way to replace costly
tap water and are ideal for basic cooling tasks.

Your advantages

Environmentally-friendly operation with low energy consumption
Compact design
Splash-proof membrane keypad with LED temperature display
Straightforward filling and draining
Filling level indicator
May be used with water, water/glycol, JULABO Thermal G

F500

Technical Data

Order No. 9620050
Model series F Series
Category Recirculating Coolers
Working temperature range (°C) 0 ... +40
Temperature stability (°C) ±0.5
Temperature Control PID temperature control
Setting / display resolution 0.1 °C
Temperature Display LED
Cooling capacity (Medium Ethanol) °C 20 10 5 0

kW 0.5 0.4 0.3 0.25
Pump capacity flow rate (l/min) 24
Pump capacity flow pressure (psi) 7.25
Pump connections M16x1
Barbed fittings diameter (inner dia. / mm) 8 / 12
Filling volume liters 5 ... 7.5
Refrigerant stage 1 R134a
Filling volume refrigerant stage 1 (g) 160
Global Warming Potential for 1430
Carbon dioxide equivalent stage 1 (t) 0.229
Ambient temperature 5...40 °C
Dimensions W x L x H (inch) 14.8 x 17.3 x 23.2
Weight (LBS) 75

Product data sheet 2/2

F500

Sound pressure level (distance 1 m) max. (dBA) 62
Included with each unit 2 each barbed fittings for tubing 8 and 12 mm inner dia.

(pump connections M16x1 male)
Cooling of compressor Air
Power requirement V / Hz / A 115/60/6
Available voltage versions 230 V / 50 Hz

230 V / 60 Hz

115 V / 60 Hz

100 V / 50-60 Hz

Characteristics

Display

Easy to read

Large LED temperature display
for actual value and setpoint
(resolution 0.1 °C)

Operation

Simple and fast

Convenient 3-key setpoint
adjustment (F models)

Temperature Control

Precise

PID Temperature control with
set control parameters,
temperature stability
±0.02...±0.2 °C
