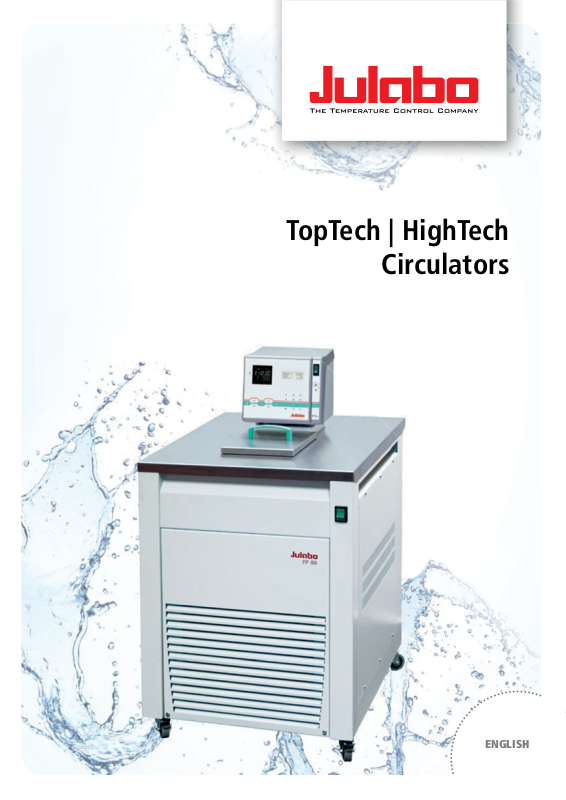

Julabo FP50-MA, FP50-ME, FP50-HE, FP50-HL, FP40-ME Data Sheet
...
TopTech | HighTech
Circulators
ENGLISH
Product Characteristics | Functions
The icons can be found on the intro pages of each product group.
Display
Easy to read
Large LED temperature display for
actual value and setpoint
(display resolution 0.1 °C)
Several values at a glance
Large Multi-Display (LED), easy to read
across the room, for actual value and up
to 3 setpoints: warning functions, high
temperature cut-off, pump stages (display
resolution 0.01/0.1 °C)
A perfect view
Ample, easy to read VFD Comfort display
for simultaneous display of 3 values:
warning functions, high temperature cutoff, pump stages (display resolution 0.01
°C)
Additional plain text information
Comfortable LCD dialog display for interactive operation with plain text display,
backlit
Pump stage
Illuminated bar display for pump stages
Operation
Comfortable and detailed
Comfortable keypad with additional menu
functions for pump stages, calibration,
control parameters, programmer, warn
ings etc.
Time-saving
Comfortable and simple operation for setpoint adjustment
Temperature Control
Precise
PID Temperature control with set control parameters, temperature stability
±0.02...±0.2 °C
Highly precise
PID Temperature control with drift
compensation and adjustable
control parameters, temperature
stability ±0.01...±0.02 °C
For higher demands
PID Temperature control with drift compensation and adjustable parameters, improved temperature stability for external
applications, temperature stability ±0.01
°C internal, <±0.1 °C external
Technical Features
For perfect results
ഹIntelligent Cascade Control’, automatic &
self optimizing adjustment of PID control
parameters, temperature stability ±0.005
°C internal, <±0.05 °C external
Full control
ഹTemperature Control Features’ for indi
vidual optimization, access to all important control parameters, additional settings
for band limit, limits, co-speed- factor etc.
Direct control from external
application
External Pt100 sensor connection for
highly precise measurement and control
directly in the external application
Highest measuring accuracy
ഹAbsolute Temperature Calibration‘ for
compensation of a temperature difference,
3-point calibration
-
Refrigeration Technology
Consistent cooling capacity
Easily removable venting grid for quick
and easy dust removal
100 % cooling capacity
ഹActive Cooling Control’ for full utilization
-
of the cooling capacity available throughout the entire working temperature range,
fast cool-down even at higher temperatures
Energy-savingcooling
Proportional cooling control for automatic
adjustment of cooling power or temporary
switch-off of compressor as needed to
save up to 90 % energy in comparison to
unregulated refrigeration units
Condensation and ice protection
A heated cover plate prevents condensation or ice build-up in the bath
Warning & Safety Functions
Clever pump system
Reliable and consistent pump capacity,
electronically adjustable pump stages
Serial connection
RS232 interface for PC connection, e.g.
for data communication and recording of
measured values
Connection compliant to standard
Combined RS232/RS485 interface for
serial data transmission according to
EIA-485 industry standard (2-wire bus
technology), upgradeable with
Profibus DP
Connection of additional equipment
Stakei connections for solenoid valve, HSPbooster pump and HST booster heater
Easy program control
Integrated programmer for the execution
of time and temperature dependent profiles, 1 temperature profile with 10 steps
max., with real-time clock
Optimal program control
For the execution of time and temperature
dependent profiles, 6 temperature profiles
with 60 steps max., with real-time clock
Early warning system for low
liquid level
Maximum safety for applications, optical
and audible alarm, allows user to refill bath
fluid before the unit shuts down
Early warning system
for high/low temperature
Maximum safety for applications,
optical and audible alarm convertible to
automated ”cut-off” function.
Protective function
Adjustable high temperature cut-off or
dry-running protection
Enhanced protective function
Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and
precise adjustments
For flammable bath fluids
Class III (FL) according to DIN 12876-1
2
TopTech | HighTech Circulators
Refrigerated Circulators .......................... 04
Refrigerated / Heating Circulators .....................08
Cryo-Compact Circulators ................................12
Ultra-Low Refrigerated Circulators ...................14
User Benefits and Helpful Tips ..........................18
Individual Solutions .........................................22
Accessories .....................................................24
Heating Circulators .................................. 32
Heating Immersion Circulators .........................36
Heating Circulators ..........................................38
User Benefits and Helpful Tips ..........................40
Individual Solutions .........................................44
Accessories .....................................................46
Technical Specifications ...........................54
3
Refrigerated Circulators
