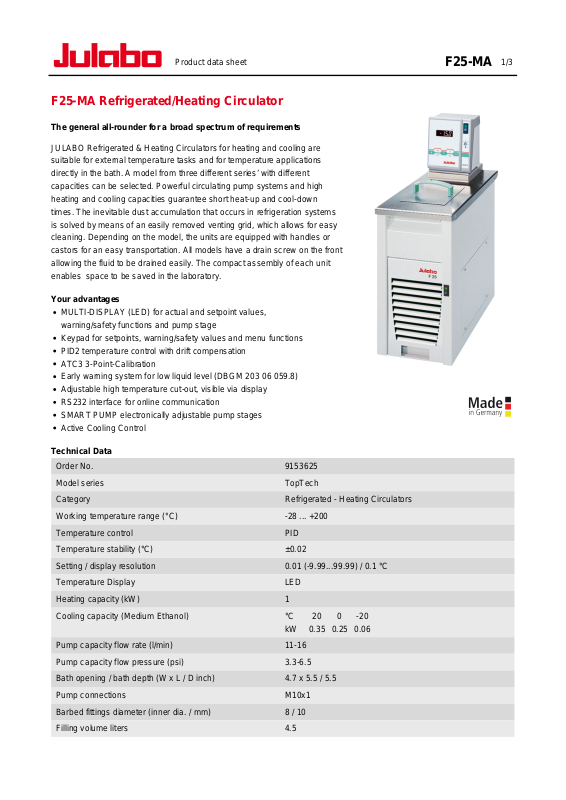

Product data sheet 1/3

F25-MA Refrigerated/Heating Circulator

The general all-rounder for a broad spectrum of requirements

JULABO Refrigerated & Heating Circulators for heating and cooling are
suitable for external temperature tasks and for temperature applications
directly in the bath. A model from three different series’ with different
capacities can be selected. Powerful circulating pump systems and high
heating and cooling capacities guarantee short heat-up and cool-down
times. The inevitable dust accumulation that occurs in refrigeration systems
is solved by means of an easily removed venting grid, which allows for easy
cleaning. Depending on the model, the units are equipped with handles or
castors for an easy transportation. All models have a drain screw on the front
allowing the fluid to be drained easily. The compact assembly of each unit
enables space to be saved in the laboratory.

Your advantages

MULTI-DISPLAY (LED) for actual and setpoint values,
warning/safety functions and pump stage
Keypad for setpoints, warning/safety values and menu functions
PID2 temperature control with drift compensation
ATC3 3-Point-Calibration
Early warning system for low liquid level (DBGM 203 06 059.8)
Adjustable high temperature cut-out, visible via display
RS232 interface for online communication
SMART PUMP electronically adjustable pump stages
Active Cooling Control

F25-MA

Technical Data

Order No. 9153625
Model series TopTech
Category Refrigerated - Heating Circulators
Working temperature range (°C) -28 ... +200
Temperature control PID
Temperature stability (°C) ±0.02
Setting / display resolution 0.01 (-9.99...99.99) / 0.1 °C
Temperature Display LED
Heating capacity (kW) 1
Cooling capacity (Medium Ethanol) °C 20 0 -20

kW 0.35 0.25 0.06
Pump capacity flow rate (l/min) 11-16
Pump capacity flow pressure (psi) 3.3-6.5
Bath opening / bath depth (W x L / D inch) 4.7 x 5.5 / 5.5
Pump connections M10x1
Barbed fittings diameter (inner dia. / mm) 8 / 10
Filling volume liters 4.5

Product data sheet 2/3

F25-MA

Refrigerant stage 1 R134a
Filling volume refrigerant stage 1 (g) 84
Global Warming Potential for 1430
Carbon dioxide equivalent stage 1 (t) 0.12
Digital interface RS232

Optional: Profibus
Ambient temperature 5...40 °C
Dimensions W x L x H (inch) 9.1 x 16.5 x 24
Weight (LBS) 68
Classification according to DIN12876-1 Classification III (FL)
Included with each unit 2 barbed fittings suitable for tubing 8 and 10 mm inner dia.

(pump connections M10x1 female)
Cooling of compressor Air
Power requirement V / Hz / A 115/60/13
Available voltage versions 230 V / 50 Hz

115 V / 60 Hz

100 V / 50 - 60 Hz

230 V / 50 - 60 Hz

Characteristics

Display

Several values at a glance

Large Multi-Display (LED), easy to
read across the room, for actual
value and up to 3 setpoints, warning
functions, high temperature cut-off,
selected pump stages (resolution

0.01/0.1 °C)

Operation

Comfortable and detailed

Comfortable keypad with additional
menu functions for pump stages,
calibration, control parameters,
programmer, warnings, etc.

Temperature Control

Highly precise

PID Temperature control with drift
compensation and adjustable
control parameters, temperature
stability ±0.01...±0.02 °C

Highest measuring accuracy

‘Absolute Temperature Calibration’
for manual compensation of a
temperature difference, 3-point
calibration

Refrigeration Technology

Consistent cooling capacity

Easily removable venting grid for
quick and easy cleaning

100 % Cooling capacity

‘Active Cooling Control’ for cooling
available throughout the entire
working temperature range, fast
cool-down even at higher
temperatures

Technical Features

Clever pump system

Reliable and consistent pump
capacity, electronically adjustable
pump stages

Serial connection

RS232 interface for PC connection,
e.g. for data communication and
recording of measured values

Warning & Safety Functions

Early warning system for low
liquid level

Maximum safety for applications,
optical and audible alarm, allows
user to refill bath fluid before the unit
shuts down

Early warning system for high/low
temperature limits

Maximum safety for applications,
optical and audible alarm,
convertible to automated cut-off
function

Enhanced protective functions

Maximum safety, adjustable high
temperature cut-off or dry-running
protection, additional display of
setpoints permits easy and precise
adjustments
