Julabo F25-HE, F32-HE, F34-HE, FP40-HE, FP50-HE Operating Manual

...

Download

Page 1

English

www.julabo.com

Operating Manual

Refrigerated and Heating Circulators

air cooled F25-HE

F32-HE F34-HE

FP40-HE FP50-HE

water cooled

FPW50-HE

Translation of the Original Operating Manual

19532460-V4.doc 21.03.16

JULABO USA, Inc. 884 Marcon Boulevard Allentown, PA 18109 Phone: +1(610) 231-0250 Fax: +1(610) 231-0260 info.us@ julabo.com

Page 2

Temperature control devices for research and industry are developed,

Congratulations!

You have made an excellent choice. JULABO thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our circulators. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

The JULABO Quality Management System

produced, and distributed according to the requirements of ISO 9001 and ISO 14001. Certificate Registration No. 01 100044846

Unpacking and inspecting

Unpack the circulator and accessories and inspect them for possible transport damage. Damage should be reported to the responsible carrier, railway, or postal authority, and a damage report should be requested. These instructions must be followed fully for us to guarantee our full support of your claim for protecting against loss from concealed damage. The form required for filing such a claim will be provided by the carrier.

1.953.2460-V4 03/16 Printed in Germany Changes without prior notification reserved Important: keep operating manual for future use

Page 3

TABLE OF CONTENTS

Operating manual ................................................................................................................ 5

1. Intended use ................................................................................................................. 5

1.1. Description ............................................................................................................... 5

2. Operator responsibility – Safety recommendations ....................................................... 6

2.1. Disposal ................................................................................................................... 8

2.2. Technical specifications ........................................................................................... 9

2.3. Cooling water connection ....................................................................................... 12

Operating instructions ....................................................................................................... 13

3. Safety notes for the user ............................................................................................. 13

3.1. Explanation of safety notes .................................................................................... 13

3.2. Explanation of other notes ...................................................................................... 13

3.3. Safety recommendations ........................................................................................ 14

4. Operating controls and functional elements ................................................................ 16

5. Preparations ............................................................................................................... 20

5.1. Installation .............................................................................................................. 20

5.2. Bath fluids .............................................................................................................. 21

5.3. Temperature application to external systems ......................................................... 22

5.3.1. Tubing ............................................................................................................... 23

5.4. Filling / draining ...................................................................................................... 24

6. Operating procedures ................................................................................................. 25

6.1. Power connection ................................................................................................... 25

6.2. Switching on / Start - Stop ...................................................................................... 25

6.2.1. Switching on the circulator ................................................................................. 25

6.2.2. Switching on the Cooling Machine ..................................................................... 26

7. Sett i ng of temperatu res ................................................................................. 27

7.1. Using the pre-settings in the menu ........................................................... 27

7.2. Direct setting of temperatures ................................................................................ 28

8. Safety installations, warning functions ........................................................... 29

8.1. Excess temperature protection ............................................................................... 29

8.1.1. Early warning system, low level protection ......................................................... 30

8.2. Switch-over from warning to shutdown function...................................................... 31

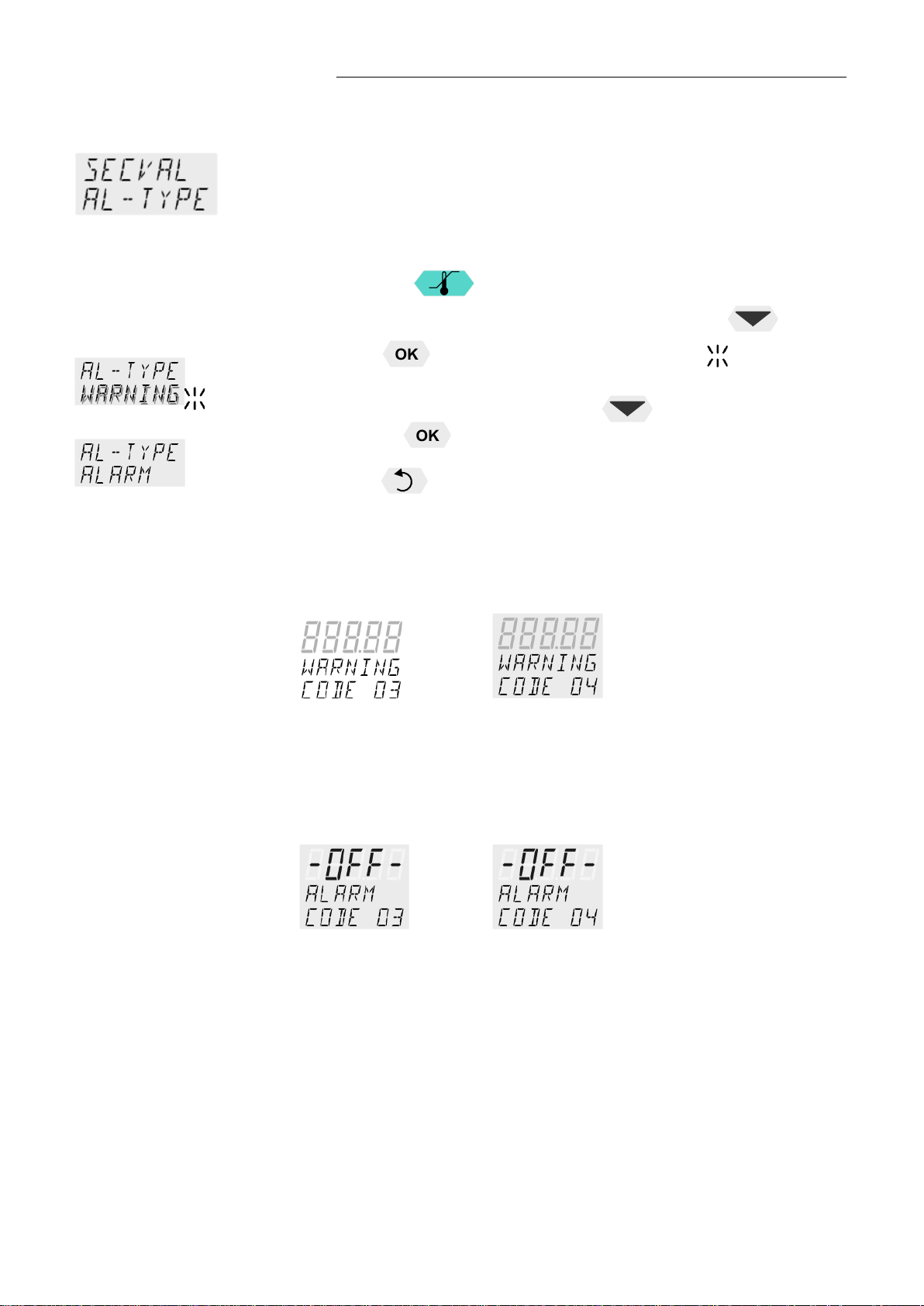

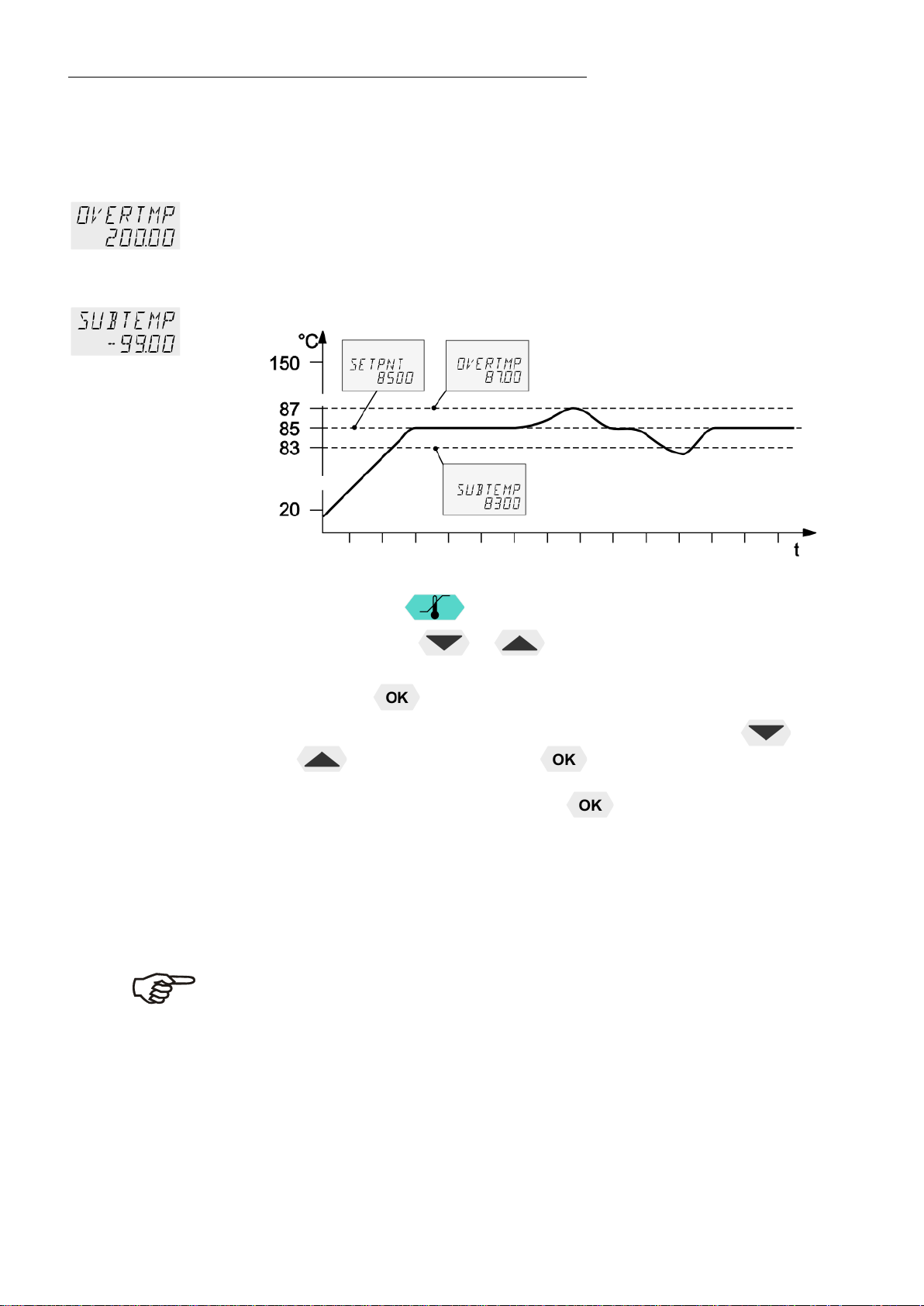

8.3. Over and Sub temperature warning function .......................................................... 32

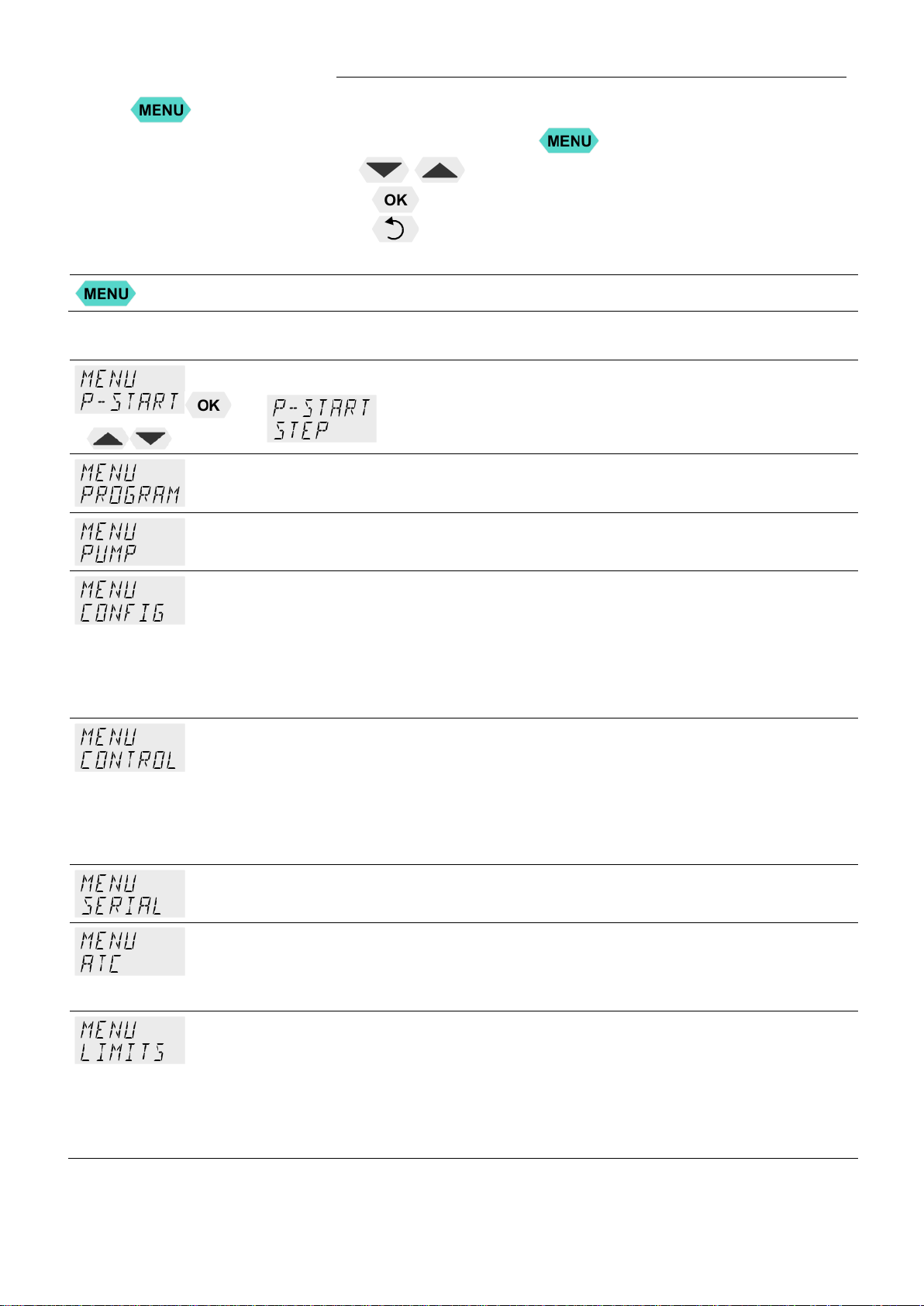

9. Menu functions .............................................................................................. 33

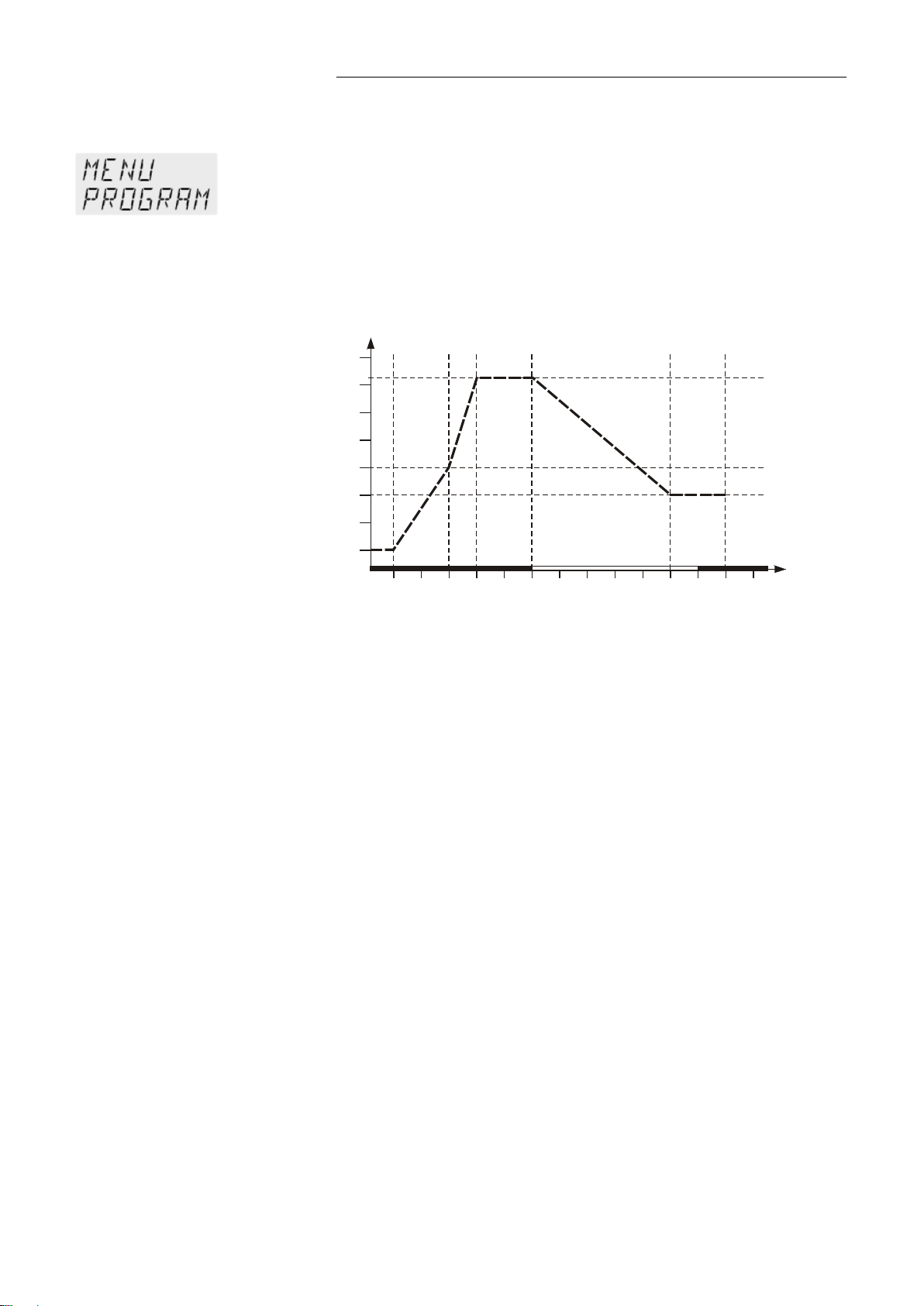

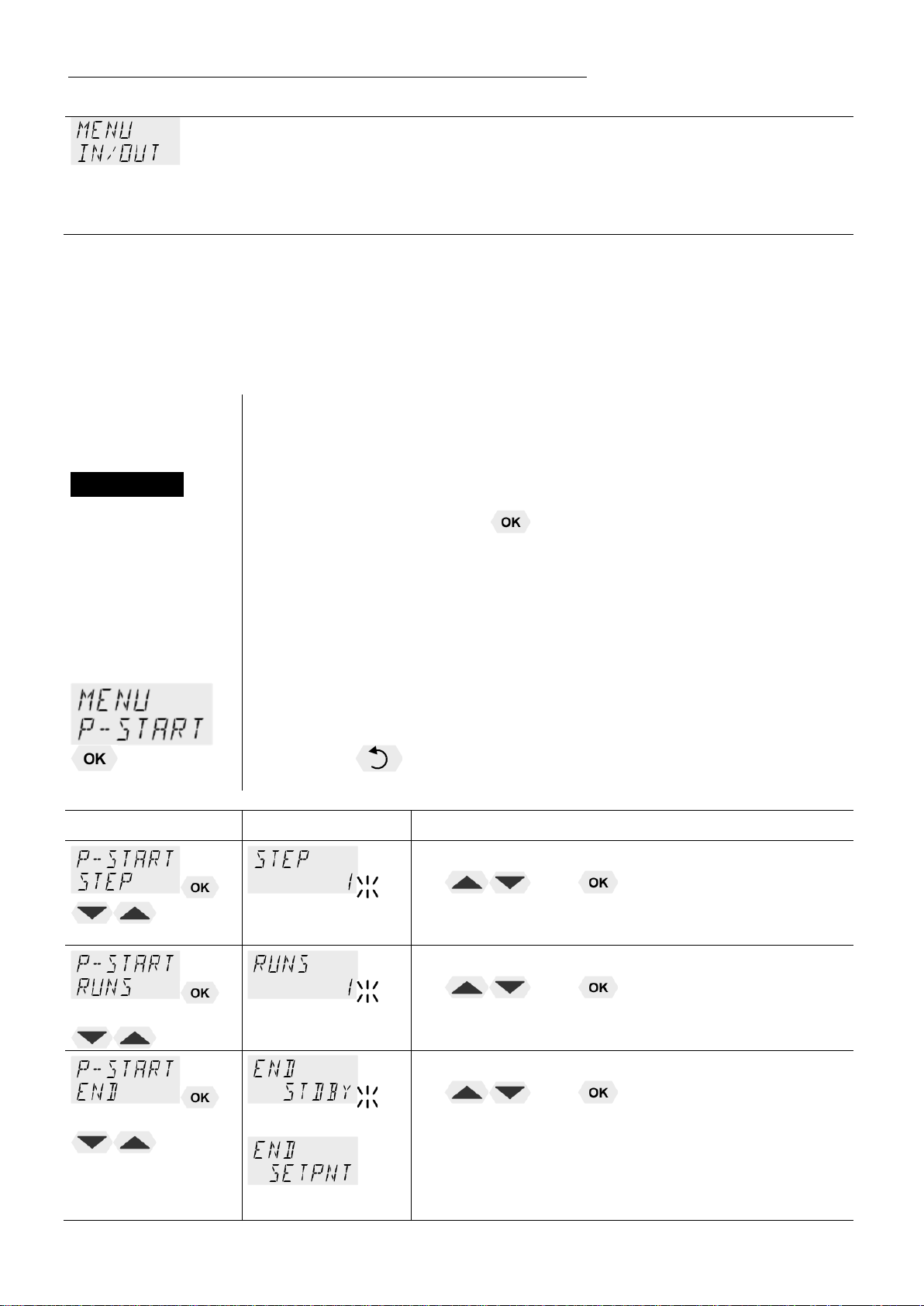

9.1. MENU PROGRAM – START .................................................................................. 34

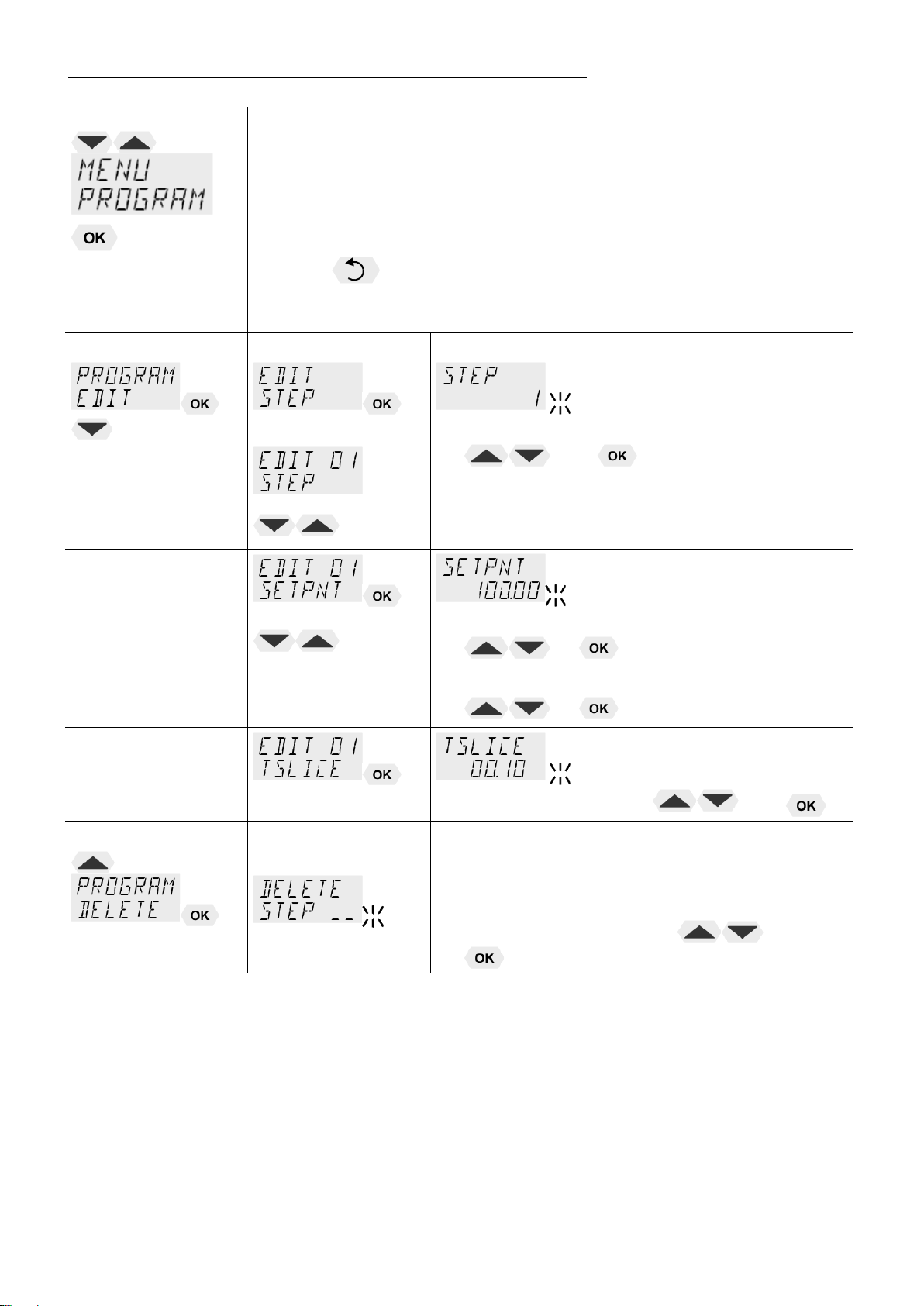

9.2. MENU PROGRAM – creation, administration ......................................................... 37

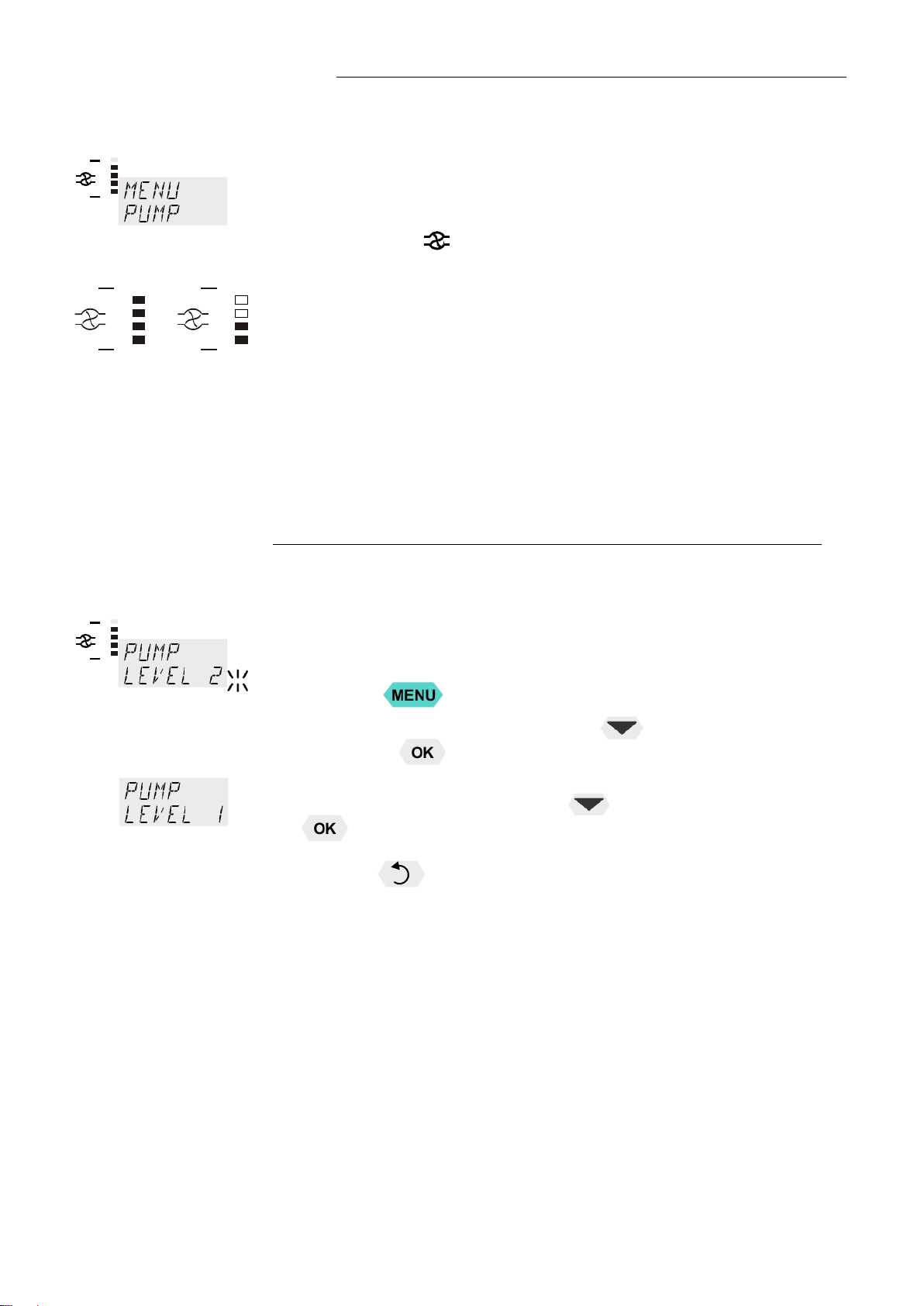

9.3. MENU PUMP - Setti ng of pum p pressure............................................................... 39

Page 4

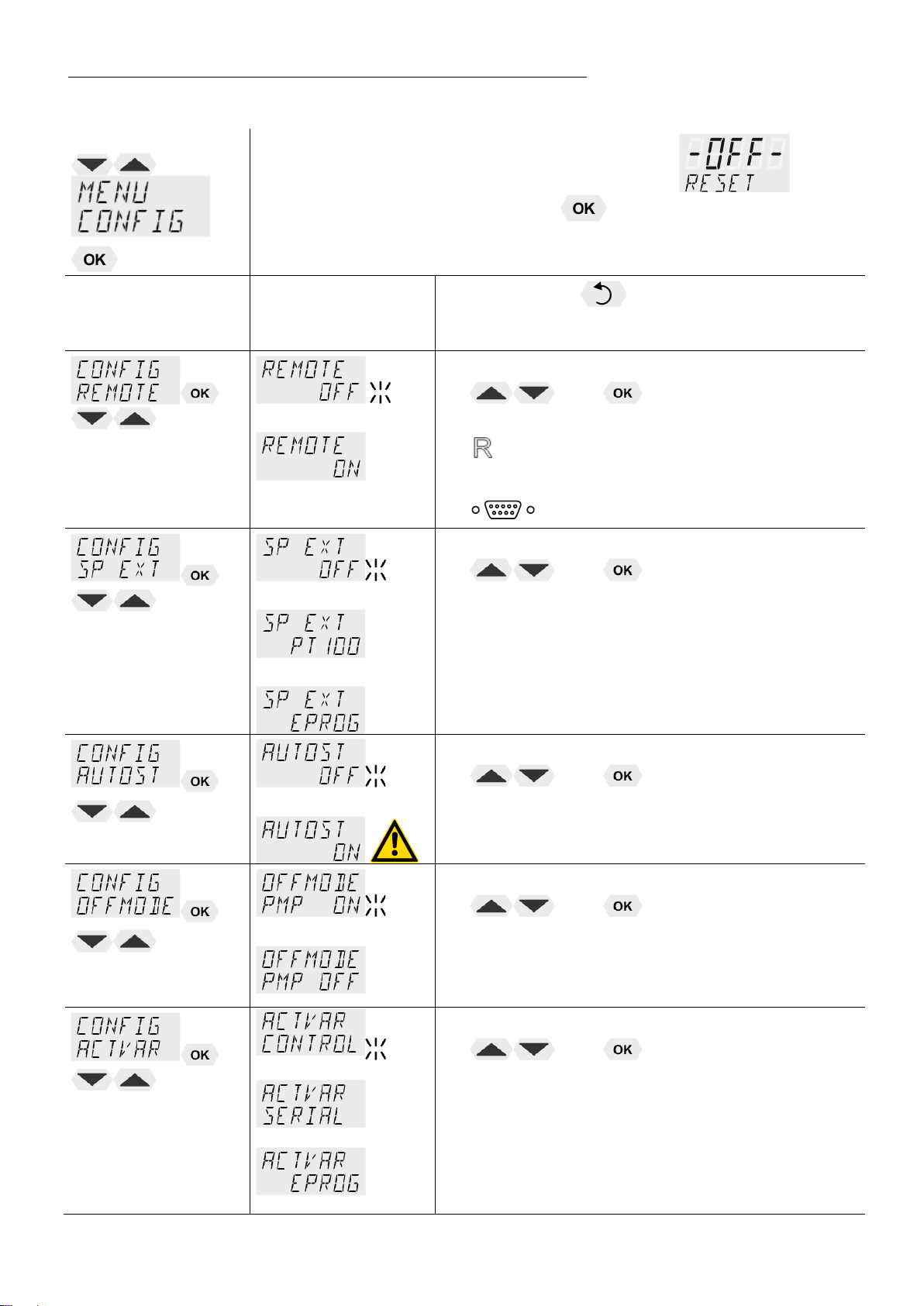

9.4. MENU CONFIG - Configuration of unit ....................................................................40

9.4.1. Remote control via the serial interface ................................................................41

9.4.2. Keypad control or setpoint setting via the analog input .......................................42

9.4.3. AUTOSTART ......................................................................................................42

9.4.4. OFF-MODE ........................................................................................................43

9.4.5. ACTVAR - actuating variable ..............................................................................43

9.4.6. Setting of clock and date ....................................................................................44

9.4.7. RESET – Factory settings ..................................................................................44

9.5. MENU CONTROL – Control characteristics and parameters ..................................44

9.5.1. CONTROL – Control INTERNAL / EXTERNAL...................................................46

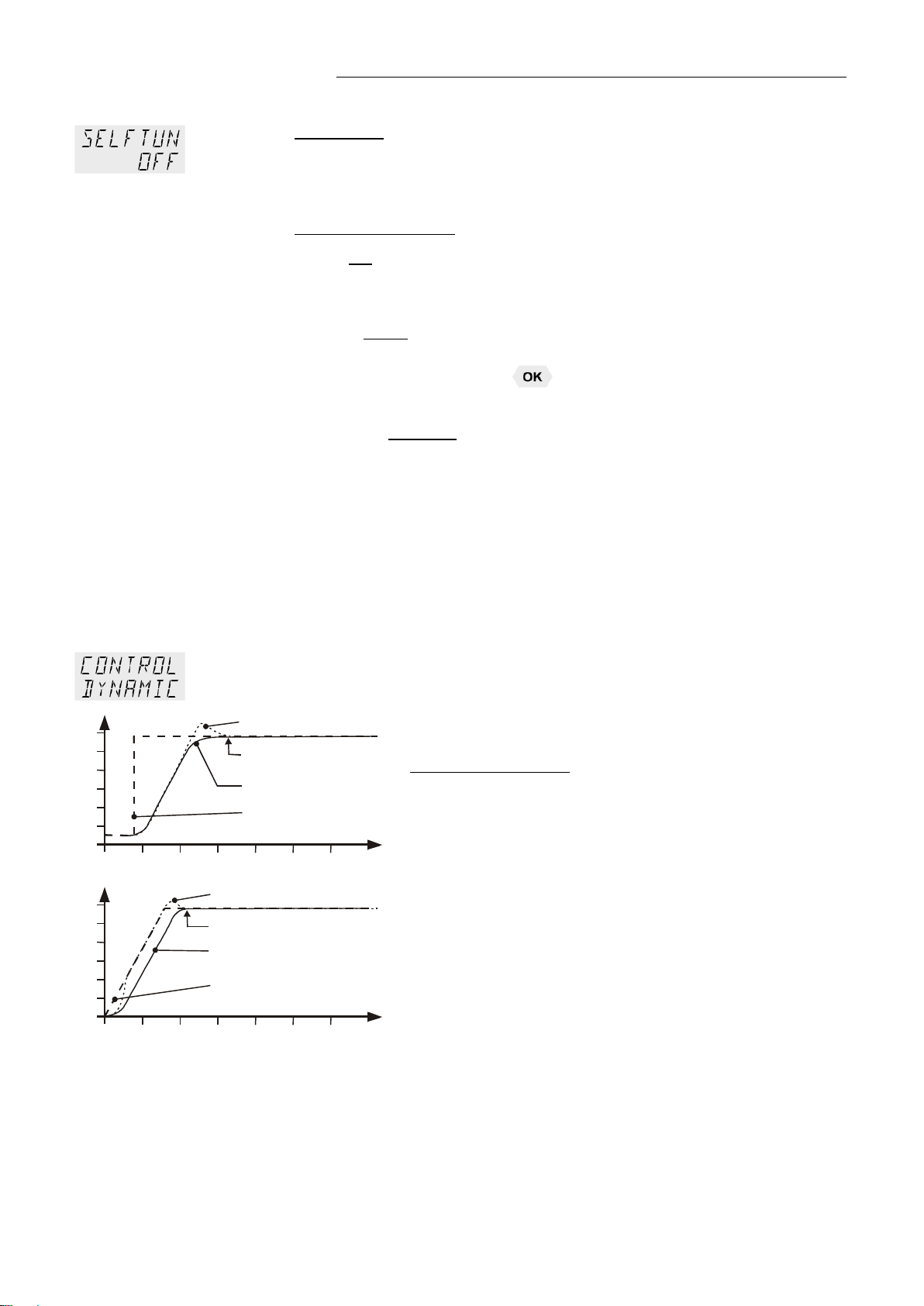

9.5.2. SELFTUNING .....................................................................................................47

9.5.3. Dynamic internal .................................................................................................47

9.5.4. Control parameters– XP-, TN-, TV- INTERNAL ..................................................48

9.5.5. COSPEED - external ..........................................................................................49

9.5.6. Control parameters – XPU-, XP-, TN-, TV- EXTERNAL ......................................49

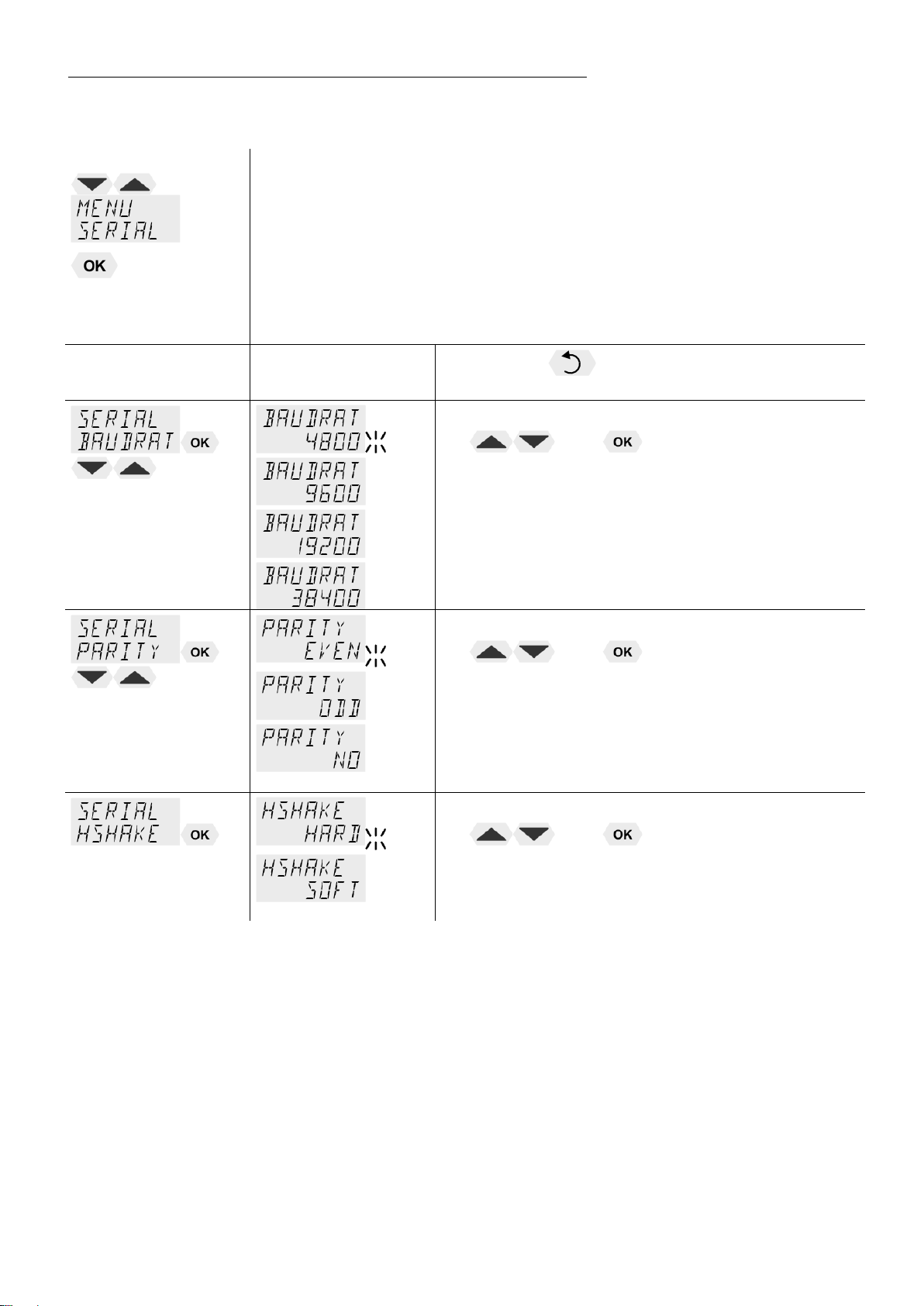

9.6. MENU SERIAL - BAUDRATE, HANDSHAKE, PARITY ...........................................50

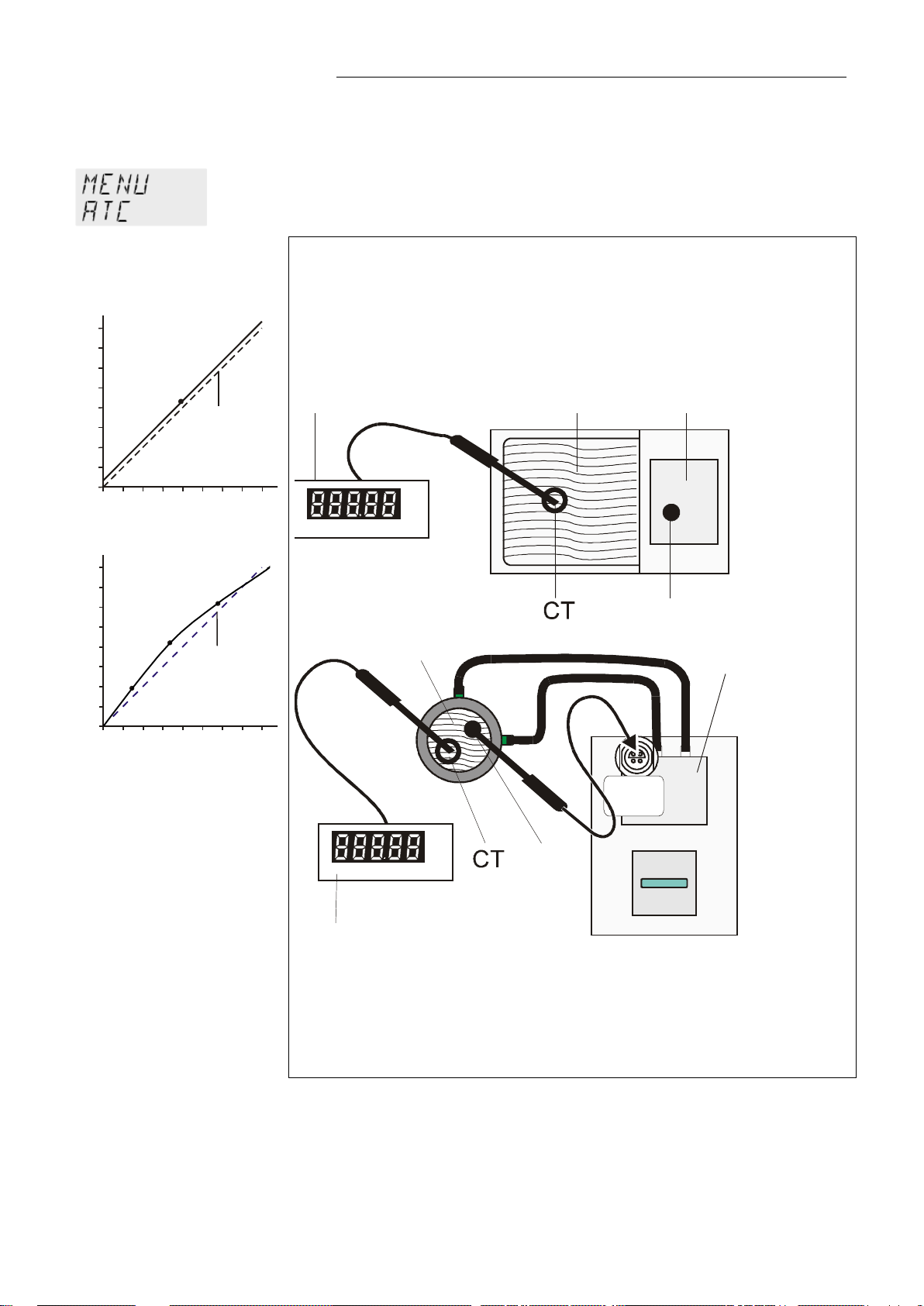

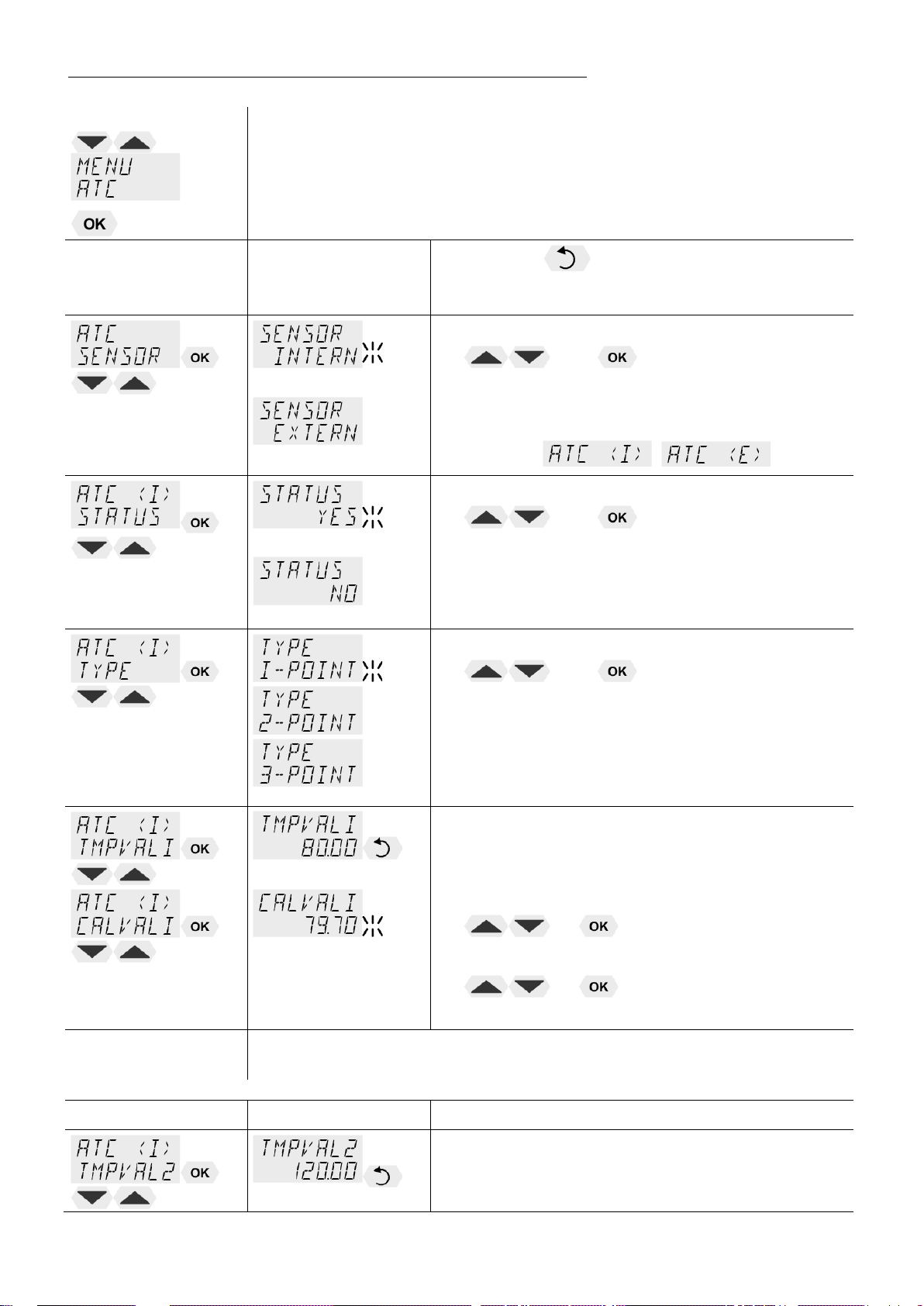

9.7. MENU ATC - Absolut Temperature Calibration .......................................................51

9.7.1. ATC SENSOR - INTERNAL / EXTERNAL ..........................................................53

9.7.2. ATC STATUS - YES / NO ...................................................................................53

9.7.3. CALIBRATION TYPE: 1 -/ 2 -/ 3 POINT .............................................................54

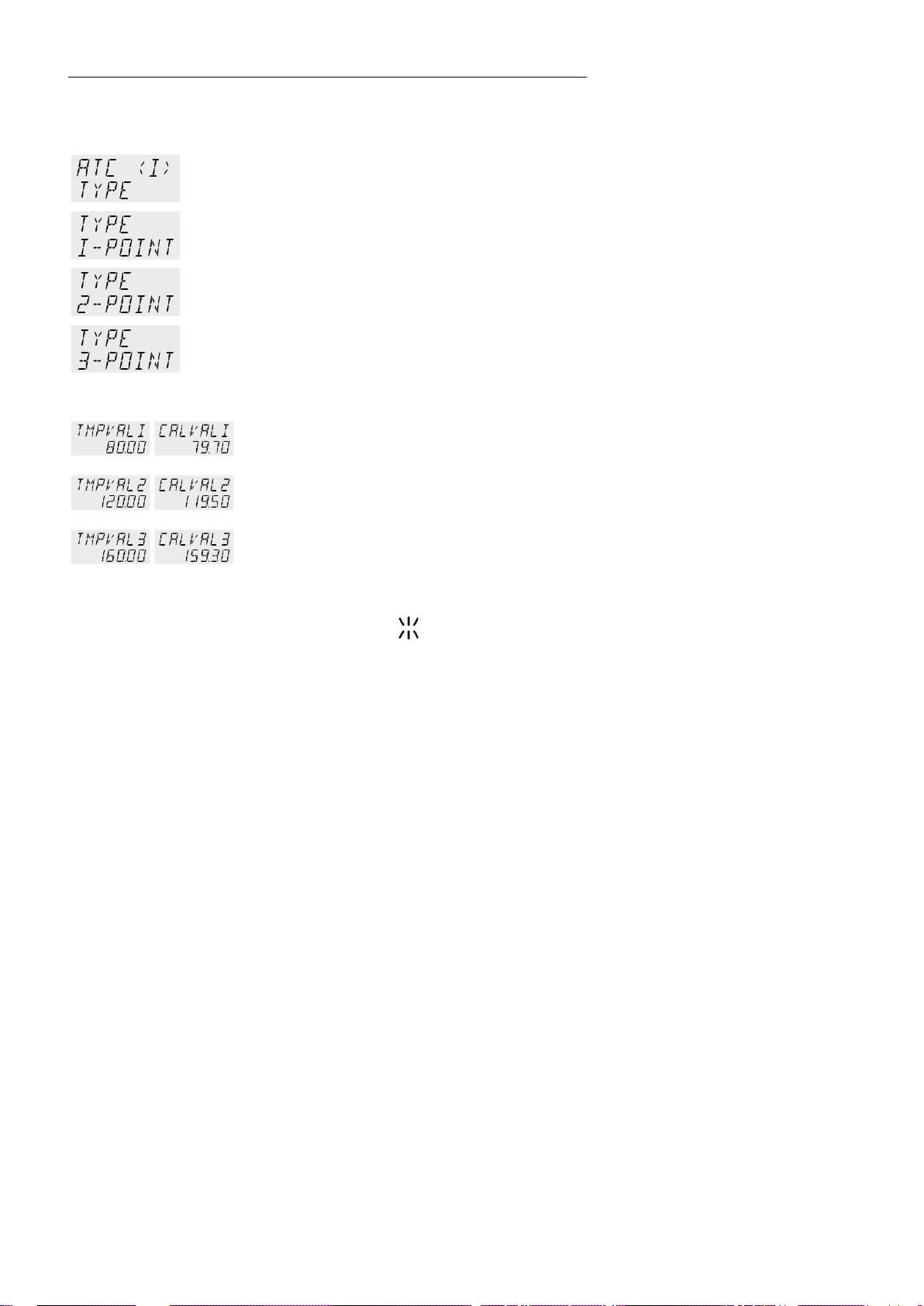

9.7.4. Example: 3-point calibration for internal control .................................................55

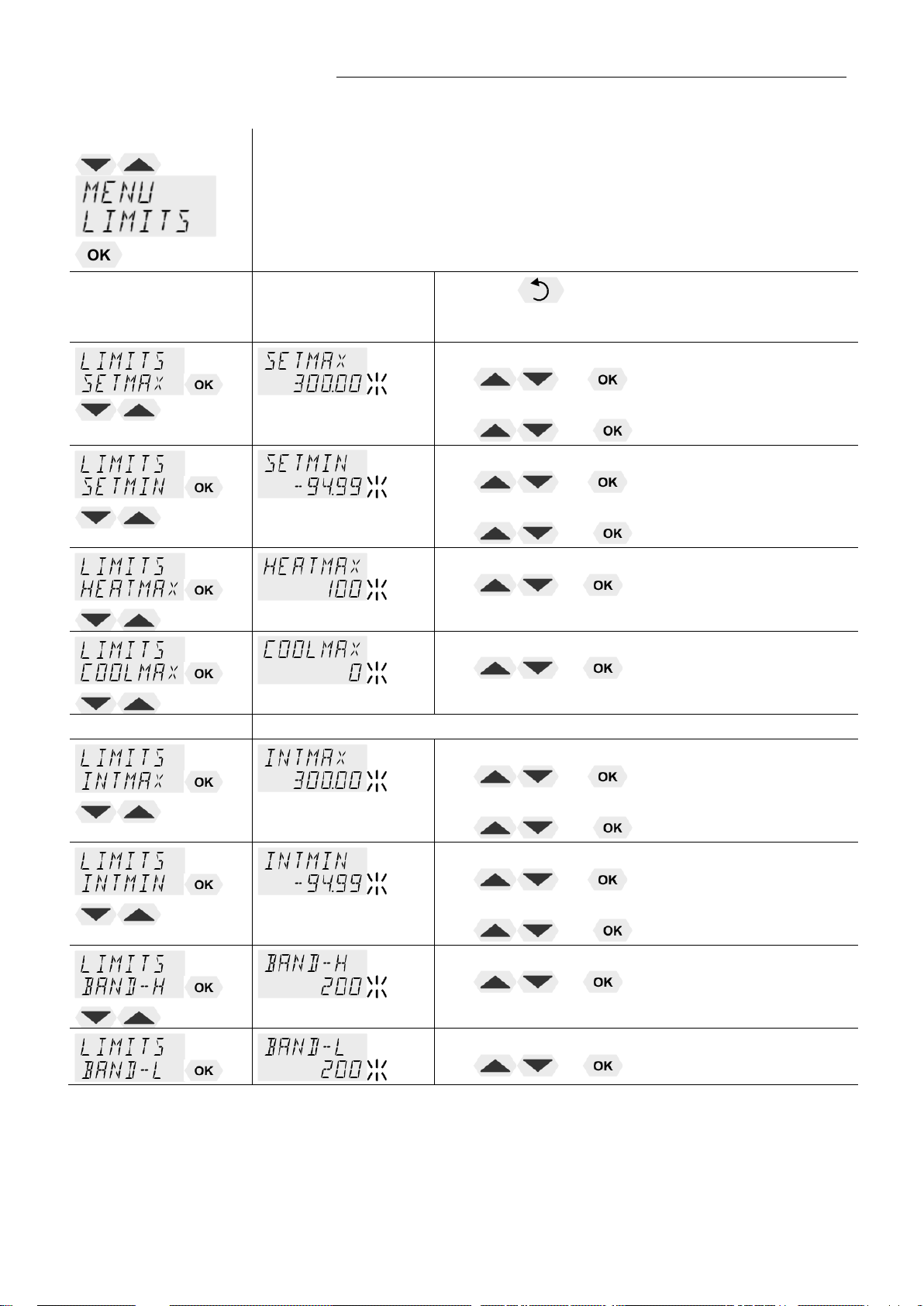

9.8. MENU LIMITS .........................................................................................................57

9.8.1. Limits for internal control .....................................................................................58

9.8.2. Limit s for external control ....................................................................................58

9.9. MENU IN/OUT – Analog inputs/outputs (Option) .....................................................60

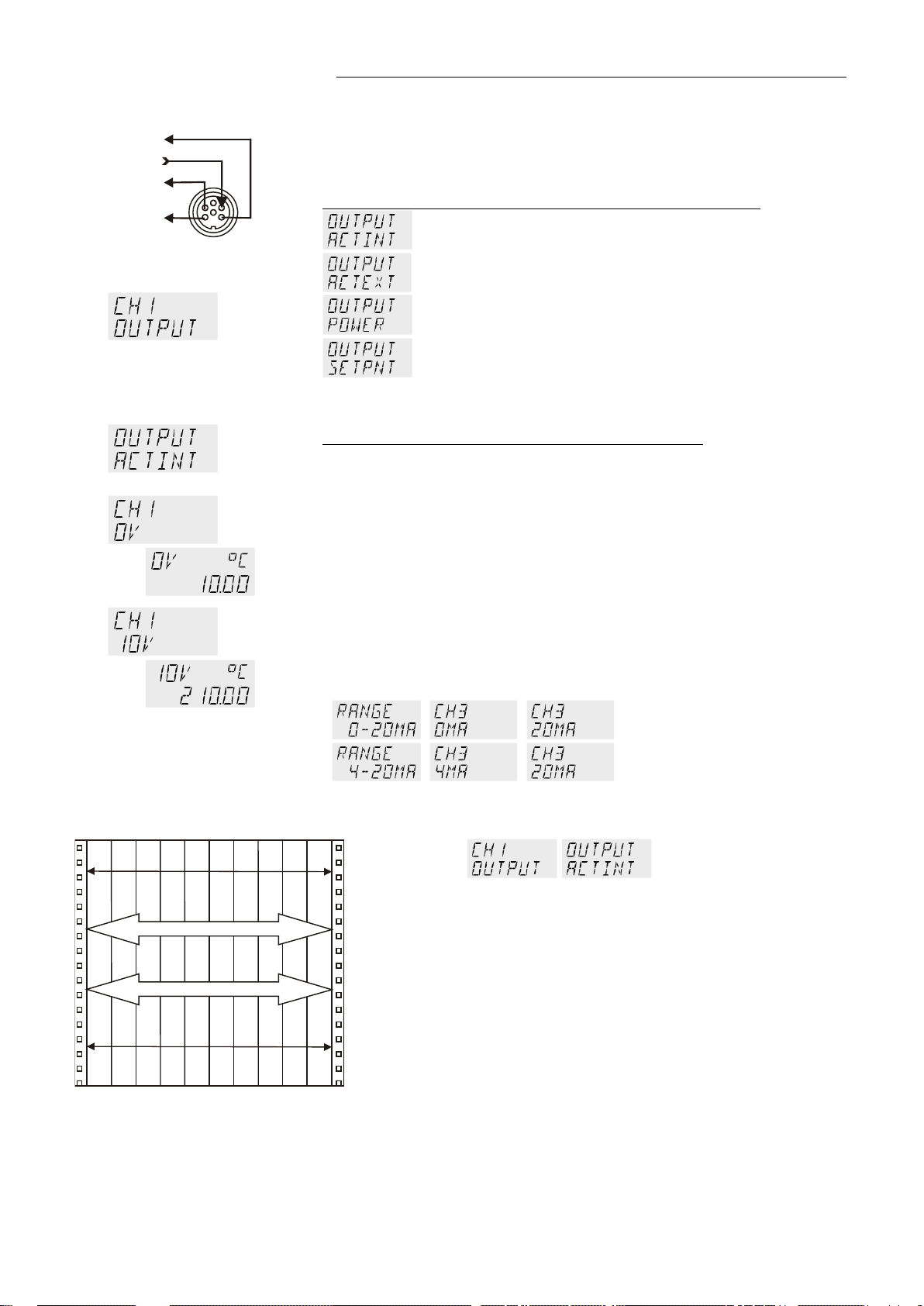

9.9.1. O ut puts of the connector - REG+E-PROG ..........................................................63

9.9.2. I nput of the connector - REG+E-PROG ..............................................................64

9.9.3. ALARM-output / Stand-by-input ..........................................................................66

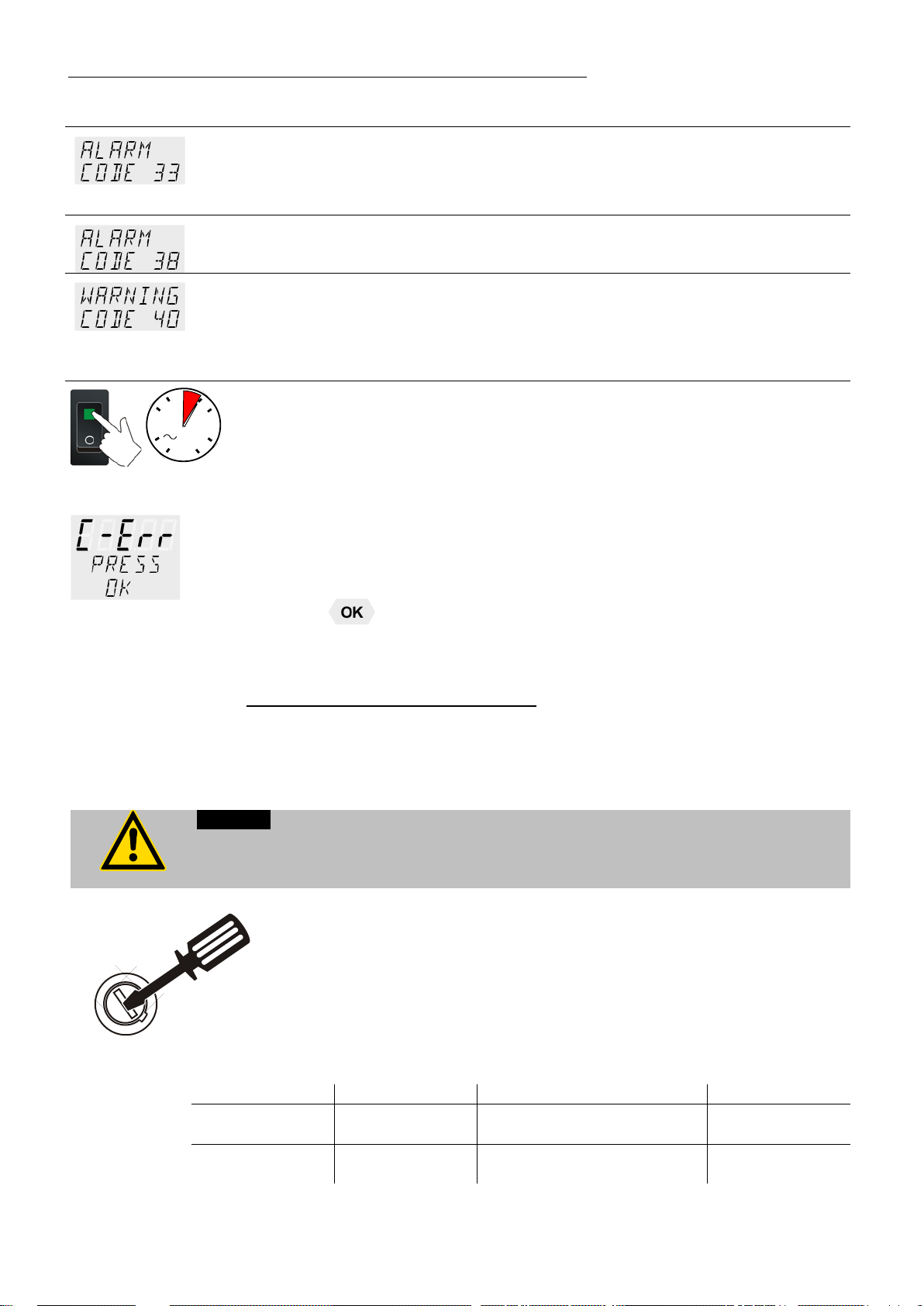

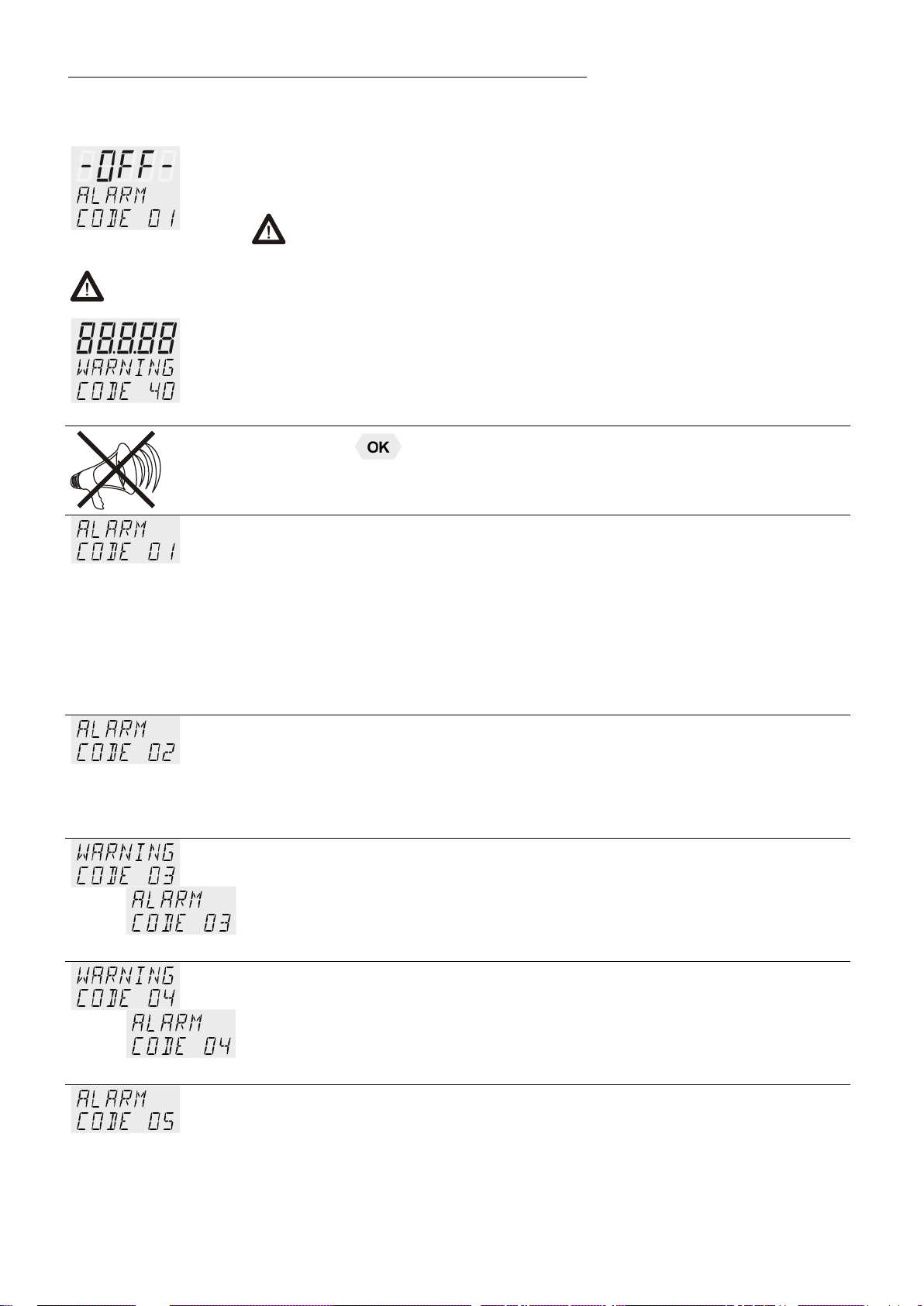

10. Troubleshooting guide / error messages ......................................................................68

11. Electrical connections ..................................................................................................71

12. Remote control ............................................................................................................73

12.1. Setup for remote control ..........................................................................................73

12.2. Com m unicat ion with a PC or a superordinated data system ...................................73

12.3. List of comman ds ....................................................................................................74

12.4. St at us messages ....................................................................................................77

12.5. Error messages .......................................................................................................77

13. Installation of electronic module ...................................................................................78

14. JULABO Service – Online remote diagnosis ................................................................79

15. Cleaning / repairing the unit .........................................................................................80

16. WARRANTY PROVISIONS .........................................................................................81

Page 5

JULABO circulators are not suitable for direct temperature control of foods, semi-

medium (bath fluid).

1x10

ICC

TCF

ATC

RS232

Pt100

PUMP

SMART

Operating manual

1. Intended use

JULABO circulators have been designed to control the temperature of specific fluids in a bath t ank . The units feature pump connections for temperature control of external systems (loop circuit).

luxury foods and tobacco, or pharmaceutical and medical products. Direct temperature control means unprotected contact of the object with the bath

1.1. Description

 The circulators are operated via the splash-proof keypad. The implemented

microprocessor technology allows to set and to store different values that can be indicated on the VFD COMFORT-DISPLAY. Three menu keys facilitate adjusting setpoints, warning and safety functions and menu functions.

 Temperature- and time-dependent processes can be stored and executed using the

integrated programmer.

 The control electronics including “ICC - Intelligent Cascade Control” automatically

adjust the heat supply to the thermal requirements of the bath.

 The TCF - Temperature Control Features give the user access to all important

temperature control parameters. This means full control of the control behavior at all times and the ability to manually adjust or adapt the controls to the specific application.

 Absolute Temperature Calibration (ATC3) provides high temperature stability at all

points in the bath. With the 3-point calibration, an offset is adjusted at three temperatures to ensure an accurate temperature pattern at the selected spot in the bath over the entire temperature range.

 Electrical connections:

The serial interface, switchable from RS232 to RS485, allows modern process technology without additional interface. Connection for Pt100 external sensor for external temperature measurement and control. Alarm output for external alarm message or control of JULABO refrigerating baths or solenoid valve (cooling water). The electronic module (option) provides 3 further analog connections (alarm input, standby input, recorder output, progr ammer in put).

 The excess temperature protection conforming to IEC 61010-2-010 is a safety

installation independent from the control circuit. This protection can be indicated and set on the VFD COMFORT-DISPLAY.

 The early warning system for low level signals that bath fluid needs to be refilled

before the low level protection conforming to IEC 61010-2-010 causes a complete shutdown of the main functional elements.

 Intelligent pump system: The pump capacity (electronically adjustable via the motor

speed) enables to adapt to varying conditions for internal and external temperature applications.

Page 6

Operator responsibility – Safety recommendations

2. Operator res ponsibility – Safety recommendations

The products of JULABO ensure safe operation when installed, operated, and maintained according to common safety regulations. This section explains the potential dangers that may arise when operating the circulator and also specifies the most important safety precautions to preclude these dangers as far as possible.

 The operator is responsible for the qualification of the personnel operating the units.  The personnel operating the units should be regularly instructed about the dangers involved with

their job activities as well as measures to avert these dangers.

 Make sure all persons tasked with operating, installing, and maintaining the unit have read and

understand the safety information and operating instructions.

 When using hazardous materials or materials that could become hazardous, the circulator may be

operated only by persons who are absolutely familiar with these materials and the circulator. These persons must be fully aware of possible risks.

If you have any questions concerning the operation of your unit or the information in this manual, please contact us!

Contact

Safety instructions for the operator:

 You have received a product designed for industrial use. Nevertheless, avoid strikes to the

housing, vibrations, damage to the operating-element panel (keypad, display), and contamination.

 Make sure the product is checked for proper condition regularly (depending on the conditions of

use). Regularly check (at least every 2 years) the proper condition of the mandatory, warning, prohibition and safety labels.

 Make sure that the mains power supply has low impedance to avoid any negative effects on

instruments being operated on the same mains.

 This unit is designed for operation in a controlled electromagnetic environment. This means that

transmitting devices (e.g., cellular phones) should not be used in the immediate vicinity. Magnetic radiation may affect other devices with components sensitive to magnetic fields (e.g., monitors). We recommend maintaining a minimum distance of 1 m.

 Permissible ambient temperature: max. 40 °C, min. 5 °C.  Permissible relative humidity: 50% (40 °C).  Do not store the unit in an aggressive atmosphere.  Protect the unit from contamination.

 Do not expose the unit to sunlight.

JULABO USA, Inc. 884 Marcon Boulevard Allentown, PA 18109

Phone: +1(610) 231-0250 Fax: +1(610) 231-0260 info.us@ julabo.com www.julabo.com

Appropriate operation

Only qualified personnel is authorized to perform configuration, installation, maintenance and repairs of the circulator. Routine operation can also be carried out by untrained personnel who should however be instructed by trained personnel.

Page 7

Use:

The bath can be filled with flammable materials. Fire hazard! There might be chemical dangers depending on the bath medium used. Observe all warnings for the used materials (bath fluids) and the respective instructions (safety data sheets). Insufficient ventilation may result in the formation of explosive mixtures. Only use the unit in well ventilated areas.

Only use recommended materials (bath fluids). Only use non-acid and non corroding materials. When using hazardous materials or materials that could become hazardous, the operator must affix

the enclosed safety labels to the front of the unit so they are highly visible: If this unit is intended for use within the United States of America, all 3 warning labels must be affixed

to the housing of the unit prior to use. Directions for the positioning of the individual warning labels are enclosed with the warning labels included in the delivery. Warning labels must be easily visible to users.

Warning label W00: Colors: yellow, black Danger area. Attention! Observe instructions. (operating manual, safety data sheet)

Mandatory label M018: Colors: blue, white Carefully read the user information prior to beginning operation.

Scope: EU

or 2

Semi S1-0701 Table A1-2 #9 Carefully read the user information prior to beginning operation. Scope: USA, NAFTA

Warning label Proposition 65

Particular care and attention is necessary because of the wide operating range. There are thermal dangers: Burn, scald, hot steam, hot parts and surfaces that can be touched.

Warning label W26: Colors: yellow, blac k Hot surface warning.

(The label is put on by JULABO)

Observe the instructions in the manuals for instruments of a different make that you connect to the circulator, particularly the respective safety recommendations. Also observe the pin assignment of plugs and technical specifications of the products.

Page 8

Operator responsibility – Safety recommendations

Contact an authorized waste management company in your country.

2.1. Disposal

The circulator contains a back-up battery that supplies voltage to memory chips when the unit is switched off. Do not dispose of the battery with household wast e! Depending on battery regulations in your country, you might be obliged to give back used or defect batteries to gathering places. The product may be used with oil as bath fluid. These oils fully or partially consist of m in era l o il or synthetic oil. For disposal, observe the instructions in the safety data sheets.

These units contains refrigerants– at this time considered not to have any negative effects on the ozone layer. However, during the long operating period of the unit, disposal prescriptions may change. So only qualified personnel should take care of disposal.

Disposal with household waste (unsorted waste) or similar collections of municipal waste is not permitted!

Page 9

2.2. Technical specifications

Working temperature range

Temperature stability

Medium: ethanol

Refrigerant

R134a

Overall dimensions (WxDxH)

Bath opening (WxL)

Bath depth

Filling volume

Weight

Mains power connection

230 / 50

Current draw (at 23 0 V)

Current draw, CH (at 23 0 V)

A 2 -

Mains power connection

V/ Hz

230 / 50/60

Current draw (at 230 V)

A - 2

Mains power connection

V/ Hz

115 / 60

Current draw (at 115 V)

Mains power connection

V/ Hz

100 / 50/60

Current draw (at 100 V)

F34-HE

Working temperature range

Temperature stability

Medium: ethanol

Refrigerant

R134a

Overall dimensions (WxDxH)

Bath opening (WxL)

Bath depth

Filling volume

Weight

Mains power connection

V/Hz

230 / 50

Current draw (at 230 V)

A 12

Mains power connection

V/ Hz

230 / 60

Current draw (at 230 V)

A 12

Mains power connection 115 V/60 Hz

V/ Hz

115 / 60

Current draw (at 115 V)

A 14

F25-HE F32-HE

°C -28 ... 200 -35 ... 200 °C ±0,01 ±0,01

Cooling capacity

°C kW

+20 0 -20

0.26 0.2 0. 06

+20 0 -20 -30

0.45 0.39 0.15 0.06

cm 23x42x64 31x42x64 cm 12x14 18x12 cm 14 15 liters 3 ... 4,5 5,5 ... 8 kg 32 38

Cooling capacity

°C -30 ... 150 °C ±0.01 °C

+20 0 -20 -30

0.45 0.32 0.14 0.03

cm 38x58x64 cm 24x30 cm 15 liters 14 ... 20 kg 44

Page 10

Operator responsibility – Safety recommendations

FPW50-HE

Working temperature range

Temperature stability

Medium: ethanol

Refrigerant

R134a

R404A or R507

Overall dimensions (WxDxH)

Bath opening (WxL)

Bath depth

Filling volume

Weight

Mains power connection

V/Hz

230 / 50

Current draw (at 230 V)

Current draw, GB (at 230 V)

A 3 4

Mains power connection

V/ Hz

230 / 60

Current draw (at 230 V)

FP40-HE FP50-HE

°C -40 ... 200 -50 ... 200 °C ±0.01 ±0.01

Cooling capacity

°C kW

+20 0 -20 -30

0.68 0.5 0.32 0.04

cm 36x46x71 42x49x72 cm 23x14 18x12 cm 20 20 liters 9 ... 16 5.5 ... 8 kg 49 57

HE Temperature selection digital

+20 0 -20 -40

0.9 0.8 0.5 0.16

via keypad indication on VFD COMFORT-DISPLAY remote control via PC indication on monitor Temperature indication VFD COMFORT-DISPLAY Resolution °C 0.01 ATC3 INT/EXT °C ±3 / ±9 Temperature control ICC - Intelligent Cascade Control Heater wattage (at 230 V) kW 2,0 Heater wattage (at 115 V) kW 1,0 Electronically adj. pump capacity stages 1 ... 4 Flow rate at 0 bar l/min 22 ... 26 Max. pressure at 0 liters bar 0.7 Max. suction at 0 liters bar 0.4

Electrical connections: See page 11 Ambient temperature °C 5 … 40

All measurements have been carried out at: rated voltage and frequency ambient temperature: 20 °C Technical changes without prior notification reserved.

Page 11

Electrical connections:

Caution:

External alarm device 24-0 V DC / max. 25 mA Computer interface RS232 or RS485 External Pt100 sensor

Optional for HE, SE (Order No. 8900100 Electronic module with analog connections) Programmer input -100 °C to 400 °C = 0 - 10 V or 0 - 20 mA or 4 - 20 mA Input for the signal of a flow meter or external manipulated variable Temperature recorder outputs 0 - 10 V (0 V = -100 °C, 10 V = 400 °C) 0 - 20 mA (0 mA = -100 °C, 20 mA = 400 °C) 4 - 20 mA (4 mA = -100 °C, 20 mA = 400 °C) Standby input for external emergency switch-off Alarm output for external alarm signal

Safety installations according to IEC 61010-2-010: Excess temperature protection adjustable from 0 °C ... 320 °C Low liquid level protection float switch Classification according to DIN 12876-1 class III

Supplementary safety installations Early warning system for low level float switch High temperature warning function optical + audible (in intervals) Low temperature warning function optical + audible (in intervals) Supervision of working sensor plausibility control Reciprocal sensor monitoring between working and safety sensors difference >35 K Alarm message optical + audible (permanent) Warning message optical + audible (in intervals)

Environmental conditions according to IEC 61 010-1: Use indoors only. Altitude up to 2000 m - normal zero. Ambient temperature: see Technical specifications Humidity: Max. relative humidity 80% for temperatures up to +31 °C, linear decrease down to 50% relative humidity at a temperature of +40 °C Max. mains voltage fluctuations of ±10% are permissible. Protection class according to IEC 60 529 IP21 The unit corresponds to Class I Overvoltage category II Pollution degree 2

The unit is not suitable for use in explosive environment

EMC requirements according to EN 61326-1 This unit is an ISM device classified in Group 1 (using high frequency for internal purposes), Class A (industrial and commercial range).

Page 12

Operator responsibility – Safety recommendations

pH – value

7,5 to 9,0

Sulfate [SO4 2- ]

< 100 ppm

Hydrocarbonate [HCO3- ] / Sulphate [SO4 2-]

> 1 ppm

Hardness [Ca2+, Mg2+] / [HCO3-]

> 0,5 dH

Alkalinity

60 ppm < [HCO3-] < 300 ppm

Conductivity

< 500 μs / cm

Chloride (CL-)

< 50 ppm

Phosphate (PO43-)

< 2 ppm

Ammonia (NH3)

< 0,5 ppm

Free Chlorine

< 0,5 ppm

Ferri Ions (Fe3+ )

< 0,5 ppm

Mangano Ions (Mn2+)

< 0,05 ppm

Carbon dioxide (CO2)

< 10 ppm

Hydrosulfide (H2S)

< 50 ppm

Content of oxygen

< 0,1 ppm

Algae growth

impermissible

Suspended solids

impermissible

• Avoid putrid water.

Notice: Cooling water circuit

location where the unit is operated.

2.3. Cooling water connection

Cooling water pressure (IN / OUT ) max. 6 bar Difference pressure (IN - OUT ) 3.5 to 6 bar Cooling water temperature <20 °C

Recommended quality of cooling water:

Notice:

Danger of corrosion of heat exchanger due to unsuitable quality of cooling water.

• Due to its high content of lime hart water is not suitable for cooling and causes calcination of the heat exchanger.

• Ferrous water or water containing ferrous particles will cause formation of rust even in heat exchangers made of stainless steel.

• Chlorous water will cause pitting corrosion in heat exchangers made of stainless steel.

• Due to its corrosive characteristics distilled and deionized water is unsuitable and will cause corrosion of the bath. .

• Due to its corrosive characteristics sea water is not suitable.

• Due to its microbiological (bacteria) components which settle in the heat

exchanger untreated and unpurified river water and water from cooling towers is unsuitable.

• Avoid particulate matter in cooling water.

Risk of oil leaking from the cooling circuit (compressor) of the recirculating cooler into the cooling water in case of a fault in the circuit! Observe the laws and regulations of the water distribution company valid in the

Page 13

In addition to the safety warnings listed, warnings are posted throughout the operating

Warning:

Caution: Notice:

Note! Draws attention to something special.

Important! Indicates usage tips and other useful information.

This icon is used in the operating instructions to indicate flashing values or paramet which have to be set or confirmed.

Operating instructions

3. Safety notes for the user

3.1. Explanation of safety notes

manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).” The danger is classified using a signal word. Read and follow these important instructions for averting dangers.

Describes a possibly highly dangerous situation. If these instructions are not followed, serious injury and danger to life could result.

Describes a possibly dangerous situation. If this is not avoided, slight or minor injuries could result. A warning of possible property damage may also be contained in the text.

Describes a possibly harmful situation. If this is not avoided, the product or anything in its surroundings can be damaged.

3.2. Explanation of other notes

ers

Page 14

Safety notes for the user

Follow the safety instructions to avoid personal injury and property damage. Also, the

• Only connect the unit to a power socket with an earthing contact (PE – protective

these parts.

3.3. Safety recommendations

valid safety instructions for workplaces must be followed.

earth)!

• The power supply plug serves as a safe disconnecting device from the line and must always be easily accessible.

• Place the unit on an even surface on a base made of nonflammable material.

• Do not stay in the area below the unit.

• Make sure you read and understand all instructions and safety precautions listed in

this manual before installing or operating your unit.

• Set the excess temperature safety installation at least 25 °C below the fire point of the bath fluid.

• Observe the limited working temperature range when using plastic bath tanks.

• Never operate the unit without bath fluid in the bath.

• Pay attention to the thermal expansion of bath oil during heating to avoid

overflowing of the fluid.

• Prevent water from entering the hot bath oil.

• Do not drain the bath fluid while it is hot!

Check the temperature of the bath fluid prior to draining (e.g., by switching the unit on for a short moment).

• Use suitable connecting tubing.

• Avoid sharp bends in the tubing, and maintain a sufficient distance from

surrounding walls.

• Make sure that the tubing is securely attached.

• Regularly check the tubing for material defects (e.g., for cracks).

• Never operate damaged or leaking units.

• Always turn off the unit and disconnect the mains cable from the power source

before performing any service or maintenance procedures, or before moving the unit.

• Always turn off the unit and disconnect the mains cable from the power source before cleaning the unit.

• Always empty the bath before moving the unit.

• Transport the unit with care.

• Sudden jolts or drops may cause damage in the interior of the unit.

• Observe all warning labels.

• Never remove warning labels.

• Never operate units with damaged mains power cables.

• Repairs are to be carried out only by qualified service personnel.

 Some parts of the bath tank and the pump connections may become extremely hot

during continuous operation. Therefore, exercise particular caution when touching

Page 15

Caution:

determine the method of decontamination.

example.

defects or other reproductive harm.

The temperature controlling i.e. of fluids in a reactor constitutes normal circulator practice.

We do not know which substances are contained within these vessels. Many substances are:

• inflammable, easily ignited or explosive

• hazardous to health

• environmentally unsafe

i.e.: dangerous

The user alone is responsible for the handling of these substances!

The following questions shall help to recognize possible dangers and to reduce the risks to a minimum.

• Are all tubes and electrical cables connected and installed? Note: sharp edges, hot surfaces in operation, moving machine parts, etc.

• Do dangerous steams or gases arise when heating? Is an exhaust needed when working?

• What to do when a dangerous substance was spilled on or in the unit? Before starting to work, obtain information concerning the substance and

Notice: Check the safety installations at least twice a year!

• Excess temperature protection according to IEC 61010-2-010. With a screwdriver turn back the adjustable excess temperature protection until the shut-down point (actual temperature).

• Low level protection according to IEC 61010-2-010. To check the function of the float, it can be manually lowered with a screwdriver for

WARNING

This product contains chemicals known to the state of California to cause cancer, birth

Page 16

Operating controls and functional elements

FPW50

4. Operating cont rols and functional element s

Front view Rear view

Page 17

Mains power switch, illuminated for circulator

*refer to >MENU/CONFIG<  >CONFIG / ACTVAR>

2.1

2.2

Mains power switch, illuminated for cooling machine

VFD COMFORT-DISPLAY

Header: Control indicators Line 1: Act ual value internal or external

The display is depending on the selected control mode in the menu > Control < (internal or external).

Line 2: Working temp. setpoint, constantly S xxx.xx

Line 3: Actual value (E = external or I = internal)

Alternating with the display in line 1 Use the keys

PI Capacity in % - with manipulated variable set to >control<* PS Capacity in % - with manipulated variable set to >serial<* or >eprog<* H Heater capacity in Watts U Mains voltage Volts F Flow rate in liters/min ute (providing EPROG input set to >Flowrate<)

Control indicators in the header: Heating / Cooling / Alarm /

Remote control

to indicate further values in line 3

2.3

4.1

Control indicators in the header: Temperature indication Internal or External actual value Temperature indication in °C (°F not possible on this unit)

Display of set pump pressure stage Four stages, can be set via the key

Navigation keys

1. Key: >OK< Start / Stop (pump / heater )

2. >OK< in the menu Menu item / select submenu for setting Save set value Save selected parameter A beep signals the end of setting

After the actions Start, Stop and change from VFD Display to standard display the key

The above graph “front side” shows an example for standard display.

is locked for a short ti me.

, under >MENU - PUMP<.

Page 18

Operating controls and functional elements

7 8

Interface RS232: remote control via personal computer

Socket: control cable of JULABO refrigerated circulator

ALARM

Alarm output (for external alarm signal)

STAND-BY

Standby input (for external emergency switch-off)

REG+E-PROG

Programmer input and temperature recorder output

4.2

4.3

4.4

4.5

4.6

1. Key: >Return< Stop (pump / heater )

2. >Return< in the menu one menu level down Correction function for parameters or values (prior to OK)

immediately back to standard display

- icon for „keep key pressed down“.

1. Key: >Up / Down <temperature – increase/decrease setpoint Push key quickly for single steps, Keep key pressed for fast change.

2. >Up/Down< in the menu selection of menu items / parameters

Menu keys

Key: start the menu > warning and safety values<

Key: start the menu >temperature setpoints< Key: display of MENU structure

Adjustable excess temperature protection according to IEC 61010-2-010

Socket for external measurement and control sensor or external setpoint programming

ext Pt100

SERIAL

or output for alarm messages

Option: Electronic module Order No. 8 900 100

Page 19

16a

16b

17a

Mains power cable with plug for circulator 18

Built-in mains outlet for connection of circulator

Drain screw with drain connection

Venting grid, removable

21 23

Mains fuses for circulator, T16A Mains fuses for cooling machine, T10A

17b

Mains power cable with plug cooling machine

Pump connectors suction pump pres sure pum p

Selector dial for cooling machine (only F25, F34) Position "1" for operation with HE circulator.

Cooling water OUTLET and INLET.

¾"

Page 20

Preparations

performance of the compressor.

5. Preparations

5.1. Installation

flammable material.

F34: The circulator fitted with a stainless steel bridge is placed on on the back of the bath tank leaving the bath open on the front side.

• The place of installation should be large enough and provide sufficient air ventilation to ensure the room does not warm up excessively because of the heat the instrument radiates to the environment. (Max. permissible ambient temperature: 40 °C). With regard to a disturbance in the cooling loop (leakage), the guideline EN 378 prescribes a certain room space to be available for each kg of refrigerant.

• Place the unit on an even surface on a pad made of non-

The necessary amount of refrigerant is specified on the type plate. > For 0.25 kg of refrigerant R134a, a room space of 1 m required. > For 0.52 kg of refrigerant R404A, a room space of 1 m required. > For 0.49 kg of refrigerant R507, a room space of 1 m

is req uired.

• Set selector dial for cooling machine in position "1" for operation with HE circulator.

(only F25, F34)

• Keep at least 20 cm of open space on the front and rear venting grids.

• Do not set up the unit in the immediate vicinity of heat sources and do not expose to sun light

• Before operating the unit after transport, wait about one hour after setting it up. This will allow any oil that has accumulated laterally during transport to flow back down thus ensuring maximum cooling

Only water cooled models:

Ensure circulation of cooling water by connecting the tubing to cooling water inlet and outlet on the rear of the refrigerated circulator.

• Cooling water connecter ¾"

• Cooling water see page 12

Page 21

5.2. Bath fluids

Caution:

corrosion in the bath, even in stainless steel.

Bath fluid

Tempe rature range

soft/decalcified water

5 °C to 80 °C

mixture water/glycol, mixture 1:1

-20°C to 50°C

• No liability for use of other bath fluids!

Carefully read the safety data sheet of the bath fluid used, particularly with regard to the fire point! If a bath fluid with a fire point of ≤65 °C is used, only supervised operation is possible.

Water: The quality of water depends on local conditions.

• Due to the high concentration of lime, hard water is not suitable for temperature control because it leads to calcification in the bath.

• Ferrous water can cause corrosion - even on stainless steel.

• Chloric water can cause pitting corrosion.

• Distilled and deionized water is unsuitable. Their special properties cause

Recommended bath fluids:

See website for list of recommended bath fluids.

ATTENTION: The maximum permissible viscosity is 70 mm

Caution:

Fire or other dangers when using bath fluids that are not recommended:

Please contact JULABO before using other than recommended bath fluids. Use only nonacidic and noncorrosive bath fluids.

JULABO assumes no liability for damage caused by the selection of an unsuitable bath liquid. Unsuitable bath fluids are fluids which, e.g.,

• are highly viscous

(much higher than recommended at the respective working temperature)

• have a low viscosity and have creep characteristics

• have corrosive characteristics or

• tend to crack.

/s.

Page 22

Preparations

with the cap nut.

T16A

ext

Pt100

SERIAL

ALARM

REG+ E-PROG

STAND-BY

H = Height adjustment

5.3. Temperature application to external systems

Caution: Securely attach all tubing to prevent slipping.

If the circulator is operated without external system, close the pump connector (22)

Temperature application to external, closed systems

The circulator is used for temperature application to external, closed systems (loop circuit) with simultaneous temperature application in the circulator bath.

• Unscrew the M16x1 collar nuts on the pump connectors with a 19 mm (3/4“) wrench and remove the sealing disks. Using the collar nuts, screw on the tubing connection fittings (for tubing 8 mm or 12 mm in diameter) delivered with the unit and tighten firmly. (Pressure pump: 22, suction pump: 21)

• Push on the tubings, and secure with tube clamps.

• Attach the tubings to the connectors of the external closed

system, e.g., an instrument with a pressure-resistant temperatur e jacket or a temperature coil, and fasten with tube clamps to prevent slipping.

Temperature application to external, open systems

The circulator is equipped with both a pressure and suction pump for external temperature application in open systems.

Differing flow rates of the pressure and suction pumps should be compensated. To maintain a constant liquid level, the JULABO „D+S“ Level Adapter is recommended for the external bath tank. The flow rate of the pressure pump will be then regulated by a built-in float device. The liquid level may be changed by a height adjustment on the „D+S“ Level Adapter.

Accessory: „D+S“ Level Adapter Order No. 8 970 410

Important:

 The liquid level should be equal in the internal and external

baths (absolute height).

 If you take out samples (for example Erlenmeyer flasks) from

S = Suction pump connection D = Pressure pump connection K = Float

the external bath, turn the circulator off with the Start/Stop key.

Page 23

Order No. Length

Tempe rature range

8930008 1 m

CR® tubing 8 mm inner dia.

-20 °C to 120 °C

8930012 1 m

CR® tubing 12 mm inner dia.

-20 °C to 120 °C

8930108 1 m

Viton tubing 8 mm inner dia.

-50 °C to 200 °C

8930112 1 m

Viton tubing 12 mm inner dia.

-50 °C to 200 °C

8930410 1 m

Insulation for tubing 8 mm inner dia.

-50 °C to 100 °C

8930412 1 m

Insulation for tubing 12 mm inner dia.

-50 °C to 100 °C

8 930 209 0.5 m

8 930 214 3.0 m

Metal tubing, triple insulated, M16x1

-100 °C to +350 °C

8 930 220 0.5 m

8 930 223 3.0 m

Metal tubing, insulated, M16x1

-50 °C to +200 °C

Warning: Tubing:

• Preventive maintenance: Replace the tubing from time to time.

Return flow safety device

If the liquid levels in the circulator bath and the external system are at

5.3.1. Tubing Recommended tubing:

different heights, overflowing must be prevented after the power has been turned off.

Flood hazard!

For this reason, shut-off valves can be integrated in the loop circuit.

Order No. Description 8 970 456 Shut-off valve (suitable up to +90 °C) 8 970 457 Shut-off valve (suitable up to +200 °C)

8 930 210 1.0 m 8 930 211 1.5 m

8 930 221 1.0 m 8 930 222 1.5 m

At high working temperatures the tubing used for temperature application and cooling water supply represents a danger source. A damaged tubing line may cause hot bath fluid to be pumped out within a short time. This may result in:

• Burning of skin

• Difficulties in breathing due to hot atmosphere

Safety recommendations

• Employ suitable connecting tubing.

• Make sure that the tubing is securely attached.

• Avoid sharp bends in the tubing, and maintain a sufficient distance from

surrounding walls.

• Regularly check the tubing for material defects (e.g. for cracks).

Page 24

Preparations

protection.

5.4. Filling / draining

Notice:

• Pay attention to the thermal expansion of bath oil during heating to avoid overflowing of the liquid.

• Do not drain the bath fluid while it is hot! Recommendation: Temperature range 5 °C to 40 °C Check the temperature of the bath fluid prior to draining (by switching the unit on for a short moment, for example).

• Store and dispose the used bath fluid according to the laws for environmental

Filling

Take care that no liquid enters the interior of the circulator.

• Recommended maximum filling level with water as bath fluid: 30 mm below the tank rim

• Recommended maximum filling level with bath oils: 40 mm below the tank rim

 After filling, immerse the samples in the bath or place the lid on

the bath, in case the opening is not to be used.

 The circulator provides an early warning system for low level that

may be triggered when changing samples in the bath.

Draining

• Turn off the circulator and cooling machine.

• Hold the venting grid, pull out and remove.

• Slide a short piece of tube onto the drain port (11)

and hold it into a pail.

• Unscrew the drain tap (23) and empty the unit completely.

• Tighten the drain tap.

Page 25

6. Operating pr oc edure s

Caution:

• We disclaim all liability for damage caused by incorrect line voltages!

Check to make sure that the line voltage matches the supply voltage specified on the identification plate. Deviations of ±10 % are permissible.

The VFD COMFORT-DISPLAY indicates the message "OFF".

6.1. Power connection

• Only connect the unit to a power socket with earthing contact (PE – protective earth)!

• The power supply plug serves as safe disconnecting device from the line and must be always easily accessible.

• Never operate equipment with damaged mains power cables.

• Regularly check the mains power cables for material defects (e.g. for cracks).

• Connect the circulator with mains power cable (17a) to the mains

outlet (18).

• Connect the control cable (9) between the connectors  (9a, 9b).

• Connect the refrigerated circulator with mains power cable (17b) to the mains socket.

6.2. Switching on / Start - Stop

6.2.1. Switching on the circulator Switching on:

• Turn on the mains power switch (1).

 The unit performs a self-test.

Then the software version (example: V 1.xx) appears. The display „OFF“ or „R OFF“ indicates the unit is ready to operate.

 The circulator enters the operating mode activated before switching

the circulator off: keypad control mode (manual operation) or

remote control mode (operation via personal computer).

Start:

• Press

The actual bath temperature is displayed on the VFD COMFORTDISPLAY. The circulating pump starts with a slight delay.

Stop:

key.

 Press key.

or Keep

key pressed.

Page 26

Operating procedures

Switching on:

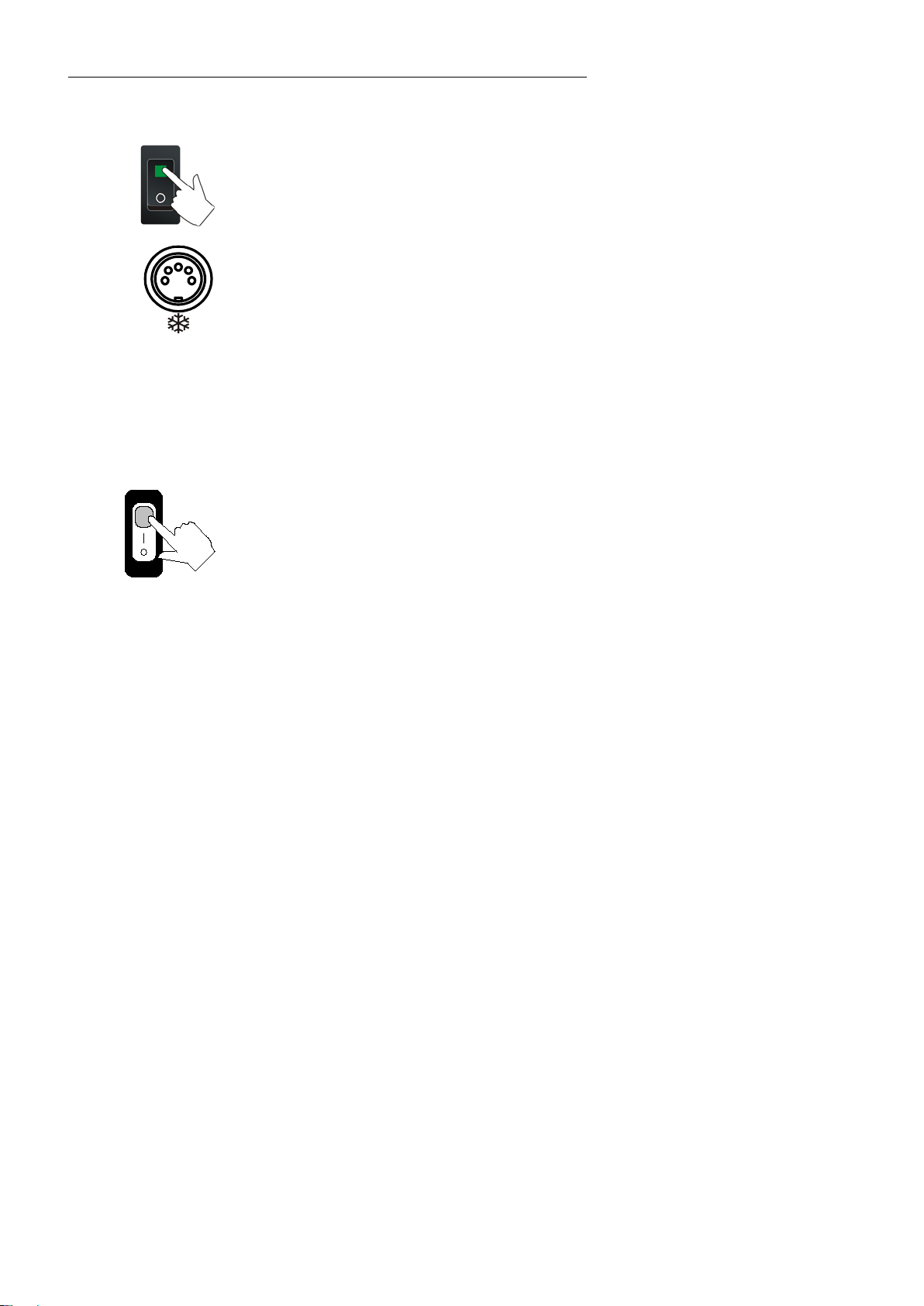

6.2.2. Switching on the Cooling Machine

• Switch on the cooling machine using the switch (1b) .



Control of the cooling machine:

With the mains switch (1b) turned on, the circulator automatically switches the cooling machine off and on.

• It is switched off, if:

- the actual working temperature is increased by >30 °C (cooling is not required).

- the heater operates at full power (>800 W) for longer than 5 minutes.

• It is switched on, if:

- cooling is necessary for maintaining the bath temperature. After switch-off, the cooling machine automatically switches on only after a delay of 5 minutes for protecting the cooling compressor.

 To save energy, turn off the cooling machine with the mains switch

(1b) whenever cooling is not required.

Page 27

7. Setting of temperatur es

7.1. Using the pre-settings in the menu

Werkseinstellungen: SETPNT 1 25 °C SETPNT 2 37 °C SETPNT 3 70 °C

Press the 3 different working temperatures can be adjusted. Their values are freely

selectable within the operating temperature range.

key to call up the menu for temperature selection.

 The temperatures can be set in start or stop mode.  Press key if a value is to be retained

Setting of working temperature in the menu

1. Press the key

2. Select SETPOINT 1 or 2 or 3 using the key

3. Confirm by pressing the

. The value flashes

or .

key.

 The circulator uses the new working temperature value for temperature

control.

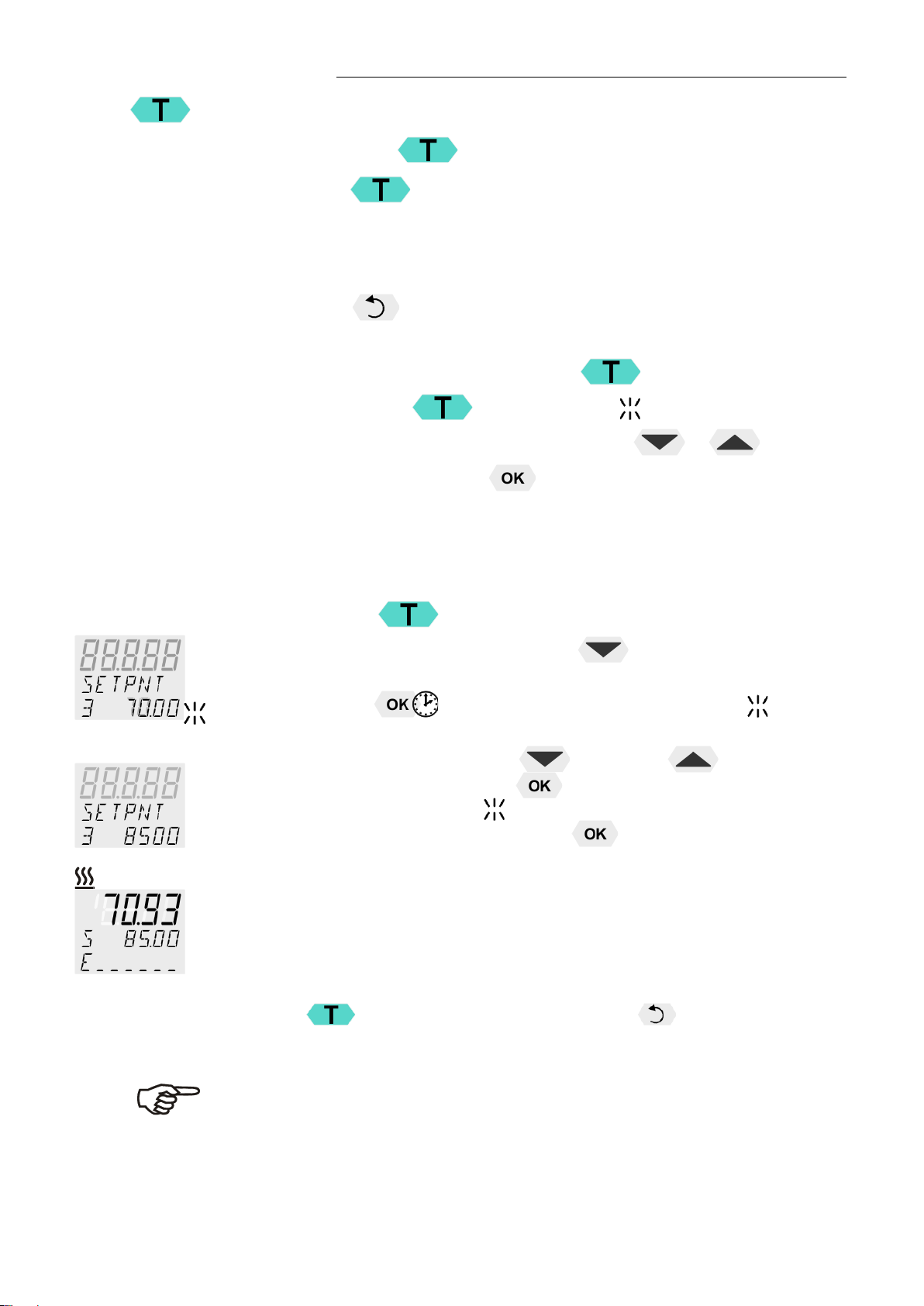

Example: Adjustment/modification of the pre-setting of "SETPOINT 3"

1. Press the

2. Select SETPOINT 3 by pressing the Example: SETPNT 3 / 70.00 °C

key.

3. Keep the (example: <70>)

4. Adjust value by pressing the and confirm by pressing the

The decimal digits flash Confirm once more by pressing the

Example on the left: SETPNT 3 / 85.00.

key pressed until the integer digits flash .

key and the

key.

and can be adjusted if desired.

key.

key to 85.00 °C

 If the active setpoint (SETPNT) is changed, the new value is

immediately used for the control of the working temperature. The heater control indicator flashes.

 If the other two setpoints (not activated for control) are changed the

MENU has to be left by pressing the key after the decimal

digits have been confirmed

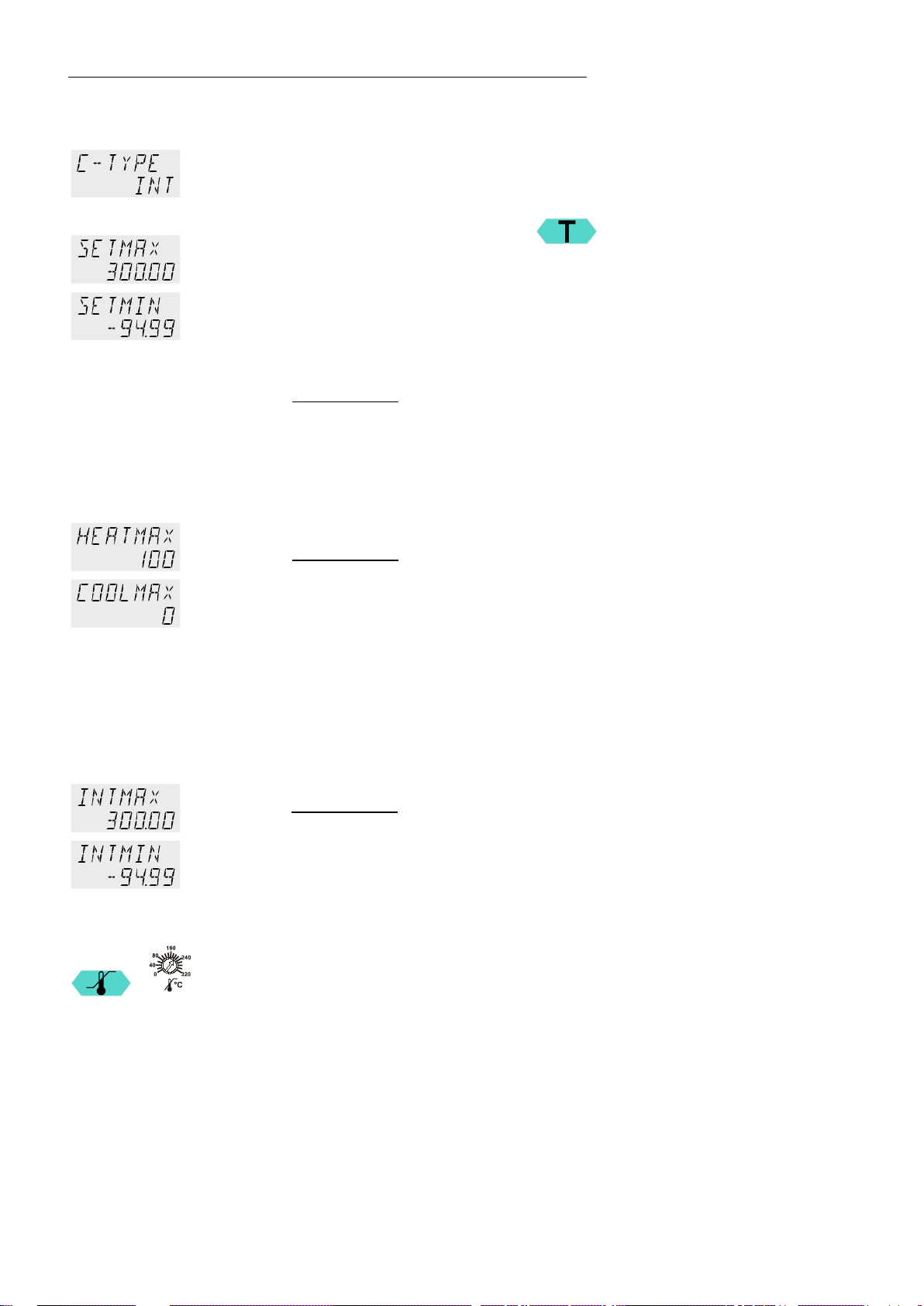

Notice: Refer to SETPOINT MAX / MIN in chapter

9.8. MENU LIMITS

Page 28

Setting of temperatures

 The temperatures can be set in start or stop mode.

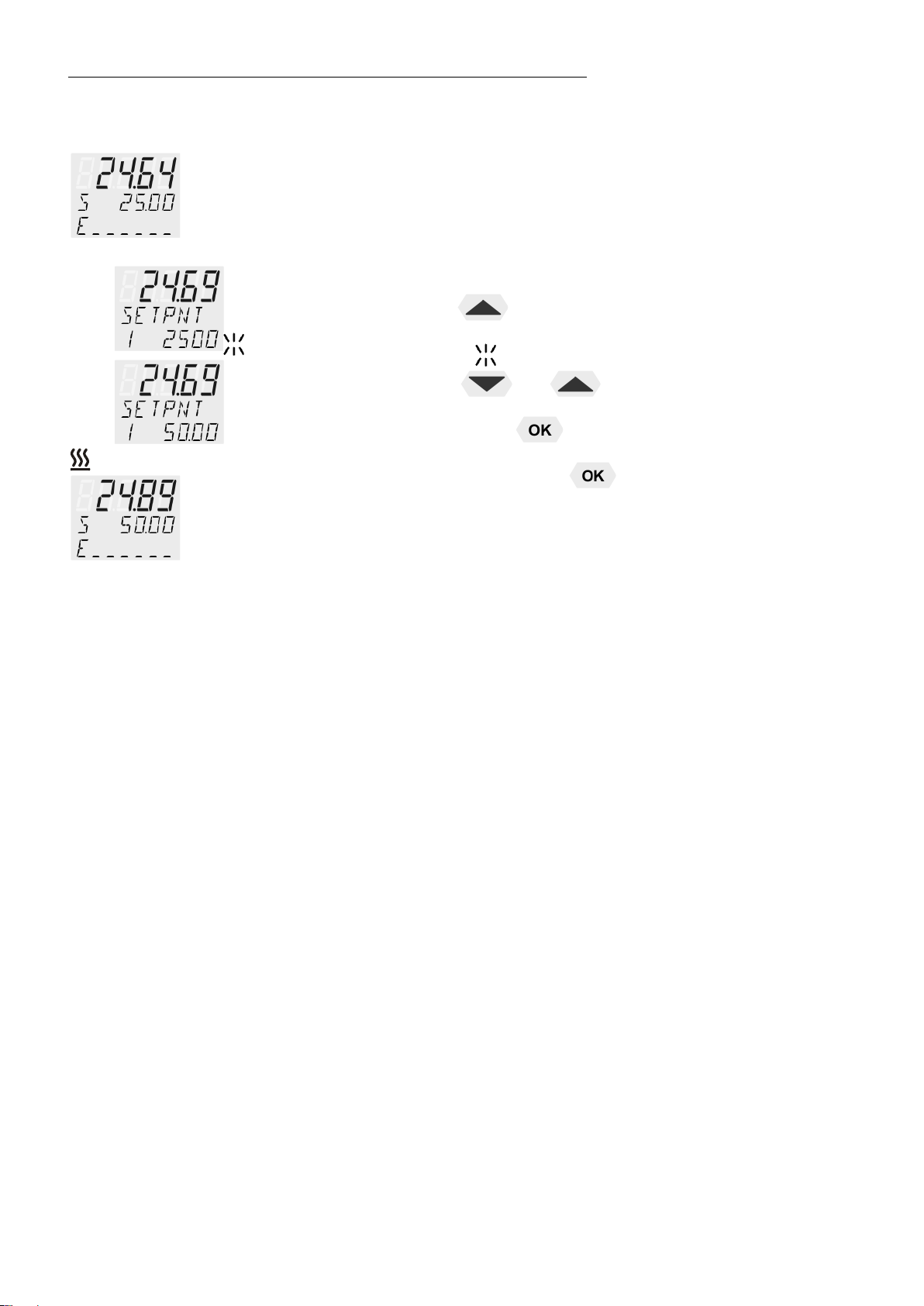

7.2. Direct setting of temperatures

The circulator uses the setpoint of SETPNT 1 or 2 or 3 for temperature control

The indicated setpoint temperature can be changed directly any time. Example: change 25.00 °C to 50.00 °C

1. By pressing the key SETPOINT< example on the left: >SETPNT / 1 25.00°C<.

The integer digits flash

2. By pressing the keys

50.00 °C and is confirmed by pressing the

The decimal digits flash and can be adjusted if desired. Confirm once more by pressing the

the circulator switches to the active

(example: <25>).

and

the value is changed to

key.

 The circulator uses the new working temperature value for temperature

control.

Page 29

Warning:

8. Safety installations , warning functions

Check the safety installations at least twice a year! Refer to ( page 15)

SECVAL (Security Values)

 SAFETMP  AL-TYPE  OVERTMP  SUBTEMP

Settings for the excess temperature protection > SAFETMP< and for the warning functions for high > OVERTMP< and low > SUBTEMP< temperature are made in a menu which is called up by pressing the key

Menu item > AL-TYPE< allows choosing between a warning and an alarm cut-off for the menu items > OVERTMP< and > SUBTEMP<.

8.1. Excess temperature protection

The excess temperature protection must be set at least 25 °C below the fire point of the bath fluid used! In case of wrong setting there is a fire hazard! We disclaim all liability for damage caused by wrong settings!

This excess temperature protection is independent of the control circuit. When activated heater and circulating pump are completely shut down. The alarm is indicated by optical and audible signals (continuous tone) and the error message "ALARM-CODE 14" appears on the VFD COMFORT-DISPLAY together with the ticker: > EXCESS TEMPERATURE PROTECTOR ALARM-CHECK ADJUSTMENT <

Setting range: 20 °C ... 320 °C

 Rough setting can be effected by using the temperature scale.

Exact setting:

1. Press the key

2. Press the

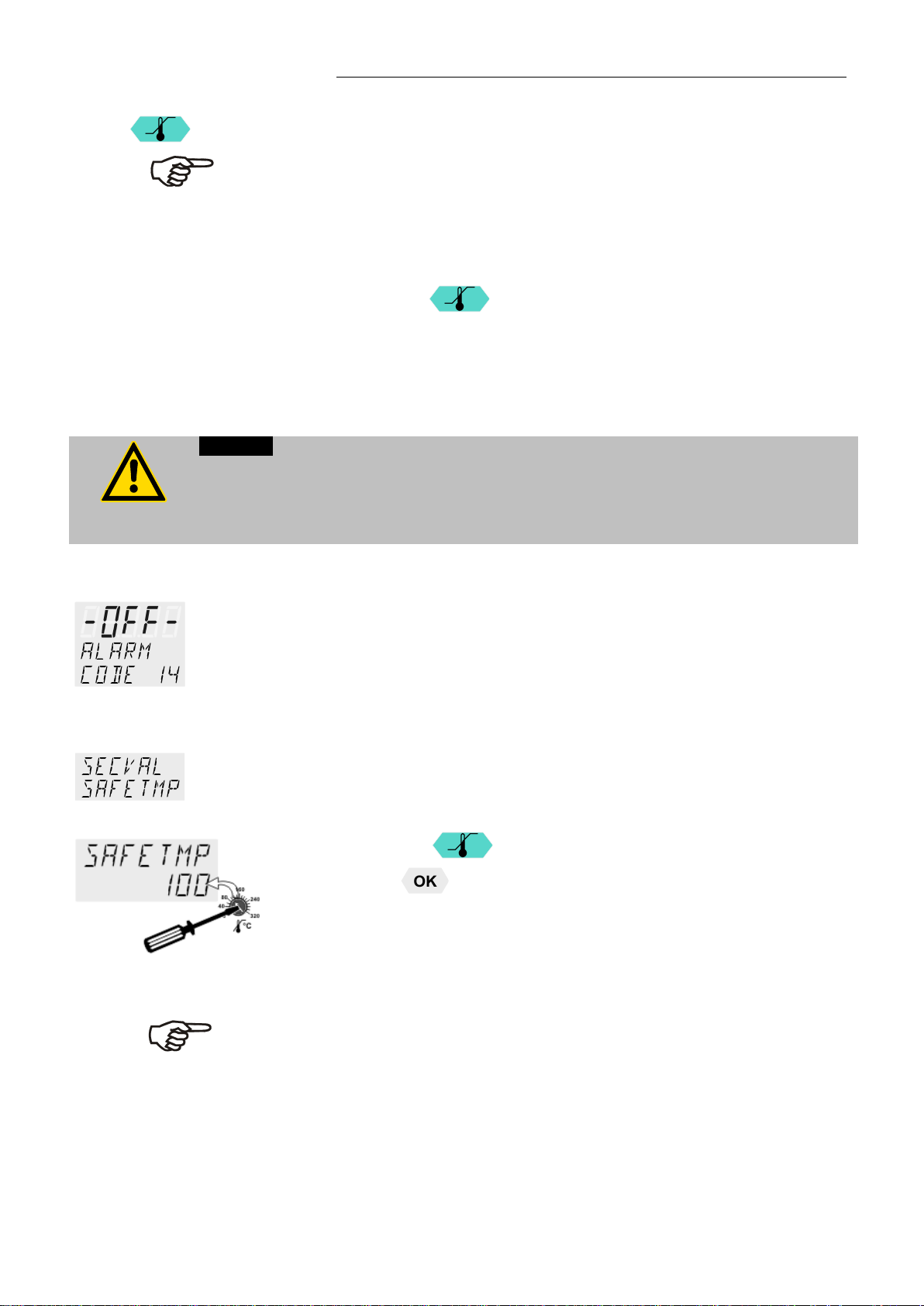

3. Set the new shutdown value within 30 seconds using a screwdriver. The value is indicated on the VFD COMFORT-DISPLAY Example: SAFETMP / 100 °C

Recommendation: Set the excess temperature protection at 5 °C to 10 °C above the working temperature setpoint.

to display menu >SAFETMP<.

key and the set shutdown value is indicated.

Page 30

Safety installations, warning functions

Warning:

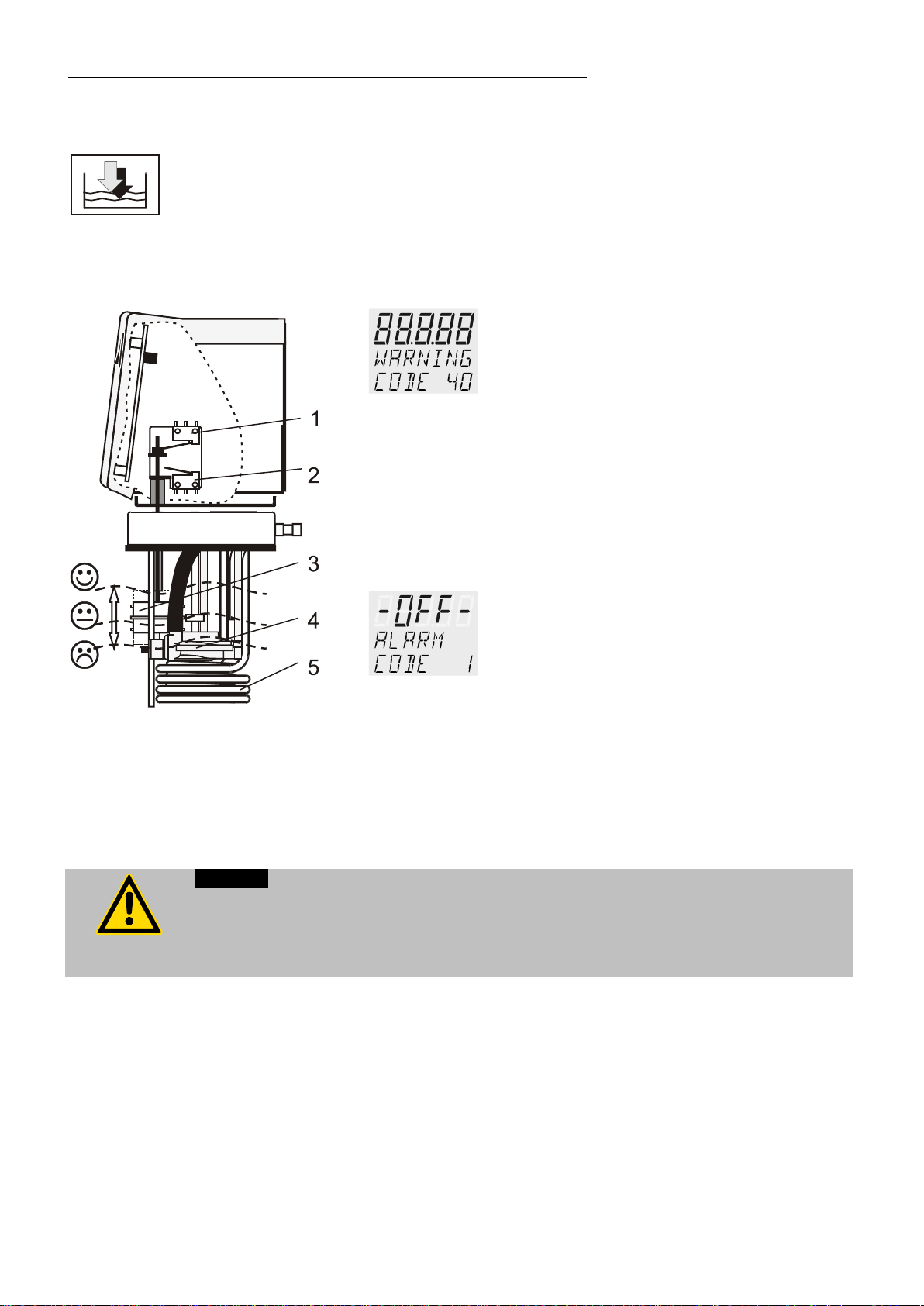

8.1.1. Early warning system, low level protection

This low level protection is independent of the control circuit and is divided into two sections:

1. Switch in stage 1 recognizes a defined fluid level .

An audible warning sounds (interval tone) and together with the ticker: > LOW LEVEL WARNING-FILL MEDIUM < a message appears on the VFD COMFORT-DISPLAY:

Refill the bath fluid!

2. Switch in stage 2 recognizes a low fluid level If stage 2 of the low level protection according to IEC 61010-2-

010 is triggered, a complete, all-pole shutdown of heater and circulating pump is effected A continuous alarm sounds and together with the ticker: > LOW LEVEL ALARM-FILL MEDIUM < a message appears on the VFD COMFORT-DISPLAY:

.

When adding bath fluid, always us the type of fluid which is identical with the fluid in the bath. Bath oils must not contain any water and should be pre-heated approximately to the current bath temperature! Explosion hazard at high temperatures!

Turn off the unit with the mains switch, refill bath fluid and turn the unit on again!

3. Float

4. Circulating pump

5. Heater

Page 31

Factory setting:

8.2. Switch-over from warning to shutdown function

If a shutdown of functional elements (e.g. heater, circulating pump) is required when the limit values are exceeded or undercut the circulator can be changed over from warning function >WARNING< to shutdown function >ALARM<.

>WARNING<

1. Press the key

2. Select the menu >SECVAL -AL-TYPE< by pressing the

3. Press the (Example: WARNING)

4. Change the parameter by pressing the pressing the

or press the



Setting >WARNING< A mere warning function with optical and audible warning signal (interval tone) A message appears on the VFD COMFORT-DISPLAY:

OVERTMP SUBTEMP

• Setting >ALARM<

Temperature limit with shutdown of heater and circulating pump. An audible alarm sounds (continuous tone) and a message appears on the VFD COMFORT-DISPLAY:

key.

key and the set parameter will flash .

key and confirm by

key.

key if the parameter is to retained.

OVERTMP SUBTEMP

Page 32

Safety installations, warning functions

8.3. Over and Sub temperature warning function

Over temperature

Sub temperature

If the observance of a working temperature value >SETP< has to be supervised for a sensitive temperature application, then set over and sub temperature warning values. In the example below the SETPOINT 85 °C is surrounded by the values OVERTMP 87 °C and SUBTEMP 83 °C. The electronics immediately register if the actual temperature breaches one of the set limit values. The resulting reaction is defined in a further menu item. (See chapter 8.2. )

1. Press the key

2. By pressing the >SUBTEMP<.

key select the menu >OVERTMP< or

1. Press the key. The integer digits flash

2. Change the values to 87. °C and/or 83. °C by pressing the and

key and confirm with the key.

The decimal digits flash and can be adjusted if desired. Confirm once more by pressing the

See above examples.

• The warning functions are only activated if the actual bath temperature remains within the set limit values for 3 seconds after switch-on.

Recommendation:

Set the over temperature warning value >OVERTMP< 5 °C to 10 °C above the working temperature setpoint.

Set the sub temperature warning value >SUBTMP< 5 °C to 10 °C below t he working temperature setpoint.

key.

Page 33

9. Menu f unc t ions



Menu level 1



1. Open the menu by pressing the

2. Use the

3. Press the Press the

The term „Menu functions“ refers to settings such as

Start program Page 34

Administration and creation of programs Page 37

Electronically adjustable pump capacity Page 39

Configuration of the unit Page 40 REMOTE – on / off (remote control via RS232) AUTOST – AUTOSTART on / off OFF-MODE – pump on / off TIME / DATE – setting time and date RESET – factory settings

keys to scroll in menu level 1.

key to change to menu level 2. key if settings are to be retained.

key.

Control characteristics and parameters Page 44 C-TYPE – Internal or external control

DYNAMICS - internal Control parameter - XP-, TN-, TV- INTERNAL

Control parameter - XP-, TN-, TV- XPU-, EXTERNAL

Adjustable interface parameters Page 50 BAUD RATE, PARITY, HANDSHAKE

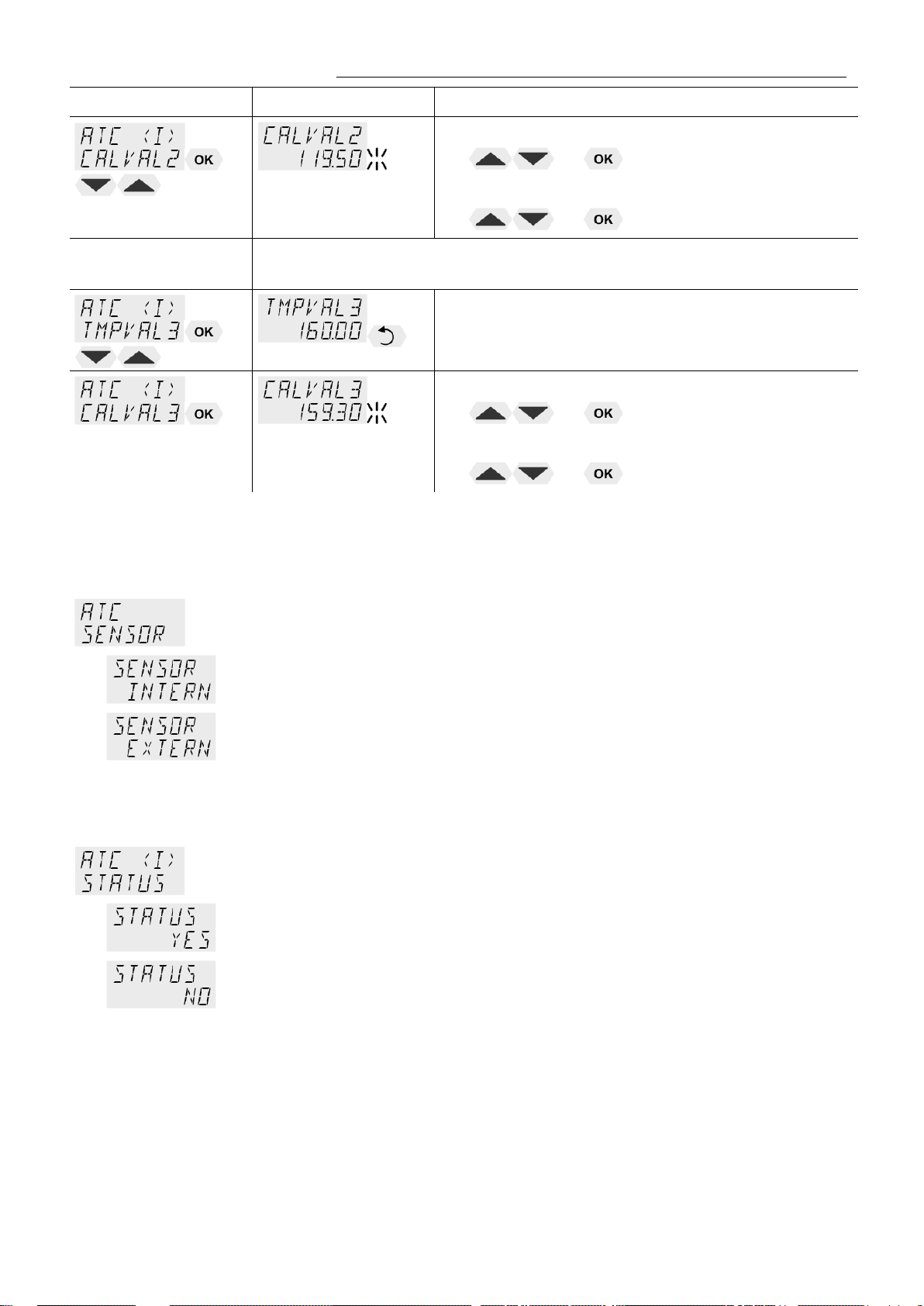

ATC - Absolute Temperature Calibration, Page 51 Sensor calibration INTERNAL SENSOR, Sensor calibration EXTERNAL SENSOR 3-point calibration

Limitations of temperature and capacity Page 57 SETPOINT MAX / MIN - Maximum and minimum setpoint HEAT MAX – Set maximum heating COOLING MAX – Set maximum cooling INTERN MAX / MIN – Limitation of the temperature range BAND HIGH / LOW – Band limit

Page 34

Menu functions

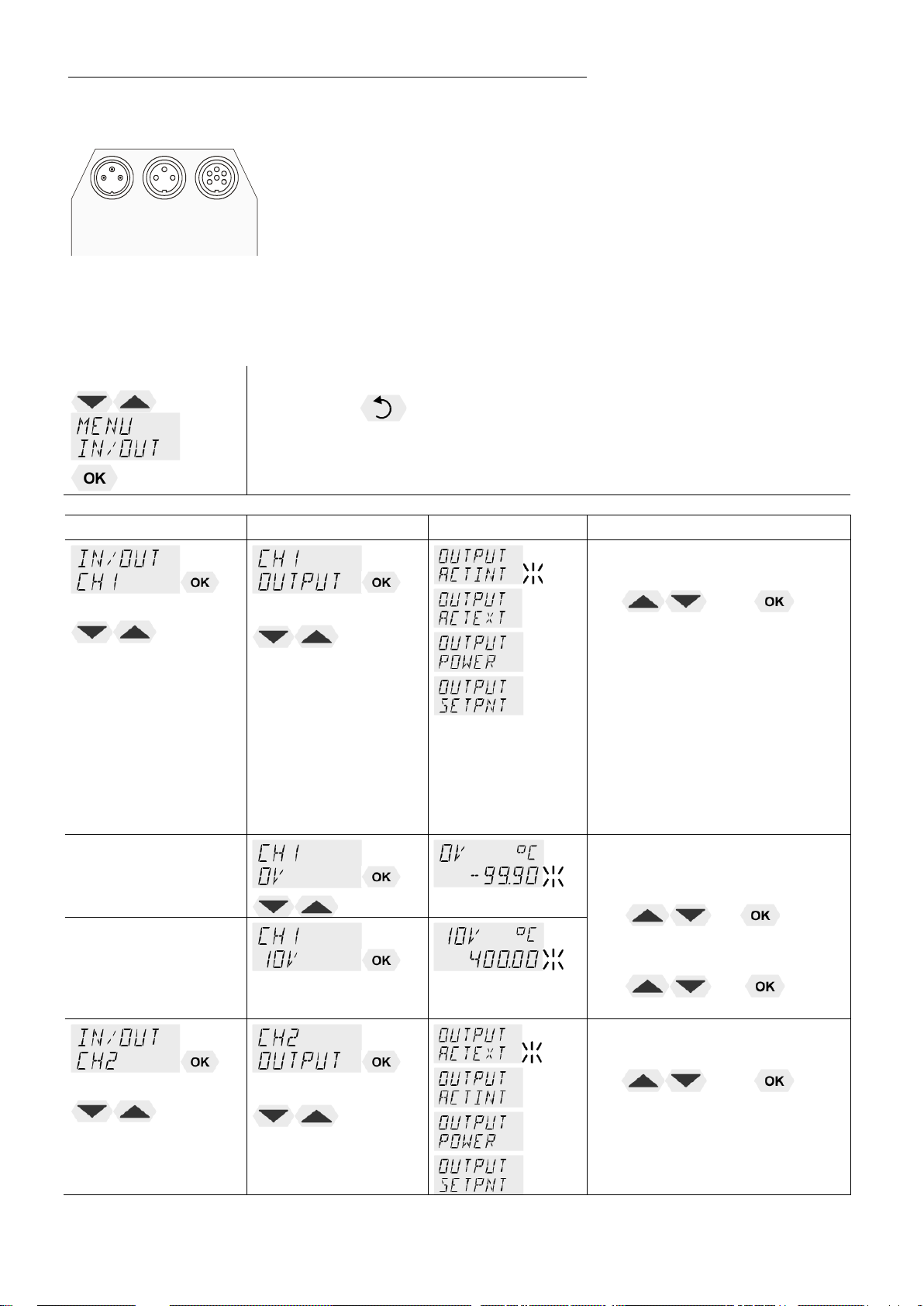

Analog inputs/outputs Page 60

This menu will start a previously set program.

Correction function for parameters or values (prior to OK)

Menu level 1

Recorder output – CHANNEL 1, 2, 3 EPROG – External programmer input EX-STBY - STAND-BY input ALARM - output

9.1. MENU PROGRAM – START

Start-Menu

 Requirements:

1. Create a program. (refer to next chapter)

2. Return to the Start-MENU and confirm the desired setting of each MENU item with the key

3. Set a start time (>TIME< >DATE< >YEAR<) if the program is to be started by the internal timer.

Menu level 1



Level 2 Parameter level

 Press the key if a parameter is to be retained.



> STEP< Pr ogr am start at section 1 … 10 > RUNS < Number of repetitions 1 ... 99

> END< Status at end of program (STDBY/SETPNT) Standby or last setpoint

> GO < Time of start (NOW/TIMER)

• Set program step with

and

example: STEP 1

• Set number of runs with

and

example: 1 run

• Set desired parameters with



 (STDBY / SETPNT)

Parameter STanDBY: the circulator switches to – OFF-. Parameter SETPoiNT: the circulator constantly keeps the temperature at the value of the last step.

and .

Page 35

Level 2 Parameter level



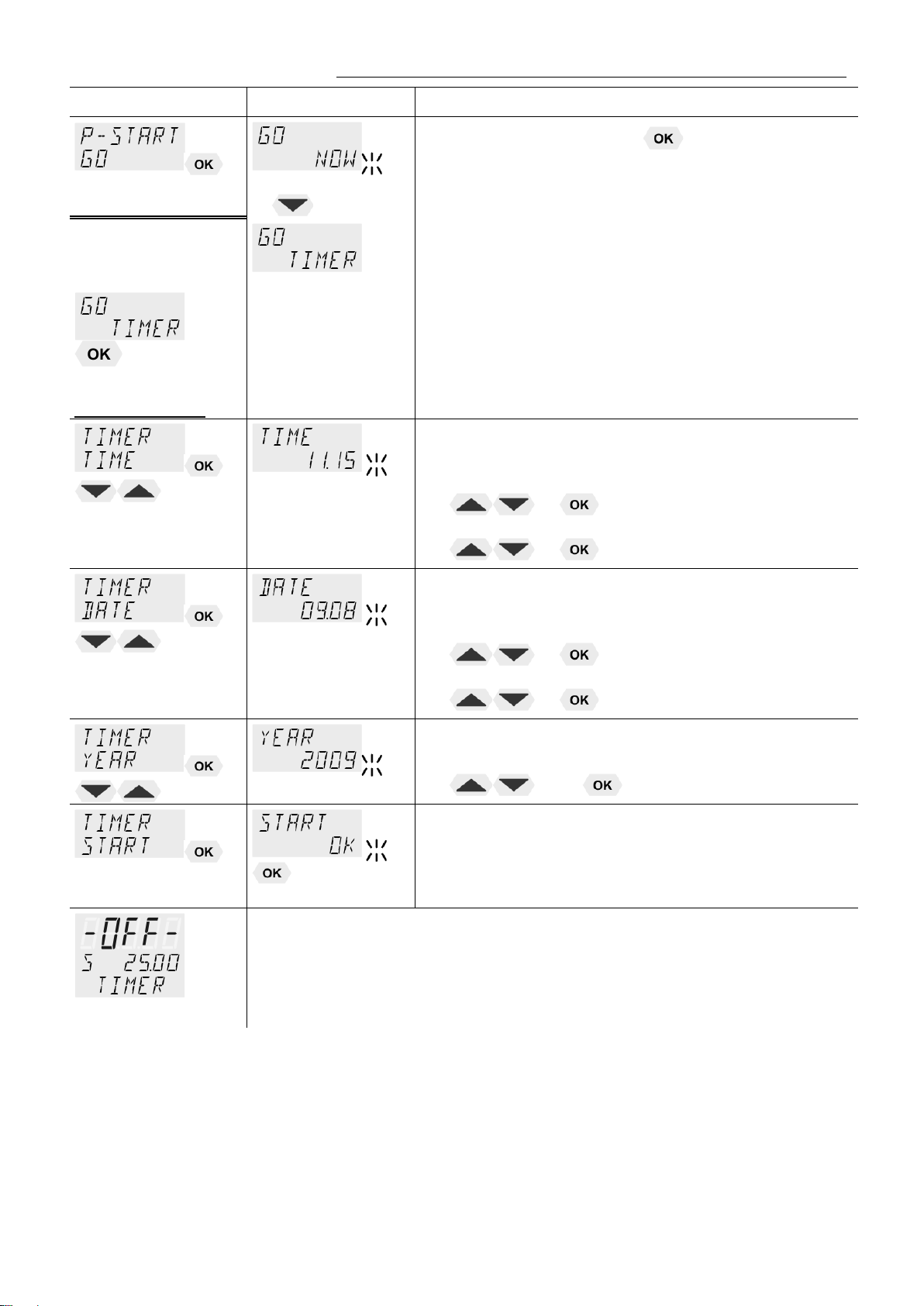

Submenu TIMER



oer

• Confirm >NOW< with the key and the program

will start immediately

 or

start at the set time under parameter (TIMER ). Set time in the example below:

09. August 2009, 11:15 hrs



Parameter level



 set the time for the start of the program in the

submenu >TIMER<.

>TIME< hours/minutes (hh:mm), set both values one after the other and confirm

• hours flash, set by pressing

minutes flash, set by pressing

>DATE< day/months (TT/MM), set both values one after the other and confirm.

• day flashes, set by pressing

month flashes, set by pressing

>YEAR< year

• Set the year with

and .

 The program starts at the set time.





Display of time until start: In line 3 the notice >TIMER< and the set values for „TIME“ and „DATE/YEAR“ are alternately indicated

 Check the correct setting of the internal real time clock if required

(see MENU CONFIG)

Page 36

Menu functions

The started program

Termination / Interruption of a program

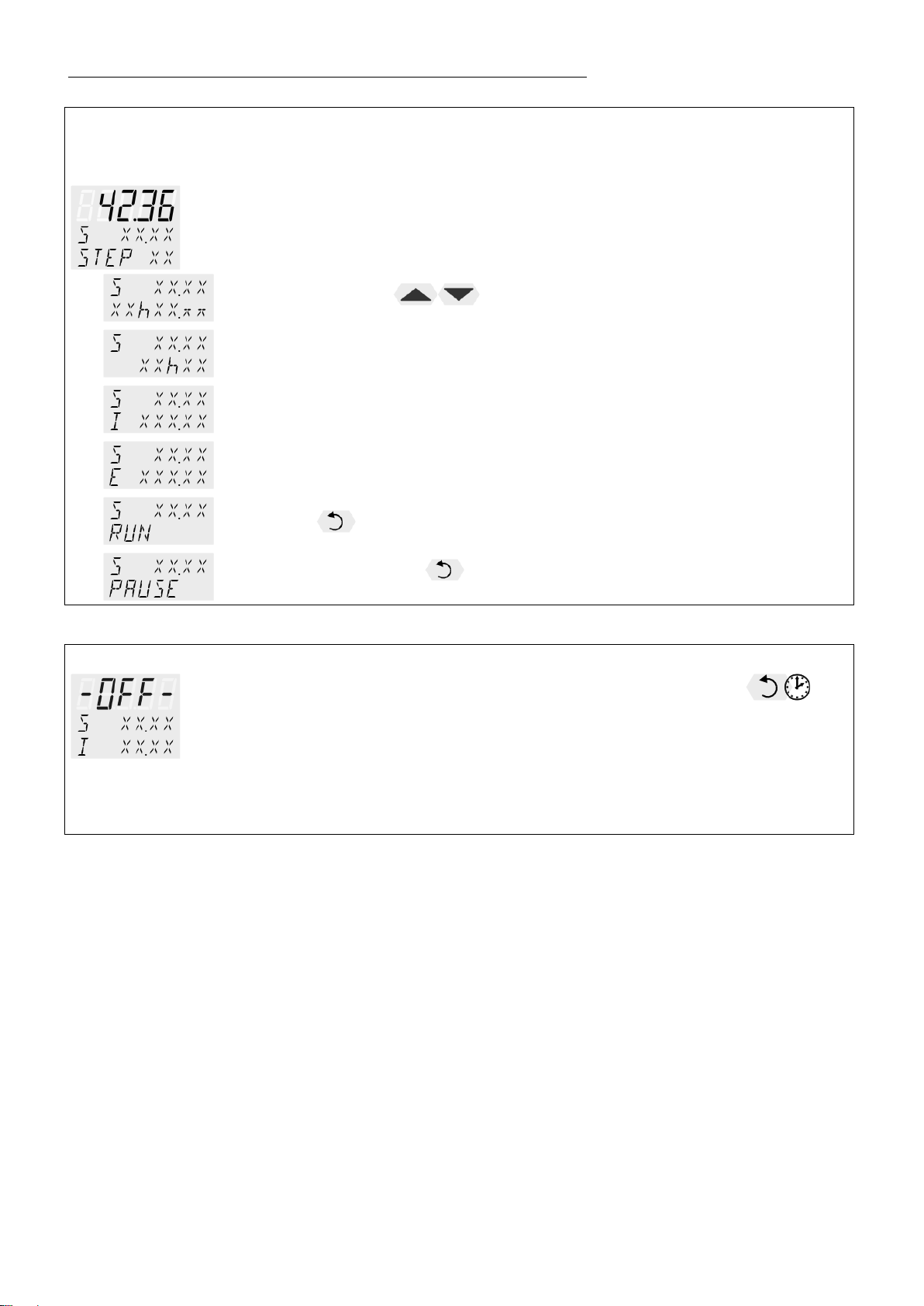

After the start the program will indicate the currently calculated setpoint in line 2 S XX.XX. The value increases within the time period >TSLICE< until the target temperature >SETPNT< of the section is reached. If the time period in a section is set to „0“, the next section will not begin until the target temperature has been reached.

Use the edit keys approximately every 4 seconds between the current section (STEP XX) and the

A remaining time of the section B remaining time of the program C current bath temperature

I xxx.xx - internal actual value or E xxx.xx – external actual value

D RUN – the program has started or

PAUSE – the progress of the program has been interrupted by pressing the remain at the last calculated setpoint Continue with the

key. While the time is stopped the temperature will constantly

to scroll to line 3. The display changes

key.

 The program can be terminated any time by pressing the key .  In case of power failure the program is interrupted.

The circulator switches to –OFF- .

 If the AUTOSTART-function is activated the programmer starts again at

the point in time approx. 5 minutes prior to the interruption. However, an uncontrolled change of the bath temperature has occurred.

Page 37

9.2. MENU PROGRAM – creation, administration

The integrated programmer permits fast and easy programming of setpoint

10 20 30 40 50 60 10 20 30 40 50 60 10

[min]

100

150

200

°C

Step 1 2 4

6 8

retroactively and the integrated into the program.

Menu level 1

1 program 10 sections

temperature sequences. This temperature sequence is called program. A program is composed of individual sections (STEP). The sections are defined by duration (TSLICE) and target temperature. The target temperature is the setpoint (SETPNT), which is achieved at the end of a section. The programmer calculates the temperature ramp from the difference in time and temperature.

STEP (Nr.) 1 2 4 6 8 SETPNT (°C) 100 180 180 75 75 TIME (hh.mm) 00:20 00.10 00:20 00:50 00:20

Graph1

 Sections without set value and time are skipped. They can be defined

Page 38

Menu functions

Level 2

Level 3

Parameter level

Menu level 1



>EDIT< Creat e, administer program > STEP< Program step (1 ... 10) >SETPNT < Temperature setpoint of step ... >TSLICE< Duration of step ... > DELETE< delete program step (01 … 10, ALL)

 Press key, if a parameter is to be retained.

Correction function for parameters or values (prior to OK)





• Set program step with

 (Example: EDIT STEP 01)

 For STEP 01 the values for SETPOINT 01 and

TSLICE 01 are set one after the other

and

(STEP 1 … 10)

(values within working temp. range)



• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing

(time slice)



• Set duration by pressing and



Delete program Program steps can be deleted individually or entirely. (STEP 01, 02,… 10, ALL).

• Set parameters by pressing and

Page 39

9.3. MENU PUMP - Setting of pump pressure

The pressure of the circulating pump is adjustable in four stages. After setting, the VFD COMFORT-DISPLAY indicates the corresponding value.

Adjustable pump capacity stage 1 ... 4

Examples: Soll Ist

Illuminated display:

for pump pressure

 Adjusted:Display for the adjusted pump pressure stage in the –OFF-

mode.

 Effective: Display for the effective pump pressure stage (rotation

Factory setting: s tage 2

speed) after start.

For protecting the pump motor, the rotation speed (i.e. the pump pressure stage) changes with the load applied. Example: The viscosity of the bath fluid (i.e. the load applied to the pump motor) changes with the working temperature in the bath.

Flow rate: 22 ... 26 l/min Pump capacity stage 1 2 3 4 Pump pressure [bar] 0.4 0.5 0.6 0.7 Suction pump [bar] 0.2 0.26 0.33 0.4 Total capacity [bar] 0.6 0.76 0.93 1.1

in a loop circuit

1. Press the

2. Select the menu >PUMP< pressing the pressing the

The set parameter flashes (example: >LEVEL 2<)

key.

key

key and confirm by

3. Change the parameter by pressing

key.

or Press the

key if the parameter is to be retained.

and confirm by pressing the

Page 40

Menu functions



See WARNING page 42

9.4. MENU CONFIG - Configuration of unit

Menu level 1

 A RESET can be effected only in the >OFF< mode.

Switch off circulator by pressing the CONFIGURATION.

key and call up the menu

Level 2 Parameter level



 Press the key if a parameter is to be

retained. Correction function for parameters and values (prior to OK).

• Switch on and off remote control by pressing

and

 Control display in the topline

for Rem ote

 For remote control refer to 73  Connect RS232 with PC.

• Switch over setpoint setting by pressing

and

 OFF –Setpoint setting with the navigation keys

or Setpoint setting via the analog socket „ext. Pt100 or analog socket >REG+EPROG<

• Switch on and off autostart by pressing



AUTOSTART on = on AUTOSTART off = off

and

• Switch on and off OFFMODE by pressing



PUMP ON continuous operation of circulating pump PUMP OFF circulating pump is linked to Start/Stop

and

• Switch over the input variable by pressing



and

 Programming of variables for the parameters >

SERIAL < or > EPROG < is only accepted, if the unit is in Start mode

Page 41

Level 2

Level 3

Parameter level



• Hours flash, set by pressing

• Minutes flash, set by pressing



• Day flashes, set by pressing

• Month flashes, set by pressing



• Year flashes, set by pressing

• Return to factory settings by pressing



RESET returns all set values to the factory setting except for date and time.

 A RESET can be effected only in the –OFF- mode.  During the message –RUN- all parameters are

9.4.1. Remote control via the serial interface

Factory setting: OFF

The control electronics offer two ways of adjusting a setpoint.

1. Adjustment of setpoint using the keypad or the integrated programmer.

2. Adjustment of setpoint via the serial interface RS232 using a PC or a superordinated process control system.

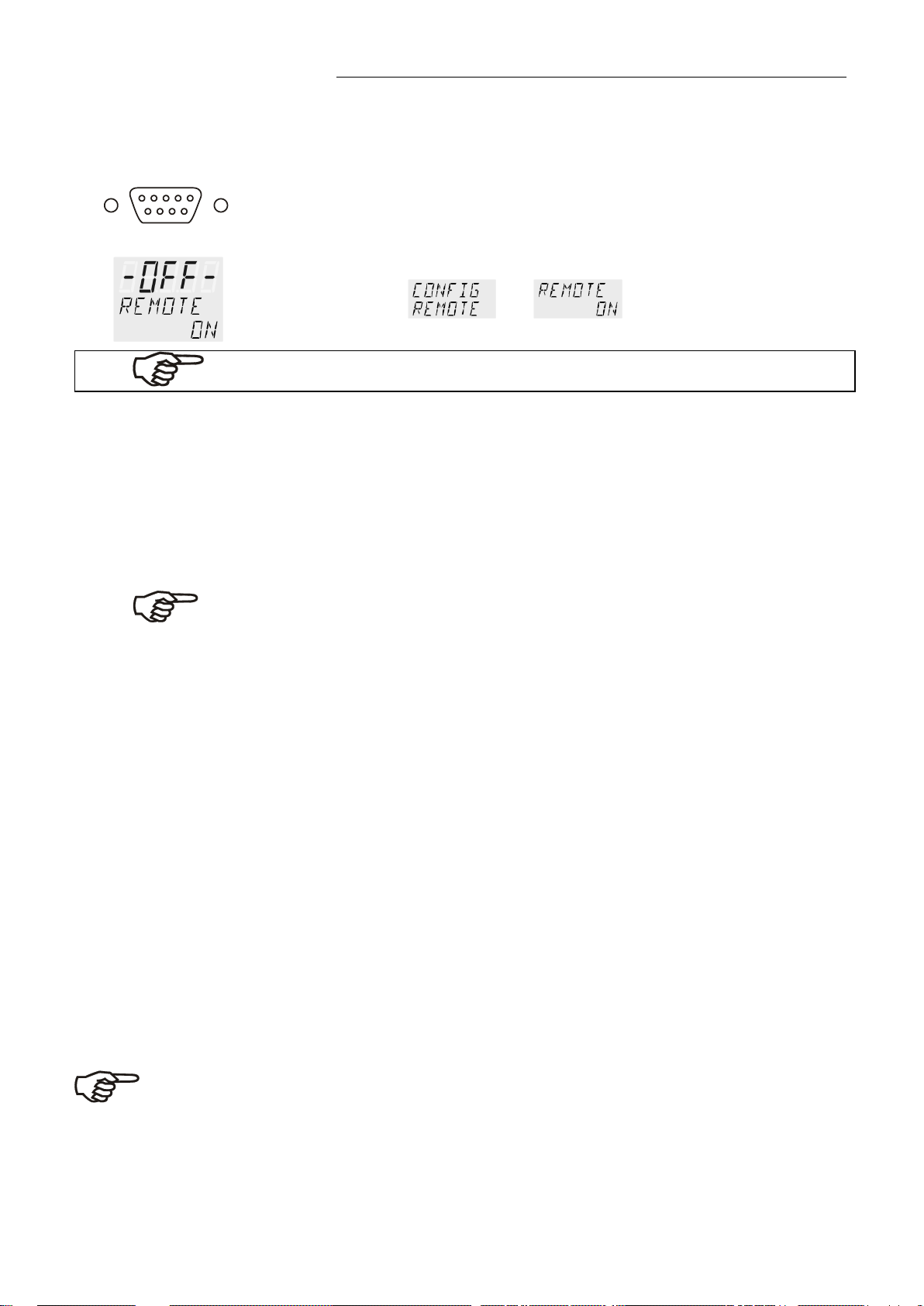

 The topline of the VFD-DISPLAY shows a bright „R“ for remote

control; - remote control discontinued.

RS232

IMPORTANT: additional m easur es for remote control

 Connect the circulator to the PC using an interface cable.  Check the interface parameters of both interfaces (circulator and PC)

and make sure they match. (refer to 12.1. Setup for remote controll page 73)

reset to factory settings.

Page 42

Menu functions

Notice:

start of the circulator by pressing the mains switch or using a timer.

9.4.2. Keypad control or setpoint setting via the analog input

Factory setting:: OFF

The selected mode is indicated on the VFD COMFORT-DISPLAY

OFF

PT100

EPROG

In addition to the serial interface via remote control the circulator offers the possibility to adjust the setpoint via analog interface >ext. Pt100< or >REG+E-PROG<.

OFF - Setpoint setting with the navigation keys

or the integrated programmer.

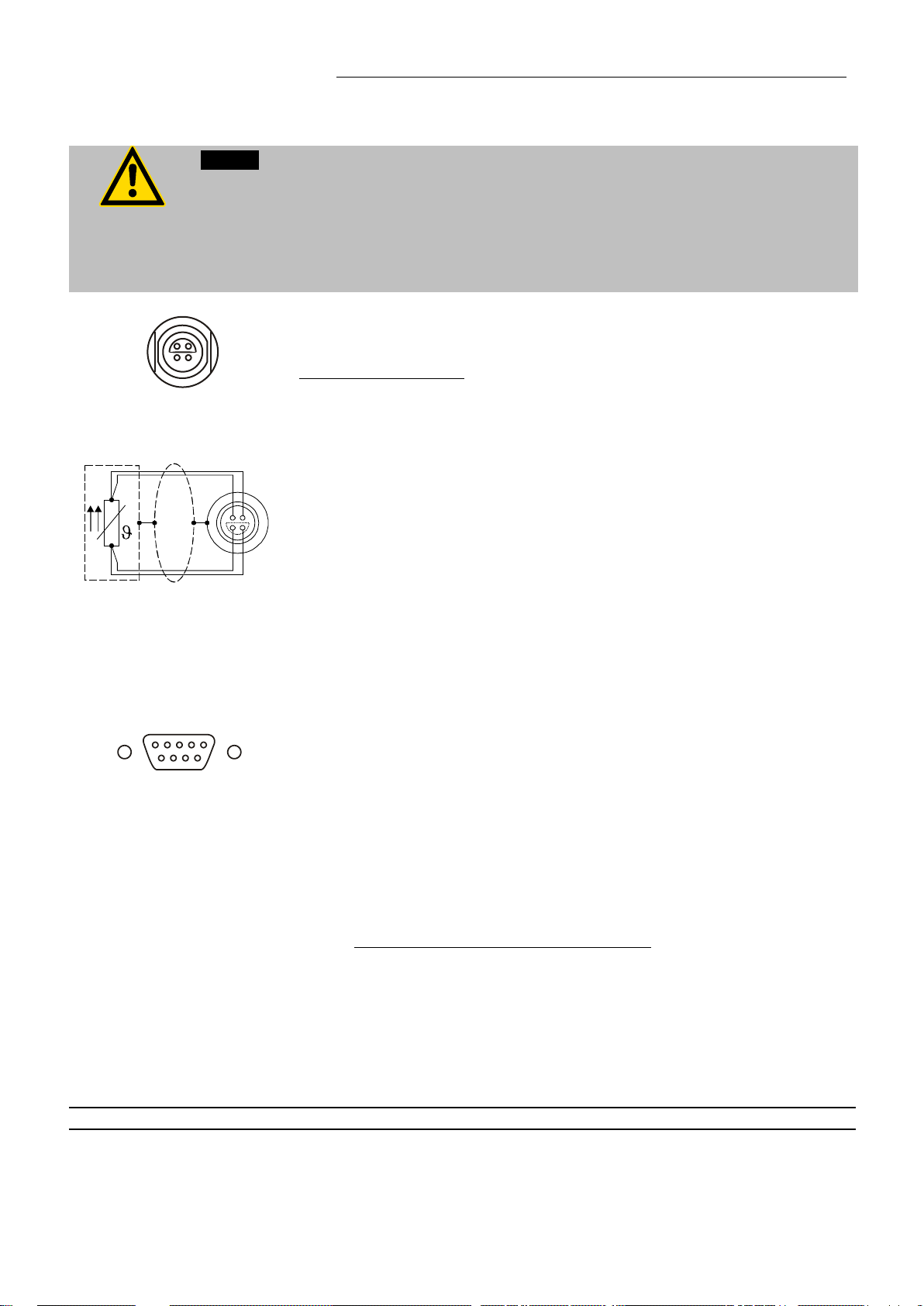

PT100 - Setpoint setting via the analog socket „ext. Pt100“ using an

external temperature sensor or an appropriate voltage/current source.

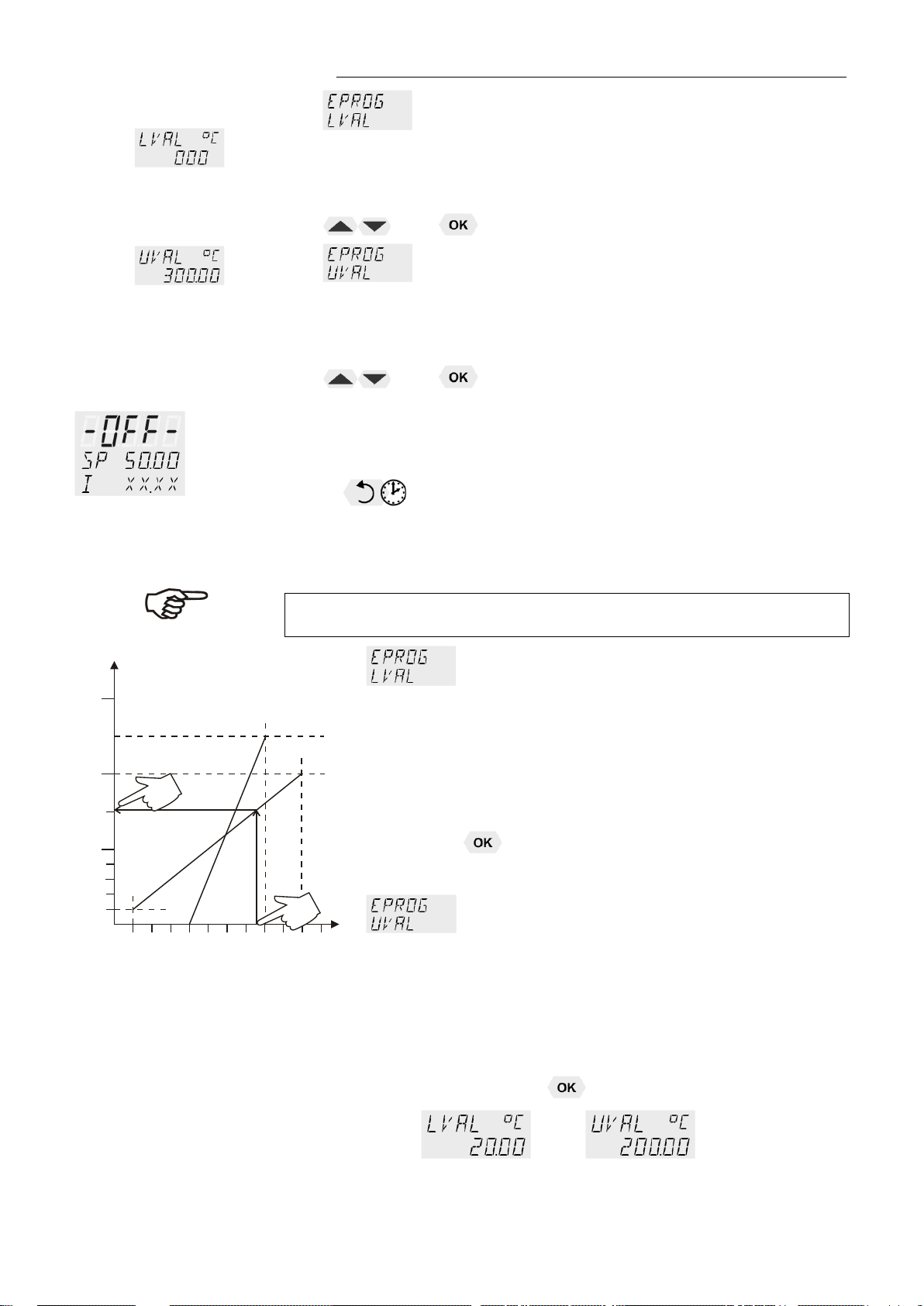

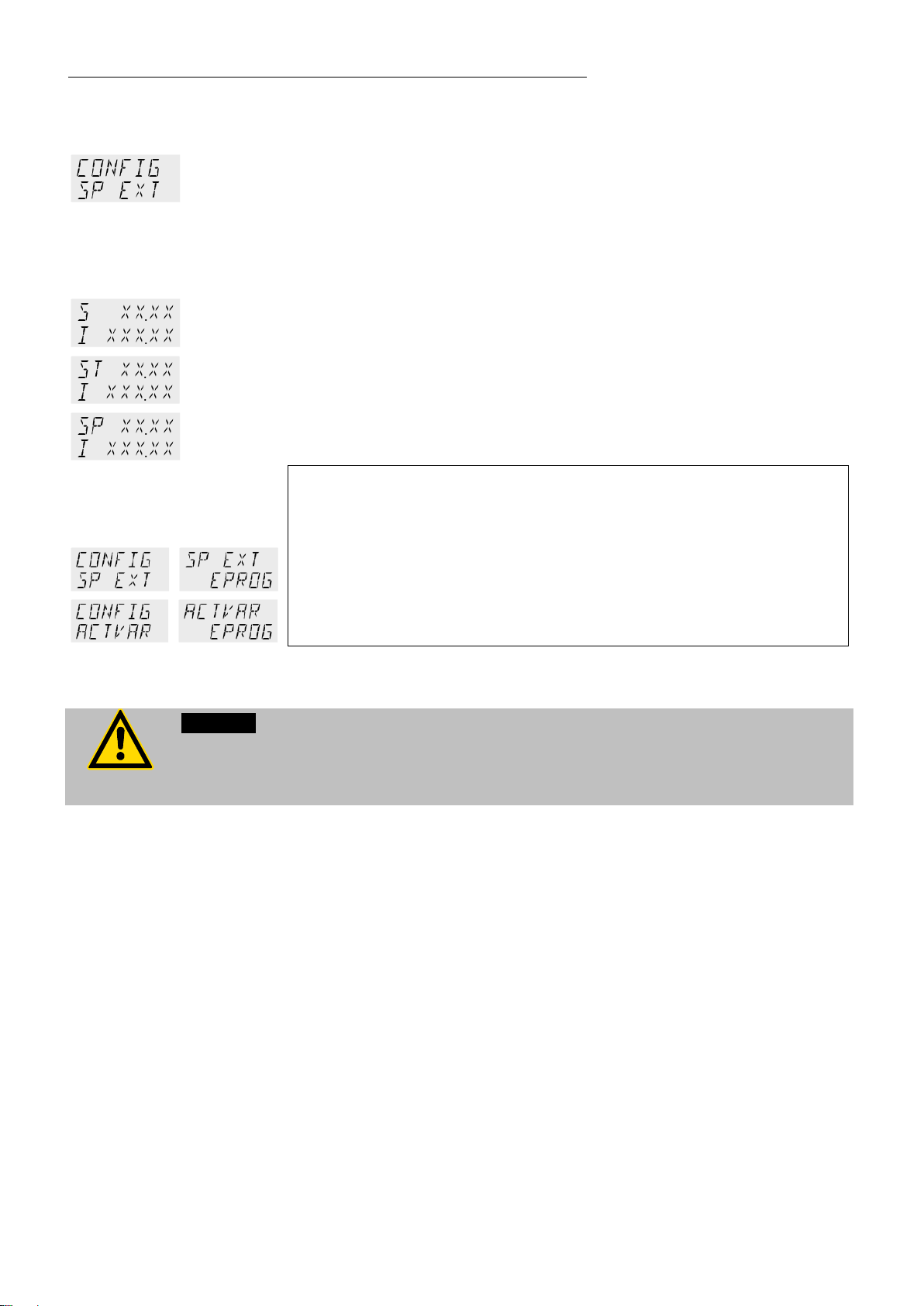

EPROG - Can only be adjusted when an electronic module with analog

connections is used (option). Setpoint setting via the analog interface REG+E-PROG connection with an external voltage or current source or a programmer.

Important:

Connect the external voltage or current source or a programmer to the circulator via the socket REG+E-PROG (see page 64). In the menu >MENU IN/OUT< set the parameter >EPROGINPUT< and the input variables >EPROG-SIGNAL< (see page 64).

The E-Prog input can only be used either under menu item >SP EXT < or under menu item >ACTVAR< (see page 43).

9.4.3. AUTOSTART

Warning:

For supervised or unsupervised operation with the “AUTOSTART“ function avoid any hazardous situation to persons or property

Take care to fully observe the safety and warning functions of the circulator.

Factory settings: OFF

The circulator has been configured and delivered by JULABO in accordance with the NAMUR recommendations. This means for the start mode that the unit must enter a safe operating status after a power failure. This safe operating status is indicated by the message „OFF“ or „R OFF“ on the VFD COMFORT-DISPLAY. A complete, all-pole shutdown of the main functional elements such as heater and pump motor is effected. The values set on the circulator remain saved and the unit is restarted by pressing the start/stop key in manual control. In remote control mode the values need to be resent by the PC via the interface. If such a safety standard is not required, the NAMUR recommendations can be bypassed with the AUTOSTART function thus allowing a direct

Page 43

9.4.4. OFF-MODE

mple, may be damaged or destroyed, if

Factory setting: PMP OF F

9.4.5. ACTVAR - actuating variable

Factory setting: CONTROL

Usually the circulating pump is controlled with the key start/stop command. If the circulating pump is to work in the –OFFmode, the adjustment can be set in a sub-menu.



The pump motor will be shutdown in case of alarm anyhow.

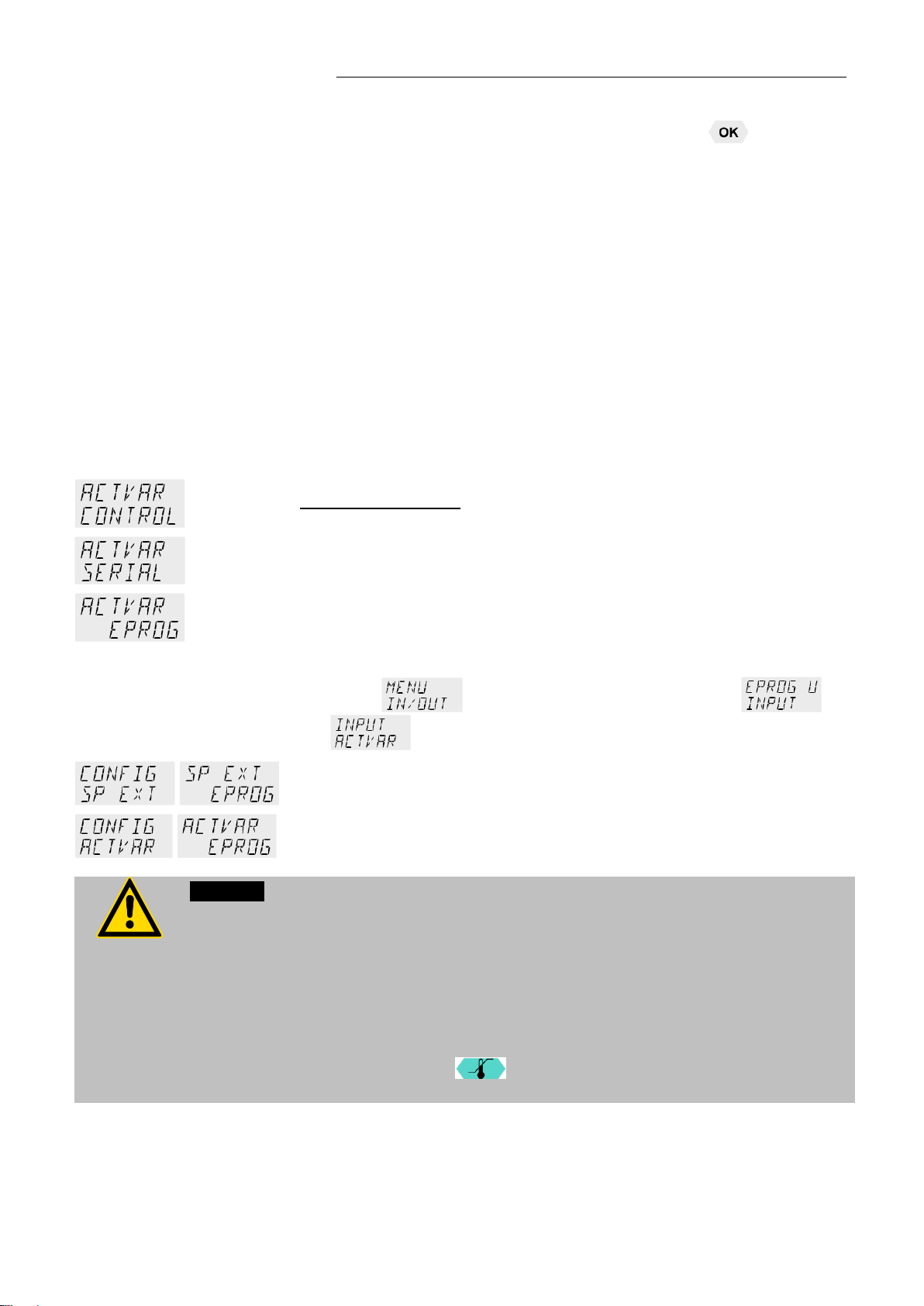

The variable (ACTuating VARiable) corresponds to the extent to which the heater or cooling unit of the circulator is controlled. Heat or cold is applied to the bath according to this variable. If this happens with the control electronics of the circulator, called > CONTROL < in this particular case, the bath temperature is exactly heated and maintained constant at the adjusted setpoint.

 Programming of variables for the parameters > SERIAL < or >

EPROG < is only accepted, if the unit is in Start mode.

Possible parameters: CONTROL – The internal control electronics of the circulator controls

the heater und the connected cooling unit. Self-tuning is possible.

SERIAL – The heater or the connected cooling unit receives the control

signal via the serial interface. Self-tuning is not possible.

or the

Warning:

The working temperature range of the circulator is determined during configuration. If set to >CONTROL<, this range cannot be exceeded. If set t o > SERIAL < and > EPROG <, heat or cold is applied to the bath without control. The permissible maximum temperature can be exceeded. The user has to take adequate precautions for temperature control. Materials, such as gaskets or insulations for exa the permissible maximum temperature is exceeded.

The safety and warning functions > < of the instrument must always be used to their fullest capacity.

EPROG - The heater or the connected cooling unit receives the control

signal via the E-Prog input. Self-tuning is not possible.

Important:

Under

(refer to page 64).

Note:

The E-Prog input can only be used either under menu item >SP EXT< (refer to page 42) or under menu item > ACTVAR <.

set the input variable >EPROG U/I< to

Page 44

Menu functions



Level 2

Parameter level

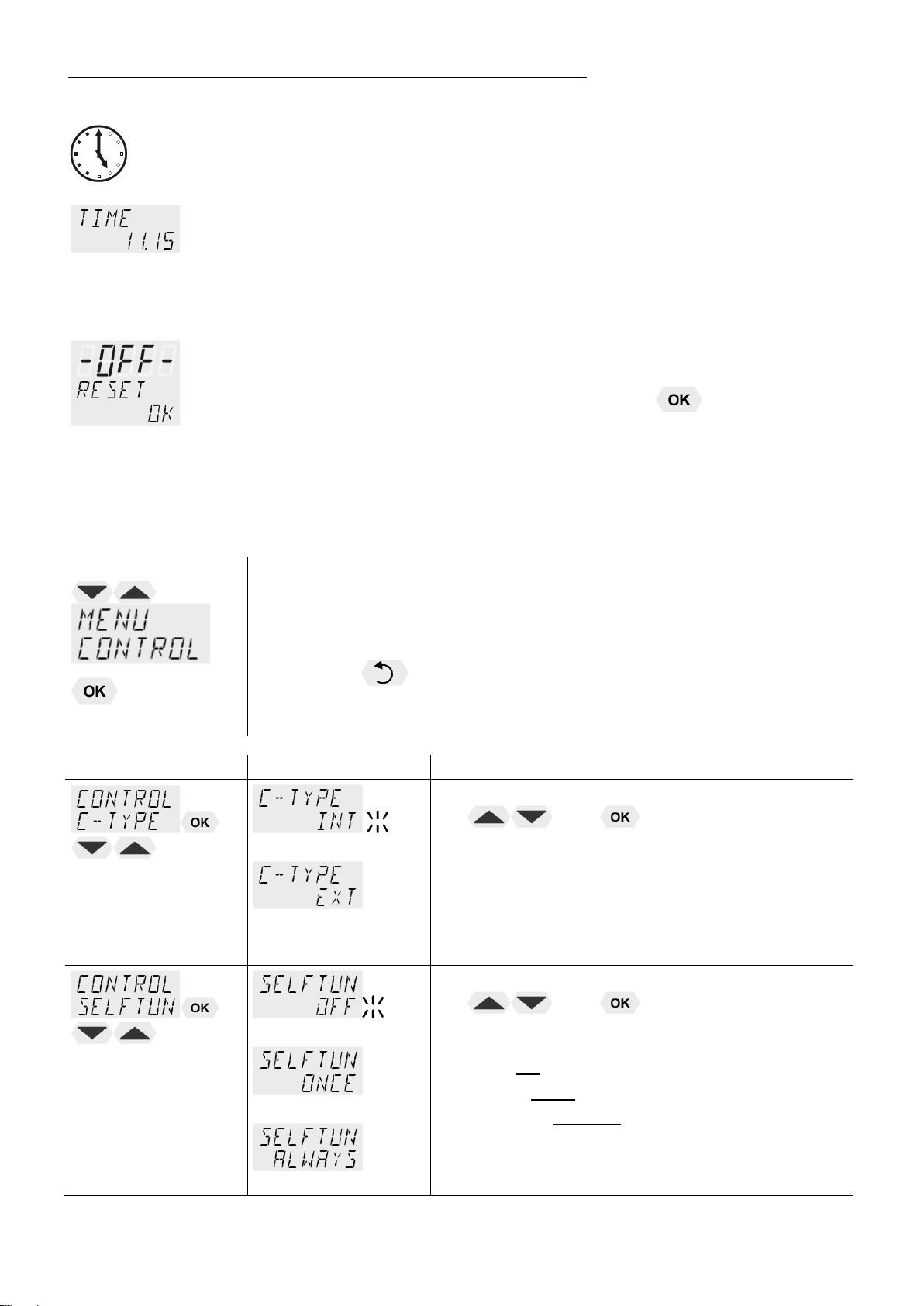

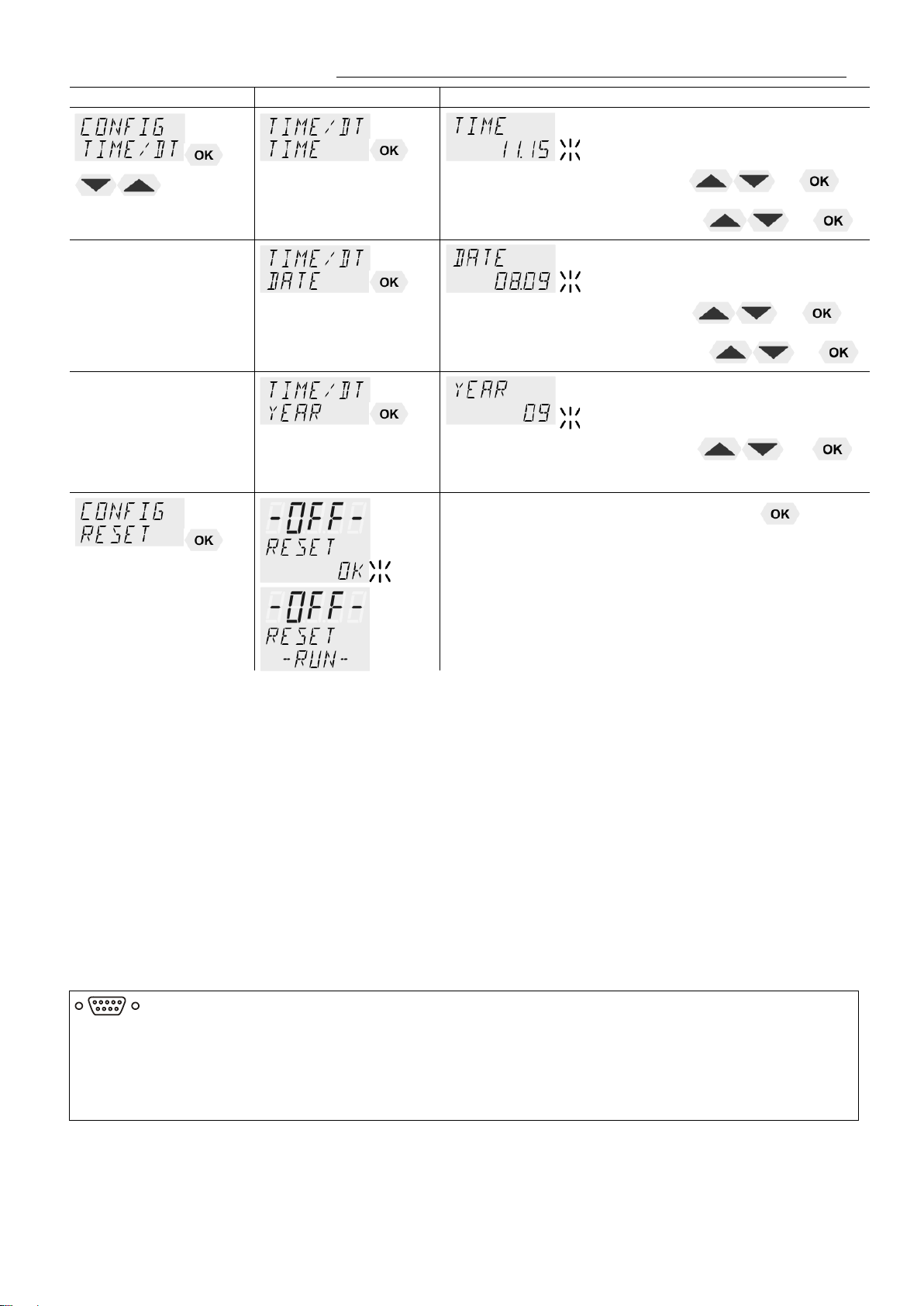

9.4.6. Setting of clock and date

The internal real time clock allows starting a program any time. The clock is set to the local mean time (MEZ) at the factory.

 If the unit is operated in a different time zone, the clock can be

adjusted in this menu.

 Change summer/winter time in this menu

9.4.7. RESET – Factory settings

A Reset will return all values to factory setting except for date and time.

 A RESET can be effected in the >OFF< mode only.

Switch off the circulator by pressing the key menu CONFIGURATION.

and call up the

9.5. MENU CONTROL – Control characteristics and parameters

Menu level 1

The circulator is qualified for internal and external temperature control The switchover is carried out in the menu >C-TYPE< .(INT or EXT).

 For external temperature control and measurement connect a Pt100

external sensor to the socket at the rear of the circulator.

 Press the key if a parameter is to be retained. Correction function





for parameters or values (prior to OK)



The parameter flashes, switch by pressing

 The control type can be adjusted in the -OFF-

mode only.

 Depending on the adjustment only the active

parameters are displayed.



The parameter flashes, switch by pressing

and

 OFF - no selftuning.  ONCE - single selftuning (factory setting)  ALWAYS - continual selftuning.

Page 45

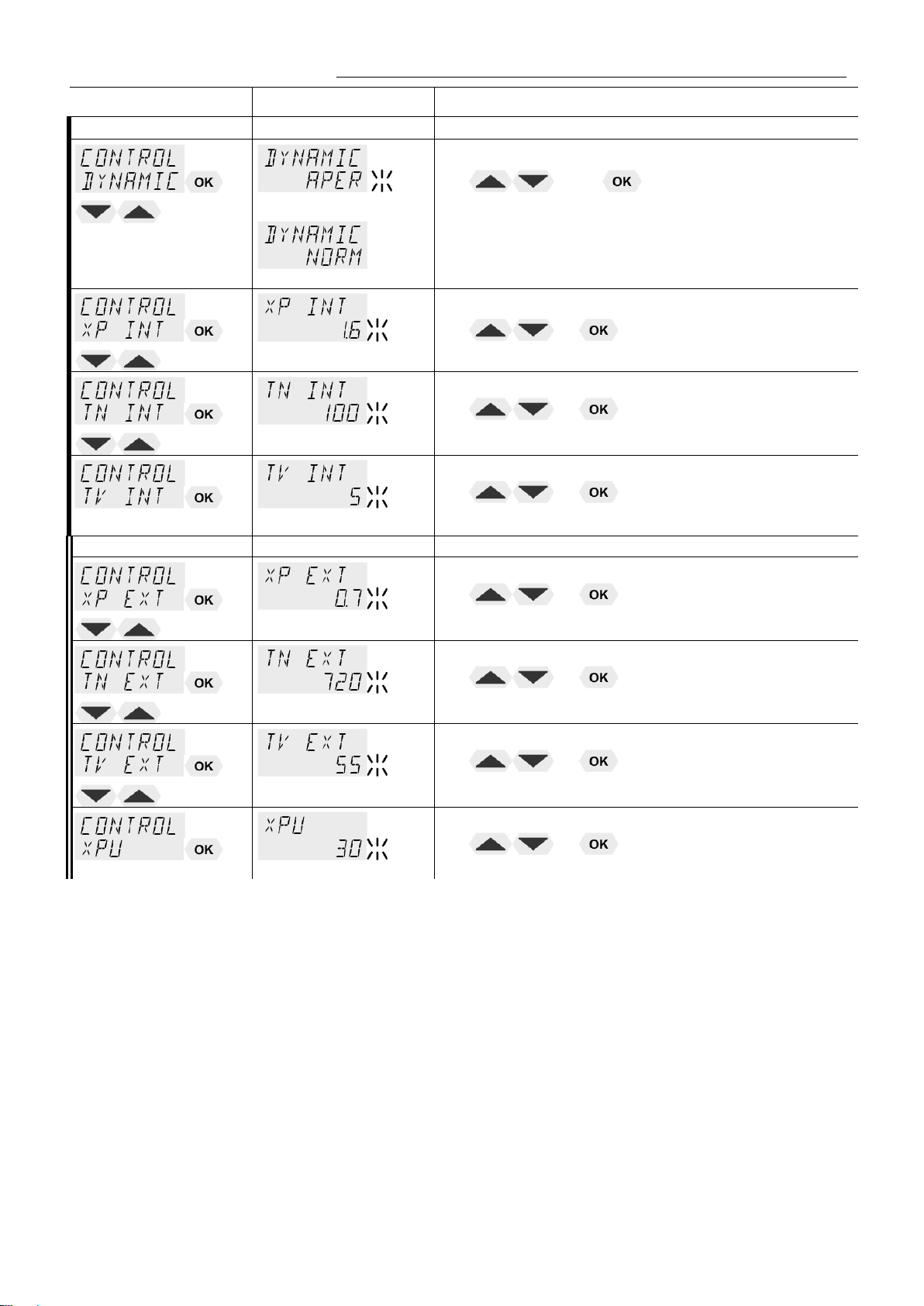

Level 2 Parameter level

C-TYPE INTERNAL

•

C-TYPE EXTERNAL

•

0.1 … 99.9

•



0.1 … 99.9



3 … 9999



0 … 999

• The parameter flashes, switch by pressing

and

 This parameter affects the temperature sequence

in case of internal control.

• The parameter flashes, set by pressing

The parameter flashes, set by pressing



0.1 … 99.9



3 … 9999



0 … 999



The parameter flashes, set by pressing

Page 46

Menu functions

(See page 51).

Attention:

circuit

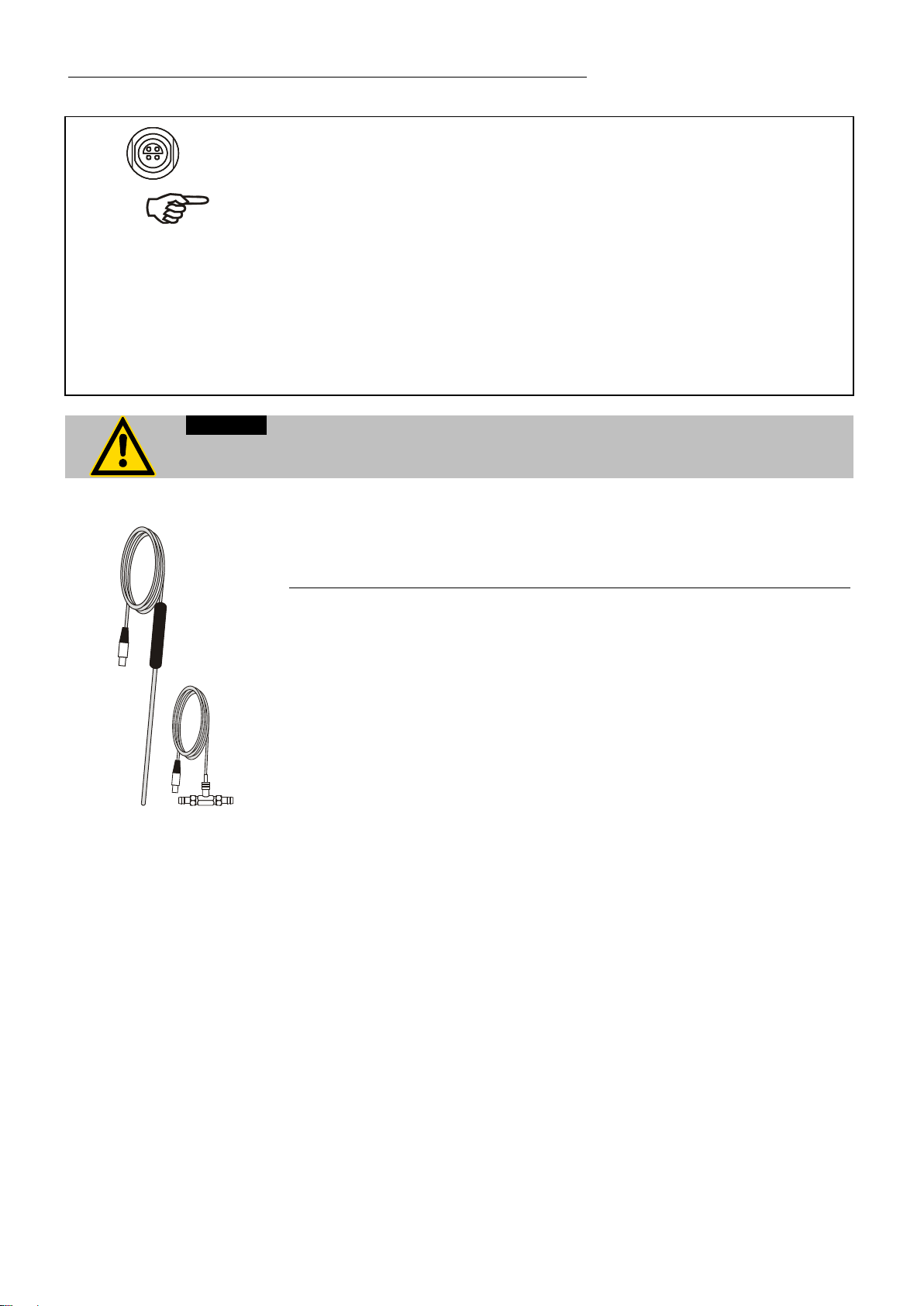

9.5.1. CONTROL – Cont rol INTERNAL / EXTERNAL



Switchover can only be effected if a Pt100 external sensor is connected.

Pt100

Factory setting: INT

IMPORTANT: Additional m eas ures for external temperature control

 Suggested settings for external temperature control:

BAND HIGH / LOW and INTERN MAX / MIN see chapter >MENU LIMITS<.

 Sensor calibration of the Pt100 external sensor is carried out in the

menu >ADJUST<, submenu >ATC SENOR - EXT<; set ATC STATUS< to >OFF<

Place the external sensor into the temperature-controlled medium and securely fix the sensor.

Accessory: Pt100 external sensor

Order No. Description Material Cable 8981003 200x6 mm Ø, stainless steel 1.5 m

8981005 200x6 mm Ø, glass 1.5 m 8981006 20x2 mm Ø, stainless steel 1.5 m 8981010 300x6 mm Ø, stainless steel 1.5 m 8981015 300x6 mm Ø, stainless steel / PTFE coated 3 m 8981013 600x6 mm Ø, stainless steel / PTFE coated 3 m 8981016 900x6 mm Ø, stainless steel / PTFE coated 3 m 8981014 1200x6 mm Ø, stainless steel / PTFE coated 3 m 8981103 Extension cable for Pt100 sensor 3.5 m 8981020 M+R in -line Pt100 sensor

Pt100 M+R

The M+R in-line Pt100 sensor is a flow sensor and can be installed loop

Page 47

9.5.2. SELFTUNING

°C

APER

NORM

Setpoint temp. stability

°C

APER

NORM

temperature ramp

temp. stability

Selftuning: When performing a selftuning for the controlled system (temperature

application system), the control parameters Xp, Tn and Tv are automatically determined and stored.

Possible parameters:

OFF - no selftuning

The control parameters ascertained during the last identification are used for control purposes.

ONCE - single selftuning (factory setting)

The instrument performs a single selftuning of the controlled system after each start with the key or after receiving a start command via the interface.

ALWAYS - continual selftuning

The instrument performs a selftuning of the controlled system whenever a new setpoint is to be reached. Use this setting only when the temperature application system changes permanently.

9.5.3. Dynamic internal

This parameter affects the temperature sequence only in case of internal control.

Factory setting: APER (aperiodic)

Possible parameters:

NORM Allows for reaching the setpoint faster – with

setpoint change or ramp function – but overshooting of up to 5 % is possible.

APER Ram p function: the increase of temperature

occurs temporally offset and achieves the target temperature without overshooting. Setpoint change: The temperature increases at the same rate, the target temperature is achieved without overshooting.

 With both settings constant temperature is achieved

after approximately the same time.

Page 48

Menu functions

Optimum setting

Control parameters XP-, TN-, TV- INTERNAL as well as

Xp too low

Tv/Tn too low

Xp too high or Tv too high

Tv/Tn too high or Xp too high

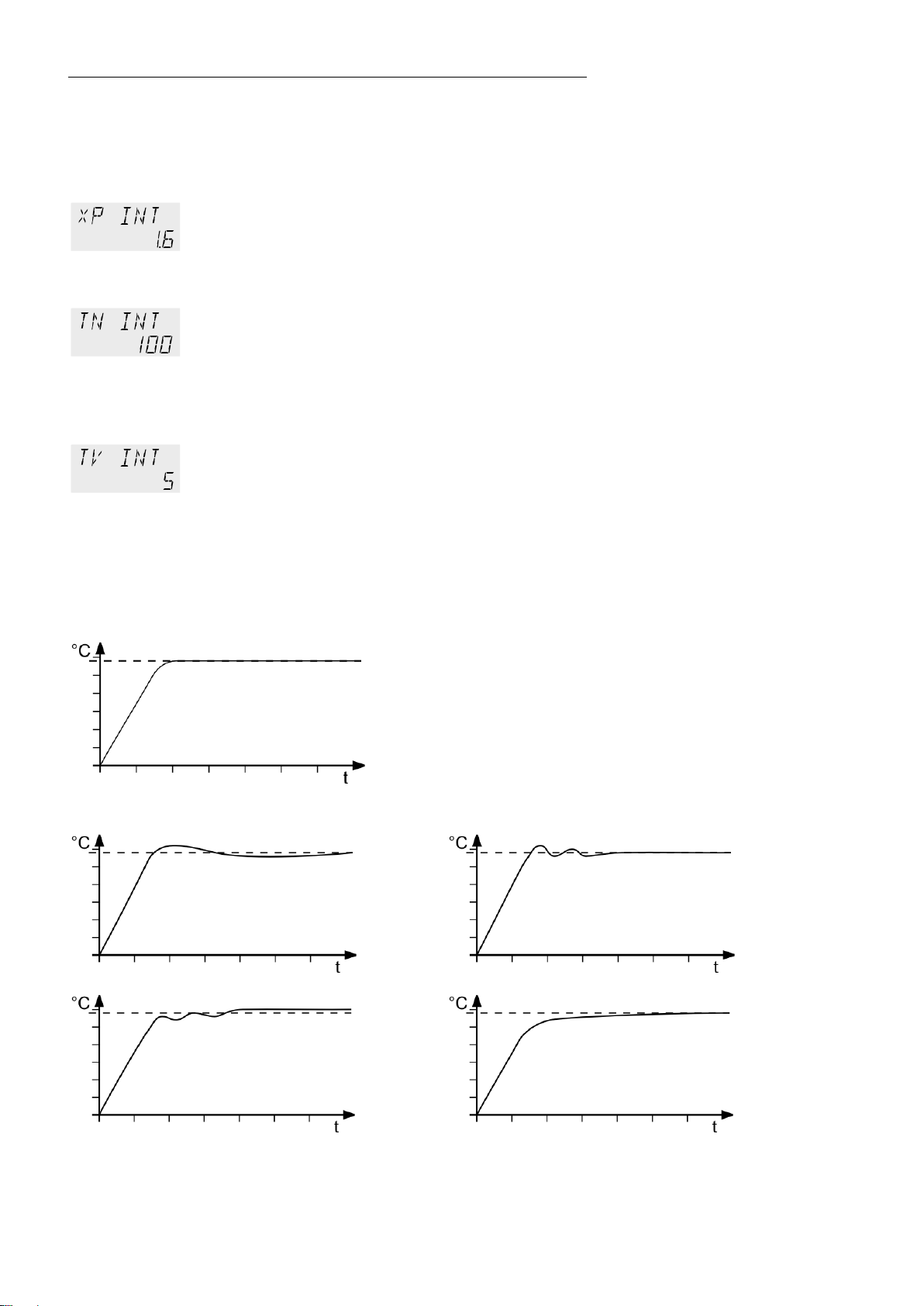

9.5.4. Control parameters– XP-, TN-, TV- INTERNAL

Setting range: 0.1 ... 99.9

Setting range: 3 ...9999

Setting range: 0 ... 999

In most cases the control parameters preset in the factory are adequate for achieving an optimum temperature sequence. The control parameters allow adjustment to special control processes..

Proportional range >Xp<

The proportional range is the range below the setpoint in which the control circuit reduces the heating capacity from 100% to 0 %

Reset time >Tn< (Integral component)

Compensation of the remaining control deviation due to proportional regulation. An insufficient reset time may cause instabilities. Excessive reset times will result in unnecessary prolongation of compensation of the control difference.

Lead time >Tv< (Differential component)

The differential component reduces the transient time. An insufficient lead time will prolong the time required for compensation of disturbance effects and cause high overshooting during run-up. An excessive lead time could cause instabilities (oscillations)

Optimization instructions for the PID control parameters

-EXTERNAL The heat-up curve reveals possible faulty settings of the

control parameter.

Inappropriate settings may produce the following heat-up curves:

Page 49

°C

Setpoint

Int. temperature

Ext. temperature

Setting range: 0 ... 999

Setting range: 0.1 ... 99.9

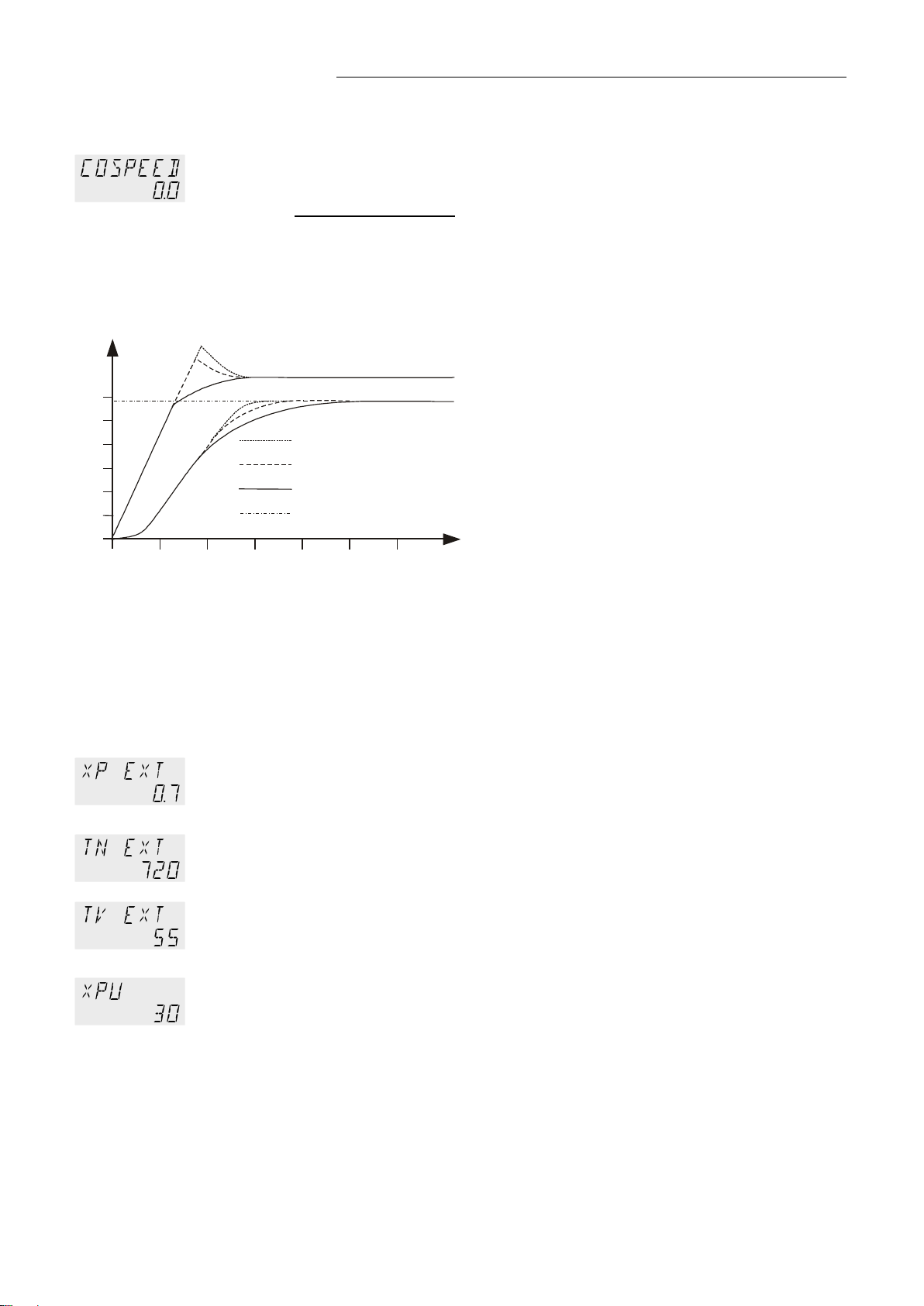

9.5.5. COSPEED - external

This parameter affects the temperature pattern only in case of external control.

Possible parameters: 0.0 ... 5.0 During selftuning, the control parameters Xp, Tn and Tv of a controlled

system are automatically determined and stored. Depending on the controlled system, time for tuning can be unequally longer. This controller layout allows protection of sensitive objects requiring temperature application.

As soon as a co-speed factor is set, it is considered for calculating the control parameters. As shown in the diagram, tuning times become shorter the higher the co-speed factor is, but overshooting can happen in the internal system.

9.5.6. Control parameters – XPU-, XP-, TN-, TV- EXTERNAL

In most cases the control parameters preset in the factors are adequate for achieving an optimum temperature sequence.

Setting range: 0.1 ...99.9

Setting range: 3 ...9999

The control parameters allow adjustment to special control processes.

Proportional range >Xpu<

The proportional range Xpu of the cascaded controller is only needed for external control.

Page 50

Menu functions

Prot ocol RTS/CTS ( Har dware handshake)

9.6. MENU SERIAL - BAUDRATE, HANDSHAKE, PARITY

Menu level 1

For communication between circulator and a PC or a superordinated process control system the interface parameters of both units must be identical.

 For remote control refer to page 73



Level 2 Parameter level

Factory settings: 4800 Baud even hardware handshake



 Press the key if a parameter is to be

retained.

• The parameter flashes, switch by pressing

and

• The parameter flashes, switch by pressing



even: Data bits = 7; Stop bits = 1 odd: Data bits = 7; Stop bits = 1 no: Data bits = 8; Stop bits = 1

and

• The parameter flashes, switch by pressing



Xon/Xoff-protocol (Software handshake)

and

Page 51

°C

T 1

°C

T 1

°C

B (INT)

°C

B (EXT)

Pt100

ext

9.7. MENU ATC - Absolut Temperature Calibration

ATC serves to compensate a temperature difference that might occur between circulator and a defined measuring point in the bath tank because of physical properties.

Example: 1-point calibration

For ATC calibration, in steady state the bath temperature at the location of the temperature sensor (CT) is determined at the respective adjusted working temperature. This value is then set on the circulator in the menu >ATCalibration< under menu item > CTEMP X <. This can be a 1-point, 2-point or 3-point calibration.

3-point calibration

Principle:

1 = Original curve

M = Temperature measuring instrument with temperature sensor B = Bath t ank (INTernal or EXTernal) T = circulator

CT = Temperature on measuring point TT = Temperature on circulator

Page 52

Menu functions



key if parameter is to be retained.

Menu level 1

Level 2 Parameter level



 Press the

Correction function for parameters or values (prior to OK).

• The parameter flashes, switch by pressing

and

 On level 2 a (I) is indicated for internal or an (E)

for external.

Example:

• The parameter flashes, switch by pressing

and

 >NO< Carry out an ATC calibration  >YES< return to standard operation after

calibration.

• The parameter flashes, switch by pressing

and

 A >1-point<, >2-point< or >3-point< calibration

can be carried out.



Level 2 Parameter level





If only a 1-point calibration is carried out, the following menu items are not indicated anymore

The selected calibration is indicated on level 2 by 1 or 2 or 3.

The value >TMPVAL< is only indicated

 In addition the measured temperature value

>CALVAL X< is saved during the next step.

• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing

The value is only indicated

Page 53

Level 2 Parameter level



• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing





If only a 2-point calibration is carried out, the following menu items are not indicated anymore

The value is only indicated

• Integer digits flash, set by pressing



• Decimal digits flash, set by pressing

9.7.1. ATC SENSOR - INTERNAL / EXTERN AL

In the first submenu the ATC function is set for the >INTERN< internal or the >EXTERN< external temperature sensor.

Calibration can be carried out for the internal temperature sensor and for the external temperature sensor connected to the socket „ext. Pt100“. The circulator is able to save both parameter sets. However only the one which has been set under menu item >ATC SENSOR < is displayed.

9.7.2. ATC STATUS - YES / NO

In the second submenu the ATC function for the temperature sensor selected above is activated >YES< or deactivated >NO<.

>YES< (factory setting) The controller of the circulator uses the original

curve of the temperature sensor or the new curve measured during the ATC calibration.

Important: Set to >NO< during the calibration process

>NO< An ATC calibration is to be carried out.

Important: Set to >YES< after calibration.



In the > ATC STATUS < >YES< the ATC calibration always affects the current working temperature; also the one set via interface.

Page 54

Menu functions

9.7.3. CALIBRATION TYPE: 1 -/ 2 -/ 3 POINT

A >1-point<, >2-point< or >3-point< calibration can be carried out. First geometrically define the location for calibration (measuring point CT),

then determine the temperature values of the calibration points. The type of calibrations also determines the number of the following pairs of values indicated on the LCD DIALOG-DISPLAY.

Pairs of values:

TMPVAL X: Circulator temperature 1 or 2 or 3 (actual value TT )

The actual temperature of the bath is simultaneously saved with the “calibration value“ >CALVAL< and can be indicated for control purposes (value does not flash).

CALVAL X: Calibration temperature 1 or 2 or 3 (actual value CT )

The „calibration value“ is determined with a temperature measuring device and saved under menu item >CALVAL<.

(value flashes

)

Page 55



Level 2

Parameter level

and .

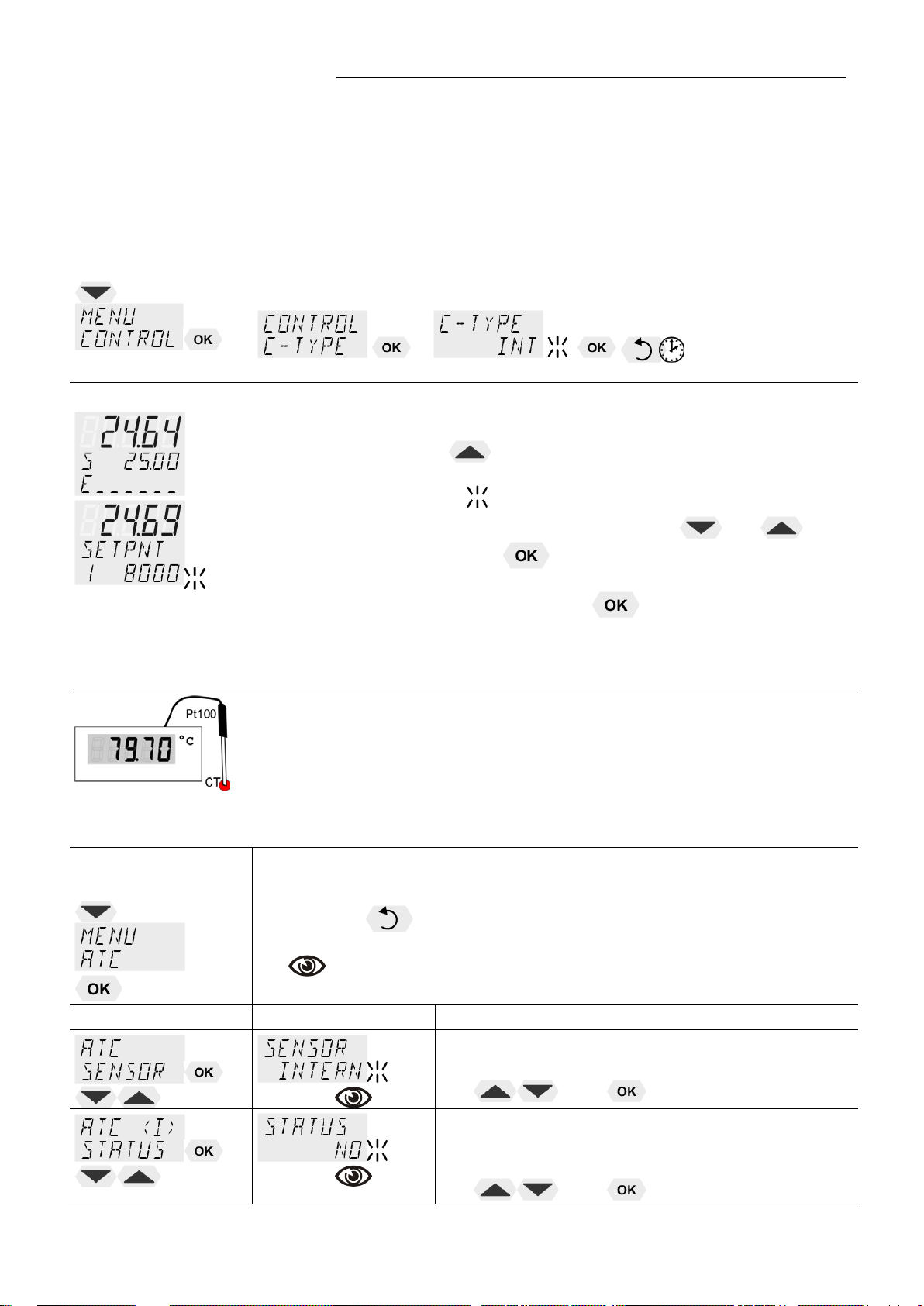

9.7.4. Example: 3-point calibration for internal control

In the temperature range from 80 °C to 160 °C the calibration curve of the

temperature sensor (TT) is to be adjusted to the actual temperatures at measuring point (CT).

Menu level 1

80.00 °C

120.00 °C

160.00 °C

1. Set circulator to internal control: MENU CONTROL page 44

The type of control can be set only in the –OFF- mode.



2. Set working temperature setpoint – SETPNT:

Refer to „Direct temperature setting “ page 28

• By pressing the key >SETPOINT< see example on the left: >SETPNT / 1 25.00°C<.

The integer digits flash

• Change the value to 80.00 °C by pressing the keys confirm by pressing the key

The decimal digits flash. Confirm once more by pressing the key

• The bath is heated up. Wait for approx. 5 minutes until the temperature is constant.



the circulator switches to the active

(Example: <25>).

and and

Menu level 1

3. Reading of temperature measuring device

Read the value of measuring point CT on the device and enter under m enu item >CALVAL X< by using the keypad.

4. Calibration

>CALVAL 1< (79.70 °C) >CALVAL 2< (119.50 °C) >CALVAL 3< (159.30 °C)

 Press the key if parameter is to be retained. Correction function for

parameters or values (prior to OK).

 Setting is required only for the first calibration point.

Set SENSOR INTERN:



• The parameter flashes, switch by pressing

An ATC calibration is to be carried out. Set to >NO<

• The parameter flashes, switch by pressing

Page 56

Menu functions

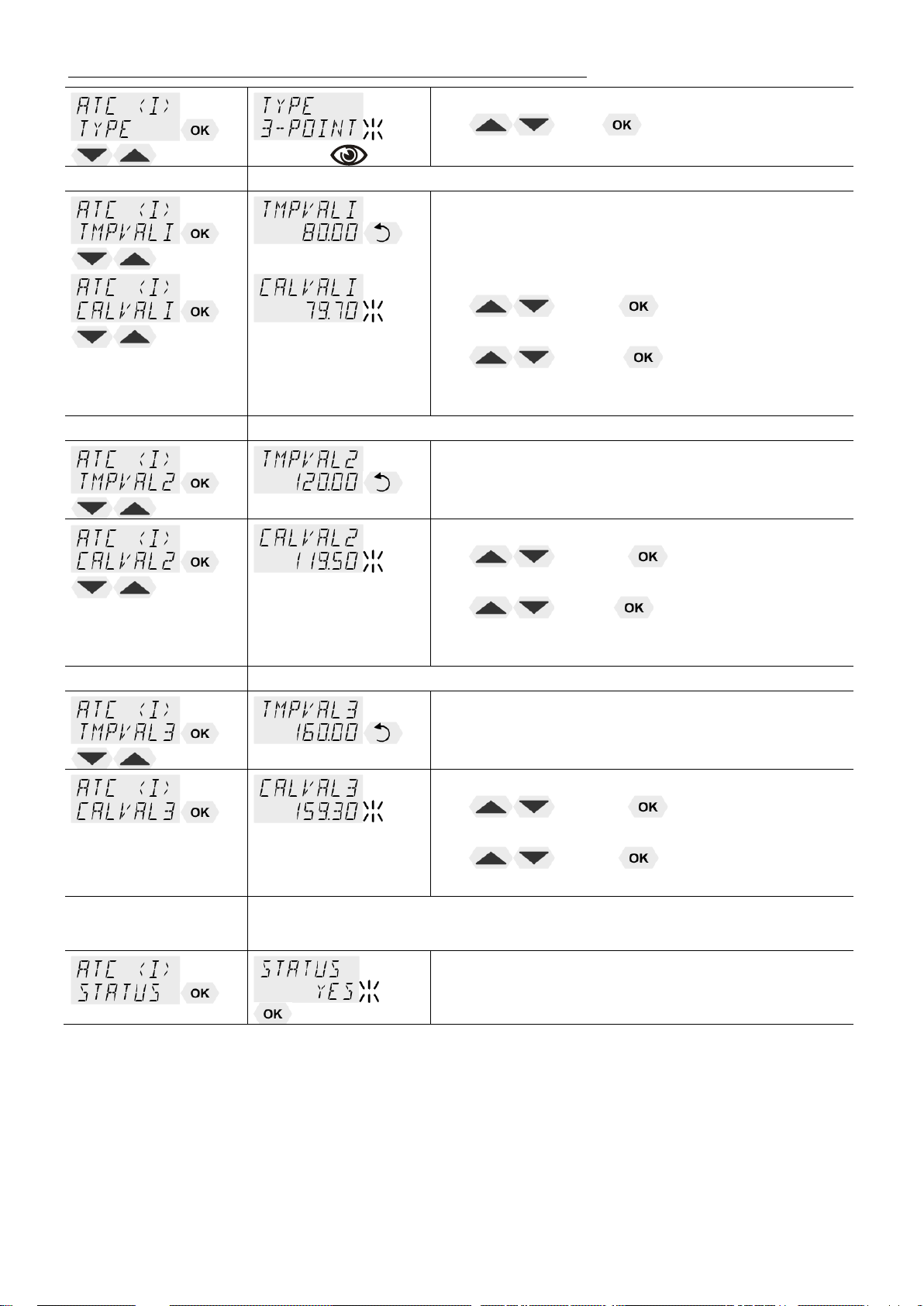

A >3-point< calibration is carried out.

Return to 2. Set working temperature value SETPNT: 120.00 °C

Return to 2. set working temperature value SETPNT: 160.00 °C

The 3-point calibration is completed



• The parameter flashes, switch by pressing and .

The value >TMPVAL< is only indicated In addition the measured value >CALVAL X< is saved

during the following step

• Integer digits flash, set by pressing (79) +

• Decimal digits flash, set by pressing (70) +

The first of 3 points is calibrated.

The value is only indicated



• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing

The second of 3 points is calibrated.

The value is only indicated.

• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing

5. Return to standard operation

• Set >YES< after calibration.

(Standard operation)

(119) +

(50) +

(159) +

(30) +

Page 57

9.8. MENU LIMITS



OK).

In case of external control these menu items are additionally indicated.



Menu level 1

Level 2 Parameter level



0 … 100 %

Press the Correction function for parameters or values (prior to

• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing

• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing

• The value flashes, set by pressing

key if parameter is to be retained.

• The value flashes, set by pressing mit



0 … 100 %



• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing

• Integer digits flash, set by pressing

• Decimal digits flash, set by pressing

• The value flashes, set by pressing

Page 58

Menu functions

bath fluid.

9.8.1. Limits for internal control

SETPOINT MAX / MIN – Maximum and minimum setpoint

Restriction of the adjustable temperature range. The limitation of the operating temperature range effects the temperature setting in the menu with the key

Only setting of working temperatures which lie within the determined limits is possible Existing settings for SETPNT 1, -2, -3, as well as those for >OVERTMP< and > SUBTMP < (refer to page 29), are automatically deferred into the limit range.

Setting range

 SET MAX > SET MI N

Interchange of values is not possible.

9.8.2. Limits for external control

Set maximum heating / cooling

The heating and cooling capacity of the unit are adjustable. 100 % corresponds to the technical specification of the equipment.

Setting range:

HE AT MAX – 0 to 100 % in 1 % steps COOLING MAX – 0 to 100 % in 1 % steps

: -94,90 °C ... +300,0 °C

> SAFETMP <

INTERN MAX / MIN Restriction for the temperature range of the internal bath.

Setting range: -94,9 °C ... +300,0 °C The limits INT MAX and INT MIN are only active in external control. INT

MAX and INT MIN determine fixed limits for the temperature within the internal bath. The temperature controller cannot exceed these limits even if it would be necessary for achieving the temperature in an external system. Therefore it is possible that the external setpoint cannot be achieved.

Sense of limit setting:

 Protects the bath fluid from overheating.  Prevents an undesired alarm shutdown by the excess temperature

protection - >ALARM CODE 14<. Set the value of > INT MAX at least 5 °C below the value of >SAFETMP<.

 Protects the pump motor from high viscosity of the bath fluid at low

temperatures.

 For refrigerated circulators. Freezing protection when using water as

Page 59

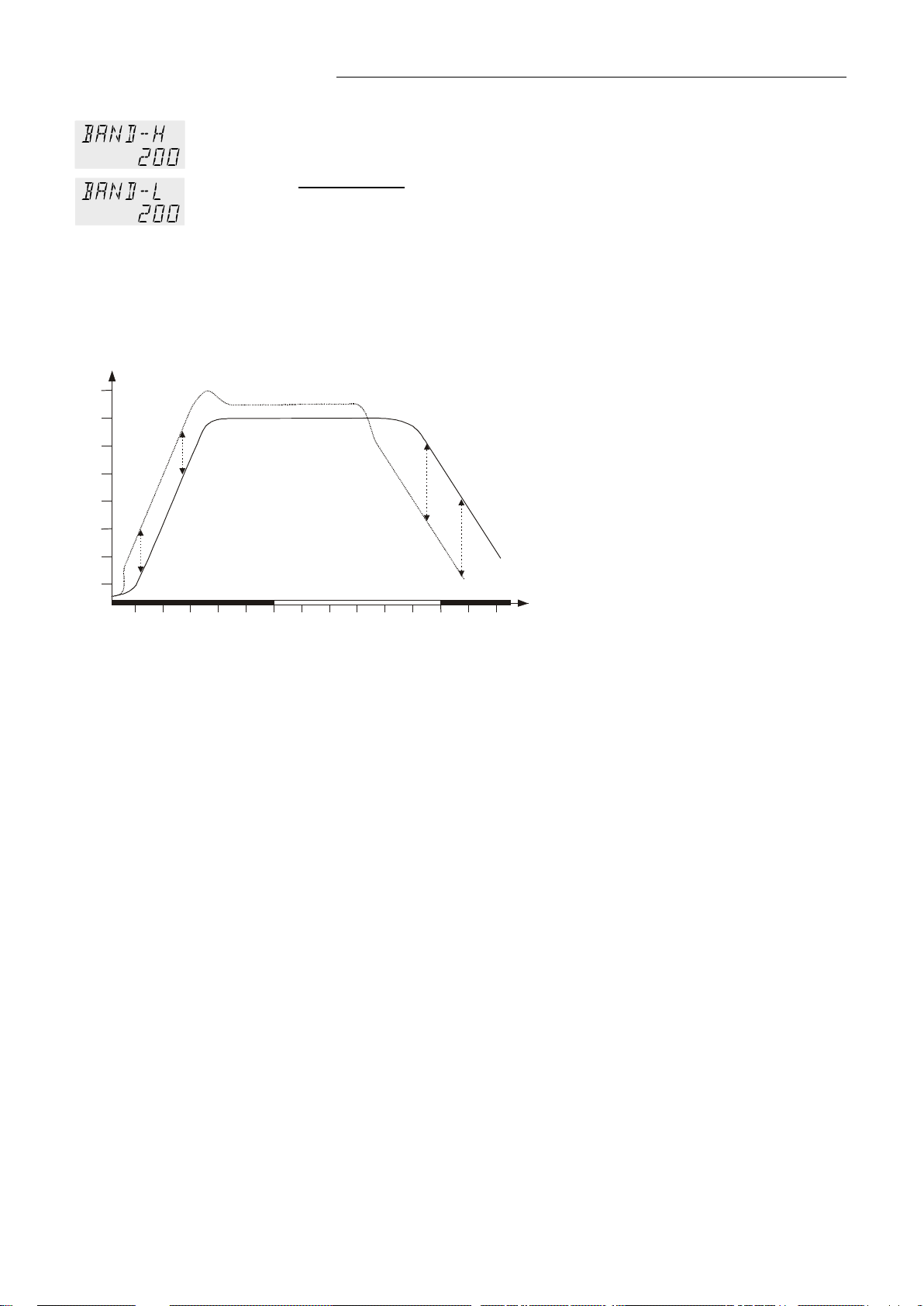

10203040506010203040506010

[min]

100

150

200

°C

external syst em

Internal bath

BAND HIGH

BAND LOW

Sense of a band limitation:

BAND HIGH / L OW – Band limitation

The band limitation is active during external control. Varied, practiceoriented setting are feasible for heat-up and cool-down phases.

Setting range: 0 °C ... 200 °C

BAND HIGH and BAND LOW allow for the limitation of the difference between the temperatures in the internal bath and the external system to any maximum value for the heat-up and cool-down phase. During the heat-up phase this difference value is always added to the actual external temperature. During the cool-down phase the difference value is subtracted.

 Protection of objects and samples

by gentle temperature control

 Protection of e.g. glass reactors

from thermal shock.

Page 60

Menu functions

ALARM

REG+

E-PROG

STAND-BY



Level 2

Level 3

Parameter level

9.9. MENU IN/OUT – Analog inputs/outputs (Option)



In order to use the analog inputs and outputs, the circulator must be equipped with the electronic module available as option. Order No. 8 900 100 Electronic module

This submenu enables setting of the input and output values for the programmer input and the temperature recorder outputs of socket REG+E-

Menu level 1

PROG. The >STAND-BY< input and the >ALARM< out put are conf igurable.

 Press the key if parameter is to be retained. Correction function for

parameters or values (prior to OK).

• The parameter flashes,



switch by pressing

and

ACTINT [°C] internal actual temperature value (bath temperature)

ACTEXT [°C] external actual temperature value (external sensor)

S-POINT [°C] active setpoint temperature

POWER [%]

• Integer digi ts flas h, set by pressing

• Decimal digits flash, set by

pressing

• The parameter flashes,



switch by pressing

and

Page 61

Level 2

Level 3

Parameter level



• Integer digi ts flas h, set by pressing

• Decimal digits flash, set by pressing

• The parameter flashes,



switch by pressing

and

• Integer digi ts flas h, set by pressing

• Decimal digits flash, set by pressing



• The parameter flashes,

switch by pressing

and

• The parameter flashes,



switch by pressing

and



The parameter flashes, switch by pressing

and

 Define the indication of

VOLTAGE CURRENT

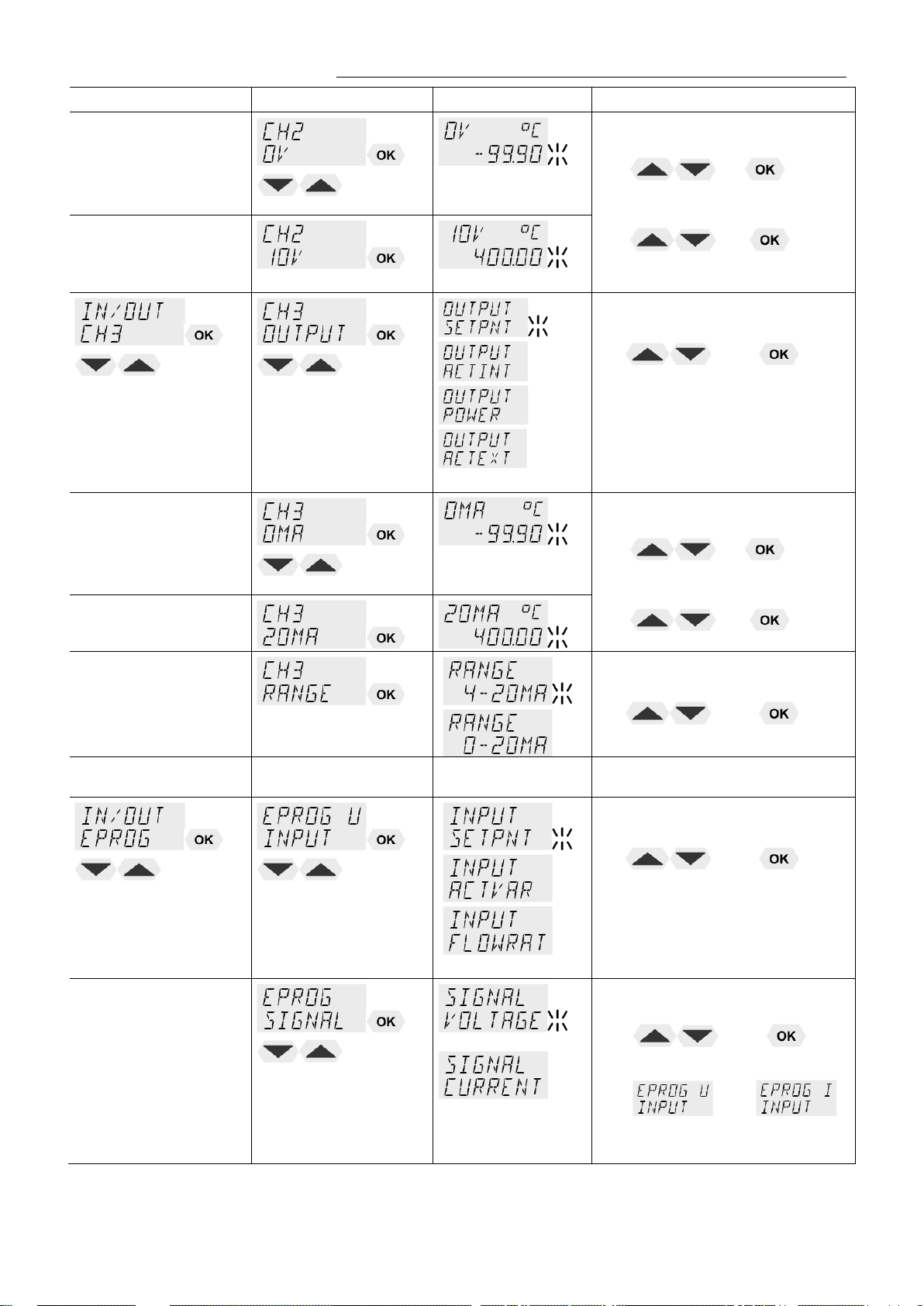

Page 62

Menu functions

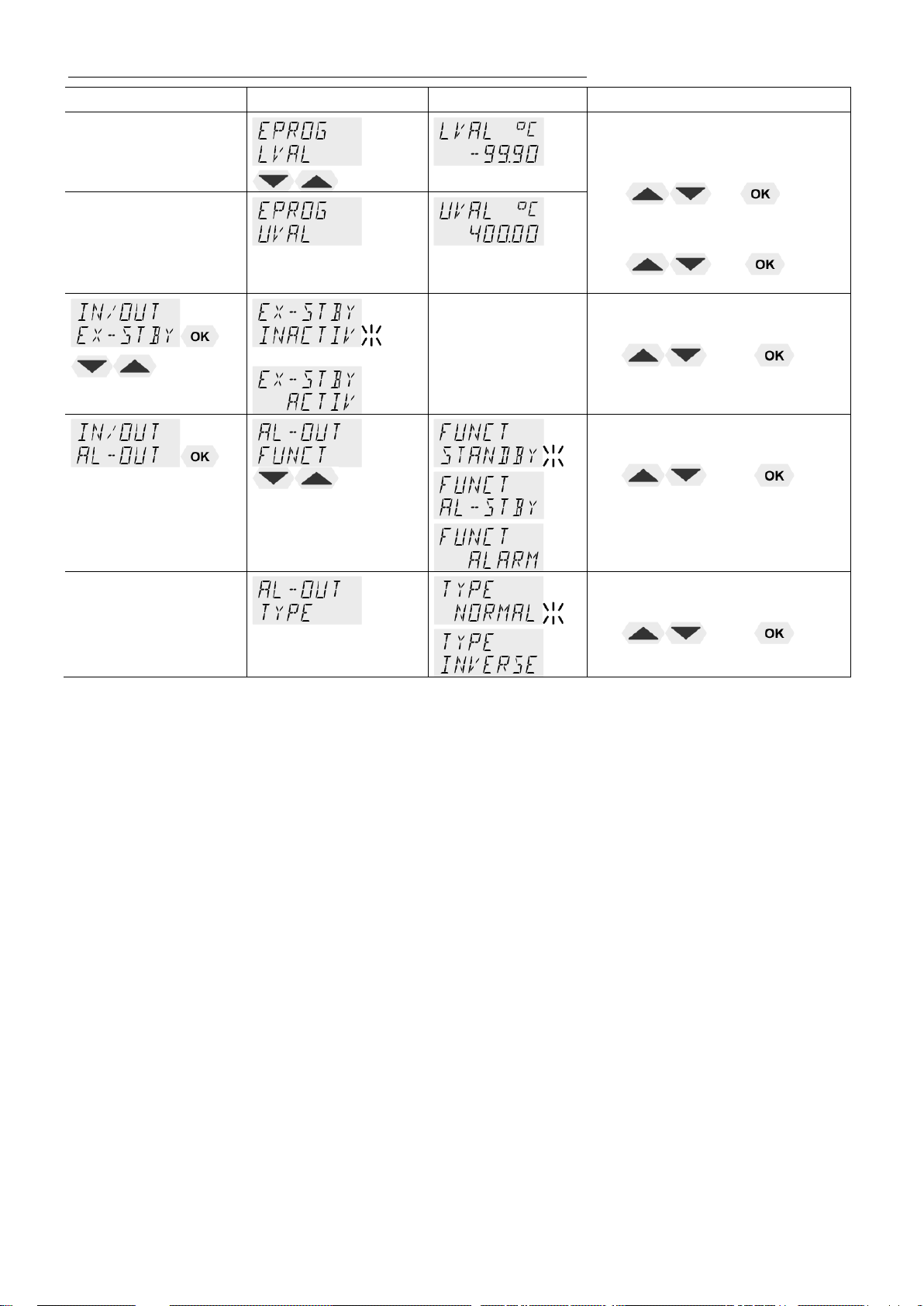

Level 2

Level 3

Parameter level

Lower VALue



Upper VALue

• Integer digi ts flas h, set by pressing

• Decimal digits flash, set by pressing

• The parameter flashes,

switch by pressing

and

• The parameter flashes,



switch by pressing

and

• The parameter flashes,

switch by pressing

and

Page 63

9.9.1. Outputs of the connector - REG+E-PROG

CHANNEL 1

CHANNEL 3

CHANNEL 2

REG+E-PROG

EPROG

0 V

0 mA

20 mA

4 mA

10 °C

210 °C

197 °C

202 °C

∆ Τ =

5 K

∆ Τ =

200 K

REG+E-PROG :

1. Select CHANNEL 1, 2 or 3

2. First define the desired output value for CHANNELs 1 to 3:



internal actual temperature value (bath temperature))

external actual temperature value (external sensor)

periodic or intermittent heating or cooling

active setpoint temperature

(SETPoint 1, 2, 3,/ integr. programmer /external programmer)

3. Then select the display size for CHANNELs 1 to 3:

Voltage outputs CHANNELs 1 and 2

Assign the voltage values of 0 V to the lowest and 10 V to the highest necessary temperature (°C) or power rating (%) required as an output value. CHANNEL 3: Output for temperature value (°C) / power (%) The current output (channel 3) offers 2 ranges for selection:

0 mA to 20 mA or 4 mA to 20 mA

Assign the current values 0 mA or 4 mA to the lowest and 20 mA to the highest temperature (°C) or power rating (%) required as an output value.

Example 1:

 lowest temperature value: 10 °C  highest temperature value 210 °C

Fig. shows 200 °C scaled to paper width rise: 50 mV/°C Example 2: lowest temperature value: 197 °C highest temperature value: 202 °C Fig. shows 5 °C scaled to paper width rise: 2000 mV/°C

Page 64

Menu functions

CHANNEL 1

CHANNEL 3

CHANNEL 2

REG+E-PROG

EPROG



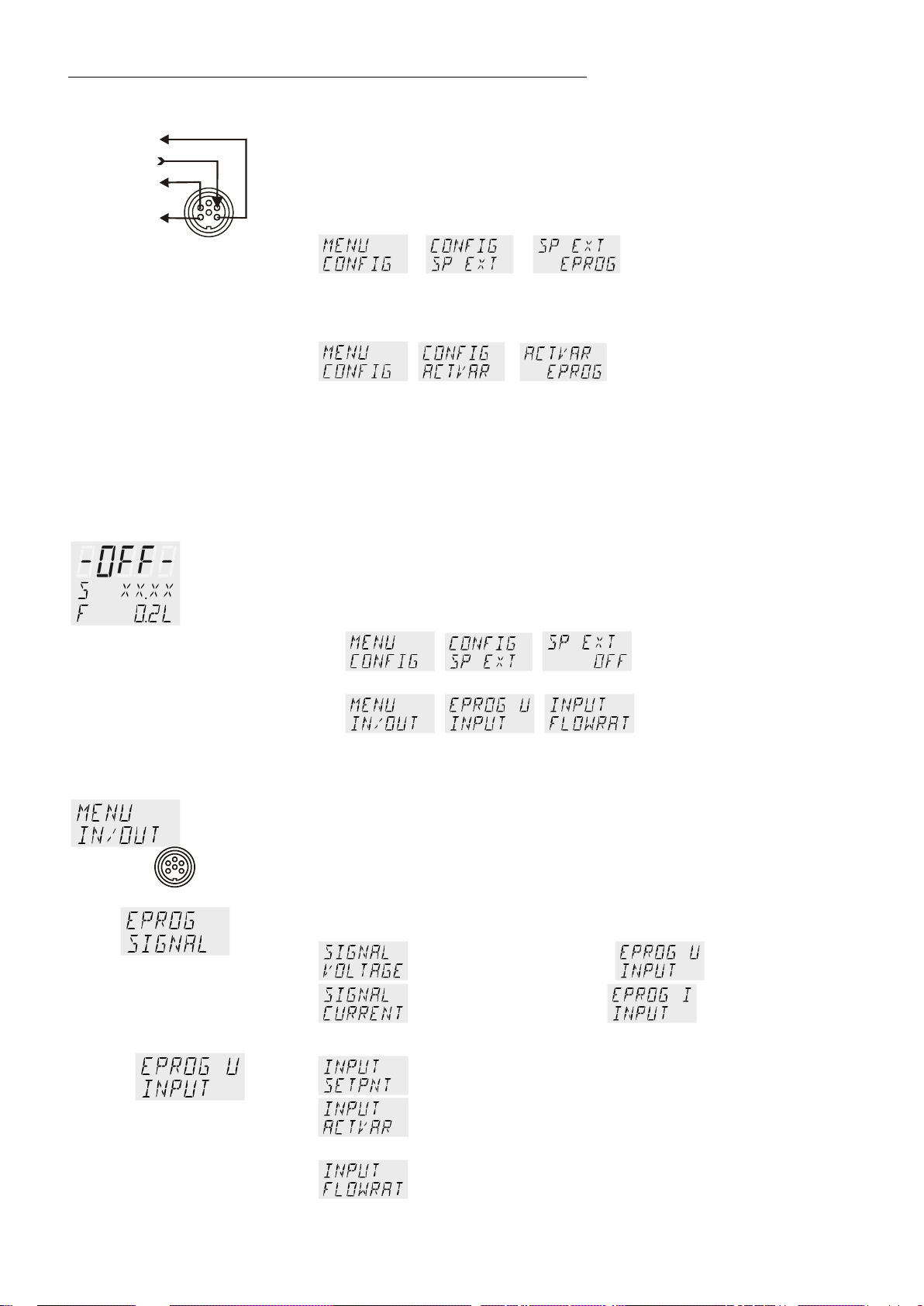

9.9.2. Input of the connector - REG+E-PROG

Setting needs to be carried out, if

1. setpoint programming is to be made via an external voltage or

current source or programmer. For this, in the menu > MENU / CONFIG < first set the menu item > SETP < to >EPROG<.

>FLOWRAT< Indication on display

> >

2. the heater variable should be controlled via an external control pulse.

For this, in the menu > MENU / CONFIG < set the menu item >ACTVAR< to >EPROG<.

> > (refer to page 43).

3. the signal of an external flow meter should be registered.

>FLOWRAT< see below.



FLOWRAT The E-Prog input can only be used either under menu item >CONFIG

-SP EXT< < or under menu item >CONFIG ACTVAR< If the input is neither occupied by > SP EXT < or > ACTVAR <, the signal of a flow meter can be connected.

 First set >MENU CONFIG<

> >

then >MENU IN/OUT<

Beispiel:

Settings on input - E-PROG

1. Connect the external voltage or current source or programmer to

socket REG+E-PROG of the circulator.

2. Selecting the signal:

The programmer (E-PROG) input of the circulator can be matched to the output signal of the external voltage or current source.

> >

voltage input = U

curr ent input = I

3. Define the input variable:

with an external control pulse

Setpoint programmed by external voltage or current

Manipulated (ACTuated) variable for the heater

Signal of an external flow sensor

Page 65

Examples:

100

200

300

250

150

°C

1 2 3 4 5 6 7 8 9 10 V 2 4 6810 14 18 20 mA

4. – Setting the LOW value: (See below )

First adjust and set the lowest voltage or current on the external voltage or current source (e.g. 0 V or 0 mA). Then after approx. 30 secs enter the corresponding temperature value (e.g. 20.00 °C).on the circulator by pressing

5. – Setting the HIGH value: (See below )

and

First adjust and set the highest voltage or current on the external voltage or current source (e.g. 10 V or 20 mA). Then after approx. 30 secs enter the corresponding temperature value (e.g. 300 °C).on the circulator by pressing

and

Example:

Set the external voltage or current source output for the equivalent of 50 °C temperature setpoint.

Press The temperature value adjusted and set on the external voltage or current source is displayed in line 2 of the VFD COMFORT-DISPLAY for control purposes. (Example: SP 50.00 °C).

- to standard display.

This EPROG input enables the use of different voltage and current values as program parameters.

– Setting the LOW value: (See below )

1. Adjust and set the lowest desired value on the voltage or

current source resp. (Example A: 1 V). Wait appr. 30 seconds.

2. Assign a lower temperature threshold value to this adjusted

voltage/current value by pressing the appropriate buttons on the keypad of the instrument (Example A: 20 °C ) and set by

pressing

– Setting the Upper value: (See below )

1. Adjust and set the highest desired value on the voltage or

current source resp. (Example A: 10 V). Wait appr. 30 seconds.

2. Assign an upper temperature threshold value to this adjusted voltage/current value by pressing the appropriate buttons on the keypad of the instrument (Example A: 200°C)

and set by pressing

 Example B in the diagram serves to illustrate that the end

point values are freely selectable (Ex: 8 mA and 16 mA).

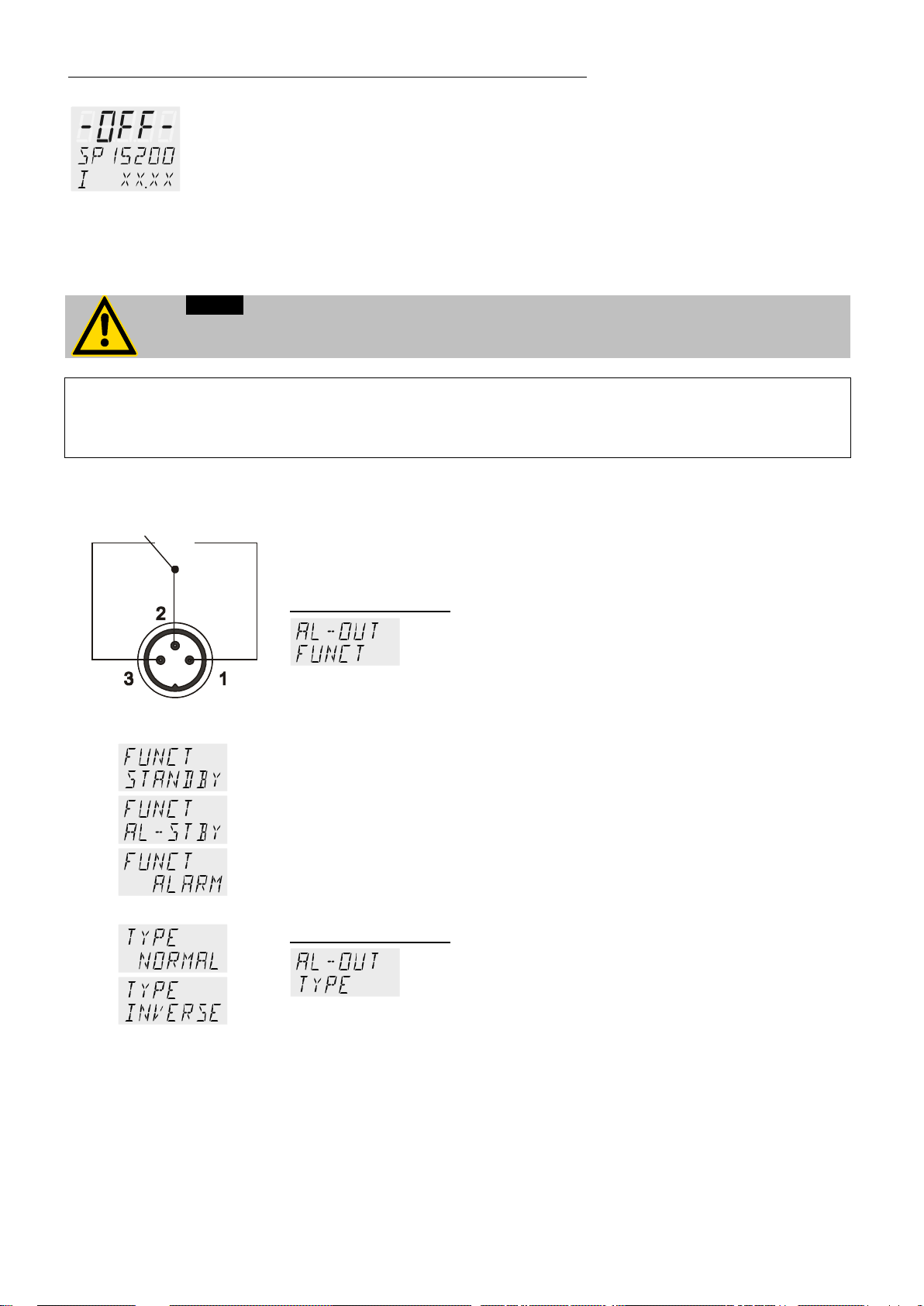

Page 66

Menu functions

Notice:



Important:

(working temperature range see technical specifications)

Example out of diagram A:

• Adjusting the voltage source for an output of 7.6 V!

The instrument calculates this value from the rise angle of the two

If this adjustment is not correctly performed at two different points, the setpoint setting will be incorrect.

The usable temperature range between > LVAL < and > UVAL < is limited to the configured working temperature range of the circulator resp. of the unit combination

9.9.3. ALARM-output / Stand-by-input

predecided end points (in example A: 7.6 V correspond to an external setpoint temperature of 152.0 °C ).

After returning the VFD display to standard display, this value is displayed in line 2 (Example: SP 152.00 °C).

Alarm output (10) (for external alarm signal)

Possible parameters:

(STANDBY or ALARM or AL-STBY)

ALARM

This socket is a potential-free change-over contact. With the adjustments in the menu item > AL-OU T Function< all operating conditions can be signaled without having to change the pin assignments.

Signification of the terms under menu item >Function< : The circulator is in condition >STANDBY< or >ALARM< or >AL-STBY< -

both conditions are signaled.

Alarm-TYPE Possible parameters:

( NORMAL or INVERS )

For >TYPE- NORMAL< pins 2 and 3 are connected in any case according to the selected > AL-OUT Function<

For >TYPE- INVERS < pins 2 and 1 are connected in any case according to the selected > AL-OUT Function<

Switching capacity max. 30 W / 40 VA Switching voltage max. 125 V∼/− Switching current max. 1 A

Page 67

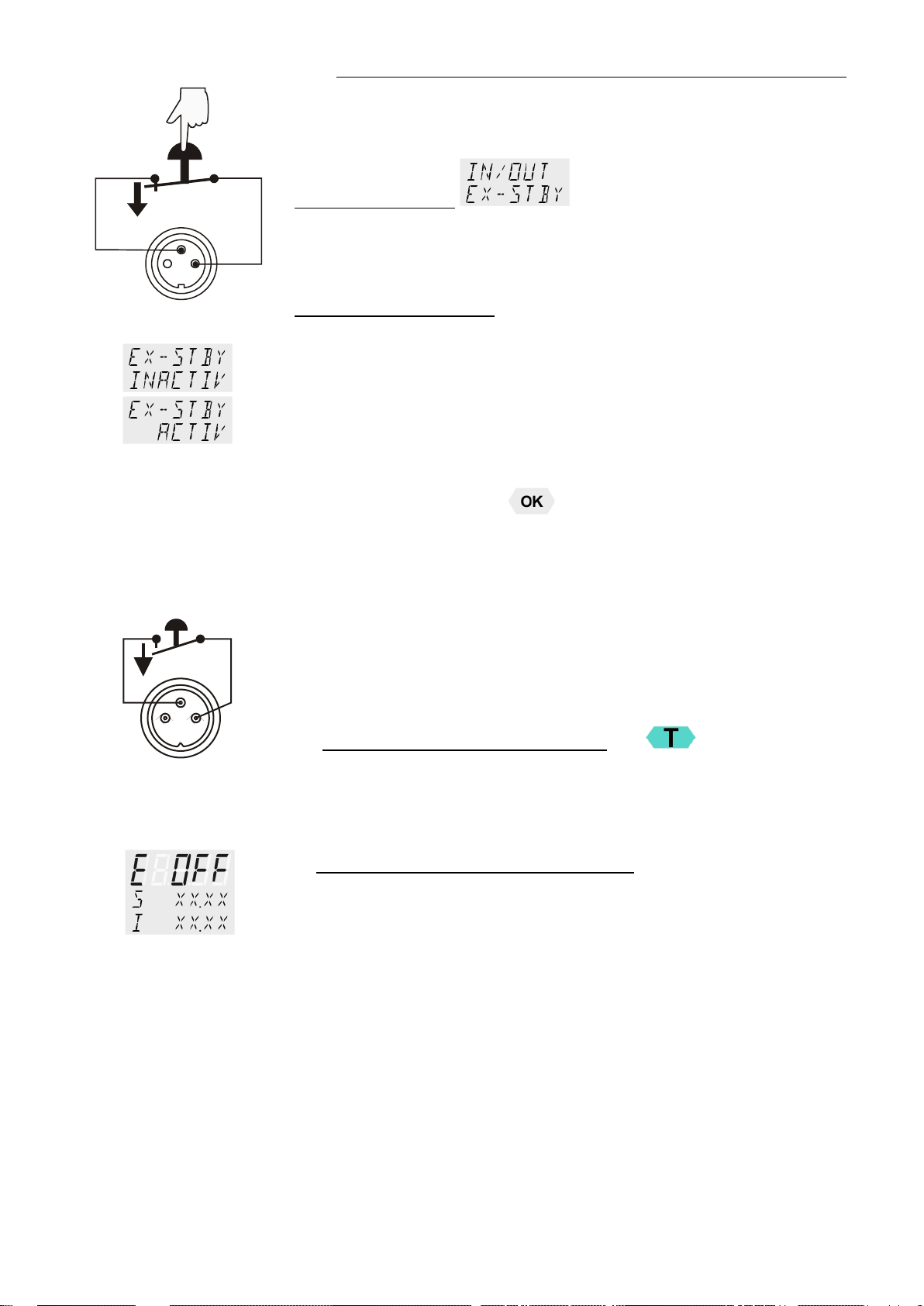

EX-STBY: External Stand-by input

STAND-BY

(for external switch-off)

STAND-BY

Possible parameters:

INACTIV - standby input is ignored ACTIV - standby input is active

Activate the standby input:

1. Under menu item > EXT-STBY <, set the parameter to >ACTIV<.

2. Connect an external contact ‚AK‘ (e.g. for switch-off) or an alarm contact of the superordinated system.

In case the connection between Pin 2 and Pin 3 is interrupted by opening the contact ‚AK‘, a complete shutdown of the circulating pump and heater is effected, and the unit enters the condition „E OFF“. If the contact is reclosed, the instrument returns to the standby state and

„E OFF“ is displayed. Press



Additional tips for using the STANDBY input:

The standby function can be used in conjunction with the AUTOSTART feature

1. If the Autostart function is NOT turned ON, the standby input is used as described above.

2. If the Autostart function is enabled, the instrument will revert back to the original method of entering the setpoint (i.e. keypad, RS232, Analog input, etc.).

Entering the setpoint with the keypad. e.g. As described above, a bipolar shutdown is accompanied by displaying the „E OFF“ state. The circulator starts again when the contact is reclosed. The temperature of the bath fluid changed during the „E OFF“ state.

to start.

Entering the setpoint with the programmer. The display E OFF appears. The setpoint value and the time are both held at the current value. The temperature of the bath fluid will be held constant at this temperature. The programmer continues on ce the contact is reclosed. Notice: This is not an actual shutoff feature.

Page 68

Troubleshooting guide / error messages

Repair by authorized JULABO service personnel.

Reconnect the control line or repair short-circuit.

Type of warning: set to >warning< or >alarm< (refer to page 31)

Typ of warning: set to >warning< or >alarm< (refer to page 31)

Cable of working temperature sensor is disconnected or short-circuited.

10. Trouble s hoot ing guide / error messages

Alarm with complete shutdown:

If one of the following failures occur a complete, all-pole shutdown of the heater and circulating pump is effected.

“ lights up and a continuous signal sounds.

„ The code for the cause of alarm is indicated on the VFD COMFORTDISPLAY.



Alarm without shutdown:

The code for the cause of alarm is indicated on the VFD COMFORTDISPLAY. The warning signal sounds in regular intervals. The messages appear every 10 seconds.

Press the key

Error message with ticker: >LOW LEVEL ALARM-FILL MEDIUM < Low level alarm The circulator is operated without or insufficient bath fluid.

Switch the unit off with the mains switch, refill bath fluid and switch on! Tube breakage has occurred (insufficient filling level of bath fluid caused by

pumping-out) Replace the tubing and refill bath liquid.

The float is defect (e.g. transport damage).

Error message with ticker: > REFRIGERATOR ALARM-CHECK CONNECTION < During the self-test after swi tc h -on a short –circuit is detected between pin 2 and pin 4 of the control line or the control line was disconnected during operation.

Error message with ticker: > EXCESS TEMPERATURE WARNING-CHECK LIMITS < Excess temperature warning or Excess temperature alarm

to stop the signal

Error message with ticker:

> LOW TEMPERATURE WARNING-CHECK LIMITS < Low temperature warning or Low temperature alarm.

Error message with ticker: > WORKING SENSOR ALARM-CALL SERVICE <

Page 69

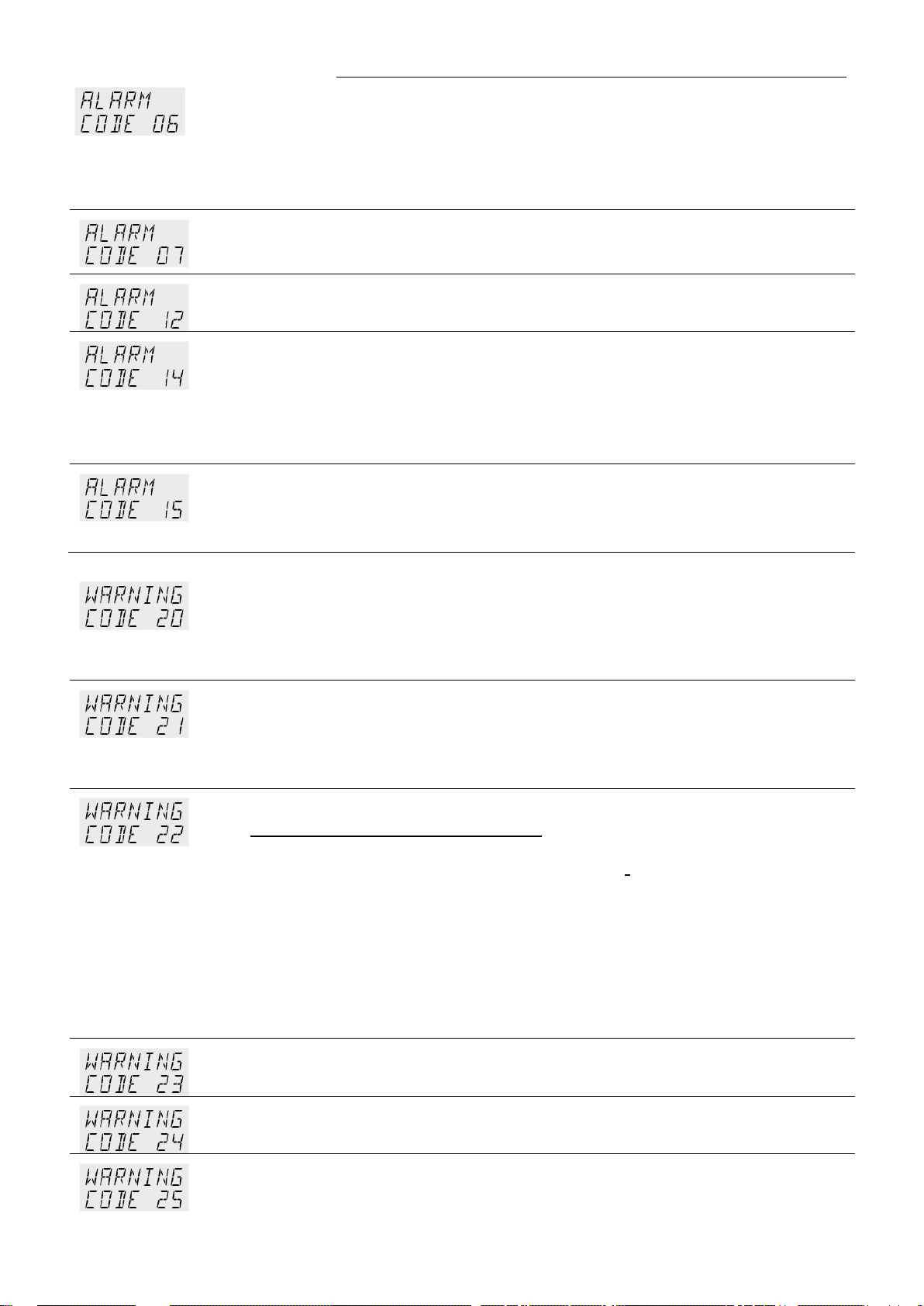

Other errors

defect.

Error message with ticker: >SENSOR DIFFERENCE ALARM-CHECK VISCOSITY AND PUMP STAGE< Defec t of working or excess temperature protector. Working temperature sensor and excess temperature protector report a temperature difference of more than 35 K.

Error message with ticker: > INTERNAL HARDWARE ERROR-CALL SERVICE <

Error in A/D converter

Error message with ticker: > EXCESS TEMPERATURE PROTECTOR ALARM-CHECK ADJUSTMENT <

Excess temperature protector defect. The protection temperature is below the set working temperature setpoint.

Set the protection temperature to a higher value.

Error message with ticker: > EXTERNAL SENSOR ALARM-CHECK EXTERNAL SENSOR <

External control was set but the Pt100 external senor was not connected or is

Error message with ticker: > CLEAN CONDENSER OR CHECK COOLING W ATER <

Insufficient cooling of condenser. Clean the air-cooled condenser. Check the flow and the temperature of the cooling water of a water-cooled condenser.

Error message with ticker: > COMPRESSOR FAILURE-CHECK REFRIGERATOR <

Stage 1 of the compressors does not work. Automatic restart after short cool-down, message E 21 goes off.

Stage 2 of the compressor does not work. Cooling machine – overload protection

The driving motor of the cooling compressor is equipped with an overload protection which is triggered by increased internal temperatures or excessive current consumption.

Shutdown can be caused by

- insufficient ventilation,

- insufficient wall distance,

- soiled condenser,

- high room temperature

- switching off and on in short sequence

Excess temperature in stage 1 of the compressor.

Excess temperature in stage 2 of the compressor.

Short circuit of control line to cooling machine during self-test.

Page 70

Troubleshooting guide / error messages

short-circuited

1545

4 s

By quickly switching off and restarting the unit the alarm is cancelled.

In this case please call the JULABO Technical Service or an authorized dealer.

Warning:

Only use fine fuses with a nominal value as specified.

Manufacturer

Supplier

Type

Order No.

Schurter

G-fuse insert SPT T16A 5x20mm

No. 0001.2516

Wickmann

G- fuse insert T10,0A 5x20 mm

No. 19195

Error message with ticker: > SAFETY SENSOR ALARM-CALL SERVICE <

The cable of the excess temperature protector has been disconnected or

Ext. Pt100 sensor input without signal, but setpoint programming set to external Pt100.

Error message with ticker: > LOW LEVEL WARNING-FILL MEDIUM <

The early warning system for low level reports a critical fluid level. Refill bath fluid.

If the error occurs once more after the restart, a remote diagnosis is required.

Error message with ticker: > CONFIGURATION ERROR-PRESS OK<

The configuration of the circulator does not correspond with its current application.

Press the

key for a non-recurring, au tomatic chang e of the

configuration.

Disturbances that are not indicated.

The electronic pump motor is overload-protected by an electronic current limiter. If viscosity of the bath fluid is or becomes too high, the motor stops running.

Before exchanging the fuses, turn off the mains power switch and disconnect the power plug from the mains socket!

Fuses: The mains fuses on the rear of the unit may easily be exchanged as

shown on the left. Circulator: Fine fuses T 16 A , dia.5 x 20 mm

Cooling machine: Fuse T 10.0 A, dia.5 x 20 mm

Example:

Page 71

cellular phones).

Shield Plug

Look on

soldering side.

Pt100

remote control of the circulator.

9 6

RS232 interface cable

8 980 073

RS232 interface cable 9-pol./9-pol. , 2,5 m

8 900 110

USB interface adapter cable

11. Elec tr ical connections

Notice:

Use shielded cables only. The shield of the connecting cable is electrically connected to the plug housing. The unit ensures safe operation if connecting cables with a maximum length of 3 m are used. The use of longer cables does not affect proper performance of the unit, however external interferences may have a negative impact on safe operation (e.g.

Socket for external Pt100 sensor

Pin assignment:

ext. Pt100

Pin Signal 1 I+ 2 U+ 3 U 4 I-

The shield of the connecting cable is electrically connected to the plug housing and the sensor tube.

RS232C

Accessories: Order No. Description

RS232 serial interface

This port can be used to connect a computer with an RS232 cable for

Pin assignments RS232: Pin 2 RxD Receive Data

Pin 3 TxD Transmit Data Pin 5 0 V Signal GND Pin 7 RTS Request to send Pin 8 CTS Clear to send

Pin 1; 4; 6, 9 Reserved - do not use!

Circulator (9-pol) PC (9-pol) Pin 2 RxD ⇔ Pin 3 TxD Pin 3 TxD ⇔ Pin 2 RxD Pin 5 GND ⇔ Pin 5 G ND Pin 7 RTS ⇔ Pin 8 CTS Pin 8 CTS ⇔ Pin 7 RTS

Page 72

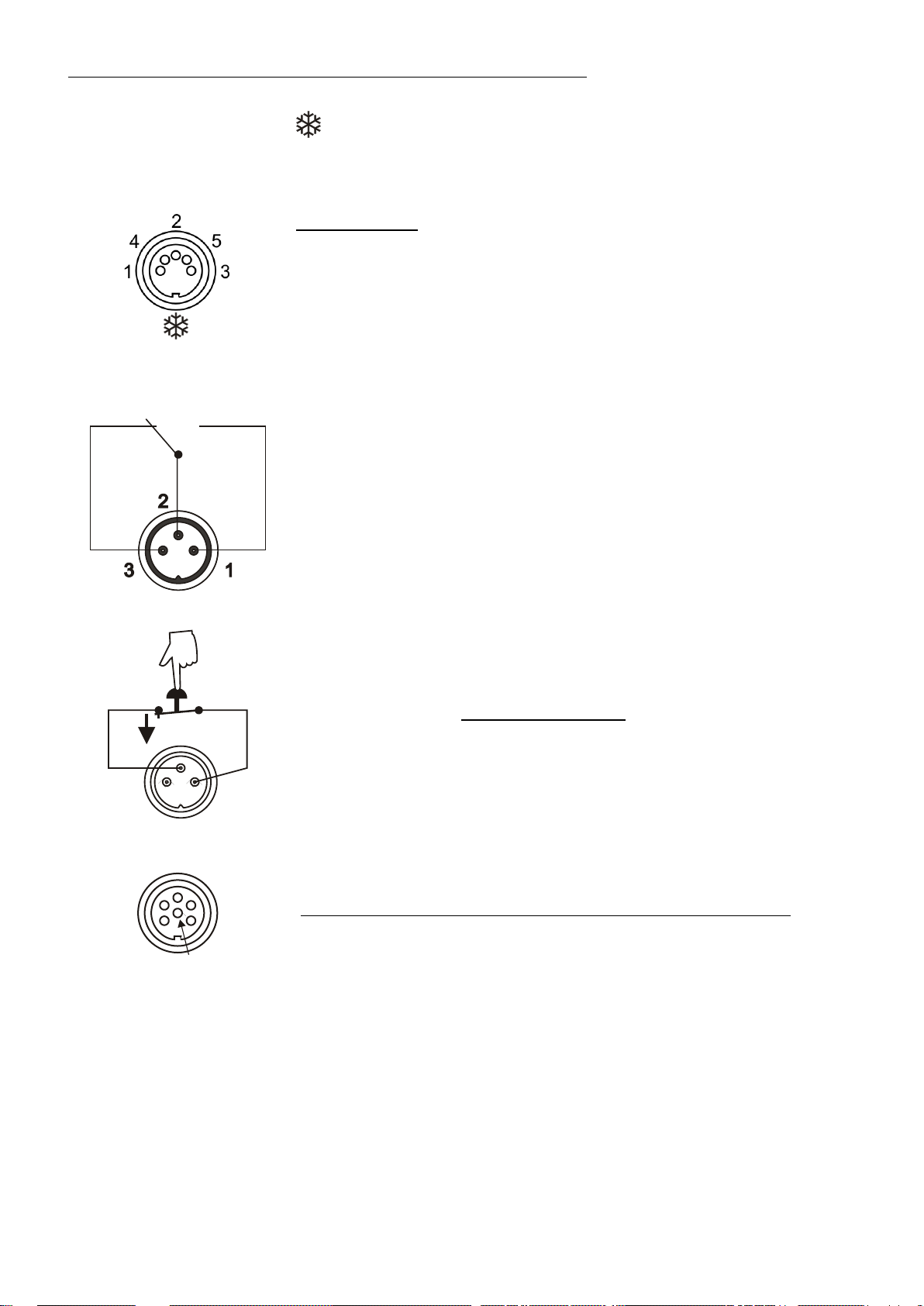

Electrical connections

STAND-BY

STAND-BY input

/ Control output

The connector may only be used for control of a JULABO refrigerated circulator or JULABO MVS Solenoid valve controller for cooling water.

Pin assignment: Pin Signal (only with attached JULABO equipment)

1 +24 V (I max. current 25 mA) 2 0 V 3 Alarm relay 4 Reserved - do not use! 5 Cooling pulse

Alarm output

(for external alarm signal) This potential-free change-over contact is activated in case of an alarm

when pins 2 and 3 are connected.

REG+E-PROG

ALARM

Switching capacity max. 30 W / 40 VA Switching voltage max. 125 V∼/− Switching current max. 1 A

Functional description see page 66

(for external emergency switch-off) Pin assignment: Pin Signal

1 not connected 2 5 V / DC 3 0 V

Functional description see page 6

Programmer input / temperature recorder output

Pin Signal 1 Voltage output Channel 1 0 ... 10 V 2 Voltage output Channel 2 0 ... 10 V 3 GND for outputs 0 V 4 Programmer input EPROG 0 to 10 V / 0 to 20 mA 5 Current output Channel 3 0 to 20 mA / 4 to 20 mA 6 GND for Progamm er 0 V

Functional description see page 63

Page 73

12. Remote c ont rol

9 6

3. Connect both units with an interface cable..

Like all parameters which can be entered through the keypad, interface parameters are stored in memory even after the circulator is turned off.

If the circulator is put into remote control mode via the configuration level, the

In remote control mode, the start command and all values to be set must be

A transfer sequence consists of:



To ensure a safe data transfer, the time gap between two commands should

The out commands are valid only in remote control mode.

Response from the circulator: 55.5↵

12.1. Setup for remote control

1. Check the interface parameters for both interfaces (on circulator and PC) and make sure they match.

RS232C

(Serial interface refer to page 50)

2. In the menu > MENU CONFIG < set

the menu item

12.2. Communication with a PC or a superordinated data system

VFD COMFORT-DISPLAY will read “R -OFF-” = REMOTE STOP. The circulator is now operated via the computer. In general, the computer (master) sends commands to the circulator (slave). The circulator sends data (including error messages) only when the computer sends a query.

resent by the PC via the interface in case of a power int er ruption. AUTOSTART is not possible.

• command

• space (

; Hex: 20)

⇔

• parameter (decimal separation with a period)

• end of file (↵; Hex: 0D)

The commands are divided into in and out commands. in commands: r et r ieve parameters out commands: set parameters

Important times for a command transmission:

be at least 250 ms. The circulator automatically responds to an in command with a data string followed by a LF (Line Feed). The next command should only be sent after 10 ms.

Command to set the working temperature > SETPNT 1< to 55.5 °C OUT_SP_00 ⇔ 55.5↵ Command to retrieve the working temperature > SETPNT 1< IN_SP_00↵

Page 74

Remote control

Temperature control by using the stored parameters.

Single selftuning of controlled system after the next start.

setpoint is to be reached.

Voltage 0 V ... 10 V

Current 0 mA ... 20 mA

-99.99 ... +100 [%]

12.3. List of commands

OUT commands: Setting temperature values or parameters.

Command Parameter Response of circulator OUT_MODE_01 0 Use working temperature > SETPNT 1< OUT_MODE_01 1 Use working temperature > SETPNT 2< OUT_MODE_01 2 Use working temperature > SETPNT 3< OUT_MODE_02 0 Selftuning „off“.

OUT_MODE_02 1 Selftuning „once“

OUT_MODE_02 2 Selftuning „always“

Continual selftuning of controlled system whenever a new

OUT_MODE_03 0 Set external programmer input to voltage.

OUT_MODE_03 1 Set external programmer input to current.

OUT_MODE_04 0 Temperature control of internal bath. OUT_MODE_04 1 External control with Pt100 sensor. OUT_MODE_05 0 Stop the unit = R –OFF-. OUT_MODE_05 1 Start the unit. OUT_MODE_08 0 Set the control dynamics - aperiodic OUT_MODE_08 1 Set the control dynamics - standard

OUT_SP_00 xxx.xx Set working temperature. „SETPNT 1“ OUT_SP_01 xxx.xx Set working temperature. „SETPNT 2“ OUT_SP_02 xxx.xx Set working temperature. „SETPNT 3“

OUT_SP_03 xxx.xx Set high temperature warning limit „OverTemp“ OUT_SP_04 xxx.xx Set low temperature warning limit „SubTemp“ OUT_SP_06 xxx.xx Set manipulated variable for the heater via serial interface

OUT_SP_07 x Set the pump pressure stage. (1 ... 4) OUT_PAR_04 x.x CoSpeed for external control 0 ... 5.0 OUT_PAR_06 xxx Xp control parameter of the internal controller. 0.1 ... 99.9 OUT_PAR_07 xxx Tn control parameter of the internal controller. 3 ... 9999 OUT_PAR_08 xxx Tv control parameter of the internal controller. 0 ... 999 OUT_PAR_09 xxx Xp control parameter of the cascade controller. 0.1 ... 99.9 OUT_PAR_10 xxx Proportional portion of the cascade controller. 1 ... 99.9 OUT_PAR_11 xxx Tn control parameter of the cascade controller. 3 ... 9999

Page 75

Command Parameter Response of circulator

used.

(REG+E-PROG) .

after start.

sensor

OUT_PAR_12 xxx Tv control parameter of the cascade controller. 0 ... 999 OUT_PAR_13 xxx Maximum internal temperature of the cascade controller. OUT_PAR_14 xxx Minimum internal temperature of the cascade controller. OUT_PAR_15 xxx Band limit (upper) 0 ... 200 °C OUT_PAR_16 xxx Band limit (lower) 0 ... 200 °C OUT_HIL_00 -xxx Set the desired maximum cooling power (0 % to 100 %).

Note: Enter the value with a preceding negative sign! This adjustment only makes sense if FP refrigerating units are

OUT_HIL_01 xxx Set the desired maximum heating power (10 % to 100 %).

IN commands: Asking for parameters or temperature values to be displayed.

Command Parameter Response of circulator VERSION none Number of software version (V X.xx)

STATUS none Status message, error message (see page 77) IN_PV_00 none Actual bath temperature. IN_PV_01 none Heating power being used (%). IN_PV_02 none Temperature value registered by the external Pt100 sensor. IN_PV_03 none Temperature value registered by the safety sensor. IN_PV_04 none Setpoint temperature of the excess temperature protection

IN_SP_00 none Worki ng tempe rature „SETP 1“ IN_SP_01 none Working temperature „SETP 2“ IN_SP_02 none Working temperature „SETP 3“ IN_SP_03 none High temperature warning limit „OverTemp“ IN_SP_04 none Low temperature warning limit „SubTemp“ IN_SP_05 none Setpoint temperature of the external programmer

IN_SP_07 none 1. Adjusted pump stage in the -OFF- condition.

IN_SP_08 none Value of a flowrate sensor connected to the E-Prog input

IN_PAR_00 none Temperature difference between working sensor and safety

IN_PAR_01 none Te - Time constant of the external bath. IN_PAR_02 none Si - Internal slope IN_PAR_03 none Ti - Time constant of the internal bath.

2. Pump stage corresponding to the effective rotation speed

Page 76

Remote control

temperatures in the internal bath and external system).

Ratio of max. cooling capacity versus max. heating capacity

controller.

through an external programmer

2 = Selftuning „alwayS“

1 = Current 0 mA to 20 mA

1 = Temperature control with external Pt100 sensor.

1 = Start

1 = standard

Command Parameter Response of circulator IN_PAR_04 none CoSpeed - Band limit (max. difference between the

IN_PAR_05 none Factor pk/ ph0:

IN_PAR_06 none Xp control parameter of the internal controller. IN_PAR_07 none T n control parameter of the internal controller. IN_PAR_08 none T v control parameter of the internal controller. IN_PAR_09 none Xp control parameter of the cascade controller. IN_PAR_10 none Proportional portion of the cascade controller. IN_PAR_11 none Tn control parameter of the cascade controller. IN_PAR_12 none Tv control parameter of the cascade controller. IN_PAR_13 none Adjusted maximum internal temperature of the cascade

IN_PAR_14 none Adjusted minimum internal temperature of the cascade

IN_PAR_15 none Band limit (upper) IN_PAR_16 none Band limit (lower) IN_MODE_01 none Selected setpoint:

0 = SETP 1 1 = SETP 2 2 = SETP 3 3 = Last setpoint setting was carried out

IN_MODE_02 none Selftuning type:

0 = Selftuning „off“ 1 = Selftuning „once“

IN_MODE_03 none Type of the external programmer input:

0 = Voltage 0 V to 10 V

IN_MODE_04 none Internal/external temperature control:

0 = Temperature control with internal sensor.

IN_MODE_05 none Circulator in Stop/Start condition:

0 = Stop

IN_MODE_08 none Adjusted control dynamics

0 = aperiodic

IN_HIL_00 none Max. cooling power (%). IN_HIL_01 none Max. heating power (%).

Page 77

Status messages

00 MANUAL STOP

Circulator in „OFF“ state.

01 MANUAL START

Circulator in keypad control mode.

02 REMOTE STOP

Circulator in „r OFF“ state.

03 REMOTE START

Circulator in remote control mode.

-05 WORKING SENSOR ALARM

-07 I2C-BUS ERROR

Internal error when reading or writing the I2C bus.

-10 VALUE TOO SMALL

-13 WARNING : VALUE EXCEEDS

-14 EXCESS TEMPERATURE

-15 EXTERNAL SENSOR ALARM 1 DOES NOT WORK

12.4. Status messages

12.5. Error messages

Description

Error messages

-01 LOW LEVEL ALARM

-02 REFRIGERATOR ALARM

-03 EXCESS TEMPERATURE WARNING

-04 LOW TEMPERATURE WARNING

-06 SENSOR DIFFERENCE ALARM

-08 INVALID COMMAND

-09 COMMAND NOT ALLOWED IN CURRENT OPERATING MODE

-11 VALUE TOO LARGE

-12 TEMPERATURE MEASUREMENT ALARM

Description Low liquid level alarm. Control cable of the refrigerated circulator or MVS

solenoid valve controller short-circuited or interrupted. High temperature warning.

Low temperature warning. Working temperature sensor short-circuited or interrupted. Sensor difference alarm.

Working temperature and safety sensors report a temperature difference of more than 35 K.

Invalid command. Invalid command in current operating mode.

Entered value too small. Entered value too large. Error in A/D converter.

TEMPERATURE LIMITS

PROTECTOR ALARM

-20 WARNING: CLEAN CONDENSOR OR CHECK COOLING WATER CIRCUIT OF REFRIGERATOR

-21 WARNING: COMPRESSOR STAGE

-22 WARNING: COMPRESSOR STAGE 2 DOES NOT WORK

Value lies outside the adjusted range for the high and low temperature warning limits. But value is stored.

Excess temperature protector alarm External control selected, but external Pt100 sensor not

connected. Cooling of the condenser is affected.

Clean air-cooled condenser. Check the flow rate and cooling water temperature on water-cooled condenser.

Compressor stage 1 does not work.

Compressor stage 2 does not work.

Page 78

Installation of electronic module

Error messages

-23 WARNING: HIGH TEMPERATURE PROGRAMMING ALAR M

Caution:

carried out by qualified personnel.

ALARM

REG+

E-PROG

STAND-BY

ON COMPRESSOR STAGE 1

Description Excess temperature on compressor stage 1.

-24 WARNING: HIGH TEMPERATURE

Excess temperature on compressor stage 2.

ON COMPRESSOR STAGE 2

-25 REFRIGERATOR WARNING

-26 WARNING: STAND-BY PLUG IS MISSING

-30 CONFIGURATION ERROR: CONFIRM BY PRESSING <OK> ON CIRCULATOR

Error in the cooling machine. External standby contact is open.

(see page 66 and 72) The configuration of the circulator does not conform to its

present use. Press >OK< to automatically perform a single modification of the configuration.

-33 SAFETY SENSOR ALARM Excess temperature sensor short-circuited or interrupted.

-38 EXTERNAL SENSOR SETPOINT

Ext. Pt100 sensor input without signal and setpoint programming set to external Pt100.

-40 NIVEAU LEVEL WARNUNG

Low liquid level warning in the internal reservoir.

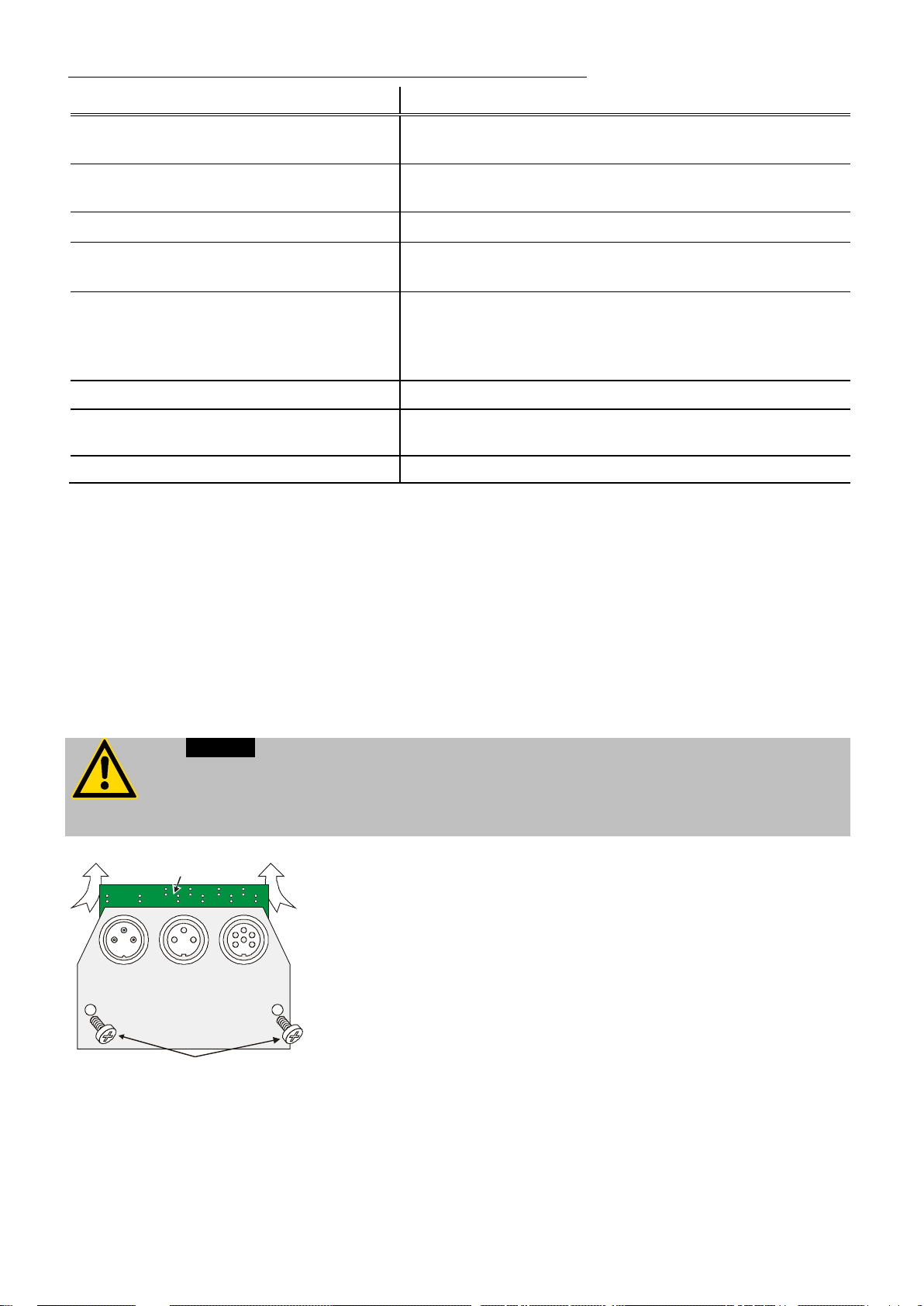

13. Insta llation of electronic module

Always turn off the unit and disconnect the mains cable from the power source before performing any service or maintenance procedures, or before moving the unit. Configuration, installation, maintenance and repairs on the circulator may only be

• Turn off the unit with the mains switch and disconnect the power plug.

• Open the screws (A) and remove the dummy plate.

• Carefully insert the upper edge (B) into the rear panel from

below, align the electronic module at top and bottom and applying light pressure connect the 15-pole connector.

• Attach the electronic module using the screws (A).

• The circulator is ready for use. It automatically recognizes the

installed electronic module.

Page 79

settings are made.

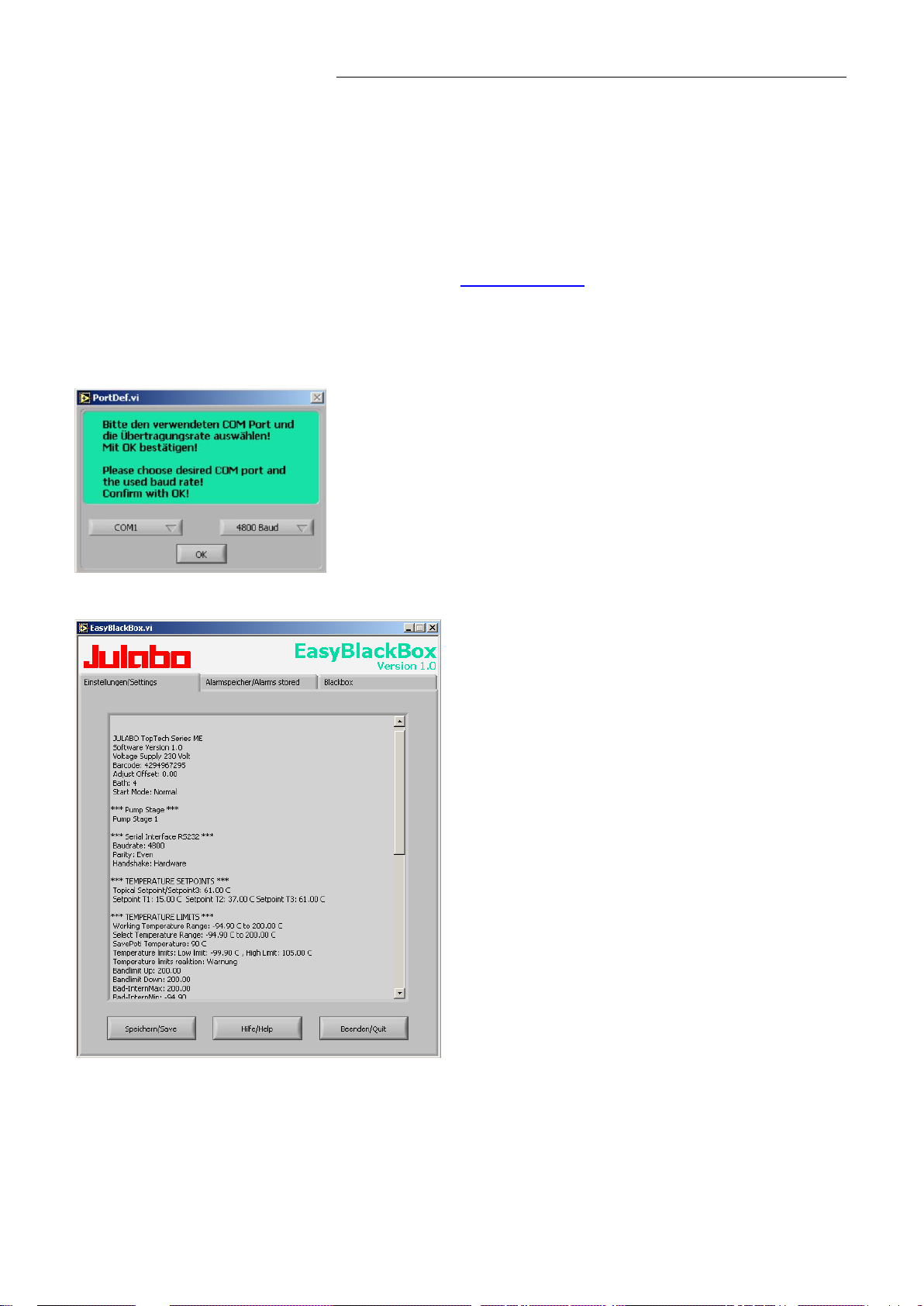

14. JULABO Service – Online remote diagnosis

JULABO circulators of the HighTech series are equipped with a black box. This box is implemented in the controller and records all significant data for the last 30 minutes. In case of a failure, this data can be read out from the unit by using special software. This software is available as a free download from www.julabo.com

• Installation is easy and is performed step by step. Please observe the instructions.

\ EasyBlackBox.

• Data read-out is possible in the conditions “OFF”, “R OFF” or “ALARM”.

• Connect the circulator to the computer using an interface cable.

• Start the EasyBlackBox program.

The program asks for the port used (COM1, ......) and the baud

rate of the unit. You do not have this information on hand? Simply try it out! The program continues to send the request until the correct

• Data is read out and shown on the monitor divided in the sections >Einstellungen/Settings<, >Alarmspeicher/Alarms stored<, >Blackbox<

 see example

• After pressing >Speichern/Save< a text file is compiled. The program proposes a filename >C:\model description and barcode no.<. Modifications are possible.

• E-mail this file to ServiceUSAus@Julabo.com, JULABO's service department. JULABO is thus able to provide rapid support.

Page 80

Cleaning / repairing the unit

Caution:

personnel only.

time.

insufficient packing.

JULABO reserves the right to carry out technical modifications with repairs for providing improved performance of a unit.

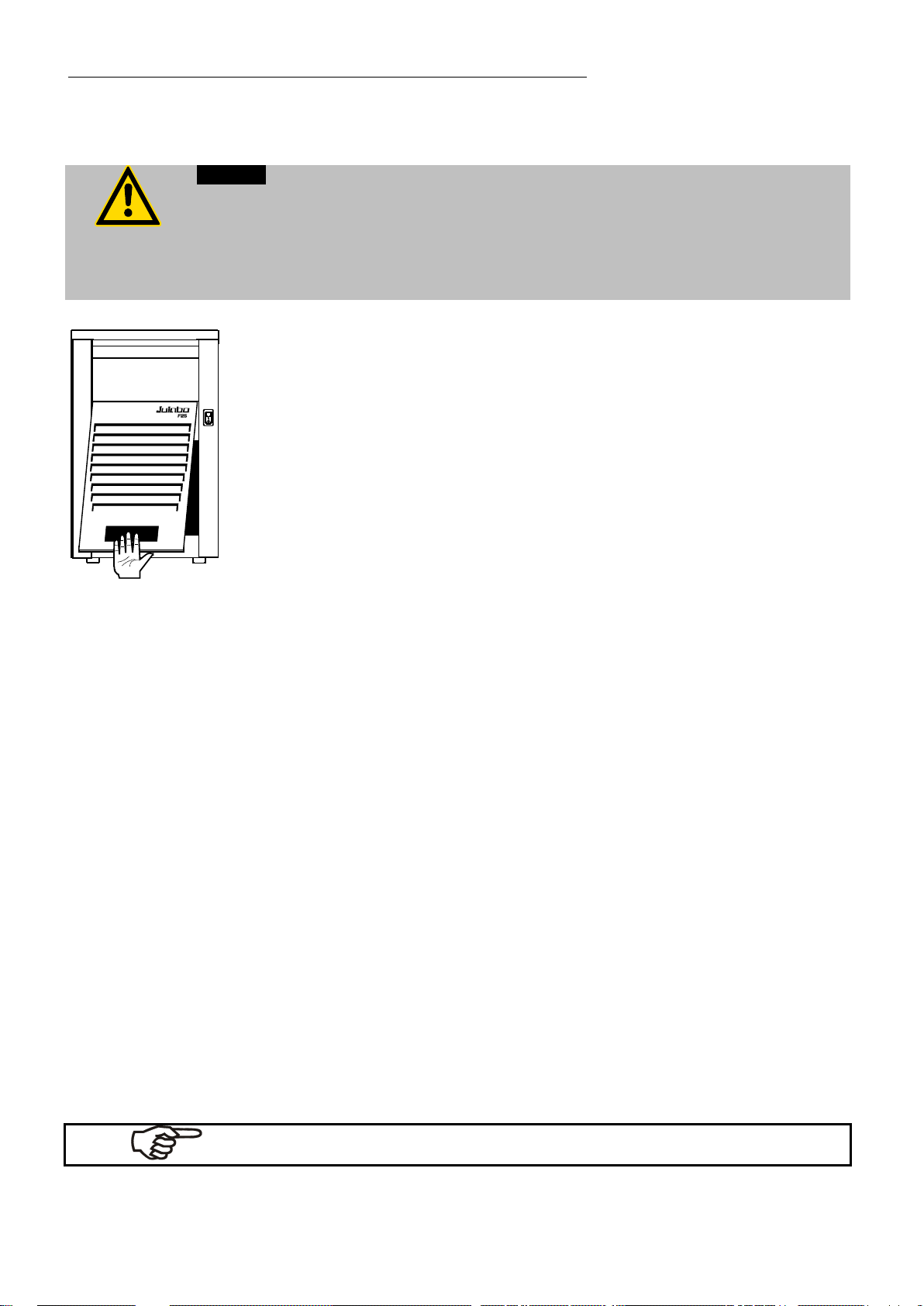

15. Cleaning / repairing the unit

• Always turn off the unit and disconnect the mains cable from the power source

before cleaning the unit.

• Prevent humidity from entering into the circulator.

• Electrical connections and any other work must be performed by qualified

To maintain the full cooling performance, clean the condenser from time to time.

• Switch off the unit, disconnect mains power cable.

• Hold the venting grid, pull out and remove.

• Clean the ribbed condenser with a vacuum cleaner.

• Replace the venting grid.

• Switch on the unit.

Cleaning:

For cleaning the bath tank and the immersed parts of the circulator, use low surface tension water (e.g., soap suds). Clean the outside of the unit using a wet cloth and low surface tension water.

The circulator is designed for continuous operation under normal conditions. Periodic maintenance is not required.

The tank should be filled only with a bath fluid recommended by JULABO. To avoid contamination, it is essential to change the bath fluid from time to

Repairs Before asking for a service technician or returning a JULABO

instrument for repair, please contact an authorized JULABO service station.

When returning the unit:

• Clean the unit in order to avoid any harm to the service personnel.

• Attach a short fault description.

• During transport the unit has to stand upright. Mark the packing

correspondingly.

• When returning a unit, take care of careful and adequate packing.

• JULABO is not responsible for damages that might occur from

Page 81

16. WARRANTY PROVISIONS

The following Warranty Provisions shall apply to products sold in North America by Julabo (“Seller”) to the entity shown as buyer (“Buyer”) on Seller’s invoice.

1. Initial Warranty. Upon Seller’s receipt of payment in full for the products and subject to Buyer’s compliance with the terms of sale and any other agreement with Seller relating to the products, Seller warrants to the Buyer that the products manufactured by the Seller are free from defects in material and workmanship for a period not to exceed two (2) years or ten thousand (10,000) hours of operation, whichever comes first, from the date the product is shipped by Seller to Buyer (the “Initial Warranty”).

2. EXCLUSION OF ALL OTHER EXPRESS WARRANTIES; EXCLUSION OF ALL IMPLIED

WARRANTIES. OTHER THAN THE INITIAL WARR ANTY, NO OTHER EXPRESS WARRANTIES ARE MADE. ALL IMPLIED WARRANTIES O F EVERY TYPE AND KIND, INCLU DING BUT NO T LIMITED TO ANY IMP LIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, ARE EXCLUDED IN ALL RESPECTS AND FOR ALL P URPOS ES. SELLE R DISCLAIMS AND M AKES NO IMPLI ED WARRANTIES WHATSOEVER.

3. Exclusions. The Initial Warranty does not include damage to the product resulting from accident, misuse, improper installation or operation, unauthorized or improper repair, replacement or alteration (including but not limited to repairs, replacements, or alterations made or performed by persons other than Seller’s employees or authorized representatives), failure to provide or use of improper maintenance, unreasonable use or abuse of the product, or failure to follow written installation or operating instructions. Buyer must return the product’s record of purchase to the Seller or one of Seller’s authorized representatives within thirty (30) days of the date the product is shipped by Seller to Buyer in order to make a claim under the Initial Warranty. Notwithstanding anything contained herein to the contrary, all glassware, including but not limited to reference thermometers, are expressly excluded from the Initial Warranty.

4. Buyer’s sole remedies; Limitations on Seller’s Liability. Buyer’s sole and exclusive remedy under the Initial Warranty is strictly limited, in Seller’s sole discretion, to either: (i) repairing defective parts; or (ii) replacing defective parts. In either case, the warranty period for the product receiving a repaired or replaced part pursuant to the terms of the Initial Warranty shall not be extended. All repairs or replacements performed by Seller pursuant to these Warranty Provisions shall be performed at Seller’s facility in Allentown, Pennsylvania, U.S.A. or at the facility of an authorized representative of Seller, which location shall be determined by Seller in its sole discretion; provided, however, that Seller may, in its sole discretion perform such repairs or replacements at Buyer’s facility in which case Buyer shall pay Seller’s travel, living and related expenses incurred by Seller in performing the repairs or replacements at Buyer’s facility. As a condition precedent to Seller’s obligation to repair or replace a product part under the Initial Warranty, Buyer shall (i) promptly notify Seller in writing of any such defect; (ii) shall have returned the product’s record of purchase to Seller or to one of Seller’s authorized representatives within thirty (30) days of the date the product is delivered to Buyer; and (iii) assist Seller in all respects in its attempts to determine the legitimacy and basis of any claims made by or on behalf of Buyer including but not limited to providing Seller with access to the product to check operating conditions. If Buyer does not provide such written notice to Seller within the Initial Warranty period or fails to return the product’s record of purchase as set forth above, Seller shall have no further liability or obligation to Buyer therefore. In no event shall Seller’s liability under the Initial Warranty exceed the original purchase price of the product which is the subject of the alleged defect.

5. THE REMEDIES PRO VIDED IN THE INITIAL WARRANTY ARE THE SOLE AND EXCLUSIVE REMEDIES AVAILABLE TO THE BUYER. NOTWITHSTANDING ANYTHING TO THE CONTRARY CONTAINED HEREIN, AND EVEN IF THE SOLE AND EXCLUSIVE REMEDIES FAIL OF THEIR ESSENTIAL PURPOSE FOR ANY REASON WHATSOEVER, IN NO EVENT SHALL SELLER BE LIABLE FOR BUYER’S MANUFACTURING COSTS, LOST PROFITS, G OODWILL, OR ANY OTHER SPECIAL, INDIRECT, PUNITIVE,

Page 82

WARRANTY PROVISIONS

INCIDENTAL OR CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY AND ALL SUCH DAMAGES ARE HEREBY DISCLAIMED.

6. Assignment. Buyer shall not assign any of its rights or obligations hereunder without the prior written approval of Seller; provided, however, that if Buyer is a distributor of Seller, the rights and obligations of Buyer under these Warranty Provisions shall inure to the benefit of and be binding upon Buyer’s customers who provide the product’s proof of purchase to Seller pursuant to the terms set forth herein. Seller may assign any or all of its rights or obligations hereunder witho ut Buyer ’ s pr i or cons ent.

7. Governing Law. The Warranty Provisions and all questions relating to their validity, interpretation, performance, and enforcement shall be construed in accordance with, and shall be governed by, the substantive laws of the Commonwealth of Pennsy l vani a w it hout r egar d to i ts pr i nc iples of confl i ct s of l aw.

8. Waiver. Any failure of the part of Seller to insist on strict compliance with the Warranty Provisions shall no way constitute a waiver of suc h right . No cl aim or rights ar ising out of a br each of the Warranty Provisions by Buyer may be discharged in whole or in part by a waiver of the claim or right, unless the waiver is in writing signed by an authorized representative of Seller. Seller’s waiver or acceptance of any breach by Buyer of any provisions of the Warranty Provisions shall not constitute a waiver of or an excuse for nonperformance as to any other provision of the Warranty Provisions nor as to any prior or subs equent breach of the same provision.

9. Freight. Buyer will arrange and pay for shipping and handling charges for the unit to be returned to the Seller.Seller will arrange and pay for shi ppi ng an d ha ndl i ng for the r etur n of the u ni t to t he Buyer .

Julabo F25-HE, F32-HE, F34-HE, FP40-HE, FP50-HE Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Operating manual

1. Intended use

1.1. Description

Operator responsibility – Safety recommendations

2.1. Disposal

2.2. Technical specifications

2.3. Cooling water connection

Operating instructions

3. Safety notes for the user

3.1. Explanation of safety notes

3.2. Explanation of other notes

3.3. Safety recommendations

Operating controls and functional elements

Preparations

5.1. Installation

5.2. Bath fluids

5.3. Temperature application to external systems

5.4. Filling / draining

6. Operating pr oc edure s

6.1. Power connection

6.2. Switching on / Start - Stop

6.2.2. Switching on the Cooling Machine

7. Setting of temperatur es

7.2. Direct setting of temperatures

8. Safety installations , warning functions

8.1. Excess temperature protection

8.1.1. Early warning system, low level protection

8.2. Switch-over from warning to shutdown function

8.3. Over and Sub temperature warning function

9. Menu f unc t ions

9.1. MENU PROGRAM – START

9.2. MENU PROGRAM – creation, administration

9.3. MENU PUMP - Setting of pump pressure

9.4. MENU CONFIG - Configuration of unit

9.4.1. Remote control via the serial interface

9.4.2. Keypad control or setpoint setting via the analog input

9.4.3. AUTOSTART

9.4.4. OFF-MODE

9.4.5. ACTVAR - actuating variable

9.4.6. Setting of clock and date

9.4.7. RESET – Factory settings

9.5. MENU CONTROL – Control characteristics and parameters

9.5.1. CONTROL – Cont rol INTERNAL / EXTERNAL

9.5.2. SELFTUNING

9.5.3. Dynamic internal

9.5.4. Control parameters– XP-, TN-, TV- INTERNAL

9.5.5. COSPEED - external

9.5.6. Control parameters – XPU-, XP-, TN-, TV- EXTERNAL

9.6. MENU SERIAL - BAUDRATE, HANDSHAKE, PARITY

9.7. MENU ATC - Absolut Temperature Calibration

9.7.1. ATC SENSOR - INTERNAL / EXTERN AL

9.7.2. ATC STATUS - YES / NO

9.7.3. CALIBRATION TYPE: 1 -/ 2 -/ 3 POINT

9.7.4. Example: 3-point calibration for internal control

9.8. MENU LIMITS

9.8.1. Limits for internal control

9.8.2. Limits for external control

9.9. MENU IN/OUT – Analog inputs/outputs (Option)

9.9.1. Outputs of the connector - REG+E-PROG

9.9.2. Input of the connector - REG+E-PROG

9.9.3. ALARM-output / Stand-by-input

Troubleshooting guide / error messages

Status messages

Error messages

Installation of electronic module

Cleaning / repairing the unit
