JULABO ED-39 User Manual

English

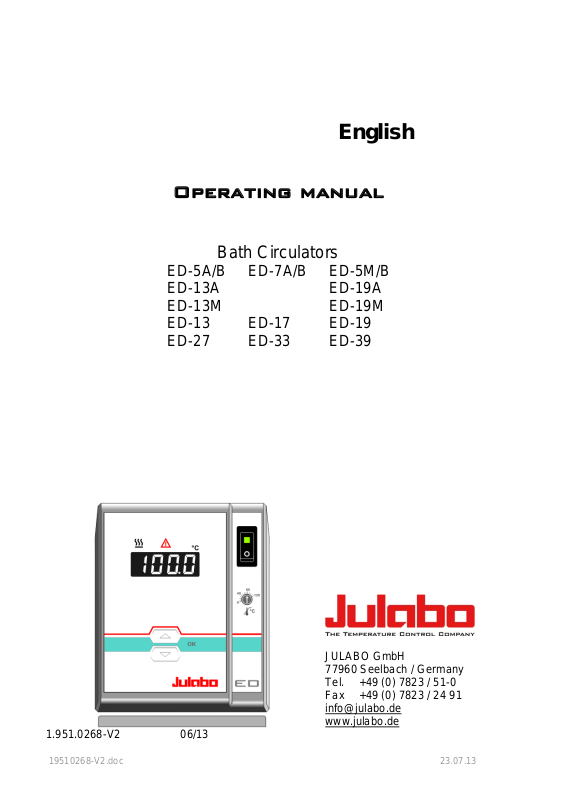

Operating manual

Bath Circulators

ED-5A/B ED-7A/B ED-5M/B ED-13A ED-19A ED-13M ED-19M ED-13 ED-17 ED-19 ED-27 ED-33 ED-39

JULABO GmbH 77960 Seelbach / Germany Tel. +49 (0) 7823 / 51-0 Fax +49 (0) 7823 / 24 91 info@julabo.de www.julabo.de

1.951.0268-V2 06/13

19510268-V2.doc 23.07.13

Congratulations!

You have made an excellent choice. JULABO thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our circulators. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

The JULABO Quality Management System

Temperature control devices for research and industry are developed, produced, and distributed according to the requirements of ISO 9001 and ISO 14001. Certificate Registration No. 01 100044846

Unpacking and inspecting

Unpack the circulator and accessories and inspect them for possible transport damage. Damage should be reported to the responsible carrier, railway, or postal authority, and a damage report should be requested. These instructions must be followed fully for us to guarantee our full support of your claim for protecting against loss from concealed damage. The form required for filing such a claim will be provided by the carrier.

Printed in Germany Changes without prior notification reserved

Important: keep operating manual for future use

TABLE OF CONTENTS

Operating manual .................................................................................................................... 4

1. Intended use ................................................................................................................... 4

1.1. Description .................................................................................................................. 4

2. Operator responsibility – Safety recommendations ......................................................... 4

2.1. Disposal ...................................................................................................................... 6

2.2. EC Conformity ............................................................................................................ 7

2.3. Warranty conditions .................................................................................................... 7

2.4. Technical specifications .............................................................................................. 8

Operating instructions ........................................................................................................... 11

3. Safety notes for the user ............................................................................................... 11

3.1. Explanation of safety notes ....................................................................................... 11

3.2. Explanation of other notes ........................................................................................ 11

3.3. Safety recommendations .......................................................................................... 12

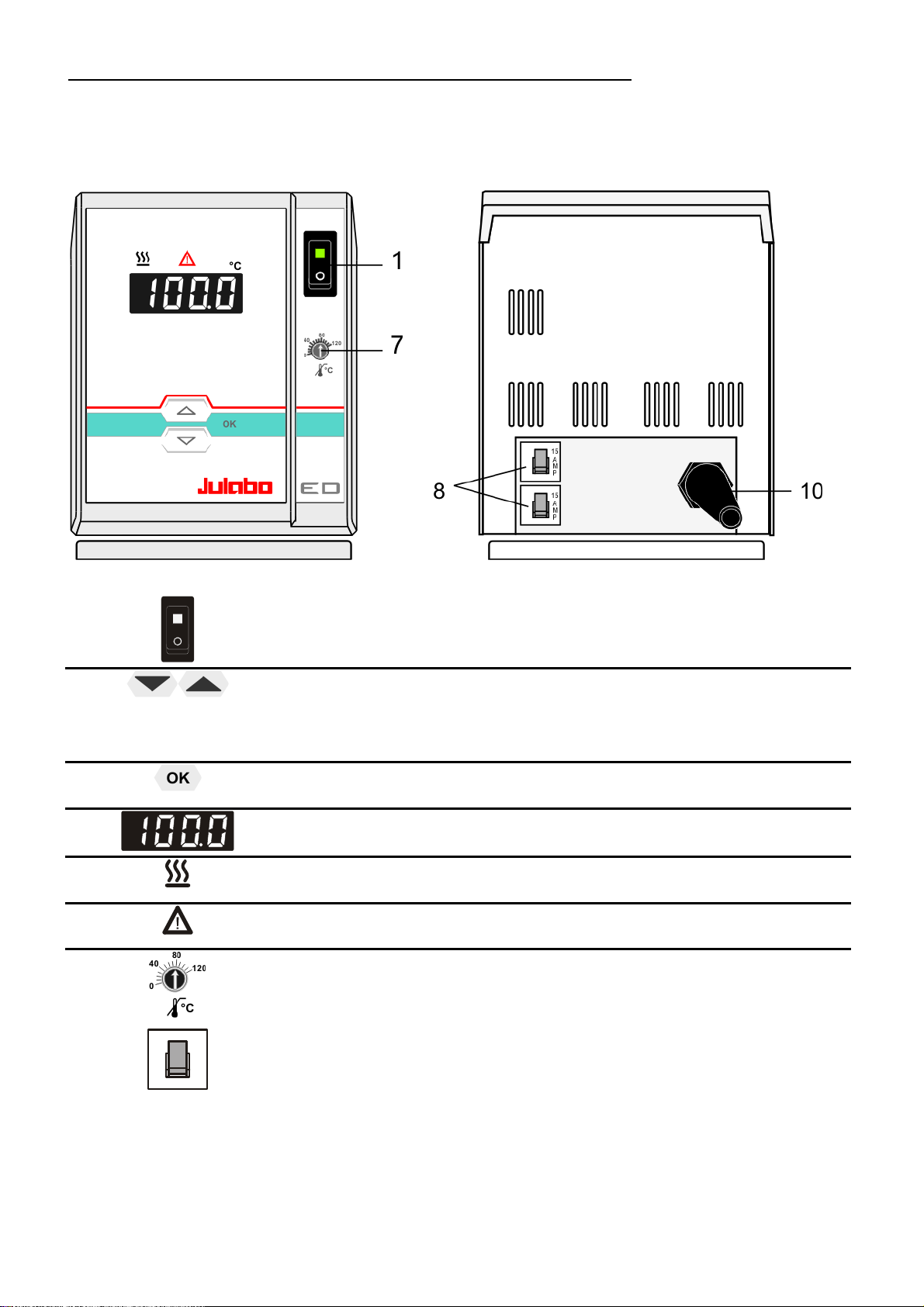

4. Operating controls and functional elements .................................................................. 14

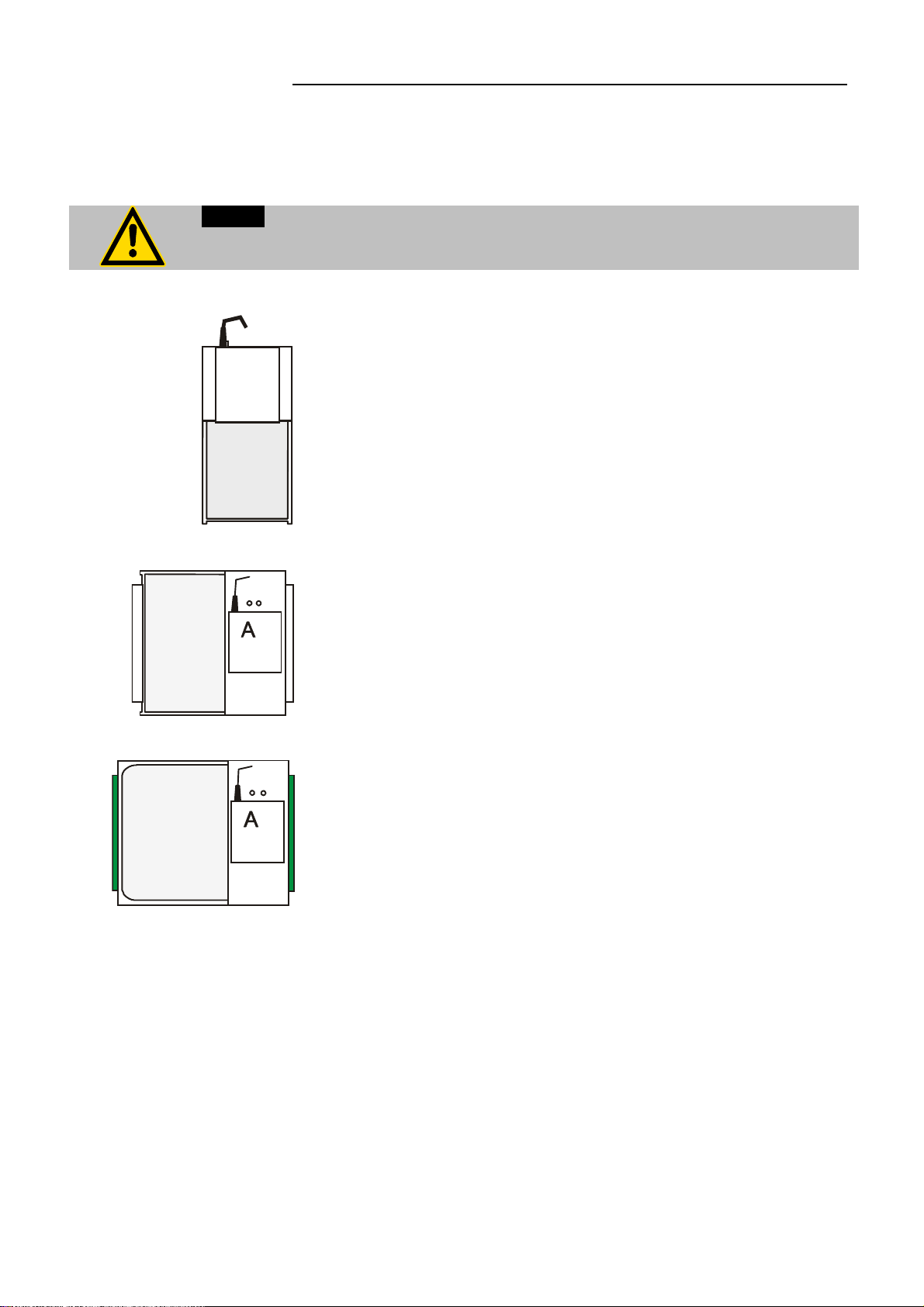

5. Preparations .................................................................................................................. 15

5.1. Installation ................................................................................................................. 15

5.2. Bath fluids ................................................................................................................. 16

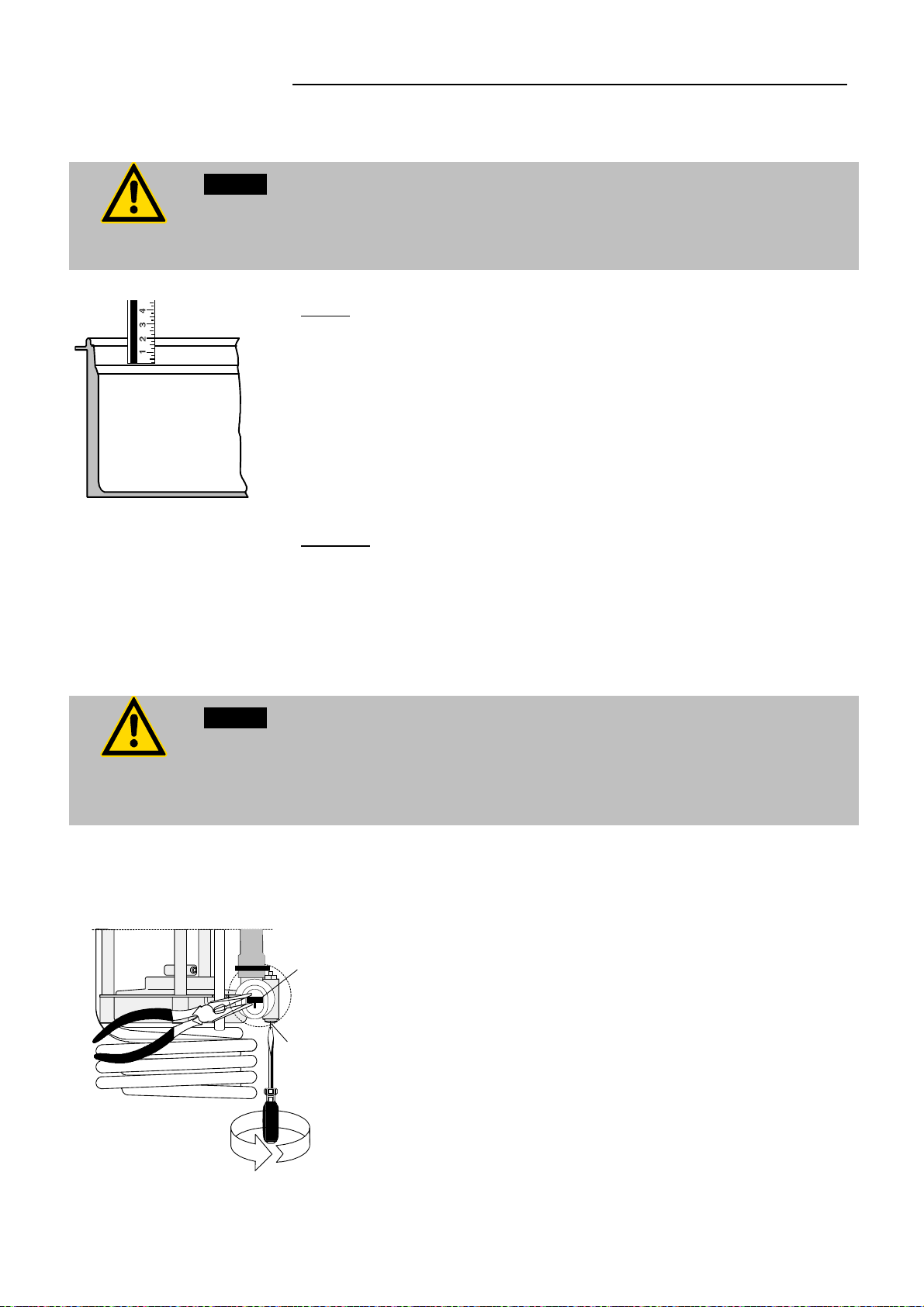

5.3. Filling / Draining ........................................................................................................ 17

5.4. Adjusting the pump flow ............................................................................................ 17

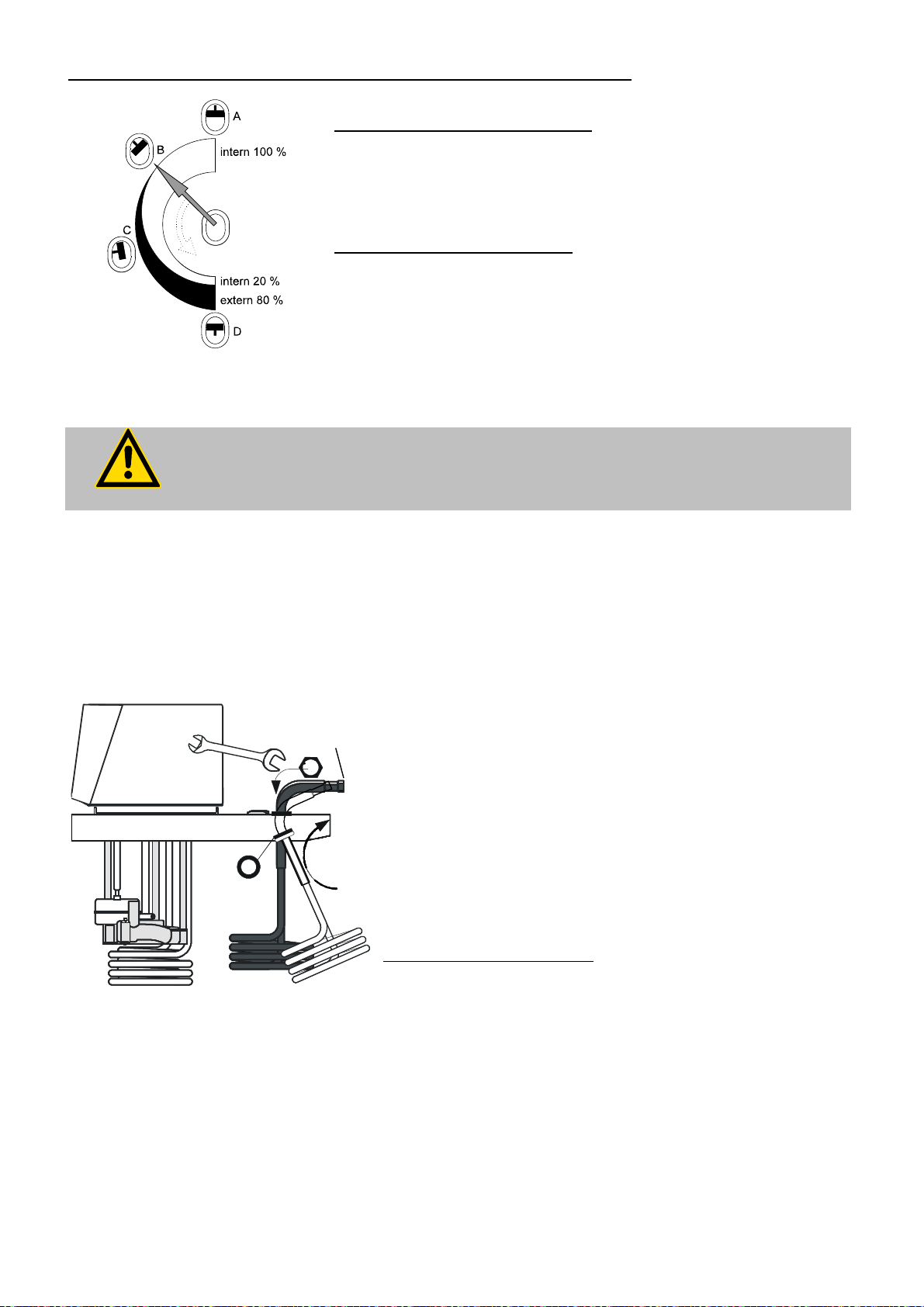

5.5. Countercooling .......................................................................................................... 18

6. Operating procedures ................................................................................................... 19

6.1. Power connection ..................................................................................................... 19

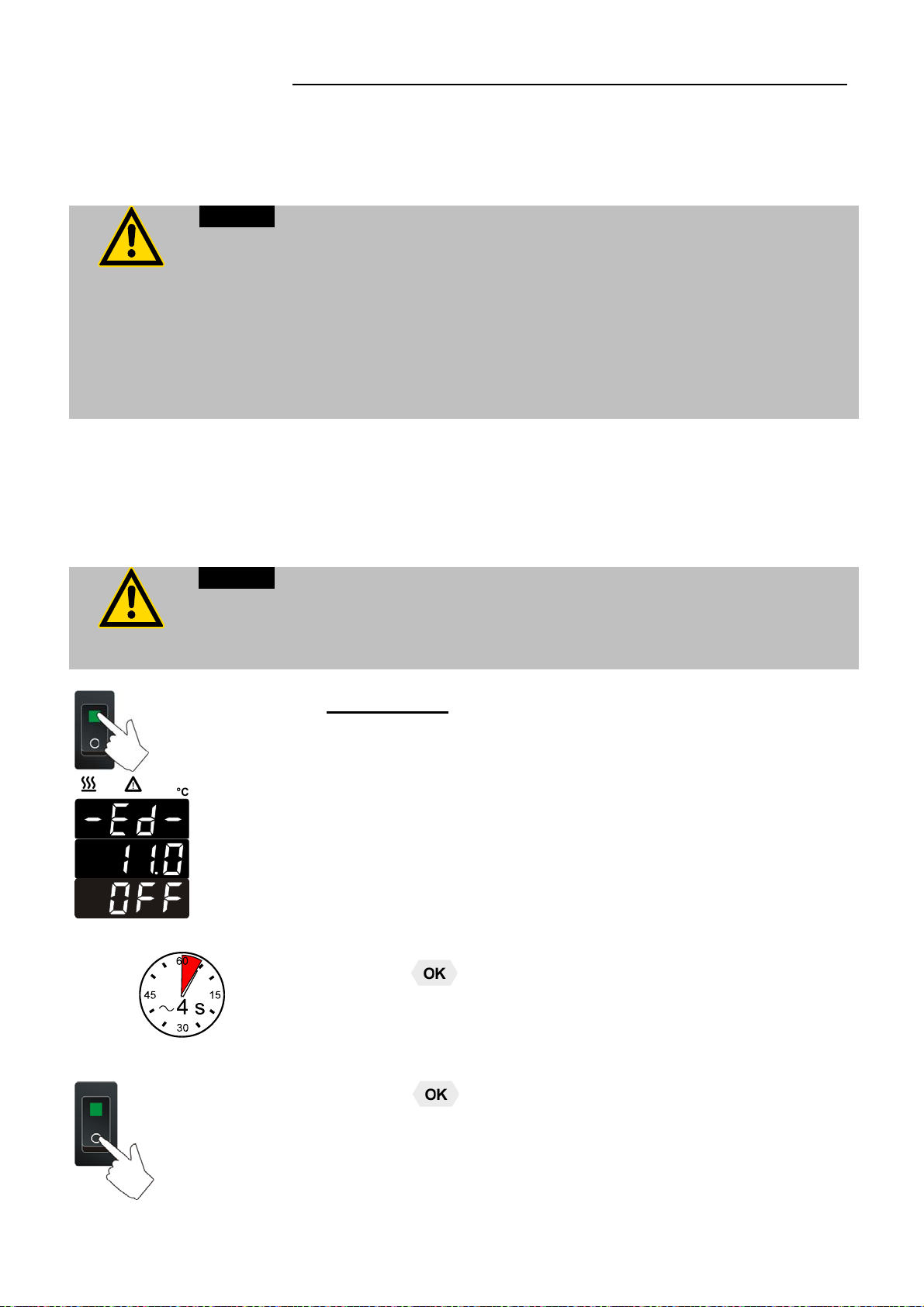

6.2. Switching on / Start – Stop ........................................................................................ 19

6.3. Automatic / non-automatic start mode ...................................................................... 20

6.4. Setting the temperatures ........................................................................................... 21

6.5. Safety installations according to IEC 61010-2-010 ................................................... 21

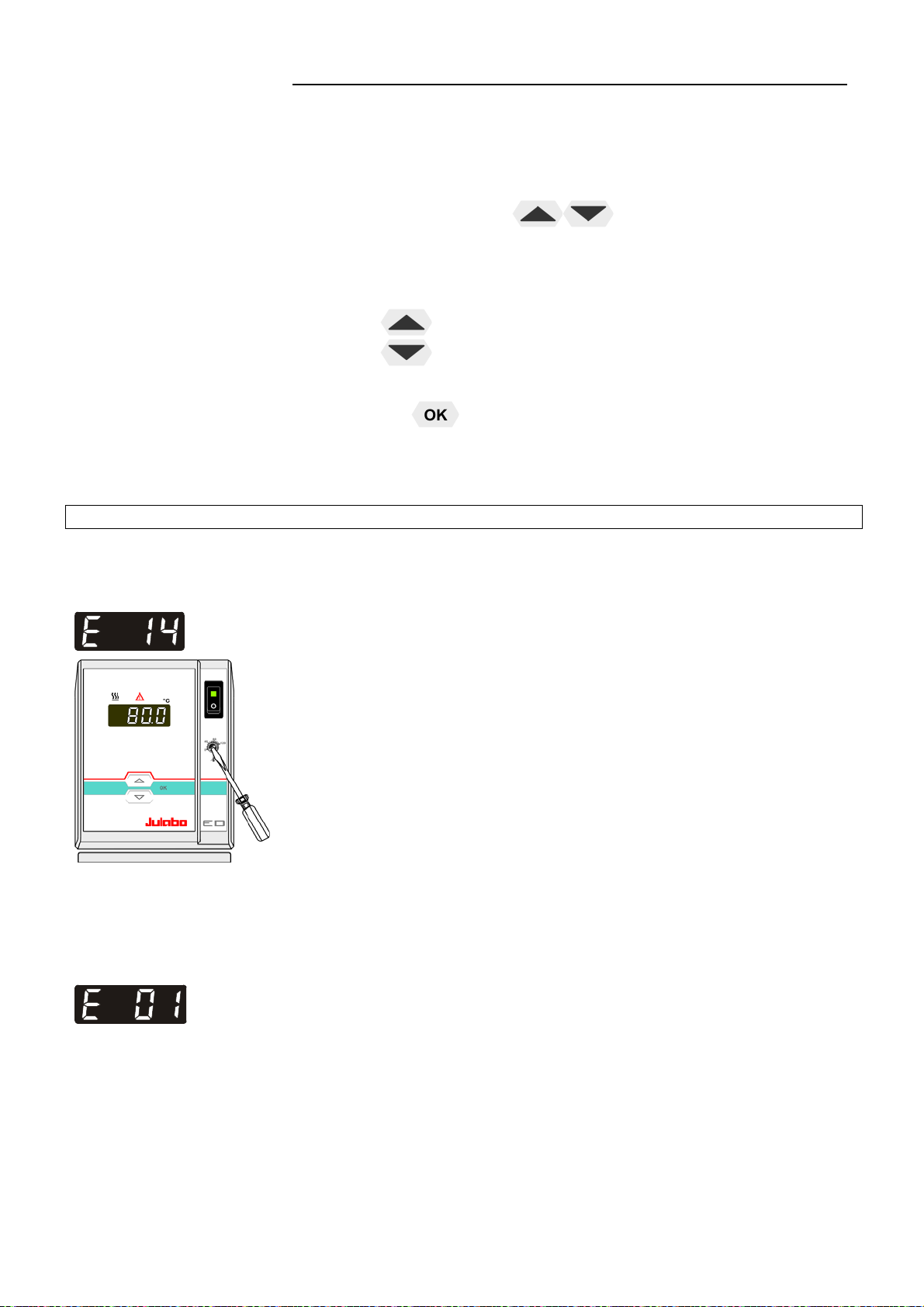

6.5.1. Excess temperature protection .......................................................................... 21

6.5.2. Low liquid level protection ................................................................................. 21

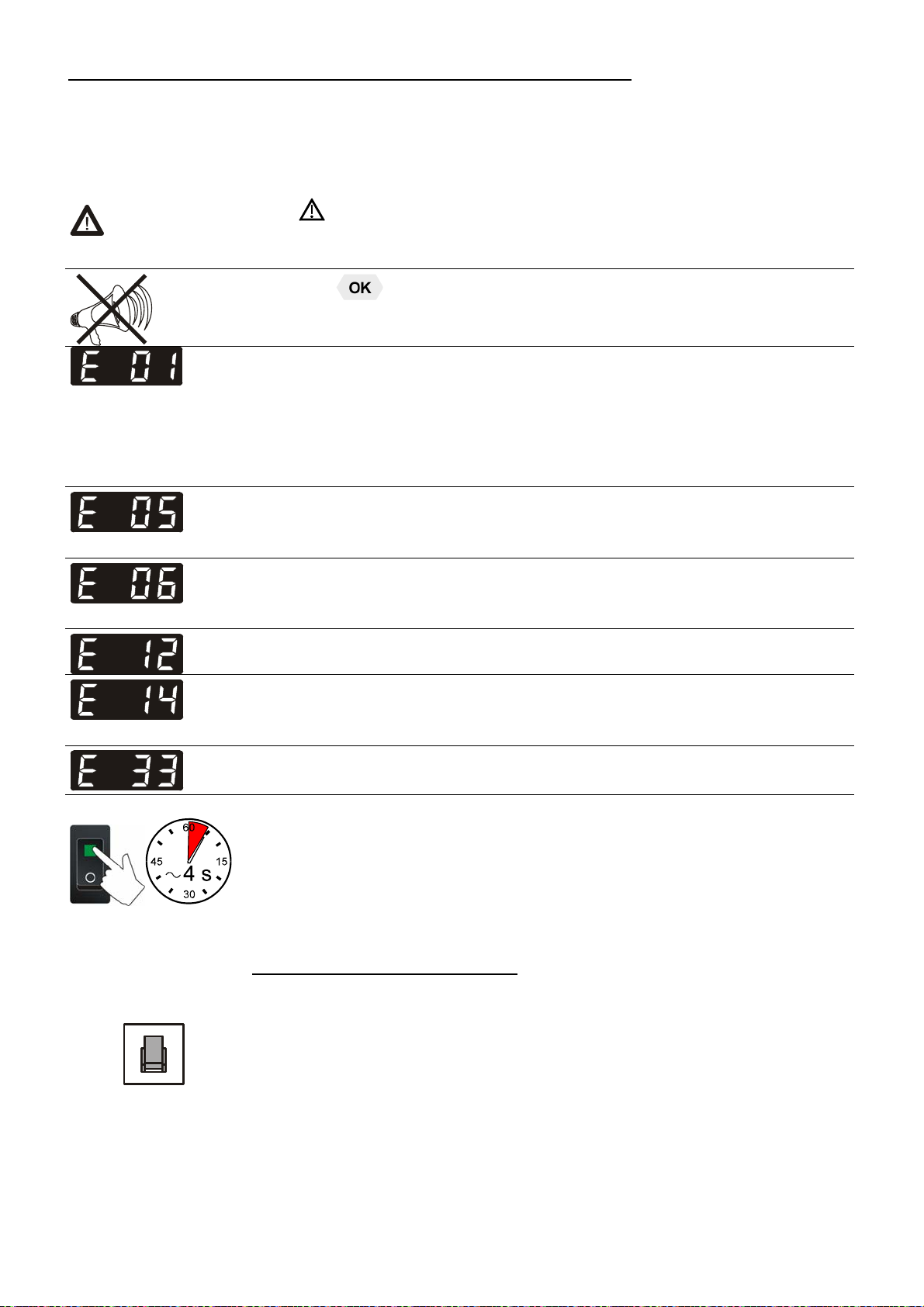

7. Troubleshooting guide / Error messages ...................................................................... 22

8. Cleaning the unit ........................................................................................................... 23

8.1. Cleaning of bath tanks made of Plexiglas® and Makrolon® ..................................... 23

9. Repairing the unit .......................................................................................................... 24

Operating manual

1. Intended use

JULABO circulators have been designed to control the temperature of specific fluids in a bath tank.

JULABO circulators are not suitable for direct temperature control of foods, semiluxury foods and tobacco, or pharmaceutical and medical products. Direct temperature control means unprotected contact of the object with the bath medium (bath fluid).

1.1. Description

 The circulators are operated via the splash-proof keypad. The implemented

microprocessor technology allows to set and to store the setpoint that can be indicated on the LED temperature display.

PID1

 The PID temperature control adapts the heat supplied to the thermal

requirements of the bath.

 Safety installations conforming to IEC 61010-2-010

The excess temperature protection is a safety installation independent from the control circuit. The safety value is set using a tool (screwdriver). If the low level protection device is triggered, a complete shutdown of the heater and circulating pump is effected.

2. Operator responsibility – Safety recommendations

The products of JULABO ensure safe operation when installed, operated, and maintained according to common safety regulations. This section explains the potential dangers that may arise when operating the circulator and also specifies the most important safety precautions to preclude these dangers as far as possible.

Persons: The operator is responsible for the qualification of the personnel operating the units. The operator should be constantly informed about the dangers involved with their job activities as well as preventive actions. Make sure all persons expected to carry out operation, installation and maintenance of the unit read and understand the safety information and operating instructions.

If you have any questions concerning the operation of your unit or the information in this manual, please contact us!

Contact

Handling:

 Nevertheless, avoid strikes to the housing, vibrations, damages to the keypad foil (keys,

display) or contamination.

 Make sure the product is regularly checked for proper condition.  Regularly check (at least every 2 years) the proper condition of the mandatory, warning,

prohibition and safety labels.

 Take care that the mains supply features a low impedance to avoid any negative affects on

the instrument being operated in the same mains.

 This unit is designed for operation in a controlled electromagnetic environment. This

means that transmitting devices (e.g. cellular phones) should not be used in the immediate vicinity. Magnetic radiation may influence other units with components susceptible to magnetic fields (e.g. a monitor). We recommend to keep a minimum distance of 1 m.

 Permissible ambient temperature: max. 40 °C, min. 5 °C.  Permissible relative air humidity: 50 % (40 °C).  Do not store in an aggressive atmosphere. Protect from contaminations.  Do not expose to sunlight.

JULABO GmbH Eisenbahnstraße 45 77960 Seelbach / Germany

Tel. +49 (0) 7823 / 51-0 Fax +49 (0) 7823 / 24 91 info@julabo.de www.julabo.de

Appropriate operation:

Only qualified personnel is authorized to perform configuration, installation, maintenance and repairs of the circulator. Routine operation can also be carried out by untrained personnel who should however be instructed by trained personnel.

Use:

The bath may not be filled with flammable materials. Fire hazard! Only use recommended materials (bath fluids). Only use recommended materials (bath fluids). Only use non-acid and non corroding materials.

Operator responsibility – Safety recommendations When using hazardous materials or materials that could become hazardous, the operator

must affix the enclosed safety labels (1 + 2) to the front of the unit so they are highly visible: 1

or 2

Particular care and attention is necessary because of the wide operating range. There are thermal dangers: Burn, scald, hot steam, hot parts and surfaces that can be touched.

Warning label W00: Colors: yellow, black Danger area. Attention! Observe instructions. (operating manual, safety data sheet)

Mandatory label M018: Colors: blue, white Carefully read the user information prior to beginning operation. Scope: EU

Semi S1-0701 Table A1-2 #9 Carefully read the user information prior to beginning operation. Scope: USA, NAFTA

Warning label W26: Colors: yellow, black Hot surface warning.

(The label is put on by JULABO)

2.1. Disposal

Do not dispose of the unit with household waste! However, over the long operating period of the unit, disposal rules may change. Therefore, only qualified personnel should handle the disposal.

Valid in EU countries See the current official journal of the European Union – WEEE directive. Directive of the European Parliament and of the Council on waste electrical and electronic equipment (WEEE). This directive requires electrical and electronic equipment marked with a crossed-out trash can to be disposed of separately in an environmentally friendly manner. Contact an authorized waste management company in your country. Disposal with household waste (unsorted waste) or similar collections of municipal waste is not permitted!

2.2. EC Conformity

The products described in the operating instructions conform to the requirements of the following European guidelines:

Directive of the European Parliament and of the Council on the

approximation of the laws of the Member States relating to machinery.

EMC guideline with respect to legal harmonization of the member countries

concerning electromagnetic compatibility.

JULABO GmbH Eisenbahnstr. 45 77960 Seelbach / Germany

2.3. Warranty conditions

JULABO GmbH warrants its products against defects in material or in workmanship, when used under appropriate conditions and in accordance with appropriate operating instructions

for a period of ONE YEAR.

Extension of the warranty period – free of charge

With the ‘1PLUS warranty’ the user receives a free of charge extension to the warranty of up to 24 months, limited to a maximum of 10 000 working hours.

To apply for this extended warranty the user must register the unit on the JULABO web site

www.julabo.de, indicating the serial no. The extended warranty will apply from the date of

JULABO GmbH’s original invoice.

JULABO Labortechnik GmbH reserves the right to decide the validity of any warranty claim. In case of faults arising either due to faulty materials or workmanship, parts will be repaired or replaced free of charge, or a new replacement unit will be supplied.

Any other compensation claims are excluded from this guarantee.

Operator responsibility – Safety recommendations

2.4. Technical specifications

Temperature selection digital Temperature indication LED Resolution °C 0.1 Temperature control PID1 Heater wattage (at 230 V) kW 2,0 Heater wattage (at 115V) kW 1,0 Circulating pump: discharge, max.at 0 bar l/min 15 pressure, max. at 0 l bar 0.35 Ambient temperature °C 5 ... 40

Mains power connection 230 V/50 Hz V/ Hz 190-253 / 50 Current input (at 230 V) A 9 Mains power connection 230 V/60 Hz V/ Hz 190-253 / 60 Current input (at 208 V / 230 V) A A 8 / 9 Mains power connection 115 V/60 Hz V/ Hz 103-127 / 60 Current input (at 115 V) A 9 Mains power connection 100 V/50-60 Hz V/ Hz 90-110 / 50-60 Current input (at 100 V) A 9

All measurements have been carried out at: rated voltage and frequency operating temperature: 70 °C ambient temperature: 20 °C bath fluid: water Technical changes without prior notification reserved.

Bath circulators with bath tanks made of

Working temperature range 20 ... 60 20 ... 60 20 ... 100

ED-5A/B

Plexiglas 

ED-7A/B Plexiglas 

ED-5M/B Makrolon 

Temperature stability ±0,03 ±0,03 ±0,03

Bath opening (WxL) cm 12x24 12x34 12x24 Bath depth cm 15 15 15 Filling volume liters 3,5 ... 5 5 ... 7 3,5 ... 5 Overall dimensions (WxDxH) cm 14x40x34 14x50x34 14x40x34 Weight kg 5,3 5,6 5,2
