DDL-8700BS-7-WB
DDL-8700B-7
Direct-drive, High-speed, 1-needle, Lockstitch Machine
with Automatic Thread Trimmer
DDL-8700B-7
The sewing machine has been integrated
with the control box
and the operation panel for ease of use.

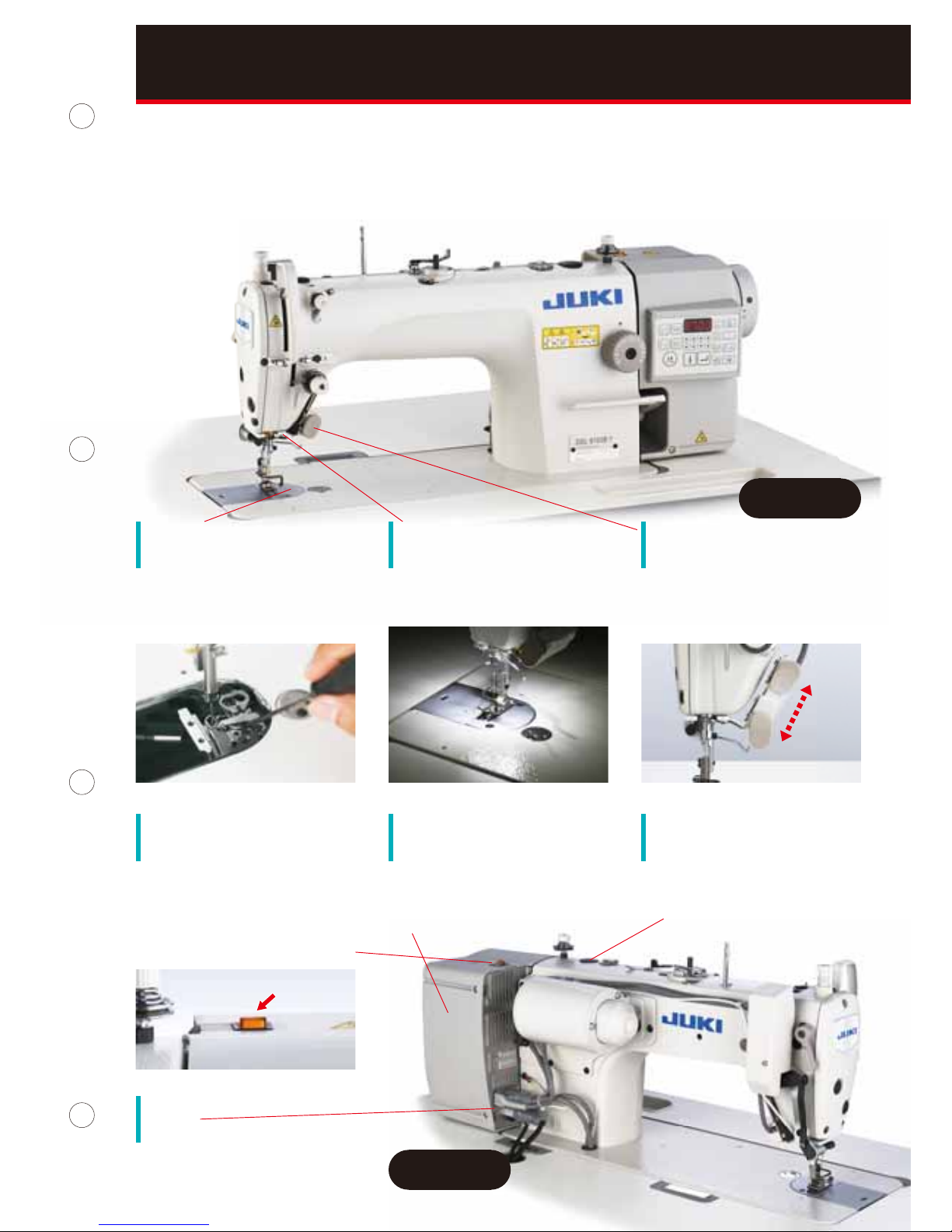

Page 2
Power switch
The adjusting hole is provided on the
top of the arm. This hole facilitates
adjustment of the feed-cam timing.
The power switch is built into the control
box to facilitate fabric placement onto
the sewing machine. The ON/OFF
power switch can be checked from a
distance to make sure the machine is
never left ON.
Feed-cam timing
adjusting hole
Since the sewing machine has no
V-belt, the operator needs neither to
clean up shavings from the V-belt, nor
adjust the V-belt tension.
Direct-drive type
The DDL-8700B-7 is a direct-drive, high-speed, lockstitch machine
with an automatic thread trimmer that sews graceful,
high-quality seams on many kinds of fabric.
Ports
Connectors can be inserted into the
ports without removing the cover.
Thread trimming unit
adjusting hole
(Plain knife type)
The operator can adjust the position
of the touch-back switch for easier
operation according to the sewing
product and other sewing conditions.
Thread trimming unit adjusting hole is
provided. Adjustment of the hook
timing (temporary fixing) can be carried
out without tilting the sewing machine.
Touch back switch
A thinner LED light is provided near
the needle entry area. Its illuminance
can be adjusted in five step.
LED light is provided
as standard.
Front
Back
DDL-8700B-7
Page 3
By providing a presser foot with a higher lift (13mm), a
light-touch stitch dial, a throat plate with marker grooves
that can be used as guide for seam allowance, and
other easy-to-operate functions, the burden on the
operator is lightened, and productivity is further
increased.
13mm
13mm
13mm
The machine comes with a
thread trimming mechanism
that performs speedy and
reliable thread trimming to
achieve highly efficient sewing
work.
Stitch dial
Stitch dial
Stitch dial
The DDL-8700B-7 is the most reliable,
sophisticated model developed in-house at JUKI.
The machine has easy-to-operate functions
to achieve improved operability.
The machine is provided as
standard with extra attachment
mounting seats for attachment
of new auxiliary parts in the
future. The extremely high
durability of the seats ensures
an extended service with
frequent replacement of
attachments.
The machine provided as standard with
attachment mounting seats.
The hinge is located as such
so as to prevent the material
from being caught by it,
thereby improving workability.
The location of the hinge to prevent the sewing
material from being caught by the hinge.
By thoroughly investigating and modifying the
sewing mechanisms in order to achieve low-tension
sewing, the machine flexibly responds to various kinds
of materials and produces beautiful seams of consistent
quality.
Sewing mechanism that demonstrates outstanding
responsiveness to materials to be sewn.
Reliable thread trimming mechanism.
＊
The function marked with a triangle (▲) is available on custom order.
Main function
Production support function
(Bobbin thread counter,thread counter,etc.)
Operation panels
0~15 stitches
●
●
●
Automatic reverse-feed stitching
(performed at start/end of sewing; selectable)
0~15 stitches
Double reverse-feed stitching
(performed at start/end of sewing; selectable)
0~999 stitches,
0~15 stitches
Constant-dimension sewing
(performed at start/end of sewing; selectable)
0~99 stitches,
0~15 stitches
Rectangular stitching
(performed at start/end of sewing; selectable)
Automatic sewing (constant-dimension sewing and
the rectangular stitching can be selected)
Changeover the stop position between needle-up
position and needle-down position
0~15stitches,
0~15times
Multi-layer stitching
Needle up/down compensation stitch
One shot
Soft start function on/off
Thread trimmer on/off feature
ISS function (IT10, IT100)
●
●
●
●
●
▲
Needle up/down correction (1 stitch stroke or
needle up/down according to the internal setting)
(changeable between "up → down" and "down → up")

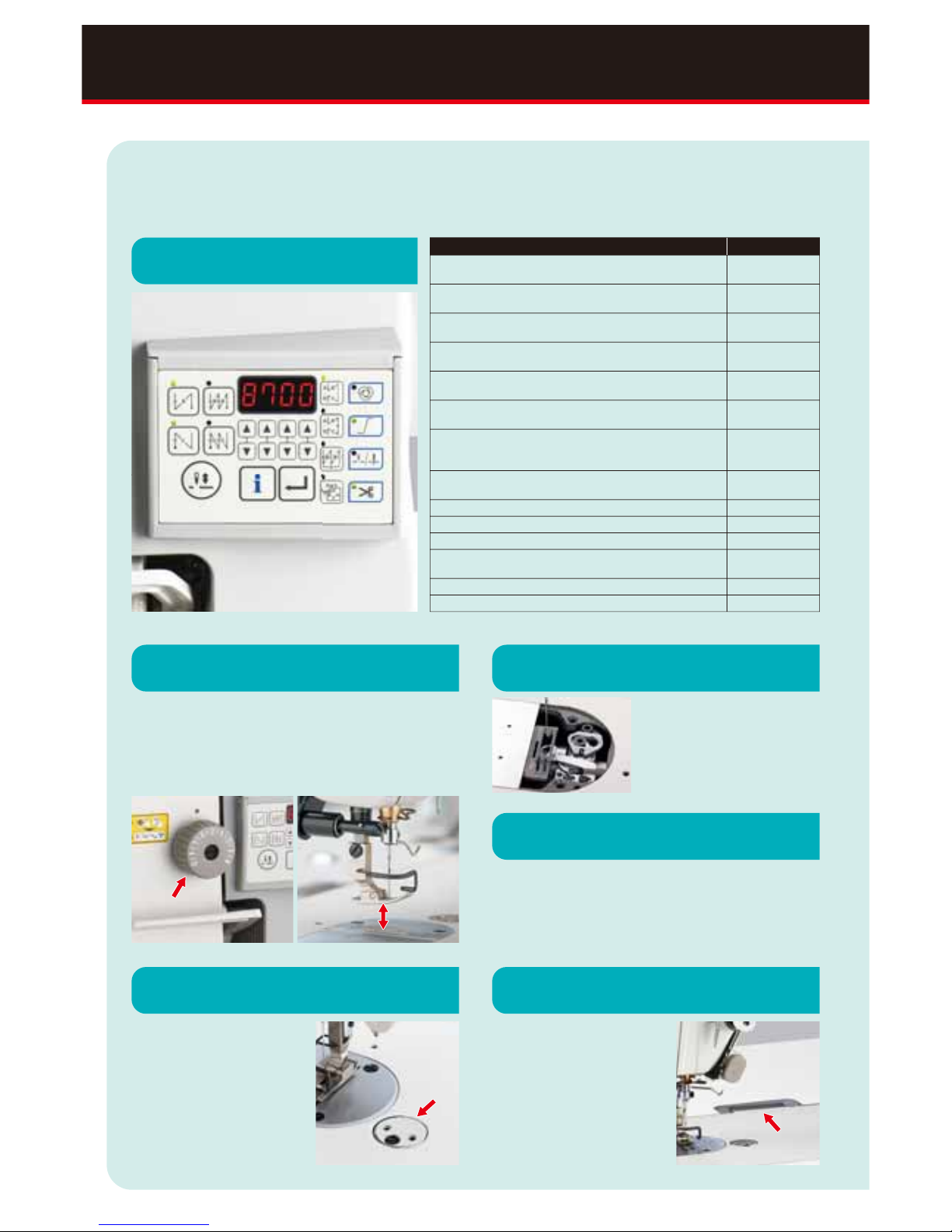

Multi-function panel
Page 4
Please note when placing orders, that the model name should be written as follows:
WHEN YOU PLACE ORDERS
SPECIFICATIONS
Application
Max. sewing speed
Max. stitch length
Needle bar stroke
Lift of the presser foot
Needle
Feed dog
Hook
Lubrication
Lubricating oil
Automatic reverse feed function
Direct motor
Power requirement
Power consumption
Total weight
Model name DDL-8700BS-7
For medium-weight
5,000sti/min
＊
4mm
30.7mm
DB×1 (#14) #9~#18 / 134(Nm90)
4-row
Automatic-lubricating full-rotary hook
Automatic
JUKI MACHINE OIL 7 (equivalent to ISO VG7)
Provided as standard
400W
Single-phase 200V~240V
250VA
Machine head: 34kg / 38kg (with AK)
By hand: 5.5mm / By knee: 13mm
4,000sti/min
＊
5mm
35mm
DDL-8700BH-7
For heavy-weight
DB×1 (#21) #19~#23 / 134(Nm130) DB×1 (#21) #16~#23 / 134(Nm130)
DDL-8700BJ-7
For jeans
＊"sti/min" stands for "Stitches per Minute."
SEWING MACHINERY BUSINESS UNIT
MARCH, 2014 Printed in Japan(C)
2-11-1, TSURUMAKI, TAMA-SHI,
TOKYO
206-8551, JAPAN
PHONE : (81) 42-357-2254
FAX :
(
81
)
42-357-2274
http://www.juki.com
✽
Specifications and appearance are subject to change without prior notice for improvement.
✽
Read the instruction manual before putting the machine into service to ensure safety.
✽
This catalogue prints with environment-friendly soyink on recycle paper.
JUKI ECO PRODUCTS
The DDL-8700B-7 is an eco-friendly product which complies with
JUKI ECO PRODUCTS standards for protecting the environment.
The sewing machine complies with the "Juki Group Green Procurement Guidelines" on the use of hazardous
substances, which is stricter than other restrictions, such as those of the RoHS Directive.
For details of JUKI ECO PRODUCTS, refer to : http://www.juki.co.jp/eco_e/index.html
The RoHS Directive is an EU Directive limiting the use of 6 hazardous substances (lead, hexavalent chromium, mercury, cadmium, PBB and PBDE) in electrical and electronic equipment.
The Juki Green Procurement Guideline is the voluntarily established criteria to eliminate not only the aforementioned six substances, but also other ones which also adversely affect the environment.
DDL8700B 7 K
For medium-weight
Application
S
For heavy-weight
H
For jeans
J
Code
Single-phase
220V~240V
(for General Export, China)
Power supply
K
Code
Not provided
Wiper
Wiper and one-touch type reverse feed
0B
Provided
Provided
One-touch type reverse feed
Provided
WB
Code
Not provided
Auto-lifter
Provided
AK85B
Code
Machine head
