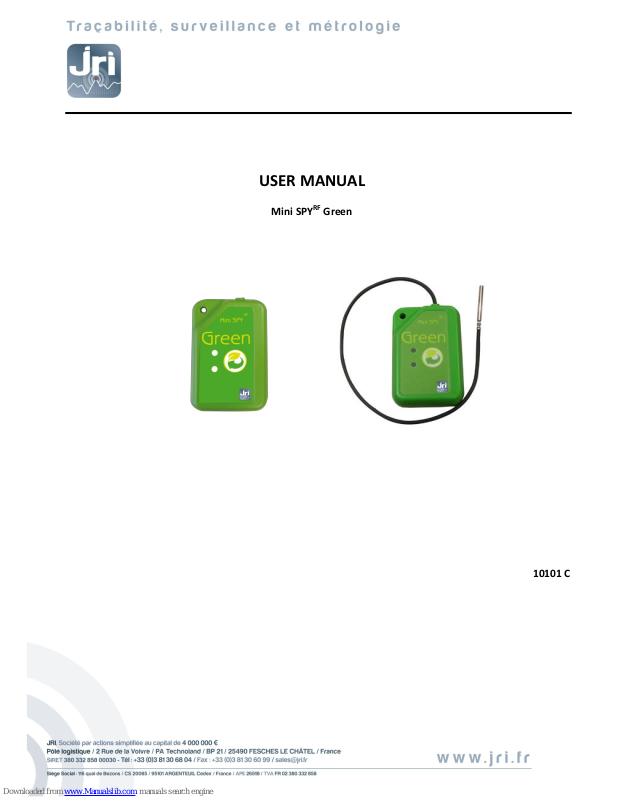

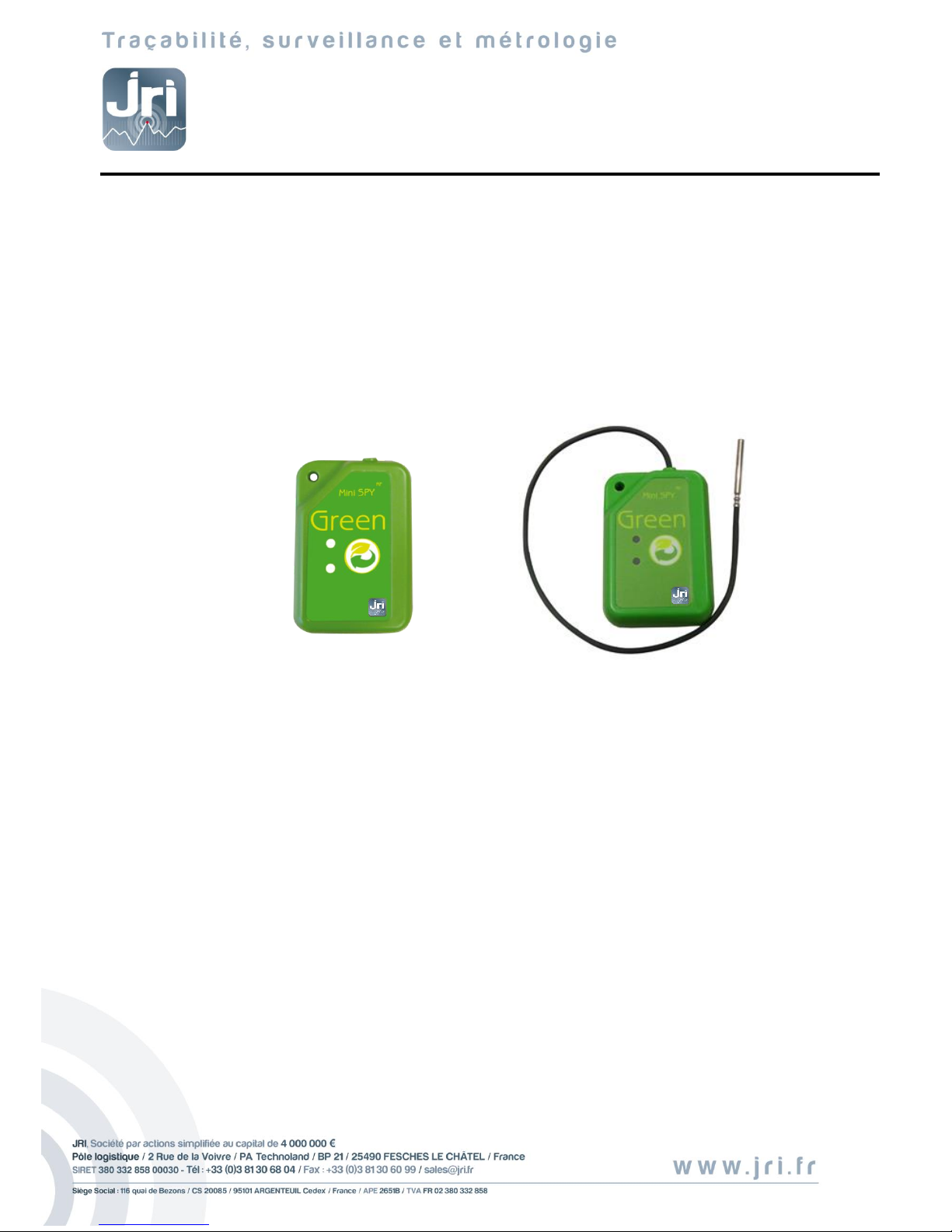

USER MANUAL
Mini SPYRF Green
10101 C
©JRI 2
TABLE OF CONTENTS
I. INTRODUCTION ................................................................................................................................... 3
a) Equipment ................................................................................................................................................... 3
b) Symbols ....................................................................................................................................................... 3
II. INSTALLATION RECOMMANDATIONS ................................................................................................... 3
a) Perturbations sources ................................................................................................................................... 4
III. PRESENTATION .................................................................................................................................... 4
IV. USE ..................................................................................................................................................... 5
a) Stop ............................................................................................................................................................. 5
b) Start ............................................................................................................................................................. 5
c) Waiting mode ............................................................................................................................................... 5
d) Measurement start ....................................................................................................................................... 5
e) Automatic start ............................................................................................................................................ 5
f) Manual start ................................................................................................................................................ 6
g) Alarm visualisation ....................................................................................................................................... 6
h) Measurement stop ....................................................................................................................................... 6
i) Auto control or top zone ............................................................................................................................... 6
j) Leds and pushbutton actions fonctionning .................................................................................................... 7
V. FEATURES ............................................................................................................................................ 8
VI. REPLACING BATTERY ........................................................................................................................... 8
VII. COMPLIANCE TO THE EN 12830 ........................................................................................................... 9
VIII. WARRANTY ......................................................................................................................................... 9
IX. MAINTENANCE CONTRACT ................................................................................................................. 10
X. ENVIRONMENT PROTECTION .............................................................................................................. 10
©JRI 3
I. INTRODUCTION
Congratulations, you own a Mini SPY RF GREEN! This device is equipped with 1 internal sensor. It enables you
to record the ambient temperature and to transfer wirelessly the recorded data by radio frequency to a PC.
a) Equipment
1 or several Mini SPYRF GREEN
1 user manual
b) Symbols
Do not use the unit in conditions other than those described in the specifications
Risk of fire or explosion in the event of misuse:
- Recharge the battery
- Short-circuit the battery
If the unit is used in a way that is not specified by the manufacturer, the
protection provided by the equipment may be impaired.
II. INSTALLATION RECOMMANDATIONS
The Mini SPY RF GREEN is a recorder of physical parameters able to communicate wirelessly with the
operating software SIRIUS.
The wireless communicatin is based on radio frequency. As we are daily in contact with it (radio, TV…) it is easy
to think that it always works. This true if basic rules on recorders positioning are respected concerning because
wireless communication is subject to perturbations.
RECYCLING : do not throw in a rubbish dump or in a domestic waste container. Comply to the regulation to
throw away the device.
CE MARKING : this equipment is certified to comply with the European regulation for the electric security,
inflammability, disturbing radiation emission and immunity to surrounding electric disturbances.
FCC ID :W45 10255 MiniSpy Green Internal probe only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation
In accordance with FCC requirements, changes or modifications not expressly approved by JRI could void the
user's authority to operate this product.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
©JRI 4

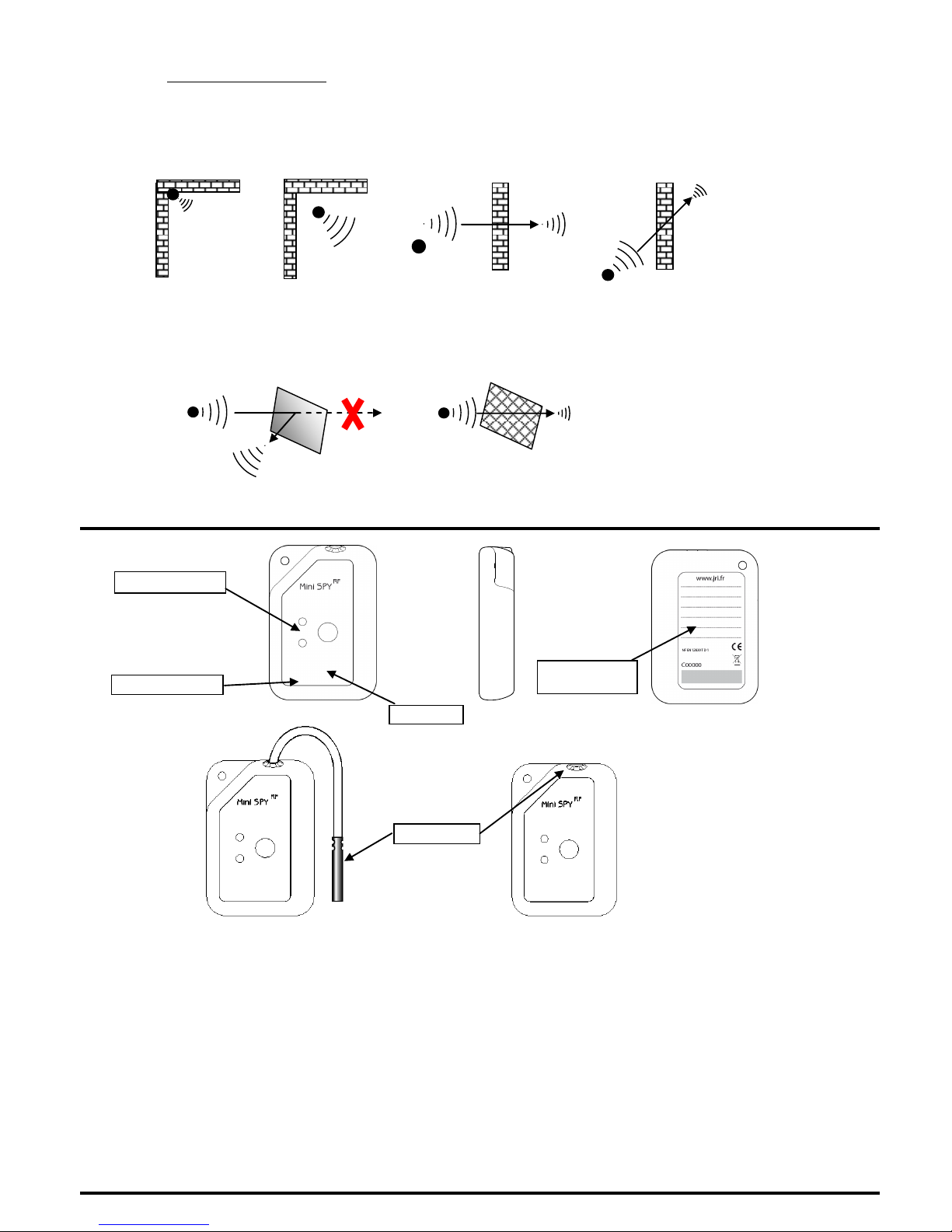

a) Perturbations sources
Presence of obstacles in the way of the waves between the SPY RF ModeM and the Mini SPY RF
GREEN (wall, ceiling, person, furniture…) or close to the antena.
Obstacles thickness in the way of the waves. The absorption is more important in diagonal as
perpendicularly
Waves cannot pass through full metallic walls. On the other hand, a perforated wall allows the waves passing
with attenuation
III. PRÉSENTATION
Running led (green)
Push button
Alarm led (red)
Identification
label
T° Sensor
©JRI 5
IV. USE
a) Stop
When you receive it, your Mini SPY RF GREEN is stopped. Only the time clock is active. It can neither
emit nor receive anything.

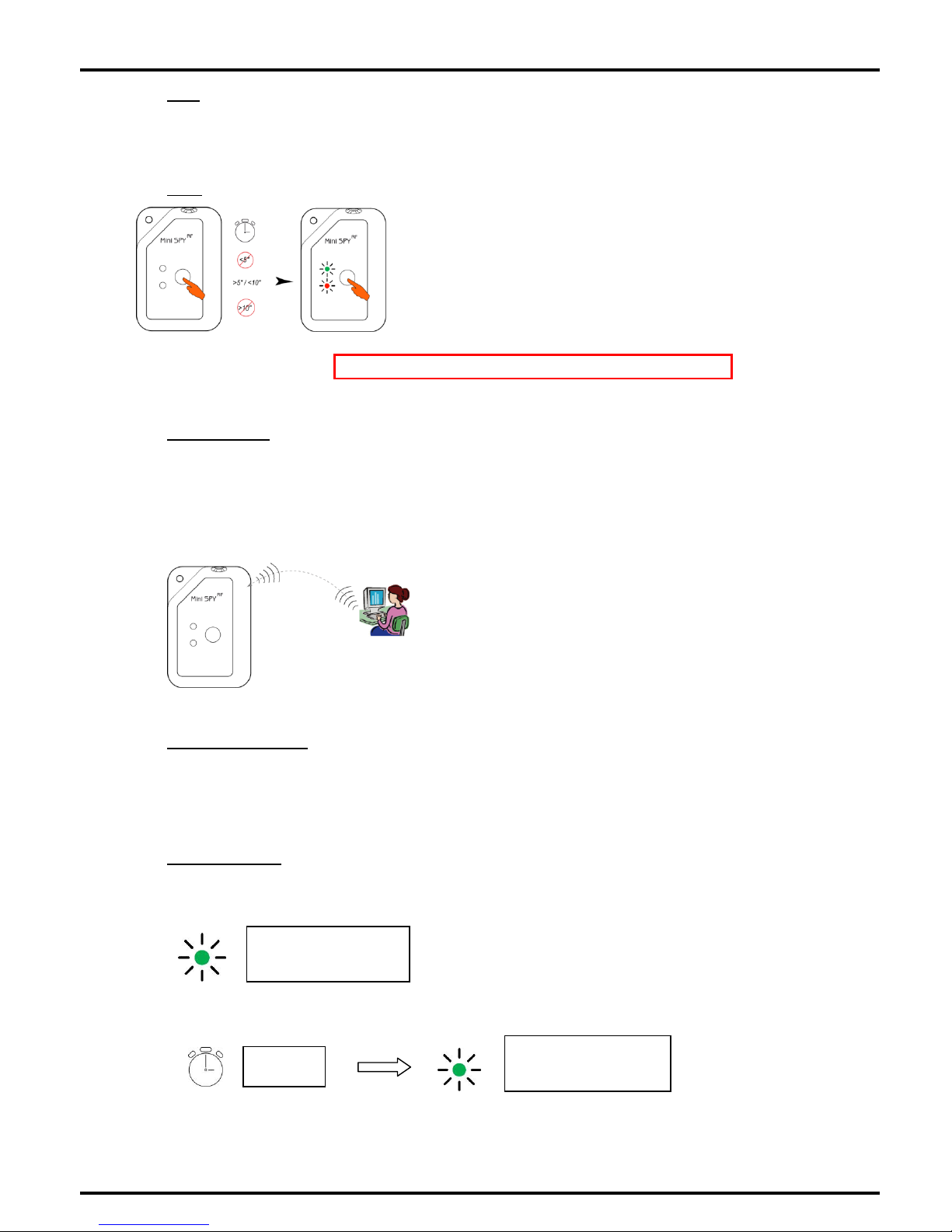

b) Start
To start your Mini SPY RF GREEN, please press between 5 and 10”
on the button:
- the 2 LEDs are on and flash at the same time
- all the display segments are also on
- Mini SPY RF GREEN is now in waiting mode
Remark: If you press >10’’ => no effect => remains off
c) Waiting mode
The red led will be on 2’’ if you press 5’’ on the push button. In this case, the Mini SPY RF GREEN is
waiting for programming
Configuration
Mini SPY RF GREEN configuration is done from the Sirius software and then transferred into your
Mini SPY RF GREEN by radio frequency.
d) Measurement start
The Mini SPY RF GREEN has 2 starting mode:
automatic start
manual start
e) Automatic start
Your Mini SPY RF GREEN starts recording:
automatically when the configuration is transferred,
at a programmed date and time:
dd / mm / yy
hh / mm / ss
Working LED (green):
2’’ => starting measurements
then flashes every 2’’
Working LED (green):
2’’ => starting measurements
then flashes every 1 minute
©JRI 6
T° OK (green led) lights
during 10’’.
Alarm T° (Red led) lights
during 10’’.

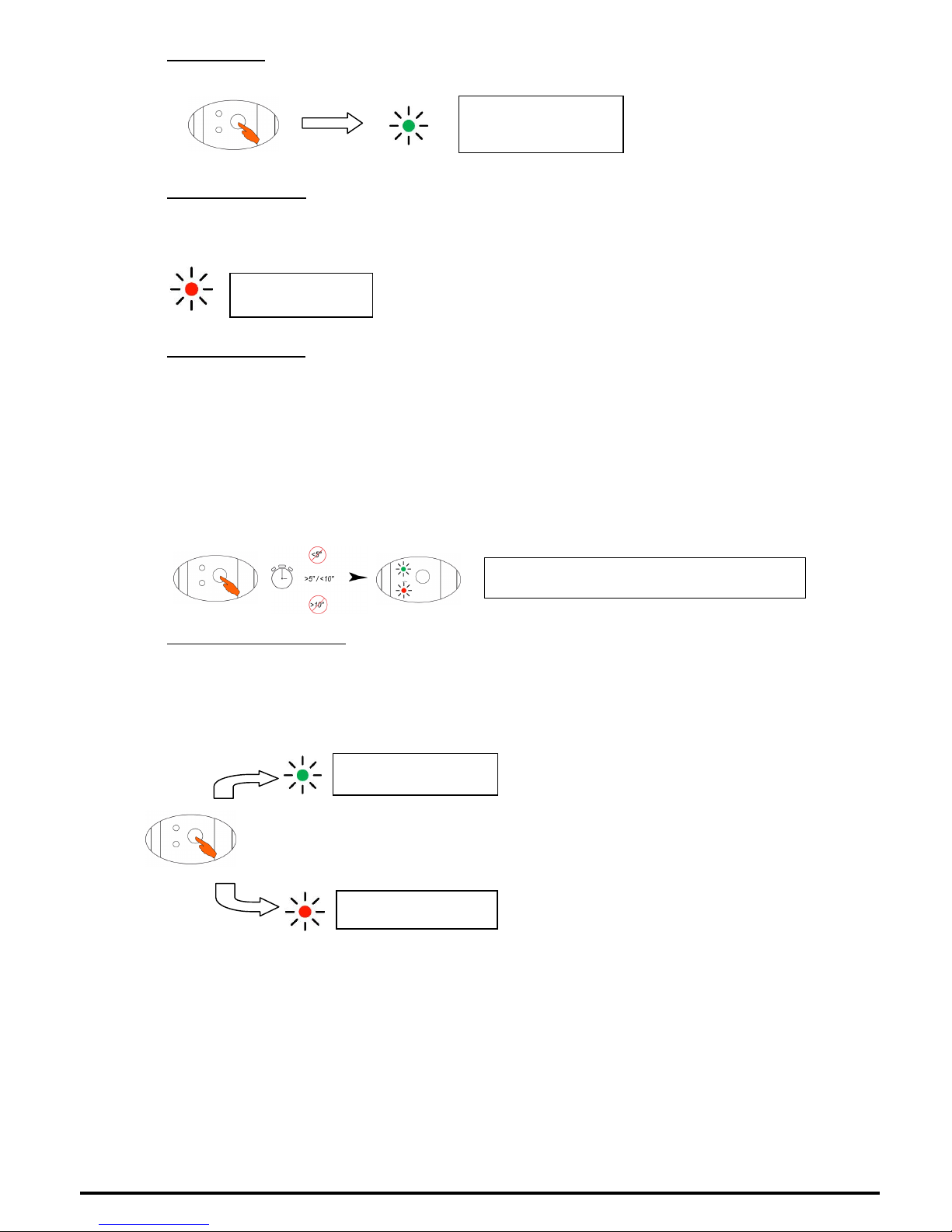

f) Manual start
Press shortly on the pushbutton
g) Alarm visualisation
The Mini SPY RF GREEN is equipped with different alarm indicators, when a threshold limit is
overpassed.
h) Measurement stop
Depending on the configuration, the Mini SPY RF GREEN can stop recording or not. The different
options are:
Rolling memory: once the memory is full, the new values replace the old ones.
Full memory: the recorder stops when its memory is full.
With the software: you can put the Mini SPY RF GREEN in standby mode with Sirius when you do
not use your recorder.
With the pushbutton: this option is valid only if the Mini SPY RF GREEN is configured in transport
mode with a start by pushbutton.
i) Auto control or top zone
The type of action depends on the Mini SPY RF GREEN configuration.
TOP ZONE = Transport mode
AUTO CONTROL = Storage mode. This function enables you to customise an action of
measurement check-up. You just have to press shortly on the pushbutton.
The action is recorded and will appear on the curve when you process the data with your software
Sirius.
Alarm LED (red):
Flashes every 15’’.
To stop your Mini SPY RF, press between 5 and 10” on the
button:
Working LED (green):
2’’ => starting measurements
then flashes every 2’’
©JRI 7
j) Leds and pushbutton actions fonctionning
The green led is on 2’’ when the measurement starts and then flashes each 1’ in recording mode.
Specials fonctioning regarding the recorder using mode
Device set up in storage mode
Pushbutton pressing
Mode
< 5"
5’’> pressing <10’’
OFF
-
The 2 leds are on and
flash at the same time.
Waiting setup
Red led 2"
-
Starting measurements
Pushbutton
Green led 2" = beginning of
measurements
-
Delayed (date & time)
-
-
Immediatly - -
Measure
Green led 10" = auto control
-
Device set up in transportation mode
Pushbutton pressing
Mode
< 5"
5"<appui>10"
Off
-
The 2 leds are on and flash at
the same time.
Waiting setup
Red led 2"
-
Starting measurements
Pushbutton
Green led 2" = begining
of measurements
-
Delayed (date & time)
-
The 2 leds are on and flash at
the same time = Waiting for
starting measurements
Immediatly
-
The 2 LEDs are on and then
flash alternatively = ending
measurements
Measure
Green led 10" = Top zone
The 2 LEDs are on and then
flash alternatively = ending
measurements
©JRI 8
KEEP THE BATERY FAR FROM THE FIRE ; DO NOT TRY TO RELOAD OR TO SHORT CIRCUIT IT. USE ONLY BATTERIES
SUPPLIED BY JRI (REF 10102)
1 3 4 2 5
V. FEATURES
FEATURES
Mini SPYRF GREEN
Measurement range
-40 +85°C
Number of channels
1 internal or external probe
Remote sensor
Ø4 x50mm / 0,5m Cable
Type of input
PTC
Accuracy
±0,4°C from -20 à +30°C
±0,5°C from -40 to -20°C & +30 to +80°C
±0.7°C above +80°C
Recording interval
1sec to 90 min
Memory size
10 000 measurements +1ko
Operating conditions
-30 +70°C
Temperature for storage
-40 + 85°C
Radio range (in free field)
Max 58 m adjustable
Radio band
868MHz or 902MHz
Battery lifetime
2 years
Dimensions
85x55x18mm
Protection level
IP67
EN 12 830 compliance
Yes : this device must be regularly checked according to
EN 13 486 (1 time per year recommended)
CE ERM compliance
EN 301 489 / EN 61000 / EN 61010
EN 55022 / EN 300 220

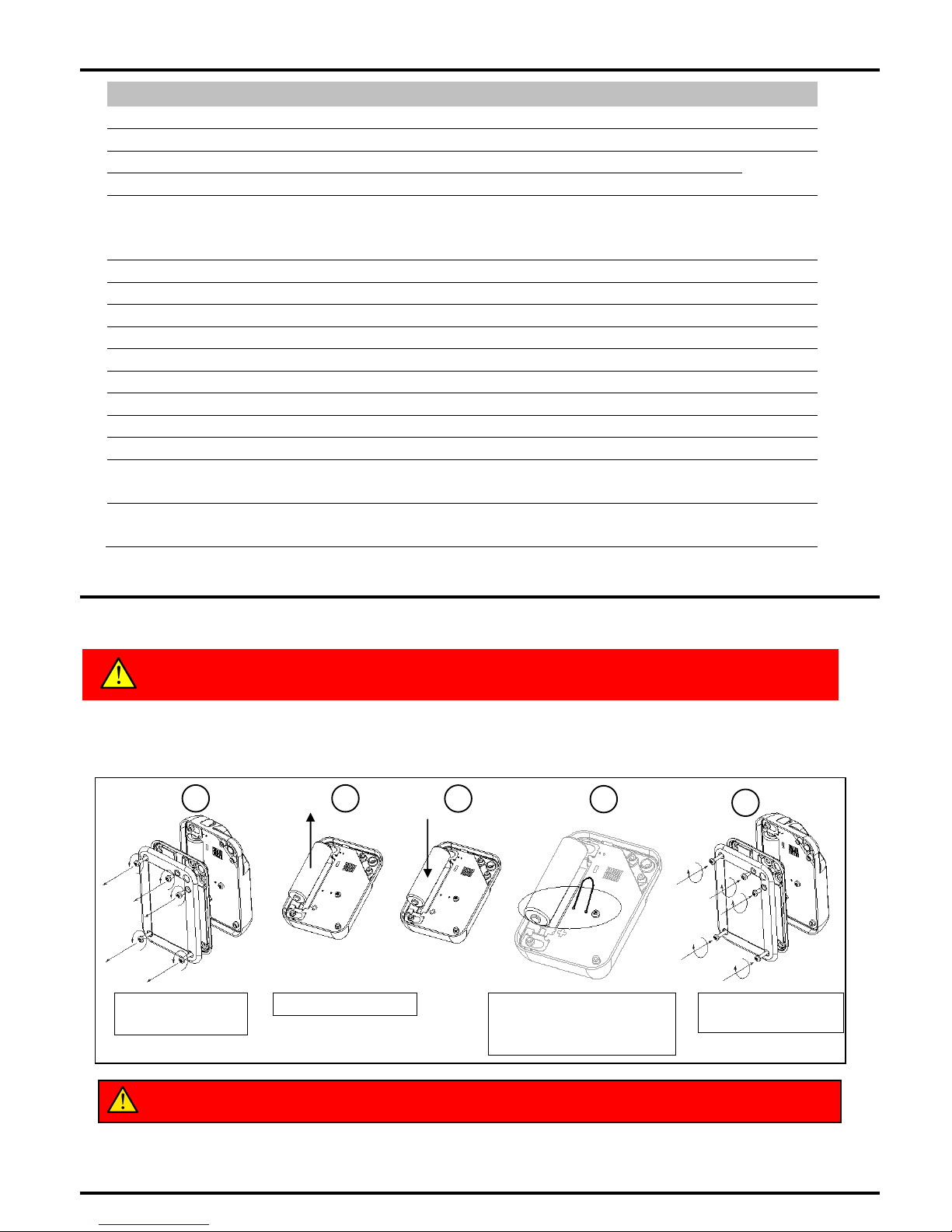

VI. REPLACING BATTERY
When the Mini SPY RF Green battery has to be replaced, a technical alarm is processed by the software Sirius
To replace the battery, follow the instructions below :
Restart the device by pressing 5’’ on the pushbutton after changing the battery.
DOWNLOAD THE SPY RF MEMORY BEFORE CHANGING THE BATTERY. DO NOT WAIT
UNTIL THE BATTERY IS EMPTY OTHERWISE THE MEMORY WILL BE DELETED
Open the MiniSpy
RF Green
Replace the battery
Short circuit the two pins
with a paper clip to reset
the device
Replace the seal and
close the device
©JRI 9

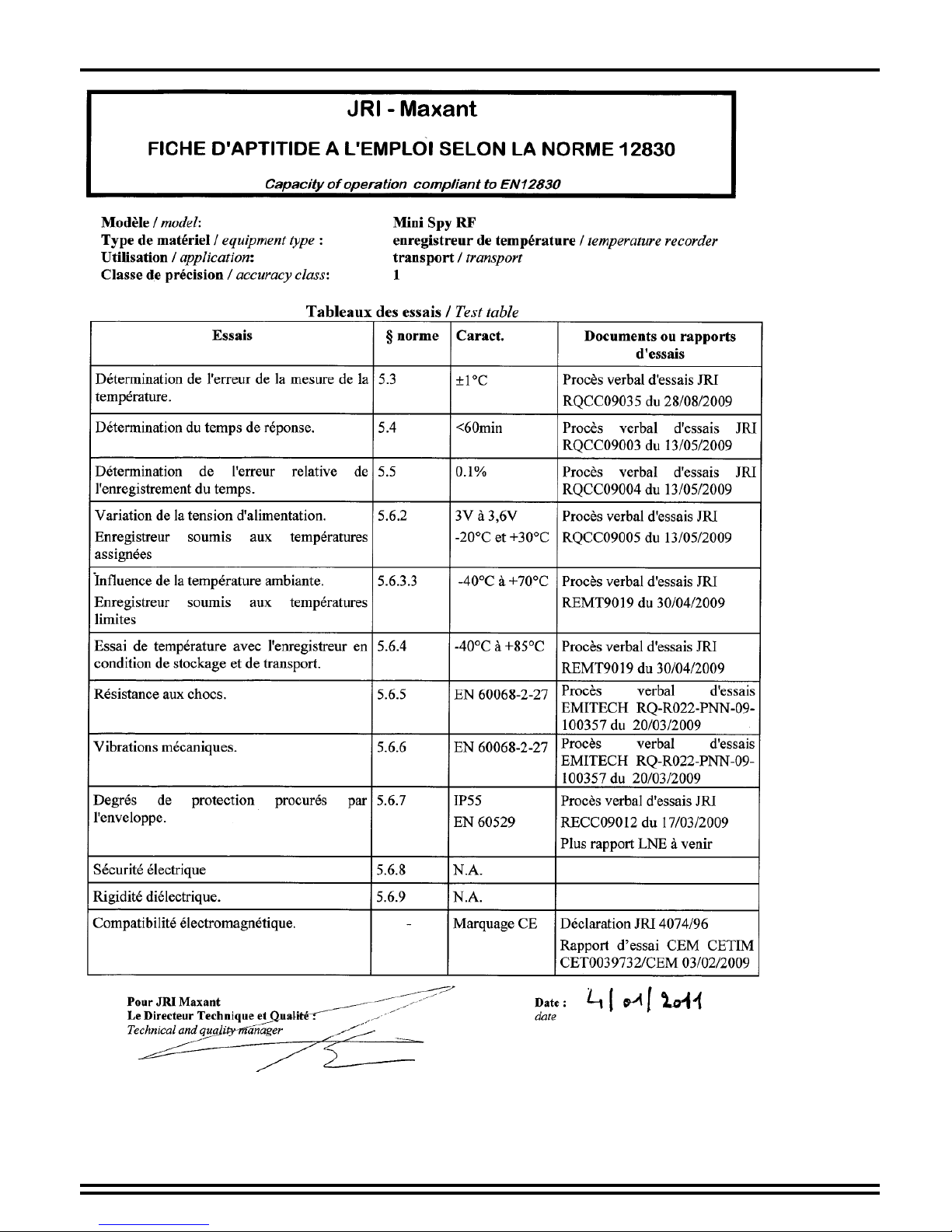

VII. COMPLIANCE TO THE EN 12830
VIII. WARRANTY
©JRI 10
JRI products carry a one year warranty and guarantee against defects in their components or
workmanship.
During this period if any product supplied by the Company proves on inspection to be defective, the
Company will at its own option replace the same or refund to the Buyer the price of the product.
In no circumstances will JRI' liability exceed the price of the product paid by the buyer or the cost of
replacement.
JRI shall not in any event be liable to the Buyer for any indirect or consequential loss or damage costs or
expenses whatsoever which might arise out of or in connection with the supply of the product or its
consequent use.
Consequently, the products warrantee and guarantee specified above, does not cover damage caused by
fair wear and tear, abnormal storage conditions, incorrect use, accidental misuse, abuse, neglect,
misapplication or modification, or use with non-JRI' hardware/software. No warranty of fitness for a
particular purpose is offered and the user assumes the entire risk of using the product.
In line with our policy of continuous development, we reserve the right to amend our product specification
without prior notice.
IX. MAINTENANCE CONTRACT
How to optimize your radio frequency installation?
RF measuring systems communicate by radio frequency. However, there may be several factors that can
modify the radio ways already defined, such as moving from a building, adding walls, … Radio frequency
requires thus a periodical follow up performed by specialists.
That’s why JRI has created maintenance contracts. We bring you a global solution which makes your
maintenance easier. This overall service offer includes maintenance and also metrological services, which
ensure you that your system is fully performant.
You won’t worry about your devices maintenance anymore !
With this maintenance contract you will benefit for a minimal period of 2 years from the following
advantages:
- material verification once or twice a year
- warranty extension
- telemaintenance
- telephone assistance +33 (0) 892 680 933 (0,282 € HT/min)
- material replacement on site or by return in our manufacture
- metrological certificates: verification of measurement accuracy
- access to new software versions and updates
- on-site intervention time within 3 open days after problem identification by our experts
X. ENVIRONMENT PROTECTION
JRI recommends to our customers to throw away their measuring and recording devices which are
unserviceable and/or beyond repair in a way that is appropriate to environment protection. Insofar as the
production of waste cannot be avoided, it is best to re-use them by proceeding with adapted recycling
depending on the material used and considering the environment protection.
ROHS DIRECTIVE
The ROHS European Directive rules and limits the presence of hazardous substances in electrical and
electronic equipments (EEE). This Directive applies from 1st June 2006.
In the article 2, the scope of this Directive excludes "9. Monitoring and Control Instruments" and our
products are part of this category. Therefore, JRI’ products are not concerned by this new directive.
Nevertheless, our company has decided to apply the whole dispositions of this Directive for all our new
electronic devices which will comply to this 2002/95/CE Directive, on 1st June 2006 at the latest.
Loading...
