John Boos PPB2424, PPB3024, PPB3030, PPB3624 Specification Sheet

ITEM #: QTY:

MODEL #:

PROJECT NAME:

051018

3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: [phone] • Fax: [phone]

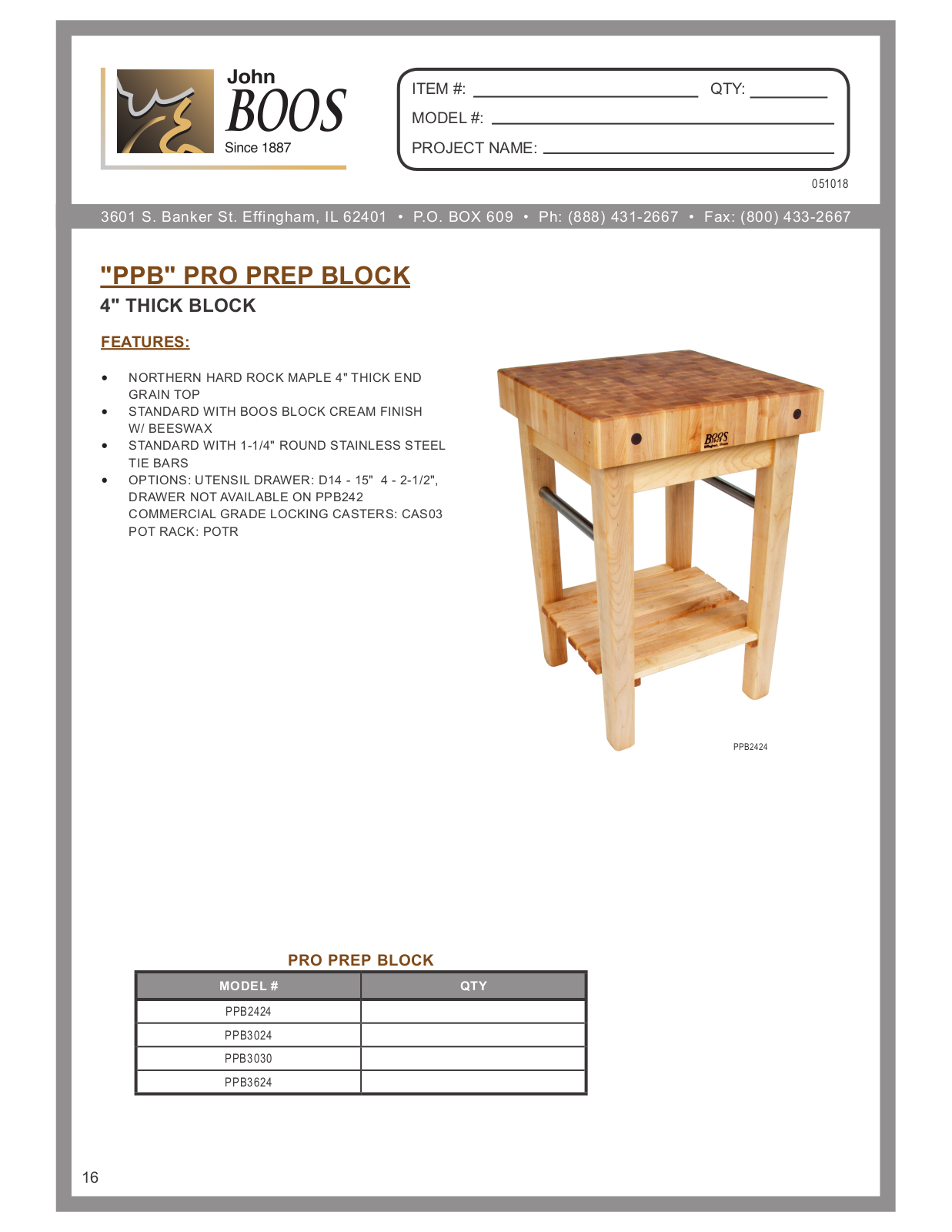

"PPB" PRO PREP BLOCK

4" THICK BLOCK

FEATURES:

• NORTHERN HARD ROCK MAPLE 4" THICK END

GRAIN TOP

• STANDARD WITH BOOS BLOCK CREAM FINISH

W/ BEESWAX

• STANDARD WITH 1-1/4" ROUND STAINLESS STEEL

TIE BARS

• OPTIONS: UTENSIL DRAWER: D14 - 15" 4 - 2-1/2",

DRAWER NOT AVAILABLE ON PPB242
COMMERCIAL GRADE LOCKING CASTERS: CAS03
POT RACK: POTR

16

PPB2424

PRO PREP BLOCK

MODEL # QTY

PPB2424

PPB30 24

PPB3030

PPB36 24

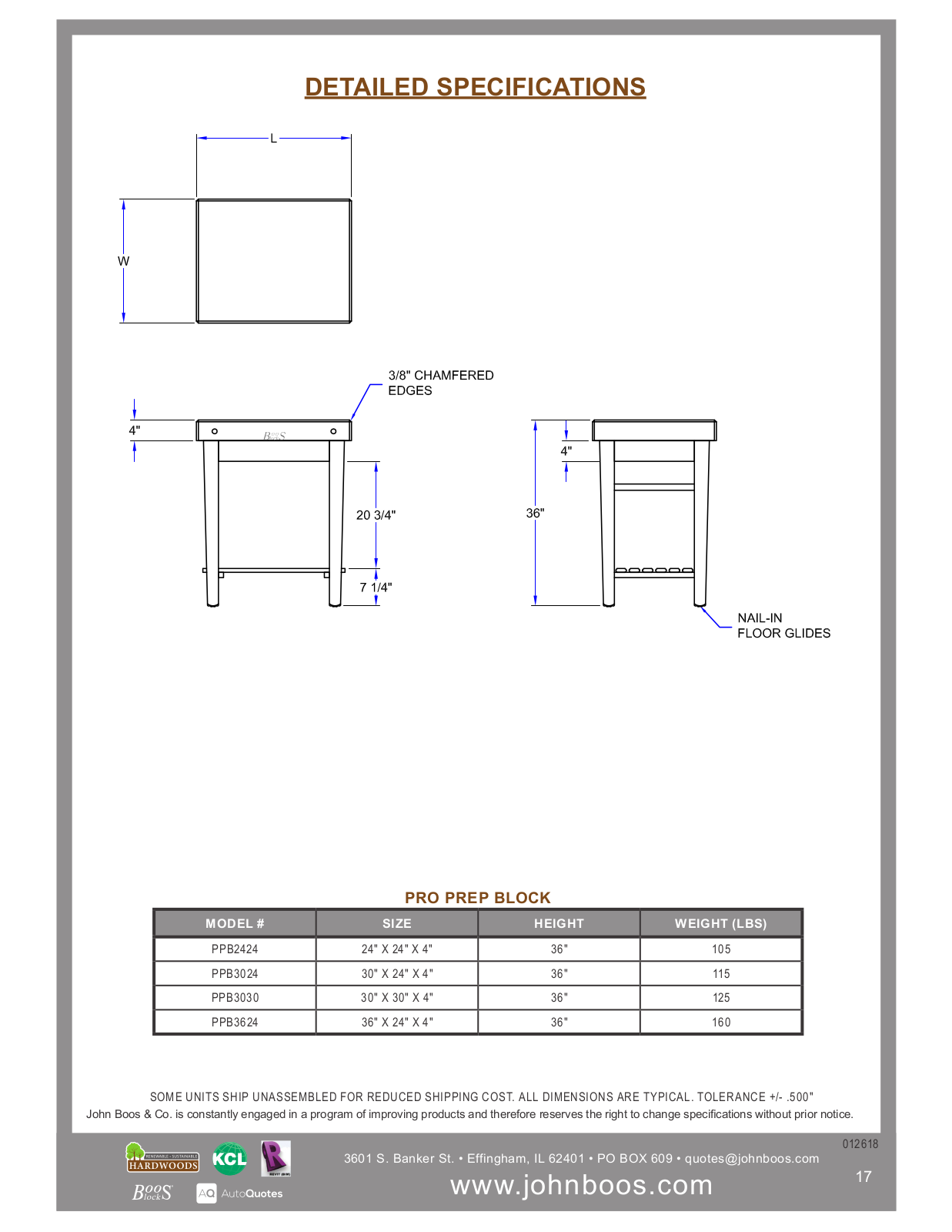

DETAILED SPECIFICATIONS

PRO PREP BLOCK

MODEL # SIZE HEIGHT WEIGHT (LBS)

PPB2424 24" X 24" X 4" 36" 105

PPB30 24 30" X 24" X 4" 36" 115

PPB3030 30" X 30 " X 4" 36" 125

PPB36 24 36" X 24" X 4" 36" 160

SOME UNITS SHIP UN ASSEMB LED FOR REDU CED SHIPPING COST. ALL DIMENSIONS A RE TYPICAL. TOLERANC E +/- .500 "

John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.

3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [e-mail]

www.johnboos.com

012618

17
