ITEM #: QTY:
MODEL #:
PROJECT NAME:
071917
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

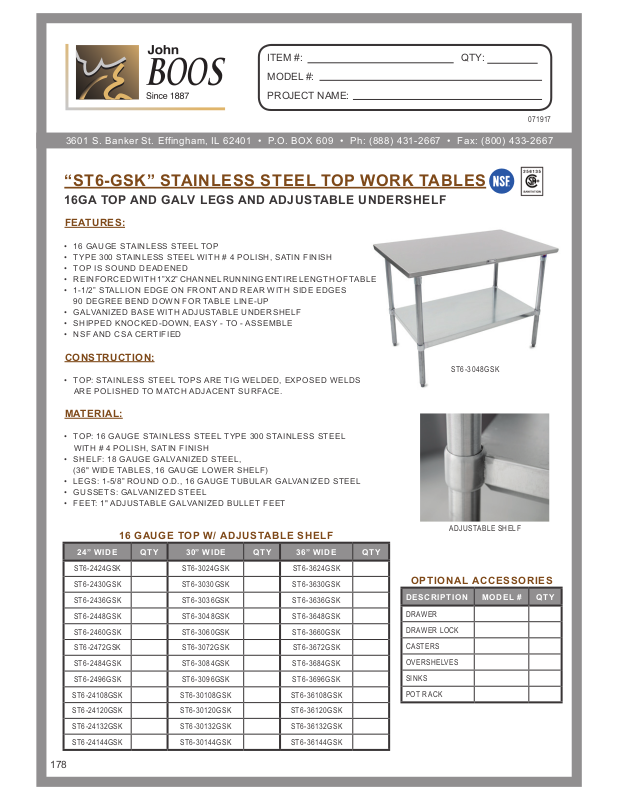

“ST6-GSK” STAINLESS STEEL TOP WORK TABLES
16GA TOP AND GALV LEGS AND ADJUSTABLE UNDERSHELF
FEATURES:
• 16 GAUGE STAINLESS STEEL TOP
• TYPE 300 STAINLESS STEEL WITH # 4 POLISH, SATIN FINISH
• TOP IS SOUND DEADENED
• REINFORCED WITH 1”X2” CHANNEL RUNNING ENTIRE LENGTH OF TABLE
• 1-1/2” STALLION EDGE ON FRONT AND REAR WITH SIDE EDGES
90 DEGREE BEND DOWN FOR TABLE LINE-UP
• GALVANIZED BASE WITH ADJUSTABLE UNDERSHELF
• SHIPPED KNOCKED-DOWN, EASY - TO - ASSEMBLE
• NSF AND CSA CERTIFIED
CONSTRUCTION:
• TOP: STAINLESS STEEL TOPS ARE TIG WELDED, EXPOSED WELDS
ARE POLISHED TO MATCH ADJACENT SURFACE.
MATERIAL:
• TOP: 16 GAUGE STAINLESS STEEL TYPE 300 STAINLESS STEEL
WITH # 4 POLISH, SATIN FINISH
• SHELF: 18 GAUGE GALVANIZED STEEL,
(36" WIDE TABLES, 16 GAUGE LOWER SHELF)
• LEGS: 1-5/8” ROUND O.D., 16 GAUGE TUBULAR GALVANIZED STEEL
• GUSSETS: GALVANIZED STEEL
• FEET: 1" ADJUSTABLE GALVANIZED BULLET FEET
16 GAUGE TOP W/ ADJUSTABLE SHELF
24” WIDE QTY 30” WIDE QTY 36” WIDE QTY
ST6-2424 GSK ST6-3024GSK ST6- 3624GSK
ST6-2430GSK ST6-3030GSK ST6-3630GSK
ST6-2436GSK ST6-3036GSK ST6-3636GSK
ST6-2448GSK ST6-3048GSK ST6-3648GSK
ST6-2460GSK ST6-3060GSK ST6-3660GSK
ST6-2472GSK ST6-3072GSK ST6-3672GSK
ST6-2484GSK ST6-3084GSK ST6-3684GSK
ST6-2496GSK ST6-3096GSK ST6 -369 6GSK
ST 6 -241 08G SK ST6-30108GSK ST6-36108GSK
ST6-24120GSK ST6-30120GSK ST6-36120GSK
ST6-24132GSK ST6-30132GSK ST6-36132GSK
ST 6 -241 44 G SK ST6-30144GSK ST6 -3 614 4GS K
ST6-3048GSK
ADJUSTABLE SHELF
OPTIONAL ACCESSORIES
DESCRIPTION MODEL # QTY
DRAWER
DRAWER LOCK
CASTERS
OVERSHELVES
SINKS
POT RACK
178
Page 2
DETAILED SPECIFICATIONS
L
W
L L
CLEA RANCE=
L- 8 "
35- 3/4"
ADJ
• UNITS 7 FT. AND LARGER ARE FURNISHED WITH SIX LEGS.
• FINISHED SIZE OF UNDERSHELF.
SHELF LENGTH = LENGTH MINUS 4.875”
SHELF WIDTH = WIDTH MINUS 4.25
W
CLEA RANCE=
1-1/ 2"
L-9.625" ÷ 2
16 GAUGE TOP W/ ADJUSTABLE SHELF
LENGTH 24" WIDE W T. ( L B S) 30” WIDE WT. (L B S) 36” WIDE W T. (L B S)
24" ST6-2424 GSK 36 ST6-3024GSK 44 ST6- 3624GSK 50
30" ST6-2430GSK 40 ST6-3030GSK 50 ST6-3630GSK 59
36" ST6-2436GSK 52 ST6-3036GSK 59 ST6-3636GSK 75
48" ST6-2448GSK 64 ST6-3048GSK 76 ST6-3648GSK 82
60" ST6-2460GSK 76 ST6-3060GSK 92 ST6-3660GSK 98
72" ST6-2472GSK 97 ST6-3072GSK 111 ST6-3672GSK 14 4
84" ST6-2484GSK 108 ST6-3084GSK 125 ST6-3684GSK 135
96" ST6-2496GSK 118 ST6-3096GSK 139 ST6-3696GSK 155
108" ST 6 -241 08G SK 130 ST6-30108GSK 153 ST6-36108GSK 171
120" ST6-24120GSK 167 ST6-30120GSK 167 ST6-36108GSK 187
132" ST6-24132GSK 157 ST6 -30132GSK 165 ST6-36132GSK 185
144" ST 6 -24144G SK 172 ST6-30144GSK 198 ST6- 3614 4G SK 192
MODEL # STRUCTURE
24 = WIDTH OF WOR K SURFACE
6 = 16GA WORK SU RFACE
ST = STAINLESS STEEL TOP
30 = LENGTH OF WORK SURFACE
GS = GALVANIZED LEGS & SH ELF
K = K.D. W/ ADJ USTABLE BR ACING
ST6 -2430GSK
SOME UNITS SHIP UN ASSEMB LED FOR REDUCED SHIPPING COST. ALL DIMEN SIONS ARE TYPI CAL. TOLER ANCE +/- .500 "
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
08 1417
