Page 1
ITEM #: QTY:
MODEL #:
PROJECT NAME:
051018
3601 S. Banker St. Effingham, IL 62401 • P.O. BOX 609 • Ph: (888) 431-2667 • Fax: (800) 433-2667

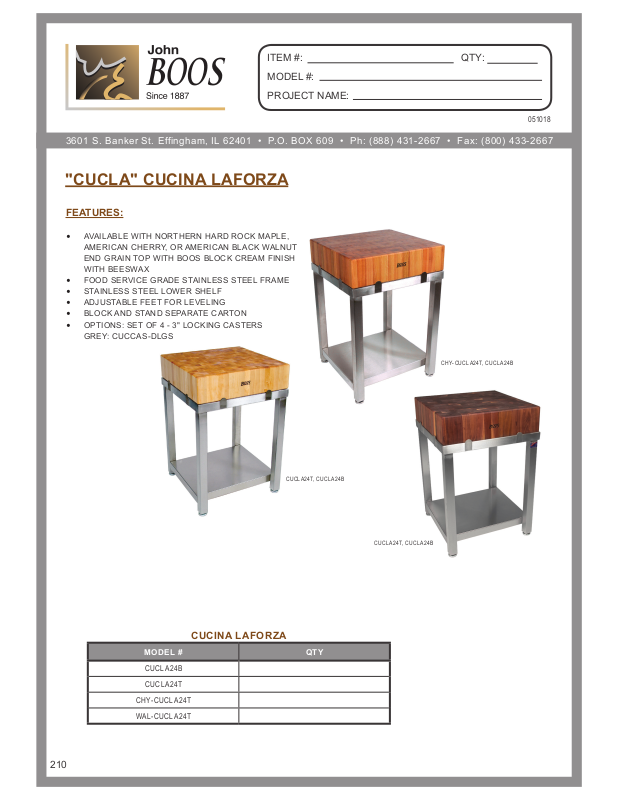

"CUCLA" CUCINA LAFORZA
FEATURES:
• AVAILABLE WITH NORTHERN HARD ROCK MAPLE,
AMERICAN CHERRY, OR AMERICAN BLACK WALNUT
END GRAIN TOP WITH BOOS BLOCK CREAM FINISH
WITH BEESWAX
• FOOD SERVICE GRADE STAINLESS STEEL FRAME
• STAINLESS STEEL LOWER SHELF
• ADJUSTABLE FEET FOR LEVELING
• BLOCK AND STAND SEPARATE CARTON
• OPTIONS: SET OF 4 - 3" LOCKING CASTERS
GREY: CUCCAS-DLGS
CUCLA 24T, CUCLA24B
CUCINA LAFORZA
MODEL # QTY
CUCLA24B
CUCL A24T
CH Y-CUCL A24T
WA L-CUCL A24T
CHY-CUC LA24T, CUCLA 24B
CUCLA 24T, CUCLA24B
210
Page 2
DETAILED SPECIFICATIONS
CUCINA LAFORZA
MODEL # SIZE DESCRIPTION HEIGHT WEIGHT (LBS)
CUCLA24B 24" X 24" X 35-1/2" 18GA SS BASE ONLY 35 -1/2" 24
CUCL A24T 24" X 24" X 6" MAPLE TOP ONLY 35 -1/2" 105
CH Y-CUCL A24T 24" X 24" X 6" CHERRY TOP ONLY 35-1/2 " 83
WA L-CUCL A24T 24" X 24" X 6" WALNUT TOP ONLY 35-1/2 " 86
SOME UNITS SHIP UNASSEMBLED FOR REDUCED SHIPPING COST. ALL DIMENSIONS ARE TYPICAL. TOLERANCE +/- .500"
John Boos & Co. is constantly engaged in a program of improving products and therefore reserves the right to change specications without prior notice.
3601 S. Banker St. • Effingham, IL 62401 • PO BOX 609 • [email protected]
www.johnboos.com
030218
211
