Technical Manual
Of
Intel Bay Trail Series CPU
Based SBC
NO.G03-NU91-F
Revision: 3.0
Release date: September 18, 2014
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
ii
TABLE OF CONTENT
ENVIRONMENTAL SAFETY INSTRUCTION ....................................................................... iv
USER’S NOTICE.................................................................................................................. v
MANUAL REVISION INFORMATION................................................................................... v
ITEM CHECKLIST................................................................................................................ v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ............................................................................ 1
1-2 SPECIFICATION .................................................................................................... 2
1-3 LAYOUT DIAGRAM ............................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING................................................................................................. 7
2-2 CONNECTORS AND HEADERS............................................................................ 8
2-2-1 CONNECTORS ......................................................................................... 8
2-2-2 HEADERS................................................................................................. 10
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP................................................................................................. 12
3-2 BIOS MENU SCREEN............................................................................................ 13
3-3 FUNCTION KEYS................................................................................................... 14
3-4 GETTING HELP...................................................................................................... 14
3-5 MEMU BARS.......................................................................................................... 15
3-6 MAIN MENU ........................................................................................................... 16
3-7 ADVANCED MENU ................................................................................................ 17
3-8 CHIPSET MENU..................................................................................................... 23
3-9 SECURITY MENU .................................................................................................. 26
3-10 BOOT MENU.......................................................................................................... 27
3-11 SAVE & EXIT MENU .............................................................................................. 29
iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
3.0 Third Edition September 18, 2014
Item Checklist
Motherboard
User’s Manual
CD for motherboard utilities
Cable(s)
v
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel® Bay Trail Series Processor, with low power consumption never
denies high performance
Onboard 1* mSATA slot
Onboard 1* half-size Mini-PCIE slot
Onboard 1 * RJ-45 gigabit Ethernet LAN port
Support dual HDMI outputs
Support USB 3.0 data transport demand
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function
1
1-2 Specification
Spec
Design
Embedded CPU
Memory Slot
Expansion Slot
LAN Chip
Audio Chip
BIOS
Rear Panel I/O
Front Panel I/O
Internal I/O
Description
8-layer SBC; PCB size: 10.1 cm x 10.1 cm
Integrated with Intel® Bay Trail-D/M/I series CPU
1 * DDR3L SODIMM Slot for un-buffered Single Channel
DDR3L 1066/1333* MHz SDRAM, expandable to 8GB
*DDR3L 1333 Mhz is optional for model with specific CPU. Please
refer to the actual product you purchase and consult your dealer for more
information.
1* MSATA slot
1* Half-size Mini-PCIE slot
Integrated with Intel 82574L PCI-E Gigabit LAN chip
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
2-CH ALC887 HD audio chip
AMI 64MB Flash ROM
1* DC 9V~24V power-in connector
1* RJ-45 LAN port
2* HDMI port
2* USB 2.0 port
1* Audio Line-Out / SPDIF-Out jack
1* COM port
1* USB 3.0 port
1* Internal DC 9V~24V power-in connector
1* Serial port header
1* CPU FAN header
1* Front panel header
2
USB 2.0 Ports
HDMI Port
HDMI Port
USB 3.0 Port
COM Port
/Optical SPDIF OUT
1-3 Layout Diagram
Rear IO Panel Diagram:
RJ-45 LAN Port
9V~24V DC
Power-in
Connector
Front IO Panel Diagram:
Remote Control Sensor
Line-OUT
3
JBAT1
JP1
Internal
Internal Diagram-Front Side:
Power Connector
MSATA Slot
9V ~24V DC
Power-in Connector
Serial Port Header
(COM2)
RJ-45 LAN Port
HDMI Ports
USB 2.0 Ports
Line-Out
/Optical SPDIF Out
Half-size
Mini-PCIE Slot
ME-RTC
DDR3L SODIMM Slot
Serial Port (COM1)
USB 3.0 Port
Remote Control
Sensor
4
Internal Diagram-Back Side:
Front Panel Header
Intel CPU
CPUFAN Header
5
Jumper
Jumper Name Description
JP1 Security Measure Function Select 2-Pin Block
JBAT CMOS RAM Clear Function Setting 2-Pin Block
ME_RTC Clear ME RTC Function Setting 2-Pin Block
Connectors
Connector Name
DCIN DC 9V~24V Power–in Connector
ATX2P Internal 9V~24V Power–in Connector
LAN RJ-45 LAN Port Connector
HDMI1 HDMI Connector x2
USB1 USB 2.0 Port Connector x2
HP_SPDIF1 Line Out Connector /SPDIF Out Connector
COM1 Serial Port Connector
USB3 USB 3.0 Port Connector
Headers
Header Name Description
COM2 Serial Port Header 9-pin Block
CPUFAN1 CPUFAN Header 3-pin Block
FP_CON1 Front Panel Header 4-pin Block
6
CM OS Clear Setting
Chapter 2
Hardware Installation
2-1 Jumper Setting
JP1 (2-pin): Security Measure Function Select
JP1
1-2 Open:Enable Security Measures
in the Flash Descriptor(Default);
1-2 Closed: Disable Security Measures
in the Flash Descriptor(Override).
JBAT1 (2-pin): Clear CMOS Setting
1
1
JBAT1
1-2 Ope n: Normal；
7
1
1
1-2 Closed： Clear CM OS
USB 2.0 Ports
HDMI Port
HDMI Port
USB 3.0 Port
COM Port
/Optical SPDIF OUT
(2)ME_RTC (2-pin): Clear ME_RTC Function Setting
ME_RTC
1
1-2 Open: Normal；
2-2 Connectors and Headers
2-2-1 Connectors
Rear IO Panel Diagram:
RJ-45 LAN Port
9V~24V DC
Power-in
Connector
Front IO Panel Diagram:
Remote Control Sensor
1-2 Closed：Clear ME_RTC.
Line-OUT
8
For user to connect compatible power
ide power supply for the
LAN jack
o connect display device that support HDMI
connect USB keyboard, mouse or other
For user to connect external speaker,
system audio
This connector can function as optical
cables &
for user to connect external MODEM
or other devices that supports
connect USB keyboard, mouse or other
up tp 5Gbps data
Icon Name Function
DC-in Power Connector
adapter to prov
system.
RJ-45 LAN Port
HDMI Port
This connector is standard RJ-45
for Network connection.
T
specification.
To
USB 2.0 Port
devices compatible with USB specification.
Line-Out Connector
/Optical SPDIF-Out
Connector
earphones, etc to transfer
output.
SPDIF-Out jack with compatible
devices.
To receiver signals from a remote control.
Remote Control Sensor
COM Port
Mainly
Serial Communications Interface.
To
USB 3.0 Port
devices compatible with USB specification.
USB 3.0 ports supports
transfer rate.
9
ATX2P (2-pin Block): DC 9V~24V Power-in Connector
2-2-2 Header
COM2 (9-pin): Serial Port Headers
Pin1
Pin. Definition
1 GND
2 +9V~+24V DC_IN
DSR
Pin6
Pin1
DCD
RTS CTS
SIN
RI
GND
DTR
SOUT
10
Pin1

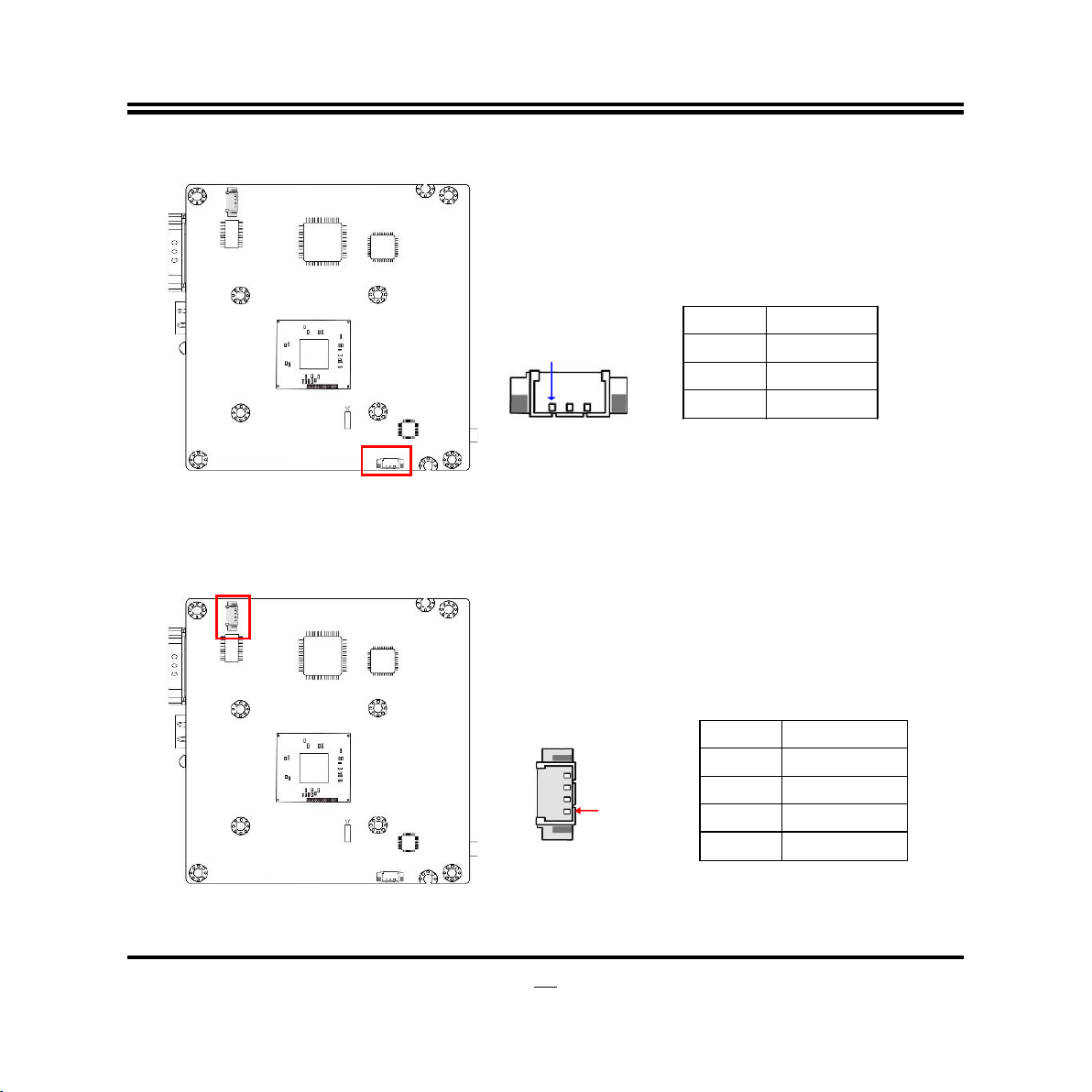

CPUFAN1 (4-pin): CPUFAN Connector
FP_CON1 (4-pin): Front Panel Connector
Pin No. Definition
1 VCC
2 GND
3 Fan Detect
Pin No. Definition
1 Power_SW
2 GND
Pin1
3 PWRLED -
4 PWRLED+
11
Chapter 3
Introducing BIOS
Notice!
The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manuals are usually the first BIOS version when the board is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and software
to communicate, it is the key factor for system stability, and in ensuring that your
system performance as its best.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an error message will be displayed and you will again be asked
to
Press
<Del>
to enter Setup
12
Menu Bar
Menu Items

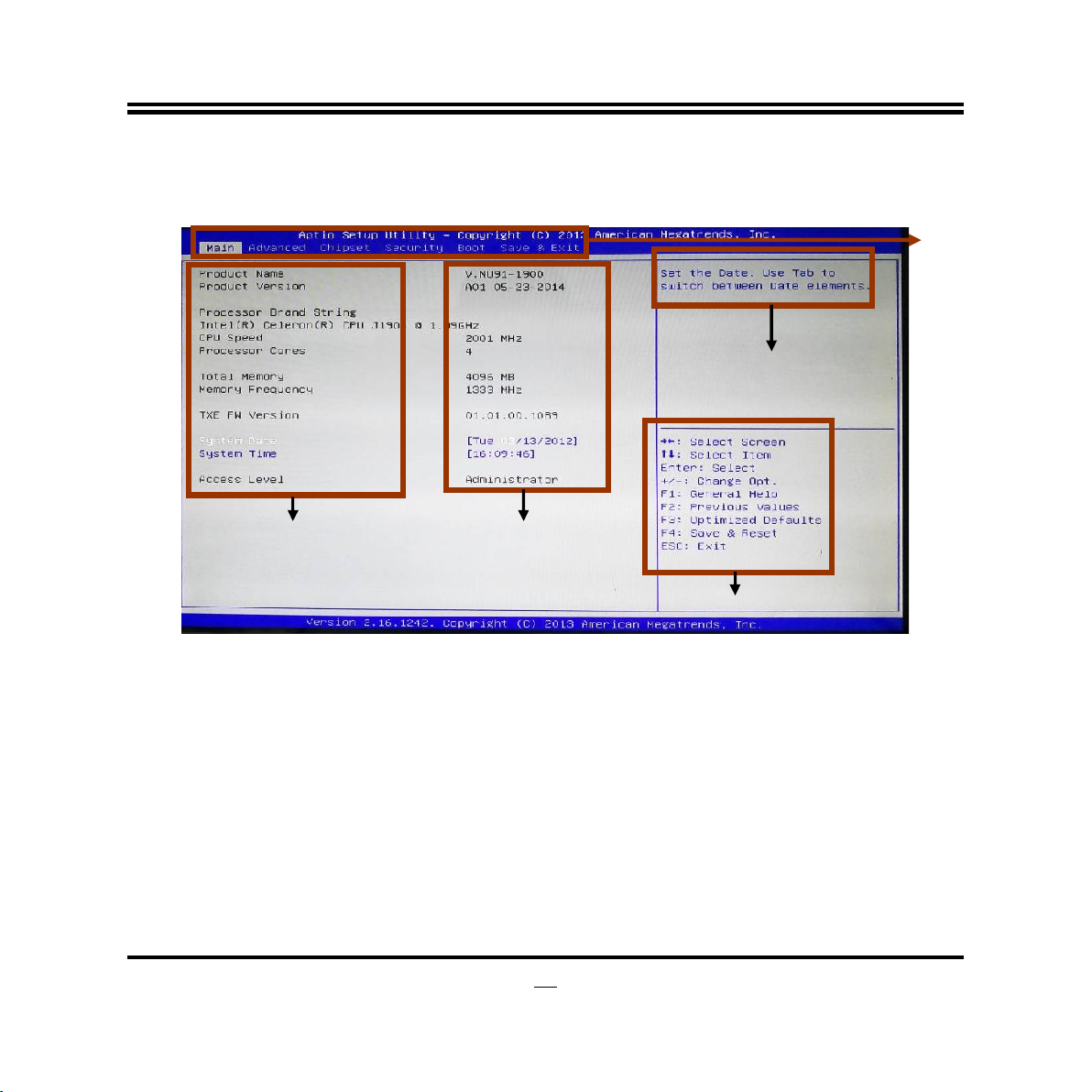

3-2 BIOS Menu Screen
The following diagram show a general BIOS menu screen:
General Help Items
Current Setting Value
BIOS Menu Screen
13
Function Keys
3-3 Function Keys
In the above BIOS Setup main menu of, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:
Press (left, right) to select screen;
Press (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
Press
Press
option.
[F1]:
[F2]:
[F3]:
[F4]:
Press
<Enter>
<+>/<–>
to select.
keys when you want to modify the BIOS parameters for the active
General help.
Previous value.
Optimized defaults.
Save & Reset.
<Esc>
to quit the BIOS Setup.
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right
corner the screen.
Status Page Setup Menu/Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
Esc
<
>.
14
3-5 Menu Bars
There are six menu bars on top of BIOS screen:
Main To change system basic configuration
Advanced To change system advanced configuration
Chipset To change chipset configuration
Security Password settings
Boot To change boot settings
Save & Exit Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.
15
3-6 Main Menu

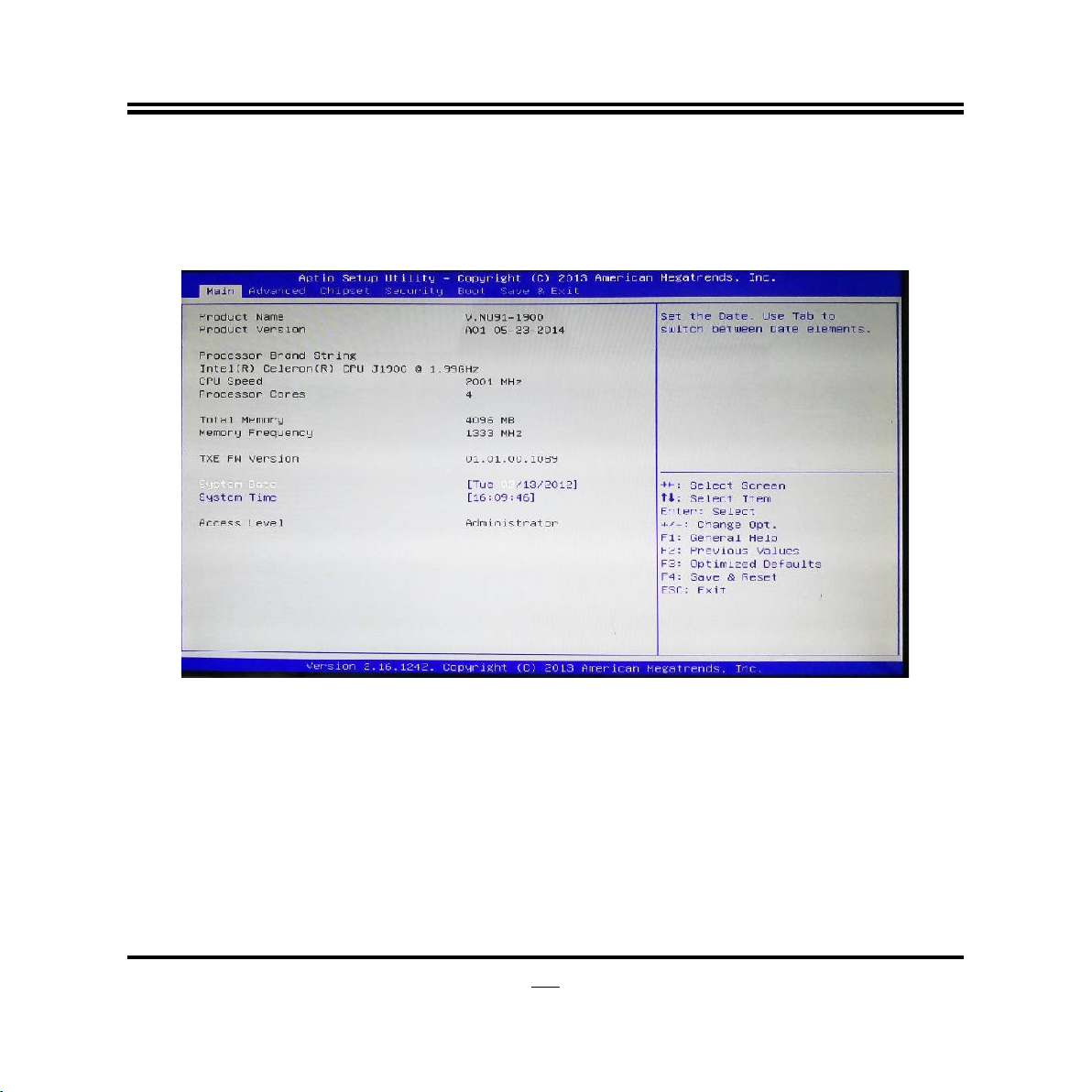

Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] to switch between data elements.
System Time
Set the time. Please use [Tab] to switch between time elements.
16

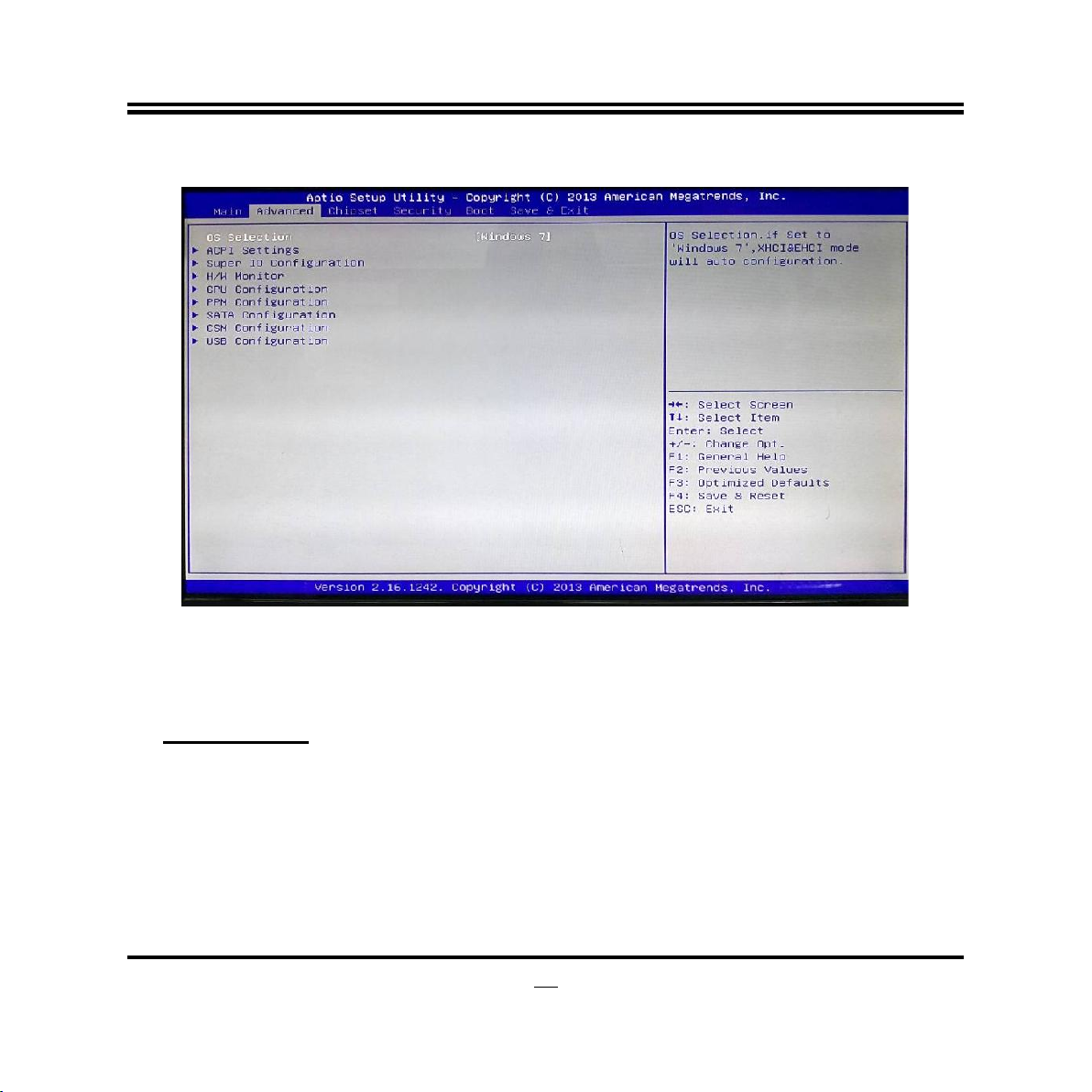

3-7 Advanced Menu
OS Selection
The optional settings: [Windows 8.X]; [Windows 7].
ACPI Settings
Press [Enter] to make settings for the following sub-item:
ACPI Settings
Enable Hibernation
Use this item to enable or disable system ability to hibernate (OS S4 Sleep State).
This option may be not effective with some OS.
The optional settings: [Disabled]; [Enabled].
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the
suspend button is pressed.
17
The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].
EUP Function
The optional settings: [Disabled]; [Enabled].
This item should be set as [Disabled] if you wish to have all active wake-up
functions.
Wake-Up by PCIE/LAN from S5
The optional settings: [Disabled]; [Enabled].
PWRON After PWR-Fail
The optional settings are: [Former-Sts]; [Always on]; [Always off].
RTC WakeUp
The optional settings: [Disabled]; [Fixed Time]; [Dynamic Time].
Use this item to enable or disable system wake on alarm event.
When set as [Fixed Time], system will wake on the hour/min/sec specified.
When set as [Dynamic Time], system will wake on the current time + increased
minute(s).
Super I/O Configuration
Press [Enter] to make settings for the following sub-items:
Super IO Configuration
Serial Port 1 Configuration / Serial Port 2 Configuration
Press [Enter] to make settings for the following items:
Super IO Configuration
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
CIR Controller Configuration
Press [Enter] to make settings for the following items:
CIR Controller Configuration
Cir Controller
Use this item to enable or disable CIR controller.
18
Change Settings
Use this item to select an optimal setting for super IO device.
WatchDog Timer
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable WatchDog Timer Control. When set as
[Enabled], the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of [4] to [255].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
► H/W Monitor
Press [Enter] to view current PC health status & system working status and make
settings for the following sub-items:
CPUFAN Smart Mode
The optional settings are: [Disabled]; [Enabled]. When set as [Enabled], the
following sub-items shall appear:
CPUFAN Full-Speed Temperature
Use this item to set CPUFAN full speed temperature. Fan will run at full speed
when above the pre-set temperature.
CPUFAN Idle-Speed Temperature
Use this item to set CPUFAN idle speed temperature. Fan will run at idle speed
when below the pre-set temperature.
CPUFAN Full-Speed Duty
Use this item to set CPUFAN full speed duty. Fan will run at full speed when above
the pre-set duty.
CPUFAN Idle-Speed Duty
Use this item to set CPUFAN idle speed duty. Fan will run at idle speed when
below the pre-set duty.
CPU Configuration
Press [Enter] to view current CPU configuration and make settings for the following
19
sub-items:
Active Processor Cores
Use this item to set the number of cores to enable in each processor packages.
Limit CPUID Maximum
The optional settings: [Disabled]; [Enabled].
This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
The optional settings: [Disabled]; [Enabled].
Hardware Prefetcher
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
The optional settings: [Enabled]; [Disabled].
When set as [Enabled], a VMM can utilize the additional hardware capabilities
provided by Vanderpool Technology.
Power Technology
The optional settings: [Disabled]; [Energy Efficient]; [Custom].
*When set as [Custom], user can make further settings in the following sub-items:
EIST
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable Intel SpeedStep.
Turbo Mode
The optional settings: [Disabled]; [Enabled].
P-STATE Coordination
Use this item to change P-STATE coordination type.
The optional settings: [HW_ALL]; [SW_ALL]; [SW_ANY].
CPU C6 report
The optional settings: [Disabled]; [Enabled].
20
Use this item to enable or disable CPU C6 (ACPI C3) report to OS.
CPU C7 report
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable CPU C7 (ACPI C3) report to OS.
Package C State Limit
The optional items are: [C0]; [C1]; [C3]; [C6]; [C7]; [No Limit].
PPM Configuration
Press [Enter] to make settings for PPM Configuration:
PPM Configuration:
EIST
The optional settings: [Enabled]; [Disabled].
Use this item to enable or disable Intel SpeedStep.
CPU C Status Report
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable CPU C status report to OS.
*When set as [Enabled], the following sub-items shall appear:
Max CPU C-state
This option controls Max C state that the processor will support.
The optional settings: [C7]; [C6]; [C1].
SATA Configuration
Press [Enter] to make settings for the following sub-items:
SATA Configuration
SATA Port
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable Serial ATA port.
SATA Speed Support
The item is for user to set the maximum speed the SATA controller can support.
The optional settings are: [Gen1]; [Gen2].
SATA ODD Port
The optional settings are: [Port0 ODD]; [No ODD].
21
SATA Mode
The optional settings are: [IDE Mode]; [AHCI Mode].
MSATA
The optional settings are: [Enabled]; [Disabled].
Use this item to enable or disable support for MSATA HotPlug function.
CSM Configuration
Press [Enter] to make settings for the following sub-items:
Compatibly Support Module Configuration
Option ROM Message
Use this item to set display mode for option ROM.
The optional settings are: [Force BIOS]; [Keep Current].
INT19 Trap Response
The optional settings are: [Immediate]; [Postponed].
Option ROM execution order
Storage
This item controls the execution of UEFI and Legacy Storage OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy only]; [Legacy first];
[UEFI first].
Video
This item controls the execution of UEFI and Legacy Video OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy only]; [Legacy first];
[UEFI first].
Other PCI devices
This item determines OpROM execution policy for devices other than Network,
storage or video.
The optional settings are: [UEFI first]; [Legacy Only].
USB Configuration
Press [Enter] to make settings for the following sub-items:
USB Configuration
Legacy USB Support
The optional settings are: [Enabled]; [Disabled]; [Auto].
22
[Enabled]: To enable legacy USB support.
[Disabled]: To keep USB devices available only for EFI specification,
[Auto]: To disable legacy support if no USB devices are connected.
XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The XHCI
ownership change should be claimed by XHCI driver.
The optional settings are: [Enabled]; [Disabled].
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The EHCI
ownership change should be claimed by EHCI driver.
The optional settings are: [Disabled]; [Enabled].
USB Mass Storage Driver Support
The optional settings are: [Disabled]; [Enabled].
3-8 Chipset Menu
23
North Bridge
Press [Enter] to view current using memory information and make settings for the
following sub-items:
IGD Turbo Enable
The optional settings are: [Enabled]; [Disabled].
DVMT Pre-Allocated
Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used
by the internal graphics device.
The optional settings are: [64M]; [96M]; [128M];[160M];[192];[224M]; [256M];
[288M];[320M];[352M];[384M];[416M];[448M];[480M;][512M].
DVMT Total Gfx Mem
Use this item to select DVMT 5.0 total graphics memory size used by the internal
graphics device.
The optional settings are: [128M]; [256M]; [MAX].
Spread Spectrum Clock
The optional settings are: [Enabled]; [Disabled].
RC6(Render Standby)
Use this item to enable or disable render standby support.
Primary IGFX Boot Display
Use this item to select the video device which will be activated during POST. This
has no effect if external graphics present.
The optional settings are: [VBIOS Default]; [HDMI1]; [HDMI2].
South Bridge
Press [Enter] to make settings for the following sub-items:
Azalia HD Audio
Press [Enter] to further setting USB device configuration.
Mini PCIE
Use this item to enable or disable Mini-PCIE.
The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], user can make settings in ‘Speed’ that appears:
24
Speed
Use this item to select PCIE speed for Mini-PCIE slot.
The optional settings are: [Auto]; [Gen2]; [Gen1].
Onboard PCIE Lan Device
Use this item to control the Onboard PCIE Lan device.
The optional settings are: [Disabled]; [Enabled].
Onboard Lan BootROM
Use this item to enable or disable boot option ROM for onboard network devices.
XHCI Mode
The system will show whether current XHCI support is enabled or disabled.
USB 2.0 (EHCI) Support
The system will show whether current USB 2.0 (EHCI) support is enabled or
disabled.
Audio Controller
Use this item to control the detection of the Azalia HD Audio device.
The optional settings are: [Disabled]; [Enabled].
[Disabled]: Azalia will be unconditionally disabled;
[Enabled]: Azalia will be unconditionally enabled;
When set as [Enabled], user can make settings in ‘Azalia HDMI Codec
’ that appears:
Azalia HDMI Codec
Use this item to enable or disable internal HDMI codec for Azalia.
The optional settings are: [Enabled]; [Disabled].
High Precision Timer
Use this item to enable or disable the high precision event timer.
The optional settings are: [Enabled]; [Disabled].
25
3-9 Security Menu
Security menu allow users to change administrator password and user password
settings.
26

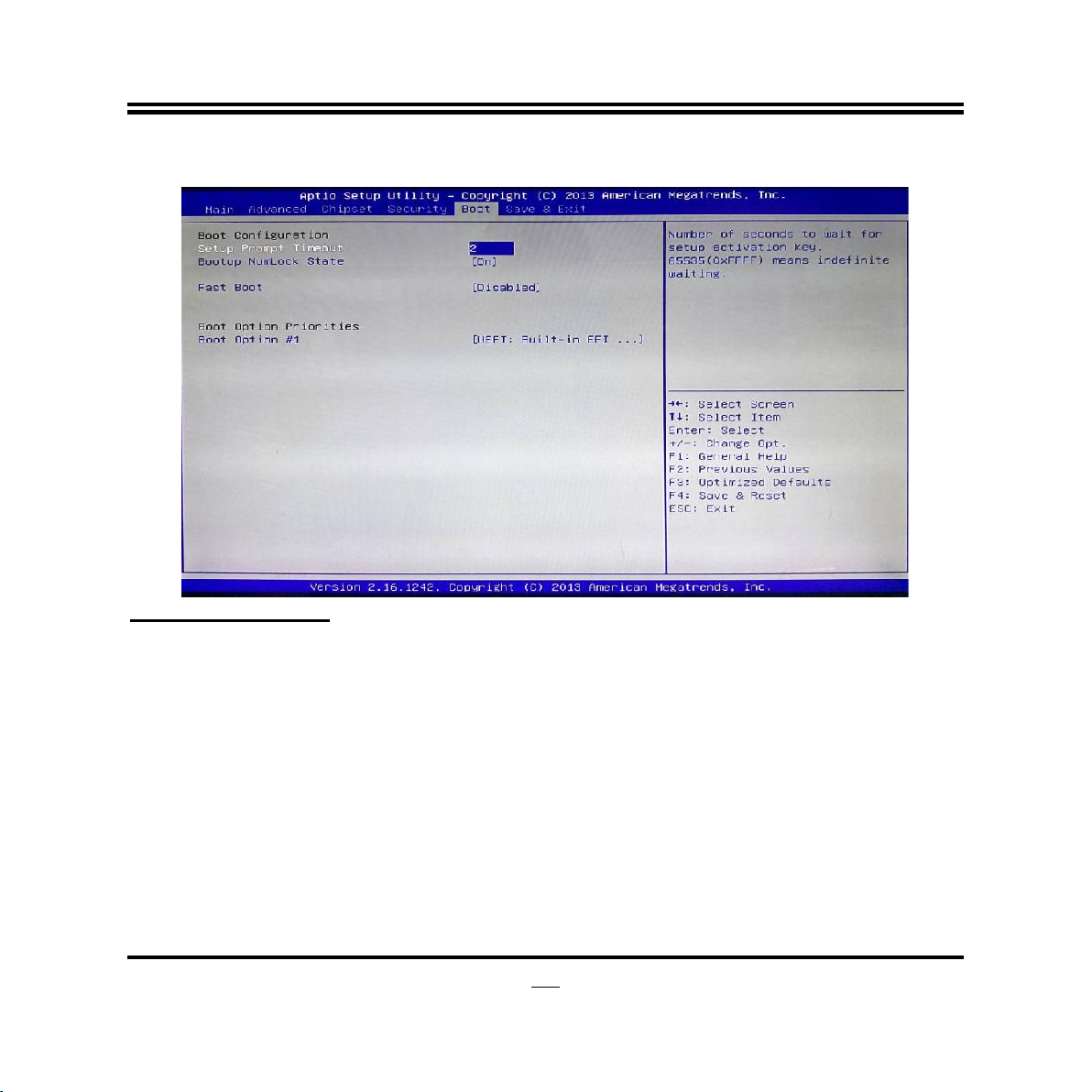

3-10 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state.
The optional settings are: [On]; [Off].
Fast Boot
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], user can make settings in the following items that appear:
VGA Support
The optional settings are: [Auto]; [EFI Driver].
*When set as [Enabled], it will only install Legacy OpROM with Legacy OS and
logo will not be shown during POST. EFI driver will still be installed with EFI OS.
27
USB Support
The optional settings are: [Disabled]; [Full Initial]; [Partial Initial].
[Disabled]: All USB devices will NOT be available until after OS boot;
[Partial Initial]: USB mass storage and specific USB port/device will NOT be
available before OS boot;
[Full Initial]: All USB devices will NOT be available in OS and POST.
PS2 Device Support
The optional settings are: [Disabled]; [Enabled].
The PS2 devices will be skipped if this is set as [Disabled].
Network Stack Driver Support
The optional settings are: [Disabled]; [Enabled].
Network Stack Driver will be skipped if this is set as [Disabled].
Boot Option Priorities
Boot Option # 1
Use this item to set system boot order.
The optional settings are: [UEFI: Built-in EFI Shell]; [Disabled].
28
3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Save Options
Save Changes
This item allows user to save changes done so far to any of the setup options.
Discard Changes
This item allows user to discard changes done so far to any of the setup options.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
29
Restore User Defaults
Use this item to restore defaults to all the setup options.
Boot Oerride
UEFI: Built-in EFI Shell
Press this item and a dialogue box shall appear to ask if user wish to save
configuration and reset.
Lauch EFI Shell from filesystem device
Use this item to launch EFI shell application (shell.efi) from one of the available
filesystem device.
Reset System with ME disable Mode MEUD000
Press [Enter] for ME to run into the temporary disable mode. Ignore if ME Ignition
EWMEUD001.
30
Loading...
