USER'S MANUAL
Of
Intel H61 Express Chipset
Based
M/B for Intel Core Processor Family
No. G03-NMF92-F
Rev: 1.0
Release date: February 6, 2012
Trademark:
* Specifications and Information contained in this docume ntation ar e furnishe d for inf ormation use only , and ar e
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
ENVIRONMENTAL PROTECTION ANNOUCEMENT..............................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 SPECIFICATION.........................................................................................................1
1-2 LAYOUT DIAGRAM....................................................................................................2
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................5
2-2 CONNECTORS AND HEADERS................................................................................8
2-2-1 REAR I/O BACK PANEL CONNECTORS....................................................8
2-2-2 MOTHERBOARD INTERNAL CONNECTORS............................................9
2-2-3 HEADER PIN DEFINITION ...........................................................................11
TABLE OF CONTENT
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP.....................................................................................................17
3-2 BIOS MENU SCREEN ................................................................................................17
3-3 FUNCTION KEYS .......................................................................................................18
3-4 GETTING HELP ..........................................................................................................18
3-5 MAIN BAR...................................................................................................................19
3-6 MAIN MENU................................................................................................................19
3-7 ADVANCED MENU.....................................................................................................20
3-8 CHIPSET MENU..........................................................................................................27
3-9 BOOT MENU...............................................................................................................29
3-10 SECURITY MENU.......................................................................................................30
3-11 SAVE & EXIT MENU...................................................................................................30
ii
Environmental Safety Instruction
z Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z 0 to 40 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
z Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
z The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
z Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
iii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AN D WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition February 6, 2012
Item Checklist
5
Motherboard
5
User’s Manual
5
DVD for motherboard utilities
5
Cable(s)
5
I/O Back panel shield
iv
Chapter 1
Introduction of the Motherboard
1-1 Specification
Spec Description
Micro-ATX form factor, PCB Size: 24.5 x 24.5 cm
Design
Chipset
CPU Socket
(LGA1155 )
Memory Slot
Expansion Slot
SATA2
Dual LAN Chip
Audio Chip
BIOS
Multi I/O
z
Intel H61 Express Chipset
z
Support Intel® Core™ i7 Processor, Intel® Core™ i5
z
Processor, Intel® Core™ i3 Processor in the LGA 1155 Socket
* for detailed CPU support information please visit our website
240-pin DDRIII RAM module slot x 2 supporting two DDRIII
z
1066-1333MHz RAM Module expandable to 16GB
Support dual-channel function
z
1 pcs* PCI-Express 2.0 x16 slot by 16 lane
z
1 pcs PCI-Express 2.0 x1 slot by 1 lane
z
2 pcs *32-bit PCI slot
z
1 pcs* Mini-PCIE/MSATA slot
z
slot by connecting compatible MSATA hard disk, SATA4 port
will be disabled)
Support four serial ATA2 ports
z
Integrated dual RTL8111E PCI-E Gigabit LAN chip
z
Supports Fast Ethernet LAN function provide10/100/ 1000Mbps
z
data transfer rate
Realtek ALC662 6-channel Audio Codec integrated
z
Audio driver and utility included
z
32M DIP Flash ROM
z
HDMI port connector x1
z
Serial port connector x2
z
VGA port connector x1
z
DVI-D port connector x1
z
USB 2.0 port connector x6
z
RJ-45 LAN connector x2
z
Audio connector x3
z
Front panel audio header x1
z
Serial port header x 8
z
RS422/RS485 header x1
z
Speaker header x1
z
PWRLED header x1
z
CIR header x1
z
4-pin USB 2.0 header x1
z
9-pin USB 2.0 header x2
z
PS/2 keyboard & mouse header x1
z
Front panel header x1
z
LANLED header x2
z
HDMI_SPDIF header x1
z
SM_BUS header x1
z
GPIO header x1
z
TPM 1.2 header x1
z
Parallel header x1
z
(When this slot works as MSATA
1
r
r
r
r
r
r
r
r
(
r
r
r
r
r
r
1-2 Layout Diagram
Rear IO Diagram
USB Ports
DVI-D Port
Serial Port
RJ-45 LAN Ports
Line-IN
Line-OUT
MIC-IN
HDMI Port
Serial Port
VGA Port
USB Ports
Motherboard Internal Diagram
SYS FAN2 Heade
CPU FAN Heade
USB 2.0 Ports
Ove
Ove
*Note: MPE_SA slot can work as Mini-PCIE slot or MSATA slot. In the case that user connects compatible
MSATA hard disk to this slot, SATA4 port will be disabled.
Over
HDMI Port
Serial Ports
DVI-D Port
Over
VGA Port
RJ-45 Port
USB 2.0 Ports
RJ-45 Port
USB 2.0 Ports
Audio
SM_BUS
Heade
Connecto
HDMI S/PDIF Header
Front Panel
Audio Heade
DDRIII DIMMx2
ATX 12V Power
Connecto
Parallel Heade
LAN Chip
LAN Chip
Mini-PCIE
/MSATA Slot*
MPE SA Slot)
PCIE x1 Slot
32-bit PCI Slot
TX-RX COM Header
Serial Port Headers
(COM3/4/5/6)
CPU Socket
PCI E x16 Slot
TPM Header
GPIO Heade
USB Header
USB Headers
SpeakerHeade
CIR Header
Serial Port Headers
（COM7/8）
PS/2 KBMS
Heade
Intel H61Chipset
PWRLED
Header
Serial Port Headers
（COM9/10）
ATX Powe
Connector
SYSFAN1 Heade
SATAII Ports
Front Panel
Header
2
JBAT
J
J
J
J
JP6
JP7
Motherboard Jumper Position
P1
P2
CASE_OPEN
JP3
P5
P8
Jumper
Jumper Name Description
JBAT CMOS RAM Clear Function Setting 3-pin Block
JP1 COM1 Pin9 Function Select 6-pin Block
JP2 Mini PCI-E Power VCC3.3V/3.3V SB 3-pin Block
JP3 COM3 RS232/485/422 Function Select 6-pin Block
JP5 COM7 Pin9 Function Select 6-pin Block
JP6 COM8 Pin9 Function Select 6-pin Block
JP7 COM9 Pin9 Function Select 6-pin Block
JP8 COM10 Pin9 Function Select 6-pin Block
CASE_OPEN Case Open Message Display Function 2-pin Block
3
Connectors
Connector Name Description

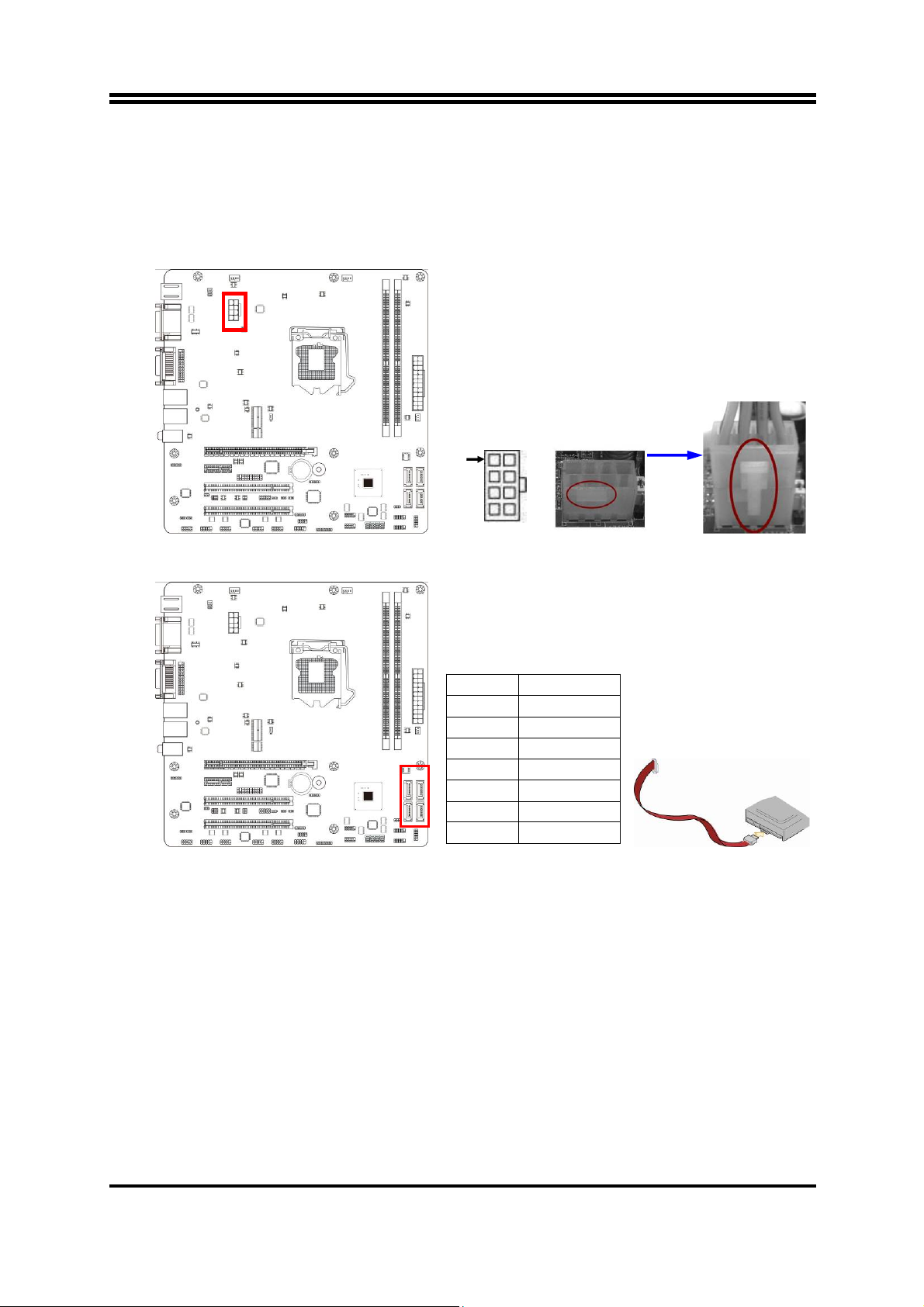

ATXPWR ATX Power Connector 24-pin Block
ATX12V ATX 12V Power Connector 8-pin Block
SATA1/SATA2/
SATA3/SATA4
HDMI High-Definition Multimedia Interface 19-pin Connector
COM1 Serial Port COM Connector x 2 9-pin Connector
DVI DVI-D Port Connector 24-pin Connector
VGA Video Graphic Attach Connector 15-pin Female
USB from USB1/
UL1/UL2
LAN from UL1/UL2 RJ-45 LAN Connector 8-pin Connector
AUDIO1 Audio Connector 3-phone Jack
SATAII Connectors 7-pin Connector
USB Port Connector 4-pin Connector
Headers
Header Name Description
FP_AUDIO Front panel audio Header 9-pin block
COM3/4/5/6/7/8/9/10 Serial Port Header 9-pin Block
TX-RXCOM RS 232/422/485 port headers 4-pin block
SPEAK Speaker Header 4-pin Block
PWRLED Power LED 3-pin Block
CIR CIR module Header 7-pin Block
USB2 USB Header 4-pin Block
USB3 USB Header 9-pin Block
KBMS PS2 Keyboard & Mouse Header 6-pin Block
JW_FP
(Front Panel Header)
PWR LED/ HD LED/ /Power Button
/Reset
9-pin Block
SYSFAN1 FAN Speed Header 3-pin Block
CPUFAN,SYSFAN2 FAN Speed Header 4-pin Block
LAN1LED/LAN2LED LAN LED header 2-pin block
HDMI_SPDIF SPDIF Out header 2-pin Block
SM_BUS SMBUS header 4-pin Block
GPIO_CON GPIO Header 10-pin Block
TPM TPM Header 19-pin Block
PARALLEL Parallel Header 25-pin Block
4
Chapter 2
Hardware Installation
2-1 Jumper Setting
(1) JBAT (3-pin): Clear CMOS
JBATJBAT
1-2 Cl ose d: N ormal;
CMO S RAM Clear Setting
(2)JP1 (6-pin): COM1 Pin9 function select
2-3 Closed: Clear CMOS
JP1
1
1-2 close d: RS23 2;
1
3-4 closed : +12V;
1
5-6 closed : +5V
(3) JP2 (3-pin): Mini PCI-E Power VCC 3V/ 3 VSB Function Select
JP2
1-2 Closed: MINI PCI-E VCC= 3V Select；
JP2
2-3 Closed: MINI PCI-E VCC= 3VSB Select
1
3
1
3
5
(4) JP3 (6-pin): COM3 Port RS232/485/422 Function Select
JP3
1-2 closed: RS232;
(5) JP5 (6-pin): COM7 Pin9 function select
JP5
1
1-2 closed: RS232;
(6) JP6 (6-pin): COM8 Pin9 function select
1
3-4 closed : RS485;
1
3-4 closed : +12V;
1 1
5-6 closed : RS422
1
5-6 closed : +5V
JP6
1
1-2 closed: RS232;
1
3-4 closed : +12V;
1
5-6 closed : +5V
6
(7) JP7 (6-pin): COM9 Pin9 function select
JP7
1
1-2 closed: RS232;
1
3-4 closed : +12V;
1
5-6 closed : +5V
(8) JP8 (6-pin): COM10 Pin9 function select
JP8
1
1-2 closed: RS232;
1
3-4 closed : +12V;
1
5-6 closed : +5V
(9)CASE_OPEN (2-pin): Case Open Message Display function select
COPEN
1-2 Open： Normal
1-2 Short ： Case Open
Case Open Displa y Function
Pin 1-2 shorted: Case open display function enabled. In this case if you case is
removed, next time when you restart your computer a message will be displayed
onscreen to inform you of this.
7
2-2 Connectors and Headers
2-2-1 Rear I/O Back Panel Connectors
USB Ports
Serial Port
DVI-D Port
RJ-45 LAN Ports
Line-IN
Line-OUT
MIC-IN
HDMI Port
Serial Port
(1) High-Definition Multimedia Interface: HDMI1
This point-to-point interface is for audio and video signals designed as a
single-cable solution for home theater and consumer electronics equipment.
(2) Serial port Connector: COM1
COM1 offers two 9-pin serial port connectors.
(3) Digital Visual Interface: DVI
This interface standard designed to maximize the visual quality of digital display
devices such as flat panel LCD computer displays and digital projectors.
(4) D-Sub 15-pin Connector: VGA
VGA connector is the 15-pin D-subminiature female connector; it is for the
display devices, such as the CRT monitor, LCD monitor and so on.
(5) USB Port Connectors: USB ports from USB1/UL1/ UL2
The connectors are 4-pin connector that connects USB devices to the system
board.
(6) LAN Port connectors: RJ45 LAN ports from UL1/UL2
The connector is standard RJ45 connector for Network. It supports
10/100/1000Mbps data transfer rate.
(7) Audio Line-In, Lin-Out connector: AUDIO1
These Connectors are 3 Phone-Jack for LINE-OUT, LINE-IN, MIC audio
connections.
Line-in: (BLUE)
Line-out: (GREEN)
MIC: (PINK)
VGA Port
USB Ports
Audio input to sound chip
Audio output to speaker
Microphone Connector
8
2-2-2 Motherboard Internal Connectors
(1) Power Connector (24-pin block): ATXPWR
ATX Power Supply connector: This is a new defined 24-pins connector that
usually comes with ATX case. The ATX Power Supply allows using soft power
on momentary switch that connect from the front panel switch to 2-pins Power
On jumper pole on the motherboard. When the power switch on the back of the
ATX power supply turned on, the full power will not come into the system board
until the front panel switch is momentarily pressed. Press this switch again will
turn off the power to the system board.
** We recommend that you use an ATX 12V Specification 2.0-compliant power
supply unit (PSU) with a minimum of 350W power rating. This type has 24-pin
and 4-pin power plugs.
** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the
20-pin power plug can provide at least 15A on +12V and the power supply unit
has a minimum power rating of 350W. The system may become unstable or may
not boot up if the power is inadequate.
** If you are using a 20-pin power plug, please refer to Figure1 for power supply
connection. Power plug form power supply and power connectors from
motherboard both adopt key design to avoid mistake installation. You can insert
the power plug into the connector with ease only in the right direction. If the
direction is wrong it is hard to fit in and if you make the connection by force if is
possible.
Figure1：20-pin power plug Figure 2：24-pin power plug
9
(2) ATX 12V Power Connector (8-pin block) : ATX12V
This is a new defined 8-pin connector that usually comes with ATX Power
Supply. The ATX Power Supply which fully supports AMD AM3 processor must
including this connector for support extra 12V voltage to maintain system power
consumption. Without this connector might cause system unstable because the
power supply can not provide sufficient current for system.
Pin 1
(3) SATAII Port connector: SATA1/SATA2/SATA3/SATA4
These connectors are high-speed SATAII ports that support 3 Gbps transfer rate.
Pin No. De fin it ion
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
10
2-2-3 Header Pin Definition
(1) FP_AUDIO (9-pin): Line-Out/MIC Header for Front Panel
This header is connected to Front Panel Line-out, MIC connector with cable.
AUD_JD
GND
NC
NC
FP_AUDIO
Pin 1
Line-Out, MIC Headers
(2) COM2/3/4/5/6/7/8/9/10 (9-Pin): Serial Port Headers
Pin6
Pin1
COM Port 9-pin Block
2
MIC2-L
MIC2-R
10
9
LINEOUT2-L
LINEOUUT2-R
SENSE
DSR
RTS
CTS
RI
Pin5
DCD
SIN
GND
SOUT
DTR
(3) TX-RXCOM (4-pin): RS232/422/485 Header
11
TXDN
TXDP
Pin 1
2
4
3
RXDN
RXDP
TX-RXCOM Header
V
5
(4) SPEAK (4-pin): Speaker Header
This 4-pin header connects to the case-mounted speaker. See the figure below.
(5) PWR LED (3-pin): Power LED Header
The Power LED header is light on while the system power is on. Connect the
Power LED header from the system case to this pin.
SPEAK
PIN1
PIN1
PWRLED
PWRLED+
PWRLED-
PWRLED-
SPEAKR+
SPEAKR-
NC
NC
(6) CIR (7-pin): CIR Header
(7)USB2 (4-pin): USB Port Header
2
Pin 1
CIR Header
VCC
CIR L E D-
GND
CI R Lea rn
CIR RX
CC
NC
5VSB
+DATA
-DATA
GND
Pin 1
USB2 Header
12
V
V
_
_
G
(8) USB3 (9-pin): USB Port Header
+DATA
Pin 1
CC
CC
-DATA
GND
OC
-DATA
+DATA
GND
(9) KBMS (6-pin): PS/2 Keyboard & Mouse Header
Pin1
(10) JW-FP (9-pin): Front Panel Header
USB3 Header
MS
KB
KB CLK
DATA
DATA
GND
MS CLK
VCC
Pin 1
PWRLED+
PWRLED-
ND
PWRBTN
HDLED+
HDLED-
GND
RSTSW
NC
13
(11) SYSFAN1 (3-pin), SYSFAN2 (4-pin), CPUFAN1 (4-pin): FAN Headers
(12) LAN1LED/LAN2LED (2-pin): LANLED
Pin1
+12V F an Po wer
Fan Clock
GND
SYSFAN2
SYSFAN1
Pin1
Control
Pin1 GND
FAN Headers
LED+
LED-
Pin1
+12V Fan Power
Fan Clock
GND
CPUFAN
+12V Fan Power
Fan Clock
Control
LANLED Header
(13) HDMI_SPDIF (2-pin): HDMI-SPDIF Out header
Pin1
HDMI_SPDIF Header
SPDIF
GND
14
(14)SM_BUS (2-pin): SM BUS header
SMBUS DATA
SMBUS CLK
VCC5V
GND
Pin 1
(15) GPIO Header (10-pin): GPIO_CON
(16) TPM (19-pin): TPM Header
SM_BUS Header
Pin 1
GPIO _CON Header
GND
KEY/NC
GPIO31
GPIO35
GPIO33
GPIO37
VCC5V
2
GPIO30
GPIO32
GPIO34
GPIO36
GND
SM_DATA
NC/GND
VCC5V
LAD2
SERIRQ
LAD1
GND
10
9
GPIO
Pin 1
2
LFRAM
RESET
CLK
TPM Head e r
VCC3.3V
LAD3
LAD0
SM_CLK
20
19
SB3.3V
GND
GPIO
15
(17) PARALLEL (25-pin): Parallel Port Header
Pin2
Pin NO. Pin Definition Pin NO. Pin Definition
Pin 1
Pin 3
Pin 5
Pin 7
Pin 9
Pin 11
Pin 13
Pin 15
Pin 17 PD7 Pin 18 GND
Pin 19 ACK- Pin 20 GND
Pin 21 BUSY Pin 22 GND
Pin 23 PE Pin 24 GND
Pin 25 SLCT
STBPD0
PD1
PD2
PD3
PD4
PD5
PD6
Pin 2
Pin 4
Pin 6
Pin 8
Pin 10
Pin 12
Pin 14
Pin 16
Parallel Por t Header
AFDERRINITSLINGND
GND
GND
GND
Pin 1
16
Chapter 3
Introducing BIOS
Notice!
The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manuals are usually the first BIOS version when the board
is released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and software
to communicate, it is the key factor for system stability, and in ensuring that your
system performance as its best.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an error message will be displayed and you will again be asked
to
Press
<Del>
to enter Setup
3-2 BIOS Menu Screen

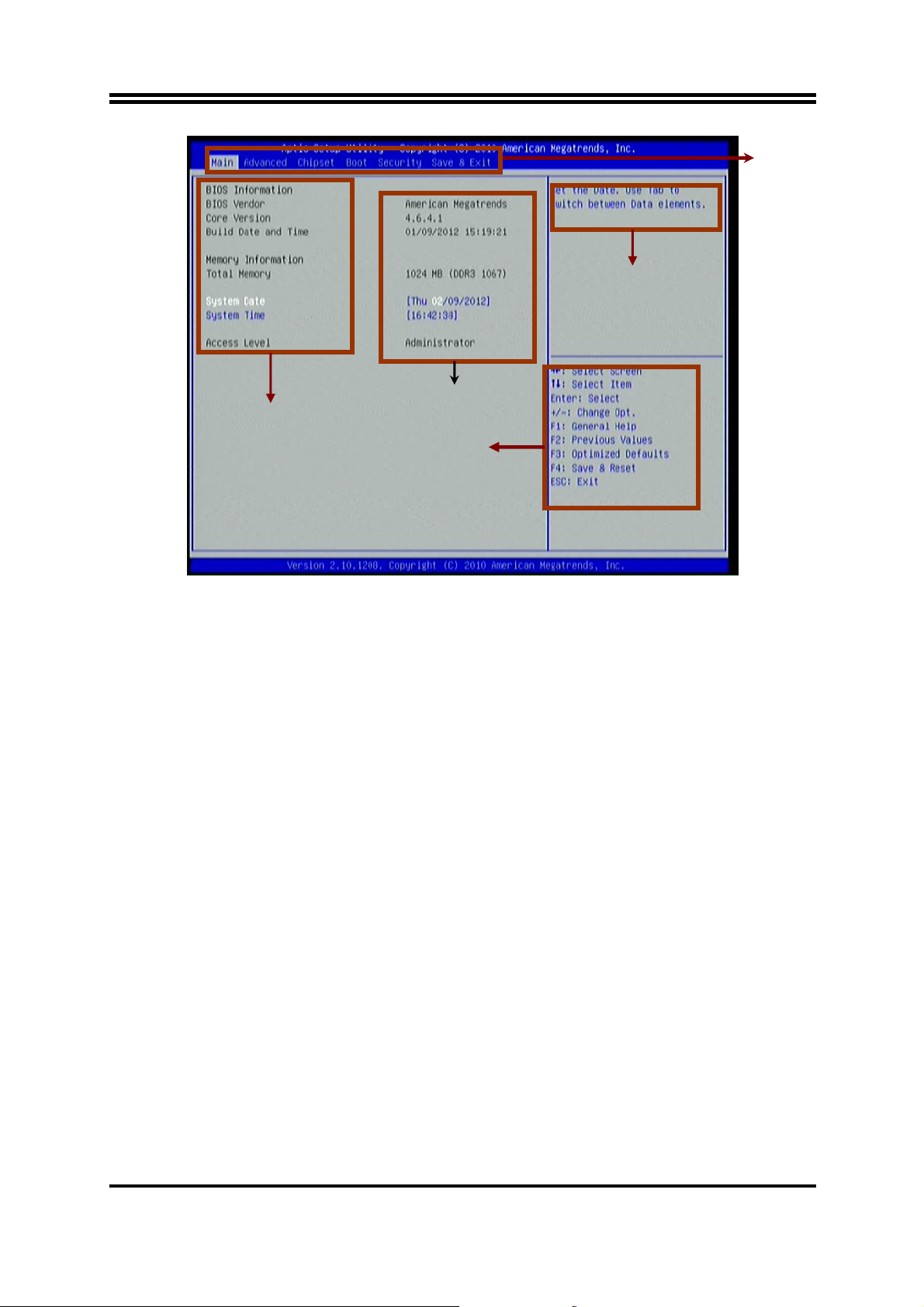

The following diagram show a general BIOS menu screen:
17
Menu Bar
General Help Items
Current Setting Value
Menu Items
Function Keys
BIOS Menu Screen
3-3 Function Key
In the above BIOS Setup main menu of, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:
Press←→ (left, right) to select screen;
z
Press ↑↓ (up, down) to choose, in the main menu, the option you want to confirm
z
or to modify.
Press <Enter> to select.
z
Press <+>/<–> keys when you want to modify the BIOS parameters for the active
z
option.
[F1]: General help.
z
[F2]: Previous value.
z
[F3]: Optimized defaults.
z
[F4]: Save & Reset.
z
Press <Esc> to quit the BIOS Setup.
z
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right
corner the screen.
18
Status Page Setup Menu/Option Page Setup M enu
Press F1 to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<
>.
Esc
3-5 Menu Bar
There are six menu bars on top of BIOS screen:
Main To change system basic configuration
Advanced To change system advanced configuration
Chipset To change chipset configuration
Boot To change boot settings
Security Password settings
Save & Exit Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.
3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] key to switch between data elements.
System Time
Set the time. Please use [Tab] key to switch between time elements.
19
3-7 Advanced Menu
Launch OpROM Support:
Launch External PXE OpROM/Launch LAN1 PXE OpROM
/Launch LAN2 PXE OpROM
Use this item to enable or disable boot option for legacy network devices.
Launch Storage OpROM
Use this item to enable or disable boot option for legacy mass storage devices with
option ROM.
ERP Function
Use this item to enable or disable ERP function for this board. This item should be set
as [Disabled] if you wish to have Active All Wakeup Function.
▶ PCI Subsystem Settings
Press [Enter] to enter and make settings for
PCI Express Settings
and
PCI Express
GEN2 Settings.
▶ PCI Express Settings
Press [Enter] to make settings for the following PCI Express Device Register
Settings:
PCI Express Device Register Settings:
Relaxed Ordering
Use this item to enable or disable PCI express device relaxed ordering.
Extended Tag
If set as [Enabled] it will allow device to use 8-bit tag field as a requester.
20
No Snoop
Use this item to enable or disable PCI Express device No Snoop option.
Maximum Payload
Use this item to set maximum payload of PCI Express device or allow system
BIOS to select the value.
Maximum Read Request
Use this item to set maximum read request size of PCI Express device or allow
system BIOS to select the value.
PCI Express Link Register Settings:
ASPM Support
The optional settings: [Disabled]; [Auto]; [Force L0].
Extended Synch
If set as [Enabled] it will allow generation of extended synchronization patterns.
Link Training Retry
Use this item to define number of retry attempts software will take to restrain the
link if previous training attempt was unsuccessful.
Link Training Timeout(uS)
Use this item to define number of microseconds software will wait before polling
‘Link Training’ bit in link status register.
Unpopulated Links
The optional settings are: [Keep Link ON]; [Disable Link].
▶ PCI Express GEN2 Settings
Press [Enter] to make settings for the following PCI Express GEN Devices
Settings:
PCI Express GEN2 Device Register Settings:
Completion Timeout
The optional settings are: [Default]; [Shorter];[Longer]; [Disabled].
ARI Forwarding
The optional settings are: [Disabled]; [Enabled].
AtomicOp Register Enable
The optional settings are: [Disabled]; [Enabled].
AtomicOp Egress Blocking
The optional settings are: [Disabled]; [Enabled].
ID0 Request Enable
The optional settings are: [Disabled]; [Enabled].
ID0 Completion Enable
The optional settings are: [Disabled]; [Enabled].
21
LTR Mechanism Enable
The optional settings are: [Disabled]; [Enabled].
End-End TLP Prefix Blocking
The optional settings are: [Disabled]; [Enabled].
PCI Express GEN2 Link Register Settings
Target Link Speed
The optional settings are: [Auto]; [Force to 2.5GT/s].
Selectable De-emphasis
The optional settings are: [-3.5 dB]; [-6.0dB].
Clock Power Management
The optional settings are: [Disabled]; [Enabled].
Compliance SOS
The optional settings are: [Disabled]; [Enabled].
Hardware Autonomous Width
The optional settings are: [Disabled]; [Enabled].
Hardware Autonomous Speed
The optional settings are: [Disabled]; [Enabled].
► ACPI Settings
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the
suspend button is pressed.
The optional settings are: [S1(CPU Stop Clock)]; [S3(Suspend to RAM)].
► Wakeup Function Settings
Wake System with Fixed Time
Use this item to enable or disable system wake on alarm event. When set as
[Enabled], system will wake on the hour/min/sec specified.
CIR Wakeup
Use this item to enable or disable CIR wakeup.
PS2 KB/MS Wakeup
Use this item to enable or disable PS2 KB/MS wakeup function.
PCI PME Wakeup
Use this item to enable or disable S3/S4/S5 PCI PME wakeup function.
USB S3/S4 Wakeup
Use this item to enable or disable USB S3/S4 wakeup function.
► Trusted Computing
Press [Enter] to set TPM Configuration
TPM Support
The optional settings are: [Disabled]; [Enabled].Use this item to enable or disable
22
TPM support. O.S will not show TPM. Reset of platform is required. When set as
[Enabled], user can further enable or disable TPM State.
► CPU Configuration
► Socket 0 CPU Information
Press [Enter] to view detailed CPU information.
Active Processor Cores
Use this item to select number of cores to enable in each processor package.
Limit CPUID Maximum
This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
The optional settings are: [Disabled]; [Enabled].
Hardware Prefetcher
Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch
Use this item to turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
The optional settings: [Enabled]; [Disabled].
When set as [Enabled], a VHM can utilize the additional hardware capabilities
provided by Vanderpool Technology.
Power Technology
Use this item to enable power management features.
The optional settings are: [Disabled]; [Energy Efficient]; [Custom].
► SATA Configuration
SATA Mode
The optional settings are: [Disabled]; [IDE Mode]; [AHCI Mode].
Serial-ATA Controller 0
The optional settings are: [Disabled]; [Enhanced]; [Compatible].
Serial-ATA Controller 1
The optional settings are: [Disabled]; [Enhanced].
► Intel IGD SWSCI OpRegion
IGD-Boot Type
Use this item to select the video device which will be activated during POST. This
has no effect if external graphics present.
The optional settings are: [VBIOS Default]; [CRT]; [HDMI].
► USB Configuration
Legacy USB Support
The optional settings are: [Auto]; [Disabled]; [Enabled].
EHCI Hand-off
23
The optional settings are: [Disabled]; [Enabled].
USB Transfer time-out
Use this item to set the time-out value for control, bulk, and interrupt transfers.
Device reset time-out
Use this item to set USB mass storage device start unit command time-out.
Device power-up delay
Use this item to set maximum time the device will take before it properly reports
itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for
a hub port the delay is taken from hub descriptor. The optional settings: [Auto];
[Manual].Select [Manual] you can set value for the following sub-item: Device
Power-up delay in seconds, the delay range in from 1 to 40 seconds in one
second increments.
► Super IO Configuration
► COM1 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port.
Change Settings
Use this item to select an optimal setting for super IO device.
► COM2 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port.
Change Settings
Use this item to select an optimal setting for super IO device.
► Parallel Port Configuration
Press [Enter] to make settings for the following items:
Parallel Port
Use this item to enable or disable parallel port(LPT/LPE).
Change Settings
Use this item to change the printer port mode.
Device Mode
Use this item to change the printer port mode.
CIR Controller
Use this item to enable or disable CIR controller.
Case Open Detect
Use this item to detect case has already open or not, show message in POST.
► PC Health Status
24
Press [Enter] to view hardware health status.
► Second Super I/O Configuration
► COM3 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port Mode Select
The optional settings are: [RS232]; [RS422/RS485].
► COM4 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
► COM5 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
► COM6 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
► Third Super I/O Configuration
► COM7 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port Mode Select
The optional settings are: [RS232]; [RS422/RS485].
► COM8 Port Configuration
Press [Enter] to make settings for the following items:
25
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
► COM9 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
► COM10 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
► Voltage Configuration
DIMM Voltage
The optional settings are: [1.50V]; [1.65V]; [1.80V]; [1.95V].
► WatchDog Configuration
WatchDog Timer Control
Use this item to enable or disable WatchDog Timer Control. When set as Enabled,
the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of 4 to 255.
WatchDog Timer Unit
The optional settings are: [Second];[Minute].
► Shutdown Temperature Configuration
Use this item to select system shutdown temperature.
► SmartFan Configuration
SYSTEM FAN2 3/4 Pin Fan Select
The optional settings are: [3 Pin]; [4 Pin].
CPUFAN / SYSFAN1/SYSFAN2 SmartFan Mode
When set as [Enabled], the following sub-items shall appear:
CPUFAN / SYSFAN1/SYSFAN2 Full Speed Temp
Use this item to set a degree for CPU/System fan1/ System fan2 FAN will run at
full speed when above the specific temperature set.
26
CPUFAN / SYSFAN1/SYSFAN2 Idle Temp
Use this item to set a degree for CPU/System fan1/ System fan2. FAN will idle
speed when below this temperature.
CPUFAN / SYSFAN1/SYSFAN2 Stop Temp
Use this item to set a degree for CPU/System fan1/ System fan2. CPU FAN will
stop when below this temperature.
3-8 Chipset Menu
► North Bridge
LOW MMIO Align
The optional settings are: [64M]; [1024M].
VT-d
The optional settings are: [Enabled]; [Disabled].
Initiate Graphics Adapter
Select which graphics controller to use as the primary boot device. The optional
settings are:[ IGD]; [PCI/IGD]; [PCI/PEG]; [PEG/IGD]; [PEG/PCI].
IGD Memory
Use this item to set IGD share memory size.
IGD Multi-Monitor
Use this item to enable or disable IGD multi-monitor by internal graphics device.
PCI Express Port
The optional settings are: [Auto];[Enabled]; [Disabled].
27
PEG Force Gen1
Use this item to enable or disable PCI Express port Force Gen1.
Detect Mon-Compliance Device
Use this item to enable or disable Non-Compliance PCI Express device in PEG.
► South Bridge
SB Chipset Configuration
Onboard Lan1 Device/ Onboard Lan2 Device
Use this item to enable or disable the PCI Express port in the chipset.
Restore AC Power Loss
Use this item to specify what state to go to when power is re-applied after a power
failure (G3 State). The optional settings are: [Power Off]; [Power On]; [Last State].
SLP_S4 Assertion Stretch Enable
The optional settings are: [Enabled]; [Disabled].
Deep Sx
The optional settings are: [Disabled]; [Enabled in S5]; [Enabled in S4 and S5].
Audio Configuration
Azalia HD Audio
The optional settings are: [Enabled]; [Disabled].
Azalia Internal HDMI Codec
Use this item to enable or disable internal HDMI codec for Azalia.
High Precision Event Timer Configuration
High Precision Timer
The optional settings are: [Enabled]; [Disabled].
► USB Configuration
Press [Enter] to further setting USB port configuration. User can enable or disable
specific USB port selected, or choose to enable or disable all USB devices.
► ME subsystem
ME Subsystem
Use this item to enable or disable ME subsystem.
ME Temporary Disable
Use this item to enable or disable ME temporary disable help.
28
3-9 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state. The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Enabled]; [Disabled].
Gate A20 Active
The optional settings are: [Upon Request]; [Always].
Option ROM Message
Use this item to set display mode for option ROM. The optional settings are: [Force
BIOS]; [Keep Current].
Interrupt 19 Capture
The optional settings are: [Enabled]; [Disabled].
29
3-10 Security Menu
Security menu allow users to change administrator password and user password
settings.
3-11 Save & Exit Menu
30
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /Load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
Use this item to restore defaults to all the setup options.
Launch EFI Shell from filesystem device
This item is used for attempts to launch EFI shell application from one of the available
file system devices.
Reset System with ME disable Mode
ME will run into the temporary disable mode. Ignore if ME Ignition FW.
31
Loading...
