Jetway Computer NF9VT User Manual

Technical Manual

Of

Intel Bay Trail Series CPU

Based Mini-ITX M/B

NO.G03-NF9V-F
Revision: 1.0
Release date: March 6, 2015
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
ii
TABLE OF CONTENT
ENVIRONMENTAL SAFETY INSTRUCTION ....................................................................... iv
USER’S NOTICE.................................................................................................................. v
MANUAL REVISION INFORMATION................................................................................... v
ITEM CHECKLIST................................................................................................................ v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ............................................................................ 1
1-2 SPECIFICATION .................................................................................................... 2
1-3 LAYOUT DIAGRAM ............................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING................................................................................................. 8
2-2 CONNECTORS AND HEADERS............................................................................ 13
2-2-1 CONNECTORS ......................................................................................... 13
2-2-2 HEADERS................................................................................................. 16
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP................................................................................................. 26
3-2 BIOS MENU SCREEN............................................................................................ 27
3-3 FUNCTION KEYS................................................................................................... 27
3-4 GETTING HELP...................................................................................................... 28
3-5 MEMU BARS.......................................................................................................... 28
3-6 MAIN MENU ........................................................................................................... 29
3-7 ADVANCED MENU ................................................................................................ 30
3-8 CHIPSET MENU..................................................................................................... 40
3-9 SECURITY MENU .................................................................................................. 43
3-10 BOOT MENU.......................................................................................................... 44
3-11 SAVE & EXIT MENU .............................................................................................. 45
iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition March 16, 2015
Item Checklist
Motherboard
User’s Manual
CD for motherboard utilities
Cable(s)
v

Chapter 1

Introduction of the Motherboard

1-1 Feature of Motherboard

Onboard Intel® Bay Trail Series Processor, with low power consumption never
denies high performance
Support 1* DDR3L 1066/1333 MHz SO-DIMM, up to 8GB
Support full-size Mini-PCIE connector
Support m-SATA connector
Support 1 * SATAII port
4 * RJ45 ports for External COM interface&2* Internal COM header
Support USB 3.0 data transport demand
Support LVDS & VGA dual display output
Touch Panel Control IC integrated on board (Optional)
Support CPU Over-Temperature protection
Support CPU Over-Current/Under Voltage protection
Support DRAM Over-Current/Under Voltage protection
Amplifier implement to support 3W Speaker
Support CPU/System Smart FAN
Compliance with ErP standard
Support Watchdog function
1
Hz

1-2 Specification

Spec
Design Embedded CPU
Memory Slot
Expansion Slot
LAN Chip
Storage
BIOS
Rear I/O
Internal I/O
Description
6 layers; PCB size: 17x 17 cm Integrated with Intel® Bay Trail-D/M/I series CPU
1 * DDR3L SODIMM Slot for un-buffered DDR3L 1066/1333 M
SDRAM, expandable to 8GB in total
1* Full-size Mini-PCIE slot 1* PCIE x1 slot Integrated with Realtek RTL8111G PCI-E Gigabit LAN chip Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
1* SATAII port 1* Mini-SATA slot
AMI 64MB Flash ROM 1* 12V system DC Jack power-in connector
1* PS/2 keyboard & mouse port 1* USB 3.0 port 3* USB 2.0 port 1* RJ-45 LAN port 1* RJ-11 cash Drawer port 4* RJ-45 COM port for Console
1* 2-Pin DC 12V system power-in connector 1* 2-Pin DC 12V power-out connector 1* SATA Power-out connector 1* CPU FAN header 2* SYSFAN header
1* Front panel audio header 1* SPDIF Out header 1* LAN LED activity header
2
USB 2.0 Ports
RJ-11 Cash Drawer Port
USB 2.0 Port
USB 3.0 Port
PS/2 KB &MS Port
1* Front panel header 1* Power LED & speaker header 1* SPEAK_CON header 1* MIC header 1* Line-out header 2* Serial port header (COM5/6,COM6 supports RS422/485
function)
1* Parallel port header 2* USB 2.0 header (Expansible to 4* USB 2.0 ports) 1* GPIO_CON header 1* SMBUS header 1* VGA port header 1* Touch panel I/F header (
Optional
)
1* LVDS header 1* LVDS inverter header

1-3 Layout Diagram

Rear IO Panel Diagram:

12V
DC Power-in
Connector
RJ-45 LAN Port
RJ-45 COM Ports
3
CPUFAN Header
Front Panel
Audio Header
Front Panel Header
LVDS
Inverter
GPIO Header
SATA Hard Disk
Power-Out Connector
LVDS Header
SATAII Port
SYSFAN1 Header
Parallel Port Header
SMBUS Header
Power LED Header
Full-size
DC12V
Power-in Connector
USB 3.0 Port
Over USB 2.0 Port
USB 2.0 Ports
RJ-45 LAN Port
Line-Out Header
Front Panel
USB 2.0 Header
PS/2
KB & MS Port
RJ-11
RJ-45
COM Ports
Internal 12V
Power Connector
Header
Serial Port Headers
(COM5/6)
er
MIC Header
VGA Port
Header
Mini-SATA Port
MON_PWR
*Touch I/F
SYSFAN2 Header
Front Panel
USB 2.0 Header

Motherboard Internal Diagram

*DDR3L SODIMM Slot
(SODIMM1)
Intel CPU
Cash Drawer Port
SPEAK_CON Head
HDMI_SPDIF
LAN_LED1
Mini-PCIE Slot (MPE)
Header
(Optional)
Note: 1. The module should be DDR3L 1.35V SODIMM and not exceeding 8GB total capacity.
2. Touch I/F header is only optional by order.
PCI Express x1 Slot
12V Power Connector
4
& Speaker Header
JPME
JPCOM2
SYSFAN-DET
JPCOM3
JPCOM1
JPCOM4
JBAT_MERTC
AT-MODE
JPLCD
JPCOM6
JPLED
JPCOM5
JPRJ11

Jumper Position:

5

Jumper

Jumper Name Description
JBAT_MERTC Pin 1-3: Clear ME Function Setting
4-Pin Block
Pin 2-4: CMOS RAM Clear Function Setting
AT_COPEN Pin 1-3: ATX Mode & AT Mode Select
Pin 2-4: Case Open Message Display Function
4-Pin Block
JPME ME Security Measure Function Select 2-Pin Block JPLED INVERTER Back Light 5V/12V Select 3-Pin Block JPLCD LVDS PVCC 3.3V/5V /12V Select 4-Pin Block SYSFAN_DET SYSFAN1/SYSFAN2 Smart Fan Support Select 3-Pin Block JPRJ11 RJ11 Cash Drawer Voltage 12V/24V Select 3-Pin Block JPCOM1 COM1 Port Pin5 GND/5V/12V Function Select 4-Pin Block JPCOM2 COM2 Port Pin5 GND/5V/12V Function Select 4-Pin Block JPCOM3 COM3 Port Pin5 GND/5V/12V Function Select 4-Pin Block JPCOM4 COM4 Port Pin5 GND/5V/12V Function Select 4-Pin Block JPCOM5 COM5 Header Pin9 RS232/5V/12V Select 4-Pin Block JPCOM6 COM6 Header Pin9 RS232/5V/12V Select 4-Pin Block

Connectors

Connector
DCIN DC 12V System Power–in Connector ATX2P Internal DC 12V System Power–in Connector MON_PWR DC 12V Power–out Connector SATA1 SATAII Port Connector SATAPW SATA Power out Connector CPUFAN CPUFAN Connector SYSFAN1/SYSFAN2 SYSFAN Connector X2 PS2 PS/2 Keyboard & Mouse Combo Port Connector USB1(Top) /USB2 USB 2.0 Port Connector X3
Name
6
Front Panel Header(PWR LED/
USB1(Bottom) USB 3.0 Port Connector LAN RJ-45 LAN Port Connector RJ-11 RJ-11 Cash Drawer Port Connector COM RJ-45 COM Port Connector for Console x4

Headers

Header Name Description
FP_AUDIO Front Panel Audio Header 9-pin Block SPDIF SPDIF Out Header 2-pin Block LAN_LED1 LAN Activity LED Header 2-pin Block JW_FP
HDD LED/Power Button /Reset)
SPK-LED Power LED & Speaker Header 7-pin Block SPEAK_CON 3W Speaker Header 4-pin Block MIC MIC Port Header 4-pin Block LINTOUT Line-out Port Header 4-pin Block COM5/6 Serial Port Header X2 9-pin Block LPT Parallel Port Header 25-pin Block FP_USB1/ FP_USB2 USB 2.0 Header X2 9-pin Block GPIO_CON GPIO Header 10-pin Block SMBUS SMBUS Header 5-pin Block VGA1 VGA Port Header 15-pin Block *TOUCH (Optional) Touch Panel I/F Header 5-pin Block INVERTER LVDS Inverter 8-pin Block LVDS LVDS Header 30-pin Block
9-pin Block
7
1-3 Open: Normal(Default);
2-4 Open: Normal(Default);

Chapter 2

Hardware Installation

2-1 Jumper Setting

Pin 1 & 3 of JBAT_MERTC (4-pin): Clear ME Function Setting
JBAT_MERTC(Pin 1&3)→Clear ME
Pin 1
3
Pin 1
3
1-3 Close: Clear ME.
2 4
2 4
Pin 2 & 4 of JBAT_MERTC (4-pin): Clear CMOS Setting
JBAT_MERTC(Pin 2&4)→Clear CMOS
1 3
1 3
Pin2
4
Pin2
4
2-4 Close: Clear CMOS(One Touch).
8
AT_
1-3 Open: ATX Mode Selected(Default);
AT_
2-4 Open: Normal(Default);
Pin 1 & 3 of AT_COPEN (4-pin): AT Mode Function Select
COPEN(Pin 1&3)→AT Mode Select
Pin 1
3
Pin 1
3
1-3 Close: AT Mode Selected.
2
4
2 4
*ATX Mode Selected: Press power button to power on after power input ready; AT Mode Selected: Directly power on as power input ready.
Pin 2 & 4 of AT_COPEN (4-pin): Case Open Message Display Function Select
COPEN(Pin 2&4)→Case Open Function Select
1 3
1 3
Pin2
4
Pin2
4
Pin 2-4 Close
: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
2-4 Close: Case Open Function Selected (One Touch).
9
1
3
function. In this case if your case is removed, next time when you restart your computer, a message will be displayed on screen to inform you of this.
JPME (2-pin): ME Security Measure Function Select
JPME
2
1-2 Open:Enable Security Measures in the Flash Descriptor(Default) ;
1
2
1-2 Closed:Disable Security Measures in the Flash Descriptor(Override).
JPLED (3-pin): INVERTER Back Light VCC 5V/12V Select
JPLED→INVERTER Back Light VCC
1-2 Close: INVERTER Back Light 5V Selected(Default);
2-3 Close: INVERTER Back Light 12V Selected.
1
3
10
1
3
JPLCD (4-pin): LCD Back Light VCC 3.3V/5V/12V Select
JPLCDLCD Back Light Voltage
1 3
5
2-4 Closed:
VCC=3.3V
6
(Default);
2 4
1 3
5
3-4 Closed:
VCC= 5V;
2 4
6
SYSFAN_DET (3-pin): SYSFAN1/SYSFAN2 Smart Fan Select
SYSFAN DET→SYSFAN1/2 Smart Fan Select
1-2 Close:
2-3 Closed:
SYSFAN1 Smart Fan Function Selected(Default);
1
3
SYSFAN2 Smart Fan Function Selected.
1 3 5
4-6 Closed:
VCC= 12V.
2 4 6
11
1
3
JPRJ11 (3-pin): RJ11 Cash Drawer Voltage 12V/24V Select
JPRJ11→RJ11 Cash Drawer Port
1-2 Close:
RJ11 Cash Drawer Voltage=12V(Default);
1
3
2-3 Close:
RJ11 Cash Drawer Voltage=24V.
JPCOM1/JPCOM 2/JPCOM3/JPCOM4 (4-pin):RJ45 COM1/2/3/4 Port Pin-5 Signal Select
JPCOMP1→COM1 Port Pin-5 JPCOMP2→COM2 Port Pin-5 JPCOMP3→COM3 Port Pin-5 JPCOMP4→COM4 Port Pin-5
1 3
5
2-4 Closed:
Pin5= GND(Default);
2 4
6
1 3 5
3-4 Closed:
Pin5=VCC;
2 4 6
1 3 5
4-6 Closed:
Pin5= 12V.
2 4 6
12
USB 2.0 Ports
RJ-11 Cash Drawer Port
USB 2.0 Port
USB 3.0 Port
PS/2 KB &MS Port
JPCOM5/ JPCOM6 (4-pin): COM5/ COM6Header Pin9 Function Select
JCOMP5→COM5 Header Pin-9 JCOMP6→COM6 Header Pin-9
1 3
5
2-4 Closed:
RI=RS232(Default);
2 4
6
1 3
5
3-4 Closed:
RI= 5V ;
2 4
6
1 3 5
4-6 Closed:
2 4 6
RI= 12V.

2-2 Connectors and Headers 2-2-1 Connectors

(1) Rear I/O Connectors
12V
DC Power-in
Connector
RJ-45 LAN Port
13
RJ-45 COM Port
(2) ATX2P (2-pin Block): DC 12V Power-in Connector
Pin1
Pin. Definition
1 GND 2 +12V DC_IN
(3) MON_PWR(2-pin Block): DC 12V Power-out Connector
Pin. Definition
1 GND 2 +12V
Pin1
14

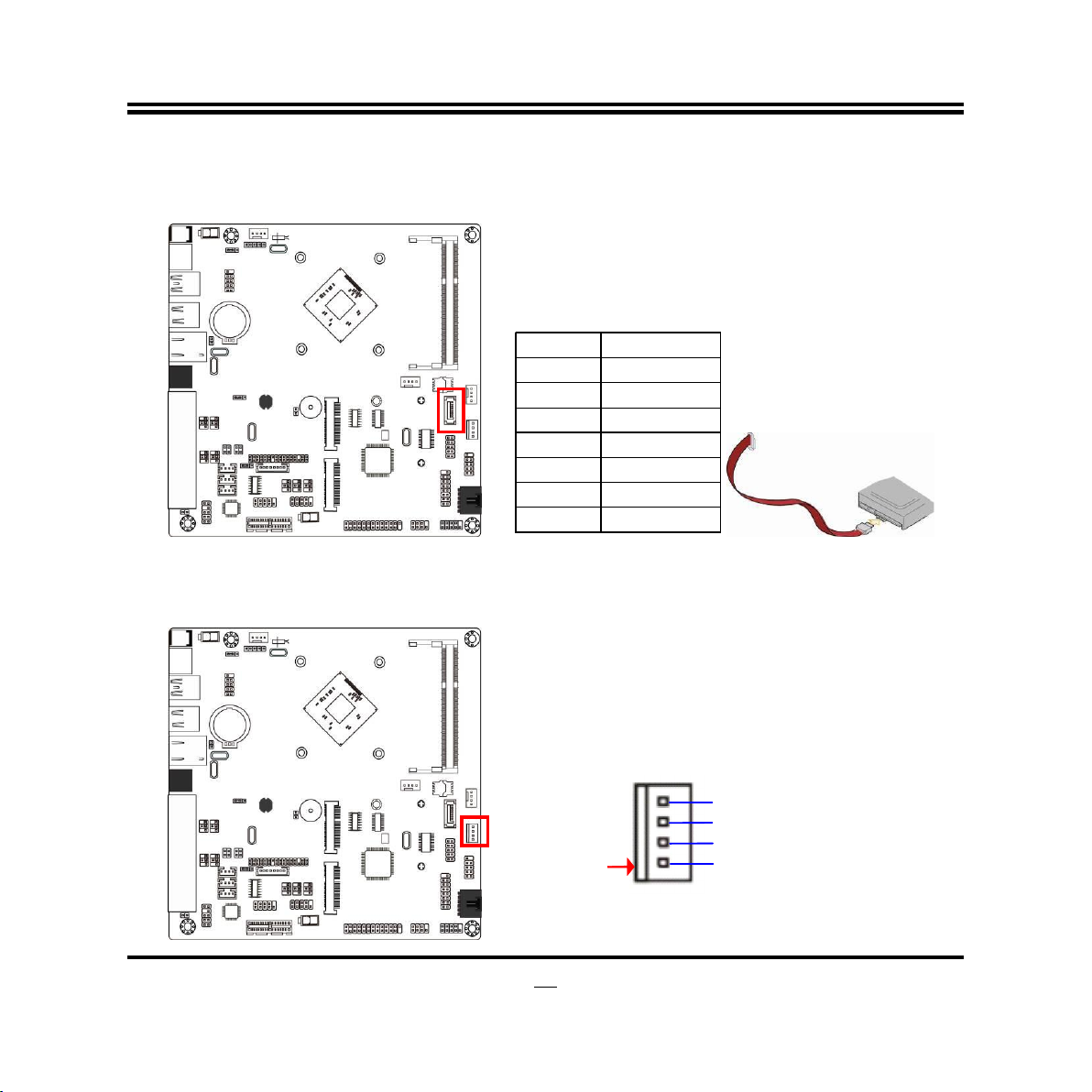

(4) SATA1(7-Pin Block) : SATAII Port connector

SATA1 port is high-speed SATAII ports that support 3GB/s transfer rate.

Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
(5) SATAPW(4-pin): SATA Power Out Connector
+12V
GND
GND
Pin 1
+5V
15
SYSFAN1/CPUFAN
1
GND
Fan Speed
Control
SYSFAN2
MIC2-R
DETECT
2
MIC2-L

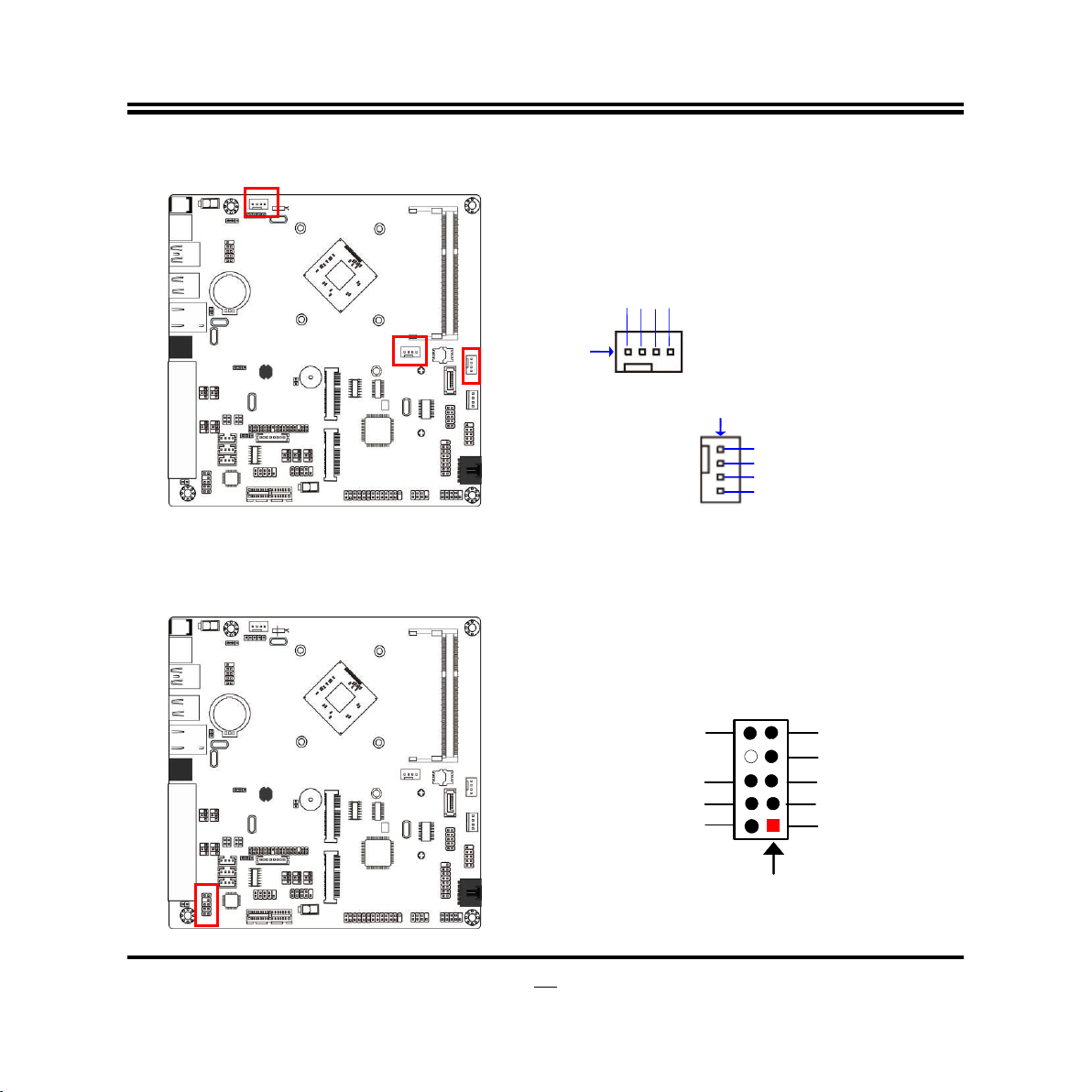

(6) CPUFAN/SYSFAN1/SYSFAN2 (4-pin): Fan Connectors
Pin1
GND +12V Fan Power Fan Speed Control

2-2-2 Headers

+12V Fan Power
Pin
(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
LINE_OUT_JD
MIC_JD
LINE_OUT-L
SENSE
LINE_OUT-R
GND
Pin 1
16
SPDIF GND
Pin1
LED-
LED+
(2) SPDIF (2-pin): SPDIF Out Header
Pin1
(3)LAN_LED1 (2-pin): LAN1Activity LED Header
17
RESET
GND
VCC
PWRBT
Pin 1
SPK-
(4) JW_FP (9-pin): Front Panel Header
PWR LED
PWRBTN
PWRLED+
PWRLED-
2
Pin 1
GND
HDDLED- RSTSW
HDDLED+
HDLED
(5) SPK-LED (7-pin): Speaker Header & PWR LED Header
PWRLED+
PWRLED-
PWRLED-
2
SPK+
NC
NC
18
Pin1
Pin 1
(6)SPEAK_CON (4-pin): Speaker Header
Pin No. Definition
1 R-
2 R+
3 L+
4 L-
(7)MIC (4-pin): MIC Header
Pin No. Definition
1 MIC1-R
2 MIC1-JD
3 GND
4 MIC1-L
19
Pin1
Pin 1
4
6
8
(8)LINTOUT(4-pin): Line-Out Header
Pin No. Definition
1 FRONTR_OUT
2 GND
3 GND
4 FRONTL_OUT
(9) COM5/COM6 (9-pin): Serial Port Headers
Pin NO. RS232 *RS422
(for COM6)
Pin 1
Pin 2 RXD
Pin 3 TXD
Pin 4
Pin 5
7
9
2
3
5
Pin 6
Pin 7
Pin 8
Pin 9
DCD TX- DATA-
TX+ DATA+
RX+ NC
DTR RX- NC
GND GND GND
DSR NC NC
RTS NC NC
CTS NC NC
RI NC NC
20
*RS485
(for COM6)
*Notice: RS422, RS485 function is supported by COM6 header only, with compatible
COM cable for RS422 or RS 485 function. User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM6 (refer to Page 31).
(10) LPT (25-pin): Parallel Port Header
Pin 14
Pin 1
Pin NO. Pin Definition Pin NO. Pin Definition
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8
STB­PRD0 PRD1 PRD2 PRD3 PRD4 PRD5 PRD6
Pin 14 Pin 15 Pin 16 Pin 17 Pin 18 Pin 19 Pin 20
Pin 21 Pin 9 PRD7 Pin 22 GND Pin 10 ACK- Pin 23 GND Pin 11 BUSY Pin 24 GND Pin 12 PE Pin 25 GND Pin 13 SLCT
21
AFD­ERR­INIT­SLIN­GND GND GND GND
-DATA
NC
-DATA
2
VCC
GPIO22
VCC3
GPIO23
2
GPIO20
(11) FP_USB1/FP_USB2 (9-pin): USB 2.0 Port Header
(12) GPIO_CON (10-pin): GPIO Header
GND
+DATA
VCC
GPIO27
GPIO25
GPIO21
GND
+DATA
Pin 1
GND
GPIO26
GPIO24
Pin 1
22
VCC3
SMBUS_DATA
GND
BLUE
GND
NC
2
RED
(13) SMBUS (5-Pin): SM BUS Header
SMBUS_ALERT-
Pin1
SMBUS_CLK
(14) VGA1(15-pin): VGA Port Header
DCC_CLK
VSYNC
DCC_DATA
GND
GND
GREEN
Pin 1
HSYNC
NC
VCC_VG
GND
GND
23
(15) TOUCH(5-pin):TOUCH I/F Header (Optional)
Y-_UL
Y-_UR
SENSE X-_LL
Pin 1
X+_LR
(16) INVERTER (8-pin): LVDS Inverter Connector
Pin 1
24
Pin No. Definition
1 Backlight Enable
2 Backlight PWM
3 Backlight VCC
4 Backlight VCC
5 GND
6 GND
7 Backlight Up SW
8 Backlight Down SW
(17) LVDS (30-pin): 24-bit Dual Channel LVDS Header
Pin 2
Pin 1
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 LVDSB_DATAN3 Pin 2 LVDSB_DATAP3 Pin 3 LVDS_CLKBN Pin 4 LVDS_CLKBP Pin 5 LVDSB_DATAN2 Pin 6 LVDSB_DATAP2 Pin 7 LVDSB_DATAN1 Pin 8 LVDSB_DATAP1 Pin 9 LVDSB_DATAN0 Pin 10 LVDSB_DATAP0 Pin 11 LVDS_DDC_DAT Pin 12 LVDS_DDC_CLK Pin 13 N/A Pin 14 GND Pin 15 GND Pin 16 GND Pin 17 LVDSA_DATAP3 Pin 18 LVDSA_DATAN3 Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2 Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1 Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0 Pin 27 PVDD Pin 28 N/A Pin 29 PVDD Pin 30 PVDD Pin 31 GND Pin 32 GND
25

Chapter 3

Introducing BIOS

Notice!
The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.

3-1 Entering Setup

Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to Press
<Del>
to enter Setup; press <
F7
> for Pop Menu.
26

3-2 BIOS Menu Screen

The following diagram show a general BIOS menu screen:
Menu Bar
Current Setting Value
General Help Items
Menu Items
Function Keys
BIOS Menu Screen

3-3 Function Keys

In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:
Press (left, right) to select screen; Press  (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
Press
<Enter>
to select.
27
Press
<+>/<–>
keys when you want to modify the BIOS parameters for the active
option.
[F1]:
     Press
General help.
[F2]:
Previous value.
[F3]:
Optimized defaults.
[F4]:
Save & Exit.
<Esc>
to quit the BIOS Setup.

3-4 Getting Help

Main Menu
The on-line description of the highlighted setup function is displayed at the top right corner the screen.
Status Page Setup Menu/Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press
Esc
<
>.

3-5 Menu Bars

There are six menu bars on top of BIOS screen:
Main To change system basic configuration Advanced To change system advanced configuration Chipset To change chipset configuration Security Password settings Boot To change boot settings Save & Exit Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar. The selected one is highlighted.
28

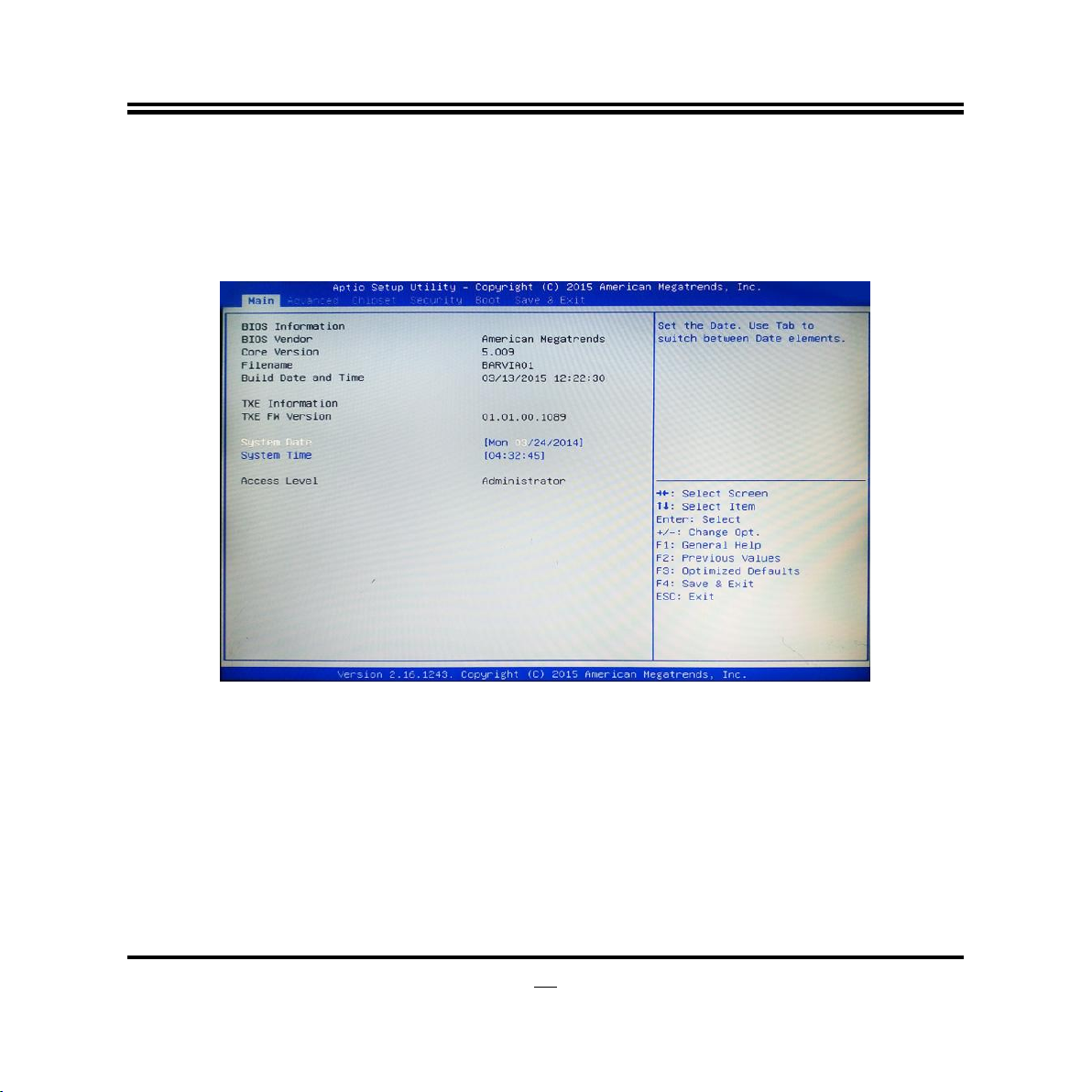

3-6 Main Menu

Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item.
System Date
Set the date. Please use [Tab] to switch between data elements.
System Time
Set the time. Please use [Tab] to switch between time elements.
29

3-7 Advanced Menu

OS Selection
The optional settings: [Windows 8.X]; [Android]; [Windows 7].
*Note: User needs to go to this item to select OS before installing OS. If Windows Embedded standard 8, please select [Windows 8x] and set “USB 3.0 Support” as [Disabled], “USB 2.0 Support” as [Enabled] (refer to Page 40).
ACPI Settings
Press [Enter] to make settings for the following sub-item:
ACPI Settings
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the suspend button is pressed. The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].
30
Super I/O Configuration
Press [Enter] to make settings for the following sub-items:
Super IO Configuration
Serial Port 5 Configuration Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port 6 Configuration Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Transmission Mode Select
The optional settings are: [RS422]; [RS232]; [RS485].
Mode Speed Select
The optional settings are: [RS232/RS422/RS485=250kbps]; [RS232=1Mbps, RS422/RS485=10Mbps].
Serial Port FIF0 Mode
The optional settings are: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FIF0]; [128-Byte FIF0].
Parallel Port Configuration Press [Enter] to make settings for the following items:
Parallel Port Configuration
Parallel Port
Use this item to enable or disable parallel port (LPT/LPTE).
Change Settings
31
Use this item to select an optimal setting for super IO device.
Device Mode
Use this item to change the printer port mode. The optional settings are: [STD Printer Mode]; [SPP Mode]; [EPP-1.9 and SPP Mode]; [EPP-1.7 and SPP Mode]; [ECP Mode]; [ECP and EPP 1.9 Mode]; [ECP and EPP 1.7 Mode].
OS Select for Serial Port
The optional settings are: [Windows]; [LINUX].
ERP Support
The optional settings: [Enabled]; [Disabled]. This item should be set as [Disabled] if you wish to have all active wake-up functions.
Case Open Detect
This item controls detect case open function. The optional settings are: [Enabled]; [Disabled].
PS2KB/MS Connect
Use this item to set PS2 connect primary device. The optional settings are: [Keyboard First]; [Mouse First].
WatchDog Timer
Use this item to enable or disable WatchDog Timer Control. When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of [10] to [255].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
WatchDog Wake-up Timer in ERP
This item support WDT wake-up while ‘ERP Support’ is set as [Enabled]. The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value in ERP
32
User can set a value in the range of [10] to [4095].
WatchDog Timer Unit in ERP
The optional settings are: [Sec.]; [Min.].
ATX Power Emulate AT Power
This item displays current Emulate AT Power Status, motherboard power On/Off control by power supply. User needs to select ‘AT or ATX Mode’ on MB jumper at first (refer to Page 8~9, Jumper AT_MODE for ATX Mode & AT Mode Select).
Serial Port Console Redirection
Press [Enter] to make settings for the following sub-items:
COM1/COM2/COM3/COM4
Console Redirection
Use this item to enable or disable COM1 Console Redirection. The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], user can make further settings in the ‘Console Redirection Settings’ screen:
Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Press [Enter] to make settings for the following sub-items.
Terminal Type
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].
Data Bits
The optional settings are: [7]; [8].
Parity
The optional settings are: [None]; [Even]; [Odd];[Mark]; [Space].
Stop Bits
33
The optional settings are: [1]; [2].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS].
VT-UTF8 Combo Key Support
The optional settings are: [Enabled]; [Disabled].
Recorder Mode
The optional settings are: [Enabled]; [Disabled].
Resolution 100x31
The optional settings are: [Enabled]; [Disabled].
Legacy OS Redirection Resolution
The optional settings are: [80x24]; [80x25].
Putty Keypad
The optional settings are: [VT100]; [LINUX]; [XTERMR6]; [SCO]; [ESCN]; [VT400].
Redirection After BIOS POST
The optional settings are: [Always Enable]; [BootLoader].
Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS)
Console Redirection
The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], user can make further settings in ‘Console Redirection Settings’:
Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Press [Enter] to make settings for the following sub-items.
Out-of-Band Mgmt Port
The optional settings are: [COM1]; [COM2; [COM3]; [COM4].
Terminal Type
34
The optional settings are: [VT100]; [VT100+];[VT-UTF8];[ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [57600]; [115200].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS]; [Software Xon/Xoff].
Data Bits
The default setting is: [8].
*This item may or may not show up, depending on different configuration.
Parity
The default setting is: [None].
*This item may or may not show up, depending on different configuration.
Stop Bits
The default setting is: [1].
*This item may or may not show up, depending on different configuration.
PC Health Status
Press [Enter] to view current hardware health status, set shutdown temperature, or make further settings in ‘Smart Fan Configuration’.
SmartFan Configuration Press [Enter] to make settings for SmartFan Configuration:
CPUFAN / SYSFAN1/2 Smart Mode
When set as [Enabled], the following sub-items shall appear: CPUFAN / SYSFAN1/2 Full-Speed Temperature Use this item to set CPUFAN/SYSFAN1/2 full speed temperature. Fan will run at full speed when above this temperature. CPUFAN / SYSFAN1/2 Full-Speed Duty Use this item to set CPUFAN/SYSFAN1/2 full speed duty. Fan will run at full speed when above the pre-set duty. CPUFAN / SYSFAN1/2 Idle-Speed Temperature Use this item to set CPUFAN/SYSFAN1/2 idle speed temperature. Fan will run at idle speed when below this temperature.
35
CPUFAN / SYSFAN1/2 Idle-Speed Duty Use this item to set CPUFAN/SYSFAN1/2 idle speed duty.. Fan will run at idle speed when below the pre-set duty.
Shutdown Temperature Configuration
Use this item to select system shutdown temperature. The optional settings are: [Disabled]; [70oC/156oF]; [75oC/164oF]; [80oC/172oF]; [85oC/180oF];[90oC/188oF].
CPU Configuration
Press [Enter] to view current CPU configuration and make settings for the following sub-items:
Limit CPUID Maximum
The optional settings: [Disabled]; [Enabled]. This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
The optional settings: [Disabled]; [Enabled].
Hardware Prefetcher
The optional settings are: [Disabled]; [Enabled]. Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch
The optional settings are: [Disabled]; [Enabled]. Use this item to turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
The optional settings: [Enabled]; [Disabled]. When set as [Enabled], a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.
EIST
The optional settings: [Disabled]; [Enabled]. Use this item to enable or disable Intel SpeedStep.
CPU C6 Report
Use this item to enable or disable CPU C6 (ACPI C3) report to OS.
36
The optional settings: [Disabled]; [Enabled].
CPU C7 Report
Use this item to enable or disable CPU C7 (ACPI C3) report to OS. The optional settings: [Disabled]; [Enabled].
Package C-state Limit
The optional settings: [C0]; [C1]; [C3] [C6]; [C7]; [No Limit].
SATA Configuration
Press [Enter] to make settings for the following sub-items:
SATA Configuration
SATA Controller
The optional settings: [Disabled]; [Enabled].
SATA Speed Support
The item is for user to set the maximum speed the SATA controller can support. The optional settings are: [Gen1]; [Gen2].
SATA Mode
The optional settings are: [IDE Mode]; [AHCI Mode].
SATA Port/MSATA
The optional settings are: [Enabled]; [Disabled].
Network Stack Configuration
Press [Enter] to go to ‘Network Stack’ screen to make further settings.
Network Stack
The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], the following sub-items shall appear:
Ipv4 PXE Support
The optional settings are: [Disabled]; [Enabled]. Use this item to enable Ipv4 PXE Boot Support. When set as [Disabled], Ipv4 boot optional will not be created.
Ipv6 PXE Support
The optional settings are: [Disabled]; [Enabled]. Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], Ipv4 boot optional will not be created.
37
PXE boot wait time
Use this item to set wait time to press [ESC] key to abort the PXE boot.
CSM Configuration
Press [Enter] to make settings for the following sub-items:
Compatibly Support Module Configuration
Boot Option Filter
This item controls Legacy/UEFI ROM priority. The optional settings are: [UEFI and Legacy]; [Legacy only]; [UEFI only].
Network
This item controls the execution of UEFI and legacy PXE OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Storage
This item controls the execution of UEFI and Legacy Storage OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Other PCI devices
This item determines OpROM execution policy for devices other than Network, storage or video. The optional settings are: [UEFI first]; [Legacy first].
Wakeup Function Settings
Press [Enter] to make settings for the following sub-items:
Wake-up System with Fixed Time
Use this item to enable or disable system wake-up on alarm event. The optional settings: [Disabled]; [Enabled]. When set as [Enabled], system will wake on the hour/min/sec specified.
Wake-up System with Dynamic Time
Use this item to enable or disable system wake-up on alarm event. The optional settings: [Disabled]; [Enabled]. When set as [Enabled], system will wake on the current time + increased minute(s).The settings range is from [1] ~ [60] minute(s).
USB (S3-S4)/PS2 (S3-S4) Wake-up
Use this item to enable or disable USB (S3-S4) / PS2 (S3-S5) Wake-up.
38
The optional settings: [Disabled]; [Enabled].
*This item is only supported when ‘ERP Support’ is set as [Disabled].When ‘ERP Support’ is set as [Enabled],user can only enable or disable ‘USB(S3)/PS2(S3) Wake-up’ .
USB Configuration
Press [Enter] to make settings for the following sub-items:
USB Configuration
Legacy USB Support
The optional settings are: [Enabled]; [Disabled]; [Auto].
[Enabled]: To enable legacy USB support. [Disabled]: To keep USB devices available only for EFI specification, [Auto]: To disable legacy support if no USB devices are connected. XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. The optional settings are: [Enabled]; [Disabled].
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. The optional settings are: [Disabled]; [Enabled].
USB Mass Storage Driver Support
The optional settings are: [Disabled]; [Enabled].
USB hardware delay and time-outs:
USB Transfer time-out
Use this item to set the time-out value for control, bulk, and interrupt transfers. The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].
Device reset time-out
Use this item to set USB mass storage device start unit command time-out. The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].
Device power-up delay
Use this item to set maximum time the device will take before it properly reports
39
itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for a hub port the delay is taken from hub descriptor. The optional settings: [Auto]; [Manual]. Select [Manual] you can set value for the following sub-item: ‘Device Power-up
delay in seconds’. Device Power-up delay in seconds
The delay range is from 1 to 40 seconds, in one second increments.
Realtek PCIe GBE Family Controller (MAC:XX:XX:XX:XX:XX:XX)
Use this item to get driver information and configure Realtek ethernet controller parameter.

3-8 Chipset Menu

North Bridge
Press [Enter] to make settings for the following sub-items:
PAVC
Use this item to enable or disable protected audio video control.
40
The optional settings are: [Disabled]; [LITE Mode]; [SERPENT Mode].
DVMT Pre-Allocated
Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used by the internal graphics device. The optional settings are: [64M]; [96M]; [128M]; [160M]; [192M]; [224M]; [256M]; [288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M].
DVMT Total Gfx Mem
Use this item to select DVMT 5.0 total graphics memory size used by the internal graphics device. The optional settings are: [128M]; [256M]; [MAX].
Aperture Size
The optional settings are: [128MB]; [256MB]; [512MB].
GTT Size
The optional settings are: [1MB]; [2MB].
Primary IGFX Boot Display
The optional settings are: [VBIOS Default]; [CRT]; [LVDS].
Active LVDS
The optional settings are: [Disabled]; [Enabled]. [Disable]: VBIOS disable LVDS. [Enable]: VBIOS enable LVDS.
* Note: When set as ‘Enabled’, user can make further settings in ‘LVDS Panel Type’.
LVDS Panel Type
Use this item to manually select LVDS panel type. The optional setting are: [800x 480 1ch 18-bit]; [800x 600 1ch18-bit]; [800x 600 1ch 24-bit]; [1024 x 600 1ch 18-bit]; [1024 x 768 1ch 24-bit]; [1280 x 768 1ch 24-bit]; [1280 x 800 1ch 18-bit]; [1280 x 800 24-bit]; [1366 x 768 1ch 18-bit]; [1366 x 768 1ch 24-bit]; [1440 x 900 1ch 18-bit]; [1440 x 900 2ch 24-bit]; [1280 x 1024 2ch 18-bit]; [1680 x 1050 2ch 24-bit]; [1920 x 1080 2ch 24-bit].
41
South Bridge
Press [Enter] to further setting USB device configuration.
PCIE Slot
The default settings is: [Enabled].
PCIE Slot Speed
The optional settings are: [Auto]; [Gen 2]; [Gen 1].
Mini PCIE
The optional settings are: [Enabled]; [Disabled].
Speed
The optional settings are: [Auto]; [Gen2]; [Gen1].
Onboard PCIE LAN
The optional settings are: [Enabled]; [Disabled].
Audio Controller
Use this item to control detection of the Azalia device. The optional settings are: [Enabled]; [Disabled]. [Disabled]: Azalia will be unconditionally disabled; [Enabled]: Azalia will be unconditionally enabled.
USB Configuration Press [Enter] to make settings for the following sub-items:
USB Configuration
USB 3.0 Support
The optional settings are: [Auto]; [Enabled]; [Disabled].
USB 2.0 Support
The optional settings are: [Enable]; [Disabled].
*This item may or may not show up, depending on different configuration.
System State after Power Failure
Use this item to select AC power state when power is re-applied after a power failure. The optional settings are: [Always Off]; [Always On]; [Former State].
* The option [Always On] and [Former State] are affected by ERP function. Please disable ERP to support [Always On] and [Former State] function.
42

3-9 Security Menu

Security menu allow users to change administrator password and user password settings.
43

3-10 Boot Menu

Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state. The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Disabled]; [Enabled].
Boot Option Priorities
Boot Option
The optional settings are: [UEFI: Built-in EFI Shell]; [Disabled].
44

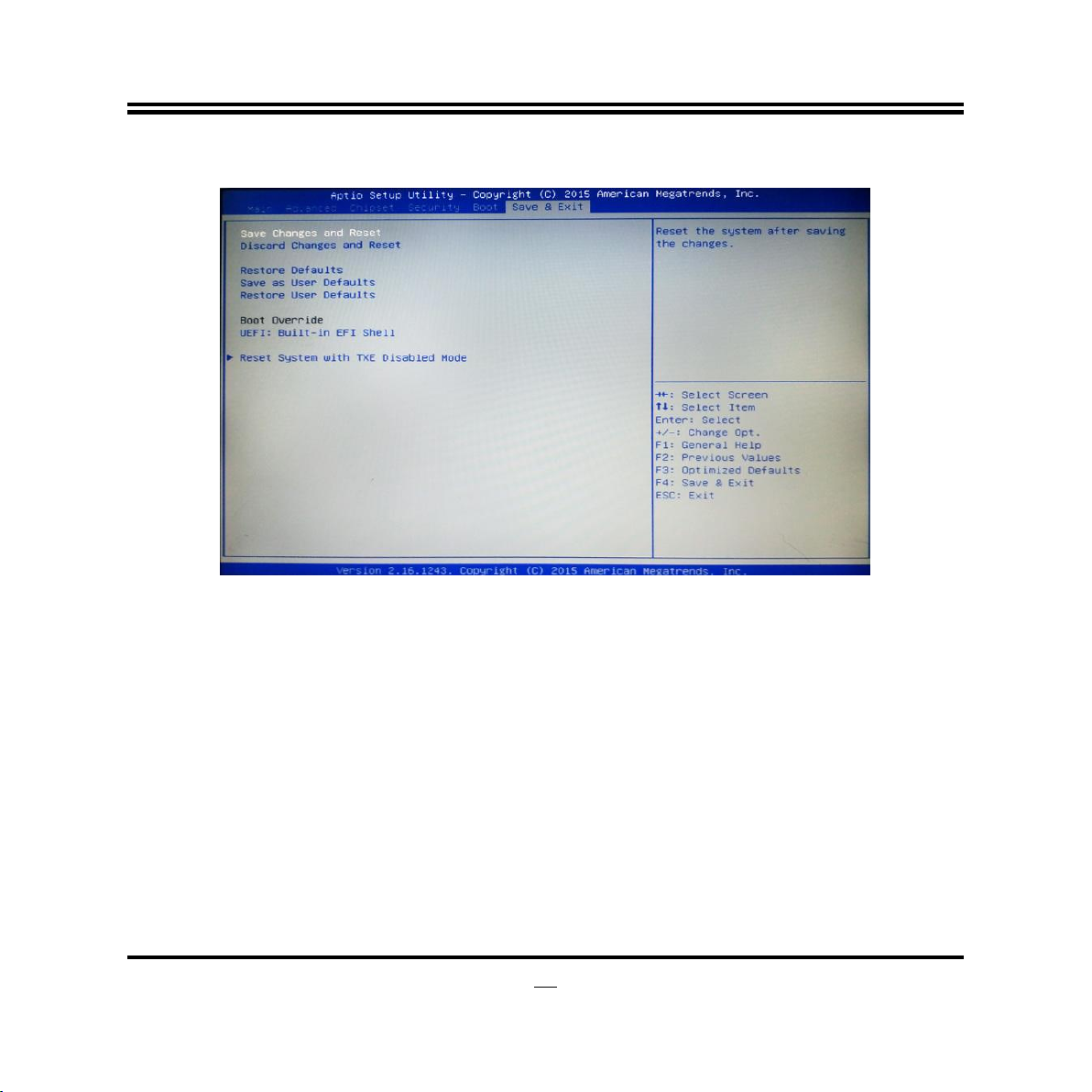

3-11 Save & Exit Menu

Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
Use this item to restore defaults to all the setup options.
Boot Override UEFT: Built-in EFI Shell
Launch Internal EFI shell application (shell.efi).
Reset System with TXE disable Mode
Press [Enter] for ME to run into the temporary disable mode.Ignore if TXE Ignition FM.
45
Loading...
