Jetway Computer NF9N User Manual

Technical Manual
Of
Intel Bay Trail Series CPU
Based Mini-ITX M/B
NO.G03-NF9N-F
Revision: 1.0
Release date: October 24, 2014
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
ii
TABLE OF CONTENT
ENVIRONMENTAL SAFETY INSTRUCTION ....................................................................... iv
USER’S NOTICE.................................................................................................................. v
MANUAL REVISION INFORMATION................................................................................... v
ITEM CHECKLIST................................................................................................................ v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ............................................................................ 1
1-2 SPECIFICATION .................................................................................................... 2
1-3 LAYOUT DIAGRAM ............................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING................................................................................................. 8
2-2 CONNECTORS AND HEADERS ............................................................................ 12
2-2-1 CONNECTORS ......................................................................................... 12
2-2-2 HEADERS................................................................................................. 15
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP................................................................................................. 24

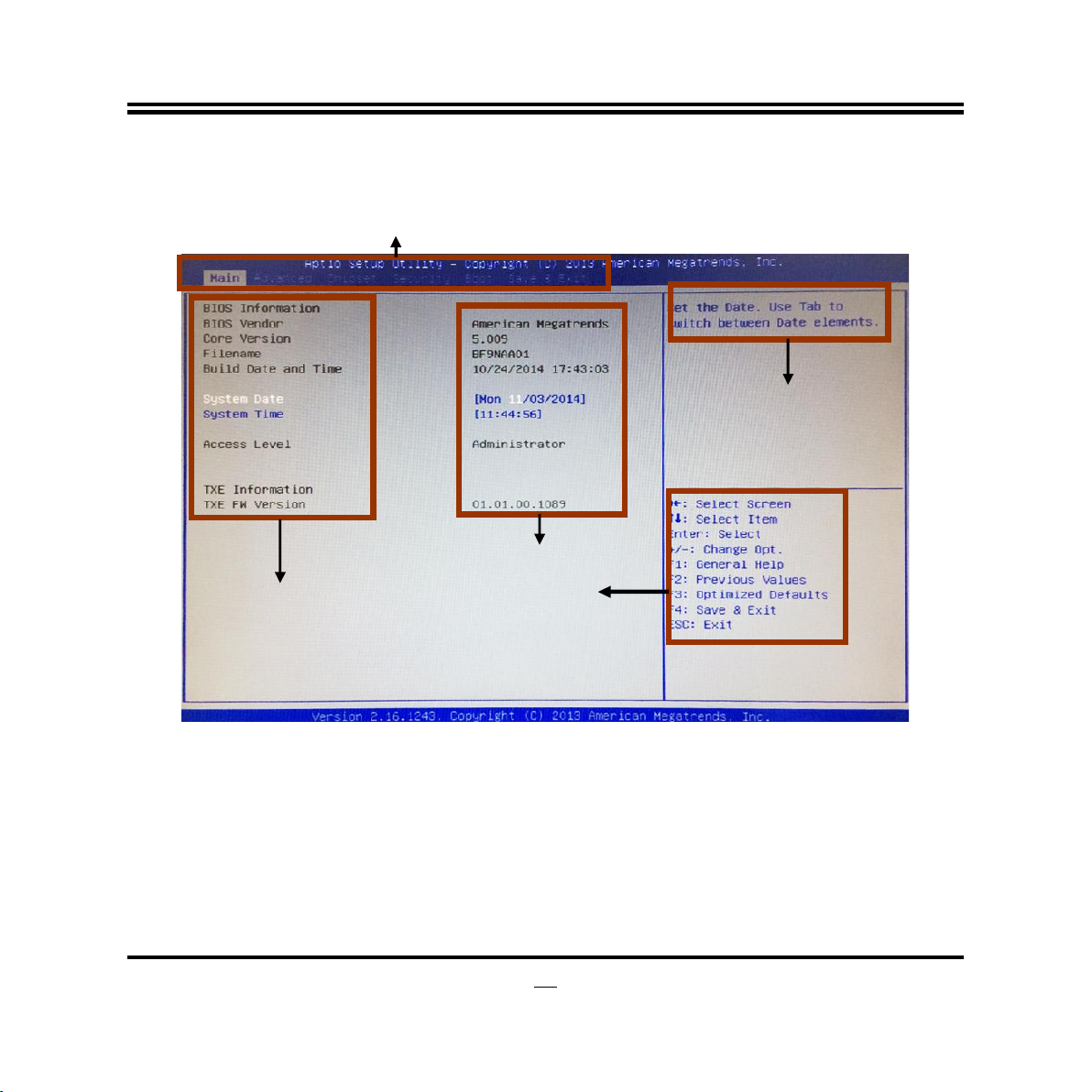

3-2 BIOS MENU SCREEN............................................................................................ 25
3-3 FUNCTION KEYS................................................................................................... 25
3-4 GETTING HELP...................................................................................................... 26
3-5 MEMU BARS.......................................................................................................... 26
3-6 MAIN MENU ........................................................................................................... 27
3-7 ADVANCED MENU ................................................................................................ 28

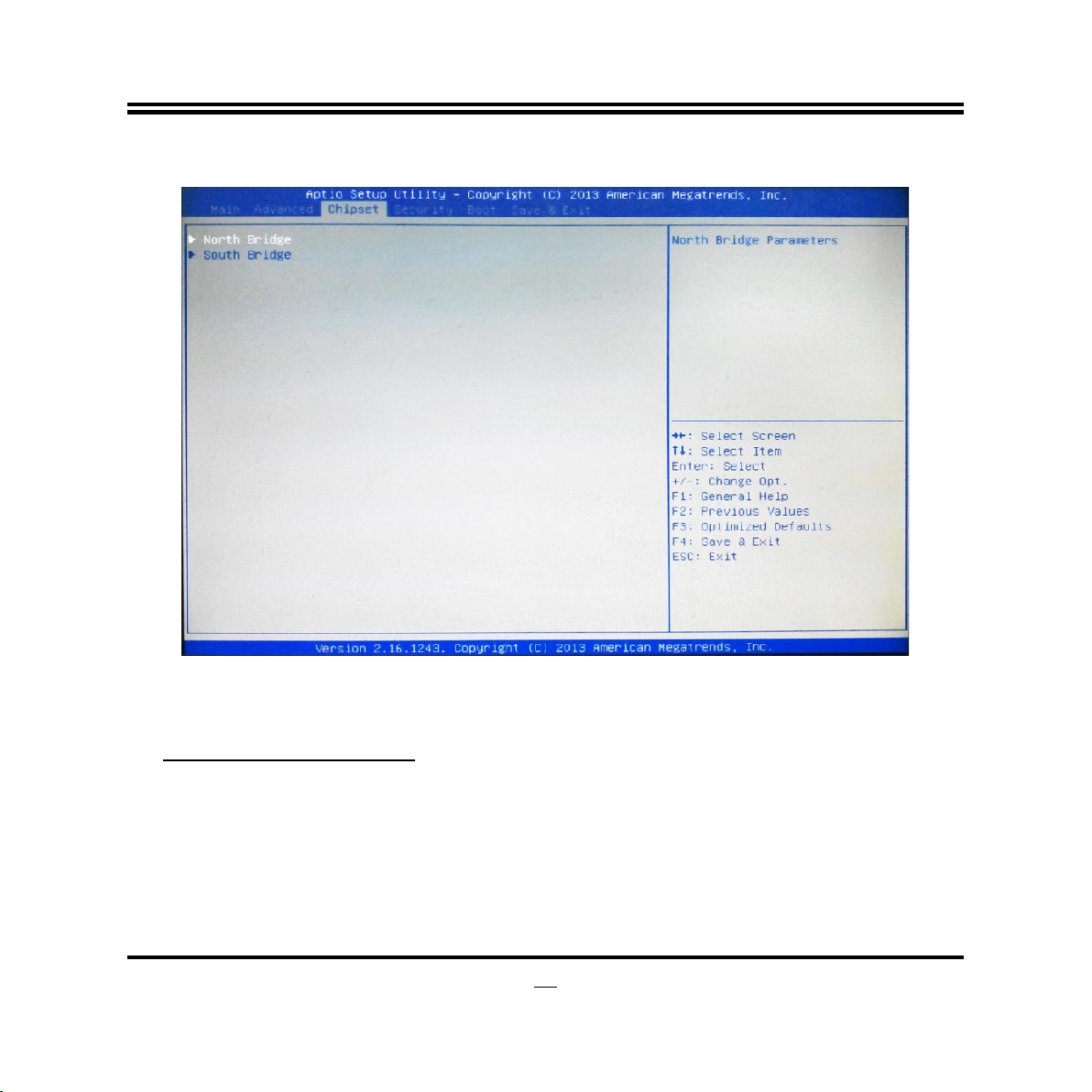

3-8 CHIPSET MENU..................................................................................................... 38

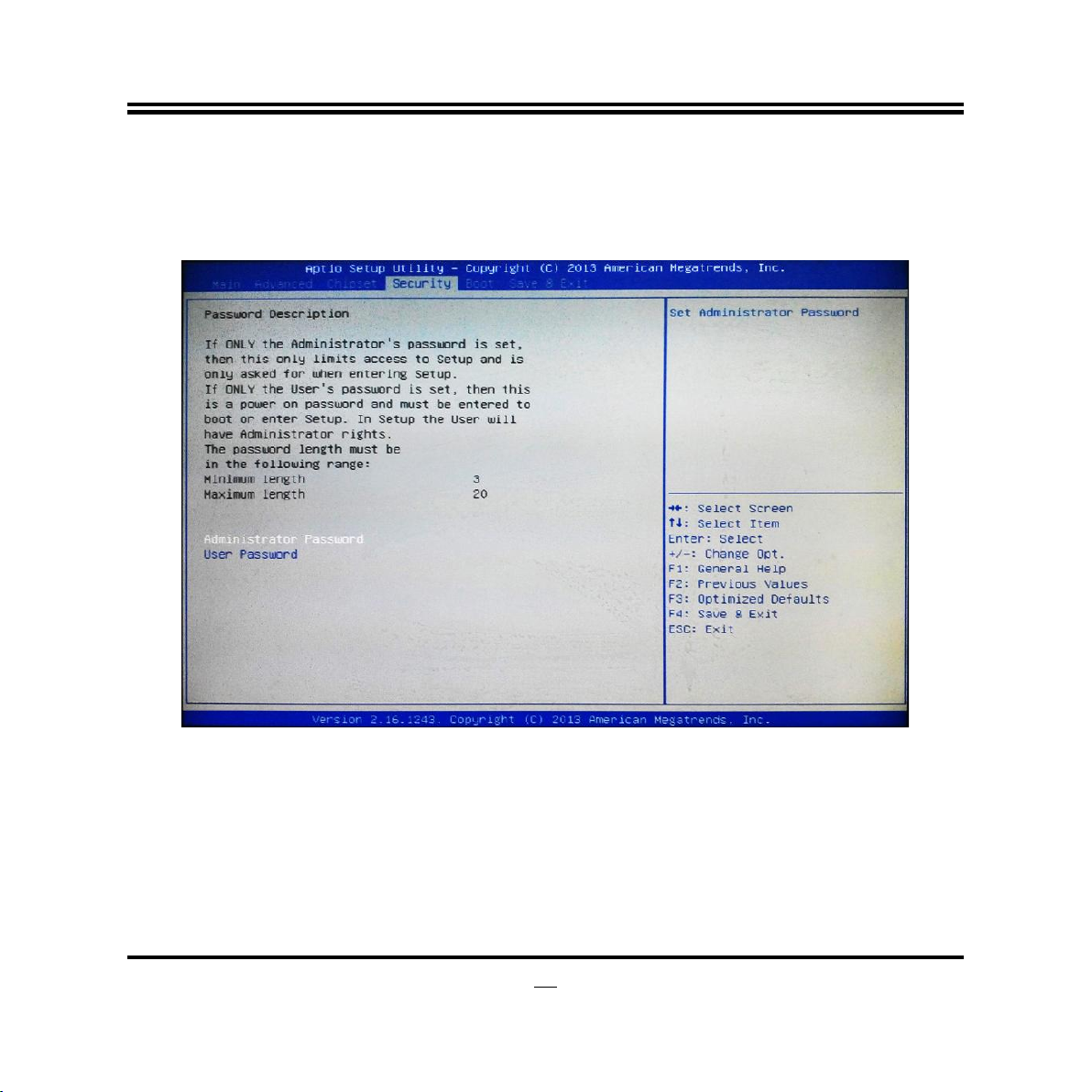

3-9 SECURITY MENU .................................................................................................. 41
3-10 BOOT MENU.......................................................................................................... 42

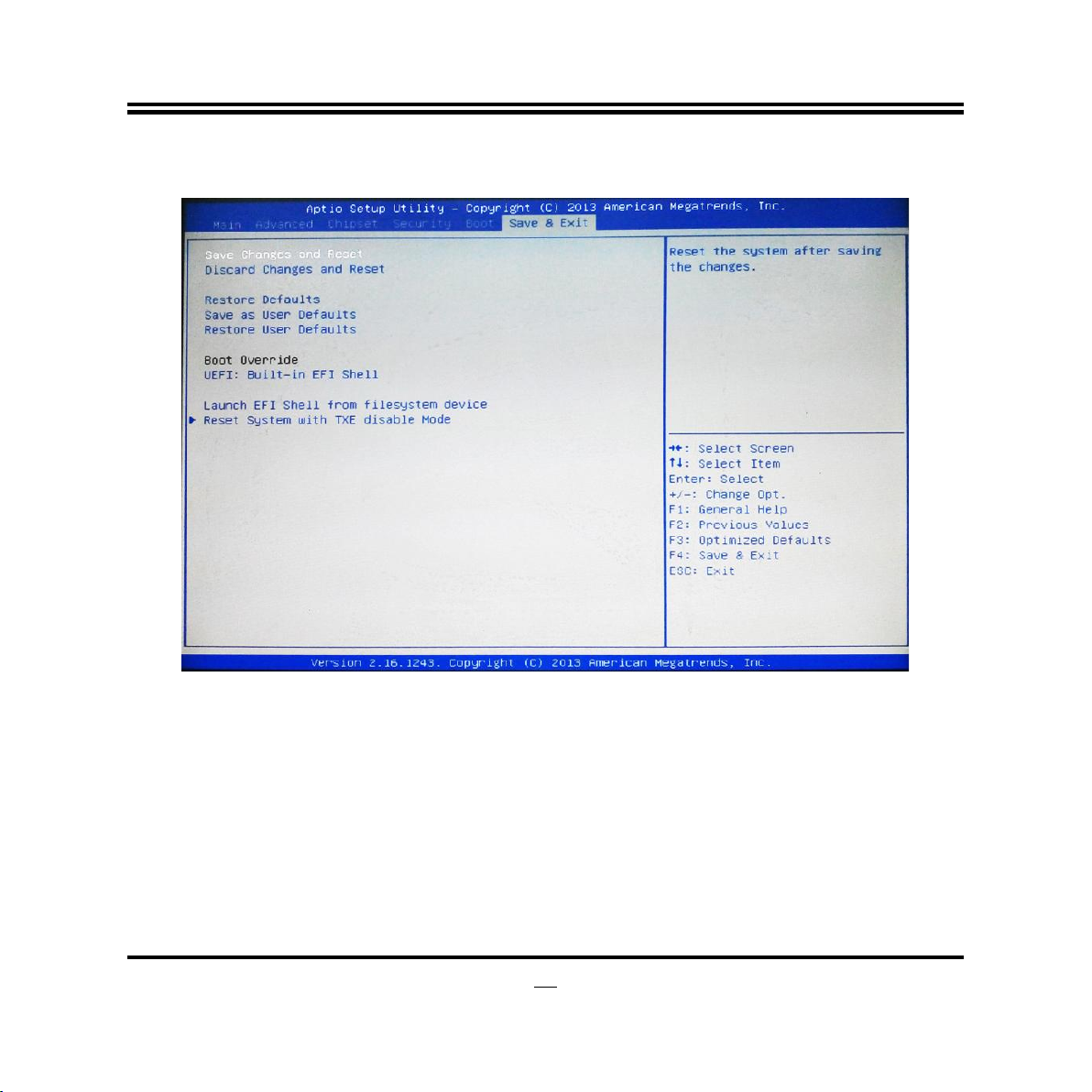

3-11 SAVE & EXIT MENU .............................................................................................. 43
iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition October 24, 2014
Item Checklist
Motherboard
User’s Manual
CD for motherboard utilities
Cable(s)
v
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel® Bay Trail Series Processor, with low power consumption never
denies high performance
Support 2 * DDR3L SO-DIMM 1066/1333 MHz up to 8GB
Support Mini-PCIE connector
Support m-SATA connector
Support 2 * SATAII device
Integrated with 1 * 24-bit dual channel LVDS header
Support HDMI & VGA display output
Support USB 3.0 data transport demand
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function
1
1-2 Specification
Spec
Design Embedded CPU
Memory Slot
Expansion Slot
LAN Chip
Storage
BIOS
Rear I/O
Internal I/O
Description
6 layers; PCB size: 17x 17 cm Integrated with Intel® Bay Trail-D/M/I series CPU
2 * DDR3L SODIMM Slot for un-buffered dual channel DDR3L
1066/1333 MHz SDRAM, expandable to 8GB in total
Dual channel function supported 1* Full-size Mini-PCIE slot (MPE) 1* PCIE x1 slot (PCI-E) Integrated with Intel I211AT PCI-E Gigabit LAN chip Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
2* SATAII port (SATA1/2) 1* Full-size mSATA slot (MSATA: shares with SATA2)
AMI 64MB Flash ROM 1* DC 12V power-in connector
1* PS/2 keyboard & 1* PS/2 mouse port 1* VGA port 1* COM1 port 1* HDMI port 1* RJ-45 LAN port 3* USB 2.0 port 1* USB 3.0 port Audio Line Out port x1
1* 20-pin ATX type internal main power connector 1* 2-pin DC 12V internal power connector 1* SATA Power connector 1* CPU FAN connector & 2* SYSFAN connector
1* Front panel audio header
2
Out Port
USB 2.0 Port
USB 3.0 Port
Power Connector
USB 2.0 Ports
VGA Port
COM1 Port
HDMI Port
PS/2
PS/2
1* SPDIF Out header 1* SPEAK_CON header 1* CDIN header & 1* Line In header 1* Front panel header 1* Power LED & speaker header 2* USB 2.0 header (Expansible to 4* USB 2.0 ports) 1* Serial port header 1* Parallel port header 1* GPIO_CON header 1* SMBUS header 1* LAN LED activity header 1* LVDS header 1* LVDS inverter header 1*Jetway daughter board expansion slot header (CN1/CN2)
1-3 Layout Diagram
Rear IO Panel Diagram:
Mouse Port
Keyboard Port
RJ-45 LAN Port
12V DC-in
Line-
3
Internal ATX Type
Power connector
Intel CPU
CPUFAN Header
Front Panel
Audio Header
Front Panel Header
LVDS Inverter
Serial Port Header
GPIO Header
SATA Hard Disk
Power-Out Connector
Speaker
Connector
USB 2.0 Headers
LVDS Header
SATAII Ports
SYSFAN2 Header
SYSFAN1 Header
Parallel Port Header
SMBUS Header
Power LED Header
Full-size
PS/2 Mouse Port
M-SATA Slot
COM1 Port over
VGA Port
USB 2.0 Port
HDMI Port
Line-Out Port
RJ-45 LAN Port
Over USB 2.0 Ports
12V DC-In
Power connector
USB 3.0 Port
Line-In
CDIN
Daughter Board
Header(CN1/CN2)
Internal 12V
HDMI_SPDIF Out
Motherboard Internal Diagram
Over
PS/2 Keyboard Port
Power connector
*DDR3L SODIMM Slot
LAN_LED Header
Mini-PCIE Slot (MPE)
(SODIMM1/2)
Header
Header
Header
& Speaker Header
PCI Express x1 Slot
Note: 1. Priority should be given to SODIMM1 slot when installing only one compatible memory modules. 2. The module should be DDR3L 1.35V SODIMM and not exceeding 8GB total capacity. 3. MSATA slot shares function with SATA2 port; i.e. only one can function at a time.
4
JP1
JP3
JBAT
JP2
JP5
Jumper Position:
AT-MODE & COPEN
5
Jumper
Jumper Name Description
JBAT Pin 1-2: CMOS RAM Clear Function Setting
4-Pin Block
Pin 3-4: Clear ME RTC Function Setting
AT_COPEN Pin 1-2: ATX Mode & AT Mode Select
Pin 3-4: Case Open Message Display Function
4-Pin Block
JP2 LVDS PVCC 5V/3.3V /12V Select 4-Pin Block JP3 INVERTER Back Light 5V/12V Select 3-Pin Block JP1 COM1 Port Pin9 Function Select 4-Pin Block JP5 COM2 Header Pin9 Function Select 4-Pin Block
Connectors
Connector Name
DCIN DC 12V Power–in Power Connector ATXPWRIN 20-Pin Internal Main Power Connector ATX2P 2-Pin Internal DC 12V Power–in Connector SATAPW SATA Power out Connector SATA1/SATA2 SATAII Port Connector X2 CPUFAN/SYSFAN1/SYSFAN2 FAN Connector X3 KBMS (Top) PS/2 Mouse Port Connector KBMS ( Bottom) PS/2 Keyboard Port Connector VGA_COM1 (Top) Serial Port Connector VGA_COM1 (Bottom) VGA Port Connector LAN2_USB20 (Top) RJ-45 LAN Port Connector LAN2_USB20 (Bottom) USB 2.0 Port Connector X2 HDMI HDMI Port Connector USB30 USB 3.0 Port Connector USB20 USB 2.0 Port Connector AUDIO Audio Line Out Port Connector
6
(PWR LED/
Headers
Header Name Description
FP_AUDIO Front Panel Audio Header 9-pin Block SPDIF SPDIF Out Header 2-pin Block SPEAK_CON Speaker Header 4-pin Block CD_IN CD Audio In Header 4-pin Block LINE_IN Line In Header 4-pin Block JW_FP
SPK-LED Power LED & Speaker Header 7-pin Block FP_USB1/FP_USB2 USB 2.0 Header X2 9-pin Block LPT Parallel Port Header 25-pin Block COM2 Serial Port Header 9-pin Block GPIO_CON GPIO Header 10-pin Block SMBUS SMBUS Header 4-pin Block LAN_LED LAN Activity LED Header 2-pin Block LVDS LVDS Header 30-pin Block INVERTER LVDS Inverter Header 8-pin Block CN1/CN2 Jetway Daughter Board Header 35-pin Block
Front Panel Header HDD LED/Power Button /Reset)
9-pin Block
7
Chapter 2
Hardware Installation
2-1 Jumper Setting
Pin 1 & 2 of JBAT (4-pin): Clear CMOS Setting
JBAT(Pin1&2)Clear CMOS
Pin 3 & 4 of JBAT (4-pin): Clear ME_RTC Function Setting
1
2
1-2 Open: Normal
2
1
2-3 CloseClear CMOS.
JBAT(Pin3&4)Clear ME_RTC
3-4 Open: Normal
3-4CloseClear ME_RTC.
8
3
3
4
4
AT_
1-2 Open: ATX Mode Selected;
AT_
Pin 1 & 2 of AT_COPEN (4-pin): AT Mode Function Select
COPEN(Pin 1&2)→AT Mode Select
2
Pin 1
2
Pin 1
1-2 Close: AT Mode Selected.
4 3
4 3
*ATX Mode Selected: Press power button to power on after power input ready; AT Mode Selected: Directly power on as power input ready.
Pin 3 & 4 of AT_COPEN (4-pin): Case Open Message Display Function Select
COPEN (Pin 3&4)→Case Open Function Select
2
Pin 1
3-4 Open: Normal;
2
Pin 1
4
3
4
3
Pin 3-4 Close
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
3-4 Close: Case Open Function Selected (One Touch).
: When Case open function pin short to GND, the Case open function
9
LVDS
function. In this case if your case is removed, next time when you restart your computer, a message will be displayed on screen to inform you of this.
JP2 (4-pin): LVDS PVCC 3.3V/5V/12V Select
JP2LVDS PV CC
2 4
6 4 2
1
3
5
2-4 Close d: LVDS
PVCC= 3.3V;
6
1 3
5
3-4 Close d: LV DS
PVCC= 5V;
2 4 6
1 3
4-6 Closed:
PVCC= 12V.
5
JP3 (3-pin): INVERTER Back Light VCC 5V/12V Select
JP3→INVERTER Back Light VCC
1-2 Closed: INVERTER Back Light 5V Selected;
1
3
2-3 Closed: INVERTER Back Light 12V Selected.
10
JP1 (4-pin): COM1 Port Pin9 Function Select
JP1COM 1 Port
6 4 2
2-4 Closed:
RI=RS232;
5 3
1
JP5 (4-pin): COM2 Header Pin9 Function Select
JP5COM 2 Header
6 4 2
2-4 Closed:
RI=RS232;
5 3
1
6 4
2
3-4 Closed:
RI= +5V;
6 4
2
3-4 Closed:
RI= +5V;
5 3 1
5 3 1
6 4 2
4-6 Closed:
RI= +12V.
6 4 2
4-6 Closed:
RI= +12V.
5 3 1
5 3 1
11
Out Port
USB 2.0 Port
USB 3.0 Port
Power Connector
USB 2.0 Ports
VGA Port
COM1 Port
HDMI Port
PS/2
PS/2
2-2 Connectors and Headers 2-2-1 Connectors
(1) Rear I/O Connectors
RJ-45 LAN Port
Mouse Port
Keyboard Port
12V DC-in
(2) SATAII Port connector: SATA1/SATA2
These are high-speed SATAII ports that support 3GB/s transfer rate.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
* Note: SATA2 shares with MSATA1(Mini-SATA slot).
Line-
12
+5V
GND
+12V
GND
20-pin Main Power Connector
(3) SATA Power Connector (4-pin): SATAPW
Pin 1
(4) ATXPWRIN (20-pin block): Power Connector
Row2
Row1
Pin1
13
Pin10
PIN ROW1 ROW2 1 +3.3V +3.3V 2 +3.3V -12V 3 GND GND 4 +5V Soft Power on 5 GND GND 6 +5V GND 7 GND GND 8 Power OK -5V 9 +5V Stand by +5V 10 +12V +5V
Control
GND
Fan Speed
Control

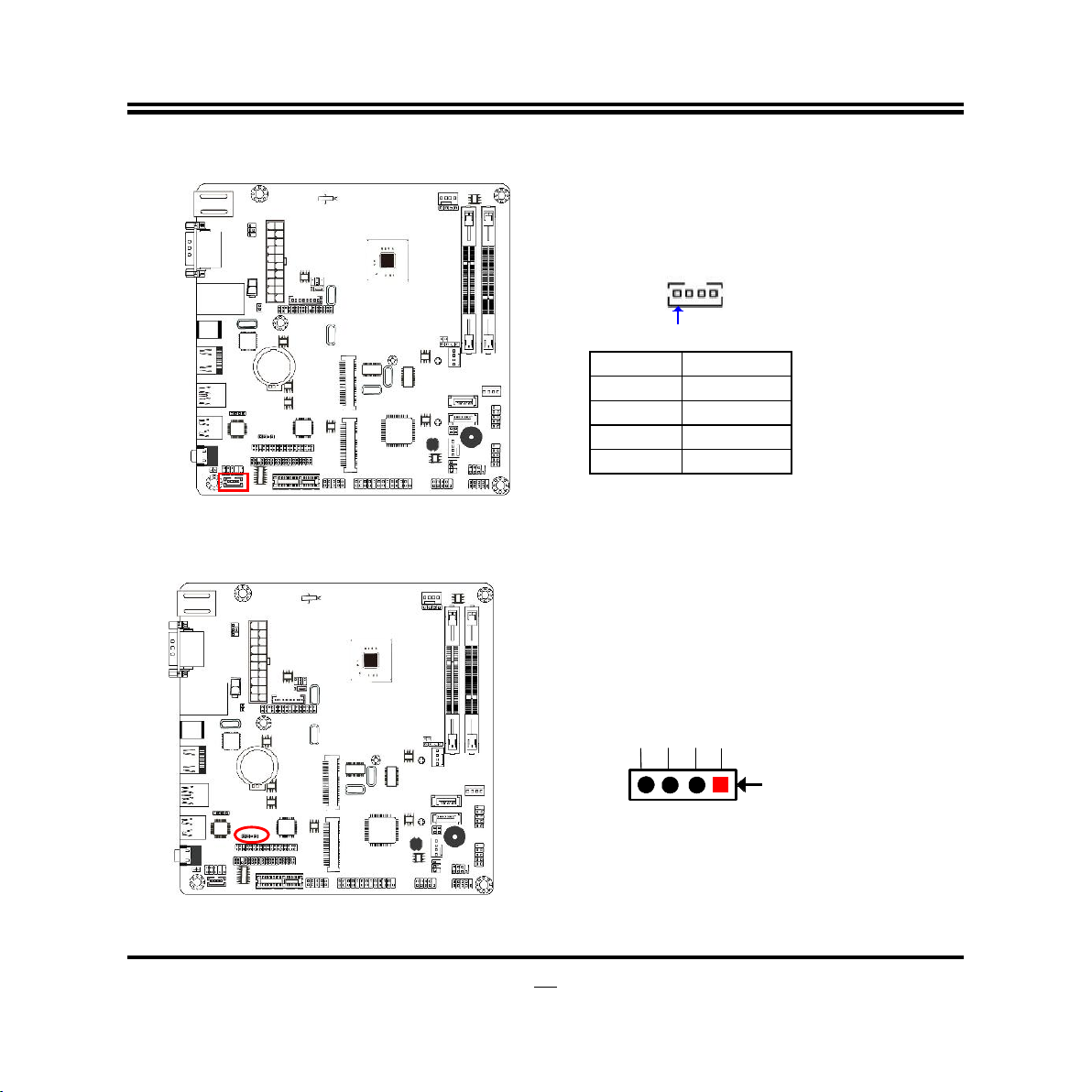

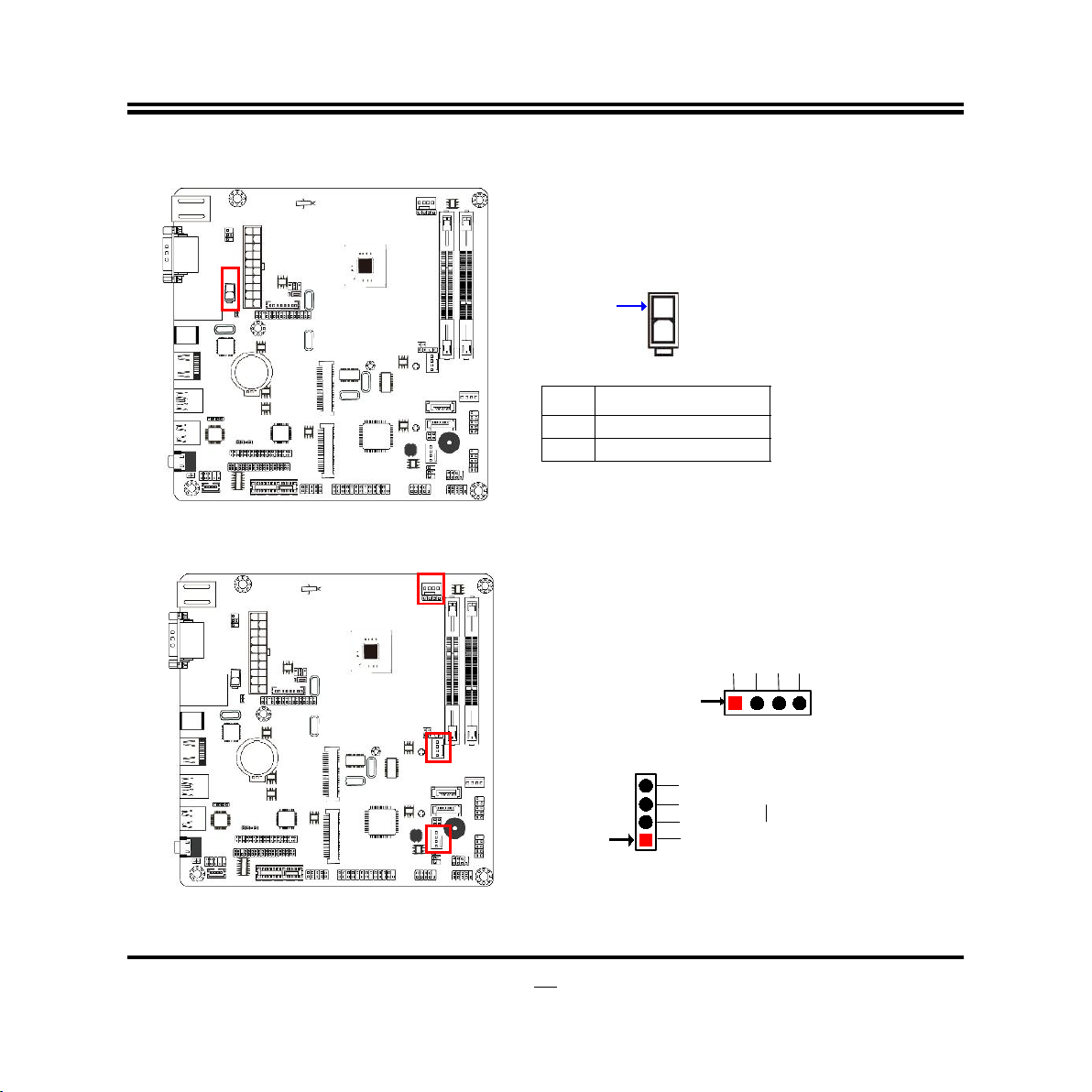

(5) ATX2P (2-pin block): Internal DC 12V Power-in Connector
Pin1
Pin. Definition
1 GND 2 +12V DC_IN
(6) CPUFAN/SYSFAN1/SYSFAN2 (4-pin): Fan Connectors
SYSFAN1:
Pin1
CPUFAN/SYSFAN2:
+12V Fan Power
Fan Speed
Pin1
+12V Fan Power GND
14
Line-Out, MIC Header
Pin 1
SPDIF GND
2-2-2 Headers

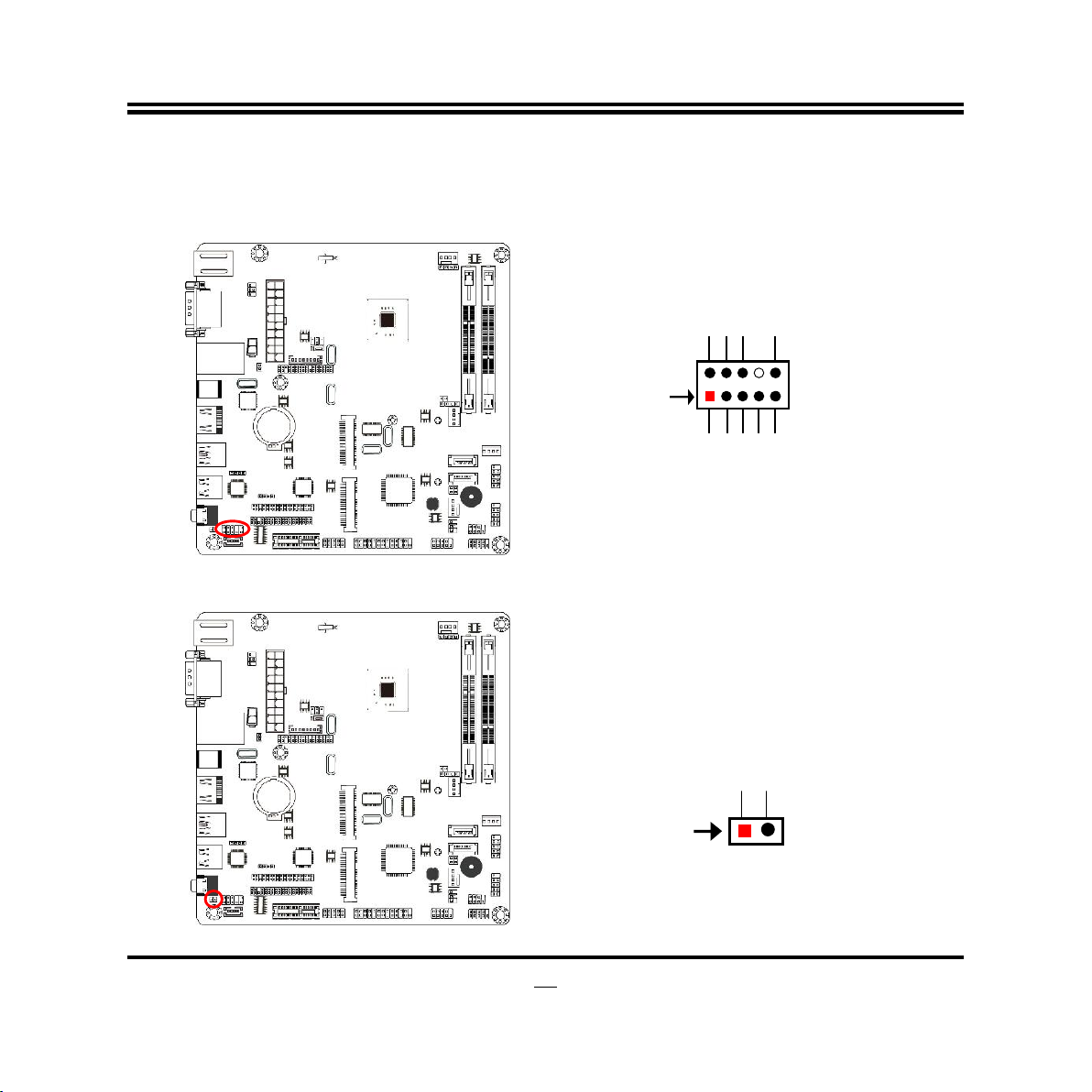

(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
GND
2
MIC2-L
LINE_OUT_JD
DETECT
MIC_JD
LINE OUT-R
MIC2-R
SENSE
LINE OUT-L
(2) SPDIF (2-pin): HDMI_SPDIF Out Header
Pin1
15
CDIN_L
GND
GND
CDIN_R
(3)SPEAK_CON (4-pin): Speaker Connector
Pin1
Pin No. Definition
1 L-
2 L+
3 R+
4 R-
(4)CD_IN (4-pin): CD Audio In Header
Pin1
16
IN_L
GND
GND
_R
RESET
GND
VCC
PWRBT

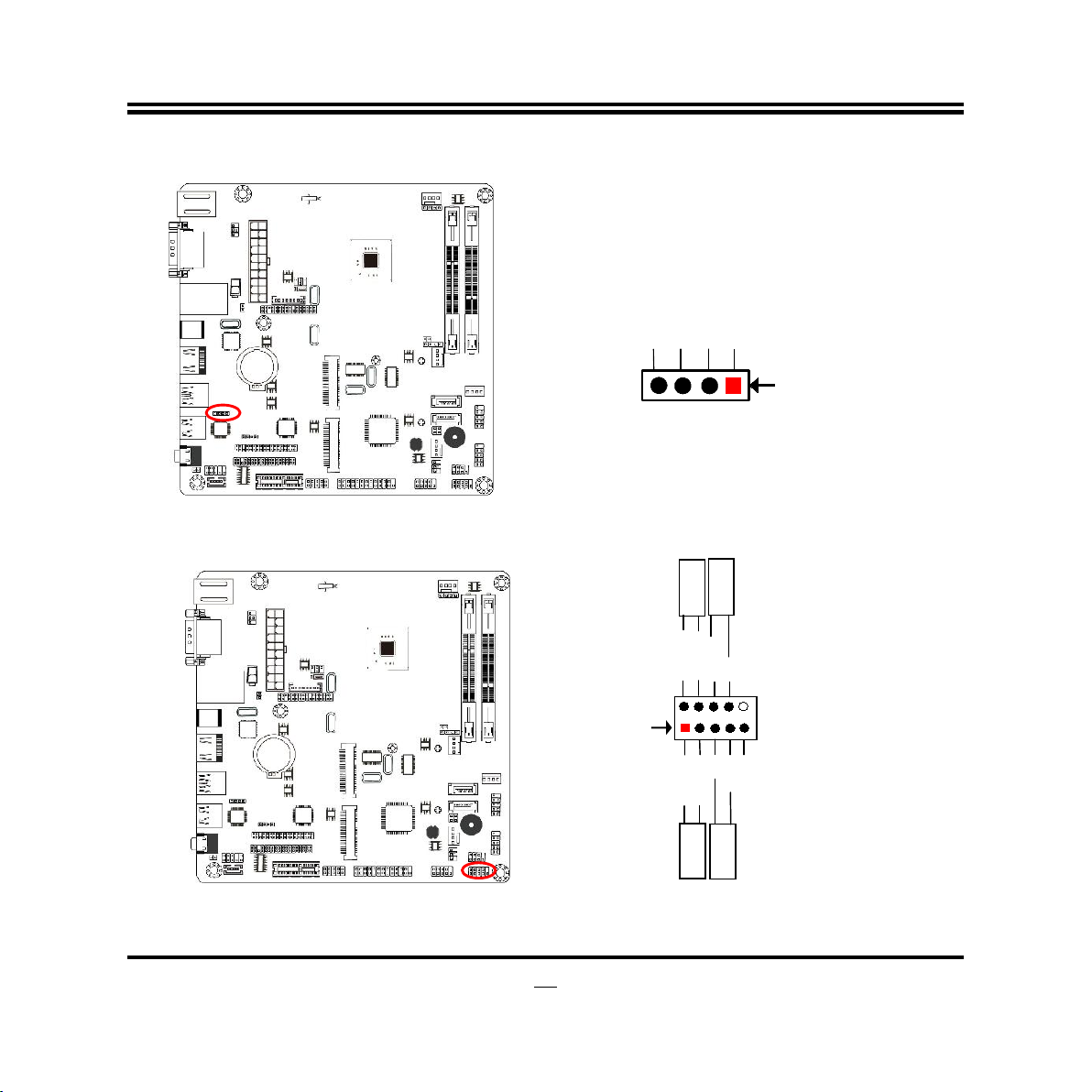

(5)LINE_IN (4-pin): Line In Header
(6) JW_FP (9-pin): Front Panel Header
Pin 1
LINEIN
LINE
Pin1
PWR LED
PWRBTN
PWRLED+
PWRLED-
2
GND
HDDLED- RSTSW
HDDLED+
HDLED
17
Pin 1
SPK-

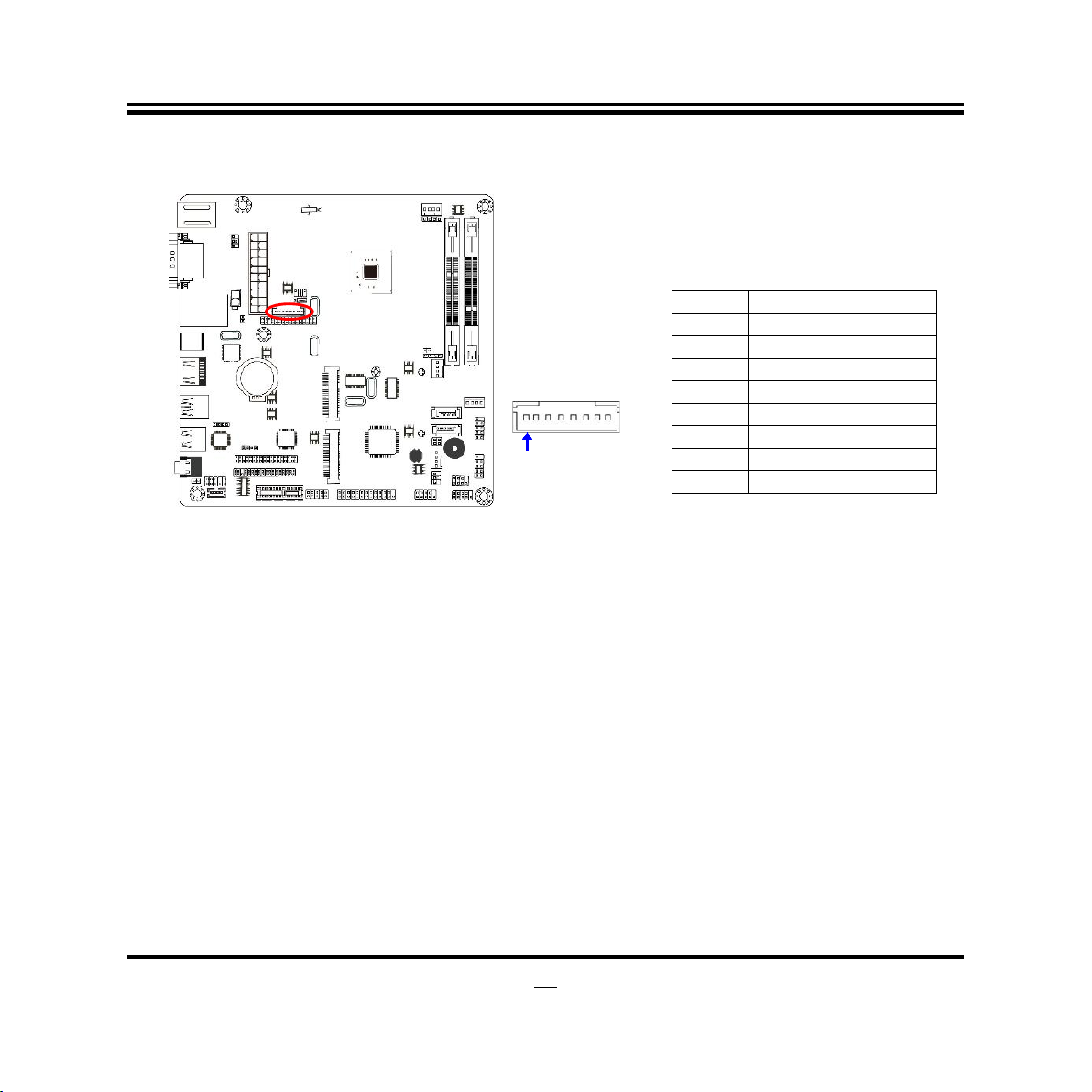

(7) SPK-LED (7-pin): Speaker Header & PWR LED Header
PWRLED+
PWRLED-
PWRLED-
2
SPK+
NC
NC
(8) FP_USB1/FP_USB2 (9-pin): USB 2.0 Port Header
NC
GND
DATA+ DATA-
VCC
18
GND
DATA+
DATA-
VCC
2
Pin 1
(9) LPT (25-pin): Parallel Port Header
Pin14
Pin1
Pin NO. Pin Definition Pin NO. Pin Definition
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8
STB­PRD0 PRD1 PRD2 PRD3 PRD4 PRD5 PRD6
Pin 14 Pin 15 Pin 16 Pin 17 Pin 18 Pin 19 Pin 20 Pin 21
AFD­ERR­INIT­SLIN­GND GND GND
GND Pin 9 PRD7 Pin 22 GND Pin 10 ACK- Pin 23 GND Pin 11 BUSY Pin 24 GND Pin 12 PE Pin 25 GND Pin 13 SLCT
19
GPIO30 GPIO31
Pin 1
GPIO35
GPIO37
(10) COM2(9-pin): Serial Port Header
DSR
RTS
CTS
RI
Pin6
Pin1
DCD
SIN
GND
DTR
SOUT
(11) GPIO_CON (10-pin): GPIO Header
GPIO33
VCC
GND
2
GPIO32
GPIO34 GPIO36
20
NC
GND
Pin1
LED+
LED-
(12) SMBUS (4-Pin): SM BUS Header
(13)LAN_LED (2-pin): LAN Activity LED Header
Pin1
SMBUS_DATA
SMBUS_CLK
21
(14) LVDS (30-pin): 24-bit Dual Channel LVDS Header
Pin 1
Pin 2
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 LVDSB_DATAN3 Pin 2 LVDSB_DATAP3 Pin 3 LVDS_CLKBN Pin 4 LVDS_CLKBP Pin 5 LVDSB_DATAN2 Pin 6 LVDSB_DATAP2 Pin 7 LVDSB_DATAN1 Pin 8 LVDSB_DATAP1 Pin 9 LVDSB_DATAN0 Pin 10 LVDSB_DATAP0 Pin 11 NC Pin 12 NC Pin 13 N/A Pin 14 GND Pin 15 GND Pin 16 GND Pin 17 LVDSA_DATAP3 Pin 18 LVDSA_DATAN3 Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2 Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1 Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0 Pin 27 PVDD Pin 28 N/A Pin 29 PVDD Pin 30 PVDD Pin 31 GND Pin 32 GND
22
(15) INVERTER (8-pin): LVDS Inverter
Pin No. Definition
1 Backlight Enable
Pin 1
INVERTER
2 Backlight PWM
3 Backlight VCC
4 Backlight VCC
5 GND
6 GND
7 Backlight Up SW
8 Backlight Down SW
23
Chapter 3
Introducing BIOS
Notice!
The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to Press
<Del>
to enter Setup; press <
F7
> for Pop Menu.
24
3-2 BIOS Menu Screen
The following diagram show a general BIOS menu screen:
Menu Bar
General Help Items
Current Setting Value
Menu Items
Function Keys
3-3 Function Keys
In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:
Press (left, right) to select screen; Press  (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
25
Press Press
<Enter> <+>/<–>
to select. keys when you want to modify the BIOS parameters for the active
option.
[F1]:
     Press
General help.
[F2]:
Previous value.
[F3]:
Optimized defaults.
[F4]:
Save & Exit.
<Esc>
to quit the BIOS Setup.
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right corner the screen.
Status Page Setup Menu/Option Page Setup Menu
Press [F1] to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press
Esc
<
>.
3-5 Menu Bars
There are six menu bars on top of BIOS screen:
Main To change system basic configuration Advanced To change system advanced configuration Chipset To change chipset configuration Security Password settings Boot To change boot settings Save & Exit Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar. The selected one is highlighted.
26
3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item.
System Date
Set the date. Please use [Tab] to switch between data elements.
System Time
Set the time. Please use [Tab] to switch between time elements.
27
3-7 Advanced Menu
OS Selection
The optional settings: [Android]; [Windows 8.X]; [Windows 7].
*Note: User needs to go to this item to select OS before installing OS. If Windows Embedded standard 8, please select [Windows 8x] and set “USB 3.0 Support” as [Disabled], “USB 2.0 Support” as [Enabled] (refer to Page 40).
ACPI Settings
Press [Enter] to make settings for the following sub-item:
ACPI Settings
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the suspend button is pressed.
28
The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].
Wakeup Function Settings
Press [Enter] to make settings for the following sub-items:
Wake-up System with Fixed Time
Use this item to enable or disable system wake-up on alarm event. The optional settings: [Disabled]; [Enabled]. When set as [Enabled], system will wake on the hour/min/sec specified.
Wake-up System with Dynamic Time
Use this item to enable or disable system wake-up on alarm event. The optional settings: [Disabled]; [Enabled]. When set as [Enabled], system will wake on the current time + increased minute(s).
PS2 (S3-~S5) /USB (S3/S4) Wake-up
Use this item to enable or disable PS2 (S3-~S5) /USB (S3/S4) Wake-up. The optional settings: [Disabled]; [Enabled].
*This item is only supported when ‘ERP Support’ is set as [Disabled].
Super I/O Configuration
Press [Enter] to make settings for the following sub-items:
Super IO Configuration
ERP Function
The optional settings: [Disabled]; [Auto]. This item should be set as [Disabled] if you wish to have all active wake-up functions.
Serial Port 1 Configuration / Serial Port 2 Configuration Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port FIF0 Mode
29
The optional settings are: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FIF0]; [128-Byte FIF0].
Parallel Port Configuration Press [Enter] to make settings for the following items:
Parallel Port
Use this item to enable or disable parallel port (LPT/LPTE).
Change Settings
Use this item to select an optimal setting for super IO device.
Device Mode
The optional settings are: [STD Printer Mode]; [SPP Mode]; [EPP-1.9 and SPP Mode]; [EPP-1.7 and SPP Mode]; [ECP Mode]; [ECP and EPP 1.9 Mode]; [ECP and EPP 1.7 Mode].
WatchDog Timer
Use this item to enable or disable WatchDog Timer Control. When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of [4] to [255].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
WatchDog Wake-up Timer in ERP
This item support WDT wake-up while ERP function is set as [Auto]. The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value in ERP
User can set a value in the range of [10] to [4095] when ‘WatchDog Timer Unit’ is set as [Sec.]; or in the range of [1] to [4095] when ‘WatchDog Timer Unit’ is set as [Min].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
ATX Power Emulate AT Power
30
This item displays current Emulate AT Power Status, motherboard power On/Off control by power supply. User needs to select ‘AT or ATX Mode’ on MB jumper at first (refer to Page 8~9, Jumper AT_MODE for ATX Mode & AT Mode Select).
Case Open Detect
This item controls detect case open function. The optional settings are: [Enabled]; [Disabled].
PC Health Status
Press [Enter] to view current hardware health status and make further settings in ‘SmartFan Configuration’.
SmartFan Configuration Press [Enter] to make settings for SmartFan Configuration:
SmartFan Configuration
CPUFAN / SYSFAN1/ SYSFAN2 Smart Mode
The optional settings are: [Disabled]; [Enabled]. When set as [Enabled], the following sub-items shall appear: CPUFAN / SYSFAN1/ SYSFAN2 Full-Speed Temperature Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 full speed temperature. Fan will run at full speed when above this pre-set temperature. CPUFAN / SYSFAN1/ SYSFAN 2 Full-Speed Duty Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 full speed duty. Fan will run at full speed when above the pre-set duty. CPUFAN / SYSFAN1/ SYSFAN 2 Idle-Speed Temperature Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 idle speed temperature. Fan will run at idle speed when below this temperature. CPUFAN / SYSFAN1/ SYSFAN2 Idle-Speed Duty Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 idle speed duty. Fan will run at idle speed when below the pre-set duty.
Shutdown Temperature Configuration
Use this item to select system shutdown temperature. The optional settings are: [Disabled]; [70oC/158oF]; [75oC/167oF]; [80oC/176oF];
31
[85oC/185oF].
Serial Port Consol Redirection
Press [Enter] to make settings for serial port redirection settings:
COM1
Console Redirection
The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], user can make further settings in:
Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Press [Enter] to make settings for the following sub-items.
Terminal Type
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].
Data Bits
The optional settings are: [7]; [8].
Parity
The optional settings are: [None]; [Even]; [Odd];[Mark]; [Space].
Stop Bits
The optional settings are: [1]; [2].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS].
VT-UTF8 Combo Key Support
The optional settings are: [Enabled]; [Disabled].
Recorder Mode
The optional settings are: [Enabled]; [Disabled].
Resolution 100x31
The optional settings are: [Enabled]; [Disabled].
Legacy OS Redirection Resolution
32
The optional settings are: [80x24]; [80x25].
Putty Keypad
The optional settings are: [VT100]; [LINUX]; [XTERMR6]; [SCO]; [ESCN]; [VT400].
Redirection After BIOS POST
The optional settings are: [Always Enable]; [BootLoader].
Serial Port for Out-of-Band Management/
Windows Emergency Management Services (EMS)
Console Redirection
The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], user can make further settings in ‘Console Redirection Settings’:
Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Press [Enter] to make settings for the following sub-items.
Out-of-Band Mgmt Port
The default setting is: [COM1].
*This item may or may not show up, depending on different configuration.
Terminal Type
The optional settings are: [VT100]; [VT100+];[VT-UTF8];[ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [57600]; [115200].
Flow Control
The optional settings are: [None] ; [Hardware RTS/CTS]; [Software Xon/Xoff].
Data Bits
The default setting is: [8].
*This item may or may not show up, depending on different configuration.
Parity
33
The default setting is: [None].
*This item may or may not show up, depending on different configuration.
Stop Bits
The default setting is: [1].
*This item may or may not show up, depending on different configuration.
CPU Configuration
Press [Enter] to view current CPU configuration and make settings for the following sub-items:
Limit CPUID Maximum
The optional settings: [Disabled]; [Enabled]. This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
The optional settings: [Disabled]; [Enabled].
Hardware Prefetcher
The optional settings are: [Disabled]; [Enabled]. Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch
The optional settings are: [Disabled]; [Enabled]. Use this item to turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
The optional settings: [Enabled]; [Disabled]. When set as [Enabled], a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.
EIST
The optional settings: [Disabled]; [Enabled]. Use this item to enable or disable Intel SpeedStep.
CPU C6 Report
Use this item to enable or disable CPU C6 (ACPI C3) report to OS. The optional settings: [Disabled]; [Enabled].
Package C-state Limit
The optional settings: [C0]; [C1]; [C3] [C6]; [C7]; [No Limit].
34
SATA Configuration
Press [Enter] to make settings for the following sub-items:
SATA Configuration
SATA Port
The optional settings: [Disabled]; [Enabled].
SATA Mode
The optional settings are: [IDE Mode]; [AHCI Mode].
SATA Speed Support
The item is for user to set the maximum speed the SATA controller can support. The optional settings are: [Gen1]; [Gen2].
SATA Port1
The optional settings are: [Enabled]; [Disabled].
SATA Port2
The optional settings are: [Enabled]; [Disabled].
Network Stack Configuration
Press [Enter] to go to ‘Network Stack’ screen to make further settings.
Network Stack
The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], the following sub-items shall appear:
Ipv4 PXE Support
The optional settings are: [Disabled]; [Enabled]. Use this item to enable Ipv4 PXE Boot Support. When set as [Disabled], IPV4 PXE boot optional will not be created.
Ipv6 PXE Support
The optional settings are: [Disabled]; [Enabled]. Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], IPV6 PXE boot optional will not be created.
PXE boot wait time
Use this item to set wait time to press [ESC] key to abort the PXE boot.
CSM Configuration
Press [Enter] to make settings for the following sub-items:
35
Option ROM execution order
Network
This item controls the execution of UEFI and legacy PXE OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Storage
This item controls the execution of UEFI and Legacy Storage OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only]; [Legacy first]; [UEFI first].
Other PCI devices
This item determines OpROM execution policy for devices other than Network, storage or video. The optional settings are: [UEFI first]; [Legacy Only].
USB Configuration
Press [Enter] to make settings for the following sub-items:
USB Configuration
Legacy USB Support
The optional settings are: [Enabled]; [Disabled]; [Auto].
[Enabled]: To enable legacy USB support. [Disabled]: To keep USB devices available only for EFI specification, [Auto]: To disable legacy support if no USB devices are connected. XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. The optional settings are: [Enabled]; [Disabled].
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. The optional settings are: [Disabled]; [Enabled].
USB Mass Storage Driver Support
The optional settings are: [Disabled]; [Enabled].
36
USB hardware delay and time-outs:
USB Transfer time-out
Use this item to set the time-out value for control, bulk, and interrupt transfers. The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].
Device reset time-out
Use this item to set USB mass storage device start unit command time-out. The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].
Device power-up delay
Use this item to set maximum time the device will take before it properly reports itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for a hub port the delay is taken from hub descriptor. The optional settings: [Auto]; [Manual]. Select [Manual] you can set value for the following sub-item: ‘Device Power-up
delay in seconds’. Device Power-up delay in seconds
The delay range is from [1] to [40] seconds, in one second increments.
Intel(R) I211 Gigabit Network Connection (XX:XX:XX:XX…)
Use this item to get driver information and configure gigabit ethernet device parameter.
37
3-8 Chipset Menu
North Bridge
Press [Enter] to view current using memory information and make settings for the following sub-items:
Intel IGD Configuration
PAVC
Use this item to enable or disable protected audio video control. The optional settings are: [Disabled]; [LITE Mode]; [SERPENT Mode].
DVMT Pre-Allocated
Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used by the internal graphics device. The optional settings are: [64M]; [96M]; [128M]; [160M]; [192M]; [224M]; [256M];
38
[288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M].
DVMT Total Gfx Mem
Use this item to select DVMT 5.0 total graphics memory size used by the internal graphics device. The optional settings are: [128M]; [256M]; [MAX].
Aperture Size
The optional settings are: [128MB]; [256MB]; [512MB].
GTT Size
The optional settings are: [1MB]; [2MB].
IGD Turbo Enable
The optional settings are: [Enabled]; [Disabled].
Spread Spectrum Clock
The optional settings are: [Enabled]; [Disabled].
IGD Boot Type
Use this item to select preference display interface used when system boot. The optional settings are: [Auto]; [CRT]; [HDMI]; [LVDS].
* Note: User needs to set ‘Active LVDS’ as [Enabled], otherwise the optional setting [LVDS] will not be available.
Active LVDS
The optional settings are: [Disabled]; [Enabled]. [Disable]: VBIOS disable LVDS. [Enable]: VBIOS enable LVDS.
* Note: When set as ‘Enabled’, user can make further settings in ‘LVDS Panel Type’.
LVDS Panel Type
Use this item to manually select LVDS panel type. The optional setting are: [800x 600 18bit Single]; [800x 600 24bit Single]; [1024 x 600 18bit Single]; [800x 480 18bit Single]; [1024 x 768 18bit Single]; [1024 x 768 24bit Single]; [1280 x 768 24bit Single]; [1280 x 1024 24bit Dual]; [1366 x 768 18bit Single]; [1366 x 768 24bit Single]; [1440 x 900 18bit Dual]; [1440 x 900 24bit Dual]; [1280 x 800 18bit Single]; [1280 x 800 24bit Single]; [1680 x 1050 24bit Dual];
39
[1920 x 1080 24bit Dual].
South Bridge
Press [Enter] to set south bridge parameters. USB Configuration
Press [Enter] to make settings for the following sub-items:
USB Configuration
USB 3.0 Support
The optional settings are: [Enabled]; [Disabled]; [Auto]; [Smart Auto].
* Note: When set as [Disable], USB 2.0 Support is applicable, for user to make further settings.
USB 3.0 Link Power Management
The optional settings are: [Enabled]; [Disabled].
* Note: This item only show up when ‘USB 3.0 Support’ set as [Enabled], [Auto] or [Smart Auto].
USB 2.0 Support
The optional settings are: [Auto]; [Disabled].
Audio Controller
The optional settings are: [Disabled]; [Enabled]
Azalia HDMI Codec
Use this item to enable or disable internal HDMI codec for Azalia. The optional settings are: [Disabled]; [Enabled].
PCI-E Slot Speed
The optional settings are: [Auto]; [Gen2]; [Gen1].
Onboard Lan1 Controller
The optional settings are: [Enabled]; [Disabled].
Mini PCIE
The optional settings are: [Enabled]; [Disabled].
Speed
The optional settings are: [Auto]; [Gen2]; [Gen1].
System State after Power Failure
Use this item to select AC power state when power is re-applied after a power
40
failure. The optional settings are: [Always Off]; [Always On]; [Former State].
3-9 Security Menu
Security menu allow users to change administrator password and user password settings.
41
3-10 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state. The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Disabled]; [Enabled].
Boot Option Priorities
Boot Option
The optional settings are: [UEFI: Built-in EFI Shell]; [Disabled].
42
3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
Use this item to restore defaults to all the setup options.
Boot Override
43
UEFT: Built-in EFI Shell
Launch Internal EFI shell application (shell.efi).
Lauch EFI Shell from filesystem device
Use this item to launch EFI shell application (shell.efi) from one of the available filesystem device.
Reset System with TXT disable Mode
Press [Enter] for TXE to run into the temporary disable mode. Ignore if TXE Ignition FW.
44
Loading...
