Technical Manual
Of
Intel Bay Trail Series CPU
Based Mini-ITX M/B
NO.G03-NF9HB-F
Revision: 1.0
Release date: March 30, 2015
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
i
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION .......................................................................................iv
ITEM CHECKLIST .....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION .........................................................................................................2
1-3 LAYOUT DIAGRAM ....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING .....................................................................................................7
2-2 CONNECTORS AND HEADERS................................................................................11
2-2-1 CONNECTORS .............................................................................................11
2-2-2 HEADERS .....................................................................................................13
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP .....................................................................................................18
3-2 BIOS MENU SCREEN ................................................................................................18
3-3 FUNCTION KEYS .......................................................................................................19
3-4 GETTING HELP ..........................................................................................................20
3-5 MEMU BARS...............................................................................................................20
3-6 MAIN MENU ................................................................................................................21
3-7 ADVANCED MENU .....................................................................................................22
3-8 CHIPSET MENU..........................................................................................................31
3-9 SECURITY MENU .......................................................................................................33
3-10 BOOT MENU...............................................................................................................34
3-11 SAVE & EXIT MENU...................................................................................................35
TABLE OF CONTENT
ii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition March 27, 2015
Item Checklist
Motherboard
Motherboard User’s Manual
DVD for motherboard utilities
Cable(s)
I/O Back panel shield
iv
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel® Bay Trail Series Processor, with low power consumption never
denies high performance
Support 2* DDR3L 1066/1333 MHz SO-DIMM, up to 8GB
Support 1*full-size Mini-PCIE connector
Support 1*m-SATA connector
Support 2 * SATAII port
Support 4 * RJ45 LAN port
Support USB 3.0 data transport demand
Support CPU Over-Temperature protection
Support CPU Over-Current/Under Voltage protection
Support DRAM Over-Current/Under Voltage protection
Supports ACPI S3 Function
Compliance with EuP Standard
Support CPU Smart FAN
Support Watchdog Technology
1
1-2 Specification
Spec Description
Design
Embedded CPU
Memory Socket
Expansion Slot
LAN Chip
Storage
BIOS
Rear I/O
Internal I/O
Mini-ITX form factor; PCB size: 17.0x17.0cm
Integrated with Intel® Bay Trail-D/M/I series CPU
2*DDR3LSODIMM Slot for un-buffered dual channel DDR3L
1066/1333 MHz SDRAM, expandable to 8GB in total
Dual channel function supported
1* Full-size Mini-PCIE slot (MPE)
1* PCIE x1 slot (PCIE1)
1* PCIE x1 slot by sideway(PCIE2)
Integrated with 4 Intel I211AT PCI-E Gigabit LAN chips
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
2* SATAII port (SATA1/2)
1* Full-size mSATA slot (MSATA: shares with SATA2)
AMI 64MB Flash ROM
1* 12V system DC Jack power-in connector
1* COM1 serial port
1* USB 3.0 port
1* USB 2.0 port
4* RJ-45 LAN port
1* 2-pin DC 12V internal power connector
1* SATA Power connector
1* CPU FAN connector & 2* SYSFAN connector
1* Front panel header
1* Power LED & speaker header
1* Serial port header
2* USB 2.0 header (Expansible to 4* USB 2.0 ports)
1* SMBUS header
1* GPIO_CON header
1* VGA port header
1* PS/2 keyboard & mouse header
1* 8-pin LANLED header
2
1-3 Layout Diagram
For user to connect compatible power
power supply for the
for user to connect external MODEM
or other devices that supports
connect USB keyboard, mouse or other
connect USB keyboard, mouse or other
devices compatible with USB specification.
up to 5Gbps data
LAN jack
USB 2.0 Port
USB 3.0 Port
Rear IO Diagram
12V DC
Power-in Jack
LAN2 RJ-45 LAN Port
LAN1 RJ-45 LAN Port
COM1 Port
LAN3 RJ-45 LAN Port
LAN4 RJ-45 LAN Port
Icon Name Function
DC12V Power-in
Connector
COM1 Port
USB 2.0 Port
USB 3.0 Port
RJ-45 LAN Port
adapter to provide
system.
Mainly
Serial Communications Interface.
To
devices compatible with USB specification.
To
USB 3.0 ports supports
transfer rate.
This connector is standard RJ-45
for Network connection.
3
Motherboard Internal Diagram
COM1 Port
SYSFAN1 Header
Front Panel Header
SATAII Ports
LANLED Header
GPIO Header
SYSFAN2 Header
(COM2)
*SIM Card Slot
VGA Header
PCI Express x1 Slot
USB 2.0 Headers
Internal 12V
Power Connector
SATA Hard Disk
Power-Out Connector
CPUFAN Header
SMBUS Header
PCI Express x1 Slot
PS/2 KB & MS Header
Power LED Header
Full-size Mini-PCIE
12V DC
Power-in Jack
USB 2.0 Port
Over USB 3.0 Port
Intel CPU
*DDR3L SODIMM Slot
(SODIMM1/2)
RJ-45 Ports
(LAN1/2/3/4)
Mini-SATA Port
(MSATA)
Serial Port Header
& Speaker Header
Slot (MPE)
Sideway
Note: 1. SODIMM1 must be used for single DIMM use case. 2. The module should be DDR3L 1.35V
SODIMM and not exceeding 8GB total capacity. 3. MSATA slot shares function with SATA2 port; i.e.
only one can function at a time.
4
Motherboard Jumper Position
JP1
JPCOM1
JPCOM2
AT-COPEN
JBAT
Note: This manual serves as a common manual for NF9HB & NF9HG series
Their main differences are listed as below:
The pictures for illustration examples are mostly taken from the above layout diagram for NF9HB, unless otherwise stated. Please refer to your actual product for specification reference.
*JP2 (Optional for NF9HB series)
Model JP2(Jumper) Bypass LAN (on LAN3/LAN4)
NF9HB Y Support
NF9HG N Not support
5
6
Jumper
Front Panel Header(PWR LED/ HD
Jumper Name Description
JBAT Pin 1-2: CMOS RAM Clear Function Setting
Pin 3-4: Clear ME Function Setting
AT_COPEN Pin 1-2: ATX Mode & AT Mode Select
Pin 3-4: Case Open Message Display Function
JP1 ME Security Measure Function Select 2-Pin Block
*JP2(for NF9HB) Bypass LAN Control Setting 4-pin Block
JPCOM1 COM1 Port Pin9 Function Select 4-pin Block
JPCOM2 COM2 Header Pin9 Function Select 4-pin Block
4-Pin Block
4-Pin Block
Connectors
Connector Name
DCIN DC 12V Power –in Connector
ATX2P 2-Pin Internal DC 12V Power–in Connector
SATAPW SATA Power out Connector
SATA1/SATA2 SATAII Port Connector X2
COM1 Serial Port COM Connector
USB Top: USB 2.0 Port Connector
Bottom: USB 3.0 Port Connector
LAN1/2/3/4 RJ-45 LAN Connector X4
CPUFAN/SYSFAN1/2 FAN Connector X3
Headers
Header Name Description
JW_FP
LED /Power Button /Reset)
9-pin Block
SPK-LED Power LED & Speaker Header 7-pin Block
FP_USB1/2 USB 2.0 Header X2 9-pin Block
COM2 Serial Port Header 9-pin Block
SMBUS SMBUS Header 5-pin Block
GPIO_CON GPIO Header 10-pin Block
PS2KBMS PS/2 Keyboard & Mouse Header 6-pin Block
LAN_LED LANLED Header 8-pin Block
FP_VGA VGA Header 15-pin Block
7
Chapter 2
1-2 Open: Normal(Default);
4
3-4 Open: Normal(Default);
Hardware Installation
2-1 Jumper Setting
Pin 1 & 2 of JBAT (4-pin): Clear CMOS Setting
JBAT (Pin 1&2)→Clear CMOS
2
Pin 1
2
Pin 1
1-2 Close: Clear CMOS(One Touch).
4
3
3
Pin 3 & 4 of JBAT (4-pin): Clear ME Function Setting
JBAT (Pin 3&4)→Clear ME
2
1
2
1
4
4
Pin3
Pin3
3-4 Close: Clear ME.
Pin 1 & 2 of AT_COPEN (4-pin): AT Mode Function Select
AT_
1-2 Open: ATX Mode Selected(Default);
4
AT_
3-4 Open: Normal(Default);
COPEN(Pin 1&2)→AT Mode Select
2
Pin 1
2
Pin 1
1-2 Close: AT Mode Selected.
4
3
3
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
Pin 3 & 4 of AT_COPEN (4-pin): Case Open Message Display Function Select
COPEN(Pin 3&4)→Case Open Function Select
2
1
4
Pin3
Pin 3-4 Close: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this case if your case is removed, next time when you restart your computer,
a message will be displayed on screen to inform you of this.
2
1
3-4 Close: Case Open Function Selected (One Touch).
4
Pin3
8
JP1(2-pin): ME Security Measure Function Select
JP1
1-2 Open:Enable Security Measures
in the Flash Descriptor(Default) ;
1-2 Closed:Disable Security Measures in
the Flash Descriptor(Override).
*JP2 (4-pin):Bypass LAN Control Select
*JP2→Bypass LAN (Optional for NF9HB series)
6 4 2
1
2
1
2
2 4
6
2 4
6
1 3
1
3
5
2-4 Closed:
SW Control;
3
1
5
3-4 Closed:
HW Control;
5
4-6 Closed:
Always.
*Note: JP2 is only optional for model NF9HB series, which supports Bypass LAN
function(LAN3/4).
9
JPCOM1 (4-pin): COM1 Port Pin9 Function Select
JPCOM1→COM1 Port
6
4
2
2-4 Closed:
RI=RS232;
5
3
1
JPCOM2 (4-pin): COM2 Header Pin9 Function Select
JPCOM2→COM2 Header
6
4
2
2-4 Closed:
RI=RS232;
5
3
1
6
4
2
3-4 Closed:
RI= +5V;
6
4
2
3-4 Closed:
RI= +5V;
5
3
1
5
3
1
6
4
2
4-6 Closed:
RI= +12V.
6
4
2
4-6 Closed:
RI= +12V.
5
3
1
5
3
1
10
2-2 Connectors and Headers
USB 2.0 Port
USB 3.0 Port
2-2-1 Connectors
(1) Rear I/O Connectors
12V DC
Power-in Jack
COM1 Port
LAN1 RJ-45 LAN Port
LAN2 RJ-45 LAN Port
LAN4 RJ-45 LAN Port
LAN3 RJ-45 LAN Port
Warning! The board has a DC 12V power connector (DCIN) in I/O back panel and
an internal ATX12V (ATX2P) power connector. User can only connect one type of
compatible power supply to one of them to power the system.
(2) ATX2P (2-pin Block): DC 12V Power-in Connector
Pin1
Pin. Definition
1 GND
2 +12V DC_IN
11
(3) SATA1/SATA2(7-pin): SATA II Port Connector
+5V
GND
+12V
These connectors are high-speed SATAII ports that support 3 GB/s transfer rate.
Pin No. Defnition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
* Note: SATA2 shares with MSATA(Mini-SATA slot).
(4) SATAPW(4-pin): SATA Power Out Connector
Pin 1
GND
12
(5) CPUFAN/SYSFAN1/SYSFAN2 (4-pin): Fan Connectors
CPUFAN/ SYSFAN1/SYSFAN2
GND
Control
RESET
GND
VCC
PWRBT
+12V Fan Power
Fan Speed
Pin1
2-2-2 Headers
(1) JW-FP (9-pin): Front Panel Header
PWR LED
PWRBTN
PWRLED+
PWRLED-
2
Pin 1
GND
RSTSW
HDDLED-
HDDLED+
HDLED
13

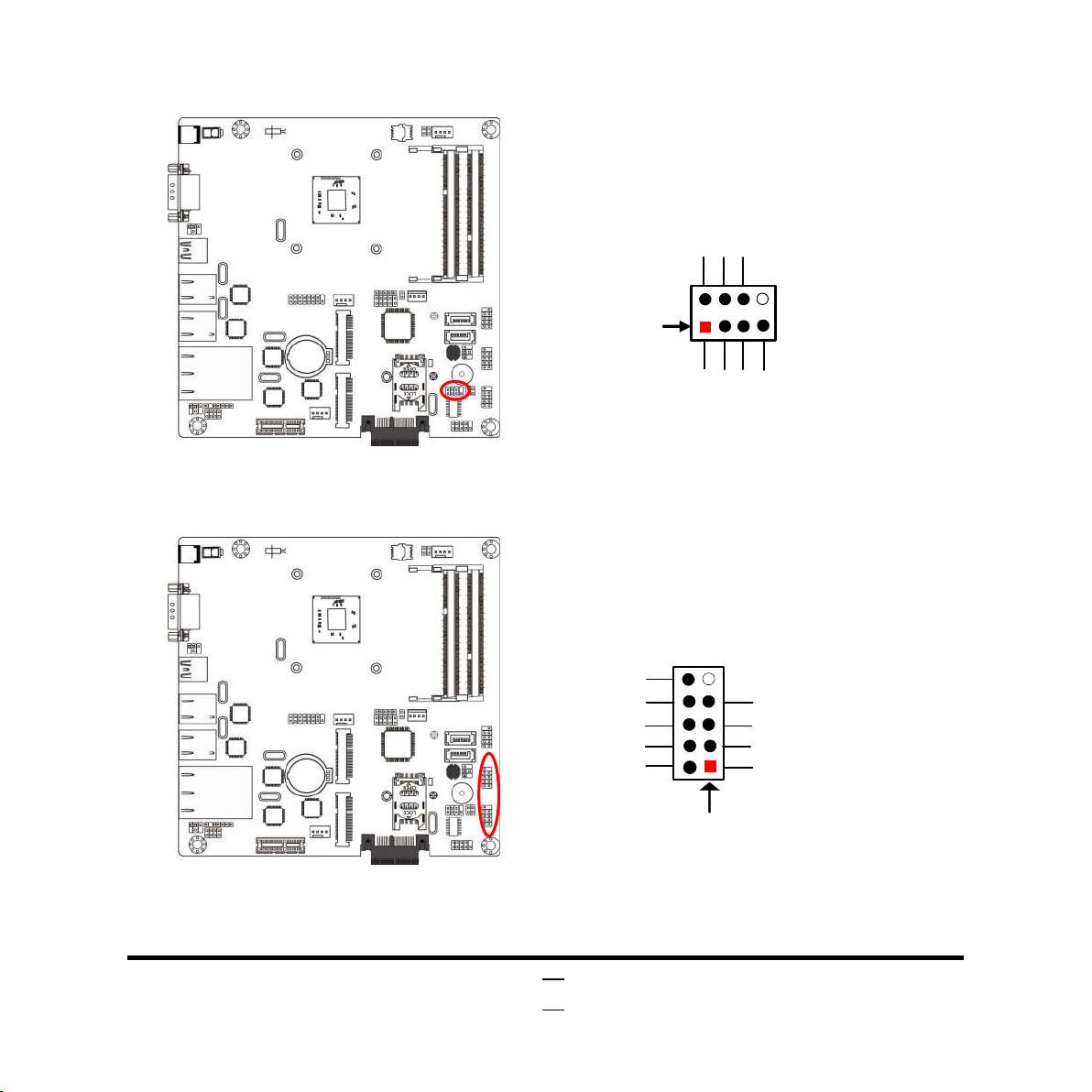

(2) SPK-LED (7-pin): Speaker Header & PWR LED Header
Pin 1
SPK-
-DATA
NC
-DATA
2
VCC
PWRLED+
PWRLED-
2
SPK+
NC
PWRLED-
NC
(3) FP_USB1/FP_USB2 (9-pin): USB 2.0 Port Header
GND
+DATA
VCC
GND
+DATA
Pin 1
14
(4) COM2 (9-Pin): Serial Port Header
SIN
RTS
6
DSR
VCC3
SMBUS_DATA
GND
NC
RI
CTS
GND
DTR
SOUT
DCD
Pin 1
(5) SMBUS (5-Pin): SM BUS Header
Pin1
SMBUS_CLK
15
16
(6) GPIO_CON (10-pin): GPIO Header
GPIO_30
GPIO_31
Pin 1
GPIO_35
GPIO_37
GND
KB_DATA
KB_CLK
MS_CLK
MS_DATA
2
(7) PS2KBMS (6-pin): PS/2 Keyboard & Mouse Header
VCC
GPIO_33
GPIO_32 GPIO_34 GPIO_36
VCC
10
9
GND
Pin1
17

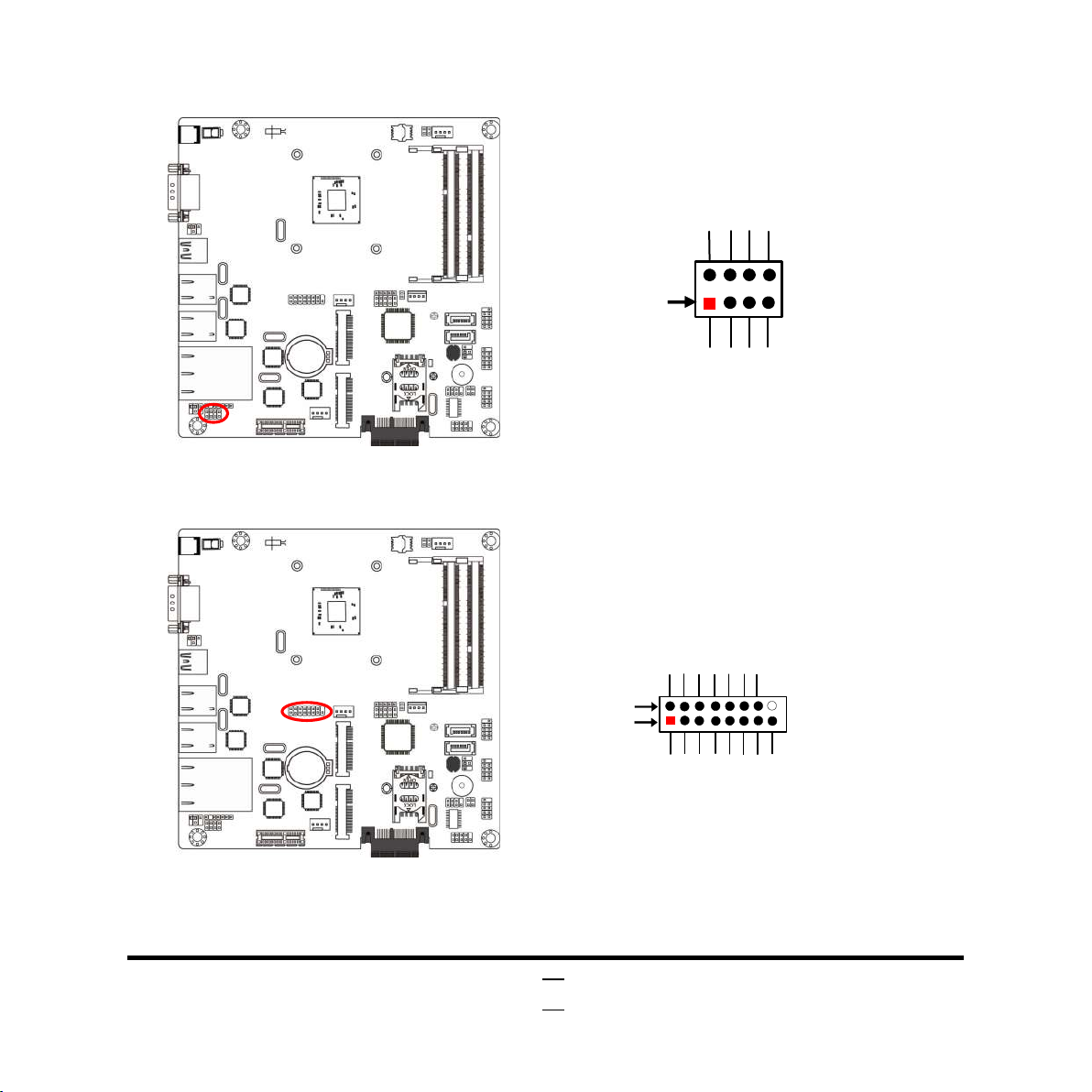

(8) LAN_LED (8-pin): LANLED Header
LAN1LED+
Pin 1
LAN2LED+
LAN3LED+
LAN4LED+
LAN1LED-
LAN2LED-
LAN3LED-
LAN4LED-
GREEN
Pin1
Pin2
RED
NC
GND
GND
GND
A
VSYNC
BLUE
VCC_VG
GND
GND
NC
(9) FP_VGA (15-pin): VGA Header
2
8
7
DCC-DAT
HSYNC
DCC_CLK
Chapter 3
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manuals are usually the first BIOS version when the board is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and software
to communicate, it is the key factor for system stability, and in ensuring that your
system performance as its best.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an error message will be displayed and you will again be asked
to
Press <Del> to enter Setup; press < F7> for Pop Menu.
3-2 BIOS Menu Screen
The following diagram show a general BIOS menu screen:
18
Menu Bar
Menu Items
General Help Items
Current Setting Value
Function Keys
BIOS Menu Screen
3-3 Function Keys
In the above BIOS Setup main menu of, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:
Press (left, right) to select screen;
Press (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
Press <Enter> to select.
Press <+>/<–> keys when you want to modify the BIOS parameters for the active
option.
19
[F1]: General help.
[F2]: Previous value.
[F3]: Optimized defaults.
[F4]: Save & Exit.
Press <Esc> to quit the BIOS Setup.
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right
corner the screen.
Status Page Setup Menu/Option Page Setup Menu
Press [F1] to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<Esc>.
3-5 Menu Bars
There are six menu bars on top of BIOS screen:
Main To change system basic configuration
Advanced To change system advanced configuration
Chipset To change chipset configuration
Security Password settings
Boot To change boot settings
Save & Exit Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.
20
3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] to switch between data elements.
System Time
Set the time. Please use [Tab] to switch between time elements.
21
3-7 Advanced Menu
OS Selection
The optional settings: [Android]; [Windows 8.X]; [Windows 7].
*Note: User needs to go to this item to select OS before installing OS.
If Windows Embedded standard 8, please select [Windows 8x] and set “USB 3.0
Support” as [Disabled], “USB 2.0 Support” as [Enabled] (refer to Page 32).
ACPI Settings
Press [Enter] to make settings for the following sub-item:
ACPI Settings
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the
suspend button is pressed.
The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].
Wake-up Function Settings
22
Press [Enter] to make settings for the following sub-items:
Wake-up System with Fixed Time
Use this item to enable or disable system wake-up on alarm event.
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], system will wake on the hour/min/sec specified.
Wake-up System with Dynamic Time
Use this item to enable or disable system wake-up on alarm event.
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], system will wake on the current time + increased
minute(s).The settings range is from [1] ~ [60] minute(s).
PS2 (S3-S5) / USB (S3-S4) Wake-up
Use this item to enable or disable PS2 (S3-S5)/USB (S3-S4) / Wake-up.
The optional settings: [Disabled]; [Enabled].
*This item is only supported when ‘ERP Support’ is set as [Disabled].When ‘ERP
Support’ is set as [Enabled],user can only enable or disable ‘USB(S3)/PS2(S3)
Wake-up’ .
Super I/O Configuration
Press [Enter] to make settings for the following sub-items:
Super IO Configuration
ERP Support
The optional settings: [Enabled]; [Disabled].
This item should be set as [Disabled] if you wish to have all active wake-up
functions.
Serial Port 1 Configuration/ Serial Port 2 Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port FIF0 Mode
The optional settings are: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FIF0]; [128-Byte
FIF0].
23
ERP Support
The optional settings: [Enabled]; [Disabled].
This item should be set as [Disabled] if you wish to have all active wake-up
functions.
WatchDog Timer
Use this item to enable or disable WatchDog Timer Control. When set as
[Enabled], the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of [10] to [255].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
WatchDog Wake-up Timer in ERP
This item support WDT wake-up while ‘ERP Support’ is set as [Auto].
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value in ERP
User can set a value in the range of [10] to [4095].
WatchDog Timer Unit in ERP
The optional settings are: [Sec.]; [Min.].
ATX Power Emulate AT Power
This item displays current Emulate AT Power Status, motherboard power On/Off
control by power supply. User needs to select ‘AT or ATX Mode’ on MB jumper at
first (refer to Page 8~9, Jumper AT_MODE for ATX Mode & AT Mode Select).
Case Open Detect
This item controls detect case open function.
The optional settings are: [Enabled]; [Disabled].
PC Health Status
Press [Enter] to view current hardware health status, set shutdown temperature, or
make further settings in ‘Smart Fan Configuration’.
SmartFan Configuration
Press [Enter] to make settings for SmartFan Configuration:
SmartFAN Configuration
24
CPUFAN / SYSFAN1/ SYSFAN2 Smart Mode
When set as [Enabled], the following sub-items shall appear:
CPUFAN / SYSFAN1/ SYSFAN2 Full-Speed Temperature
Use this item to set CPUFAN/SYSFAN1/SYSFAN2 full speed temperature. Fan
will run at full speed when above this temperature.
CPUFAN / SYSFAN1/ SYSFAN2 Full-Speed Duty
Use this item to set CPUFAN/SYSFAN1/SYSFAN2 full speed duty. Fan will run at
full speed when above the pre-set duty.
CPUFAN / SYSFAN1/ SYSFAN2 Idle-Speed Temperature
Use this item to set CPUFAN/SYSFAN1/SYSFAN2 idle speed temperature. Fan
will run at idle speed when below this temperature.
CPUFAN / SYSFAN1/ SYSFAN2 Idle-Speed Duty
Use this item to set CPUFAN/SYSFAN1/SYSFAN2 idle speed duty.. Fan will run at
idle speed when below the pre-set duty.
Shutdown Temperature Configuration
Use this item to select system shutdown temperature.
Shutdown Temperature
The optional settings are: [Disabled]; [70oC/158oF]; [75oC/167oF]; [80oC/176oF];
[85oC/185oF].
Serial Port Console Redirection
Press [Enter] to make settings for the following sub-items:
COM1
Console Redirection
Use this item to enable or disable COM1 Console Redirection.
The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], user can make further settings in the ‘Console Redirection
Settings’ screen:
Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make settings for the following sub-items.
Terminal Type
25
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].
Data Bits
The optional settings are: [7]; [8].
Parity
The optional settings are: [None]; [Even]; [Odd];[Mark]; [Space].
Stop Bits
The optional settings are: [1]; [2].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS].
VT-UTF8 Combo Key Support
The optional settings are: [Enabled]; [Disabled].
Recorder Mode
The optional settings are: [Enabled]; [Disabled].
Resolution 100x31
The optional settings are: [Enabled]; [Disabled].
Legacy OS Redirection Resolution
The optional settings are: [80x24]; [80x25].
Putty Keypad
The optional settings are: [VT100]; [LINUX]; [XTERMR6]; [SCO]; [ESCN];
[VT400].
Redirection After BIOS POST
The optional settings are: [Always Enable]; [BootLoader].
Serial Port for Out-of-Band Management/
Windows Emergency Management Services (EMS)
Console Redirection
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], user can make further settings in ‘Console Redirection
Settings’:
Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
26
compatible settings.
Press [Enter] to make settings for the following sub-items.
Out-of-Band Mgmt Port
The default setting is: [COM1].
Terminal Type
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [57600]; [115200].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS]; [Software Xon/Xoff].
Data Bits
The default setting is: [8].
*This item may or may not show up, depending on different configuration.
Parity
The default setting is: [None].
*This item may or may not show up, depending on different configuration.
Stop Bits
The default setting is: [1].
*This item may or may not show up, depending on different configuration.
CPU Configuration
Press [Enter] to view current CPU configuration and make settings for the following
sub-items:
Limit CPUID Maximum
The optional settings: [Disabled]; [Enabled].
This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
The optional settings: [Disabled]; [Enabled].
Hardware Prefetcher
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
27
The optional settings: [Enabled]; [Disabled].
When set as [Enabled], a VMM can utilize the additional hardware capabilities
provided by Vanderpool Technology.
EIST
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable Intel SpeedStep.
CPU C Status
Use this item to enable or disable CPU C status.
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], the following sub-items shall appear:
CPU C6 Report
Use this item to enable or disable CPU C6 report to OS.
CPU C7 Report
Use this item to enable or disable CPU C7 report to OS.
The optional settings are: [Disabled]; [CPU C7]; [CPU C7s].
Package C-state Limit
The optional settings: [C0]; [C1]; [C3] [C6]; [C7]; [No Limit].
SATA Configuration
Press [Enter] to make settings for the following sub-items:
SATA Configuration
SATA Port
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], the following sub-items shall appear:
SATA Mode
The optional settings are: [IDE Mode]; [AHCI Mode].
SATA Speed Support
The item is for user to set the maximum speed the SATA controller can support.
The optional settings are: [Gen1]; [Gen2].
SATA Port1/ SATA Port2
The optional settings are: [Enabled]; [Disabled].
Network Stack Configuration
Press [Enter] to go to ‘Network Stack’ screen to make further settings.
Network Stack
The optional settings are: [Enabled]; [Disabled].
28
When set as [Enabled], the following sub-items shall appear:
Ipv4 PXE Support
The optional settings are: [Disabled]; [Enabled].
Use this item to enable Ipv4 PXE Boot Support. When set as [Disabled], Ipv4 boot
option will not be created.
Ipv6 PXE Support
The optional settings are: [Disabled]; [Enabled].
Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], Ipv6 boot
option will not be created.
PXE boot wait time
Use this item to set wait time to press [ESC] key to abort the PXE boot.
CSM Configuration
Press [Enter] to make settings for the following sub-items:
Option ROM execution order
Network
This item controls the execution of UEFI and legacy PXE OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Storage
This item controls the execution of UEFI and Legacy Storage OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy only] ; [UEFI first];
[Legacy first].
Other PCI devices
This item determines OpROM execution policy for devices other than Network,
storage or video.
The optional settings are: [UEFI first]; [Legacy first].
USB Configuration
Press [Enter] to make settings for the following sub-items:
USB Configuration
Legacy USB Support
The optional settings are: [Enabled]; [Disabled]; [Auto].
[Enabled]: To enable legacy USB support.
[Disabled]: To keep USB devices available only for EFI specification,
[Auto]: To disable legacy support if no USB devices are connected.
XHCI Hand-off
29
This is a workaround for OSes without XHCI hand-off support. The XHCI
ownership change should be claimed by XHCI driver.
The optional settings are: [Enabled]; [Disabled].
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The EHCI
ownership change should be claimed by EHCI driver.
The optional settings are: [Disabled]; [Enabled].
USB Mass Storage Driver Support
The optional settings are: [Disabled]; [Enabled].
USB hardware delay and time-outs:
USB Transfer time-out
Use this item to set the time-out value for control, bulk, and interrupt transfers.
The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].
Device reset time-out
Use this item to set USB mass storage device start unit command time-out.
The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].
Device power-up delay
Use this item to set maximum time the device will take before it properly reports
itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for
a hub port the delay is taken from hub descriptor.
The optional settings: [Auto]; [Manual].
Select [Manual] you can set value for the following sub-item: ‘Device Power-up
delay in seconds’.
Device Power-up delay in seconds
The delay range is from 1 to 40 seconds, in one second increments.
Intel(R) I211 Gigabit Network Connection-:XX:XX:XX:XX:XX:XX
Use this item to get driver information and configure Intel(R) I211 gigabit network
connection.
30

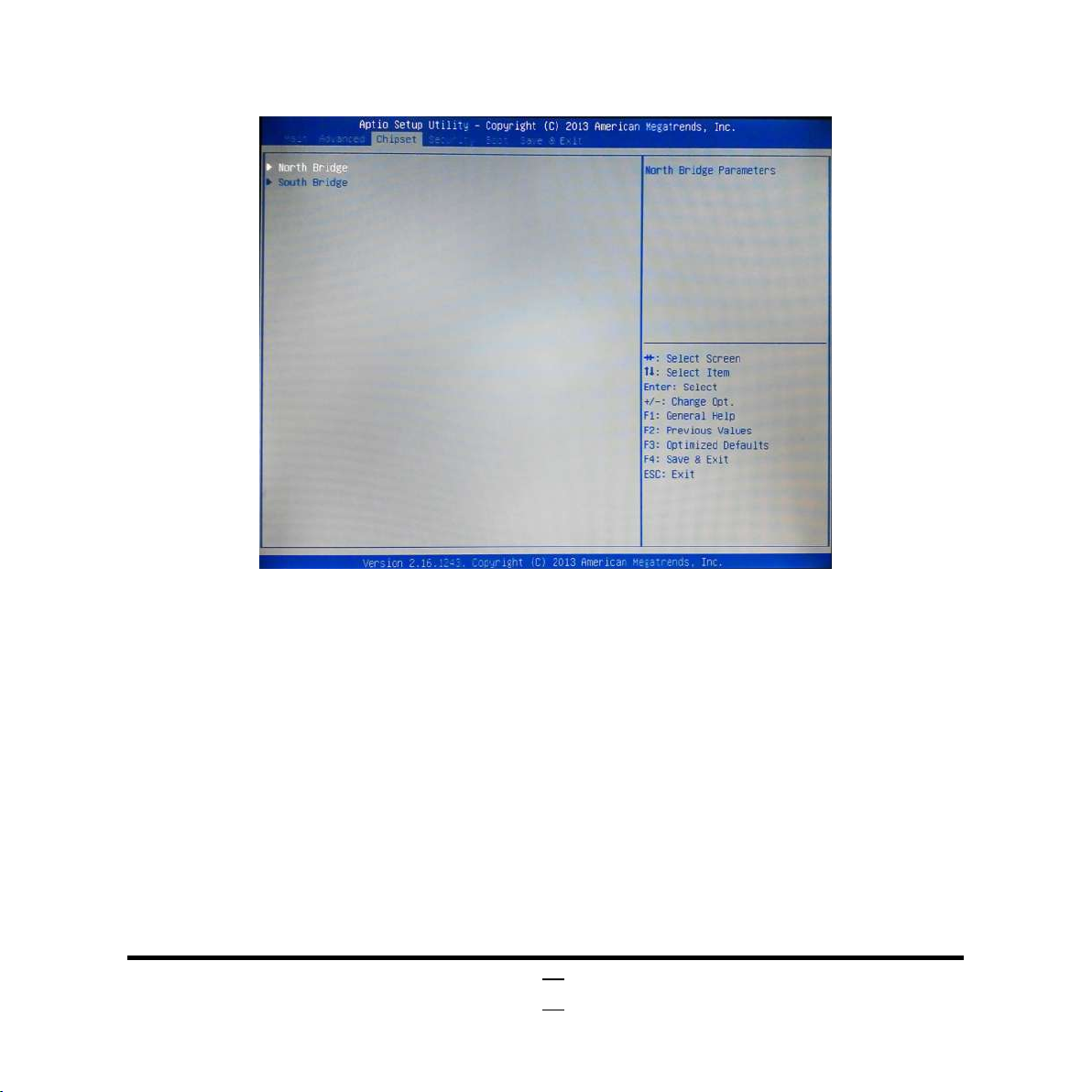

3-8 Chipset Menu
North Bridge
Press [Enter] to make settings for the following sub-items:
PAVC
Use this item to enable or disable protected audio video control.
The optional settings are: [Disabled]; [LITE Mode]; [SERPENT Mode].
DVMT Pre-Allocated
Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used
by the internal graphics device.
The optional settings are: [64M]; [96M]; [128M]; [160M]; [192M]; [224M]; [256M];
[288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M].
DVMT Total Gfx Mem
Use this item to select DVMT 5.0 total graphics memory size used by the internal
graphics device.
The optional settings are: [128M]; [256M]; [MAX].
Aperture Size
31
The optional settings are: [128MB]; [256MB]; [512MB].
GTT Size
The optional settings are: [1MB]; [2MB].
IGD Turbo Enable
The optional settings are: [Enabled]; [Disabled].
Spread Spectrum Clock
The optional settings are: [Enabled]; [Disabled].
South Bridge
Press [Enter] to make settings for the following sub-items:
USB Configuration
Press [Enter] to make settings for the following sub-items:
USB Configuration
USB 3.0 Support
The optional settings are: [Auto]; [Enabled]; [Disabled]; [Auto]; [Smart Auto].
USB 3.0 Link Power Management
The optional settings are: [Enabled]; [Disabled].
USB 2.0 Support
The optional settings are: [Auto]; [Disabled].
*‘USB 2.0 Support’ is only available for further settings when ‘USB 3.0 Support’
is set as [Disabled] .
*LAN3&4 Bypass State @ Power On
The optional settings are: [Bypass]; [Passthrough].
*LAN3&4 Bypass State @ Power Off
The optional settings are: [Bypass]; [Passthrough].
*LAN3&4 Bypass WDT Function
The optional settings are: [Enabled]; [Disabled].
*Note: The above three setting items: ‘LAN3&4 Bypass State @ Power On’,
‘LAN3&4 Bypass State @ Power Off’ and ‘LAN3&4 Bypass WDT Function’ are
only optional for NF9HB series. NF9HG series do not support these functions so
there are no such items in BIOS settings.
PCIE1 Slot
The optional settings are: [Enabled]; [Disabled].
MPE Controller
The optional settings are: [Enabled]; [Disabled].
32
Onboard Lan1 Controller/ Onboard Lan2 Controller Onboard Lan2 Controller
Onboard Lan3 Controller
The optional settings are: [Enabled]; [Disabled].
System State after Power Failure
Use this item to select AC power state when power is re-applied after a power
failure.
The optional settings are: [Always Off]; [Always On]; [Former State].
* The option [Always On] and [Former State] are affected by ERP function. Please
disable ERP to support [Always On] and [Former State] function.

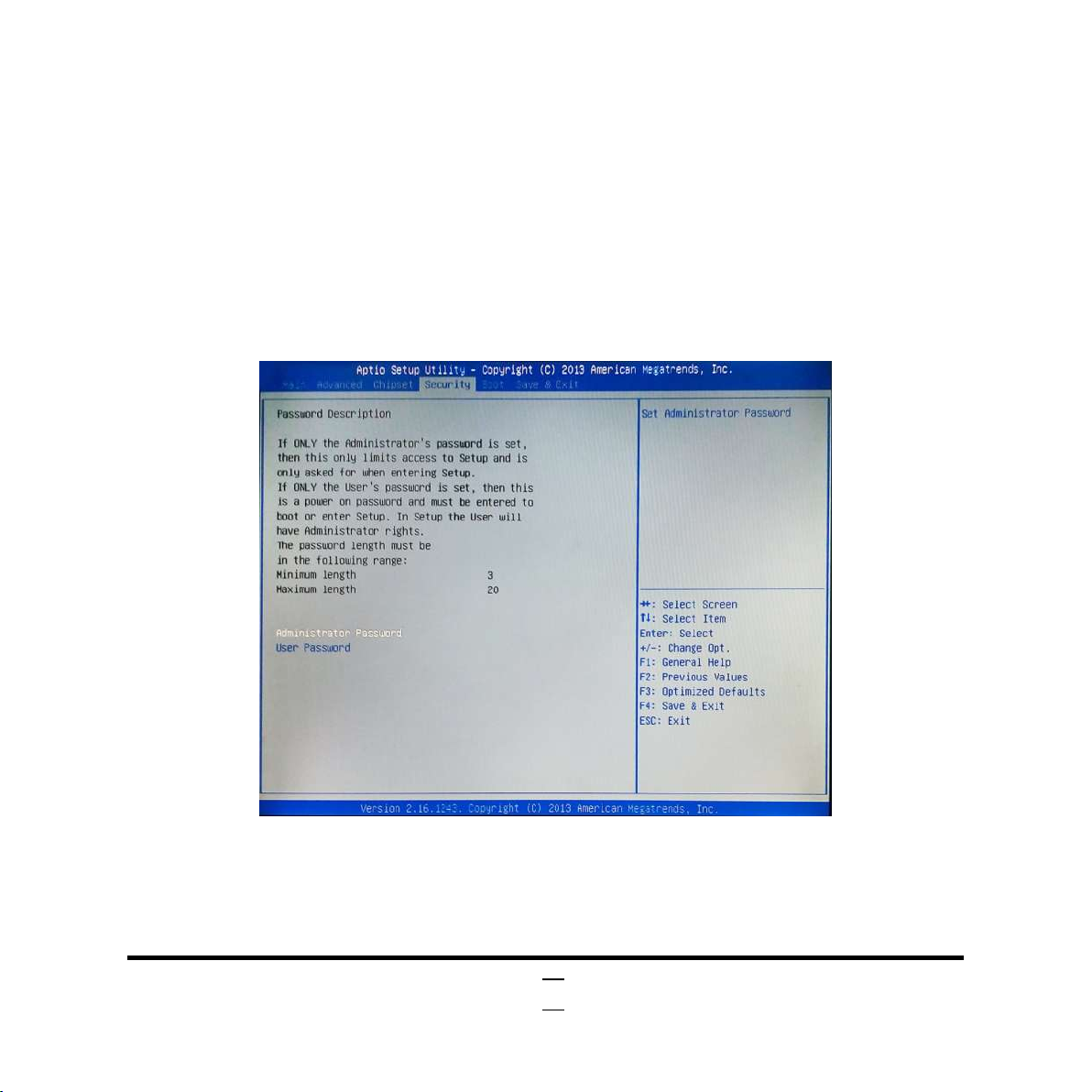

3-9 Security Menu
Security menu allow users to change administrator password and user password
settings.
33
3-10 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state.
The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Disabled]; [Enabled].
Boot Option Priorities
Boot Option
The optional settings are: [UEFI: Built-in EFI Shell]; [Disabled].
34
3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
Use this item to restore defaults to all the setup options.
Boot Override
UEFT: Built-in EFI Shell
Launch Internal EFI shell application (shell.efi).
Launch EFI Shell from filesystem device
Use this item to launch EFI shell application (Shell.efi)from one of the avaialbe
filesystem devices.
Reset System with TXE disable Mode
Press [Enter] for TXE to run into the temporary disable mode.Ignore if TXE Ignition
FM.
35
Loading...
