Jetway Computer NF9B User Manual

Download

TECHNICAL MANUAL

Intel Cedar Trail-D & NM10 Chipset

Based

Mini-ITX M/B for ATOM Processor

NO.

G03-NF9B-F

Revision: 1.0

Release date: April 24, 2012

Trademark:

* Specifications and Information contained in this docume ntation ar e furnishe d for inf ormation use only , and ar e

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.

ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii

USER’S NOTICE .......................................................................................................................iv

MANUAL REVISION INFORMATION.......................................................................................iv

ITEM CHECKLIST.....................................................................................................................iv

CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD................................................................................1

1-2 SPECIFICATION.........................................................................................................2

1-3 LAYOUT DIAGRAM....................................................................................................3

CHAPTER 2 HARDWARE INSTALLATION

2-1 JUMPER SETTING.....................................................................................................8

2-2 CONNECTORS AND HEADERS................................................................................15

2-2-1 CONNECTORS .............................................................................................15

2-2-2 HEADERS .....................................................................................................17

TABLE OF CONTENT

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERNING SETUP...................................................................................................26

3-2 BIOS MENU SCREEN ................................................................................................27

3-3 FUNCTION KEYS .......................................................................................................27

3-4 GETTING HELP ..........................................................................................................28

3-5 MENU BAR..................................................................................................................28

3-6 MAIN MENU................................................................................................................29

3-7 ADVANCED MENU.....................................................................................................30

3-8 CHIPSET MENU..........................................................................................................37

3-9 BOOT MENU...............................................................................................................39

3-10 SECURITY MENU.......................................................................................................40

3-11 SAVE & EXIT MENU...................................................................................................41

Environmental Safety Instruction

z Avoid the dusty, humidity and temperature extremes. Do not place the product in

any area where it may become wet.

z 0 to 60 centigrade is the suitable temperature. (The figure comes from the request

of the main chipset)

z Generally speaking, dramatic changes in temperature may lead to contact

malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.

z The increasing temperature of the capacitor may decrease the life of computer.

Using the close case may decrease the life of other device because the higher temperature in the inner of the case.

z Attention to the heat sink when you over-clocking. The higher temperature may

decrease the life of the device and burned the capacitor.

iii

USER’S NOTICE

COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AN D WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

1.0 First Edition April 24, 2012

Item Checklist

Motherboard

User’s Manual

DVD for motherboard utilities

Cable(s)

I/O Back panel shield

Chapter 1

Introduction of the Motherboard

1-1 Feature of Motherboard

Intel Cedar Trail-D and NM10 chipset, with low power consumption never denies

high performance

Support two DDRIII 800/1066MHz SO-DIMM up to 4GB

Support 4 * Serial ATAII Devices

Onboard dual Realtek RTL 8111EVL Gigabit Ethernet LAN chip

Integrated ALC662-GR 6-channel HD audio CODEC

Support USB 2.0 data transport demands

Support PCI slot and mini-PCIE slot

Support Watchdog function

Support Smart Fan function

Compliance with ErP standard

1-2 Specification

Spec Description

Design z Chipset

Embedded CPU

Memory Slot

Expansion Slot

Dual LAN Chip

Audio Chip

BIOS z Multi I/O

Mini-ITX form factor; PCB size: 17.0x17.0cm Intel®NM10 Express chipset

Intel Cedar Trail-D Processor

DDRIII SO-DIMM slot x 2

Support two DDRIII 800/1066 MHz SO-DIMM with memory

capacity expandable to 4GB

32-bit PCI slot x 1

Mini-PCIE slot x1

Integrated with dual Realtek RTL8111EVL PCI-E Gigabit LAN

chips

Support Fast Ethernet LAN function of providing

10/100/1000Mbps Ethernet data transfer rate

Realtek ALC662-GR 6-channel Audio Codec integrated

Audio driver and utility included

AMI 16MB DIP Flash ROM HDMI port connector x1

VGA port connector x2

USB 2.0 port connector x4

RJ-45 LAN connector x2

Serial port connector x 2

Audio connector x3 (Line-in, Line-out, MIC)

Front panel audio header x1

HDMI_SPDIF header x1

KBMS header x1

PWRLED header x1

Speaker header x1

Front panel header x1

Parallel header x1Serial port header x4

RS232/422/RS485 header x1

4-pin USB 2.0 header x1

9-pin USB 2.0 header x1

GPIO header x1

z z

LVDS1 connector:

LVDS2 connector:

LVDS inverter x2

1-3 Layout Diagram

VGA 2 Port

24- bit dual channel LVDS header x1 24- bit single channel LVDS header x1

RJ-45 LAN Ports

Serial Port

Line-IN/

Optical SPDIF OUT

*Note:

HDMI Port

VGA1 Port

VGA2 port CRT output 1024 X 768

Line-OUT

MIC-IN

Serial Port

KBMS Header

HDMI Port

ATX Power Connector

CPUFAN Header

VGA Ports

RJ-45 LAN Port over

USB 2.0 Ports

RJ-45 LAN Port over

USB 2.0 Ports

Serial Ports

Audio

Connectors

HDMI_SPDIF

Header

Front Panel Audio Header

LVDS1 Heade

Inverter2

Serial Port Headers

Parallel Heade

Inverter1

LVDS2 Heade

Intel NM10 Chipset

TX-RX COM

Heade

CI Slo

USB 2.0 Headers

SODIMM1 Slot

Intel CPU

GPIO Heade

SYSFAN2 Header

Front Panel Header

SODIMM2 Slot

SATAIII Ports

(SATA3/SATA4)

SATAII Ports

(SATA1/SATA2)

Speaker Header

LED Header

Power

Motherboard Jumper Position

JP1

JP13

JP12

JP14

JP6

COPE

JP3

JP5

JBAT

Connectors

Connector Name

ATXPWR ATX Power Connector HDMI High-Definition Multimedia Interface VGA1/VGA2 Video Graphic Attach Connector COM1/COM2 Serial Port Connector USB from UL1,UL2 USB 2.0 Port Connector LAN from UL1,UL2 RJ-45 LAN Connector AUDIO Line-in with SPDIF/Line-out/MIC SATA1/2/3/4 Serial ATAII Connector

Headers

Header Name Description

FP_AUDIO1 Front Panel Audio Header 10-pin block SPDIF SPDIF Out header 2-pin block USB2 USB 2.0 Header 4-pin Block USB3 USB 2.0 Header 10-pin Block KBMS PS2 Keyboard & Mouse Header 6-pin Block GPIO_CON GPIO Header 10-pin Block COM3/4/5/6 Serial Port Header 10-pin Block TX_RX RS 232/422/485 port headers 4-pin block SPEAK Speaker Header 4-pin Block PWR LED Power LED 3-pin Block JW_FP

Front Panel Header(PWR LED/ HD LED/ /Power Button /Reset)

10-pin Block

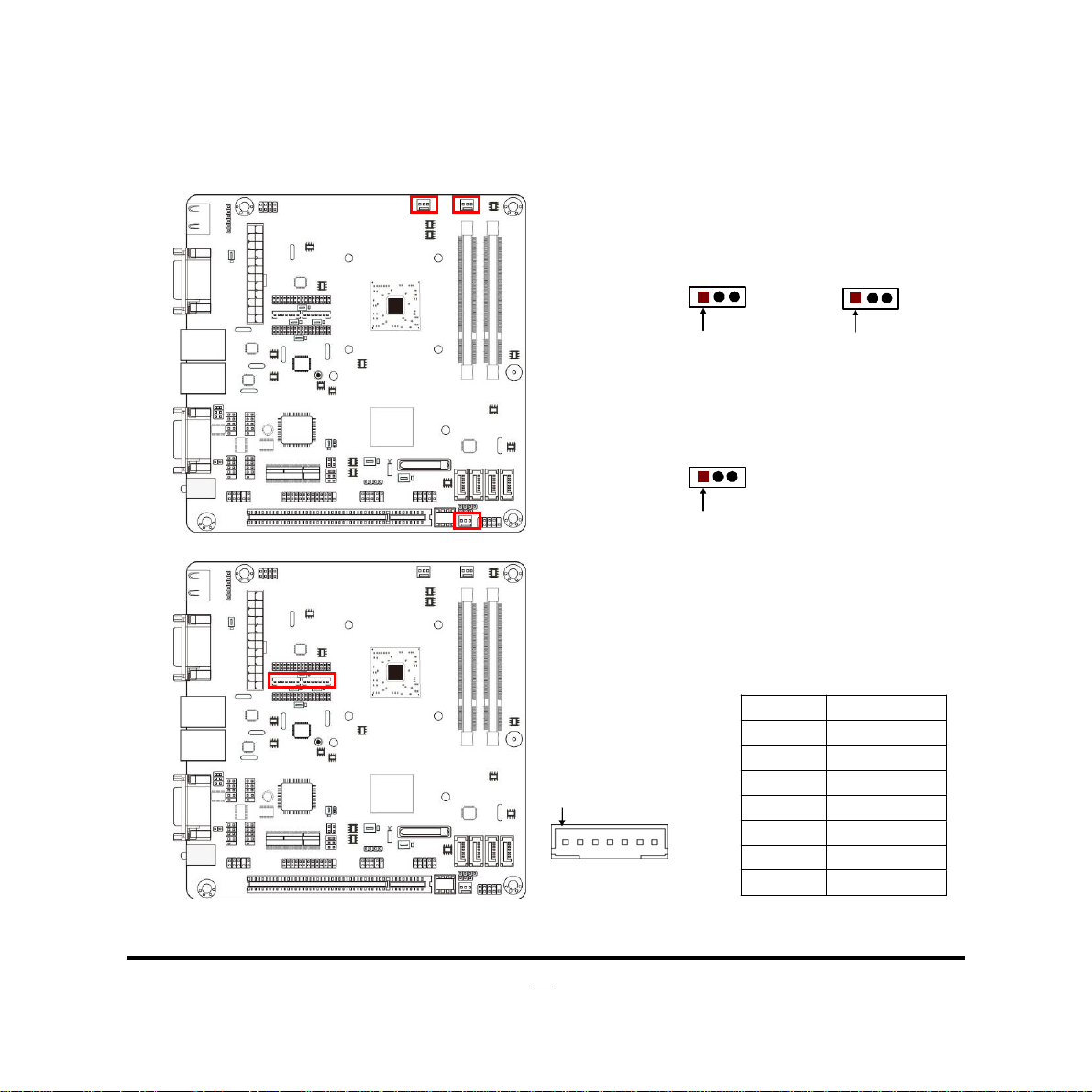

CPUFAN,SYSFAN1/2 FAN Speed Headers 3-pin Block Inverter1/ Inverter2 LVDS Inverter Connector 7-pin Block LVDS1 24-bit dual channel LVDS Header 32-pin Bloc k LVDS2 24-bit single channel LVDS

Header

PARALLEL Parallel Port Header 26-pin Block

32-pin Block

Jumper

Jumper Name Description

JBAT CMOS RAM Clear Function Setting 3-Pin Block JP1 UL1/UL2 USB Ports Power On Function Select 3-Pin Block JP5 USB 2/3 Header Power On Function Select 3-Pin Block JP2 LVDS1 PVCC 5V/3.3V Select 3-Pin Block JP3 INVERTER1 VCC 12V/5V Select 3-Pin Block JP13 LVDS2 VCC 5V/3.3V Select 3-Pin Block JP12 INVERTER2 VCC 12V/5V Select 3-Pin Block JP14 COM1 Port Pin9 Function Select 6-Pin Block JP17 COM6 Header RS232/485/422 Function Select 6-Pin Block COPEN Case Open Message Display Function 2-Pin Block JP6 MINIPCIE Power 3.3V/ 3VSB Select 3-Pin Block JP9 LVDS1 Panel Resolution Type Select 8-Pin Block

Chapter 2

Hardware Installation

2-1 Jumper Setting

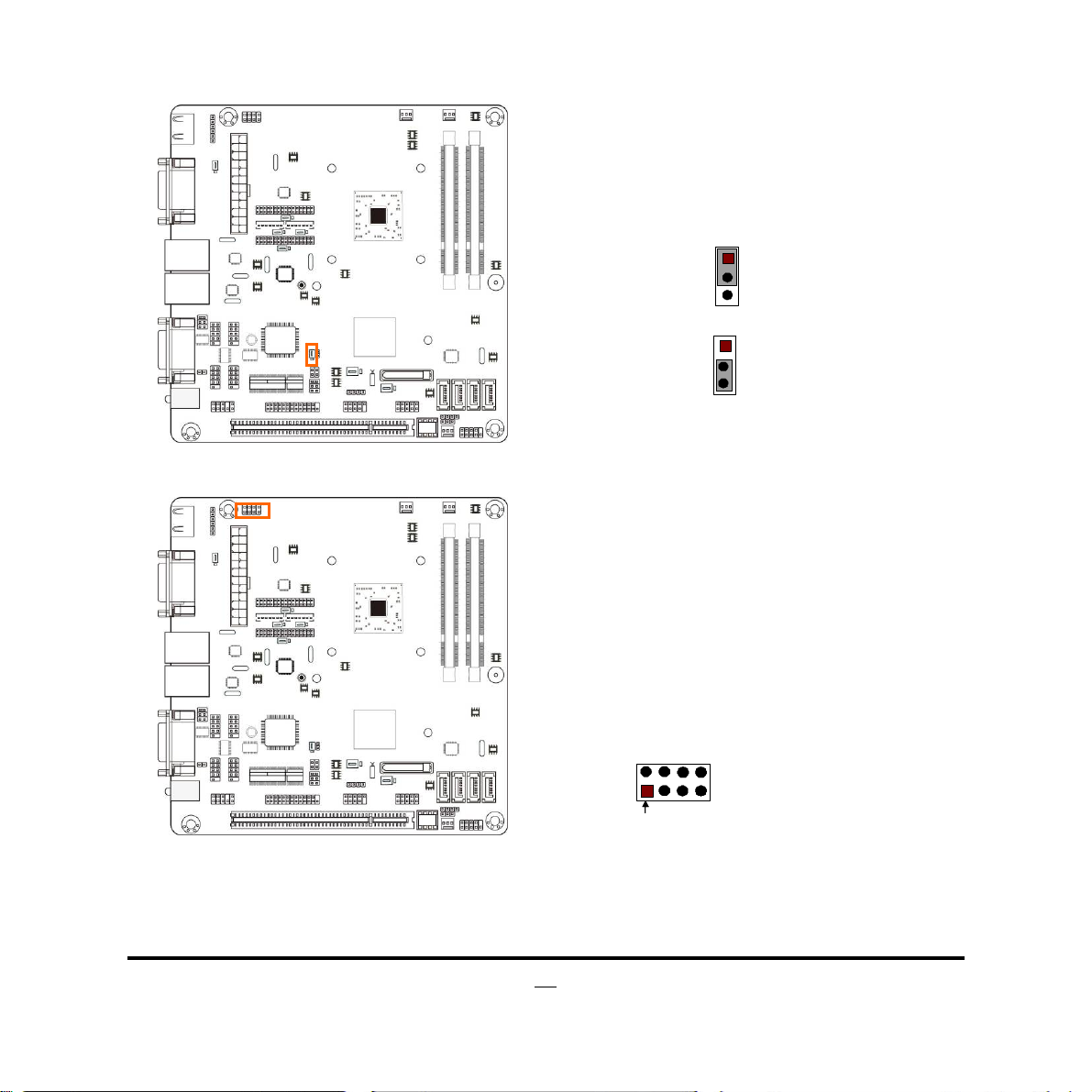

(1) JBAT (3-pin): Clear CMOS

JBAT

1-2 closed: Normal;

(2) JP1 (3-pin): UL1/UL2 USB Ports Power on Function Select

JBAT

2-3 closed : Clear CMOS

JP1

1-2 closed : UL1/UL 2 USB Ports Powe r on Function Disabled(default);

JP1

2-3 closed: UL1/UL2 USB Ports Power o n Function Enabled

(3) JP5 (3-pin): USB 2/3 Header Power On Function Select

JP5

1-2 closed : USB 2/3 Header Power on Disabled(default);

JP5

2-3 closed: USB 2/3 Header Power on Enabled

(4) JP2 (3-pin): LVDS1 PVCC 5V/3.3V Select

1-2 closed:LVDS1 P

JP2

CC=5V(default);

2-3 closed : LVDS1 PVCC=3.3V

(5) JP3 (3-pin): INVERTER1 VCC 12V/5V Select

JP3

1-2 closed：Inverter1 VCC=12V (default)

JP3

2-3 closed： Inverter1 VCC=5V

(6) JP13 (3-pin): LVDS2 VCC 5V/3.3V Function Select

JP13

1-2 closed: LVDS2VCC=5V(default);

JP13

2-3 closed : LVDS2 VCC=3.3V

(7) JP12 (3-pin): INVERTER2 VCC 12V/5V Select

JP12

1-2 closed：Inverter2 VCC=12V (default);

JP12

2-3 closed： Inverter2 VCC=5V

(8) JP14 (6-pin): COM1 Port Pin9 Function Select

JP14

1-2 closed: RS232;

3-4 closed : +12V;

1 1

5-6 closed : +5V

(12) JP17 (6-pin): COM6 Header RS232/485/422 Function Select

JP17

1-2 closed: RS232;

3-4 closed : RS485;

1 1

5-6 closed : RS422

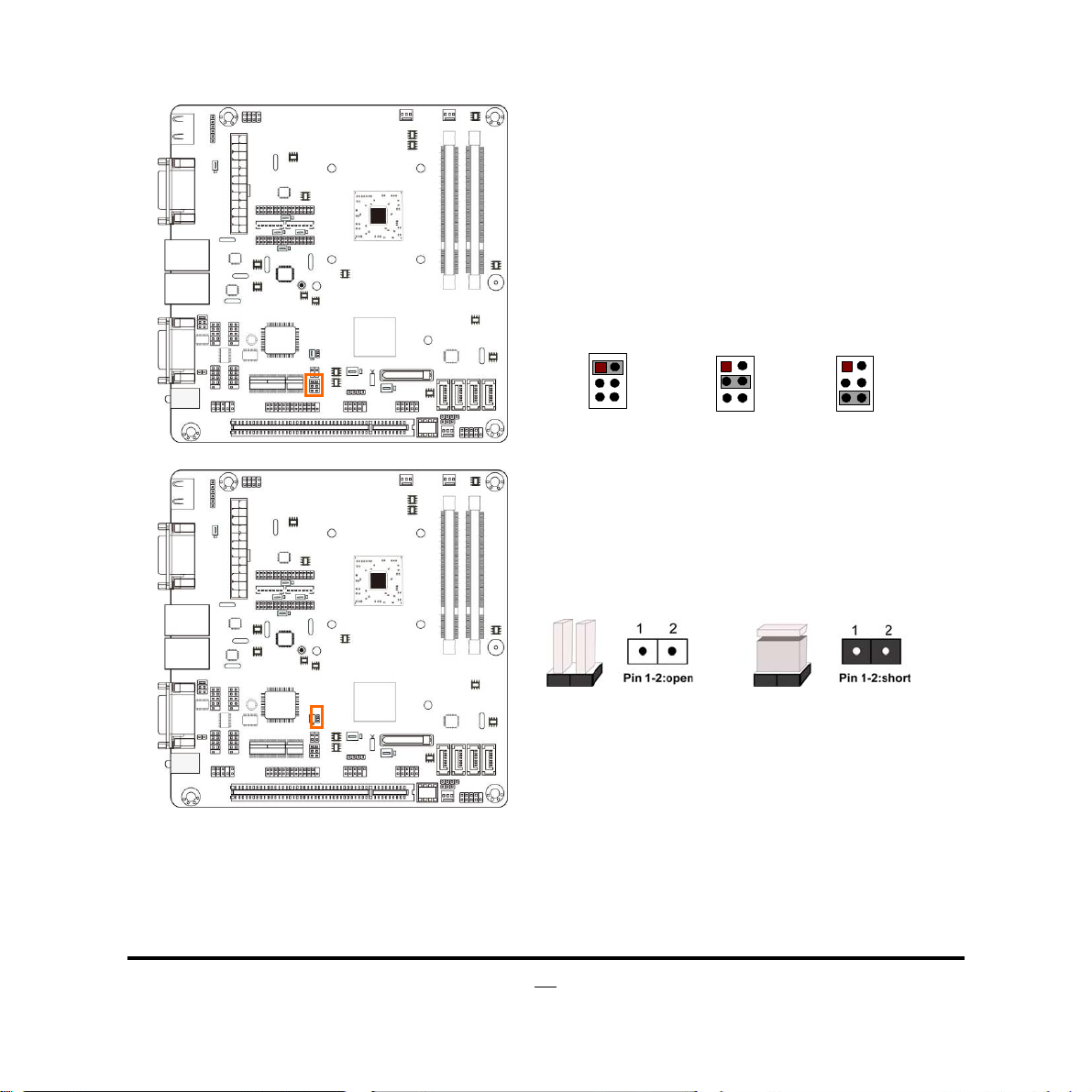

(13)COPEN (2-pin): Case Open Message Display Function Select

COPEN

1-2 Open： Normal;

1-2 Short ： Case Open

Case Open Displa y Function

Pin 1-2 shorted: Case open display function enabled. In this case if you case is removed, next time when you restart your computer a message will be displayed onscreen to inform you of this.

(14) JP6 (3-pin): Mini PCI-E Power 3.3V/ 3VSB Function Select

JP6

1-2 closed：MINI PCI-E Power= VCC 3.3V;

JP6

2-3 closed：MIN I PCI-E Power=3VSB

(15) JP9 (8-pin): LVDS1 Panel Resolution Type Select

User can select

Panel

Pin1

resolution by jumper settings. There are two basic setting

modes:

Short: in which user can close pin 1-pin2, pin3-pin4, pin5-pin6, pin7-pin8 respectively;

Open: in which user leave jumper hat just in pin 2, pin4, pin6 or pin8.

Jumper Setting

Description

Pin 1-2: Short Pin 3-4: Short Pin 5-6: Short Pin 7-8: Short

Pin 1-2: Open Pin 3-4: Short Pin 5-6: Short Pin 7-8: Short

Pin 1-2: Short Pin 3-4: Open Pin 5-6: Short Pin 7-8: Short

Pin 1-2: Open Pin 3-4: Open Pin 5-6: Short Pin 7-8: Short

Pin 1-2: Short Pin 3-4: Short Pin 5-6: Open Pin 7-8: Short

Pin 1-2: Open Pin 3-4: Short Pin 5-6: Open Pin 7-8: Short

Pin 1-2: Short Pin 3-4: Open Pin 5-6: Open Pin 7-8: Short

Pin 1-2: Open Pin 3-4: Open Pin 5-6: Open Pin 7-8: Short

Pin 1-2: Short Pin 3-4: Short Pin 5-6: Short Pin 7-8: Open

Pin 1-2: Open Pin 3-4: Short Pin 5-6: Short Pin 7-8: Open

Pin 1-2: Short Pin 3-4: Open Pin 5-6: Short Pin 7-8: Open

Panel Resolution Color Depth

640 x 480 @ 60Hz 18-bit

800 x 600 @ 60Hz 18-bit

1024 x 600 @ 60Hz 18-bit

1024 x 768 @ 60Hz 24-bit

1280 x 720 @ 60Hz 18-bit

800 x 480 @ 60Hz 18-bit

1366 x 768 @ 60Hz 18-bit

1440 x 900 @ 60Hz 18-bit

1366 x 768 @ 60Hz 24-bit

1440 x 900 @ 60Hz 24-bit

1280 x 1024 @ 60Hz 24-bit

Pin 1-2: Open Pin 3-4: Open Pin 5-6: Short Pin 7-8: Open

Pin 1-2: Short Pin 3-4: Short Pin 5-6: Open Pin 7-8: Open

Pin 1-2: Open Pin 3-4: Short Pin 5-6: Open Pin 7-8: Open

Pin 1-2: Short Pin 3-4: Open Pin 5-6: Open Pin 7-8: Open

Pin 1-2: Open Pin 3-4: Open Pin 5-6: Open Pin 7-8: Open

2-2 Connectors and Headers 2-2-1 Connectors

(1) I/O Panel Connector:

VGA2 Port

RJ-45 LAN Ports

1440 x 1050 @ 60Hz 24-bit

1600 x 900 @ 60Hz 24-bit

1680 x 1050 @ 60Hz 24-bit

1600 x 1200 @ 60Hz 24-bit

1920 x 1080 @ 60Hz 24-bit

Serial Port

Line-IN/

Optical SPDIF OUT

HDMI Port

Line-OUT

MIC-IN

VGA1 Port

Serial Port

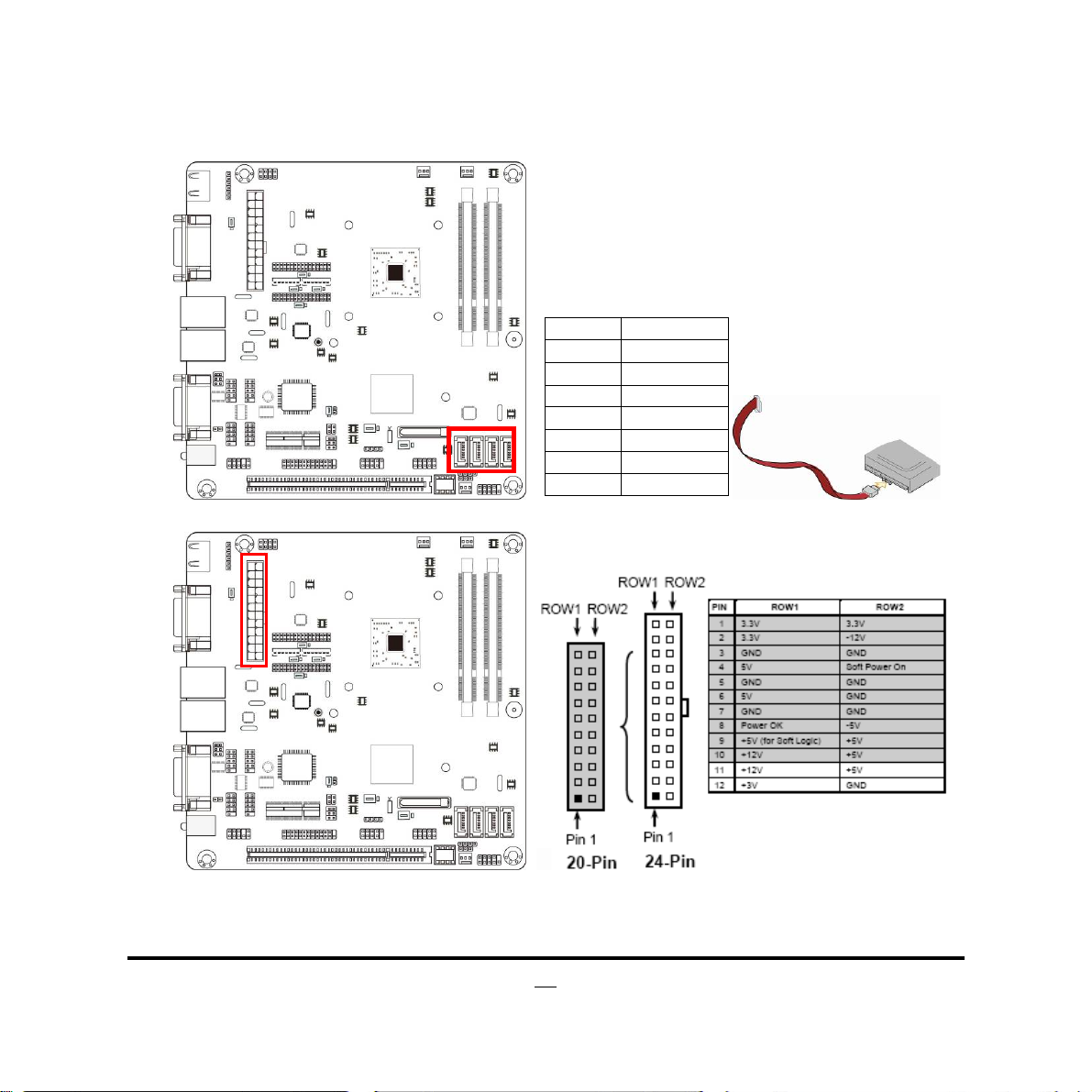

(2) SATA1, SATA2, SATA3, SATA4(7-pin block):SATA Port connectors

SATA1 and SATA2 connectors are SATAII connectors. SATA3 and SATA4 connectors are SATAIII connectors.

Pin No. Defi nit ion

1 GND 2 TXP 3 TXN 4 GND 5 RXN 6 RXP 7 GND

(3) ATXPWR (24-pin block): Power Connector

2-2-2 Headers

(1) FP_AUDIO1 (10-pin): Front Panel Audio Header

This header connects to front panel Line-out, MIC-In connector with cable.

(2) SPDIF (2-pin): HDMI-SPDIF Out header

FP_AUDIO1

Pin 1

Line-Out, MIC Header

GND

MIC1-R

MIC1-L LI NE OUT- R

HDMI_SPDIF_OUT

GND

LINE OUT-L

Pin1

HDMI_SPDIF Header

(3) USB2 (4-pin): USB 2.0 Port Header

Pin 1

+DATA

-DATA

GND

VCC

(4) USB3 (10-pin): USB 2.0 Port Header

Pin 1

USB2 Header

+DATA

-DATA GND

USB3 Header

-DATA

+DATA

GND

(5) KBMS (6-pin): PS/2 Keyboard & Mouse Header

(7) GPIO_CON(10-pin): GPIO Header

Pin 1

GPIO_CON Header

Pin1

KB_CLK GND

KB_DATA

MS_CLK VCC MS_DATA

GPIO_35

GPIO_31

GPIO_33

GPIO_37

VCC

GPIO_30

GPIO_32

GPIO_34

GPIO_36

GND

(8) COM3/COM4/COM5/COM6 (10-pin): Serial Port Header

DCD

RXD TXD

DTR GND

Pin1

D RT

CTS

(9) TX-RXCOM (4-pin): RS422/485 Header

Serial Port Header

Pin 1

TX-RXCOM Header

TXDN

TXDP

RXDN

RXDP

(10) SPEAK (4-pin): Speaker Header

This 4-pin header connects to the case-mounted speaker. See the figure below.

(11) Power LED (3-pin): PWR LED

The Power LED is light on while the system power is on. Connect the Power LED

from the system case to this pin header.

(12) Front Panel Header (10-pin): JW-FP

JW_FP

Pin 1

SPEAK

VCC

PWRLED

VCC

GND

PWR LED

PWRBTN

PWRLED+

PWRLED-

PWRBT

GND

HDDLED-

RSTSW

GND

HDDLED+

HDL ED

RESET

(13) CPUFAN, SYSFAN1, SYSFAN2 (3-pin): FAN Speed Headers

Pin1: GND Pin2: +12V fan power Pin3: Fan Speed

CPUFAN

SYSFAN2

(14) INVERTER1/ INVERTER2 (7-Pin): LVDS Inverter

Pin 1

INVERTER

Pin1

SYSFAN1

Pin1

Pin No. Definit ion

1 VCC 2 VCC 3 GND 4 GND 5 Backlight 6 GND 7 Brightness

(15) LVDS1(32-pin): 24-bit dual channel LVDS Header

Pin 2

Pin 1

LVDS1 He ad er

Pin NO. Pin Define Pin NO. Pin Define

Pin 1 LVDSB_DATAN3 Pin 2 LVDSB_DATAP3 Pin 3 LVDS_CLKBN Pin 4 LVDS_CLKBP Pin 5 LVDSB_DATAN2 Pin 6 LVDSB_DATAP2 Pin 7 LVDSB_DATAN1 Pin 8 LVDSB_DATAP1 Pin 9 LVDSB_DATAN0 Pin 10 LVDSB_DATAP0 Pin 11 LVDS_DDC_DATA Pin 12 LVDS_DDC_CLK Pin 13 GND Pin 14 GND Pin 15 GND Pin 16 GND Pin 17 LVDSA_DATAP3 Pin 18 LVDSA_DATAN3 Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2 Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1 Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0 Pin 27 PVDD Pin 28 PVDD Pin 29 PVDD Pin 30 PVDD Pin 31 GND Pin 32 GND

(16) LVDS2(32-pin): 24-bit single channel LVDS Header

Pin 2

Pin 1

LVDS2 He ad er

Pin NO. Pin Definition Pin NO. Pin Definition

Pin 1 Pin 3 Pin 5 Pin 7 Pin 9 Pin 11 Pin 13 Pin 15 Pin 17 Pin 19 Pin 21 Pin 23 Pin 25 Pin 27 Pin 29 Pin 31

NC NC NC NC NC LVDS_DDC_DATA GND GND LVDSA_DATAP3 LVDS_CLKAP LVDSA_DATAP2 LVDSA_DATAP1 LVDSA_DATAP0 PVDD PVDD GND

Pin 2 Pin 4 Pin 6 Pin 8 Pin 10 Pin 12 Pin 14 Pin 16 Pin 18 Pin 20 LVDS_CLKAN Pin 22 LVDSA_DATAN2 Pin 24 LVDSA_DATAN1 Pin 26 LVDSA_DATAN0 Pin 28 PVDD Pin 30 PVDD Pin 32 GND

NC NC NC NC NC LVDS_DDC_CLK GND GND LVDSA_DATAN3

(17) PARALLEL (26-pin): Parallel Port Header

Pin NO. Pin Definition Pin NO. Pin Definition

Pin 1 Pin 3 Pin 5 Pin 7 Pin 9 Pin 11 Pin 13 Pin 15 Pin 17 PD7 Pin 18 GND Pin 19 ACK- Pin 20 GND Pin 21 BUSY Pin 22 GND Pin 23 PE Pin 24 GND Pin 25 SLCT Pin 26 No Key

STBPD0 PD1 PD2 PD3 PD4 PD5 PD6

Pin 2 Pin 4 Pin 6 Pin 8 Pin 10 Pin 12 Pin 14 Pin 16

Pin 2

Pin 1

Parallel Header

AFDERRINITSLINGND GND GND GND

Chapter 3

Introducing BIOS

Notice!

The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.

The BIOS options in this manual are for reference only. Different

configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.

3-1 Entering Setup

Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing

<Alt>

system does not boot, an error message will be displayed and you will again be asked to Press

and

<Del>

keys. If you do not press the keys at the correct time and the

to enter Setup

<Ctrl>

3-2 BIOS Menu Screen

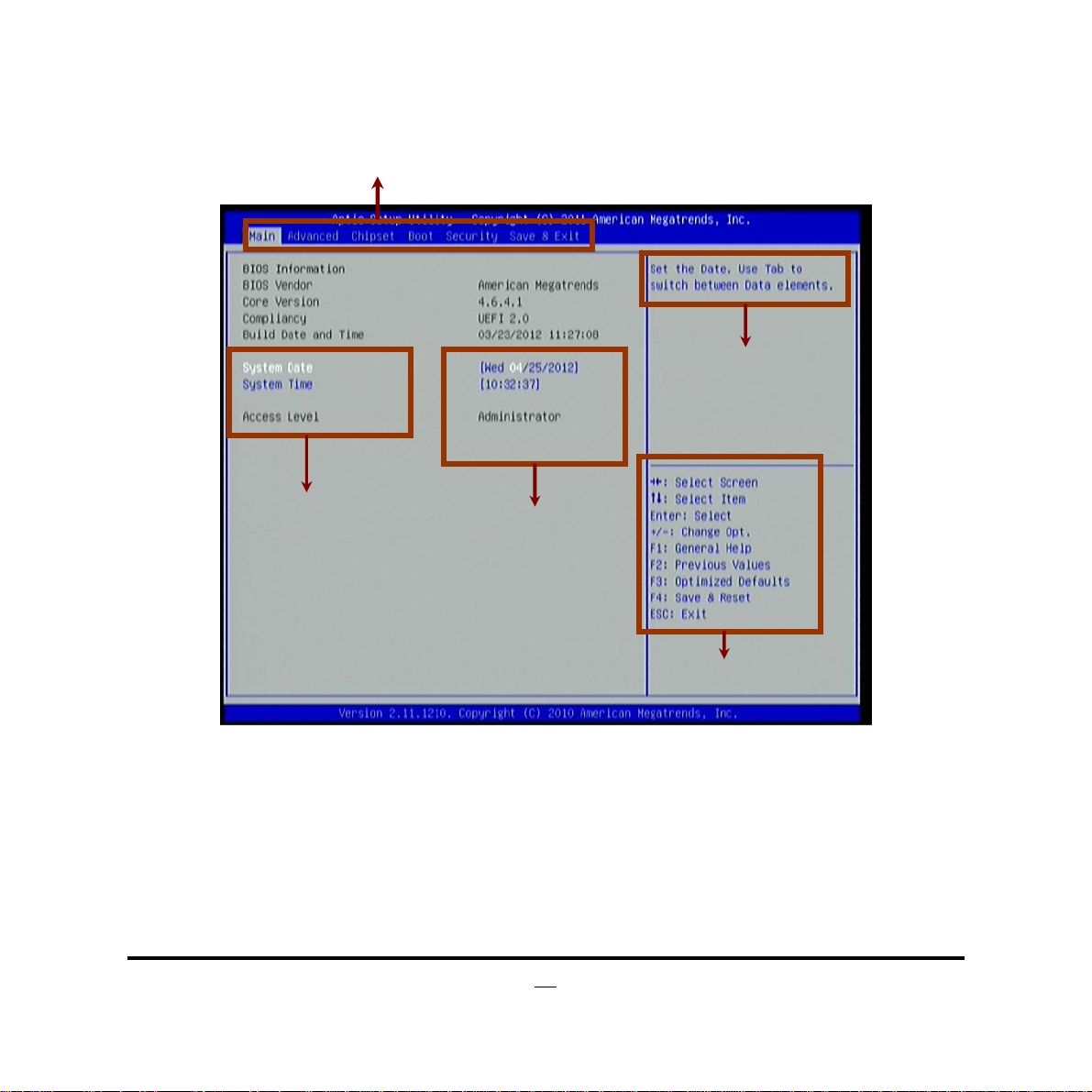

The following diagram show a general BIOS menu screen:

Menu Bar

General Help Items

Menu Items

Current Setting Value

Function Keys Instruction

3-3 Function Keys

In the above BIOS Setup main menu, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:

Press←→ (left, right) to select screen;

Press ↑↓ (up, down) to choose the item you want to confirm or to modify in the

main menu.

Press <Enter> to select.

Press <+>/<–> key when you want to modify the BIOS parameters for the active

option.

[F1]: Press to general help information.

[F2]: Press to load previous value.

[F3]: Press to load optimized defaults.

[F4]: Save and Reset.

Press <Esc> to exit from BIOS Setup.

3-4 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the top right corner the screen.

Status Page Setup Menu/Option Page Setup M enu

Press [F1] to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.

3-5 Menu Bar

There are six menu bars on top of BIOS screen:

Main To change system basic configuration Advanced To change system advanced configuration Chipset To change chipset configuration Boot To change boot settings Security Password settings Save & Exit Save setting, loading and exit options.

User can press the ←/→ (left, right) arrow key on the keyboard to switch from menu bar. The selected one is highlighted.

3-6 Main Menu

Main menu screen includes some basic system information. Highlight the item and then use the <+> / <-> key or numerical keyboard keys to select the value you want in each item.

System Date

Set the date. Please use [TAB] to switch between data elements.

System Time

Set the time. Please use [TAB] to switch between time elements.

3-7 Advanced Menu

Scroll down to view more setting items…

Legacy OpROM Support:

Launch External PxE OpROM/Launch LAN1 PXE OpROM//Launch LAN1 PXE OpROM

Use this item to enable or disable boot option for legacy network devices.

Launch Storage OpROM

Use this item to enable or disable boot option for legacy mass storage devices with option ROM.

Onboard LAN 1 Controller

Use this item to enable or disable PCI Express root port 1.

Onboard LAN 2 Controller

Use this item to enable or disable PCI Express root port

SATA 3.0 Controller

Use this item to enable or disable SATA 3.0 controller.

Configure SATA 3.0 as

Use this item to select an operative mode for SATA 3.0 controller. The optional settings are: [IDE Mode]; [AHCI Mode].

ERP Function

Use this item to enable or disable ERP function for this board. This item should be set as [Disabled] if you wish to have active all wakeup function.

► PCI Subsystem Settings

Press [Enter] to enter and make settings for the following sub-items:

PCI ROM Priority

In the case of multiple option ROMs(Legacy and EFI compatible), specifies what PCI option ROM to launch. The optional settings: [Legacy ROM]; [EFI Compatible ROM].

PCI Common Settings:

PCI Latency Timer

Use this item to set value to be programmed into PCI latency timer register.

VGA Palette Snoop

Use this item to enable or disable VGA palette register snooping.

PERR# Generation

Use this item to enable or disable PCI device to generate PERR#.

SERR# Generation

Use this item to enable or disable PCI device to generate SERR#.

► ACPI Settings

ACPI Sleep State

Use this item to select the highest ACPI sleep state the system will enter when the suspend button is pressed. The optional settings are: [S1(CPU Stop Clock)]; [S3 (Suspend to ROM)].

► Wakeup Function Settings

Wake System with Fixed Time

Use this item to enable or disable system wake on alarm event. When set as [Enabled], system will wake on the hour/min/sec specified.

PS2 KB/MS Wakeup

Use this item to enable or disable PS2 KB/MS wakeup function. This function is only supported when ERP function is set as [Disabled].

PCI PME Wakeup

Use this item to enable or disable S3/S4/S5 PCI PME wakeup. This function is only supported when ERP function is set as [Disabled].

► CPU Configuration

Hyper-Threading

The optional settings are: [Disabled]; [Enabled].Set as [Enabled] for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and [Disabled] for other OS (OS not optimized for Hyper-Threading Technology).

Execute Disable Bit The optional settings are: [Disabled]; [Enabled]. Limit CPUID Maximum

The optional settings are: [Disabled]; [Enabled]. This item should be set as [Disabled] for Windows XP.

► SATA Configuration

SATA Controller(s) The optional settings are: [Disabled]; [Enabled]. Configure SATA as

The optional settings are: [IDE]; [AHCI].

► USB Configuration

Legacy USB Support

The optional settings are: [Auto]; [Disabled]; [Enabled].

EHCI Hand-off

The optional settings are: [Disabled]; [Enabled].

USB Transfer time-out

Use this item to set the time-out value for control, bulk, and interrupt transfers.

Device reset time-out

Use this item to set USB mass storage device start unit command time-out.

Device power-up delay

Use this item to set maximum time the device will take before it properly reports itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for a hub port the delay is taken from hub descriptor. The optional settings: [Auto];

[Manual].Select [Manual] you can set value for the following sub-item: Device Power-up delay: the delay range in from 1 to 40 seconds in one second increments.

► Super I/O Configuration

► COM1 Port Configuration/ COM2 Port Configuration

Press [Enter] to make settings for the following items: Serial Port

Use this item to enable or disable serial port (COM).

Change Settings

Use this item to select an optimal setting for super IO device.

► Parallel Port Configuration

Press [Enter] to make settings for the following items: Parallel Port

Use this item to enable or disable parallel port (LPT/LPTE).

Change Settings

Use this item to select an optimal setting for super IO device.

Device Mode

Use this item to change the printer port mode.

PS2 KB/MS Connect

Use this item to set PS2 connect primary device. The optional settings are: [Keyboard First]; [Mouse First].

Case Open Detect

To detect if the case has been opened or not. The optional settings are: [Enabled]; [Disabled].

► PC Health Status

Press [Enter] to view hardware health status.

► Second Super I/O Configuration

► COM3 /COM4 /COM5 Port Configuration

Press [Enter] to make settings for the following items: Serial Port

Use this item to enable or disable serial port (COM).

Change Settings

Use this item to select an optimal setting for super IO device.

► COM6 Port Configuration

Press [Enter] to make settings for the following items: Serial Port

Use this item to enable or disable serial port (COM).

Change Settings

Use this item to select an optimal setting for super IO device.

Serial Port Mode Select

The optional settings are: [RS232]; [RS422/RS485].

► Clock Generator Configuration

Clockgen Spread Spectrum

Use this item to enable or disable spread spectrum function.

IO Output Voltage

Use this item to set IO output voltage.

► Voltage Configuration

DIMM Voltage

The optional settings are: [Default]; [+50mV]; [+100mV]; [+150mV].

► Watchdog Configuration

WatchDog Timer Control

Use this item to enable or disable WatchDog Timer Control. When set as [Enabled], the following sub-items shall appear:

WatchDog Timer Val

User can set a value in the range of 4 to 255.

WatchDog Timer Unit

The optional settings are: [Second];[Minute].

► Shutdown Temperature Configuration

Use this item to select system shutdown temperature.

► SmartFan Configuration

CPUFAN / SYSFAN1/SYSFAN2 SmartFan Mode

When set as [Enabled], the following sub-items shall appear:

CPUFAN / SYSFAN1/SYSFAN2 Full Speed Temp

Use this item to set a degree for CPU/System fan1/ System fan2 FAN will run at full speed when above the specific temperature set.

CPUFAN / SYSFAN1/SYSFAN2 Idle Temp

Use this item to set a degree for CPU/System fan1/ System fan2. FAN will idle speed when below this temperature.

CPUFAN / SYSFAN1/SYSFAN2 Stop Temp

Use this item to set a degree for CPU/System fan1/ System fan2. CPU FAN will stop when below this temperature.

3-8 Chipset Menu

► Host Bridge

Press [Enter], user can have a view of memory information and make settings for Intel IGD Configuration:

Intel IGD Information

Internal Graphics:

Use this item to keep IGD enabled based on the setup options. The optional settings are: [Disabled]; [Auto].

LVDS Configuration

IGFX-Boot Type

Use this item to set the video device which will be activated during POST. This has no effect if external graphics presents. The optional settings are: [VBIOS Default]; [CRT1]; [HDMI]; [LVDS1]; [CRT1+LVDS1]; [CRT1+HDMI]; [LVDS1+HDMI]; [CRT2+LVDS2]; [CRT2+LVDS2+HDMI]; [CRT1+CRT2+LVDS2].

Active LFP

The optional settings are: [Disable LVDS]; [Enable LVDS].

Backlight Control

The optional settings are: [PWM Inverted]; [PWM Normal]. In the case IGFX-Boot Type is set as [CRT2+LVDS2]; [CRT2+LVDS2+HDMI]; or

[CRT1+CRT2+LVDS2] the following setting item shall appear: LCD Panel Type:

The optional settings are: [1024 x 600]; [800 x 600]; [1024 x 768 18bit]; [1366 x 768]; [1024 x 768 24bit]; [1200 x 800].

► South Bridge

Azalia Controller

The optional settings are: [Enabled]; [Disabled].

UHCI #1 (Ports 0 and 1)/ UHCI #2 (Ports 2 and 3)/UHCI #3 (Ports 4 and

5)/UHCI #4 (Ports 6 and 7)

Use this item to control the USB UHCI (USB 1.1) functions. The optional settings are: [Enabled]; [Disabled].

USB 2.0 (EHCI) Support

Use this item to enable or disable USB 2.0 (EHCI) support. The optional settings are: [Enabled]; [Disabled].

High Precision Event Timer Configuration

High Precision Timer

The optional settings are: [Enabled]; [Disabled].

SLP_S4 Assertion Width

Use this item to select a minimum assertion width of the SLP_S4# signal.

Restore AC Power Loss

Use this item to select AC power state when power is re-applied after a power failure (G3 State). The optional settings are: [Power Off]; [Power On]; [Last State].

3-9 Boot Menu

Setup Prompt Timeout

Use this item to set number of seconds to wait for setup activation key.

Bootup Numlock State

Use this item to select keyboard numlock state. The optional settings are: [On]; [Off].

Quiet Boot

The optional settings are: [Enabled]; [Disabled].

Gate A20 Active

The optional settings are: [Upon Request]; [Always].

Option ROM Message

Use this item to set display mode for option ROM. The optional settings are: [Force BIOS]; [Keep Current].

Interrupt 19 Capture

The optional settings are: [Enabled]; [Disabled].

3-10 Security Menu

Security menu allow users to change administrator password and user password settings.

3-11 Save & Exit Menu

Save Changes and Reset

This item allows user to reset the system after saving the changes.

Discard changes and Reset

This item allows user to reset the system without saving any changes.

Restore Defaults

Use this item to restore /Load default values for all the setup options.

Save as User Defaults

Use this item to save the changes done so far as user defaults.

Restore User Defaults

Use this item to restore defaults to all the setup options.

Jetway Computer NF9B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
