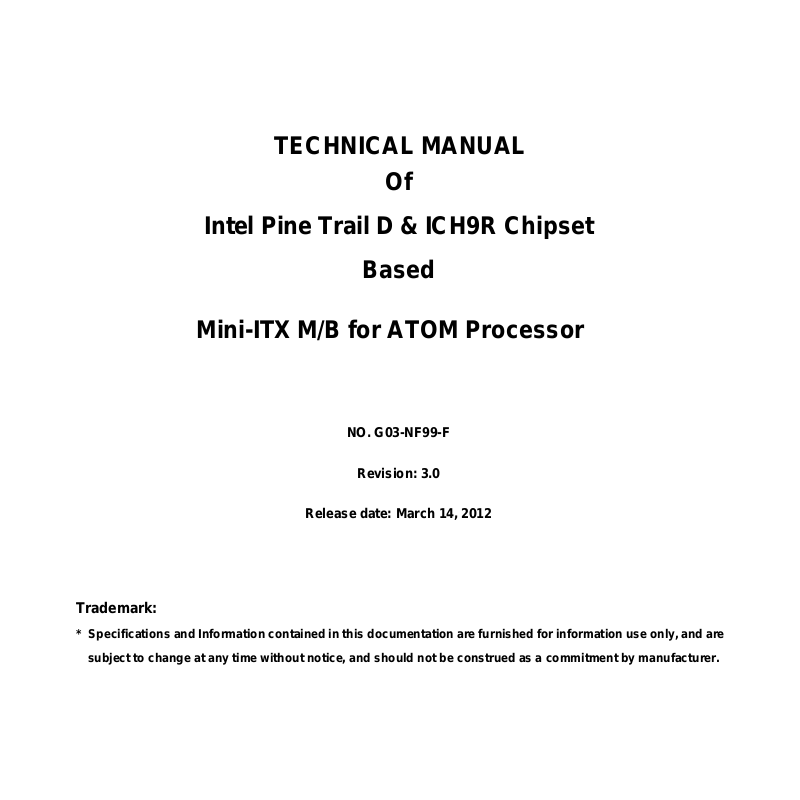

TECHNICAL MANUAL
Of
Intel Pine Trail D & ICH9R Chipset
Based
Mini-ITX M/B for ATOM Processor
NO. G03-NF99-F
Revision: 3.0
Release date: March 14, 2012
Trademark:
* Specifications and Information contained in this docume ntation ar e furnishe d for inf ormation use only , and ar e
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
i
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................7
2-2 CONNECTORS AND HEADERS................................................................................11
2-2-1 CONNECTORS .............................................................................................11
2-2-2 HEADERS .....................................................................................................12
TABLE OF CONTENT
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................19
3-2 GETTING HELP ..........................................................................................................19
3-3 THE MAIN MENU........................................................................................................19
3-4 STANDARD BIOS FEATURES ..................................................................................21
3-5 ADVANCED BIOS FEATURES..................................................................................23
3-5-1 CPU FEATURE...............................................................................................24

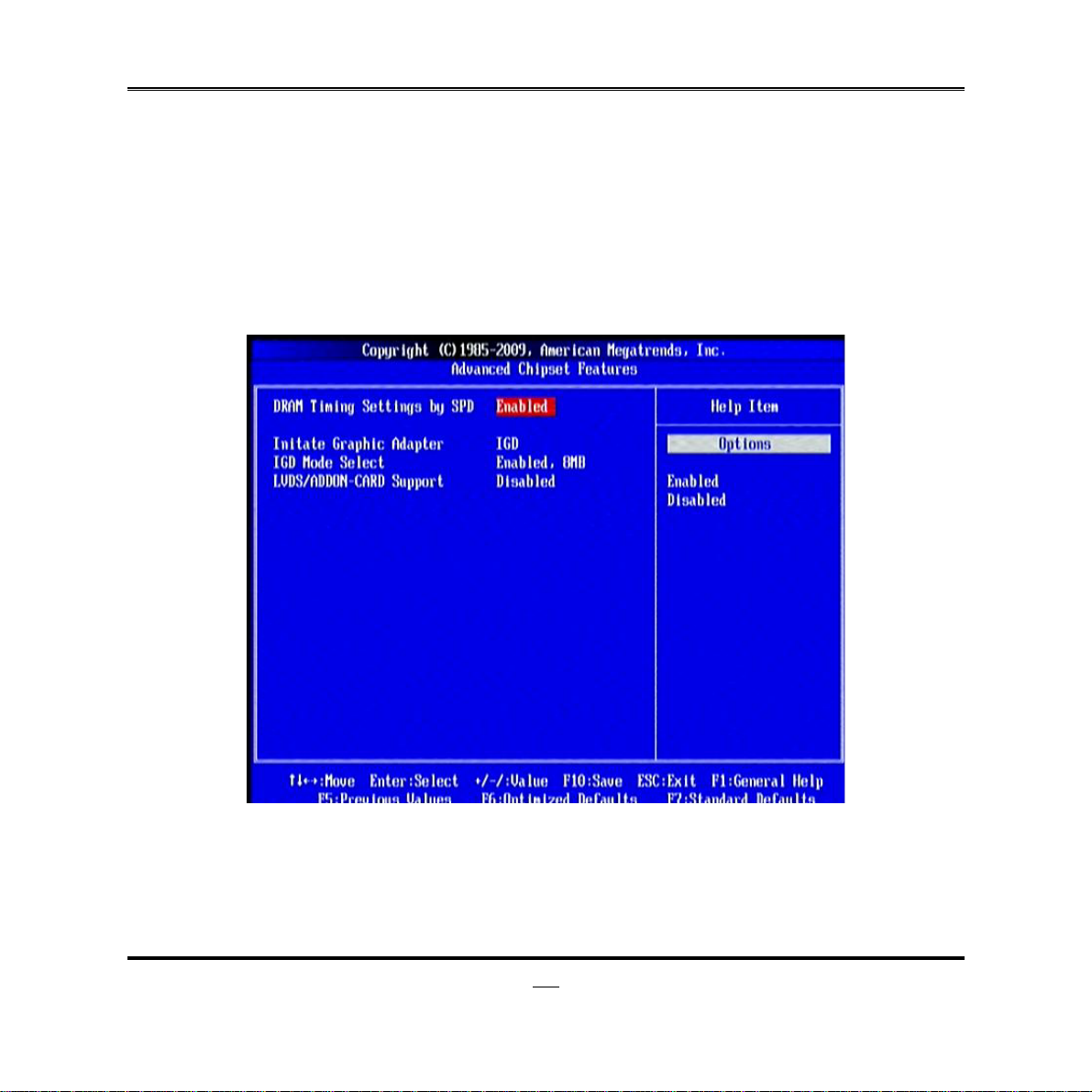

3-6 ADVANCED CHIPSET FEATURES...........................................................................25
3-7 INTEGRATED PHERIPHRALS ..................................................................................26
3-7-1 ONBOARD SATA FUNCTION ........................................................................27
3-7-2 ONBOARD DEVICE FUNCTION.....................................................................28
3-7-3 ONBOARD SUPER IO FUNCTION.................................................................29
3-8 POWER MANAGEMENT SETUP...............................................................................30
3-9 PNP/PCI CONFIGURATIONS.....................................................................................32
3-10 PC HEALTH STATUS.................................................................................................32
3-11 MISCELLANEOUS CONTROL...................................................................................34
3-12 PASSWORD SETTING...............................................................................................35
3-13 LOAD OPTIMIZED /STANDARDDEFAULTS ............................................................36
3-14 SAVE AND EXIT SETUP/EXIT WITHOUT SAVING ...................................................36
ii
Environmental Safety Instruction
z Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
z Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
z The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
z Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AN D WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
3.0 Third Edition March, 2012
Item Checklist
5
Motherboard
5
User’s Manual
5
DVD for motherboard utilities
5
Cable(s)
5
I/O Back panel shield
iv
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Intel Pine Trail D and ICH9R chipset
z
Onboard Intel Atom CPU, with low power consumption never denies high
z
performance
Support DDRIII SODIMM 1066 MHz up to 4GB
z
Onboard dual Intel 82574L PCI-E Gigabit Ethernet LAN
z
Integrated VIA VT1705 6-channel HD audio CODEC
z
Support USB 3.0 data transport demands
z
Support RS232/422/485
z
Support PCI slot and Mini-PCIE slot
z
Support CPU Smart FAN
z
Supports ACPI S3 Function
z
Support watchdog function
z
1
1-2 Specification
Spec Description
Design z
Chipset
Embedded CPU
Memory Socket
Expansion Slot
Integrate SATAII
Dual LAN
Audio
BIOS z
Multi I/O
Mini-ITX form factor; PCB size: 17.0x17.0cm
Intel Pine Trail D+ICH9R
z
Intel Atom CPU
z
DDRIII SODIMM slot x2
z
Support 1066 MHz DDRIII SODIMM
z
Expandable to 4 GB
z
32-bit PCI slot x 1
z
Mini-PCIE slot x1
z
Support six internal serial ATAII 3 Gb/s connectors
z
Support RAID 0,1,5,10
z
Integrated dual Intel WG82574L PCI-E Gigabit LAN chip
z
Support Fast Ethernet LAN function of providing
z
10Mb/100Mb/1000Mb Ethernet data transfer rate
VIA VT 1705 6-channel Audio Codec integrated
z
Audio driver and utility included
z
AMI 8MB Flash ROM
PS/2 keyboard connector x1
z
USB 3.0 port x2
z
Serial port connector x1
z
VGA port connector x1
z
USB 2.0 port x 3 and USB 2.0 header x3
z
RJ-45 LAN connector x2
z
Audio connector x3 (Line-in, Line-out, MIC)
z
Parallel port header x1
z
Serial port header x1 and RS232/422/RS485 header x1
z
LVDS header x1 and LVDS inverter x1
z
GPIO header x1
z
Front panel audio header x1
z
CDIN header x1
z
2
Speaker header x1
z
PWRLED header x1
z
Front panel header x1
z
1-3 Layout Diagram
USB 3.0 Port
PS/2
Keyboard Port
COM Port
VGA Port
RJ-45 LAN Port
USB 2.0 Ports
RJ-45 LAN Port
USB 2.0 Port
Line-OUT
MIC-IN
Line-IN
3
r
r
r
JP
r
JP
D
r
r
J
J
J
JBAT
J
J
r
JP
p
J
PS/2 Keyboard
over USB 3.0 Port
Serial Port
Over VGA Port
RJ-45 over
USB 2.0 Port
RJ-45 Port
USB 2.0 Port
Line-OUT
Line-IN
MIC-IN
Front Panel
Audio Heade
P3
P9
TX-RX COM
1
ATX Powe
4
P10
Audio Codec Chi
Parallel Header
LVDS Inverte
Gigabit LAN Chip
Gigabit LAN Chip
COM2 Heade
GPIO Header
connecto
Intel CPU
P2
LVDS Header
Intel ICH9R Chipset
Mini-PCIE Slot
6
SYSFAN1
P11
SATAII
Connectors
DDRIII 1066
SODIMMs
(SODIMM1/SODIMM2)
CPUFAN
P5
SATA II Connectors
USB Header
Speaker Heade
Power LED Header
Front Panel Heade
CDIN Header
aughter Card Connectors
PCI slot
SYSFAN2
USB Headers
8 Mbit Flash Rom BIOS
4
Jumper
Jumper Name Description
JP1 K/B, USB Power On Function Setting 3-pin Block
JP2 LVDS PVCC 5V/3.3V Select 3-pin Block
JP3 Inverter 12V/5V Select 3-pin Block
JP4 UL1, USB1 Power On Function Setting 3-pin Block
JP5 USB 3 Power On Function Setting 3-pin Block
JP6 Mini PCI-E Power VCC3.3V /Dual 3.3V 3-pin Block
JP9 Power RS232 Function Select 6-pin Block
JP10 COM2 RS232/485/422 Function Select 6-pin Block
JP11 USB 4/5 Power On Function Setting 3-pin Block
JBAT CMOS RAM Clear Function Setting 3-pin Block
Connectors
Connector Name Description
KB(from UK1) PS2 Keyboard Connector 6-pin Female
USB (from UK1) USB 3.0 Ports 9-pin Connector
COM1 Serial Port COM Connector 9-pin Connector
VGA Video Graphic Attach Connector 15-pin Female
USB (from UL1) USB 2.0 Port 4-pin Connector
LAN (from UL1) RJ-45 LAN Connector 8-pin Connector
LAN1 RJ-45 LAN Connector 8-pin Connector
USB1 USB 2.0 Port 4-pin Connector
AUDIO Line Out /Line In /MIC Audio
Connector
ATXPWR ATX Power Connector 24-pin Block
SATA1~SATA6 Serial ATAII Connectors 7-pin Connector
3-phone Jack
5
6
Headers
Header Name Description
FP_AUDIO Front panel audio Header 9-pin Block
CDIN CD Audio-In Header 4-pin Block
GPIO1 GPIO Header 10-pin Block
USB3/USB4/ USB5 USB Headers 9-pin Block
SPEAK Speaker Header 4-pin Block
PWRLED Power LED 3-pin Block
JW_FP
CPUFAN1,SYSFAN1/2 FAN Speed Headers 3-pin Block
PARALLEL1 Parallel Port Header 25-pin Block
COM2 Serial Port Header 9-pin Block
TX-RXCOM RS 232/422/485 port headers 4-pin Block
LVDS LVDS Header 32-pin Block
INVERTER LVDS Inverter Connector 7-pin Block
CN1; CN2 Jetway Daughter Card Connector 50-pin *2 Block
Front Panel Header
(PWR LED/ HD LED/ /Power
Button /Reset)
9-pin Block
7
Chapter 2
Hardware Installation
2-1 Jumper Setting
(1) JP1 (3-pin): K/B, USB Power on Function Setting
JP1
3
1
1-2 Cl osed: K/ B,USB Pow er-On Di s a b l ed (d efaul t)
JP1
13
(2) JP2 (3-pin): LVDS PVCC 5V / 3.3V Function setting
2-3 clos ed: K/B,USB Powe r-On Enabled
JP2
1
3
1-2 closed: LVDS PVCC 5V
JP2
1
3
2-3 closed : LVDS PVCC 3.3V
(3) JP3 (3-pin): Inverter power 5V/12V Select
JP3
JP3
133
1-2 closed
Inverte r 12V selected
2-3 closed
Inverter 5V select
(4) JP4 (3-pin): UL1/USB1 Power on Function Setting
JP4
1-2 closed : UL1/USB1 Power-On Disabled(default)
JP4
2-3 closed: UL1/USB1 Power-On Enabled
1
(5) JP5 (3-pin): USB3 Power on Function Setting
JP5
1
1-2 closed : USB 3 Header Power-On Disabled(default)
JP5
2-3 closed: USB3 Header Power-On Enabled
8

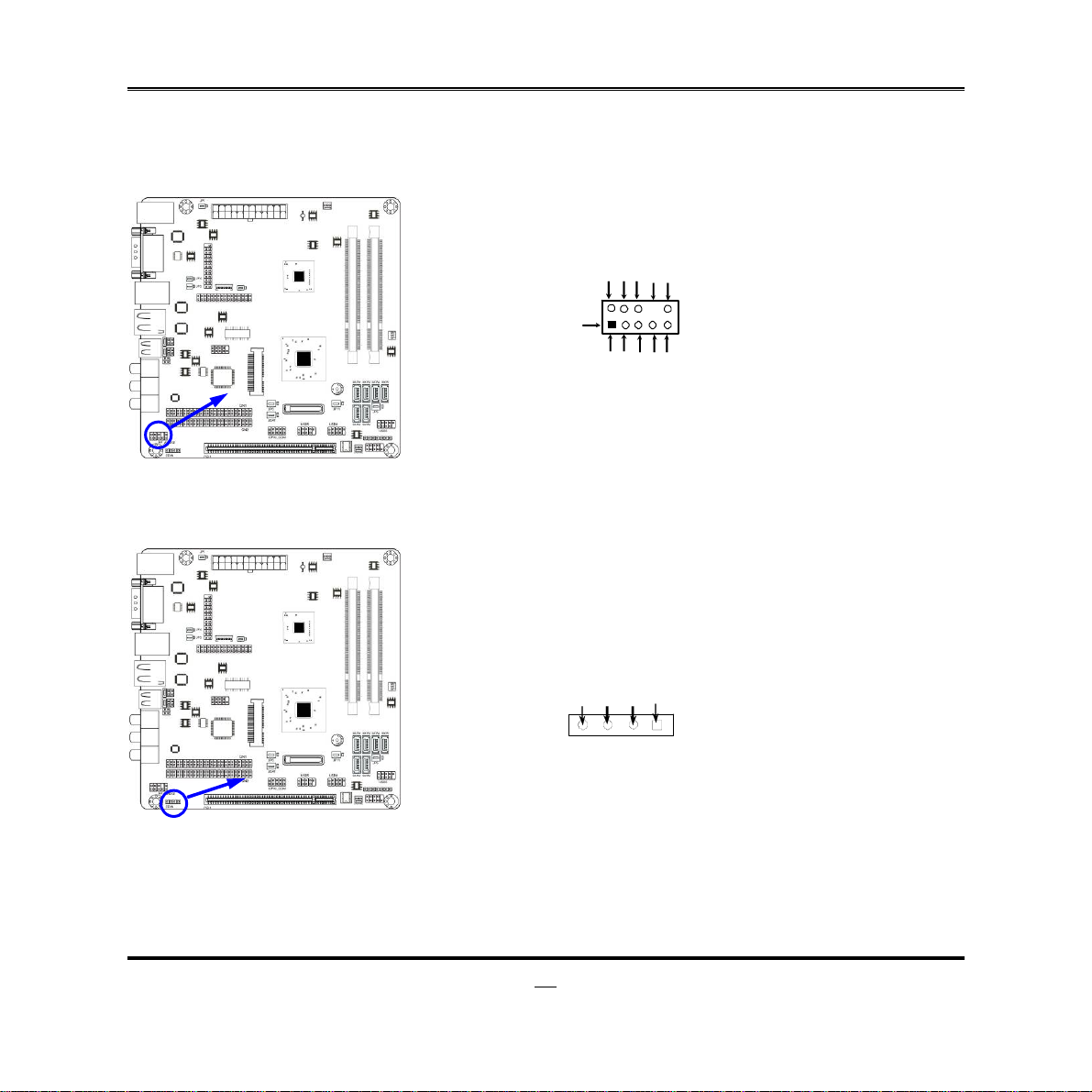

(6) JP6 (3-pin) : Mini PCI-E Power VCC 3.3V/ Dual 3.3 V Function Select
JP6
1-2 closed ： MINI PCI-E VCC= 3.3V
JP6
1
2-3 closed ： MINI PCI-E VCC= Dual 3.3V
(7) JP9 (6-pin): COM2 Header Pin9 function select
JP9
1
1-2 closed: RS232
1
3-4 closed : +12V
1
5-6 closed : +5V
(8) JP10(6-pin): COM2 Header RS232/485/422 Function Select:
JP10
1-2 closed: RS232
1
3- 4 closed : RS485
9
11
5-6 closed : RS422
(9) JP11 (3-pin): USB 4/5 Power on Function Setting
1-2 closed : USB 4/5 Header Power-On Disabled(default)
2-3 closed: USB 4/5 Header Power-On Enabled
(10) JBAT (3-pin): Clear CMOS
JP11
JP11
JBAT
1-2 Short： Normal
2-3 Short： Clear CMOS
CMO S Clear Setting
1
1
1
3
13
3
10
2-2 Connectors and Headers
2-2-1 Connectors
(1) I/O Panel Connector:
PS/2
Keyboard Port
COM Port
RJ-45 LAN Port
RJ-45 LAN Port
Line-OUT
USB 3.0 Port
(2) Serial-ATA II PortS: SATA1/SATA2/SATA3/SATA4/SATA5/SATA/SATA6
VGA Port
USB 2.0 Ports
USB 2.0 Port
Line-IN
MIC-IN
Serial-ATAII Connector
11
2-2-2 Headers
(1) Front Panel Audio Line-Out, MIC-In Header (9-pin): FP_AUDIO1
This header connects to front panel Line-out, MIC-In connector with cable.
NC
NC
MIC2-R
KEY
Lineout2-R
NC
Sense-FB
Lineout2-L
10
9
Audio-GND
AUDIO
2
Pin 1
MIC2-L
Li n e-Out, MIC Headers
(2) CD AUDIO-In Header (4-pin): CDIN1
CDIN header is for CD-Audio Input signal. Please connect it to CD-ROM CD-Audio
output connector.
CDIN1
CD Audio-In Hea ders
GNDCD-R CD-LGND
4 1
12
(3) USB Port Headers (9-pin): USB3/USB4/ USB5
VCC
-DATA
+DATA
Pin 1
VCC
-DATA
+DATA
GND
GND
NC
U SB 3/4/5 Header
(4) Speaker connector: SPEAK
This 4-pin header is to connect the case-mounted speaker. See the figure below.
(5) Power LED: PWRLED
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin.
Pin 1
SPEAK
NC
NC
VCC
SPEAK
Pin 1
PWRLED
VCC
GND
GND
13
(6) Front Panel Header: JW-FP
JW_FP
PWR LED
PWRBTN
+PWRLED
-PWRLED
PWRBTN
GND
Pin 1
System Case Connections
-HDDLED
+HDDLE
RSTSW
GND
NC
RES ET
HDLED
(7)FAN Speed Headers (3-pin): CPUFAN1, SYSFAN1, SYSFAN2
Pin1: GND
Pin2: +12V fan power
Pin3: Fan Speed
SYSFA N 1
CPUFAN
SYSFAN2
1
3
1
3
1
3
14
S
I
TXDN
RXDP
RXD
N
(8) Serial Port Connectors (9-Pin female): COM2
DSR
RT
CTS
R
Pin6
Pin1
Serial COM Port 9-pin Block
(9) RS232/422/485 Header: TX-RXCOM
TX-RXCO M
TX-RX CO M Header
Pin 1
Pin5
GND
RXD
TXD
DTR
DCD
4
2
3
TXDP
15
6
(10) LVDS Headers（32 Pin）: LVDS
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 SMBDATA Pin 2 SMBCLK
Pin 3 SPDIF_O Pin 4 NC
Pin 5 ADB_ID1 Pin 6 ADB_ID2
Pin 7 L_VDDEN Pin 8 BKLTEN
Pin 9 NC Pin 10 NC
Pin 11 LVDS_DDC_DATA Pin 12 LVDS_DDC_CLK
Pin 13 GND Pin 14 GND
Pin 15 GND Pin 16 GND
Pin 17 NC Pin 18 NC
Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN
Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2
Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1
Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0
Pin 27 PVDD Pin 28 PVDD
Pin 29 PVDD Pin 30 PVDD
Pin 31 GND Pin 32 GND
Pin 2
Pin 1
LVDS Header
1
7
_
5
_
7
(11)LVDS Inverter headers: INVERTER
Pin 1 and pin2: VCC of inverter
Pin3, pin4 and pin6: GND
Pin5: Backlight
Pin7: Brightness
Pin 1
VCC
VCC
GND
GND
Backlight
GND
Brightness
(12) GPIO Header (10-pin): GPIO_CON
Pin 1
GP IO_CO N Header
33
GPIO_31
2
GPIO _30
VCC
GPIO_3
GPIO_3
GPIO
10
9
34
GND
GPIO
GPIO _32
GPIO_36
1
Chapter 3
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manuals are usually the first BIOS version when the board is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and
software to communicate, it is the key factor for system stability, and in ensuring that
your system performance as its best.
In the BIOS Setup main menu of Figure 3-1, you can see several options. We will
explain these options step by step in the following pages of this chapter, but let us first
see a short description of the function keys you may use here:
•
Press <Esc> to quit the BIOS Setup.
•
Press ↑↓←→ (up, down, left, right) to choose, in the main menu, the option you
want to confirm or to modify.
•
Press <F10> when you have completed the setup of BIOS parameters to save
these parameters and to exit the BIOS Setup menu.
•
Press Page Up/Page Down or +/– keys when you want to modify the BIOS
parameters for the active option.
18
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an error message will be displayed and you will again be asked
to
Press <Del> to enter Setup
3-2 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of
the screen.
Status Page Setup Menu/Option Page Setup M enu
Press F1 to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<Esc>.
3-3 The Main Menu
Once you enter AMI ® BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will
appear on the screen. The Main Menu allows you to select from fourteen setup
functions and two exit choices. Use arrow keys to select among the items and press
<Enter> to accept or enter the sub-menu.
19
Figure 3-1
Standard BIOS Features
Use this Menu for basic system configurations.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your
system’s performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PnP/PCI Configurations
Use this menu to specify your settings for PnP and PCI configurations.
PC Health Status
20
This entry shows your PC health status.
Miscellaneous Control
Use this menu to specify your settings for Miscellaneous Control.
Load Optimized Defaults
Use this menu to load the BIOS default values these are setting for optimal
performances system operations for performance use.
Load Standard Defaults
Use this menu to load the BIOS default values for the minimal/stable performance
system operation
Set Supervisor Password
Use this menu to set supervisor password.
Set User Password
Use this menu to set user password.
Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.
3-4 Standard BIOS Features
The items in Standard CMOS Setup Menu are divided into several categories. Each
category includes no, one or more than one setup items. Use the arrow keys to
highlight the item and then use the <PgUp> or <PgDn> keys to select the value you
want in each item.
21
System Date
The date format is <day><month><date><year>.
Day of the week is from Sun to Sat, determined by BIOS. Read-only.
Day
Month
Date
Year
System Time
The time format is <hour><minute><second>.
SATA 1/SATA 2/ SATA3/ SATA4/ SATA 5/SATA6
While entering setup, BIOS auto detects the presence of harddisk devices. This
displays the status of auto detection of harddisk devices.
Type:
LBA/Large Mode:
Disabled: disables LBA mode.
The month is from Jan. through Dec.
The date from 1 to 31 can be keyed by numeric function keys.
The year depends on the year of the BIOS.
The optional settings are: Not Installed; Auto; CD/DVD and ARMD.
The optional settings are Auto; Disabled.
22
Auto: enables LBA Mode if the devices support it and the device is not already
formatted with LBA Mode disabled.
Block (Multi-Sector Transfer):
Disabled: The Data transfer from and to the device occurs one sector at a time.
Auto: The Data transfer from and to the device occurs multiple sectors at a time if the
device supports it.
32 Bit Data Transfer:
the optional settings are: Disabled and Enabled.
The optional settings are: Disabled and Auto.
3-5 Advanced BIOS Features
Virus Warning
The selection Allow you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempt to write data into
this area, BIOS will show a warning message on screen and alarm beep.
Disabled
(default) No warning message to appear when anything attempts to
access the boot sector or hard disk partition table.
23
Enabled
Quick Power On Self Test
This item allows BIOS to skip certain tests while booting. This will decrease the time
needed to boot the system. The optional settings: Disabled; Enabled.
Boot Up NumLock Status
The default value is On.
(default)
On
Off
APIC Mode
Use this item to include ACPI APIC table pointer to ESDT pointer list. The optional
settings are: Disabled; Enabled.
MPS Version Control for OS
This option is only valid for multiprocessor motherboards as it specifies the version of
The Multiprocessor Specification (MPS) that the motherboard will use.
Activates automatically when the system boots up causing a
warning message to appear when anything attempts to access
the boot sector of hard disk partition table.
Keypad is numeric keys.
Keypad is arrow keys.
3-5-1 CPU Feature
Hyper Threading Technolegy
Enabled for Windows XP and Linux4(OS optimized for Hyper Threading Technology)
and disabled for other OS (OS not optimized for Hyper –Threading Technology)
24
Limit CPU MaxUal
The optional settings are: Disabled; Enabled.
Execute Disable Bit Capabill
The optional settings are: Disabled; Enabled. When disabled, force the XD feature
Flag to always return 0.
3-6 Advanced Chipset Features
The Advanced Chipset Features Setup option is used to change the values of the
chipset registers. These registers control most of the system options in the computer.
DRAM Timing Settings by SPD
The optional settings are: Disabled; Enabled.
Initate Graphic Adapter
The optional settings are: 1GD; PCIE/IGD. Select which graphic controller to use as
the primary boot device.
25
IGD Mode Select
Use this item to select the amount of system memory used by the internal graphics
device. The optional settings: Disabled; Enabled, 8MB.
LVDS/ADDON CARD Suppor
The optional settings are: Disabled; Enabled.
t
3-7 Integrated Peripherals
PWR Status after PWR Failure
The optional settings are: Always off; Always on; Former Status.
26
3-7-1 Onboard SATA Function
27
3-7-2 Onboard Device Function
Onboard LAN1/2 Controller
The optional settings are: Enabled; Disabled.
Onboard LAN1/2 BootROM
The optional settings are: Enabled; Disabled.
High Definition Audio
This item allows you to decide to auto /disable the chipset family to support HD Audio.
The settings are: Auto, Disabled.
USB 2.0 Operation Mode
The settings are: FullSpeed; HiSpeed.
USB Host Controller
The optional settings: Disabled; 2 USB ports; 4 USB ports; 6 USB ports; 8 USB ports;
10 USB ports; 12 USB ports.
28
USB 2.0 Function
The optional settings are: Enabled; Disabled.
USB 2.0 Operation Mode
Use this item to configure the USB 2.0 controller in HiSpeed(480Mbps) or
FullSpeed(12Mbps).
USB 3.0 Controller Mode
Use this item to enable USB 3.0 legacy support.
BIOS XHCI Hand Off
The optional settings are: Enabled; Disabled.
USB Keyboard Legacy/Mouse Legacy /Storage Legacy Support
Select enabled if your system contains a Universal Serial Bus (USB) controller and
you have a USB mouse /keyboard/USB storage device. The settings are: Enabled,
Disabled.
3-7-3 Onboard Super IO Function
29
PS2 KB/MS SWAP Select
The optional settings are: Keyboard First; Mouse First.
Serial Port 1/2 Address
This item allows BIOS to select base addresses for serial port 1/2.
Serial Port 2 Mode
The optional settings
Serial Port 2 RS485 Select
The optional settings
Parallel Port Address
Use this item to allow BIOS to select parallel port base adresses.
Parallel Port Mode
The optional settings are: Normal; Bi-Directional; ECP; EPP; ECP & EPP.
Watchdog Timer Select
This item is used to activate the watchdog function. The optional settings are: Enabled;
Disabled.
When set as Enabled, The following sub-items shall appear:
WatchDog Timer Val: User can type a number in the range of 4 to 255.
WatchDog Timer Unit: The optional settings are: Sec.; Min..
are：Normal; IrDA(1.6us); IrDA(3/16 bit).
are：Disabled(RS232); Enabled(RS485)
3-8 Power Management Setup
The Power Management Setup allows you to configure your system to most
effectively save energy saving while operating in a manner consistent with your own
style of computer use.
30
ACPI Suspend Type
Users can select the ACPI state used for system suspend. The optional settings are:
S1(POS); S3(STR).
Video Power Down Mode
The optional settings: Disabled; Standby; Suspend.
Suspend Time out
Use this item to select the specified time for system to go into suspend.
Power Button Mode
Use this item to go into On/Off or Suspend when power button is pressed.
ERP (EUP) Function
The optional settings are: Enabled; Disabled. When set as [Disabled], the following
sub-items shall appear:
Wake-Up by PCI Card; Power On by Ring; Wake Up by USB from S3(S4); PS2
KB/MS Wake-Up from S3-S5; Resume On RTC Alarm.
User can set them as Enabled or Disable for to enable or disable respective functions.
31
3-9 PnP/PCI Configurations
IRQ Resources
Press [Enter] to view IRQ availability.
Available: Specified IRQ is available to be used by PCI/PnP devices.
Reserved: Specified IRQ is reserved for use by legacy ISA devices.
PCI/VGA Palette Snoop
The optional settings are: Enabled; Disabled.
Enabled: to inform the PCI devices that an ISA graphics device is installed in the
system so the card will function correctly.
3-10 PC Health Status
This section shows the Status of you CPU, Fan, and Warning for overall system status.
This is only available if there is Hardware Monitor onboard.
32
Shutdown Temperature
This item can let users setting the Shutdown temperature, when CPU temperature
over this setting the system will auto shutdown to protect CPU.
CPU Thermal Throttling
The optional settings are: Disabled; Enabled. When it is set as [Enabled] user could
set value for CPU Thermal-Throttling Temp.; CPU Thermal-Throttling Duty and CPU
Thermal-Throttling Beep.
► Smart Fan Configuration
Press [Enter]to set certain values for the following three items: CPUFAN Smart Mode ,
33
SYSFAN1 Smart Mode and SYSFAN2 Smart Mode to set respectively for value in
Full-Speed Temp.; Idle Temp. and Idle-Speed Duty .
+5V OVP/+12V OVP/Vcc3V OVP
Use this item to select a value for +5V OVP/+12V OVP/Vcc3V OVP from the optional
setting range.
CPU Temperature/ System Temperature/ /CPUFAN/ SYSFAN1/SYSFAN2 Speed/
Vcore/ /NB1.05V/5VSB/VDIMM/ +5V/+12V/5 /Vcc3V/3VSB/VBat /
This will show the CPU/FAN/System voltage chart and FAN Speed, etc.
3-11 Miscellaneous Control
Spread Spectrum
The optional settings are: Enabled; Disabled.
Linear PCIEX Clock
The optional settings are from 100 to 200.
DRAM Clock at Next Boot
34
This item allows you to set DRAM clock. The optional settings are: Auto; 667MHz;
800MHz.
Host/PCI Clock at Next Boot
The optional settings are from 200 to 600.
3-12 Password Setting
You can set either supervisor or user password, or both of them. The differences
are:
Supervisor password: Can enter and change the options of the setup menus.
User password: Can only enter but do not have the right to change the options
of the setup menus. When you select this function, the
following message will appear at the center of the screen to
assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The
password typed now will clear any previously entered password from CMOS memory.
You will be asked to confirm the password. Type the password again and press
<Enter>. You may also press <Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to enter the
password. A message will confirm that the password will be disabled. Once the
password is disabled, the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you
try to enter Setup. This prevents an unauthorized person from changing any part of
your system configuration.
Additionally, when a password is enabled, you can also require the BIOS to request a
password every time your system is rebooted. This would prevent unauthorized use
of your computer.
You determine when the password is required within the BIOS Features Setup Menu
and its Security option. If the Security option is set to “System”, the password will be
required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs
35
6
when trying to enter Setup.
3-13 Load Optimized /Standard Defaults
Load Optimized Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a
message similar to:
Pressing <OK> loads the default values that are factory settings for optimal
performance system operations.
Load Standard Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a
message similar to:
Pressing <OK> loads the default values that are factory settings for stable
performance system operations.
3-14 Save & Exit Setup/ Exit Without Saving
Save and Exit Setup
When you press <Enter> on this item, you get a confirmation dialog box with a
message similar to:
3
7
Pressing <OK> save the values you made previously and exit BIOS setup.
Exit Without Saving
When you press <Enter> on this item, you get a confirmation dialog box with a
message similar to:
Pressing <OK> to leave BIOS setting without saving previously set values.
3
Loading...
