Jetway Computer NF83 User Manual

Download

Page 1

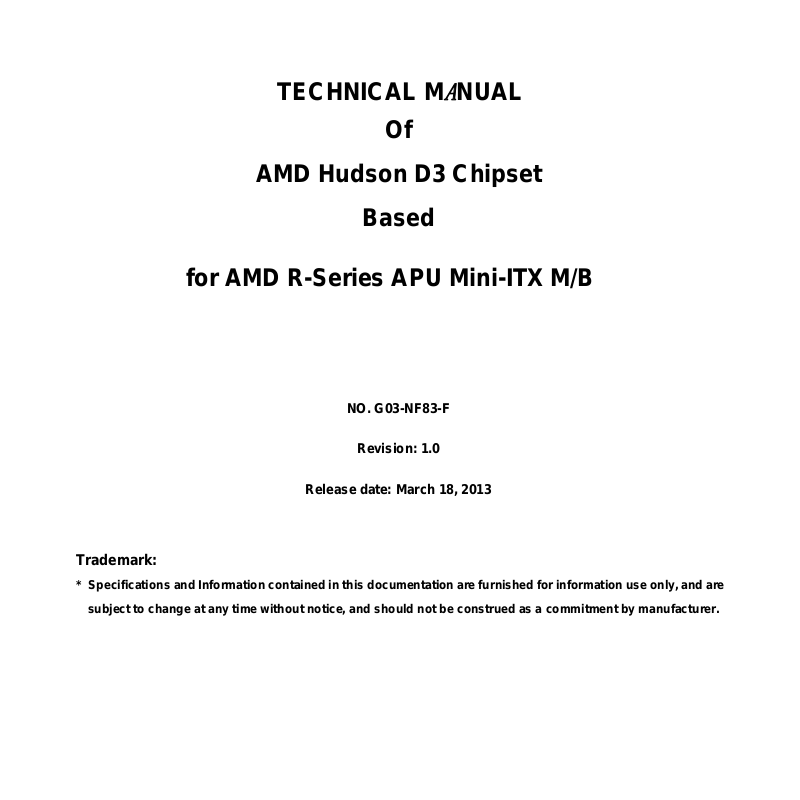

TECHNICAL MANUAL

AMD Hudson D3 Chipset

Based

for AMD R-Series APU Mini-ITX M/B

NO. G03-NF83-F

Revision: 1.0

Release date: March 18, 2013

Trademark:

* Specifications and Information contained in this documentation are furnished for i nforma tion use only , a nd are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Page 2

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.

Page 3

ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii

USER’S NOTICE .......................................................................................................................iv

MANUAL REVISION INFORMATION.......................................................................................iv

ITEM CHECKLIST.....................................................................................................................iv

CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD................................................................................1

1-2 SPECIFICATION.........................................................................................................2

1-3 LAYOUT DIAGRAM....................................................................................................3

CHAPTER 2 HARDWARE INSTALLATION

2-1 JUMPER SETTING.....................................................................................................8

2-2 CONNECTORS AND HEADERS................................................................................10

2-2-1 CONNECTORS .............................................................................................10

2-2-2 HEADERS .....................................................................................................12

TABLE OF CONTENT

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP.....................................................................................................20

3-2 BIOS MENU SCREEN ................................................................................................21

3-3 FUNCTION KEYS .......................................................................................................21

3-4 GETTING HELP ..........................................................................................................22

3-5 MAIN BARS.................................................................................................................22

3-6 MAIN MENU................................................................................................................23

3-7 ADVANCED MENU.....................................................................................................24

3-8 CHIPSET MENU..........................................................................................................32

3-9 BOOT MENU...............................................................................................................34

3-10 SECURITY MENU.......................................................................................................35

3-11 SAVE & EXIT MENU...................................................................................................36

Page 4

Environmental Safety Instruction

z Avoid the dusty, humidity and temperature extremes. Do not place the product in

any area where it may become wet.

z 0 to 60 centigrade is the suitable temperature. (The figure comes from the request

of the main chipset)

z Generally speaking, dramatic changes in temperature may lead to contact

malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.

z The increasing temperature of the capacitor may decrease the life of computer.

Using the close case may decrease the life of other device because the higher temperature in the inner of the case.

z Attention to the heat sink when you over-clocking. The higher temperature may

decrease the life of the device and burned the capacitor.

iii

Page 5

USER’S NOTICE

COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AN D WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

1.0 First Edition 2013-3-18

Item Checklist

Motherboard

DVD for motherboard utilities

User’s Manual

Cable(s)

I/O Back panel shield

Page 6

Chapter 1

Introduction of the Motherboard

1-1 Feature of Motherboard

z AMD Hudson D3 Chipset and AMD embedded R-Series APU (FS1R2 processor),

with low power consumption but high performance

Support 2 * DDRIII SO-DIMM 800-1600MHz up to 16GB and dual channel function

Integrated with dual Realtek RT8111F-CG Gigabit LAN chips

Integrated ALC662 6-channel HD Audio Codec

Support USB 2.0/ USB 3.0 data transport demands

Support PCI Express x16 slot and Mini-PCIE slot

Onboard 6* SATAIII ports

Support 4* HDMI outputs

Support TPM 1.2 function

Support 6* COM ports

Support CPU/SYSTEM Smart FAN

Supports ACPI S3 Function

Compliance with EuP Standard

Support Watchdog Timer Technology

Page 7

1-2 Specification

Spec Description

Design z

Chipset

CPU Socket

Memory Slot

Expansion Slot

Dual LAN Chip

Audio Chip

BIOS z

Multi I/O

z z

z z z

z z

Rear Panel I/O:

z z z z z

Internal I/O Connectors& Headers

z z z z

Mini-ITX form factor 6 layers ; PCB size: 17.0x17.0cm AMD A75 FCH Hudson D3 Chipset

AMD FS1r2 Socket ,Support AMD R-Series processor

* for detailed CPU support information please visit our website

DDRIII SO-DIMM slot x2 Support DDRIII 800/1066/1333/1600MHz DDRIII SO-DIMM

expandable to 16GB Support dual channel function 1 pcs of PCI Express x16 by 8 lane slot 1 pcs of Mini-PCIE slot

Integrated with dual Realtek RTL8111F-CG PCI-E Gigabit

LAN chips that support Fast Ethernet LAN function of

providing 10/100/1000Mbps Ethernet data transfer rate Integrated with Realtek ALC662 6-channel Audio Codec

Audio driver and utility included 32M DIP Flash ROM

Rear panel USB 3.0 port connector x2 COM port connector x 2 HDMI port connector x4 Rear panel USB 2.0 port connector x4 RJ-45 LAN connector x2

Audio connector x3 (Line-in/SPDFI-out; Line-out; MIC) 24-Pin ATXPWR connector x 1

4-Pin ATX12V power connector x1 SATAIII Connector x6 Front panel audio header x1

HDMI_SPDIF header x1

Page 8

LANLED header x2

SM_BUS header x1

GPIO header x1

TPM 1.2 header x1

KBMS header x1

CIR header x1

Serial port header x4

USB 2.0 header x2 (support four expansion USB 2.0 ports)

USB 3.0 header x1 (support two expansion USB 3.0 ports)

Speaker header x1

PWRLED header x1

Front panel header x1

1-3 Layout Diagram

Rear IO Diagram

USB 3.0 Ports

Serial Port

RJ-45 LAN Ports

Line-IN/SPDIF-OUT

Line-OUT

MIC-IN

Serial Port

HDMI Ports

USB 2.0 Ports

Page 9

(

)

Mini

Motherboard Internal Diagram

SATAIII Ports

SATA1/2/3/4/5/6

AMD Hudson D3 Chipset

USB 3.0 Heade

USB 3.0 Ports

Serial Ports

GPIO Header

HDMI Ports

KBMS Header

CIR Header

YSFAN1 Header

TPM Heade

ATX Powerconnector

Speaker Header

PWRLED Header

Front Panel Heade

USB 2.0 Headers

Serial Port Headers

HDMI Ports

RJ-45 Port over

USB 2.0 Ports

RJ-45 Port over

USB 2.0 Ports

Audio Connecto

-PCIE Slot

ATX 12V

Power Connecto

FS1R2 APU

Socket

LANLED Headers

ront PanelAudio Heade

CPUFAN Header

YSFAN2 Header

DDRIII SODIMM Slot x 2

（DDRIII 800-1866 MHz）

SM BUS Heade

HDMI_SPDIF

Header

*PCI Express x16 by 8 Lane Slot (PE1)

Page 10

Motherboard Jumper Position

CASE_OPEN1

JP3

JP9

JP8

LAN Chip

JBAT1

Audio Chip

Page 11

Jumper

Jumper Name Description

JBAT1 CMOS RAM Clear Function Setting 3-pin Block JP3 Rear Panel COM1 Top Serial Port Pin9 Function

Select JP8 COM3 Header Serial Port Pin9 Function Select 6-pin Block JP9 Mini PCI-E Power VCC3.3V /3VSB Select 3-pin Block CASEOPEN1 Case Open Message Display Function 2-pin Block

Connectors

Connector Name

ATXPWR1 ATX Power Connector ATX12V1 ATX 12V Power Connector SATA1~ SATA6 Serial ATAIII Connector x6 USB4 USB 3.0 Port Connector x 2 COM1 Serial Port Connector x2 HDMI1/ HDMI2 High-Definition Multimedia Interface x 4 UL1(Middle & Bottom)

/UL2(Middle & Bottom) UL1(Top) / UL2(Top) RJ-45 LAN Connector x2 AUDIO1 Line In/SPDIF Out; Line Out; MIC Connector

USB 2.0 Port Connector x4

6-pin Block

Page 12

Headers

Header Name Description

FP_AUDIO1 Front Panel Audio Header 9-pin Block HDMI_SPDIF1 HDMI_SPDIF Out Header 2-pin Block LAN1LED1/LAN2LED1 LANLED Header x2 2-pin Block SM_BUS SM_BUS Header 4-pin Block PWR LED1 Power LED 3-pin Block SPEAK1 Speaker Header 4-pin Block JW_FP1

COM3/COM4/COM5/COM6 Serial Port Header x4 9-pin Block GPIO_CON1 GPIO Header 10-pin Block TPM1 TPM 1.2 header 19-pin Block KB_MS1 PS/2 Keyboard & Mouse Header 6-pin Block CIR_CON CIR Header 7-pin Block USB1/USB2 USB 2.0 Port Header x2 9-pin Block USB3 USB 3.0 Port Header 19-pin Block CPU FAN CPU FAN Header 4-pin Block SYSFAN1 SYSFAN1 Header 3-pin Block SYSFAN2 SYSFAN2 Header 4-pin Block

Front Panel Header(PWR LED/ HD LED/ /Power Button /Reset)

9-pin Block

Page 13

Hardware Installation

2-1 Jumper Setting

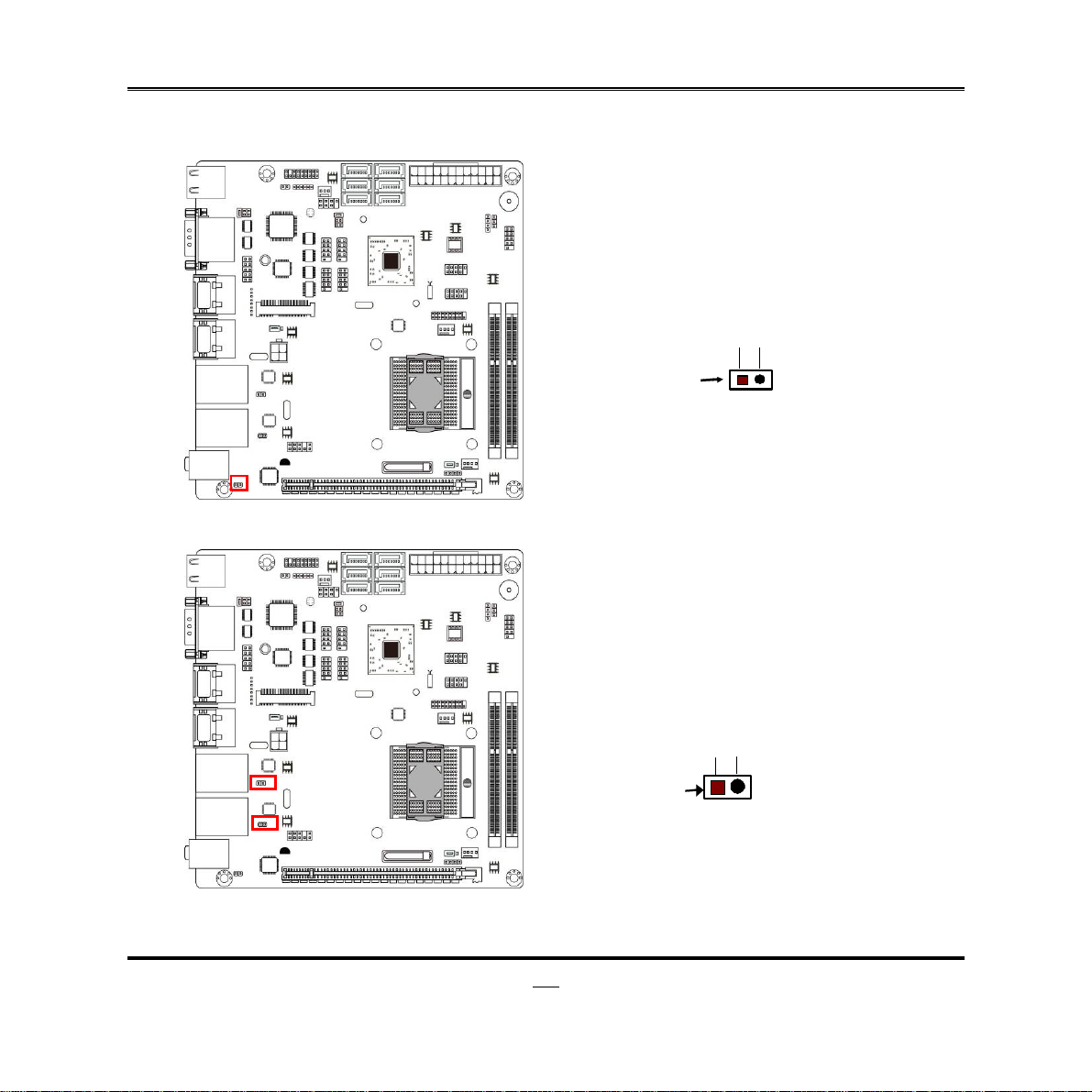

(1) JBAT1 (3-pin): Clear CMOS

Chapter 2

JBAT1

1-2 Short： Normal；

CMOS Clear Set ting

2-3 Short： Clear CMOS

(2) JP3 (6-pin): Rear Panel COM1 Top Serial Port Pin9 Function Select

JP3

1-2 closed: RS232;

3-4 closed : +12V;

5-6 closed : +5V

Page 14

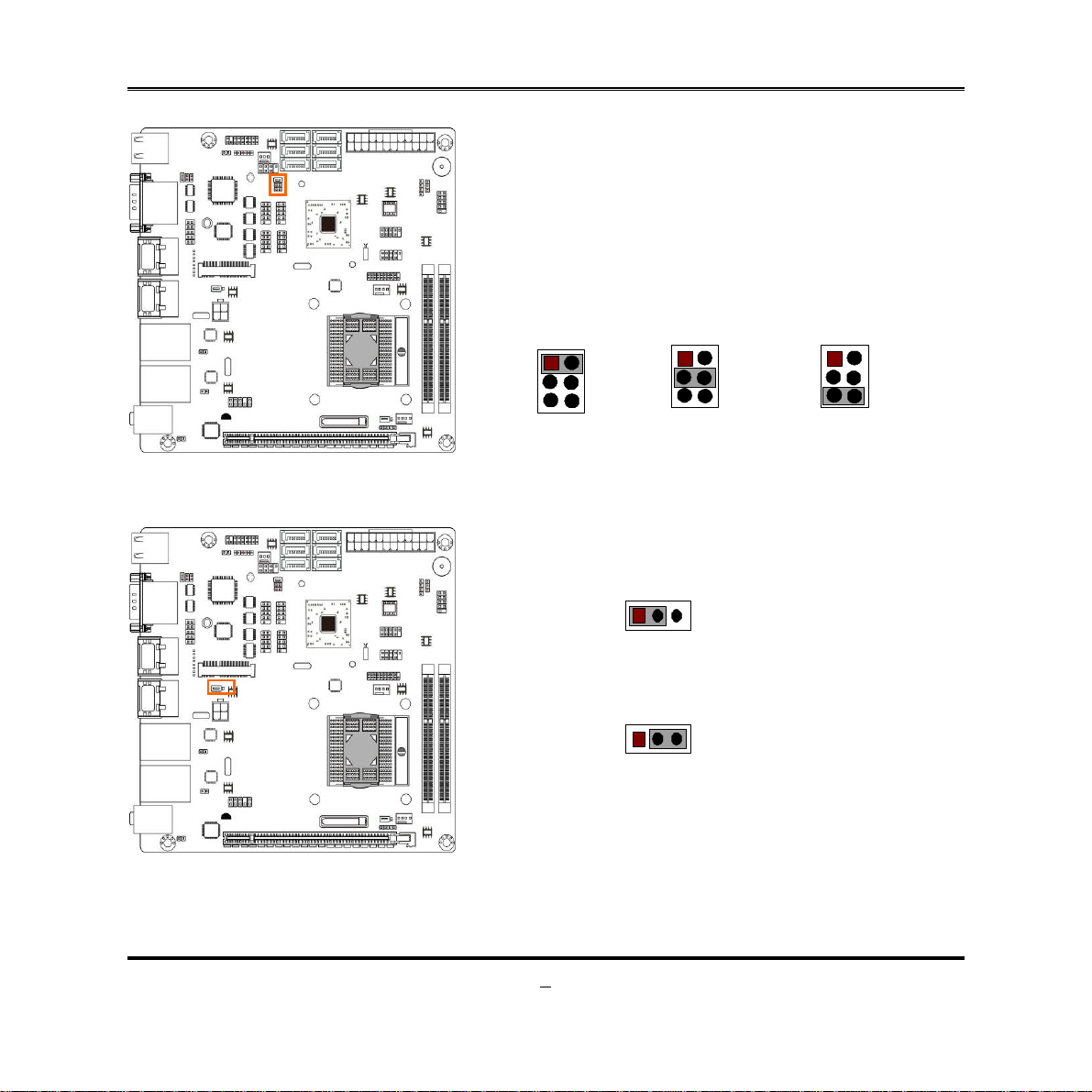

(4) JP8 (6-pin): COM3 Header Pin9 Function Select

JP8

1-2 closed: RS232;

3-4 close d : +12 V;

5-6 closed : +5V

(5) JP9 (3-pin): : Mini PCI-E Power VCC3.3V/ 3.3VSB Function Select

JP9

113

1-2 closed: MINI PCI-E VCC= VCC3.3V;

JP9

2-3 closed: MINI PCI-E VCC=3.3VSB

Page 15

(6)CASE_OPEN1 (2-pin): Case Open Message Display Function Select

Pin 1-2 shorted: Case open display function enabled. Use needs to enter BIOS and enable ‘Case Open Detect’ function. In this case if you case is removed, next time when you restart your computer a message will be displayed onscreen to inform you of this.

2-2 Connectors and Headers 2-2-1 Connectors

(1) Rear Panel Connectors

USB 3.0 Ports

Serial Port

HDMI Ports

RJ-45 LAN Ports

Line-IN/SPDIF-OUT

Line-OUT

MIC-IN

USB 2.0 Ports

Page 16

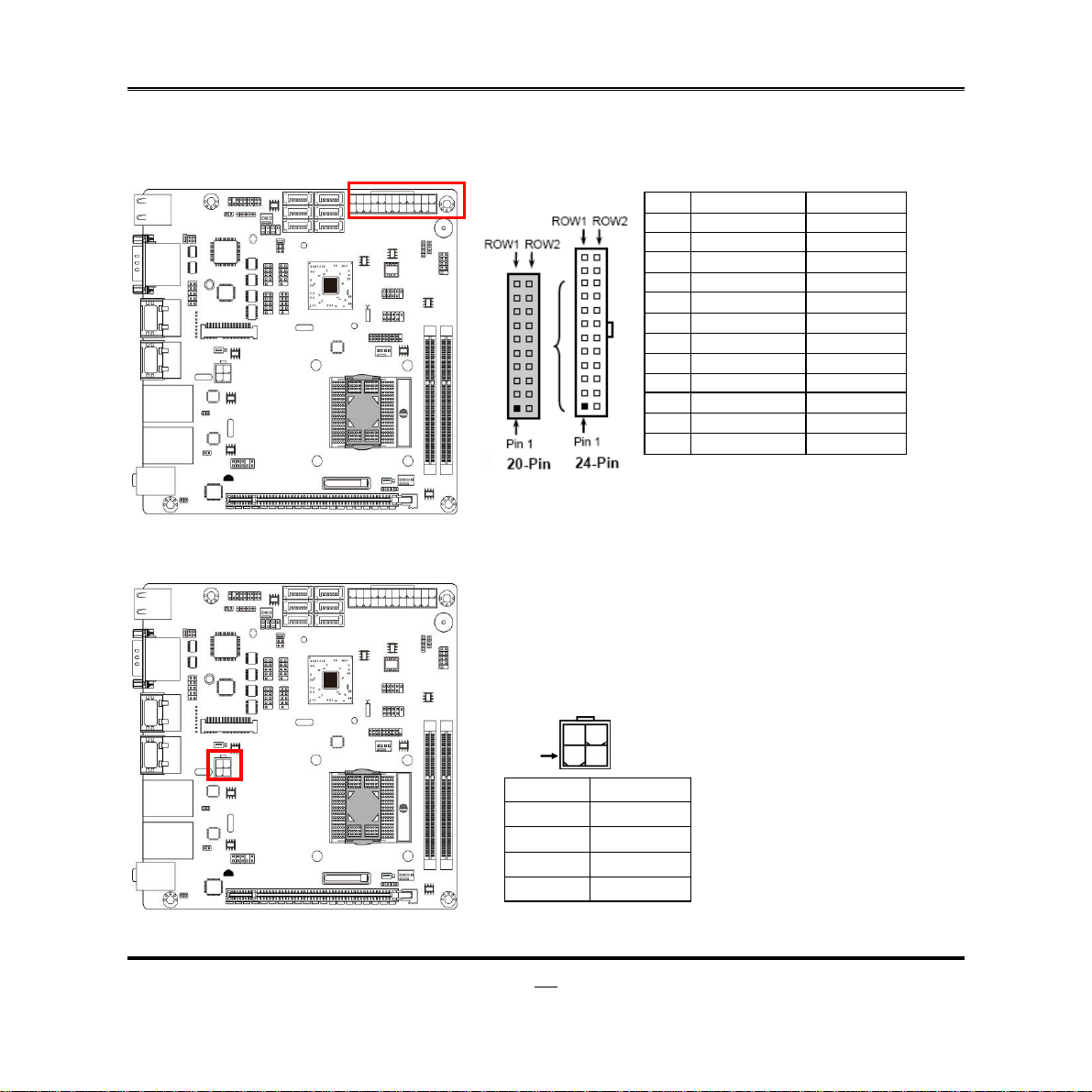

(2) ATXPWR1 (24-pin block): Power Connector

PIN ROW1 ROW2 1 +3.3V +3.3V 2 +3.3V -12V 3 GND GND 4 +5V PS_ON 5 GND GND 6 +5V GND 7 GND GND 8 Power OK -5V 9 +5V Stand by +5V 10 +12V +5V 11 +12V +5V 12 +3.3V GND

24-pin Main Power Connector

(3) ATX12V (4-pin block): ATX12V Type Power Connector

Pin1

Pin No. Definition

1 GND 2 GND 3 +12V 4 +12V

Page 17

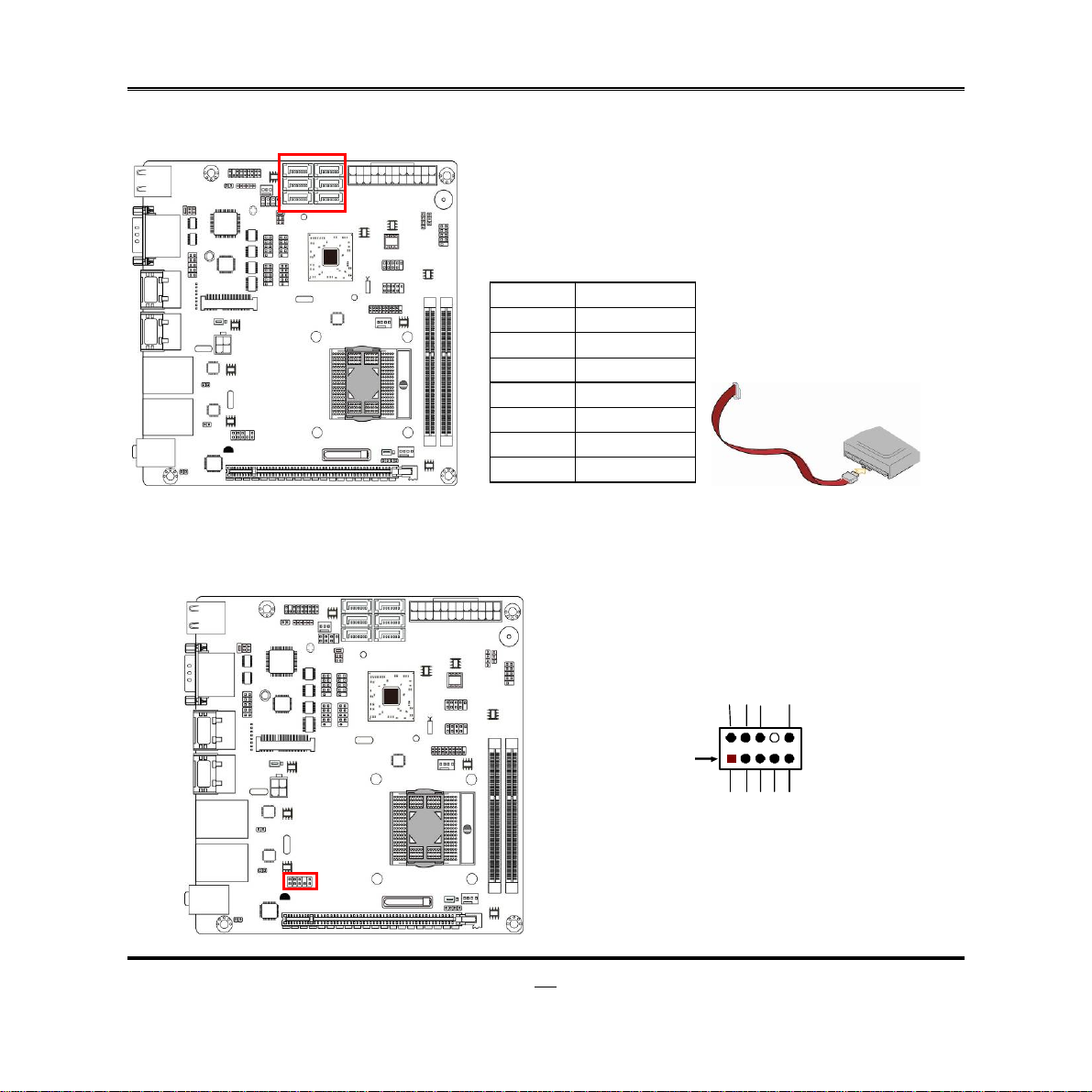

(4) SATA1/SATA2/SATA3/SATA4/SATA5/SATA6: SATAIII Port connector

These connectors are high-speed SATAIII ports that support 6 GB/s transfer rate.

Pin No. Defnition

1 GND 2 TXP 3 TXN 4 GND 5 RXN 6 RXP 7 GND

2-2-2 Headers

(1) FP_AUDIO1 (9-pin): Line-Out, MIC-In Header

This header connects to Front Panel Line-out, MIC-In connector with cable.

Pin 1

Line-Out, MIC Header

GND

MIC1-L

MIC1-

LI NE OUT - R

LINE OUT-L

Page 18

(2) HDMI_SPDIF1 (2-pin): HDMI-SPDIF Out header

HDMI_SPDIF Header

Pin1

SPDIF

GND

(3) LAN1LED1/LAN2LED (2-pin): LANLED Headers

Pin1

LED+

LED-

Page 19

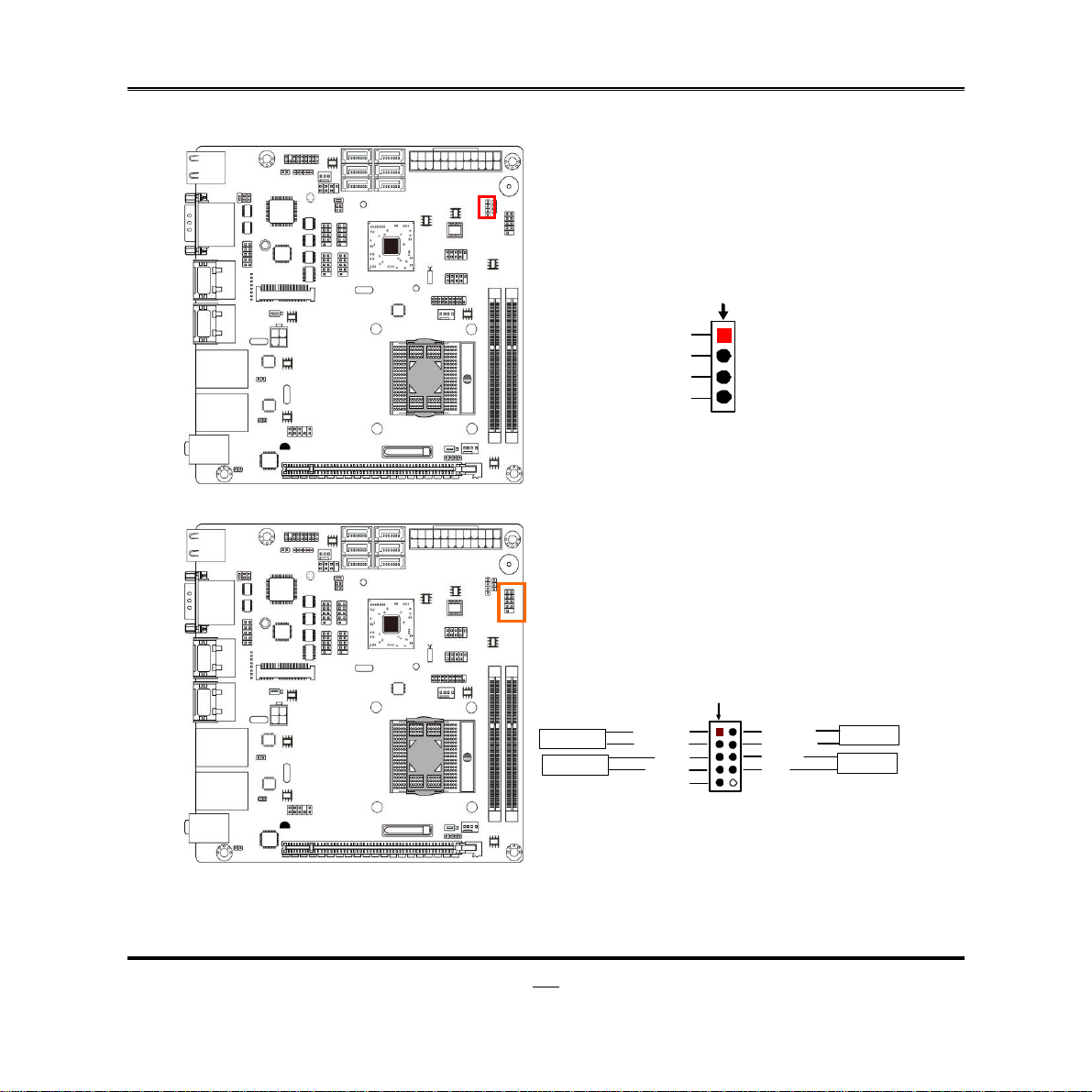

(4) SM_BUS (4-Pin): SM_BUS Header

Pin1

S CL

VCC

GND

SDA

(5) PWR LED1(3-pin): PWR LED Header

The Power LED is light on while the system power is on. Connect the Power LED

from the system case to this pin header.

Pin1

PWRLED+ PWRLED-

PWRLED-

PWRLED1

Page 20

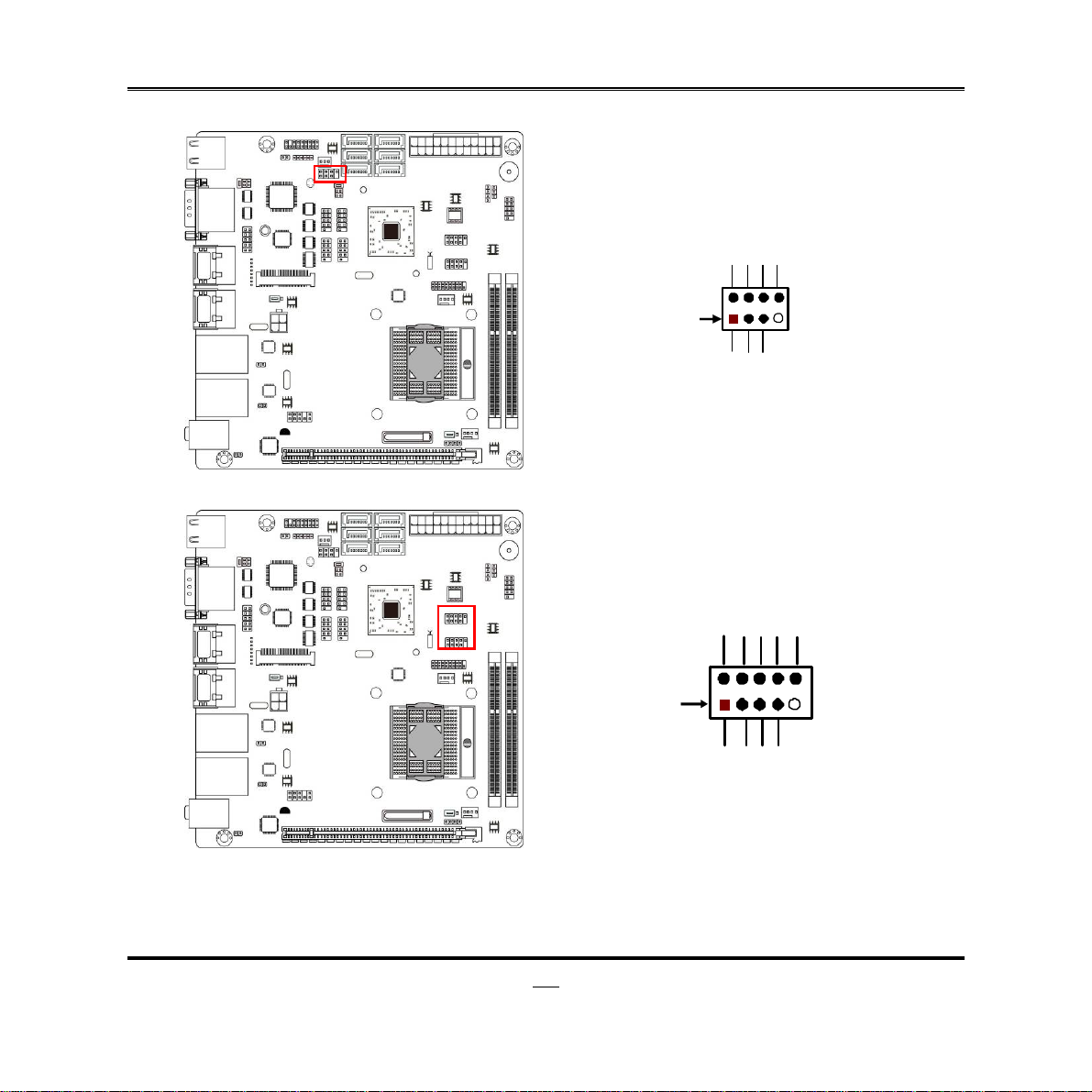

(6) SPEAK1 (4-pin): Speaker Header

This 2-pin header connects to the case-mounted speaker. See the figure below.

Pin1

SPK+

SPK-

(7) JW-FP1(9-pin): Front Panel Header

HDDLED

RESET

SPEA K1

HDDLED+ HDDLED

GND

RSTSW

Pin 1

PWRLED PWRLED- PWRBT

GND

PWRLED

PWRBTN

Page 21

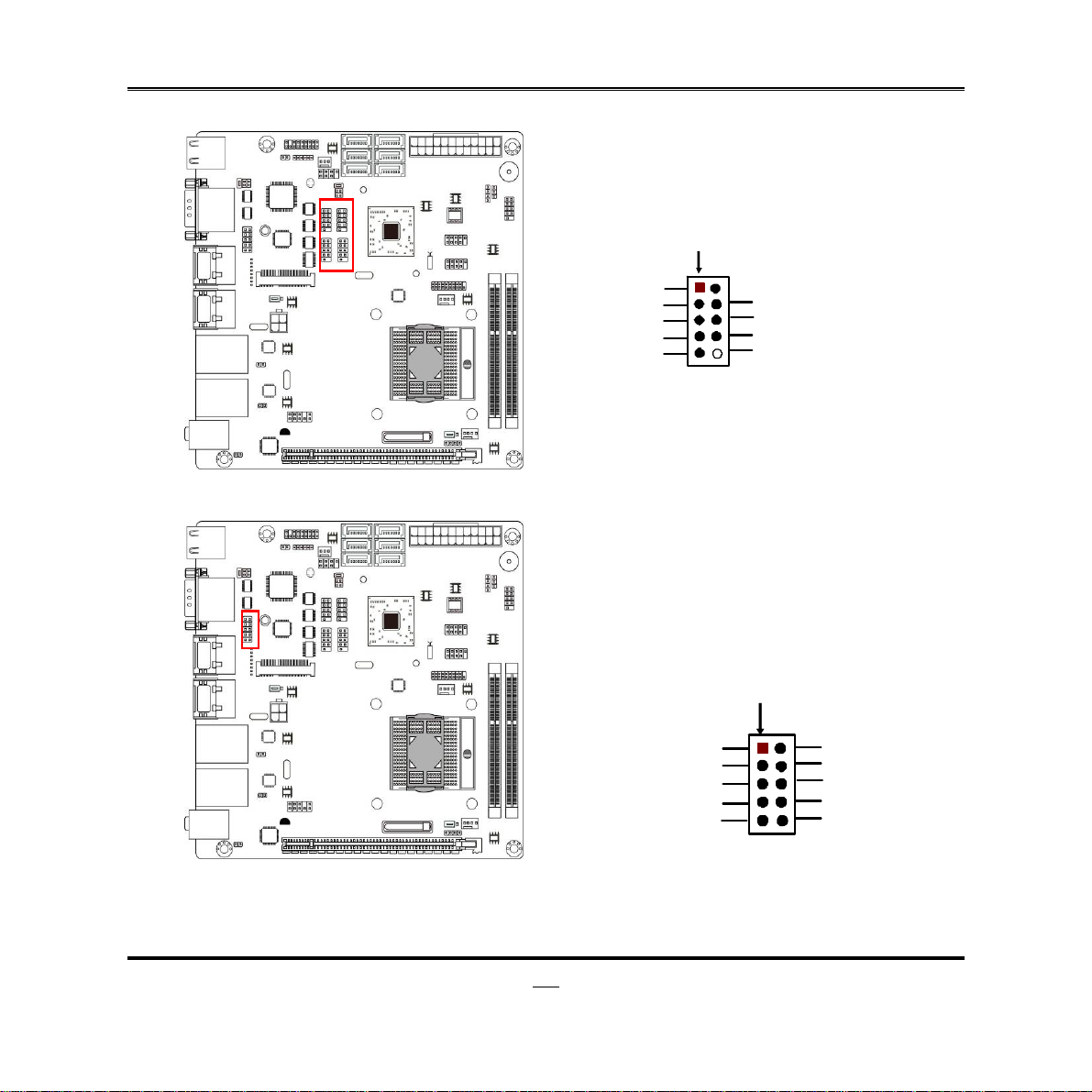

(8) COM3/COM4/COM5/COM6 (9-Pin): Serial Port Header

Pin 1

DCD

SIN

DTR

GND

(9) GPIO_CON1 (10-pin): GPIO Header

DSR RTS

CTS RI

Pin 1

GPIO-31 GPIO-33

GPIO-35 GPIO-37

VCC

GPIO-30 GPIO-32 GPIO-34

GPIO-36 GND

Page 22

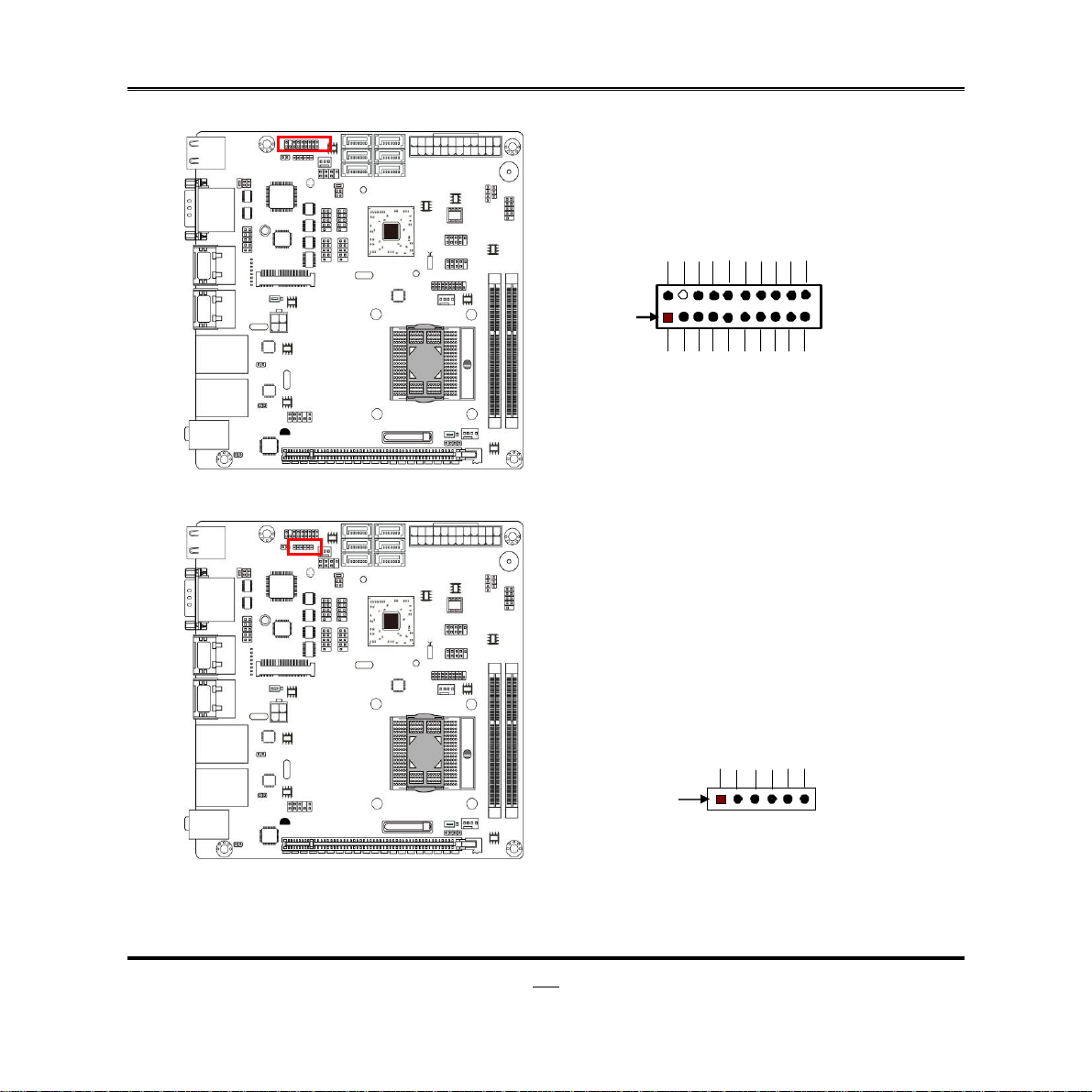

(10) TPM1 (19-pin): TPM 1.2 Header

GND

Pin 1

CLK

(11) KB_MS1 (6-pin): PS/2 Keyboard & Mouse Header

SMB_DATA

NC/GND

KEY/NC

VCC5V

LAD2

SERIRQ

LAD1

GND

GPIO LPC_PD-

LFRAME-

RESET

VCC3.3

LAD3

LAD0

SMB_CLK

SB 3.3V

GND

KB CLK

GND

MS CL

DATA

VCC

Pin1

Page 23

(12) CIR_CON (7-Pin): CIR Header

Pin 1

CIR LED

CI R _ W B

CIR RX

GND

ATX 5VSB

(13) USB1/USB2 (9-pin): USB 2.0 Port Header

+DATA

-DATA GND

-DATA

GND

+DATA

Page 24

(14) USB3 (19-pin): USB 3.0 Port Header

SSRX2+

SSTX2+

SSTX2-

SSRX2-

GND2

D2-

VBUS2

GND3

Pin 1

VBUS

GND1

SSTX1+

SSRX1-

SSRX1+

D1+

D1-

NC D2+

GND0

SSTX1-

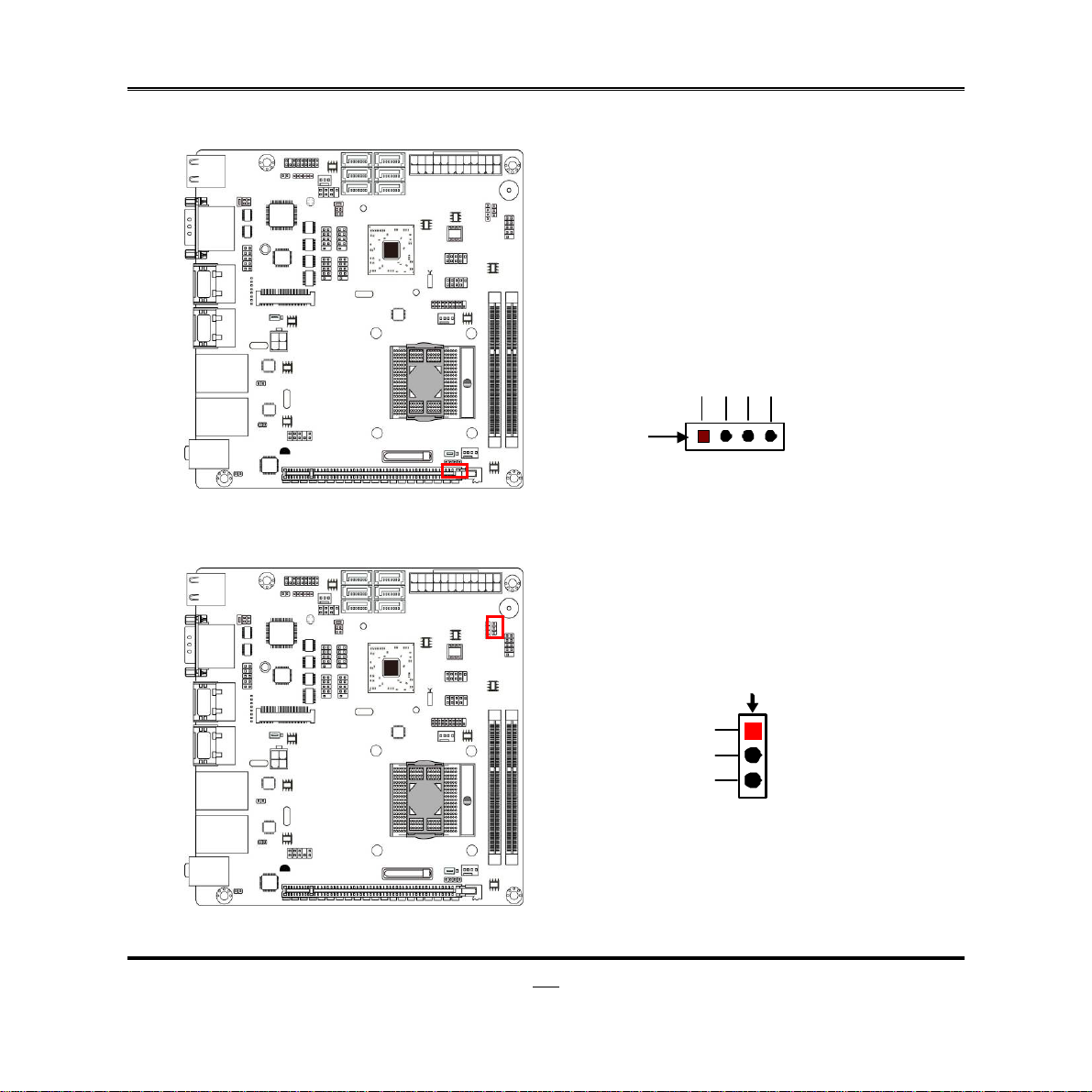

(15) CPUFAN (4-pin)/SYSFAN1 (3-pin)/SYSFAN2 (4-pin): FAN Speed Headers

Pin1

+12V Fan Powe

Fan Cloc

GND

Pin1

SYSFAN1

SYSFAN2/CPUFAN

+12V Fan Powe

Fan Cloc

Control

GND

Page 25

Chapter 3

Introducing BIOS

Notice!

The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.

The BIOS options in this manual are for reference only. Different

configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.

3-1 Entering Setup

Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to Press

<Del>

to enter Setup

Page 26

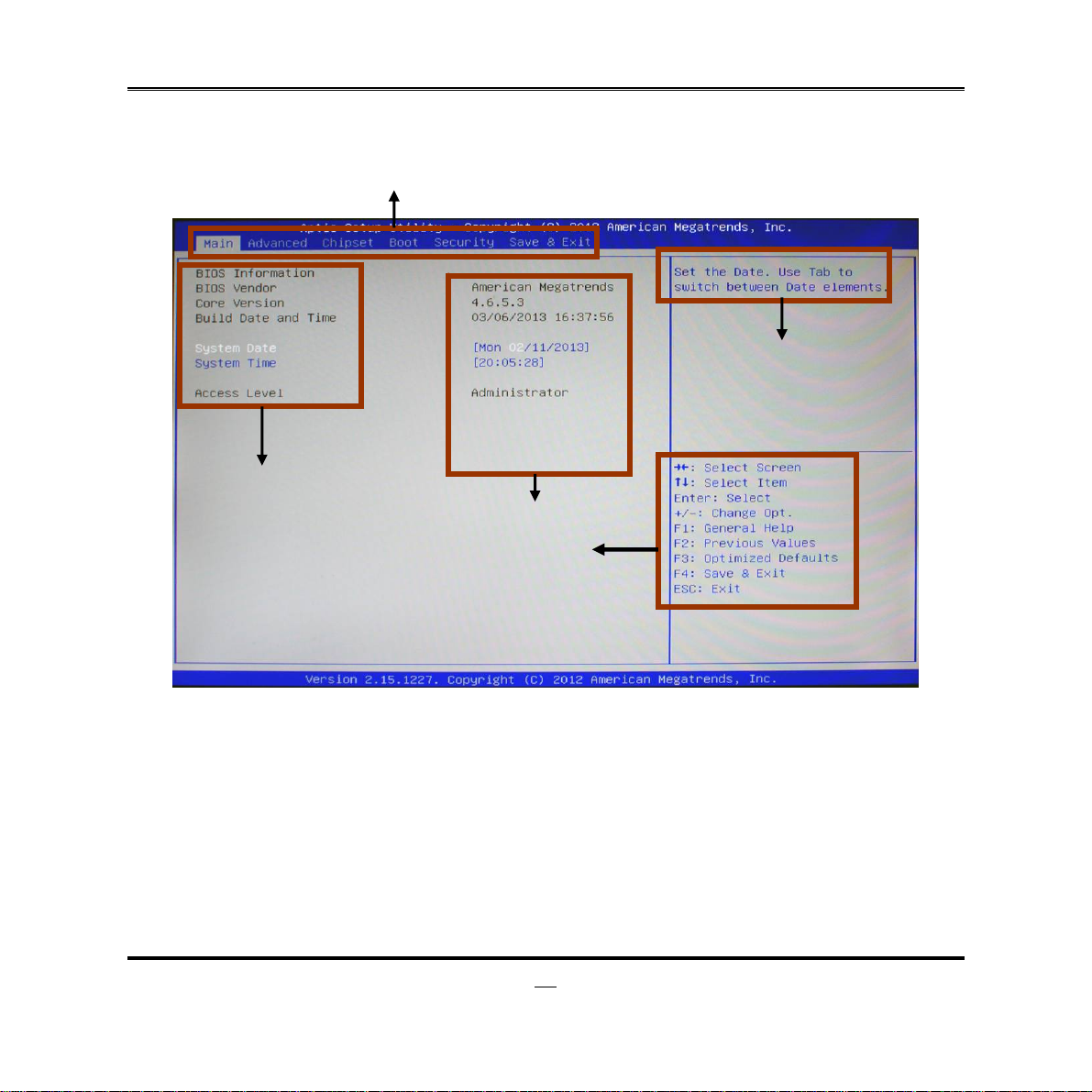

3-2 BIOS Menu Screen

The following diagram show a general BIOS menu screen:

Menu Items

Menu Bar

General Help Items

Current Setting Value

Function Keys

BIOS Menu Screen

3-3 Function Keys

In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:

Press←→ (left, right) to select screen;

Press ↑↓ (up, down) to choose, in the main menu, the option you want to confirm

or to modify.

Page 27

Press <Enter> to select.

Press <+>/<–> keys when you want to modify the BIOS parameters for the active

option.

[F1]: General help.

[F2]: Previous values.

[F3]: Optimized defaults.

[F4]: Save & Reset.

Press <Esc> to quit the BIOS Setup.

3-4 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the top right corner the screen.

Status Page Setup Menu/Option Page Setup M enu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <

Esc

3-5 Menu Bars

There are six menu bars on top of BIOS screen:

Main To change system basic configuration Advanced To change system advanced configuration Chipset To change chipset configuration Boot To change boot settings Security Password settings Save & Exit Save setting, loading and exit options.

User can press the right or left arrow key on the keyboard to switch from menu bar. The selected one is highlighted.

Page 28

3-6 Main Menu

Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item.

System Date

Set the date. Please use [Tab] to switch between data elements.

System Time

Set the time. Please use [Tab] to switch between time elements.

Page 29

3-7 Advanced Menu

Launch PXE OpROM Policy

Use this item to control the execution of UEFI and legacy PXE OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only]; [Legacy first];[UEFI first].

ERP Function

Use this item to enable or disable ERP function for this board. This item should be set as [Disabled] if you wish to have Active All Wakeup Function. The optional settings: [Auto]; [Disabled].

► PCI Express Settings

Press [Enter] to make settings for the following sub-items:

PCI Express Device Register Settings:

Relaxed Ordering

Use this item to enable or disable PCI express device relaxed ordering.

Page 30

The optional settings: [Disabled]; [Enabled].

Extended Tag

If set as [Enabled] it will allow device to use 8-bit tag field as a requester. The optional settings: [Disabled]; [Enabled].

No Snoop

Use this item to enable or disable PCI Express device No Snoop option. The optional settings: [Disabled]; [Enabled].

Maximum Payload

Use this item to set maximum payload of PCI Express device or allow system BIOS to select the value. The optional settings are: [Auto]; [128 Bytes]; [256 Bytes]; [512 Bytes]; [1024 Bytes]; [2048 Bytes]; [4096 Bytes].

Maximum Read Request

Use this item to set maximum read request size of PCI Express device or allow system BIOS to select the value. The optional settings are: [Auto]; [128 Bytes]; [256 Bytes]; [512 Bytes]; [1024 Bytes]; [2048 Bytes]; [4096 Bytes].

PCI Express Link Register Settings:

ASPM Support

Use this item to set ASPM level. The optional settings: [Disabled]; [Auto]; [Force L0s]. [Force L0s]: Force all links to L0s state. [Auto]: BIOS auto configure. [Disabled]: Disable ASPM.

Extended Synch

The optional settings: [Disabled]; [Enabled]. If set as [Enabled] it will allow generation of extended synchronization patterns.

Link Training Retry

Use this item to define number of retry attempts software will take to retrain the link if previous training attempt was unsuccessful. The optional settings are: [Disable]; [2]; [3]; [5].

Page 31

Link Training Timeout(uS)

Use this item to define number of microseconds software will wait before polling ‘Link Training’ bit in link status register. Value range from 10 to 1000 uS.

Unpopulated Links

The optional settings are: [Keep Link On]; [Disable Link]. In order to save power, software will disable unpopulated PCI Express links if this option is set as ‘Disable Link’.

► ACPI Settings

Press [Enter] to make settings for the following sub-items:

ACPI Settings:

ACPI Sleep State

Use this item to select the highest ACPI sleep state the system will enter when the suspend button is pressed. The optional settings are: [Suspend Disabled]; [S3 only(Suspend to RAM)].

Lock Legacy Resources

The optional settings: [Disabled]; [Enabled]. Use this item to enable or disable lock of legacy resources.

► Wakeup Function Settings

Press [Enter] to make settings for the following sub-items:

Wake System with Fixed Time

Use this item to enable or disable system wake on alarm event. When set as [Enabled], system will wake on the hour/min/sec specified. The optional settings: [Disabled]; [Enabled].

CIR Wakeup

Use this item to enable or disable CIR wakeup. This function is only supported when ERP function is disabled. The optional settings: [Disabled]; [Enabled].

PS2 KB/MS Wakeup

Use this item to enable or disable PS2 KB/MS wakeup function. This function is only supported when ERP function is disabled. The optional settings: [Disabled]; [Enabled].

USB S3/S4 Wakeup

Use this item to enable or disable USB S3/S4 wakeup. This function is only

Page 32

supported when ERP function is disabled. The optional settings: [Disabled]; [Enabled].

► Trusted Computing

Press [Enter] to enable or disable TPM support.

Configuration:

TPM Support

Use this item to enable or disable BIOS support for security device. O.S. will not show security device. TCG EFI protocol and INT1A interface will not be available. The optional settings: [Disabled]; [Enabled].

► CPU Configuration

Press [Enter] to make settings for the following sub-items:

PSS Support

Use this item to enable or disable the generation of ACPI_PPC, _PSS, and _PCT objects. The optional settings: [Disabled]; [Enabled].

PSTATE Adjustment

Use this item to adjust startup P-state level. The setting level ranges from [PState0] ~ [PState7].

PPC Adjustment

Use this item to adjust _PPC object. The current available setting option: [PState0].

NX Mode

Use this item to enable or disable No-execution page protection function. The optional settings: [Disabled]; [Enabled].

SVM Mode

Use this item to enable or disable CPU Virtualization. The optional settings: [Disabled]; [Enabled].

CPB Mode

Use this function to set CPB mode function. The optional settings are: [Auto]; [Disabled].

C6 Mode

Use this function to set C6 mode function. The optional settings: [Disabled]; [Enabled].

Page 33

► SATA Configuration

Press [Enter] to make settings for the following sub-items:

OnChip SATA Controller

The optional settings are: [Disabled]; [Enabled].

OnChip SATA Mode

The optional settings are: [Native IDE]; [RAID]; [Legacy IDE]; [AHCI].

► USB Configuration

Press [Enter] to make settings for the following sub-items:

Legacy USB Support

Use this function to select legacy USB support. The optional settings are: [Enabled]; [Disabled]; [Auto]. [Enabled]: enable legacy USB support. [Auto]: disable legacy USB support when no USB devices are connected. [Disabled]: keep USB devices available only for EFI applications.

USB 3.0 Support

Use this item to enable or disable USB3.0 (XHCI) controller support. The optional settings are: [Disabled]; [Enabled].

XHCI Hand-off

This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. The optional settings are: Enabled]; [Disabled].

EHCI Hand-off

This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. The optional settings are: [Disabled]; [Enabled].

USB hardware delay and time-out:

USB Transfer time-out

Use this item to set the time-out value for control, bulk, and interrupt transfers. The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].

Device reset time-out

Use this item to set USB mass storage device start unit command time-out. The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].

Page 34

Device power-up delay

Use this item to set maximum time the device will take before it properly reports itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for a hub port the delay is taken from hub descriptor. The optional settings: [Auto]; [Manual]. Select [Manual] you can set value for the following sub-item: Device Power-up delay in seconds, the delay range in from 1 to 40 seconds, in one second increments.

► Acoustic Management Configuration

Menu for configuring Automatic Acoustic Management. Press [Enter] to enable or disable Automatic Acoustic Management.

Automatic Acoustic Management

The optional settings are: [Enabled]; [Disabled].

► Second Super IO Configuration

Press [Enter] to make settings for the following sub-items:

► COM3 Port Configuration /COM4 Port Configuration / COM5 Port

Configuration /COM6 Port Configuration

Serial Port

Use this item to enable or Disable serial port.

Change Settings

Use this item to select an optimal setting for super IO device.

Select RS232/RS422/RS485

Use this item to select serial port RS232/RS422/RS485 mode. The optional settings are: [RS422]; [RS232];[RS485].

Mode Speed Select

Use this item to select serial port RS232/RS422/RS485 speed. The optional settings are: [RS232/RS422/RS485=250Kbsp]; [RS232=1Mbsp, RS422/RS485=10Mbsp].

*Note: Select RS232/RS422/RS485 and Mode Speed Select options are only optional for COM6 port.

► Super I/O Configuration

Press [Enter] to make settings for the following sub-items:

Page 35

Super IO Configuration

► COM1 Port Configuration/ COM2 Port Configuration

Press [Enter] to make settings for the following items: Serial Port

Use this item to enable or disable serial port.

Change Settings

Use this item to select an optimal setting for super IO device.

CIR Controller

Use this item to enable or disable CIR controller. The optional settings are: [Enabled]; [Disabled].

Case Open Detect

Use this item to detect case has already open or not, show message in POST. The optional settings are: [Enabled]; [Disabled].

► PC Health Status

Press [Enter] to view hardware health status.

► Voltage Configuration

Use this item to choose the Voltage Parameters.

DRAM Voltage

The optional settings are: [1.50V]; [1.55V]; [1.60 V]; [1.65 V].

► WatchDog Configuration

Press [Enter] to make settings for Watchdog Configuration:

Watchdog Configuration:

WatchDog Timer Control

Use this item to enable or disable WatchDog Timer Control. When set as [Enabled], the following sub-items shall appear:

WatchDog Timer Val

User can set a value in the range of 4 to 255.

WatchDog Timer Unit

The optional settings are: [Second];[Minute].

► Shutdown Temperature Configuration

Use this item to select system shutdown temperature.

Page 36

The optional settings are:[Disabled]; [60C/140F]; [65C/149F]; [70C/158F]; [75C/167F].

► SmartFan Configuration

Press [Enter] to make settings for SmartFan Configuration:

CPU 3/4 Pin Fan Select / SYSFAN2 3/4 Pin Fan Select

The optional settings are: [3 Pin]; [4 Pin].

CPUFAN / SYSFAN1/ SYSFAN2 Smart Mode

When set as [Enabled], the following sub-items shall appear:

CPUFAN / SYSFAN1/ SYSFAN2 Full Speed Temp

Use this item to set CPUFAN/SYSFAN1/SYSFAN2 full speed temp. Fan will run at full speed when above this temperature.

CPUFAN / SYSFAN1/ SYSFAN2 Idle Temp

Use this item to set CPUFAN/SYSFAN1/SYSFAN2 idle speed temperature. Fan will run at idle speed when below this temperature.

SYSFAN1/ SYSFAN2 Stop Temp

Use this item to set SYSFAN1/SYSFAN2 stop temp. Fan will stop when below this temperature.

Page 37

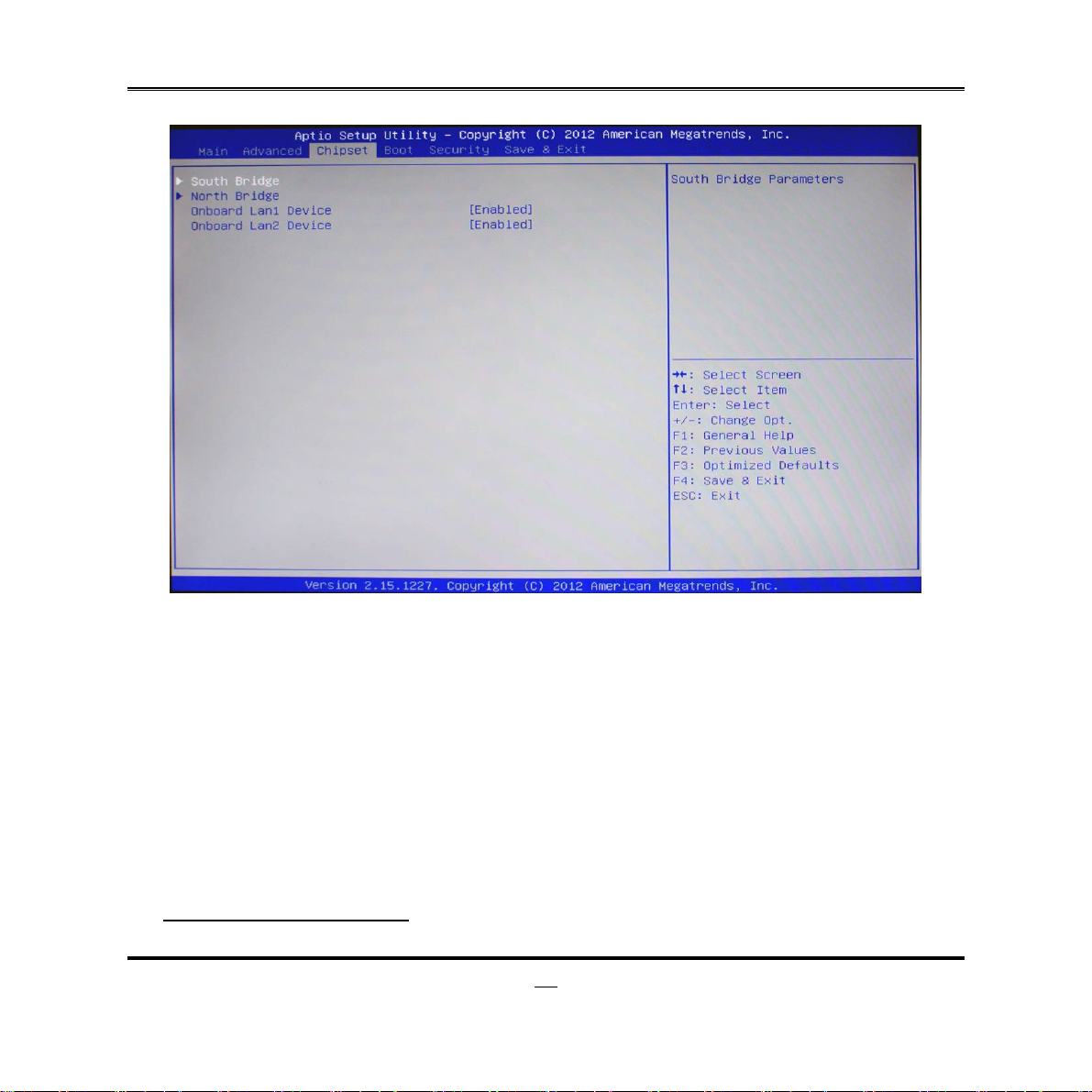

3-8 Chipset Menu

► South Bridge

Press [Enter] to make settings for the following sub-items:

HD Audio Device

The optional settings are: [Auto]; [Disabled]; [Enabled].

USB Controller

The optional settings are: [Enabled]; [Disabled].

Restore AC Power Loss

Use this item to select AC power state when power is re-applied after a power failure. The optional settings are: [Disabled]; [Power On]; [Last State].

► North Bridge

Press [Enter] to make settings for the following sub-items:

Graphics Configuration

Primary Video Device

Page 38

Use this item to select primary video device that BIOS will use to for output. The optional settings are: [Internal VGA]; [External VGA].

Integrated Graphics

Use this item to select integrated graphics controller. The optional settings are: [Auto]; [Disabled]; [Force].

PSPP Policy

Use this item to select PCIE speed power policy. The optional settings are: [Disabled]; [Performance]; [Balanced-High]; [Balanced-Low]; [Power-Saving].

Memory Clock

Use this item to select memory clock. The optional settings are: [Auto]; [800MHz]; [1066MHz]; [1333MHz]].

Memory Hole Remapping

The optional settings are: [Enabled]; [Disabled].

Bank Interleaving

The optional settings are: [Enabled]; [Disabled].

Channel Interleaving

The optional settings are: [Enabled]; [Disabled].

Memory Clear

The optional settings are: [Enabled]; [Disabled].

Onboard Lan1 Device

Use this item to enable or disable onboard LAN1 device. The optional settings are: [Enabled]; [Disabled].

Onboard Lan2 Device

Use this item to enable or disable onboard LAN2 device. The optional settings are: [Enabled]; [Disabled].

Page 39

3-9 Boot Menu

Boot Configuration

Setup Prompt Timeout

Use this item to set number of seconds to wait for setup activation key.

Bootup Numlock State

Use this item to select keyboard numlock state. The optional settings are: [On]; [Off].

Quiet Boot

The optional settings are: [Enabled]; [Disabled].

Boot Option Priorities:

Boot Option #1/ Boot Option #2…

Use this item to decide system boot order from available options.

► CSM16 Configuration

Press [Enter] to make settings for CSM16 configuration:

Page 40

Gate A20 Active

The optional settings are: [Upon Request]; [Always]. [Upon Request]: GA20 can be disabled during using BIOS services. [Always]: do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

Option ROM Message

Use this item to set display mode for option ROM. The optional settings are: [Force BIOS]; [Keep Current].

INT19 Trap Response

The optional settings are: [Immediate]; [Postponed].

[Immediate]: to execute the trap right away; [Postponed]: to execute the trap during legacy boot.

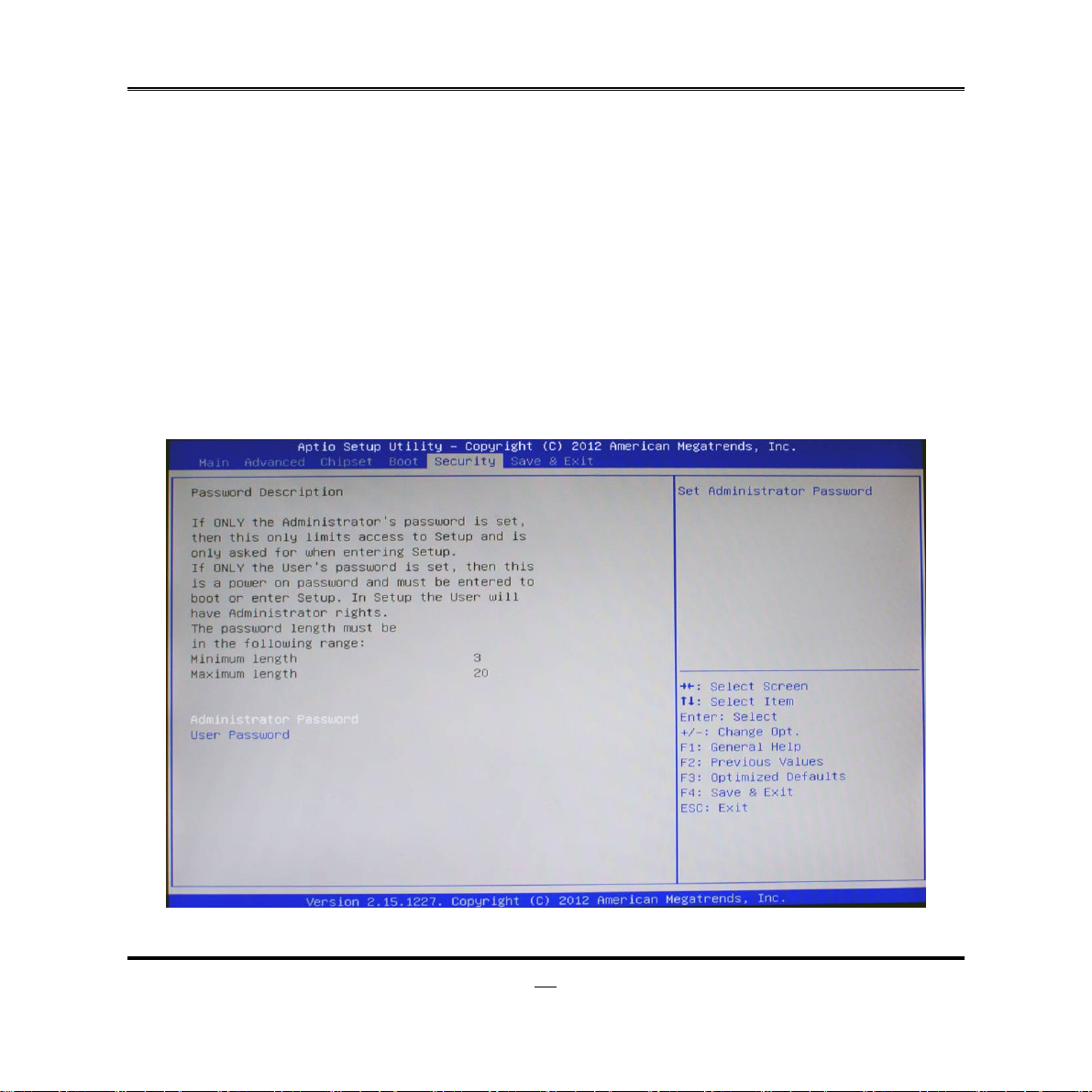

3-10 Security Menu

Security menu allow users to change administrator password and user password

Page 41

settings.

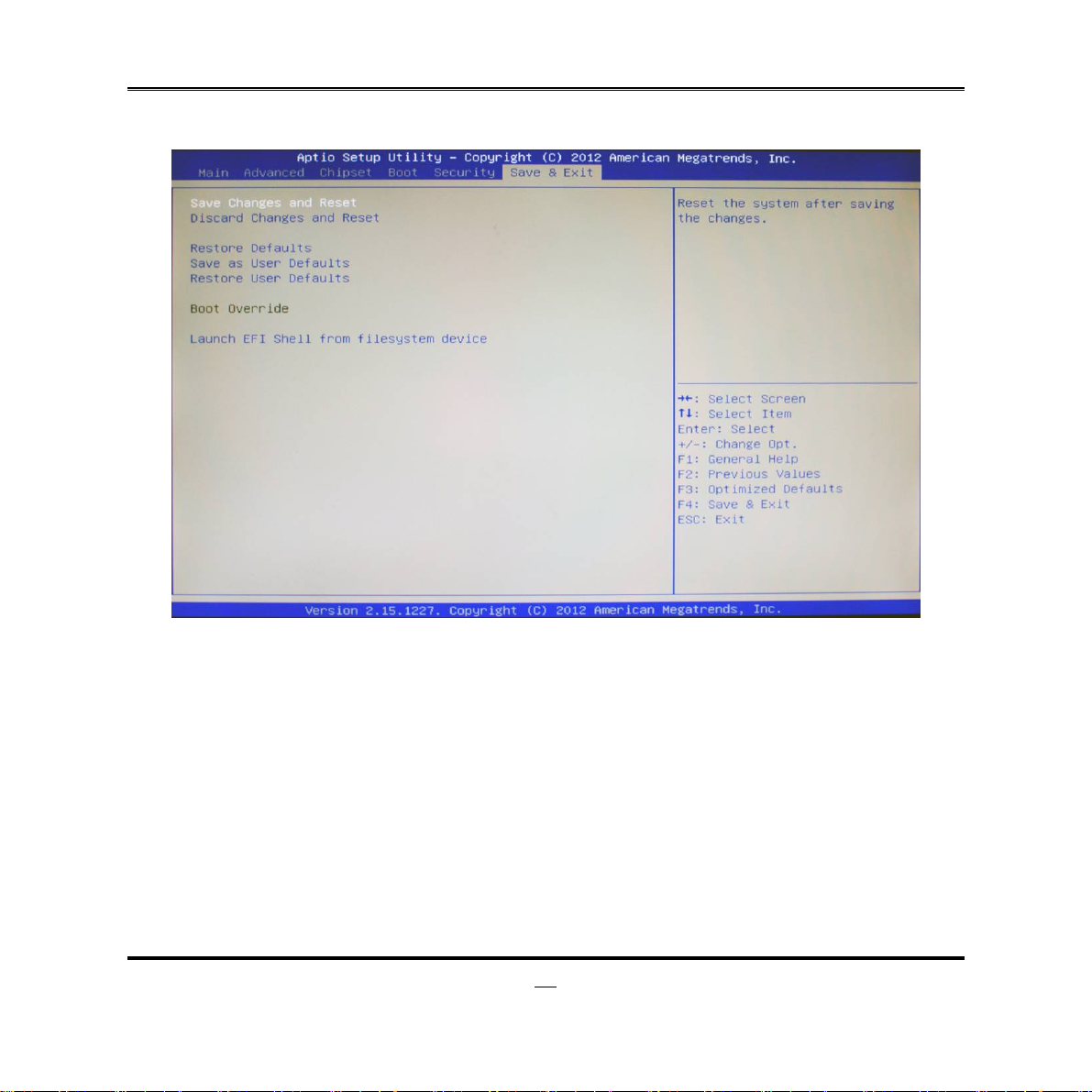

3-11 Save & Exit Menu

Save Changes and Reset

This item allows user to reset the system after saving the changes.

Discard Changes and Reset

This item allows user to reset the system without saving any changes.

Restore Defaults

Use this item to restore /load default values for all the setup options.

Save as User Defaults

Use this item to save the changes done so far as user defaults.

Restore User Defaults

Use this item to restore defaults to all the setup options.

Launch EFI Shell from file system device

This item is for attempts to launch EFI shell application (Shell x64.efi) from one of the available filesystem devices.
