Jetway Computer NF77 User Manual

TECHNICAL MANUAL
Of

VIA VX800

Based

Mini-ITX M/B For VIA C7/Eden/Nano
Processor

NO.G03-NF77-F

Rev.2.0

Release date: December, 2008

Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.
ii
TABLE OF CONTENT
USER’S NOTICE.................................................................................................................................. iv
MANUAL REVISION INFORMATION............................................................................................ iv
ITEM CHECKLIST.............................................................................................................................. iv
CHAPTER 1 INTRODUCTION OF MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD..............................................................................……1
1-2 SPECIFICATION.................................................................................................................. 2
1-3 LAYOUT DIAGRAM & JUMPER SETTING................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING..............................................................................................................7
2-2 CONNECTORS AND HEADERS ....................................................................................... 10
2-2-1 CONNECTORS....................................................................................................... 10
2-2-2 HEADERS ............................................................................................................... 10
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP..............................................................................................................16
3-2 GETTING HELP................................................................................................................... 16
3-3 THE MAIN MENU................................................................................................................ 16
3-4 STANDARD BIOS FEATURES........................................................................................... 18
3-5 ADVANCED BIOS FEATURES.......................................................................................... 20
3-5-1 CPU FEATURE....................................................................................................... 23
3-6 ADVANCED CHIPSET FEATURES.................................................................................. 23
3-6-1 DRAM TIMING SETTINGS ................................................................................. 24
3-6-2 VGA TIMING SETTINGS..................................................................................... 25
3-6-3 PCI TIMING SETTINGS....................................................................................... 25
3-7 INTEGRATED PERIPHERALS.........................................................................................26
3-7-1 ONBOARD IDE FUNCTION................................................................................. 26
3-7-2 ONBOARD DEVICE FUNCTIONS...................................................................... 27
3-7-3 ONBOARD SUPERIO FUNCTIONS.................................................................... 28
3-7-4 USB DEVICE SETTINGS...................................................................................... 30
3-8 POWER MANAGERMENT SETUP................................................................................... 31
3-9 PNP/PCI CONFIGURATION.............................................................................................. 32
3-10 PC HEALTH STATUS.......................................................................................................... 33
3-11 MISCELLANEOUS CONTROL......................................................................................... 34
iii
3-12 PASSWORD SETTING........................................................................................................ 35
3-13 LOAD STANDARD/OPTIMIZED DEFAULTS................................................................ 36
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE VIA VX800 CHIPSET MOTHER-BOARD SERIES AND WE DO ASSURE THIS MANUAL MEETS USER’ S R EQ UI RE ME NT BU T WI LL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
2.0 Second Edition December, 2008
Item Checklist
5
Motherboard
5
Cable(s)
5
CD for motherboard utilities
5
Motherboard User’s Manual
5
I/O Back panel Shield
iv

Chapter 1

Introduction of the Motherboard

1-1 Feature of motherboard

*
VIA VX800 chipset.
*
Onboard optional C7/Eden/Nano CPU, with low power consumption and never denies high performance.
*
Support optional FSB 400/533 /800MHz.
*
Support DDRII 400/533/667 up to 2GB.
*
Onboard REALTEK RTL 8111C Gigabit Ethernet LAN.
*
Integrated VIA 1708 B 6-channel HD audio CODEC
*
Support USB2.0 data transport demands.
1

1-2 Specification

Spec
Design Chipset
Embedded CPU
Memory Socket
Expansion Slots
Integrate IDE
LAN
Audio
BIOS Multi I/O
Description
Mini ITX form factor 4 layers PCB size: 17.0x17.0cm VIA VX800 Chipset Optional VIA C7 /Eden/Nano seriesCPU
240-pin DDRII DIMM socket x1 Support DDRII 400/533/667MHz system Modules DDR memoryExpandable to 2GB.
32-bit PCI slot x 1pcs One PCI IDE controller that supports PCI Bus Mastering, ATA
PIO/DMA and the ULTRA DMA 133/100/66 functions that deliver the data transfer rate up to 133 MB/s;
Integrated Realtek RTL8111C PCI-E LAN chip. Support Fast Ethernet LAN function of providing
10Mb/100Mb/1000Mb Ethernet data transfer rate
VIA 1708B 6-channel Audio Codec integrated Audio driver and utility included
Award 4MB Flash ROM PS/2 keyboard and PS/2 mouse connectors Serial port connector x1/Parallel connector x1 VGA connectorx1 USB2.0 port x 4 RJ45 LAN connector x1 Audio connector x1 (Line-in, Line-out, MIC/ 6CH Audio) LVDS inverter connector x1 LCD header x1 COM header x 3
2
IR header x1 Wi-Fi header x1 Audio header x 1/ CDIN header x1 Front Panel header x1 Hard disk drive connector x1 SATAII connector x2

1-3 Layout Diagram

Parallel Port
Connector
PS/2 Mouse
PS/2 Keyboard
Serial Port Connector
VGA
Connector
USB
USB
Connector
Connector
RJ45 LAN
Line-In
Line-Out
MIC-IN
USB
Connector
3
r
r
r
r
r
g
r
r
Keyboard/ USB Power (JP2)
ATX Power Connector
PS2 KB/Mouse Port
Parallel Port Connector
Serial Port Connector &
VGA connecto
over
SYS FAN1
USB Port Connector
RealtekRTL8111C Gi
abit Lan
RJ-45 over USB
Connecto
Audio Connector
CD Audio-In
Header
VIA 1708B
Serial Port
Heade
IR Connecto
JP8
LVDS Inverter
JP3
CPU FAN
JP4
Serial Port Headers
JP5
LVDS Heade
VIA C7/Eden/Nano
Series CPU
VIA VX800
Speaker connecto
Power LED
DDRII Socket x1
IDE Connecto
JBAT
Front Panel Audio
Wi-Fi Header
PCI Slot
Front Panel Header
4

Jumper

Jumper Name Description Page
JP2
KB/USB Power On Function Setting 3-pin Block P.7
JBAT CMOS RAM Clear Function Setting 3-pin Block P.7 JP3 USB Power On Function Setting 3-pin Block P.8 JP4 LVDS Voltage 5V/3.3V Select 3-pin Block P.8 JP5 LVDS Inverter Power On Setting 3-pin Block P.9 JP8 Power RS232 Function Select 6-pin Block P.9

Connectors

Connector Name Description Page
PS2KBMS1 Keyboard & Mouse Connector 6-pin Female Connector p.10 COM1 Serial Port Connector 9-pin Connector p.10 VGA Video Graphic Attach Connector D-sub 15-pin Female p.10 PARALLEL Parallel Port Connector 25-Pin Connector p.10 USB1,USB2 USB Port Connector 4-pin Connector p.10 RJ-45 from UL2 RJ-45 LAN Connector 8-pin Connector p.10 AUDIO1 Line-Out /MIC/Line-In Audio Connector 3 Phone Jack p.10 IDE1 IDE Hard Disk Drive Connector 40-pin IDE Block SATA1,2 Serial ATA Connectors 7-pin Connector
5

Headers

Header Name Description Page
AUDIO Front panel audio Headers 9-pin block P.11 CDIN CD Audio-In Header 4-pin Block P.12 COM 2,3,4 WI-FI Wi-Fi Header 11-pin Block P.13 LCD LVDS Connector 32-pin Block P.13 Inverter LVDS Inverter Connector 7-pin Block P.14 IR IR infrared module Headers 5-pin Block P.15
SPEAK Speaker Header 3-pin Block P.15 PWR LED Power LED 4-pin Block P.16 JW_FP
(PWR LED/ IDE LED/ /Power Button /Reset) SFAN1, SFAN2,CPU FAN
Serial Port COM1 Connector 9-pin Block p.12
Front Panel Header (PWR LED/ IDE LED/ /Power Button
/Reset)
FAN Headers 3-pin Block P.16
9-pin Block P.16
6

Chapter 2

2-1 Jumper Setting

(1) JP2: KB/USB Power On Function Setting
1-2 K.B&USBPOWER-ON Dis acled (defa ult)
(2) JBAT : Clear CMOS (3-pin)
13
JP2
JBAT
1-2 closed Normal
JP2
2-3 K.B& USB POWER-ON Enabled
1
3
JBAT
2-3 closed Clear CMOS
CMOS RAM Clear Setting
1 3
1
3
7
(3) JP3: USB Power On Function Setting (3-pin)
1-2 USB Power-on Disacled(default)
(4) JP4: LVDS VDD setting (3-pin)
13
JP3
2-3 USB Power-on Enabled
13 1 3
JP4
1-2 closed: 5V
LVDS VDD setting
JP4
2-3 closed : 3.3V
1 3
JP3
8
(5) JP5: LVDS Inverter Backlight Setting (3-pin)
JP5
JP5
1
3
1-2 closed: Off
LVDS Inverter Backlight Setting
2-3 closed : On
1
3
(6) JP8: Powered RS232 Function Select
JP8
1-2 closed: RS232
1
3-4 closed : +12V
11
5-6 closed : +5V
9

2-2 Connectors and Headers

2-2-1 Connectors

(1) I/O Back Panel Connector

RJ45 LAN
Parallel Port
Connector
PS/2 Keyboard
PS/2 Mouse
Line-In
Line-Out
MIC-IN

2-2-2 Headers

(1) Front panel audio header (9-pin): AUDIO
10
Serial Port
Connector
VGA
Connector
AUDIO
Pin 1
Line-Out, MIC Headers
USB
Connector
Audio-GND
Audio-JD
2
MIC2-L
USB
Connector
KEY
MIC2-JD
LINE2-JD
10
9
MIC2-R
Sense-FB
Lineout2-L
Lineout2-R
(2) CD AUDIO-In Headers (4-pin): CDIN
1
4
CD-L GND
GND
CD-R
CD Audio-In Headers
(3) COM Connectors (9-pin): COM2/COM3/COM4
Pin1
DCD RXD
TXD DTR
GND
Serial Port 9-pin Block
DSR RTS GTS
RI

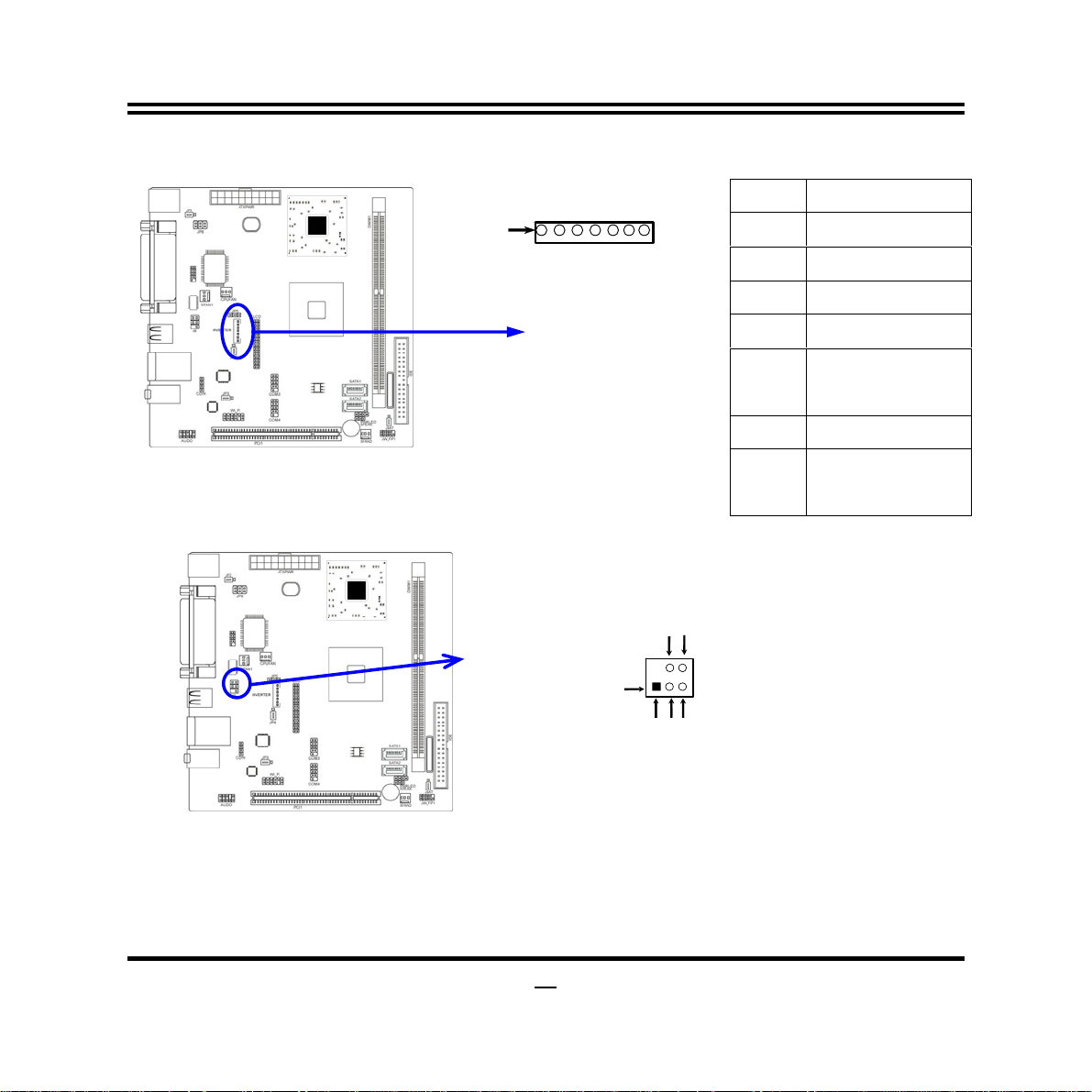

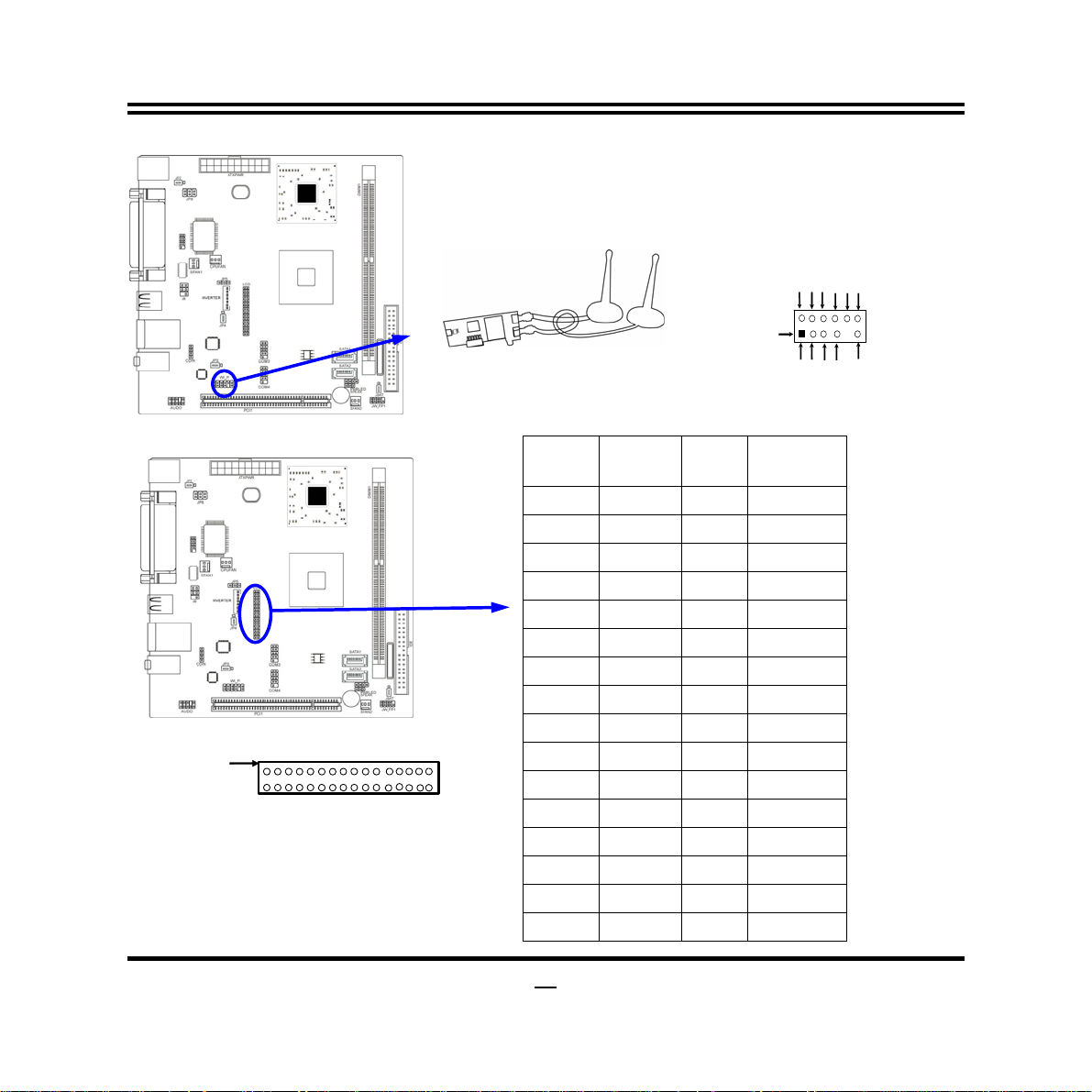

(4)Wi-Fi header: WI-FI

This header supports WI-FI Function. Connect the wireless local area network adapter to this header. It allows you to create a wireless environment and enjoy the convenience of wireless network connectivity.

11
Pin NO.
WI -FI
USB+5
D1-
D1+
2
Pin 1
D0-
USB+5
WI-FI Headers
Pin Define
D0+
GND
GND
N.C
+3.3V
12 11
N.C

(5)LVDS Headers: LCD

CN1
LVDS Headers
Pin NO. Pin
Define Pin 1 R2IN3- Pin 2 R2IN3+ Pin 3 CK2IN- Pin 4 CK2IN+ Pin 5 R2IN2- Pin 6 R2IN2+ Pin 7 R2IN1- Pin 8 R2IN1+ Pin 9 R2IN0- Pin 10 R2IN0+ Pin 11 GND Pin 12 GND Pin 13 GND Pin 14 GND Pin 15 GND Pin 16 GND Pin 17 R1IN3+ Pin 18 R1IN3­Pin 19 CK1IN+ Pin 20 CK1IN­Pin 21 R1IN2+ Pin 22 R1IN2­Pin 23 R1IN1+ Pin 24 R1IN1­Pin 25 R1IN0+ Pin 26 R1IN0­Pin 27 VDD Pin 28 VDD Pin 29 VDD Pin 30 VDD Pin 31 GND Pin 32 GND
12
(6)Pin-headers of LVDS Inverter: INVERTER
PIN No. Symbol
Pin 1
LVDS Inverter
1 +12VIN 2 +12VIN 3 GND 4 GND 5 LVDS Panel backlight
enable

(7) IR infrared module Headers (5-pin): IR

6 GND 7 Panel backlight
IR
Pin 1
GND
IRRX
2
6 5
NC
+5V
IRTX
IR infrared module Header
brightness control
13

(8) Speaker Header & Power Led Header(9-pin): SPEAK/ PWRLED

PWRLED
Pin 1
SPEAK
Pin 1
NC
GND
VCC5
SPKR
SPEAK & PWRLED Header

(9) Front Panel Header9-pin: JW_FP

PWRBTN
PWR LED
14
GND
VCC5
PWRLED
JW FP
Pin 1
Front Panel Headers
PWRBTN
NC
GND
VCC5
HDDLE
RSTSW
RESET
HDLED

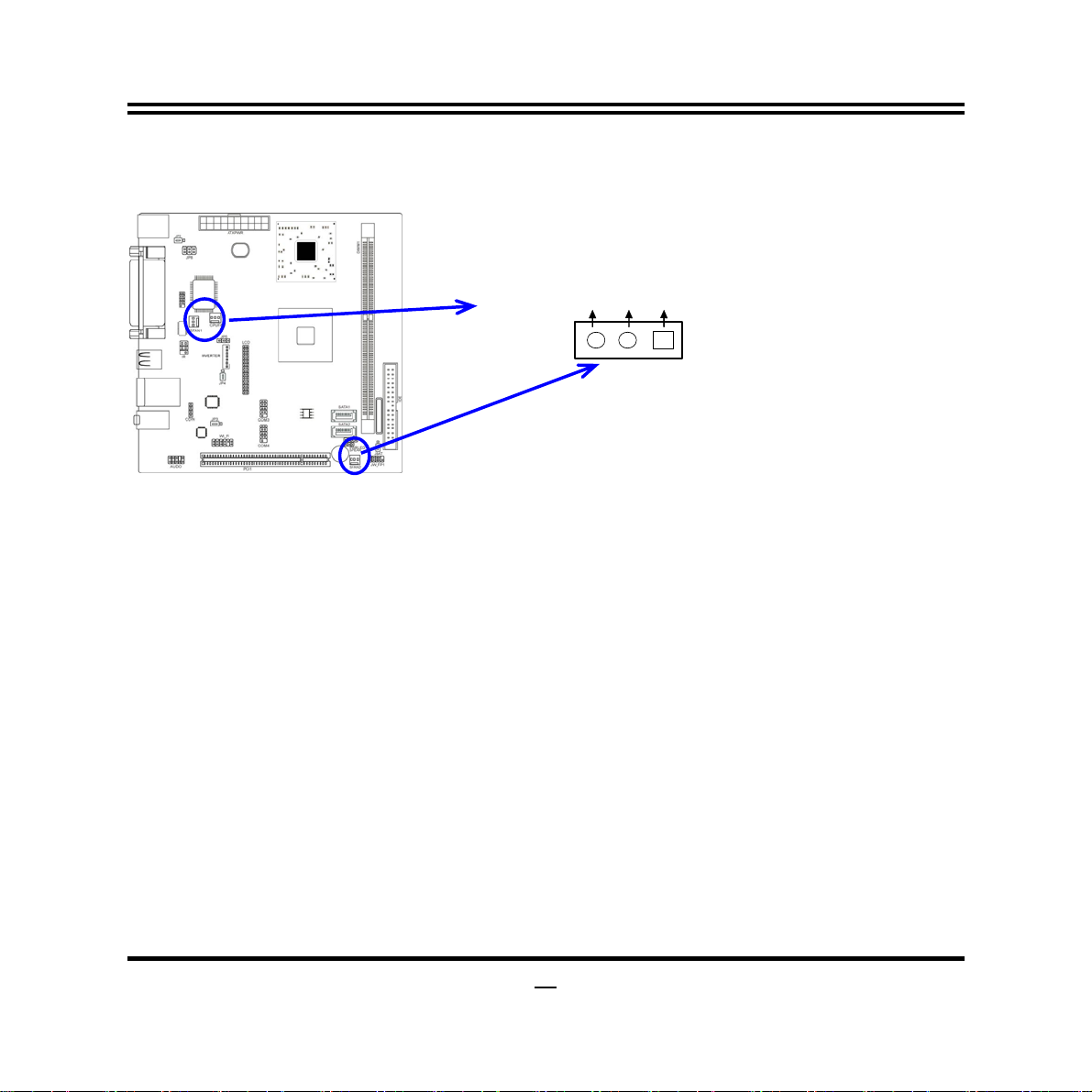

(10) FAN Speed Headers (3-pin): CPUFAN, SFAN1/SFAN2
+12v
Fan
Fan
power
clock
GND
3
Fan Headers
1

Chapter 3

Introducing BIOS
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an aut o - di a gnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.
In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:
• Press <Esc> to quit the BIOS Setup.
15
• Press ↑↓←→ (up, down, left, right) to choose, in the main menu, the option you want
to confirm or to modify.
• Press <F10> when you have completed the setup of BIOS parameters to save these
parameters and to exit the BIOS Setup menu.
• Press Page Up/Page Down or +/– keys when you want to modify the BIOS parameters
for the active option.

3-1 Entering Setup

Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to
Press <F1> to continue, or <Del> to enter Setup

3-2 Getting Help

Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen.
Status Page Setup Menu/Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.

3-3 The Main Menu

Once you enter Award® BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two
16
exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
Phoenix – AwardBIOS CMOS Setup Utility
Standard CMOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PnP/PCI Configurations PC Health Status
Esc : Quit
F10 : Save & Exit Setup
Figure 3-1
Miscellaneous Control
Load Optimized Defaults Load standard Defaults Set Supervisor Password Set User Password
Save & Exit Setup Exit Without Saving
↑↓→←
: Select Item
Standard CMOS Features
Use this Menu for basic system configurations.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system’s performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
17
PnP/PCI Configuration
Use this menu to specify your settings for PnP and PCI configurations.
PC Health Status
This entry shows your PC health status.
Miscellaneous Control
Use this menu to specify your settings for Miscellaneous Control.
Load Optimized Defaults
Use this menu to load the BIOS default values these are setting for opt i m a l p e r f o r m a n c e s s y s t e m operations for performance use.
Load Standard Defaults
Use this menu to load the BIOS default values for the minimal/stable performance system operation
Set Supervisor Password
Use this menu to set supervisor password.
Set User Password
Use this menu to set user password.
Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.

3-4 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
18
Phoenix – AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy) Wed, Aug13, 2008
Time (hh:mm:ss) 16 : 48 : 35 > IDE Channel0 Master None > IDE Channel0 Slave None
> IDE Channel 1 Master None
> IDE Channel 1 Slave None
Video EGA/VGA Halt On All, But keyboard
Base Memory 1664k Extended Memory 392192k Total Memory 393216k
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >
Change the day, month, year and century
Item Help
Date
The date format is <day><month><date><year>.
Day of the week is from Sun to Sat, determined by BIOS. Read-only.
Day Month Date Year
The month is from Jan. through Dec.
The date from 1 to 31 can be keyed by numeric function keys.
The year depends on the year of the BIOS.
Time
The time format is <hour><minute><second>.
IDE Channel 0/1 Master/Slave
Press Enter and then PgUp/<+> or PgDn/<–> to select Manual, None, Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If the type of hard disk drives is not matched or listed, you can use Manual to define your own drive type manually. If you select Manual, related information is asked to be entered to the following items. Enter the information directly from the keyboard. This information should be provided in the documentation from your hard disk vendor or the system manufacturer. If the controller of HDD interface is SCSI, the selection shall be “None”.
19
If the controller of HDD interface is CD-ROM, the selection shall be “None”
Access Mode Cylinder Head Precomp Landing Zone Sector
number of sectors
The settings are CHS, LBA, Large and Auto.
number of cylinders
number of heads
write precomp
landing zone

3-5 Advanced BIOS Features

Phoenix – AwardBIOS CMOS Setup Utility
Advanced BIOS Features
CPU Feature Press Enter
Hard Disk Boot Priority Press Enter
Virus Warning Disabled CPU L1&L2 Cache Enabled CPU L2 Cache ECC Checking Enabled
Quick power on self Test Enabled
First Boot Device CDROM
Second Boot Device HARD DISK Third Boot Device LS120 Boot other Device Enabled Boot Up NumLock Status On Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250 Security Option Setup MPS Version Control For OS 1.4 OS Select For DRAM > 64MB Non-OS2 HDD S.M.A.R.T. Capability Disabled Video BIOS Shadow Enabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >
Hard Disk Boot Priority
The selection is for you to choose the hard disk drives priorities to boot from.
Item Help
20
Virus Warning
The selection Allow you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.
Disabled
(default) No warning message to appear when anything attempts to access the
boot sector or hard disk partition table.
Enabled
Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.
CPU L1&L2 Cache
The default value is Enabled.
Enabled Disabled
(default) Enable cache
Disable cache
Note: The internal cache is built in the processor.
Quick Power On Self-Test
This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled, BIOS will shorten or skip some check items during POST.
Enabled Disabled
(default) Enable quick POST
Normal POST
First/Second/Third Boot Device
The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The optional settings are LS120, Hard disk, CDROM, ZIP100, USB-FDD, USB-ZIP, USB-CDROM, Legacy LAN and Disabled.
Boot Up NumLock Status
The default value is On.
(default)
On Off
Keypad is numeric keys.
Keypad is arrow keys.
Typematic Rate Setting
Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The settings are: Enabled/Disabled.
Typematic Rate (Chars/Sec)
21
Sets the number of times a second to repeat a keystroke when you hold the key down. The settings are: 6, 8, 10, 12, 15, 20, 24, and 30.
Typematic Delay (Msec)
Sets the delay time after the key is held down before beginning to repeat the keystroke. The settings are 250, 500, 750, and 1000.
Security Option
This category allows you to limit access to the system and Setup, or just to Setup.
System
The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.
Setup
(default) The system will boot, but access to Setup will be denied if the correct
password is not entered prompt.
MPS Version Control for OS 1.4
This option is only valid for multiprocessor motherboards as it specifies the version of the Multiprocessor Specification (MPS) that the motherboard will use.
OS Select for DRAM > 64MB
Allows OS2® to be used with >64MB or DRAM. Settings are Non-OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running OS/2®.
HDD S.M.A.R.T Capability
This option allow you to enable the HDD S.M.A.R.T Capability (Self-Monitoring, Analysis and Reporting Technology) . You can choose from Enabled and Disabled.
22

3-5-1 CPU Features

Phoenix – AwardBIOS CMOS Setup Utility
CPU Features
Thermal Management Thermal Monitor 2 Thermal Monitor Bus Ratio 8x Thermal Monitor Bus VID 1.084V
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Thermal Management
Thermal monitor 1 (on die throttling) Thermal monitor 2 (Ratio&VID transition)
Menu Level >
Item Help

3-6 Advanced Chipset Features

The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.
Phoenix – AwardBIOS CMOS Setup Utility
Advanced Chipset Features
DRAM Timing Settings Press Enter VGA Timing Settings Press Enter PCI Timing Settings Press Enter
Memory Hole Disabled System BIOS Cacheable Enabled Video RAM Cacheable Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >
Item Help
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.
23

3-6-1 DRAM Timing Settings

Phoenix – AwardBIOS CMOS Setup Utility
DRAM Timing Settings
Auto Configuration By SPD * DRAM CAS Latency (TCL) SPD * RAS Active Time (Tras) 17T * ROW Precharge Time (Trp) 5T *RAS to CAS Delay (Trcd) 5T DRAM Bank Interleaving Enabled DDR Burst Length SPD DRAM Command Rate 2T DDR Y Table Optimize ODT Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Auto Configuration
The default setting is By SPD. User can set it as Manual to enable 4 sub items below it:
*DRAM CAS Latency (TCL)
The optional settings are 2T, 3T, 4T, 5T, 6T and SPD.
*RAS Active Time (Tras)
The optional settings are from 5T to 20T.
*Row Precharge Time(Trp)
The optional settings are 2T, 3T, 4T, 5T and 6T.
*RAS to CAS Delay(Trcd)
The optional settings are 2T, 3T, 4T, 5T and 6T.
DRAM Bank Interleaving
User can activate DRAM Bank Interleaving by set the item as Enabled. The optional settings are: Enabled; Disabled.
DDR Burst Length
User can set it as 4,8 or SPD. The optional setting is SPD.
DRAM Command Rate
I tem Help
Menu Level >>
24
The optional settings are: 2T; 1T.

3-6-2 VGA Timing Settings

Phoenix – AwardBIOS CMOS Setup Utility
VGA Timing Settings
VGA Share Memory Size 128M
Direct Frame Buffer Enabled Select Display Device CRT * Panel Type OL
-1024 x 768, ch1, Dithering Disabled *Output Port DTO *Dithering Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
VGA Share Memory Size
The optional settings are: 64M, 128M and 256M.
Buffer Select Display Device
The options are: CRT, LCD and CRT+LCD.
I tem Help
Menu Level >>

3-6-3 PCI Timing Settings

Phoenix – AwardBIOS CMOS Setup Utility
PCI Timing Settings
PCI Master0 WS Write Enabled PCI Delay Transaction Enabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
25
I tem Help
Menu Level >>

3-7 Integrated Peripherals

Phoenix – AwardBIOS CMOS Setup Utility
Integrated peripheral
Onboard IDE Function Press Enter Onboard Device Function Press Enter Onboard Superio Function Press Enter USB Device Setting Press Enter Init Display First PCI Slot
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Item Help
Menu Level >>

3-7-1 Onboard IDE Function

Phoenix – AwardBIOS CMOS Setup Utility
Onboard IDE Function
SATA Function Enabled
SATA/RAID Mold IDE
Onchip IDE Channel1 Enabled
IDE Predetch Mold Enabled
Secondary Master PIO Auto
Secondary Slave PIO Auto
Secondary Master UDMA Auto
Secondary Slave UDMA Auto
IDE DMA Transfer Access Enabled
IDE HDD Block Mold Enabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >>
Item Help
Secondary Master/Slave PIO
The two IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the two IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode
4. 26
Secondary Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA133, select Auto to enable BIOS support. The settings are: Auto, Disabled.
IDE DMA Transfer Access
The integrated peripheral controller contains an IDE interface with support for one IDE channels. Select Enabled to activate each channel separately. The settings are: Enabled and Disabled.
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The settings are: Enabled, Disabled.
SATA Function
This item allows you to control Serial ATA controller by setting it as Enabled or Disabled.
SATA/RAID Mold
The optional settings are IDE; RAID.

3-7-2 Onboard Device Function

Phoenix – AwardBIOS CMOS Setup Utility
Onboard Device Function
Onboard HD Audio Device Auto Realtek Lan1 Device Enabled Realtek Lan1 Bootrom Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >>
Onboard HD Audio Device
This item allows you to decide to enable/disable the chipset family to support HD Audio. The settings are: Enabled, Disabled.
27
Item Help
RealTek LAN1 Bootrom
Decide whether to invoke the boot ROM of the onboard LAN chip.

3-7-3 Onboard Super IO Function

Phoenix – AwardBIOS CMOS Setup Utility
Onboard Super IO Function
Onboard Serial Port1 3F8/IRQ4 Onboard Serial Port2 2F8/IRQ3 Onboard Serial Port3 3E8/IRQ5 Onboard Serial Port4 2E8/IRQ10 UART Mold Select Normal *IR Duplex Mold Half Onboard Parallel Port 3F8/IRQ7 Parallel Port Mold SPP *ECP Mold Use DMA 3
Watchdog Timer Select Disabled *Watchdog Timer Value 255 *WATCHDOG Timer Unit Sec.
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >>
Item Help
Onboard Serial Port 1/2
The optional settings are:Disabled, 3F8/IRQ4,2F8/IRQ3, 3E8/IRQ4,2E8/IRQ3, and Auto.
Onboard Serial Port 3/4
The optional settings are:Disabled, 3F8/IRQ5,2F8/IRQ10, 3E8/IRQ5,2E8/IRQ10 and Auto.
UART2 Mode Select
This item allows you to determine which InfraRed(IR) function of the onboard I/O chip. The optional settings are Normal and IrDA.
IrDA Duplex Mode
This field is available when UART Mode is set to either ASKIR or IrDA. This item enables you to determine the infrared function of the onboard infrared chip. The options are Full and Half
28
(default). Full-duplex means that you can transmit and send information simultaneously. Half-duplex is the transmission of data in both directions, but only one direction at a time.
Onboard Parallel Port
The optional settings are: Disabled, 378/IRQ7, 278/IRQ5 and 3BC/IRQ7.
Parallel Port Mode
SPP : Standard Parallel Port ECP : Enhanced Com Port EPP : Enhanced Parallel Port
SPP/ ECP +EPP 1.7/ EPP 1.9
To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP+EPP” will allow the onboard parallel port to support both the ECP and EPP modes simultaneously. The ECP mode has to use the DMA channel, so choose the onboard parallel port with the ECP feature. After selecting it, the following message will appear: “ECP Mode Use DMA” at this time, the user can choose between DMA channels 3 to 1. The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard parallel port with the EPP function, the following message will be displayed on the screen: “EPP Mode Select.” At this time either EPP 1.7 spec. or EPP 1.9 spec. can be chosen.
Watchdog Timer Select
This item is used to activate the watchdog function. The optional settings are: Enabled; Disabled. When set it as Enabled user can choose configuration figures in subitems.
Watchdog Timer Value
This item is only activated when Watchdog Timer Select is set as Enabled and users can set a value from the range of 0~255
Watchdog Timer Unit
29
This item is only activated when Watchdog Timer Select is set as Enabled and the optional units are: Sec. and Min..
*Note: User needs an additional Watchdog Programming Reference Code to make use
of this BIOS function. Detailed procedure please download from our website if necessary.

3-7-4 USB Device Setting

Phoenix – AwardBIOS CMOS Setup Utility
USB Device Settings
USB 1.0 Controller Enabled USB 2.0 Controller Enabled USB Operation Mold High Speed USB Keyboard Function Enabled USB Mouse Function Enabled USB Storage Function Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >>
Item Help
USB 1.0/2.0 Function /Keyboard/Mouse /Storage Support
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB mouse /keyboard/USB storage device. The settings are: Enabled, Disabled.
USB Operation Mold
The optional settings are Full/ Low Speed and High Speed.
30

3-8 Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.
Phoenix – AwardBIOS CMOS Setup Utility
Power Management Setup
ACPI function S1(POS)
Assign IRQ For ACPI IRQ 9 Video off option Suspend-off
SYC+Blank Video off Method V/H MODEN USE IRQ 3 Power Button Function Instant off
FF Power Sts after power failure Always O
HPET Support Enabled
led WDRT Support Disab WDRT Run/stop Stop WDRT Count 1023
Wake UP Events Press Enter
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >
ACPI Function
The optional settings are S1(POS) and S3(STR).
Video Off Method
This determines the manner in which the monitor is blanked.
Initial display power management signaling.
DPMS (default) Blank Screen V/H SYNC+Blank
This option only writes blanks to the video buffer.
This selection will cause the system to turn off the vertical and
horizontal synchronization ports and write blanks to the video buffer.
MODEM Use IRQ
If you want an incoming call on a modem to automatically resume the system from a power-saving mode, use this item to specify the interrupt request line (IRQ) that is used by the modem. You might have to connect the fax/modem to the motherboard Wake On Modem connector for this feature to work.
Power Button Function
Under ACPI (Advanced Configuration and Power management Interface) you can create a software power down. In a software power down, the system can be resumed by Wake up
Item Help
elp Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General H
31
Alarms. This item lets you install a software power down that is controlled by the power Button on your system. If the item is set to Instant-Off, then the power button causes a software power down. If the item is set to Delay 4 Sec, then you have to hold the power button down for four seconds to cause a software power down.
Wake Up Events
Users can press Enter to select the relative items for wake up events. Set it as Disabled or Enabled in Wake-Up on LAN, Wake-Up on Ring and Wake-Up on PCI card. Users can also enter password in PS2KB Wakeup.
Wake-Up on RTC Alarm
When set to Enabled, additional fields become available and you can set the date (day of the month), hour, minute and second to turn on your system. When set to 0 (zero) for the day of the month, the alarm will power on your system every day at the specified time .
Date (of month)
You can choose which month the system will boot up. Set to 0, to boot every day.
Time (hh:mm:ss)
You can choose what hour, minute and second the system will boot up. Note: If you have change the setting, you must let the system boot up until it goes to the
operating system, before this function will work.

3-9 PnP/PCI Configuration

Phoenix – AwardBIOS CMOS Setup Utility
Pnp/PCI Configuration
IRQ Resources Press Enter PCI/VGA Palette Snoop Disabled Assign IRQ For VGA Enabled Assign IRQ For USB Enabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >
PCI/VGA Palette Snoop
This item is designed to overcome problems that can be caused by some non-standard VGA cards. This board includes a built-in VGA system that does not require palette snooping so you must leave this item disabled.
32
Item Help
IRQ Resources
Names the interrupt request (IRQ) line assigned to the USB on your system. Activity of the selected IRQ always awakens the system.

3-10 PC Health Status

This section shows the Status of you CPU, Fan, and Warning for overall system status. This is only available if there is Hardware Monitor onboard.
Phoenix – AwardBIOS CMOS Setup Utility
PC Health Status
Shutdown Temperature Disabled Show PC Health In Post Enabled CPU Thermal-Throttling Disabled * CPU Thermal-Throttling Temp 70c * CPU Thermal-Throttling Duty 50% * CPU Thermal-Throttling Beep Enabled Smart fan configurations Press Enter Vcore 1.10v +1.5v 1.52v +5v 4.81v +12v 12.07v +5VSB 4.98V VDIMM 1.84V VCC3 3.44V
3.3 SUS 3.36V VBAT 3.23V CPU Temperature 20C/69F SYS Temperature 16C/69F CPU FAN Speed 6607 RPM SYS FAN1 Speed 0RPM SYS FAN2 Speed 0RPM
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >
Item Help
Show PC Health in Post During Enabled, it displays information list below. The choice is either Enabled or Disabled
33
Shutdown Temperature
This item can let users setting the Shutdown temperature, when CPU temperature over this setting the system will auto shutdown to protect CPU.
Current CPU Temperature/Current System Temp/Current SFAN1, SFAN2 ,CPUFAN Speed/Vcore/ +1.5V/+5V/+12V/+5 VSB(V) /VDIMM/VCC3/3.3SUS/VBAT(V)
This will show the CPU/FAN/System voltage chart and FAN Speed.

3-11 Miscellaneous Control

Phoenix – AwardBIOS CMOS Setup Utility
Miscellaneous Control
Auto Detect PCI CLK Enabled Spread Spectrum Disabled *** Current Host Frequency is 100MHz*** CPU Clock at Next boot is 100MHz ***Current DRAM Frequency is 333MHz*** DRAM Clock at Next Boot is SPD CPU Clock Ratio 8X Vcore voltage Default VCC1.05 Voltage 1.05v(Default) VCC 1.5 Voltage 1.50v(Default) VDIMM Voltage 1.84v(Default)
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Menu Level >
Item Help
Auto Detect PCI Clock
This item allows you to enable/disable auto detect PCI Clock. The settings are: Enabled, Disabled.
Spread Spectrum
This item allows you to set the Spread Spectrum Disabled or choose a setting in the category of+/-0.1%~+/-0.9%.

CPU Clock at Next Boot

Users can Page Up and Page Down or change the value. The optional range is from 100 MHz to 133MHz.

DRAM Clock at Next Boot

34

This item allows you to set DRAM clock. The optional settings are: DDR400; DDR533; DDR667 and SPD.

3-12 Password Setting

You can set either supervisor or user password, or both of them. The differences are:
Supervisor password: Can enter and change the options of the setup menus. User password: Can only enter but do not have the right to change the options of the
setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration. Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.
35

3-13 Load Standard/Optimized Defaults

Load Standard Defaults
When you press <Enter> on this item, you get confirmation dialog box with a message similar to:
Load Standard Defaults (Y/N)? N Pressing <Y> loads the BIOS default values for the most stable, minimal-performance system operations.
Load Optimized Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Load Optimized Defaults (Y/N)? N Pressing <Y> loads the default values that are factory settings for optimal performance system operations.
36
Loading...
