Technical Manual
Of
Intel Haswell/Broadwell Series CPU
Based
3.5’’ SBC
NO. G03-NF3E-F
Revision: 1.0
Release date: January 12, 2015
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
ii
TABLE OF CONTENT
ENVIRONMENTAL SAFETY INSTRUCTION ....................................................................... iv
USER’S NOTICE.................................................................................................................. v
MANUAL REVISION INFORMATION................................................................................... v
ITEM CHECKLIST................................................................................................................ v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ............................................................................ 1
1-2 SPECIFICATION .................................................................................................... 2
1-3 LAYOUT DIAGRAM ............................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING................................................................................................. 9
2-2 CONNECTORS AND HEADERS............................................................................ 14
2-2-1 CONNECTORS ......................................................................................... 14
2-2-2 HEADERS................................................................................................. 17
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP................................................................................................. 24
3-2 BIOS MENU SCREEN............................................................................................ 25
3-3 FUNCTION KEYS................................................................................................... 26
3-4 GETTING HELP...................................................................................................... 26
3-5 MEMU BARS.......................................................................................................... 27
3-6 MAIN MENU ........................................................................................................... 28
3-7 ADVANCED MENU ................................................................................................ 29
3-8 CHIPSET MENU..................................................................................................... 41
3-9 SECURITY MENU .................................................................................................. 44
3-10 BOOT MENU.......................................................................................................... 45
3-11 SAVE & EXIT MENU .............................................................................................. 46
iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition January 12, 2015
Item Checklist
Motherboard
User’s Manual
CD for motherboard utilities
Cable(s)
v
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel® Haswell/Broadwell series SoC Processor, with low power
consumption never denies high performance
Support 2 * DDR3L 1333/1600 MHz SO-DIMM, up to 16GB
Support 1 * SATAIII device
Onboard 1* full-size mSATA/ Mini-PCIE slot
Onboard 1* half-size Mini-PCIE slot
Onboard 2 * RJ-45 gigabit Ethernet LAN port
Integrated with 1 * 24-bit dual channel LVDS header
Support 2* HDMI output
Support USB 3.0 data transport demand
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function
1
1-2 Specification
Spec Description
Design
Embedded CPU
Memory Slot
Expansion Slot
Storage
LAN Chip
Audio Chip
BIOS
3.5”SBC; PCB size: 14.8x 10.2 cm
Intel® Haswell/Boardwell ULT SoC CPU
*CPU model varies from different IPC options. Please consult your dealer for
more information of onboard CPU.
2 * DDRIIIL SODIMM Slot for un-buffered DDRIIIL 1333/1600 MHz
SDRAM, expandable to 16GB
Dual-channel function supported
1* Full-size Mini-PCIE/mSATA slot (MMPE)
1* Half-size Mini-PCIE slot (MPE)
1* SATAIII 6G/s Connector (SATA1)
*SATA1 port & M-SATA connector (MMPE) supports RAID0/1 function.
Integrated with Intel I211AT PCI-E Gigabit PCI-E LAN chip & Intel
I218LM Gigabit LAN PHY chip
Support Fast Ethernet LAN function of providing 10/100/1000Mbps
Ethernet data transfer rate
Realtek ALC662 HD Audio Codec integrated
Audio driver and utility included
AMI 128MB Flash ROM
Rear Panel I/O:
1* DC 9V~24V power-in connector
2* USB 2.0 port
4* USB 3.0 port
Multi I/O
2* RJ-45 LAN port
2* HDMI port
1* Audio Line out/Optical SPDIF out port
Internal I/O Connectors& Headers:
1* SATAIII 6Gb/s port
1* SATA Power connector
2
USB 3.0 Ports
RJ-45 LAN Port
HDMI1 Port
HDMI2 Port
RJ-45 LAN Port
USB 2.0 Ports
1* CPU FAN connector
1* Front panel audio header
1* SPK_OUT header (for 3W / 8 OHM amplifier)
4* Serial port header (COM1 supports RS422/RS485 function)
1* 9-pin USB 2.0 header (Expansible to 2* USB 2.0 ports)
1* 4-pin USB 2.0 header (Expansible to 1* USB 2.0 ports)
1* GPIO header
1* SMBUS header
1* PS2KBMS header
1* Front panel header
JP8: 1* LAN LED activity header
1* LVDS inverter
1* LVDS header
1-3 Layout Diagram
Rear IO Panel Diagram:
3
LAN1
LAN2
*9V~24V DC
Power-in
Connector
Line-Out Port/
Optical SPDIF Out Port
*Notice: Please connect compatible power supply to the power connector. The voltage of power
connector should not be lower than 9V or higher than 24V, otherwise it may do harm to the board &
other devices!
JP8: LANLED Headers
CPUFAN Header
Front Panel Header
DDR3L
Reset Button
Power Switch Button
9V ~24V DC
HDMI
SMBUS Header
INVERTER
LAN1
USB 2.0
PS2KBMS Header
USB 3.0 Ports
USB 3.0 Ports
LAN2
USB 2.0 Ports
MMPE
Mini-PCIE/mSATA Slot
Internal Diagram-Front Side:
SPK_OUT
Header
Line-Out Port/
Optical SPDIF-Out Port
Ports
Serial Port Header
(COM4/3/2/1)
Front Panel
Audio Header
GPIO Header
LVDS Header
:Half-size
MPE
Mini-PCIE Slot
SATA Power
Connector
SATAIII Port
Headers
: Full-size
RJ-45 LAN Port
RJ-45 LAN Port
SODIMM Slots
Power-in Connector
*Note: In the case that user wish to install two different cards to MPE & MMPE slot, make sure that
there is no interference between the cards installed.
4
Internal Diagram-Back Side:
*Intel CPU
Note: CPU is the most important part of the board and very fragile to any possible harm. Make sure
*
that there is no damage to the CPU during any installation procedures!
5
JP1
JP7
JP2
JP4
JP5
JP6
JP3
COPEN
AT-MODE
Jumper Position:
6
Jumper
Jumper Name Description
JP3 LVDS PVCC 5V/3.3V /12V Select 4-Pin Block
JP2 INVERTER VCC 5V/12V Select 3-Pin Block
JP7 COM4 Header Pin9 Function Select 4-Pin Block
JP5 COM3 Header Pin9 Function Select 4-Pin Block
JP6 COM2 Header Pin9 Function Select 4-Pin Block
JP4 COM1 Header Pin9 Function Select 4-Pin Block
JBAT CMOS RAM Clear Function Setting 2-Pin Block
COPEN Case Open Message Display Function 2-Pin Block
AT_MODE AT Mode Function Select 2-Pin Block
JP1 Security Measure Function Select 2-Pin Block
Connectors
Connector Name
DCIN1 DC 9V~24V Power–in Connector
SATA1 SATAIII Port Connector
PWOUT SATA Power out Connector
CPUFAN CPUFAN Connector
USB1/USB3 USB 3.0 Port Connector X4
USB5 USB 2.0 Port Connectors X2
LAN1/LAN2 RJ-45 LAN Port Connector X2
HDMI DVI-I Port Connector X2
LOUT Audio Line Out Connector
MMPE Full-size Mini-PCIE/MSATA Connector
MPE Half-size Mini-PCIE Connector
7
Front Panel Header(PWR LED/
Headers
Header Name Description
FP_AUDIO Front Panel Audio Header 9-pin Block
SPK_CON Speaker Header 4-pin Block
COM4/3/2/1 Serial Port Header X4 9-pin Block
USB4 USB 2.0 Header 9-pin Block
USB6 USB 2.0 Header 4-pin Block
FP
GPIO GPIO Header 10-pin Block
SMBUS SMBUS Header 5-pin Block
PS2KBMS PS2KBMS Header 6-pin Block
JP8 LAN Activity LED Header 4-pin Block
LVDS 24-bit LVDS Header 30-pin Block
INVERTER LVDS Inverter Connector 8-pin Block
HDD LED/Power Button /Reset)
8-pin Block
8
LVDS VCC= 12V.
Chapter 2
Hardware Installation
2-1 Jumper Setting
JP3 (4-pin): LVDS PVCC 3.3V/5V/12V Function Select
JP3→LVDS
2 4
6 4 2
1
3
5
2-4 Closed: LVDS
VCC= 3.3V;
6
1 3
5
3-4 Closed: LVDS
VCC= 5V;
2 4
6
1 3
5
4-6 Closed:
JP2 (3-pin): INVERTER VCC 5V/12V Select
JP2→INVERTER
1-2 Closed: Inverter VCC= 5V;
2-3 Closed: Inverter VCC= 12V.
9
1 3
1
JP7 (4-pin): COM4 Header Pin9 Function Select
JP7→COM4
2 4
6 4 2
1
3
5
2-4 Closed:
RI=RS232;
6
1 3
5
3-4 Closed:
RI= 5V;
2 4
6
1 3
5
4-6 Closed:
RI= 12V.
JP5 (4-pin): COM3 Header Pin9 Function Select
JP5→COM3
2 4
6 4 2
1
3
5
2-4 Closed:
RI=RS232;
6
1 3
5
3-4 Closed:
RI= 5V;
2 4
6
1 3
5
4-6 Closed:
RI= 12V.
10
JP6 (4-pin): COM2 Header Pin9 Function Select
JP6→COM2
2 4
6 4 2
1
3
5
2-4 Closed:
RI=RS232;
6
1 3
5
3-4 Closed:
RI= 5V;
2 4
6
1 3
5
4-6 Closed:
RI= 12V.
JP4 (4-pin): COM1 Header Pin9 Function Select
JP4→COM1
2 4
6 4 2
1
3
5
2-4 Closed:
RI=RS232;
6
1 3
5
3-4 Closed:
RI= 5V;
2 4
6
1 3
5
4-6 Closed:
RI= 12V.
11
JBAT (2-pin): Clear CMOS
JBAT
1
1-2 Open: Normal；
CMOS Clear Setting
1-2 Closed： Clear CMOS
COPEN (2-pin): Case Open Message Display Function Select
COPEN
GND
1
Case open function
Pin 1-2 Closed: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this case if your case is removed, next time when you restart your computer,
a message will be displayed on screen to inform you of this.
12
AT_MODE (2-pin): AT Mode Function Select
Pin 1-2 closed: AT_MODE function is enabled. In this case your computer will
automatically turns on after a sudden power failure when power supply resumes.
AT-MODE
2
1
1-2 Open: Normal;
2
1
1-2 Closed: AT Mode Selected.
JP1 (2-pin): Security Measure Function Select
JP7
1
1-2 Open:Enable Security Measures
in the Flash Descriptor(Default);
1
1-2 Closed: Disable Security Measures
in the Flash Descriptor(Override).
13
For user to connect compatible power
dapter to provide power supply for the
connect USB keyboard, mouse or other
connect USB keyboard, mouse or other
devices compatible with USB specification.
up to 5Gbps data
LAN jack
o connect display device that support HDMI
USB 3.0 Ports
RJ-45 LAN Port
HDMI1 Port
HDMI2 Port
RJ-45 LAN Port
USB 2.0 Ports
2-2 Connectors and Headers 2-2-1 Connectors
(1) Rear I/O Connectors
Line-Out Port/
Optical SPDIF Out Port
LAN1
LAN2
9V~24V DC
Power-in
Connector
Icon Name Function
DC 9V~24V Power-in
Connector
USB 2.0 Port
USB 3.0 Port
RJ-45 LAN Port
HDMI Port
a
system.
To
devices compatible with USB specification.
To
USB 3.0 ports supports
transfer rate.
This connector is standard RJ-45
for Network connection.
T
specification.
14
For user to connect external speaker,
system audio
This connector can function as optical
cables &
Line-Out Connector
/Optical SPDIF-Out
Connector
earphones, etc to transfer
output.
SPDIF-Out jack with compatible
devices.
(2) SATA1(7-pin): SATAIII Port connector
SATA1 port is a high-speed SATAIII port that supports 6GB/s transfer rate.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
15
Pin 1
+12V
+5V
(3) PWROUT(4-pin): SATA Hard Disk Power-out Connector
GND
GND
Warning: Make sure that Pin-1 of compatible SATA Power connector is inserted into corresponding
Pin-1 of PWOUT to avoid possible damage to the board and hard disk driver!
(4) CPUFAN (4-pin): CPUFAN Connector
Pin 1
GND
+12V Fan Power
Fan Speed
Control
16
MIC-L
NC
1
2-2-2 Headers
(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Pin 1
2
GND
MIC-R
Lineout-R
NC
NC
(2) SPK_OUT (4-pin): Speaker Header
Lineout-L
Line-Out, MIC Header
Pin
17
NC
R-
R+
L+
L-
Pin 1
4
6
8
(3)COM4/3/2/1(9-Pin): Serial Port Headers
Pin NO. RS232 *RS422
(for COM1)
Pin 1
Pin 2 RXD
Pin 3 TXD
Pin 4
Pin 5
Pin 6
Pin 7
7
9
Pin 8
Pin 9
DCD TX- DATA-
TX+ DATA+
RX+ NC
DTR RX- NC
GNG GND GND
DSR NC NC
RTS NC NC
CTS NC NC
RI NC NC
*RS485
(for COM1)
2
3
5
*Notice: RS422, RS485 function is supported by COM1 header only, with compatible
COM cable for RS422 or RS 485 function. User also needs to go to BIOS to set
‘Transmission Mode Select’ for COM1 (refer to Page 33).
18
VCC
GND
VCC
GND
GND
Pin 1
(4) USB4 (9-pin): USB 2.0 Port Header
+DATA
Pin 1
-DATA
NC
-DATA
+DATA
(5) USB6 (4-pin): USB 2.0 Port Header
+DATA
-DATA
VCC
19
Pin 1
(6) FP (8-pin): Front Panel Header
(7) GPIO (10-pin): GPIO Header
GND
PWRBTN
PWRLED -
PWRLED+
GND
RSTSW
HDDLED-
HDDLED+
2
Pin 1
GPIO_83
GPIO_85 GPIO_87
GPIO_81
VCC
2
GPIO_84
GPIO_80
GPIO_82
GPIO_86
GND
20
GND
VCC3.3
GND
VCC
(8) SMBUS (5-Pin): SM BUS Header
SMBUS_ALERT-
SMBUS_DATA
Pin 1
SMBUS_CLK
(8) PS2KBMS (6-pin): PS/2 Keyboard & Mouse Header
MS_DATA
MS_CLK
KB_CLK
KB_DATA
Pin 1
21
Pin1
(9)JP8 (4-pin): LAN1 &LAN2 Activity LED Headers
LAN1_LED- LAN2_LED-
2
LAN1_LED+
4
3
LAN2_LED+
(11) INVERTER (8-pin): LVDS Inverter Connector
Pin No. Definition
1 Backlight Enable
Pin 1
Warning! Find Pin-1 location of the inverter and make sure that the installation direction is correct!
Otherwise serious harm will occur to the board/display panel!!
2 Backlight PWM
3 PVCC
4 PVCC
5 GND
6 GND
7 Backlight Up SW
8 Backlight Down SW
22
(12) LVDS (30-pin): 24-bit Dual Channel LVDS Header
Pin2
Pin 1
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 LVDSB_DATAN3 Pin 2 LVDSB_DATAP3
Pin 3 LVDS_CLKBN Pin 4 LVDS_CLKBP
Pin 5 LVDSB_DATAN2 Pin 6 LVDSB_DATAP2
Pin 7 LVDSB_DATAN1 Pin 8 LVDSB_DATAP1
Pin 9 LVDSB_DATAN0 Pin 10 LVDSB_DATAP0
Pin 11 NC/DDC_DATA Pin 12 NC/DDC_CLK
Pin 13 GND Pin 14 GND
Pin 15 GND Pin 16 GND
Pin 17 LVDSA_DATAP3 Pin 18 LVDSA_DATAN3
Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN
Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2
Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1
Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0
Pin 27 PVCC Pin 28 PVCC
Pin 29 PVCC Pin 30 PVCC
23
Chapter 3
Introducing BIOS
Notice!
The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manuals are usually the first BIOS version when the board is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and software
to communicate, it is the key factor for system stability, and in ensuring that your
system performance as its best.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an error message will be displayed and you will again be asked
to
Press
<Del>
to enter Setup; press <
F7
> for Popup Menu.
24
Menu Items
3-2 BIOS Menu Screen

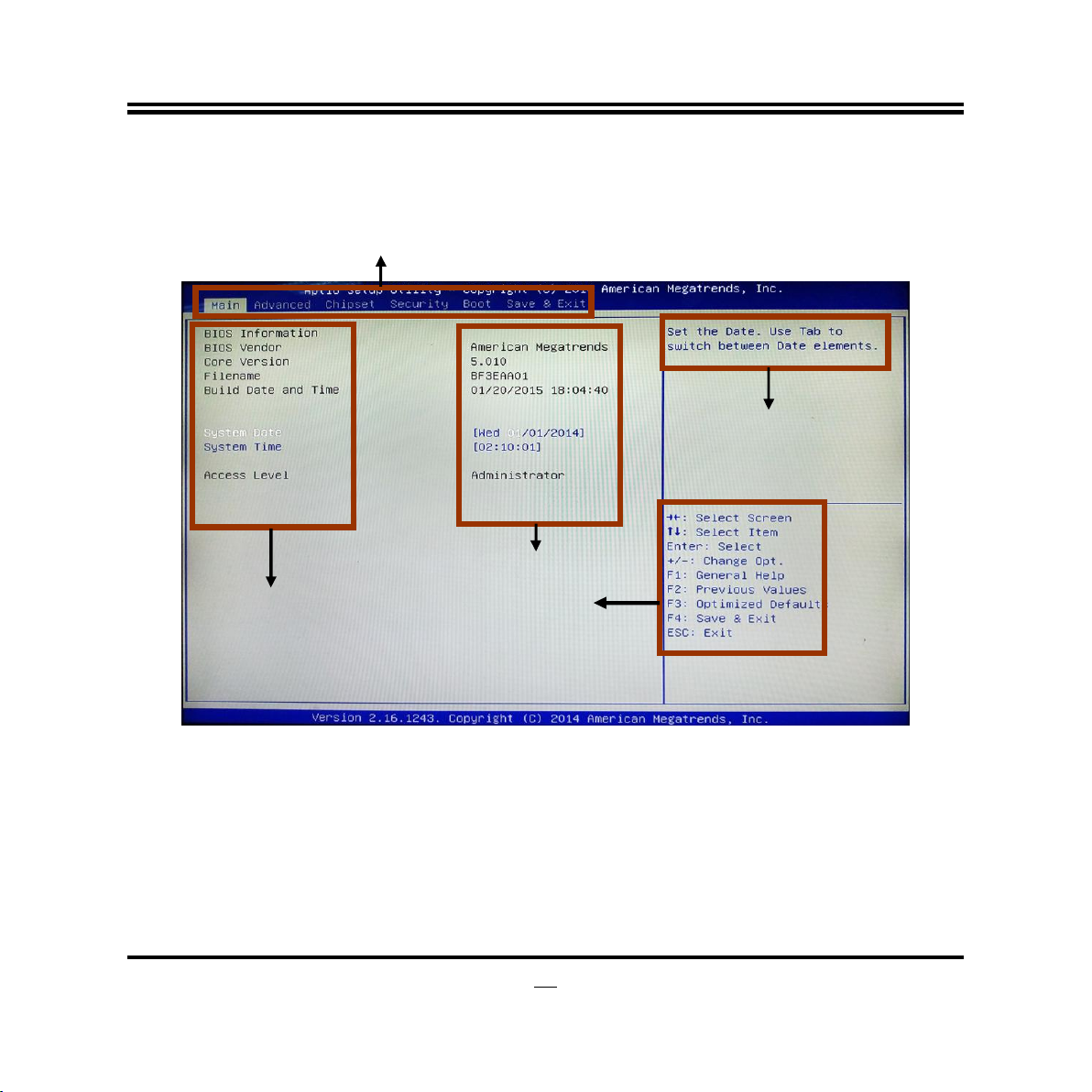

The following diagram show a general BIOS menu screen:
Menu Bar
General Help Items
Current Setting Value
Function Keys
BIOS Menu Screen
25
3-3 Function Keys
In the above BIOS Setup main menu of, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:
Press (left, right) to select screen;
Press (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
Press
Press
option.
[F1]:
[F2]:
[F3]:
[F4]:
Press
<Enter>
<+>/<–>
to select.
keys when you want to modify the BIOS parameters for the active
General help.
Previous value.
Optimized defaults.
Save & Exit.
<Esc>
to quit the BIOS Setup.
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right
corner the screen.
Status Page Setup Menu/Option Page Setup Menu
Esc
[F1]
to pop up a small help window that describes the appropriate keys to use
>.
Press
and the possible selections for the highlighted item. To exit the Help Window, press
<
26
3-5 Menu Bars
There are six menu bars on top of BIOS screen:
Main To change system basic configuration
Advanced To change system advanced configuration
Chipset To change chipset configuration
Security Password settings
Boot To change boot settings
Save & Exit Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.
27
3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] to switch between date elements.
System Time
Set the time. Please use [Tab] to switch between time elements.
28
3-7 Advanced Menu
CPU Configuration
Press [Enter] to view current CPU configuration and make settings for the following
sub-items:
Hyper-Threading
The optional settings: [Disabled]; [Enabled].
[Enabled]: for Windows XP and Linux (OS optimized for Hyper-Threading
Technology).
[Disabled]: for other OS (OS optimized not for Hyper-Threading Technology).
Limit CPUID Maximum
The optional settings: [Disabled]; [Enabled].
This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
29
The optional settings: [Disabled]; [Enabled].
Intel Virtualization Technology
The optional settings: [Enabled]; [Disabled].
When set as [Enabled], a VMM can utilize the additional hardware capabilities
provided by Vanderpool Technology.
Hardware Prefetcher
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
EIST
The optional settings are: [Disabled]; [Enabled].
CPU C states
The optional settings are: [Disabled]; [Enabled].
*When set as [Enabled], user can make further settings in ‘Package C state
demotion’.
Package C state demotion
The optional settings are: [Disabled]; [Enabled].
Trusted Computing
Press [Enter] to make settings to make further settings in ‘Security Device
Support’.
Configuration
Security Device Support
The optional settings are: [Disabled]; [Enabled].
ACPI Settings
Press [Enter] to make settings for the following sub-item:
ACPI Settings
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the
suspend button is pressed.
The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].
30
PCH-FW Configuration
Press [Enter] to view ME information and make settings for ‘Firmware Update
Configuration’.
▶
Firmware Update Configuration
Press [Enter] to make settings for ‘ME FW Image Re-Flash’.
ME FW Image Re-Flash
Use this item to enable or disable ME FW Image Re-Flash function.
The optional settings: [Disabled]; [Enabled].
* In the case that user needs to update ME firmware, user should set ‘ME FW
Image Re-Flash’ as [Enabled], save the settings and exit. The system will turn off
and reboot after 4 seconds. If the user goes to BIOS screen again will find this item
is set again as [Disabled], but user can still re-flash to update firmware next time.
AMT Configuration
Use this item to configure Active Management Technology parameters.
Press [Enter] to make settings for the following sub-items:
Intel AMT
Use this item to enable or disable Intel Active Management Technology BIOS
extension.
The optional settings: [Disabled]; [Enabled].
BIOS Hotkey Pressed
Use this function to enable or disable BIOS Hotkey Press function.
MEBx Selection Screen
Use this function to enable or disable MEBx Selection Screen function.
Hide Un-Configure ME Confirmation
Use this function to enable or disable Hide Un-Configure ME without password
Configuration Prompt function.
MEBx Debug Message Output
Use this function to enable or disable MEBx Debug Message Output function.
Un-Configure ME
Use this function to enable or disable Un-Configure ME without password function.
31
Amt Wait Timer
Use this item to set time to wait before sending ASF_GET_BOOT_OPTIONS.
Disable ME
Use this item to set ME to soft Temporary Disabled function.
ASF
Use this item to enable or disable Alert Specification Format.
Active Remote Assistance Process
Use this item to enable or disable Trigger CIRA boot function.
USB Configure
Use this item to enable or disable USB configure function.
PET Progress
Use this item to enable or disable PET events progress to receive PET event or
not.
WatchDog
Use this item to enable or disable WatchDog Timer.
*When set as [Enabled], the following sub-items shall appear:
OS Timer
Use this item to set OS watch dog timer.
BIOS Timer
Use this item to set BIOS watch dog timer.
Wake-up Function Settings
Press [Enter] to make settings for the following sub-items:
Wake-up System with Fixed Time
Use this item to enable or disable system wake on alarm event. When set as
[Enabled], system will wake on the hour/min/sec specified.
The optional settings: [Disabled]; [Enabled].
Wake-up System with Dynamic Time
Use this item to enable or disable system wake on alarm event. When set as
[Enabled], system will wake on the current time + increase minute(s).
The optional settings: [Disabled]; [Enabled].
32
PS2 KB/MS Wakeup
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable PS2 KB/MS wakeup from S3/S4/S5 state.
*This item will only show when ‘ERP Support’ is set as [Disabled].
USB S3/S4 Wakeup
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable USB S3/S4 wakeup.
*This item will only show when ‘ERP Support’ is set as [Disabled].
Super I/O Configuration
Press [Enter] to make settings for the following sub-items:
Super IO Configuration
ERP Function
The optional settings: [Auto]; [Disabled].
This item should be set as [Disabled], if you wish to have all active wake-up
functions.
Serial Port 1 Configuration
Press [Enter] to make settings for the following items:
Serial Port 1 Configuration
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Transmission Mode Select
The optional settings are: [RS422]; [RS232]; [RS485].
Mode Speed Select
The optional settings are: [RS232/RS422/RS485=250kbps]; [RS232=1Mbps,
RS422/RS485=10Mbps].
Serial Port FIF0 Mode
The optional settings are: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FIF0]; [128-Byte
33
FIF0].
Serial Port 2 Configuration/ Serial Port 3 Configuration/ Serial Port 4
Configuration
Press [Enter] to make settings for the following items:
Serial Port 2 Configuration/ Serial Port 3 Configuration/ Serial Port 3
Configuration
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port FIF0 Mode
The optional settings are: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FIF0]; [128-Byte
FIF0].
OS Select for Serial Port
The optional settings: [Windows]; [Linux].
WatchDog Timer
Use this item to enable or disable WatchDog Timer Control. When set as
[Enabled], the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of [4] to [255].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
WatchDog Wake-up Timer in ERP
This item support WDT wake-up while ERP function is set as [Auto].
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value in ERP
User can set a value in the range of [10] to [4095].
34
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
ATX Power Emulate AT Power
This item support Emulate AT power function, MB power On/Off control by power
supply. Use needs to select ‘AT or ATX Mode’ on MB jumper at first (ATX Mode &
AT Mode Select).
Case Open Detect
This item controls detect case open function.
The optional settings are: [Enabled]; [Disabled].
PC Health Status
Press [Enter] to view current hardware health status & make further settings in
‘Smart Configuration’ & ‘Shutdown Temperature’.
SmartFan Configuration
Press [Enter] to make settings for SmartFan Configuration:
SmartFAN Configuration
CPUFAN Smart Mode
When set as [Enabled], the following sub-items shall appear:
CPUFAN Full-Speed Temperature
Use this item to set CPUFAN full speed temperature. Fan will run at full speed
when above the pre-set temperature.
CPUFAN Full-Speed Duty
Use this item to set CPUFAN full speed duty. Fan will run at full speed when above
the pre-set duty.
CPUFAN Idle-Speed Temperature
Use this item to set CPUFAN idle speed temperature. Fan will run at idle speed
when below the pre-set temperature.
CPUFAN Idle-Speed Duty
Use this item to set CPUFAN idle speed duty. Fan will run at idle speed when
below the pre-set duty.
35
Shutdown Temperature Configuration
Use this item to select system shutdown temperature.
The optional settings are: [Disabled]; [70o C/156 o F]; [75 o C/164 o F]; [80 o C/172 o
F]; [85 o C/180 o F];[90o C/188 o F].
Serial Port Consol Redirection
Press [Enter] to make settings for serial port redirection settings:
COM1
Console Redirection
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], user can make further settings in:
Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make settings for the following sub-items.
Terminal Type
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].
Data Bits
The optional settings are: [7]; [8].
Parity
The optional settings are: [None]; [Even]; [Odd];[Mark]; [Space].
Stop Bits
The optional settings are: [1]; [2].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS].
VT-UTF8 Combo Key Support
The optional settings are: [Disabled]; [Enabled].
Recorder Mode
36
The optional settings are: [Disabled]; [Enabled].
Resolution 100x31
The optional settings are: [Disabled]; [Enabled].
Legacy OS Redirection Resolution
The optional settings are: [80x24]; [80x25].
Putty Keypad
The optional settings are: [VT100]; [Linux]; [XTERMR6]; [SCO]; [ESCN];
[VT400].
Redirection After BIOS POST
The optional settings are: [Always Enable]; [BootLoader].
Serial Port for Out-of-Band Mgnagement/
Windows Emergency Management Services (EMS)
Console Redirection
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], user can make further settings in:
Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make settings for the following sub-items.
Terminal Type
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS]; [Software Xon/Xoff]
SATA Configuration
Press [Enter] to make settings for the following sub-items:
SATA Controller(s)
The optional settings: [Disabled]; [Enabled].
SATA Mode Selection
37
The optional settings are: [AHCI]; [RAID].
SATA Controller Speed
The item is for user to set the maximum speed the SATA controller can support.
The optional settings are:[Default]; [Gen1]; [Gen2];[Gen3].
SATA1
The optional settings are: [Enabled]; [Disabled].
mSATA
The optional settings are: [Enabled]; [Disabled].
Intel(R) Rapid Start Technology
Press [Enter] to go to ‘Intel(R) Rapid Start Technology’ screen to make further
settings.
Intel(R) Rapid Start Technology
The optional settings: [Disabled]; [Enabled].
Network Stack Configuration
Press [Enter] to go to ‘Network Stack’ screen to make further settings.
Network Stack
Use this item to enable or disable UEFI Network Stack.
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], the following sub-items shall appear:
Ipv4 PXE Support
The optional settings are: [Disabled]; [Enabled].
Use this item to enable Ipv4 PXE Boot Support. When set as [Disabled], Ipv4 boot
option will not be created.
Ipv6 PXE Support
The optional settings are: [Disabled]; [Enabled].
Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], Ipv4 boot
optional will not be created.
PXE boot wait time
Use this item to set wait time to press [ESC] key to abort the PXE boot.
Media Detect Count
Use this item to set number of times presence of media will be checked.
38
CSM Configuration
Press [Enter] to make settings for the following sub-items:
Option ROM execution
Network
This item controls the execution of UEFI and legacy PXE OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Storage
This item controls the execution of UEFI and Legacy Storage OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy].
Other PCI devices
This item determines OpROM execution policy for devices other than Network,
storage or video.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy].
USB Configuration
Press [Enter] to make settings for the following sub-items:
USB Configuration
Legacy USB Support
The optional settings are: [Enabled]; [Disabled]; [Auto].
[Enabled]: To enable legacy USB support.
[Disabled]: To keep USB devices available only for EFI specification,
[Auto]: To disable legacy support if no USB devices are connected.
XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The XHCI
ownership change should be claimed by XHCI driver.
The optional settings are: [Enabled]; [Disabled].
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The EHCI
ownership change should be claimed by EHCI driver.
The optional settings are: [Disabled]; [Enabled].
USB Mass Storage Driver Support
The optional settings are: [Disabled]; [Enabled].
39
USB hardware delay and time-outs:
USB Transfer time-out
Use this item to set the time-out value for control, bulk, and interrupt transfers.
The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].
Device reset time-out
Use this item to set USB mass storage device start unit command time-out.
The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].
Device power-up delay
Use this item to set maximum time the device will take before it properly reports
itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for
a hub port the delay is taken from hub descriptor.
Select [Manual] you can set value for the following sub-item: ‘Device Power-up
delay in seconds’.
Device Power-up delay in seconds
The delay range is from 1 to 40 seconds, in one second increments.
Intel(R) Ethernet Connection I218-LM-XX:XX:XX:XX:XX:XX/ Intel(R) I211
Gigabit Network Connection- XX:XX:XX:XX:XX:XX
Press [Enter] to view current network information and make further settings in ‘NIC
Configuration’
NIC Configuration
Press [Enter] to configure the network device port.
Link Speed
Use this item to specify the port speed used for the selected boot protocol.
The optional settings are: [Auto Negotiated]; [10 Mbps Half]; [10 Mbps Full]; [10
0Mbps Half]; [100 Mbps Full].
Wake On LAN
Use this item to enable the server to be powered on using an in-hand magic
packet.
Blink LEDs
Use this item to identify the physical network port by blinking the associated LED.
40
3-8 Chipset Menu
▶
System Agent (SA) Configuration
Press [Enter] to make settings for the following sub-items:
VT-d
The optional settings are: [Enabled]; [Disabled].
* This item might not be available depending on configuration.
Azalia Internal HDMI Codec
Use this item to enable or disable internal HDMI codec for Azalia.
The optional settings are: [Disabled]; [Enabled].
▶
Graphics Configuration
Press [Enter] to make further settings for Graphics Configuration.
Graphics Configuration
41
Aperture Size
The optional settings are: [128MB]; [256MB]; [512MB].
DVMT Pre-Allocated
Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used
by the internal graphics device.
The optional settings are: [32M]; [64M]; [96M]; [128M]; [160M]; [192M]; [224M];
[256M]; [288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M].
DVMT Total Gfx Mem
Use this item to select DVMT 5.0 total graphics memory size used by the internal
graphics device.
The optional settings are: [128M]; [256M]; [MAX].
LCD Control
Primary IGFX Boot Display
Use this item to select the video device which will be activated during POST. This
has no effect if external graphics present. Secondary boot display selection will
appear based on your selection. VGA modes will be supported only on primary
display.
The optional settings are: [VBIOS Default]; [HDMI1]; [HDMI2]; [LVDS].
*When set as [HDMI1];[HDMI2] or [LVDS], the following sub-item shall appear:
Secondary IGFX Boot Display
The optional settings are: [Disabled]; [HDMI1]; [HDMI2]; [LVDS].
Active LVDS
The optional settings are: [Disabled]; [Enabled].
[Disable]: VBIOS disable LVDS.
[Enable]: VBIOS enable LVDS.
* Note: When set as [Enabled], user can make further settings in ‘LVDS Panel
Type’.
LVDS Panel Type
Use this item to manually select LVDS panel type.
The optional setting are: [800x 480 18bit Single]; [800x 600 18bit Single]; [800x
600 24bit Single]; [1024 x 600 18bit Single]; [1024 x 768 18bit Single]; [1024 x 768
42
24bit Single]; [1280 x 768 24bit Single]; [1280 x 800 18bit Single]; [1280 x 800
24bit Single]; [1366 x 768 18bit Single]; [1366 x 768 24bit Single]; [1440 x 900
18bit Dual]; [1440 x 900 24bit Dual]; [1280 x 1024 24bit Dual]; [1680 x 1050 24bit
Dual]; [1920 x 1080 24bit Dual].
▶
Memory Configuration
Press [Enter] to view current memory configuration.
▶
PCH-IO Configuration
Press [Enter] to make settings for the following sub-items:
▶
USB Devices Configuration
Press [Enter] to further setting USB device configuration.
USB Devices Configuration
XHCI Mode
Use this item to control the USB XHCI controller.
The optional settings are: [Smart Auto]; [Auto]; [Enabled]; [Disabled].
* Note: When set as [Disabled], user can make further settings in ‘EHCI’.
EHCI1
Use this item to control the USB EHCI (USB 2.0) functions.
One EHCI controller must always be enabled.
The optional settings are: [Disabled]; [Enabled].
Azalia
The optional settings are: [Disabled]; [Enabled].
Onboard Lan1 Controller
Use this item to enable or disable onboard NIC.
The optional settings are: [Enabled]; [Disabled].
Wake on LAN
Use this item to enable or disable integrated LAN to wake the system (The
Wake On LAN cannot be disabled if ME is on at Sx state).
The optional settings are: [Enabled]; [Disabled].
Onboard Lan2 Controller
Use this item to enable or disable onboard LAN2 controller.
43
The optional settings are: [Enabled]; [Disabled].
MMPE Controller
The optional settings are: [Enabled]; [Disabled].
MMPE Slot Speed
The optional settings are: [Auto]; [Gen1]; [Gen2].
MPE Controller
The optional settings are: [Enabled]; [Disabled].
MPE Slot Speed
The optional settings are: [Auto]; [Gen1]; [Gen2].
System State after Power Failure
The optional settings are: [Always off]; [Always on]; [Former State].
3-9 Security Menu
44
Security menu allow users to change administrator password and user password
settings.
3-10 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state.
The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Disabled]; [Enabled].
Boot Option Priorities
45
Boot Option
The optional settings are: [Disabled]; [Enabled].
3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
46
Use this item to restore defaults to all the setup options.
Boot Oerride
UEFI: Built-in EFI Shell
Press this item and a dialogue box shall appear to ask if user wish to save
configuration and reset.
Lauch EFI Shell from filesystem device
Use this item to launch EFI shell application (shell.efi) from one of the available
filesystem device.
47
Loading...
