Jetway Computer NC9T User Manual

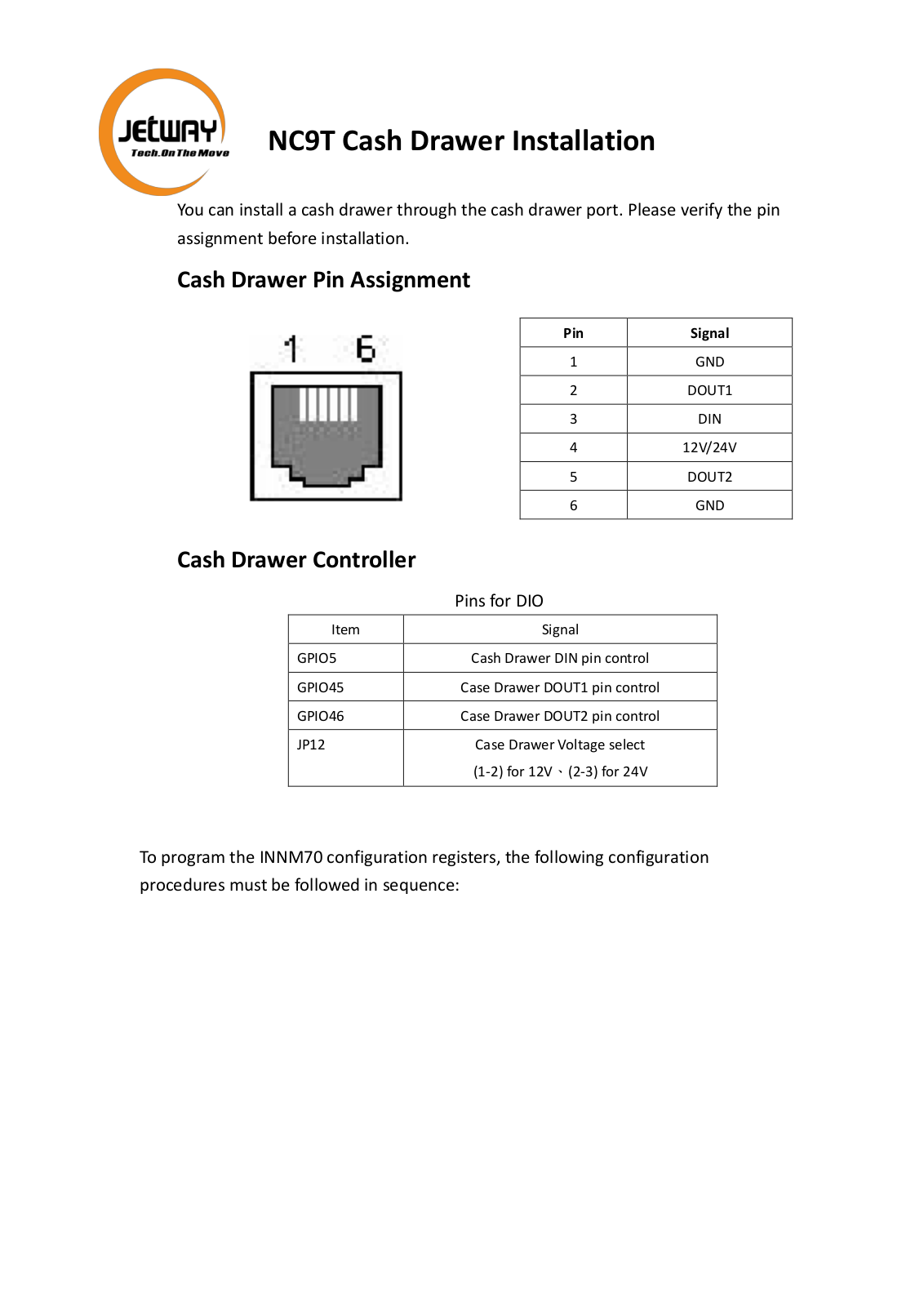

NC9T Cash Drawer Installation

Item

Signal

GPIO5

Cash Drawer DIN pin control

GPIO45

Case Drawer DOUT1 pin control

GPIO46

Case Drawer DOUT2 pin control

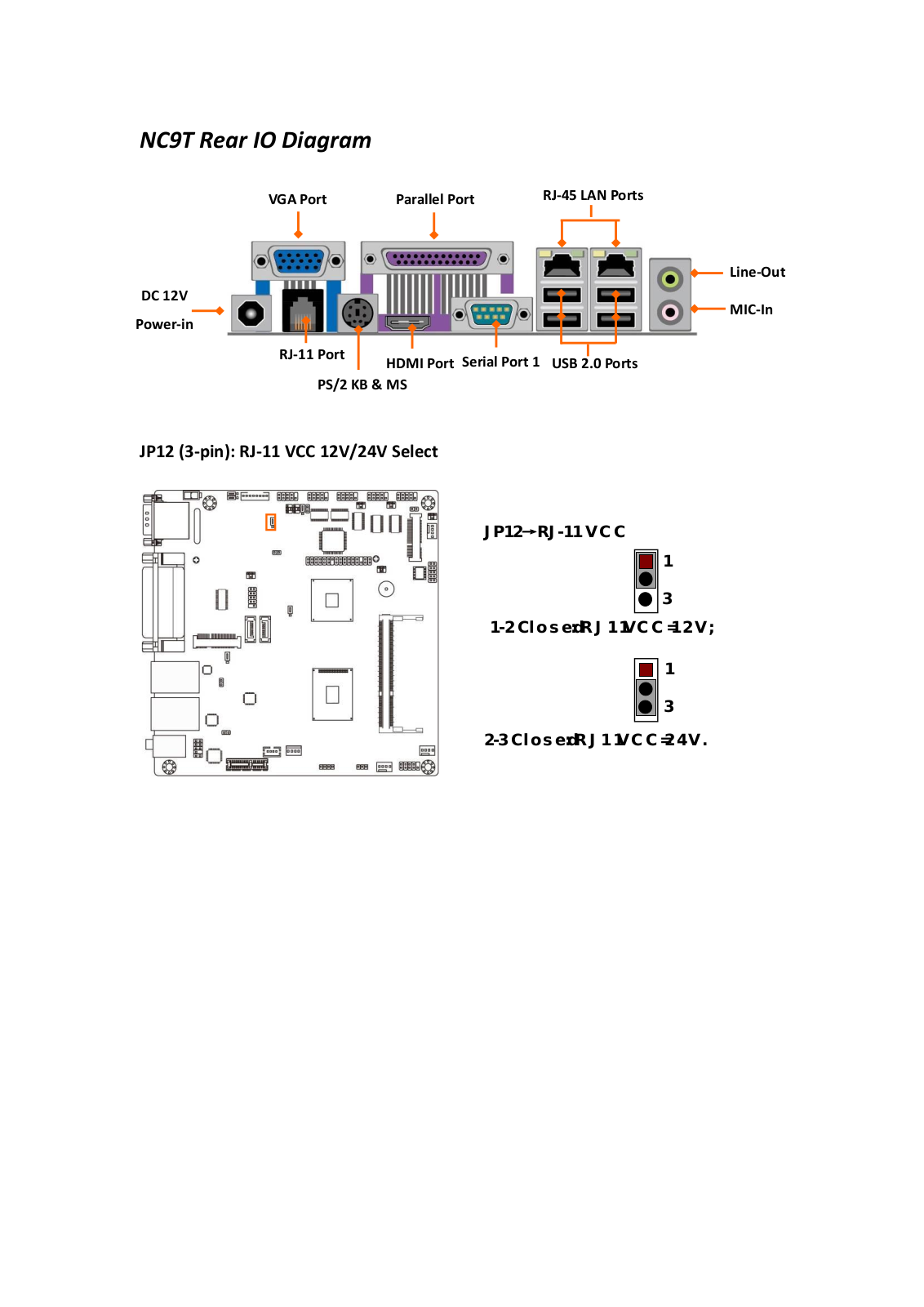

JP12

Case Drawer Voltage select

(1-2) for 12V、(2-3) for 24V

Pin

Signal

1

GND

2

DOUT1

3

DIN

4

12V/24V

5

DOUT2

6

GND

You can install a cash drawer through the cash drawer port. Please verify the pin

assignment before installation.

Cash Drawer Pin Assignment

Cash Drawer Controller

Pins for DIO

To program the INNM70 configuration registers, the following configuration

procedures must be followed in sequence:

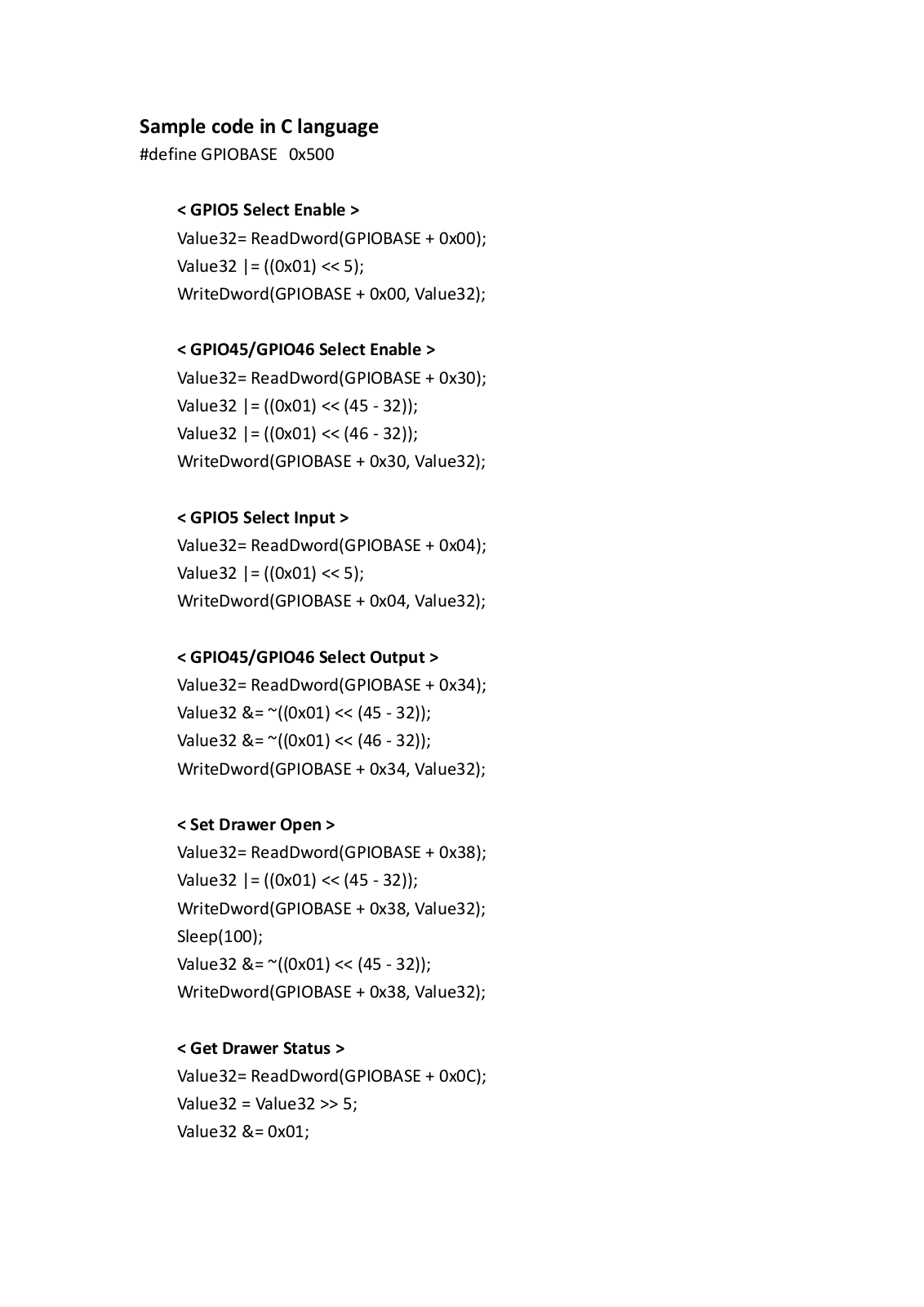

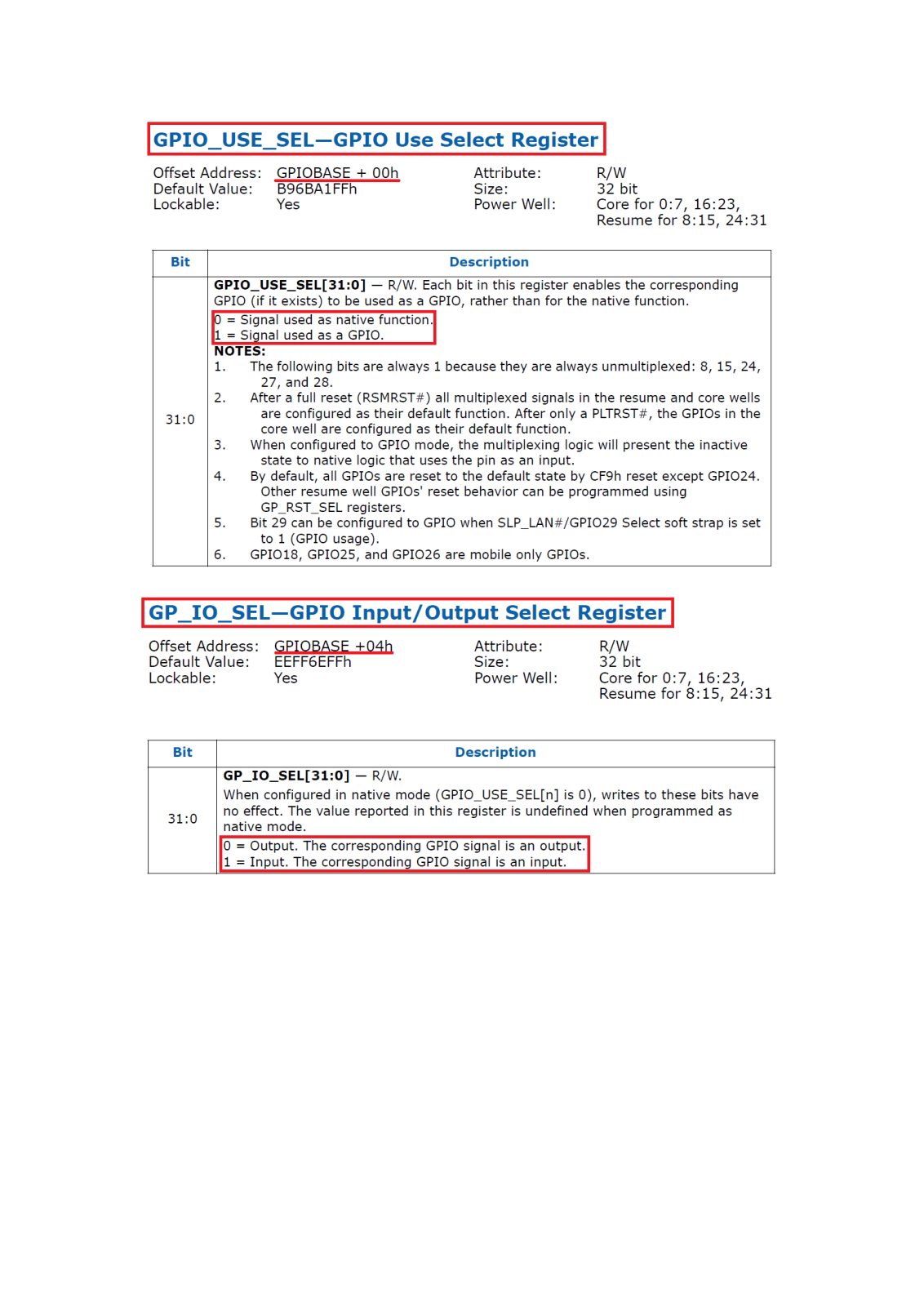

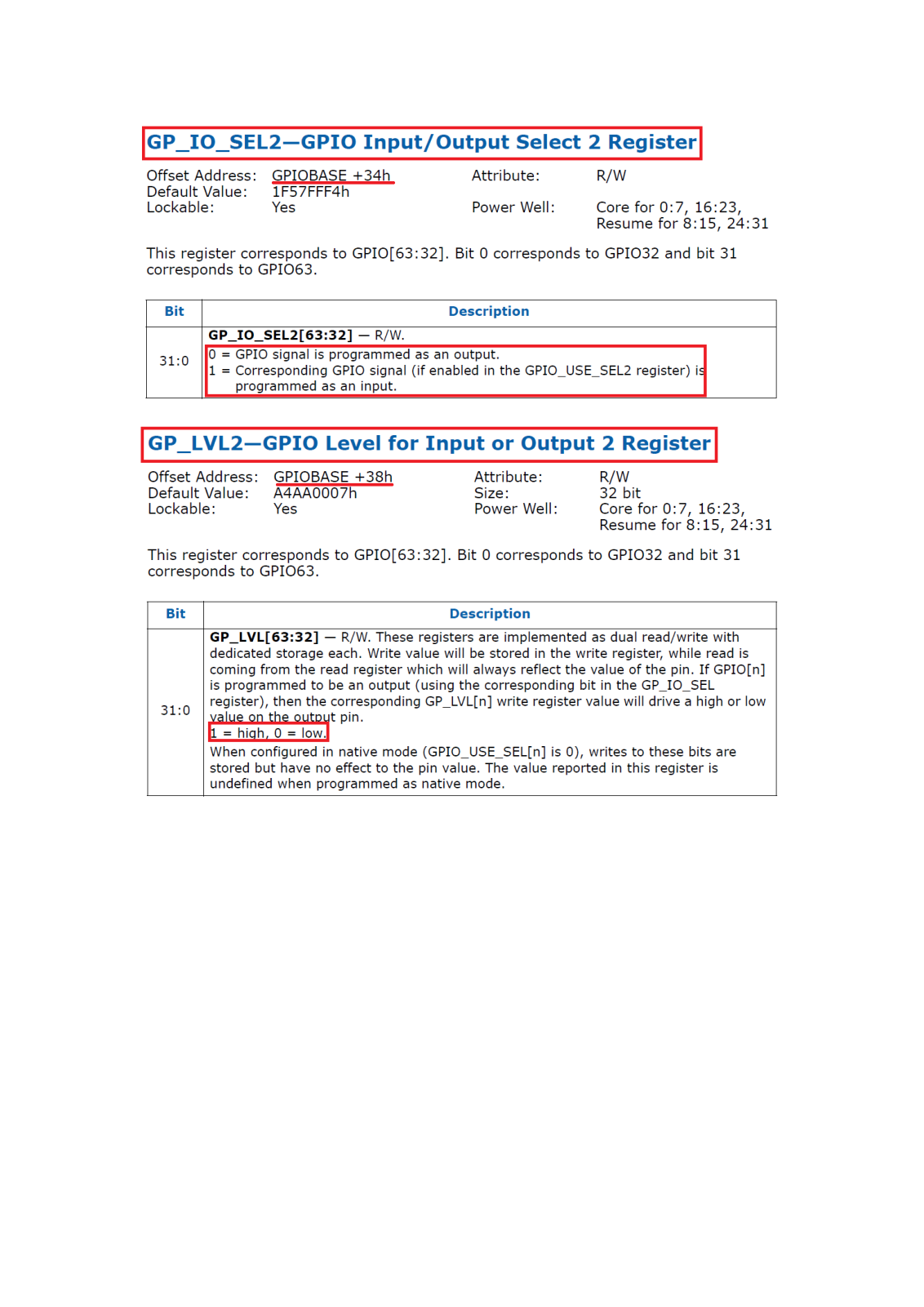

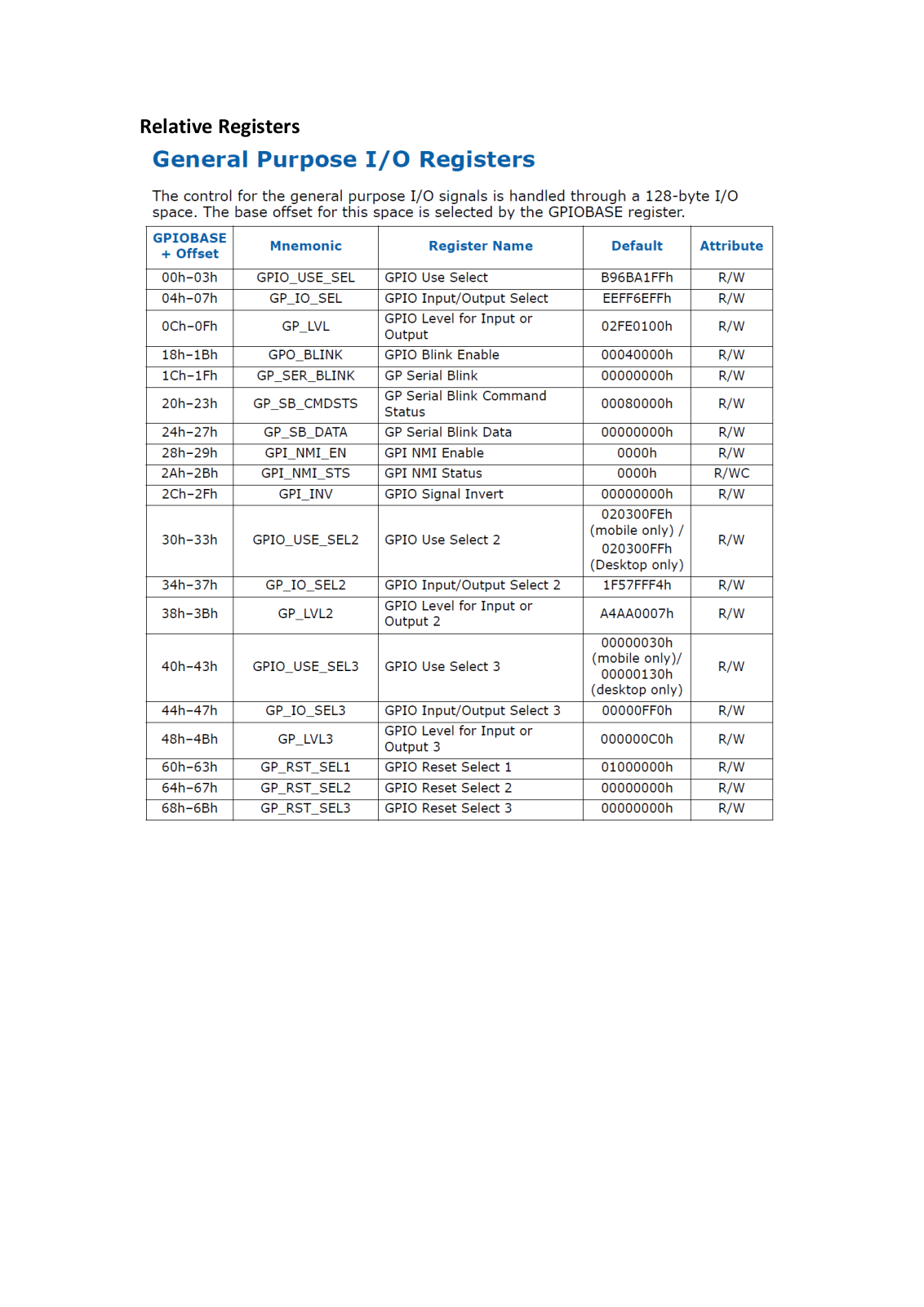

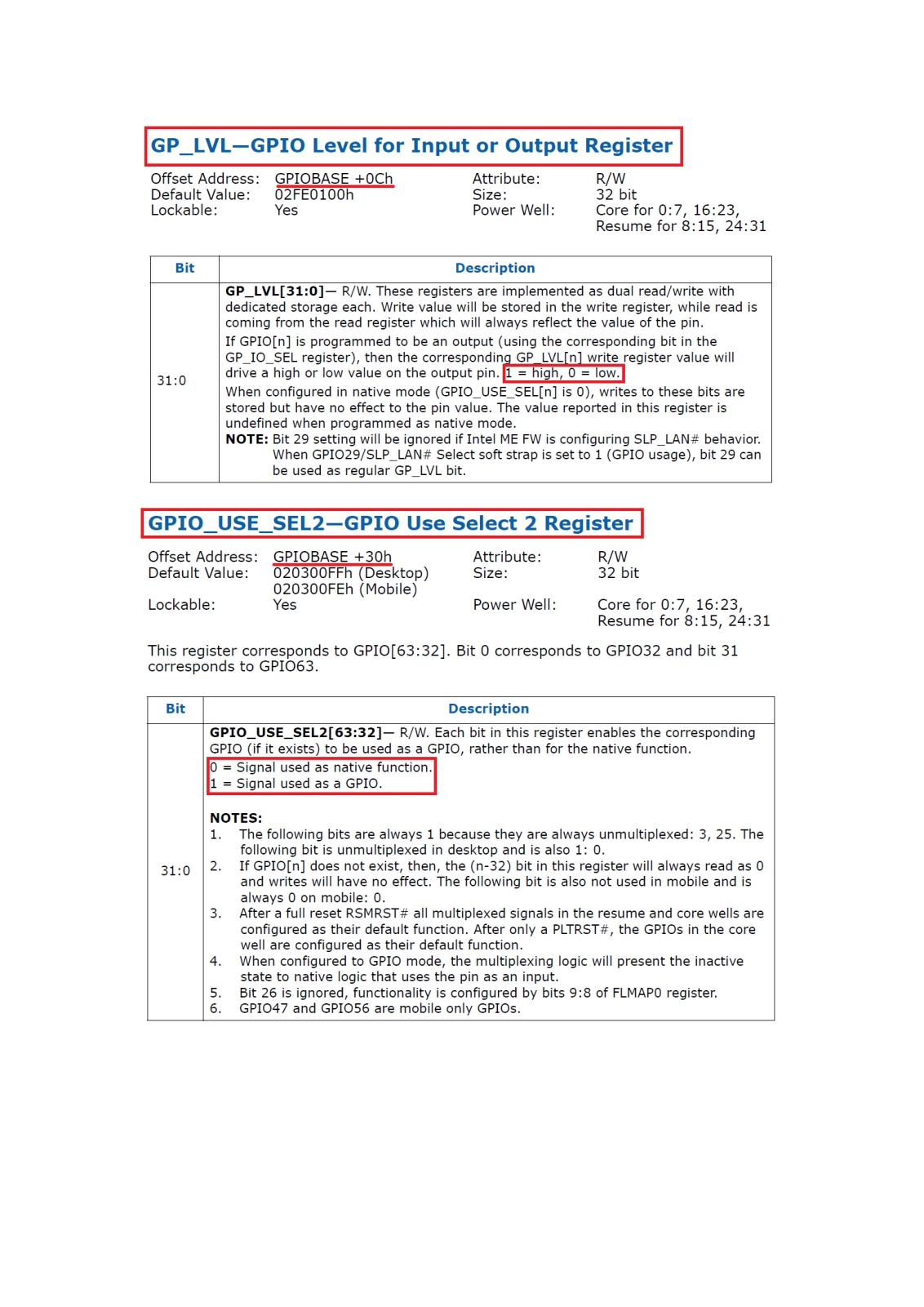

Relative Registers
