Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Intel Cedar Trail-D and NM10 chipset, with low power consumption never denies
z
high performance
Support two DDRIII 800/1066MHz SO-DIMM up to 4GB
z
Support two Serial ATAII (3Gb/s) Devices
z
Onboard dual Realtek RTL 8111EVL Gigabit Ethernet LAN chip
z
Integrated ALC662-GR 6-channel HD audio CODEC
z
Support USB 2.0 data transport demands
z
Support PCI slot and Mini-PCIE slot
z
Integrated with 24-bit single channel LVDS header
z
Support 6 * COM ports (COM2 for RS232/422/485)
z
Support Watchdog function
z
Supports ACPI S3 Function
z
Support Smart Fan function
z
Compliance with ErP standard
z
1
1-2 Specification
Spec Description
Design z
Chipset
Embedded CPU
Memory Slot
Expansion Slot
Dual LAN Chip
Audio Chip
BIOS z
Multi I/O
Mini-ITX form factor; PCB size: 17.0x17.0cm
Intel®NM10 Express chipset
z
Intel Cedar Trail-D Processor
z
DDRIII SO-DIMM slot x 2
z
Support two DDRIII 800/1066 MHz SO-DIMM with memory
z
capacity expandable to 4GB
32-bit PCI slot x 1
z
Mini-PCIE slot x1
z
Integrated with dual Realtek RTL8111EVL PCI-E Gigabit LAN
z
chips
Support Fast Ethernet LAN function of providing
z
10/100/1000Mbps Ethernet data transfer rate
Realtek ALC662-GR 6-channel Audio Codec integrated
z
Audio driver and utility included
z
AMI 16MB DIP Flash ROM
Serial port connector x 2
z
VGA port connector x1
z
HDMI port connector x1
z
USB 2.0 port connector x4
z
RJ-45 LAN connector x2
z
Audio connector x3 (Line-in/SPDIF-out; Line-out; MIC)
z
Front panel audio header x1
z
4-pin USB 2.0 header x1
z
9-pin USB 2.0 header x1
z
SM BUS header x1
z
KBMS header x1
z
GPIO header x1
z
Serial port header x4
z
RS232/422/RS485 header x1
z
PWRLED header x1
z
2
Speaker header x1
z
Front panel
z
LANLED header x2
z
24- bit single channel LVDS header x1
z
LVDS inverter x1
z
1-3 Layout Diagram
Rear IO Diagram
12V DC
Power-in Jack
Serial Port
Serial Port
VGA Port
HDMI Port
3
RJ-45 LAN Ports
Line-IN/
Optical SPDIF OUT
Line-OUT
MIC-IN
Motherboard Internal Diagram
r
P
t
r
L
12V DC
Power-in Jack
ATX12V Power Connector
TX-RX COM
Heade
CPUFAN1 Header
SATA Power Out
Connector
SFAN2 Header
Serial Ports
VGA Port over
HDMI Port
RJ-45 LAN Port over
USB 2.0 Ports
RJ-45 LAN Port over
USB 2.0 Ports
Audio
Connectors
Inverter
KBMS
Header
GPIO Header
ANLED Headers
Front Panel Audio Header
Mini-PCIE Slot
SM_BUS Header
LVDS Heade
USB 2.0 Headers
SODIMM1 Slot
SFAN1Header
Intel NM10 Chipset
SATAII Ports
(SATA1/SATA2)
CI Slo
Intel
CPU
Front Panel Header
SODIMM2 Slot
Serial Port Headers
(COM3/4/5/6)
Power
LED Header
Speaker Header
Notice!
When installing only one SODIMM to the board, please always install it
in SODIMM2 slot, otherwise system won’t start.
4
C
N
J
JP4
J
J
Motherboard Jumper Position
P8
JP7
P1
JP5
P2
ASE_OPE
JBAT1
JP9
5
6
Jumper
Jumper Name Description
JBAT1 CMOS RAM Clear Function Setting 3-Pin Block
JP1 UL1/UL2 USB Ports Power On Function Select 3-Pin Block
JP2 LVDS PVCC 5V/3.3V Select 3-Pin Block
JP4 INVERTER VCC 12V/5V Select 3-Pin Block
JP5 USB 1/2 Header Power On Function Select 3-Pin Block
JP7 COM1 Port Pin9 Function Select 6-Pin Block
JP8 COM2 Header RS232/485/422 Function Select 6-Pin Block
JP9 MINIPCIE Power 3.3V/ 3VSB Select 3-Pin Block
COPEN Case Open Message Display Function 2-Pin Block
Connectors
Connector Name
DC12V_IN DC 12V Power –in Connector
COM(COM1/COM2) Serial Port Connector x 2
VGA1 Video Graphic Attach Connector
HDMI1 High-Definition Multimedia Interface
UL1(Top); UL2(Top) RJ-45 LAN Connector x 2
UL1(Middle & Bottom);
UL2(Middle & Bottom)
AUDIO1 Line-in with SPDIF/Line-out/MIC
ATX12V1 ATX 12V Power Connector
SATA1/2 Serial ATAII Connector x 2
PWR2 SATA Power out Connector
USB 2.0 Port Connector x 4
7
Headers
Header Name Description
AUDIO2 Front Panel Audio Header 9-pin block
USB1 USB 2.0 Header 9-pin Block
USB2 USB 2.0 Header 4-pin Block
SM_BUS SM Bus Header 4-pin Block
KBMS PS2 Keyboard & Mouse Header 6-pin Block
GPIO1 GPIO Header 10-pin Block
COM3/4/5/6 Serial Port Header x4 9-pin Block
TX_RX RS 422/485 Header 4-pin block
PWR LED1 Power LED 3-pin Block
SPEAK1 Speaker Header 4-pin Block
JW_FP1
LANLED1;LANLED2 LANLED Header x2 2-pin Block
CPUFAN1;SFAN1;SFAN2 FAN Speed Headers 3-pin Block
LVDS1 24-bit single channel LVDS
Inverter LVDS Inverter 8-pin Block
Front Panel Header(PWR LED/
HD LED/ /Power Button /Reset)
Header
9-pin Block
35-pin Block
Chapter 2
Hardware Installation
2-1 Jumper Setting
(1) JBAT1 (3-pin): Clear CMOS
JBAT1
13
1-2 closed: Normal;
(2) JP1 (3-pin): UL1/UL2 USB Ports Power on Function Select
JBAT1
3
1
2-3 clo sed : Clear CMOS
JP1
13
1-2 closed : UL1/UL2 USB Ports Power on Function Disabled(default);
JP1
13
2-3 clo se d: UL1 /UL 2 US B Por ts Po w er on Func tio n Ena bled
8
(3) JP2 (3-pin): LVDS PVCC 5V/3.3V Select
V
JP2
1
1-2 cl ose d: LVDS P
JP2
13
2-3 closed : LVDS PVCC=3.3V
(4) JP4 (3-pin): INVERTER VCC 12V/5V Select
JP4
1-2 closed：Inverter1 VCC=12V (default);
JP4
2-3 closed：Inverter1 VCC=5V
CC=5V(default);
1
13
9
(5) JP5 (3-pin): USB 1/2 Header Power On Function Select
JP5
1-2 closed : USB 2/3 Header Power on Disabled(default);
JP5
2-3 closed: USB 2/3 Header Power on Enabled
1
1

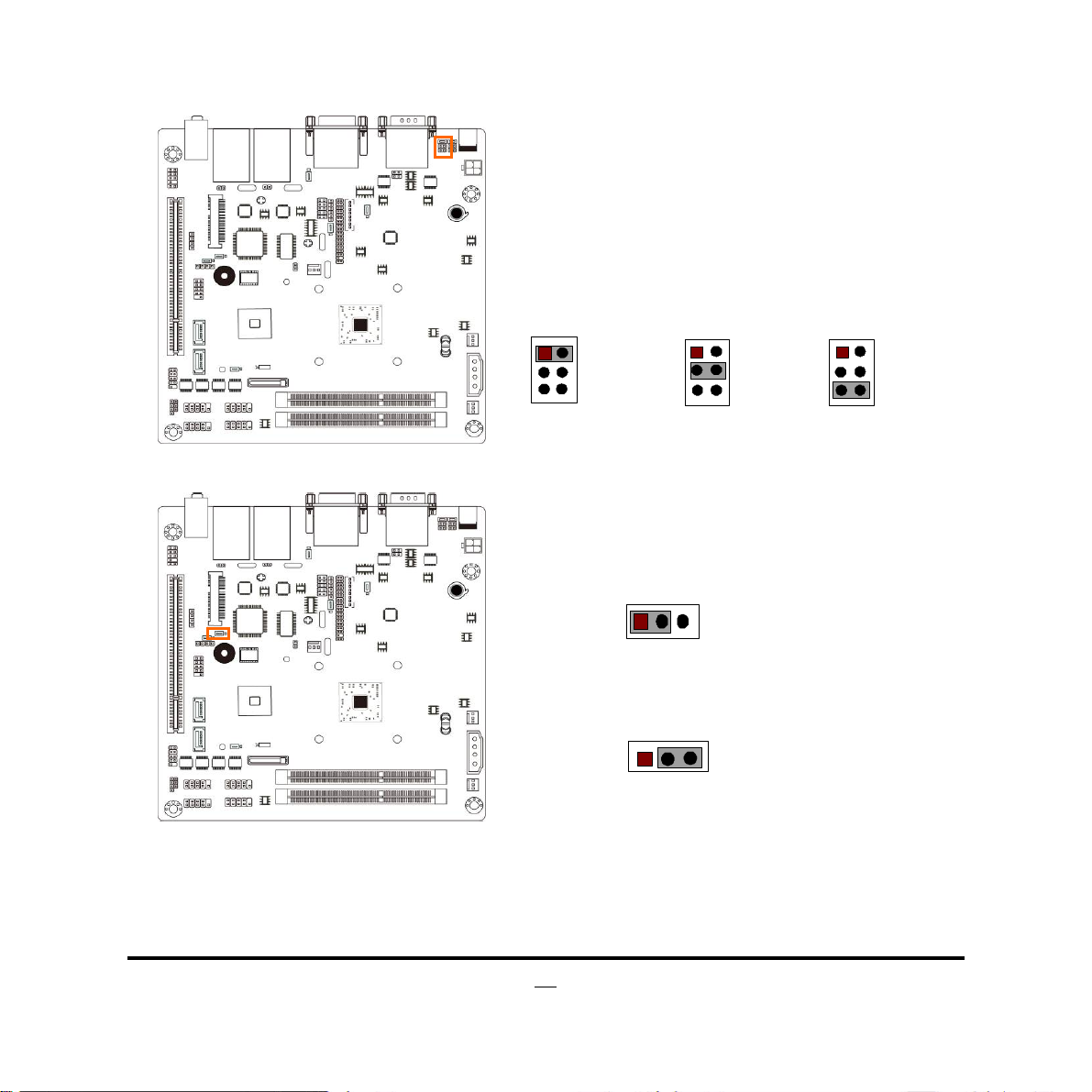

(6) JP7 (6-pin): COM1 Port Pin9 Function Select
JP7
3
1
1 1
1-2 closed: RS232;
3-4 closed : +12V;
5-6 closed : +5V
10
(7) JP8 (6-pin): COM2 Header RS232/485/422 Function Select
JP8
1
1-2 closed: RS232;
3-4 closed : RS485;
(8) JP9 (3-pin): Mini PCI-E Power 3.3V/ 3VSB Function Select
JP9
1-2 closed：MINI PCI-E Power= VCC 3.3V;
JP9
2-3 closed：MINI P CI-E Power=3V SB
1
1
3
1 1
5-6 closed : RS422
11
(9)CASE_OPEN(2-pin): Case Open Message Display Function Select
Pin 1-2 shorted: Case open display function enabled. Use needs to enter BIOS and
enable ‘Case Open Detect’ function. In this case if you case is removed, next time
when you restart your computer a message will be displayed onscreen to inform you
of this.
2-2 Connectors and Headers
2-2-1 Connectors

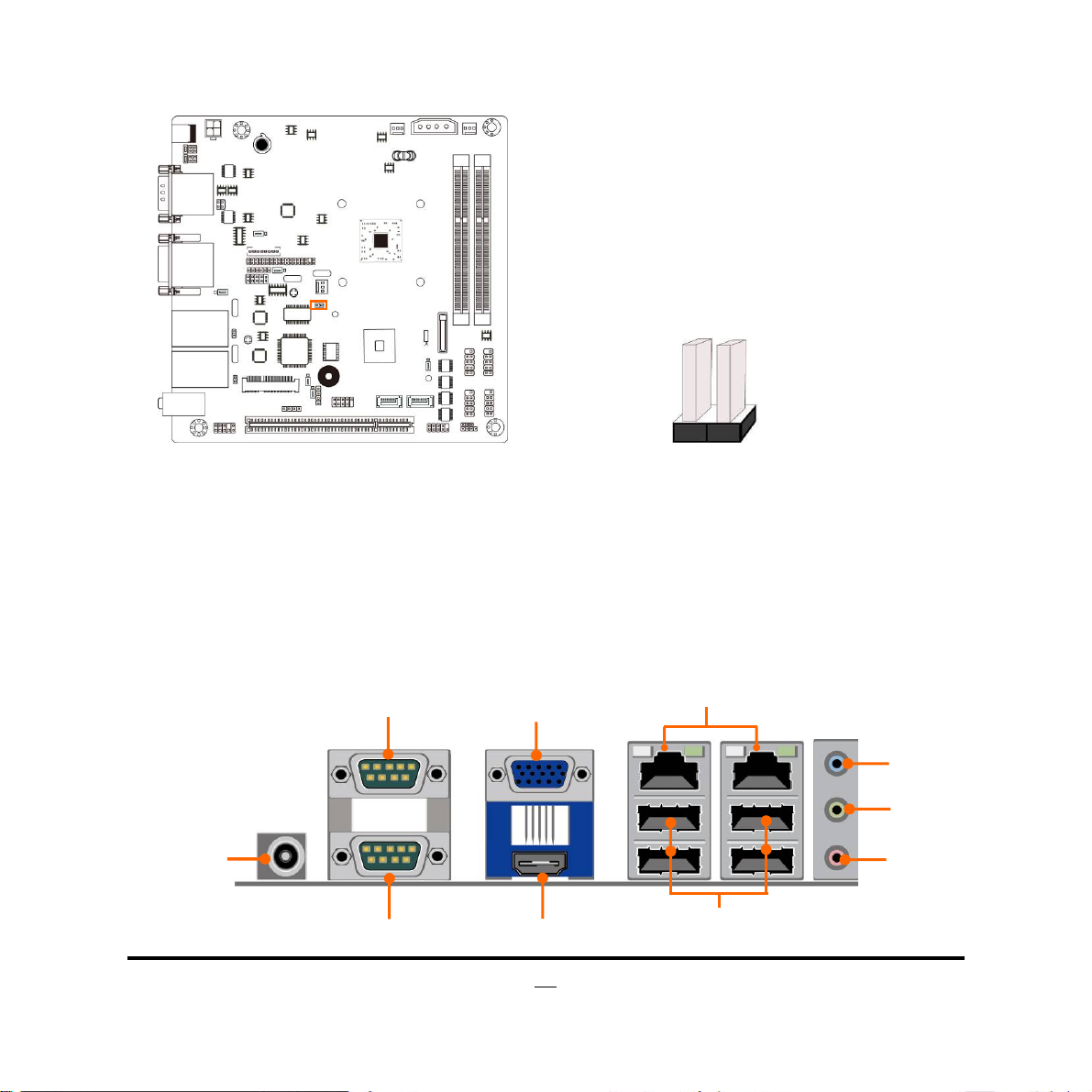

(1) I/O Panel Connector:
Serial Port
12V DC
Power-in Jack
Serial Port
VGA Port
HDMI Port
12
RJ-45 LAN Ports
Line-IN/
Optical SPDIF OUT
Line-OUT
MIC-IN
(2) ATX12V1 (4-pin block): ATX12V Type Power Connector
Pin No. Defi n i tion
1 GND
2 GND
3 +12V
4 +12V
Pin1
(3) PWR2 (4-pin): SATA Power Out Connector
Pin1
P i n N o. De f i n it io n
1 +12V
2 GND
3 GND
4 VCC

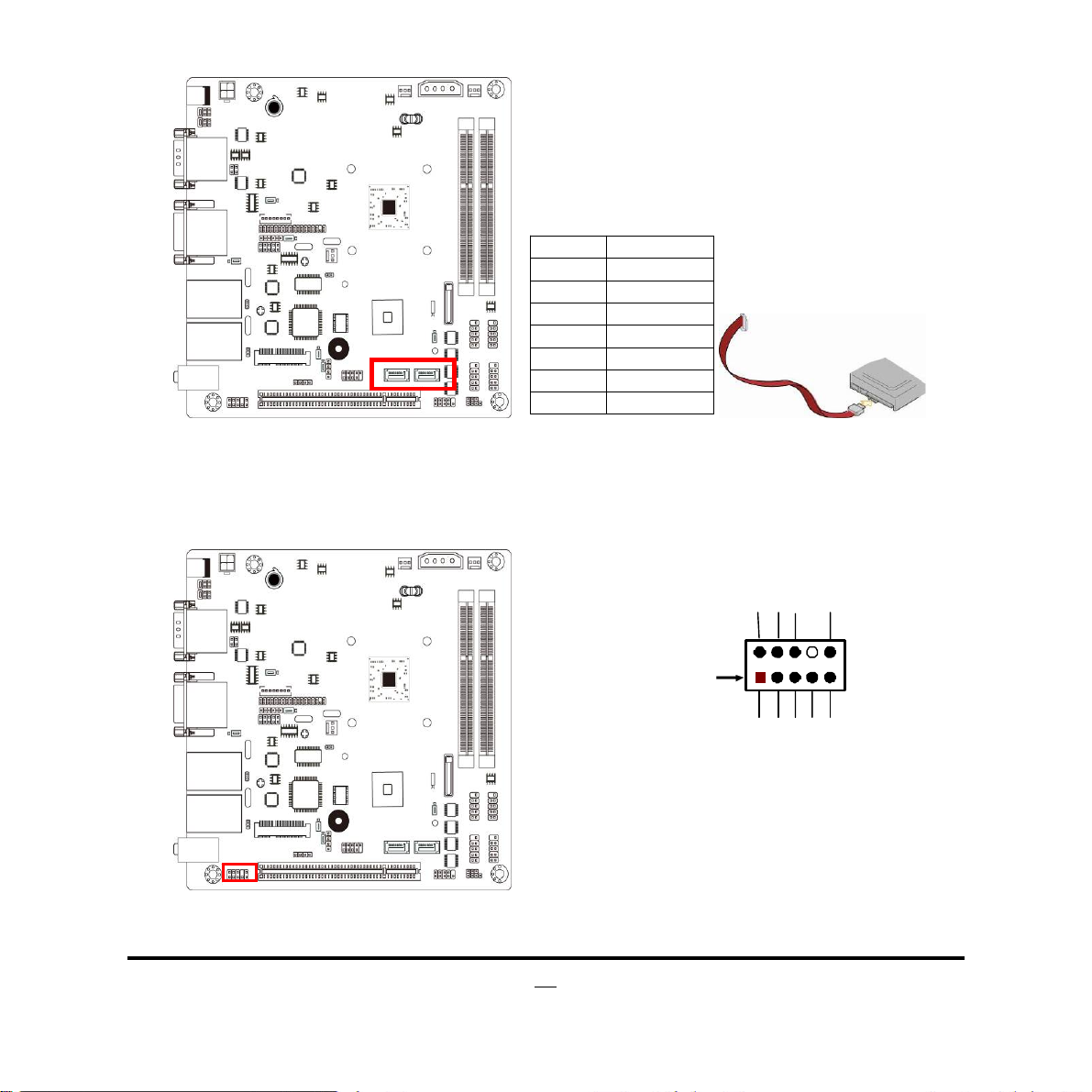

(4) SATA1/SATA2 (7-pin block): SATAII Port connector
These connectors are high-speed SATAII ports that support 3 GB/s transfer
rate.
13
R
Pin No. Defi nit ion
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
2-2-2 Headers

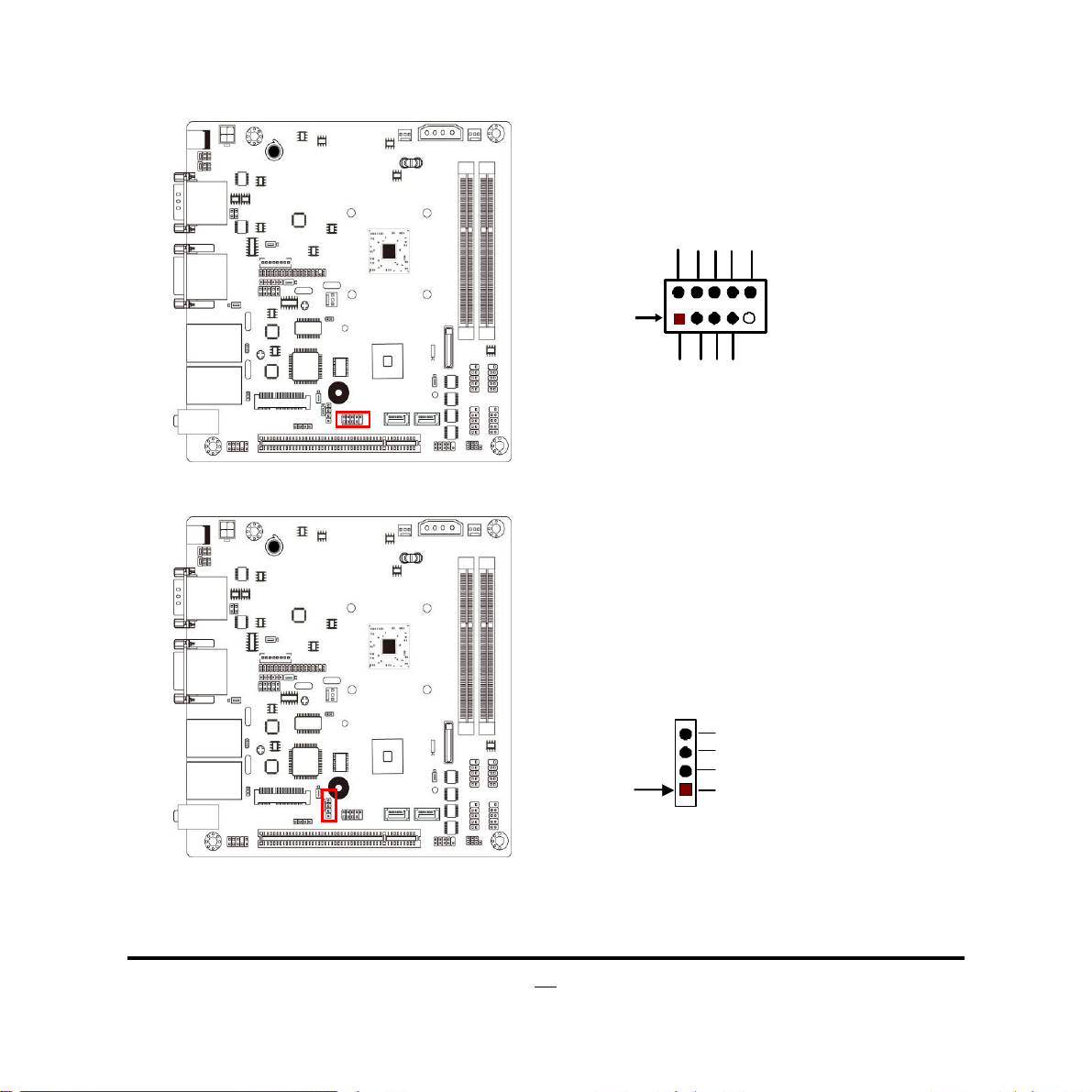

(1) AUDIO2 (9-pin): Front Panel Audio Header
This header connects to front panel Line-out, MIC-In connector with cable.
GND
NC
NC
NC
2
Pin 1
MIC1-L
MIC1-
LI NE OUT- R
NC
LINE OUT-L
Line-Out, MIC Header
14
(2) USB1 (9-pin): USB 2.0 Port Header
V
V
V
+DATA
Pin
-DATA
GND
CC
2
CC
NC
-DATA
GND
+DATA

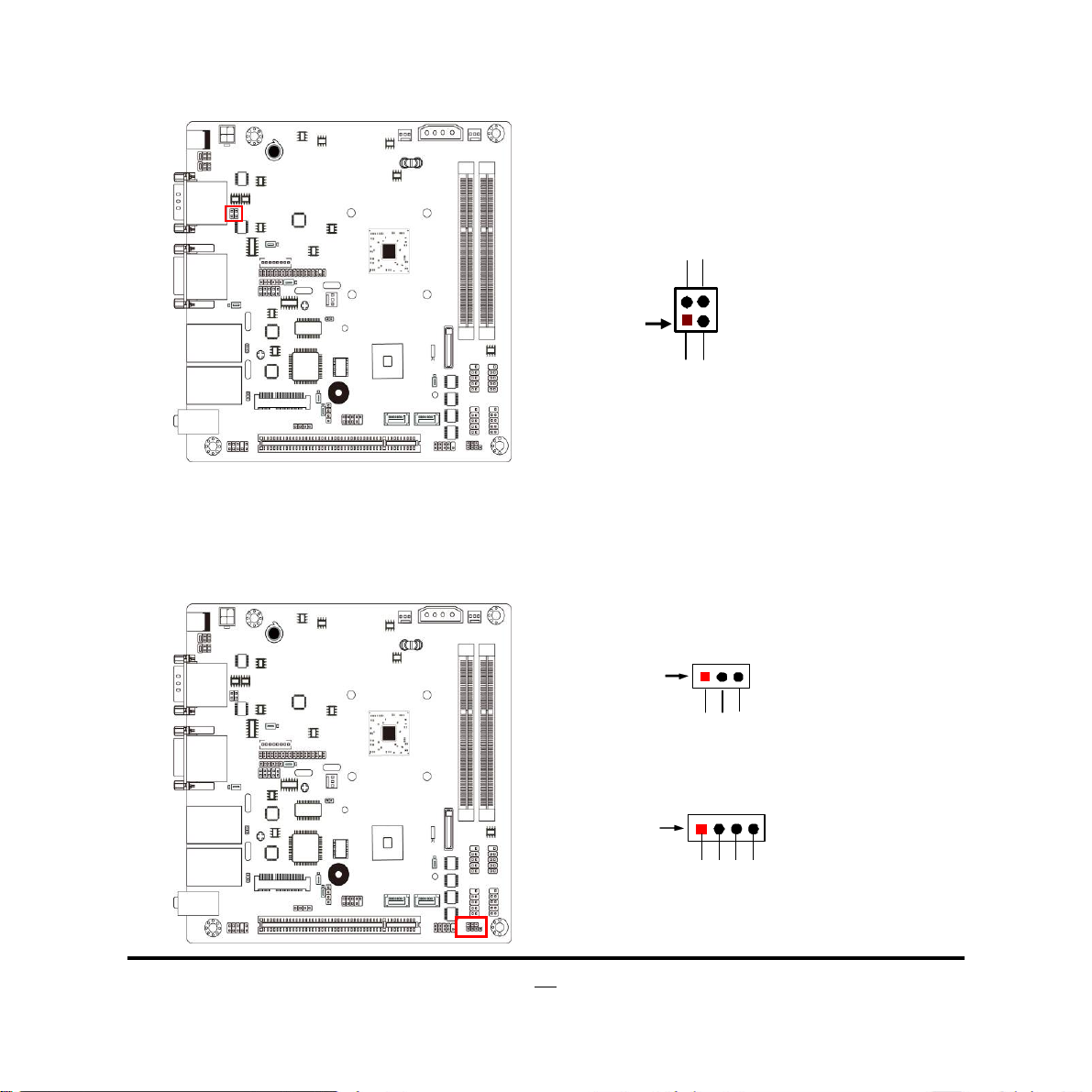

(3) USB2 (4-pin): USB 2.0 Port Header
15
GND
+DATA
-DATA
Pin1
CC
6
(4)SM_BUS (4-pin): SM BUS Header
_
_
Pin 1
SM BUS CLK
GND
VCC5V
SMBUS DA TA
(5) KBMS (6-pin): PS/2 Keyboard & Mouse Header
Pin1
1
MS
KB
KB CLK
DATA
GND
MS CLK
DATA
VCC
7

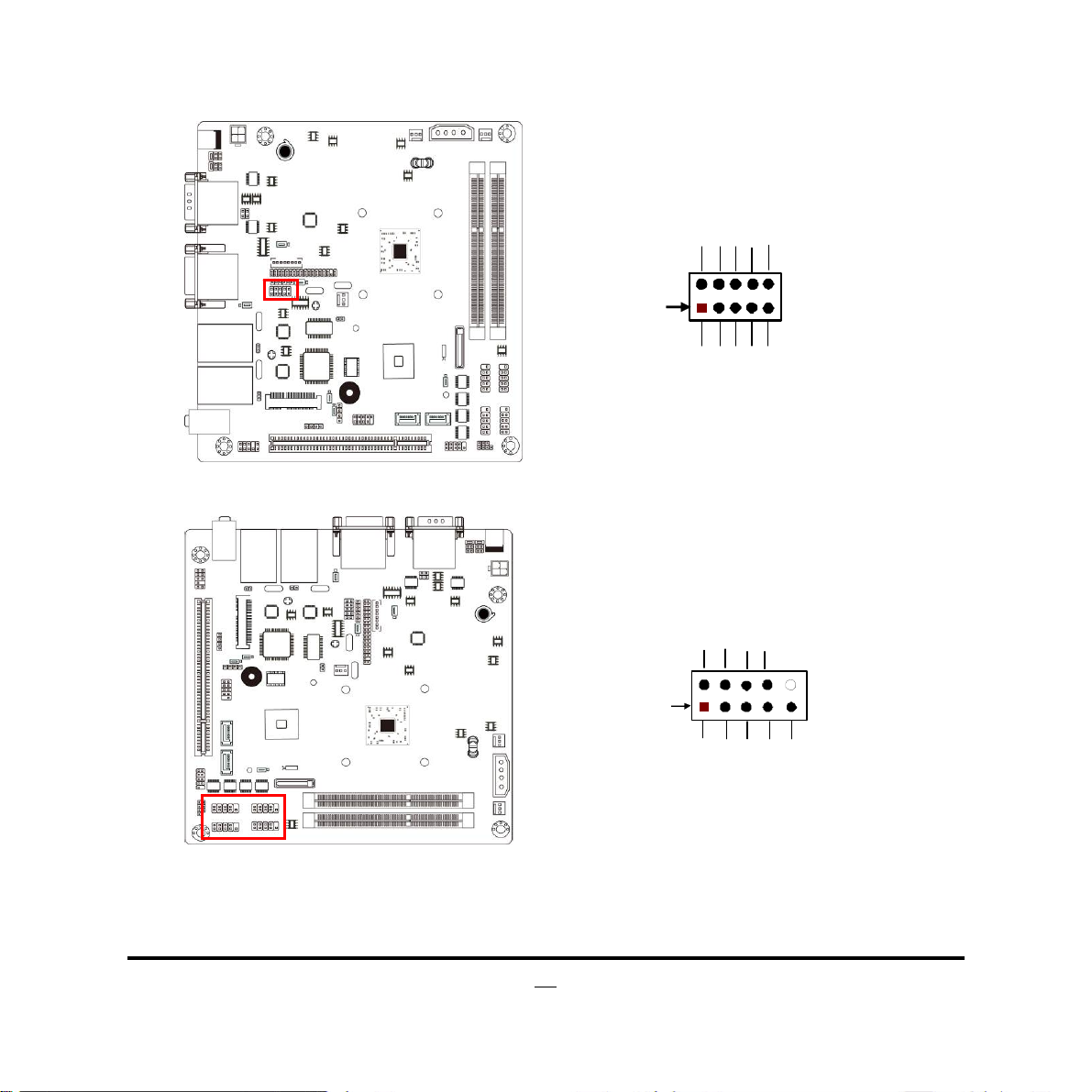

(6) GPIO1 (10-pin): GPIO Header
_
_
_
GPIO
31
GPIO
33
2
Pin 1
GPIO_32
GPIO
30
(7) COM3/COM4/COM5/COM6 (9-pin): Serial Port Headers
DSR
RTS
6
Pin1
DCD
SIN
GPIO_35
GPIO_34
CTS
SOUT
GPIO_37
GPIO_36
RI
VCC
10
9
GND
GND
DTR
1
(8) TX-RX (4-pin): RS422/485 Header
RXDN
TXDN
2
Pin 1
4
3
RXDP
TXDP
(9) SPEAK1 (4-pin): Speaker Header
This 4-pin header connects to the case-mounted speaker. See the figure below.
(10) PWR LED1 (3-pin): Power LED Header
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin header.
PWRLED1
Pin 1
PWRLED+
PWRLED-
PWRLED-
SPEAK1
Pin 1
SPK+
NC
NC
SPK-
18

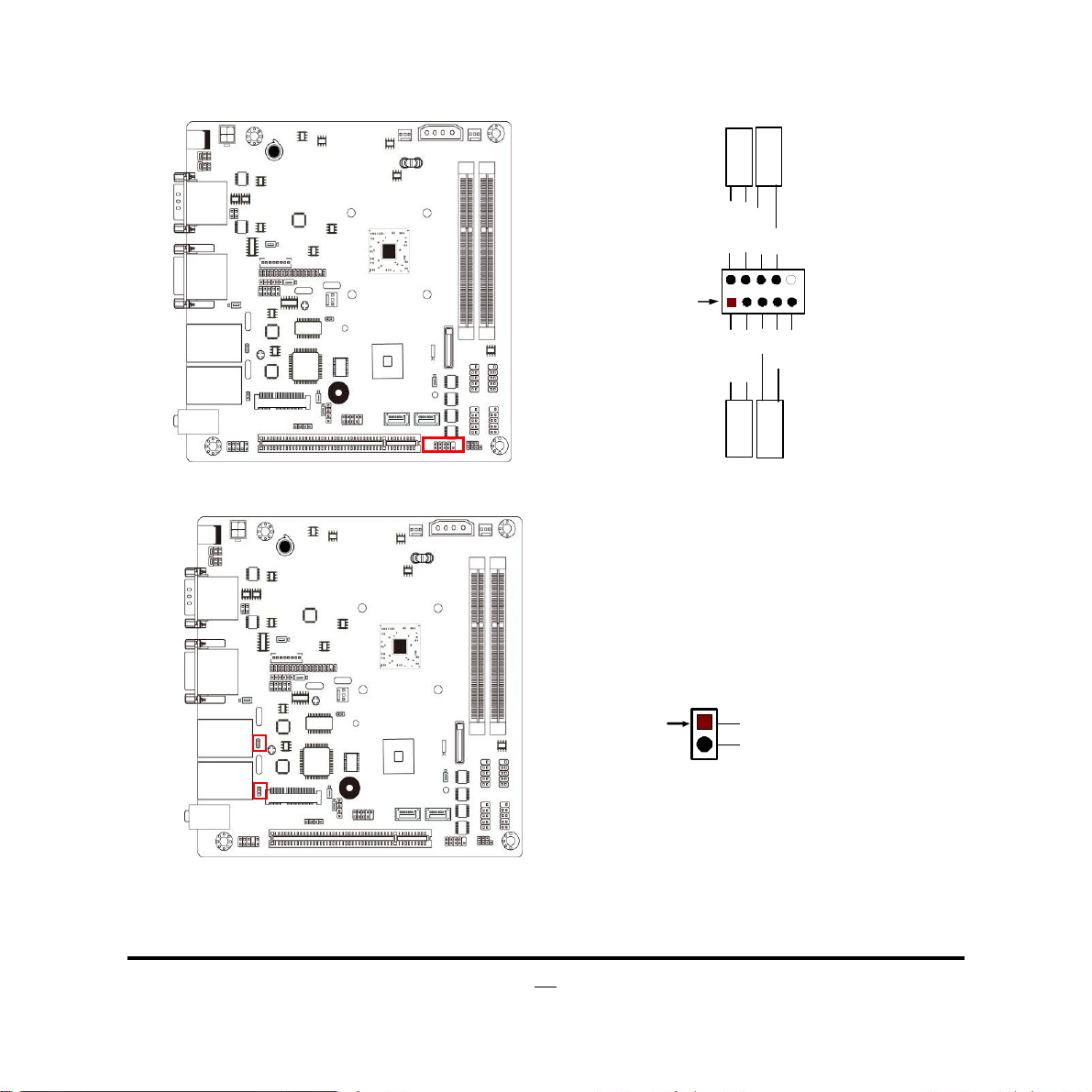

(11) JW-FP1 (9-pin): Front Panel Header
V
Pin 1
PWR LED
PWRBTN
PWRLED+
PWRLED-
PWRBT
GND
2
GND
HDDLED-
RSTSW
HDDLED+
CC
HDL ED
RESET
(12) LANLED1/LANLED2 (2-pin): LANLED Headers
Pin1
19
LED+
LED-

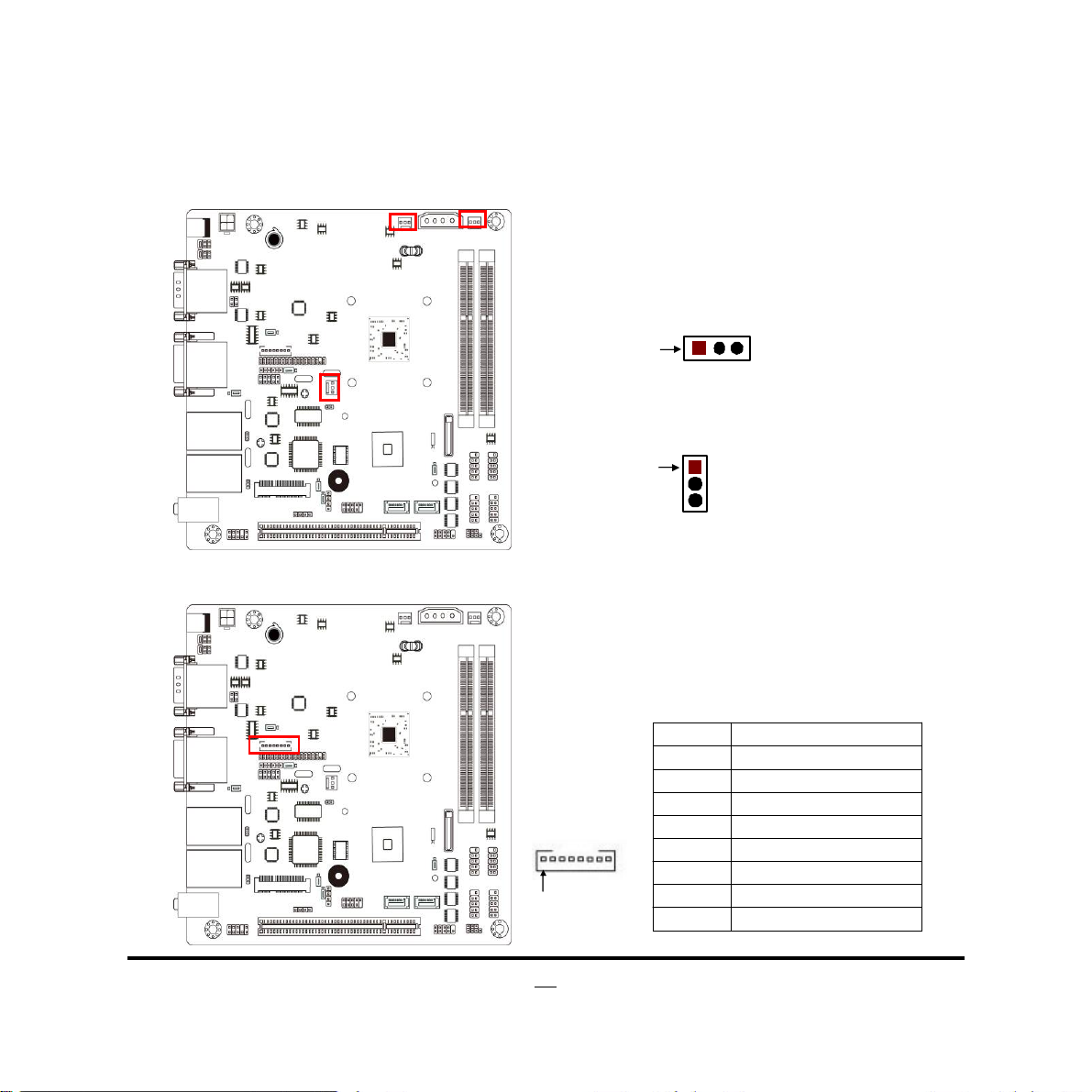

(13) CPUFAN1, SFAN1, SFAN2 (3-pin): FAN Headers
Pin1: GND
Pin2: +12V fan power
Pin3: Fan Speed
CPUFAN1/SFAN2
Pin1
SFAN1
Pin1
(14) INVERTER (8-pin): LVDS Inverter Connector
Pin 1
INVERTER
20
Pin No. Definition
1 Backlight Enable
2 Backlight Duty
3 PVCC
4 PVCC
5 GND
6 GND
7 Backlight+ SW
8 Backlight- SW
(15) LVDS1 (35-pin): 24-bit single channel LVDS Header
Pin 2
Pin 1
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 NC Pin 2 NC
Pin 3 NC Pin 4 NC
Pin 5 NC Pin 6 NC
Pin 7 NC Pin 8 NC
Pin 9 NC Pin 10 NC
Pin 11 LVDS_DDC_DATA Pin 12 LVDS_DDC_CLK
Pin 13 GND Pin 14 GND
Pin 15 GND Pin 16 GND
Pin 17 LVDSA_DATAP3 Pin 18 LVDSA_DATAN3
Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN
Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2
Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1
Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0
Pin 27 PVDD Pin 28 PVDD
Pin 29 PVDD Pin 30 PVDD
Pin 31 GND Pin 32 GND
Pin 33 +5V Pin 34 N/A
Pin 35 +12V (Reserved) Pin 36 +3V
21
Chapter 3
Introducing BIOS
Notice!
The BIOS is a program located on a Flash Memory on the motherboard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and software
to communicate, it is the key factor for system stability, and in ensuring that your
system performance as its best.
The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manuals are usually the first BIOS version when the board is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing
<Alt>
system does not boot, an error message will be displayed and you will again be asked
to
Press
and
<Delete>
<Del>
keys. If you do not press the keys at the correct time and the
to enter Setup
<Ctrl>
,
22
3-2 BIOS Menu Screen
The following diagram show a general BIOS menu screen:
Menu Bar
General Help Items
Menu Items
Current Setting Value
Function Keys Instruction
3-3 Function Keys
In the above BIOS Setup main menu, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:
Press←→ (left, right) to select screen;
z
Press ↑↓ (up, down) to choose the item you want to confirm or to modify in the
z
main menu.
23
Press <Enter> to select.
z
Press <+>/<–> key when you want to modify the BIOS parameters for the active
z
option.
[F1]: Press to general help information.
z
[F2]: Press to load previous value.
z
[F3]: Press to load optimized defaults.
z
[F4]: Save and Reset.
z
Press <Esc> to exit from BIOS Setup.
z
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right
corner the screen.
Status Page Setup Menu/Option Page Setup M enu
Press [F1] to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<Esc>.
3-5 Menu Bar
There are six menu bars on top of BIOS screen:
Main To change system basic configuration
Advanced To change system advanced configuration
Chipset To change chipset configuration
Boot To change boot settings
Security Password settings
Save & Exit Save setting, loading and exit options.
User can press the ←/→ (left, right) arrow key on the keyboard to switch from menu
bar. The selected one is highlighted.
24
3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> / <-> key or numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [TAB] to switch between data elements.
System Time
Set the time. Please use [TAB] to switch between time elements.
25
6
3-7 Advanced Menu
Legacy OpROM Support:
Launch External PxE OpROM/Launch LAN1 PXE OpROM//Launch LAN2 PXE
OpROM
Use this item to enable or disable boot option for legacy network devices.
Launch Storage OpROM
Use this item to enable or disable boot option for legacy mass storage devices with
option ROM.
Onboard LAN 1 Controller
Use this item to enable or disable PCI Express root port 1.
2
7
Onboard LAN 2 Controller
Use this item to enable or disable PCI Express root port 2.
ERP Function
Use this item to enable or disable ERP function for this board. This item should be set
as [Disabled] if you wish to have active all wakeup function.
► PCI Subsystem Settings
Press [Enter] to make settings for the following sub-items:
PCI ROM Priority
In the case of multiple option ROMs(Legacy and EFI compatible), specifies what
PCI option ROM to launch. The optional settings: [Legacy ROM]; [EFI Compatible
ROM].
PCI Common Settings:
PCI Latency Timer
Use this item to set value to be programmed into PCI latency timer register.
VGA Palette Snoop
Use this item to enable or disable VGA palette register snooping.
PERR# Generation
Use this item to enable or disable PCI device to generate PERR#.
SERR# Generation
Use this item to enable or disable PCI device to generate SERR#.
► ACPI Settings
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the
suspend button is pressed.
The optional settings are: [S1(CPU Stop Clock)]; [S3 (Suspend to RAM)].
► Wakeup Function Settings
Wake System with Fixed Time
2
Use this item to enable or disable system wake on alarm event. When set as
[Enabled], system will wake on the hour/min/sec specified.
PS2 KB/MS Wakeup
Use this item to enable or disable PS2 KB/MS wakeup function. This function is
only supported when ERP function is set as [Disabled].
PCI PME Wakeup
Use this item to enable or disable S3/S4/S5 PCI PME wakeup. This function is
only supported when ERP function is set as [Disabled].
► CPU Configuration
Hyper-Threading
The optional settings are: [Disabled]; [Enabled].Set as [Enabled] for Windows XP
and Linux (OS optimized for Hyper-Threading Technology) and [Disabled] for
other OS (OS not optimized for Hyper-Threading Technology).
Execute Disable Bit
The optional settings are: [Disabled]; [Enabled].
Limit CPUID Maximum
The optional settings are: [Disabled]; [Enabled].
This item should be set as [Disabled] for Windows XP.
► SATA Configuration
SATA Controller(s)
The optional settings are: [Disabled]; [Enabled].
Configure SATA as
The optional settings are: [IDE]; [AHCI].
► USB Configuration
Legacy USB Support
The optional settings are: [Auto]; [Disabled]; [Enabled].
28
EHCI Hand-off
The optional settings are: [Disabled]; [Enabled].
USB hardware delays and time-outs:
USB Transfer time-out
Use this item to set the time-out value for control, bulk, and interrupt transfers.
Device reset time-out
Use this item to set USB mass storage device start unit command time-out.
Device power-up delay
Use this item to set maximum time the device will take before it properly reports
itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for
a hub port the delay is taken from hub descriptor. The optional settings: [Auto];
[Manual].Select [Manual] you can set value for the following sub-item:
Device Power-up delay: the delay range in from 1 to 40 seconds in one second
increments.
► Super I/O Configuration
► COM1 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
► COM2 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
29
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port Mode Select
The optional settings are: [RS232]; [RS422/RS485].
PS2 KB/MS Connect
Use this item to set PS2 connect primary device. The optional settings are: [Keyboard
First]; [Mouse First].
Case Open Detect
To detect if the case has been opened or not. The optional settings are: [Enabled];
[Disabled].
► PC Health Status
Press [Enter] to view hardware health status.
► Second Super I/O Configuration
► COM3 /COM4 /COM5/ COM6 Port Configuration
Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
► Clock Generator Configuration
Clockgen Spread Spectrum
Use this item to enable or disable spread spectrum function.
IO Output Voltage
Use this item to set IO output voltage.
30
► Voltage Configuration
DIMM Voltage
The optional settings are: [Default]; [+50mV]; [+100mV]; [+150mV].
► Watchdog Configuration
WatchDog Timer Control
Use this item to enable or disable WatchDog Timer Control. When set as
[Enabled], the following sub-items shall appear:
WatchDog Timer Val
User can set a value in the range of 4 to 255.
WatchDog Timer Unit
The optional settings are: [Second];[Minute].
► Shutdown Temperature Configuration
Use this item to select system shutdown temperature.
► SmartFan Configuration
CPUFAN1 / SYSFAN1/SYSFAN2 SmartFan Mode
When set as [Enabled], the following sub-items shall appear:
CPUFAN1/ SYSFAN1/SYSFAN2 Full Speed Temp
Use this item to set a degree for CPU/SYSFAN1/ SYSFAN2 to run at full speed
when above the specific temperature set.
CPUFAN1 / SYSFAN1/SYSFAN2 Idle Temp
Use this item to set a degree for CPU/SYSFAN1/ SYSFAN2. FAN will idle speed
when below this temperature.
CPUFAN1 / SYSFAN1/SYSFAN2 Stop Temp
Use this item to set a degree for CPU/SYSFAN1/ SYSFAN2. CPU FAN will stop
when below this temperature.
31
3-8 Chipset Menu

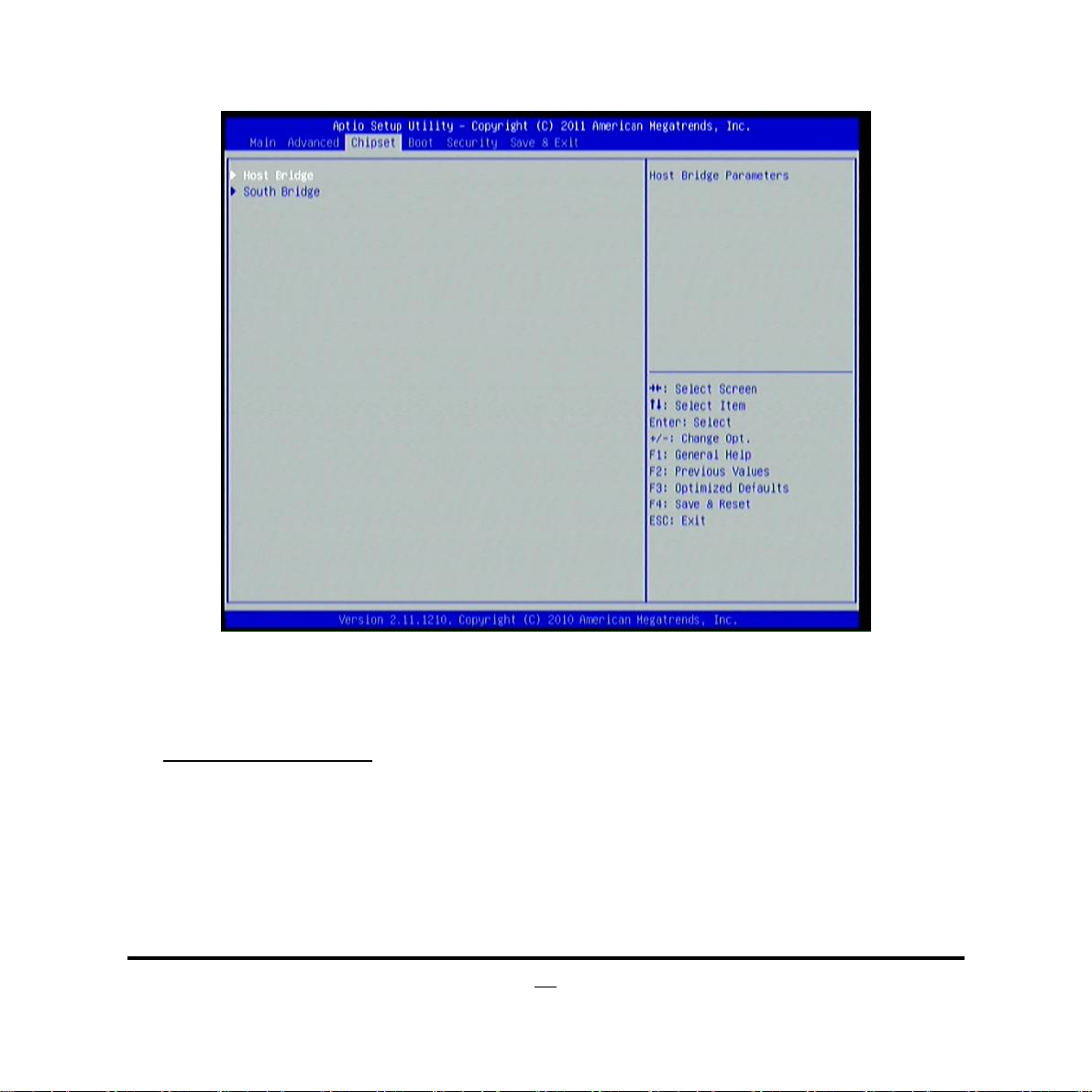

► Host Bridge
Press [Enter], user can have a view of memory information and make settings for
Intel IGD Configuration:
LVDS Configuration
IGFX-Boot Type
Use this item to set the video device which will be activated during POST. This has
no effect if external graphics presents.
The optional settings are: [VBIOS Default]; [CRT]; [LVDS]; [HDMI+LVDS];
[CRT+LVDS].
32
Backlight Control
The optional settings are: [PWM Inverted]; [PWM Normal].
In the case IGFX-Boot Type is set as [LVDS]; [HDMI+LVDS]; or [CRT+LVDS],
the following setting item shall appear:
LCD Panel Type:
The optional settings are: [1024 x 600]; [800 x 600]; [1024 x 768 18bit]; [1280 X
1024];[1366 x 768]; [1024 x 768 24bit]; [1280 x 800].
Active LFP
The optional settings are: [Disabled LVDS]; [Enabled LVDS].
► South Bridge
Azalia Controller
The optional settings are: [Enabled]; [Disabled].
UHCI #1 (Ports 0 and 1)/ UHCI #2 (Ports 2 and 3)/UHCI #3 (Ports 4 and
5)/UHCI #4 (Ports 6 and 7)
Use this item to control the USB UHCI (USB 1.1) functions. The optional settings
are: [Enabled]; [Disabled].
USB 2.0 (EHCI) Support
Use this item to enable or disable USB 2.0 (EHCI) support. The optional settings
are: [Enabled]; [Disabled].
High Precision Event Timer Configuration
High Precision Timer
The optional settings are: [Enabled]; [Disabled].
SLP_S4 Assertion Width
Use this item to select a minimum assertion width of the SLP_S4# signal. The
optional settings are: [1-2 Seconds]; [2-3 Seconds]; [3-4 Seconds]; [4-5 Seconds].
33
Restore AC Power Loss
Use this item to select AC power state when power is re-applied after a power
failure (G3 State). The optional settings are: [Power Off]; [Power On]; [Last State].

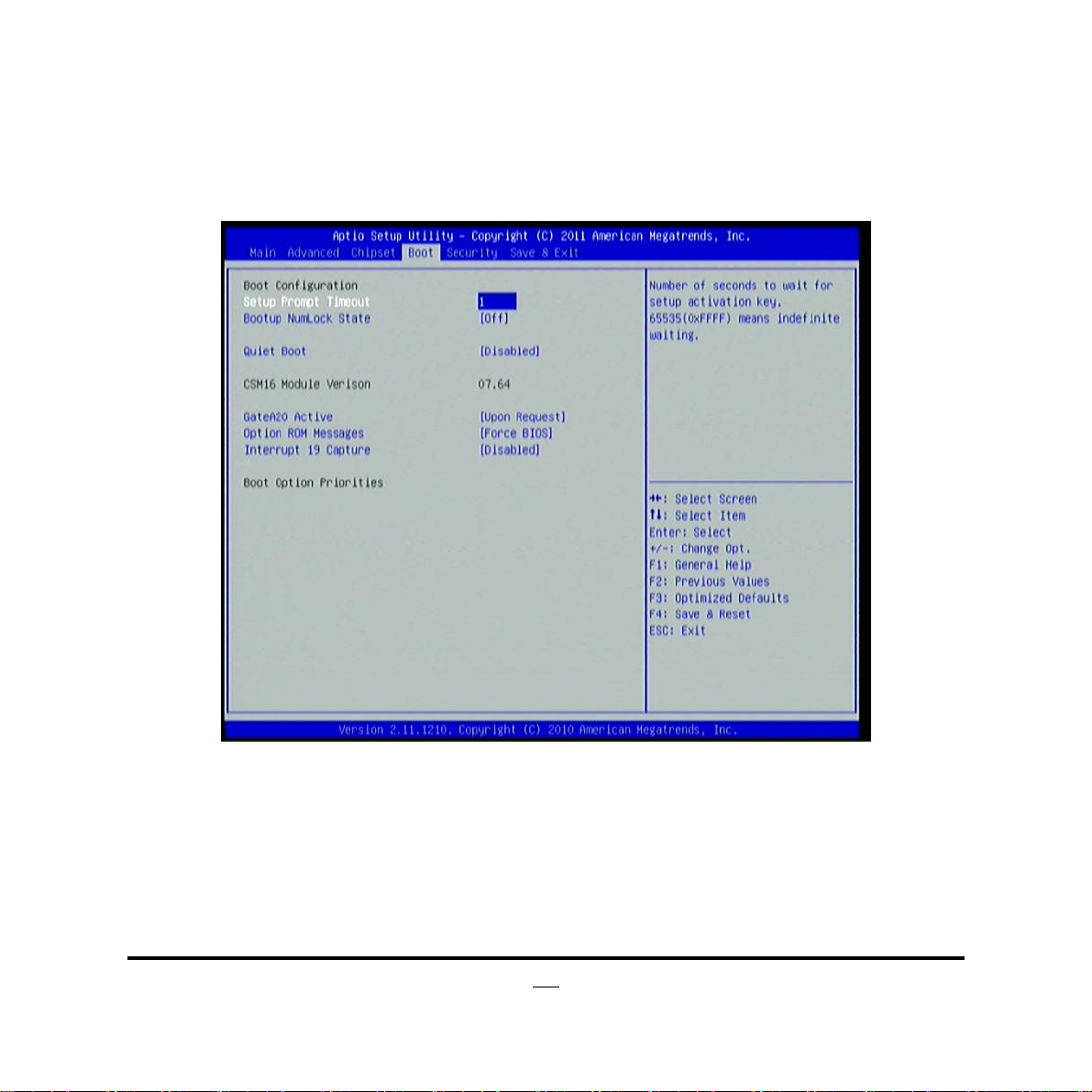

3-9 Boot Menu
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state. The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Enabled]; [Disabled].
34
Gate A20 Active
The optional settings are: [Upon Request]; [Always].
Option ROM Message
Use this item to set display mode for option ROM. The optional settings are: [Force
BIOS]; [Keep Current].
Interrupt 19 Capture
The optional settings are: [Enabled]; [Disabled].

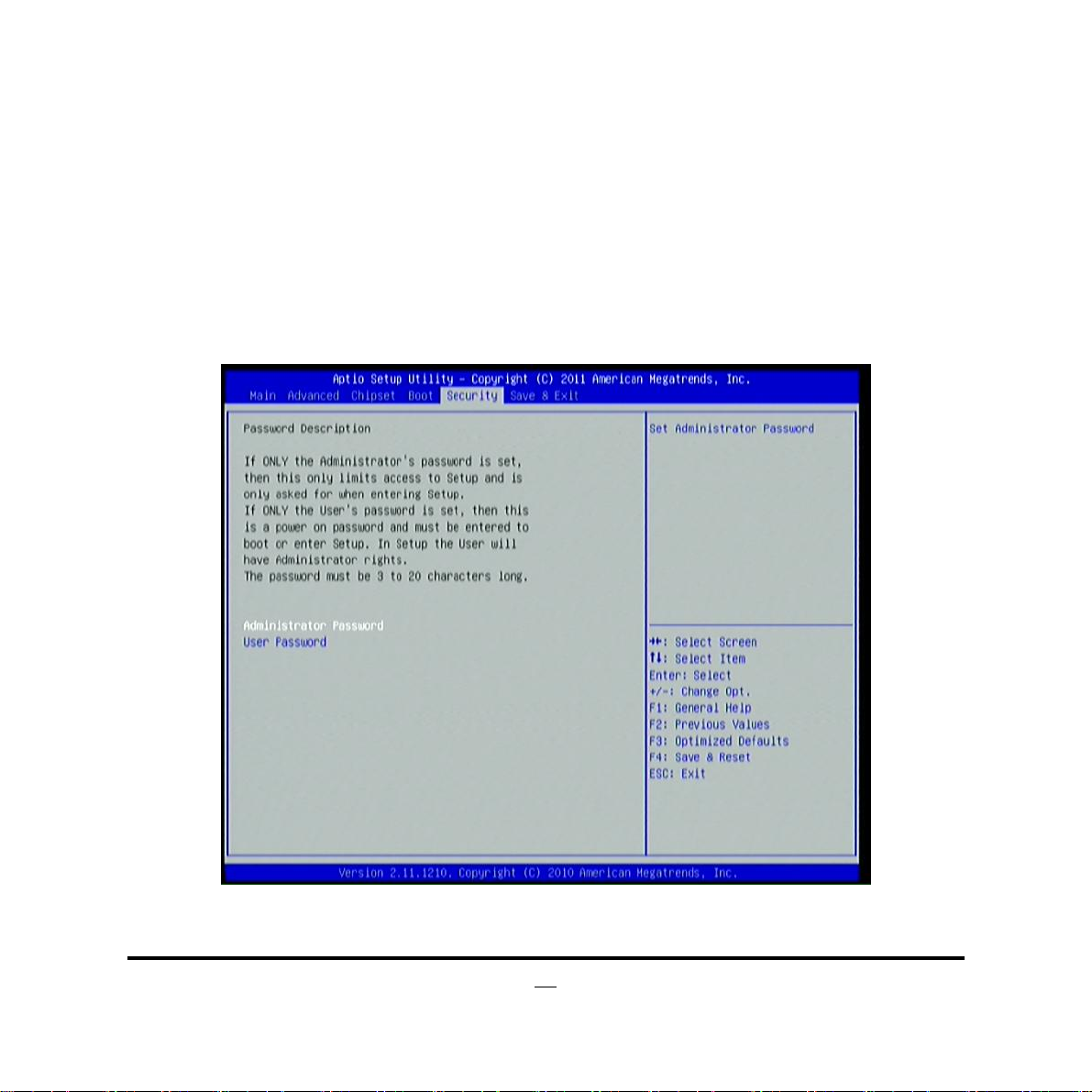

3-10 Security Menu
Security menu allow users to change administrator password and user password
settings.
35
6

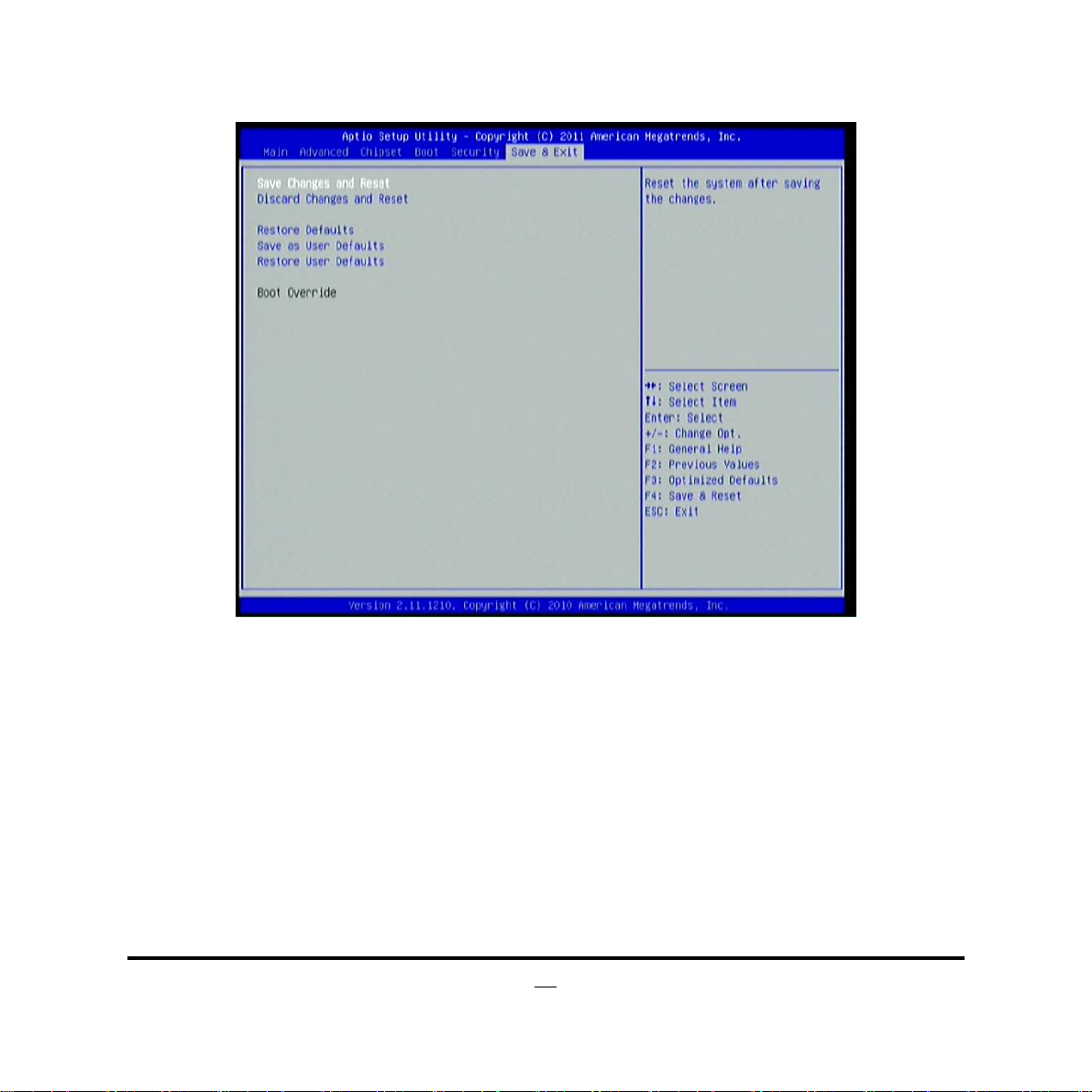

3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /Load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
Use this item to restore defaults to all the setup options.
3
Loading...
