Jetway Computer NC9I User Manual

TECHNICAL MANUAL
Of
Intel Pine Trail-D & NM10 Chipset
Based
Mini-ITX M/B for ATOM Processor
NO.G03-NC9I-F
Revision: 1.0
Release date: May, 2012
Trademark:
* Specifications and Information contained in this docume ntation ar e furnishe d for inf ormation use only , and ar e
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.
i
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................8
2-2 CONNECTORS AND HEADERS................................................................................12
2-2-1 CONNECTORS .............................................................................................12
2-2-2 HEADERS .....................................................................................................15
TABLE OF CONTENT
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................23
3-2 GETTING HELP ..........................................................................................................23
3-3 THE MAIN MENU........................................................................................................23
3-4 STANDARD BIOS FEATURES ..................................................................................25
3-5 ADVANCED BIOS FEATURES..................................................................................27
3-5-1 CPU FEATURE...............................................................................................29
3-6 ADVANCED CHIPSET FEATURES...........................................................................29
3-7 INTEGRATED PHERIPHRALS ..................................................................................31
3-7-1 ONBOARD SATA FUNCTION ........................................................................32
3-7-2 ONBOARD DEVICE FUNCTION.....................................................................33
3-7-3 ONBOARD SUPER IO FUNCTION.................................................................34
3-8 POWER MANAGEMENT SETUP...............................................................................35
3-9 PNP/PCI CONFIGURATIONS.....................................................................................37
3-10 PC HEALTH STATUS.................................................................................................38
3-11 MISCELLANEOUS CONTROL...................................................................................40
3-12 PASSWORD SETTING...............................................................................................41
3-13 LOAD OPTIMIZED /STANDARDDEFAULTS ............................................................42
3-14 SAVE AND EXIT SETUP/EXIT WITHOUT SAVING ...................................................43
ii
Environmental Safety Instruction
z Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
z Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.
z The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher temperature in the inner of the case.
z Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AN D WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition May,2012
Item Checklist
5
Motherboard
5
Motherboard User’s Manual
5
DVD for motherboard utilities
5
Cable(s)
5
I/O Back panel shield
iv
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Intel Pine Trail-D and NM10 chipset.
z
Onboard Intel Atom dual core CPU, with low power consumption never denies
z
high performance.
Support 2 * DDRIII 800MHz Single CH SO-DIMM up to 4GB
z
Support PCI slot and mini-PCIE slot
z
Onboard Gigabit Ethernet LAN.
z
Integrated ALC662 6-channel HD audio CODEC.
z
Support USB2.0 data transport demands.
z
Support RS232/422/485 function.
z
Support CPU Smart FAN
z
Support Watchdog Technology
z
1
1-2 Specification
Spec Description
Design z Chipset
Embedded CPU
Memory Socket
Expansion Slot
LAN Chip
Audio Chip
BIOS z Multi I/O
Mini-ITX form factor; PCB size: 17.0x17.0cm Intel Pine Trail-D+NM10 Chipset
z
ATOM CPU
z
DDRIII SODIMM slot x2
z
Support two un-buffered Single Channel DDRIII 800 MHz
z
SO-DIMM with memory capacity expandable to 4GB
32-bit PCI slot x 1
z
Mini-PCIE slot x1
z
Integrated with two Realtek RTL8111EVL PCI-E Gigabit
z
LAN chips
Support Fast Ethernet LAN function of providing
z
10/100/1000Mbps Ethernet data transfer rate
Realtek ALC662 6-channel Audio Codec integrated
z
Audio driver and utility included
z
AMI 8MB DIP Flash ROM PS/2 keyboard connector x1
z
PS/2 mouse connector x1
z
Serial port connector x1
z
VGA port connector x1
z
Parallel port Connector x1
z
USB 2.0 port connector x4
z
RJ-45 LAN connector x1
z
Audio connector x3 (Line-in, Line-out, MIC)
z
SATAII Connector x2
z
Front panel audio header x1
z
CDIN header x1
z
4-pin USB 2.0 header x1
z
9-pin USB 2.0 header x1
z
Serial port header x5
z
TX-RX header x1
z
2
3-pin Power LED header x1
z
Speaker header x1
z
Front panel header x1
z
VGA header x1
z
GPIO header x1
z
LVDS header x1
z
LVDS Inverter x1
z
1-3 Layout Diagram
Rear IO Diagram
12V DC
Power-in Jack
PS/2
Mouse Port
PS/2
Keyboard Port
Parallel Port
Serial Port
VGA Port
3
RJ-45 LAN Port
Line-IN
Line-OUT
MIC-IN
USB 2.0 Ports
Motherboard Internal Diagram
r
r
p
r
r
r
(
)
r
r
r
ATX 12V Power
Connector
12V DC
Power-in Jack
PS/2 Mouse over
PS/2 Keyboard Port
LVDS Heade
Inverter
CPUFAN Heade
SATA Power
Connector
SYSFAN2 Heade
Parallel Port over
Serial Port & VGA Port
USB 2.0 Ports
RJ-45 Port over
USB 2.0 Ports
Audio Connecto
Serial Port Header
GPIO Header
VGA Header*
LANLED
Heade
COM2
TX-RX COM
Header
Mini-PCIE Slot
CDIN Header
Intel CPU
SYSFAN1 Heade
Intel NM 10 Chipset
SATAII Ports
SODIMM Slot X2
Serial Port Header
(COM3/4/5/6)
Power LED Heade
Front Panel Audio Header
PCI slot
USB 2.0 Header
Front Panel Heade
eaker Header
S
*Note:The board supports only one VGA output. User can choose VGA port from rear panel as display output, or choose internal VGA header for expansion VGA port.
DDRIII
4
Motherboard Jumper Position
J
JP2J
P4
P1
JP6
JP7
JP8
JP9
JBAT1
JP5
5
Connectors
Connector Name
DC12V_IN DC 12V Power –in Connector KB1 PS2 Keyboard & Mouse Connector COM1 Serial Port COM Connector VG1 Video Graphic Attach Connector PARALLEL1 Parallel Port Connector USB3 USB 2.0 Port Connectors UL1(Middle/down) USB 2.0 Port Connectors UL1(Top) RJ-45 LAN Connector AUDIO1 Line Out /Line In /MIC Audio Connector PWR2 SATA Power out Connector SATA1/2 SATAII Connector INVERTER LVDS Inverter Connector CPUFAN1,SFAN1/2 FAN Speed Headers
Headers
Header Name Description
AUDIO2 Front panel audio Header 10-pin block CDIN1 CD Audio-In Header 4-pin Block USB1 USB Header 10-pin Block USB2 USB Header 4-pin Block PWR LED1 Power LED 3-pin Block SPEAK1 Speaker Header 4-pin Block JW_FP1
Front Panel Header(PWR LED/ HD LED /Power Button /Reset)
10-pin Block
LANLED LANLED Header 2-pin Block COM2/3/4/5/6 Serial Port Header 10-pin Block TX-RX RS422/485 Port Header 4-pin block VGA1 VGA Header 16-pin Block GPIO1 GPIO Header 10-pin Block LVDS1 LVDS Header 36-pin Block
6
7
Jumper
Jumper Name Description
JP1 K/B, USB Power On Function Setting 3-pin Block JP5 USB 1/2 Power On Function Setting 3-pin Block JBAT1 CMOS RAM Clear Function Setting 3-pin Block JP2 LVDS PVCC 5V/3.3V Select 3-pin Block JP4 Inverter12V/5V Select 3-pin Block JP9 Mini PCI-E Power VCC3.3V /3VSB Select JP6 COM1 Power RS232 Function Select 6 pin Block JP7 COM2 Power RS232 Function Select 6 pin Block JP8 COM2 RS232/422/485 Function Select 6 pin Block
3-Pin Block
Chapter 2
Hardware Installation
2-1 Jumper Setting
(1) JP1 (3-pin): K/B, USB Power On Function Setting
JP1
1-2 C losed: K/B, USB PO WER-ON Disabled(default);
JP1
2-3 closed:K/B, USB POWER-ON Enabled
1
(2) JP5 (3-pin): USB1/2 Power On Function Setting
JP5
1-2 closed : USB 1/2 Header POWER-ON Disabled(default);
JP5
2-3 closed: USB 1/2 Header POWER-ON Enabled
3
1
3
1
8
(3) JBAT1 (3-pin): Clear CMOS
JBAT1
JBAT1
3
3
1
1-2 closed: Normal;
(4) JP2 (3-pin): LVDS PVCC 5V / 3.3V Function Setting
JP2
1
1- 2 closed: LVDS PVCC= 5V;
1
2-3 closed : Clear CMOS
JP2
1 33
2-3 closed : LVDS PVCC= 3.3V
9
(5) JP4 (3-pin): Inverter 5V/12V Select
;
JP4
1-2 closed:Inverter 12V selected
(6) JP6 (6-pin): COM1 Pin9 function select
JP6
1-2 closed: RS232;
1
3-4 closed : +12V;
JP4
1 33
2-3 closed:In verter 5V select
5-6 closed : +5V
10
(7) JP7 (6-pin):COM2 Pin9 function select
JP7
1-2 closed: RS232;
3-4 closed : +12V;
(8) JP8 (6-pin):COM2 Port RS232/485/422 Function Select
JP8
1
1-2 closed: RS232;
1
3-4 closed : RS485;
5-6 closed : +5V
1
5-6 closed : RS422
11
(9) JP9 : Mini PCI-E Power VCC3.3V/ 3VSB Function Select
JP9
1-2 closed MINI PCI-E
2-2 Connectors and Headers 2-2-1 Connectors
(1) I/O Panel Connector:
12V DC
Power-in Jack
PS/2
Mouse Port
PS/2
Keyboard Port
Parallel Port
Serial Port
VGA Port
3
1
VCC= VCC3.3V;
JP9
2-3 closedMINI PCI-E
RJ-45 LAN Port
USB 2.0 Ports
3
1
VCC=3VSB
Line-IN
Line-OUT
MIC-IN
12
(2) ATX12V1 (4-pin block): ATX12V type Power Connector
Pin1
Pin No. Definition
1 GND 2 GND 3 +12V 4 +12V
(3) PWR2 (4-pin block): SATA Power Connector
Pin1
Pin No. De finition
1 +12V 2 GND 3 GND 4 VCC
13
(4) SATA1/SATA2(7-pin): SATA II Port Connector
Pin No. Defnition
1 GND 2 TXP 3 TXN 4 GND 5 RXN 6 RXP 7 GND
(5) INVERTER (8-pin): LVDS inverter Connector
Pin 1
Pin No. Definition
1 Backlight Enable 2 Backlight Duty 3 PVCC 4 PVCC 5 GND 6 GND 7 NC 8 NC
14
(6) CPUFAN, SFAN1, SFAN2 (3-pin): FAN Speed Headers
Pin1: GND Pin2: +12V fan power Pin3: Fan Speed
3
1
CPUFAN 1
1
SFAN 2
3
SFAN 1
1
3
2-2-2 Headers
(1) AUDIO2 (10-pin): Front Panel Audio Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
GND
NC
NC
NC
15
AUDIO2
2
Pin 1
MIC2-L
10
9
LINEOUT2-L
LINEOUUT2-R
MIC2-R
NC
6
(2) CDIN1(4-pin): CD AUDIO-In Header
V
V
CDIN header is for CD-Audio Input signal. Please connect it to CD-ROM
CD-Audio output connector.
CD-R
GND
CD-L
GND
Pin1
(3) USB1 (10-pin): USB 2.0 Port Header
1
Pin 1
CC
CC
+DATA
-DATA GND
NC
-DATA
+DATA
GND
7
(4) USB2 (4-pin): USB 2.0 Port Header
V
Pin 1
GND
+DAT
-DATA CC
(5) PWR LED1(3-pin): PWR LED Header
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin header.
(6) SPEAK1 (4-pin): Speaker Header
This 4-pin header connects to the case-mounted speaker. See the figure below.
Pin 1
Pin 1
PWRLED1
GND
VCC
GND
SPEAK1
SPEAK
NC
NC
VCC
1
(7) JW-FP1 (10-pin): Front Panel Header
JW_FP1
Pin 1
PWR LED
PWRBTN
PWRLED+
PWRLED-
PWRBT
GND
2
HDDLED-
RSTSW
GND
HDDLED+
NC
HDL ED
RESET
(8)LANLED (2-pin): LANLED Header
Pin1
LED+
LED-
18
(9) COM2/COM3/COM4/COM5/COM6(10-Pin): Serial Port Header
DSR
RTS
Pin6
Pin1
CTS
RI
Pin5
DCD
SIN
GND
SOUT
DTR
(10) TX-RX (4-pin): RS422/485 Header
19
Serial P ort He ad er
Pin 1
TXDN
TXDP
2 4
3
RXDN
RXDP

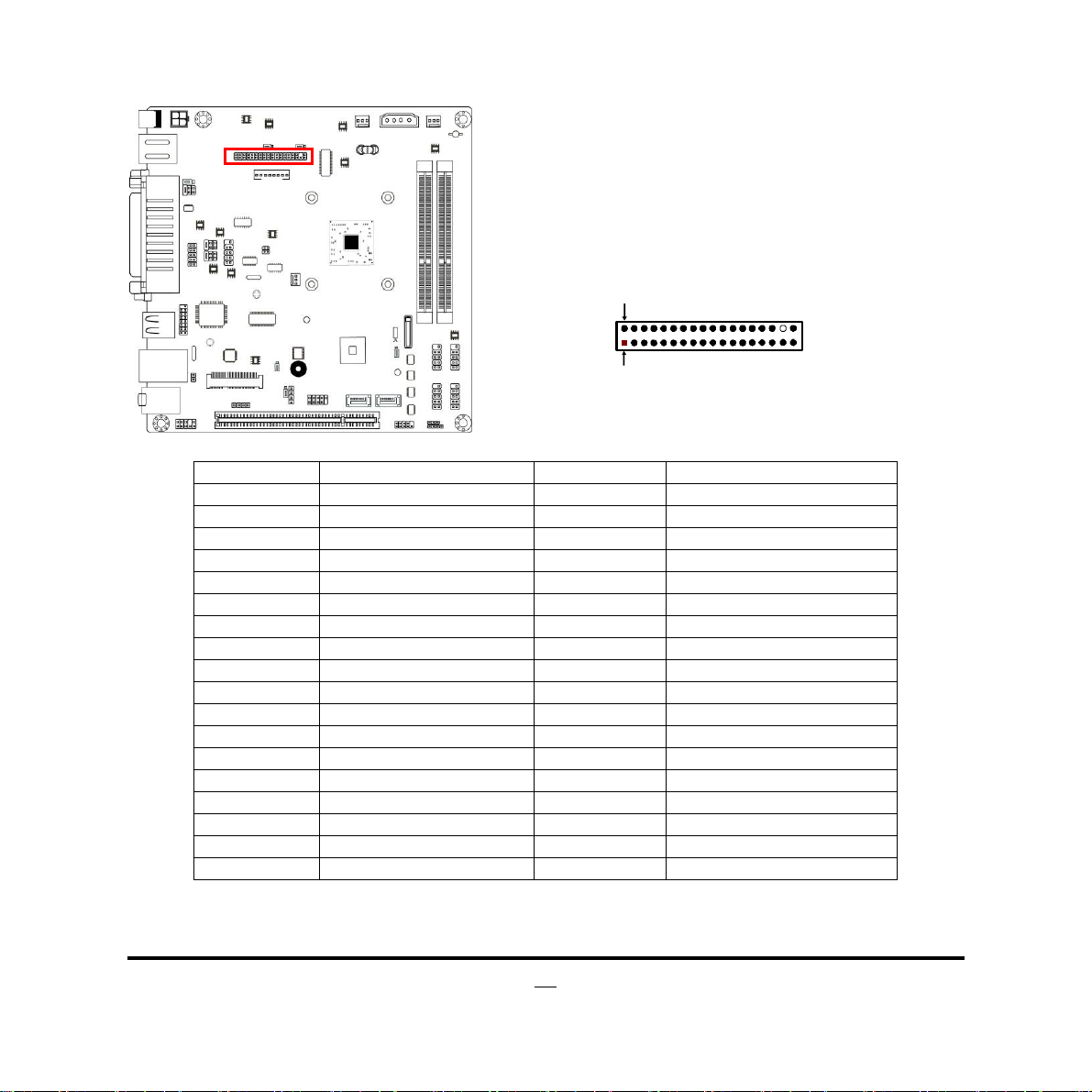

(11) VGA1 (16-pin): VGA Header
_
G
_
_
_
SMBUS-DATE
(12) GPIO1 (10-pin): GPIO Header
GREEN
GND
NC
VSYNC
GND
GND
Pin2 Pin1
RED
BLUE
ND GND
VCC
VG
NC
HSYNC
SMBUS_C LK
Pin 1
GPIO_33
GPIO
GPIO_35
GPIO
31
2
VCC
37
10
9
GPIO_32
GPIO_34
GPIO
GPIO_36
GND
30
20
(13) LVDS1(36-pin): 24-bit single channel LVDS Header
Pin 2
Pin 1
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 NC Pin 2 NC Pin 3 NC Pin 4 NC Pin 5 NC Pin 6 NC Pin 7 NC Pin 8 NC Pin 9 NC Pin 10 NC Pin 11 LVDS_DDC_DATA Pin 12 LVDS_DDC_CLK Pin 13 GND Pin 14 GND Pin 15 GND Pin 16 GND Pin 17 LVDSA_DATAP3 Pin 18 LVDSA_DATAN3 Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2 Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1 Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0 Pin 27 PVDD Pin 28 PVDD Pin 29 PVDD Pin 30 PVDD Pin 31 GND Pin 32 GND Pin 33 +5V Pin 34 N/A Pin 35 +12V (Reserved) Pin 36 +3V
21
Chapter 3
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.
In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:
Press <Esc> to quit the BIOS Setup.
Press ↑↓←→ (up, down, left, right) to choose, in the main menu, the option you
want to confirm or to modify.
Press <F10> when you have completed the setup of BIOS parameters to save
these parameters and to exit the BIOS Setup menu.
22
Press +/– keys when you want to modify the BIOS parameters for the active
option.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to
Press <Del> to enter Setup
3-2 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen.
Status Page Setup Menu/Option Page Setup M enu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.
3-3 The Main Menu
Once you enter AMI ® BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
23
Figure 3-1
Standard BIOS Features
Use this Menu for basic system configurations.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system’s performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PnP/PCI Configurations
Use this menu to specify your settings for PnP and PCI configurations.
24
PC Health Status
This entry shows your PC health status.
Miscellaneous Control
Use this menu to specify your settings for Miscellaneous Control.
Load Optimized Defaults
Use this menu to load the BIOS default values these are setting for optimal performances system operations for performance use.
Load Standard Defaults
Use this menu to load the BIOS default values for the minimal/stable performance system operation
Set Supervisor Password
Use this menu to set supervisor password.
Set User Password
Use this menu to set user password.
Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.
3-4 Standard BIOS Features
The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
25
System Date
Use [Enter], [TAB] or [SHIFT+TAB] to select setting filed. Then use [+] or [-] to configure system date. The date format is <day><month><date><year>.
Day of the week is from Sun to Sat, determined by BIOS. Read-only.
Day Month Date Year
System Time
Use [Enter], [TAB] or [SHIFT+TAB] to select setting filed. Then use [+] or [-] to configure system time. The time format is <hour><minute><second>.
SATA 1/SATA 2
The month is from Jan. through Dec.
The date from 1 to 31 can be keyed by numeric function keys.
The year depends on the year of the BIOS.
26
While entering setup, BIOS auto detects the presence of hard disk devices. This displays the status of auto detection of hard disk devices.
Type: LBA/Large Mode:
Disabled: disables LBA mode. Auto: enables LBA Mode if the devices support it and the device is not already formatted with LBA Mode disabled.
Block (Multi-Sector Transfer):
Disabled: The Data transfer from and to the device occurs one sector at a time. Auto: The Data transfer from and to the device occurs multiple sectors at a time if the device supports it.
32 Bit Data Transfer:
The optional settings are: [Not Installed]; [Auto]; [CD/DVD] and [ARMD].
The optional settings are [Auto]; [Disabled].
The optional settings are: [Disabled] and [Auto].
the optional settings are: [Disabled] and [Enabled].
3-5 Advanced BIOS Features
27
Virus Warning
The selection Allow you to choose the VIRUS Warning feature for Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.
Disabled Enabled
Quick Power On Self Test
This item allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system. The optional settings: [Disabled]; [Enabled].
Boot Up NumLock Status
Use this item to select power-on state for Numlock key.
APIC Mode
Use this item to include ACPI APIC table pointer to ESDT pointer list. The optional settings are: Disabled; Enabled.
MPS Version Control for OS
This option is only valid for multiprocessor motherboards as it specifies the version of The Multiprocessor Specification (MPS) that the motherboard will use. The optional settings: [1.1]; [1.4].
(default) No warning message to appear when anything attempts to
access the boot sector or hard disk partition table. Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.
28
3-5-1 CPU Feature
Hyper Threading Technology
Enabled for Windows XP and Linux4(OS optimized for Hyper Threading Technology) and disabled for other OS (OS not optimized for Hyper –Threading Technology).
Limit CPU MaxUal
The optional settings are: [Disabled]; [Enabled].
Execute Disable Bit Capabill
The optional settings are: [Disabled]; [Enabled]. When disabled, force the XD feature Flag to always return 0.
3-6 Advanced Chipset Features
The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.
29
DRAM Timing Settings by SPD
The optional settings are: [Disabled]; [Enabled].
Initate Graphic Adapter
The optional settings are: [IGD]; [PCI/IGD]. Select which graphic controller to use as the primary boot device.
IGD Mode Select
Use this item to select the amount of system memory used by the internal graphics device. The optional settings: [Disabled]; [Enabled, 8MB].
LVDS
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], the following setting items will appear:
Boot Display Device
The optional settings are: [VBIOS Default]; [CRT]; [LVDS]; [CRT+LVDS].
30
Flat Panel Type
Use this item to select flat panel resolution type. The optional settings are: [640X 480]; [800X 600]; [1024X768]; [800X480]; [1024X600]; [1366X768]; [1280X768]; [1280X800];[1280X600]; [1280X1024].
Backlight Control Support
The optional settings are: [VBIOS Default];[Both BLC & BIA Disabled];[BLC Enabled].
18/24 BIT Select
The optional settings are: [18 BIT];[24 BIT].
3-7 Integrated Peripherals
31
3-7-1 Onboard SATA Function
Configure SATA as
The optional settings are: [IDE]; [AHCI].
SATA Run Mode Configuration
The optional settings are: [Compatible];[Enhanced].
32
3-7-2 Onboard Device Function
Onboard LAN1 Controller
The optional settings are: [Enabled]; [Disabled].
Onboard LAN1BootROM
The optional settings are: [Enabled]; [Disabled].
High Definition Audio
The settings are: [Auto];[Disabled].
USB Host Controller
The optional settings: [Enabled]; [Disabled].
USB 2.0 Function
The optional settings: [Enabled]; [Disabled].
USB 2.0 Operation Mode
33
Use this item to configure the USB 2.0 controller in HiSpeed(480Mbps) or FullSpeed(12Mbps). The settings are: [FullSpeed]; [HiSpeed].
USB Keyboard Legacy/Mouse Legacy /Storage Legacy Support
Use these items to enable or disable legacy support for USB keyboard/mouse/ mass storage devices. The optional settings are: [Enabled], [Disabled].

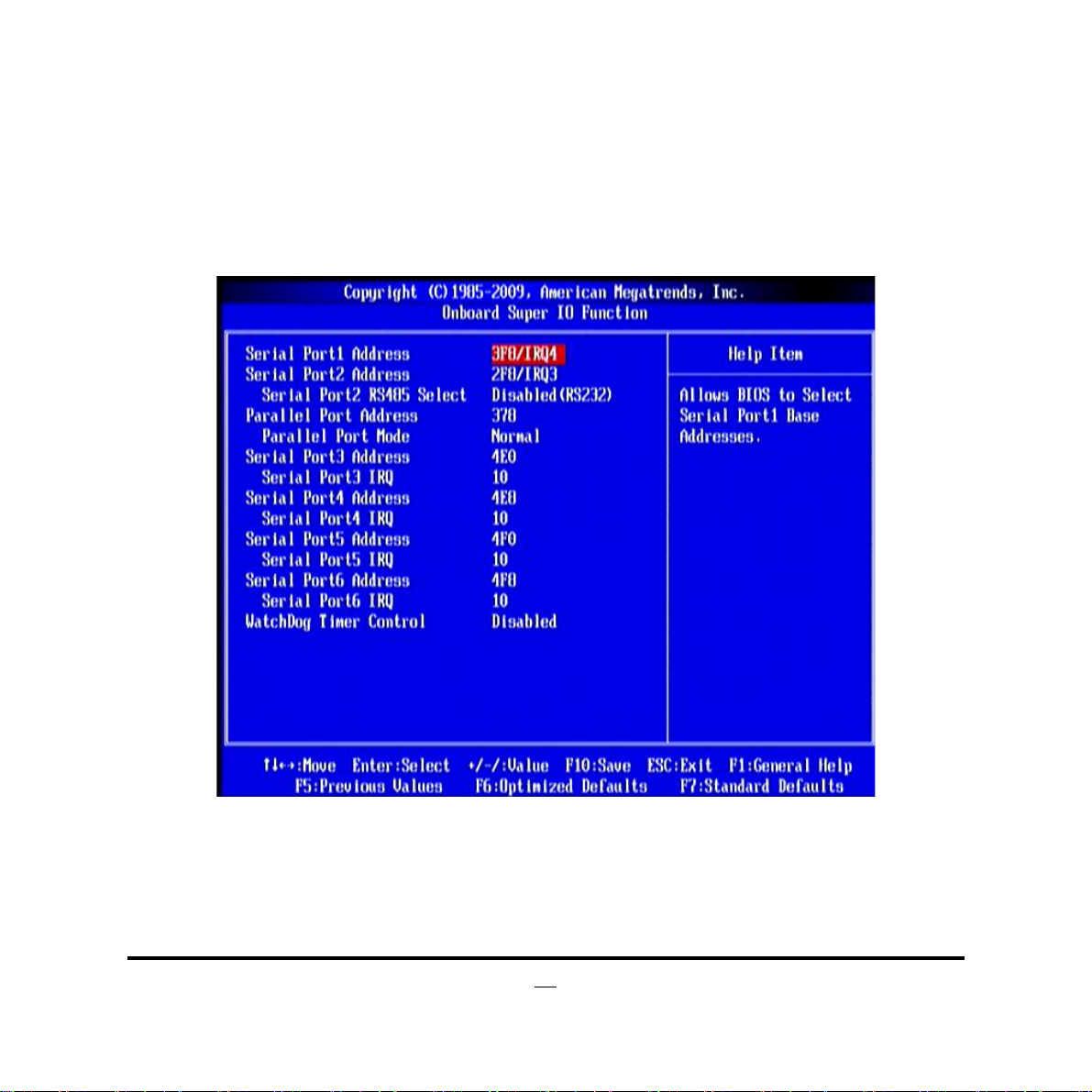

3-7-3 Onboard Super IO Function
Serial Port 1/2 Address
This item allows BIOS to select base addresses for serial port 1/2.
Serial Port 2 RS485 Select
The optional settings
Parallel Port Address
are[Disabled(RS232)]; [Enabled(RS485)].
34
Use this item to allow BIOS to select parallel port base adresses.
Parallel Port Mode
The optional settings are: [Normal]; [Bi-Directional]; [ECP]; [EPP]; [ECP & EPP].
Serial Port 3/4/5/6 Address
This item allows BIOS to select base addresses for serial port 3/4/5/6.
Serial Port 3/4/5/6 IRQ
This item allows BIOS to select serial port 3/4/5/6 IRQ.
Watchdog Timer Select
This item is used to activate the watchdog function. The optional settings are: [Enabled]; [Disabled].
When set as Enabled, The following sub-items shall appear:
WatchDog Timer Val User can type a number in the range of 4 to 255. WatchDog Timer Unit The optional settings are: [Sec.]; [Min.].
3-8 Power Management Setup
The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.
35
6
ACPI Suspend Type
Users can select the ACPI state used for system suspend. The optional settings are: [S1(POS)]; [S3(STR)].
Video Power Down Mode
The optional settings: [Disabled]; [Standby]; [Suspend].
Suspend Time Out
Use this item to select the specified time for system to go into suspend.
Power Button Mode
Use this item to go into [On/Off] or [Suspend] when power button is pressed.
ERP Function
The optional settings are: [Enabled]; [Disabled]. When set as [Disabled], the following sub-items shall appear:
Wake-Up by PCI Card; Wake-Up by PCIE LAN; Power On by Ring; Wake Up by USB from S3(S4); PS2 KB/MS Wake-Up from S3-S5; Resume On RTC Alarm.
3
7
User can set them as [Enabled] or [Disable] for to enable or disable respective functions.

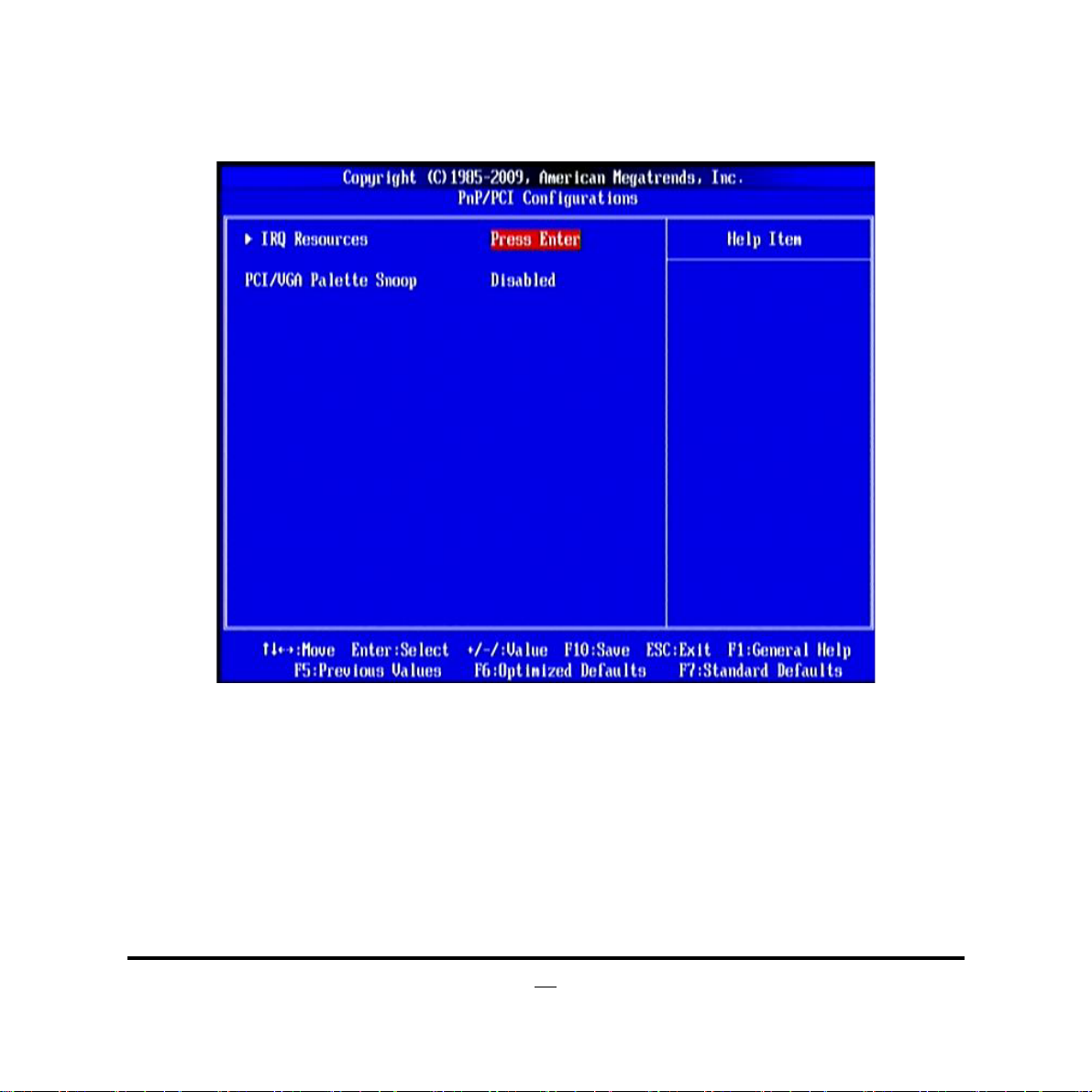

3-9 PnP/PCI Configurations
IRQ Resources
Press [Enter] to view IRQ availability. [Available]: Specified IRQ is available to be used by PCI/PnP devices. [Reserved]: Specified IRQ is reserved for use by legacy ISA devices.
PCI/VGA Palette Snoop
The optional settings are: [Enabled]; [Disabled]. Enabled: to inform the PCI devices that an ISA graphics device is installed in the system so the card will function correctly.
3
3-10 PC Health Status
This section shows the Status of you CPU, Fan, and Warning for overall system status. This is only available if there is Hardware Monitor onboard.
Shutdown Temperature
This item can let users set the Shutdown temperature, when CPU temperature over this setting the system will auto shutdown to protect CPU.
CPU Thermal Throttling
The optional settings are: [Disabled]; [Enabled].
When it is set as [Enabled], use can make settings for the following items that show up:
CPU Thermal-Throttling Temp.;
Use can select specific temperature for CPU Thermal Throttling function.
38
CPU Thermal-Throttling Duty
The optional settings are: [87.50%]; [75.00%]; [62.50%]; [50.00%]; [37.50%]; [25.00%]; [12.50%].
CPU Thermal-Throttling Beep.
The optional settings are: [Disabled]; [Enabled].
Smart Fan Configuration
CPUFAN / SYSFAN1/ SYSFAN2 Smart Mode
When set as [Enabled], the following sub-items shall appear:
CPUFAN / SYSFAN1/ SYSFAN2 Full Speed Temp
Use this item to set a degree for CPUFAN/SYSFAN1/SYSFAN2. FAN will run at full speed when above this temperature.
CPUFAN / SYSFAN1/ SYSFAN2 Idle Temp
Use this item to set a degree for CPUFAN/SYSFAN1/SYSFAN2. FAN will idle speed when below this temperature.
CPUFAN / SYSFAN1/ SYSFAN2 Idle Speed Duty
Use this item to set idle speed duty for CPUFAN/SYSFAN1/SYSFAN2.
CPU Temperature/ System Temperature /CPUFAN Speed / SYSFAN1 Speed /SYSFAN2 Speed/ Vcore/ /NB1.05V/5VSB/VDIMM/ +5V/+12V/Vcc3V/3VSB/VBat
This will show the CPU/FAN/System voltage chart and FAN Speed, etc.
39
3-11 Miscellaneous Control
Spread Spectrum
The optional settings are: [Enabled]; [Disabled].
Linear PCIEX Clock
The optional settings are from 100 to 200.
DRAM Clock at Next Boot
This item allows you to set DRAM clock. The optional settings are: [Auto]; [667MHz]; [800MHz].
Host/PCI Clock at Next Boot
The optional settings are from 200 to 600.
VDIMM Select
The optional settings are: [1.52V (Default)]; [1.55V]; [1.60V]; [1.65V].
40
3-12 Password Setting
You can set either supervisor or user password, or both of them. The differences are:
Supervisor password: Can enter and change the options of the setup menus. User password: Can only enter but do not have the right to change the options
of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration. Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.
41
3-13 Load Optimized /Standard Defaults
Load Optimized Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Pressing <OK> loads the default values that are factory settings for optimal performance system operations.
Load Standard Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Pressing <OK> loads the default values that are factory settings for stable performance system operations.
42
3-14 Save & Exit Setup/ Exit Without Saving
Save and Exit Setup
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Pressing <OK> save the values you made previously and exit BIOS setup.
Exit Without Saving
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Pressing <OK> to leave BIOS setting without saving previously set values.
43
Loading...
