Jetway Computer NC96 User Manual

TECHNICAL MANUAL
Of
Intel Pine Trail-D & NM10 Chipset
Based
Mini-ITX M/B for ATOM Processor
NO.G03-NC96-F
Revision: 3.0
Release date: July, 2010
Trademark:
* Specifications and Information contained in this docume ntation ar e furnishe d for inf ormation use only , and ar e
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.
i
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................7
2-2 CONNECTORS AND HEADERS................................................................................11
2-2-1 CONNECTORS .............................................................................................11
2-2-2 HEADERS .....................................................................................................12
TABLE OF CONTENT
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................19
3-2 GETTING HELP ..........................................................................................................19
3-3 THE MAIN MENU........................................................................................................19
3-4 STANDARD BIOS FEATURES ..................................................................................21
3-5 ADVANCED BIOS FEATURES..................................................................................25
3-5-1 CPU FEATURE...............................................................................................25
3-6 ADVANCED CHIPSET FEATURES...........................................................................25
3-7 INTEGRATED PHERIPHRALS ..................................................................................27
3-7-1 ONBOARD SATA FUNCTION ........................................................................27
3-7-2 ONBOARD DEVICE FUNCTION.....................................................................28
3-7-3 ONBOARD SUPER IO FUNCTION.................................................................29
3-8 POWER MANAGEMENT SETUP...............................................................................30
3-9 PNP/PCI CONFIGURATIONS.....................................................................................31
3-10 PC HEALTH STATUS.................................................................................................32
3-11 MISCELLANEOUS CONTROL...................................................................................33
3-12 PASSWORD SETTING...............................................................................................34
3-13 LOAD OPTIMIZED /STANDARDDEFAULTS ............................................................35
3-14 SAVE AND EXIT SETUP/EXIT WITHOUT SAVING ...................................................35
ii
Environmental Safety Instruction
z Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
z Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.
z The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher temperature in the inner of the case.
z Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AN D WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
3.0 Third Edition July, 2010
Item Checklist
5
Motherboard
5
Motherboard User’s Manual
5
DVD for motherboard utilities
5
Cable(s)
5
I/O Back panel shield
iv
Chapter 1
Introduction of the Motherboard
1-1 Feature of motherboard
Intel Pine Trail-D and NM10 chipset.
z
Onboard Intel Atom CPU, with low power consumption never denies high
z
performance.
Support CPU CLK 166 MHz
z
Support DDRII DIMM 667/800 up to 8GB.
z
Support PCI slot and mini-PCIE slot
z
Onboard Realtek RTL 8111DL Gigabit Ethernet LAN.
z
Integrated ALC662 6-channel HD audio CODEC.
z
Support USB2.0 data transport demands.
z
Support RS232/422/485 and watchdog.
z
1
1-2 Specification
Spec Description
Design z Chipset
Embedded CPU
Memory Socket
Expansion Slot
Integrate IDE
LAN
Audio
BIOS z Multi I/O
Mini-ITX form factor; PCB size: 17.0x17.0cm Intel Pine Trail-D+NM10 Chipset
z
ATOM CPU
z
240-pin DDRII DIMM slot x2
z
Support DDRII 667/800 MHz DDRII memory modules
z
Expandable to 8 GB
z
32-bit PCI slot x 1
z
Mini-PCIE slot x1
z
One PCI IDE controller that supports PCI Bus Mastering,
z
ATA PIO/DMA and the ULTRA DMA 100/66 functions that deliver the data transfer rate up to 100 MB/s
Integrated Realtek RTL8111DL PCI-E Gigabit LAN
z
Support Fast Ethernet LAN function of providing
z
10Mb/100Mb/1000Mb Ethernet data transfer rate
ALC662 6-channel Audio Codec integrated
z
Audio driver and utility included
z
AMI 8MB DIP Flash ROM PS/2 keyboard connector x1
z
PS/2 mouse connector x1
z
Serial port connector x1
z
VGA port connector x1
z
Parallel port Connector x1
z
USB port connector x4 USB header x2
z
RJ-45 LAN connector x1
z
Audio connector x1 (Line-in, Line-out, MIC)
z
SATAII Connector x4
z
Front panel audio header x1
z
Serial port header x1
z
RS232/422/RS485 header x1
z
LVDS header x1
z
2
LVDS Inverter x1
z
GPIO header x1
z
1-3 Layout Diagram
DC12V
PS/2
Mouse Port
PS/2
Keyboard Port
Parallel Port
COM
Port
VGA Port
RJ-45 LAN Connector
Line-IN
Line-OUT
MIC-IN
USB Ports
3
r
r
k
DC12V Power
Connector
Keyboard & Mouse
Connector
Parallel Port
over
Serial Port & VGA Port
ALC662 Audio Codec
USB Ports
RJ-45 over USB
Ports
Audio Connector
JP1
JP6
JP7
GPIO Header
COM2 Header
Mini-PCIE Slot
JP8
CDIN
Audio Header for front Panel
Inverter
JP4
SFAN1
JP5
CPU FAN1
LVDS Heade
JP2
Inter CPU
Intel NM 10 Chipset
TX-RX
8 Mbit DPI Flash Rom BIOS
USB1/2 Header
PCI slot
Connector (1, 2)
JP9
JBAT
SATAII
SFAN2
SATA Power
Connector
DDRII DIMM Slot x2 (DDRII 800 / DDRII 667)
IDE Harddis
Header
SATAII
Connector (3, 4)
Power LED Heade
Speaker Header
Front Panel Header
4
Jumper
Jumper Name Description
JP1 K/B, USB Power On Function Setting 3-pin Block JP5 USB 1/2 Power On Function Setting 3-pin Block JBAT1 CMOS RAM Clear Function Setting 2-pin Block JP2 LVDS PVCC 5V/3.3V Select 3-pin Block JP4 Inverter12V/5V Select 3-pin Block JP9 JP6 Power RS232 Function Select 6 pin Block JP7 Power RS232 Function Select 6 pin Block JP8 COM2 RS232/422/485 Function Select 6 pin Block
Mini PCI-E Power VCC3.3V /Dual 3.3V 3-Pin Block
Connectors
Connector Name Description
DC12V_IN
KB1 PS2 Keyboard & Mouse Connector 6-pin Female COM1 Serial Port COM Connector 9-pin Connector VG1 Video Graphic Attach Connector 15-pin Female PARALLEL Parallel Port Connector 25-pin Connector USB 3 USB Port Connectors 4-pin Connectors USB from UL1 USB Port Connectors 4-pin Connectors LAN from UL1 RJ-45 LAN Connectors 8-pin Connectors
AUDIO1 Line Out /Line In /MIC Audio Connector 3 Phone JACK
PWR2
SATA1,2,3,4
DC Power Connector DC Jack
Power out Connector 4-pin Connector Serial ATAII Connector 7-pin Connector
5
6
Headers
Header Name Description
AUDIO2 Front panel audio Headers 9-pin block CDIN1 CD Audio-In Header 4-pin Block LVDS1 LVDS Header 32-pin Block INVERTER LVDS Inverter Connector 7-pin Block COM2 Serial Port Header 9-pin Block TX-RX RS 232/422/485 port headers 4-pin block USB1 USB Header 9-pin Block USB2 USB Header 4-pin Block JW_FP1 (PWR LED/ HD LED/ /Power Button /Reset) PWR LED1 Power LED 3-pin Block SPEAK Speaker Header 4-pin Block CPUFAN1,SFAN1/2 FAN Speed Headers 3-pin Block GPIO1 GPIO Header 10-pin Block IDE
Front Panel Header (PWR LED/ HD LED/ /Power Button /Reset)
IDE Hard Disk Drive header 44-pin block
9-pin Block
7
Chapter 2
Hardware Installation

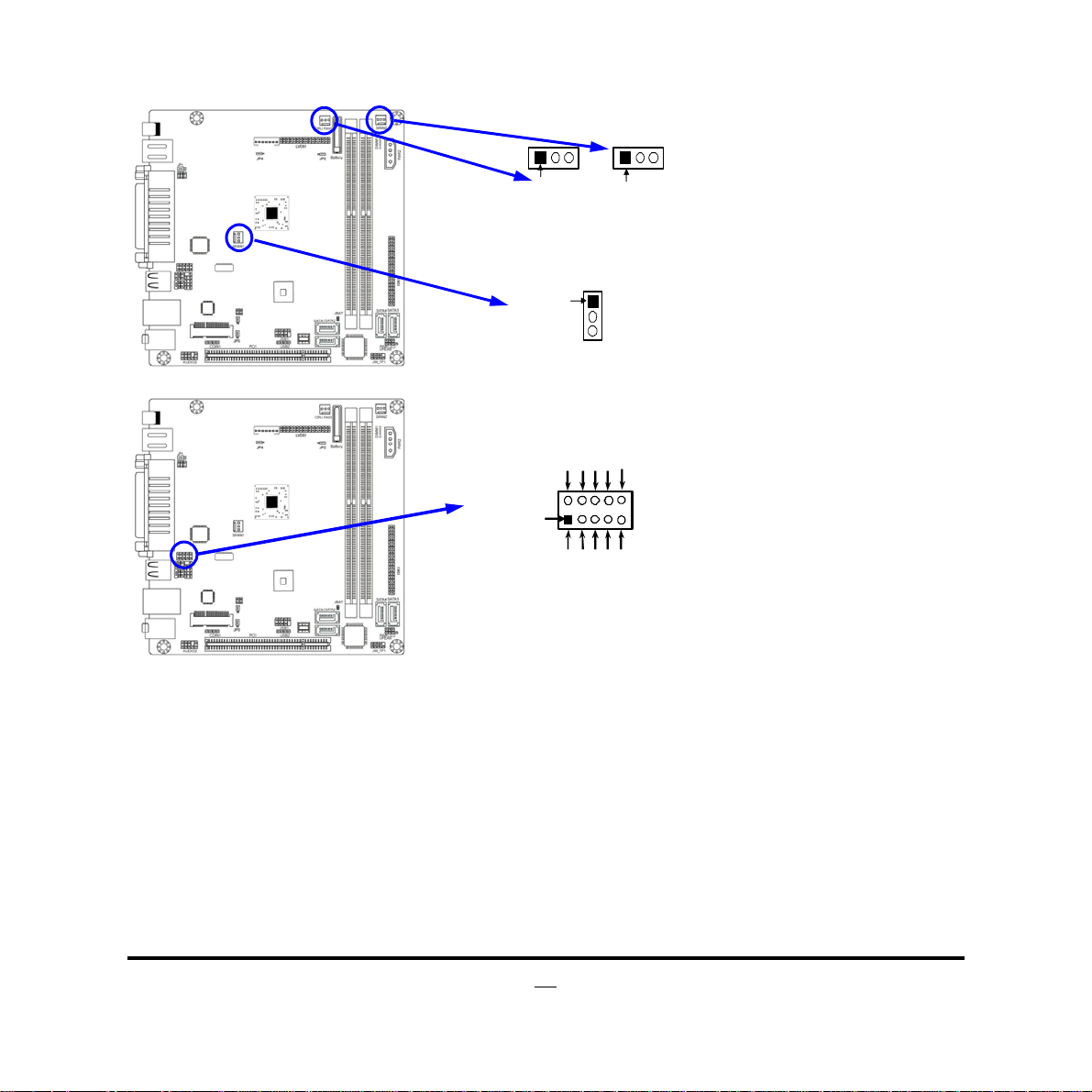

2-1 Jumper Setting
(1) K/B, USB Power On Function Setting: JP1
1-2 Cl osed: K/B, USB POWER-ON Disacl ed(default)
2-3 closed:K/B, USB POWER-ON Enabled
1
JP1
JP1
(2) JP5: USB1/2 Power On Function Setting: JP5
JP5
1-2 closed : USB 1/2 Header POWER-ON Disacled(default)
JP5
2-3 closed: USB 1/2 Header POWER-ON Enabled
1
3
1
3
(3) Clear CMOS (2-pin): JBAT1
JBAT
1-2 Open Normal
1-2 Short CMOS Clear
CMOS Cl ear Setting
(4) JP2: LVDS PVCC 5V / 3.3V Function Setting (3-pin)
JP2
1
1-2 closed: LVDS PVCC 5V
JP2
2-3 closed : LVDS PVCC 3.3V
13 3
8
(5) JP4: Inverter 5V/12V Select (3-pin)
JP4
JP4
(6) JP6: COM1 Pin9 function select
JP6
1-2 clo se d: RS2 32
(7) JP7: COM2 Pin9 function select
133
3-4 closed : +12V
1- 2 cl os e d Inverter 12V selected
2- 3 cl os e d Inverter 5V select
5-6 closed : +5V
JP7
1
1-2 closed: RS232
1
3-4 closed : +12V
9
1
5-6 closed : +5V
(8) JP8: COM2 Port RS232/485/422 Function Select
JP8
1-2 closed: RS232
1
3- 4 closed : RS485
11
5-6 closed : RS422
(9) JP9 : Mini PCI-E Power VCC3.3V/ Dual 3.3 V Function Select
JP9
1-2 closed MINI PCI-E
VCC= VCC3.3V
1
3
JP9
2-3 closed MINI PCI-E
VCC= Dual 3.3 V
1
3
10
2-2 Connectors and Headers 2-2-1 Connectors
(1) I/O Panel Connector:
DC12V
PS/2
Mouse Port
PS/2
Keyboard Port
Parallel Port
COM
Port
VGA Port
(2) Serial-ATA Port connector: SATA1/SATA2/SATA3/SATA4
SATA1
SATA2
RJ-45 LAN Connector
USB Ports
Line-IN
Line-OUT
MIC-IN
SATA3 SATA4
Serial-ATA Connectors
11
2-2-2 Headers
(1) Line-Out, MIC-In Header (9-pin): Front Panel Audio Header: AUDIO2
This header connects to Front Panel Line-out, MIC-In connector with cable.
Audio-GND
KEY
MIC2
Audio
LINE2
AUDIO
(2) CD AUDIO-In Headers (4-pin): CDIN1
CDIN are the connectors for CD-Audio Input signal. Please connect it to
CD-ROM CD-Audio output connector.
2
Pin 1
MIC2-L
MIC2-R
Li n e-Out, MIC Headers
Lineout2-R
Sense-FB
Lineout2-L
10
9
CDIN1
CD Audio-In Hea ders
GNDCD-R CD-LGND
4 1
12
(3) LVDS Headers32 Pin: LVDS1
Pin NO. Pin Define Pin NO. Pin Define Pin 1
Pin 3 Pin 5 Pin 7 Pin 9 Pin 11 Pin 13 Pin 15 Pin 17 Pin 19
Pin 21 Pin 23 Pin 25 Pin 27 Pin 29 Pin 31
NC NC NC NC NC LVDS_DDC_DATA GND GND NC LVDS_CLKAP
LVDSA_DATAP2 LVDSA_DATAP1 LVDSA_DATAP0 PVDD PVDD GND
Pin 2 Pin 4 Pin 6 Pin 8 Pin 10 Pin 12 Pin 14 Pin 16 Pin 18 Pin 20
Pin 22 Pin 24 Pin 26 Pin 28 Pin 30 Pin 32
NC NC NC NC NC LVDS_DDC_CLK GND GND NC
LVDS_CLKAN LVDSA_DATAN2 LVDSA_DATAN1 LVDSA_DATAN0 PVDD PVDD GND
Pin 2
Pin 1
LVDS1
13
(4) LVDS Inverter headers: Inverter1
Pin 1 and pin2: VCC of inverter
Pin3, pin4 and pin6: GND
Pin5: Backlight
Pin7: Brightness
Pin 1
VCC
VCC
GND
GND
Backlight
GND
Brightness
(5) Serial Port Connectors (9-Pin female): COM2
GTS RTS DSR
Serial COM Port 9-pin Block
RI
Pin5
GND DTR TXD
RXD DCD
Pin1Pin6
14
(6) RS232/422/485 Header: TX-RX
2
(7) USB Port Headers (9-pin): USB1
Pin 1
(7) USB Port Headers (4-pin): USB2
TXDN
TX-RX
Pin 1
4
RXDPTXDP 3RXDN
TX-RX Header
NC
VCC
GND
-DATA
+DAT A
VCC
GND
-DATA
+DATA
USB1 Header
Pin 1
VCC
GND
-DATA
+DATA
USB2 Header
15
6
(8) Speaker connector: SPEAK1
D C
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(9) Power LED: PWR LED
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin.
PWRLED
Pin 1
SPEAK
Pin 1
NC
NC
VCC
SPEAK
(9) Front Panel Header: JW-FP1
PWRBTN
PWR LED
GND
GN
PWRBTN
PWRLED
N
GND
VCC5
RSTSW
HDDLED
RESET
HDLED
JW_FP1
Pin 1
System Case Connections
10FAN Speed Headers (3-pin): CPUFAN1, SFAN1/SFAN2
Pin1: GND Pin2: +12V fan power Pin3: Fan Speed
1
7
_
_
_
(11) GPIO Header (10-pin): GPIO1
GPIO 1
Pin 1
1 3
CPUFAN 1
SFAN 1
2
GPIO1 Header
1
SFAN 2
1
3
63
16
VCC
GPIO_14
GPIO
GPIO_17
GPIO
10
11
GND
GPIO_10
GPIO
GPIO_12
GPIO_13
3
9
1
Chapter 3
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.
In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:
Press <Esc> to quit the BIOS Setup.
Press ↑↓←→ (up, down, left, right) to choose, in the main menu, the option you
want to confirm or to modify.
Press <F10> when you have completed the setup of BIOS parameters to save
these parameters and to exit the BIOS Setup menu.
Press Page Up/Page Down or +/– keys when you want to modify the BIOS
parameters for the active option.
18
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to
Press <Del> to enter Setup
3-2 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen.
Status Page Setup Menu/Option Page Setup M enu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.
3-3 The Main Menu
Once you enter AMI ® BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
19
Figure 3-1
Standard BIOS Features
Use this Menu for basic system configurations.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system’s performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PnP/PCI Configurations
Use this menu to specify your settings for PnP and PCI configurations.
PC Health Status
This entry shows your PC health status.
20
Miscellaneous Control
Use this menu to specify your settings for Miscellaneous Control.
Load Optimized Defaults
Use this menu to load the BIOS default values these are setting for optimal performances system operations for performance use.
Load Standard Defaults
Use this menu to load the BIOS default values for the minimal/stable performance system operation
Set Supervisor Password
Use this menu to set supervisor password.
Set User Password
Use this menu to set user password.
Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.
3-4 Standard BIOS Features
The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
21
Date
The date format is <day><month><date><year>.
Day of the week is from Sun to Sat, determined by BIOS. Read-only.
Day Month Date Year
Time
The time format is <hour><minute><second>.
SATA Channel 1/2/3/4 Master JMicron IDE Channel Master/Slave
While entering setup, BIOS auto detects the presence of harddisk devices. This displays the status of auto detection of harddisk devices.
Type: LBA/Large Mode:
Disabled: disables LBA mode.
The month is from Jan. through Dec.
The date from 1 to 31 can be keyed by numeric function keys.
The year depends on the year of the BIOS.
The optional settings are: Not Installed; Auto; CD/DVD and ARMD
The optional settings are Auto; Disabled.
22
Auto: enables LBA Mode if the devices support it and the device is not already formatted with LBA Mode disabled.
Block (Multi-Sector Transfer):
Disabled: The Data transfer from and to the device occurs one sector at a time. Auto: The Data transfer from and to the device occurs multiple sectors at a time if the device supports it.
PIO Mode: the optional settings are: DMA MODE: S.M.A.R.T.:
(Self-Monitoring, Analysis and Reporting Technology). The optional settings are Auto; Disabled; and Eabled.
32 Bit Data Transfer:
the optional settings are Auto, SWDMAn, MWDMAn , UDMAn.
This option allows you to enable the HDD S.M.A.R.T Capability
the optional settings are: Disabled and Enabled.
The optional settings are: Disabled and Auto.
Auto, 0, 1, 2, 3 and 4.
3-5 Advanced BIOS Features
23
Virus Warning
The selection Allow you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.
Disabled Enabled
Boot Up NumLock Status
The default value is On.
(default)
On Off
APIC Mode
Use this item to include ACPI APIC table pointer to ESDT pointer list. The optional settings are: Disabled; Enabled.
MPS Version Control for OS
This option is only valid for multiprocessor motherboards as it specifies the version of The Multiprocessor Specification (MPS) that the motherboard will use.
(default) No warning message to appear when anything attempts to
access the boot sector or hard disk partition table. Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.
Keypad is numeric keys.
Keypad is arrow keys.
24
3-5-1 CPU Feature
Hyper Threading Technolegy
Enabled for Windows XP and Linux4(OS optimized for Hyper Threading Technology) and disabled for other OS (OS not optimized for Hyper –Threading Technology)
Limit CPU MaxUal
The optional settings are: Disabled; Enabled.
Execute-Disable Bit Capabill
The optional settings are: Disabled; Enabled. When disabled, force the XD feature Flag to always return 0.
3-6 Advanced Chipset Features
The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.
25
DRAM Timing Settings by SPD
The optional settings are: Disabled; Enabled.
Initate Graphic Adapter
The optional settings are: 1GD; PCIE/IGD. Select which graphic controller to use as the primary boot device.
1GD Mode Select
The optional settings are: Disabled; Enabled, 4MB; Enabled, 8MB. Select the amount of system memory used by the Internal graphic device.
DVMI Mode Select
The optional value is: DVMT Mode.
DVMI/FIXED Memory
The optional values are: 128MB; 256 MB; Maximum DVMT.
LVDS Suppor
The optional settings are: Disabled; Enabled.
t
26
3-7 Integrated Peripherals
3-7-1 Onboard SATA Function
SATA Run Mode Configuration
The optional settings are: Compatible; Enhanced.
27
3-7-2 Onboard Device Function
Onboard LAN Controller
The optional settings are: Enabled; Disabled.
Onboard LAN Boot ROM
The optional settings are: Enabled; Disabled.
JMicron 36x ATA Controller
The optional settings are: Disabled; IDE Mode; RAID+IDE Mode; AHCI+IDE Mode.
High Definition Audio
This item allows you to decide to auto /disable the chipset family to support HD Audio. The settings are: Auto, Disabled.
USB 2.0 Operation Mode
The settings are: FullSpeed; HiSpeed.
USB 2.0 Function / Keyboard Legacy/Mouse Legacy /Storage Legacy Support
28
Select enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB mouse /keyboard/USB storage device. The settings are: Enabled, Disabled.
3-7-3 Onboard Super IO Function
Serial Port 1 Address
The optional settings
Serial Port 2 Address
The optional settings
Serial Port 2 Mode
The optional settings are: Normal, IrDA(1.6us), IrDA(3/16 bit)
Serial Port 2 RS485 Select
The optional settings
Parallel Port Address
Use this item to allow BIOS to select parallel port base adresses
areDisabled, 3F8/IRQ4, 3E8/IRQ42E8/IRQ3.
areDisabled, 2F8/IRQ3, 3E8/IRQ42E8/IRQ3.
areDisabled(RS232); Enabled(RS485)
29
The optional settings are: Disabled; 378; 278; 3BC
Parallel Port Mode
The optional settings are: Normal; Bi-Directional; ECP; EPP; ECP & EPP.
Watchdog Timer Select
This item is used to activate the watchdog function. The optional settings are: Enabled; Disabled. When set as Enabled, The following subitems shall appear: WatchDog Timer Val: User can typing a numbering the range of 10 to 255. WatchDog Timer Unit: The optional settings are: Sec.; Min. .
3-8 Power Management Setup
The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.
30
ACPI Suspend Type
Users can select the ACPI state used for system suspend. The optional settings are: S1(POS); S3(STR).
Video Off in Suspend
The optional settings are: No; Yes.
Suspend Mode
Use this item to select the specified time for system to go into suspend. The optional settings are: Disabled;1Min,2 Min;4 Min;8 Min;10 Min;20 Min;30 Min;40 Min;50 Min;60 Min.
Soft-Off by PWR-BTTN
The optional settings are: Instant-Off; Delay 4 Sec.Under ACPI (Advanced Configuration and Power management Interface) you can create a software power down. In a software power down, the system can be resumed by Wake up Alarms. This item lets you install a software power down that is controlled by the power Button on your system. If the item is set to Instant-Off, then the power button causes a software power down. If the item is set to Delay 4 Sec, then you have to hold the power button down for four seconds to cause a software power down.
ERP (EUP) Function
The optional settings are: Disabled; Enabled.
When set as Enabled, the following subitems shall appear: Wake-Up by PCI Card; Power On by Ring; Wake-Up by USB from S4; PS2 KB/MS Wake-Up from S3-S5; Resume by Alarm. User can set them as Enabled or Disable for to enable or disble respective functions.
3-9 PnP/PCI Configurations
IRQ Resources
Names the interrupt request (IRQ) line assigned to the USB on your system. Activity of the selected IRQ always awakens the system.
31
PCI/VGA Palette Snoop
This item is designed to overcome problems that can be caused by some non-standard VGA cards. This board includes a built-in VGA system that does not require palette snooping so you must leave this item disabled.
3-10 PC Health Status
This section shows the Status of you CPU, Fan, and Warning for overall system status. This is only available if there is Hardware Monitor onboard.
Shutdown Temperature
This item can let users setting the Shutdown temperature, when CPU temperature over this setting the system will auto shutdown to protect CPU.
CPU Thermal Throttling
The optional settings are: Disabled; Enabled. When it is set as Enabled user could set value for CPU Thermal-Throttling Temp.; CPU Thermal-Throttling Duty and CPU Thermal-Throttling Beep.
Smart Fan Configuration
32
Press Enter to set certain values for the following three items: CPUFAN Smart Mode and SYSFAN1 Smart Mode to set respectively for value in Full-Speed Temp.; Idle Temp. and Idle-Speed Duty .
+5V OUT/+12V OUT/Vcc3V OUT/ CPU Temperature/ System Temperature/ /CPUFAN/ SYSFAN1/SYSFAN2 Speed/ Vcore/ /NB1.05V/5VSB/VDIMM/ +5V/+12V/5 /Vcc3V/3VSB/Vbat /
This will show the CPU/FAN/System voltage chart and FAN Speed, etc.
3-11 Miscellaneous Control
Spread Spectrum
The optional settings are: Enabled; Disabled.
Linear PCIEX Clock
The optional settings are from 100 to 200.
DRAM Clock at Next Boot
This item allows you to set DRAM clock. The optional settings are: Auto; 667MHz; 800MHz
Host/PCI Clock at Next Boot
33
The optional settings are from 166 to 600.
VDIMM Select
The optional settings are: 1.85v (Default); 1.90v; 1.95v; 2.00v.
3-12 Password Setting
You can set either supervisor or user password, or both of them. The differences are:
Supervisor password: Can enter and change the options of the setup menus. User password: Can only enter but do not have the right to change the options
of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration. Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.
34
3-13 Load Optimized /Standard Defaults
Load Optimized Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Pressing <OK> loads the default values that are factory settings for optimal performance system operations.
Load Standard Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Pressing <OK> loads the default values that are factory settings for stable performance system operations.
3-14 Save & Exit Setup/ Exit Without Saving
Save and Exit Setup
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Pressing <OK> save the values you made previously and exit BIOS setup.
Exit Without Saving
35
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:
Pressing <OK> to leave BIOS setting without saving previously set values.
