Jetway Computer NC94 User Manual
NO.G03-NC94-F
Rev 1.0
Release date: December, 2009

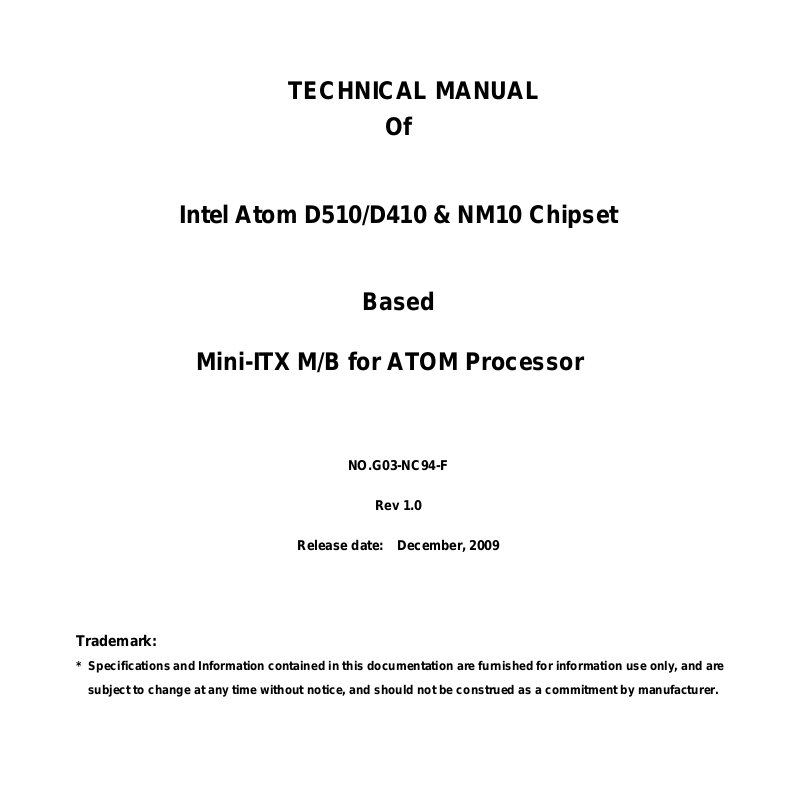

TECHNICAL MANUAL
Of
Intel Atom D510/D410 & NM10 Chipset
Based
Mini-ITX M/B for ATOM Processor
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
i
TABLE OF CONTENT
ENVIRONMENTAL SAFETY INSTRUCTION ........................................................................... iii
USER’S NOTICE ....................................................................................................................... iv
MANUAL REVISION INFORMATION ....................................................................................... iv
ITEM CHECKLIST ..................................................................................................................... iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ................................................................................ 1
1-2 SPECIFICATION ......................................................................................................... 2
1-3 LAYOUT DIAGRAM .................................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING ..................................................................................................... 6
2-2 CONNECTORS AND HEADERS ................................................................................ 9
2-2-1 CONNECTORS ............................................................................................. 9
2-2-2 HEADERS ..................................................................................................... 10
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP ................................................................................................... 17
3-2 GETTING HELP .......................................................................................................... 17

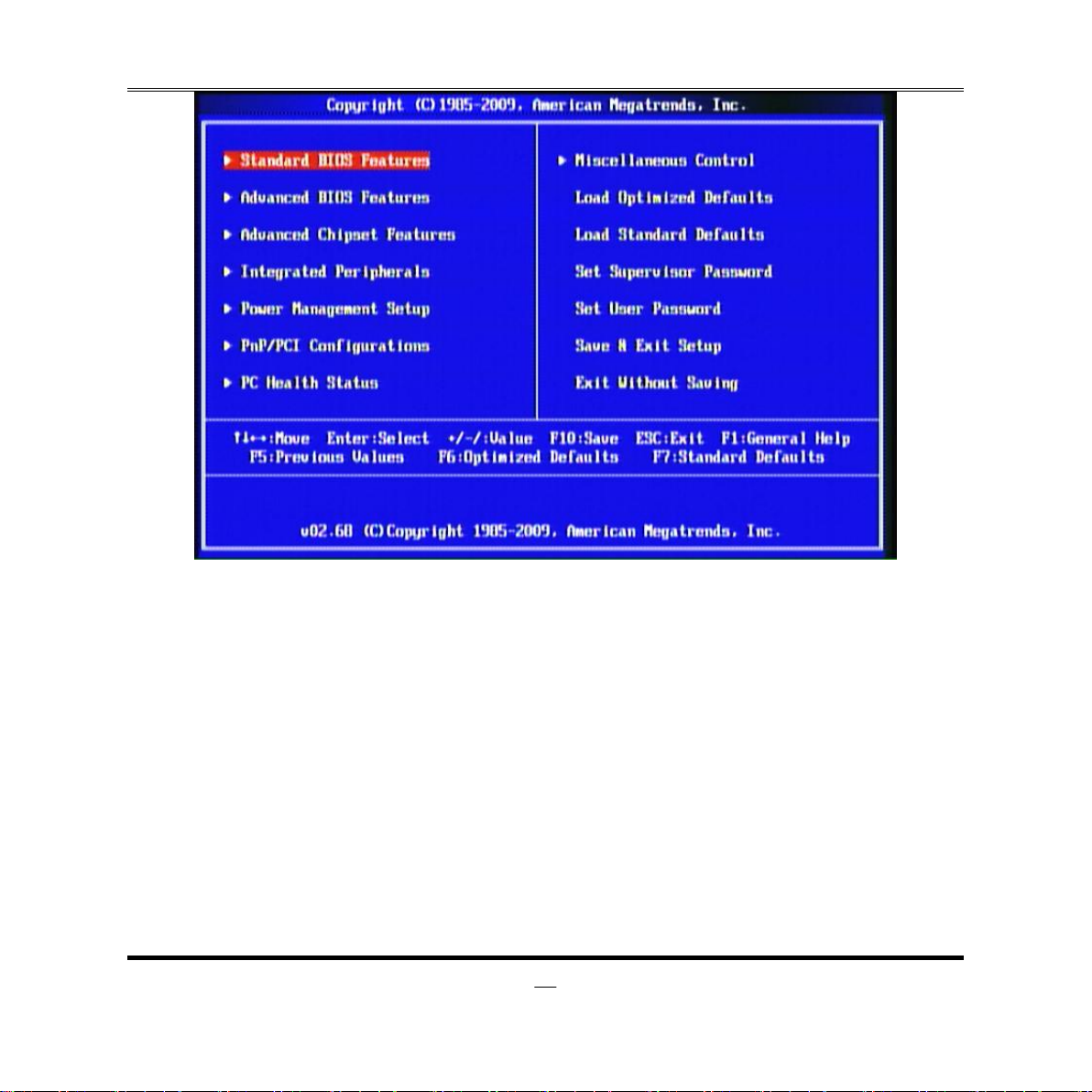

3-3 THE MAIN MENU ........................................................................................................ 17

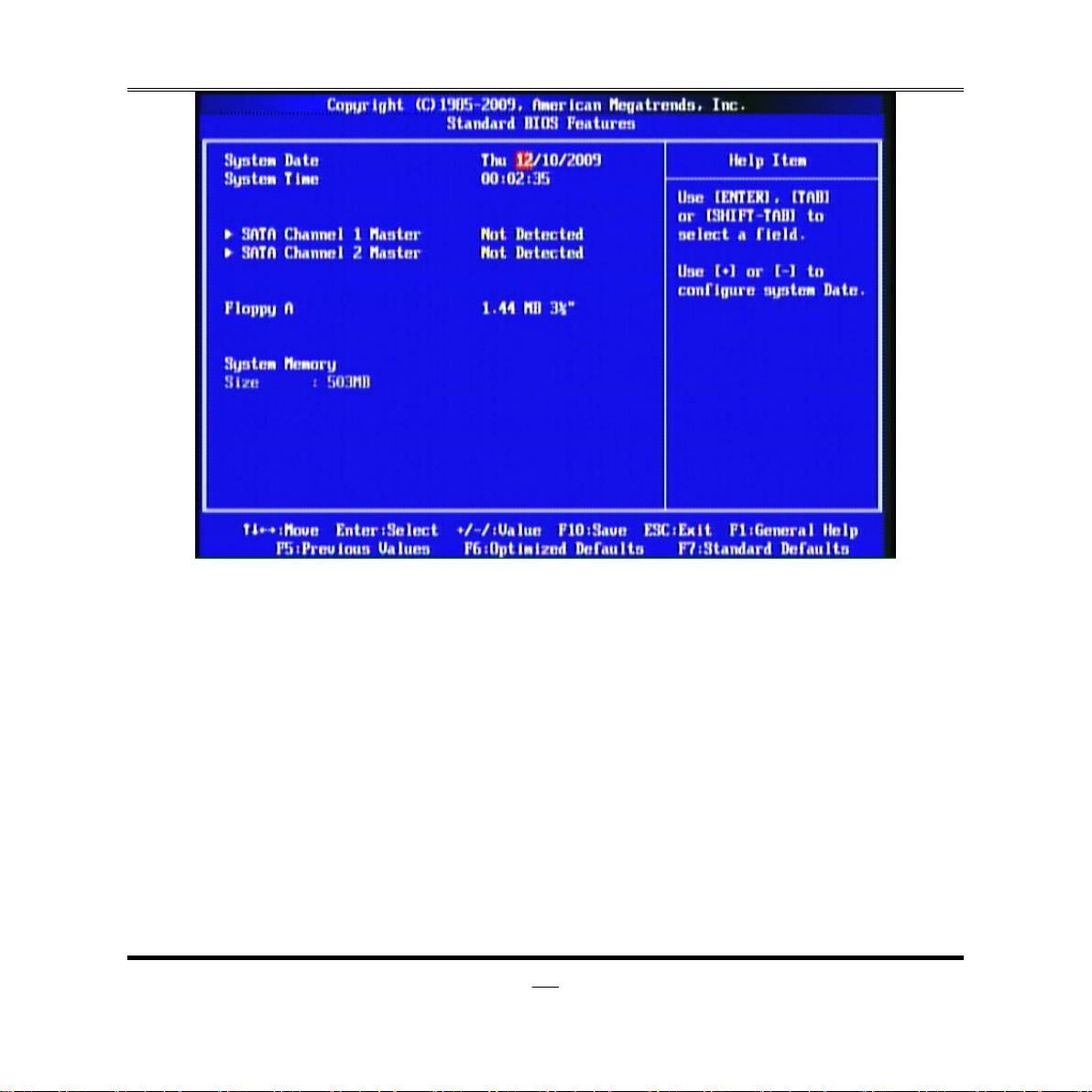

3-4 STANDARD BIOS FEATURES .................................................................................. 19

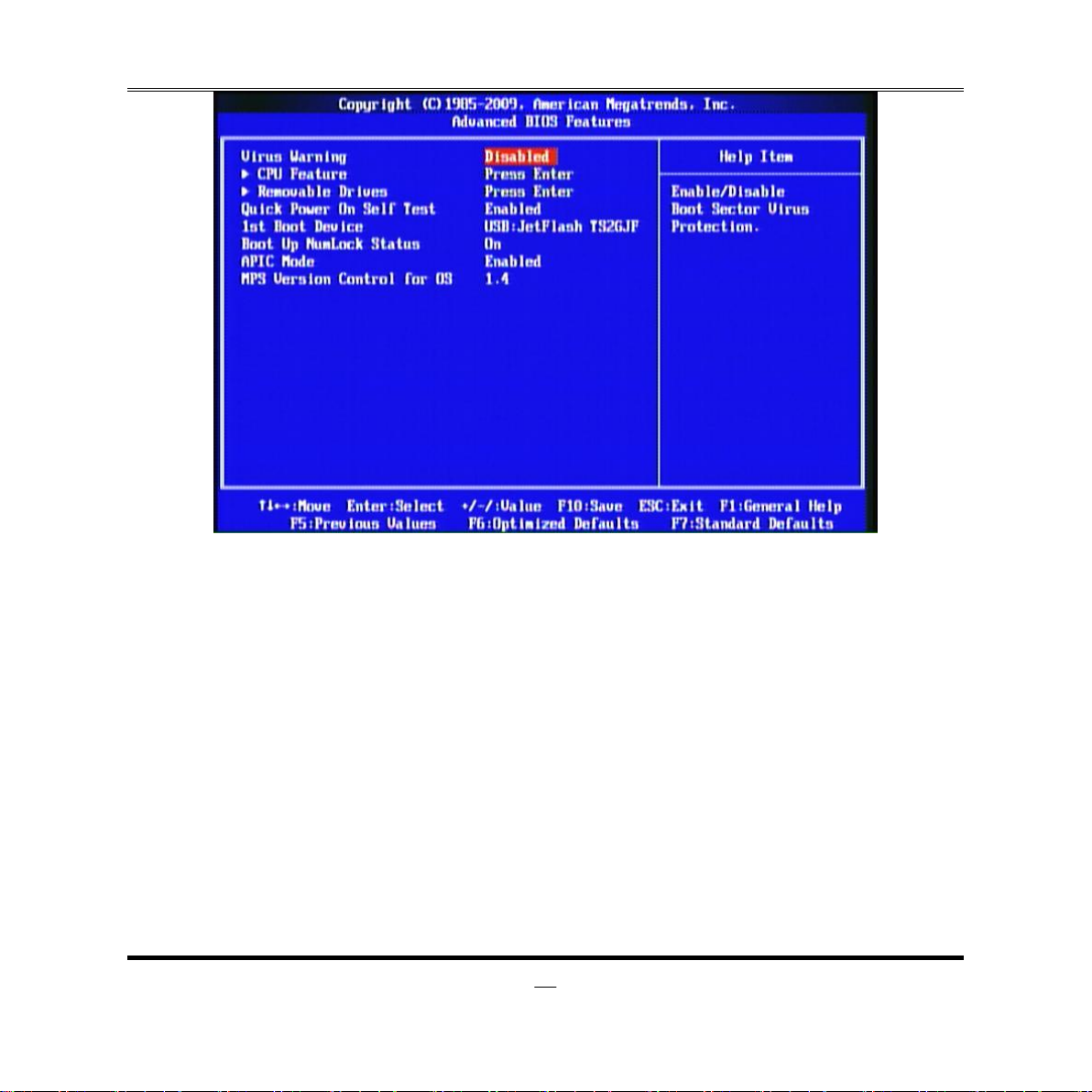

3-5 ADVANCED BIOS FEATURES .................................................................................. 21

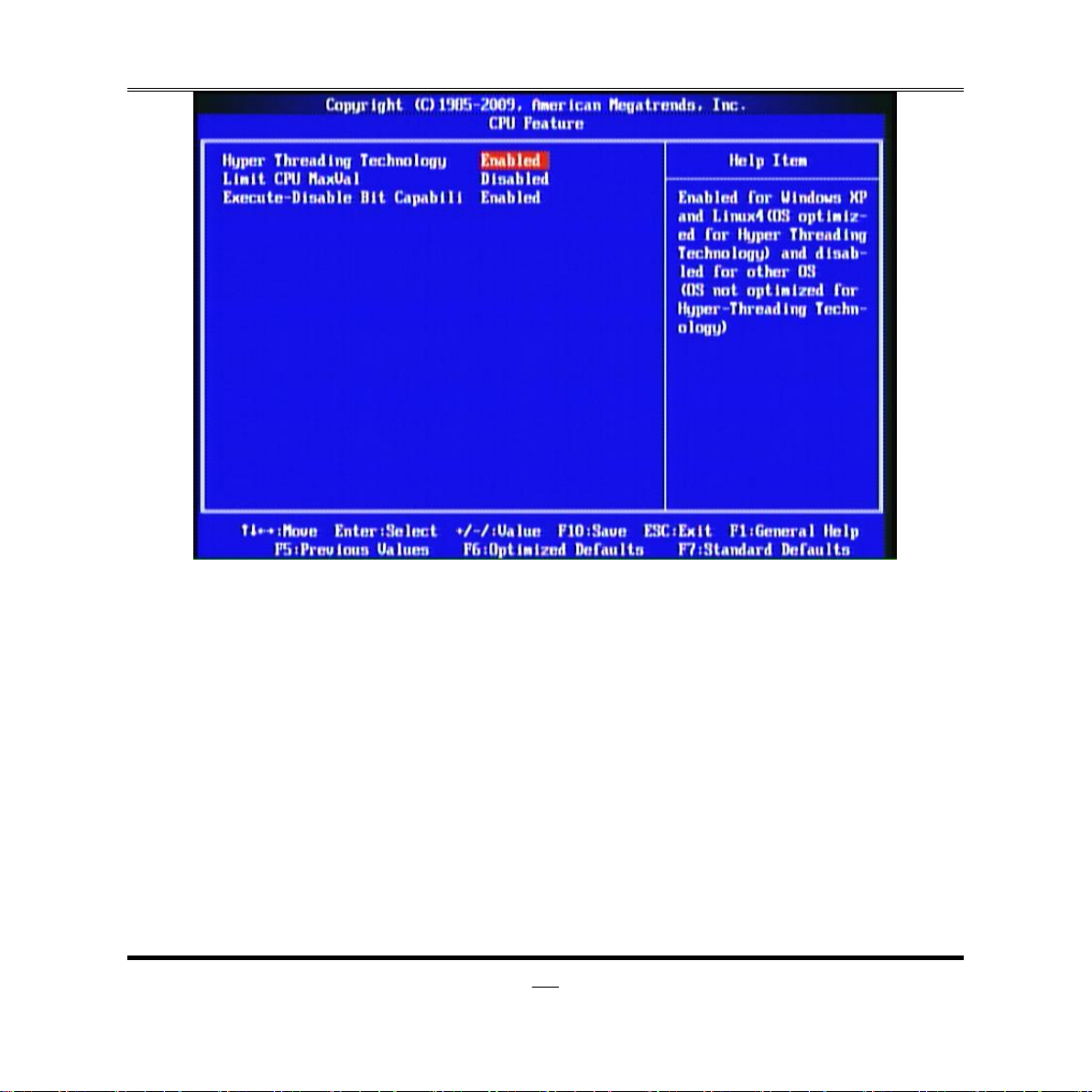

3-5-1 CPU FEATURE ............................................................................................... 23

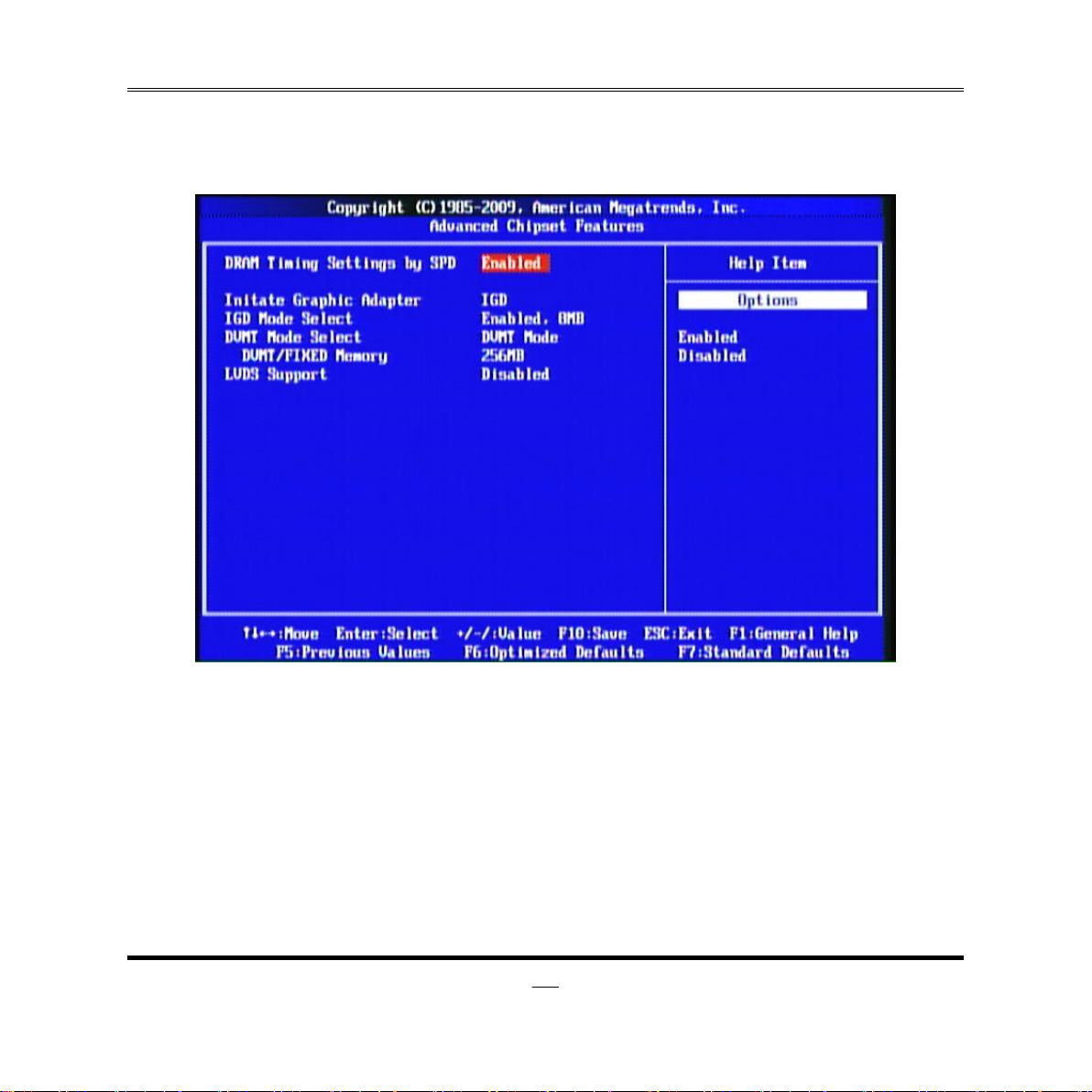

3-6 ADVANCED CHIPSET FEATURES ........................................................................... 24

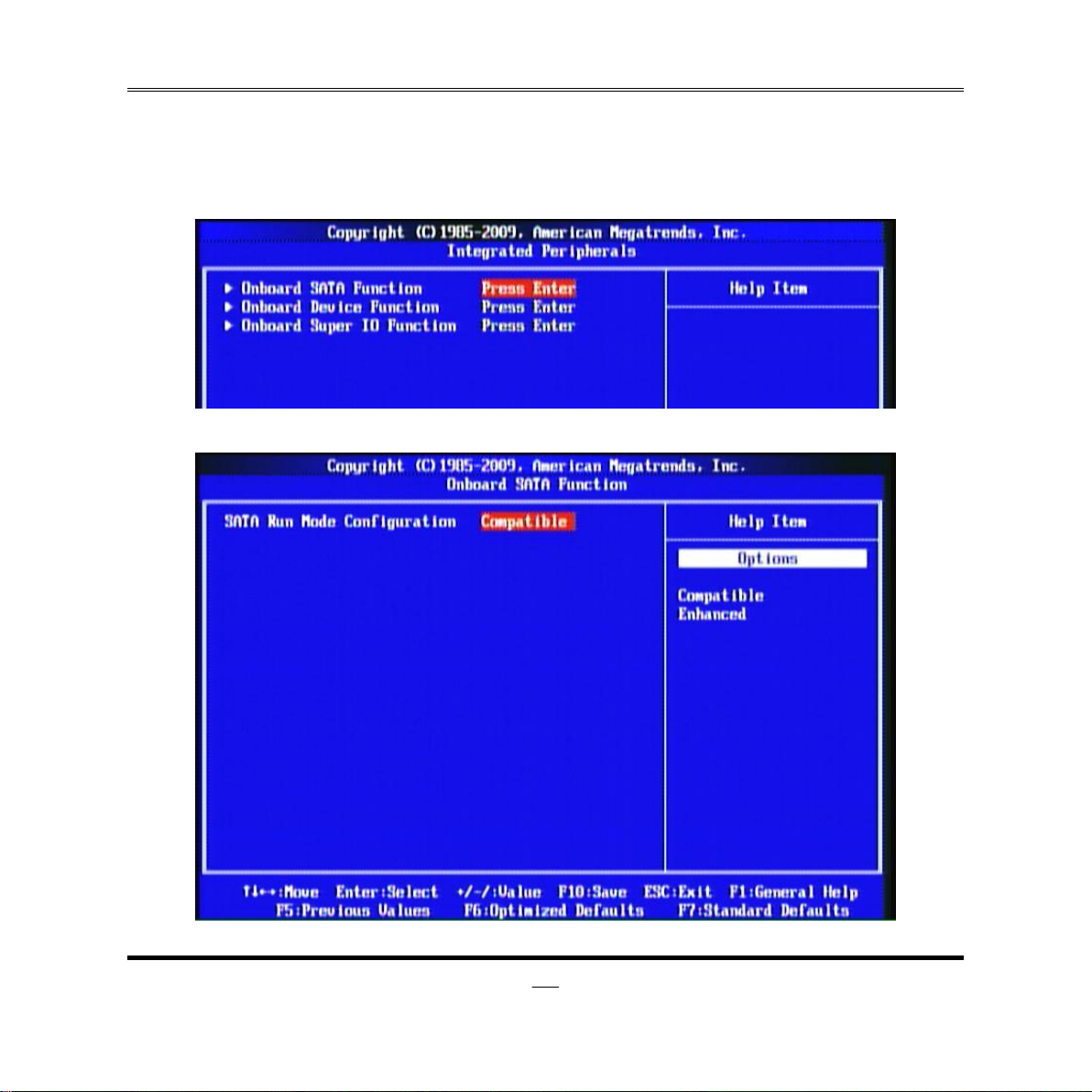

3-7 INTEGRATED PHERIPHRALS .................................................................................. 25
3-7-1 ONBOARD SATA FUNCTION ........................................................................ 25

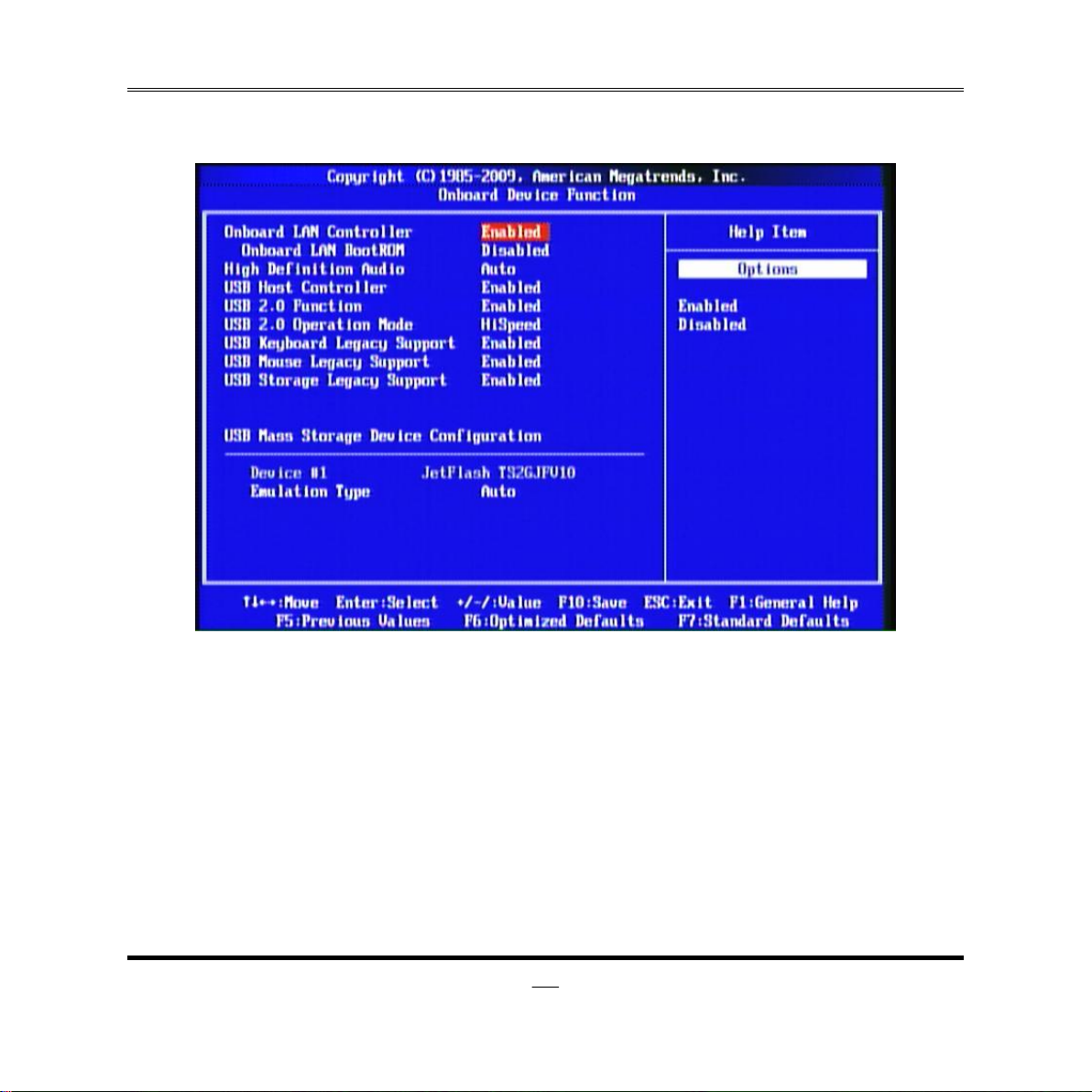

3-7-2 ONBOARD DEVICE FUNCTION ..................................................................... 26

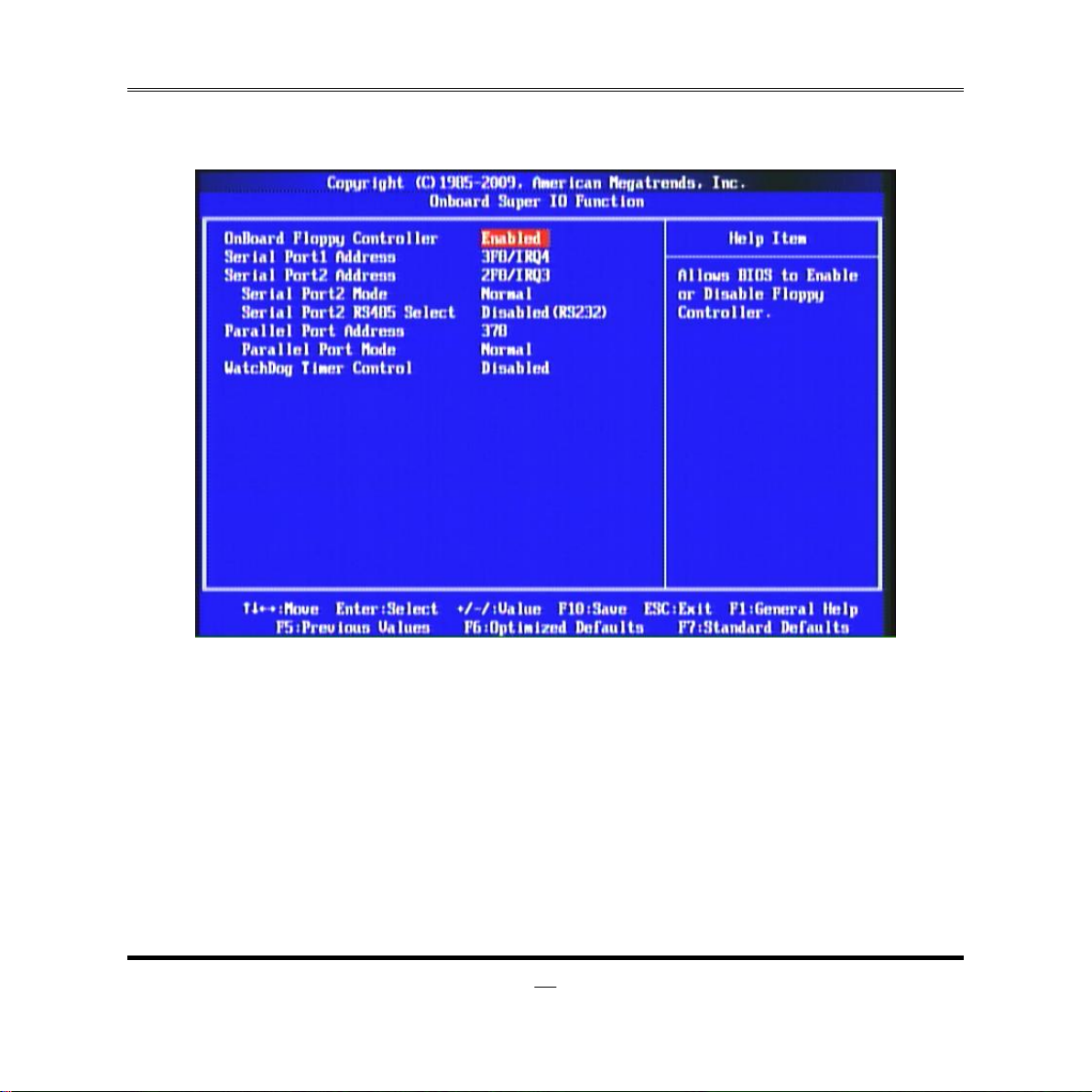

3-7-3 ONBOARD SUPER IO FUNCTION ................................................................. 27

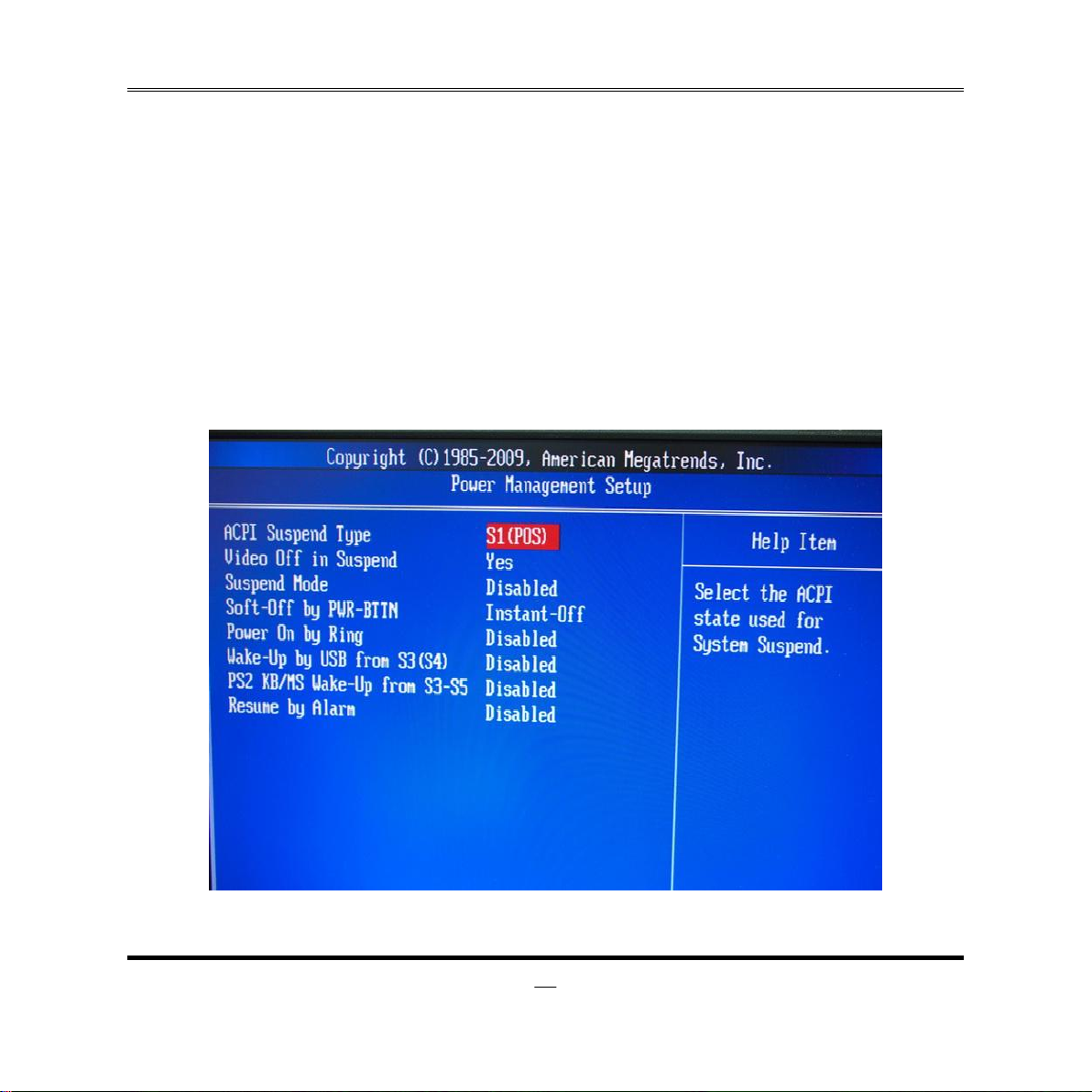

3-8 POWER MANAGEMENT SETUP ............................................................................... 28

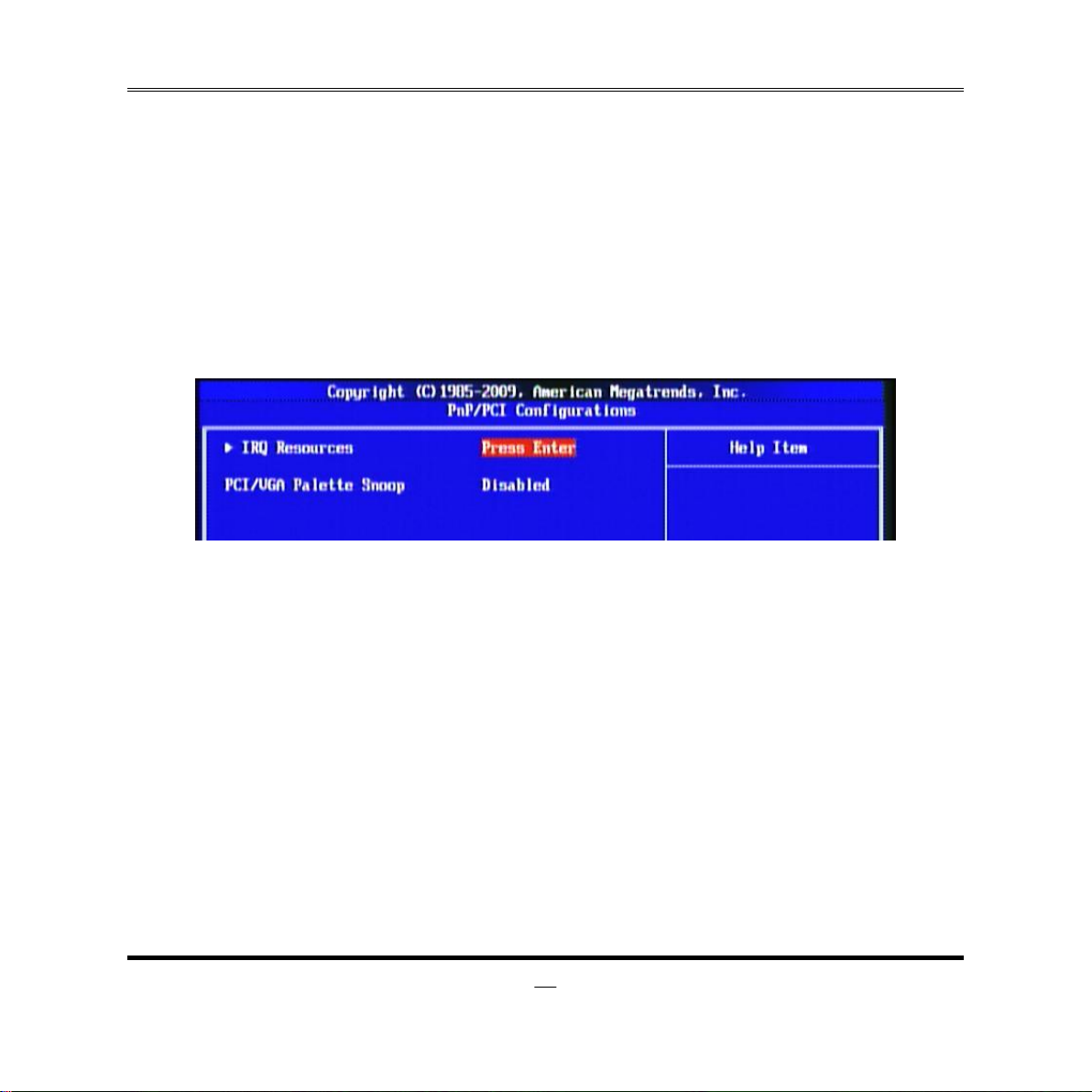

3-9 PNP/PCI CONFIGURATIONS ..................................................................................... 29

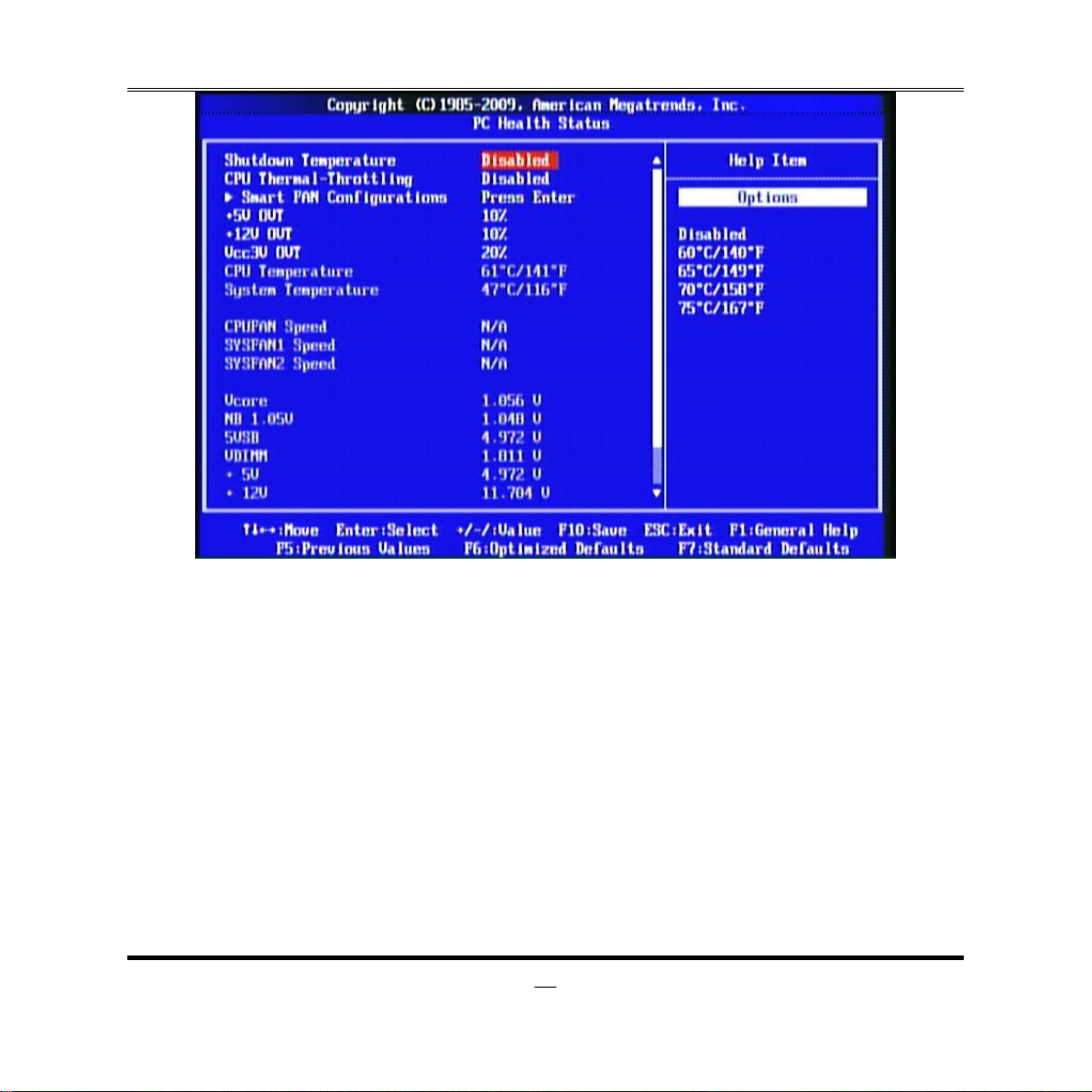

3-10 PC HEALTH STATUS ................................................................................................. 29

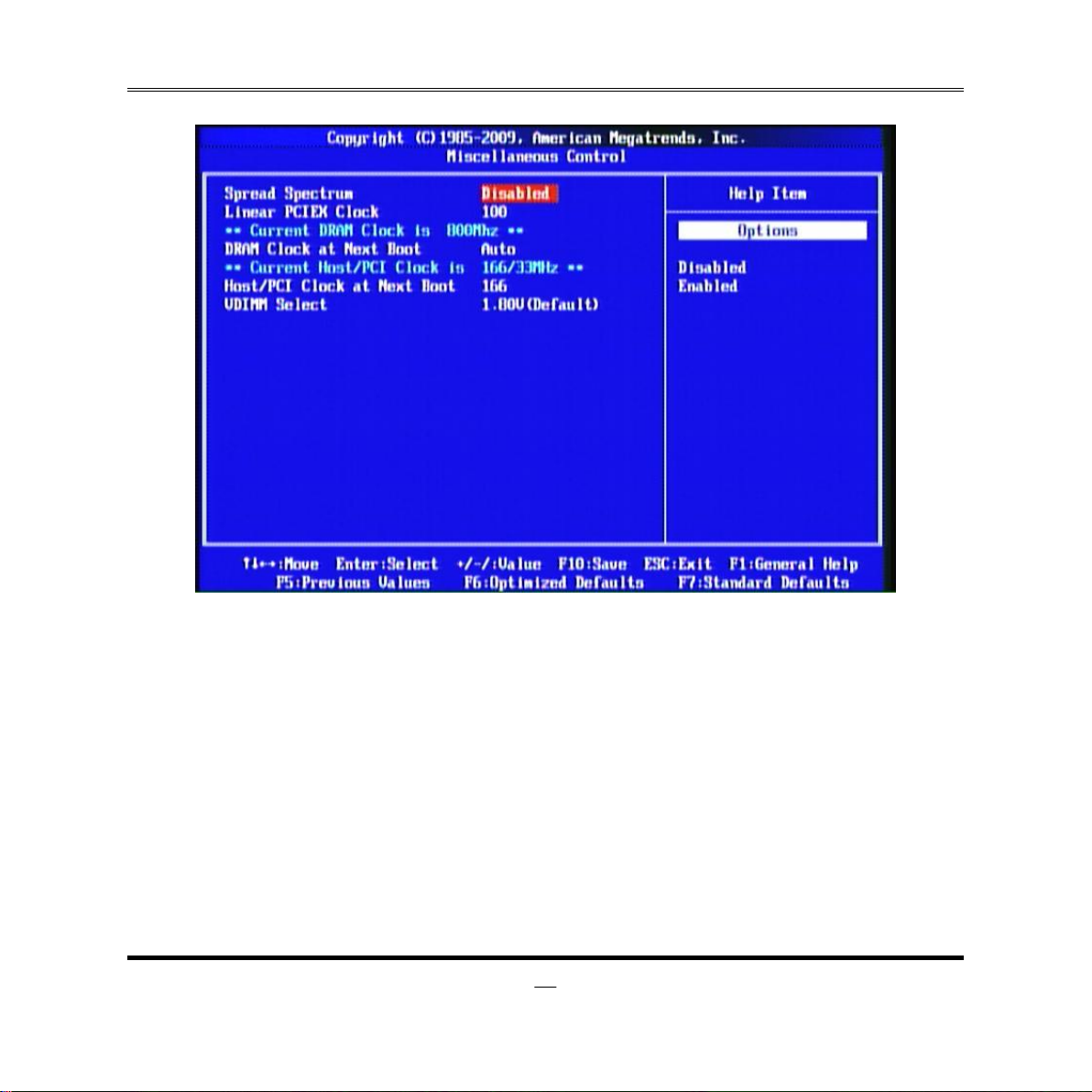

3-11 MISCELLANEOUS CONTROL ................................................................................... 31
3-12 PASSWORD SETTING ............................................................................................... 32
3-13 LOAD OPTIMIZED /STANDARDDEFAULTS ............................................................ 33
3-14 SAVE AND EXIT SETUP/EXIT WITHOUT SAVING ................................................... 33
ii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition December, 2009
Item Checklist
Motherboard
Cable(s)
DVD for motherboard utilities
Motherboard User’s Manual
I/O Back panel shield
iv
1
Chapter 1
Introduction of the Motherboard
1-1 Feature of motherboard
Intel Atom D510/D410 and NM10 chipset.
Onboard Intel Atom CPU, with low power consumption never denies high
performance.
Support CPU CLK 166 MHz
Support DDRII DIMM 667/800 up to 8GB.
Support PCI-Ex16 (by 4 lane) card.
Onboard INTEL 82552V Megabit Ethernet LAN PHY Chip.
Integrated ALC662 6-channel HD audio CODEC.
Support USB2.0 data transport demands.
Support RS232/422/485 and watchdog.
2
Spec
Description
Design
Mini-ITX form factor 4 layers ; PCB size: 17.0x17.0cm
Chipset
Intel Atom D510/D410+ NM10 Chipset
Embedded CPU
ATOM CPU
Memory Socket
240-pin DDRII DIMM slot x2
Support DDRII 667/800 MHz DDRII memory modules
Expandable to 8 GB
Expansion Slots
PCI Expressx16(by 4) slot x 1
LAN
Integrated INTEL 82552V Megabit Ethernet LAN that
supports Fast Ethernet LAN function of providing
10Mb/100Mb Ethernet data transfer rate
Audio
ALC662 6-channel Audio Codec integrated
Audio driver and utility included
BIOS
AMI 8MB DIP Flash ROM
Multi I/O
PS/2 keyboard connector x1
PS/2 mouse connector x1
Serial port connector x1
VGA port connector x1
Parallel port Connector x1
Floppy Disk Drive Connector x1
USB port connector x4 and USB header x2
RJ-45 LAN connector x1
Audio connector x1 (Line-in, Line-out, MIC)
SATAII Connector x2
Front panel audio header x1
Serial port header x1
RS232/422/RS485 header x1
LVDS header x1
LPC header x1
GPIO header x1
1-2 Specification
3
DDRII DIMM Slot x2
(DDRII 800 / DDRII 667)
Keyboard & Mouse
Connector
PCI Express x16(by 4)
SFAN2
Front Panel Header
Audio Header
for front Panel
Power LED Header
SFAN1
USB1/2 Header
Parallel Port over
Serial Port &
VGA Port
CPU FAN1
MIC-IN
SATAII
Connector (1, 2)
VGA
Connector
Line-OUT
Line-IN
PS/2
Mouse
USB
Connector
Intel NM 10 Chipset
GPIO Header
ALC662 Audio Codec
PS/2
Keyboard
RJ-45 over USB
Connector
USB Port
Connector
Audio
Connector
ATX Power Conn
LVDS Header
Inverter
JP5
JP4
JP2
JBAT
TX-RX COM2
COM2 Header
JCOM2
JCOMP2
Speaker Header
CDIN Header
COM
Connector
JCOMP1
Inter CPU
LPC Header
8 Mbit DPI Flash Rom BIOS
Parallel port
Connector
RJ-45 LAN Connector
JP1
Floppy Disk Drive Connector
Intel 82552 Megabit
LAN PHY Chip
1-3 Layout Diagram
4
Jumper
Name
Description
JBAT1
CMOS RAM Clear Function Setting
3-pin Block
JP2
LVDS PVCC 5V/3.3V Select
3-pin Block
JP4
Inverter12V/5V Select
3-pin Block
JP5
USB 1/2 Power On Function Setting
3-pin Block

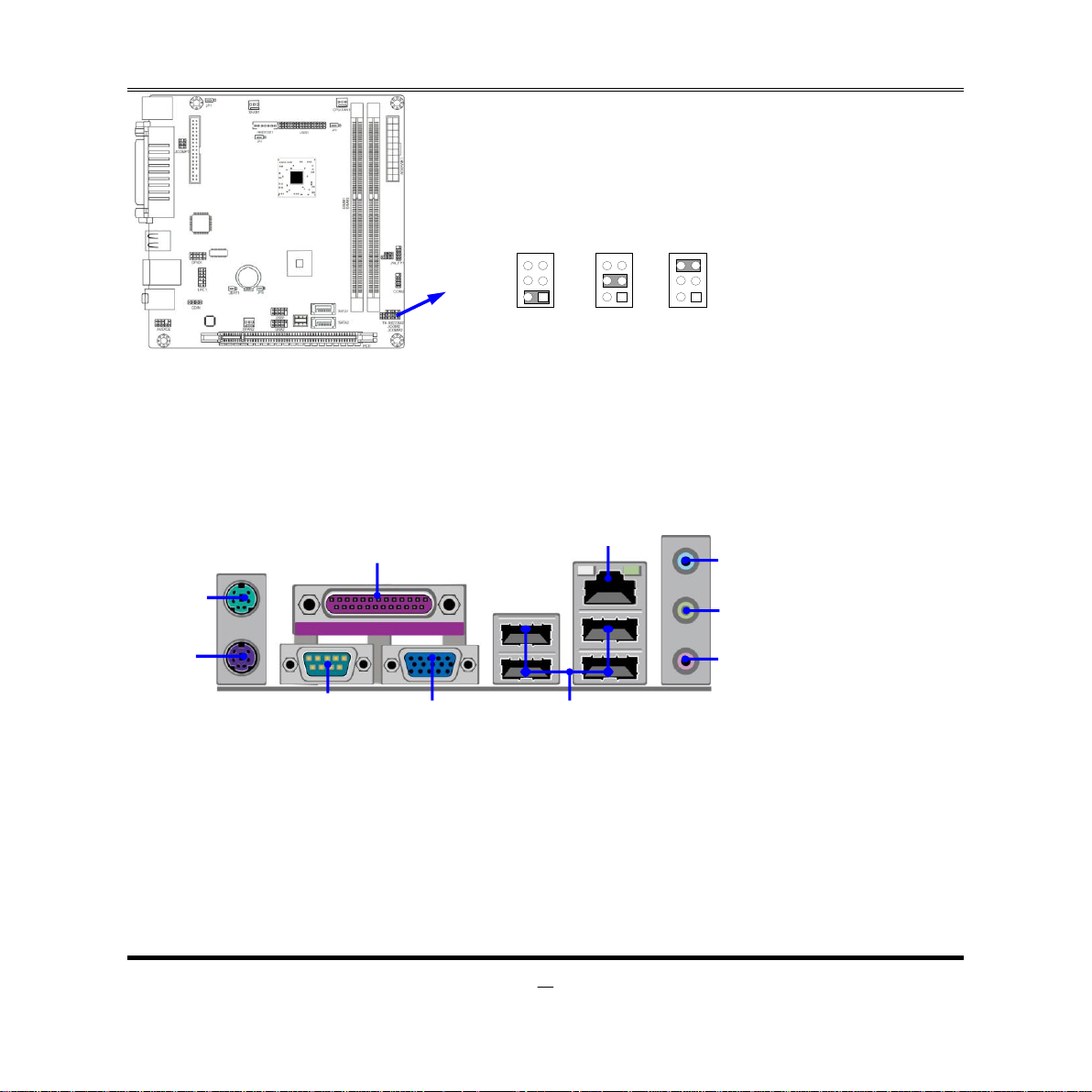

JCOM2
COM2 RS232/422/485 Function Select
6 pin Block
JCOMP1
Power RS232 Function Select
6 pin Block
JCOMP2
Power RS232 Function Select
6 pin Block
Connector
Name
Description
ATXPWR1
ATX Power Connector
20-pin Connector
KB1
PS2 Keyboard & Mouse Connector
6-pin Female
COM1
Serial Port COM Connector
9-pin Connector
PARALLEL
Parallel Port Connector
25-pin Connector
VG1
Video Graphic Attach Connector
15-pin Female
USB 3
USB Port Connectors
4-pin Connectors
USB from UL1
USB Port Connectors
4-pin Connectors
LAN from UL1
RJ-45 LAN Connectors
8-pin Connectors
AUDIO1
Line Out /Line In /MIC Audio Connector
3 Phone JACK

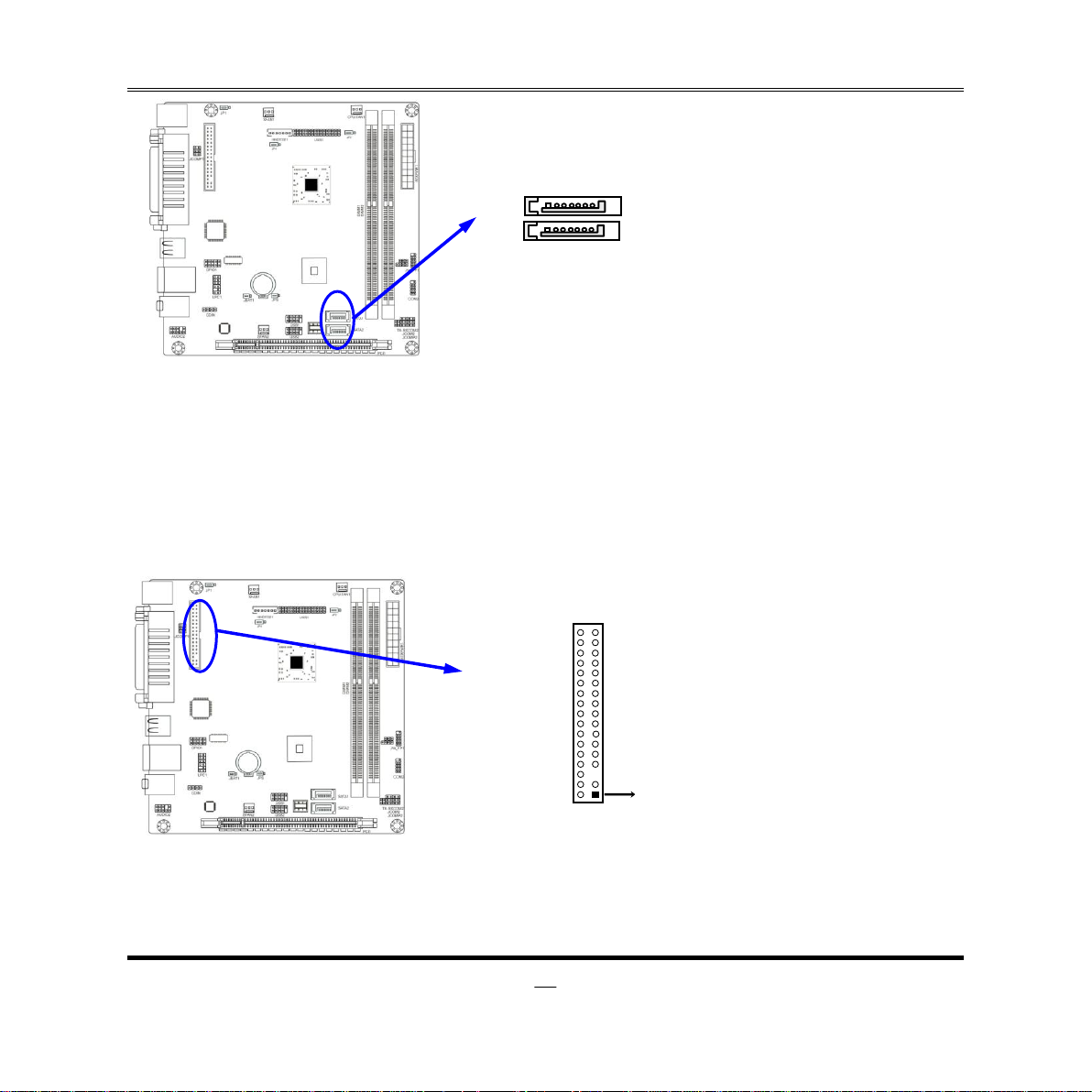

SATA1/SATA2
Serial ATAII Connectors
7-pin Connector
FLOPPY1
Floppy Disk Drive Connector
33-pin Block
Jumper
Connectors
5
Header
Name
Description
AUDIO2
Front panel audio Headers
9-pin block
CDIN1
CD Audio-In Header
4-pin Block

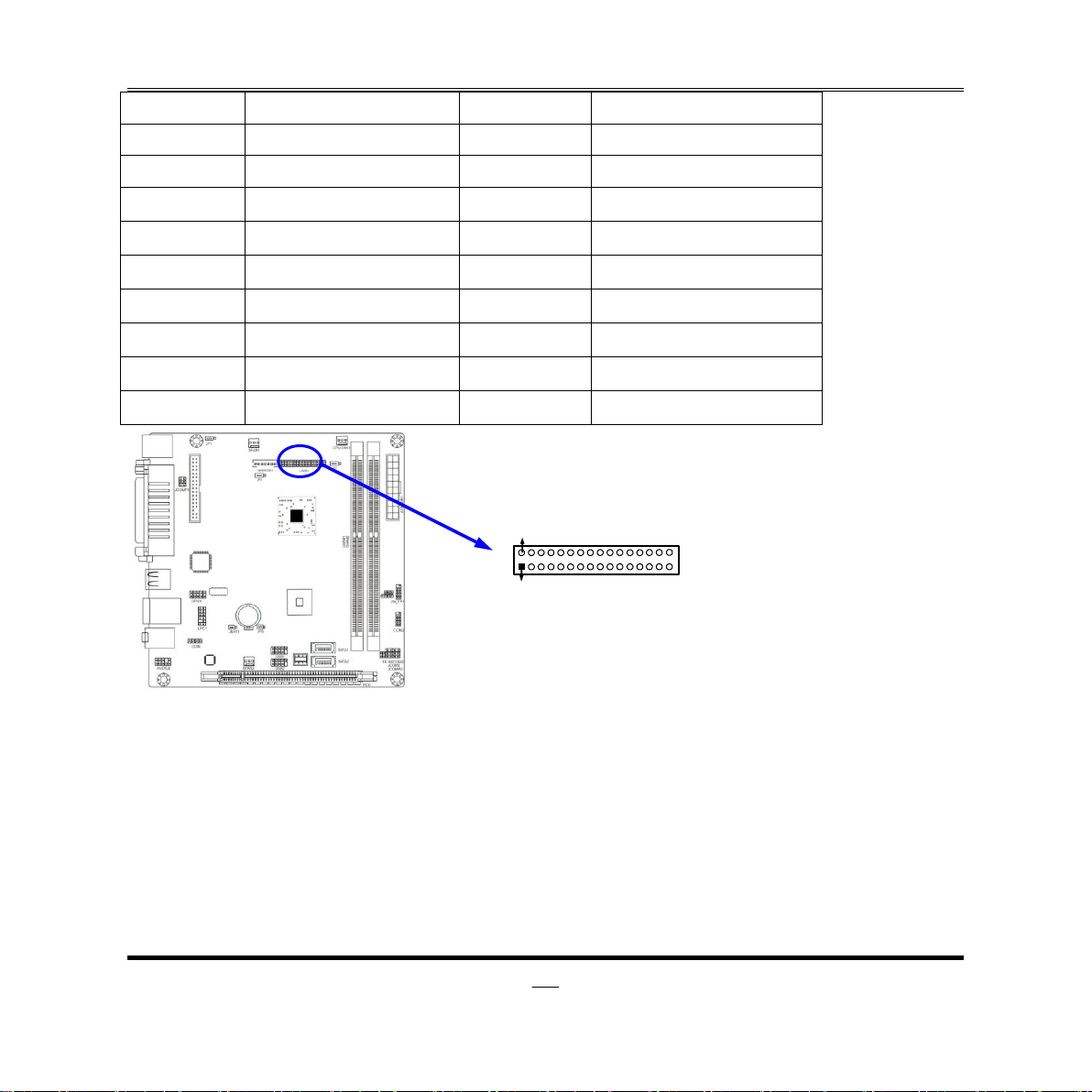

LVDS1
LVDS Header
32-pin Block

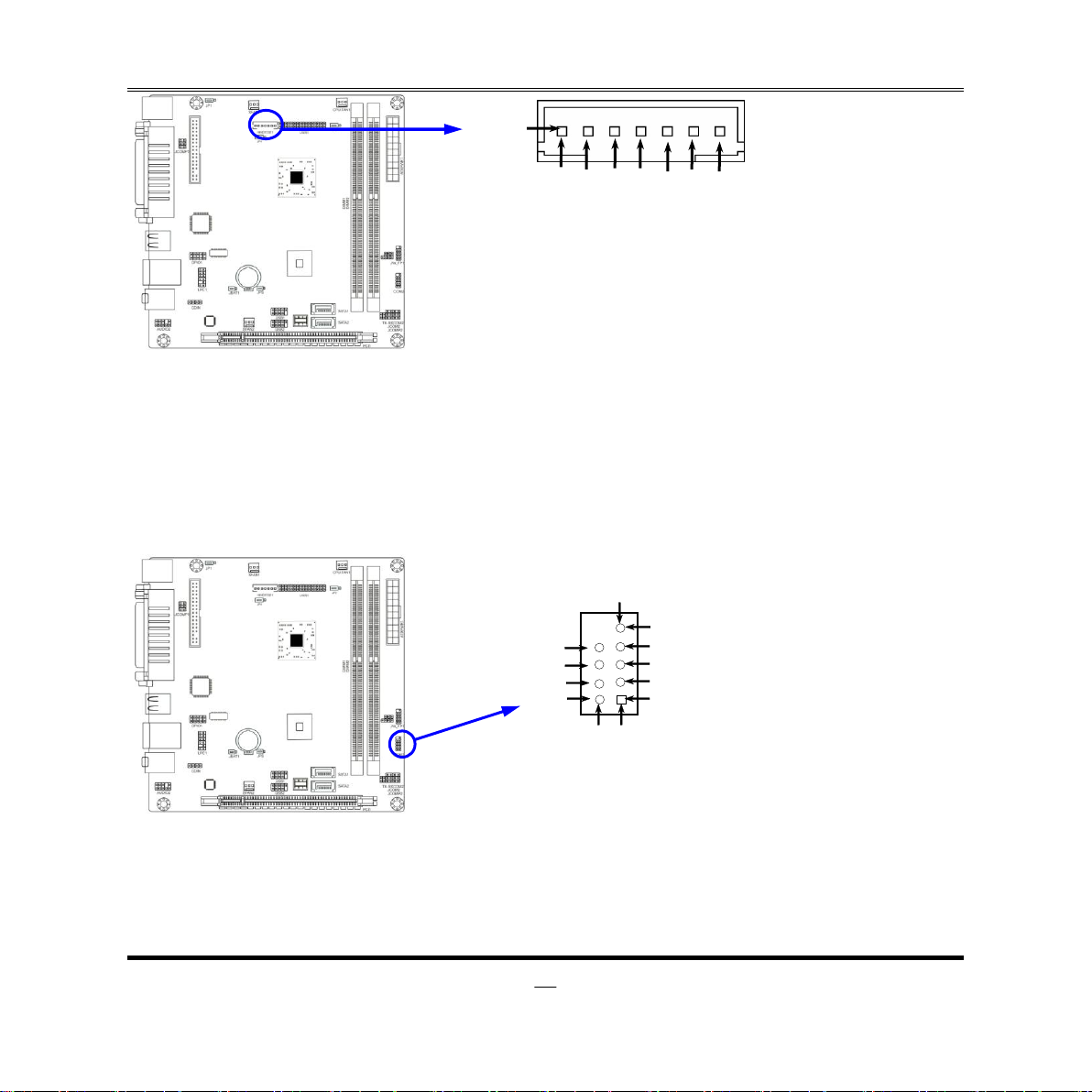

INVERTER1
LVDS Inverter Connector
7-pin Block
COM2
Serial Port Header
9-pin Block
TX-RX COM2
RS 232/422/485 port headers
4-pin block
USB1; USB2
USB Headers
9-pin Block
JW_FP1
(PWR LED/ HD LED/
/Power Button /Reset)
Front Panel Header
(PWR LED/ HD LED/ /Power
Button /Reset)
9-pin Block
PWR LED1
Power LED
3-pin Block
SPEAK
Speaker Header
4-pin Block
CPUFAN1,SFAN1/2
FAN Speed Headers
3-pin Block
GPIO1
GPIO Header
10-pin Block
LPC1
LPC1 Header
11-pin Block
Headers
6
CMOS RAM Clear Setting
2-3 closed Clear CMOS
JBAT1
JBAT1
1-2 closed Normal
2-3 closed: K.B& USB POWER-ON Enabled
JP1
JP1
1-2 Closed: K.B&USB POWER-ON Disacled(default)
1
3
Hardware Installation

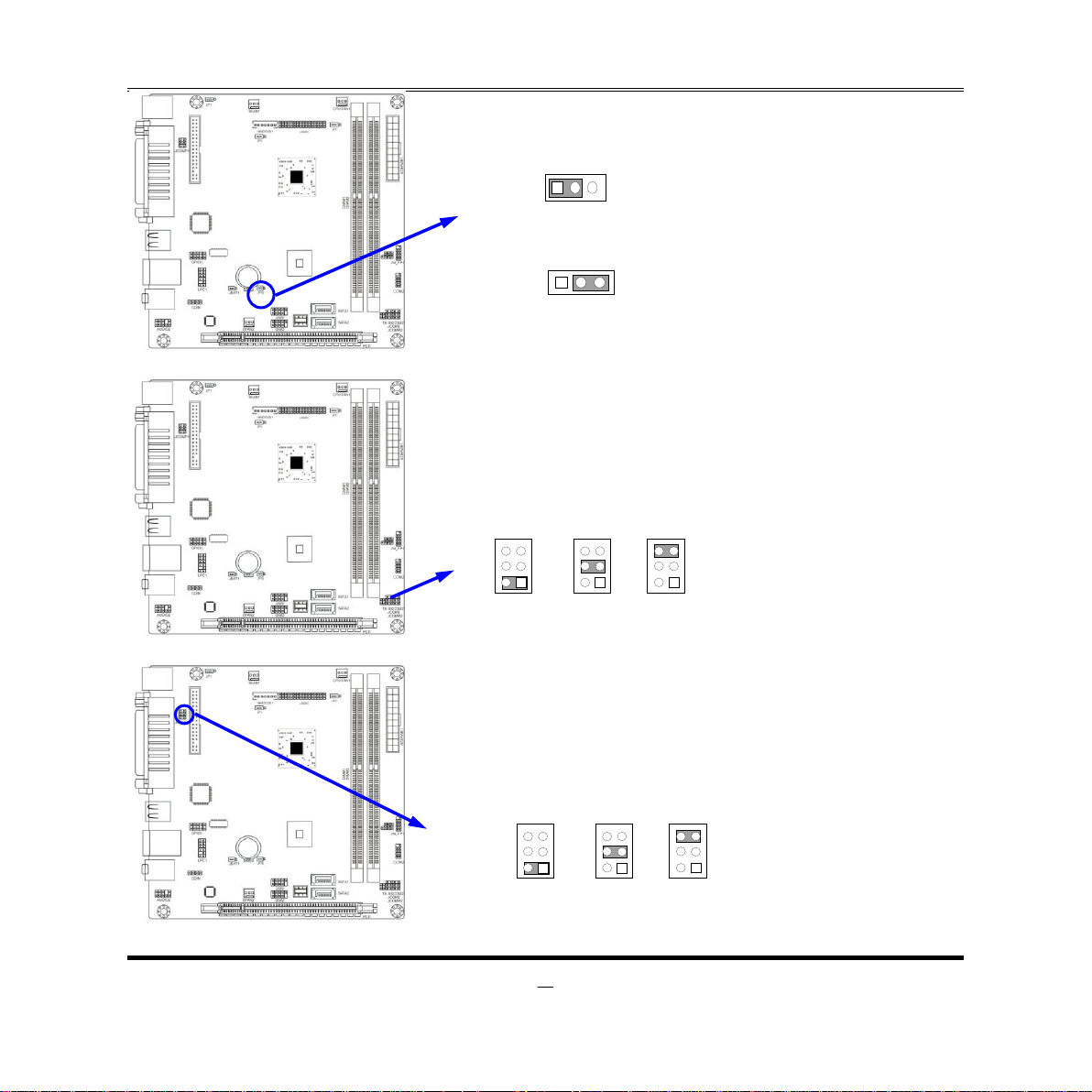

2-1 Jumper Setting
(1) Clear CMOS (3-pin): JBAT1
Chapter 2
(2) KB/USB Power On Function Setting: JP1
7
2-3 closed : LVDS PVCC 3.3V
JP2
1-2 closed: LVDS PVCC 5V
JP2
1
1 3 3
1-2 closed
Inverter 12V selected
2-3 closed
Inverter 5V select
JP4
JP4
1
3
3

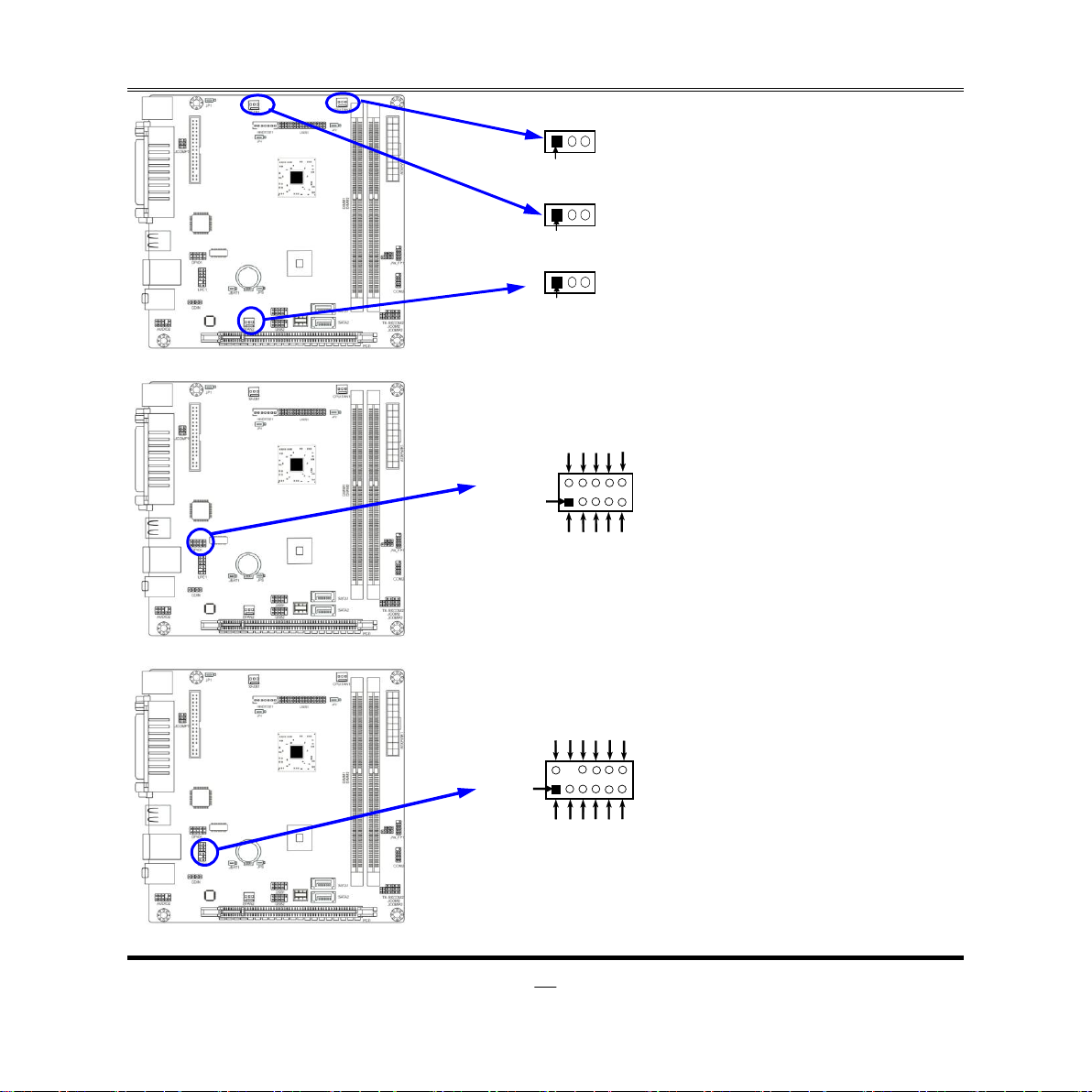

(3) JP2: LVDS PVCC 5V / 3.3V Function setting (3-pin)
(4) JP4: Inverter 5V/12V Select (3-pin)
(5) JP5: USB1/2 Power On Function Setting: JP5
