Operating Instructions and Parts Manual
737000CK shown
Router Lift and Accessories
Model JRL-912
This .pdf document is bookmarked.
JET
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-737000
Ph.: 800-274-6848 Edition 5 02/2022
www.jettools.com Copyright © 2022 JET
1
2
1.0 IMPORTANT SAFETY INSTRUCTIONS WARNING – To reduce risk of injury:
1. Read and understand the entire owner's
manual before attempting assembly or
operation.
2. Read and understand the warnings posted
on the machine and in this manual. Failure
to comply with all of these warnings may
cause serious injury.
3. Replace warning labels if they become
obscured or removed.
4. This router lift is designed and intended for
use by properly trained and experienced
personnel only. If you are not familiar with
the proper and safe operation of a router, do
not use until proper training and knowledge
have been obtained.
5. Do not use this router lift for other than its
intended use. If used for other purposes,
JET disclaims any real or implied warranty
and holds itself harmless from any injury that
may result from that use.
6. Always wear ANSI Z87.1 approved safety
glasses or face shield while using this
machine. (Everyday eyeglasses only have
impact resistant lenses; they are not safety
glasses.)
7. Before operating, remove tie, rings, watches
and other jewelry, and roll sleeves up past
the elbows. Do not wear loose clothing.
Confine long hair. Non-slip footwear or antiskid floor strips are recommended. Do not
wear gloves.
8. Kickback occurs when the workpiece is
thrown back towards the operator at a high
rate of speed. If you do not have a clear
understanding of kickback and how it
occurs, do not operate this router table.
9. Wear ear protectors (plugs or muffs) if noise
exceeds safe levels.
10. Make certain the switch is in the OFF
position before connecting the machine to
the power supply.
11. Make certain the machine is properly
grounded.
12. Make all machine adjustments or
maintenance with the machine unplugged
from the power source.
13. Remove adjusting keys and wrenches. Form
a habit of checking to see that keys and
adjusting wrenches are removed from the
machine before turning it on.
14. Keep safety guards in place at all times
when the machine is in use. If removed for
maintenance purposes, use extreme caution
and replace the guards immediately after
completion of maintenance.
15. Check damaged parts. Before further use of
the machine, a guard or other part that is
damaged should be carefully checked to
determine that it will operate properly and
perform its intended function. Check for
alignment of moving parts, binding of
moving parts, breakage of parts, mounting
and any other conditions that may affect its
operation. A guard or other part that is
damaged should be properly repaired or
replaced.
16. Provide for adequate space surrounding
work area and non-glare, overhead lighting.
17. Keep the floor around the machine clean
and free of scrap material, oil and grease.
18. Keep visitors a safe distance from the work
area. Keep children away.
19. Make your workshop child proof with
padlocks, master switches or by removing
starter keys.
20. Give your work undivided attention. Looking
around, carrying on a conversation and
“horse-play” are careless acts that can result
in serious injury.
21. Maintain a balanced stance at all times so
that you do not fall into the cutter or other
moving parts. Do not overreach or use
excessive force to perform any machine
operation.
22. Use the right tool at the correct speed and
feed rate. Do not force a tool or attachment
to do a job for which it was not designed.
The right tool will do the job better and more
safely.
23. Use recommended accessories; improper
accessories may be hazardous.
24. Maintain tools with care. Do not use dull or
damaged cutters. Keep cutting tools clean
and sharp for best and safest performance.
Follow instructions for lubricating and
changing accessories.
25. Turn off the machine before cleaning. Use a
brush or compressed air to remove chips or
debris — do not use bare hands.
3
26. Do not stand on the router table. Serious
injury could occur if it tips over.
27. Never leave a router running unattended.
Turn the power off and do not leave the tool
until it comes to a complete stop.
28. Remove loose items and unnecessary work
pieces from the area before starting the tool.
29. Keep hands clear of the router bit area.
Avoid awkward operations and hand
positions where a sudden slip could cause
your hand to contact the cutting tool.
30. Use push-sticks, feather boards, or jigs
when cutting small or narrow work pieces.
31. Do not touch a router bit immediately after
use; it will be hot and may cause skin burns.
32. Don’t use in dangerous environment. Don’t
use power tools in damp or wet location, or
expose them to rain. Keep work area well
lighted.
33. Keep electrical cord away from sharp edges,
heat or moving parts. Position cord so it will
not become a trip hazard.
34. Before using the Router Lift, read and
become thoroughly familiar with all
manufacturer’s operating and safety
instructions that accompanied the router you
will be using.
35. Make sure workpiece is free from nails or
other foreign objects.
36. After installing a bit, make sure collet is
securely tightened. An unsecured bit may
fly loose from the collet and cause injury.
37. Raise router bit to minimum height needed
for cut; excess exposure of bit may create
greater risk.
38. Use proper extension cord. Make sure your
extension cord is in good condition. When
using an extension cord, be sure to use one
heavy enough to carry the current your
product will draw. An undersized cord will
cause a drop in line voltage resulting in loss
of power and overheating. Table 2 (sect.
6.2) shows the correct size to use
depending on cord length and nameplate
ampere rating. If in doubt, use the next
heavier gage. The smaller the gage number,
the heavier the cord.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or
possible machine damage.
This means that if precautions are not heeded, it may result in serious, or possibly even
fatal, injury.
SAVE THESE INSTRUCTIONS
WARNING: Drilling, sawing, sanding or
machining wood products generates wood dust
and other substances known to the State of
California to cause cancer. Avoid inhaling dust
generated from wood products or use a dust
mask or other safeguards for personal
protection.
Wood products emit chemicals known to the
State of California to cause birth defects or
other reproductive harm. For more information
go to http://www.p65warnings.ca.gov/wood.
WARNING: This product can expose you to
chemicals including lead which is known to the
State of California to cause cancer and birth
defects or other reproductive harm. For more
information go to http://www.p65warnings.ca.
gov.
4
2.0 About this manual This manual is provided by JET, covering assembly and maintenance procedures for a JET Model JRL-
912 Router Lift with Table and Stand. This manual contains instructions on installation, safety
precautions, general operating procedures, maintenance instructions and parts breakdown. Your product
has been designed and constructed to provide consistent, long-term operation if used in accordance with
the instructions as set forth in this document.
This manual is not intended to be an instruction guide for routers or router operation, use of after-market
accessories, choice of stock, etc. Consult the documentation that accompanies your router. Additional
knowledge can be obtained from experienced users or trade articles. Whatever accepted methods are
used, always make personal safety a priority.
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at
our web site: www.jettools.com.
Retain this manual for future reference. If the machine transfers ownership, the manual should
accompany it.
Register your product using the provided mail-in card or register online: http://www.jettools.com
5
3.0 Table of contents
Section Page
1.0 IMPORTANT SAFETY INSTRUCTIONS ................................................................................................................. 2
2.0 About this manual ........................................................................................................................................................ 4
3.0 Table of contents ......................................................................................................................................................... 5
4.0 Specifications for JET Router Lift and Components ............................................................................................... 6
5.0 Setup and Assembly.................................................................................................................................................... 7
5.1 Unpacking and cleanup .......................................................................................................................................... 7
5.2 Shipping contents .................................................................................................................................................... 7
5.3 Tools Required for Assembly ................................................................................................................................. 8
5.4 Stand Assembly ..................................................................................................................................................... 10
5.5 Dust Collection Box ............................................................................................................................................... 11
5.6 Mounting Table to Stand ...................................................................................................................................... 11
5.7 Fence Assembly .................................................................................................................................................... 12
5.8 Installing Router Lift ............................................................................................................................................... 13
5.9 Installing Router (not provided) ........................................................................................................................... 13
6.0 Electrical Connections ............................................................................................................................................... 14
6.1 GROUNDING INSTRUCTIONS .......................................................................................................................... 14
7.0 Adjustments ................................................................................................................................................................ 15
7.1 Stand Mobility ......................................................................................................................................................... 15
7.2 Miter Gauge ............................................................................................................................................................ 15
7.3 Router Elevation .................................................................................................................................................... 15
8.0 Operations .................................................................................................................................................................. 15
9.0 User-Maintenance ..................................................................................................................................................... 16
9.1 Additional Servicing ............................................................................................................................................... 16
10.0 Optional Accessories .............................................................................................................................................. 17
11.0 Replacement Parts .................................................................................................................................................. 17
11.1.1 Router Lift Assembly (737000) – Exploded View ........................................................................................ 18
11.1.2 Router Lift Assembly (737000) – Parts List .................................................................................................. 19
11.2.1 Stand Assembly (737004) – Exploded View ................................................................................................ 21
11.2.2 Stand Assembly (737004) – Parts List .......................................................................................................... 22
11.3.1 Dust Collection Box Assembly (737005) – Exploded View ........................................................................ 24
11.3.2 Dust Collection Box Assembly (737005) – Parts List ................................................................................. 25
11.4.1 Fence Assembly (737001) – Exploded View ............................................................................................... 26
11.4.2 Fence Assembly (737001) – Parts List ......................................................................................................... 27
11.5.1 Table Assembly – Exploded View ................................................................................................................. 28
11.5.2 Cast Iron Table Assembly (737002) – Parts List ......................................................................................... 28
11.5.3 MDF Table Assembly (737003) – Parts List ................................................................................................ 28
12.0 Warranty and service .............................................................................................................................................. 29
The specifications in this manual were current at time of publication, but because of our policy of
continuous improvement, JET reserves the right to change specifications at any time and without prior
notice, without incurring obligations.
6
4.0 Specifications for JET Router Lift and Components
Table 1
Component stock numbers
Router Lift with Cast Table Kit (includes items
marked *)
737000CK
Router Lift with MDF Table Kit (includes items
marked °)
737000WK
JRL-912 Router Lift *°
737000
Fence Assembly 32 in. *°
737001
Cast Iron Table 32x24 in. *
737002
MDF Table 32x24 in. °
737003
Floor Stand (with Power Switch and Miter Gauge)
*°
737004
Dust Collection Box *°
737005
Power Switch
737006
Phenolic Inserts – set of 5 (ZC, 6.4, 12.7, 30, 63.5
mm)
737007
Flip Stop *°
737008
Fine Fence Adjuster (set of 2) *°
737009
Vertical Feather Board (set of 2) *°
737010
Horizontal Feather Board (set of 2)
737011
Power switch and electrical
Switch type
Magnetic, paddle style with safety key
Input power and built-in receptacle
120-volt, single phase
On/off switch
Magnetic, paddle style with safety key
Power cord
3Cx2.08mm2 14AWG 300V, 6ft 9in.
Power plug included
120V
Capacities
Miter gauge angle
30 deg. L and R
Router vertical movement
0.08 in. per turn of handle (0.002 in. graduation
marks)
Dimensions of accepted routers (round body only)
Minimum 3-1/4ӯ with collar, Maximum 4-1/4ӯ
Dimensions
Router Lift plate
9.25 x 11.75 in. (235 x 299 mm)
Insert provided
1-1/2 in. I.D.
Table
24 x 32 in. (610 x 813 mm)
Fence dust port
2-1/2 in. (63.5 mm) O.D.
Fence body length
32 in. (813 mm)
Sub-Fence length
Two at 16 in. (406 mm)
Dust collection box dust port
4 in. (101.6 mm) O.D.
Complete kit, fully assembled LxWxH
40 x 32 x 42 in. (1016 x 813 x 1067 mm)
Number of table T-slots
2
Table T-slot size WxD
3/4 x 3/8 in. and 3/8 x 1/4 in.
Main materials
Table
Cast iron or MDF (melamine surfaced)
Fence body and rails
Extruded aluminum
Sub-fences
MDF (melamine surfaced)
Stand
Steel
7
Weights (approximate)
737000CK
Net weight, fully assembled
229 lb. (103.92 kg)
Shipping weight, complete crate
315 lb. (142.75 kg)
737000WK
Net weight, fully assembled
173 lb. (78.5 kg)
Shipping weight, complete crate
255.6 lb. (116 kg)
1
Subject to local/national electrical codes. Recommendation based upon dedicated circuit.
2
The specified values are emission levels and are not necessarily to be seen as safe operating levels. As
workplace conditions vary, this information is intended to allow the user to make a better estimation of the
hazards and risks involved only.
L = length, W = width, H = height, D = depth O.D. = outside diameter
5.0 Setup and Assembly
Read and understand the
entire contents of this manual before
attempting assembly or operation! Failure to
comply may cause serious injury!
5.1 Unpacking and cleanup
1. Remove all contents from shipping carton.
Do not discard cartons or packing material
until product is assembled and running
satisfactorily.
2. Inspect contents for shipping damage.
Report any damage to your distributor.
3. Compare contents of shipping carton with
the contents list below. Report shortages, if
any, to your distributor.
5.2 Shipping contents See Figures 5-1 thru 5-5.
Box #1 Cast iron table
1 Router table, cast iron
6 Socket head cap screws, M6x16
6 Lock washers M6
6 Flat washers M6
10 Socket flat head screws, M6x20
10 Hex nuts M6
OR…
MDF table
1 Router table, MDF/Melamine
10 Socket flat head wood screws M7x40
32 Phillips pan hd. wood screws 3/16” x
5/8”
Box #2 Router Lift Assembly
1 Router Lift
2 Crank handle
1 Pin wrench
1 Router adaptor, 3-1/4 in.
1 Router adaptor, 3-1/2 in.
4 Hex wrenches, 3,4,6,8 mm
2 Socket hd flat screws M6x30
1 Starter pin with screw
1 Insert ring, 38.1mm
Box #3 Dust Collection Box Assembly
1 Front panel with door
1 Left panel
1 Right panel
1 Rear panel
1 Bottom panel
1 Dust port
1 Dust hose with clamps
6 Hex cap screws M6x12
6 Flat washers M6
6 Lock washers M6
3 Pan hd. machine screws M4x10
26 Pan hd. machine screws M4x6
8
Box #4 Stand Assembly
4 Leg tubes
4 Support bars – 2 long, 2 short
4 Lower braces – 2 long, 2 short
1 Miter gauge assembly
1 Switch assembly
1 Swivel caster assembly
2 Wheels
2 Wheel brackets
1 Tool holder assembly
4 Levelers
2 Bit storage racks
2 Hex cap screws M8x50
2 Lock nuts M8
6 Flat washers, M8
4 Socket hd cap screws M6x16
4 Flat washers M6
40 Hex cap screws M6x12
40 Flat washers M6
2 Pan hd mach screws M4x20
4 Hex nuts M4
Box #5 Fence Assembly
1 Dust port
1 Guard
1 Fence
2 Fence faces
2 Side bracket bases
2 Side brackets
1 Miter gauge fence
2 Lock handles with nuts
8 Lock knobs with T-bolts
10 Flat washers M8
2 Fence spacers
8 Socket hd cap screws, M6x12
6 Hex cap screws 1/4x5/8
6 Flat washers M6
6 Square nuts 1/4
2 Wing nuts M6*
2 Flat washers M6*
2 Hex cap screws M6x30*
(* packaged inside miter gauge fence)
5.3 Tools Required for Assembly Cross-point (Phillips) screwdriver Hex wrenches 4, 6, 8mm Open-end wrenches 10,12,14 mm (NOTE: A ratchet wrench with sockets will speed
assembly time.)
Figure 5-1a: Box #1 Cast Iron Table
-- OR –
Figure 5-1b: Box #1 MDF Table
Figure 5-2: Box #2 Router Lift Assembly
9
Figure 5-3: Box #3 Dust Collection Box
Figure 5-4: Box #4 Stand Assembly
Figure 5-5: Box #5 Fence Assembly
Applicability of the following instructions will depend upon your choice of accessories. Call-out numbers
are those in the parts breakdown, sect. 11.0.
10
5.4 Stand Assembly
See Figure 5-6.
1. Mount support bars (2 long, 2 short) to legs (#4). Mount lower braces (2 long, 2 short) to legs.
Position JET logo toward front of stand.
2. Install levelers (#19). These can be adjusted for height at any time to make the stand level and
accommodate use of the wheels and swivel caster. Tighten leveler hex nut against stand.
3. Install wheels (#12) with brackets, and swivel caster (#14) with its bracket.
4. Mount power switch with bracket (#10) and storage hook assembly (#42) to legs.
Figure 5-6
2
2
3
3
4
4
7
5
6
8
14
19
20
20
21
21
22
21
25
27
30
20
21
26
21
20
22
21
21
41
41
41
6
12
10
42
11
5.5 Dust Collection Box
See Figure 5-7.
1. Assemble panels as shown, using M4x6 pan head screws (#3). Do not fully tighten screws yet. When
all screws are inserted, place box on level surface and push down to settle it evenly. Then tighten all
screws.
2. Install dust port (#19) and hose with clamp (#13/20).
Cast iron table is heavy! Use an assistant to help lift and assemble to stand.
3. Turn cast iron (or MDF) table upside down. Use mat or cardboard underneath to prevent scratching
table surface.
4. Install dust collection box to bottom of table. Cast iron table: Use six hex cap screws, lock washers,
and flat washers into threaded holes. MDF table: Use Phillips pan head wood screws into pilot holes.
5.6 Mounting Table to Stand
1. Mount table to stand and secure with fasteners. Cast iron table: Use socket head cap screws, lock
washers and flat washers (#15/16/17, Figure 5-7) into threaded holes. MDF table: Use Phillips pan
head wood screws into pilot holes.
Figure 5-7
2N
7
13
4
19
20
3
3
15
16
17
1N
6N
9N
3
to Table
Vent
Cable clamp
12
5.7 Fence Assembly

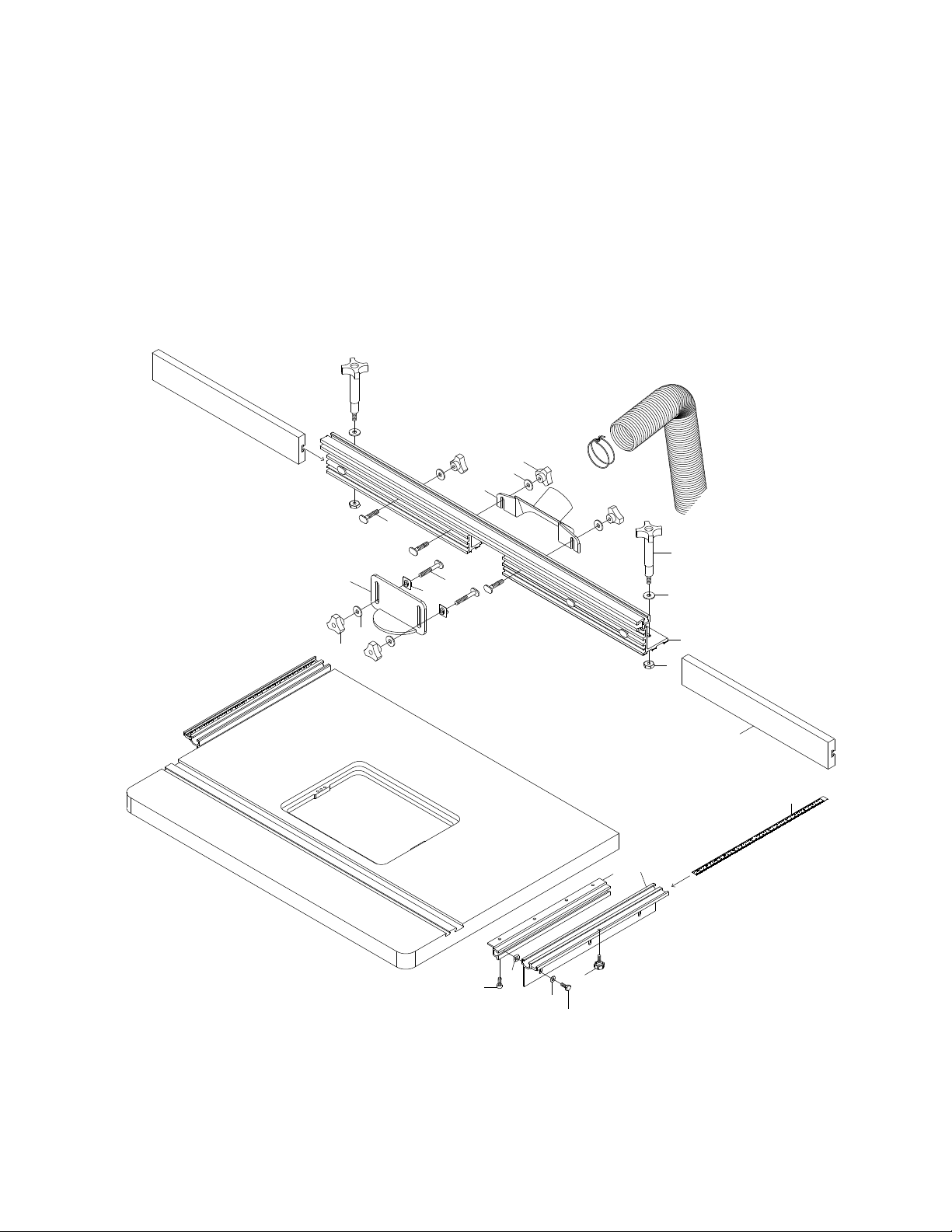

See Figure 5-8.
1. Attach a rail base (#12) to each side of table with socket head cap screws (#18). Hand-tighten only.
2. Slide a scale (#15) into each rail (#13). Slide square nuts (#16) into channel of base, and mount rails
to bases with hex cap screws (#19) and flat washers (#17). Attach rails so they are flush with back
edge of table. Make adjustments as needed, then tighten screws on bases (#18).
3. Carefully align zero mark on scale with inscribed line at edge of table (see Figure 5-9). This is best
done using a steel straight edge or carefully jointed piece of wood laid across entire width of table and
along the inscribed lines. Tighten knob to fix scale position. Repeat for other side.
4. Slide hex nut (#7) into rail channel (#13) and mount fence (#1) using handles (#2) and washers (#5).
5. Install sub-fences (#9), router bit guard (#10) and dust port (#32) as shown. Attach dust hose to port
with clamp.
Figure 5-8
9
10
11
4
12
13
15
16
18
17
19
20
5
6
1
2
5
6
4
5
7
32
13
Figure 5-9
5.8 Installing Router Lift
See Figure 5-10.
1. Insert ten flat head screws (#2, provided
with table) into holes in table recess –
threaded holes in cast iron table; pilot holes
in MDF table).
2. Place Router Lift into hole and place a
straight edge across table and router plate.
Continue adjusting flat head screws until
router plate sits flush with table surface at all
four edges.
3. Cast iron table: Install and tighten hex nuts
(#3) on each screw beneath recess (not
applicable to MDF table).
4. Insert two flat head screws through router
plate into table and tighten with 4mm hex
wrench.
Figure 5-10 (cast iron table shown)
5.9 Installing Router (not provided) The universal clamp collar will secure a router
without the need to match hole patterns on its
mounting plate. The Router Lift accepts round
body routers only, with minimum 3-1/4” diameter
to maximum 4-1/4” diameter. Router must be
disconnected from power when installing.
1. Lower router lift with crank handle (see
Figure 7-30) so that router spindle will not
protrude through insert when being installed.
2. Remove router lift and place upside down on
a table.
3. Slide router (not provided) as far as it will go
into router lift collar. If router body diameter
is too small, install one of the provided
adaptors into collar first, then install router.
See Figure 5-11.
4. Position router so that power cord will be
toward right side of dust collection box.
5. Loosen two hex nuts (A, Figure 5-11) and
tighten screw (B, Figure 5-11) with 8mm hex
wrench. Retighten hex nuts to secure
setting.
Make sure router is firmly
secured in clamping collar before
operating.
6. Replace Router Lift in table and secure with
the two flat head screws.
7. Remove cord clamp from right panel of Dust
Collection Box (see Figure 5-7). Feed router
cord through hole and insert plug into
receptacle on back of switch.
8. Reinstall cord clamp.
Figure 5-11
14
6.0 Electrical Connections
All electrical connections
must be made by a qualified electrician in
compliance with all local codes and
ordinances. Failure to comply may result in
serious injury.
The Power Switch (part no. 737006) that
accompanies the JRL-912 Router Lift Stand is
rated for 120-volt power and comes with a plug
designed for use on a circuit with a grounded
outlet that looks like the one pictured in A,
Figure 6-1.

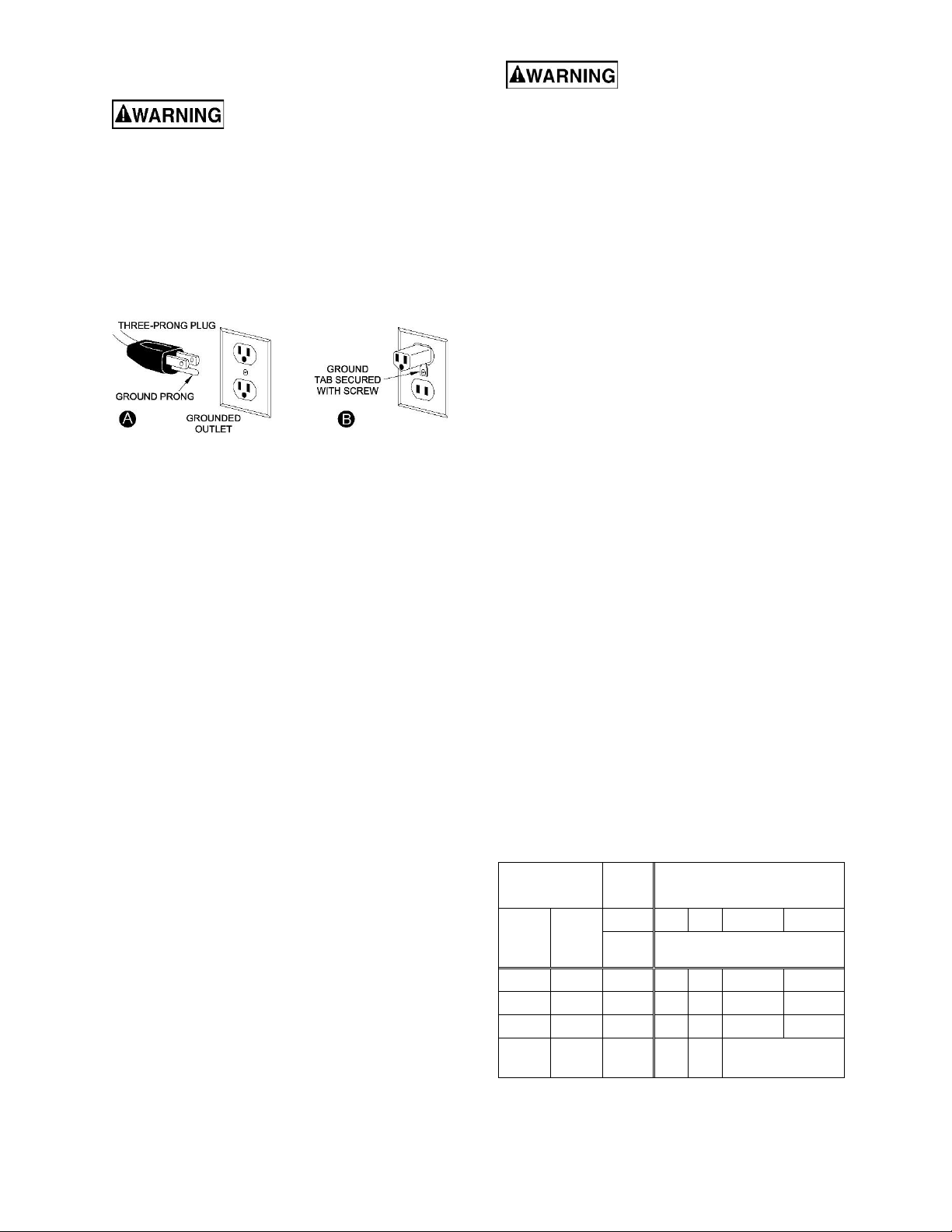

Figure 6-1
The switch has a 120-volt receptacle on the
back for connecting a router (not included).
Before connecting to power source, be sure
switch is in off position.
Local codes take precedence over
recommendations.
6.1 GROUNDING INSTRUCTIONS This tool must be grounded. In the event of a
malfunction or breakdown, grounding provides a
path of least resistance for electric current to
reduce the risk of electric shock. This tool is
equipped with an electric cord having an
equipment-grounding conductor and a
grounding plug. The plug must be plugged into a
matching outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
Do not modify the plug provided - if it will not fit
the outlet, have the proper outlet installed by a
qualified electrician.
Improper connection of the equipmentgrounding conductor can result in a risk of
electric shock. The conductor with insulation
having an outer surface that is green with or
without yellow stripes is the equipmentgrounding conductor. If repair or replacement of
the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a
live terminal.
Check with a qualified
electrician or service personnel if the
grounding instructions are not completely
understood, or if in doubt as to whether the
tool is properly grounded. Failure to comply
may cause serious or fatal injury.
Use only 3-wire extension cords that have 3prong grounding plugs and 3-pole receptacles
that accept the tool's plug.
Repair or replace damaged or worn cord
immediately.
Grounded, cord-connected tools intended for
use on a supply circuit having a nominal rating
less than 150 volts:
This tool is intended for use on a circuit that has
an outlet that looks like the one illustrated in A,
Figure 6-1. An adapter, shown in B, may be
used to connect this plug to a 2-pole receptacle
as shown in B if a properly grounded outlet is
not available. The temporary adapter should be
used only until a properly grounded outlet can
be installed by a qualified electrician. The greencolored rigid ear, lug, and the like, extending
from the adapter must be connected to a
permanent ground such as a properly grounded
outlet box.
In Canada, the use of a temporary adaptor is not
permitted by the Canadian Electrical Code,
C22.1.
6.2 Extension Cords
The use of extension cords is discouraged; try to
position equipment within reach of the power
source. If an extension cord becomes
necessary, be sure it is heavy enough to carry
the current your product will draw. An
undersized cord will cause a drop in line voltage
resulting in loss of power and overheating.
Table 2 shows recommended size to use
depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier
gauge. The smaller the gauge number, the
heavier the cord.
Ampere
Rating
Volts
Total length of
cord in feet
More
Than
Not
More
Than
120
25
50
100
150
AWG
0 6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not
Recommended
Extension Cord Recommendations
Table 2
15
7.0 Adjustments
7.1 Stand Mobility
1. Push down pedal on swivel caster (Figure 7-
1) to move stand. Lift up pedal with foot to
disengage swivel caster. NOTE: The height
of levelers may need adjustment for proper
swivel caster engagement/disengagement.
Disengage swivel caster
before operating router; stand should be
in fixed position.
Figure 7-1
7.2 Miter Gauge The miter gauge (Figure 7-2) can be used for
end-routing a workpiece. Insert miter gauge bar
into end of T-slot and slide gauge onto table.
Loosen wing nuts to adjust fence. For angle
cuts, loosen handle and rotate body to desired
angle on scale. Tighten handle.
Figure 7-2
The fence must be set parallel to miter slot when
using miter gauge. This can be done quickly by
moving fence to equal dimension on left and
right scales if the initial fence alignment was
done properly (see sect. 5.7 and Figure 5-9).
For precise work, verify setting of miter gauge
angle by placing an angle measuring device
against miter gauge fence and T-slot.
The narrow table T-slot will accommodate
additional routing accessories.
7.3 Router Elevation Insert pin wrench and turn to lock or unlock
insert. To raise or lower router, insert crank
handle into hole and turn. To secure router
height, use crank handle in “Lock” hole.
Figure 7-3
8.0 Operations
Before using this Router Lift,
thoroughly familiarize yourself with the
safety and operating instructions that
accompanied your router.
1. Disengage swivel caster before operating
router.
2. For safety, adjust sub-fences and router bit
guard as close to router bit as possible
without interfering with bit or workpiece
movement.
3. Adjust ventilation in dust collection box by
rotating vent blades (see Figure 5-7).
4. Connect a dust collection system (not
provided) to the dust port, with a 4-in. dust
hose and clamp.
5. Power switch (Figure 8-1): Pull up paddle to
start router, push down to stop. To prevent
accidental or unauthorized use of router, pull
out safety key. Key must be reinserted to
start router.
16
Figure 8-1
6. The starting pin can be inserted into one of
two holes in the router plate (see Figure 7-
3). It is used as a support to help pivot the
workpiece into the bit when doing freehand
work. See Figure 8-2.
Always use starting pin
when doing freehand work. Use of the
starting pin in freehand work requires
removal of fence and bit guard – exercise
great caution. Keep hands away from
rotating bit. Failure to comply may cause
serious injury.
Figure 8-2
7. Do not perform “climb cuts” (feeding the
work with the bit rotation). Always feed work
against the bit rotation. See Figure 8-3.
8. For average work, where a portion of the
original edge of the work is not to be
touched by the cutter, both sub-fences are
set in a straight line as shown in Figure 8-3.
Figure 8-3
9. When the operation removes the entire edge
of the work, for example in jointing or
making a full bead, the shaped edge will not
be supported by the outfeed sub-fence when
both fences are in line. In this case, place a
shim behind the outfeed sub-fence that is
equal thickness to the depth of cut. To
determine size of shim, position a straight
edge against router bit and bring outfeed
sub-fence against it. See Figure 8-4.
Figure 8-4
9.0 User-Maintenance
Lubricate the Router Lift chain with grease as
needed.
Use a brush, vacuum or compressed air to blow
out sawdust and debris from the dust collection
box and table area.
Periodically apply a light coat of paste wax to
cast iron table surface to inhibit rust.
9.1 Additional Servicing
Any additional servicing should be performed by
authorized service personnel.
17
10.0 Optional Accessories The following are optional accessories to enhance the functionality of the Router Lift. See your dealer or call JET to order.
Figure 10-1 Figure 10-2
11.0 Replacement Parts Replacement parts are listed on the following pages. To order parts or reach our service department, call
1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and
Serial Number of your machine available when you call will allow us to serve you quickly and accurately.
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from
JET.
Some parts are shown for reference only and may not be available individually.
18
11.1.1 Router Lift Assembly (737000) – Exploded View
19
11.1.2 Router Lift Assembly (737000) – Parts List
Index No Part No Description Size Qty
1 ............... JRL912-101 ............. Aluminum Carriage Bracket ................................. .................................... 1
2 ............... JRL912-102 ............. Main Gear Shaft ................................................... .................................... 1
3 ............... JRL912-103 ............. Lead Screw Assembly ......................................... .................................... 4
4 ............... JRL912-104 ............. Insert Ring ............................................................ .................................... 1
5 ............... JRL912-105 ............. Gear Shaft ............................................................ .................................... 4
6 ............... JRL912-106 ............. Carriage Plate ...................................................... .................................... 4
7 ............... JRL912-107 ............. Clamp Post ........................................................... .................................... 1
8 ............... JRL912-108 ............. Top Table ............................................................. .................................... 1
8A ............. JRL912-108A ........... Starter Pin ............................................................ .................................... 1
8B ............. TS-2286252 ............. Phillips Pan Hd Machine Screw ........................... M6-1.0×25 ................... 1
9 ............... JRL912-109 ............. Cam Gear ............................................................. .................................... 1
10 ............. JRL912-110 ............. Eccentric Wheel ................................................... .................................... 1
11 ............. TS-2342141 ............. Nylon Lock Hex Nut ............................................. M14-2.0 ....................... 1
12 ............. JRL912-112 ............. Sprocket ............................................................... .................................... 4
13 ............. JRL912-113 ............. Upper Guide Nut .................................................. .................................... 1
14 ............. JRL912-114 ............. Upper Guide Nut Base ......................................... .................................... 1
15 ............. TS-1550041 ............. Flat Washer .......................................................... M6 ............................. 12
15A ........... JRL912-15A ............. Flat Washer .......................................................... M6(D16) ...................... 1
16 ............. TS-1550071 ............. Flat Washer .......................................................... M10 ............................. 3
16A .......... TS-2361101 ............. Lock Washer ........................................................ M10 ............................. 3
17 ............. JRL912-117 ............. Crank Handle ....................................................... .................................... 1
18 ............. JRL912-118 ............. Sleeve .................................................................. .................................... 3
19 ............. JRL912-119 ............. Scale Plate ........................................................... .................................... 1
20 ............. TS-1523011 ............. Socket Set Screw ................................................. M6-1.0×6 ................... 10
21 ............. JRL912-121 ............. Bushing ................................................................ .................................... 4
22 ............. BB-6805ZZ ............... Ball Bearing .......................................................... 6805ZZ........................ 5
23 ............. TS-1504041 ............. Socket Head Cap Screw ...................................... M8-1.25×20 ................. 1
24 ............. F010986 ................... Socket Head Flat Screw BO ................................ M6-1.0×18 ................... 8
25 ............. TS-1512021 ............. Socket Head Flat Screw ...................................... M4-0.7×12 ................... 4
26 ............. 5FK-B05 ................... Key, Double Rd Hd .............................................. 4×4×12mm .................. 5
27 ............. BB-6804ZZ ............... Ball Bearing .......................................................... 6804ZZ........................ 5
28 ............. JRL912-128 ............. Crank Handle Sleeve ........................................... .................................... 1
29 ............. BB-6900ZZ ............... Ball Bearing .......................................................... 6900ZZ........................ 6
30 ............. F010966 ................... Socket Head Flat Screw BO ................................ M6-1.0×30 ................... 2
31 ............. JRL912-131 ............. Chain .................................................................... .................................... 1
32 ............. F006040 ................... C-Retaining Ring, Ext .......................................... 10mm .......................... 4
33 ............. TS-1541021 ............. Nylon Lock Hex Nut ............................................. M6-1.0 ......................... 4
34 ............. JRL912-134 ............. Pin Wrench ........................................................... .................................... 1
35 ............. JRL912-135 ............. Anti-Backlash Pin ................................................. .................................... 1
36 ............. TS-1505111 ............. Socket Head Cap Screw ...................................... M10-1.5×70 ................. 3
37 ............. TS-1540071 ............. Hex Nut ................................................................ M10 -1.5 ...................... 2
38 ............. TS-1503131 ............. Socket Head Cap Screw ...................................... M6-1.0×60 ................... 4
39 ............. TS-2239551 ............. Socket Head Cap Screw ...................................... M10-1.5×55 ................. 1
40 ............. JRL912-140 ............. O-Ring .................................................................. Ø12.42×1.78 ............... 1
41 ............. JRL912-141 ............. Lock Guide Nut .................................................... .................................... 1
42 ............. JRL912-142 ............. Upper Guide Nut Base ......................................... .................................... 1
43 ............. JRL912-143 ............. Eccentric Shaft ..................................................... .................................... 1
44 ............. JRL912-144 ............. Torsion Spring ...................................................... .................................... 1
45 ............. BB-688ZZ ................. Ball Bearing .......................................................... 688ZZ.......................... 1
46 ............. JRL912-146 ............. Lock Arm Spacer ................................................. .................................... 1
47 ............. JRL912-147 ............. Brake Gear ........................................................... .................................... 1
48 ............. JRL912-148 ............. Lock Arm .............................................................. .................................... 1
49 ............. TS-1503071 ............. Socket Head Cap Screw ...................................... M6-1.0×30 ................... 1
20
50 ............. F012092 ................... Roll Pin ................................................................. 3×18 mm ..................... 2
50A .......... F012096 ................... Roll Pin ................................................................. 3×12 mm ..................... 1
51 ............. JRL912-RA1 ............ Router Adaptor 3.5 in ID (not shown) .................. .................................... 1
52 ............. JRL912-RA2 ............ Router Adaptor 3.25 in ID (not shown) ................ .................................... 1
................. TS-152704 ............... Hex Wrench (not shown) ..................................... 3mm ............................ 1
................. TS-152705 ............... Hex Wrench (not shown) ..................................... 4mm ............................ 1
................. TS-152706 ............... Hex Wrench (not shown) ..................................... 5mm ............................ 1
................. TS-152707 ............... Hex Wrench (not shown) ..................................... 6mm ............................ 1
21
11.2.1 Stand Assembly (737004) – Exploded View
22
11.2.2 Stand Assembly (737004) – Parts List
Index No Part No Description Size Qty
2 ............... JRL912-202 ............. Long Support Bar ................................................. .................................... 2
3 ............... JRL912-203 ............. Short Support Bar ................................................ .................................... 2
4 ............... JRL912-204 ............. Stand Leg ............................................................. .................................... 4
5 ............... JRL912-205 ............. Long Lower Brace ............................................... .................................... 2
6 ............... JRL912-206 ............. Short Lower Brace .............................................. .................................... 2
7 ............... JRL912-207 ............. Wheel Frame Bracket .......................................... .................................... 1
8 ............... JRL912-208 ............. Router Bit Rack .................................................... .................................... 2
9 ............... JRL912-209 ............. Switch Base ......................................................... .................................... 1
10 ............. 737006 ..................... On/Off Switch (includes #24) ............................... 15A 125V .................... 1
11 ............. JRL912-211 ............. Wheel Bracket ...................................................... .................................... 2
12 ............. JRL912-212 ............. Plastic Wheel ....................................................... 76mm .......................... 2
13 ............. JRL912-213 ............. Caster Frame ....................................................... .................................... 1
14 ............. JRL912-214 ............. Pedal .................................................................... .................................... 1
15 ............. JRL912-215 ............. Caster Base ......................................................... .................................... 1
16 ............. JRL912-216 ............. Swivel Caster ....................................................... .................................... 1
17 ............. JRL912-217 ............. Square Nut ........................................................... M1-1.5 ......................... 4
18 ............. TS-1540071 ............. Hex Nut ................................................................ M10-1.5 ....................... 4
19 ............. JRL912-219 ............. Leveling Pad ........................................................ .................................... 4
20 ............. TS-1482021 ............. Hex Cap Screw .................................................... M6-1.0×12 ................. 40
21 ............. TS-1550041 ............. Flat Washer .......................................................... M6 ............................. 52
22 ............. TS-1503041 ............. Socket Head Cap Screw ...................................... M6-1.0×16 ................... 5
24 ............. JRL912-224 ............. Power Cord .......................................................... 15 mm²×3C ................. 1
25 ............. TS-2208501 ............. Hex Cap Screw .................................................... M8-1.25×50 ................. 2
26 ............. TS-1503031 ............. Socket Head Cap Screw ...................................... M6-1.0×12 ................... 4
27 ............. TS-1541031 ............. Nylon Lock Hex Nut ............................................. M8-1.25 ....................... 4
28 ............. TS-1540021 ............. Hex Nut Full ......................................................... M4-0.7 ......................... 4
29 ............. TS-2284202 ............. Phillips Pan Hd Machine Screw ........................... M4-0.7×20 ................... 2
30 ............. TS-2311061 ............. Hex Nut Full ......................................................... M6-1.0 ......................... 1
31 ............. TS-0640091 ............. Nylon Lock Hex Nut ............................................. 3/8-16 .......................... 1
32 ............. TS-1550071 ............. Flat Washer .......................................................... M10 ............................. 1
34 ............. SBR30M-53 ............. Hex Cap Screw .................................................... M8×90 ......................... 2
35 ............. 5AD-D04A ................ Phillips Pan Hd Machine Screw ........................... M5-0.8×8 ..................... 6
36 ............. JRL912-236 ............. Support Plate ....................................................... .................................... 1
37 ............. JRL912-237 ............. Phillips Pan Hd Machine Screw ........................... M5-0.8×45 ................... 4
38 ............. JRL912-238 ............. Tool Bracket ......................................................... .................................... 1
39 ............. TS-1550061 ............. Flat Washer .......................................................... M8 ............................... 2
40 ............. TS-1550031 ............. Flat Washer .......................................................... M5 ............................... 2
41 ............. TS-1550061 ............. Flat Washer .......................................................... M8 ............................... 6
42 ............. JRL912-242 ............. Storage Hook ....................................................... .................................. a1
43 ............. JRL912-243 ............. Hook Extension Plate ........................................... .................................... 1
44 ............. LT00-B10 ................. Phillips Pan Hd Machine Screw ........................... M4-0.7×5 ..................... 2
45 ............. JRL912-245 ............. Guide Bar ............................................................. .................................... 1
46 ............. JRL912-246 ............. Miter Gauge Body ................................................ .................................... 1
47 ............. JRL912-247 ............. Guide Washer ...................................................... .................................... 1
48 ............. LT04-B13 ................. Phillips Pan Hd Machine Screw ........................... M6-1.0×8 ..................... 1
49 ............. JRL912-249 ............. Pointer .................................................................. .................................... 1
50 ............. 41002-93 .................. Phillips Pan Hd Machine Screw ........................... #10-24×1/4” ............... 1
51 ............. JRL912-251 ............. Lock Knob ............................................................ 1/4” ×25 ....................... 1
52 ............. JRL912-252 ............. Miter Fence .......................................................... .................................... 1
53 ............. TS-1482061 ............. Hex Cap Screw .................................................... M6-1.0×30 ................... 2
54 ............. TA-2321061 ............. Wing Nut .............................................................. M6-1.0 ......................... 2
55 ............. F001219 ................... Phillips Pan Hd Machine Screw ........................... M5-0.8×85 ................... 1
56 ............. TS-1541011 ............. Nylon Lock Hex Nut ............................................ M5-0.8 ......................... 1
23
................. JRL912-246A ........... Miter Gauge Assembly ......................................... .................................... 1
................. JRL912-242A ........... Storage Hook Assembly ...................................... .................................... 1
................. JRL912-216A ........... Swivel Caster Assembly ...................................... .................................... 1
................. TS-2284202 ............. Phillips Pan Hd Machine Screw (not shown) ....... M4x20 ......................... 2
................. TS-1541001 ............. Hex Nut (not shown) ............................................ M4 ............................... 4
24
11.3.1 Dust Collection Box Assembly (737005) – Exploded View
5N
14N
3
3
2N
8
4
12
11
12
10
7
13
4
19
20
20
4
3
3
3
15
16
17
1N
6N
9N
18
3
3
25
11.3.2 Dust Collection Box Assembly (737005) – Parts List
Index No Part No Description Size Qty
1N ............. JRL912-301N ........... Front Panel........................................................... .................................... 1
2N ............. JRL912-302N ........... Right Panel........................................................... .................................... 1
3 ............... TS-2171012 ............. Phillips Pan Hd Machine Screw ........................... M4-0.7×6 ................... 34
4 ............... TS-1532032 ............. Phillips Pan Hd Machine Screw ........................... M4-0.7×10 ................... 7
5N ............. JRL912-305N ........... Continuous Hinge ................................................ .................................... 1
6N ............. JRL912-306N ........... Left Panel ............................................................. .................................... 1
7 ............... JRL912-307 ............. Rear Panel ........................................................... .................................... 1
8 ............... JRL912-308 ............. Power Cord Clamp (2pcs) .................................... .................................... 2
9N ............. JRL912-309N ........... Bottom Panel ....................................................... .................................... 1
10 ............. JRL912-310 ............. Adjustable Vent Base ........................................... .................................... 1
11 ............. JRL912-311 ............. Adjustable Vent Plate ........................................... .................................... 1
12 ............. JRL912-312 ............. Rivet ..................................................................... M32 ............................. 5
13 ............. JRL912-313 ............. Dust Hose ............................................................ M63×80cm .................. 1
14N ........... JRL912-314N ........... Door Panel ........................................................... .................................... 1
15 ............. TS-1482021 ............. Hex Cap Screw .................................................... M6-1.0×12 ................... 6
16 ............. TS-2361061 ............. Lock Washer ........................................................ M6 ............................... 6
17 ............. TS-1550041 ............. Flat Washer .......................................................... M6 ............................... 6
18 ............. JRL912-318 ............. Magnet ................................................................. .................................... 1
19 ............. JRL912-319 ............. Dust Chute ........................................................... .................................. 1a
20 ............. JRL912-320 ............. Hose Clamp ......................................................... M63 ............................. 2
26
11.4.1 Fence Assembly (737001) – Exploded View
9
9
25
23
26
28
10
11
4
12
13
14
15
16
18
17
19
20
22
5
6
5
6
21
21
4A
31
30
22
3
32A
8
8
12
13
18
16
17
19
15
14
1
2
4
5
6
5
6
5
6
2
4
4
5
5
7
7
32
24
27
29
27
11.4.2 Fence Assembly (737001) – Parts List
Index No Part No Description Size Qty
1 ............... JRL912-400 ............. Router Table Fence ............................................. 910mm ........................ 1
2 ............... JRL912-401 ............. Lock Handle ......................................................... M8 .............................. 2
3 ............... JRL912-402 ............. Scale .................................................................... 905mm ........................ 1
4 ............... JRL912-403 ............. T-Bolt .................................................................... .................................... 8
5 ............... TS-1550061 ............. Flat Washer .......................................................... M8 ............................. 10
6 ............... JRL912-406 ............. Lock Knob ............................................................ M8 ............................... 8
7 ............... JRL912-407 ............. Lock Nut ............................................................... M8 ............................... 2
9 ............... JRL912-409 ............. Sub-Fence ............................................................ 451mm ........................ 2
10 ............. JRL912-410 ............. Router Bit Guard .................................................. .................................... 1
11 ............. JRL912-411 ............. Fence Spacer ....................................................... .................................... 2
12 ............. JRL912-412 ............. Side Rail Base ..................................................... 320mm ........................ 2
13 ............. JRL912-413 ............. Side Rail ............................................................... 375mm ........................ 2
14 ............. JRL912-414 ............. Rule Plate ............................................................. 300mm ........................ 2
15 ............. JRL912-415 ............. Scale .................................................................... 300mm ........................ 2
16 ............. JRL912-416 ............. Square Nut ........................................................... 1/4” .............................. 6
17 ............. TS-1550041 ............. Flat Washer .......................................................... M6 ............................... 6
18 ............. TS-1503031 ............. Socket Head Cap Screw ...................................... M6-1.0×12 ................... 8
19 ............. TS-0050021 ............. Hex Cap Screw .................................................... 1/4-20x5/8 ................... 6
20 ............. JRL912-420 ............. Lock Knob ............................................................ M6×12 ......................... 2
32 ............. JRL912-432 ............. Dust Port .............................................................. .................................... 1
Optional Accessories:
8 ............... JRL912-408 ............. Shims for Sub-Fence (set of 2) ............................ 401mm ....................... 1
21 ............. 737010 ..................... Vertical Feather Board Assembly (set of 2) ......... .................................... 1
22 ............. 737011 ..................... Horizontal Feather Board Assembly (set of 2) ..... .................................... 1
32A ........... 737008 ..................... Flip Stop Assembly (includes #23 thru 31) ......... .................................... 1
23......... ................................. Clamp Bracket ..................................................... .................................... 1
24......... ................................. Socket Head Cap Screw ...................................... M6-1.0×75 ................... 1
25......... ................................. Flip Stop ............................................................... .................................... 1
26......... ................................. Flat Washer (Optional) ........................................ .................................... 1
27......... ................................. Flat Washer (Optional) ........................................ .................................... 1
28......... ................................. Socket Set Screw (Optional) ................................ M6-1.0×16 ................... 1
29......... ................................. Hex Nylon Lock Nut (Optional) ............................ M6-1.0 ......................... 1
30......... ................................. Lock Knob (Optional) ........................................... M8 ............................... 1
31......... ................................. Flat Washer (Optional) ......................................... M8 ............................... 1
28
11.5.1 Table Assembly – Exploded View
11.5.2 Cast Iron Table Assembly (737002) – Parts List
Index No Part No Description Size Qty
1 ............... JRL912-501 ............. Router Table Cast Iron ......................................... 32"x24" ........................ 1
2 ............... TS-2286201 ............. Phillips Flat Head Machine Screw ....................... M6-1.0x20 ................. 10
3 ............... TS-2311061 ............. Hex Nut ................................................................ M6-1.0 ....................... 10
4 ............... TS-1503041 ............. Socket Head Cap Screw ...................................... M6-1.0x16 ................... 6
5 ............... TS-2361061 ............. Lock Washer ........................................................ M6 ............................... 6
6 ............... TS-1550041 ............. Flat Washer .......................................................... M6 ............................... 6
11.5.3 MDF Table Assembly (737003) – Parts List
Index No Part No Description Size Qty
1 ............... JRL912-601 ............. Router Table MDF ............................................... 32"x24" ........................ 1
2 ............... JRLS-602 ................. Phillips Flat Hd Wood Screw ................................ M7x40 ....................... 10
4 ............... JRLS-603 ................. Pan Head Wood Screw ........................................ 3/16” x 5/8” ................ 28
12 ............. F010966 ................... Socket Head Flat Screw BO (not shown) ............ M6-1.0×30 ................... 2
2
3
1
4
5
6
4
MDF table
29
12.0 Warranty and service JET warrants every product it sells against manufacturers’ defects. If one of our tools needs service or
repair, please contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through
Friday.
Warranty Period
The general warranty lasts for the time period specified in the literature included with your product or on
the official JET branded website.
• JET products carry a limited warranty which varies in duration based upon the product. (See chart
below)
• Accessories carry a limited warranty of one year from the date of receipt.
• Consumable items are defined as expendable parts or accessories expected to become
inoperable within a reasonable amount of use and are covered by a 90 day limited warranty
against manufacturer’s defects.
Who is Covered
This warranty covers only the initial purchaser of the product from the date of delivery.
What is Covered
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This
warranty does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents,
normal wear-and-tear, improper repair, alterations or lack of maintenance. JET woodworking machinery is
designed to be used with Wood. Use of these machines in the processing of metal, plastics, or other
materials outside recommended guidelines may void the warranty. The exceptions are acrylics and other
natural items that are made specifically for wood turning.
Warranty Limitations
Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes
default to a Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further
clarification.
How to Get Technical Support
Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to
provide proof of initial purchase when calling. If a product requires further inspection, the Technical
Service representative will explain and assist with any additional action needed. JET has Authorized
Service Centers located throughout the United States. For the name of an Authorized Service Center in
your area call 1-800-274-6846 or use the Service Center Locator on the JET website.
More Information
JET is constantly adding new products. For complete, up-to-date product information, check with your
local distributor or visit the JET website.
How State Law Applies
This warranty gives you specific legal rights, subject to applicable state law.
Limitations on This Warranty
JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH
PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR
FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE
USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
JET sells through distributors only. The specifications listed in JET printed materials and on official JET
website are given as general information and are not binding. JET reserves the right to effect at any time,
without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem
necessary for any reason whatsoever. JET® branded products are not sold in Canada by JPW Industries,
Inc.
30
Product Listing with Warranty Period
90 Days – Parts; Consumable items
1 Year – Motors; Machine Accessories
2 Year – Metalworking Machinery; Electric Hoists, Electric Hoist Accessories; Woodworking
Machinery used for industrial or commercial purposes
5 Year – Woodworking Machinery
Limited Lifetime – JET Parallel clamps; VOLT Series Electric Hoists; Manual Hoists; Manual
Hoist
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools
NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW
Industries, Inc., or any of its successors in interest to the JET brand.
31
This page intentionally left blank.
32
427 New Sanford Road
LaVergne, Tennessee 37086
Phone: 800-274-6848
www.jettools.com
Loading...
