CDX6311

Instruction Manual Manual de Instrucciones Guide d'instructions

CDX6311

TABLE OF CONTENTS



Introduction ..............................................................................................

1

Preparation ..............................................................................................

2

Wiring .......................................................................................................

3

Installation ................................................................................................

4

Operation .................................................................................................

6

Tuner Operation .......................................................................................

9

XM® Radio Operation ............................................................................

10

CD Player Operation ..............................................................................

11

CD Changer Operation ..........................................................................

12

JPORT Operation ..................................................................................

12

Remote Control ......................................................................................

13

Care and Maintenance ...........................................................................

13

Troubleshooting .....................................................................................

14

Specifications .........................................................................................

14

12-Month Limited Warranty ....................................................................

15

CONTENIDO



Introducción ...........................................................................................

17

Preparación ............................................................................................

18

Cableado ................................................................................................

19

Instalación ..............................................................................................

20

Operación ..............................................................................................

22

Operación de la Radio ...........................................................................

25

Operation de la Radio XM® ....................................................................

26

Operación del Reproductor de CD .........................................................

27

Operación del Cambiador de CD ...........................................................

28

Operación del JPORT ............................................................................

28

Control Remoto ......................................................................................

29

Cuidado y Mantenimiento ......................................................................

29

Corrección de Problemas ......................................................................

30

Especificationes .....................................................................................

30

Garantia Limitade de 12 Meses .............................................................

31

TABLE DES MATIÈRES



Introduction ............................................................................................

33

Préparation ............................................................................................

34

Câblage .................................................................................................

35

Installation ..............................................................................................

37

Opération ...............................................................................................

39

Fonctionnement de la radio ...................................................................

42

Fonctionnement de la radio XM® ...........................................................

43

Fonctionnement du lecteur CD ..............................................................

44

Opération de changeur de CD ...............................................................

45

Opération JPORT ..................................................................................

45

Prêt à être télécommandé .....................................................................

46

Soin et entretien .....................................................................................

46

Dépannage ............................................................................................

47

Specifications .........................................................................................

47

Garantie limitée de 12 mois ...................................................................

48

i

CDX6311

ii

CDX6311

INTRODUCTION

Congratulations on your purchase of the Jensen CDX6311 Mobile Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen CDX6311 installed by a reputable installation shop.

Features

XM READY

Requires Terk XMD1000 Tuner Box (Sold Separately)

Requires Terk XMDJEN100 or Jensen JXMC XM Cables (Sold Separately)

Advanced display shows the artist and song title

Direct Channel entry

XM channel and category at a glance

CD

Last position memory

Random/repeat/intro

High-speed audible track search

1-Bit D/A converter

Anti-shock mechanism

40-second ESP - Electronic Skip Protection

AM/FM Tuner

World Tuner

30 station presets (18 FM/12AM)

JENSEN Plus Tuner II

Auto station store

Preset scan

One-touch memory

Auto stereo/mono

Manual local/distance

Manual tuning up/down

Auto seek tuning up/down

5-second Scan tuning

Chassis

Motorized Swing-down detachable faceplate

1.0 DIN

Import ISO/DIN mountable

20-pin power harness

General

PTM - Personal Text Message

Allows up to 32 character personal message

User friendly setup menu

LCD contrast control

LCD dimmer control

Clock

Selectable display priority

Switchable Bi-color illumination – Red or Blue

Infrared remote control (included)

IR30 steering wheel remote control ready (sold separately)

High contrast positive Liquid Crystal Display (LCD)

Electronic volume, bass, treble, balance, fader

Rotary encoder audio control

Programmable turn-on volume

Multi-button power on

Keyless CD eject

1-Pair Front / Rear pre-amp outputs

5V Peak / 2V RMS RCA pre-amp output voltages

200-ohm low impedance preamp output

200Hz low pass subwoofer crossover

1-Pair rear RCA auxiliary input

Flex-Fader

iEQ5 – instant EQ

5-selectable iEQ curves – Beat, Jazz, Classic, Pop and Rock

iX-Bass – instant eXtended bass

Mute

Hard carry case

Optional Accessories

iAUX READY (Sold Separately)

Can connect to any portable media device or multimedia device using a standard 3.5mm plug

Converts 3.5mm auxiliary input to RCA stereo outputs for easy connection to the radios Aux inputs

JPORT READY (Sold Separately)

Controls all iPod’s except “Shuffle” (audio only)

CD changer pass-thru input

Plug both the iPod and CD changer in at the same time (operates independently)

APPLE® approved iPod interface cable (Included with jPort Adapter Module)

1

CDX6311

PREPARATION

Tools and Supplies

The following tools and supplies are needed to install the radio.

Torx type, flathead and Philips screwdrivers

Wire cutters and strippers

Tools to remove existing radio (screwdriver, socket wrench set or other tools)

Electrical tape

Crimping tool

Volt meter/test light

Crimp connections

18 gauge wire for power connections

16-18 gauge speaker wire

SPEAKER REQUIREMENTS: Only connect speakers rated in the load impedance of 4 ohms. Speakers with a load impedance less than 4 ohms could damage the unit.

Pre-installation

1.Disconnect Battery

Before you begin, always disconnect the battery negative terminal.

2.Remove Transport Screws

3.Remove Radio from Sleeve

Lift latches on both sides of sleeve to remove half-sleeve from radio.

TRANSPORT

SCREWS

HALF

SLEEVE

2

CDX6311

WIRING

Wiring with a Wiring Adapter (Purchased Separately)

Connect Wires

You can make all these connections without even being in the vehicle.

1.Splice or crimp wires.

2.Attach wiring adapter to the car wiring harness.

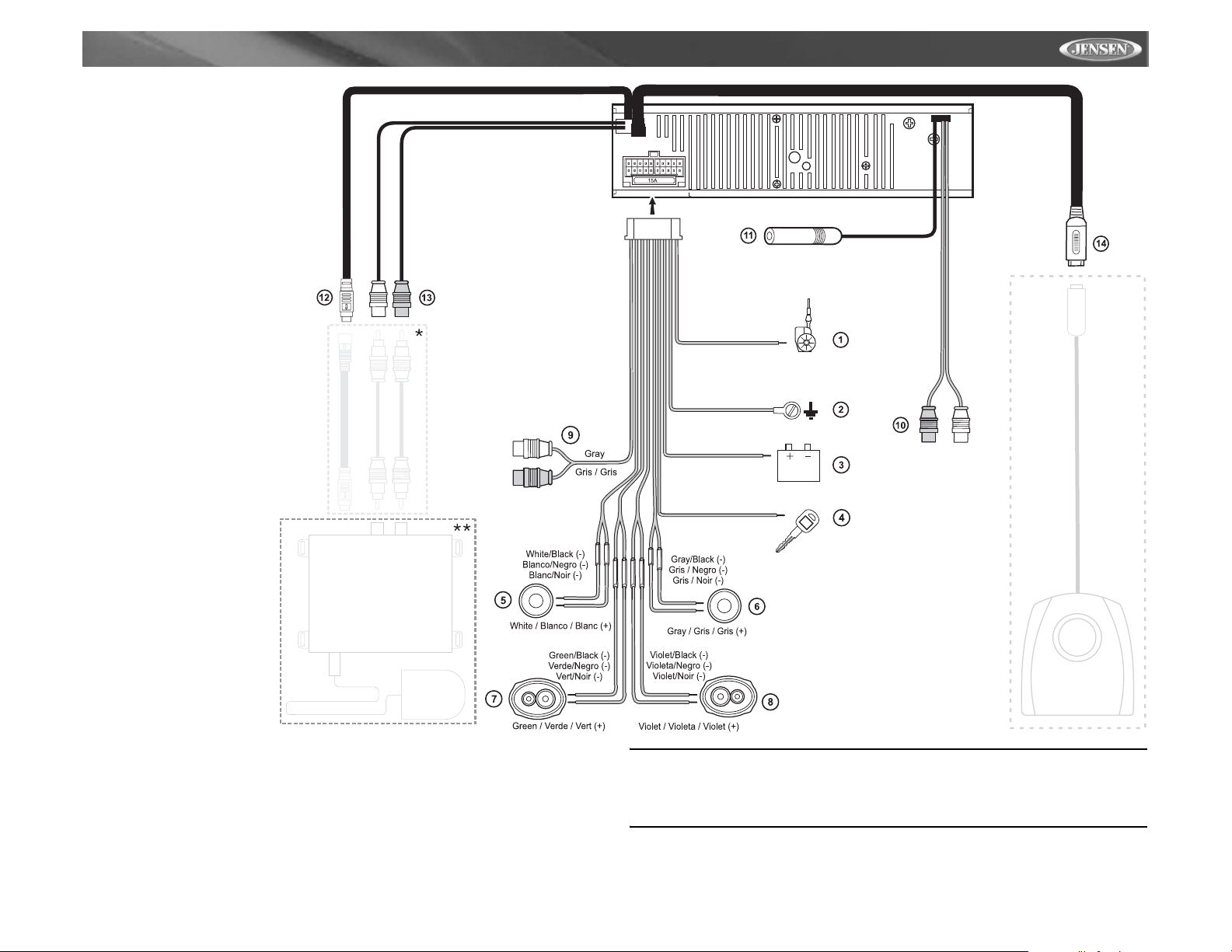

Wiring Diagram / Color Codes

1. Power Antenna (dark blue wire) - Connect to the power antenna or a amplifier. If not used, tape the bare end of wire.

2. Ground (black wire) - Connect to the ground terminal or a clean, unpainted part of the chassis.

3. Memory/Battery (yellow wire) - Connect to the battery or to a 12 volt power source that is always alive. The radio will not work if this wire is not connected.

4. Accessory/Ignition (red wire) - Connect to the existing radio wire or radio fuse.

5. Left front speaker

6.Right front speaker

7.Left rear spearker

8.Right rear speaker

9. RCA Outputs to Amplifier

10. Auxiliary Input Cable (yellow)

11. Antenna

12. XM® Direct Connect Cable

13.XM® Audio Input (black RCA)

14.CD Changer/JPORT connector - Use this 8-pin DIN socket to connect an optional CD Changer or JPORT (sold separately).

*TERK XMDJEN100 cables sold separately.

**TERK XMD1000 Direct Tuner and antenna sold separately.

Optional JPORT

(Sold Separately)

NOTE: The amplifier in this radio is only designed for use with four speakers. Never combine (bridge) outputs for use with two speakers. Never ground negative speaker leads to chassis ground. Failure to wire exactly as shown may cause electrical damage to the radio.

3

Fuses

When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The CDX6311 uses one 15 amp fuse located below the wiring connector (15 amp fast blow ATO).

Reconnect Battery

When wiring is complete, reconnect the battery negative terminal.

Technical Assistance

If you require assistance, contact Technical Support at 1-800-323-4815 from 8:30am to 7:00pm EST Monday through Friday and from 9:00am to 5:00pm EST on Saturday.

Connecting the Satellite Radio Receiver (optional)

Before you can listen to XM® satellite radio, you must install the XM® Direct Receiver and

antenna (purchased separately). The XM® Direct Receiver is the central data receiving equipment required to process the satellite signals from the external antenna. It is typically installed in the dash, under the seat, or in the trunk or rear of the vehicle. Do not mount the

XM® Direct Receiver near a heater vent or where it can be exposed to extreme temperatures. In addition, when running the wire for the external antenna do not kink or pinch the antenna cable. A sharp 90 degree bend or slight "nick" to the outer cable sheath will cause signal degradation. The wiring diagram on page 3 will help you identify the proper connections.

CDX6311

INSTALLATION

This unit is designed for installation in cars, trucks and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialty shops. Always check the kit application before purchasing to make sure the kit works with your vehicle. If you have trouble locating a kit or need installation assistance, contact Technical Support at 1-800- 323-4815 from 8:30am to 7:00pm EST Monday through Friday and from 9:00am to 5:00pm EST on Saturday.

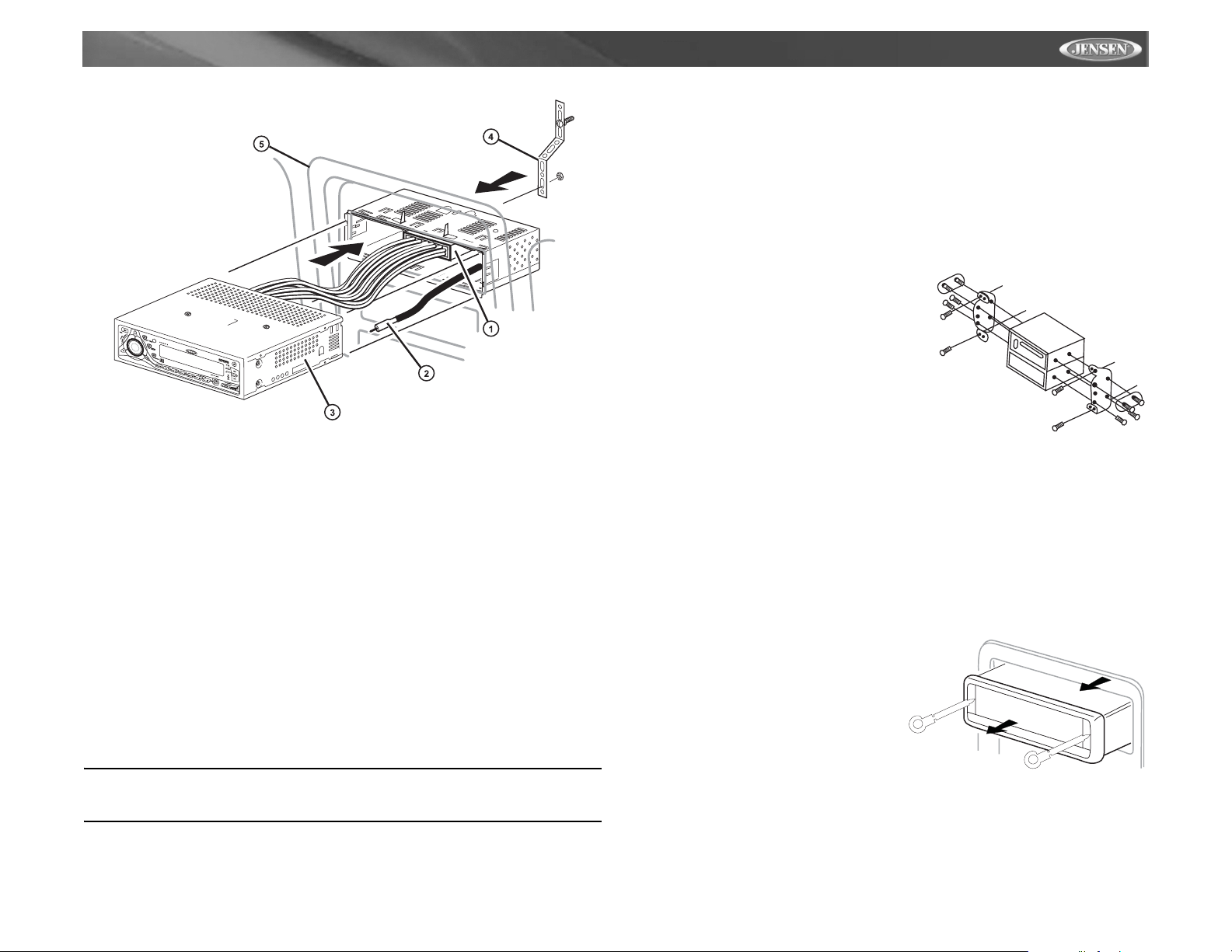

Universal Installation Using Mounting Sleeve

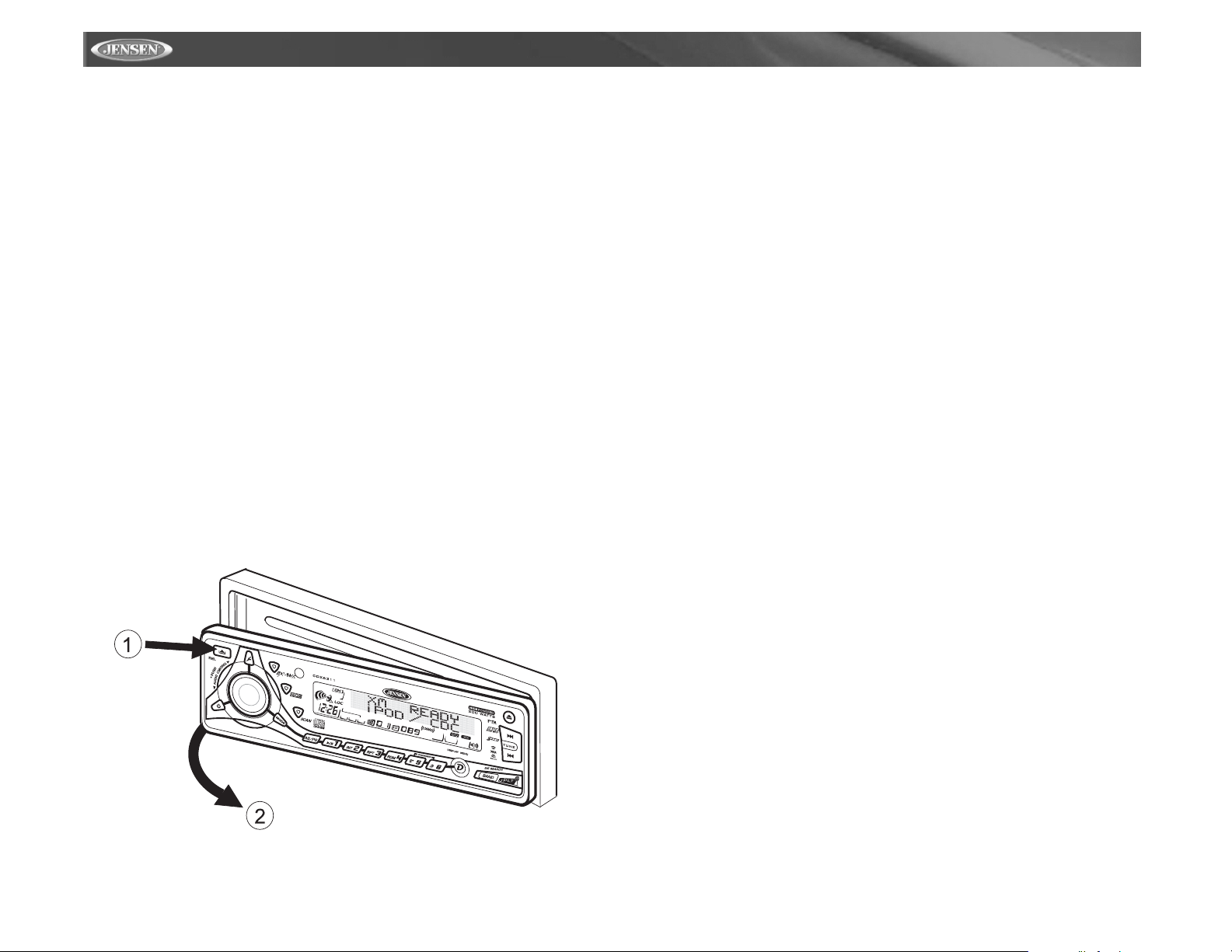

1.Remove the detachable front panel, if it is attached to the chassis, by pushing the “Release” button.

2.Slide the mounting sleeve off of the chassis if it has not already been removed. If it is locked into position, use the removal keys (supplied) to disengage it. The removal keys are depicted on page 5.

3.Check the dashboard opening size by sliding the mounting sleeve into it. If the opening is not large enough, carefully cut or file as necessary until the sleeve easily slides into the opening. Do not force the sleeve into the opening or cause it to bend or bow. Check that there will be sufficient space behind the dashboard for the radio chassis.

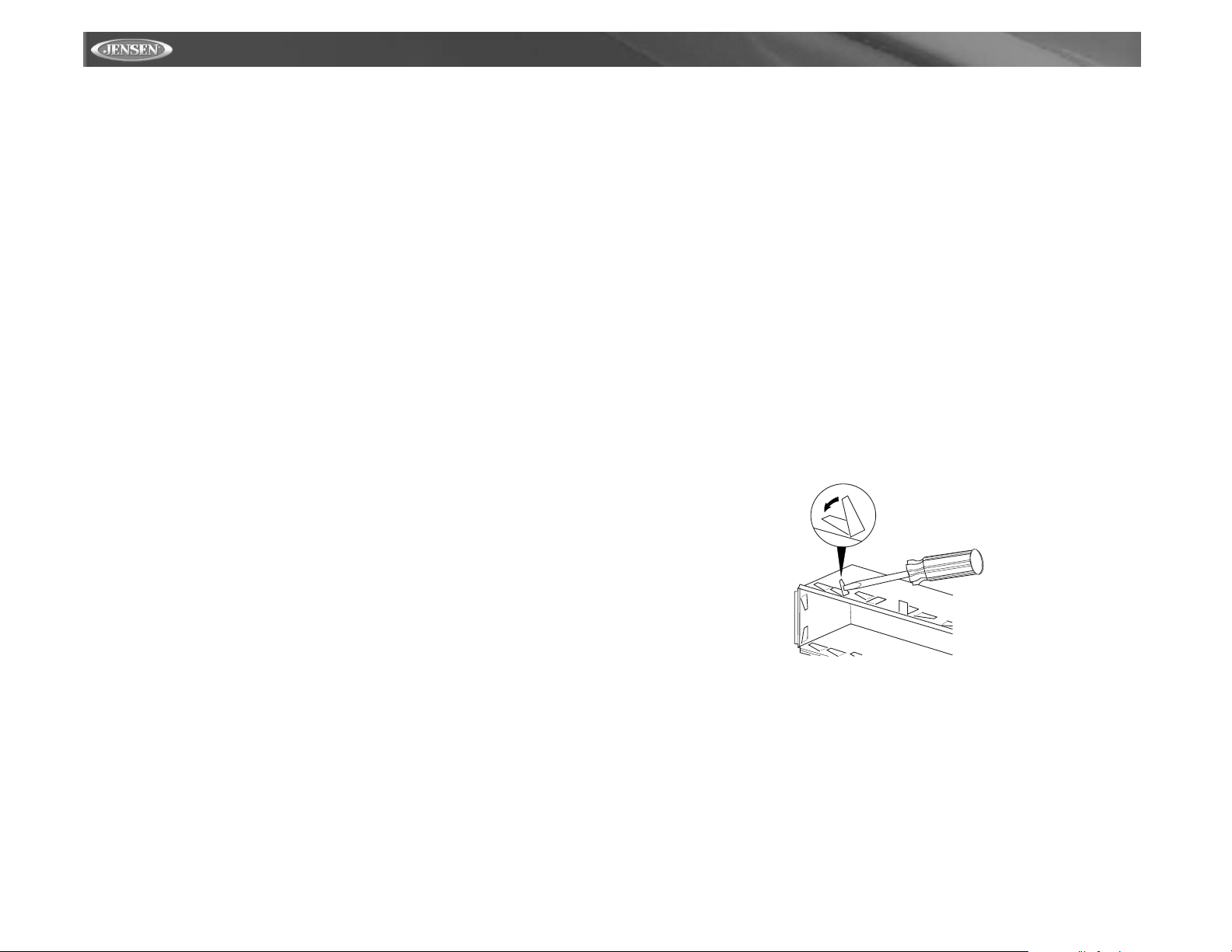

4.Locate the series of bend tabs along the top, bottom and sides of the mounting sleeve. With the sleeve fully inserted into the dashboard opening, bend as many of the tabs outward as necessary to firmly secure the sleeve to the dashboard.

4

CDX6311

5.Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve.

6.Follow the wiring diagram carefully and make certain all connections are secure and insulated with crimp connectors or electrical tape to ensure proper operation.

7.After completing the wiring connections, attach the front panel and turn the unit on to confirm operation (vehicle ignition switch must be on). If the unit does not operate, recheck all wiring until the problem is corrected. Once proper operation is achieved, turn the ignition switch off and proceed with final mounting of the chassis.

8.Carefully slide the radio into the mounting sleeve making sure it is right-side-up until it is fully seated and the spring clips lock it into place.

9.Attach one end of the perforated support strap (supplied) to the screw stud on the rear of the chassis using the hex nut provided. Fasten the other end of the perforated strap to a secure part of the dashboard either above or below the radio using the screw and hex nut provided. Bend the strap, as necessary, to position it. CAUTION: The rear of the radio must be supported with the strap to prevent damage to the dashboard from the weight of the radio or improper operation due to vibration.

10.Re-attach the front panel to the chassis and test radio operation by referring to the operating instructions for the unit.

NOTE: For proper operation of the CD player, the chassis must be mounted within 20° of horizontal. Make sure the unit is mounted within this limitation.

Kit Installation

If your vehicle requires the use of an installation kit to mount this radio, follow the instructions included with the installation kit to attach the radio to the mounting plate supplied with the kit.

1.Wire and test the radio as outlined in the Universal Installation instructions.

2.Install the radio/mounting plate assembly to the sub-dashboard according to the instructions in the installation kit.

3.Attach the support strap to the radio and dashboard as described in the Universal Installation instructions.

4.Replace the dashboard trim panel.

ISO Installation

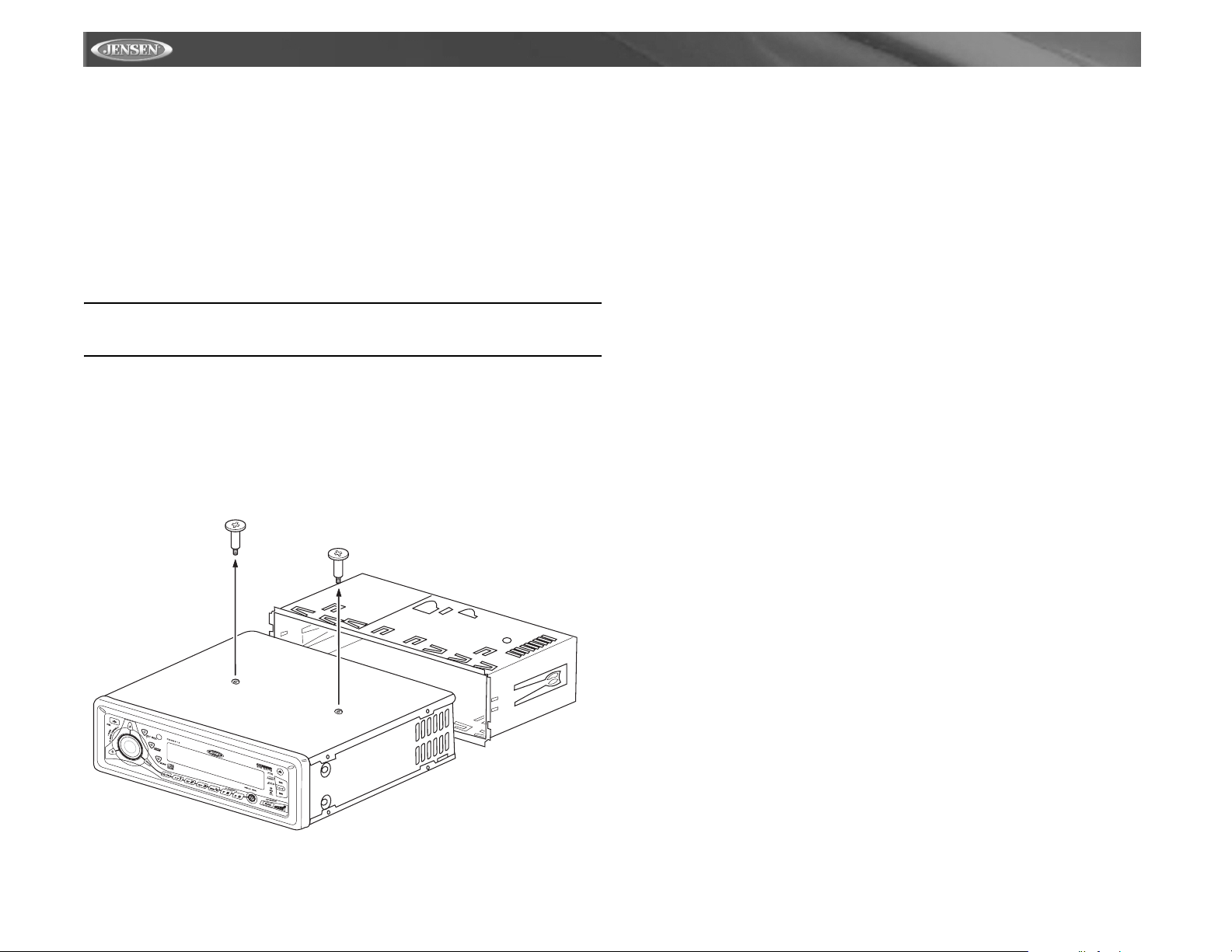

This unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some vehicles to mount the radio to the dashboard. Please consult with your local car stereo shop for assistance on this type of installation.

1. Remove the existing factory radio from the dashboard or center console mounting. Save all hardware and brackets as they will be used to mount the new radio.

2. Carefully unsnap the plastic frame from the front of the new radio chassis. Remove and discard the frame.

3.Remove the factory mounting brackets and hardware from the existing radio and attach them to the new radio. Do not exceed M5 x 9 MM maximum screw size. Longer screws may damage components inside the chassis.

4.Wire the new radio to the vehicle as outlined in the Universal Installation instructions.

5.Mount the new radio assembly to the dashboard or center console using the reverse procedure of step 1.

Remove Radio

To remove the radio after installation, remove the trim ring by lifting in the center and pulling it off from either side. Insert the removal keys straight back until they lock, and then pull the radio out. If removal keys are inserted at an angle, they will not lock properly to release the unit.

REMOVAL KEYS

5

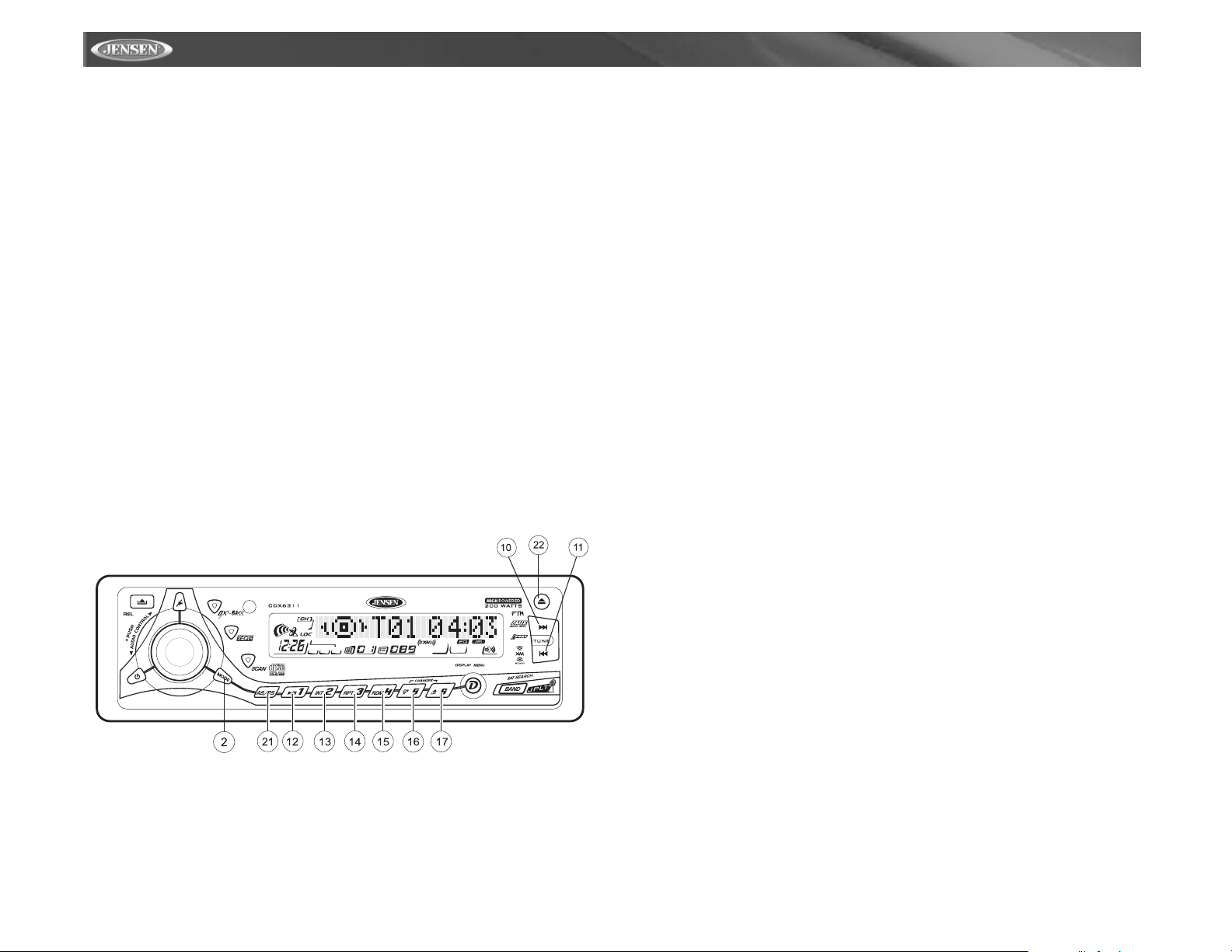

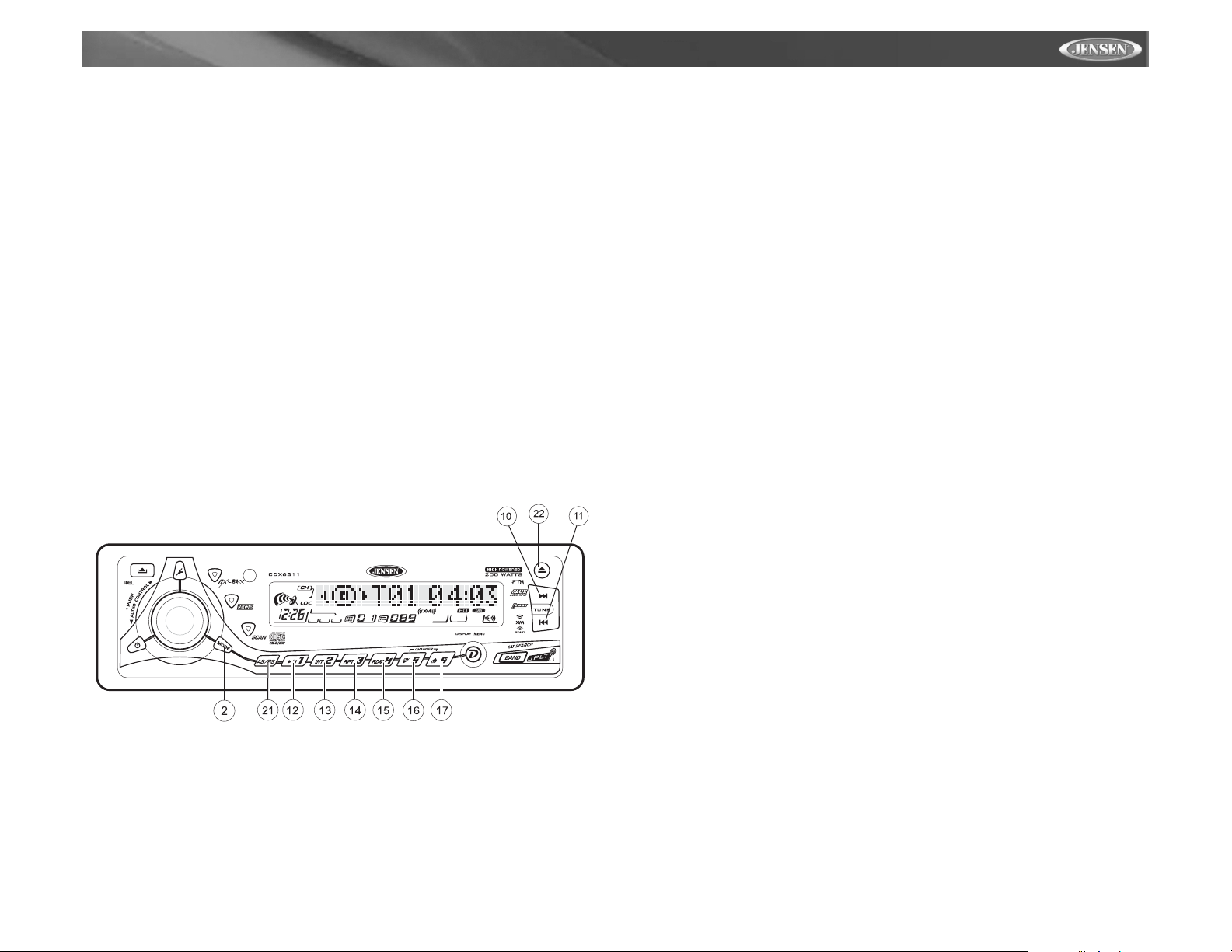

OPERATION

Power

Press the power button (1) or any other button on the front of the radio (except Eject) to turn the unit on. Press the power button again to turn the unit off.

Mode

Press MODE (2) to select a different mode of operation, as indicated on the display panel. Available modes include tuner (F1, F2, F3, AM1, AM2), XM Radio, CDP and auxiliary (AUX). CD mode appears in the menu only if a CD is present in the CD player.

Audio Mute

Press the mute button (3) to silence the audio volume. “Mute” flashes in the display. Press mute again to restore volume to the previous setting.

Volume / Audio Control

To increase the volume, rotate the volume control (4) clockwise. To decrease the volume, rotate the volume control counter-clockwise. When volume is adjusted, the volume level will be shown on the display panel as a number ranging from “0” (lowest) to “46” (highest).

Press the volume control repeatedly to step through the following audio functions: volume (VOL), bass (BAS), treble (TRB), balance (BAL), fader (FAD) and back to volume. The unit automatically exits audio control mode after five seconds of inactivity.

Bass

To adjust the bass level from “-6” to “+6”, press the volume control until “BAS” appears in the display. Rotate the control clockwise to increase or counter-clockwise to decrease the bass. “0” represents a flat response.

Treble

To adjust the treble level from “-6” to “+6”, press the volume control until “TRB” appears in the display. Rotate the control clockwise to increase or counter-clockwise to decrease the treble. “0” represents a flat response.

CDX6311

Balance

To adjust the balance from “L12” (full left) to ”R12” (full right), press the volume control until “BAL” appears in the display. Rotate the control clockwise or counter-clockwise to adjust the balance between the left and right speakers. “C00” represents a center balance.

Fader

To adjust the fader from “F12” (full front) to “R12” (full rear), press the volume control and rotate it clockwise or counter-clockwise to adjust the fader between the front and rear speakers. “C00” represents a center fader level.

VOL



VOL



E FAD



S TR

BA

L B A





E



EL



TC

FAD







BAS





TREFAD



TREFAD





AS



ABS

BA

L

B

BA

L











E



E





EL



EL





TC



TC

BAL

B



E FAD

TRB







S TR







AL

B A



















E









EL









TC

iX-Bass

Press iX-BASS (5) to activate the iX-BASS feature. When listening to music at low volume levels, this feature will boost the bass and treble ranges to compensate for the characteristics of human hearing. When this feature is activated, “iX-BASS On” will appear in the display. Press iX-BASS again to select “iX-BASS Off”. The iXBS icon will appear and remain in the display when the iX-BASS feature is activated.

Equalizer Selector

The equalizer function applies preset sound effects to the unit’s audio output signal. Press IEQ5 (6) to step through the following equalizer options: “Pop”, “Jazz”, “Classic”, “Beat”, “Rock”, and “Off”. The equalizer options appear in the display as they are accessed.

When the equalizer function is activated, the most recently selected bass/treble levels cannot be adjusted. When the equalizer function is not active, the unit will return to the most recently selected bass and treble levels.

Liquid Crystal Display (LCD)

The liquid crystal display (LCD) panel (8) displays the frequency, time and activated functions of the unit, including a combination audio level/disc indicator, which appears as dual disc icons with circular bar graphs depicting the audio signal. In addition, the display contains a receive signal indicator that depicts the relative strength of the incoming broadcast frequency.

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. The LCD display will return to normal when the temperature increases to a normal range.

6

CDX6311

Display Options

Press DISPLAY/MENU (7) to navigate through the following options:

Tuner: FREQ > Spectrum > PTM Message

CDP/MP-3/WMA: Elapsed Time > Spectrum > PTM Message

XM mode: Category Name > Artist Name > Song Title > Spectrum > PTM Message > Channel Name

Menu Operation

A second function of the DISPLAY / MENU button (7) is to access a menu of radio options. Press DISPLAY / MENU for more than three seconds to access the menu. “Menu” will appear in the display. Navigate the menu by pressing DISPLAY / MENU momentariiy to move forward to the next option. The menu can also be navigated by using the UP TUNING (10) or DOWN TUNING (11) button to move to the next or previous option. Once the desired option appears in the display, adjust that option by rotating the volume control within five seconds.

The following options are adjusted through this menu feature:

Contrast

The contrast level of the display is set at “CONTRAST 05” by default. Rotate the volume control to adjust the contrast level from “00” to “10”.

Dimmer

The dimmer feature of the display is set to “DIMMER High” by default. Rotate the volume control to turn the dimmer to the low setting.

XM Scroll

This option determines whether or not the XM display text scrolls continuously across the screen. The default setting is “OFF”. Select “ON” to make the display text scroll continuously. When set to off, you can view the display information by continuously pressing the DISPLAY button (7).

NOTE: The XM Scroll option only appears when an XM box is connected.

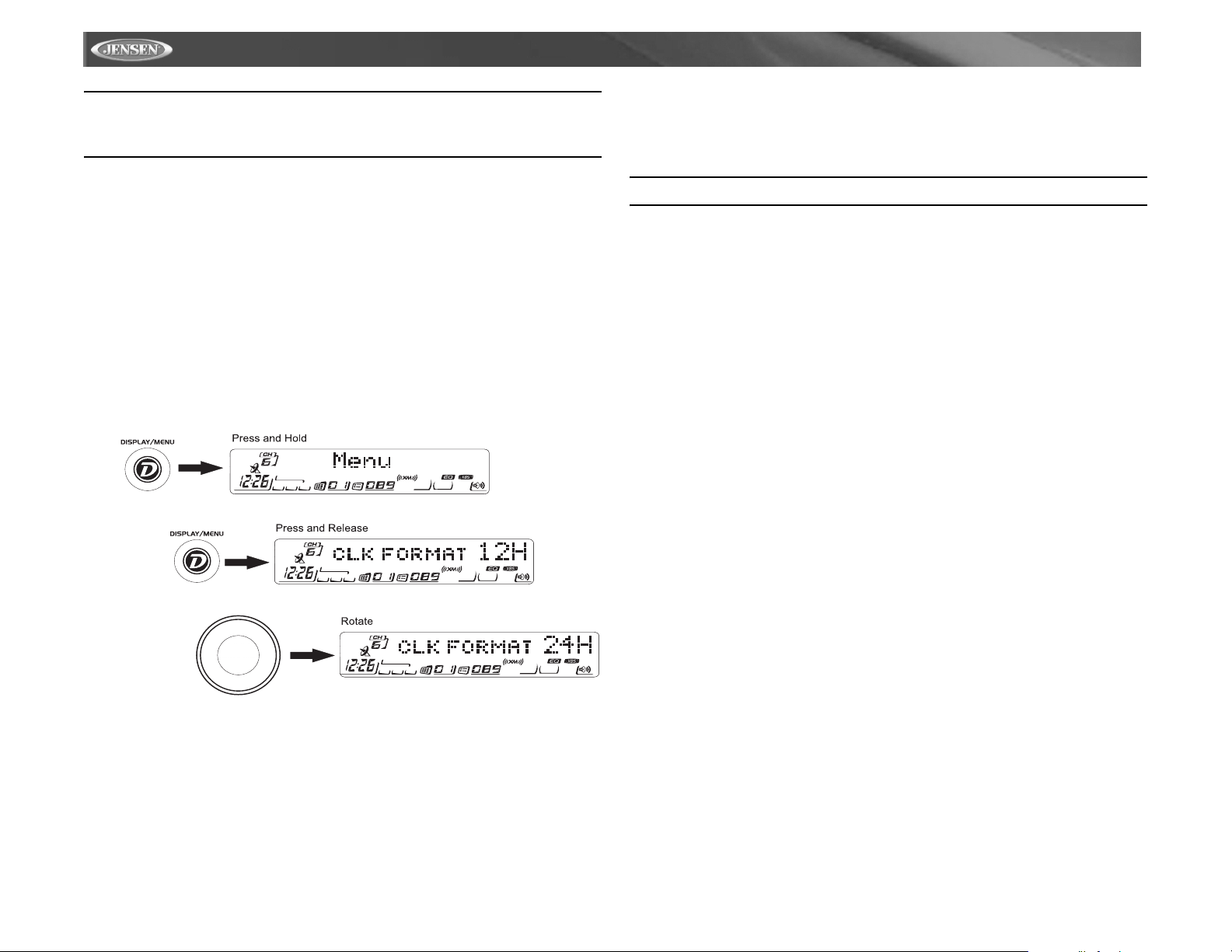

Clock Format

This option allows selection of a 12 hour or 24 hour clock format. “CLK FORMAT 12H” is the default setting. Rotate the volume control to change to the 24 hour clock format.

Time Set

The time on the clock will be set to “12:00” as the default. Program the current time by rotating the volume control clockwise to adjust the minutes and counter-clockwise to adjust the hours.

Local / Distance Selector

This feature is used to designate the strength of the signals at which the radio will stop during automatic tuning. “Distant” is the default, allowing the radio to stop at a broader range of signals. To set the unit to select only strong local stations during automatic tuning, rotate the volume control to select “Local”. “LOC” appears in the display.

Frequency Spacing

This option allows the selection of the frequency spacing appropriate for your area. “AREA U.S.A.” is the default setting. Rotate the volume control to select the “Latin”, “Europe” or “Oirt” options.

Programmable Turn-on Volume

Use the “VOL PGM” option to select the default volume the radio will assume when first turned on. To program a specific start-up volume level, rotate the volume control to select the desired level.

Beep Tone

The beep tone feature allows the selection of an audible beep tone to be heard each time a button is pressed on the face of the radio. “BEEP TONE On” is the default display. Rotate the volume control to select the “BEEP TONE Off” option.

Illumination Color

The “COLOR” option allows selection between two colors for the backlight illumination of the unit. “COLOR 1” is the default display and will illuminate the unit in blue backlight. Rotate the volume control to select “COLOR 2”, which will illuminate the display in red backlight.

Selectable Clock Display

When the selectable clock display (CLK ON LCD) feature is activated, the clock and default greeting note will appear in the display when the radio is turned off but still connected to the ignition wire. “CLK ON LCD On” is the default display for this option. To select that the clock and greeting not be displayed when the unit is powered off, rotate the volume control to select “CLK ON LCD Off”.

Key Light On/Off

When the key light feature is activated (ON) the preset buttons and the rest of the front panel function buttons remain lit when the unit is turned off, but the ignition key remains on. Turn the volume control to select “Key Light Off” if you would prefer the buttons not remain illuminated when the unit is off.

Personal Text Message

The personal text message (PTM) feature allows you to enter a personal message up to 20 characters (including spaces) using the letters A-Z, the numbers 0-9 and the symbols “_”, “+”, “-” and “!”. Press in on the volume control to access this option from the menu, then rotate the volume control to select the first character for your message. Once you have selected your first

7

character, press in on the volume control to move to the next space and select the next character. To leave a blank space, press the volume control again.

Greeting Note

When the unit is powered on, one of three greetings is displayed based on the time of day: “Good Morning”, “Good Afternoon” or “Good Evening”. When the unit is powered off with the ignition on, the LCD scrolls through the following messages (if the selectable clock display feature is activated): “Radio Off”, “Visit us at Jensen.com”, “Enjoy Driving and Have a Safe Trip”.

Front Panel Release

The front panel release button (9) releases the mechanism that holds the front panel to the chassis.

Detaching the Front Panel

To detach the front panel, first press the front panel release button to release the left side of the panel. Next, grasp the released side and pull it off the chassis. After removing the front panel, store it in the supplied carrying case to protect it from dirt and damage.

REMOVE FRONT PANEL

Re-attaching the Front Panel

To re-attach the front panel, make sure the electrical terminals on the back of the panel are free of dust and dirt, as debris could cause intermittent operation or other malfunctions. Position the right side of the panel in place so that it is correctly engaged, then lightly press the left side of the panel until the mechanism locks it into place.

Reset Button

The reset button is located on the front of the chassis and can only be accessed with the front panel removed. The reset circuitry protects the microprocessor circuitry. Since resetting the unit will erase the time and preset memories, it should only be activated upon initial installation after all wiring is complete or if there is a malfunction of any of the switches on the unit. In these circumstances, pressing the reset button will clear the system and return the unit to normal operation.

CDX6311

Theft Deterrent LED

A light-emitting diode (LED) is located on the chassis behind the front panel and will flash when the panel is removed. The flashing light serves as a visual warning to the would-be thief that the unit has been disabled by removal of the front panel.

8

CDX6311

TUNER OPERATION

The CDX6311 comes equipped with a World Tuner, allowing you to receive channels in USA, EUROPE, LATIN, & OIRT (Russia). See “Frequency Spacing” on page 7 to learn how to change the World Tuner options.

Select a Band

Press BAND (19) to change between three FM bands and two AM bands. Each band stores up to six preset stations.

Tuning

Manual Tuning

Press the UP TUNING (10) or DOWN TUNING (11) button for more than three seconds to enter manual tuning mode, then press the UP TUNING or DOWN TUNING buttons to move the radio frequency number up or down one step.

Auto Seek Tuning

Press the UP TUNING (10) or DOWN TUNING (11) button for less than three seconds to move to next station automatically.

Scan

Press SCAN (20) to scan through strong stations in the current band. The radio pauses for five seconds at each strong station. Press SCAN again to listen to the current station.

Preset Stations

Six numbered preset buttons store and recall stations for each band.

Store a Station

Select a band (if needed), then select a station. Hold a preset button (12-17) for three seconds. The preset number will appear in the display.

Recall a Station

Select a band (if needed). Press a preset button (12-17) to select the corresponding stored station.

Automatically Store / Preset Scan

Automatically Store

Automatically select six strong stations and store them in the current band. Select a band (if needed). Press AS/PS (21) for more than three seconds. The new stations replace any stations already stored in that band.

Preset Scan

Scan stations stored in the current band. Select a band (if needed). Press AS/PS (21) for less than three seconds. The unit will pause for ten seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached.

Stereo

The unit will automatically pick up a stereo signal, when available. When in stereo mode, the “ST” icon (18) appears in the display. When no stereo signal is available, the unit will automatically revert to mono operation, and no icon will be displayed.

9

XM® RADIO OPERATION

Listeners can subscribe to XM® Radio on the Web by visiting www.xmradio.com, or by calling (800) 967-2346. Customers should have their Radio ID ready (see “Displaying the Identification (ID) Code”). Customers can receive a limited number of free-to-air channels without activation.

Accessing XM® Radio Mode

To switch to XM® Radio mode, press MODE (2) until “XM RADIO” appears on the display.

Displaying the Identification (ID) Code

Before you listen to XM® Radio, you must subscribe to the service using your radio’s identification number. To display the radio ID, press the DOWN TUNING (|<<) button (11) to access channel 000. The screen displays “RADIO ID” followed by an 8-figure ID number.

Selecting a Station

Press the UP TUNING (>>|) or DOWN TUNING (|<<) button (10 and 11) to change to another station.

Preset Stations

Press BAND (19) to change between three XM® Radio bands. Each band stores up to six preset stations. You can store and recall a total of 18 preset stations.

Store a Station

1.Select a band (if needed), then select a station.

2.Hold a preset button (12 – 17) for three seconds. The preset number appears in the display.

Recall a Station

1.Select a band (if needed).

2.Press a preset button (12 – 17) to select the corresponding stored station.

CDX6311

Preset Scan

1.Press AS/PS (21) for < 3 seconds. The unit pauses for 5 seconds at each preset station for all three bands (XM-1, XM-2, and XM-3).

2.Press AS/PS again to stop scanning when the desired station is reached.

Tuner Modes

Press DISPLAY (7) to change the tuner mode to the following options in the order listed.

Channel Name

Genre (News, Sports, Hits, Kids, etc.)

Artist name

Song Name

11 Bar Spectrum Indicator

PTM (Animated Message)

Display Information

If the selected channel name, artist, or title exceeds eight characters, the display information will scroll twice upon selection.

Category Mode

To select stations in a specific category, perform the following steps.

1.Press and hold the BAND button (19) until “Direct-T” appears.

2.Press BAND again to display “CATEGORY”.

3.Turn the rotary encoder to move through the available categories.

4.Press the AS/PS button (21) to select the displayed category.

5.Once a category is selected, press the UP TUNING (>>|) or DOWN TUNING (|<<) button (10 and 11) to select stations in the current category.

To change the category while in category mode, press the AS/PS button. “CATEGORY” will flash in the display, allowing you to use the 5 and 6 buttons to select a different category.

Direct Tuning Mode

To enter a station directly, perform the following steps.

1.Press and hold the BAND button (19) until “Direct-T” appears.

2.Turn the rotary encoder to display XM CH 0 _ _.

3.Turn the rotary encoder again to select the first digit of the desired channel (0, 1, or 2).

4.Press the ENTER button (rotary encoder) to enter the first number and move to the second position.

5.Turn the rotary encoder again to select the second digit of the desired channel (0 - 9).

6.Press the ENTER button (rotary encoder) to enter the second number and move to the third position.

NOTE: Use the UP TUNING (>>|) or DOWN TUNING (|<<) button (10 and 11) to move between the first and third positions.

7.Turn the rotary encoder again to select the third digit of the channel you want to tune to (0 - 9).

8.Press the ENTER button (rotary encoder) to enter the third number and access the channel.

NOTE: If the channel is unauthorized or invalid, “CH Unavail” appears on the LCD and return to the input interface after 2 seconds.

10

CDX6311

CD PLAYER OPERATION

Insert and Eject CD

Press the eject button (22) and let the motorized front panel swing-down to display the CD slot. Insert a CD label side up. After inserting a CD, the front panel will close automatically. To stop CD play and eject the CD, press the eject button. After ejecting the CD, the unit will close automatically after 10 seconds or you can close the front panel immediately by pressing the eject button again.

NOTE: The unit is designed for play of standard 5” (12 cm.) compact discs only. Do not attempt to use 3” (8 cm.) CD singles in this unit, either with or without an adaptor, as damage to the player and/or the disc may occur. Such damage will not be covered by the warranty on this product.

Pause

Press the pause button (12) to suspend disc play. Press the pause button again to resume disc play.

Track Select

Press the UP TUNING (10) or DOWN TUNING (11) button for less than one second to advance to the next track on the CD. The selected track number will appear on the display. Press and hold the UP TUNING (10) or DOWN TUNING (11) button for more than one second to fast forward or fast reverse through the disc. CD play starts when the button is released.

Intro Scan (SCN)

During disc play, press SCN (13) to play the first 10 seconds of each track on the disc. When the desired track is reached, press SCN again to end the scan and play the selected track.

Repeat (RPT)

Press RPT (14) during disc play to continuously repeat the track. Press RPT again to stop repeating.

Random (RDM)

Press RDM (15) during disc play to play all tracks on a CD in random, shuffled order. Press RDM again to stop random play.

Display CD Text

Press AS/PS (21) to display any text encoded on the CD (song title, artist, etc.).

CD Player Error Codes

If a problem should develop while operating the CD player, an error code (ER-1, ER-2, etc.) may appear on the display panel. This can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the player. If an error code should appear, try ejecting and reloading the disc into the player. While the disc is out of the unit, make sure it is clean and undamaged, and then load it correctly. If this does not solve the problem, pressing the reset button may help, but will erase the time and preset memory. If the suggested measures do not solve the problem, contact an approved warranty station near you for further assistance.

11

CD CHANGER OPERATION

Please call Jensen technical support at 1-800-323-4815 for a complete list of CD changers compatible with this unit. The following Jensen CD Changers are compatible with this unit: JCH10RF and CH1001.

After the CD changer has been installed and properly connected, press the Reset button to initialize the installation. Refer to the owner’s manual included with the CD changer for instructions on installing, loading and using the CD magazine.

CD Changer Mode

Press MODE (2) during radio or disc play to select operation of the CD changer. “CDC” will appear in the display. Disc play will begin, and the disc and track numbers will be shown in the display. If a new magazine has been loaded into the changer, play will begin from the first track of the first disc. If a magazine was already in the changer, play will resume where it ended.

Disc Select (UP/DN)

To select a disc for play, use the UP (17) button to advance to a higher disc or the DN (16) button to move back to a lower disc. The number of the disc in play appears on the display.

Other Features

The Play/Pause, Scan, Repeat, Shuffle, Track Select and Fast Forward/Fast Reverse features for CD changer play are accessed in the same methods as for regular disc play. Refer to the CD Player Operation section of this manual for details.

CDX6311

CD Changer Error Codes

If problems arise during CD changer operation, the following error codes may appear in the display:

ER-1: No magazine loaded in the CD changer.

ER-2: Problem in the disc loading function.

ER-3: Error in the disc loading function.

ER-4: Error in the disc unloading function.

ER-5: Error in the magazine position.

ER-6: Error in the laser pickup position.

ER-7: Error in the laser focus on the disc.



To resolve any of the above problems, eject the magazine from the changer and verify that the discs are clean, undamaged and loaded correctly. Pressing the reset button may help, but will erase the time and preset memories. If the suggested measures do not solve the problem, contact an approved warranty station near you for further assistance.

JPORT OPERATION

After the JPORT has been installed and connected, press the RESET button to initialize the installation. The JPORT can be used to control your iPod or an optional CD Changer. Refer to the owner’s manual included with the JPORT for instructions regarding the operation of external devices attached to your JPORT.

12

+ 36 hidden pages
