Jensen MP5000 User Manual

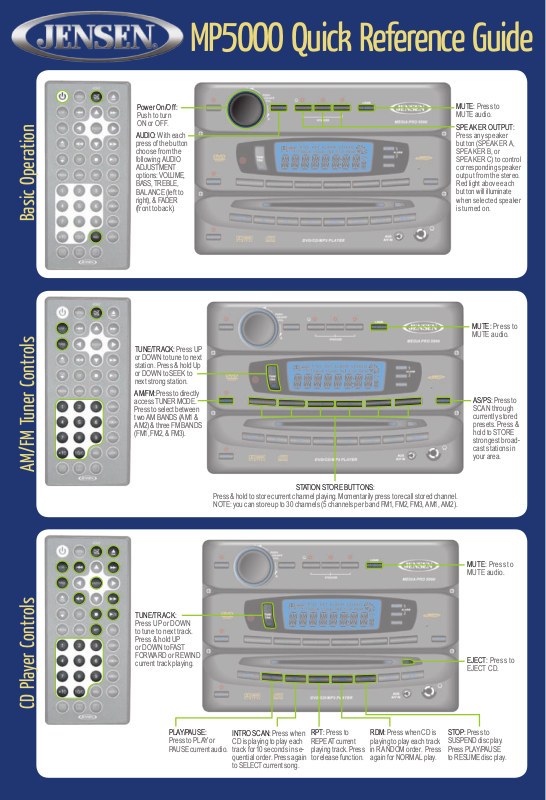

MP5OOO Quick Reference Guide

Basic Operation

AM/FM Tuner Controls

Power On/Of f:

Push to turn
ON or OFF.

AUDIO: With each

press of the button
choose from the
following AUDIO
ADJUSTMENT
options: VOLUME,
BASS, TREBLE,
BALANCE (left to
right), & FADER
(front to back).

TUNE/TRACK: Press UP

or DOWN to tune to next
station. Press & hold Up
or DOWN to SEEK to
next strong station.

AM/FM: Press to directly

access TUNER MODE.
Press to select between
two AM BANDS (AM1 &
AM2) & three FM BANDS
(FM1, FM2, & FM3).

MUTE: Press to

MUTE audio.

SPEAKER OUTPUT:

Press any speaker
button (SPEAKER A,
SPEAKER B, or
SPEAKER C) to control
corresponding speaker
output from the stereo.
Red light above each
button will illuminate
when selected speaker
is turned on.

MUTE: Press to

MUTE audio.

AS/PS: Press to

SCAN through
currently stored
presets. Press &
hold to STORE
strongest broad­cast stations in
your area.

CD Player Controls

TUNE/TRACK:

Press UP or DOWN
to tune to next track.
Press & hold UP
or DOWN to FAST
FORWARD or REWIND
current track playing.

PLAY/PAUSE:

Press to PLAY or
PAUSE current audio.

Press & hold to store current channel playing. Momentarily press to recall stored channel.
NOTE: you can store up to 30 channels (5 channels per band FM1, FM2, FM3, AM1, AM2).

INTRO SCAN: Press when

CD is playing to play each
track for 10 seconds in se­quential order. Press again
to SELECT current song.

STATION STORE BUTTONS:

RPT: Press to

REPEAT current
playing track. Press
to release function.

RDM: Press when CD is

playing to play each track
in RANDOM order. Press
again for NORMAL play.

STOP: Press to

SUSPEND disc play.
Press PLAY/PAUSE
to RESUME disc play.

MUTE: Press to

MUTE audio.

EJECT: Pres s to

EJECT CD.

DVD Player Controls

MUTE: Press to MUTE audio.

EJECT: Pres s to EJECT DVD.

ENTER: Press to

SELECT menu option.

DIRECTIONAL ARROWS: Press to move

cursor to desired MENU ITEM. Press ENTER
to select desired MENU ITEM.

STOP: Press once SUSPEND disc play.

Press PLAY/PAUSE to RESUME disc play.
Press twice to completely stop disc play.

LANG: Press to select AUDIO LANGUAGE.

SUBTITLES: Press to select CLOSED CAPTIONING.

DVD Remote Controls

Continue to press to select AUDIO LANGUAGE.

SETUP: Press to enter SETUP MENU.

PLAY/PAUSE:

Press to PLAY or
PAUSE current audio.

STOP: Press to

SUSPEND disc play.
Press PLAY/PAUSE
to RESUME disc play.

LANG: Press to select

AUDIO LANGUAGE.

MUTE: Press to MUTE audio.
EJECT: Pres s to EJECT DVD.

CHAPTER SKIP: Pres s to skip to NEXT or PREVIOUS chapter.

ENTER: Press to select menu option.

FAST FORWARD/REWIND: Press to FAST FORWARD or REWIND

current play. Continue to press to enhanc e the speed.
Press PLAY/PAUSE to resume current play.

PLAY/PAUSE: Press to PLAY or PAUSE current audio.

TITLE: Press to enter TITLE MENU. Use the DIRECTIONA L

ARROWS to choose menu item. Press ENTER to select.

ZOOM: Press to ZOOM in on cur rent picture.

Press repeatedly to change MAGNIFICATION LEVEL of current pic ture.

ANGLE: Pre ss to select dif ferent visual angle if stored on DVD.

GOTO: Press to view CHAPTER, TR ACK, & TIME. Press again to c lear.

DISPLAY: Press to DISPLAY cur rent playback information on the scr een.

MENU: Press to

return to root menu.

Clock Settings

Copyright 2007 ASA, LLC

©

TUNE/TRACK:

Press UP or DOWN
to INCREASE or
DECREASE the
hour & minutes
onc e in clock mode.

T/F: Press & hold

to enter CLOCK
SETTING MODE.
Press & release to
switch the display
from frequency/
track to TIME.

JEN5000 - 307
