Jensen CD6111 User Manual

CD6111

Instruction Manual

Manual de Instrucciones

Guide d'instructions

CD6111

160 WATTS

AUDIO INPUT

READYREADY

/

TUNE

CD6111

TABLE OF CONTENTS

Introduction ..............................................................................................1

Preparation ..............................................................................................1

Wiring .................................... ........................................................... ........2

Installation ....................................... ......................................................... 3

Operation .................................................................................................4

Tuner Operation .......................................................................................7

CD Player Operation .................... ... ... .... ... ... .......................................... ..8

CD Changer Operation ....................................... ... ... ... ... .... ... ... ... .... ... ... ..9

JPORT Operation ....................................................................................9

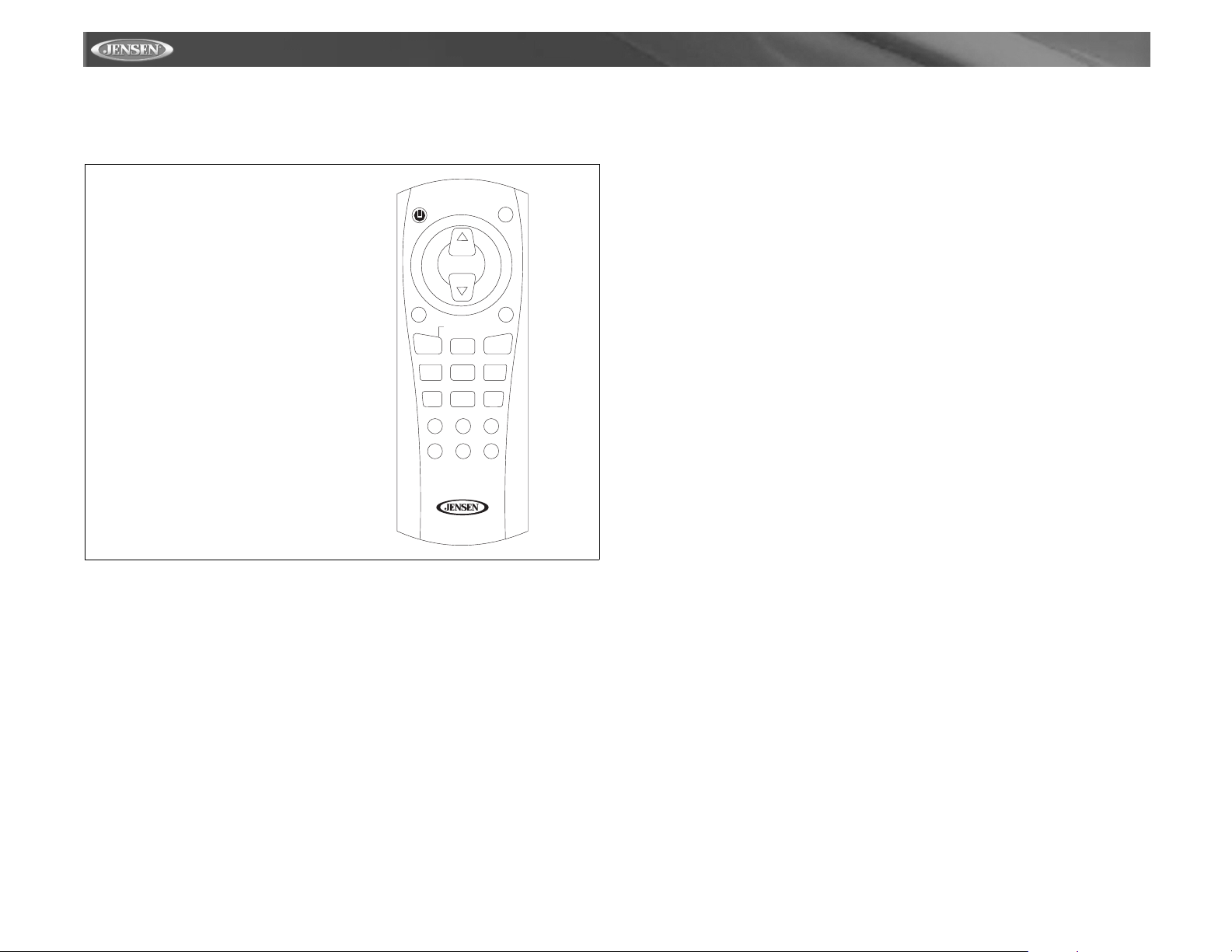

Remote Control ......................................................................................10

Care and Maintenance ...........................................................................10

Troubleshooting .....................................................................................11

Specifications .................................. ....................................................... 11

12-Month Limited Warranty ............. .......................................................12

CONTENIDO

Introducción ...........................................................................................13

Preparación .................................. .......................... .......................... ......13

Cableado ...................................... .......................... .......................... ......14

Instalación ....................................... ....................................................... 15

Operación ..............................................................................................16

Operación del Radio ........................................... ... ... ... ... .... ... ... ... .... ... ...19

Operación del Equipo de CD .................................................................20

Operación del Cambiador de CD ...........................................................21

Operación del JPORT .................. ... ... .... ... ... ... .... ... ... ... ... .... ...................21

Control Remoto ......................................................................................22

Cuidado y Mantenimiento ......................................................................22

Corrección de Problemas ......................................................................23

Especificaciones ....................................................................................23

Garantia Limitade de 12 Meses .............................................................24

TABLE DES MATIÈRES

Introduction ..................................... ....................................................... 25

Préparation ............................................................................................ 25

Câblage .................................................................................................26

Installation ................................. ......... .......... .......... ......... .......... .......... ...27

Operation ..................................... .......................................................... 28

Opération de la Radio ............................................................................31

Opération de la Platine CD ....................................................................32

Opération de Changeur de CD ..............................................................33

Opération JPORT ..................................................................................33

Prêt à être Télécommandé ....................................................................34

Soin et Entretien ....................................................................................34

Dépannage ............................................................................................ 35

Caractéristiques .............................. ....................................... ................35

Garantie Limitée de 12 Mois ..................................................................36

i

CD6111

ii

CD6111

INTRODUCTION

Congratulations on your purchase of the Jensen CD6111 Mobile AM/FM/CD Receiver. It’s a
good idea to read all of the instructions before beginning the installation. We recommend
having your Jensen CD6111 installed by a reputable installation shop.

Features

CD

• CD-R/RW compatible

• Last position memory

• Random/repeat/intro

• High-speed audible track search

• 1-Bit D/A converter

• Anti-shock mechanism

AM/FM TUNER

• 24 station presets (12 FM, 6 AM)

• JENSEN Plus Tuner II

• Auto station store/preset scan

• One-touch memory

• Manual stereo/mono, local/distance, and up/down tuning

• Auto seek tuning up/down and 5-second scan tuning

Chassis

• Electronic detachable face with hard case

• Import ISO/DIN mountable

• 20-pin power harness

General

• High contrast Liquid Crystal Display (LCD)

• Infrared remote control (included)

• iEQ3 - instant EQ with 3 selectable EQ curves - Classic, Pop and Rock

• 1 pair each rear RCA auxiliary inputs and pre-amp outputs

• Rotary encoder audio control with electronic volume, bass, treble, balance, fader

• Multi-button power on

• Keyless CD eject

• 4V Peak / 2V RMS RCA pre-amp output voltages

• Rear RCA pre-amp outputs

• 200-ohm low impedance preamp output

•Flex-Fader

• True Blue LED preset illumination

• Loudness

•Clock

•Mute

• Theft deterrent LED

Optional Accessories

jPORT (Sold Separately)

• Controls your iPod and CD Changer

• jLink Apple approved iPod cable (included)

• jLink Adapter (included)

iAux (Sold Separately)

• Converts 3.5mm Input to RCA outputs for auxiliary devices

• Under-dash adapter allows for quick installation of portable media devices

PREPARATION

Tools and Supplies

The following tools and supplies are needed to install the radio.

• Torx type, flathead and Philips screwdrivers

• Wire cutters and strippers

• Tools to remove existing radio (screwdriver, socket wrench set or other tools)

• Electrical tape

• Crimping tool

• Volt meter/test light

• Crimp connections

• 18 gauge wire for power connections

• 16-18 gauge speaker wire

SPEAKER REQUIREMENTS: Only connect speakers rated in the load impedance of 4
ohms. Speakers with a load impedance less than 4 ohms could damage the unit.

Pre-installation

1. Disconnect Battery
Before you begin, always disconnect the battery negative terminal.

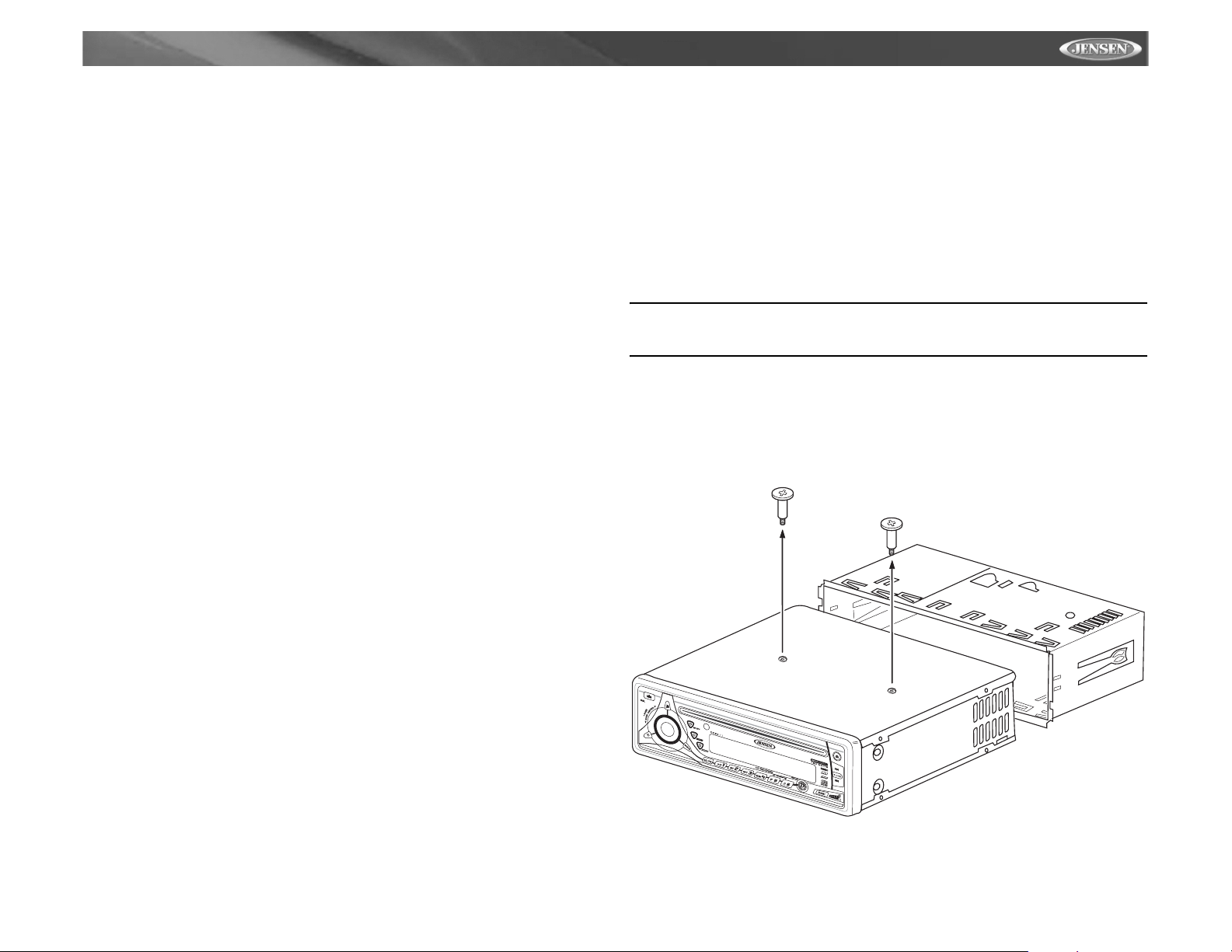

2. Remove Transport Screws

3. Remove Radio from Sleeve
Lift latches on both sides of sleeve to remove half-sleeve from radio.

TRANSPORT
SCREWS

HALF

SLEEVE

1

CD6111

WIRING

Wiring with a Wiring Adapter (Purchased Separately)

Connect Wires

You can make these connections without being in the vehicle.

1. Splice or crimp wires.

2. Attach wiring adapter to car wiring harness.

Wiring Diagram / Color Codes

1. Power Antenna (dark blue wire) - Connect to power antenna or amplifier. If not used, tape
bare end of wire.

2. Accessory/Ignition (red wire) - Connect to existing radio wire or radio fuse.

3. Ground (black wire) - Connect to ground terminal or clean, unpainted part of chassis.

4. Memory/Battery (yellow wire) - Connect to battery or 12 volt power source that is always
live. The radio will not work if this wire is not connected.

5. Antenna Connector - Connect the antenna plug from the existing antenna cable (some
vehicles require an adaptor).

6. CD Changer/JPORT connector - Use this 8-pin DIN socket to connect an optional CD
Changer or JPORT (sold separately).

7. Auxiliary Input Cable (yellow RCA cables) - Connect line in for auxiliary input devices (CD
player, etc.).

8. Outputs to Amplifier (gray RCA cables) - Connect line out for optional external amplifiers.
The red connector is for the right and the white connector is for the left.

9. Left Front Speaker

10. Right Front Speaker

11. Left Rear Speaker

12. Right Rear Speaker

NOTE: The amplifiers in this radio are only designed for use with four speakers. Never
combine (bridge) outputs for use with two speakers. Never ground n e gative speaker
leads to chassis ground. Failure to wire exactly as shown may cause electrical damage
to the radio.

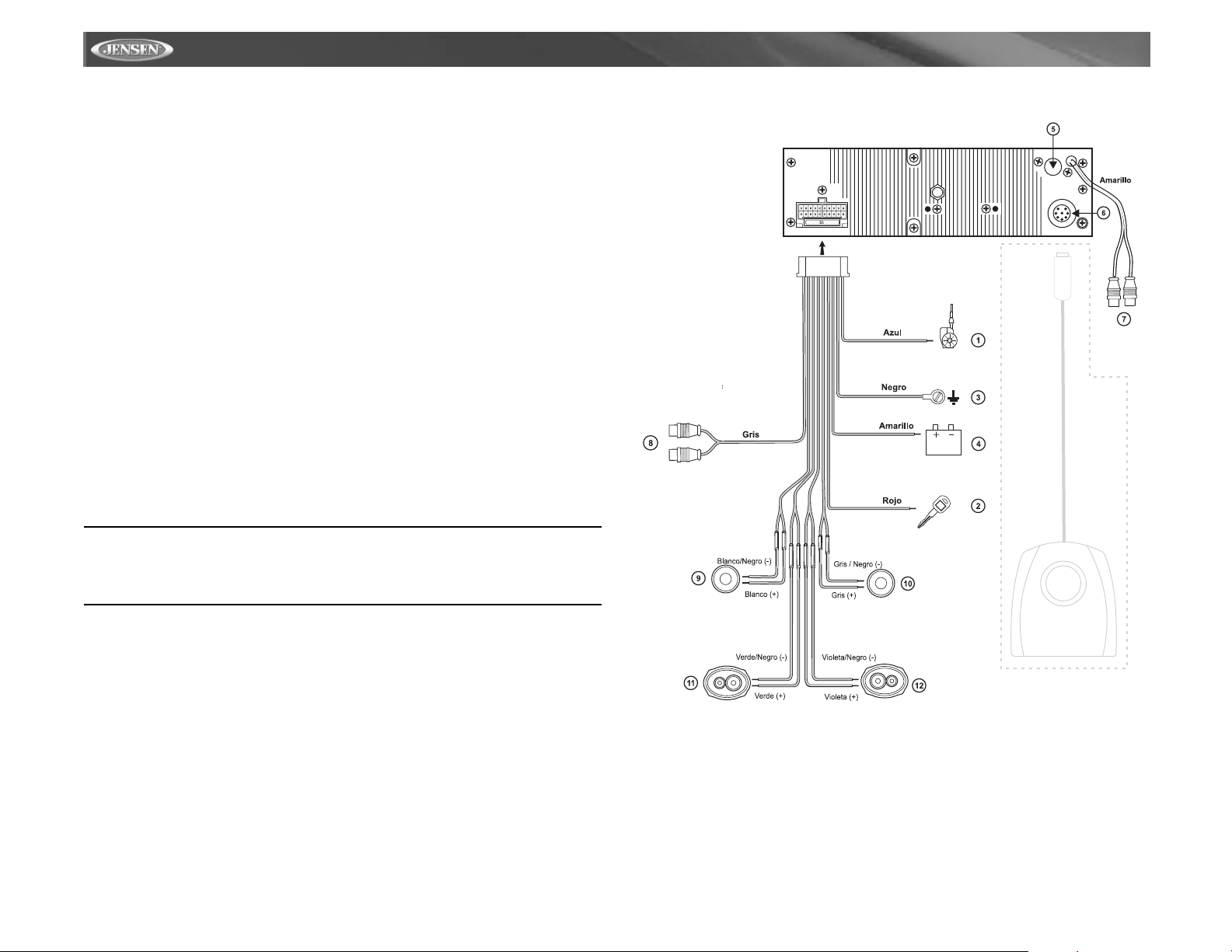

WIRING DIAGRAM

Fuses

When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an
incorrect fuse could damage the radio. The CD6111 uses one 15 amp fuse located below the
wiring connector (15 amp fast blow ATO).

Reconnect Battery

When wiring is complete, reconnect the battery negative terminal.

Technical Assistance

If you require assistance, contact Technical Support at 1-800-323-4815 from 8:30am to 7:00pm
EST Monday through Friday and from 9:00am to 5:00pm EST on Saturday.

Optional JPORT

(Sold Separately)

2

CD6111

INSTALLATION

This unit is designed for installation in cars, trucks and vans with an existing radio opening. In
many cases, a special installation kit will be required to mount the radio to the dashboard.
These kits are available at electronics supply stores and car stereo specialty shops. Always
check the kit application before purchasing to make sure the kit works with your vehicle. If you
have trouble locating a kit or need installation assistance, contact Technical Support at 1-800­323-4815 from 8:30am to 7:00pm EST Monday through Friday and from 9:00am to 5:00pm
EST on Saturday.

Universal Installation Using Mounting Sleeve

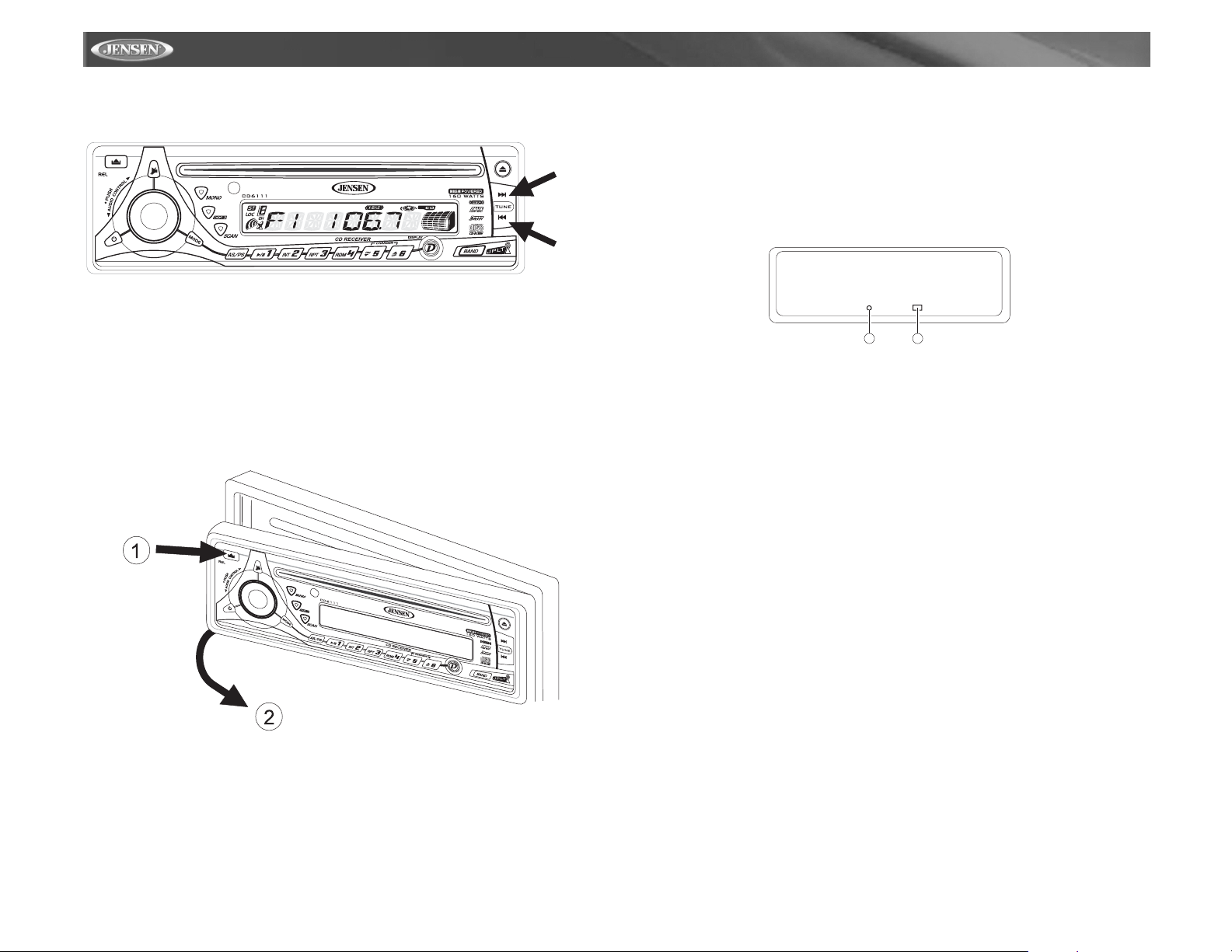

1. Remove the detachable front panel, if it is attached to the chassis, by pushing the
“Release” button.

2. Slide the mounting sleeve off of the chassis if it has not already been removed. If it is
locked into position, use the removal keys (supplied) to disengage it. The removal keys
are depicted on page 4.

3. Check the dashboard opening size by sliding the mounting sleeve into it. If the opening is
not large enough, carefully cut or file as necessary until the sleeve easily slides into the
opening. Do not force the sleeve into the opening or cause it to bend or bow. Check that
there will be sufficient space behind the dashboard for the radio chassis.

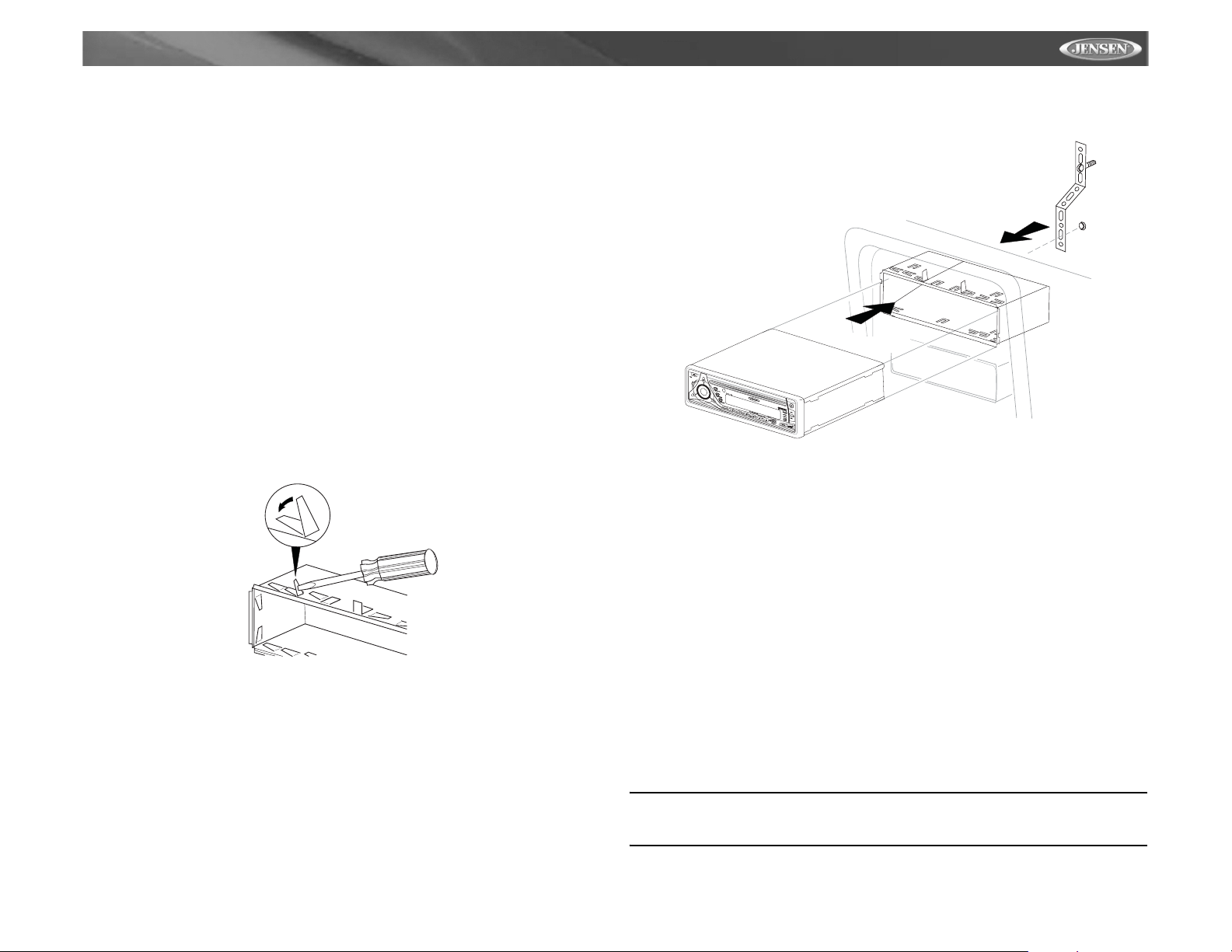

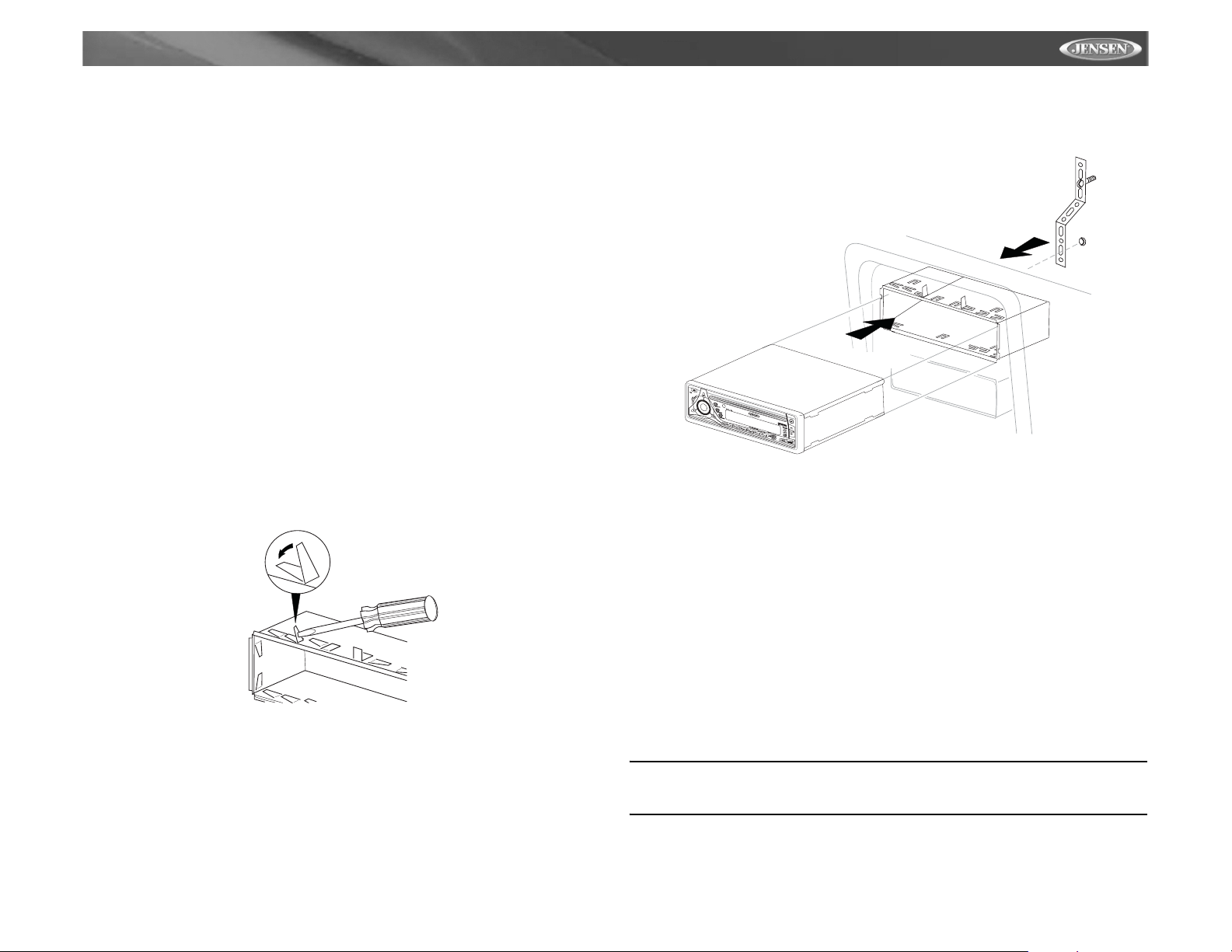

4. Locate the series of bend tabs along the top, bottom and sides of the mounting sleeve.
With the sleeve fully inserted into the dashboard opening, bend as many of the tabs
outward as necessary to firmly secure the sleeve to the dashboard.

5. Place the radio in front of the dashboard opening so the wiring can be brought through the
mounting sleeve.

6. Follow the wiring diagram carefully and make certain all connections are secure and
insulated with crimp connectors or electrical tape to ensure proper operation.

7. After completing the wiring connections, attach the front panel and turn the unit on to
confirm operation (vehicle ignition switch must be on). If the unit does not operate,
recheck all wiring until the problem is corrected. Once proper operation is achieved, turn
the ignition switch off and proceed with final mounting of the chassis.

8. Carefully slide the radio into the mounting sleeve making sure it is right-side-up until it is
fully seated and the spring clips lock it into place.

9. Attach one end of the perforated support strap (supplied) to the screw stud on the rear of
the chassis using the hex nut provided. Fasten the other end of the perforated strap to a
secure part of the dashboard either above or below the radio using the screw and hex nut
provided. Bend the strap, as necessary, to position it. CAUTION: The rear of the radio
must be supported with the strap to prevent damage to the dashboard from the weight of
the radio or improper operation due to vibration.

10. Re-attach the front panel to the chassis and test radio operation by referring to the
operating instructions for the unit.

NOTE: For proper operation of the CD player, the chassis must be mounted within 20° of
horizontal. Make sure the unit is mounted within this limitation.

3

CD6111

Kit Installation

If your vehicle requires the use of an installation kit to mount this radio, follow the instructions
included with the installation kit to attach the radio to the mounting plate supplied with the kit.

1. Wire and test the radio as outlined in the Universal Installation instructions.

2. Install the radio/mounting plate assembly to the sub-dashboard according to the
instructions in the installation kit.

3. Attach the support strap to the radio and dashboard as described in the Universal
Installation instructions.

4. Replace the dashboard trim panel.

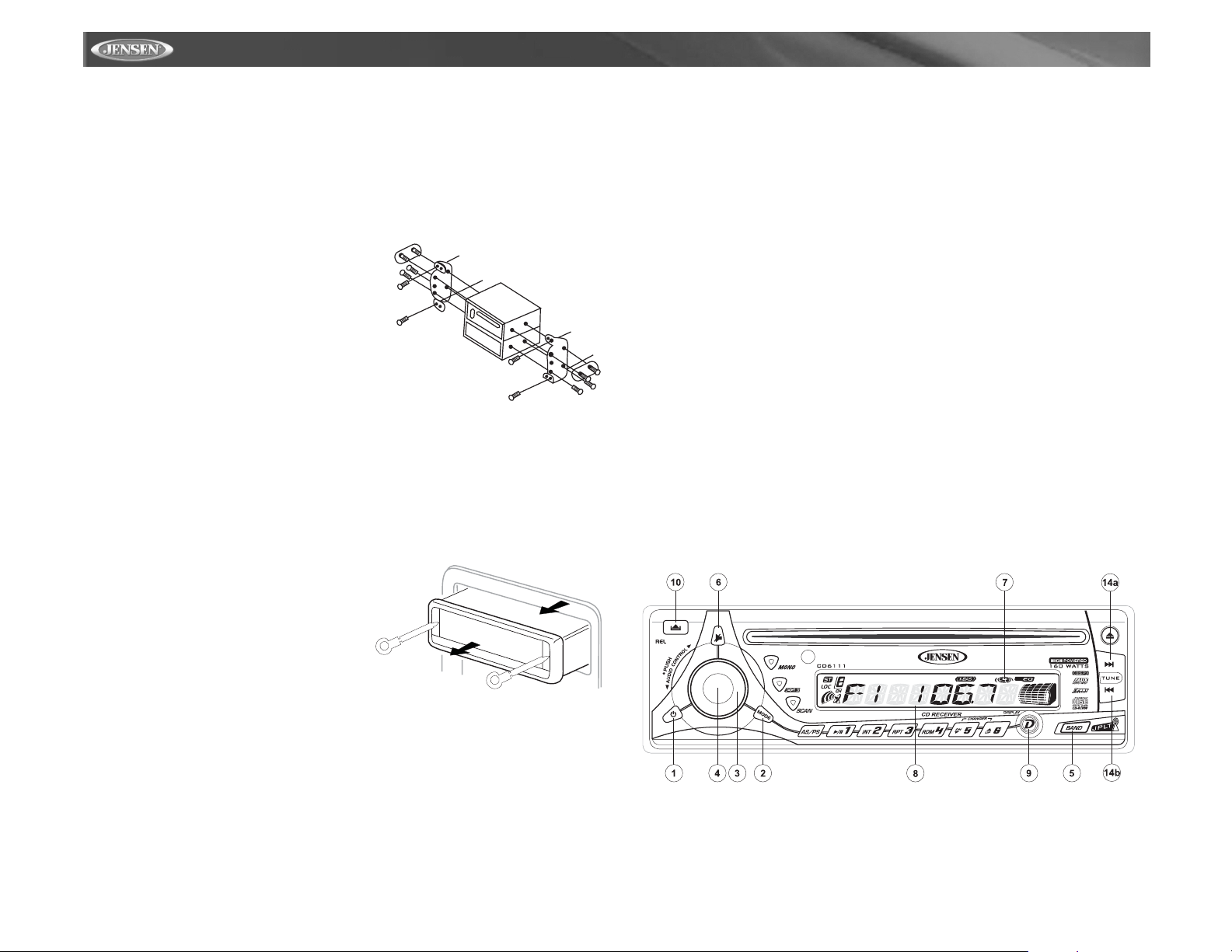

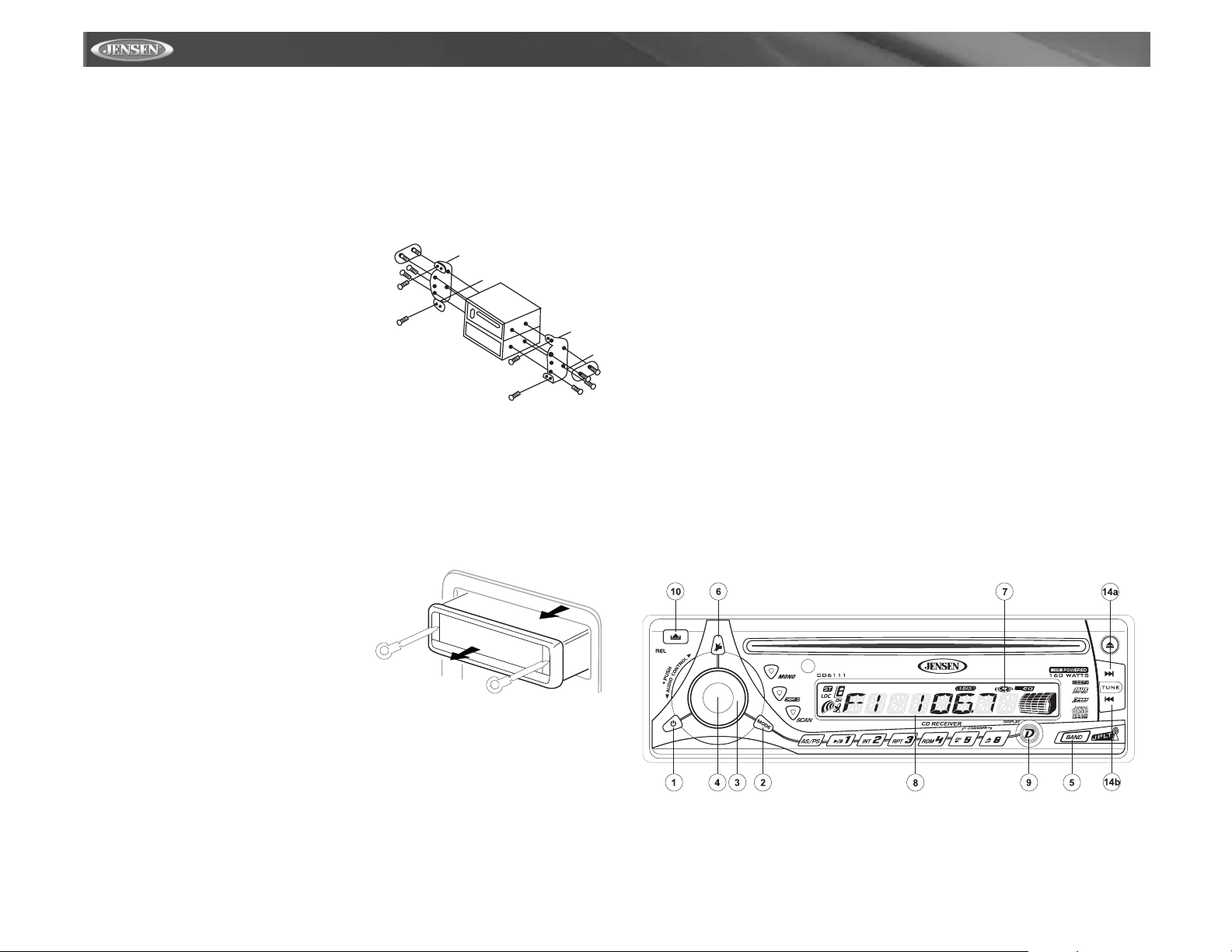

ISO Installation

This unit has threaded holes in the chassis side
panels which may be used with the original factory
mounting brackets of some vehicles to mount the
radio to the dashboard. Please consult with your
local car stereo shop for assistance on this type of
installation.

1. Remove the existing factory radio from the
dashboard or center console mounting. Save all
hardware and brackets as they will be used to
mount the new radio.

2. Carefully unsnap the plastic frame from the
front of the new radio chassis. Remove and discard the frame.

3. Remove the factory mounting brackets and hardware from the existing radio and attach
them to the new radio. Do not exceed M5 x 9 MM maximum screw size. Longer screws
may damage components inside the chassis.

4. Wire the new radio to the vehicle as outlined in the Universal Installation instructions.

5. Mount the new radio assembly to the dashboard or center console using the reverse
procedure of step 1.

Remove Radio

To remove the radio after installation, remove the
trim ring by lifting in the center and pulling it off
from either side. Insert the removal keys straight
back until they lock, and then pull the radio out. If
removal keys are inserted at an angle, they will not
lock properly to release the unit.

OPERATION

Power

Press the power button (1) or any other button on the face of the receiver to turn the unit on
when the ignition switch is on. Press the power button again to turn the receiver off. If the radio
was left on when the ignition was last turned off, the receiver will turn on automatically when
the ignition switch is again turned on. If the receiver was off when the ignition was last turned
off, the receiver must be turned on manually when restarting the vehicle.

Mode

Press MODE (2) to select a different mode of operation as indicated on the display panel.
Available modes include Tuner, CD, CD changer (C DC) and Auxiliary Input. During CD player
operation, pressing MODE will change to the tuner mode without ejecting the disc. The CD
icon (7) will remain in the display to indicate that a disc is still loaded in the unit. Unless a CD
changer is connected to the unit, the CD changer (CDC) mode cannot be accessed. T o access
the Auxiliary Input mode, press the MODE button until "AUX" is indicated in the display.

Volume

To increase the volume, rotate the volume control (3) clockwise. To decrease the volume,
rotate the volume control counter clockwise. When volume is adjusted, the volume level is
shown on the display panel as a number ranging from “00” (lowest) to “100” (highest).

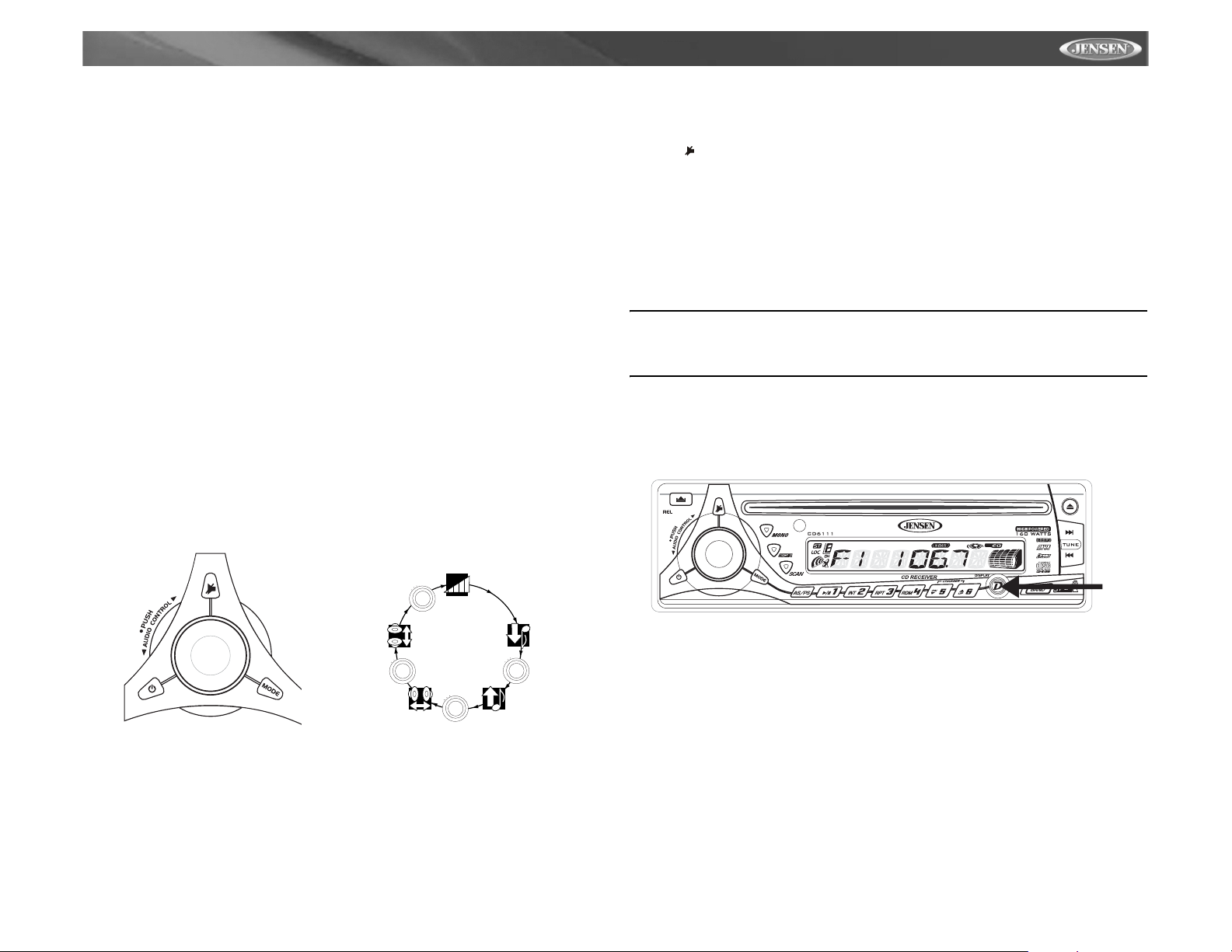

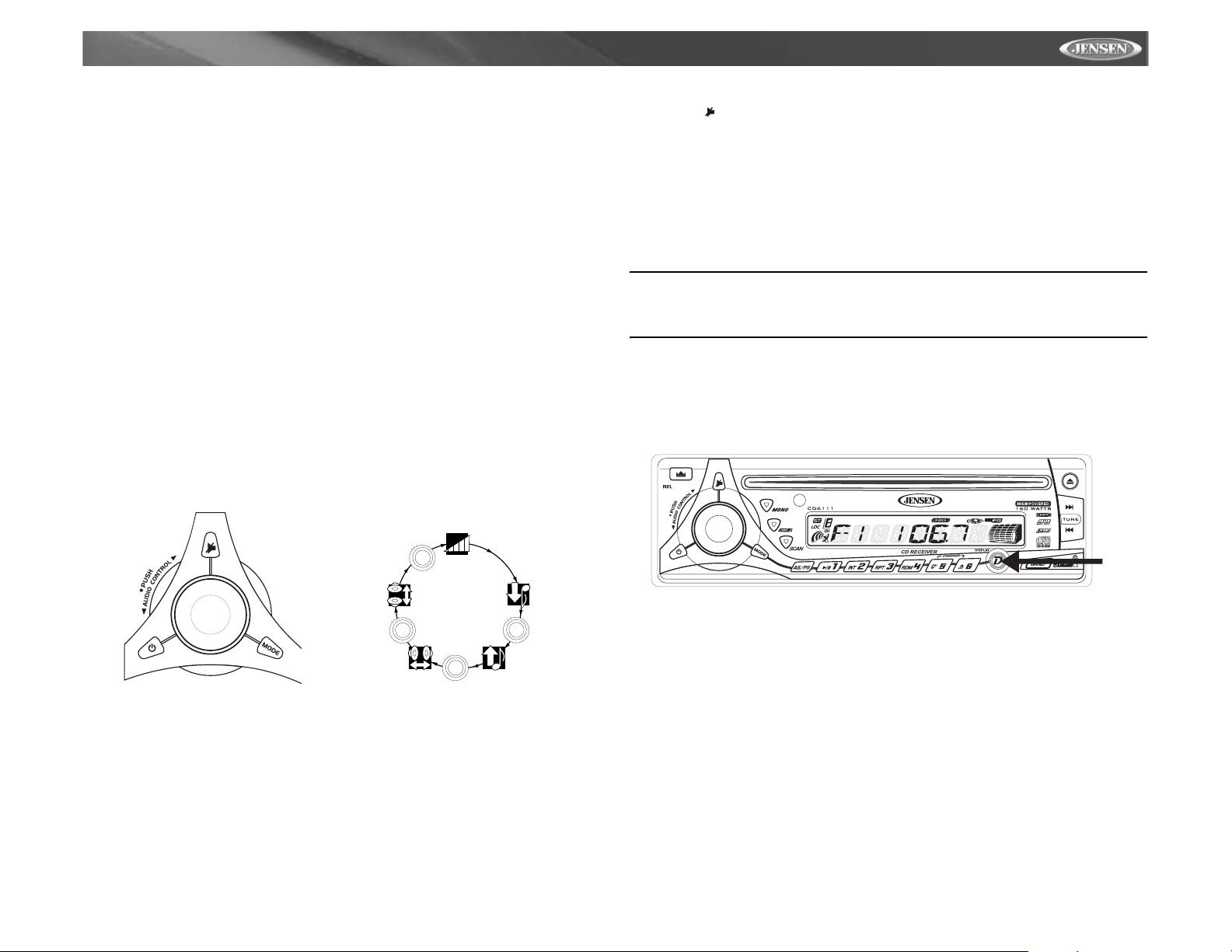

Select

Press PUSH (4) to step through the menu of audio functions. The first option is volume (VOL),
followed by bass (BAS), treble (TRB), balance (BAL), fader (FAD), and again by volume (VOL).
When adjusting audio functions, the unit will automatically exit select mode and return to the
normal display after five seconds or when another function is activated.

REMOVAL KEYS

Select (continued)

Bass

Press PUSH (4) twice until “BAS” appears in the display. Within five seconds, rotate the
volume control (3) clockwise or counter clockwise to adjust the bass from “-10” to “+10”. “00”
represents a flat response. The bass level is shown on the display for five seconds or until
another function is activated.

4

CD6111

Treble

Press PUSH (4) three times until “TRB” appears in the display. Within five seconds, rotate the
volume control (3) clockwise or counter clockwise to adjust Treble from “-10” to “+10”. “00”
represents a flat response. The treble level is shown on the display for five seconds or until
another function is activated.

Balance

Press PUSH (4) four times until “BAL” appears in the display. Within five seconds, rotate the
volume control (3) clockwise (or counter clockwise) to adjust Balance between the right and left
speakers from “BAL 10R” (full right) to “BAL 10L” (full left). “BAL L=R” represents an equal
balance level between the right and left speakers. The balance position is shown on the display
for five seconds or until another function is activated.

Fader

Press PUSH (4) five times until “FAD” appears in the display. Within five seconds, rotate the
volume control (3) clockwise or counter clockwise to adjust balance between the front and rear
speakers from “FAD 10R” (full rear) to “FAD 10F” (full front). “FAD F=R” represents an equal
balance level between the front and rear speakers. The fader position is shown on the display
for five seconds or until another function is activated.

VOL

VOL

D
A

F

E

R

T

S

A

B

L

A

B

P
U

S

H

S

E

L

E

C

T

D
A

F

E

R

T

S

A

B

L

A

B

TRB

BAS

P
U

S

H

S

E

L

E

C

T

FAD

A

B

L

A

B

BAL

D
A

F

E

R

T

S

P
U

S

H

S

E

L

E

C

T

D
A

F

E

R

T

S

A

B

L

A

B

P
U

S

H

S

E

L

E

C

T

iX-BASS (BAND)

Press BAND (5) for two seconds to activate the iX-BASS feature. When listening to music at
low volume levels, this feature will boost the bass and treble ranges to compensate for the
characteristics of human hearing. When this feature is activated, “LOUD ON” will appear in the
display for five seconds. Press BAND again for two seconds to deactivate this feature. “LOUD
OFF” appears in the display for five seconds.

Audio Mute (MUTE)

Press (6) to mute the audio volume. “MUTE” flashes on the display. Restore volume to the
previous setting by pressing the mute button again, adjusting the volume control, or by
pressing any other button on the unit.

Liquid Crystal Display (LCD)

The liquid crystal display (LCD) panel (8) displays the frequency, time and activated functions
of the unit, including a combination audio level/disc indicator, which appears as dual disc icons
with circular bar graphs depicting the audio signal. In addition, the display contains a receive
signal indicator that depicts the relative strength of the incoming broadcast frequency.

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for
an extended period of time. In addition, the visibility of the numbers on the LCD may
decrease slightly. The LCD display will return to normal when the temperature increases
to a normal range.

Display (DISPLAY)

When the unit is off, the LCD displays the time of day. When the unit is on, the LCD
automatically shows the tuner, CD or CD changer display, depending on which mode of
operation is currently activated.

Display Clock

During tuner, CD or CD changer operation, press DISPLAY (9) to display the time of day. Af ter
five seconds, the display reverts to tuner, CD or CD changer display.

Set Clock

1. To set the clock, turn the radio on in tuner mode (or any other mode).

2. Press DISPLAY. The time appears on the display.

3. Press and hold DISPLAY until the time display begins flashing.

4. While the display is flashing, press the Up Tuning button (14a) to adjust hours and the “A”
(AM) or “P” (PM) indication. Press the Down Tuning button (14b) to adjust minutes.

5. After five seconds, the time will set and the display will return to tuner, CD or CD changer
display.

HOURS

MINUTES

Front Panel Release

The front panel release button (10) releases the mechanism that holds the front panel to the
chassis.

5

CD6111

Detaching the Front Panel

To detach the front panel, first press the front panel release button to release the left side of the
panel. Next, grasp the released side and pull it off the chassis. After removing the front panel,
store it in the supplied carrying case to protect it from dirt and damage.

REMOVE FRONT PANEL

Re-attaching the Front Panel

T o re-attach the front p anel, make sure the electrical terminals on the back of the panel are free
of dust and dirt, as debris could cause intermittent operation or other malfunctions. Position the
right side of the panel in place so that it is correctly engaged, then lightly press the left side of
the panel until the mechanism locks it into place.

Reset Button

The reset button (11) is located on the front of the chassis and can only be accessed with the
front panel removed. The reset circuitry protects the microprocessor circuitry. Since resetting
the unit will erase the time and preset memories, it should only be activated upon initial
installation after all wiring is complete or if there is a malfunction of any of the switches on the
unit. In these circumstances, pressing the reset button will clear the system and return the unit
to normal operation.

Theft Deterrent LED

A light-emitting diode (LED) (12) is located on the chassis behind the front panel and will flash
when the panel is removed. The flashing light serves as a visual warning to the would-be thief
that the unit has been disabled by removal of the front panel.

12 11

RESET

6

CD6111

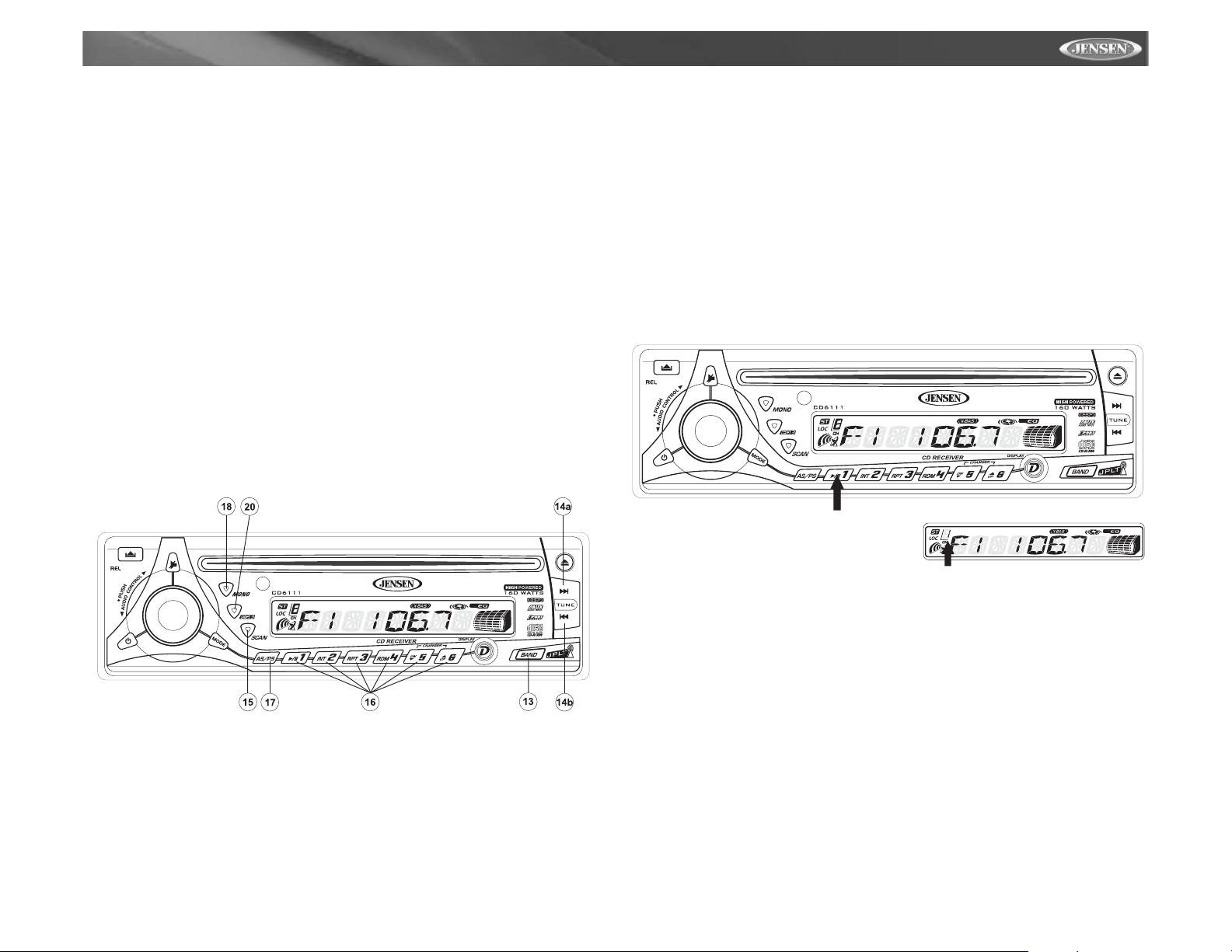

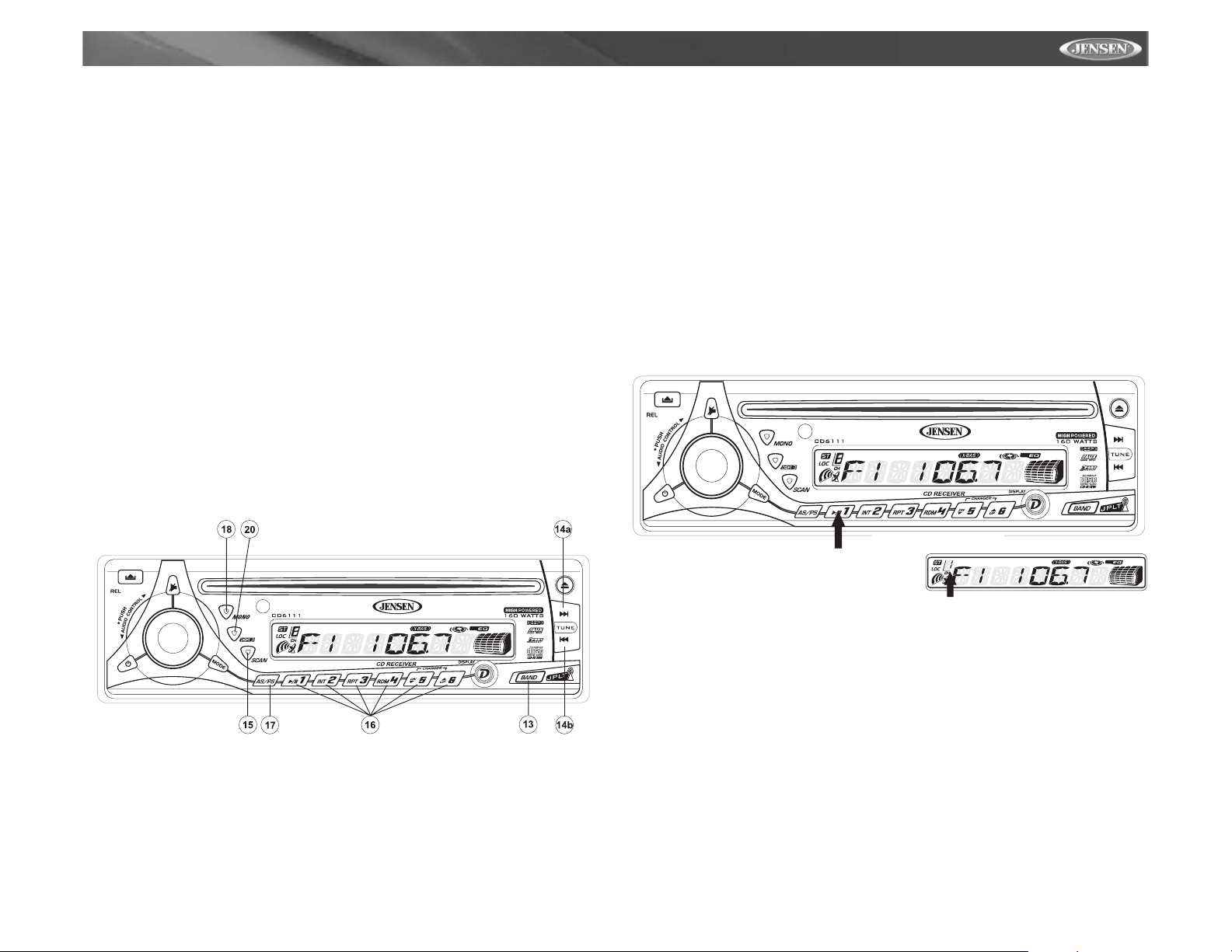

TUNER OPERATION

AM/FM Band Selector (BAND)

Press BAND (13) during radio play to switch between three FM bands and one AM band. “F1”,
“F2”, “F3” or “AM” will appear in the display to indicate the band currently selected.

Tuning

Automatic Tuning

Press the Up Tuning (14a) button to tune upward in frequency and the Down Tuning (14b)
button to tune downward in frequency. The unit will automatically stop at the next strong
station. If the Local mode is active, the radio will seek the next strong local station when either
button is pressed.

Manual Tuning

Press the Up Tuning (14a) or Down Tuning (14b) button for more than two seconds to select
manual tuning mode. “MANUAL” will appear in the display. Press the Up or Down Tuning
buttons to move radio frequency up or down two digits at a time. Press and hold the Up or
Down tuning buttons to quickly advance to a certain frequency. Release when the desired
frequency is reached. If tuning is not adjusted within five seconds of entering manual tuning
mode, the radio will revert to automatic tuning and “AUTO” will appear in the display.

Scan Tuning (SCAN)

Press SCAN (15) to scan upwards through all the strong channels in the current band. The unit
will pause and play each station for five seconds, and the station frequency will flash in the
display during this time. Press SCAN again to stop scanning and listen to the current station.

Automatically Store / Preset Scan (AS/PS)

Automatically Store

Select six strong stations and store them in the current band using the Automatic Store feature.
To enable this feature, press and hold AS/PS (17) for more than two seconds. The radio will
automatically scan the band in use and enter strong stations into the preset memory positions
for that band. After entering the stations into memory, the unit will automatically stop at each
station for five seconds so each can be heard. When using the Automatically Store feature, the
new stations replace any stations already stored in preset memory for the selected band.

Preset Scan

Press AS/PS (17) to scan the six preset stations in the current band. The unit will stop at each
station for five seconds before continuing to the next preset station, and the preset number will
flash on the display during the preset scan. Press AS/PS again to stop scanning and listen to
the current station.

PRESS AND HOLD

Preset Stations

Up to six stations on each band can be stored as presets and can then be instantly recalled by
pressing the associated preset button (16). To store a station, turn the radio on and select the
desired band and station. Press and hold the desired preset button (numbered one through six
on the face of the radio) for more than two seconds. When stored, the preset number will
appear in the display. The station is now stored and can be re-called at any time by pressing
the corresponding preset button. Repeat for the remaining five presets on the current band and
for all presets on the other three bands.

PRESET NUMBER APPEARS

Mono/Stereo Selector (MONO)

Press MONO (18) during FM radio operation to select stereo reception of the broadcast signal.
Under normal reception, the unit should be left in the stereo mode as indicated by the “ST”
designation and the associated signal strength indicator that appear on the display panel when
tuned to an FM stereo signal. If the signal is too noisy for comfortable listening, press MONO to
switch to mono reception, and the “ST” indication will disappear. Press MONO again to return
to stereo mode.

Equalizer Selector (iEQ)

The equalizer function applies preset sound effects to the unit’s audio output signal. Press iEQ
(20) to activate one of the following operating modes: FLAT, CLASSICS, POP M, ROCK M or
DSP OFF. When the equalizer function is activated, the most recently selected bass/treble
levels are ignored. If the bass and/or treble levels are adjusted while the equalizer function is
active, the equalizer function will revert to FLAT. When the equalizer function is not active, the
unit will return to the most recently selected bass and treble levels.

7

CD6111

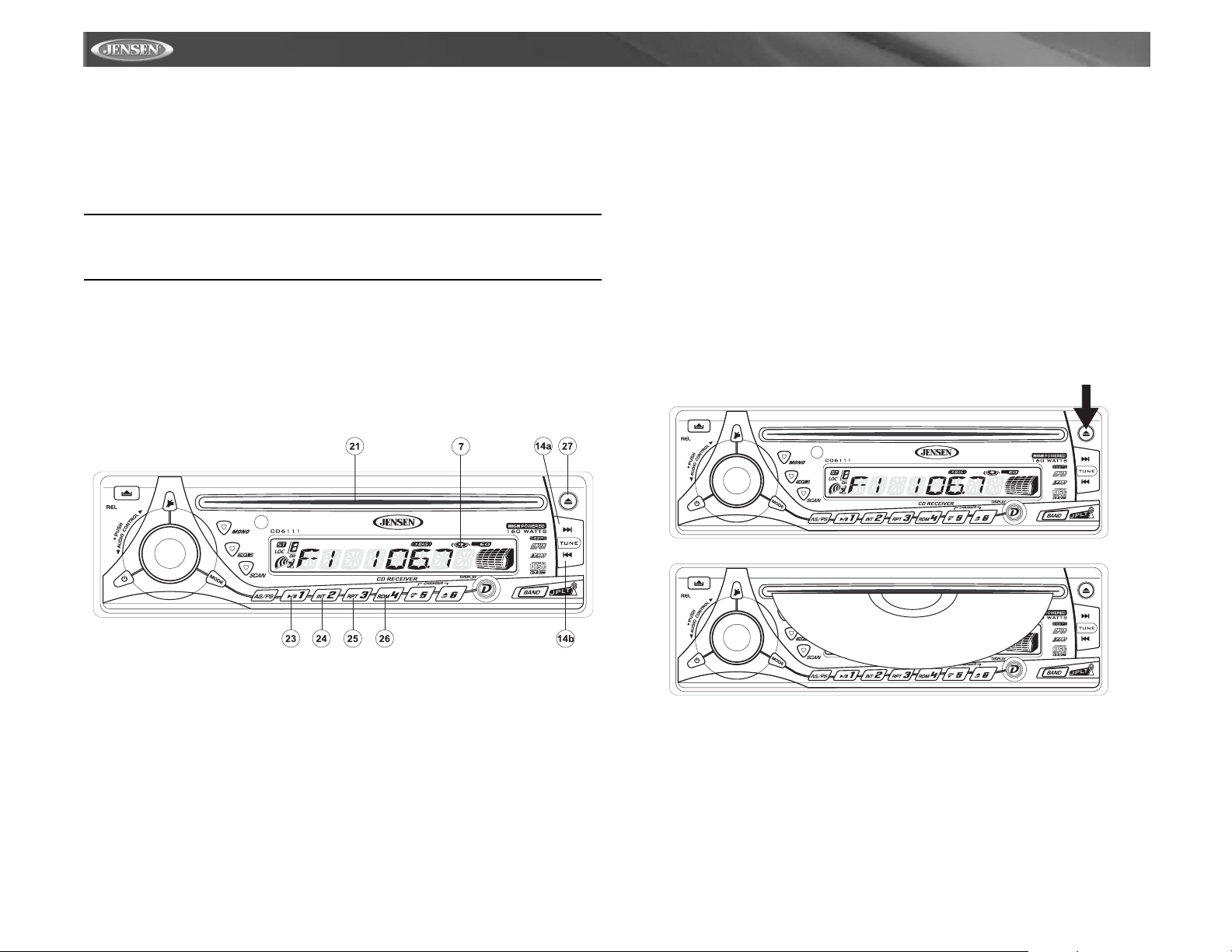

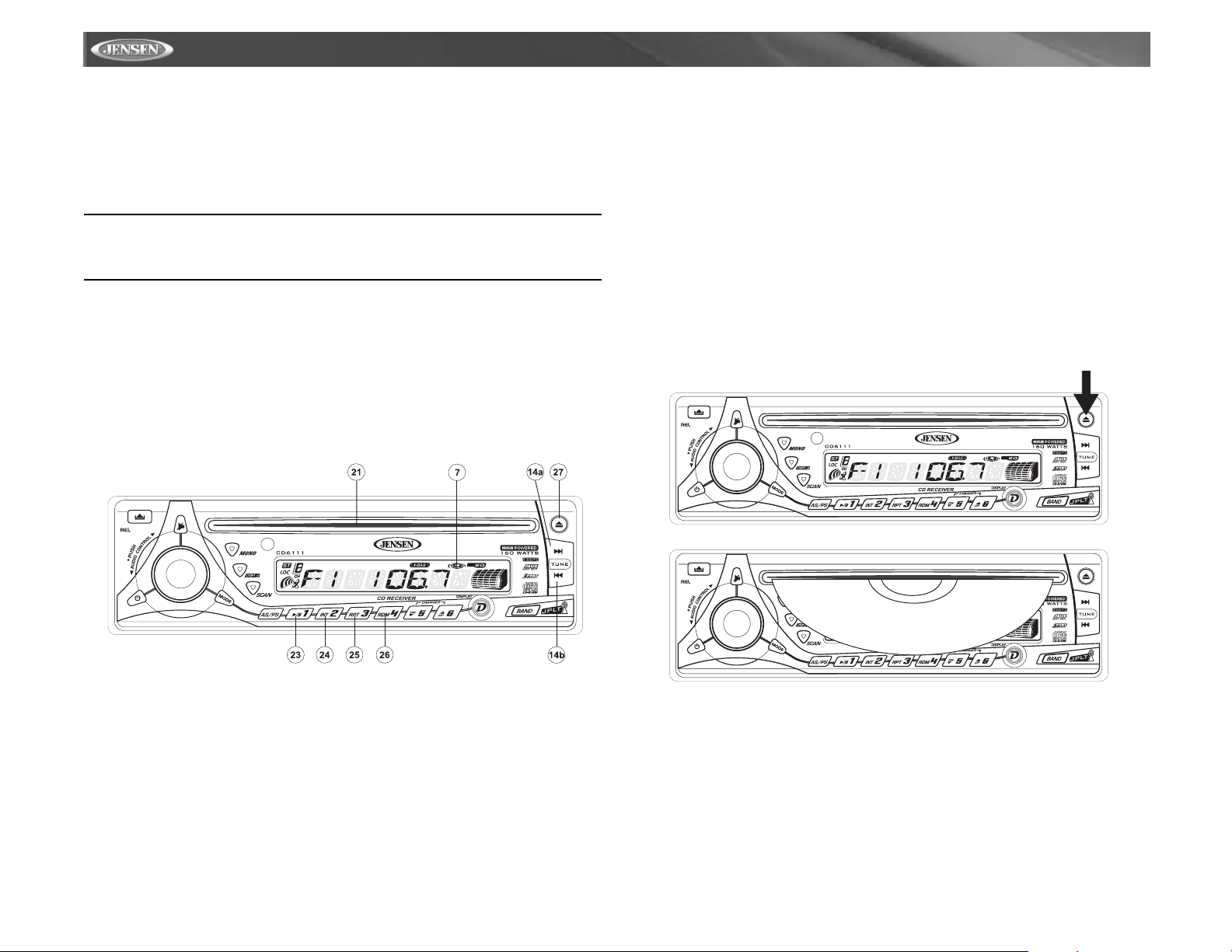

CD PLAYER OPERATION

Insert CD

With the label surface facing up, gently insert the disc into the CD slot (21) until the soft-loading
mechanism engages and pulls in the disc. Disc play begins, “S--CDP” will appear in the
display, and the CD icon will become animated. The center of the disc icon (7) illuminates and
becomes animated, and the track number and elapsed time appear in the display.

NOTE: The unit is designed for play of standard 5” (12 cm.) compact discs only. Do not
attempt to use 3” (8 cm.) CD singles in this unit, either with or without an adaptor, as
damage to the player and/or the disc may occur. Such damage will not be covered by
the warranty on this product.

Track Select

Track select features are used to quickly access the beginning of a particular track when a disc
is in play. Press the Up Tuning button (14a) to move forward or the Down Tuning button (14b)
to move backward on the disc to locate the desired track. Track numbers will appear in the
display as they are accessed.

Press and hold the Up or Down Tuning buttons to fast forward or fast reverse through a disc.
During either function, the elapsed time will appear on the display. Release the button to
resume CD play.

Disc Repeat (RPT)

Press RPT (25) during disc play to continuously repeat the selected track. “S--RPT” will appear
in the display. Press RPT again to stop repeating. “S--RPT” will disappear from the display, and
regular play will resume. The repeat function will also be canceled when activating the scan or
shuffle functions.

Disc Shuffle (SHF)

Press SHF (26) during disc play to play all tracks on a CD in random, shuffled order. “S--SHF”
will in the display. Press SHF again to stop random play. “S-SHF” will disappear from the
display, and regular play will resume. The shuffle function will also be canceled when activating
the scan or repeat functions.

Disc Eject

Press the eject button (27) to stop CD play and eject the disc. The unit will change to tuner or
CD changer operation, depending on which mode was in operation prior to disc play. If the disc
is not removed from the unit within 15 seconds, the disc will be reloaded to prevent accidental
damage. The CD icon (7) will appear in the display to indicate that a disc is loaded in the
player. Disc play can be resumed by pressing MODE (2) to choose the CD player function.

Play/Pause

Press the play/pause button (23) to suspend disc play. “S--PAUSE” will appear in the display,
and the center of the disc icon (7) will stop rotating. Press the play/pause button again to
resume disc play. The “S--PAUSE” indication will disappear from the display, and play will
resume from the pausing point.

Disc Scan (SCN)

During disc play, press SCN (24) to play the first 10 seconds of each track on the disc. “S--
SCN” will appear in the display. When the desired track is reached, press SCN again to end the
scan function and play the selected track. “S--SCN” will disappear from the display. The scan
function will also be canceled when activating the repeat or shuffle functions.

CD Player Error Codes

If a problem should develop while operating the CD player, an error code (ER-1, ER-2, etc.)
may appear on the display panel. This can indicate a number of problems with the unit,
including a mechanical error or an error in the microprocessor control of the player. If an error
code should appear, try ejecting and reloading the disc into the player. While the disc is out of
the unit, make sure it is clean and undamaged, and then load it correctly. If this does not solve
the problem, pressing the reset button (11) may help, but will erase the time and preset
memory. If the suggested measures do not solve the problem, contact an approved warranty
station near you for further assistance.

8
