Neutral: Blue
Blue
Brown
1A Fused Live
company
a
1200
Oxford™
JC71411
4ft Single
Light source:
Total circuit Wattage:
Lumens:
Efcacy:
Colour temp:
Integral LED
20W
2000 Lumens
100 LpcW
4000K
Ra:
80
JC71412
4ft Twin
Light source:
Total circuit Wattage:
Lumens:
Efcacy:
Colour temp:
220-240V~50-60Hz / Class I
Class I products must always be earthed
Fig.2
Integral LED
40W
4000 Lumens
100 LpcW
4000K
Ra:
80

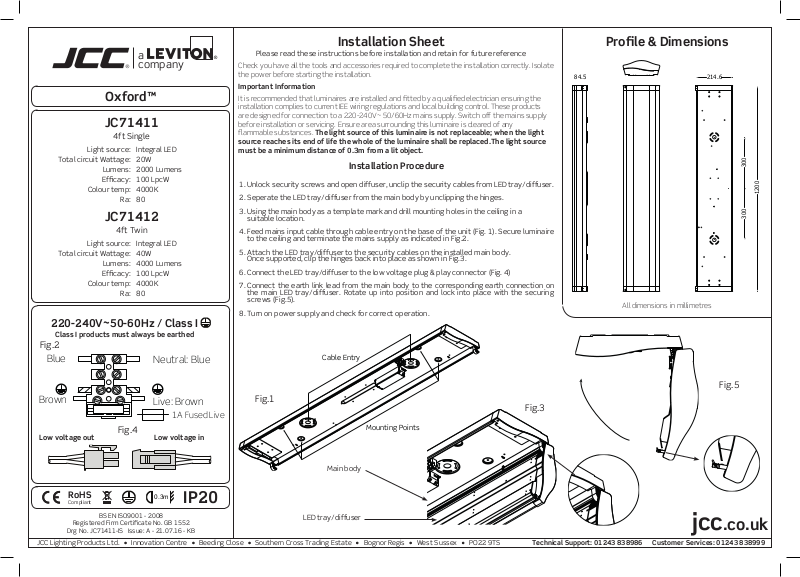

Installation Sheet
Please read these instructions before installation and retain for future reference
Check you have all the tools and accessories required to complete the installation correctly. Isolate
the power before starting the installation.
Important Information
It is recommended that luminaires are installed and tted by a qualied electrician ensuring the
installation complies to current IEE wiring regulations and local building control. These products
are designed for connection to a 220-240V~ 50/60Hz mains supply. Switch off the mains supply
before installation or servicing. Ensure area surrounding this luminaire is cleared of any
ammable substances. The light source of this luminaire is not replaceable; when the light
source reaches its end of life the whole of the luminaire shall be replaced.The light source
must be a minimum distance of 0.3m from a lit object.
Installation Procedure
1. Unlock security screws and open diffuser, unclip the security cables from LED tray/diffuser.
2. Seperate the LED tray/diffuser from the main body by unclipping the hinges.
3. Using the main body as a template mark and drill mounting holes in the ceiling in a
suitable location.
4. Feed mains input cable through cable entry on the base of the unit (Fig. 1). Secure luminaire
to the ceiling and terminate the mains supply as indicated in Fig.2.
5. Attach the LED tray/diffuser to the security cables on the installed main body.
Once supported, clip the hinges back into place as shown in Fig.3.
6. Connect the LED tray/diffuser to the low voltage plug & play connector (Fig. 4)
7. Connect the earth link lead from the main body to the corresponding earth connection on
the main LED tray/diffuser. Rotate up into position and lock into place with the securing
screws (Fig.5).
8. Turn on power supply and check for correct operation.
Cable Entry
Prole & Dimensions
84.5 214.6
300 300
All dimensions in millimetres
Fig.5
Live: Brown
Low voltage out
RoHS
Compliant
Registered Firm Certicate No. GB 1552
Drg No. JC71411-IS Issue: A - 21.07.16 - KB
JCC Lighting Products Ltd. Innovation Centre Beeding Close Southern Cross Trading Estate Bognor Regis West Sussex PO22 9TS Technical Support: 01243 838986 Customer Services: 01243 838999
Fig.4
BS EN ISO9001 - 2008
Low voltage in
0.3m
IP20
Fig.1
Fig.3
Mounting Points
Main body
LED tray/diffuser
jcc.co.uk
