JBT ETH-008-RR User Manual

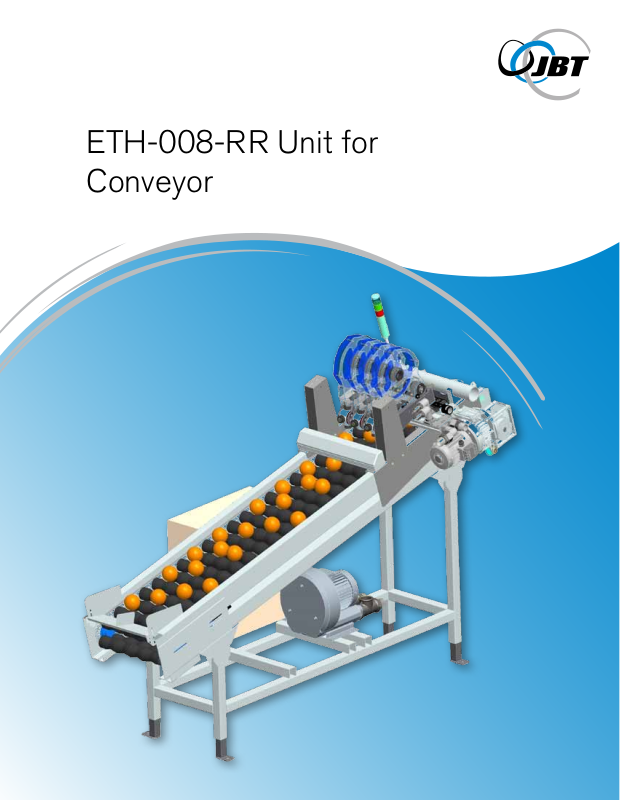

ETH-008-RR Unit for
Conveyor

High Speed, Heavy Duty Metal Construction for over Grommet and Belt Conveyor Labeling

The combination of JBT’s state-of-the-art labels and advanced application system from Mac&Label results in maximum labeling
efficiency.

This Modular and Flexible labeling equipment can label at speeds up to 10 labels a second at labeling efficiencies of 95% or better
depending on conditions.

A Touch Screen Operator Interface is standard, giving the user
full control over all Tray, Box and Label adjustments.

Scanner bar

Cabinet Turbine

Specifications

No. of Label Heads: Standard 1 to 9 Heads, but other options are available
Conveyor Footprint: Standard Depth - 25in. (650mm) x Width variable
Max. Labeling Speed: Dependent on conveyor speed, but up to 10 fruit per second
Bellows Extension: Min. 2in. (50mm)
Pressure/Vacuum: From - 0.210 to + 0.210 bar
Bank Ht. Adjustment: 12in. (300mm)
Voltages Req.: Labeling Unit/Blower/Vacuum Motor 230VAC 10A 3P/460VAC 5Amp 3P
Waste Takeaway 230VAC 15A 3P/460VAC 10A 3P
Encoder: Supplied to suit conveyor
Label Pitch: Can run all current JBT label pitches without any mechanical changes
Label Tape Width: 3 options available up to 1.34in. (34mm) wide
Label Material: Polyethylene or Polypropylene (Other materials optional)
Label Adhesive: Pressure sensitive, FDA/EU Food Contact compliant
Label Roll Sizes: 9ins. (230mm) or 14ins. (355mm) available
