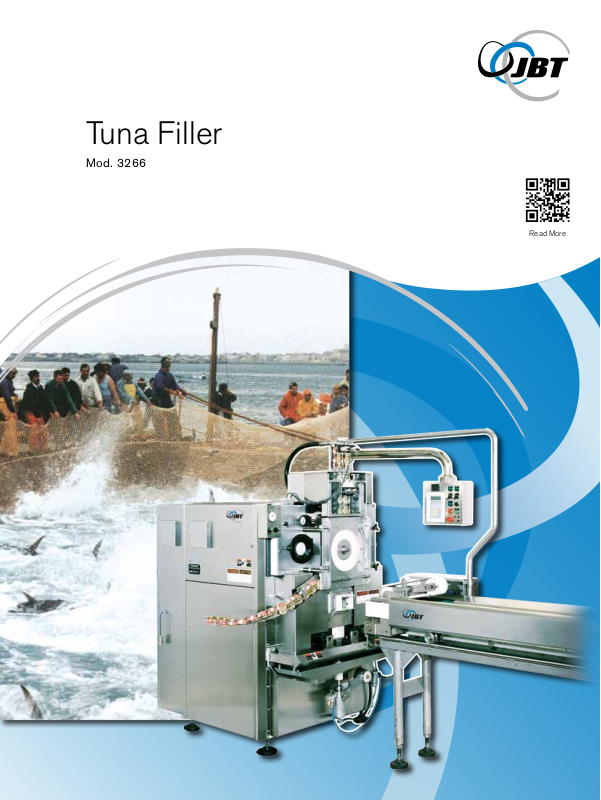

JBT 3266 User Manual

Tuna Filler

Mod. 3266

Read More

Quality

Pre-cooked cleaned tuna is gently placed
and transfered to slicing knives to obtain
good “in can” appearance.

• Can handle all tuna species

• Can handle all types of tuna, loins, chunks

• Able to produce solid fancy and chunk

• Reduced investment costs for different

Accuracy

Pre-cut tuna is then brought to a density for
accurate weight control.

• High filling accuracy resulting in major cost

• Flexible density control to maximise liquid

Speed/Efficiency

High speed forming parts that shape tuna
tablets and gently transfer them to the con-
tainer.

• Low filling cost per can

• Less equipment required due to high

• Less labour cost, only one operator needed

• Floor space savings.

Tuna Table Can Size Capacity Utilities

min. tuna tablet Ø mm 55 min. can Ø mm 65 (209) Ø mm 65 (209) 300 CPM Electrical power: 7,5 kW
max. tuna tablet Ø mm 77 max. can Ø mm 87 (307) Ø mm 87 (307) 240 CPM Air at 6 bar 250 nl/min
min. tuna tablet H mm 12 min. can H mm 26 (100) Total weight 2350 Kg
max. tuna tablet H mm 30 max. can H mm 46 (113)

Specification approximate

The Perfect Fill!

How would you describe your
ideal Tuna Filler?

You may want a simple, durable packer with
easy maintenance, easy clean up, easy to
operate, reduced noise level, and why not
visually pleasant.

What value added features
would you want?

You may want maximum canning speed,
minimal product loss, and increased packing
liquid absorption.

How about flexibility?

You may want a filler that accommodates
all species of tuna, produces various pack
styles, and packs different can sizes. Should
all this describe your ultimate filler, then JBT
has the perfect tuna filler for you. We call this
the JBT 3266 Tuna Filler the perfect filler.

JBT’s total commitment to tuna processing
has lead to the development of the JBT 3266
Tuna Filler, an innovative filler that provides:

• High production speed achieved by a
newly developed mechanism that fills two
cans simultaneously and up to 300 cans
per minute (*)

• Increased profitability by keeping
consistent fill weight accuracy and by
reducing the squeeze loss thanks to a
particularly designed transfer system that
keeps the tuna density uniform during the
shaping of the tablet

• Improved reliability by minimizing the
downtime for maintenance and clean up

• Greater versatility by meeting various
packing standards with different species
of tuna in either frozen loins or tuna “round”

• Complete sanitation as all the product
contact parts can be easily disassembled
for accurate clean up to meet regulatory
requirements.

(*) speed referred to 3 oz. can size
