ENGLISH OPERATION MANUAL

OPERATION MANUAL

Thank you for buying this SYNQ®product. To take full advantage of all possibilities, please read these
operating instructions very carefully.

FEATURES

This unit is radio-interference suppressed. This appliance meets the requirements of the current European
and national guidelines. Conformity has been established and the relevant statements and documents have
been deposited by the manufacturer.

 A real breakthrough in professional amplifier technology: Synq introduces a new range of CLASS-D

AMPLIFIERS with exceptional power and competitive pricing!

 The extremely high efficiency, reduced power waste and very low heat dissipation are the main

advantages of these PWM-amplifiers!

 Incredible space savings for mobile applications: enclosure only 1unit high!
 Incredible low weight: Digit 1K0 = 3,3kg, Digit 2K2 = 5,5kg, Digit 3K6 = 5,6kg!
 Extremely high power output:

o Digit 1K0: 2x 540Wrms @ 4ohms
o Digit 2K2: 2x 1100Wrms @ 4ohms
o Digit 3K6: 2x 1800Wrms @ 4ohms

 Output in bridge mode:

o Digit 1K0: 1080Wrms @ 8ohms
o Digit 2K2: 2200Wrms @ 8ohms
o Digit 3K6: 3600Wrms @ 8ohms

 All the protections you can think of for professional use:

o Signal + current limiters
o Overload protection
o Short circuit current protection
o DC protection
o Thermal protection
o AC, VHF protection
o Soft start
o …

 Very powerful bass response, also perfect for subwoofers!
 Switchable 30Hz low cut filter eliminates unwanted, power consuming, subsonic frequencies.
 3 different working modes: stereo, bridge mode, mono mode (inputs linked)
 Input sensitivity: 26 dB / 32 dB / 1,4 V
 Balanced in/outputs on XLR
 2 Speakon connectors (left and right outputs)
 1 separate output for bridge mode

BEFORE USE

 Before you start using this unit, please check if there’s no transportation damage. Should there be any, do

not use the device and consult your dealer first.

 Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary

for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused
by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects
or problems caused by disregarding this user manual.

 Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user

manual.

 To protect the environment, please try to recycle the packing material as much as possible.

ENGLISH OPERATION MANUAL

Check the contents:

Check that the carton contains the following items:

 User manual
 Digit Amplifier
 Power cable

SAFETY INSTRUCTIONS:

CAUTION

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the
use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions in the literature accompanying this
appliance.

This symbol means: indoor use only

This symbol means: Read instructions

 To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
 To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when

bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full
performance or may even cause damages.

 This unit is for indoor use only.
 Don’t place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be

placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit,
immediately disconnect the mains power.

 No naked flame sources, such as lighted candles, should be placed on the appliance.
 Don’t cover any ventilation openings as this may result in overheating.
 Prevent use in dusty environments and clean the unit regularly.
 Keep the unit away from children.
 Inexperienced persons should not operate this device.
 Maximum save ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures.
 Minimum distances around the apparatus for sufficient ventilation is 10cm.
 Always unplug the unit when it is not used for a longer time or before you start servicing.
 The electrical installation should be carried out by qualified personal only, according to the regulations for

electrical and mechanical safety in your country.

 Check that the available voltage is not higher than the one stated on the rear panel of the unit.
 The socket inlet shall remain operable for disconnection from the mains.
 The power cord should always be in perfect condition. Switch the unit immediately off when the power cord

is squashed or damaged.

 Never let the power-cord come into contact with other cables!
 When the power switch is in OFF position, this unit is not completely disconnected from the mains!
 This appliance must be earthed to in order comply with safety regulations.
 In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside.
 Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same

type and electrical specifications!

 In the event of serious operating problems, stop using the appliance and contact your dealer immediately.
 Please use the original packing when the device is to be transported.
 Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

CAUTION: To reduce the risk of electric shock, do not
remove the top cover. No user-serviceable parts inside.
Refer servicing to qualified service personnel only.

SYNQ

®

1/36 DIGIT amplifiers

SYNQ

®

2/36 DIGIT amplifiers

ENGLISH OPERATION MANUAL

ENGLISH OPERATION MANUAL

INSTALLATION GUIDELINES:

 Install the unit in a well-ventilated location where it will not be exposed to high temperatures or humidity.
 Placing and using the unit for long periods near heat-generating sources such as amplifiers, spotlights, etc.

will affect its performance and may even damage the unit.

 The unit can be mounted in 19-inch racks. Attach the unit using the 4 screw holes on the front panel. Be

sure to use screws of the appropriate size. (screws not provided)

 Take care to minimize shocks and vibrations during transport.
 When installed in a booth or flight case, please make sure to have good ventilation to improve heat

evacuation of the unit.

 To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when

bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full
performance.

CLEANING THE APPLIANCE:

Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not
use volatile liquids such as benzene or thinner which will damage the unit.
Clean the ventilation holes regularly with a vacuum cleaner. This increases the cooling capacity of the
amplifier fans and helps preventing temperature overheat.

CONNECTIONS

Be sure to turn off the unit before you make changes to the wiring. For the signal inputs we recommend
using the XLR-connections. Use good quality signal cables to ensure excellent audio quality. For the
speakers you must use the Speakon®outputs. In the description of the unit you will find more information on
how to connect the amplifier.

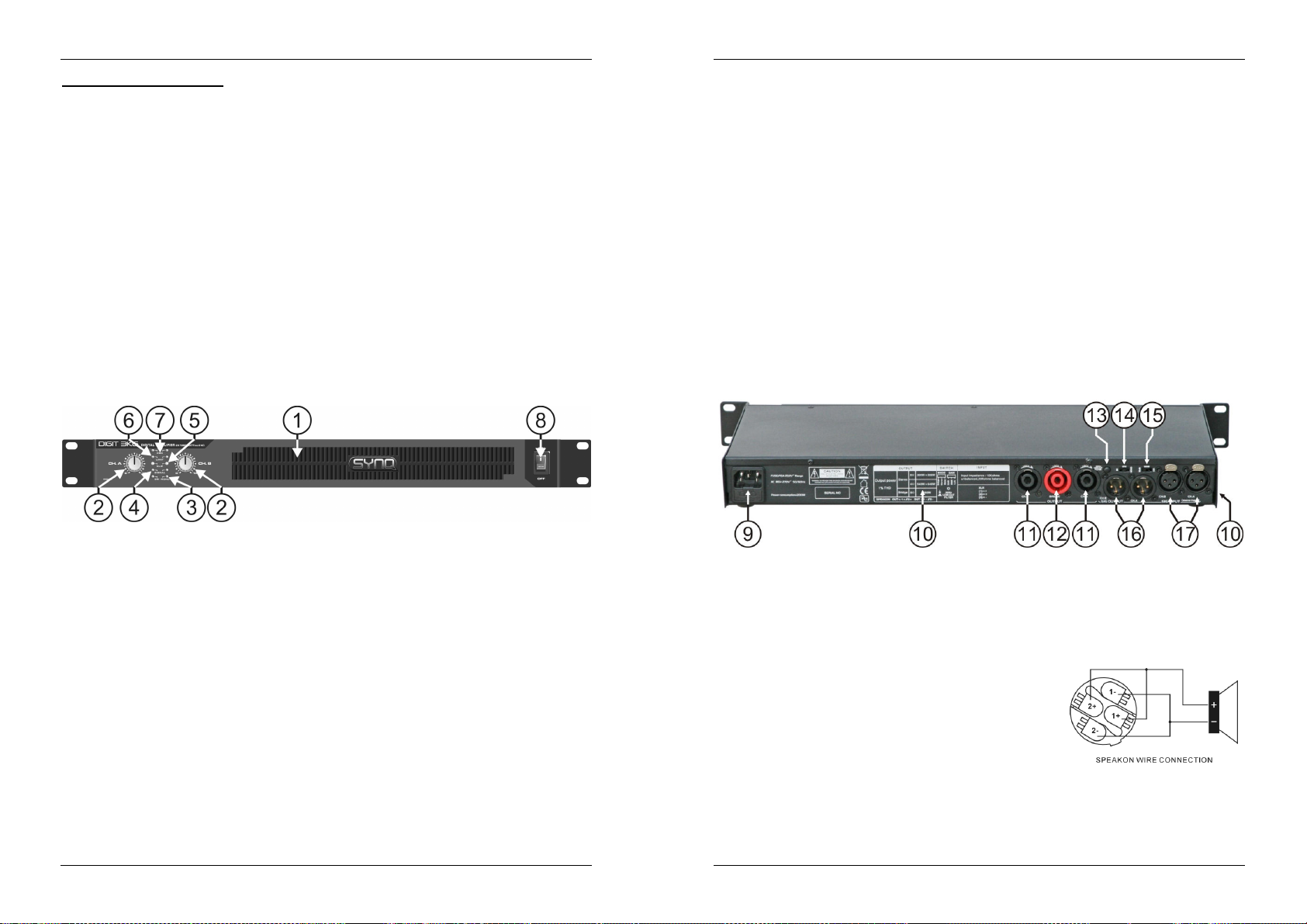

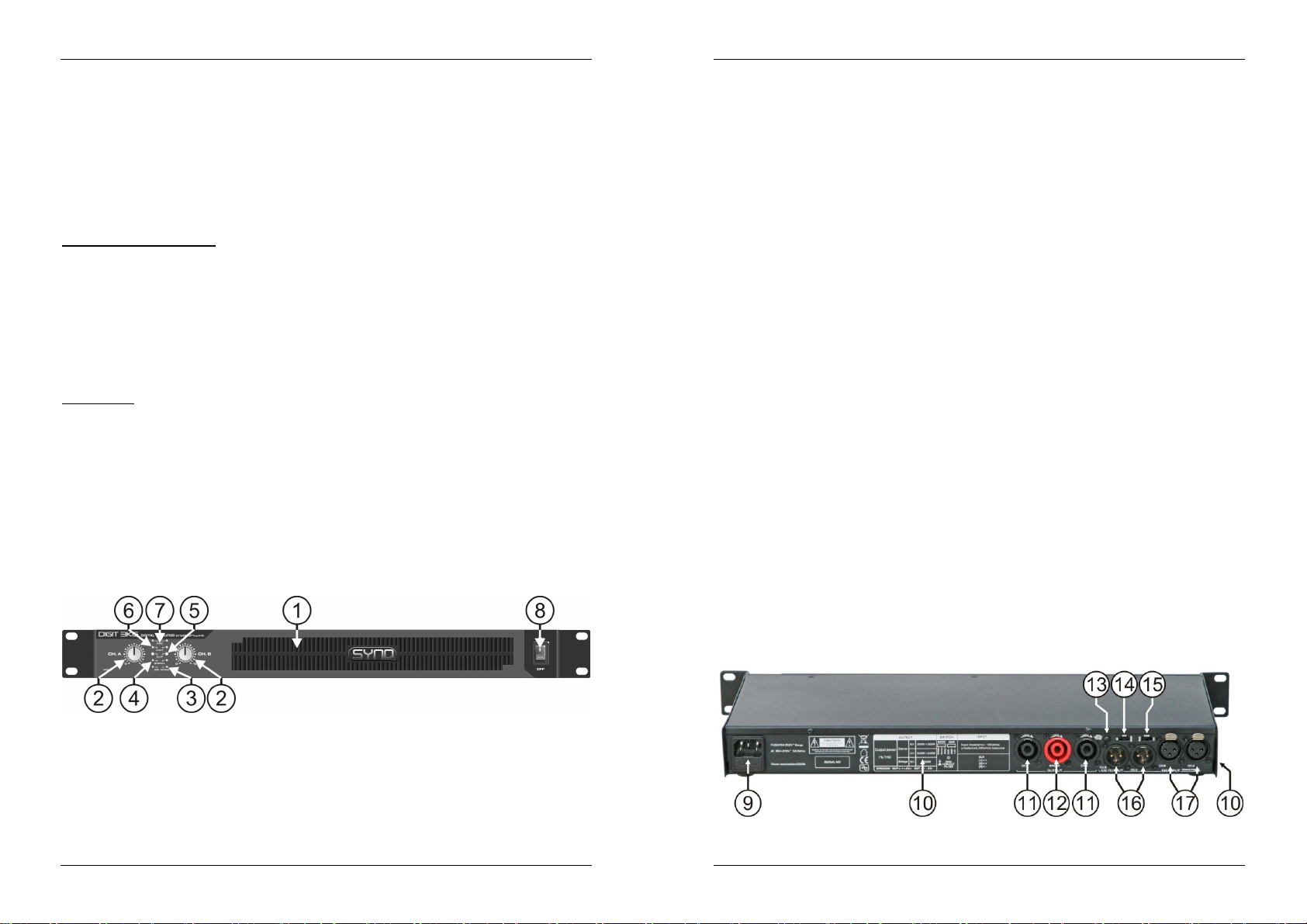

FUNCTIONS (FRONT)

3. OPERATION MODE LEDS: These LEDs indicates the operation mode. Switch (14) on the rear panel is

used to choose one of these 3 possible modes:

 STEREO MODE: Both LEDs are off. This is the most common mode, both channels are working

separately.

 MONO MODE: ‘MONO’ LED is lit. Basically this is identical to stereo mode but the inputs of both

channels are linked so the output will be mono. In this case you only need to use the input of the
left channel to drive both output channels.

 BRIDGE MODE: ‘BRI’ LED is lit. Both channels are linked in “bridge mode” to obtain a mono

4. SIGNAL LEDS: these LEDs indicate that a music signal is present at the inputs.

5. CLIP LEDS: The LEDs will light up in the following situations:

6. LIMIT LEDS: [only on DIGIT 2K2 and DIGIT 3K6] these LEDs are lit in the following situations:

7. PROTECT LEDS: The protection LED is on in the following situations:

8. MAINS SWITCH: Used to turn the amplifier on and off. A few seconds after switching on the amplifier it

output with much higher power.

 When the output signal has reached a high level which can result in distortion (clipping).

Meanwhile the signal limiters are working to keep the distortion low.

 While short-circuit happened in the output section. Turn-off the amplifier, check the speaker and

output wiring to find the problem(s).

 When the output power exceeds the safe working range of the amplifier, the LIMIT LEDs are lit

while the current limiters come in action to reduce the dynamic range (current) of the output and
bring the amplifier back to its safe working range. In this case you are urged lower the input!

 While short-circuit happened in the output section and the amplifier is in protect mode. Turn-off the

amplifier, check the speaker and output wiring to find the problem(s).

 During the first seconds after switching on the amplifier.
 When the temperature of the power stage becomes too high.
 In case of a technical defect: DC protection!
 While switching the amplifier off, the “protect led” turns on for a short time.

is ready for operation.

FUNCTIONS (rear)

1. VENTILLATION HOLES: during its operation the amplifier produces heat that needs to be dissipated.

The fans inside the amplifier must be able to evacuate the heat in the most effective way. Therefore is it
very important not to cover any of the ventilation openings as this may result in overheating. Clean the
ventilation holes regularly with a vacuum cleaner. This increases the cooling capacity of the amplifier
fans and helps preventing temperature overheat.

2. GAIN CONTROLS: These potentiometers are used to control the input sensitivity of the amplifier. Each

channel has its own control.
You can use these controls to set the maximum sound level of your setup:

 Turn both controls on the amplifier to the left.
 Put on some music on and make sure the VU meters on your mixer are at 0dB. (from time to time

the red zone is lit)

 Set the Master output from your mixer to maximum.
 Open the Gain controls from the amplifier until the maximum desired sound level is reached.
 Make sure nobody can reach the Gain controls of the amplifier.

You have just set the maximum level the DJ is able to produce. Your neighbors will be glad… (in some
cases the DJ is not )

Note: In Mono and Bridge mode, only the gain control of the left channel is used to adjust the input
sensitivity.

®

SYNQ

3/36 DIGIT amplifiers

9. MAINS INPUT with IEC socket and integrated fuse holder, connect the supplied mains cable here.

10. FAN & VENTILLATION HOLES: during its operation the amplifier produces heat that must be

dissipated. The fans inside the amplifier must be able to evacuate the heat in the most effective way.
Therefore is it very important not to cover any of the ventilation openings as this may result in
overheating. On DIGIT 1K0 the ventilation holes are located on the left side, on DIGIT 2K2/3K6 the
ventilation holes are located on the back.

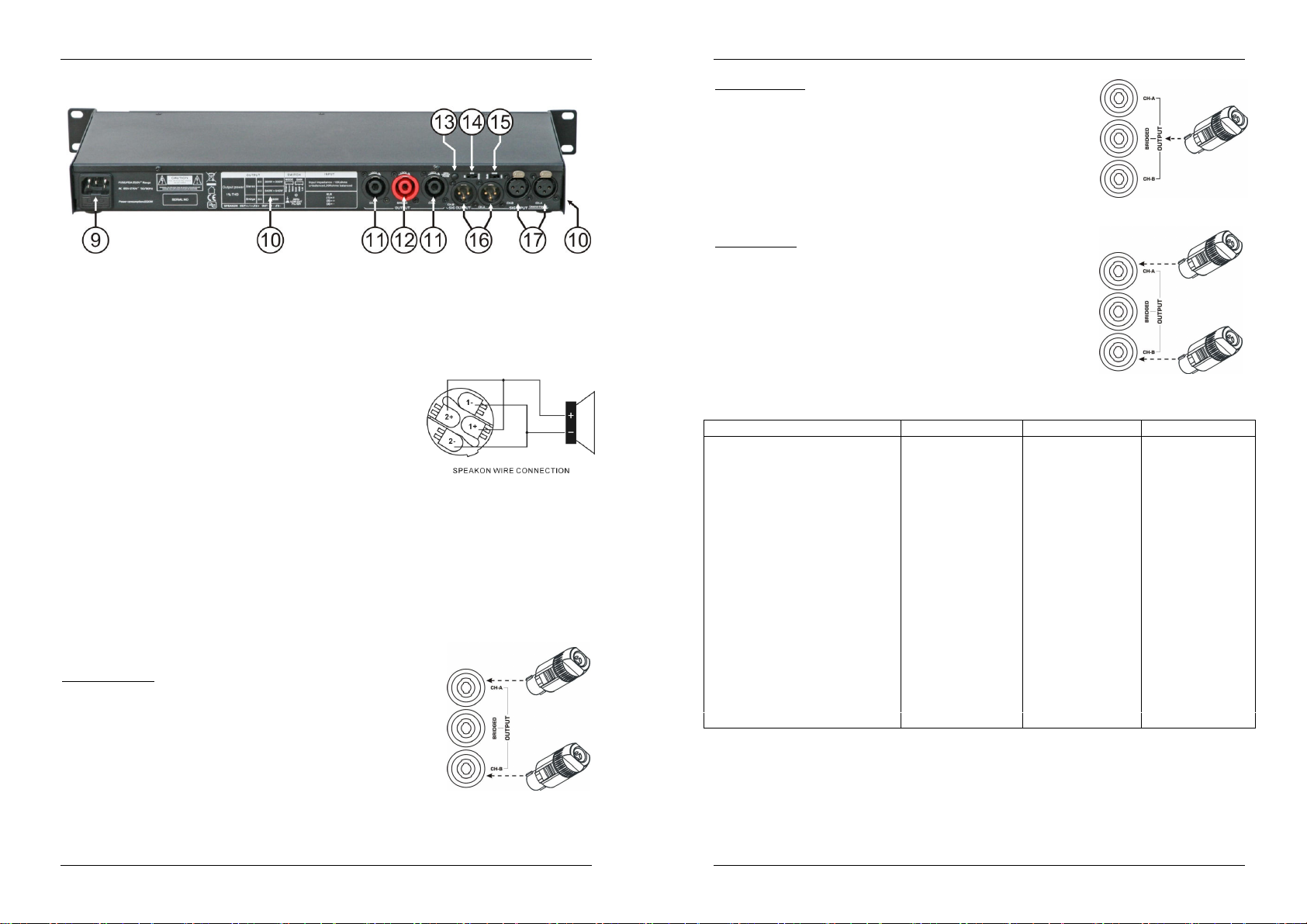

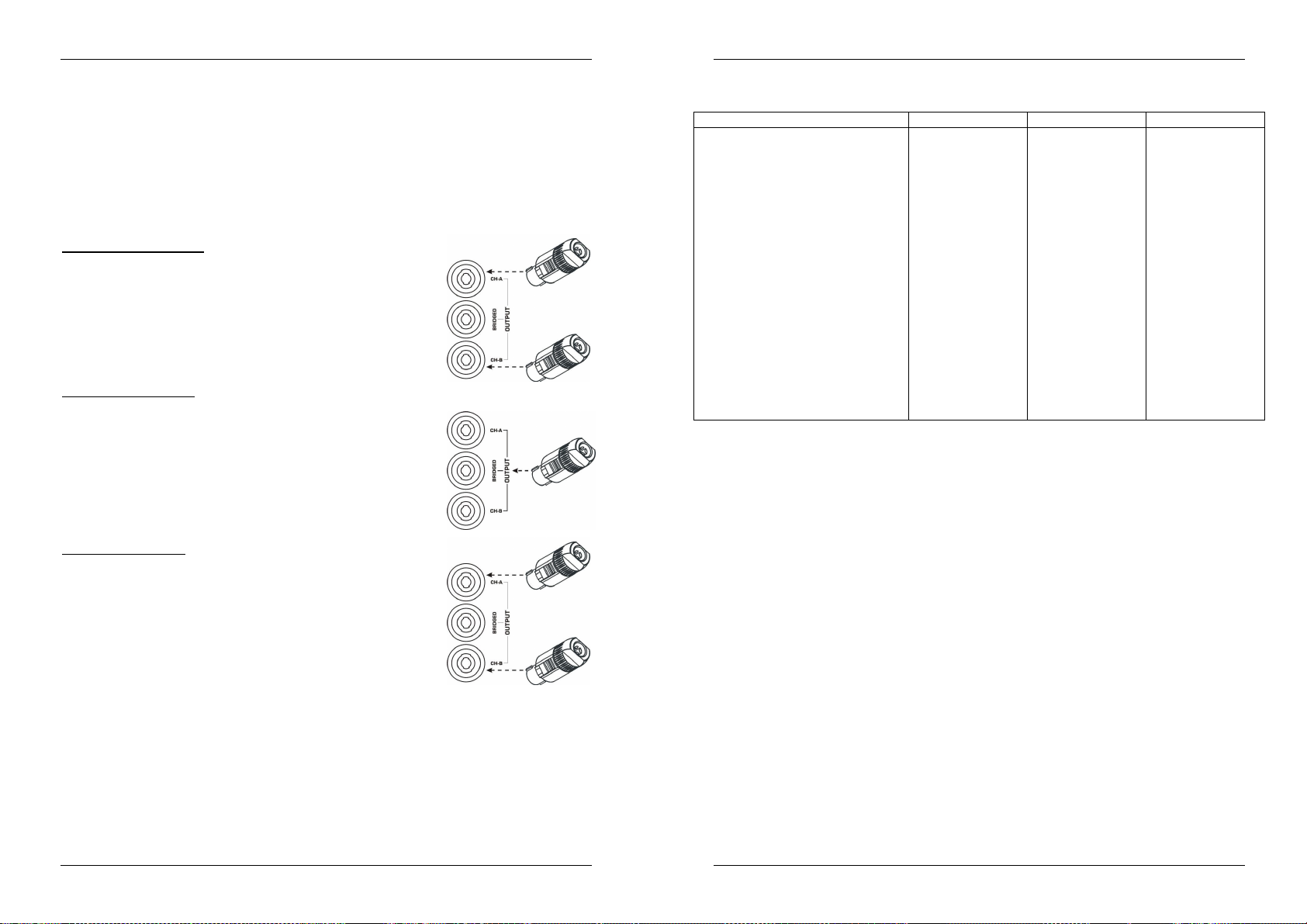

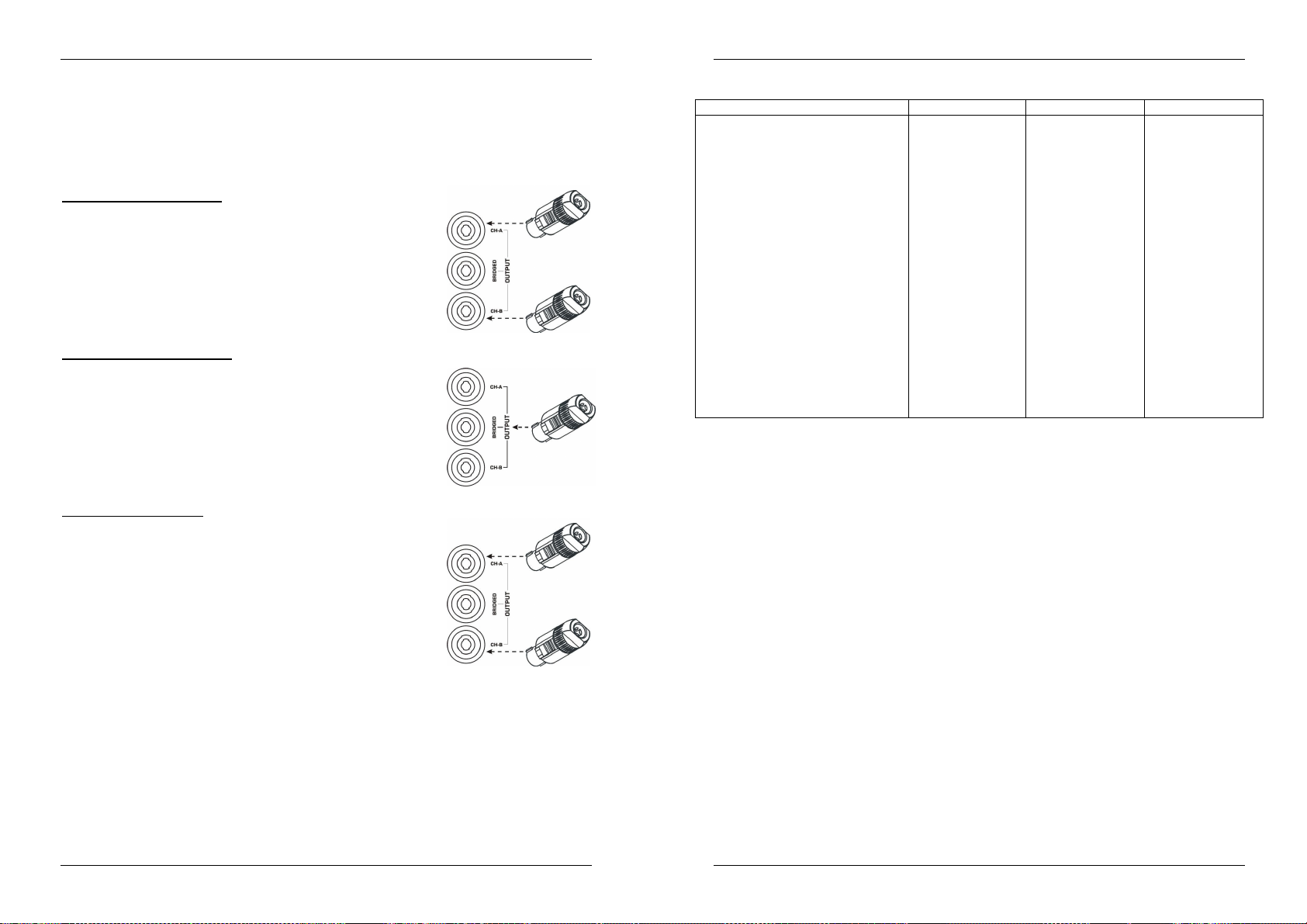

11. L+R SPEAKON OUTPUTS: use these Speakon®connectors to connect your speaker cabinets

(impedance >4ohm) in stereo or mono mode. Wiring of these connectors is as follows:

 POS(+) = Speakon connector PIN1+ and PIN2+
 NEG(-) = Speakon connector PIN1- and PIN2-

12. BRIDGE OUTPUT: use this connector to connect your speaker

cabinet (impedance >8ohm) in bridge mode. Wiring of this
connector is as follows:

 POS(+) = connector PIN1+ and PIN2+
 NEG(-) = connector PIN1- and PIN2-

®

SYNQ

4/36 DIGIT amplifiers

ENGLISH OPERATION MANUAL

ENGLISH OPERATION MANUAL

13. 30Hz LOW CUT FILTER: eliminates unwanted subsonic frequencies under 30Hz. In most cases these

frequencies only consume a lot of energy without any added value to the music.

14. OPERATION MODE switch: Used to set the operation mode of the amplifier. The most common

operation mode is “stereo”. If you need more power, you can operate the amplifier in bridge mode. In
mono mode you only have to connect the left input to drive both outputs. Refer also to n° 3 for more
information.

15. INPUT SENSITIVITY SWITCH: you can choose 3 different input levels: 26 dB / 32 dB / 1,4 V

16. BALANCED XLR OUTPUTS: Can be used to send the signal to the next amplifier. Pin1: signal ground,

Pin2: signal+, Pin3: signal -

17. BALANCED XLR INPUTS: Pin1: signal ground, Pin2: signal+, Pin3: signal –

HOW TO USE

STEREO OPERATION:

 Connect the audio signal to the inputs (15 or 16)
 Set the operation mode switch (13) to “stereo”
 Connect the matching speakers to the L+R Speakon®outputs (11)
 Make sure the mains voltage matches 230Vac before connecting the

mains cable to the earthed wall socket.

 Set both input gains (2) to zero
 Make sure there’s a music signal at the input
 Turn the amplifier on (8)
 Adjust the input gains (2) to the desired level

BRIDGE OPERATION:

 Connect the audio signal to the left input (15 or 16)
 Set the operation mode switch (13) to “bridge”
 Connect the matching speaker(s) to the Bridge output (12)
 Make sure the mains voltage matches 230Vac before connecting the

mains cable to the earthed wall socket

 Set both input gains (2) to zero
 Make sure there’s a music signal at the left input
 Turn the amplifier on (8)
 Adjust the left input gain (2) to the desired level, leave the right channel

gain to zero.

MONO OPERATION:

 Connect the audio signal to the input of the left channel (15 or 16)
 Set the operation mode switch (13) to “mono”
 Connect the matching speakers to the L+R Speakon®outputs (11)
 Make sure the mains voltage matches 230Vac before connecting the

mains cable to the earthed wall socket

 Set both input gains (2) to zero
 Make sure there’s a music signal at the input
 Turn the amplifier on (8)
 Adjust the left input gain (2) to the desired level, leave the right channel

gain to zero.

SPECIFICATIONS

Digit-1K0 Digit-2K2 Digit-3K6

Power stereo 8Ω (1kHz , THD+N<0,1%)
Power stereo 4Ω (1kHz , THD+N<0,1%)
Power bridge 8Ω (1kHz, THD+N<0,1%) 1x 1080Wrms 1x 2200Wrms 1x 3600Wrms
Power mono 8Ω (1kHz, THD +N<0,1%)
Power mono 4Ω (1kHz, THD +N<0,1%)
Power efficiency
Freq. Resp. (+/-1dB) 5 – 36.000Hz 5 – 36.000Hz 5 – 36.000Hz
Input Sensitivity
Input impedance unbalanced
Input impedance balanced
S/R ratio (A-Weighted) >100dB >100dB >100dB
Damping factor (5Hz-1kHz)
Slew Rate
Cooling
Signal inputs Balanced XLR Balanced XLR Balanced XLR
Signal outputs
Power supply
Power consumption (max peak)
Dimensions (WxHxD mm)
Weight (kg) 3,3kg 5,5kg 5,6kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.beglec.com

2x 300Wrms 2x 650Wrms 2x 1050Wrms
2x 540Wrms 2x 1100Wrms 2x 1800Wrms

2x 300Wrms 2x 650Wrms 2x 1050Wrms
2x 540Wrms 2x 1100Wrms 2x 1800Wrms

>90% >90% >90%

26 dB / 32 dB / 1,4 V 26 dB / 32 dB / 1,4 V 26 dB / 32 dB / 1,4 V

10 kΩ 10 kΩ 10 kΩ
20 kΩ 20 kΩ 20 kΩ

280 280 280

29V/uS 29V/uS 29V/uS

variable speed fan variable speed fan variable speed fan

Balanced XLR Balanced XLR Balanced XLR

AC85-270V / 50-60Hz AC230V / 50Hz AC230V / 50Hz

1200 Watt 3200 Watt 3900 Watt

482x44x215 (19"/1U) 482x44x301 (19"/1U) 482x44x301 (19"/1U)

SYNQ

®

5/36 DIGIT amplifiers

SYNQ

®

6/36 DIGIT amplifiers

FRANCAIS MODE D’EMPLOI

MODE D’EMPLOI

Nous vous remercions d’avoir acheté ce produit SYNQ®. Veuillez lire ce mode d’emploi très attentivement
afin de pouvoir exploiter toutes les possibilités de cet appareil.

EN VOUS INSCRIVANT POUR LA LETTRE D’INFORMATION VOUS SEREZ TOUJOURS

TENU AU COURANT DES DERNIERES NOUVELLES CONCERNANT NOS PRODUITS:

NOUVEAUTES, ACTIONS SPECIALES, JOURNEES PORTES OUVERTES, ETC.

 SURFEZ SUR: WWW.BEGLEC.COM 

CARACTERISTIQUES

Cet appareil ne produit pas d’interférences radio. Il répond aux exigences nationales et européennes. La
conformité a été établie et les déclarations et documents correspondants ont été déposés par le fabricant.

 Une vraie révolution dans la technologie de l’amplification professionnelle: Synq introduit une nouvelle

gamme d’amplificateurs CLASSE-D : une puissance exceptionnelle pour un prix compétitif!

 L’extrême efficacité, la perte d’énergie réduite et une trais faible dissipation de chaleur sont les principaux

atouts de ces amplificateurs PWM!

 Un gain de place considérable pour les applications mobiles: hauteur de seulement 1unité!
 Poids-plume: Digit 1K0 = 3,3kg, Digit 2K2 = 5,5kg, Digit 3K6 = 5,6kg!
 Extrêmement puissant:

o Digit 1K0: 2x 540Wrms @ 4ohms
o Digit 2K2: 2x 1100Wrms @ 4ohms
o Digit 3K6: 2x 1800Wrms @ 4ohms

 Sortie en mode Bridge:

o Digit 1K0: 1080Wrms @ 8ohms
o Digit 2K2: 2200Wrms @ 8ohms
o Digit 3K6: 3600Wrms @ 8ohms

 Possède toutes les protections imaginables pour une utilisation professionnelle:

o Limiteurs Signal + courant
o Protection surcharge
o Protection court-circuit (courant)
o Protection CC
o Protection thermique
o Protection CA, VHF
o Soft start

 Réponse des basses très puissante, également pour les subwoofers!
 Filtre coupe-bas 30Hz qui élimine les fréquences subsoniques inutiles et gourmands en énergie.
 3 différent modes de fonctionnement: stéréo, bridge mode, mono mode (entrées reliés ensemble)
 Sensibilité d’entrée: 26 dB / 32 dB / 1,4 V
 Entrées / sorties symétriques (XLR)
 2 connecteurs Speakon (sortie gauche et droite)
 1 sortie supplémentaire pour le mode de fonctionnement ‘bridge’

AVANT L’UTILISATION

Quelques instructions importantes:

 Avant d’utiliser cet appareil, assurez-vous de l’absence de dommages liés au transport. En cas de

dommages, n’utilisez pas l’appareil et contactez le vendeur.

 Important: Cet appareil a quitté notre usine en parfaite condition et bien emballé. Il est primordial que

l’utilisateur suive les instructions de sécurité et avertissements inclus dans ce manuel. La garantie ne
s’applique pas en cas de dommage lié à une utilisation incorrecte. Le vendeur ne prend pas la
responsabilité des défauts ou de tout problème résultant du fait de n’avoir pas tenu compte des mises en
garde de ce manuel.

FRANCAIS MODE D’EMPLOI

 Conservez ce manuel dans un endroit sûr pour toute consultation future. Si vous vendez l’appareil,

assurez-vous d’y joindre ce manuel également.

 Afin de protéger l’environnement, merci de recycler les emballages autant que possible.

Vérifiez le contenu:

Vérifiez si l'emballage contient bien les articles suivants :

 Mode d'emploi
 Amplificateur DIGIT
 Câble d’alimentation

INSTRUCTIONS DE SECURITE:

ATTENTION:afin de réduire le risque d’électrocution,

CAUTION

La flèche dans un triangle met l'utilisateur en garde contre la présence de haute tension sans
isolation dans l'appareil, ce qui peut causer un risque d'électrocution.

Un point d'exclamation dans un triangle prévient de la présence d'instructions relatives au
fonctionnement et à la maintenance se trouvant dans le manuel fourni avec l'appareil.

Ce symbole signifie: uniquement pour usage à l'intérieur.

Ce symbole signifie : Lire le mode d’emploi.

 Afin d’éviter tout risque d’incendie ou de décharge électrique, ne pas exposer cet appareil à la pluie ou

l’humidité.

 Pour éviter la formation de condensation à l’intérieur de l’appareil, patientez quelques minutes pour laisser

l’appareil s’adapter à la température ambiante lorsqu’il arrive dans une pièce chauffée après le transport.
La condensation empêche l'appareil de fonctionner de manière optimale, et elle peut même causer des
dommages.

 Cet appareil est destiné à une utilisation à l’intérieur uniquement.
 Ne pas insérer d’objet métallique ou renverser de liquide dans l’appareil. Aucun objet contenant un liquide,

tels que des vases, ne peut être placé sur cet appareil. Cela risquerait de provoquer une décharge
électrique ou un dysfonctionnement. Si un corps étranger est introduit dans l’appareil, déconnectez
immédiatement de la source d’alimentation.

 Aucune source de flamme nue, telle que des bougies allumées, ne peut être placée sur l'appareil.
 Ne pas couvrir les orifices de ventilation, un risque de surchauffe en résulterait.
 Ne pas utiliser l'appareil dans un environnement poussiéreux et le nettoyer régulièrement.
 Ne pas laisser l'appareil à portée des enfants.
 Les personnes non expérimentées ne doivent pas utiliser cet appareil.
 La température ambiante maximale d’utilisation de l’appareil est de 40°C. Ne pas l’utiliser au-delà de cette

température.

 Rien ne doit se trouver contre l'appareil : la distance minimum pour en permettre une ventilation suffisante

est de 10cm.

 Débranchez toujours l’appareil si vous ne l’utilisez pas de manière prolongée ou avant d’entreprendre des

réparations.

 Les installations électriques ne peuvent être faites que par du personnel qualifié et conformément aux

règlements de sécurité électrique et mécanique en vigueur dans votre pays.

 Assurez-vous que la tension d’alimentation de la source d’alimentation de la zone dans laquelle vous vous

trouvez ne dépasse pas celle indiquée à l’arrière de l’appareil.

 La prise doit toujours être accessible pour que le cordon secteur puisse être enlevé à tout moment.
 Le cordon d’alimentation doit toujours être en parfait état. Mettez immédiatement l’unité hors tension si le

cordon devait être écrasé ou endommagé.

 Ne laissez jamais le cordon d’alimentation entrer en contact avec d’autres câbles !
 Quand l’interrupteur principal est en position OFF, cet appareil n'est pas complètement isolé du courant

230V !

n’enlevez jamais le couvercle de l’appareil. Il n’y a aucune
pièce à l’intérieur de l’appareil que vous puissiez
remplacer vous-même. Confiez l’entretien uniquement à
des techniciens qualifiés.

SYNQ

®

7/36 Amplificateurs DIGIT

SYNQ

®

8/36 Amplificateurs DIGIT
