JBL Synthesis 530 User Manual
JBl® studiO 5 series
loudspeakers
Owner’s Manual
thank YOu FOr ChOOsing this JBl® PrOduCt
For more than 60 years, JBL® engineers have been involved in every aspect of music and film recording and
reproduction, from live performances to the recordings you play on the go and in your home, car or office.
We’re confident that the JBL system you have chosen will provide every note of enjoyment you expect – and that when
you think about purchasing additional audio equipment for your home, car or office, you will once again choose JBL
products.
Please take a moment to register your new product on our Web site, www.jbl.com. Registering enables us to keep
you posted on our latest advancements and helps us to understand our customers and build products that meet their
needs.
inCluded iteMs
One Studio 590 speaker; one
Studio 590
horn cover; two port tube
inserts; four metal spikes
One Studio 580 speaker; one
Studio 580
horn cover; one port tube
insert; four metal spikes
Studio 570
One Studio 570 speaker; one
horn cover; one port tube
insert; four metal spikes
Studio 520C
One Studio 520C speaker;
two horn covers; one grille
removal tool; one card with
adhesive rubber feet
2
Studio 530
Two Studio 530 speakers;
two horn covers; two port
tube inserts; two cards with
adhesive rubber feet
PlaCeMent
STUDIO 590/STUDIO 580/STUDIO 570/STUDIO 530 – LEFT AND RIGHT CHANNELS
For the best results, place the speakers 6 – 10 feet (1.8m – 3m) apart. Angling the speakers toward the listening
position can improve the stereo imaging. The speakers will produce the most accurate stereo soundstage when the
angle between the listener and the speakers is between 40 and 60 degrees.
Englis h
6 – 10 ft
(1.8m – 3m)
>20 in
(>51cm)
40° – 60°
Generally, bass output will increase as the speaker is moved closer to a wall or corner.
For the best performance, we recommend that you place the speakers at least 20 inches (51cm) away from the side walls.
• Position Studio 530 bookshelf speakers so that the centers of their horns are approximately at ear level. Peel the
adhesive rubber feet from the card and apply them to the bottoms of the speakers.
Rubber
Feet
www.jbl.com
3
USING THE SUPPLIED SPIKES (STUDIO 590/STUDIO 580/STUDIO 570)
Four metal spikes are supplied for use when you place the speaker on a carpeted surface. Using the spikes decouples
the speaker from the floor and prevents unwanted acoustic damping.
To insert the spikes:
1. Gently lay the speaker on its side (not its front or back) on a soft, nonabrasive surface.
2. Unscrew and remove the rubber bumpers from the speaker’s feet.
3. Screw each spike into the threaded insert in each foot. Make sure all four spikes are screwed in completely for stability.
Note: NEVER drag the speaker to move it, as this will damage the spikes, the feet and/or the speaker cabinet itself.
Always lift the speaker and carry it to its new location.
STUDIO 520C
You should place the 520C center speaker directly above or below the center of your TV screen. The center of the
speaker’s horn should be no more than 2 feet (61cm) above or below the centers of the front left and front right
speakers’ horns. If your TV set is deep enough, you can set the center speaker on top of the TV, with the speaker’s
front edge even with the TV’s front edge.
Studio 520C
Center Speaker
Studio
590/580/570/530
Front Left Speaker
• Peel the adhesive rubber feet from the card and apply them to the bottom of the speaker.
< 2ft (61cm)
TV
Studio
590/580/570/530
Front Right Speaker
Rubber
Feet
4
STUDIO 530 – SURROUND CHANNELS (5.1-CHANNEL SYSTEM)
When you use Studio 530 speakers as surround-channel speakers in a 5.1-channel system, place them slightly behind
the listening position, facing each other. Ideally, they should be 3 – 4 feet (0.9m – 1.2m) above the floor. An alternate
location would be on a wall behind the listening position, facing forward. The surround speakers should not call
attention to themselves while they’re playing. Experiment with their placement until you hear a diffuse, ambient sound
accompanying the sounds that you hear from the front left, front right and center speakers.
Englis h
Studio
590/580/
570/530
Front Left
Speaker
Studio 530
Surround Left
Speaker
TV
Center Speaker
Studio 520C
Studio
590/580/
570/530
Front Right
Speaker
Studio 530
Surround Right
Speaker
Surround Right
Speaker
3 – 4 ft
(0.9m – 1.2m)
Surround Left
Speaker
www.jbl.com

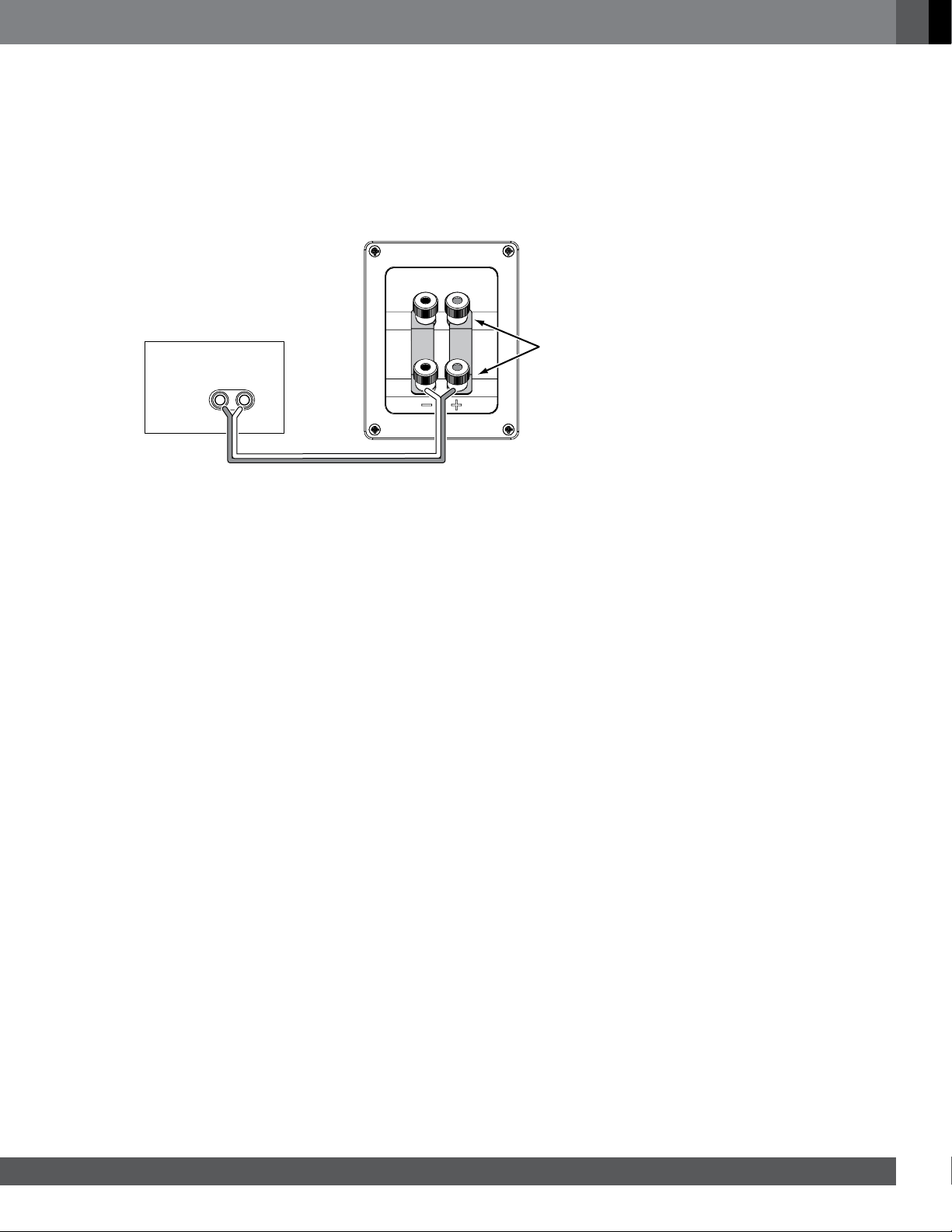

5
